SIP Configuration Guide, Cisco IOS Release 15M&T
Configuring SIP ISDN Features
Downloads: This chapterpdf (PDF - 1.74MB) The complete bookPDF (PDF - 9.58MB) | The complete bookePub (ePub - 3.31MB) | Feedback

Configuring SIP ISDN Features

Contents

Configuring SIP ISDN Features

This chapter discusses the following SIP features that support ISDN:

  • ISDN Calling Name Display
  • Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks
  • SIP Carrier Identification Code (CIC)
  • SIP: CLI for Caller ID When Privacy Exists
  • SIP: ISDN Suspend/Resume Support
  • SIP PSTN Transport Usingthe Cisco Generic Transparency Descriptor (GTD)

Feature History for ISDN Calling Name Display

Release

Modification

12.3(4)T

This feature was introduced.

Feature History for Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks

Release

Modification

12.3(7)T

This feature was introduced.

Feature History for SIP Carrier Identification Code

Release

Modification

12.2(11)T

This feature was introduced.

Feature History for SIP: CLI for Caller ID When Privacy Exists Feature

Release

Modification

12.4(4)T

This feature was introduced.

Feature History for SIP: ISDN Suspend/Resume Support

Release

Modification

12.2(15)T

This feature was introduced.

Feature History for SIP PSTN Transport Using the Cisco Generic Transparency Descriptor

Release

Modification

12.3(1)

This feature was introduced.

Finding Support Information for Platforms and Cisco Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to http:/​/​www.cisco.com/​go/​cfn . An account on Cisco.com is not required.

Prerequisites for SIP ISDN Support

ISDN Calling Name Display Feature

  • Configure Generic Transparency Descriptor (GTD) on your SIP network.

Note


For information on SIP support for communicating ISDN information using GTD bodies, see the "SIP PSTN Transport Using the Cisco Generic Transparency Descriptor".


  • Enable the Remote-Party-ID header on your SIP network. In general, Remote-Party-ID is enabled by default and no configuration is necessary. The Remote-Party-ID header provides translation capabilities for ISDN screening and presentation indicators in call setup messages.

Note


For information on the Remote-Party-ID header, see the “SIP Extensions for Caller Identity and Privacy” section.


  • Use this feature in a uni-directional deployment beginning with an originating gateway. For example, the flow must be from a gateway to a phone or gateway to an application server.

Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks Feature

  • Configure the SIP protocol.

SIP: CLI for Caller ID When Privacy Exists

  • Establish a working IP network.
  • Configure VoIP.
  • Ensure that the gateway has voice functionality configured for SIP.

Note


For information about configuring voice functionality, see the Cisco IOS Voice Configuration Library.


SIP: ISDN Suspend/Resume Support Feature

  • Configure ISDN switch types on the gateway to support Suspend and Resume messages.

SIP PSTN Transport Using the Cisco Generic Transparency Descriptor Feature

  • Configure your VoIP network, including the following components:
    • Cisco PGW 2200 signaling controller (SC) in Cisco MGC Software Release 9.2(2)

Note


The Cisco PGW 2200 SC is formerly known as the Cisco Media Gateway Controller (MGC) and the Cisco SC 2200 signaling controller.


    • Cisco Signaling Link Terminal (Cisco SLT), which performs Signaling System 7 (SS7) signal preprocessing for a Cisco PGW 2200 SC
    • Cisco IOS gateways to allow sending and processing of SS7 ISUP messages in GTD format: Cisco IOS Release 12.3(1)
    • Cisco SS7 Interconnect for Voice Gateways solution

Restrictions for SIP ISDN Support

SIP Carrier Identification Code Feature

  • SIP gateways receive the CIC parameter in SIP INVITE or 302 REDIRECT messages only.
  • SIP gateways do not add or configure CIC parameters.
  • The TNS IE in the ISDN SETUP message does not map to the CIC parameter in a SIP INVITE request. It is only the CIC parameter that maps to the TNS IE in the outgoing ISDN SETUP message.

Note


The workaround created in Cisco IOS Release 12.3(2)XB is no longer supported with the release of this feature. The workaround handled the CIC parameter by including it in the called-party number. The To header in the SIP INVITE message that contained the called-party number was prefixed with 101xxxx, where xxxx was the CIC parameter. The number was then sent to the ISDN in the SETUP message. When the ISDN received the number, for example, 101032119193921234 the ISDN ignored the 101 and then routed the call to carrier 0321, as if 0321 was in the TNS IE of the outgoing SETUP message. The rest of the number, formatted as the called-party number, was forwarded to the carrier.


  • Support for the CIC parameter is addressed by the expired IETF draft-yu-tel-url-02.txt. The SIP Carrier Identification Code feature does not encompass all areas that are addressed in the draft.

SIP: ISDN Suspend/Resume Support Feature

  • SIP ISDN Suspend/Resume support is available only for ISDN PRI trunks connected at the gateway.

SIP PSTN Transport Using the Cisco Generic Transparency Descriptor Feature

  • Redundant Link Manager (RLM) is a requirement for the SIP PSTN Transport Using the Cisco Generic Transparency Descriptor feature. As a result, only the following platforms that use RLM are supported: Cisco AS5300, Cisco AS5350, and Cisco AS5400.

Note


For information on RLM, see Redundant Link Manager (RLM).


  • SIP-T also transparently transmits ISUP messages across a SIP network, but the process is not supported in this feature.

Restrictions for ISDN UDI to SIP Clear-Channel

The ISDN UDI to SIP Clear-Channel feature is overridden when the bearer-cap [3100hz | speech] command is configured in voice-port configuration mode.

Information About SIP ISDN Support

To configure SIP ISDN support features, you should understand the following concepts:

ISDN Calling Name Display

With releases earlier than Cisco IOS Release 12.2(15)ZJ, when a call came in from the ISDN network to a SIP gateway, the calling name as presented in ISDN Q.931 messages (Setup and/or Facility) was not transported end-to-end over the VoIP cloud to a SIP endpoint (a SIP IP phone). With this feature, SIP signaling on Cisco IOS gateways has been enhanced to update the calling name and number information in SIP headers as per the recommended SIP standards. Also included is the complete translation of ISDN screening and presentation indicators, allowing SIP customers basic caller ID privileges.

Caller ID in ISDN Networks

In ISDN networks, caller ID (sometimes called CLID or ICLID for incoming calling line identification) is an analog service offered by a central office (CO) to supply calling party information to subscribers. Caller ID allows the calling party number and name to appear on a device such as a telephone display.

ISDN messages signal call control and are composed of information elements (IEs) that specify screening and presentation indicators. ISDN messages and their IEs are passed in GTD format. GTD format enables transport of signaling data in a standard format across network components and applications. The standard format enables other devices to scan and interpret the data. The SIP network extracts the calling name from the GTD format and sends the calling name information to the SIP customer.

ISDN and SIP Call Flows Showing the Remote-Party-ID Header

The figure below shows the SIP gateway receiving an ISDN Setup message that contains a Display (or Facility) IE indicating the calling name. Receiving the message initiates call establishment.

The Remote-Party-ID header sent by the SIP gateway identifies the calling party and carries presentation and screening information. The Remote-Party-ID header, which can be modified, added, or removed as a call session is being established, enables call participant privacy indication, screening, and verification.

Figure 1. Calling Name in Display or Facility IE of an ISDN Setup Message

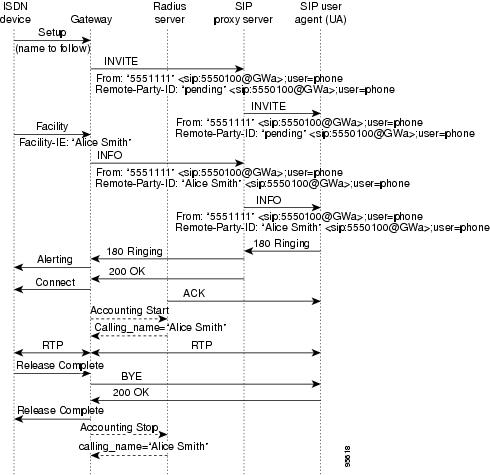

The figure below shows that the original ISDN Setup message sent by the ISDN device does not contain a Facility IE. The SIP gateway receives the ISDN Setup message indicating that the calling name is to be delivered in a subsequent ISDN Facility message. The SIP gateway then sets the display name of the Remote-Party-ID to pending . The presence of pending in a calling Remote-Party-ID of an INVITE denotes that the display name is to follow.

The functionality of a calling name sent in a subsequent message requires that:

  • The ISDN switch type has the ability to indicate that the name follows in the next Facility message after the initial ISDN Setup message.
  • The SIP gateway has the ability to interpret the subsequent Facility message into a SIP message. The SIP INFO message is used to interpret the Facility received from the ISDN device.
Figure 2. Calling Name in Facility IE of an ISDN Facility Message

Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks

The Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks feature enables call management applications to identify specific ISDN bearer (B) channels used during a voice gateway call for billing purposes. With the identification of the B channel, SIP gateways can enable port-specific features such as voice recording and call transfer.

In Cisco IOS releases prior to 12.3(7)T, fields used to store call leg information regarding the telephony port do not include B channel information. B channel information is used to describe incoming ISDN call legs. The Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks feature allows SIP and H.323 gateways to receive B-channel information from incoming ISDN calls. The acquired B channel information can be used during call transfer or to route a call.

SIP gateways use the ds0-num command to enable receiving the B channel of a telephony call leg. H.323 gateways use a different command, which allows users to run the two protocols on one gateway simultaneously.


Note


For information on using this feature on H.323 gateways, see Configuring H.323 Gateways.


For SIP, if the ds0-num command is configured, the ISDN B-channel information is carried in the Via header of outgoing SIP requests.

SIP Carrier Identification Code

SIP gateways can receive and transmit the carrier identification code (CIC) parameter, allowing equal access support over many different networks. CIC enables transmission of the CIC parameter from the SIP network to the ISDN.

The CIC parameter is used in routing tables to identify the network that serves the remote user when a call is routed over many different networks. The parameter is carried in SIP INVITE requests and 302 REDIRECTs, and maps to the ISDN Transit Network Selection Information Element (TNS IE) in the outgoing ISDN SETUP message (see the figure below). The TNS IE identifies the requested transportation networks and allows different providers equal access support based on customer choice.

Figure 3. Path of INVITE request with CIC Parameter to SIP Gateway Receiving and to ISDN

The CIC parameter is supported in SIP URLs, which identify a user’s address and appear similar to e-mail addresses: user@host. It is also supported in the telephone-subscriber part of a TEL URL, which takes the basic form of tel:telephone subscriber number , where tel requests the local entity to place a voice call, and telephone subscriber number is the number to receive the call.

The CIC parameter can be a three-digit or a four-digit code. However, if it is a three-digit code, it is prefixed by a zero as in the following example:

cic=+1234 = TNS IE 0234.

SIP CLI for Caller ID When Privacy Exists

The SIP: CLI for Caller ID When Privacy Exists feature is comprised of three main components, as follows:

SIP Caller ID Removable to Improve Privacy

The caller ID information is passed through from the ISDN-to-SIP by copying the number in the Calling Party Number information element (IE) in an ISDN Setup message into the Calling Number field of the SIP Remote-Party-ID and From headers.

The Calling Name from the ISDN Display IE is copied into the SIP Display Name field in the SIP Remote-Party-ID and From headers. The Calling Party Number IE contains a Presentation Indicator field that is set to presentation allowed, presentation restricted, number not available due to interworking, or reserved. Presentation allowed and presentation restricted are translated into privacy set to off or privacy set to null, respectively, in the SIP Remote-Party-ID header field.

However, for added privacy, the SIP: CLI for Caller ID When Privacy Exists feature introduces CLI to completely remove the Calling Number and Display Name from an outgoing message’s From header if presentation is prohibited. This prohibits sending the SIP Remote Party ID header, because the Cisco gateway does not send SIP Remote-Party ID headers without both a Display Name and Calling Number.


Note


The SIP: Caller ID Removable to Improve Privacy option is available both globally and at the dial-peer level.


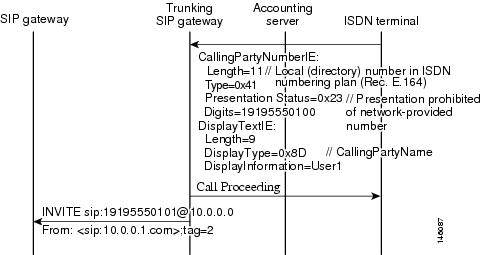

See the figure below for call flows and the tables below for additional presentation mapping.

Figure 4. Call Flow for Blocking Caller ID Information When Privacy Exists

Table 1 Presentation to Privacy Mapping with CLI Disabled

Presentation Indicator

From Remote Party ID (RPID)

Presentation Allowed

From: “User1” <sip:19195550100@10.0.0.0>;tag=1

Remote-Party-ID: “User1” <sip:19195550100@10.0.0.0>;party=calling;privacy=off

Presentation Prohibited

From: “User1” <sip:19195550100@10.0.0.0>;tag=1

Remote-Party-ID: “User1”<sip:19195550100@10.0.0.0>;party=calling;privacy=full

Table 2 Presentation to Privacy Mapping with CLI Enabled

Presentation Indicator

From RPID

Presentation Allowed

From: “User1” <sip:19195550100@10.0.0.0>;tag=1

Remote-Party-ID: “User1”<sip:19195550100@10.0.0.0>;party=calling;privacy=off

Presentation Prohibited

From: <sip:10.0.0.0>;tag=1

Remote Party ID not sent

SIP Calling Number Substitution for the Display Name When the Display Name is Unavailable

When the Display information element (IE) in a PSTN-to-SIP call is not available with a Setup message, the Cisco gateway leaves the Display Name field in the SIP Remote-Party-ID and From headers blank.

When presentation is allowed, the SIP: CLI for Caller ID When Privacy Exists feature enables the substitution of the Calling Number for the missing Display Name in the SIP Remote-Party-ID and From headers. Upon receipt of a Setup message where a name to follow is indicated, the Calling Number is not copied into the Display Name.

Also, the SIP Extensions for Caller Identity and Privacy on SIP gateway feature added the ability to hardcode calling name and number in the SIP Remote-Party-ID and From headers. The SIP Extensions for Caller Identify and Privacy feature settings take precedence over the SIP: CLI for Caller ID When Privacy Exists feature settings.


Note


The SIP: Calling Number Substitution for the Display Name When the Display Name is Unavailable option is available both globally and at the dial-peer level.

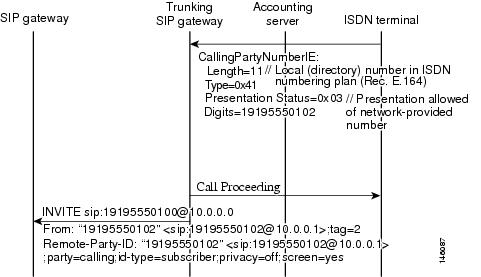

See the figure below for the call flow where the Calling Number is substituted for the Display Number.

Figure 5. Call Flow for Substituting the Calling Number for the Display Name When the Display Name is Unavailable

SIP Calling Number Passing as Network-Provided or User-Provided

ISDN numbers can be passed along as network-provided or user-provided in an ISDN Calling Party information element (IE) Screening Indicator field. The Cisco gateway automatically sets the Screening Indicator to user-provided in SIP-to-ISDN calls.

The SIP: CLI for Caller ID When Privacy Exists feature allows toggling between user-provided and network-provided ISDN numbers for the screening indicator. Therefore, after bits 1 and 2 are set to reflect network-provided, any existing screening information is lost. However, presentation information in bits 6 and 7 is preserved.


Note


The Call Flow for Passing Through the Calling Number as Network-Provided option is available both globally and at the dial-peer level.


See the figure below for the call flow when the calling number is passed along as network-provided.

Figure 6. Call Flow for Passing Through the Calling Number as Network-Provided

SIP ISDN Suspend Resume Support

Suspend and Resume are basic functions of ISDN and ISDN User Part (ISUP) signaling procedures and now are a part of SIP functionality. Suspend is described in ITU Q.764 as a message that indicates a temporary cessation of communication that does not release the call. A Suspend message can be accepted during a conversation. A Resume message is received after a Suspend message and is described in ITU Q.764 as a message that indicates a request to recommence communication. If the calling party requests to release the call, the Suspend and Resume sequence is overridden.

SIP Call-Hold Process

When a SIP originating gateway receives an ISDN Suspend message, the originating gateway informs the terminating gateway that there is a temporary cessation of media; that is, the call is placed on hold. There are two ways that SIP gateways receive notice of a call hold. The first way is for the originating gateway to use a connection IP address of 0.0.0.0 (c=0.0.0.0) in the Session Description Protocol ( SDP). The information in the SDP is sent in a re-Invite to the terminating gateway. The second way is for the originating gateway to use a=sendonly in the SDP of a re-Invite.


Note


Earlier than Cisco IOS Release 12.3(8)T, a SIP gateway could initiate call hold only by using c=0.0.0.0. As of Cisco IOS Release 12.3(8)T, a gateway can initiate call hold by using either c=0.0.0.0 or a=sendonly.


The purpose of the c=0.0.0.0 line is to notify the terminating gateway to stop sending media packets. When the hold is cancelled and communication is to resume, an ISDN Resume message is sent. The SIP originating gateway takes the call off hold by sending out a re-Invite with the actual IP address of the remote SIP entity in the c= line (in place of 0.0.0.0).

Multiple media fields (m-lines) in the SDP of a re-Invite message are used to indicate media forking, with each m-line representing one media destination. SIP gateways negotiate multiple media streams by using multiple m- and/or c-lines. When an originating gateway receives an ISDN Suspend on a gateway that has negotiated multiple media streams, all of the media streams are placed on hold. The originating gateway sends out a re-Invite that has a c= line that advertises the IP address as 0.0.0.0 on all streams. The originating gateway also mutes the SIP calls for each media stream so that no media is sent to the terminating gateway. When the originating gateway receives an ISDN Resume, it initiates a re-Invite with the original SDP and takes the call off hold.

If the media inactivity timer is configured on the network, the timer is stopped for all active streams. The purpose of the media inactivity timer is to monitor and disconnect calls if no Real-Time Control Protocol (RTCP) packets are received within a configurable time period. However, on initiating the call hold, the originating gateway disables the media inactivity timer for that particular call, so the call remains active. The terminating gateway behaves in the same way when it receives the call-hold re-Invite from the originating gateway. When the call resumes, the originating gateway re-enables the Media Inactivity Timer.


Note


For information on the timer, see the “SIP Media Inactivity Timer” section.


All billing and accounting procedures are unaffected by the SIP: ISDN Suspend/Resume Support feature.

SIP PSTN Transport Using the Cisco Generic Transparency Descriptor

The SIP PSTN Transport Using the Cisco Generic Transparency Descriptor feature adds SIP support for ISDN User Part (ISUP) Transport using Generic Transparency Descriptor (GTD). The ISUP data received on the originating gateway (OGW) is preserved and passed in a common text format to the terminating gateway (TGW).

Feature benefits include the following:

  • The ISUP data is reconstructed on the basis of the protocol at the egress side of the network, without any concern for the ISDN or ISUP variant on the ingress side of the network.
  • By providing the ISDN or ISUP information in text format, the information can also be used by applications inside the core SIP network. An example of one such application is a route server that can use certain ISDN or ISUP information to make routing decisions.
  • The transport of ISUP encapsulated in GTD maintains compatibility with the H.323 protocol.

SIP ISUP Transparency Using GTD Overview

The SIP PSTN Transport Using the Cisco Generic Transparency Descriptor feature adds SIP support for ISUP transport using GTD. That is, ISUP data received on the OGW is preserved and presented in a common ASCII format to the TGW.

GTD objects can be used to represent ISUP messages, parameters, and R2 signals. These GTD objects are encapsulated into existing signaling protocols, such as SIP, facilitating end-to-end transport. The transport of ISUP encapsulated in GTD ASCII format already exists for H.323; SIP PSTN Transport Using the Cisco Generic Transparency Descriptor provides feature parity. Using GTD as a transport mechanism for signaling data in Cisco IOS software provides a common format for sharing signaling data between various components in a network and for interworking various signaling protocols.

To attain ISUP transparency in VoIP Networks, the gateway needs to externally interface with the Cisco SC node. The Cisco SC node is the combination of hardware (Cisco PGW 2200 and Cisco SLTs) and signaling controller software that provides the signaling controller function. The Cisco SC node transports the signaling traffic between the SC hosts and the SS7 signaling network. A brief example of the process of an ISDN message containing an ISUP GTD message that comes into the Cisco OGW from a Cisco SC node is described below and shown in the figure below.

Figure 7. ISUP Transparency Implementation

The process in the figure above is as follows:

  1. Cisco SC node 1 receives an ISUP message from the public switched telephone network (PSTN). This node is now responsible for mapping the ISUP message into a GTD format and encapsulating this GTD body within the ISDN message that is sent to the OGW.
  2. The SIP user agent on the OGW extracts the GTD body from the Q931 message and encapsulates it into a corresponding SIP message as a multipart MIME attachment.
  3. The SIP message is sent by the OGW over the SIP network to the TGW.
  4. The TGW encapsulates the GTD in the outgoing ISDN message whish is sent to SC node 2. The SC then remaps the GTD to ISUP before passing it to the PSTN.

SIP INFO Message Generation and Serialization

The SIP PSTN Transport Using the Cisco Generic Transparency Descriptor (GTD) feature adds client and server support for the SIP INFO message in all phases of a call. INFO messages are used to carry ISUP messages that were encapsulated into GTD format, but that do not have a specific mapping to any SIP response or request. These ISUP messages can be received in any phase of the call.


Note


For specific mapping messages, see "ISUP-to-SIP Message Mapping".


The gateway does not support sending out overlapping SIP INFO messages. For example, a second INFO message cannot be sent out while one is still outstanding. Multiple PSTN messages that map to SIP INFO messages are sent out serially.

Transporting ISDN Messages in GTD Format

Support for ISDN messages in GTD format is limited to the ISDN Setup message. Only the following parameters are encoded and decoded:

  • Originating-line information
  • Bearer capability
  • Calling-party number
  • Called-party number
  • Redirecting number

Whereas ISDN to GTD parameter mapping is enabled by default, you must configure the gateway to transport ISUP messages through SIP signaling.

The ISDN parameters can be transported using either GTD or SIP headers. Before the SIP PSTN Transport Using the Cisco Generic Transparency Descriptor feature, only SIP headers provided ISDN parameters. For instance, the user portion of a SIP From header can carry the ISDN Calling Party information element.

SIP headers generally contain the same information that is provided by GTD, because the headers are built on the OGW using information gained from the PSTN. However, there are situations in which the data may be in conflict. The inconsistent data occurs if the header was updated by an intermediate proxy or application server. In cases of conflict, the SIP header is used to construct the ISDN parameters on the TGW, because it generally contains the most recent information.

SIP Generation of Multiple Message Bodies

Before this feature, the SIP gateway handled only SDP as a message body type. With SIP PSTN Transport Using the Cisco Generic Transparency Descriptor, it is now possible for the gateway to generate and properly format messages that contain both SDP and GTD message body types.

Any SIP message that contains both SDP and GTD bodies may be large enough to require link-level fragmentation when User Datagram Protocol (UDP) transport is used, which could result in excessive retransmissions. TCP transport can be used if fragmentation becomes a performance issue.

ISUP-to-SIP Message Mapping

SIP PSTN Transport Using the Cisco Generic Transparency Descriptor attempts to map particular ISUP messages to an equivalent SIP message. This mapping is defined in the table below.

Table 3 Mapping of Supplemental ISUP Messages to SIP Messages

ISUP Message Type

ISDN (NI2C) Message Type

SIP Message Type

ACM

Alerting

180/183 Progress messages

ANM

Connect

200 OK to the INVITE request

CON

Connect

200 OK to the INVITE request

CPG

Progress

180/183 Progress messages

IAM

Setup

INVITE request

REL

Disconnect

BYE/CANCEL/4xx/5xx/6xx

RES

Resume

INVITE request

SUS

Suspend

INVITE


Note


There are many other PSTN or SS7 messages that are mapped into GTD formats within an ISDN message by the SC node. If the mapping is not listed in the table, the message is treated with the SIP INFO method.


ISDN UDI to SIP Clear-Channel

The ISDN UDI to SIP Clear-Channel feature maps the ISDN bearer capability to an appropriate codec on the Session Initiation Protocol (SIP) trunk. When an ISDN bearer capability message is received as an Unrestricted Digital Information (UDI), only the clear-channel codec is used for negotiation on the SIP trunk. When the ISDN bearer capability message is non-UDI, like speech, the specific voice codecs are used for negotiation on the SIP trunk. The ISDN UDI to SIP Clear-Channel feature is applicable only for clear-channel and voice codecs. Integrated Service Router (ISR) gateways receive calls on ISDN trunks and forward them to SIP IP trunks.

The ISDN UDI to SIP Clear-Channel feature advertises only the clear-channel codec when the ISDN has the bearer capability of UDI (this is meant for data calls), and advertises only voice codecs when the ISDN bearer capability is speech. This behavior is true when clear-channel codecs and voice codecs are configured either individually or together through voice-class codecs. The call is terminated with ISDN cause code 65 (bearer capability not implemented) if either:
  • UDI is received, but the clear channel is not configured.
  • Non-UDI bearer capability is received but only the clear channel is configured.

How to Configure SIP ISDN Support Features

For help with a procedure, see the troubleshooting section listed above. Before you perform a procedure, familiarize yourself with the following information:

Configuring ISDN Calling Name Display

To enable SIP IP phones to display caller-name identification for calls that originate on an ISDN network, perform the following task.

SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    voice service voip

    4.    signaling forward {none | unconditional}

    5.    exit

    6.    interface serial slot / port : timeslot

    7.    isdn supp-service name calling

    8.    exit


DETAILED STEPS
     Command or ActionPurpose
    Step 1 enable


    Example:
    Router> Enable


    Enables privileged EXEC mode. Enter your password if prompted.


    Step 2 configure terminal


    Example:
    Router# configure terminal


    Enters global configuration mode.


    Step 3 voice service voip


    Example:
    Router(config)# voice service voip


    Enters voice-service configuration mode.


    Step 4 signaling forward {none | unconditional}


    Example:
    Router(conf-voi-serv)# signaling forward unconditional


    Specifies whether or not the originating gateway (OGW) forwards the signaling payload to the terminating gateway (TGW). Keywords are as follows:

    • none --Prevent the gateway from passing the signaling payload to the TGW.
    • unconditional --Forward the signaling payload received in the OGW to the TGW, even if the attached external route server has modified the GTD payload.

    Step 5 exit


    Example:
    Router(conf-voi-serv)# exit


    Exits the current mode.


    Step 6 interface serial slot / port : timeslot


    Example:
    Router(config)# interface serial 1/0:23


    Specifies a serial interface created on a channelized E1 or channelized T1 controller. You must explicitly specify a serial interface. Arguments are as follows:

    • slot / port --Slot and port where the channelized E1 or T1 controller is located. The slash is required.
    • : time-slot --For ISDN, the D-channel time slot, which is the 23 channel for channelized T1 and the 15 channel for channelized E1. The colon is required.

    Step 7 isdn supp-service name calling


    Example:
    Router(config-if)# isdn supp-service name calling


    Sets the calling-name display parameters sent out an ISDN serial interface.


    Step 8 exit


    Example:
    Router(config-if)# exit


    Exits the current mode.



    Configuring Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks

    SUMMARY STEPS

      1.    enable

      2.    configure terminal

      3.    voice service voip

      4.    sip

      5.    ds0-num

      6.    exit


    DETAILED STEPS
       Command or ActionPurpose
      Step 1 enable


      Example:
      Router> Enable


      Enables privileged EXEC mode. Enter your password if prompted.


      Step 2 configure terminal


      Example:
      Router# configure terminal


      Enters global configuration mode.


      Step 3 voice service voip


      Example:
      Router(config)# voice service voip


      Enters VoIP voice-service configuration mode.


      Step 4 sip


      Example:
      Router(conf-voi-serv)# sip


      Enters SIP configuration mode.


      Step 5 ds0-num


      Example:
      Router(conf-serv-sip)# ds0-num


      Adds B-channel information to outgoing SIP messages.


      Step 6 exit


      Example:
      Router(conf-serv-sip)# exit


      Exits the current mode.



      Configuring SIP Carrier Identification Code

      SUMMARY STEPS

        1.    debug ccsip messages

        2.    debug isdn q931


      DETAILED STEPS
        Step 1   debug ccsip messages

        Use this command to show all SIP SPI message tracing. Use it on a terminating gateway to verify the incoming CIC parameter.

        Examples:

        This example shows output of an INVITE request that uses a SIP URL and contains a CIC parameter:



        Example:
        Router# debug ccsip messages
        00:03:01: Received:
        INVITE sip:5550101;cic=+16789@172.18.202.60:5060;user=phone SIP/2.0
        Via: SIP/2.0/UDP 172.18.202.62:5060
        From: <sip:4440001@172.18.202.62>;tag=24176150-1A11
        To: <sip:5550101@172.18.202.60;user=phone>
        Date: Mon, 08 Mar 1993 00:11:51 GMT
        Call-ID: 590F6480-1A7011CC-80B5CC57-1D726644@172.18.202.62
        Supported: 100rel
        Cisco-Guid: 1494180992-443552204-2159266903-494036548
        User-Agent: Cisco-SIPGateway/IOS-12.x
        CSeq: 101 INVITE
        Max-Forwards: 6
        Timestamp: 731549511
        Contact: <sip:4440001@172.18.202.62:5060;user=phone>
        Expires: 180
        Allow-Events: telephone-event, x-com-cisco-telephone-event, x-com-cisco-fail-telephone-event
        Content-Type: application/sdp
        Content-Length: 160


        The following shows output of an INVITE request that uses a TEL URL and contains a CIC parameter:



        Example:
        Router# debug ccsip messages
        00:01:00: Received:
        INVITE tel:+5550101;cic=+16789 SIP/2.0
        Via: SIP/2.0/UDP 172.18.202.62:5060
        From: <sip:4440001@172.18.202.62>;tag=24158B04-1D45
        To: <sip:5550101@172.18.202.60;user=phone>
        Date: Mon, 08 Mar 1993 00:09:51 GMT
        Call-ID: 114C6D4C-1A7011CC-80B0CC57-1D726644@172.18.202.62
        Supported: 100rel
        Cisco-Guid: 290221388-443552204-2158939223-494036548
        User-Agent: Cisco-SIPGateway/IOS-12.x
        CSeq: 101 INVITE
        Max-Forwards: 6
        Timestamp: 731549391
        Contact: <sip:4440001@172.18.202.62:5060;user=phone>
        Expires: 180
        Allow-Events: telephone-event, x-com-cisco-telephone-event, x-com-cisco-fail-telephone-event
        Content-Type: application/sdp
        Content-Length: 160

        Step 2   debug isdn q931

        Use this command to display information about call setup and teardown of ISDN network connections (layer 3) between the local router (user side) and the network. Use it to verify the contents of the CIC parameter and the TNS IE.

        Example:

        This example shows output of an outgoing call SETUP that contains the TNS IE. Output is the same for either a SIP or TEL URL.



        Example:
        Router# debug isdn q931
        00:01:00: ISDN Se2/0:23: TX -> SETUP pd = 8 callref = 0x0001
        00:01:00: Bearer Capability i = 0x8090A2
        00:01:00: Channel ID i = 0xA98397
        00:01:00: Calling Party Number i = 0x0081, '4440001', Plan:Unknown, Type:Unknown
        00:01:00: Called Party Number i = 0xA8, '5550101', Plan:National, Type:National
        00:01:00: Transit Net Select i = 0xA1, '6789'


        Configuring SIP CLI for Caller ID When Privacy Exists

        Configuring SIP Blocking Caller ID Information Globally When Privacy Exists

        The Call-ID information is private information. In ISDN there is a private setting that can be set to protect this information. However, whenever SIP gets the Call-ID information, it does not hide the private information, rather, it just sets a field to reflect that it is private and not to display it on a Call-ID display. But, the data is still viewable in the SIP message requests. This option allows the Cisco gateway to delete the Call-ID information from the SIP message requests so it cannot be read on the network.

        Upon receiving an ISDN Setup message with the calling-party information element, the Cisco gateway translates the presentation indicator to set privacy to full for restricted presentation or to set privacy to off for unrestricted presentation in the Remote-Party-ID header field. The SIP: CLI for Caller ID When Privacy Exists feature introduces a CLI switch that either allows stripping the Calling Number and Display Name from the From and Remote-Party-ID fields in the SIP message requests or passes on the information. However, in cases of unrestricted presentation, the gateway passes the caller ID information, regardless of the CLI setting.

        The global commands to strip the Calling Name and Calling Number from the Remote-Party-ID and From headers are as follows:

        SUMMARY STEPS

          1.    enable

          2.    configure terminal

          3.    voice service voip

          4.    clid strip pi-restrict all

          5.    exit


        DETAILED STEPS
           Command or ActionPurpose
          Step 1 enable


          Example:
          Router> enable


          Enables privileged EXEC mode.

          • Enter your password if prompted.

          Step 2 configure terminal


          Example:
          Router# configure terminal


          Enters global configuration mode.


          Step 3 voice service voip


          Example:
          Router(config)# voice service voip


          Enters voice-service-VoIP configuration mode.


          Step 4 clid strip pi-restrict all


          Example:
          Router(config-voip-serv)# clid strip pi-restrict all


          Enters block call ID information when privacy exists in global configuration mode.


          Step 5 exit


          Example:
          Router(config-voip-serv)# exit


          Exits the current mode.



          Configuring Dial-Peer Level SIP Blocking of Caller ID Information When Privacy Exists

          The dial-peer specific command to strip the Calling Number from the Remote-Party-ID and From headers is as follows:

          SUMMARY STEPS

            1.    enable

            2.    configure terminal

            3.    dial-peer voice dial-peer-number voip

            4.    clid strip pi-restrict all

            5.    exit


          DETAILED STEPS
             Command or ActionPurpose
            Step 1 enable


            Example:
            Router> enable


            Enables privileged EXEC mode.

            • Enter your password if prompted.

            Step 2 configure terminal


            Example:
            Router# configure terminal


            Enters global configuration mode.


            Step 3 dial-peer voice dial-peer-number voip


            Example:
            Router(config)# dial-peer voice 100 voip


            Enters dial-peer configuration mode.


            Step 4 clid strip pi-restrict all


            Example:
            Router(config-dial-peer)# clid strip pi-restrict all


            Enters block call ID information when privacy exists in dial-peer configuration mode.


            Step 5 exit


            Example:
            Router# exit


            Exits the current mode.



            Configuring Globally the SIP Calling Number for Display Name Substitution When Display Name Is Unavailable

            When this is enabled, if there is no Display Name field but there is a number, it copies the number into the Display Name field, so the number is displayed on the recipient’s Call-ID display.

            The Cisco gateway omits the Display Name field if no display information is received. This feature also introduces a CLI switch that allows the Calling Number to be copied into the Display Name field, as long as presentation is not prohibited.

            The steps for substituting the Calling Number for the Display Name when it is unavailable in the Remote-Party-ID and From headers are as follows:

            SUMMARY STEPS

              1.    enable

              2.    configure terminal

              3.    voice service voip

              4.    clid substitute name

              5.    exit


            DETAILED STEPS
               Command or ActionPurpose
              Step 1 enable


              Example:
              Router> enable


              Enables privileged EXEC mode.

              • Enter your password if prompted.

              Step 2 configure terminal


              Example:
              Router# configure terminal


              Enters global configuration mode.


              Step 3 voice service voip


              Example:
              Router(config)# voice service voip


              Enters voice-service-VoIP configuration mode.


              Step 4 clid substitute name


              Example:
              Router(config-voip-serv)# clid substitute name


              Substitutes the calling number for the display name when the display name is unavailable in the global configuration mode.


              Step 5 exit


              Example:
              Router(config-voip-serv)# exit


              Exits the current mode.



              Configuring Dial-Peer-Level SIP Substitution of the Calling Number

              The dial-peer-specific steps for substituting the Calling Number for the Display Name when it is unavailable in the Remote-Party-ID and From headers are as follows:

              SUMMARY STEPS

                1.    enable

                2.    configure terminal

                3.    dial-peer voice dial-peer-number voip

                4.    clid substitute name

                5.    exit


              DETAILED STEPS
                 Command or ActionPurpose
                Step 1 enable


                Example:
                Router> enable


                Enables privileged EXEC mode.

                • Enter your password if prompted.

                Step 2 configure terminal


                Example:
                Router# configure terminal


                Enters global configuration mode.


                Step 3 dial-peer voice dial-peer-number voip


                Example:
                Router(config-dial-peer)# dial-peer voice 100 voip


                Enters dial-peer configuration mode.


                Step 4 clid substitute name


                Example:
                Router(config-dial-peer)# clid substitute name


                Substitutes the calling number for the display name when the display name is unavailable in dial-peer configuration mode.


                Step 5 exit


                Example:
                Router(config-dial-peer)# exit


                Exits the current mode.



                Configuring Globally the SIP Pass-Through of the Passing Calling Number as Network-Provided

                This field shows whether the Call-ID information was supplied by the network or not. This is for screening purposes.

                Formerly the Calling Number from the session initiation protocol to public switched telephone network (SIP-to-PSTN) was always translated to user-provided. This feature introduces a CLI switch to toggle between branding numbers as user-provided or network-provided.

                The steps for globally setting set the Screening Indicator to network-provided are as follows:

                SUMMARY STEPS

                  1.    enable

                  2.    configure terminal

                  3.    voice service voip

                  4.    clid network-provided

                  5.    exit


                DETAILED STEPS
                   Command or ActionPurpose
                  Step 1 enable


                  Example:
                  Router> enable


                  Enables privileged EXEC mode.

                  • Enter your password if prompted.

                  Step 2 configure terminal


                  Example:
                  Router# configure terminal


                  Enters global configuration mode.


                  Step 3 voice service voip


                  Example:
                  Router(config)# voice service voip


                  Enters voice-service-VoIP configuration mode.


                  Step 4 clid network-provided


                  Example:
                  Router(config-voip-serv)# clid network-provided


                  Enters the network-provided calling number in voice-service-VoIP configuration mode.


                  Step 5 exit


                  Example:
                  Router(config-voip-serv)# exit


                  Exits the current mode.



                  Configuring at the Dial-Peer Level the SIP Pass-Through of Passing the Calling Number as Network-Provided

                  The dial-peer specific command to set the Screening Indicator to network-provided is as follows:

                  SUMMARY STEPS

                    1.    enable

                    2.    configure terminal

                    3.    dial-peer voice dial-peer-number voip

                    4.    clid network-provided

                    5.    exit


                  DETAILED STEPS
                     Command or ActionPurpose
                    Step 1 enable


                    Example:
                    Router> enable


                    Enables privileged EXEC mode.

                    • Enter your password if prompted.

                    Step 2 configure terminal


                    Example:
                    Router# configure terminal


                    Enters global configuration mode.


                    Step 3 dial-peer voice dial-peer-number voip


                    Example:
                    Router(config)# dial-peer voice 100 voip


                    Enters dial-peer configuration mode.


                    Step 4 clid network-provided


                    Example:
                    Router(config-dial-peer)# clid network-provided


                    Enters the network-provided calling number in dial-peer configuration mode.


                    Step 5 exit


                    Example:
                    Router(config-dial-peer)# exit


                    Exits the current mode.



                    Configuring Globally the SIP Pass-Through of the Passing Calling Number as User-Provided

                    The steps for globally setting set the Screening Indicator to user-provided are as follows:

                    SUMMARY STEPS

                      1.    enable

                      2.    configure terminal

                      3.    voice service voip

                      4.    no clid network-provided

                      5.    exit


                    DETAILED STEPS
                       Command or ActionPurpose
                      Step 1 enable


                      Example:
                      Router> enable


                      Enables privileged EXEC mode.

                      • Enter your password if prompted.

                      Step 2 configure terminal


                      Example:
                      Router# configure terminal


                      Enters global configuration mode.


                      Step 3 voice service voip


                      Example:
                      Router(config)# voice service voip


                      Enters voice-service-VoIP configuration mode.


                      Step 4 no clid network-provided


                      Example:
                      Router(config-voip-serv)# no clid network-provided


                      Enters the network-provided calling number in voice-service-VoIP configuration mode.


                      Step 5 exit


                      Example:
                      Router(config-voip-serv)# exit


                      Exits the current mode.



                      Configuring at the Dial-Peer Level the SIP Pass-Through of Passing the Calling Number as User-Provided

                      The dial-peer specific command to set the Screening Indicator to user-provided is as follows:

                      SUMMARY STEPS

                        1.    enable

                        2.    configure terminal

                        3.    dial-peer voice dial-peer-number voip

                        4.    no clid network-provided

                        5.    exit


                      DETAILED STEPS
                         Command or ActionPurpose
                        Step 1 enable


                        Example:
                        Router> enable


                        Enables privileged EXEC mode.

                        • Enter your password if prompted.

                        Step 2 configure terminal


                        Example:
                        Router# configure terminal


                        Enters global configuration mode.


                        Step 3 dial-peer voice dial-peer-number voip


                        Example:
                        Router(config)# dial-peer voice 100 voip


                        Enters dial-peer configuration mode.


                        Step 4 no clid network-provided


                        Example:
                        Router(config-dial-peer)# no clid network-provided


                        Enters the user-provided calling number in dial-peer configuration mode.


                        Step 5 exit


                        Example:
                        Router(config-dial-peer)# exit


                        Exits the current mode.



                        Configuring SIP ISDN Suspend Resume Support

                        Suspend and Resume functionality is enabled by default. However, the functionality is also configurable. To configure Suspend and Resume for all dial peers on the VoIP network, perform the steps below on both originating and terminating gateways.

                        SUMMARY STEPS

                          1.    enable

                          2.    configure terminal

                          3.    sip-ua

                          4.    suspend-resume

                          5.    exit


                        DETAILED STEPS
                           Command or ActionPurpose
                          Step 1 enable


                          Example:
                          Router> Enable


                          Enables privileged EXEC mode. Enter your password if prompted.


                          Step 2 configure terminal


                          Example:
                          Router# configure terminal


                          Enters global configuration mode.


                          Step 3 sip-ua


                          Example:
                          Router(config)# sip-ua


                          Enters SIP user-agent configuration mode.


                          Step 4 suspend-resume


                          Example:
                          Router(config-sip-ua)# suspend-resume


                          Enables support for Suspend and Resume.


                          Step 5 exit


                          Example:
                          Router(config-sip-ua)# exit


                          Exits the current mode.



                          Configuring SIP PSTN Transport Using the Cisco Generic Transparency Descriptor

                          To forward the GTD payload to the gateway either for all dial peers on the VoIP network or for individual dial peers, perform the following steps.

                          Before You Begin
                          • Configure the Cisco PGW2200 to encapsulate SS7 ISUP messages in GTD format before using the signaling forward command with the Cisco PGW 2200 signaling controller on the Cisco gateway.
                          SUMMARY STEPS

                            1.    enable

                            2.    configure terminal

                            3.    Do one of the following:

                            • voice service voip

                            4.    signaling forward {none | unconditional}

                            5.    exit


                          DETAILED STEPS
                             Command or ActionPurpose
                            Step 1 enable


                            Example:
                            Router> Enable


                            Enables privileged EXEC mode. Enter your password if prompted.


                            Step 2 configure terminal


                            Example:
                            Router# configure terminal


                            Enters global configuration mode.


                            Step 3Do one of the following:
                            • voice service voip


                            Example:
                            Router(config)# voice service voip


                            Example:





                            Example:





                            Example:



                            Example:

                                          dial-peer voice

                                          tag



                                           {pots | voip | mmoip | vofr | voatm}


                            Example:
                            Router(config)# dial-peer voice 100 voip


                            Enters one of the following configuration modes:

                            • Voice-service configuration mode for all dial peers on the VoIP network
                            • Dial-peer voice configuration mode for an individual dial peer

                            Step 4 signaling forward {none | unconditional}


                            Example:
                            Router(conf-voi-serv)# signaling forward unconditional


                            Specifies whether or not the OGW forwards the signaling payload to the TGW. Keywords are as follows:

                            • none --Prevent the gateway from passing the signaling payload to the TGW.
                            • unconditional --Forward the signaling payload received in the OGW to the TGW, even if the attached external route server has modified it.
                            Note

                            The conditionalkeyword is not supported for SIP configuration. If you specify that keyword, the gateway treats it as if you had specified none.


                            Step 5 exit


                            Example:
                            Router(conf-voi-serv)# exit


                            Exits the current mode.



                            Verifying SIP ISDN Support Features

                            To verify configuration of SIP ISDN support features, perform the following steps as appropriate (commands are listed in alphabetical order).

                            SUMMARY STEPS

                              1.    show running-config

                              2.    show dial-peer voice

                              3.    show sip-ua status


                            DETAILED STEPS
                              Step 1   show running-config

                              Use this command to display the configuration and verify that the correct dial peers were changed.

                              Step 2   show dial-peer voice

                              Use this command, for each dial peer configured, to verify that the dial-peer configuration is correct.

                              Step 3   show sip-ua status

                              Use this command to display whether Suspend and Resume support is enabled or disabled.

                              The following sample output shows that Suspend and Resume support is enabled.



                              Example:
                              Router# show sip-ua status
                              SIP User Agent Status
                              SIP User Agent for UDP : ENABLED
                              SIP User Agent for TCP : ENABLED
                              SIP User Agent bind status(signaling): DISABLED
                              SIP User Agent bind status(media): DISABLED
                              SIP max-forwards : 6
                              SIP DNS SRV version: 1 (rfc 2052)
                              SDP application configuration:
                               Version line (v=) required
                               Owner line (o=) required
                               Session name line (s=) required
                               Timespec line (t=) required
                               Media supported: audio image
                               Network types supported: IN
                               Address types supported: IP4
                               Transport types supported: RTP/AVP udptl
                              SIP support for ISDN SUSPEND/RESUME: ENABLED


                              Troubleshooting Tips


                              Note


                              For general troubleshooting tips and a list of important debug commands, see the “General Troubleshooting Tips” section.


                              • Make sure that you can make a voice call.
                              • Use the debug ccsip messagescommand as shown in the examples below.
                              • Use the debug ccsip messages command to enable traces for SIP messages, such as those that are exchanged between the SIP user-agent client (UAC) and the access server.
                              • Use the debug isdn q931command to display information about call setup and teardown of ISDN network connections (Layer 3) between the local router (user side) and the network.

                              Following is sample output for some of these commands:

                              Sample Output for the debug ccsip messages Command

                              The following is a sample INVITE request with B-channel information added as an extension parameter “x-ds0num” to the Via header. The format of the B-channel billing information is: 0 is the D-channel ID, 0 is the T1 controller, and 1 is the B-channel.

                              Router# debug ccsip messages
                              INVITE sip:3100802@172.18.193.99:5060 SIP/2.0
                              Via: SIP/2.0/UDP  172.18.193.100:5060;x-ds0num=”ISDN 0:D 0:DS1 1:DS0”
                              From: <sip:3100801@172.18.193.100>;tag=21AC4-594
                              To: <sip:3100802@172.18.193.99>
                              Date: Thu, 28 Dec 2000 16:15:28 GMT
                              Call-ID: 7876AC6C-DC1311D4-8005DBCA-A25DA994@172.18.193.100
                              Supported: 100rel
                              Cisco-Guid: 1981523172-3692237268-2147670986-2724047252
                              User-Agent: Cisco-SIPGateway/IOS-12.x
                              Allow: INVITE, OPTIONS, BYE, CANCEL, ACK, PRACK, COMET, REFER, SUBSCRIBE, NOTIFY, INFO
                              CSeq: 101 INVITE
                              Max-Forwards: 6
                              Remote-Party-ID: <sip:3100801@172.18.193.100>;party=calling;screen=no;privacy=off
                              Timestamp: 978020128
                              Contact: <sip:3100801@172.18.193.100:5060>
                              Expires: 300
                              Allow-Events: telephone-event
                              Content-Type: application/sdp
                              Content-Length: 254
                              ^M
                              v=0
                              o=CiscoSystemsSIP-GW-UserAgent 45 7604 IN IP4 172.18.193.100
                              s=SIP Call
                              c=IN IP4 172.18.193.100
                              t=0 0
                              m=audio 19492 RTP/AVP 18 0
                              c=IN IP4 172.18.193.100
                              a=rtpmap:18 G729/8000
                              a=fmtp:18 annexb=no
                              a=rtpmap:0 PCMU/8000


                              The following sample INVITE request shows the Via header if the incoming trunk is T3. The format of the B-channel billing information is: 7/0 is the T3 controller, 1 is the T1 controller, and 2 is the B channel.

                              Router# debug ccsip messages
                              Via: SIP/2.0/UDP 172.18.193.120:5060; x-ds0num="ISDN 7/0:D 1:D1 2:DS0"

                              Configuring ISDN UDI to SIP Clear-Channel Feature

                              Perform this task to configure the ISDN UDI to SIP Clear-Channel feature.

                              Configuring the ISDN UDI to SIP Clear-Channel feature only maps the ISDN UDI bearer capability to the clear-channel codec. However, it does not select the encapsulation type to be used for the clear-channel codec. You must select the clear-channel codec encapsulation at the global level or the dial-peer level after performing this task.
                              SUMMARY STEPS

                                1.    enable

                                2.    configure terminal

                                3.    voice service voip

                                4.    sip

                                5.    bearer-capability clear-channel udi [bidirectional]

                                6.    end


                              DETAILED STEPS
                                 Command or ActionPurpose
                                Step 1 enable


                                Example:
                                Router> enable


                                Enables privileged EXEC mode.
                                • Enter your password if prompted.

                                Step 2configure terminal


                                Example:
                                Router# configure terminal



                                Enters global configuration mode.


                                Step 3voice service voip


                                Example:
                                Router(config)# voice service voip



                                Enters voice service configuration mode.


                                Step 4sip


                                Example:
                                Router(conf-voi-serv)# sip



                                Enters service SIP configuration mode.


                                Step 5bearer-capability clear-channel udi [bidirectional]


                                Example:
                                Router(conf-serv-sip)# bearer-capability clear-channel udi bidirectional



                                Enables clear-channel codec to UDI bearer capability mapping and UDI bearer capability to clear-channel codec mapping.


                                Step 6end


                                Example:
                                Router(conf-serv-sip)# end



                                Exits service SIP configuration mode and enters privileged EXEC mode.



                                Troubleshooting Tips

                                The following commands can help troubleshoot the ISDN UDI to SIP Clear-Channel feature:
                                • debug ccsip all
                                • debug isdn q931
                                • show voice call summary
                                • show call active voice compact
                                • show voip rtp connections
                                • show isdn status

                                Configuration Examples for SIP ISDN Support Features

                                ISDN Calling Name Display Examples


                                Note


                                IP addresses and hostnames in examples are fictitious.


                                Router# show running-config
                                Building configuration...
                                Current configuration : 3845 bytes
                                !
                                version 12.3
                                service timestamps debug datetime msec
                                service timestamps log uptime
                                no service password-encryption
                                !
                                boot-start-marker
                                boot-end-marker
                                !
                                no logging buffered
                                !
                                resource-pool disable
                                clock timezone GMT 5
                                clock summer-time GMT recurring
                                !
                                no aaa new-model
                                ip subnet-zero
                                ip tcp path-mtu-discovery
                                ip name-server 172.18.192.48
                                !
                                isdn switch-type primary-ni
                                isdn voice-call-failure 0
                                isdn alert-end-to-end
                                !
                                voice call send-alert
                                !
                                voice service voip
                                 signaling forward unconditional
                                 sip
                                !
                                fax interface-type fax-mail
                                !
                                controller T1 0
                                 framing esf
                                 crc-threshold 0
                                 clock source line primary
                                 linecode b8zs
                                 pri-group timeslots 1-24
                                 description lucent_pbx
                                !
                                controller T1 1
                                 shutdown
                                 framing esf
                                 crc-threshold 0
                                 linecode ami
                                 description summa_pbx
                                !
                                controller T1 2
                                 shutdown
                                 framing esf
                                 crc-threshold 0
                                 linecode ami
                                !
                                controller T1 3
                                 framing esf
                                 crc-threshold 0
                                 clock source line secondary 1
                                 linecode b8zs
                                 pri-group timeslots 1-24
                                !
                                translation-rule 100
                                 Rule 1 ^1 1 ANY national
                                 Rule 2 2% 2 ANY unknown
                                 Rule 4 4% 4 ANY unknown
                                 Rule 5 5% 5 ANY unknown
                                 Rule 6 6% 6 ANY unknown
                                 Rule 7 7% 7 ANY unknown
                                 Rule 8 8% 8 ANY unknown
                                 Rule 9 9% 9 ANY unknown
                                !
                                interface Ethernet0
                                 ip address 172.18.193.100 255.255.255.0
                                 no ip route-cache
                                 no ip mroute-cache
                                 ip rsvp bandwidth 1 1
                                !
                                interface Serial0:23
                                 no ip address
                                 isdn switch-type primary-ni
                                 isdn incoming-voice modem
                                 isdn guard-timer 3000
                                 isdn supp-service name calling
                                 isdn disconnect-cause 1
                                 fair-queue 64 256 0
                                 no cdp enable
                                !
                                interface Serial3:23
                                 no ip address
                                 isdn switch-type primary-ni
                                 isdn protocol-emulate network
                                 isdn incoming-voice modem
                                 isdn guard-timer 3000
                                 isdn supp-service name calling
                                 isdn T310 30000
                                 isdn disconnect-cause 1
                                 isdn bchan-number-order descending
                                 fair-queue 64 256 0
                                 no cdp enable
                                !
                                interface FastEthernet0
                                 ip address 10.1.1.2 255.255.255.0
                                 no ip route-cache
                                 no ip mroute-cache
                                 duplex auto
                                 speed auto
                                !
                                ip classless
                                ip route 0.0.0.0 0.0.0.0 172.18.193.1
                                ip route 0.0.0.0 0.0.0.0 172.18.193.129
                                ip route 0.0.0.0 0.0.0.0 172.18.207.129
                                ip route 0.0.0.0 0.0.0.0 172.18.16.129
                                ip route 0.0.0.0 0.0.0.0 Ethernet0
                                ip route 0.0.0.0 0.0.0.0 172.18.197.1
                                ip route 0.0.0.0 255.255.255.0 Ethernet0
                                ip route 10.2.0.1 255.255.255.255 172.18.16.135
                                ip route 172.18.0.0 255.255.0.0 Ethernet0
                                no ip http server
                                !
                                map-class dialer test
                                 dialer voice-call
                                dialer-list 1 protocol ip permit
                                !
                                control-plane
                                !
                                voice-port 0:D
                                !
                                dial-peer voice 10 pots
                                 application session.t.old
                                 destination-pattern 5550100
                                 prefix 5550100
                                !
                                dial-peer voice 4 voip
                                 application session
                                 destination-pattern 5550120
                                 session protocol sipv2
                                 session target ipv4:172.18.193.99
                                 incoming called-number 5550125
                                !
                                dial-peer voice 1 pots
                                 application session
                                 destination-pattern 5550125
                                 incoming called-number 5550155
                                 port 0:D
                                 prefix 95550125
                                !
                                dial-peer voice 18 voip
                                 application session
                                 destination-pattern 36601
                                 session protocol sipv2
                                 session target ipv4:172.18.193.187
                                 codec g711ulaw
                                !
                                dial-peer voice 25 voip
                                 destination-pattern 5550155
                                 session protocol sipv2
                                 session target ipv4:172.18.192.232
                                !
                                dial-peer voice 5678 pots
                                 destination-pattern 5678
                                 port 3:D
                                 prefix 5678
                                !
                                dial-peer voice 56781 voip
                                 incoming called-number 5678
                                !
                                sip-ua
                                !
                                line con 0
                                line aux 0
                                line vty 0 4
                                 password password1
                                 login
                                !

                                end

                                Signal ISDN B-Channel ID to Enable Application Control of Voice Gateway Trunks Example

                                Router# show running-config
                                Building configuration...
                                Current configuration : 3394 bytes
                                !
                                version 12.3
                                service timestamps debug uptime
                                service timestamps log uptime
                                no service password-encryption
                                service internal
                                !
                                memory-size iomem 15
                                ip subnet-zero
                                !
                                no ip domain lookup
                                !
                                voice service voip
                                 h323
                                  billing b-channel
                                 sip
                                  ds0-num
                                ip dhcp pool vespa
                                 network 192.168.0.0 255.255.255.0
                                 option 150 ip 192.168.0.1
                                 default-router 192.168.0.1
                                !
                                voice call carrier capacity active
                                !
                                voice class codec 1
                                 codec preference 2 g711ulaw
                                !
                                no voice hpi capture buffer
                                no voice hpi capture destination
                                !
                                fax interface-type fax-mail
                                mta receive maximum-recipients 0
                                !
                                interface Ethernet0/0
                                 ip address 10.8.17.22 255.255.0.0
                                 half-duplex
                                !
                                interface FastEthernet0/0
                                 ip address 192.168.0.1 255.255.255.0
                                 speed auto
                                 no cdp enable
                                 h323-gateway voip interface
                                 h323-gateway voip id vespa2 ipaddr 10.8.15.4 1718
                                !
                                router rip
                                 network 10.0.0.0
                                 network 192.168.0.0
                                !
                                ip default-gateway 10.8.0.1
                                ip classless
                                ip route 0.0.0.0 0.0.0.0 10.8.0.1
                                no ip http server
                                ip pim bidir-enable
                                !
                                tftp-server flash:SEPDEFAULT.cnf
                                tftp-server flash:P005B302.bin
                                call fallback active
                                !
                                call application global default.new
                                call rsvp-sync
                                !
                                voice-port 1/0
                                !
                                voice-port 1/1
                                !
                                mgcp profile default
                                !
                                dial-peer voice 1 pots
                                 destination-pattern 5100
                                 port 1/0
                                !
                                dial-peer voice 2 pots
                                 destination-pattern 9998
                                 port 1/1
                                !
                                dial-peer voice 123 voip
                                 destination-pattern [12]...
                                 session protocol sipv2
                                 session target ipv4:10.8.17.42
                                 dtmf-relay sip-notify
                                !
                                gateway
                                !
                                sip-ua
                                 retry invite 3
                                 retry register 3
                                 timers register 150
                                 registrar dns:myhost3.example.com expires 3600
                                 registrar ipv4:10.8.17.40 expires 3600 secondary
                                !
                                telephony-service
                                 max-dn 10
                                 max-conferences 4
                                !
                                ephone-dn 1
                                number 4001
                                !
                                ephone-dn 2
                                number 4002
                                !
                                line con 0
                                 exec-timeout 0 0
                                line aux 0
                                line vty 0 4
                                login
                                line vty 5 15
                                 login
                                !
                                no scheduler allocate
                                end

                                SIP Carrier Identification Code Examples

                                CIC Parameter in SIP URL

                                This configuration example shows support for the CIC parameter in the user information part of the SIP URL. A SIP URL identifies a user’s address and appears similar to an e-mail address, such as user@host, where user is the telephone number and host is either a domain name or a numeric network address. For example, the request line of an outgoing INVITE request might appear as:

                                INVITE sip:+5550100;cic=+16789@example.com;user=phone SIP/2.0


                                Where +5550100; cic=+16789 signifies the user information, example.com the domain name, and the user=phone parameter distinguishes that the user address is a telephone number rather than a username.

                                CIC Parameter in TEL URL

                                This configuration example shows support for the CIC parameter in the telephone-subscriber part of the TEL URL. A TEL URL takes the basic form of tel:telephone subscriber number , where tel requests the local entity to place a voice call, and telephone subscriber number is the number to receive the call. For example:

                                tel:+5550100;cic=+16789


                                The additional CIC parameter can be in any of the following three formats:

                                cic=+16789
                                cic=+1-6789
                                cic=6789

                                CIC Parameter and Visual Separators

                                This configuration example shows support for the CIC parameter in different formats --with and without visual separators. However, the CIC parameter usually has no visual separators. All of the following formats are accepted:

                                +12345
                                cic=+12345
                                cic=2345

                                Copying the CIC Parameter into the Resulting INVITE Request

                                This configuration example shows that the CIC parameter can be copied from the user information part of a 3xx Contact SIP URL into the resulting INVITE request.

                                For example, if a 302 REDIRECT response from a proxy appears like:

                                Contact: <sip:+5550100;cic=+16789@example.com;user=phone>


                                or like:

                                Contact: <sip:+5550100;cic=6789@example.com;user=phone>


                                The result is an INVITE request that sends the CIC with a +1 prefixed to it.

                                INVITE sip:+5550100;cic=+16789@example.com;user=phone SIP/2.0

                                SIP CLI for Caller ID When Privacy Exists Examples

                                The following shows an example of the SIP: CLI for Caller ID When Privacy Exists feature when enabled globally and disabled on the dial-peer level:

                                Router# show running-config
                                Building configuration...
                                Current configuration: 1234 bytes
                                !
                                version 12.4
                                service timestamps debug datetime msec localtime
                                service timestamps log datetime msec localtime
                                no service password-encryption
                                !
                                hostname pip
                                !
                                boot-start-marker
                                boot system tftp user1/c3660-is-mz 172.18.207.15
                                boot-end-marker
                                !
                                logging buffered 1000000 debugging
                                enable secret 5 $1$li0u$IkIqPXzKq4uKme.LhzGut0
                                enable password password1
                                !
                                no aaa new-model
                                !
                                resource policy
                                !
                                clock timezone GMT 0
                                clock summer-time EDT recurring
                                ip subnet-zero
                                ip tcp path-mtu-discovery
                                !
                                ip cef
                                ip domain name example.sip.com
                                ip host sip-server1 172.18.193.100
                                ip host CALLGEN-SECURITY-V2 10.76.47.38 10.30.0.0
                                ip name-server 172.18.192.48
                                no ip dhcp use vrf connected
                                !
                                ip vrf btknet
                                rd 8262:2000
                                !
                                voice call send-alert
                                !
                                voice service voip <-  SIP: CLI for Caller ID When Privacy Exists feature enabled globally
                                clid substitute name
                                clid strip pi-restrict all
                                clid network-provided
                                sip
                                !
                                voice class codec 1
                                codec preference 1 g729r8
                                codec preference 2 g711alaw
                                codec preference 3 g711ulaw
                                codec preference 4 g729br8
                                codec preference 5 g726r32
                                codec preference 6 g726r24
                                codec preference 7 g726r16
                                codec preference 8 g723ar53
                                codec preference 9 g723r53
                                codec preference 10 g723ar63
                                codec preference 11 gsmefr
                                codec preference 12 gsmfr
                                codec preference 13 g728
                                !
                                voice class codec 2
                                codec preference 1 g729r8
                                codec preference 2 g711ulaw
                                codec preference 3 g711alaw
                                !
                                voice class codec 99
                                codec preference 1 g729r8
                                codec preference 2 g711ulaw
                                codec preference 3 g711alaw
                                !
                                fax interface-type fax-mail
                                !
                                interface FastEthernet0/0
                                ip address 172.18.195.49 255.255.255.0
                                duplex auto
                                speed auto
                                no cdp enable
                                ip rsvp bandwidth 96 96
                                !
                                interface FastEthernet0/1
                                ip address 172.18.193.190 255.255.255.0
                                shutdown
                                duplex auto
                                speed auto
                                no cdp enable
                                !
                                no ip http server
                                !
                                ip classless
                                ip route 0.0.0.0 0.0.0.0 FastEthernet0/0
                                ip route 172.16.0.0 255.0.0.0 172.18.195.1
                                !
                                snmp-server community public RO
                                !
                                control-plane
                                !
                                voice-port 1/0/0
                                !
                                voice-port 1/0/1
                                !
                                mgcp behavior rsip-range tgcp-only
                                !
                                dial-peer cor custom
                                !
                                dial-peer voice 100 pots
                                destination-pattern 9001
                                !
                                dial-peer voice 3301 voip
                                destination-pattern 9002
                                session protocol sipv2
                                session target ipv4:172.18.193.87
                                incoming called-number 9001
                                codec g711ulaw
                                no vad
                                !
                                dial-peer voice 3303 voip
                                destination-pattern 777
                                session protocol sipv2
                                session target ipv4:172.18.199.94
                                !
                                dial-peer voice 36601 voip
                                destination-pattern 36601
                                no modem passthrough
                                session protocol sipv2
                                session target ipv4:172.18.193.98
                                !
                                dial-peer voice 5 voip
                                destination-pattern 5550100
                                session protocol sipv2
                                session target ipv4:172.18.197.182
                                codec g711ulaw
                                !
                                dial-peer voice 36602 voip
                                destination-pattern 36602
                                session protocol sipv2
                                session target ipv4:172.18.193.120
                                incoming called-number 9001
                                dtmf-relay rtp-nte
                                codec g711ulaw
                                !
                                dial-peer voice 111 voip
                                destination-pattern 111
                                session protocol sipv2
                                session target ipv4:172.18.193.251
                                !
                                dial-peer voice 5550199 voip <- SIP: CLI for Caller ID When Privacy Exists feature disabled on dial-peer
                                destination-pattern 3100801
                                session protocol sipv2
                                session target ipv4:10.102.17.208
                                codec g711ulaw
                                !
                                dial-peer voice 333 voip
                                preference 2
                                destination-pattern 333
                                modem passthrough nse codec g711ulaw
                                voice-class codec 99
                                session protocol sipv2
                                session target ipv4:172.18.193.250
                                dtmf-relay rtp-nte
                                no vad
                                !
                                dial-peer voice 9003 pots
                                preference 2
                                destination-pattern 9003
                                !
                                dial-peer voice 90032 voip
                                preference 1
                                destination-pattern 9003
                                session protocol sipv2
                                session target ipv4:172.18.193.97
                                !
                                dial-peer voice 1 pots
                                !
                                num-exp 5550100 5550199
                                num-exp 5550199 5550100
                                gateway
                                timer receive-rtp 1200
                                !
                                sip-ua
                                srv version 1
                                retry response 1
                                !
                                line con 0
                                exec-timeout 0 0
                                line aux 0
                                line vty 0 4
                                exec-timeout 0 0
                                password password1
                                login
                                !
                                no process cpu extended
                                no process cpu autoprofile hog
                                ntp clock-period 17180176
                                ntp server 192.0.10.150 prefer
                                !
                                end
                                The following shows an example of the SIP: CLI for Caller ID When Privacy Exists feature when disabled globally and disabled on the dial-peer level:
                                Router# show running-config
                                Building configuration...
                                Current configuration: 1234 bytes
                                !
                                service timestamps debug datetime msec localtime
                                service timestamps log datetime msec localtime
                                no service password-encryption
                                !
                                hostname pip
                                !
                                boot-start-marker
                                boot system tftp user1/c3660-is-mz 172.18.207.15
                                boot-end-marker
                                !
                                logging buffered 1000000 debugging
                                enable secret 5 $1$li0u$IkIqPXzKq4uKme.LhzGut0
                                enable password password1
                                !
                                no aaa new-model
                                !
                                resource policy
                                !
                                clock timezone GMT 0
                                clock summer-time EDT recurring
                                ip subnet-zero
                                ip tcp path-mtu-discovery
                                !
                                ip cef
                                ip domain name example.sip.com
                                ip host sip-server1 172.18.193.100
                                ip host CALLGEN-SECURITY-V2 10.76.47.38 10.30.0.0
                                ip name-server 172.18.192.48
                                no ip dhcp use vrf connected
                                !
                                ip vrf btknet
                                rd 8262:2000
                                !
                                voice call send-alert
                                !
                                voice service voip <-  SIP: CLI for Caller ID When Privacy Exists feature disabled globally
                                sip
                                !
                                voice class codec 1
                                codec preference 1 g729r8
                                codec preference 2 g711alaw
                                codec preference 3 g711ulaw
                                codec preference 4 g729br8
                                codec preference 5 g726r32
                                codec preference 6 g726r24
                                codec preference 7 g726r16
                                codec preference 8 g723ar53
                                codec preference 9 g723r53
                                codec preference 10 g723ar63
                                codec preference 11 gsmefr
                                codec preference 12 gsmfr
                                codec preference 13 g728
                                !
                                voice class codec 2
                                codec preference 1 g729r8
                                codec preference 2 g711ulaw
                                codec preference 3 g711alaw
                                !
                                voice class codec 99
                                codec preference 1 g729r8
                                codec preference 2 g711ulaw
                                codec preference 3 g711alaw
                                !
                                fax interface-type fax-mail
                                !
                                interface FastEthernet0/0
                                ip address 172.18.195.49 255.255.255.0
                                duplex auto
                                speed auto
                                no cdp enable
                                ip rsvp bandwidth 96 96
                                !
                                interface FastEthernet0/1
                                ip address 172.18.193.190 255.255.255.0
                                shutdown
                                duplex auto
                                speed auto
                                no cdp enable
                                !
                                no ip http server
                                !
                                ip classless
                                ip route 0.0.0.0 0.0.0.0 FastEthernet0/0
                                ip route 172.16.0.0 255.0.0.0 172.18.195.1
                                !
                                snmp-server community public RO
                                !
                                control-plane
                                !
                                voice-port 1/0/0
                                !
                                voice-port 1/0/1
                                !
                                mgcp behavior rsip-range tgcp-only
                                !
                                dial-peer cor custom
                                !
                                dial-peer voice 100 pots
                                destination-pattern 9001
                                !
                                dial-peer voice 3301 voip
                                destination-pattern 9002
                                session protocol sipv2
                                session target ipv4:172.18.193.87
                                incoming called-number 9001
                                codec g711ulaw
                                no vad
                                !
                                dial-peer voice 3303 voip
                                destination-pattern 777
                                session protocol sipv2
                                session target ipv4:172.18.199.94
                                !
                                dial-peer voice 36601 voip
                                destination-pattern 36601
                                no modem passthrough
                                session protocol sipv2
                                session target ipv4:172.18.193.98
                                !
                                dial-peer voice 5 voip
                                destination-pattern 5550100
                                session protocol sipv2
                                session target ipv4:172.18.197.182
                                codec g711ulaw
                                !
                                dial-peer voice 36602 voip
                                destination-pattern 36602
                                session protocol sipv2
                                session target ipv4:172.18.193.120
                                incoming called-number 9001
                                dtmf-relay rtp-nte
                                codec g711ulaw
                                !
                                dial-peer voice 111 voip
                                destination-pattern 111
                                session protocol sipv2
                                session target ipv4:172.18.193.251
                                !
                                dial-peer voice 5550199 voip <- SIP: CLI for Caller ID When Privacy Exists feature disabled on dial-peer
                                destination-pattern 5550199
                                session protocol sipv2
                                session target ipv4:10.102.17.208
                                codec g711ulaw
                                !
                                dial-peer voice 333 voip
                                preference 2
                                destination-pattern 333
                                modem passthrough nse codec g711ulaw
                                voice-class codec 99
                                session protocol sipv2
                                session target ipv4:172.18.193.250
                                dtmf-relay rtp-nte
                                no vad
                                !
                                dial-peer voice 9003 pots
                                preference 2
                                destination-pattern 9003
                                !
                                dial-peer voice 90032 voip
                                preference 1
                                destination-pattern 9003
                                session protocol sipv2
                                session target ipv4:172.18.193.97
                                !
                                dial-peer voice 1 pots
                                !
                                num-exp 5550100 5550199
                                num-exp 5550101 5550198
                                gateway
                                timer receive-rtp 1200
                                !
                                sip-ua
                                srv version 1
                                retry response 1
                                !
                                !
                                line con 0
                                exec-timeout 0 0
                                line aux 0
                                line vty 0 4
                                exec-timeout 0 0
                                password password1
                                login
                                !
                                no process cpu extended
                                no process cpu autoprofile hog
                                ntp clock-period 17180176
                                ntp server 192.0.10.150 prefer
                                !
                                end


                                The following shows an example of the SIP: CLI for Caller ID When Privacy Exists feature when disabled globally and enabled on the dial-peer level:

                                Router# show running-config
                                Building configuration...
                                Current configuration: 1234 bytes
                                !
                                version 12.4
                                service timestamps debug datetime msec localtime
                                service timestamps log datetime msec localtime
                                no service password-encryption
                                !
                                hostname pip
                                !
                                boot-start-marker
                                boot system tftp judyg/c3660-is-mz 172.18.207.15
                                boot-end-marker
                                !
                                logging buffered 1000000 debugging
                                enable secret 5 $1$li0u$IkIqPXzKq4uKme.LhzGut0
                                enable password password1
                                !
                                no aaa new-model
                                !
                                resource policy
                                !
                                clock timezone GMT 0
                                clock summer-time EDT recurring
                                ip subnet-zero
                                ip tcp path-mtu-discovery
                                !
                                ip cef
                                ip domain name example.sip.com
                                ip host sip-server1 172.18.193.100
                                ip host CALLGEN-SECURITY-V2 10.76.47.38 10.30.0.0
                                ip name-server 172.18.192.48
                                no ip dhcp use vrf connected
                                !
                                ip vrf btknet
                                rd 8262:2000
                                !
                                voice call send-alert
                                !
                                voice service voip <-  SIP: CLI for Caller ID When Privacy Exists feature disabled globally
                                sip
                                !
                                voice class codec 1
                                codec preference 1 g729r8
                                codec preference 2 g711alaw
                                codec preference 3 g711ulaw
                                codec preference 4 g729br8
                                codec preference 5 g726r32
                                codec preference 6 g726r24
                                codec preference 7 g726r16
                                codec preference 8 g723ar53
                                codec preference 9 g723r53
                                codec preference 10 g723ar63
                                codec preference 11 gsmefr
                                codec preference 12 gsmfr
                                codec preference 13 g728
                                !
                                voice class codec 2
                                codec preference 1 g729r8
                                codec preference 2 g711ulaw
                                codec preference 3 g711alaw
                                !
                                voice class codec 99
                                codec preference 1 g729r8
                                codec preference 2 g711ulaw
                                codec preference 3 g711alaw
                                !
                                fax interface-type fax-mail
                                !
                                interface FastEthernet0/0
                                ip address 172.18.195.49 255.255.255.0
                                duplex auto
                                speed auto
                                no cdp enable
                                ip rsvp bandwidth 96 96
                                !
                                interface FastEthernet0/1
                                ip address 172.18.193.190 255.255.255.0
                                shutdown
                                duplex auto
                                speed auto
                                no cdp enable
                                !
                                no ip http server
                                !
                                ip classless
                                ip route 0.0.0.0 0.0.0.0 FastEthernet0/0
                                ip route 172.16.0.0 255.0.0.0 172.18.195.1
                                !
                                snmp-server community public RO
                                !
                                control-plane
                                !
                                voice-port 1/0/0
                                !
                                voice-port 1/0/1
                                !
                                mgcp behavior rsip-range tgcp-only
                                !
                                dial-peer cor custom
                                !
                                dial-peer voice 100 pots
                                destination-pattern 9001
                                !
                                dial-peer voice 3301 voip
                                destination-pattern 9002
                                session protocol sipv2
                                session target ipv4:172.18.193.87
                                incoming called-number 9001
                                codec g711ulaw
                                no vad
                                !
                                dial-peer voice 3303 voip
                                destination-pattern 777
                                session protocol sipv2
                                session target ipv4:172.18.199.94
                                !
                                dial-peer voice 36601 voip
                                destination-pattern 36601
                                no modem passthrough
                                session protocol sipv2
                                session target ipv4:172.18.193.98
                                !
                                dial-peer voice 5 voip
                                destination-pattern 5550102
                                session protocol sipv2
                                session target ipv4:172.18.197.182
                                codec g711ulaw
                                !
                                dial-peer voice 36602 voip
                                destination-pattern 36602
                                session protocol sipv2
                                session target ipv4:172.18.193.120
                                incoming called-number 9001
                                dtmf-relay rtp-nte
                                codec g711ulaw
                                !
                                dial-peer voice 111 voip
                                destination-pattern 111
                                session protocol sipv2
                                session target ipv4:172.18.193.251
                                !
                                dial-peer voice 5550100 voip <- SIP: CLI for Caller ID When Privacy Exists feature enabled on dial-peer
                                destination-pattern 5550100
                                session protocol sipv2
                                session target ipv4:10.102.17.208
                                codec g711ulaw
                                clid strip pi-restrict all
                                clid network-provided
                                clid substitute name
                                !
                                dial-peer voice 333 voip
                                preference 2
                                destination-pattern 333
                                modem passthrough nse codec g711ulaw
                                voice-class codec 99
                                session protocol sipv2
                                session target ipv4:172.18.193.250
                                dtmf-relay rtp-nte
                                no vad
                                !
                                dial-peer voice 9003 pots
                                preference 2
                                destination-pattern 9003
                                !
                                dial-peer voice 90032 voip
                                preference 1
                                destination-pattern 9003
                                session protocol sipv2
                                session target ipv4:172.18.193.97
                                !
                                dial-peer voice 1 pots
                                !
                                num-exp 5550100 5550199
                                num-exp 5550101 5550198
                                gateway
                                timer receive-rtp 1200
                                !
                                sip-ua
                                srv version 1
                                retry response 1
                                !
                                !
                                line con 0
                                exec-timeout 0 0
                                line aux 0
                                line vty 0 4
                                exec-timeout 0 0
                                password password1
                                login
                                !
                                no process cpu extended
                                no process cpu autoprofile hog
                                ntp clock-period 17180176
                                ntp server 192.0.10.150 prefer
                                !
                                end

                                SIP ISDN Suspend Resume Support Example

                                The following example shows SIP Suspend and Resume disabled on the gateway (SIP Suspend and Resume is enabled by default on the gateway).


                                Note


                                IP addresses and hostnames in examples are fictitious.


                                Router# show running-config
                                Building configuration...
                                Current configuration : 3845 bytes
                                !
                                version 12.3
                                service timestamps debug datetime msec
                                service timestamps log uptime
                                no service password-encryption
                                !
                                boot-start-marker
                                boot-end-marker
                                !
                                no logging buffered
                                !
                                resource-pool disable
                                clock timezone GMT 5
                                clock summer-time GMT recurring
                                !
                                no aaa new-model
                                ip subnet-zero
                                ip tcp path-mtu-discovery
                                ip name-server 172.18.192.48
                                !
                                isdn switch-type primary-ni
                                isdn voice-call-failure 0
                                isdn alert-end-to-end
                                !
                                voice call send-alert
                                !
                                voice service voip
                                 signaling forward unconditional
                                 sip
                                !
                                fax interface-type fax-mail
                                !
                                controller T1 0
                                 framing esf
                                 crc-threshold 0
                                 clock source line primary
                                 linecode b8zs
                                 pri-group timeslots 1-24
                                 description lucent_pbx
                                !
                                controller T1 1
                                 shutdown
                                 framing esf
                                 crc-threshold 0
                                 linecode ami
                                 description summa_pbx
                                !
                                controller T1 2
                                 shutdown
                                 framing esf
                                 crc-threshold 0
                                 linecode ami
                                !
                                controller T1 3
                                 framing esf
                                 crc-threshold 0
                                 clock source line secondary 1
                                 linecode b8zs
                                 pri-group timeslots 1-24
                                !
                                translation-rule 100
                                 Rule 1 ^1 1 ANY national
                                 Rule 2 2% 2 ANY unknown
                                 Rule 4 4% 4 ANY unknown
                                 Rule 5 5% 5 ANY unknown
                                 Rule 6 6% 6 ANY unknown
                                 Rule 7 7% 7 ANY unknown
                                 Rule 8 8% 8 ANY unknown
                                 Rule 9 9% 9 ANY unknown
                                !
                                interface Ethernet0
                                 ip address 172.18.193.100 255.255.255.0
                                 no ip route-cache
                                 no ip mroute-cache
                                 ip rsvp bandwidth 1 1
                                !
                                interface Serial0:23
                                 no ip address
                                 isdn switch-type primary-ni
                                 isdn incoming-voice modem
                                 isdn guard-timer 3000
                                 isdn supp-service name calling
                                 isdn disconnect-cause 1
                                 fair-queue 64 256 0
                                 no cdp enable
                                !
                                interface Serial3:23
                                 no ip address
                                 isdn switch-type primary-ni
                                 isdn protocol-emulate network
                                 isdn incoming-voice modem
                                 isdn guard-timer 3000
                                 isdn supp-service name calling
                                 isdn T310 30000
                                 isdn disconnect-cause 1
                                 isdn bchan-number-order descending
                                 fair-queue 64 256 0
                                 no cdp enable
                                !
                                interface FastEthernet0
                                 ip address 10.1.1.2 255.255.255.0
                                 no ip route-cache
                                 no ip mroute-cache
                                 duplex auto
                                 speed auto
                                !
                                ip classless
                                ip route 0.0.0.0 0.0.0.0 172.18.193.1
                                ip route 0.0.0.0 0.0.0.0 172.18.193.129
                                ip route 0.0.0.0 0.0.0.0 172.18.207.129
                                ip route 0.0.0.0 0.0.0.0 172.18.16.129
                                ip route 0.0.0.0 0.0.0.0 Ethernet0
                                ip route 0.0.0.0 0.0.0.0 172.18.197.1
                                ip route 0.0.0.0 255.255.255.0 Ethernet0
                                ip route 10.2.0.1 255.255.255.255 172.18.16.135
                                ip route 172.18.0.0 255.255.0.0 Ethernet0
                                no ip http server
                                !
                                map-class dialer test
                                 dialer voice-call
                                dialer-list 1 protocol ip permit
                                !
                                control-plane
                                !
                                voice-port 0:D
                                !
                                dial-peer voice 10 pots
                                 application session.t.old
                                 destination-pattern 5550100
                                 prefix 5550100
                                !
                                dial-peer voice 4 voip
                                 application session
                                 destination-pattern 5550120
                                 session protocol sipv2
                                 session target ipv4:172.18.193.99
                                 incoming called-number 5550125
                                !
                                dial-peer voice 1 pots
                                 application session
                                 destination-pattern 5550125
                                 incoming called-number 5550155
                                 port 0:D
                                 prefix 95550125
                                !
                                dial-peer voice 18 voip
                                 application session
                                 destination-pattern 36601
                                 session protocol sipv2
                                 session target ipv4:172.18.193.187
                                 codec g711ulaw
                                !
                                dial-peer voice 25 voip
                                 destination-pattern 5550155
                                 session protocol sipv2
                                 session target ipv4:172.18.192.232
                                !
                                dial-peer voice 5678 pots
                                 destination-pattern 5678
                                 port 3:D
                                 prefix 5678
                                !
                                dial-peer voice 56781 voip
                                 incoming called-number 5678
                                !
                                sip-ua
                                 no suspend-resume
                                 retry invite 1
                                 retry bye 1
                                line con 0
                                line aux 0
                                line vty 0 4
                                 password password1
                                 login
                                !

                                end

                                SIP PSTN Transport Using the Cisco Generic Transparency Descriptor Examples

                                Configuring GTD Globally

                                The following examples shows that GTD is configured.

                                Router# show running-config
                                Building configuration...
                                Current configuration : 4192 bytes
                                !
                                version 12.2
                                service config
                                no service single-slot-reload-enable
                                no service pad
                                service timestamps debug uptime
                                service timestamps log uptime
                                no service password-encryption
                                service internal
                                service udp-small-servers
                                !
                                hostname router
                                !
                                voice service voip
                                 signaling forward unconditional
                                 sip
                                 .

                                Configuring GTD for an Individual Dial Peer

                                The following example shows GTD configured with unconditional forwarding on two dial peers:

                                Router# show running-config
                                Building configuration...
                                Current configuration : 4169 bytes
                                !
                                version 12.2
                                service config
                                no service single-slot-reload-enable
                                no service pad
                                service timestamps debug uptime
                                service timestamps log uptime
                                no service password-encryption
                                service internal
                                service udp-small-servers
                                !
                                hostname router
                                .
                                .
                                .
                                dial-peer voice 36 voip
                                 incoming called-number 3100802
                                 destination-pattern 3100801
                                 signaling forward unconditional
                                 session protocol sipv2
                                 session target ipv4:192.0.2.209
                                !
                                dial-peer voice 5 voip
                                 destination-pattern 5555555
                                 signaling forward unconditional
                                 session protocol sipv2
                                 session target ipv4:172.18.192.218
                                .
                                .
                                .

                                Example: Configuring the ISDN UDI to SIP Clear-Channel Feature

                                The following example shows how to configure the ISDN UDI to SIP Clear-Channel feature on an ISDN SIP gateway:

                                Router> enable
                                Router# configure terminal
                                Router(config)# voice service voip
                                Router(conf-voi-serv)# sip
                                Router(conf-serv-sip)# bearer-capability clear-channel udi bidirectional
                                Router(conf-serv-sip)# end


                                Additional References

                                General SIP References

                                References Mentioned in This Chapter (listed alphabetically)

                                • Configuring H.323 Gateways at http://www.cisco.com/univercd/cc/td/doc/product/software/ios123/123cgcr/vvfax_c/callc_c/h323_c/323confg/3gwconf.htm
                                • Redundant Link Manager (RLM) at http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/as5400/sw_conf/ios_121/pull_rlm.htm
