Cisco Digital Media Suite: Cisco Digital Media Encoder 1000

  • Viewing Options

  • PDF (402.1 KB)
  • Feedback

The Cisco® Digital Media System (DMS) enables organizations to create, manage, and access compelling digital media to easily connect customers, employees, partners, or students-anywhere, anytime. The Cisco Digital Media System is a flexible and comprehensive solution for publishing dynamic content to both on-premise digital signage displays and the desktop.

The Cisco Digital Media Encoder (DME) 1000 is an integrated component of the Cisco Digital Media System for Cisco Desktop Video.

Cisco Digital Media Encoder 1000

The Cisco Digital Media Encoder 1000 (Figure 1) is a portable encoder that provides live and on-demand streaming digital media, including video and audio, across an IP network-anywhere an event or meeting can occur.
Designed for both professionals and novices, the Cisco Digital Media Encoder 1000 features push-button control access to predefined Windows Media and MPEG-4/H.264 encoder profiles. An LCD display is also mounted on the front panel for access to configuration and operation information. With its rugged design and minimal weight, the Cisco Digital Media Encoder 1000 can take video production out of the studio.

Figure 1. Cisco Digital Media Encoder 1000

The Cisco Digital Media Encoder 1000 provides several different audio and digital media connections as well as both 1-GB and 10-/100-Mb Ethernet connections. In addition, a front-panel dock is available to connect and download directly to an Apple iPod.
You can use the Cisco Digital Media Encoder 1000 as a standalone encoder or as an integrated component of the overall Cisco Digital Media System (Figure 2). The Cisco Digital Media Manager (DMM) includes functions to set up and control multiple encoders, including the Cisco Digital Media Encoder 1000; schedule live streaming events; and publish both on-demand and live streaming content to viewers anywhere on your IP network.

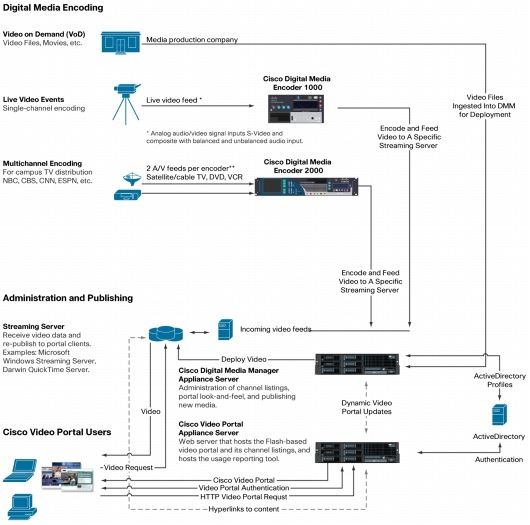

Figure 2. Cisco Digital Media System

For optimal network performance and end-user delivery of digital media, the Cisco Digital Media Encoder 1000 integrates with a variety of streaming systems, including the Cisco Application and Content Networking System (ACNS). Cisco ACNS provides both live unicast and multicast streaming services and on-demand access in which video and audio files are cached locally for retrieval and viewed over the WAN at LAN speeds (Figure 3).

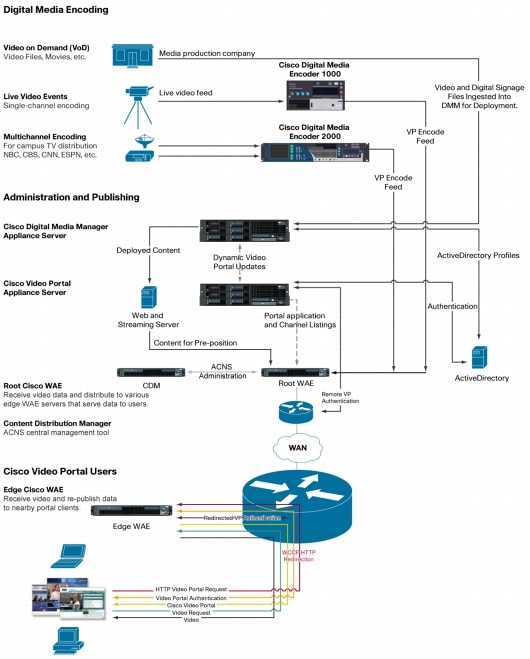

Figure 3. Cisco Digital Media Encoder 1000 and Cisco ACNS

More information about Cisco ACNS and Cisco Wide Area Application Engines (WAEs) is available at: http://www.cisco.com/go/acns.

Key Features and Benefits

Table 1 lists features and benefits of the Cisco Digital Media Encoder 1000.

Table 1. Features and Benefits of Cisco Digital Media Encoder 1000

Feature

Benefit

Lightweight and portable

Live events can be streamed and recorded at any location that has an IP network connection.

Support for a variety of encoding formats

Flexible streaming formats ensure that viewers are not limited.

Operational controls on front panel

No keyboard, mouse, or monitor is required to operate the encoder.

Integration with the Cisco Digital Media System

Live events from multiple encoders can be easily scheduled and managed from the web-based Cisco Digital Media Manager.

Product Specifications

Table 2 gives specifications of the Cisco Digital Media Encoder 1000.

Table 2. Product Specifications

Product Parameter

Specification

Supported live streaming formats

• Windows Media
• MPEG-4/H.264

Supported on-demand formats

• Flash (flv)
• Windows Media
• MPEG-4/H.264

Video inputs

• Composite
• S-Video

Video formats

• National Television System Committee (NTSC): M, M-J
• Phase Alternation Line (PAL): B, D, H, I

Audio inputs

• Unbalanced stereo (RCA)
• Balanced stereo (XLR3)

Ethernet ports

• 1 GB
• 10/100 Mb

Available hard disk space

40 GB

RAM

512 Mb

Processor

Single 1-GHz Intel Celeron

Additional ports

Two USB 2.0, keyboard, mouse, and VGA monitor

Operating system

Microsoft XP embedded

Physical dimensions

Size (H x W x D): 4 x 7.75 x 15.5 in. (10.16 x 19.67 x 39.37 cm)

Weight: 12 lb (5.44 kg)

Standard form factor

Custom and portable

Operating temperature range

0 to 40°C (32 to 104°F)

Operating humidity range

Between 5 and 85% (noncondensing) at 40°C

Operating altitude range

0 to 10,0000 ft (0 to 3,084m)

Power

• 110 to 220 VAC
• 50 to 60 Hz
• 0.5 to 1A, load and input voltage dependent
• 60W power supply
• 204 BTU/Hr

Mean time between failure
(MTBF; estimated)

>140,000 hr

Usage Recommendations

The Cisco Digital Media Encoder 1000 is intended for use in encoding typical standard-definition (SD) Webcast quality live and on-demand streams. Table 3 lists several recommended upper limits regarding encoder format settings and intended use for the Cisco Digital Media Encoder 1000. The recommended upper limits for window size and bit rate are based on a maximum of 60-percent CPU usage on the Cisco Digital Media Encoder 1000. The Cisco Digital Media Encoder 1000 is also compatible with the slide synchronization function of the Cisco Digital Media Manager Live Event Module.

Table 3. Usage Recommendations

Application

Encoder Type

Maximum Window Size

Maximum Bit Rate

Number of Simultaneous Output Streams

General Webcasting for live and on-demand content

Windows Media

320 x 240

350 kbps

1

General Webcasting for live and on-demand content

MPEG-4/H.264

320 x 240

350 kbps

1

Cisco Digital Media Manager Live Event Module (for use with slide synchronization for live events)

Windows Media

320 x 240

350 kbps

1

Ordering Information

To place an order, visit the Cisco Ordering Home Page and refer to Table 4.

Table 4. Ordering Information

Product Name

Part Number

Cisco Digital Media Encoder 1000

DMS-DME-1000
