Cisco® ME 3400E Series Ethernet Access Switches are next-generation Layer 2 and Layer 3 customer-located devices for service providers. Their design is based on the widely deployed Cisco ME 3400 Series Ethernet Access Switches. The Cisco ME 3400E Series helps service providers deliver four key attributes that are essential to next-generation Carrier Ethernet service: availability, flexibility, manageability, and security.

Product Overview

With service-provider-friendly features, the Cisco ME 3400E Series is the second-generation Cisco access switch optimized for Ethernet-to-the-Business (ETTB) VPN services. It provides both high availability and service flexibility for Carrier Ethernet business access deployments. The Cisco ME 3400E Series comes by default with advanced Layer 2 VPN service features and the option to upgrade to Layer 3 VPN services, giving service providers an out-of-the-box business VPN solution that can be scaled to meet future needs.

The Cisco ME 3400E Series (Figure 1) includes the following configurations:

Cisco ME 3400EG-12CS chassis (part number ME-3400EG-12CS-M) with 12 dual-purpose (10/100/1000 and Small Form-Factor Pluggable [SFP]) ports, four SFP uplinks, and two slots for field-replaceable modular power supply and fan unit

Cisco ME 3400EG-2CS chassis (part number ME-3400EG-2CS-A) with two dual-purpose (10/100/1000 and SFP) ports, two SFP uplinks, and an integrated AC power supply

Cisco ME 3400E-24TS chassis (part number ME-3400E-24TS-M) with 24 Ethernet 10/100 ports, two dual-purpose (10/100/1000 and SFP) uplinks, and two slots for field-replaceable modular power supply and fan unit

Figure 1. Cisco ME 3400E Series

The Cisco ME 3400E Series offers two different Cisco IOS® Software feature images. The METROACCESS image offers advanced quality of service (QoS), rate limiting, robust multicast control, and comprehensive security features. In addition, the METROACCESS image includes a rich set of Carrier Ethernet access features including 802.1Q Tunneling, Layer 2 Protocol Tunneling (L2PT), and Flexlink. The METROIPACCESS image adds advanced Layer 3 features such as support for advanced IP routing protocols, Multi-VPN Routing and Forwarding Customer Edge (Multi-VRF CE), and Policy Based Routing (PBR).

The SFP-based Gigabit Ethernet ports accommodate a wide range of 100BASE, 1000BASE, coarse wavelength-division multiplexing (CWDM), and dense wavelength-division multiplexing (DWDM) SFP transceivers. These ports also support the Cisco Catalyst® 3560 SFP Interconnect Cable for establishing a low-cost Gigabit Ethernet point-to-point connection.

Service-Provider-Friendly Hardware

Because Carrier Ethernet access switches are typically deployed in small spaces in office buildings or apartments, the Cisco ME 3400E Series offers a compact form factor and flexible mounting options. In addition, the Cisco ME 3400E Series has all front-accessed connectors to simplify field installation and troubleshooting. To help ensure compliance with industry standards, the Cisco ME 3400E Series has obtained both Network Equipment Building Standards Level 3 (NEBS3) and ETSI certifications.

Industry-Standard Services

Carrier Ethernet is a huge growth area for emerging connectivity services. It is a comparatively simple, cost-effective, and familiar technology whose migration to the WAN will lead to more flexible network connectivity while reducing overall IT costs. The Cisco ME 3400E Series is certified to Metro Ethernet Forum (MEF) 9 and 14 to support industry-standard Layer 2 services and QoS features.

Gigabit Ethernet

With more and more applications demanding higher bandwidth, both enterprise and residential customers want access speeds greater than 100 Mbps. To address this requirement, the Cisco ME 3400E Series offers wire-speed Gigabit Ethernet with all the Carrier Ethernet functions. At speeds of 1000 Mbps, Gigabit Ethernet provides the bandwidth to meet new and evolving network demands, alleviate bottlenecks, and boost performance while protecting the investment in existing infrastructure.

Carrier Ethernet-Specific Software

The Cisco ME 3400E Series software is designed specifically for the Carrier Ethernet market. Numerous new features make the Cisco ME 3400E Series the optimal access switch for service providers. Many default behaviors of the Cisco ME 3400E Series are different from those of traditional Ethernet switches, making the Cisco ME 3400E Series easier to configure, manage, secure, and troubleshoot.

UNI/ENI/NNI

The Cisco ME 3400E Series software introduces the concept of User-Network Interface/Enhanced Network Interface/Network-Node Interface (UNI/ENI/NNI) for Ethernet access switches. Because the software can identify the application of each port, it can provide many powerful default behaviors. Table 1 lists some of the primary behaviors and benefits of UNI/ENI/NNI.

Table 1. UNI/ENI/NNI Default Behaviors

Default Behaviors

Benefits

UNI/ENI default: Down

Ports must be activated by the service provider before customers can receive service.

UNI/ENI default: No local switching

Circuit-like behavior protects customers from each other.

UNI/ENI default: Configurable control plane security enabled

Control-plane packets ingressing from the UNI/ENI are dropped in hardware to protect against denial-of-service (DoS) attacks by default. Unlike UNI ports, ENI ports give service providers the flexibility to selectively discard or peer with customer’s control plane traffic on a per-port, per-protocol basis for the following Layer 2 protocols: Cisco Discovery Protocol, Link Layer Discovery Protocol (LLDP), Link Aggregation Control Protocol (LACP), Port Aggregation Protocol (PAgP), and Spanning Tree Protocol.

NNI default: Up

Enables automated configuration of the switch through a Dynamic Host Configuration Protocol (DHCP) or BOOTP server.

Flexible Deployment Options for Software Features

The Cisco ME 3400E Series offers two different Cisco IOS Software feature images, METROACCESS and METROIPACCESS, providing cost-effective, “pay-as-you-grow” upgrade options for service providers deploying multiple services. The service providers do not have to pay for the features they do not need today and still have the option in the future to receive those features with a simple software upgrade.

Support for multiple software feature images allows service providers to standardize on the Cisco ME 3400E Series, save on the operating expense of stocking multiple products, simplify training of support technicians, and alleviate the complication of supporting different products for different services.

Table 2 lists the key features in the Cisco IOS Software images for the Cisco ME 3400E Series.

Table 2. Key Features in Cisco IOS Software Images for Cisco ME 3400E Series

METROACCESS

METROIPACCESS

UNI/ENI/NNI

802.1Q Tunneling, L2PT

All METROACCESS features plus:

Internet Group Management Protocol (IGMP) Filtering and Throttling

Ethernet OAM (802.1ag, 802.3ah, E-LMI)

Static routing

Multicast VLAN Registration (MVR)

Y.1731 Fault Management and Performance Monitoring (Delay Measurement)

Multi-VRF CE (VRF-lite)

Advanced QoS

Configurable per VLAN MAC Learning

PBR

Configurable control plane security

Flexlink

RIP Versions 1 and 2

Configuration file security

Dynamic ARP Inspection, IP Source Guard

EIGRP, OSPF, and IS-IS

DHCP snooping

Per-Port, Per-VLAN Ingress Policing

BGPv4

Private VLAN

Link-State Tracking

NNI configurable on all ports

Configuration rollback

Resilient Ethernet Protocol (REP)

Source Specific Multicast

DHCP-based auto configuration and image update

Ethernet IP SLA TWAMP

Source Specific Multicast mapping

Configurable Control Plane Queue Assignent

Embedded Event Manager

Multicast support for VRF (mVRF-Lite)

MAC address learning and aging notifications

VRF-aware services (ARP, ping, SNMP, HSRP, uRPF syslog, traceroute, FTP, and TFTP)

Solutions for Next-Generation Business Access Services

The Cisco ME 3400E Series is designed to help service providers provide service availability, service flexbility, service manageability, and service security for advanced Carrier Ethernet business access.

Service Availability

Increased service availability is a critical requirement for service provider networks because most enterprise customers expect the same level of availability from Carrier Ethernet as they have from leased-line networks. The Cisco ME 3400E Series supports redundant field-replacable integrated power supply and fan modules. To quickly activate and troubleshoot services, the Cisco ME 3400E Series offers traffic loopback capabilities so service providers can remotely verify and monitor services. Four external alarm inputs allow service providers to respond quickly to changes in the switch’s environmental condtions before failure occurs.

To further increase service availability on a networkwide level, Cisco ME 3400E offers Flexlink for sub-50-ms failover, Resilient Ethernet Protocol (REP), Link-State Tracking, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), per-VLAN Rapid Spanning Tree Plus (PVRST+), and the Cisco Hot Standby Router Protocol (HSRP). These capabilities help to create redundant, failsafe topologies. Strong, built-in security in three tiers―network, switch, and subscriber - helps prevent the device and the network from succumbing to malicious attacks, thereby enhancing network uptime.

Resilient Ethernet Protocol (REP) is a Cisco proprietary protocol that provides an alternative to Spanning Tree Protocol to control network loops, handle link failures, and improve convergence time. REP enables fast and predicable reconvergence for Layer 2 networks. In addition, REP supports VLAN load balancing to enable efficient utilization of redundant links.

Service Flexibility

As more enterprises adopt Carrier Ethernet technology, the demand on service providers’ abilities to offer new services increases. The Cisco ME 3400E Series offers 1:1 VLAN translation which allows end customers the flexibility of choosing their own internal VLANs without affecting the core service provider’s network. In some instances, service providers need to provide multiple EPL (Ethernet Private Line) services on a single UNI (User Network Interface). With the Selective QinQ feature, the Cisco ME 3400E Series helps service providers to offer multiple Ethernet Virtual Private Line (EVPL) services on a single UNI. To support the need for next-generation enterprise services, customers are lookings for more QoS functionalities to support differenty types of applicatoins. To meet the need for ever stringent QoS requirements from customers, the Cisco ME 3400E Series offers 2-rate 3-color policer with byte-level statistics at ingress ports and inner-to-outer CoS mapping to help service providers offer differentiated services with high profit margins.

Service Manageability

With today’s sophiscated networks, service providers are always looking for ways to reduce operational expenses (OpEx) and increase profit margins. The Cisco ME 3400E Series provides the following tools to help service providers simplify the management of their Ethernet services.

Traffic loopback capabilities to help service providers activate and troubleshoot new and existing services without expensive truck rolls. The “dying gasp” alert for loss of power and four external alarm inputs to detect changes in remote sites further help service providers to manage the health of their equipment. And an Ethernet management port provides dedicated access for service providers to monitor and provision the switch.

In addtion, the Cisco ME 3400E Series includes Generic Online Diagnostics (GOLD) and Onboard Failure Logging (OBFL) to help service providers avoid potential problems before they occur and troubleshoot and diagnose issues once they happened. With features such as Embedded Event Manager (EEM), Ethernet Operations, Administration, and Management (OAM), and Time-Domain Reflectometer (TDR), the Cisco ME 3400E Series provides a comprehensive set of tools to help service providers to manage Ethernet services.

Service Security

As Carrier Ethernet networks expand, it is a challenge to provide the same level of security as other access technologies. Cisco ME 3400E Series switches provide a comprehensive security solution for Ethernet access networks by providing service security in three areas: subscriber, switch, and network.

Subscriber security helps create protection among customers. A major concern in using a shared device for multiple customers is how to prevent customers from affecting each other. The Cisco ME 3400E Series addresses this concern with several different features. The UNI/NNI feature creates a circuit-like behavior to separate customers’ traffic from each other. DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard help service providers identify each customer based on MAC, IP address, and port information to help prevent malicious users from spoofing fake addresses and launching man-in-the-middle attacks.

Switch security is about protecting the switch itself from attacks. The Cisco ME 3400 Series offers features to protect CPU and configuration files from attacks. CPU is a critical component of an Ethernet switch that is responsible for process-control protocols and routing updates; under DoS attack, the CPU could drop those control packets, resulting in network outage. Other features such as Configurable Control Plane Security and Storm Control protect the CPU against malicious attacks. The Port Security feature allows service providers to control the number of MAC addresses each subscriber is allowed, offering protection against overwhelming the switch memory.

Network security features filter all incoming traffic to help ensure that only valid traffic is allowed through the switch. Cisco ME 3400E Series switches have features such as access control lists (ACLs) and IEEE 802.1x authentication to identify the users and packets that are allowed to transmit traffic through the switch.

Table 3 lists these and other key features of the security solution.

Table 3. Key Features for Each Area of Comprehensive Security Solution

Subscriber Security

Switch Security

Network Security

UNI/ENI default: No local switching

Configurable control plane security

ACLs

DHCP Snooping and IP Source Guard

Storm Control

IEEE 802.1x

Dynamic ARP Inspection

Port security

UNI/ENI default: Port down

Private VLAN

Configurable per-VLAN MAC learning

Configuration file security

Switch Management Options

The Cisco ME 3400E Series offers a superior command-line interface (CLI) for detailed configuration. In addition, the switches support CiscoWorks and Simple Network Management Protocol (SNMP) for networkwide management. Service providers can integrate the Cisco ME 3400 Series transparently into their operations support systems (OSSs) and enable improved flow-through provisioning.

Service providers can also manage the Cisco ME 3400E Series using SNMP Versions 2 and 3. A comprehensive set of MIBs is provided for service providers to collect traffic information in the Cisco ME 3400E Series.

Ethernet Operations, Administration, Maintenance, and Provisioning

The advent of Ethernet as a metropolitan and wide-area networking technology has accelerated the need for a new set of operations, administration, maintenance, and provisioning (OAM&P) protocols. Service provider networks are large and complex with a wide user base, and they often involve different operators that must work together to provide end-to-end services to enterprise customers. To answer enterprise customer demands, service providers must reduce the mean time to repair (MTTR) and increase service availability. Ethernet OAM&P features address these challenges and enable service providers to offer carrier-grade services.

The Cisco ME 3400E Series supports industry-standard OAM&P tools including IEEE 802.1ag Connectivity Fault Management, IEEE 802.3ah Ethernet First Mile, and Ethernet Local Management Interface (E-LMI) protocol. IEEE 802.1ag tools to monitor and troubleshoot end-to-end Ethernet networks allow service providers to check connectivity, isolate network issues, and identify customers affected by network issues. E-LMI protocol, developed by the MEF, enables service providers to communicate service configuration and status information to the customer-edge device. In addition, the Cisco ME 3400E Series supports the IEEE 802.3ah Ethernet in the First Mile standard for monitoring, remote failure indication, loopback, and OAM discovery on the link between the customer equipment and the service provider network.

Furthermore, the Cisco ME 3400E Series supports the ITU-T standard Y.1731, which provides fault management and complements the IEEE 802.1ag functionality. In addition, Cisco ME3400E Series also supports Y.1731 Delay Measurement for performance monitoring.

Applications

Cisco ME 3400E Series switches help service providers offer a portfolio of profitable, differentiated services, including Layer 2 and Layer 3 VPN services for the ETTB market.

Intelligent Ethernet Demarcation

As Ethernet circuits replace TDM circuits inside of enterprise wiring closets, a replacement for the demarcation device is also needed. Service providers have traditionally relied on this type of device to separate the management responsibility. A demarcation device allows service providers to monitor and troubleshoot circuits all the way into the customer’s wiring closet. The Cisco ME 3400EG-2CS Switch offers the same function for an Ethernet-based network. With support for industry-standard Ethernet OAM&P features and traffic loopback, the Cisco ME 3400EG-2CS allows service providers to monitor and troubleshoot Ethernet circuits remotely. These features greatly reduce operating expense for service providers by reducing the numbers of site visits needed to troubleshoot network problems. In addition, the Cisco ME 3400EG-2CS provides the same intelligent features such as QoS, Ethernet security, and Multicast as other switches in the Cisco ME 3400E Series.

Layer 2 VPN Service

Layer 2 VPN services allow customers to connect remote offices together through a service provider network without requiring private connections. The Cisco ME 3400E Series is suited for Carrier Ethernet access deployments because it offers features such as 802.1Q Tunneling and L2PT. The Cisco ME 3400E Series helps service providers offer Layer 2 VPN services to their enterprise or commercial customers (Figure 2). Typically, these switches are installed in a office building basement serving multiple customers as customer located equipment (CLE).

Figure 2. Layer 2 VPN Service

Layer 3 VPN Service

Layer 3 VPN is another popular offering from service providers. Its benefits include a single control plane over different transport technologies, advanced QoS, and high security. With the Multi-VPN Routing and Forwarding Customer Edge (Multi-VRF CE) feature, the Cisco ME 3400E Series provides a separate routing-table function for each customer to help ensure separation of customers’ routing information (Figure 3).

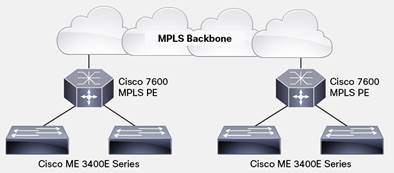

Figure 3. Layer 3 VPN Service

Mobile Backhaul Service

With the explosion of mobile data traffic, service providers need more bandwidth in their mobile networks. Ethernet, with attributes such as simplicity, scalability, and low cost, has become the mobile backhaul solution that many service providers have turned to in order to provide the required capacity for data traffic. The Cisco ME 3400E Series provides features such as +24V DC, redundant power supplies, and an extended temperature range (up to 65°C depending on the model and configuration (see Table 9 for more details), which are critical for mobile backhaul deployments. In addition, the Cisco ME 3400E Series includes Ethernet OAM and traffic loopback, which help service providers to remotely monitor and troubleshoot traffic at distant cell stations. The Cisco ME 3400E Series also helps service providers to deliver flexible Layer 2 SLAs with advanced QoS features.

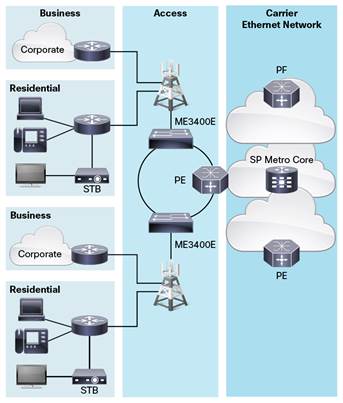

Figure 4. Mobile Backhaul Service

Key Features and Benefits

Table 4 lists the features and benefits of the Cisco ME 3400E Series.

Table 4. Features and Benefits

Feature

Benefit

Next-generation Ethernet access switches for Carrier Ethernet market

All-front access provides ease of deployment and troubleshooting in the field.
Compact form factor allows for deployment in space-limited areas.
Support for dual-speed SFP transceivers (100BASE and 1000BASE) provides flexible downlink/uplink options.
Both AC and DC power options are available.
Software is optimized for Carrier Ethernet access.
Two software feature images help enable support for breadth of services.
Software upgrade options allow service providers to purchase only the features needed today while retaining the option to obtain other features through simple software upgrades.
Upgrade options reduce operating expense by lowering the support costs for different products and by reducing the number of different products needed for sparing.
METROACCESS software feature image is designed for Layer 2 VPN services.
METROIPACCESS software feature image is designed for Layer 3 VPN services.

Service Breadth

Intelligent Ethernet demarcation

Industry-standard OAM&P 802.1ag (CFM) feature supports end-to-end network monitoring and troubleshooting. This reduces operating expense by reducing the site visits needed to troubleshoot network problems.
E-LMI enables service providers to communicate service configuration and status information to the customer-edge device. Ethernet in the First Mile OAM&P (802.3ah) provides support for monitoring, remote failure indication, loopback, and OAM discovery on the link between the customer equipment and service provider network.
Traffic loopback allows quick service activation and verification.
Carrier-class redundancy features (Flexlink, RSTP, REP) support both hub-and-spoke and ring networks.

Layer 2 VPN service

Standard 802.1Q Tunneling creates a hierarchy of 802.1Q tags, helping service providers use a single VLAN to support customers who have multiple VLANs while preserving customer VLAN IDs and segregating traffic from different customers within the service provider infrastructure.
2-rate 3-color policer allows service providers to provide more flexible control on incoming traffic rate.
1:1 VLAN mapping gives service providers the flexibility to translate customer VLAN ID into a service provider VLAN ID to support overlapping customer VLAN IDs.
Selective QinQ (1:2 VLAN mapping) enables service providers to multiplex multiple services on a single UNI (MEF EVPL for example).
Inner-to-outer CoS value propagation for QinQ helps ensure that customer QoS setting is honored in the service provider network.
L2PT allows for transport of the customer’s control protocols, thereby allowing for transparency across the service provider’s shared infrastructure.

Layer 3 VPN service

Multi-VRF CE (VRF-lite) forms virtual packet-forwarding tables by associating one or more Layer 3 interfaces with each VRF, allowing the creation of multiple Layer 3 VPNs on a single Cisco ME 3400 Series switch. Interfaces in a VRF could be either physical, as in an Ethernet port, or logical, as in a VLAN switch virtual interface (SVI), requiring the METROIPACCESS feature image.
IP Multicast support in Multi-VRF CE allows customers to migrate to VRF-lite without affecting application and services that depend on IP Multicast.
VRF-aware services (ARP, ping, SNMP, HSRP, uRPF syslog, traceroute, FTP, and TFTP) help in managing individual VRFs.
Support for multiple IP routing protocols (RIPv1/v2, EIGRP, OSPF, IS-IS, and BGPv4) offers flexible options for peering between customers and service providers.

Availability and Scalability

Superior redundancy for fault backup

Field-replaceable integrated power supply and fan module increases network uptime.
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) provides rapid spanning-tree convergence independent of spanning-tree timers and offers the benefit of distributed processing.
Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning-tree reconvergence on a per-VLAN spanning-tree basis, without requiring the implementation of spanning-tree instances.
Cisco Hot Standby Router Protocol (HSRP) is supported to create redundant, fail-safe routing topologies.
Unidirectional Link Detection Protocol (UDLD) and Aggressive UDLD allow unidirectional links caused by incorrect fiber-optic connections or port faults to be detected and disabled on fiber-optic interfaces.
Flexlink provides fast failover of ports without overhead of control protocols such as the Spanning Tree Protocol.
Switch-port autorecovery (errdisable) automatically attempts to reactivate a link that is disabled because of a network error.
Equal-cost routing provides for load balancing and redundancy.
Bandwidth aggregation up to 8 Gbps through Cisco EtherChannel technology enhances fault tolerance and offers greater aggregated bandwidth between switches and to routers and individual servers.
Link-State Tracking helps accelerate Layer 3 reconvergence by taking UNI down when the associated NNI is down.
Resilient Ethernet Protocol (REP) provides fast Layer 2 reconvergence in a ring network and offers an alternative to Spanning Tree Protocol.

High-performance IP routing

Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing.
Basic IP Unicast routing protocols (static and RIP versions 1 and 2) are supported for small-network routing applications.
Advanced IP Unicast routing protocols (OSPF, EIGRP, IS-IS, and BGPv4) are supported for load balancing and constructing scalable LANs.
HSRP provides dynamic load balancing and failover for routed links; up to 32 HSRP links are supported per unit.
Inter-VLAN IP routing provides for full Layer 3 routing between two or more VLANs.
Protocol Independent Multicast (PIM) for IP Multicast routing is supported, including PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), and PIM sparse-dense mode. The Metro IP Access image is required.
Cisco recommends 128 switch virtual interfaces (SVIs). A maximum of 1000 are supported (depending on the number of routes and multicast entries).
IPv6 improves the scalability of IP networks by supporting the growing number of users, applications and services. The functionalities supported include ACLs, DHCP, routing (Unicast routing, RIP, OSPFv3, static routes), MLD snooping, stateless autoconfig, default router preference, HTTP/HTTPS.

Multicast

Efficient multicast distribution

Multicast VLAN Registration provides efficient multicast distribution in ring networks by dedicating a single VLAN for multicast traffic, thereby removing duplicate multicast traffic in other VLANs.
PIM-SM provides efficient routing of multicast traffic by establishing distribution trees across WANs.
Source Specific Multicast (SSM) reduces the need for IP Multicast address management and prevents DoS attacks against receivers.
SSM mapping provides a mapping of source to group, which allows listeners to find/connect to multicast sources dynamically, reducing dependencies on the application.

Robust multicast control

IGMP Snooping helps enable intelligent management of multicast traffic by examining IGMP messages.
IGMP Fast Leave provides a fast channel-changing capability for IPTV services.
IGMP filtering provides control of groups each user can access.
IGMP Throttling controls the maximum number of multicast groups each user can access.
IGMP Proxy allows users anywhere on a downstream network to join an upstream sourced multicast group.

QoS and Control

Advanced QoS

The Cisco Modular QoS CLI provides a modular and highly extensible framework for deploying QoS, by standardizing the CLI and semantics for QoS features across all platforms that are supported by Cisco IOS Software.
2-rate 3-color policer enables service provider to provide more flexible QoS offerings.
Standard 802.1p class of service (CoS) and differentiated services code point (DSCP) field classification are provided, using marking and reclassification on a per-packet basis by source and destination IP address, source and destination MAC address, VLAN ID, or Layer 4 TCP/UDP port number.
Cisco control-plane and data-plane QoS ACLs on all ports help ensure proper marking on a per-packet basis.
Shaped Round Robin (SRR) scheduling helps ensure differential prioritization of packet flows by intelligently servicing the queues.
Weighted Tail Drop (WTD) provides per QoS class congestion avoidance at the queues before a disruptionoccurs.
Strict priority queuing helps ensure that the highest-priority packets are serviced ahead of all other traffic.
Priority queue rate limiting provides optional protection against lower-priority queue starvation.
Configurable control plane queue assignment allows service providers to assign control plane traffic to specific egress queue.
Prioritization of control plane traffic enables service providers to set QoS markings globally for CPU-generated traffic so these protocol packets will receive priority in the network.
There is no performance penalty for advanced QoS functions.

Advanced traffic control

1:1 VLAN mapping allows service providers to translate same VLAN IDs from different customers into different service provider VLAN IDs to separate customer traffic in the service provider network.
Selective QinQ (1:2 VLAN mapping) gives service providers the ability to multiplex multiple Ethernet Private Line (EPL) services on a single UNI.
Inner-to-outer CoS value propagation for QinQ honors customer QoS setting in the service provider network.
Upstream and downstream traffic flows from the end station or the uplink are easily managed using ingress policing and egress shaping.
Ingress policing provides bandwidth monitoring in increments as low as 8 kbps.
Ingress policing is provided based on CoS, VLAN ID, DSCP, and QoS ACLs (IP ACLs or MAC ACLs) which can include source and destination IP address, source and destination MAC address, Layer 4 TCP/UDP information, or any combination of these fields.
Egress Weighted Fair Queuing helps guarantee the Committed Information Rate (CIR) between traffic flows andqueues.
Egress shaping for each queue provides smooth traffic control of available bandwidth.
Egress port rate limiting allows the service provider to control the traffic rate that is transmitted out of the port.

Network Security

Comprehensive security solutions

Subscriber security:

IEEE 802.1x allows dynamic, port-based security by providing user authentication.
IEEE 802.1x with VLAN assignment allows a dynamic VLAN assignment for a specific user regardless of where the user is connected.
IEEE 802.1x and port security are provided to authenticate the port and manage network access for all MAC addresses.
IEEE 802.1x readiness check simplifies deployment by generating a report for end hosts capable of 802.1x.
An absence of local switching behavior provides security and isolation between UNIs, helping ensure that users cannot monitor or access other users’ traffic on the same switch.
DHCP Snooping prevents malicious users from spoofing a DHCP server and sending out bogus addresses. This feature also prevents numerous other attacks such as Address Resolution Protocol (ARP) poisoning.
Dynamic ARP Inspection helps ensure user integrity by preventing malicious users from exploiting the insecure nature of the ARP protocol.
IP Source Guard prevents a malicious user from spoofing or taking over another user’s IP address by creating a binding table between client’s IP and MAC address, port, and VLAN.

Switch security:

Control Plane Security prevents DoS attacks on the CPU.
Configurable control plane security on ENI gives service providers the flexibility to selectively discard or peer with customer’s control plane traffic on a per-port, per-protocol basis.
Secure Shell (SSH) Protocol, Kerberos, and SNMPv3 provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSH, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions.
Port security secures the access to an access or trunk port based on MAC address. After a specific timeframe, the aging feature removes the MAC address from the switch to allow another device to connect to the same port.
Multilevel security on the console access prevents unauthorized users from altering the switch configuration.
TACACS+ and RADIUS authentication facilitate centralized control of the switch and restrict unauthorized users from altering the configuration.
Configuration File Security helps ensure that only authenticated users have access to the configuration file.
MAC address learning and aging notifications allow administrators to keep track of subscriber activities.

Network security:

Cisco security VLAN ACLs on all VLANs prevent unauthorized data flows from being bridged within VLANs.
Cisco standard and extended IP security router ACLs define security policies on routed interfaces for control-plane and data-plane traffic.
Port-based ACLs for Layer 2 interfaces allow for application of security policies on individual switch ports.
MAC address notification allows administrators to be notified of users added to or removed from the network.

Network monitoring:

Loopback allows service provider to test end-to-end traffic condition in the network.
Remote Switched Port Analyzer (RSPAN) allows for remote monitoring of the user interface.
Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the Cisco intrusion detection system to take action when an intruder is detected.

Manageability

Superior manageability

The Cisco IOS CLI provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches.
Cisco Service Assurance Agent (SAA) provides service-level management throughout the network.
IEEE 802.1ag Connectivity Fault Management provides standard support for transport fault management. It allows for discovery and verification of path for Layer 2 services.
Ethernet Local Management Interface enables service providers to communicate service configuration and status information to the customer-edge device IEEE 802.3ah Ethernet in the First Mile provides standard support for monitoring, remote failure indication, loopback, and OAM discovery on the link between the customer equipment and service provider network.
ITU-T Y.1731 introduces the support for fault management functions, including alarm indication signal (AIS), remote defect indication (RDI) and locked signal (LCK) to detect and signal a failure in the service path.
The Cisco ME 3400E Series supports ITU-T Y.1731 Performance Monitoring function to measure frame delays in the network.
Switching Database Manager templates for Layer 2 and Layer 3 deployment allow administrators to easily optimize memory allocation to the desired features based on deployment-specific requirements.
VLAN trunks can be created from any port, using standards-based 802.1Q tagging. Up to 1005 VLANs per switch and up to 128 spanning-tree instances per switch are supported.
4096 VLAN IDs are supported.
RSPAN allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.
For enhanced traffic management, monitoring, and analysis, the embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).
Layer 2 traceroute eases troubleshooting by identifying the physical path that a packet takes from source to destination.
All nine RMON groups are supported through a SPAN port, permitting traffic monitoring of a single port, a group of ports, or the entire stack from a single network analyzer or RMON probe.
Domain Name System (DNS) provides IP address resolution with user-defined device names.
Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.
Network Timing Protocol (NTP) provides an accurate and consistent time stamp to all intranet switches.
The Cisco ME 3400 Series supports the Cisco CNS 2100 Series Intelligence Engine and SNMP for networkwide management.
Cisco ISC applications help reduce administration and management costs by providing automated resource management and rapid profile-based provisioning capabilities.
Configuration Rollback helps in error recovery by providing the capability to replace the current running configuration with any saved CiscoIOS configuration file.
Embedded Events Manager (EEM) offers the ability to monitor events and take user-defined action when the monitored events occur or a threshold is reached.
Service Diagnostics automates a set of network diagnostic procedures derived from the vast troubleshooting experiences of Cisco network experts. These diagnostic tools help customers increase network uptime, reduce time to repair and improve service levels.
Digital optical monitoring (DOM) support enable service providers to perform in-service transceiver monitoring and troubleshooting operations. DOM threshold functions allow the monitoring of real time optical parameters on DOM SFPs and the comparison against factory-reset values, generating alarm and warning thresholds.

CiscoWorks support

CiscoWorks network management software provides management capabilities on a per-port and per-switch basis, providing a common management interface for Cisco routers, switches, and hubs.
SNMP Versions 1, 2c, and 3 and Telnet provide comprehensive in-band management, and a CLI-based management console provides detailed out-of-band management.
Cisco Discovery Protocol Versions 1 and 2 help enable automatic switch discovery for a CiscoWorks network management station.
CiscoWorks 2000 LAN Management Solution is supported.

Product Specifications

Table 5 lists product specifications for Cisco ME 3400E Series Ethernet Access Switches.

Table 5. Product Specifications

Description

Specification

Performance

Forwarding bandwidth:

Cisco ME 3400EG-12CS AC or DC: 32 Gbps

Cisco ME 3400EG-2CS AC: 8 Gbps

Cisco ME 3400E-24TS, AC or DC: 8 Gbps

Forwarding rate:

Cisco ME 3400EG-12CS, AC or DC: 26 mpps

Cisco ME 3400EG-2CS AC: 6.5 mpps

Cisco ME 3400E-24TS, AC or DC: 6.5 mpps

128 -MB DRAM and 32 MB flash memory
Configurable up to 8000 MAC addresses
Configurable up to 5000 unicast routes
Configurable up to 1000 IGMP groups and multicast routes
Configurable maximum transmission unit (MTU) of up to 9000 bytes, for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging and routing on Fast Ethernet ports

Connectors and cabling

10/100 Ports:

10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded twisted pair (UTP) cabling

SFP Ports:

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling, 10/100/1000BASE-T operation in host systems with SGMII interface
100BASE-FX and -LX: Duplex LC receptacle fiber connectors (multimode and single-mode)
100BASE-BX: Single-fiber LC receptacle connector (single-mode fiber)
1000BASE-EX: Single Mode Fiber with DOM support
100BASE-EX: SFP module for 100 Mb port, 1310 nm wavelength, 40 km over single-mode fiber
100BASE-ZX: SFP module for 100 Mb port, 1550 nm wavelength, 80 km over single-mode fiber
1000BASE-BX: Single-fiber LC receptacle connector (single-mode fiber)
1000BASE-SX, -LX/LH, and -ZX and CWDM and DWDM: Duplex LC receptacle fiber connectors (multimode and single-mode fiber)
Cisco Catalyst 3560 SFP Interconnect Cable
Management console port: RJ45-to-DB9 cable for PC connections

Indicators

Per-port status LEDs: Link integrity, port disabled, and activity indications
System-status LED

Dimensions (H x W x D)

Cisco ME 3400EG-12CS-M,: 1.75 x 17.5 x 12.0 in. (4.45 x 44.5 x 30.5 cm)
Cisco ME 3400EG-12CS-M with AC or DC: 1.75 x 17.5 x 12.5 in. (4.45 x 44.5 x 31.8 cm)
Cisco ME 3400EG-2CS AC: 1.73 x 10.6 x 7.2 in. (4.4 x 26.9 x 18.3 cm)
Cisco ME 3400E-24TS-M: 1.75 x 17.5 x 9.3 in. (4.45 x 44.5 x 23.6 cm)
Cisco ME 3400E-24TS-M with AC or DC: 1.75 x 17.5 x 9.8 in. (4.45 x 44.5 x 24.9 cm)

Weight

Cisco ME 3400EG-12CS-M: 8.5 lb (3.9 kg)
Cisco ME 3400EG-2CS AC: 3.4 lb (1.5 kg)
Cisco ME 3400E-24TS-M: 6.4 lb (2.9 kg)
Cisco ME 3400E AC field-replaceable unit with two integrated fans: 1.7 lb (0.77 kg)
Cisco ME 3400E DC field-replaceable unit with two integrated fans: 1.8 lb (0.82 kg)
Cisco ME 3400E field-replaceable unit slot cover: 0.3 lb (0.14 kg)

Mean time between failure (MTBF)

Cisco ME 3400EG-12CS with one AC or one DC: 196,391 hours
Cisco ME 3400EG-2CS AC: 526,490 hours
Cisco ME 3400E-24TS with one AC or one DC: 245,917 hours
Cisco ME 3400E-24TS with two AC or two DC: 462,163 hours

Power Specifications

Table 6 gives power specifications for the Cisco ME 3400E Series.

Table 6. Power Specifications

Description

Specification

Power consumption

Cisco ME 3400EG-12CS-M, one AC: 50W (typical), 80W (maximum), 171 Btus per hour (typical)
Cisco ME 3400EG-12CS-M, two AC: 60W (typical), 95W (maximum), 205 Btus per hour (typical)
Cisco ME 3400EG-12CS-M, one DC: 60W (typical), 99W (maximum), 205 Btus per hour (typical)
Cisco ME 3400EG-12CS-M, two DC: 70W (typical), 115W (maximum), 239 Btus per hour (typical)
Cisco ME 3400EG-2CS AC: 22W (typical), 30W (maximum), 75 Btus per hour (typical)
Cisco ME 3400E-24TS-M, one AC: 36W (typical), 40W (maximum), 123 Btus per hour (typical)
Cisco ME 3400E-24TS-M, two AC: 38W (typical), 54W (maximum), 130 Btus per hour (typical)
Cisco ME 3400E-24TS-M, one DC: 38W (typical), 48W (maximum), 130 Btus per hour (typical)
Cisco ME 3400E-24TS-M, two DC: 48W (typical), 72W (maximum), 164 Btus per hour (typical)

AC input voltage and frequency

Cisco ME340X-PWR- AC: 100 to 240 VAC (+/- 10% autoranging), 1.5 to 0.7A, 50 to 60 Hz

DC input voltages

Cisco ME340X-PWR- DC: 18 to 72 VDC, 8 to 4A (18 to 36V), 4 to 2A (36 to 72V)

Management and Standards

Table 7 provides management and standards support information for the Cisco ME 3400E Series.

Table 7. Management and Standards

Description

Specification

Management

BRIDGE-MIB (RFC1493)
BGP4-MIB (RFC1657)
CISCO-CABLE-DIAG-MIB
CISCO-BULK-FILE-MIB
CISCO-CDP-MIB
CISCO-CONFIG-COPY-MIB
CISCO-CONF-MAN-MIB
CISCO-DATA-COLLECTION-MIB
CISCO-ENVMON-MIB
CISCO-ERR-DISABLE-MIB
CISCO-ETHERNET-ACCESS-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-HSRP-MIB
CISCO-HSRP-EXT-MIB
CISCO-IETF-DOT3-OAM-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IPLSA-ETHERNET-MIB
CISCO-PAGP-MIB
CISCO-PAE-MIB
CISCO-PING-MIB
CISCO-PRIVATE-VLAN-MIB
CISCO-PROCESS-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-IMAGE-MIB
CISCO-LAG-MIB
CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-RTTMON-MIB
CISCO-STACK-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TCP-MIB
CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
ENTITY-MIB (RFC2737)
ETHERLIKE-MIB
IEEE8021-PEA-MIB
IEEE8023-LAG-MIB
IF-MIB (RFC 1573)
IGMP-MIB
IPMROUTE-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
OSPF-MIB (RFC 1253)
PIM-MIB
RFC1213-MIB (MIB-II)
RMON-MIB (RFC 1757)
RMON2-MIB (RFC 2021)
SNMP-FRAMEWORK-MIB (RFC2571)
SNMP-MPD-MIB (RFC 2572)
SNMP-NOTIFICATION-MIB (RFC 2573)
SNMP-TARGET-MIB (RFC 2573)
SNMPv2-MIB (RFC 1907)
SNMP-USM-MIB (SNMP-USER-BASED-SM-MIB) (RFC2574)
SNMP-VACM-MIB (SNMP-VIEW-BASED-ACM-MIB) (RFC2575)
TCP-MIB (RFC 2012)
UDP-MIB (RFC 2013)

Standards and protocols

IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ad
IEEE 802.3ah
IEEE 802.1ag
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS classification
IEEE 802.1Q VLAN
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IP routing: Static, RIP versions 1 and 2, EIGRP, OSPF, BGPv4, PIM-SM, and PIM-DM
(metro IP access only)
IPv6: MLD Snooping v1 and v2
IPv6: RIP, OSPFv3, static routes
Management: SNMP versions 1, 2, and 3

Safety and Compliance

Table 8 gives safety and compliance information for the Cisco ME 3400 Series.

Table 8. Safety and Compliance

Type

Standards

Electromagnetic emissions compliance

FCC Part 15 Class A
EN 55022 Class A (CISPR22 Class A)
EN 55024
EN 300 386
GR-1089 CORE Issue 4
GR-63 CORE Issue 3
VCCI Class A
AS/NZS 3548 Class A or AS/NZS CISPR22 Class A
KCC
CE Marking

Safety

UL 60950-1, First Edition
CUL to CAN/CSA 22.2 No.60950-1, First Edition
TUV/GS to EN 60950-1
CB report/certificate to IEC 60950 with all country deviations
NOM to NOM-019-SCFI (through distributors)
CE Marking

NEBS

GR-63-CORE and GR-1089-CORE: Level 3, Type 2

CLEI Coding

ETSI

EN 300 019: Storage Class 1.2, Transportation Class 2.3, In-Use Class 3.2

Noise specifications

Cisco Office Product Specification:

48 dBA (sound pressure)

4.8 bels (sound power)

EN 300 753

Operating environment

Temperature: 0 to 65ºC (See table 9 for more details on model and configuration requirements. Temperature versus altitude curve follows NEBS specifications)
Altitude: Up to 13,000 ft (4000m)
Relative humidity: 10 to 95% noncondensing

Storage environment

Temperature: -40 to 70ºC
Altitude: 15,000 ft (4570 m)

Table 9 gives operating termpature information for the Cisco ME 3400E Series. Temperature range is dependent on the SFPs used and the number of field replaceable units operating in the switch.

Table 9. ME3400E Series Temperature Range

Operating Temperature

0ºC to 55ºC

0ºC to 60ºC

0ºC to 65ºC

PID

ME-3400EG-2CS-A

ME-3400E-24TS-M with 1 FRU

ME-3400EG-12CS-M with 1 FRU

ME-3400EG-2CS-A

ME-3400E-24TS-M with 1 FRU

ME-3400EG-12CS-M with 1 FRU

ME-3400EG-2CS-A

ME-3400E-24TS-M with 2 FRUs

ME-3400EG-12CS-M with 2 FRUs

100M SFP

GLC-FE-100FX

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

GLC-FE-100LX

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

GLC-FE-100EX

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

GLC-FE-100ZX

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

GLC-FE-100BX-D

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

GLC-FE-100BX-U

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

1000M SFP

GLC-SX-MM

Yes

Yes

Yes

No

Yes

Yes

No

No

No

GLC-LH-SM

Yes

Yes

Yes

No

Yes

Yes

No

No

No

GLC-ZX-SM

Yes

Yes

Yes

No

Yes

Yes

No

No

No

GLC-BX-D

Yes

Yes

Yes

No

Yes

Yes

No

No

No

GLC-BX-U

Yes

Yes

Yes

No

Yes

Yes

No

No

No

GLC-T

Yes

Yes

Yes

No

Yes

Yes

No

No

No

CWDM-xxxx-SFP

Yes

Yes

Yes

No

Yes

Yes

No

No

No

DWDM-xxxx-SFP

Yes

Yes

Yes

No

Yes

Yes

No

No

No

SFP-GE-S

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

SFP-GE-L

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

SFP-GE-T

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

CAB-SFP-50CM

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

No SFP Installed

Yes

Yes

Yes

Yes

Yes

Yes

No

Yes

Yes

Ordering Information

Table 10 lists the ordering information for the Cisco ME 3400E Series. To place an order, visit the Cisco Ordering Home Page at: http:/www.cisco.com/en/US/ordering.

Table 10. Ordering Information

Part Number

Description

ME-3400EG-12CS-M

12 dual-purpose (10/100/1000 and SFP) ports
4 SFP-based Gigabit Ethernet and 100BASE-X ports
Slots for field-replaceable power supplies and fan modules
4 external alarm input contacts
26-mpps forwarding rate
1-RU multilayer switch
Gigabit Ethernet access switch for the Carrier Ethernet market
2 Cisco IOS Software feature image options (METROACCESS and METROIPACCESS)

ME-3400EG-2CS-A

2 dual-purpose (10/100/1000 and SFP) ports
2 SFP-based Gigabit Ethernet and 100BASE-X ports
One fixed AC power supply
Ethernet management console
4 external alarm input contacts
6.5-mpps forwarding rate
1-RU small form-factor multilayer switch
Intelligent Ethernet demarcation switch
2 Cisco IOS Software feature image options (METROACCESS and METROIPACCESS)

ME-3400E-24TS-M

24 Ethernet 10/100 ports
2 SFP-based Gigabit Ethernet and 10/100/1000 dual-purpose ports
Slots for field-replaceable power supplies and fan modules
Ethernet management console
4 external alarm input contacts
6.5-mpps forwarding rate
1-RU multilayer switch
Ethernet access switch for Carrier Ethernet market
2 Cisco IOS Software feature image options (METROACCESS and METROIPACCESS)

ME34X-PWR-AC

AC power supply and fan module for ME-3400E-24TS-M and ME-3400EG-12CS-M

ME34X-PWR-DC

DC power supply and fan module for ME-3400E-24TS-M and ME-3400EG-12CS-M

S340XA-12244EY

Cisco ME 3400E Series METROACCESS software feature image
Enhanced Layer 2 feature images targeted for premium triple-play services and Layer 2 VPN services
Advanced Layer 2 Tunneling: 802.1q tunneling and L2PT
Industry-standard Layer 2 management: 802.1ag (CFM), 802.3ah (EFM), and E-LMI
Fast convergence: Flexlink, Link-State Tracking, Resilient Ethernet Protocol

S340XI-12244EY

Layer 3 feature images targeted for Layer 3 VPN services
IP routing (RIP versions 1 and 2, EIGRP, OSFP, IS-IS, and BGPv4)
Secured Layer 3: Multi-VRF CE
Enhanced routing: Policy Based Routing

CD-ME3400-A2I=

METROIPACCESS image upgrade kit for Cisco ME 3400 Series Switches with METROACCESS image

R-CD-ME3400-A2I=

E-delivery METROIPACCESS image upgrade kit for Cisco ME 3400 Series Switches with METROACCESS image

RCKMNT-1RU=

Spare rack-mount kit for the Cisco ME 3400EG-12CS-M and Cisco ME 3400E-24TS-M

RCKMNT-REC-1RU=

1-RU recessed rack-mount kit for the Cisco ME 3400EG-12CS-M and Cisco ME 3400E-24TS-M

RCKMNT-ETSI-1RU=

ETSI rack-mount kit for Cisco ME 3400EG-12CS-M and Cisco ME 3400E-24TS-M

RCKMNT-19IN-1RU=

19-in. NEBS rack-mount kit for all the Cisco ME3400 Series products, except the Cisco ME 3400EG-2CS

RCKMNT-19-CMPCT=

19-in. NEBS rack-mount kit for the Cisco ME 3400EG-2CS

RCKMNT-23IN-1RU=

23-in. NEBS rack-mount kit for Cisco ME 3400EG-12CS-M and Cisco ME 3400E-24TS-M

RCKMNT-23-CMPCT=

23-in. NEBS rack-mount kit for the Cisco ME 3400EG-2CS

GLC-LH-SM=

Gigabit Ethernet SFP, LC connector, and LH transceiver

GLC-LH-SMD

Gigabit Ethernet SFP, LC connector, and LH transceiver

GLC-SX-MM=

Gigabit Ethernet SFP, LC connector, and SX transceiver

GLC-SX-MMD

Gigabit Ethernet SFP, LC connector, and SX transceiver

GLC-ZX-SM=

Gigabit Ethernet SFP, LC connector, and ZX transceiver

GLC-T=

Gigabit Ethernet SFP, RJ-45 connector, and 10/100/1000BASE-T transceiver

GLC-BX-D=

1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength

GLC-BX-U=

1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1490-nm RX wavelength

GLC-EX-SMD=

1000BASE-EX SFP

GLC-FE-100FX=

100BASE-FX SFP for Fast Ethernet port

GLC-FE-100LX=

100BASE-LX SFP for Fast Ethernet port

GLC-FE-100EX=

100BASE-EX SFP for Fast Ethernet port

GLC-FE-100ZX=

100BASE-ZX SFP for Fast Ethernet port

GLC-FE-100BX-U=

100BASE-BX10-U SFP

GLC-FE-100BX-D=

100BASE-BX10-D SFP

GLE-GE-100FX=

100BASE-FX (multimode fiber) (works in “multispeed” Gigabit Ethernet SFP ports of other Cisco platforms such as the Cisco Catalyst 3560, Catalyst 3750 [non-metro], and Catalyst 2970 Series)

GLC-FE-100FX24

24 units of GLC-FE-100FX

GLC-FE-100FX48

48 units of GLC-FE-100FX

GLC-FE-100LX48

48 units of GLC-FE-100LX

GLC-FE-100BX-D48

48 units of GLC-FE-100BX-D

SFP-GE-S=

1000BASE-SX SFP (DOM)

SFP-GE-L=

1000BASE-LX/LH SFP (DOM)

CWDM-SFP-1470=

Cisco CWDM SFP, 1470 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (gray)

CWDM-SFP-1490=

Cisco CWDM SFP, 1490 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (violet)

CWDM-SFP-1510=

Cisco CWDM SFP, 1510 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (blue)

CWDM-SFP-1530=

Cisco CWDM SFP, 1530 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (green)

CWDM-SFP-1550=

Cisco CWDM SFP, 1550 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (yellow)

CWDM-SFP-1570=

Cisco CWDM SFP, 1570 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (orange)

CWDM-SFP-1590=

Cisco CWDM SFP, 1590 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (red)

CWDM-SFP-1610=

Cisco CWDM SFP, 1610 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (brown)

DWDM-SFP-6061=

Cisco DWDM SFP 1560.61 nm (100 GHz ITU grid)

DWDM-SFP-5979=

Cisco DWDM SFP 1559.79 nm (100 GHz ITU grid)

DWDM-SFP-5898=

Cisco DWDM SFP 1558.98 nm (100 GHz ITU grid)

DWDM-SFP-5817=

Cisco DWDM SFP 1558.17 nm (100 GHz ITU grid)

DWDM-SFP-5655=

Cisco DWDM SFP 1556.55 nm (100 GHz ITU grid)

DWDM-SFP-5575=

Cisco DWDM SFP 1555.75 nm (100 GHz ITU grid)

DWDM-SFP-5494=

Cisco DWDM SFP 1554.94 nm (100 GHz ITU grid)

DWDM-SFP-5413=

Cisco DWDM SFP 1554.13 nm (100 GHz ITU grid)

DWDM-SFP-5252=

Cisco DWDM SFP 1552.52 nm (100 GHz ITU grid)

DWDM-SFP-5172=

Cisco DWDM SFP 1551.72 nm (100 GHz ITU grid)

DWDM-SFP-5092=

Cisco DWDM SFP 1550.92 nm (100 GHz ITU grid)

DWDM-SFP-5012=

Cisco DWDM SFP 1550.12 nm (100 GHz ITU grid)

DWDM-SFP-4851=

Cisco DWDM SFP 1548.51 nm (100 GHz ITU grid)

DWDM-SFP-4772=

Cisco DWDM SFP 1547.72 nm (100 GHz ITU grid)

DWDM-SFP-4692=

Cisco DWDM SFP 1546.92 nm (100 GHz ITU grid)

DWDM-SFP-4612=

Cisco DWDM SFP 1546.12 nm (100 GHz ITU grid)

DWDM-SFP-4453=

Cisco DWDM SFP 1544.53 nm (100 GHz ITU grid)

DWDM-SFP-4373=

Cisco DWDM SFP 1543.73 nm (100 GHz ITU grid)

DWDM-SFP-4294=

Cisco DWDM SFP 1542.94 nm (100 GHz ITU grid)

DWDM-SFP-4214=

Cisco DWDM SFP 1542.14 nm (100 GHz ITU grid)

DWDM-SFP-4056=

Cisco DWDM SFP 1540.56 nm (100 GHz ITU grid)

DWDM-SFP-3977=

Cisco DWDM SFP 1539.77 nm (100 GHz ITU grid)

DWDM-SFP-3898=

Cisco DWDM SFP 1538.98 nm (100 GHz ITU grid)

DWDM-SFP-3819=

Cisco DWDM SFP 1538.19 nm (100 GHz ITU grid)

DWDM-SFP-3661=

Cisco DWDM SFP 1536.61 nm (100 GHz ITU grid)

DWDM-SFP-3582=

Cisco DWDM SFP 1535.82 nm (100 GHz ITU grid)

DWDM-SFP-3504=

Cisco DWDM SFP 1535.04 nm (100 GHz ITU grid)

DWDM-SFP-3425=

Cisco DWDM SFP 1534.25 nm (100 GHz ITU grid)

DWDM-SFP-3268=

Cisco DWDM SFP 1532.68 nm (100 GHz ITU grid)

DWDM-SFP-3190=

1000BASE-DWDM 1531.90 nm (100 GHz ITU grid)

DWDM-SFP-3112=

1000BASE-DWDM 1531.12 nm (100 GHz ITU grid)

DWDM-SFP-3033=

Cisco DWDM SFP 1530.33 nm (100 GHz ITU grid)

CSS5-CABLX-LCSC=

Cisco CSS 11500 Series Content Services Switch, 10m single-mode fiber, LX LC-to-SC connectors

CSS5-CABSX-LC=

Cisco CSS 11500 10m multimode fiber, SX LC connectors

CSS5-CABSX-LCSC=

Cisco CSS 11500 10m multimode fiber, SX LC-to-SC connectors

CAB-SFP-50CM=

Cisco Catalyst 3560 SFP Interconnect Cable (50 cm)

CAB-SM-LCSC-1M

1m single-mode fiber, LC-to-SC connectors

CAB-SM-LCSC-5M

5m single-mode fiber, LC-to-SC connectors

CAB-MCP-LC=

Mode-conditioning patch cable; LC connector

Service and Support

Cisco offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, refer to Cisco Technical Support Services or Cisco Advanced Services.

Cisco is committed to minimizing your total cost of ownership. Cisco offers a portfolio of technical support services to help ensure that Cisco products operate efficiently, remain highly available, and benefit from the most up-to-date system software. The services and support programs described in Table 11 are available as part of the Cisco Carrier Ethernet Switching Service and Support solution, and are available directly from Cisco and through resellers.

Table 11. Service and Support

Service and Support

Features

Benefits

Advanced Services

Cisco Total Implementation Solutions (TIS), available directly from Cisco

Cisco Packaged TIS, available through resellers

Project management
Site survey, configuration, and deployment
Installation, text, and cutover
Training
Major moves, adds, and changes
Design review and product staging
Supplement existing staff
Help ensure functions meet needs
Mitigate risk

Cisco SP Base Support and Service Provider-Based Onsite Support, available directly from Cisco

Cisco Packaged Service Provider-Based Support, available through resellers

24-hour access to software updates
Web access to technical repositories
Telephone support through the Cisco Technical Assistance Center(TAC)
Advance Replacement of hardware parts
Facilitate proactive or expedited problemresolution
Lower total cost of ownership by taking advantage of Cisco expertise and knowledge
Minimize network downtime
