Configuring Trunking

Information About Trunking

Trunking E Ports

Trunking F Ports

Key Concepts

Trunking Protocols

Trunk Modes

Trunk-Allowed VSAN Lists and VF_IDs

Guidelines and Limitations

General Guidelines and Limitations

Upgrade and Downgrade Limitations

Difference Between TE Ports and TF-TNP Ports

Trunking Misconfiguration Examples

Default Settings

Configuring Trunking

Enabling the Cisco Trunking and Channeling Protocols

Enabling the F Port Trunking and Channeling Protocol

Configuring Trunk Mode

Configuring an Allowed-Active List of VSANs

Verifying Trunking Configuration

Configuration Example for F Port Trunking


Configuring Trunking

•Information About Trunking

•Guidelines and Limitations

•Default Settings

•Configuring Trunking

•Verifying Trunking Configuration

•Configuration Example for F Port Trunking

Information About Trunking

Trunking, also known as VSAN trunking, is a feature specific to switches in the Cisco MDS 9000 Family. Trunking enables interconnect ports to transmit and receive frames in more than one VSAN, over the same physical link. Trunking is supported on E ports and F ports (See Figure 5-1 and Figure 5-2).

This section includes the following topics:

•Trunking E Ports

•Trunking F Ports

•Key Concepts

•Trunking Protocols

•Trunk Modes

•Trunk-Allowed VSAN Lists and VF_IDs

Trunking E Ports

Trunking the E ports enables interconnect ports to transmit and receive frames in more than one VSAN, over the same physical link, using enhanced ISL (EISL) frame format.

Figure 5-1 Trunking E Ports

Note Trunking is not supported by internal ports on both the Cisco Fabric Switch for HP c_Class BladeSystem and the Cisco Fabric Switch for IBM BladeCenter.

Trunking F Ports

Trunking F ports allows interconnected ports to transmit and receive tagged frames in more than one VSAN, over the same physical link.

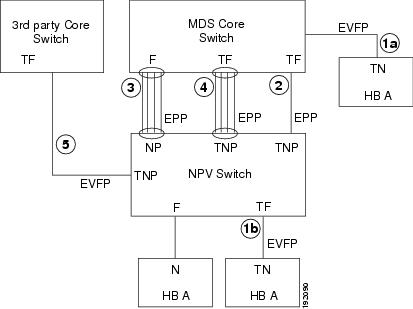

Figure 5-2 represents the possible trunking scenarios in a SAN with MDS core switches, NPV switches, third-party core switches, and HBAs.

Figure 5-2 Trunking F Ports


Link Number
Link Description

1a and 1b

F port trunk with N port.1

2

F port trunk with NP port.

3

F PortChannnel with NP port.

4

Trunked F PortChannel with NP port.

5

Trunking NP port with third-party core switch F port.1

1 These features are not supported currently.


Key Concepts

The trunking feature includes the following key concepts:

•TE port—If trunk mode is enabled in an E port and that port becomes operational as a trunking E port, it is referred to as a TE port.

•TF port—If trunk mode is enabled in an F port (see the link 2 in Figure 5-2) and that port becomes operational as a trunking F port, it is referred to as a TF port.

•TN port—If trunk mode is enabled (not currently supported) in an N port (see the link 1b in Figure 5-2) and that port becomes operational as a trunking N port, it is referred to as a TN port.

•TNP port—If trunk mode is enabled in an NP port (see the link 2 in Figure 5-2) and that port becomes operational as a trunking NP port, it is referred to as a TNP port.

•TF PortChannel—If trunk mode is enabled in an F PortChannel (see the link 4 in Figure 5-2) and that PortChannel becomes operational as a trunking F PortChannel, it is referred to as TF PortChannel. Cisco Port Trunking Protocol (PTP) is used to carry tagged frames.

•TF-TN port link—A single link can be established to connect an F port to an HBA to carry tagged frames (see the link 1a and 1b in Figure 5-2) using Exchange Virtual Fabrics Protocol (EVFP). A server can reach multiple VSANs through a TF port without inter-VSAN routing (IVR).

•TF-TNP port link—A single link can be established to connect an TF port to an TNP port using the PTP protocol to carry tagged frames (see the link 2 in Figure 5-2). PTP is used because PTP also supports trunking PortChannels.

Note The TF-TNP port link between a third-party NPV core and a Cisco NPV switch is established using the EVFP protocol.

•A Fibre Channel VSAN is called Virtual Fabric and uses a VF_ID in place of the VSAN ID. By default, the VF_ID is 1 for all ports. When an N port supports trunking, a pWWN is defined for each VSAN and called a logical pWWN. In the case of MDS core switches, the pWWNs for which the N port requests additional FC_IDs are called virtual pWWNs.

Trunking Protocols

The trunking protocol is important for trunking operations on the ports. The protocols enable the following activities:

•Dynamic negotiation of operational trunk mode.

•Selection of a common set of trunk-allowed VSANs.

•Detection of a VSAN mismatch across an ISL.

Table 5-1 specifies the protocols used for trunking and channeling.

Table 5-1 Supported Trunking Protocols

Trunk Link
Default

TE-TE port link

Cisco EPP (PTP)

TF-TN port link1

FC-LS Rev 1.62 EVFP

TF-TNP port link

Cisco EPP (PTP)

E or F PortChannel

Cisco EPP (PCP)

TF Port Channel

Cisco EPP (PTP and PCP)

Third-party TF-TNP port link1

FC-LS Rev 1.62 EVFP

1 These features are not currently supported.


By default, the trunking protocol is enabled on E ports and disabled on F ports. If the trunking protocol is disabled on a switch, no port on that switch can apply new trunk configurations. Existing trunk configurations are not affected. The TE port continues to function in trunk mode, but only supports traffic in VSANs that it negotiated with previously (when the trunking protocol was enabled). Also, other switches that are directly connected to this switch are similarly affected on the connected interfaces. In some cases, you may need to merge traffic from different port VSANs across a non-trunking ISL. If so, disable the trunking protocol.

Note We recommend that both ends of a trunking link belong to the same port VSAN. On certain switches or fabric switches where the port VSANs are different, one end returns an error and the other end is not connected.

Trunk Modes

By default, trunk mode is enabled on all Fibre Channel interfaces (Mode: E, F, FL, Fx, ST, and SD) on non-NPV switches. On NPV switches, by default, trunk mode is disabled. You can configure trunk mode as on (enabled), off (disabled), or auto (automatic). The trunk mode configuration at the two ends of an ISL, between two switches, determine the trunking state of the link and the port modes at both ends (see Table 5-2).

Table 5-2 Trunk Mode Status Between Switches

Your Trunk Mode Configuration
Resulting State and Port Mode
Port Type
Switch 1
Switch 2
Trunking State
Port Mode

E ports

On

Auto or on

Trunking (EISL)

TE port

Off

Auto, on, or off

No trunking (ISL)

E port

Auto

Auto

No trunking (ISL)

E port

Port Type
Core Switch
NPV Switch
Trunking State
Link Mode

F and NP ports

On

Auto or on

Trunking

TF-TNP link

Auto

On

Trunking

TF-TNP link

Off

Auto, on, or off

No trunking

F-NP link


Tip The preferred configuration on the Cisco MDS 9000 Family switches is one side of the trunk set to auto and the other side set to on.

Note When connected to a third-party switch, the trunk mode configuration on E ports has no effect. The ISL is always in a trunking disabled state. In the case of F ports, if the third-party core switch ACC's physical FLOGI with the EVFP bit is configured, then EVFP protocol enables trunking on the link.

Trunk-Allowed VSAN Lists and VF_IDs

Each Fibre Channel interface has an associated trunk-allowed VSAN list. In TE-port mode, frames are transmitted and received in one or more VSANs specified in this list. By default, the VSAN range (1 through 4093) is included in the trunk-allowed list.

The common set of VSANs that are configured and active in the switch are included in the trunk-allowed VSAN list for an interface, and they are called allowed-active VSANs. The trunking protocol uses the list of allowed-active VSANs at the two ends of an ISL to determine the list of operational VSANs in which traffic is allowed.

Switch 1 (see Figure 5-3) has VSANs 1 through 5, switch 2 has VSANs 1 through 3, and switch 3 has VSANs 1, 2, 4, and 5 with a default configuration of trunk-allowed VSANs. All VSANs configured in all three switches are allowed-active. However, only the common set of allowed-active VSANs at the ends of the ISL become operational (see Figure 5-3).

For all F, N, and NP ports, the default VF_ID is 1 when there is no VF_ID configured. The trunk-allowed VF_ID list on a port is same as the list of trunk-allowed VSANs. VF_ID 4094 is called the control VF_ID and it is used to define the list of trunk-allowed VF-IDs when trunking is enabled on the link.

If F port trunking and channeling is enabled, or if switchport trunk mode on is configured in NPV mode for any interface, or if NP PortChannel is configured, the VSAN and VF-ID ranges available for the configuration are as described in Table 5-3.

Table 5-3 VSAN and VF-ID Reservations

VSAN or VF-ID
Description

000h

Cannot be used as virtual fabric identifier.

001h(1) to EFFh(3839)

This VSAN range is available for user configuration.

F00h(3840) to FEEh(4078)

Reserved VSANs and they are not available for user configuration.

FEFh(4079)

EVFP isolated VSAN.

FF0h(4080) to FFEh(4094)

Used for vendor-specific VSANs.

FFFh

Cannot be used as virtual fabric identifier.


Note If the VF_ID of the F port and the N port do not match, then no tagged frames can be exchanged.

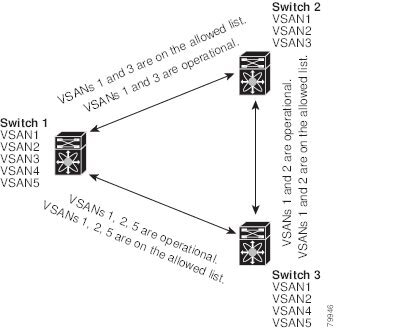

Figure 5-3 Default Allowed-Active VSAN Configuration

You can configure a select set of VSANs (from the allowed-active list) to control access to the VSANs specified in a trunking ISL.

Using Figure 5-3 as an example, you can configure the list of allowed VSANs on a per-interface basis (see Figure 5-4). For example, if VSANs 2 and 4 are removed from the allowed VSAN list of ISLs connecting to switch 1, the operational allowed list of VSANs for each ISL would be as follows:

•The ISL between switch 1 and switch 2 includes VSAN 1 and VSAN 3.

•The ISL between switch 2 and switch 3 includes VSAN 1 and VSAN 2.

•The ISL between switch 3 and switch 1 includes VSAN 1, 2, and 5.

Consequently, VSAN 2 can only be routed from switch 1 through switch 3 to switch 2.

Figure 5-4 Operational and Allowed VSAN Configuration

Guidelines and Limitations

Trunking has the following configuration guidelines and limitations:

•General Guidelines and Limitations

•Upgrade and Downgrade Limitations

•Difference Between TE Ports and TF-TNP Ports

•Trunking Misconfiguration Examples

General Guidelines and Limitations

The trunking feature has the following general configuration guidelines and limitations:

•F ports support trunking in Fx mode.

•The trunk-allowed VSANs configured for TE, TF, and TNP links are used by the trunking protocol to determine the allowed active VSANs in which frames can be received or transmitted.

•If a trunking enabled E port is connected to a third-party switch, the trunking protocol ensures seamless operation as an E port.

•Trunking F ports and trunking F PortChannels are not supported on the following hardware:

–91x4 switches, if NPIV is enabled and used as the NPIV core switch.

–Generation 1 2-Gbps Fibre Channel switching modules.

•On core switches, the FC-SP authentication will be supported only for the physical FLOGI from the physical pWWN.

•No FC-SP authentication is supported by the NPV switch on the server F ports.

•MDS does not enforce the uniqueness of logical pWWNs across VSANs.

•DPVM is not supported on trunked F port logins.

•The DPVM feature is limited to the control of the port VSAN, since the EVFP protocol does not allow changing the VSAN on which a logical pWWN has done FLOGI.

•The port security configuration will be applied to both the first physical FLOGI and the per VSAN FLOGIs.

•Trunking is not supported on F ports that have FlexAttach enabled.

•On MDS 91x4 core switches, hard zoning can be done only on F ports that are doing either NPIV or trunking. However, in NPV mode, this restriction does not apply since zoning is enforced on the core F port.

Note Fibre Channel Security Protocol (FC-SP) is not supported for 6.2(1) release on MDS 9710, but targeted for a future release.

Upgrade and Downgrade Limitations

The trunking and channeling feature includes the following upgrade and downgrade limitations:

•When F port trunking or channeling is configured on a link, the switch cannot be downgraded to Cisco MDS SAN-OS Release 3.x and NX-OS Release 4.1(1b), or earlier.

•If you are upgrading from a SAN-OS Release 3.x to NX-OS Release 5.0(1), and you have not created VSAN 4079, the NX-OS software will automatically create VSAN 4079 and reserve it for EVFP use.

If VSAN 4079 is reserved for EVFP use, the switchport trunk allowed vsan command will filter out VSAN 4079 from the allowed list, as shown in the following example:

	switch(config-if)# switchport trunk allowed vsan 1-4080

	1-4078,4080

	switch(config-if)#

–If you have created VSAN 4079, the upgrade to NX-OS Release 5.0(1) will have no affect on VSAN 4079.

–If you downgrade after NX-OS Release 5.0(1), the VSAN will no longer be reserved for EVFP use.

Difference Between TE Ports and TF-TNP Ports

In case of TE ports, the VSAN will in be initializing state when VSAN is coming up on that interface and when peers are in negotiating phase. Once the handshake is done, VSAN will be moved to up state in the successful case, and isolated state in the case of failure. Device Manager will show the port status as amber during initializing state and it will be green once VSANs are up.

This example shows the trunk VSAN states of a TE port:

Switch# show interface fc2/15

fc2/15 is trunking

    Hardware is Fibre Channel, SFP is short wave laser w/o OFC (SN)

    Port WWN is 20:4f:00:0d:ec:6d:2b:40

    Peer port WWN is 20:0a:00:0d:ec:3f:ab:80

    Admin port mode is auto, trunk mode is on

    snmp link state traps are enabled

    Port mode is TE

    Port vsan is 1

    Speed is 2 Gbps

    Rate mode is dedicated

    Transmit B2B Credit is 16

    Receive B2B Credit is 250

    B2B State Change Number is 14

    Receive data field Size is 2112

    Beacon is turned off

    Trunk vsans (admin allowed and active) (1,100-101,1101,1163-1166,1216,2172,2182-2183)

    Trunk vsans (up)                       (1,1101,1163-1166,1216,2172,2182-2183)

    Trunk vsans (isolated)                 (100-101)

    Trunk vsans (initializing)             ()

In case of TF ports, after the handshake, one of the allowed VSANs will be moved to the up state. All other VSANs will be in initializing state even though the handshake with the peer is completed and successful. Each VSAN will be moved from initializing state to up state when a server or target logs in through the trunked F or NP ports in the corresponding VSAN.

Note In case of TF or TNP ports, the Device Manager will show the port status as amber even after port is up and there is no failure. It will be changed to green once all the VSAN has successful logins.

This example shows a TF port information after the port is in the up state:

sw7# show interface fc1/13

fc1/13 is trunking (Not all VSANs UP on the trunk)

    Hardware is Fibre Channel, SFP is short wave laser w/o OFC (SN)

    Port WWN is 20:0d:00:0d:ec:6d:2b:40

    Admin port mode is FX, trunk mode is on

    snmp link state traps are enabled

    Port mode is TF

    Port vsan is 1

    Speed is 4 Gbps

    Rate mode is shared

    Transmit B2B Credit is 16

    Receive B2B Credit is 32

    Receive data field Size is 2112

    Beacon is turned off

    Trunk vsans (admin allowed and active) (1,100-101,1101,1163-1166,1216,2172,2182-2183)

    Trunk vsans (up)                       (1)

    Trunk vsans (isolated)                 ()

    Trunk vsans (initializing)             (1101,1163-1166,1216,2172,2182)

This example shows the TF port information when a server logs in on noninternal FLOGI VSAN. VSAN 2183 is moved to the up state when the server logs in to VSAN 2183.

w7# show interface fc1/13

fc1/13 is trunking (Not all VSANs UP on the trunk)

    Hardware is Fibre Channel, SFP is short wave laser w/o OFC (SN)

    Port WWN is 20:0d:00:0d:ec:6d:2b:40

    Admin port mode is FX, trunk mode is on

    snmp link state traps are enabled

    Port mode is TF

    Port vsan is 1

    Speed is 4 Gbps

    Rate mode is shared

    Transmit B2B Credit is 16

    Receive B2B Credit is 32

    Receive data field Size is 2112

    Beacon is turned off

    Trunk vsans (admin allowed and active) (1,100-101,1101,1163-1166,1216,2172,2

182-2183)

    Trunk vsans (up)                       (1,2183)

    Trunk vsans (isolated)                 ()

    Trunk vsans (initializing)             (1101,1163-1166,1216,2172,2182)

Trunking Misconfiguration Examples

If you do not configure the VSANs correctly, issues with the connection may occur. For example, if you merge the traffic in two VSANs, both VSANs will be mismatched. The trunking protocol validates the VSAN interfaces at both ends of a link to avoid merging VSANs (see Figure 5-5).

Figure 5-5 VSAN Mismatch

The trunking protocol detects potential VSAN merging and isolates the ports involved (see Figure 5-5).

The trunking protocol cannot detect merging of VSANs when a third-party switch is placed in between two Cisco MDS 9000 Family switches (see Figure 5-6).

Figure 5-6 Third-Party Switch VSAN Mismatch

VSAN 2 and VSAN 3 are effectively merged with overlapping entries in the name server and the zone applications. Cisco DCNM-SAN helps detect such topologies.

Default Settings

Table 5-4 lists the default settings for trunking parameters.

Table 5-4 Default Trunk Configuration Parameters

Parameters
Default

Switch port trunk mode

ON on non-NPV and MDS core switches.

OFF on NPV switches.

Allowed VSAN list

1 to 4093 user-defined VSAN IDs.

Allowed VF-ID list

1 to 4093 user-defined VF-IDs.

Trunking protocol on E ports

Enabled.

Trunking protocol on F ports

Disabled.


Configuring Trunking

This section includes the following topics:

•Enabling the Cisco Trunking and Channeling Protocols

•Enabling the F Port Trunking and Channeling Protocol

•Configuring Trunk Mode

•Configuring an Allowed-Active List of VSANs

Enabling the Cisco Trunking and Channeling Protocols

This section describes how to enable the required trunking and channeling protocols.

Prerequisites

•To avoid inconsistent configurations, disable all ports with a shutdown command before enabling or disabling the trunking protocols.

Detailed Steps

To enable or disable the Cisco trunking and channeling protocol, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# trunk protocol enable

switch(config)#

Enables the Cisco PTP trunking protocol (default).

switch(config)# no trunk protocol enable

switch(config)#

Disables the Cisco PTP trunking protocol.

Enabling the F Port Trunking and Channeling Protocol

This section describes how to enable the F port trunking and channeling protocol.

Prerequisites

•To avoid inconsistent configurations, shut all ports before enabling or disabling the trunking protocols.

Detailed Steps

To enable or disable the F port trunking and channeling protocol, follow these steps:


Command
Purpose

Step 1

switch# config tasf

Enters configuration mode.

Step 2

switch(config)# feature fport-channel-trunk

switch(config)#

Enables the F port trunking and channeling protocol (default).

switch(config)# no feature fport-channel-trunk

switch(config)#

Disables the F port trunking and channeling protocol.

Configuring Trunk Mode

Detailed Steps

To configure trunk mode, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# interface fc1/1

switch(config-if)#

Configures the specified interface.

Step 3

switch(config-if)# switchport trunk mode on

Enables (default) the trunk mode for the specified interface.

switch(config-if)# switchport trunk mode off

Disables the trunk mode for the specified interface.

switch(config-if)# switchport trunk mode auto

Configures the trunk mode to auto mode, which provides automatic sensing for the interface.

Configuring an Allowed-Active List of VSANs

Detailed Steps

To configure an allowed-active list of VSANs for an interface, follow these steps:


Command
Purpose

Step 1

switch# config t

Enters configuration mode.

Step 2

switch(config)# interface fc1/1

switch(config-if)#

Configures the specified interface.

Step 3

switch(config-if)# switchport trunk allowed vsan 2-4

Changes the allowed list for the specified VSANs.

switch(config-if)# switchport trunk allowed vsan add 5

updated trunking membership

Expands the specified VSAN (5) to the new allowed list.

switch(config-if)# no switchport trunk allowed vsan 2-4

Deletes VSANs 2, 3, and 4.

switch(config-if)# no switchport trunk allowed vsan add 5

Deletes the expanded allowed list.

Verifying Trunking Configuration

To display trunking configuration information, perform one of the following tasks:

Command
Purpose

show interface fc slot/port

Displays the interface configuration information that includes trunking, trunk mode, allowed VSANs, and status.

show trunk protocol

Displays whether the trunk protocol is enabled.

show interface trunk vsan numbers

Displays whether the interface is trunking, and the allowed VSAN list for each trunking interface.


For detailed information about the fields in the output from these commands, refer to the Cisco MDS NX-OS Command Reference.

The show interface command is invoked from the EXEC mode and displays trunking configurations for a TE port. Without any arguments, this command displays the information for all of the configured interfaces in the switch. See Examples 5-1 to 5-3.

Example 5-1 Displays a Trunked Fibre Channel Interface

switch# show interface fc1/13

fc1/13 is trunking

    Hardware is Fibre Channel

    Port WWN is 20:0d:00:05:30:00:58:1e

    Peer port WWN is 20:0d:00:05:30:00:59:1e

    Admin port mode is auto, trunk mode is on

    Port mode is TE

    Port vsan is 1

    Speed is 2 Gbps

    Receive B2B Credit is 255

    Beacon is turned off

    Trunk vsans (admin allowed and active) (1)

    Trunk vsans (up)                       (1)

    Trunk vsans (isolated)                 ()

    Trunk vsans (initializing)             ()

    5 minutes input rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

    5 minutes output rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

      233996 frames input, 14154208 bytes, 0 discards

        0 CRC, 0 unknown class

        0 too long, 0 too short

      236 frames output, 13818044 bytes, 0 discards

      11 input OLS, 12 LRR, 10 NOS, 28 loop inits

      34 output OLS, 19 LRR, 17 NOS, 12 loop inits

Example 5-2 Displays the Trunking Protocol

switch# show trunk protocol

Trunk protocol is enabled

Example 5-3 Displays Per VSAN Information on Trunk Ports

switch# show interface trunk vsan 1-1000

fc3/1 is not trunking

...

fc3/7 is trunking

	Vsan 1000 is down (Isolation due to vsan not configured on peer)

...

fc3/10 is trunking

    Vsan 1 is up, FCID is 0x760001

    Vsan 2 is up, FCID is 0x6f0001

fc3/11 is trunking

    Belongs to port-channel 6

	Vsan 1 is up, FCID is 0xef0000

    Vsan 2 is up, FCID is 0xef0000

...

port-channel 6 is trunking

	Vsan 1 is up, FCID is 0xef0000

    Vsan 2 is up, FCID is 0xef0000

Configuration Example for F Port Trunking

This example shows how to configure trunking and bring up the TF-TNP link between an F port in the NPIV core switch and an NP port in the NPV switch:

Step 1 Enable the F port trunking and channeling protocol on the MDS core switch:

switch(config)# feature fport-channel-trunk

Step 2 Enable NPIV on the MDS core switch:

switch(config)# feature npiv

Step 3 Configure the port mode to auto, F, or Fx on the MDS core switch:

switch(config)# interface fc1/2

switch(config-if)# switchport mode F

Step 4 Configure the trunk mode to ON on the MDS core switch:

switch(config-if)# switchport trunk mode on

Step 5 Configure the port mode to NP on the NPV switch:

switch(config)# interface fc1/2

switch(config-if)# switchport mode NP

Step 6 Configure the trunk mode to ON on the NPV switch:

switch(config-if)# switchport trunk mode on

Step 7 Set the port administrative state on NPIV and NPV switches to ON:

switch(config)# interface fc1/2

switch(config-if)# shut

switch(config-if)# no shut

Step 8 Save the configuration.

switch(config)# copy running-config startup-config
