配置VLAN在200/300系列被管理的交换机的入口速率限制
客观
VLAN入口速率限制让您限制在特定VLAN的流量总量。您能适用每个VLAN的限额在您的网络里面增加整体性能。此条款说明如何配置在200/300系列被管理的交换机的一个VLAN入口速率限制。
可适用的设备
- SF/SG 200和SF/SG 300系列被管理的交换机
软件版本
- v1.2.7.76
配置VLAN速率限制
步骤1.登陆到Web配置工具并且选择服务质量>General > VLAN入口速率限制。VLAN入口速率限制页打开：

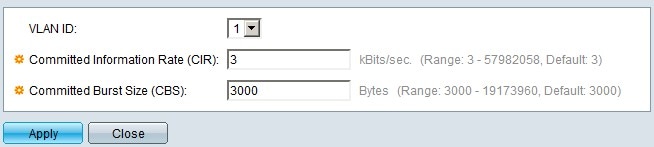

步骤2.点击添加。添加VLAN速率限制窗口出现：
第 3 步：在VLAN ID下拉列表中，请选择您希望配置速率限制的VLAN。
第 4 步： 在承诺信息速率(CIR)字段，请进入VLAN能接受的平均的最大数据量。此编号通常是由ISP选定的。
第 5 步：在承诺突发流量大小(CBS)字段，请输入在某一时期可以从VLAN被发送数据的最大突发流量大小。可以发送此相当数量数据，即使去以远可用的带宽。
步骤6.点击适用保存您的配置。
第7.步(可选)编辑VLAN的CIR和CBS费率，点击您希望编辑并且点击编辑条目的单选按钮。
第8.步(可选)删除VLAN入口速率限制条目，点击您希望删除并且点击删除条目的单选按钮。
