简介

本文档通过以下要素说明了 IPSec 配置：应用于 PIX 上的多个接口的加密映射；VPN 客户端的扩展认证 (xauth)；从地址池中为 VPN 客户端动态分配专用 IP 地址；nat 0 access-list命令功能。它使LAN上的主机能使用带异地用户的专用IP地址，并且仍能从PIX获得网络地址转换(NAT)地址，以访问不受信任的网络。

此配置具有以下目标。

  • 利用 TACACS+ 数据库验证远程用户。

  • 为远程用户动态分配专用 IP 地址。

  • 对从远程用户到集线器 PIX 的流量进行加密。

  • 对从集线器 PIX 到 LAN 的流量进行加密。

注意：在创建本文档时，在xauth质询期间，不正确登录身份验证、授权和记帐(AAA)服务器将删除正在创建的安全关联(SA)。

开始使用前

规则

有关文档规则的详细信息，请参阅 Cisco 技术提示规则。

先决条件

本文档没有任何特定的前提条件。

使用的组件

此配置使用下面软件和硬件版本开发并且被测试。

  • Cisco IOS® 软件版本 12.2.8.T 或更高版本

  • Cisco PIX IOS 版本 6.1(1)

  • Cisco VPN Client 3.5

本文档中的信息都是基于特定实验室环境中的设备创建的。本文档中使用的所有设备最初均采用原始（默认）配置。如果您是在真实网络上操作，请确保您在使用任何命令前已经了解其潜在影响。

配置

本部分提供有关如何配置本文档所述功能的信息。

注：要查找有关本文档中使用的命令的其他信息，请使用命令查找工具(仅注册客户)。

网络图

本文档使用下图所示的网络设置。


配置

本文档使用如下所示的配置。

集线器 PIX 配置
PIX Version 6.1(1)
nameif ethernet0 outside security0
nameif ethernet1 inside security100
nameif ethernet2 intf2 security10
nameif ethernet3 intf3 security15
enable password OnTrBUG1Tp0edmkr encrypted
passwd 2KFQnbNIdI.2KYOU encrypted
hostname HubPix
fixup protocol ftp 21
fixup protocol http 80
fixup protocol h323 1720
fixup protocol rsh 514
fixup protocol rtsp 554
fixup protocol smtp 25
fixup protocol sqlnet 1521
fixup protocol sip 5060
fixup protocol skinny 2000
names
access-list nonat permit ip 172.20.20.0 255.255.255.0 10.1.100.0 255.255.255.0
access-list 125 permit ip 10.1.100.0 255.255.255.0 172.20.20.0 255.255.255.0
pager lines 24
logging console debugging
interface ethernet0 auto
interface ethernet1 auto
interface ethernet2 auto shutdown
interface ethernet3 auto shutdown
mtu outside 1500
mtu inside 1500
mtu intf2 1500
mtu intf3 1500
ip address outside 172.17.63.213 255.255.255.240
ip address inside 172.17.63.230 255.255.255.240
ip address intf2 127.0.0.1 255.255.255.255
ip address intf3 127.0.0.1 25(B5.255.255.255
ip audit info action alarm
ip audit attack action alarm
ip local pool mypool 10.1.100.1-10.1.100.254
no failover
failover timeout 0:00:00
failover poll 15
failover ip address outside 0.0.0.0
failover ip address inside 0.0.0.0
failover ip address intf2 0.0.0.0
failover ip address intf3 0.0.0.0
pdm history enable
arp timeout 14400
global (outside) 1 172.17.63.210
nat (inside) 0 access-list nonat
nat (inside) 1 172.20.20.0 255.255.255.0 0 0
route outside 0.0.0.0 0.0.0.0 172.17.63.209 1
route inside 10.48.66.53 255.255.255.255 172.17.63.229 1
route inside 172.20.20.0 255.255.255.0 172.17.63.229 1
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00
h323 0:05:00 sip 0:30:00 sip_media 0:02:00
timeout uauth 0:05:00 absolute
aaa-server TACACS+ protocol tacacs+
aaa-server RADIUS protocol radius
aaa-server partner protocol tacacs+
aaa-server partner (inside) host 10.48.66.53 cisco123 timeout 5
no snmp-server location
no snmp-server contact
snmp-server community public
no snmp-server enable traps
floodguard enable
sysopt ipsec pl-compatible
no sysopt route dnat
crypto ipsec transform-set myset esp-des esp-md5-hmac
crypto dynamic-map dynmap 10 set transform-set myset
crypto map internal 10 ipsec-isakmp
crypto map internal 10 match address 125
crypto map internal 10 set peer 172.17.63.229
crypto map internal 10 set transform-set myset
crypto map internal interface inside
crypto map dyn-map 10 ipsec-isakmp dynamic dynmap
crypto map dyn-map client authentication partner
crypto map dyn-map interface outside
isakmp enable outside
isakmp enable inside
isakmp key ******** address 172.17.63.229 netmask 255.255.255.255
isakmp key ******** address 0.0.0.0 netmask 0.0.0.0
isakmp identity address
isakmp policy 10 authentication pre-share
isakmp policy 10 encryption des
isakmp policy 10 hash md5
isakmp policy 10 group 2
isakmp policy 10 lifetime 86400
vpngroup vpn3000 idle-time 1800
vpngroup vpn3000 password ********
vpngroup vpn3 address-pool mypool
vpngroup vpn3 dns-server 172.20.20.2
vpngroup vpn3 wins-server 172.20.20.2
vpngroup vpn3 default-domain cisco.com
vpngroup vpn3 idle-time 1800
telnet timeout 5
ssh timeout 5
terminal width 80
Cryptochecksum:fcd6d79f6a662b82e5f450ed833f34e6
: end
[OK]

内部路由器配置
version 12.2
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname inside
!
enable password ww
!
ip subnet-zero
ip cef
!
!
!
ip audit notify log
ip audit po max-events 100
!

!--- Create an Internet Security Association and Key Management Protocol (ISAKMP) !--- policy for Phase 1 negotiations for the VPN 3.x Clients.

crypto isakmp policy 10
 hash md5
 authentication pre-share
 group 2

!--- Specify the pre-shared key for the LAN-to-LAN tunnel.

crypto isakmp key ciscotac address 172.17.63.230
!
!

!--- Create the Phase 2 Policy for actual data encryption.

crypto ipsec transform-set tacset esp-des esp-md5-hmac
!

!--- Create the actual crypto map.

crypto map tacmap 25 ipsec-isakmp
 set peer 172.17.63.230
 set transform-set tacset
 match address 105
!
!
!
!
!
!
!
!
!
controller ISA 6/1
!
!
!
!
interface Serial2/0
 no ip address
 shutdown
 serial restart_delay 0
!
interface Serial2/1
 no ip address
 shutdown
 serial restart_delay 0
!
interface Serial2/2
 no ip address
 shutdown
 serial restart_delay 0
!
interface Serial2/3
 no ip address
 shutdown
 serial restart_delay 0
!
interface FastEthernet3/0
 ip address 10.48.66.46 255.255.254.0
 duplex half
!

!--- Apply the crypto map on the outside interface.

interface FastEthernet3/1
 ip address 172.17.63.229 255.255.255.240
 duplex half
 crypto map tacmap
!
interface FastEthernet5/0
 ip address 172.20.20.20 255.255.255.0
 duplex half
!
ip classless
ip route 0.0.0.0 0.0.0.0 172.17.63.230
no ip http server
ip pim bidir-enable
!
!
access-list 105 permit ip 172.20.20.0 0.0.0.255 10.1.100.0 0.0.0.255
!
!
call rsvp-sync
!
!
mgcp profile default
!
dial-peer cor custom
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
line aux 0
line vty 0 4
 login
!
!
end

VPN 客户端配置

下列步骤介绍 VPN 客户端的配置。

  1. 登录VPN客户端后，双击任务栏中的黄色挂锁，并选择"Connect"登录。

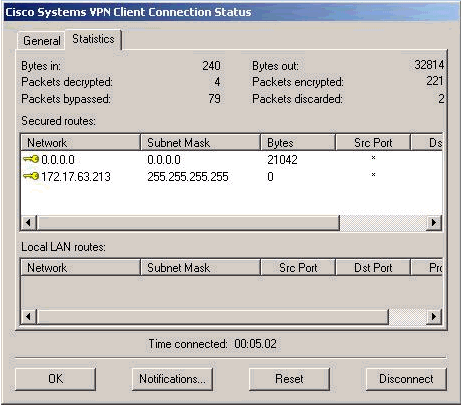

  2. 要查看连接统计数据，建立隧道时双击黄色挂锁，将出现以下屏幕。


  3. 选择 VPN 客户端配置信息的“General”选项卡。


    Remote Party Identity and Addressing

   ID Type:  IP Subnet
   Subnet:   172.20.20.0
   Mask:     255.255.255.0
   Port:     all

Connect Using Secure Gateway Tunnel - Checked

   Type:     IP Address
   Address:  172.17.63.213


My Identity:
     Preshared Key


Authentication (Phase I -- Proposal 1)
     Authentication Method:     Preshared Key
     Encryption Algorithm:      DES
     Hash Algorithm:            MD5
     SALife:                    Unspecified
     Key Group:                 Diffie-Hellmen 1



Key Exchange (PhaseII -- Proposal 1)
     SALife:                     Unspecified
     Encapsulation Protocol:     ESP
     Encryption Algorithm:       DES
     Hash Algorithm:             MD5
     Encapsulation:              Tunnel

验证

本部分所提供的信息可用于确认您的配置是否正常工作。

命令输出解释程序工具（仅限注册用户）支持某些 show 命令，使用此工具可以查看对 show 命令输出的分析。

可以在 PIX 和路由器上运行 show 命令。

  • show crypto isakmp sa — 显示第 1 阶段的安全关联。

  • show crypto ipsec sa — 显示第 1 阶段的安全关联和代理、encap、加密、decap 和解密信息。

  • show crypto engine connections active —（仅限路由器）显示有关加密和解密数据包的当前连接和信息

故障排除

本部分提供的信息可用于对配置进行故障排除。

在尝试使用以下任何 debug 命令之前，请参阅有关 Debug 命令的重要信息。有关详情，另请参阅以下 debug 输出。

必须在两个对等体上清除安全关联。在配置模式下执行 PIX 命令。

  • clear crypto isakmp sa - (PIX) 清除第 1 阶段安全关联。

  • clear crypto ipsec sa - (PIX) 清除第 2 阶段安全关联。

  • clear crypto isakmp - （路由器）清除第 1 阶段安全关联。

  • clear crypto sa -（路由器）清除第 2 阶段安全关联。

以下在两个 IPSec 对等体上运行以下调试。

  • debug crypto isakmp —（路由器和 PIX）显示第 1 阶段的错误。

  • debug crypto ipsec —（路由器和 PIX）显示第 2 阶段的错误。

  • debug crypto engine -（仅路由器）显示来自加密引擎的信息。

集线器 PIX 调试

HubPix(config)#
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 VPN Peer: ISAKMP: Added new peer: ip:30.30.30.2 Total VPN Peers:1
 VPN Peer: ISAKMP: Peer ip:30.30.30.2 Ref cnt incremented to:1
    Total VPN Peers:1
 OAK_AG exchange
 ISAKMP (0): processing SA payload. message ID = 0

 ISAKMP (0): Checking ISAKMP transform 1 against priority 10 policy
 ISAKMP:      encryption 3DES-CBC
 ISAKMP:      hash SHA
 ISAKMP:      default group 2
 ISAKMP:      extended auth pre-share
 ISAKMP:      life type in seconds
 ISAKMP:      life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are not acceptable. Next payload is 3
 ISAKMP (0): Checking ISAKMP transform 2 against priority 10 policy
 ISAKMP:      encryption 3DES-CBC
 ISAKMP:      hash MD5
 ISAKMP:      default group 2
 ISAKMP:      extended auth pre-share
 ISAKMP:      life type in seconds
 ISAKMP:      life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are not acceptable. Next payload is 3
 ISAKMP (0): Checking ISAKMP transform 3 against priority 10 policy
 ISAKMP:      encryption 3DES-CBC
 ISAKMP:      hash SHA
 ISAKMP:      default group 2
 ISAKMP:      auth pre-share
 ISAKMP:      life type in seconds
 ISAKMP:      life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are not acceptable. Next payload is 3
 ISAKMP (0): Checking ISAKMP transform 4 against priority 10 policy
 ISAKMP:      encryption 3DES-CBC
 ISAKMP:      hash MD5
 ISAKMP:      default group 2
 ISAKMP:      auth pre-share
 ISAKMP:      life type in seconds
 ISAKMP:      life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are not acceptable. Next payload is 3
 ISAKMP (0): Checking ISAKMP transform 5 against priority 10 policy
 ISAKMP:      encryption DES-CBC
 ISAKMP:      hash SHA
 ISAKMP:      default group 2
 ISAKMP:      extended auth pre-share
 ISAKMP:      life type in seconds
 ISAKMP:      life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are not acceptable. Next payload is 3
 ISAKMP (0): Checking ISAKMP transform 6 against priority 10 policy
 ISAKMP:      encryption DES-CBC
 ISAKMP:      hash MD5
 ISAKMP:      default group 2
 ISAKMP:      extended auth pre-share
 ISAKMP:      life type in seconds
 ISAKMP:      life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are acceptable. Next payload is 3
 ISAKMP (0): processing KE payload. message ID = 0

 ISAKMP (0): processing NONCE payload. message ID = 0

 ISAKMP (0): processing ID payload. message ID = 0
 ISAKMP (0): processing vendor id payload

 ISAKMP (0): processing vendor id payload

 ISAKMP (0): remote peer supports dead peer detection

 ISAKMP (0): processing vendor id payload

 ISAKMP (0): speaking to a Unity client

 ISAKMP: Created a peer node for 30.30.30.2
 ISAKMP (0): ID payload
         next-payload : 10
         type         : 1
         protocol     : 17
         port         : 500
         length       : 8
 ISAKMP (0): Total payload length: 12
 return status is IKMP_NO_ERROR
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 OAK_AG exchange
 ISAKMP (0): processing HASH payload. message ID = 0
 ISAKMP (0): processing NOTIFY payload 24578 protocol 1
         spi 0, message ID = 0
 ISAKMP (0): processing notify INITIAL_CONTACT
 IPSEC(key_engine): got a queue event...
 IPSEC(key_engine_delete_sas): rec'd delete notify from ISAKMP
 IPSEC(key_engine_delete_sas): delete all SAs shared with 30.30.30.2

 ISAKMP (0): SA has been authenticated
 return status is IKMP_NO_ERROR
 ISAKMP/xauth: request attribute XAUTH_TYPE
 ISAKMP/xauth: request attribute XAUTH_USER_NAME
 ISAKMP/xauth: request attribute XAUTH_USER_PASSWORD
 ISAKMP (0:0): initiating peer config to 30.30.30.2.
    ID = 1990788923 (0x76a9073b)
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 ISAKMP_TRANSACTION exchange
 ISAKMP (0:0): processing transaction payload from 30.30.30.2. message ID = 76
 ISAKMP: Config payload CFG_REPLY
 return status is IKMP_ERR_NO_RETRANS
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 ISAKMP (0:0): phase 2 packet is a duplicate of a previous packet.
 ISAKMP (0:0): initiating peer config to 30.30.30.2. ID = 167380747 (0x9fa070b)
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 ISAKMP_TRANSACTION exchange
 ISAKMP (0:0): processing transaction payload from 30.30.30.2. message ID = 60
 ISAKMP: Config payload CFG_ACK
 return status is IKMP_NO_ERROR
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 ISAKMP_TRANSACTION exchange
 ISAKMP (0:0): processing transaction payload from 30.30.30.2. message ID = 0
 ISAKMP: Config payload CFG_REQUEST
 ISAKMP (0:0): checking request:
 ISAKMP: attribute    IP4_ADDRESS (1)
 ISAKMP: attribute    IP4_NETMASK (2)
 ISAKMP: attribute    IP4_DNS (3)
 ISAKMP: attribute    IP4_NBNS (4)
 ISAKMP: attribute    ADDRESS_EXPIRY (5)
         Unsupported Attr: 5
 ISAKMP: attribute    APPLICATION_VERSION (7)
         Unsupported Attr: 7
 ISAKMP: attribute    UNKNOWN (28672)
         Unsupported Attr: 28672
 ISAKMP: attribute    UNKNOWN (28673)
         Unsupported Attr: 28673
 ISAKMP: attribute    UNKNOWN (28674)
 ISAKMP: attribute    UNKNOWN (28676)
 ISAKMP: attribute    UNKNOWN (28679)
         Unsupported Attr: 28679
 ISAKMP: attribute    UNKNOWN (28680)
         Unsupported Attr: 28680
 ISAKMP: attribute    UNKNOWN (28677)
         Unsupported Attr: 28677
 ISAKMP (0:0): responding to peer config from 30.30.30.2. ID = 2994966739
 return status is IKMP_NO_ERROR
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 OAK_QM exchange
 oakley_process_quick_mode:
 OAK_QM_IDLE
 ISAKMP (0): processing SA payload. message ID = 2019793958

 ISAKMP : Checking IPSec proposal 1

 ISAKMP: transform 1, ESP_3DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-MD5
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (VPI) of  0x0 0x20 0xc4 0x9b
 IPSEC(validate_proposal): transform proposal
    (prot 3, trans 3, hmac_alg 1) not supported

 ISAKMP (0): atts not acceptable. Next payload is 0
 ISAKMP (0): skipping next ANDed proposal (1)
 ISAKMP : Checking IPSec proposal 2

 ISAKMP: transform 1, ESP_3DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-SHA
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (VPI) of  0x0 0x20 0xc4 0x9b
 IPSEC(validate_proposal): transform proposal
    (prot 3, trans 3, hmac_alg 2) not supported

 ISAKMP (0): atts not acceptable. Next payload is 0
 ISAKMP (0): skipping next ANDed proposal (2)
 ISAKMP : Checking IPSec proposal 3

 ISAKMP: transform 1, ESP_3DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-MD5
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (VPI) of  0x0 0x20 0xc4 0x9b
 IPSEC(validate_proposal): transform proposal
    (prot 3, trans 3, hmac_alg 1) not supported

 ISAKMP (0): atts not acceptable. Next payload is 0
 ISAKMP : Checking IPSec proposal 4

 ISAKMP: transform 1, ESP_3DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-SHA
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (VPI) of  0x0 0x20 0xc4 0x9b
 IPSEC(validate_proposal): transform proposal
    (prot 3, trans 3, hmac_alg 2) not supported

 ISAKMP (0): atts not acceptable. Next payload is 0
 ISAKMP : Checking IPSec proposal 5

 ISAKMP: transform 1, ESP_DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-MD5
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are acceptable.
 ISAKMP (0): bad SPI size of 2 octets!
 ISAKMP : Checking IPSec proposal 6

 ISAKMP: transform 1, ESP_DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-SHA
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (VPI) of  0x0 0x20 0xc4 0x9b
 IPSEC(validate_proposal): transform proposal
    (prot 3, trans 2, hmac_alg 2) not supported

 ISAKMP (0): atts not acceptable. Next payload is 0
 ISAKMP (0): skipping next ANDed proposal (6)
 ISAKMP : Checking IPSec proposal 7

 ISAKMP: transform 1, ESP_DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-MD5
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (VPI) of  0x0 0x20 0xc4 0x9b
 ISAKMP (0): atts are acceptable.
 IPSEC(validate_proposal_request): proposal part #1,
   (key eng. msg.) dest= 172.17.63.213, src= 30.30.30.2,
     dest_proxy= 172.17.63.213/255.255.255.255/0/0 (type=1),
     src_proxy= 10.1.100.1/255.255.255.255/0/0 (type=1),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 0s and 0kb,
     spi= 0x0(0), conn_id= 0, keysize= 0, flags= 0x4

 ISAKMP (0): processing NONCE payload. message ID = 2019793958

 ISAKMP (0): processing ID payload. message ID = 2019793958
 ISAKMP (0): ID_IPV4_ADDR src 10.1.100.1 prot 0 port 0
 ISAKMP (0): processing ID payload. message ID = 2019793958
 ISAKMP (0): ID_IPV4_ADDR dst 172.17.63.213 prot 0 port 0
 IPSEC(key_engine): got a queue event...
 IPSEC(spi_response): getting spi 0x91e92b8(152998584) for SA
         from 30.30.30.2 to 172.17.63.213 for prot 3

 return status is IKMP_NO_ERROR
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 OAK_QM exchange
 oakley_process_quick_mode:
 OAK_QM_IDLE
 ISAKMP (0): processing SA payload. message ID = 3584084796

 ISAKMP : Checking IPSec proposal 1

 ISAKMP: transform 1, ESP_3DES
 ISAKMP:   attributes in transform:
 ISAKMP:      authenticator is HMAC-MD5
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 OAK_QM exchange
 oakley_process_quick_mode:
 OAK_QM_AUTH_AWAITmap_alloc_entry: allocating entry 6
 map_alloc_entry: allocating entry 5

 ISAKMP (0): Creating IPSec SAs
         inbound SA from 30.30.30.2 to 172.17.63.213
         (proxy 10.1.100.1 to 172.17.63.213)
         has spi 152998584 and conn_id 6 and flags 4
         lifetime of 2147483 seconds
         outbound SA from 172.17.63.213 to 30.30.30.2
        (proxy 172.17.63.213 to 10.1.100.1)
         has spi 2121955223 and conn_id 5 and flags 4
         lifetime of 2147483 seconds
 IPSEC(key_engine): got a queue event...
 IPSEC(initialize_sas): ,
   (key eng. msg.) dest= 172.17.63.213, src= 30.30.30.2,
     dest_proxy= 172.17.63.213/0.0.0.0/0/0 (type=1),
     src_proxy= 10.1.100.1/0.0.0.0/0/0 (type=1),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 2147483s and 0kb,
     spi= 0x91e92b8(152998584), conn_id= 6, keysize= 0, flags= 0x4
 IPSEC(initialize_sas): ,
   (key eng. msg.) src= 172.17.63.213, dest= 30.30.30.2,
     src_proxy= 172.17.63.213/0.0.0.0/0/0 (type=1),
     dest_proxy= 10.1.100.1/0.0.0.0/0/0 (type=1),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 2147483s and 0kb,
     spi= 0x7e7a7797(2121955223), conn_id= 5, keysize= 0, flags= 0x4

 VPN Peer: IPSEC: Peer ip:30.30.30.2 Ref cnt incremented to:2
    Total VPN Peers:1
 VPN Peer: IPSEC: Peer ip:30.30.30.2 Ref cnt incremented to:3
    Total VPN Peers:1
 return status is IKMP_NO_ERROR
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 OAK_QM exchange
 oakley_process_quick_mode:
 OAK_QM_AUTH_AWAITmap_alloc_entry: allocating entry 4
 map_alloc_entry: allocating entry 3

 ISAKMP (0): Creating IPSec SAs
         inbound SA from 30.30.30.2 to 172.17.63.213
         (proxy 10.1.100.1 to 0.0.0.0)
         has spi 3202697335 and conn_id 4 and flags 4
         lifetime of 2147483 seconds
         outbound SA from 172.17.63.213 to 30.30.30.2
         (proxy 0.0.0.0 to 10.1.100.1)
         has spi 771522089 and conn_id 3 and flags 4
         lifetime of 2147483 seconds
 IPSEC(key_engine): got a queue event...
 IPSEC(initialize_sas): ,
   (key eng. msg.) dest= 172.17.63.213, src= 30.30.30.2,
     dest_proxy= 0.0.0.0/0.0.0.0/0/0 (type=4),
     src_proxy= 10.1.100.1/0.0.0.0/0/0 (type=1),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 2147483s and 0kb,
     spi= 0xbee54877(3202697335), conn_id= 4, keysize= 0, flags= 0x4
 IPSEC(initialize_sas): ,
   (key eng. msg.) src= 172.17.63.213, dest= 30.30.30.2,
     src_proxy= 0.0.0.0/0.0.0.0/0/0 (type=4),
     dest_proxy= 10.1.100.1/0.0.0.0/0/0 (type=1),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 2147483s and 0kb,
     spi= 0x2dfc7e29(771522089), conn_id= 3, keysize= 0, flags= 0x4

 VPN Peer: IPSEC: Peer ip:30.30.30.2 Ref cnt incremented to:4
    Total VPN Peers:1
 VPN Peer: IPSEC: Peer ip:30.30.30.2 Ref cnt incremented to:5
    Total VPN Peers:1
 return status is IKMP_NO_ERROR
 VPN Peer: ISAKMP: Added new peer: ip:172.17.63.229 Total VPN Peers:2
 VPN Peer: ISAKMP: Peer ip:172.17.63.229 Ref cnt incremented to:1
    Total VPN Peers:2
 ISAKMP (0): beginning Main Mode exchange

 crypto_isakmp_process_block: src 172.17.63.229, dest 172.17.63.230
 OAK_MM exchange
 ISAKMP (0): processing SA payload. message ID = 0

 ISAKMP (0): Checking ISAKMP transform 1 against priority 10 policy
 ISAKMP:      encryption DES-CBC
 ISAKMP:      hash MD5
 ISAKMP:      default group 2
 ISAKMP:      auth pre-share
 ISAKMP (0): atts are acceptable. Next payload is 0
 ISAKMP (0): SA is doing pre-shared key authentication using
    id type ID_IPV4_ADDR
 return status is IKMP_NO_ERROR
 crypto_isakmp_process_block: src 172.17.63.229, dest 172.17.63.230
 OAK_MM exchange
 ISAKMP (0): processing KE payload. message ID = 0

 ISAKMP (0): processing NONCE payload. message ID = 0

 ISAKMP (0): processing vendor id payload

 ISAKMP (0): processing vendor id payload

 ISAKMP (0): remote peer supports dead peer detection

 ISAKMP (0): processing vendor id payload

 ISAKMP (0): speaking to another IOS box!

 ISAKMP (0): processing vendor id payload

 ISAKMP (0): ID payload
         next-payload : 8
         type         : 1
         protocol     : 17
         port         : 500
         length       : 8
 ISAKMP (0): Total payload length: 12
 return status is IKMP_NO_ERROR
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 ISAKMP (0): processing NOTIFY payload 36136 protocol 1
         spi 0, message ID = 409920160
 ISAMKP (0): received DPD_R_U_THERE from peer 30.30.30.2
 ISAKMP (0): sending NOTIFY message 36137 protocol 1
 return status is IKMP_NO_ERR_NO_TRANS
 crypto_isakmp_process_block: src 172.17.63.229, dest 172.17.63.230
 OAK_MM exchange
 ISAKMP (0): processing ID payload. message ID = 0
 ISAKMP (0): processing HASH payload. message ID = 0
 ISAKMP (0): SA has been authenticated

 ISAKMP (0): beginning Quick Mode exchange, M-ID of -498320091:e24c3d25
 IPSEC(key_engine): got a queue event...
 IPSEC(spi_response): getting spi 0xcad23b33(3402775347) for SA
         from   172.17.63.229 to   172.17.63.230 for prot 3

 return status is IKMP_NO_ERROR
 ISAKMP (0): sending INITIAL_CONTACT notify
 crypto_isakmp_process_block: src 172.17.63.229, dest 172.17.63.230
 OAK_QM exchange
 oakley_process_quick_mode:
 OAK_QM_IDLE
 ISAKMP (0): processing SA payload. message ID = 3796647205

 ISAKMP : Checking IPSec proposal 1

 ISAKMP: transform 1, ESP_DES
 ISAKMP:   attributes in transform:
 ISAKMP:      encaps is 1
 ISAKMP:      SA life type in seconds
 ISAKMP:      SA life duration (basic) of 28800
 ISAKMP:      SA life type in kilobytes
 ISAKMP:      SA life duration (VPI) of  0x0 0x46 0x50 0x0
 ISAKMP:      authenticator is HMAC-MD5
 ISAKMP (0): atts are acceptable.
 IPSEC(validate_proposal_request): proposal part #1,
   (key eng. msg.) dest= 172.17.63.229, src= 172.17.63.230,
     dest_proxy= 172.20.20.0/255.255.255.0/0/0 (type=4),
     src_proxy= 10.1.100.0/255.255.255.0/0/0 (type=4),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 0s and 0kb,
     spi= 0x0(0), conn_id= 0, keysize= 0, flags= 0x4

 ISAKMP (0): processing NONCE payload. message ID = 3796647205

 ISAKMP (0): processing ID payload. message ID = 3796647205
 ISAKMP (0): processing ID payload. message ID = 3796647205
 ISAKMP (0): processing NOTIFY payload 24576 protocol 3
         spi 691534456, message ID = 3796647205
 ISAKMP (0): processing responder lifetime
 ISAKMP (0): responder lifetime of 3600smap_alloc_entry: allocating entry 8
 map_alloc_entry: allocating entry 7

 ISAKMP (0): Creating IPSec SAs
         inbound SA from 172.17.63.229 to 172.17.63.230
        (proxy 172.20.20.0 to 10.1.100.0)
         has spi 3402775347 and conn_id 8 and flags 4
         lifetime of 3600 seconds
         lifetime of 4608000 kilobytes
         outbound SA from 172.17.63.230 to 172.17.63.229
        (proxy 10.1.100.0 to 172.20.20.0)
         has spi 691534456 and conn_id 7 and flags 4
         lifetime of 3600 seconds
         lifetime of 4608000 kilobytes
 IPSEC(key_engine): got a queue event...
 IPSEC(initialize_sas): ,
   (key eng. msg.) dest= 172.17.63.230, src= 172.17.63.229,
     dest_proxy= 10.1.100.0/255.255.255.0/0/0 (type=4),
     src_proxy= 172.20.20.0/255.255.255.0/0/0 (type=4),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 3600s and 4608000kb,
     spi= 0xcad23b33(3402775347), conn_id= 8, keysize= 0, flags= 0x4
 IPSEC(initialize_sas): ,
   (key eng. msg.) src= 172.17.63.230, dest= 172.17.63.229,
     src_proxy= 10.1.100.0/255.255.255.0/0/0 (type=4),
     dest_proxy= 172.20.20.0/255.255.255.0/0/0 (type=4),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 3600s and 4608000kb,
     spi= 0x2937fa78(691534456), conn_id= 7, keysize= 0, flags= 0x4

 VPN Peer: IPSEC: Peer ip:172.17.63.229 Ref cnt incremented to:2
    Total VPN Peers:2
 VPN Peer: IPSEC: Peer ip:172.17.63.229 Ref cnt incremented to:3
    Total VPN Peers:2
 return status is IKMP_NO_ERROR
 HubPix(config)#
 HubPix(config)#
 crypto_isakmp_process_block: src 30.30.30.2, dest 172.17.63.213
 ISAKMP (0): processing NOTIFY payload 36136 protocol 1
         spi 0, message ID = 2020571710
 ISAMKP (0): received DPD_R_U_THERE from peer 30.30.30.2
 ISAKMP (0): sending NOTIFY message 36137 protocol 1
 return status is IKMP_NO_ERR_NO_TRANS
 HubPix(config)#

内部路由器调试

inside#
 01:45:06: ISAKMP (0:0): received packet from 172.17.63.230 (N) NEW SA
 01:45:06: ISAKMP: local port 500, remote port 500
 01:45:06: ISAKMP (0:1): Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
 Old State = IKE_READY  New State = IKE_R_MM1

 01:45:06: ISAKMP (0:1): processing SA payload. message ID = 0
 01:45:06: ISAKMP (0:1): found peer pre-shared key matching 172.17.63.230
 01:45:06: ISAKMP (0:1): Checking ISAKMP transform 1 against priority 10 policy
 01:45:06: ISAKMP:      encryption DES-CBC
 01:45:06: ISAKMP:      hash MD5
 01:45:06: ISAKMP:      default group 2
 01:45:06: ISAKMP:      auth pre-share
 01:45:06: ISAKMP (0:1): atts are acceptable. Next payload is 0
 01:45:06: CryptoEngine0: generate alg parameter
 01:45:06: CryptoEngine0: CRYPTO_ISA_DH_CREATE(hw)(ipsec)
 01:45:06: CRYPTO_ENGINE: Dh phase 1 status: 0
 01:45:06: ISAKMP (0:1): Input = IKE_MESG_INTERNAL, IKE_PROCESS_MAIN_MODE
 Old State = IKE_R_MM1  New State = IKE_R_MM1

 01:45:06: ISAKMP (0:1): sending packet to 172.17.63.230 (R) MM_SA_SETUP
 01:45:06: ISAKMP (0:1): Input = IKE_MESG_INTERNAL, IKE_PROCESS_COMPLETE
 Old State = IKE_R_MM1  New State = IKE_R_MM2

 01:45:06: ISAKMP (0:1): received packet from 172.17.63.230 (R) MM_SA_SETUP
 01:45:06: ISAKMP (0:1): Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
 Old State = IKE_R_MM2  New State = IKE_R_MM3

 01:45:06: ISAKMP (0:1): processing KE payload. message ID = 0
 01:45:06: CryptoEngine0: generate alg parameter
 01:45:06: CryptoEngine0: CRYPTO_ISA_DH_SHARE_SECRET(hw)(ipsec)
 01:45:07: ISAKMP (0:1): processing NONCE payload. message ID = 0
 01:45:07: ISAKMP (0:1): found peer pre-shared key matching 172.17.63.230
 01:45:07: CryptoEngine0: create ISAKMP SKEYID for conn id 1
 01:45:07: CryptoEngine0: CRYPTO_ISA_SA_CREATE(hw)(ipsec)
 01:45:07: ISAKMP (0:1): SKEYID state generated
 01:45:07: ISAKMP (0:1): processing vendor id payload
 01:45:07: ISAKMP (0:1): vendor ID is Unity
 01:45:07: ISAKMP (0:1): processing vendor id payload
 01:45:07: ISAKMP (0:1): vendor ID is DPD
 01:45:07: ISAKMP (0:1): processing vendor id payload
 01:45:07: ISAKMP (0:1): speaking to another IOS box!
 01:45:07: ISAKMP (0:1): Input = IKE_MESG_INTERNAL, IKE_PROCESS_MAIN_MODE
 Old State = IKE_R_MM3  New State = IKE_R_MM3

 01:45:07: ISAKMP (0:1): sending packet to 172.17.63.230 (R) MM_KEY_EXCH
 01:45:07: ISAKMP (0:1): Input = IKE_MESG_INTERNAL, IKE_PROCESS_COMPLETE
 Old State = IKE_R_MM3  New State = IKE_R_MM4

 01:45:07: ISAKMP (0:1): received packet from 172.17.63.230 (R) MM_KEY_EXCH
 01:45:07: CryptoEngine0: CRYPTO_ISA_IKE_DECRYPT(hw)(ipsec)
 01:45:07: ISAKMP (0:1): Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH
 Old State = IKE_R_MM4  New State = IKE_R_MM5

 01:45:07: ISAKMP (0:1): processing ID payload. message ID = 0
 01:45:07: ISAKMP (0:1): processing HASH payload. message ID = 0
 01:45:07: CryptoEngine0: generate hmac context for conn id 1
 01:45:07: CryptoEngine0: CRYPTO_ISA_IKE_HMAC(hw)(ipsec)
 01:45:07: ISAKMP (0:1): SA has been authenticated with 172.17.63.230
 01:45:07: ISAKMP (0:1): Input = IKE_MESG_INTERNAL, IKE_PROCESS_MAIN_MODE
 Old State = IKE_R_MM5  New State = IKE_R_MM5

 01:45:07: ISAKMP (0:1): SA is doing pre-shared key authentication using
    id type ID_IPV4_ADDR
 01:45:07: ISAKMP (1): ID payload
         next-payload : 8
         type         : 1
         protocol     : 17
         port         : 500
         length       : 8
 01:45:07: ISAKMP (1): Total payload length: 12
 01:45:07: CryptoEngine0: generate hmac context for conn id 1
 01:45:07: CryptoEngine0: CRYPTO_ISA_IKE_HMAC(hw)(ipsec)
 01:45:07: CryptoEngine0: clear dh number for conn id 1
 01:45:07: CryptoEngine0: CRYPTO_ISA_DH_DELETE(hw)(ipsec)
 01:45:07: CryptoEngine0: CRYPTO_ISA_IKE_ENCRYPT(hw)(ipsec)
 01:45:07: ISAKMP (0:1): sending packet to 172.17.63.230 (R) QM_IDLE
 01:45:07: ISAKMP (0:1): Input = IKE_MESG_INTERNAL, IKE_PROCESS_COMPLETE
 Old State = IKE_R_MM5  New State = IKE_P1_COMPLETE

 01:45:07: ISAKMP (0:1): Input = IKE_MESG_INTERNAL, IKE_PHASE1_COMPLETE
 Old State = IKE_P1_COMPLETE  New State = IKE_P1_COMPLETE

 01:45:08: ISAKMP (0:1): received packet from 172.17.63.230 (R) QM_IDLE
 01:45:08: CryptoEngine0: CRYPTO_ISA_IKE_DECRYPT(hw)(ipsec)
 01:45:08: CryptoEngine0: generate hmac context for conn id 1
 01:45:08: CryptoEngine0: CRYPTO_ISA_IKE_HMAC(hw)(ipsec)
 01:45:08: ISAKMP (0:1): processing HASH payload. message ID = -498320091
 01:45:08: ISAKMP (0:1): processing SA payload. message ID = -498320091
 01:45:08: ISAKMP (0:1): Checking IPSec proposal 1
 01:45:08: ISAKMP: transform 1, ESP_DES
 01:45:08: ISAKMP:   attributes in transform:
 01:45:08: ISAKMP:      encaps is 1
 01:45:08: ISAKMP:      SA life type in seconds
 01:45:08: ISAKMP:      SA life duration (basic) of 28800
 01:45:08: ISAKMP:      SA life type in kilobytes
 01:45:08: ISAKMP:      SA life duration (VPI) of  0x0 0x46 0x50 0x0
 01:45:08: ISAKMP:      authenticator is HMAC-MD5
 01:45:08: validate proposal 0
 01:45:08: ISAKMP (0:1): atts are acceptable.
 01:45:08: IPSEC(validate_proposal_request): proposal part #1,
   (key eng. msg.) INBOUND local= 172.17.63.229, remote= 172.17.63.230,
     local_proxy= 172.20.20.0/255.255.255.0/0/0 (type=4),
     remote_proxy= 10.1.100.0/255.255.255.0/0/0 (type=4),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 0s and 0kb,
     spi= 0x0(0), conn_id= 0, keysize= 0, flags= 0x4
 01:45:08: validate proposal request 0
 01:45:08: ISAKMP (0:1): processing NONCE payload. message ID = -498320091
 01:45:08: ISAKMP (0:1): processing ID payload. message ID = -498320091
 01:45:08: ISAKMP (0:1): processing ID payload. message ID = -498320091
 01:45:08: ISAKMP (0:1): processing NOTIFY INITIAL_CONTACT protocol 1
         spi 0, message ID = -498320091, sa = 62EF984C
 01:45:08: ISAKMP (0:1): Process initial contact,
    bring down existing phase 1 and 2 SA's
 01:45:08: ISAKMP (0:1): peer does not do paranoid keepalives.

 01:45:08: ISAKMP (0:1): asking for 1 spis from ipsec
 01:45:08: ISAKMP (0:1): Node -498320091,
    Input = IKE_MESG_FROM_PEER, IKE_QM_EXCH
 Old State = IKE_QM_READY  New State = IKE_QM_SPI_STARVE

 01:45:08: IPSEC(key_engine): got a queue event...
 01:45:08: IPSEC(key_engine_delete_sas): rec'd delete notify from ISAKMP
 01:45:08: IPSEC(key_engine_delete_sas): delete all SAs shared
    with 172.17.63.230
 01:45:08: IPSEC(key_engine): got a queue event...
 01:45:08: IPSEC(spi_response): getting spi 691534456 for SA
         from 172.17.63.229   to 172.17.63.230   for prot 3
 01:45:08: ISAKMP: received ke message (2/1)
 01:45:08: CryptoEngine0: generate hmac context for conn id 1
 01:45:08: CryptoEngine0: CRYPTO_ISA_IKE_HMAC(hw)(ipsec)
 01:45:08: CryptoEngine0: CRYPTO_ISA_IKE_ENCRYPT(hw)(ipsec)
 01:45:08: ISAKMP (0:1): sending packet to 172.17.63.230 (R) QM_IDLE
 01:45:08: ISAKMP (0:1): Node -498320091,
    Input = IKE_MESG_FROM_IPSEC, IKE_SPI_REPLY
 Old State = IKE_QM_SPI_STARVE  New State = IKE_QM_R_QM2

 01:45:09: ISAKMP (0:1): received packet from 172.17.63.230 (R) QM_IDLE
 01:45:09: CryptoEngine0: CRYPTO_ISA_IKE_DECRYPT(hw)(ipsec)
 01:45:09: CryptoEngine0: generate hmac context for conn id 1
 01:45:09: CryptoEngine0: CRYPTO_ISA_IKE_HMAC(hw)(ipsec)
 01:45:09: ipsec allocate flow 0
 01:45:09: ipsec allocate flow 0
 01:45:09: CryptoEngine0: CRYPTO_ISA_IPSEC_KEY_CREATE(hw)(ipsec)
 01:45:09: CryptoEngine0: CRYPTO_ISA_IPSEC_KEY_CREATE(hw)(ipsec)
 01:45:09: ISAKMP (0:1): Creating IPSec SAs
 01:45:09:         inbound SA from 172.17.63.230 to 172.17.63.229
         (proxy 10.1.100.0 to 172.20.20.0)
 01:45:09:         has spi 0x2937FA78 and conn_id 2029 and flags 4
 01:45:09:         lifetime of 28800 seconds
 01:45:09:         lifetime of 4608000 kilobytes
 01:45:09:         outbound SA from 172.17.63.229 to 172.17.63.230
         (proxy 172.20.20.0 to 10.1.100.0)
 01:45:09:         has spi -892191949 and conn_id 2030 and flags C
 01:45:09:         lifetime of 28800 seconds
 01:45:09:         lifetime of 4608000 kilobytes
 01:45:09: ISAKMP (0:1): deleting node -498320091 error FALSE
    reason "quick mode done (await()"
 01:45:09: ISAKMP (0:1): Node -498320091,
    Input = IKE_MESG_FROM_PEER, IKE_QM_EXCH
 Old State = IKE_QM_R_QM2  New State = IKE_QM_PHASE2_COMPLETE

 01:45:09: IPSEC(key_engine): got a queue event...
 01:45:09: IPSEC(initialize_sas): ,
   (key eng. msg.) INBOUND local= 172.17.63.229, remote= 172.17.63.230,
     local_proxy= 172.20.20.0/255.255.255.0/0/0 (type=4),
     remote_proxy= 10.1.100.0/255.255.255.0/0/0 (type=4),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 28800s and 4608000kb,
     spi= 0x2937FA78(691534456), conn_id= 2029, keysize= 0, flags= 0x4
 01:45:09: IPSEC(initialize_sas): ,
   (key eng. msg.) OUTBOUND local= 172.17.63.229, remote= 172.17.63.230,
     local_proxy= 172.20.20.0/255.255.255.0/0/0 (type=4),
     remote_proxy= 10.1.100.0/255.255.255.0/0/0 (type=4),
     protocol= ESP, transform= esp-des esp-md5-hmac ,
     lifedur= 28800s and 4608000kb,
     spi= 0xCAD23B33(3402775347), conn_id= 2030, keysize= 0, flags= 0xC
 01:45:09: IPSEC(create_sa): sa created,
   (sa) sa_dest= 172.17.63.229, sa_prot= 50,
     sa_spi= 0x2937FA78(691534456),
     sa_trans= esp-des esp-md5-hmac , sa_conn_id= 2029
 01:45:09: IPSEC(create_sa): sa created,
   (sa) sa_dest= 172.17.63.230, sa_prot= 50,
     sa_spi= 0xCAD23B33(3402775347),
     sa_trans= esp-des esp-md5-hmac , sa_conn_id= 2030
 inside#

VPN 客户端日志

1679   13:21:53.420  04/13/02  Sev=Info/6       DIALER/0x63300002
 Initiating connection.

 1680   13:21:53.420  04/13/02  Sev=Info/4       CM/0x63100002
 Begin connection process

 1681   13:21:53.430  04/13/02  Sev=Info/4       CM/0x63100004
 Establish secure connection using Ethernet

 1682   13:21:53.430  04/13/02  Sev=Info/4       CM/0x63100026
 Attempt connection with server "172.17.63.213"

 1683   13:21:53.430  04/13/02  Sev=Info/6       IKE/0x6300003B
 Attempting to establish a connection with 172.17.63.213.

 1684   13:21:53.470  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK AG (SA, KE, NON, ID, VID, VID, VID)
    to 172.17.63.213

 1685   13:21:53.671  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

 1686   13:21:53.671  04/13/02  Sev=Info/4       IKE/0x63000014
 RECEIVING <<< ISAKMP OAK AG (SA, VID, VID, VID, KE, ID, NON, HASH)
    from 172.17.63.213

 1687   13:21:53.671  04/13/02  Sev=Info/5       IKE/0x63000059
 Vendor ID payload = 12F5F28C457168A9702D9FE274CC0100

 1688   13:21:53.671  04/13/02  Sev=Info/5       IKE/0x63000001
 Peer is a Cisco-Unity compliant peer

 1689   13:21:53.671  04/13/02  Sev=Info/5       IKE/0x63000059
 Vendor ID payload = AFCAD71368A1F1C96B8696FC77570100

 1690   13:21:53.671  04/13/02  Sev=Info/5       IKE/0x63000001
 Peer supports DPD

 1691   13:21:53.671  04/13/02  Sev=Info/5       IKE/0x63000059
 Vendor ID payload = 4565726A4035E50EA2133A5813561EF2

 1692   13:21:53.701  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK AG *(HASH, NOTIFY:STATUS_INITIAL_CONTACT)
    to 172.17.63.213

 1693   13:21:54.071  04/13/02  Sev=Info/4       IPSEC/0x63700014
 Deleted all keys

 1694   13:21:56.725  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

 1695   13:21:56.725  04/13/02  Sev=Info/4       IKE/0x63000014
 RECEIVING <<< ISAKMP OAK TRANS *(HASH, ATTR) from 172.17.63.213

 1696   13:21:56.725  04/13/02  Sev=Info/4       CM/0x63100015
 Launch xAuth application

 1697   13:22:05.187  04/13/02  Sev=Info/4       CM/0x63100017
 xAuth application returned

 1698   13:22:05.187  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK TRANS *(HASH, ATTR) to 172.17.63.213

 1699   13:22:10.214  04/13/02  Sev=Info/4       IKE/0x63000056
 Phase 2 exchange timed out (message id = 0x76A9073B). Retry count: 1

 1700   13:22:10.214  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK TRANS *(Retransmission) to 172.17.63.213

 1701   13:22:10.654  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

 1702   13:22:10.654  04/13/02  Sev=Info/4       IKE/0x63000014
 RECEIVING <<< ISAKMP OAK TRANS *(HASH, ATTR) from 172.17.63.213

 1703   13:22:10.654  04/13/02  Sev=Info/4       CM/0x6310000E
 Established Phase 1 SA.  1 Phase 1 SA in the system

 1704   13:22:10.665  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK TRANS *(HASH, ATTR) to 172.17.63.213

 1705   13:22:10.675  04/13/02  Sev=Info/5       IKE/0x6300005D
 Client sending a firewall request to concentrator

 1706   13:22:10.675  04/13/02  Sev=Info/5       IKE/0x6300005C
 Firewall Policy: Product=Cisco Integrated Client,
    Capability= (Centralized Policy Push).

 1707   13:22:10.675  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK TRANS *(HASH, ATTR) to 172.17.63.213

 1708   13:22:10.735  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

 1709   13:22:10.735  04/13/02  Sev=Info/4       IKE/0x63000014
 RECEIVING <<< ISAKMP OAK TRANS *(HASH, ATTR) from 172.17.63.213

 1710   13:22:10.735  04/13/02  Sev=Info/5       IKE/0x63000010
 MODE_CFG_REPLY: Attribute = INTERNAL_IPV4_ADDRESS: , value = 10.1.100.1

 1711   13:22:10.735  04/13/02  Sev=Info/5       IKE/0x63000010
 MODE_CFG_REPLY: Attribute = INTERNAL_IPV4_DNS(1): , value = 172.20.20.2

 1712   13:22:10.735  04/13/02  Sev=Info/5       IKE/0x63000010
 MODE_CFG_REPLY: Attribute = INTERNAL_IPV4_NBNS(1) (a.k.a. WINS) : ,
    value = 172.20.20.2

 1713   13:22:10.735  04/13/02  Sev=Info/5       IKE/0x6300000E
 MODE_CFG_REPLY: Attribute = MODECFG_UNITY_DEFDOMAIN: , value = cisco.com

 1714   13:22:10.735  04/13/02  Sev=Info/4       CM/0x63100019
 Mode Config data received

 1715   13:22:10.755  04/13/02  Sev=Info/5       IKE/0x63000055
 Received a key request from Driver for IP address 172.17.63.213,
    GW IP = 172.17.63.213

 1716   13:22:10.755  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK QM *(HASH, SA, NON, ID, ID) to 172.17.63.213

 1717   13:22:10.755  04/13/02  Sev=Info/5       IKE/0x63000055
 Received a key request from Driver for IP address 10.10.10.255,
    GW IP = 172.17.63.213

 1718   13:22:10.755  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK QM *(HASH, SA, NON, ID, ID) to 172.17.63.213

 1719   13:22:11.115  04/13/02  Sev=Info/4       IPSEC/0x63700014
 Deleted all keys

 1720   13:22:11.616  04/13/02  Sev=Info/5       IKE/0x63000055
 Received a key request from Driver for IP address 144.254.6.77,
    GW IP = 172.17.63.213

 1721   13:22:11.616  04/13/02  Sev=Warning/3    IKE/0xE3000002
 Function initialize_qm failed with an error code
    of 0x00000000(INITIATE:811)

 1722   13:22:12.097  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

 1723   13:22:12.097  04/13/02  Sev=Info/4       IKE/0x63000014
 RECEIVING <<< ISAKMP OAK QM *(HASH, SA, NON, ID, ID,
    NOTIFY:STATUS_RESP_LIFETIME) from 172.17.63.213

 1724   13:22:12.097  04/13/02  Sev=Info/5       IKE/0x63000044
 RESPONDER-LIFETIME notify has value of 28800 seconds

 1725   13:22:12.097  04/13/02  Sev=Info/5       IKE/0x63000045
 RESPONDER-LIFETIME notify has value of 4608000 kb

 1726   13:22:12.097  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK QM *(HASH) to 172.17.63.213

 1727   13:22:12.097  04/13/02  Sev=Info/5       IKE/0x63000058
 Loading IPsec SA (Message ID = 0x78639C26 OUTBOUND SPI = 0x091E92B8
    INBOUND SPI = 0x7E7A7797)

 1728   13:22:12.097  04/13/02  Sev=Info/5       IKE/0x63000025
 Loaded OUTBOUND ESP SPI: 0x091E92B8

 1729   13:22:12.097  04/13/02  Sev=Info/5       IKE/0x63000026
 Loaded INBOUND ESP SPI: 0x7E7A7797

 1730   13:22:12.097  04/13/02  Sev=Info/4       CM/0x6310001A
 One secure connection established

 1731   13:22:12.117  04/13/02  Sev=Info/6       DIALER/0x63300003
 Connection established.

 1732   13:22:12.477  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

 1733   13:22:12.477  04/13/02  Sev=Info/4       IKE/0x63000014
 RECEIVING <<< ISAKMP OAK QM *(HASH, SA, NON, ID, ID,
    NOTIFY:STATUS_RESP_LIFETIME) from 172.17.63.213

 1734   13:22:12.477  04/13/02  Sev=Info/5       IKE/0x63000044
 RESPONDER-LIFETIME notify has value of 28800 seconds

 1735   13:22:12.477  04/13/02  Sev=Info/5       IKE/0x63000045
 RESPONDER-LIFETIME notify has value of 4608000 kb

 1736   13:22:12.477  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK QM *(HASH) to 172.17.63.213

 1737   13:22:12.477  04/13/02  Sev=Info/5       IKE/0x63000058
 Loading IPsec SA (Message ID = 0xD5A0CB3C OUTBOUND SPI = 0xBEE54877
    INBOUND SPI = 0x2DFC7E29)

 1738   13:22:12.477  04/13/02  Sev=Info/5       IKE/0x63000025
 Loaded OUTBOUND ESP SPI: 0xBEE54877

 1739   13:22:12.477  04/13/02  Sev=Info/5       IKE/0x63000026
 Loaded INBOUND ESP SPI: 0x2DFC7E29

 1740   13:22:12.477  04/13/02  Sev=Info/4       CM/0x63100022
 Additional Phase 2 SA established.

 1741   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x63700010
 Created a new key structure

 1742   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x63700010
 Created a new key structure

 1743   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x6370000F
 Added key with SPI=0xb8921e09 into key list

 1744   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x63700010
 Created a new key structure

 1745   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x6370000F
 Added key with SPI=0x97777a7e into key list

 1746   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x6370000F
 Added key with SPI=0x7748e5be into key list

 1747   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x63700010
 Created a new key structure

 1748   13:22:12.477  04/13/02  Sev=Info/4       IPSEC/0x6370000F
 Added key with SPI=0x297efc2d into key list

 1749   13:22:21.229  04/13/02  Sev=Info/6       IKE/0x6300003D
 Sending DPD request to 172.17.63.213, seq# = 1723178673

 1750   13:22:21.229  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK INFO *(HASH, NOTIFY:DPD_REQUEST) to 172.17.63.213

 1751   13:22:21.259  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

 1752   13:22:21.259  04/13/02  Sev=Info/4       IKE/0x63000014
 RECEIVING <<< ISAKMP OAK INFO *(HASH, NOTIFY:DPD_ACK) from 172.17.63.213

 1753   13:22:21.259  04/13/02  Sev=Info/5       IKE/0x6300003F
 Received DPD ACK from 172.17.63.213, seq# received = 1723178673,
    seq# expected = 1723178673

 1754   13:22:31.744  04/13/02  Sev=Info/4       IPSEC/0x63700019
 Activate outbound key with SPI=0x7748e5be for inbound key
    with SPI=0x297efc2d

 1755   13:22:46.765  04/13/02  Sev=Info/6       IKE/0x6300003D
 Sending DPD request to 172.17.63.213, seq# = 1723178674

 1756   13:22:46.765  04/13/02  Sev=Info/4       IKE/0x63000013
 SENDING >>> ISAKMP OAK INFO *(HASH, NOTIFY:DPD_REQUEST) to 172.17.63.213

 1757   13:22:46.765  04/13/02  Sev=Info/5       IKE/0x6300002F
 Received ISAKMP packet: peer = 172.17.63.213

相关信息

修订历史记录

版本 发布日期 备注
1.0
23-Feb-2005
初始版本

提供者

  • jdal
    chbanks

此文档是否有帮助?

Feedback反馈

联系我们

本文档适用于以下产品
