简介

本文档介绍适用于终端分类的WiFi分析的工作原理。还介绍了如何配置、验证和排除故障。

先决条件

要求

Cisco 建议您了解以下主题：

9800无线LAN控制器(WLC)配置
身份服务引擎(ISE)配置
RADIUS 身份验证.授权和记帐(AAA)数据包流和术语

本文档假设已有一个工作正常的WLAN身份验证客户端使用ISE作为RADIUS服务器。

要使用此功能，至少需要：

9800 WLC Cisco IOS® XE都柏林17.10.1
确定Services Engine v3.3。
802.11ac Wave2或802.11ax(Wi-Fi 6/6E)接入点

使用的组件

本文档中的信息基于以下软件和硬件版本：

9800 WLC Cisco IOSXE v17.12.x
身份服务引擎(ISE)v3.3
Android 13设备

本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始（默认）配置。如果您的网络处于活动状态，请确保您了解所有命令的潜在影响。

背景信息

通过WiFi设备分析，Cisco 9800 WLC可以从连接到此设备的一组终端了解属性（例如型号和操作系统版本），并与ISE共享这些属性。然后，ISE可以将此信息用于终端分类（也称为分析）。

目前，以下供应商支持WiFi分析：

苹果
英特尔
三星

WLC使用RADIUS记帐数据包与ISE服务器共享属性信息。 WiFi Analytics Data Flow WiFi分析数据流

请务必记住，RADIUS AAA流上的RADIUS记帐数据包仅在RADIUS服务器发送RADIUS Access-Accept数据包作为对终端身份验证尝试的应答后发送。按照顺序排列，WLC仅在RADIUS服务器(ISE)和网络访问设备(WLC)之间建立终端的RADIUS会话后共享终端属性信息。

以下是ISE可用于终端分类和授权的所有属性：

DEVICE_INFO_FIRMWARE_VERSION
DEVICE_INFO_HW_MODEL
DEVICE_INFO_MANUFACTURER_MODEL
DEVICE_INFO_MODEL_NAME
DEVICE_INFO_MODEL_NUM
DEVICE_INFO_OS_VERSION
DEVICE_INFO_VENDOR_TYPE

注意：WLC可根据连接的终端类型发送更多属性，但只有列出的属性可用于在ISE中创建授权策略。

ISE收到记账数据包后，可以在其中处理和使用此分析数据，并使用它重新分配终端配置文件/身份组。

WiFi终端分析属性列在WiFi_Device_Analytics字典下。网络管理员可以在终端授权策略和条件中包含这些属性。

WiFi Device Analytics Dictionary WiFi设备分析词典

如果ISE为终端存储的当前属性值发生任何更改，则ISE启动授权更改(CoA)，允许对终端进行评估以计算更新的属性。

配置

WLC上的配置

步骤1:全局启用设备分类功能

导航到Configuration > Wireless > Wireless Global并选中Device Classification复选框。

Device Classification Configuration 设备分类配置

第二步：启用TLV缓存和RADIUS分析

导航到Configuration > Tags and Profiles > Policy，然后选择RADIUS客户端连接的WLAN所使用的Policy Profile。

Wireless Policy Selection 无线策略选择

单击Access Policies并选中RADIUS Profiling、HTTP TLV Caching和DHCP TLV Caching选项。由于在上一步中采取的操作，设备分类的全局状态现在显示为“已启用”状态。 RADIUS Profiling and Caching Configuration RADIUS分析和缓存配置

登录到WLC CLI并启用dot11 TLV Accounting。

vimontes-wlc#configure terminal
vimontes-wlc(config)#wireless profile policy policy-profile-name
vimontes-wlc(config-wireless-policy)#dot11-tlv-accounting

注意：使用此命令之前，必须禁用无线策略配置文件。此命令仅在Cisco IOS XE Dublin 17.10.1版本及更高版本上可用。

ISE上的配置

步骤1:在部署的PSN中启用分析服务

导航到Administration > Deployment，然后点击PSN的名称。

ISE PSN Node Selection ISE PSN节点选择

向下滚动到Policy Service部分并标记Enable Profiling Service复选框。点击保存按钮。

Profiler Services Configuration 分析器服务配置

第二步：在ISE PSN上启用RADIUS分析探测

向上滚动到页面顶部，然后点击Profiling Configuration选项卡。这将显示可在ISE上使用的所有分析探测。启用RADIUS Probe，然后单击Save。

RADIUS Profiling Probe Configuration RADIUS分析探测配置

第三步：设置CoA类型和终端属性过滤器

导航到Administration > System > Settings > Profiling。将CoA Type设置为Reauth，并确保Endpoint Attribute Filter复选框未选中。

CoA类型和属性过滤器配置

第四步：使用WiFi Analytics数据属性配置授权策略

导航到Policy > Policy Sets菜单，然后选择您的无线网络使用的Policy Set。

Policy Set Selection 策略集选择

单击Authorization Policies并配置授权条件以包括Endpoint Policy和WiFi Device Analytics字典属性。 Authorization Policy Configuration 授权策略配置

验证

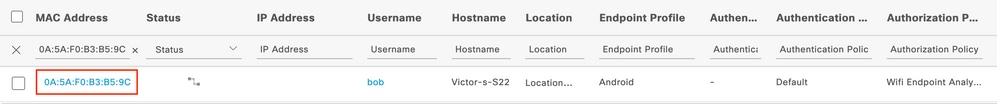

在ISE GUI上，导航到操作> RADIUS >实时日志。您可以使用多个字段过滤此窗口中的条目并查找测试终端记录。

ISE Live Logs for Testing Endpoint 用于测试终端的ISE实时日志

a.初始终端身份验证请求到达ISE。终端配置文件字段为空，因为此会话的记帐数据包此时未到达ISE。

b.CoA从ISE发送到NAD，因为现在已收到包含终端属性的记帐数据包。

c.成功发送CoA后，终端会重新进行身份验证。这次，您可以观察新的已分配终端配置文件，并看到已分配了不同的授权结果。

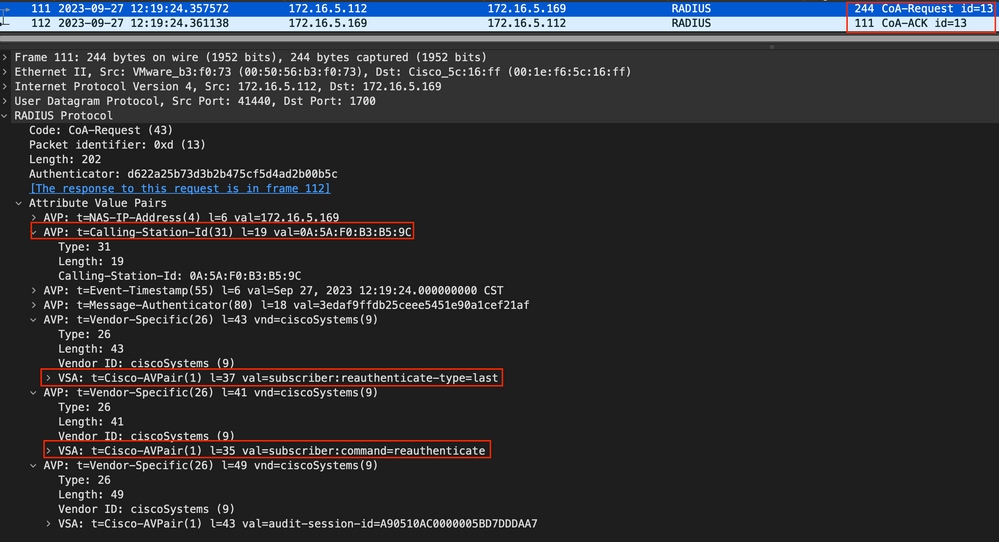

注意：CoA数据包始终具有空身份字段，但终端ID与第一个身份验证数据包中的相同。

点击位于授权更改记录上的详细信息列中的图标。

Access to CoA Packet Details 访问CoA数据包详细信息

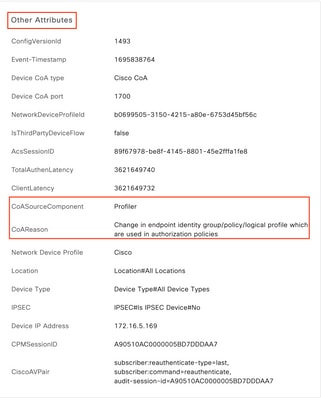

CoA详细信息显示在新的浏览器选项卡中。向下滚动到其他属性部分。

CoA源组件显示为分析器。CoA Reason在授权策略中使用的终端身份组/策略/逻辑配置文件中显示为Change。

CoA Triggering Component and Reason CoA触发组件和原因

导航到情景可视性>终端>身份验证选项卡。在此选项卡上，使用过滤器定位测试终端。

点击终端MAC地址以访问终端属性。

Endpoint on Context Visibility 情景可视性上的终端

此操作显示ISE存储的有关此终端的所有信息。单击Attributes部分，然后选择Other Attributes。

Endpoint Other Attribute Selection on Context Visibility 基于情景可视性的终端其他属性选择

向下滚动，直到找到WiFi_Device_Analytics词典属性。在此部分查找这些属性意味着ISE通过记帐数据包成功接收这些属性，并且可用于终端分类。

WiFi Analytics Attributes on Context Visibility WiFi分析属性与情景可视性

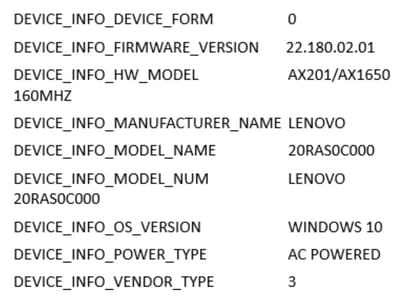

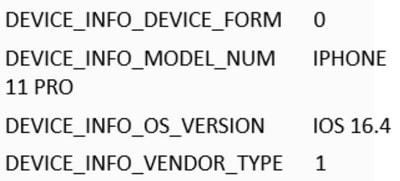

下面是Windows 10和iPhone属性示例，供您参考：

Example of Windows 10 Endpoint Attributes Windows 10终端属性示例 Example of iPhone Endpoint Attributes iPhone终端属性示例

故障排除

步骤1:计费数据包到达ISE

在WLC CLI上，确保在策略配置文件配置上启用DOT11 TLV记帐、DHCP TLV缓存和HTTP TLV缓存。

vimontes-wlc#show running-config | section wireless profile policy policy-profile-name
wireless profile policy policy-profile-name
 aaa-override
 accounting-list AAA-LIST
 dhcp-tlv-caching
 dot11-tlv-accounting
 http-tlv-caching
 radius-profiling
 no shutdown

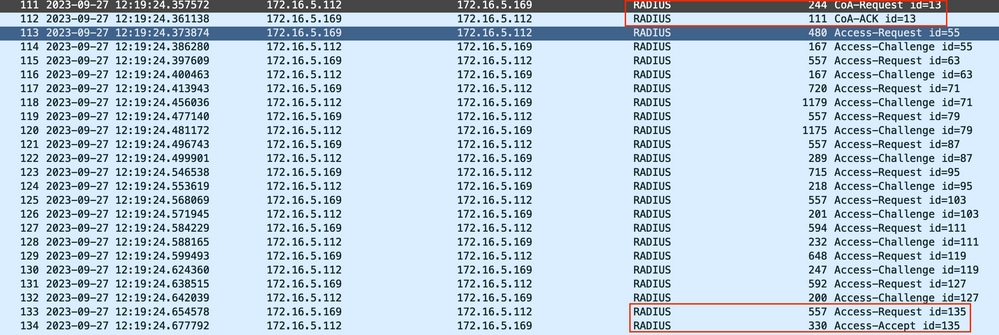

连接终端时，收集WLC或ISE终端上的数据包捕获。您可以使用任何众所周知的数据包分析工具(如Wireshark)来分析收集的文件。

按RADIUS记帐数据包和呼叫站ID（测试终端MAC地址）进行过滤。例如，可以使用以下过滤器：

radius.code == 4 && radius.Calling_Station_Id == "xx-xx-xx-xx-xx-xx"

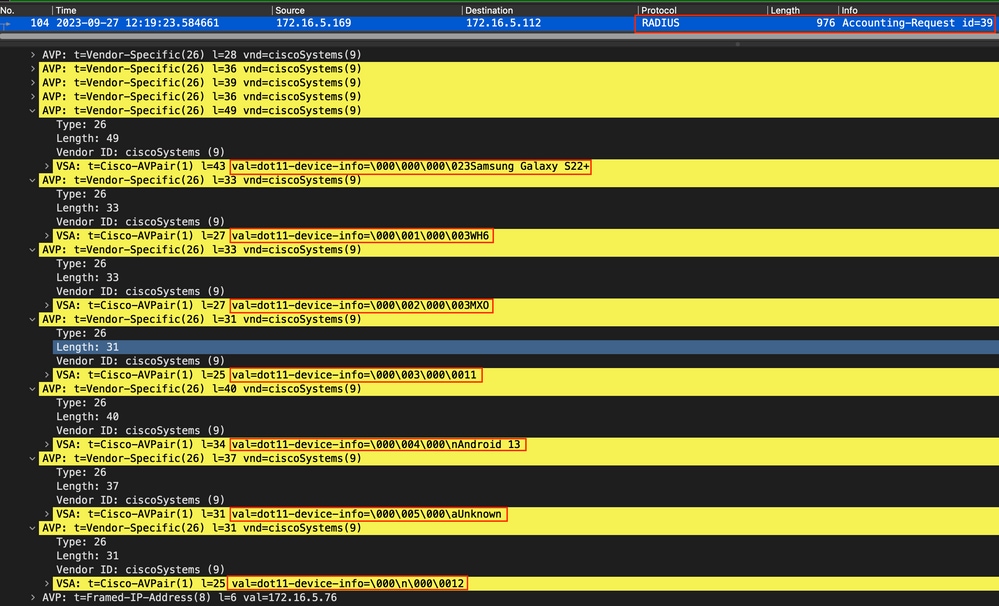

找到后，展开Cisco-AVPair字段以查找Accounting数据包中的WiFi Analytics数据。

Endpoint TLV Attributes within an Accounting Packet 记账数据包中的终端TLV属性

第二步：ISE解析具有终端属性的记帐数据包

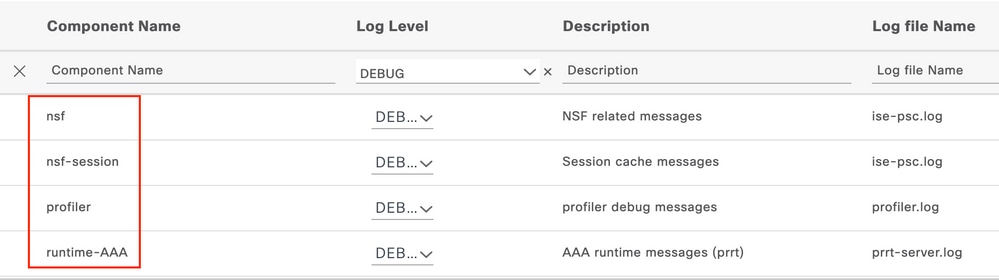

在ISE端，可以将这些组件设置为调试级别，以确保由发送的RADIUS记帐数据包到达ISE并正确处理。

然后，您可以收集ISE支持包以收集日志文件。有关如何收集支持捆绑包的更多信息，请参阅相关信息部分。

Components to Debug for Troubleshoot 要调试的组件以进行故障排除

注意：仅在验证终端的PSN上启用组件以调试级别。

在iseLocalStore.log上，Accounting-Start消息被记录，而无需将任何组件启用为DEBUG级别。此处，ISE必须看到包含WiFi Analytics属性的传入记帐数据包。

2023-09-27 18:19:23.600 +00:00 0000035538 3000 NOTICE Radius-Accounting: RADIUS Accounting start request, ConfigVersionId=1493,
Device IP Address=172.16.5.169, UserName=bob, NetworkDeviceName=lab-wlc, User-Name=bob, NAS-IP-Address=172.16.5.169, NAS-Port=260613,
Framed-IP-Address=172.16.5.76, Class=CACS:A90510AC0000005BD7DDDAA7:iselab/484624451/303, Called-Station-ID=00-1e-f6-5c-16-ff,
Calling-Station-ID=0a-5a-f0-b3-b5-9c, NAS-Identifier=vimontes-wlc, Acct-Status-Type=Start, Acct-Delay-Time=0, Acct-Session-Id=00000018,
Acct-Authentic=Remote, Event-Timestamp=1695838756, NAS-Port-Type=Wireless - IEEE 802.11, cisco-av-pair=dc-profile-name=Samsung Galaxy S22+,
cisco-av-pair=dc-device-name=Victor-s-S22, cisco-av-pair=dc-device-class-tag=Samsung Galaxy S22+, cisco-av-pair=dc-certainty-metric=40,
cisco-av-pair=64:63:2d:6f:70:61:71:75:65:3d:01:00:00:00:00:00:00:00:00:00:00:00, cisco-av-pair=dc-protocol-map=1025, cisco-av-pair=dhcp-option=host-name=Victor-s-S22,
cisco-av-pair=dhcp-option=dhcp-class-identifier=android-dhcp-13, cisco-av-pair=dhcp-option=dhcp-parameter-request-list=1\, 3\, 6\, 15\, 26\, 28\, 51\, 58\, 59\, 43\, 114\, 108,
cisco-av-pair=dot11-device-info=DEVICE_INFO_MODEL_NUM=Samsung Galaxy S22+, cisco-av-pair=dot11-device-info=DEVICE_INFO_FIRMWARE_VERSION=WH6,
cisco-av-pair=dot11-device-info=DEVICE_INFO_SALES_CODE=MXO, cisco-av-pair=dot11-device-info=DEVICE_INFO_DEVICE_FORM=1,
cisco-av-pair=dot11-device-info=DEVICE_INFO_OS_VERSION=Android 13, cisco-av-pair=dot11-device-info=DEVICE_INFO_COUNTRY_CODE=Unknown,
cisco-av-pair=dot11-device-info=DEVICE_INFO_VENDOR_TYPE=2, cisco-av-pair=audit-session-id=A90510AC0000005BD7DDDAA7, cisco-av-pair=vlan-id=2606, cisco-av-pair=method=dot1x,
cisco-av-pair=cisco-wlan-ssid=VIcSSID, cisco-av-pair=wlan-profile-name=ISE-AAA, Airespace-Wlan-Id=1, AcsSessionID=iselab/484624451/304, SelectedAccessService=Default Network Access,
RequestLatency=15, Step=11004, Step=11017, Step=15049, Step=15008, Step=22083, Step=11005, NetworkDeviceGroups=IPSEC#Is IPSEC Device#No, NetworkDeviceGroups=Location#All Locations,
NetworkDeviceGroups=Device Type#All Device Types, CPMSessionID=A90510AC0000005BD7DDDAA7, TotalAuthenLatency=15, ClientLatency=0, Network Device Profile=Cisco, Location=Location#All Locations,
Device Type=Device Type#All Device Types, IPSEC=IPSEC#Is IPSEC Device#No,

在prrt-server.log上，ISE解析收到的会计数据包系统日志消息，包括WiFi分析属性。使用CallingStationID和CPMSessionID字段确保跟踪正确的会话和终端。

Radius,2023-09-27 18:19:23,586,DEBUG,0x7f50a2b67700,cntx=0000192474,sesn=iselab/484624451/304,
CPMSessionID=A90510AC0000005BD7DDDAA7,CallingStationID=0a-5a-f0-b3-b5-9c,FramedIPAddress=172.16.5.76,RADIUS PACKET::
Code=4(AccountingRequest) Identifier=39 Length=934
     [1] User-Name - value: [bob]
     [4] NAS-IP-Address - value: [172.16.5.169]
     [5] NAS-Port - value: [260613]
     [8] Framed-IP-Address - value: [172.16.5.76]
     [25] Class - value: [****]
     [30] Called-Station-ID - value: [00-1e-f6-5c-16-ff]
     [31] Calling-Station-ID - value: [0a-5a-f0-b3-b5-9c]
     [32] NAS-Identifier - value: [vimontes-wlc]
     [40] Acct-Status-Type - value: [Start]
     [41] Acct-Delay-Time - value: [0]
     [44] Acct-Session-Id - value: [00000018]
     [45] Acct-Authentic - value: [Remote]
     [55] Event-Timestamp - value: [1695838756]
     [61] NAS-Port-Type - value: [Wireless - IEEE 802.11]
     [26] cisco-av-pair - value: [dc-profile-name=Samsung Galaxy S22+]
     [26] cisco-av-pair - value: [dc-device-name=Victor-s-S22]
     [26] cisco-av-pair - value: [dc-device-class-tag=Samsung Galaxy S22+]
     [26] cisco-av-pair - value: [dc-certainty-metric=40]
     [26] cisco-av-pair - value: [dc-opaque=<01><00><00><00><00><00><00><00><00><00><00><00>]
     [26] cisco-av-pair - value: [dc-protocol-map=1025]
     [26] cisco-av-pair - value: [dhcp-option=<00><0c><00><0c>Victor-s-S22]
     [26] cisco-av-pair - value: [dhcp-option=<00><<00><0f>android-dhcp-13]
     [26] cisco-av-pair - value: [dhcp-option=<00>7<00><0c><01><03><06><0f><1a><1c>3:;+rl]
     [26] cisco-av-pair - value: [dot11-device-info=<00><00><00><13>Samsung Galaxy S22+]
     [26] cisco-av-pair - value: [dot11-device-info=<00><01><00><03>WH6]
     [26] cisco-av-pair - value: [dot11-device-info=<00><02><00><03>MXO]
     [26] cisco-av-pair - value: [dot11-device-info=<00><03><00><01>1]
     [26] cisco-av-pair - value: [dot11-device-info=<00><04><00>
Android 13]
     [26] cisco-av-pair - value: [dot11-device-info=<00><05><00><07>Unknown]
     [26] cisco-av-pair - value: [dot11-device-info=<00>
<00><01>2]
     [26] cisco-av-pair - value: [audit-session-id=A90510AC0000005BD7DDDAA7]
     [26] cisco-av-pair - value: [vlan-id=2606]
     [26] cisco-av-pair - value: [method=dot1x]
     [26] cisco-av-pair - value: [cisco-wlan-ssid=VIcSSID]
     [26] cisco-av-pair - value: [wlan-profile-name=ISE-AAA]
     [26] Airespace-Wlan-Id - value: [<00><00><00><01>] ,RADIUSHandler.cpp:2453

第三步：终端属性已更新且终端已分类

然后与分析器组件共享此syslog消息。Profiler.log接收解析的系统日志消息并提取终端属性。

2023-09-27 18:19:23,601 DEBUG  [SyslogListenerThread][[]] cisco.profiler.probes.radius.SyslogMonitor -:::::- Radius Packet Received 1266
2023-09-27 18:19:23,601 DEBUG  [SyslogListenerThread][[]] cisco.profiler.probes.radius.SyslogDefragmenter -:::::- parseHeader inBuffer=<181>Sep 27 18:19:23 iselab
CISE_RADIUS_Accounting 0000000297 3 0 2023-09-27 18:19:23.600 +00:00 0000035538 3000 NOTICE Radius-Accounting: RADIUS Accounting start request, ConfigVersionId=1493, Device IP Address=172.16.5.169,
UserName=bob, NetworkDeviceName=lab-wlc, User-Name=bob, NAS-IP-Address=172.16.5.169, NAS-Port=260613, Framed-IP-Address=172.16.5.76, Class=CACS:A90510AC0000005BD7DDDAA7:iselab/484624451/303,
Called-Station-ID=00-1e-f6-5c-16-ff, Calling-Station-ID=0a-5a-f0-b3-b5-9c, NAS-Identifier=vimontes-wlc, Acct-Status-Type=Start, Acct-Delay-Time=0, Acct-Session-Id=00000018, Acct-Authentic=Remote,
Event-Timestamp=1695838756, NAS-Port-Type=Wireless - IEEE 802.11, cisco-av-pair=dc-profile-name=Samsung Galaxy S22+, cisco-av-pair=dc-device-name=Victor-s-S22,
cisco-av-pair=dc-device-class-tag=Samsung Galaxy S22+, cisco-av-pair=dc-certainty-metric=40,
cisco-av-pair=64:63:2d:6f:70:61:71:75:65:3d:01:00:00:00:00:00:00:00:00:00:00:00, cisco-av-pair=dc-protocol-map=1025,
2023-09-27 18:19:23,601 DEBUG  [SyslogListenerThread][[]] cisco.profiler.probes.radius.SyslogMonitor -:::::- Radius Packet Received 1267
2023-09-27 18:19:23,601 DEBUG  [SyslogListenerThread][[]] cisco.profiler.probes.radius.SyslogDefragmenter -:::::- parseHeader inBuffer=<181>Sep 27 18:19:23 iselab CISE_RADIUS_Accounting 0000000297 3 1
cisco-av-pair=dhcp-option=host-name=Victor-s-S22, cisco-av-pair=dhcp-option=dhcp-class-identifier=android-dhcp-13, cisco-av-pair=dhcp-option=dhcp-parameter-request-list=1\, 3\, 6\, 15\, 26\, 28\, 51\, 58\, 59\, 43\, 114\, 108,
cisco-av-pair=dot11-device-info=DEVICE_INFO_MODEL_NUM=Samsung Galaxy S22+, cisco-av-pair=dot11-device-info=DEVICE_INFO_FIRMWARE_VERSION=WH6, cisco-av-pair=dot11-device-info=DEVICE_INFO_SALES_CODE=MXO,
cisco-av-pair=dot11-device-info=DEVICE_INFO_DEVICE_FORM=1, cisco-av-pair=dot11-device-info=DEVICE_INFO_OS_VERSION=Android 13, cisco-av-pair=dot11-device-info=DEVICE_INFO_COUNTRY_CODE=Unknown,
cisco-av-pair=dot11-device-info=DEVICE_INFO_VENDOR_TYPE=2, cisco-av-pair=audit-session-id=A90510AC0000005BD7DDDAA7, cisco-av-pair=vlan-id=2606, cisco-av-pair=method=dot1x, cisco-av-pair=cisco-wlan-ssid=VIcSSID,
cisco-av-pair=wlan-profile-name=ISE-AAA, Airespace-Wlan-Id=1, AcsSessionID=iselab/484624451/304,

终端属性信息已更新。

2023-09-27 18:19:23,602 DEBUG  [RADIUSParser-1-thread-2][[]] cisco.profiler.probes.radius.RadiusParser -:A90510AC0000005BD7DDDAA7::::- Device Analytics data  1: DEVICE_INFO_FIRMWARE_VERSION=[WH6]
2023-09-27 18:19:23,602 DEBUG  [RADIUSParser-1-thread-2][[]] cisco.profiler.probes.radius.RadiusParser -:A90510AC0000005BD7DDDAA7::::- Device Analytics data  1: DEVICE_INFO_SALES_CODE=[MXO]
2023-09-27 18:19:23,602 DEBUG  [RADIUSParser-1-thread-2][[]] cisco.profiler.probes.radius.RadiusParser -:A90510AC0000005BD7DDDAA7::::- Device Analytics data  1: DEVICE_INFO_DEVICE_FORM=[1]
2023-09-27 18:19:23,602 DEBUG  [RADIUSParser-1-thread-2][[]] cisco.profiler.probes.radius.RadiusParser -:A90510AC0000005BD7DDDAA7::::- Device Analytics data  1: DEVICE_INFO_OS_VERSION=[Android 13]
2023-09-27 18:19:23,602 DEBUG  [RADIUSParser-1-thread-2][[]] cisco.profiler.probes.radius.RadiusParser -:A90510AC0000005BD7DDDAA7::::- Device Analytics data  1: DEVICE_INFO_COUNTRY_CODE=[Unknown]
2023-09-27 18:19:23,602 DEBUG  [RADIUSParser-1-thread-2][[]] cisco.profiler.probes.radius.RadiusParser -:A90510AC0000005BD7DDDAA7::::- Device Analytics data  1: DEVICE_INFO_VENDOR_TYPE=[2]

2023-09-27 18:19:23,602 DEBUG  [RADIUSParser-1-thread-2][[]] cisco.profiler.probes.radius.RadiusParser -:A90510AC0000005BD7DDDAA7::::- Endpoint: EndPoint[id=,name=]
MAC: 0A:5A:F0:B3:B5:9C
	Attribute:AAA-Server	 value:iselab
	Attribute:Acct-Authentic	 value:Remote
	Attribute:Acct-Delay-Time	 value:0
	Attribute:Acct-Session-Id	 value:00000018
	Attribute:Acct-Status-Type	 value:Start
	Attribute:AcsSessionID	 value:iselab/484624451/304
	Attribute:Airespace-Wlan-Id	 value:1
	Attribute:BYODRegistration	 value:Unknown
	Attribute:CPMSessionID	 value:A90510AC0000005BD7DDDAA7
	Attribute:Called-Station-ID	 value:00-1e-f6-5c-16-ff
	Attribute:Calling-Station-ID	 value:0a-5a-f0-b3-b5-9c
	Attribute:Class	 value:CACS:A90510AC0000005BD7DDDAA7:iselab/484624451/303
	Attribute:ClientLatency	 value:0
	Attribute:DEVICE_INFO_COUNTRY_CODE	 value:Unknown
	Attribute:DEVICE_INFO_DEVICE_FORM	 value:PHONE
	Attribute:DEVICE_INFO_FIRMWARE_VERSION	 value:WH6
	Attribute:DEVICE_INFO_MODEL_NUM	 value:Samsung Galaxy S22+
	Attribute:DEVICE_INFO_OS_VERSION	 value:Android 13
	Attribute:DEVICE_INFO_SALES_CODE	 value:MXO
	Attribute:DEVICE_INFO_VENDOR_TYPE	 value:SAMSUNG
	Attribute:Device IP Address	 value:172.16.5.169
	Attribute:Device Type	 value:Device Type#All Device Types
	Attribute:DeviceRegistrationStatus	 value:NotRegistered
	Attribute:EndPointPolicy	 value:Unknown
	Attribute:EndPointPolicyID	 value:
	Attribute:EndPointSource	 value:RADIUS Probe
	Attribute:Event-Timestamp	 value:1695838756
	Attribute:Framed-IP-Address	 value:172.16.5.76
	Attribute:IPSEC	 value:IPSEC#Is IPSEC Device#No
	Attribute:Location	 value:Location#All Locations
	Attribute:MACAddress	 value:0A:5A:F0:B3:B5:9C
	Attribute:MatchedPolicy	 value:Unknown
	Attribute:MatchedPolicyID	 value:
	Attribute:MessageCode	 value:3000
	Attribute:NAS-IP-Address	 value:172.16.5.169
	Attribute:NAS-Identifier	 value:vimontes-wlc
	Attribute:NAS-Port	 value:260613
	Attribute:NAS-Port-Type	 value:Wireless - IEEE 802.11
	Attribute:Network Device Profile	 value:Cisco
	Attribute:NetworkDeviceGroups	 value:IPSEC#Is IPSEC Device#No, Location#All Locations, Device Type#All Device Types
	Attribute:NetworkDeviceName	 value:lab-wlc
	Attribute:NmapSubnetScanID	 value:0
	Attribute:OUI	 value:UNKNOWN
	Attribute:PolicyVersion	 value:0
	Attribute:PortalUser	 value:
	Attribute:PostureApplicable	 value:Yes
	Attribute:RequestLatency	 value:15
	Attribute:StaticAssignment	 value:false
	Attribute:StaticGroupAssignment	 value:false
	Attribute:Total Certainty Factor	 value:0
	Attribute:TotalAuthenLatency	 value:15
	Attribute:User-Name	 value:bob
	Attribute:cisco-av-pair	 value:dc-profile-name=Samsung Galaxy S22+, dc-device-name=Victor-s-S22, dc-device-class-tag=Samsung Galaxy S22+, dc-certainty-metric=40, 64:63:2d:6f:70:61:71:75:65:3d:01:00:00:00:00:00:00:00:00:00:00:00, dc-protocol-map=1025, dhcp-option=host-name=Victor-s-S22, dhcp-option=dhcp-class-identifier=android-dhcp-13, dhcp-option=dhcp-parameter-request-list=1\, 3\, 6\, 15\, 26\, 28\, 51\, 58\, 59\, 43\, 114\, 108, dot11-device-info=DEVICE_INFO_MODEL_NUM=Samsung Galaxy S22+, dot11-device-info=DEVICE_INFO_FIRMWARE_VERSION=WH6, dot11-device-info=DEVICE_INFO_SALES_CODE=MXO, dot11-device-info=DEVICE_INFO_DEVICE_FORM=1, dot11-device-info=DEVICE_INFO_OS_VERSION=Android 13, dot11-device-info=DEVICE_INFO_COUNTRY_CODE=Unknown, dot11-device-info=DEVICE_INFO_VENDOR_TYPE=2, audit-session-id=A90510AC0000005BD7DDDAA7, vlan-id=2606, method=dot1x, cisco-wlan-ssid=VIcSSID, wlan-profile-name=ISE-AAA
	Attribute:dhcp-class-identifier	 value:android-dhcp-13
	Attribute:dhcp-parameter-request-list	 value:1, 3, 6, 15, 26, 28, 51, 58, 59, 43, 114, 108
	Attribute:host-name	 value:Victor-s-S22
	Attribute:ip	 value:172.16.5.76
	Attribute:SkipProfiling	 value:false

属性更新会触发新的终端分析事件。分析策略将再次评估，并分配新的配置文件。

2023-09-27 18:19:24,098 DEBUG  [pool-533-thread-35][[]] cisco.profiler.infrastructure.profiling.ProfilerManager -:A90510AC0000005BD7DDDAA7::62cc7a10-5d62-11ee-bf1f-b6bb1580ab0d:Profiling:- Policy Android matched 0A:5A:F0:B3:B5:9C (certainty 30)
2023-09-27 18:19:24,098 DEBUG  [pool-533-thread-35][[]] cisco.profiler.infrastructure.profiling.ProfilerManager -:A90510AC0000005BD7DDDAA7::62cc7a10-5d62-11ee-bf1f-b6bb1580ab0d:Profiling:- EndPoint is profiled by Admin First: ADMINFIRST
2023-09-27 18:19:24,098 DEBUG  [pool-533-thread-35][[]] cisco.profiler.infrastructure.profiling.ProfilerManager -:A90510AC0000005BD7DDDAA7::62cc7a10-5d62-11ee-bf1f-b6bb1580ab0d:Profiling:- Policy Android matched 0A:5A:F0:B3:B5:9C (certainty 30)com.cisco.profiler.infrastructure.profiling.ProfilerManager$MatchingPolicyInternal@14ec7800

第四步：CoA和重新身份验证

当WiFi设备分析属性发生更改时，ISE必须为终端会话发送CoA。

2023-09-27 18:19:24,103 DEBUG  [pool-533-thread-35][[]] cisco.profiler.infrastructure.profiling.ProfilerManager -:A90510AC0000005BD7DDDAA7::62cc7a10-5d62-11ee-bf1f-b6bb1580ab0d:Profiling:- Endpoint 0A:5A:F0:B3:B5:9C IdentityGroup / Logical Profile Changed/ WiFi device analytics attribute changed. Issuing a Conditional CoA
2023-09-27 18:19:24,103 DEBUG  [pool-533-thread-35][[]] cisco.profiler.infrastructure.profiling.ProfilerManager -:A90510AC0000005BD7DDDAA7::62cc7a10-5d62-11ee-bf1f-b6bb1580ab0d:Profiling:- ConditionalCoAEvent with Endpoint Details : EndPoint[id=62caa550-5d62-11ee-bf1f-b6bb1580ab0d,name=]
MAC: 0A:5A:F0:B3:B5:9C
	Attribute:AAA-Server	 value:iselab
	Attribute:Airespace-Wlan-Id	 value:1
	Attribute:AllowedProtocolMatchedRule	 value:Default
	Attribute:AuthenticationIdentityStore	 value:Internal Users
	Attribute:AuthenticationMethod	 value:MSCHAPV2
	Attribute:AuthenticationStatus	 value:AuthenticationPassed
	Attribute:AuthorizationPolicyMatchedRule	 value:Catch Policy
	Attribute:BYODRegistration	 value:Unknown
	Attribute:CLASSIFICATION_FLOW	 value:none
	Attribute:CacheUpdateTime	 value:1695838764086
	Attribute:Called-Station-ID	 value:00-1e-f6-5c-16-ff
	Attribute:Calling-Station-ID	 value:0a-5a-f0-b3-b5-9c
	Attribute:ClientLatency	 value:0
	Attribute:DEVICE_INFO_COUNTRY_CODE	 value:Unknown
	Attribute:DEVICE_INFO_DEVICE_FORM	 value:PHONE
	Attribute:DEVICE_INFO_FIRMWARE_VERSION	 value:WH6
	Attribute:DEVICE_INFO_MODEL_NUM	 value:Samsung Galaxy S22+
	Attribute:DEVICE_INFO_OS_VERSION	 value:Android 13
	Attribute:DEVICE_INFO_SALES_CODE	 value:MXO
	Attribute:DEVICE_INFO_VENDOR_TYPE	 value:SAMSUNG
	Attribute:DTLSSupport	 value:Unknown
	Attribute:DestinationIPAddress	 value:172.16.5.112
	Attribute:DestinationPort	 value:1812<
	Attribute:Device IP Address	 value:172.16.5.169
	Attribute:Device Type	 value:Device Type#All Device Types
	Attribute:DeviceRegistrationStatus	 value:NotRegistered
	Attribute:DoReplicate	 value:false
	Attribute:EnableFlag	 value:Enabled
	Attribute:EndPointMACAddress	 value:0A-5A-F0-B3-B5-9C
	Attribute:EndPointPolicy	 value:Android
	Attribute:EndPointPolicyID	 value:ffafa000-8bff-11e6-996c-525400b48521
	Attribute:EndPointProfilerServer	 value:iselab.vimontes.cisco.com
	Attribute:EndPointSource	 value:RADIUS Probe
	Attribute:EndPointVersion	 value:4
	Attribute:FailureReason	 value:-
	Attribute:FirstCollection	 value:1695838763963
	Attribute:Framed-IP-Address	 value:172.16.5.76
	Attribute:IPSEC	 value:IPSEC#Is IPSEC Device#No
	Attribute:IdentityGroup	 value:Android
	Attribute:IdentityGroupID	 value:ffa36b00-8bff-11e6-996c-525400b48521
	Attribute:IdentityPolicyMatchedRule	 value:Default
	Attribute:IdentitySelectionMatchedRule	 value:Default
	Attribute:IsThirdPartyDeviceFlow	 value:false
	Attribute:LastActivity	 value:1695838764083
	Attribute:LastNmapScanTime	 value:0
	Attribute:Location	 value:Location#All Locations
	Attribute:LogicalProfile	 value:
	Attribute:MACAddress	 value:0A:5A:F0:B3:B5:9C
	Attribute:MatchedPolicy	 value:Android
	Attribute:MatchedPolicyID	 value:ffafa000-8bff-11e6-996c-525400b48521
	Attribute:MessageCode	 value:3000
	Attribute:NAS-IP-Address	 value:172.16.5.169
	Attribute:NAS-Identifier	 value:vimontes-wlc
	Attribute:NAS-Port	 value:260613
	Attribute:NAS-Port-Type	 value:Wireless - IEEE 802.11
	Attribute:Network Device Profile	 value:Cisco
	Attribute:NetworkDeviceGroups	 value:IPSEC#Is IPSEC Device#No, Location#All Locations, Device Type#All Device Types
	Attribute:NetworkDeviceName	 value:lab-wlc
	Attribute:NetworkDeviceProfileId	 value:b0699505-3150-4215-a80e-6753d45bf56c
	Attribute:NetworkDeviceProfileName	 value:Cisco
	Attribute:NmapScanCount	 value:0
	Attribute:NmapSubnetScanID	 value:0
	Attribute:OUI	 value:UNKNOWN
	Attribute:PolicyVersion	 value:0
	Attribute:PortalUser	 value:
	Attribute:PostureApplicable	 value:Yes
	Attribute:PostureAssessmentStatus	 value:NotApplicable
	Attribute:PreviousMACAddress	 value:0A:5A:F0:B3:B5:9C
	Attribute:RadiusFlowType	 value:Wireless802_1x
	Attribute:Response	 value:{Class=CACS:A90510AC0000005BD7DDDAA7:iselab/484624451/303; EAP-Key-Name=19:12:31:7e:8a:2e:d7:9f:3b:00:3e:ab:bd:27:22:2a:30:45:b8:7a:1b:ab:b6:1a:b1:e6:21:ee:bd:b1:2c:b8:f5:a8:c9:27:27:c1:0e:95:fa:a0:b6:dc:1f:a4:e6:98:2c:89:5e:b1:5c:11:56:ea:d9:93:a8:92:b0:47:57:3a:6e; MS-MPPE-Send-Key=****; MS-MPPE-Recv-Key=****; LicenseTypes=1; }
	Attribute:SSID	 value:3c-41-0e-31-77-80:VIcSSID
	Attribute:SelectedAccessService	 value:Default Network Access
	Attribute:SelectedAuthenticationIdentityStores	 value:Internal Users, All_AD_Join_Points, Guest Users
	Attribute:SelectedAuthorizationProfiles	 value:PermitAccess
	Attribute:Service-Type	 value:Framed
	Attribute:StaticAssignment	 value:false
	Attribute:StaticGroupAssignment	 value:false
	Attribute:StepData	 value:4= Normalised Radius.RadiusFlowType, 71=All_User_ID_Stores, 72=Internal Users, 95= WiFi_Device_Analytics.DEVICE_INFO_MODEL_NUM, 96= WiFi_Device_Analytics.DEVICE_INFO_MODEL_NUM, 97= WiFi_Device_Analytics.DEVICE_INFO_MODEL_NUM, 98= WiFi_Device_Analytics.DEVICE_INFO_MODEL_NUM, 99= EndPoints.EndPointPolicy, 100= EndPoints.EndPointPolicy, 101= EndPoints.EndPointPolicy
	Attribute:TLSCipher	 value:ECDHE-RSA-AES256-GCM-SHA384
	Attribute:TLSVersion	 value:TLSv1.2
	Attribute:TimeToProfile	 value:139
	Attribute:Total Certainty Factor	 value:30
	Attribute:TotalAuthenLatency	 value:15
	Attribute:UpdateTime	 value:0
	Attribute:User-Name	 value:bob
	Attribute:UserType	 value:User
	Attribute:allowEasyWiredSession	 value:false
	Attribute:dhcp-class-identifier	 value:android-dhcp-13
	Attribute:dhcp-parameter-request-list	 value:1, 3, 6, 15, 26, 28, 51, 58, 59, 43, 114, 108
	Attribute:epid	 value:epid:293810839814635520
	Attribute:host-name	 value:Victor-s-S22
	Attribute:ip	 value:172.16.5.76
	Attribute:undefined-186	 value:00:0f:ac:04
	Attribute:undefined-187	 value:00:0f:ac:04
	Attribute:undefined-188	 value:00:0f:ac:01
	Attribute:undefined-189	 value:00:0f:ac:06
	Attribute:SkipProfiling	 value:false

数据包捕获有助于确保ISE向WLC发送CoA。它还显示，在处理CoA之后收到新的访问请求数据包。

Radius CoA Packet after Endpoint Profiling 终端分析后的Radius CoA数据包

Radius CoA and New Access-Request after Endpoint Profiling 终端分析后的Radius CoA和新访问请求
