このドキュメントでは、AnyConnectのCisco IOS®ルータおよびCisco IOS® XEルータでIKEv2自動再接続機能がどのように動作するかについて説明します。
次の項目に関する知識があることが推奨されます。
このドキュメントの情報は、次のソフトウェアとハードウェアのバージョンに基づいています。
このドキュメントの情報は、特定のラボ環境にあるデバイスに基づいて作成されました。このドキュメントで使用するすべてのデバイスは、クリアな(デフォルト)設定で作業を開始しています。本稼働中のネットワークでは、各コマンドによって起こる可能性がある影響を十分確認してください。
Cisco Secure Clientの自動再接続機能を使用すると、セッションを一定時間記憶しておき、セキュアチャネルを確立した後に接続を再開できます。Cisco Secure ClientはInternet Key Exchange Version 2(IKEv2)で広く使用されているため、IKEv2はCisco IOSソフトウェアでの自動再接続機能のサポートを、Cisco IOS IKEv2のセキュアクライアント機能の自動再接続機能のサポートを通じて拡張します。

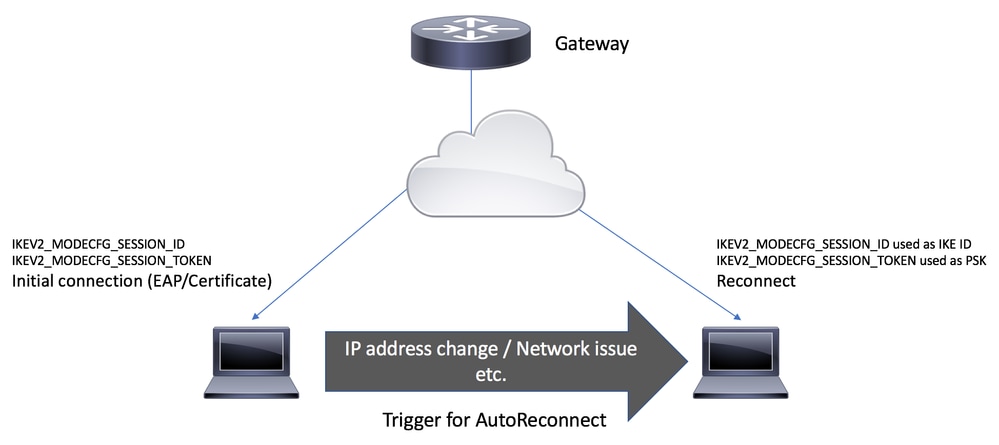

Cisco Secure Clientでの自動再接続は、次のシナリオで実行されます。
注:応答しないクライアントを特定するプロセスは、Dead Peer Detection(DPD)に基づいています。 IKEv2プロファイルで再接続機能が有効になっている場合は、DPDはオンデマンドでIKEv2にキューイングされるため、DPDを設定する必要はありません
3. Cisco Secure Clientは定期的にDPDメッセージをゲートウェイに送信します。DPDがオンデマンドでキューに入れられる場合、ゲートウェイはクライアントからDPDを受信するまで、DPDメッセージをクライアントに送信しません。(設定されたDPD間隔に従って)指定された期間内にセキュアクライアントからDPDが受信されない場合、ゲートウェイはDPDメッセージを送信します。セキュアクライアントから応答を受信しない場合、SAはアクティブセッションデータベースから削除されます。
注:ゲートウェイは、設定済みの再接続タイムアウト期間に従って再接続できるように、引き続きセッション状態(AAA属性など)を個別の非アクティブセッションデータベースで維持します。

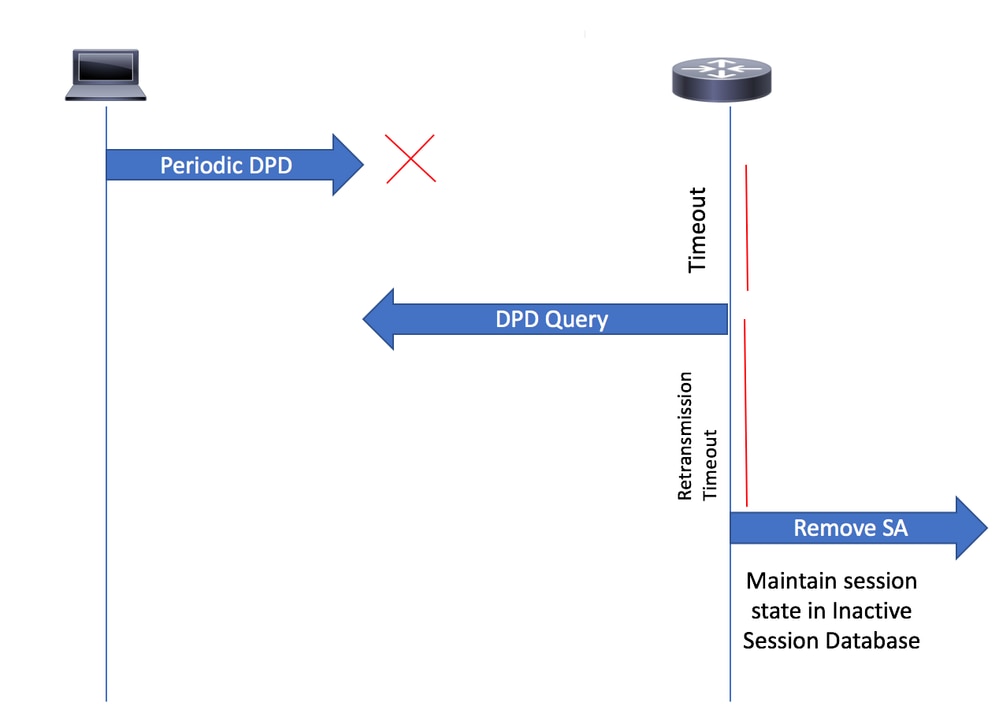

DPDクエリ

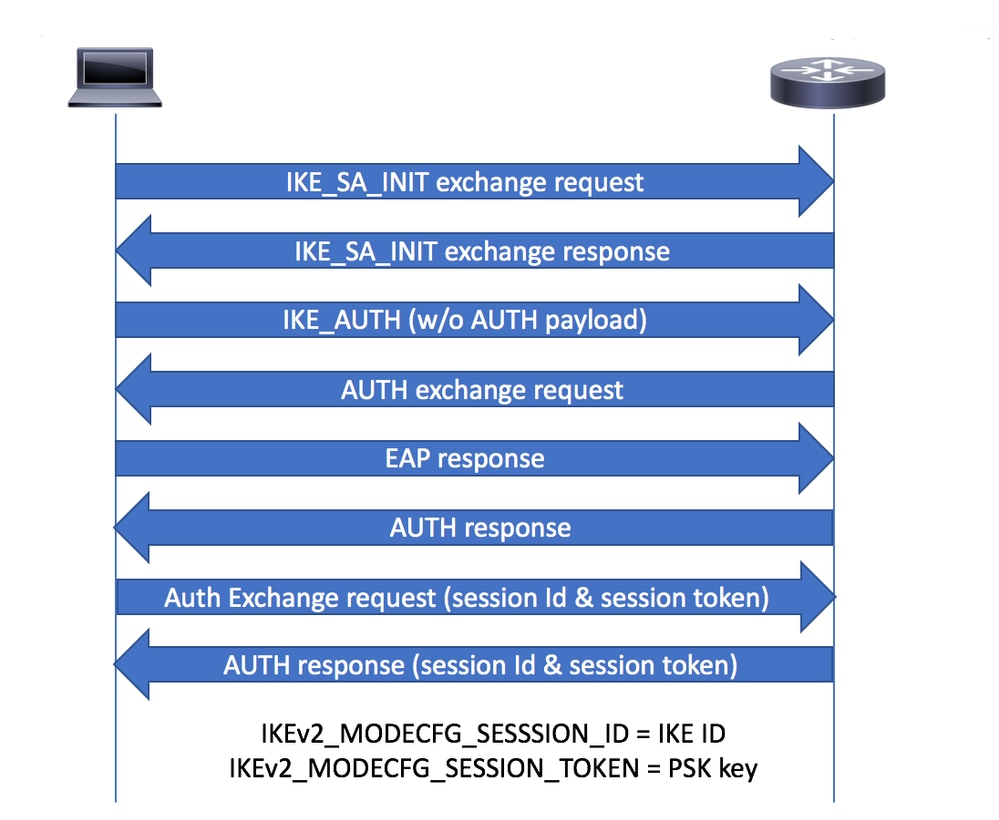

4. クライアントは再接続を試行すると、新しいIKE SAを作成し、MODECFG_REPLYペイロードから受信したIKE ID(ID)をセッションIDとして使用します。この時点で、Cisco Secure Clientは再接続にIKE PSK認証を使用します。事前共有キー(PSK)は、以前に受信したセッショントークンです。
5. ゲートウェイは、再接続要求を受信すると、非アクティブセッションデータベースでピアのIKE ID(セッションIDとして機能)を検索します。 再接続中に、非アクティブデータベースから保存されたカスタム属性が取得され、新しいSAに適用されます。
再接続
注:ルータの設定については、ドキュメント『ローカルユーザデータベースを使用したセキュアクライアント(AnyConnect)IKEv2リモートアクセスのためのFlexVPNヘッドエンドの設定』も参照してください。
次の設定スニペットは、Cisco Secure Client IKEv2 Remote Access設定の例と、IKEv2プロファイルでreconnectを設定することによってAutoReconnectを有効にする方法を示しています。
aaa new-model
!
!
aaa authentication login a-eap-authen-local local
aaa authorization network a-eap-author-grp local
!
username test password 0 cisco
!
ip local pool ACPOOL 192.168.20.5 192.168.20.10
!
ip access-list standard split_tunnel
10 permit 192.168.10.0 0.0.0.255
!
crypto ikev2 authorization policy ikev2-auth-policy
pool ACPOOL
def-domain example.com
route set access-list split_tunnel
!
crypto ikev2 proposal default
encryption aes-cbc-256
integrity sha512 sha384
group 19 14 21
!
crypto ikev2 policy default
match fvrf any
proposal default
!
!
crypto ikev2 profile AnyConnect-EAP
match identity remote key-id *$AnyConnectClient$*
authentication local rsa-sig
authentication remote anyconnect-eap aggregate
pki trustpoint IKEv2-TP
aaa authentication anyconnect-eap a-eap-authen-local
aaa authorization group anyconnect-eap list a-eap-author-grp ikev2-auth-policy
aaa authorization user anyconnect-eap cached
virtual-template 10
anyconnect profile acvpn
reconnect timeout 900
!
no crypto ikev2 http-url cert
no ip http server
no ip http secure-server
!
crypto vpn anyconnect bootflash:cisco-secure-client-win-5.1.8.105-webdeploy-k9.pkg sequence
crypto vpn anyconnect profile acvpn bootflash:acvpn.xml
!
crypto ipsec transform-set TSET esp-aes 256 esp-sha384-hmac
mode tunnel
!
!
crypto ipsec profile AnyConnect-EAP
set transform-set TSET
set ikev2-profile AnyConnect-EAP
!
interface Virtual-Template10 type tunnel
ip unnumbered GigabitEthernet1
tunnel mode ipsec ipv4
tunnel protection ipsec profile AnyConnect-EAP
<?xml version="1.0" encoding="UTF-8"?>
<AnyConnectProfile xmlns="http://schemas.xmlsoap.org/encoding/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://schemas.xmlsoap.org/encoding/ AnyConnectProfile.xsd">
<ClientInitialization>
<UseStartBeforeLogon UserControllable="true">false</UseStartBeforeLogon>
<AutomaticCertSelection UserControllable="true">false</AutomaticCertSelection>
<ShowPreConnectMessage>false</ShowPreConnectMessage>
<CertificateStore>All</CertificateStore>
<CertificateStoreOverride>false</CertificateStoreOverride>
<ProxySettings>Native</ProxySettings>
<AllowLocalProxyConnections>true</AllowLocalProxyConnections>
<AuthenticationTimeout>12</AuthenticationTimeout>
<AutoConnectOnStart UserControllable="true">false</AutoConnectOnStart>
<MinimizeOnConnect UserControllable="true">true</MinimizeOnConnect>
<LocalLanAccess UserControllable="true">false</LocalLanAccess>
<ClearSmartcardPin UserControllable="true">true</ClearSmartcardPin>
<IPProtocolSupport>IPv4,IPv6</IPProtocolSupport>
true
ReconnectAfterResume
<AutoUpdate UserControllable="false">true</AutoUpdate>
<RSASecurIDIntegration UserControllable="false">Automatic</RSASecurIDIntegration>
<WindowsLogonEnforcement>SingleLocalLogon</WindowsLogonEnforcement>
<WindowsVPNEstablishment>AllowRemoteUsers</WindowsVPNEstablishment>
<AutomaticVPNPolicy>false</AutomaticVPNPolicy>
<PPPExclusion UserControllable="false">Disable
<PPPExclusionServerIP UserControllable="false"></PPPExclusionServerIP>
</PPPExclusion>
<EnableScripting UserControllable="false">false</EnableScripting>
<EnableAutomaticServerSelection UserControllable="false">false
<AutoServerSelectionImprovement>20</AutoServerSelectionImprovement>
<AutoServerSelectionSuspendTime>4</AutoServerSelectionSuspendTime>
</EnableAutomaticServerSelection>
<RetainVpnOnLogoff>false
</RetainVpnOnLogoff>
<AllowManualHostInput>true</AllowManualHostInput>
</ClientInitialization>
<ServerList>
<HostEntry>
<HostName>IKEv2_Gateway</HostName>
<HostAddress>flexvpn-c8kv.example.com</HostAddress>
<PrimaryProtocol>IPsec
<StandardAuthenticationOnly>true
<AuthMethodDuringIKENegotiation>EAP-AnyConnect</AuthMethodDuringIKENegotiation>
</StandardAuthenticationOnly>
</PrimaryProtocol>
</HostEntry>
</ServerList>
</AnyConnectProfile>
sal_c8kv#show crypto session detail
Crypto session current status
Code: C - IKE Configuration mode, D - Dead Peer Detection
K - Keepalives, N - NAT-traversal, T - cTCP encapsulation
X - IKE Extended Authentication, F - IKE Fragmentation
R - IKE Auto Reconnect
Interface: Virtual-Access1
Profile: AnyConnect-EAP
Uptime: 00:00:15
Session status: UP-ACTIVE
Peer: 10.106.69.69 port 63516 fvrf: (none) ivrf: (none)
Phase1_id: *$AnyConnectClient$*
Desc: (none)
Session ID: 16
IKEv2 SA: local 10.106.45.225/4500 remote 10.106.69.69/63516 Active
Capabilities:DN connid:1 lifetime:23:59:45
IPSEC FLOW: permit ip 0.0.0.0/0.0.0.0 host 192.168.20.5
Active SAs: 2, origin: crypto map
Inbound: #pkts dec'ed 15 drop 0 life (KB/Sec) 4607998/3585
Outbound: #pkts enc'ed 15 drop 0 life (KB/Sec) 4608000/3585
sal_c8kv#show crypto ikev2 session detailed
IPv4 Crypto IKEv2 Session
Session-id:16, Status:UP-ACTIVE, IKE count:1, CHILD count:1
Tunnel-id Local Remote fvrf/ivrf Status
1 10.106.45.225/4500 10.106.69.69/63516 none/none READY
Encr: AES-CBC, keysize: 256, PRF: SHA512, Hash: SHA512, DH Grp:19, Auth sign: RSA, Auth verify: AnyConnect-EAP
Life/Active Time: 86400/620 sec
CE id: 1016, Session-id: 16
Status Description: Negotiation done
Local spi: 67C3394ED1EAADE7 Remote spi: EBFE2587F20EA7C2
Local id: 10.106.45.225
Remote id: *$AnyConnectClient$*
Remote EAP id: user1
Local req msg id: 0 Remote req msg id: 26
Local next msg id: 0 Remote next msg id: 26
Local req queued: 0 Remote req queued: 26
Local window: 5 Remote window: 1
DPD configured for 45 seconds, retry 2
Fragmentation not configured.
Extended Authentication not configured.
NAT-T is detected outside
Cisco Trust Security SGT is disabled
Assigned host addr: 192.168.20.5
Initiator of SA : No
PEER TYPE: AnyConnect
Child sa: local selector 0.0.0.0/0 - 255.255.255.255/65535
remote selector 192.168.20.5/0 - 192.168.20.5/65535
ESP spi in/out: 0x2E14CBAF/0xD5590D3
AH spi in/out: 0x0/0x0
CPI in/out: 0x0/0x0
Encr: AES-CBC, keysize: 256, esp_hmac: SHA384
ah_hmac: None, comp: IPCOMP_NONE, mode tunnel
次の出力は、現在、自動再接続が可能なアクティブなセッションが1つあることを示しています。
sal_c8kv#show crypto ikev2 stats reconnect
Total incoming reconnect connection: 0
Success reconnect connection: 0
Failed reconnect connection: 0
Reconnect capable active session count: 1
Reconnect capable inactive session count: 0
Cisco Secure Clientが再接続すると、IKE IDとしてIKEV2_MODECFG_SESSION_IDが使用されます。したがって、再接続後、Phase1_idは$AnyConnectClient$ではなくなり、代わりに次に示すようにセッションIDになります。また、これらの機能にRが設定されていることに注意してください。ここで、Rは、これが再接続セッションであることを示します。
sal_c8kv#show crypto session detail
Crypto session current status
Code: C - IKE Configuration mode, D - Dead Peer Detection
K - Keepalives, N - NAT-traversal, T - cTCP encapsulation
X - IKE Extended Authentication, F - IKE Fragmentation
R - IKE Auto Reconnect
Interface: Virtual-Access2
Profile: AnyConnect-EAP
Uptime: 00:00:03
Session status: UP-ACTIVE
Peer: 10.106.69.69 port 54626 fvrf: (none) ivrf: (none)
Phase1_id: 724955484B63634452695574465441547771
Desc: (none)
Session ID: 17
IKEv2 SA: local 10.106.45.225/4500 remote 10.106.69.69/54626 Active
Capabilities:DNR connid:1 lifetime:23:59:57
IPSEC FLOW: permit ip 0.0.0.0/0.0.0.0 host 10.10.10.1
Active SAs: 2, origin: crypto map
Inbound: #pkts dec'ed 22 drop 0 life (KB/Sec) 4608000/3596
Outbound: #pkts enc'ed 22 drop 0 life (KB/Sec) 4608000/3596
再接続後、認証方式は次のようにAnyConnect-EAPではなくPSK(事前共有キー)になります。
sal_c8kv#show crypto ikev2 session detail
IPv4 Crypto IKEv2 Session
Session-id:39, Status:UP-ACTIVE, IKE count:1, CHILD count:1
Tunnel-id Local Remote fvrf/ivrf Status
1 10.106.45.225/4500 10.106.69.69/54626 none/none READY
Encr: AES-CBC, keysize: 256, PRF: SHA512, Hash: SHA512, DH Grp:19, Auth sign: RSA, Auth verify: PSK
Life/Active Time: 86400/202 sec
CE id: 1017, Session-id: 17
Status Description: Negotiation done
Local spi: 33F57D418CFAFEBD Remote spi: F2586DF08F2A8308
Local id: 10.106.45.225
Remote id: 724955484B63634452695574465441547771
Local req msg id: 0 Remote req msg id: 8
Local next msg id: 0 Remote next msg id: 8
Local req queued: 0 Remote req queued: 8
Local window: 5 Remote window: 1
DPD configured for 45 seconds, retry 2
Fragmentation not configured.
Extended Authentication not configured.
NAT-T is detected outside
Cisco Trust Security SGT is disabled
Assigned host addr: 192.168.20.5
Initiator of SA : No
Child sa: local selector 0.0.0.0/0 - 255.255.255.255/65535
remote selector 192.168.20.5/0 - 192.168.20.5/65535
ESP spi in/out: 0x38ADBE12/0xE3E00C0E
AH spi in/out: 0x0/0x0
CPI in/out: 0x0/0x0
Encr: AES-CBC, keysize: 256, esp_hmac: SHA384
ah_hmac: None, comp: IPCOMP_NONE, mode tunnel
sal_c8kv#show crypto ikev2 stats reconnect
Total incoming reconnect connection: 1
Success reconnect connection: 1
Failed reconnect connection: 0
Reconnect capable active session count: 1
Reconnect capable inactive session count: 0
IKEv2_Gateway#
Date : 03/13/2025
Time : 01:27:35
Type : Information
Source : acvpnagent
Description : The IPsec connection to the secure gateway has been established.
.
.
Date : 03/13/2025
Time : 01:29:05
Type : Information
Source : acvpnagent
Description : Current Preference Settings:
ServiceDisable: false
CertificateStoreOverride: false
CertificateStore: All
ShowPreConnectMessage: false
AutoConnectOnStart: false
MinimizeOnConnect: false
LocalLanAccess: false
DisableCaptivePortalDetection: false
AutoReconnect: true
AutoReconnectBehavior: ReconnectAfterResume
UseStartBeforeLogon: true
AutoUpdate: true
<snip>
IPProtocolSupport: IPv4,IPv6
AllowManualHostInput: true
BlockUntrustedServers: false
PublicProxyServerAddress:
.
.
Date : 03/13/2025
Time : 01:29:21
Type : Information
Source : acvpnui
Description : Message type information sent to the user:
Connected to IKEv2_Gateway.
.
.
!! Now system is put to sleep and resumes back.
Date : 03/13/2025
Time : 03:08:44
Type : Information
Source : acvpnagent
Description : ..Client Agent continuing from system suspend.
Date : 03/13/2025
Time : 03:08:44
Type : Warning
Source : acvpnagent
Description : Session level reconnect reason code 9:
System resume from suspend mode (Sleep, Stand-by, Hibernate, etc).
Originates from session level
Date : 03/13/2025
Time : 03:08:44
Type : Information
Source : acvpnui
Description : Message type information sent to the user:
Reconnecting to IKEv2_Gateway...
.
.
Date : 03/13/2025
Time : 03:10:34
Type : Information
Source : acvpnagent
Description : Function: CIPsecProtocol::initiateTunnel
File: IPsecProtocol.cpp
Line: 613
Using IKE ID 'rIUHKccDRiUtFTATwq' for reconnect
.
.
Date : 03/13/2025
Time : 03:11:44
Type : Information
Source : acvpnui
Description : Message type information sent to the user:
Connected to IKEv2_Gateway.
注:DARTログでは、IKE IDは「rIUHKccDRiUtFTATwq」として表示されます。これは、「724955484B63634452695574465441547771」のASCII表現であり、「show crypto session detail」の出力でリモートIDとして表示されます。
ここでは、設定のトラブルシューティングに使用できる情報を示します。
ゲートウェイとクライアント間のネゴシエーションを確認するためのIKEv2デバッグ。
Debug crypto condition peer ipv4
Debug crypto ikev2
Debug crypto ikev2 packet
Debug crypto ikev2 internal
Debug crypto ikev2 error
改定 | 発行日 | コメント |
---|---|---|
1.0 |
13-Mar-2025
|
初版 |
