SDAフォワーディングのEast-Westトラフィックフローのトラブルシューティング
概要
このドキュメントでは、ソフトウェア定義アクセス(SDA)の一部としてEast-Westトラフィックフローを検証する方法について説明します。
前提条件
要件
次の項目に関する知識があることが推奨されます。
- インターネットプロトコル(IP)転送
- Locator/ID Separation Protocol(LISP)
使用するコンポーネント
このドキュメントの情報は、次のソフトウェアとハードウェアのバージョンに基づいています。
- Cisco IOS® XE 17.10.1上のC9000v
- SDA 1.0（LISP PubSub以外）
このドキュメントの情報は、特定のラボ環境にあるデバイスに基づいて作成されました。このドキュメントで使用するすべてのデバイスは、クリアな（デフォルト）設定で作業を開始しています。本稼働中のネットワークでは、各コマンドによって起こる可能性がある影響を十分確認してください。
関連製品
このドキュメントは、次のバージョンのハードウェアとソフトウェアにも使用できます。
- C9200
- C9300
- C9400
- C9500
- C9600
- Cisco IOS® XE 16.12以降
背景説明
SDAのEast-Westトラフィックフローは、SDAファブリック内のエンドポイントが同じファブリック内の別のエンドポイントと通信することを目的とする概念です。東西の流れと見なされるものと見なされないものに関しては注意が必要です。次に、東西のトラフィックフローの例を示します。
- 同じサブネット内のエンドポイント（172.17.10.2から172.19.10.3へ通信）は、L2LISP拡張と見なされます
- 同じVRF(VN)内にあるエンドポイント（172.19.10.2が172.19.11.2と通信し、両方がVRFキャンパス内にある）は、L3 LISPと見なされます。
- ファブリック内のエンドポイントがL2ハンドオフ境界に接続されているホストと通信する（L2LISPとまったく同じ）
East-Westトラフィックフローは、次の例を参照しません。
- SDAファブリックからファブリックの外部(North-South)へのトラフィック
- VRF間ルーティングもEast-West（VRFキャンパス内のエンドポイント、IPアドレス172.19.10.2がVRFゲスト内のエンドポイント、IPアドレス172.19.11.2と通信）とは見なされません。
- SD-WAN統合ドメイン
- SDAトランジット
- 境界のアフィニティ
- エクストラネット

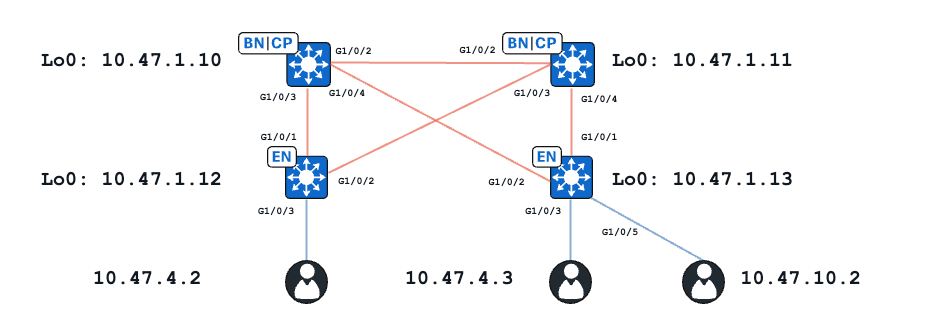

トポロジ
この例では、C9000vスイッチはファブリックエッジおよびコロケート境界として機能します。すべてのエンドポイントは、同じ仮想ネットワーク(VN)、red_vn内にあります。10.47.4.2と10.47.4.2のエンドポイントは同じサブネットにあり、10.47.10.2のエンドポイントは異なるサブネットにありますが、同じVNにあります。
コンフィギュレーション
SDAファブリックをデフォルト設定でプロビジョニングするために、Cisco DNA-Centerが使用されることを前提としています。
- レイヤ2拡張が有効になっている（これにより、IPアドレスルックアップではなくMACアドレスルックアップに基づいてトラフィックが強制的に転送される）。
- レイヤ2フラッディングがディセーブルになっている（これにより、エッジデバイスでのARP抑制とLISPが支援するARPラーニングがイネーブルになる）。
適切なホストオンボーディングプロセスの後、インターフェイス設定にはいくつかのセクションがあります。
ファブリックエッジ(10.47.1.12)インターフェイス設定：
interface GigabitEthernet1/0/3 switchport access vlan 1026 switchport mode access device-tracking attach-policy IPDT_POLICY spanning-tree portfast spanning-tree bpduguard enable end interface Vlan1026 description Configured from Cisco DNA-Center mac-address 0000.0c9f.f341 vrf forwarding red_vn ip address 10.47.4.1 255.255.255.0 ip helper-address 10.47.9.9 no ip redirects ip route-cache same-interface no lisp mobility liveness test lisp mobility red-IPV4 end
ファブリックエッジ(10.47.1.12)のLISP設定：
router lisp locator-table default locator-set rloc_222e1707-175d-4019-a783-060404f8bc2f IPv4-interface Loopback0 priority 10 weight 10 exit-locator-set
!
instance-id 4099 remote-rloc-probe on-route-change dynamic-eid red-IPV4 database-mapping 10.47.4.0/24 locator-set rloc_222e1707-175d-4019-a783-060404f8bc2f exit-dynamic-eid ! dynamic-eid red-helpdesk-IPV4 database-mapping 10.47.10.0/24 locator-set rloc_222e1707-175d-4019-a783-060404f8bc2f exit-dynamic-eid ! service ipv4 eid-table vrf red_vn map-cache 0.0.0.0/0 map-request sgt distribution sgt exit-service-ipv4 ! exit-instance-id
!
! instance-id 8190 remote-rloc-probe on-route-change service ethernet eid-table vlan 1026 database-mapping mac locator-set rloc_222e1707-175d-4019-a783-060404f8bc2f dynamic-eid detection multiple-addr bridged-vm exit-service-ethernet ! exit-instance-id ! instance-id 8192 remote-rloc-probe on-route-change service ethernet eid-table vlan 1028 database-mapping mac locator-set rloc_222e1707-175d-4019-a783-060404f8bc2f dynamic-eid detection multiple-addr bridged-vm exit-service-ethernet ! exit-instance-id
ファブリックエッジ(10.47.1.13)インターフェイスの設定：
interface GigabitEthernet1/0/3 switchport access vlan 1026 switchport mode access device-tracking attach-policy IPDT_POLICY spanning-tree portfast spanning-tree bpduguard enable end ! interface GigabitEthernet1/0/5 switchport access vlan 1028 switchport mode access device-tracking attach-policy IPDT_POLICY spanning-tree portfast spanning-tree bpduguard enable end ! interface Vlan1026 description Configured from Cisco DNA-Center mac-address 0000.0c9f.f341 vrf forwarding red_vn ip address 10.47.4.1 255.255.255.0 ip helper-address 10.47.9.9 no ip redirects ip route-cache same-interface no lisp mobility liveness test lisp mobility red-IPV4 end ! interface Vlan1028 description Configured from Cisco DNA-Center mac-address 0000.0c9f.f800 vrf forwarding red_vn ip address 10.47.10.1 255.255.255.0 ip helper-address 10.47.9.9 no ip redirects ip route-cache same-interface no lisp mobility liveness test lisp mobility red-helpdesk-IPV4 end
ファブリックエッジ(10.47.1.13)LISPの設定
router lisp locator-table default locator-set rloc_691b1fe4-5264-44c2-bb1b-0903b3eb2c51 IPv4-interface Loopback0 priority 10 weight 10 exit-locator-set ! instance-id 4099 remote-rloc-probe on-route-change dynamic-eid red-IPV4 database-mapping 10.47.4.0/24 locator-set rloc_691b1fe4-5264-44c2-bb1b-0903b3eb2c51 exit-dynamic-eid ! dynamic-eid red-helpdesk-IPV4 database-mapping 10.47.10.0/24 locator-set rloc_691b1fe4-5264-44c2-bb1b-0903b3eb2c51 exit-dynamic-eid ! service ipv4 eid-table vrf red_vn map-cache 0.0.0.0/0 map-request sgt distribution sgt exit-service-ipv4 ! exit-instance-id ! instance-id 8190 remote-rloc-probe on-route-change service ethernet eid-table vlan 1026 database-mapping mac locator-set rloc_691b1fe4-5264-44c2-bb1b-0903b3eb2c51 dynamic-eid detection multiple-addr bridged-vm exit-service-ethernet ! exit-instance-id ! instance-id 8192 remote-rloc-probe on-route-change service ethernet eid-table vlan 1028 database-mapping mac locator-set rloc_691b1fe4-5264-44c2-bb1b-0903b3eb2c51 dynamic-eid detection multiple-addr bridged-vm exit-service-ethernet ! exit-instance-id
ホストオンボーディングの検証
ホストのオンボーディングプロセスの一環として、いくつかの構造が作成されます。
IPDT/IPデバイストラッキングエントリ
ホストのオンボーディングが成功すると、IPデバイストラッキング(IPDT)テーブルに有効なエントリが存在し、エンドホストが到達可能としてマークされます。
Edge-1#show device-tracking database interface g1/0/3
portDB has 2 entries for interface Gi1/0/3, 2 dynamic
Codes: L - Local, S - Static, ND - Neighbor Discovery, ARP - Address Resolution Protocol, DH4 - IPv4 DHCP, DH6 - IPv6 DHCP, PKT - Other Packet, API - API created
Preflevel flags (prlvl):
0001:MAC and LLA match 0002:Orig trunk 0004:Orig access
0008:Orig trusted trunk 0010:Orig trusted access 0020:DHCP assigned
0040:Cga authenticated 0080:Cert authenticated 0100:Statically assigned
Network Layer Address Link Layer Address Interface vlan prlvl age state Time left
DH4 10.47.4.2 5254.0019.93e9 Gi1/0/3 1026 0024 3mn REACHABLE 28 s try 0(15198 s)
MAC/ARPエントリ
エンドホストが正常にオンボーディングされると、デフォルトゲートウェイにpingできます（または、この通信をブロックしているエンドポイントにファイアウォールがインストールされていない場合は、デフォルトゲートウェイからpingできます）。
Edge-1#ping vrf red_vn 10.47.4.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.47.4.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 142/150/161 ms
エッジノードでは、MACアドレスと対応するARPエントリがテーブル（VRF内）に存在します。
Edge-1#show mac address-table interface g1/0/3
Mac Address Table
-------------------------------------------
Vlan Mac Address Type Ports
---- ----------- -------- -----
1026 5254.0019.93e9 DYNAMIC Gi1/0/3
Total Mac Addresses for this criterion: 1
Edge-1#show ip arp vrf red_vn
Protocol Address Age (min) Hardware Addr Type Interface
Internet 10.47.4.1 - 0000.0c9f.f341 ARPA Vlan1026
Internet 10.47.4.2 1 5254.0019.93e9 ARPA Vlan1026
Internet 10.47.10.1 - 0000.0c9f.f800 ARPA Vlan1028
ソフトウェアFED MACアドレスプログラミング**
FEDのMACアドレスを確認するには、コマンドshow platform software fed switch active matm macTable vlan <vlan id> mac <mac address>を使用します。
Edge-1#show platform software fed switch active matm macTable vlan 1026 mac 5254.0019.93e9 VLAN MAC Type Seq# EC_Bi Flags machandle siHandle riHandle diHandle *a_time *e_time ports Con ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 1026 5254.0019.93e9 0x1 9 0 0 0x7f65ec7bda68 0x7f65ec7c21f8 0x0 0x7f65ec6e1368 300 7 GigabitEthernet1/0/3 Yes ======platform hardware details ====== Asic: 0 htm-handle = 0x7f65ec95dc68 MVID = 7 gpn = 1 SI = 0xc3 RI = 0x25 DI = 0x526e DI = 0x526e pmap = 0x00000000 0x00000004 pmap_intf : [GigabitEthernet1/0/3] Asic: 1 SI = 0xc3 RI = 0x25 DI = 0x526e DI = 0x526e pmap = 0x00000000 0x00000000
**MACアドレスmacHandleプログラミング**
前のコマンド(0x7f65ec7bda68)のmacHandle値を取得し、show platform hardware fed switch active fwd-asic abstraction print-resource-handle <macHandle> 1で使用します。
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ec7bda68 1
Handle:0x7f65ec7bda68 Res-Type:ASIC_RSC_HASH_TCAM Res-Switch-Num:0 Asic-Num:255 Feature-ID:AL_FID_L2 Lkp-ftr-id:LKP_FEAT_L2_SRC_MAC_VLAN ref_count:1
priv_ri/priv_si Handle: (nil)Hardware Indices/Handles: handle [ASIC: 0]: 0x7f65ec95dc68
Features sharing this resource:Cookie length: 12
19 00 54 52 e9 93 07 80 07 00 00 00
Detailed Resource Information (ASIC_INSTANCE# 0)
----------------------------------------
Number of HTM Entries: 1
Entry 0: (handle 0x7f65ec95dc68)
Absolute Index: 6778
Time Stamp: 4
KEY - vlan:7 mac:0x5254001993e9 l3_if:0 gpn:3 epoch:0 static:0 flood_en:0 vlan_lead_wless_flood_en: 0 client_home_asic: 0 learning_peerid 0, learning_peerid_valid 0 lvx:1
MASK - vlan:0 mac:0x0 l3_if:0 gpn:0 epoch:0 static:0 flood_en:0 vlan_lead_wless_flood_en: 0 client_home_asic: 0 learning_peerid 0, learning_peerid_valid 0 lvx:0
SRC_AD - need_to_learn:0 lrn_v:0 catchall:0 static_mac:0 chain_ptr_v:0 chain_ptr: 0 static_entry_v:0 auth_state:0 auth_mode:0 auth_behavior_tag:0 traf_m:0 is_src_ce:0
DST_AD - si:0xb7 bridge:0 replicate:0 blk_fwd_o:0 v4_rmac:0 v6_rmac:0 catchall:0 ign_src_lrn:0 port_mask_o:0 afd_cli_f:0 afd_lbl:0 prio:3 dest_mod_idx:0 destined_to_us:0 pv_trunk:0 smr:0
==============================================================
**MVIDの検証**
上記の出力の数値7は、ハードウェア内のMapped VLAN ID(MVID)です。これらが「実際の」vlanと一致することを確認するには、show platform software fed switch active vlan <vlan number>を使用します。
Edge-1#show platform software fed switch active vlan 1026 VLAN Fed Information Vlan Id IF Id LE Handle STP Handle L3 IF Handle SVI IF ID MVID ----------------------------------------------------------------------------------------------------------------------- 1026 0x0000000000420011 0x00007f65ec6a08b8 0x00007f65ec6a1138 0x00007f65ec77e838 0x000000000000001d 7
**グローバルポート番号(GPN)の確認**
GPNを「実際の」インターフェイスに関連付けるには、show platform software fed switch active ifm mappings gpnコマンドを使用します
Edge-1#show platform software fed switch active ifm mappings gpn
Mappings Table
GPN Interface IF_ID IF_TYPE
--------------------------------------------------------------------------------------------------
1 GigabitEthernet1/0/1 0x0000001a ETHER
2 GigabitEthernet1/0/2 0x0000001b ETHER
3 GigabitEthernet1/0/3 0x0000000b ETHER <-- GPN 3 lines up with the expected Egress interface
**MACアドレスのsiHandleプログラミング**
前のコマンド(0x7f65ec7c21f8)のsiHandle値を取得し、show platform hardware fed switch active fwd-asic abstraction print-resource-handle <si_handle> 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ec7c21f8 1
Handle:0x7f65ec7c21f8 Res-Type:ASIC_RSC_SI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L3_UNICAST_IPV4 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:2
priv_ri/priv_si Handle: 0x7f65ec7c2498Hardware Indices/Handles: index0:0xc3 mtu_index/l3u_ri_index0:0x0 index1:0xc3 mtu_index/l3u_ri_index1:0x0
Features sharing this resource:66 (1)]
57 (1)]
Cookie length: 56
00 00 00 00 00 00 00 00 02 04 00 00 00 00 00 00 00 00 00 00 07 00 52 54 00 19 93 e9 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Detailed Resource Information (ASIC_INSTANCE# 0)
----------------------------------------
Station Index (SI) [0xc3] <-- Station Index is comprised of the Rewrite Index (RI) and Destination Index (DI) RI = 0x25 <-- Rewrite Index contains the forwarding information DI = 0x526e <-- Destination Index contains information related to the outgoing interface
stationTableGenericLabel = 0
stationFdConstructionLabel = 0x7
lookupSkipIdIndex = 0
rcpServiceId = 0
dejaVuPreCheckEn = 0x1
Replication Bitmap: LD <-- Local Data (LD) indicates that the destination is on this ASIC
Detailed Resource Information (ASIC_INSTANCE# 1)
----------------------------------------
Station Index (SI) [0xc3] <-- Station Index is comprised of the Rewrite Index (RI) and Destination Index (DI) RI = 0x25 <-- Rewrite Index contains the forwarding information DI = 0x526e <-- Destination Index contains information related to the outgoing interface
stationTableGenericLabel = 0
stationFdConstructionLabel = 0x7
lookupSkipIdIndex = 0
rcpServiceId = 0
dejaVuPreCheckEn = 0x1
Replication Bitmap: CD <-- Core Data (CD) indicates that the destination is on the same ASIC, different core ==============================================================
**MACアドレス書き換えインデックスの検証**
前のコマンドのRI値(0x25)を取得し、show platform hardware fed switch active fwd-asic resource asic all rewrite-index range <RI> <RI>で使用します
Edge-1#show platform hardware fed switch active fwd-asic resource asic all rewrite-index range 0x25 0x25
ASIC#:0 RI:37 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)
MAC Addr: MAC Addr: 52:54:00:19:93:e9,
L3IF LE Index 41
ASIC#:0 RI:38 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)
MAC Addr: MAC Addr: 01:00:5e:00:00:00,
L3IF LE Index 40
ASIC#:0 RI:39 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)
MAC Addr: MAC Addr: 52:54:00:00:50:17,
L3IF LE Index 40
ASIC#:1 RI:37 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)
MAC Addr: MAC Addr: 52:54:00:19:93:e9,
L3IF LE Index 41
ASIC#:1 RI:38 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)
MAC Addr: MAC Addr: 01:00:5e:00:00:00,
L3IF LE Index 40
ASIC#:1 RI:39 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)
MAC Addr: MAC Addr: 52:54:00:00:50:17,
L3IF LE Index 40
**MACアドレス宛先インデックスの検証**
前のコマンド(0x526e)のDI値を取得し、show platform hardware fed switch active fwd-asic resource asic all destination-index range <DI> <DI>で使用します
Edge-1#show platform hardware fed switch active fwd-asic resource asic all destination-index range 0x526e 0x526e
ASIC#0:
Destination index = 0x526e
pmap = 0x00000000 0x00000004 <-- Convert decimal 4 to binary, which is 0100. Count this binary right to left, zero-based, so Port 2. pmap_intf : [GigabitEthernet1/0/3]
cmi = 0x0
rcp_pmap = 0x0
al_rsc_cmi
CPU Map Index (CMI) [0]
ctiLo0 = 0
ctiLo1 = 0
ctiLo2 = 0
cpuQNum0 = 0
cpuQNum1 = 0
cpuQNum2 = 0
npuIndex = 0
stripSeg = 0
copySeg = 0
ASIC#1:
Destination index = 0x526e
pmap = 0x00000000 0x00000000
cmi = 0x0
rcp_pmap = 0x0
al_rsc_cmi
CPU Map Index (CMI) [0]
ctiLo0 = 0
ctiLo1 = 0
ctiLo2 = 0
cpuQNum0 = 0
cpuQNum1 = 0
cpuQNum2 = 0
npuIndex = 0
stripSeg = 0
copySeg = 0
**ポートの検証**
以前に確認したポートを関連付けるには、commandshow platform software fed switch active ifm mappingsコマンドを使用し、Port列を確認します。
Edge-1#show platform software fed switch active ifm mappings ------------------ show platform software fed switch active ifm mappings ------------------ Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x1a 0 0 0 0 0 1 0 1 1 NIF Y GigabitEthernet1/0/2 0x1b 0 0 0 1 0 2 1 2 2 NIF Y GigabitEthernet1/0/3 0xb 0 0 0 2 0 3 2 3 3 NIF Y <-- Matches port 2 from previous output
**ハードウェアFED MACアドレスの検証**
正常に動作している/理想的なシナリオのこの出力は、macHandleのデコードで提供される出力と一致します。
Edge-1#show platform hardware fed switch active matm macTable vlan 1026 mac 5254.0019.93e9 HEAD: MAC address 5254.0019.93e9 in VLAN 1026 KEY: vlan 7, mac 0x5254001993e9, l3_if 0, gpn 3, epoch 0, static 0, flood_en 0, vlan_lead_wless_flood_en 0, client_home_asic 0, learning_peerid 0, learning_peerid_valid 0 MASK: vlan 0, mac 0x0, l3_if 0, gpn 0, epoch 0, static 0, flood_en 0, vlan_lead_wless_flood_en 0, client_home_asic 0 learning_peerid 0, learning_peerid_valid 0 SRC_AD: need_to_learn 0, lrn_v 0, catchall 0, static_mac 0, chain_ptr_v 0, chain_ptr 0, static_entry_v 0, auth_state 0, auth_mode 0, traf_mode 0, is_src_ce 0 DST_AD: si 0xb7, bridge 0, replicate 0, blk_fwd_o 0, v4_mac 0, v6_mac 0, catchall 0, ign_src_lrn 0, port_mask_o 0, afd_cli_f 0, afd_lbl 0, priority 3, dest_mod_idx 0, destined_to_us 0, pv_trunk 0 Total Mac number of addresses:: 1
- ハードウェア(MVID)のVLAN IDは7です
- MACアドレス：5254.0019.93e9
- GPN:3
LISPエントリ
ホストのオンボーディングが成功すると、エンドホストのLISPエントリがエッジノードにローカルに作成され、コントロールノード（LISP MSMR - LISPマップサーバ/マップリゾルバ）に登録されます。L2とL3に対してチェックできる特定のインスタンスIDスコープに関して、すべてのLISPチェックを実行する必要があります。
Edge-1#show vlan id 1026 VLAN Name Status Ports ---- -------------------------------- --------- ------------------------------- 1026 red active L2LI0:8190, Gi1/0/3 <-- L2 LISP Instance ID tied to VLAN 1026
**L2 LISPデータベースの検証**
L2 LISPデータベースを確認するには、コマンドshow lisp instance-id <L2 LISP ID> ethernet database <mac address>を使用します。
Edge-1#show lisp instance-id 8190 ethernet database 5254.0019.93e9 LISP ETR MAC Mapping Database for LISP 0 EID-table Vlan 1026 (IID 8190), LSBs: 0x1 Entries total 1, no-route 0, inactive 0, do-not-register 2 5254.0019.93e9/48, dynamic-eid Auto-L2-group-8190, inherited from default locator-set rloc_222e1707-175d-4019-a783-060404f8bc2f -----> Endpoint MAC Uptime: 2d17h, Last-change: 2d17h Domain-ID: local Service-Insertion: N/A Locator Pri/Wgt Source State 10.47.1.12 10/10 cfg-intf site-self, reachable -----> Our own RLOC Map-server Uptime ACK Domain-ID 10.47.1.10 1d11h Yes 0 -----> RLOC of upstream collocated border 10.47.1.11 2d17h Yes 0 -----> RLOC of upstream collocated border
**LISP L2アドレス解決(AR)データベースの検証**
LISP L2 ARデータベースを確認するには、コマンドshow lisp instance-id <LISP L2 IID> ethernet database address-resolution <mac address>を使用します。
Edge-1#show lisp instance-id 8190 ethernet database address-resolution 5254.0019.93e9 LISP ETR Address Resolution for LISP 0 EID-table Vlan 1026 (IID 8190) (*) -> entry being deleted Hardware Address L3 InstID Host Address 5254.0019.93e9 4099 10.47.4.2/32 <-- Endpoint MAC Address, LISP L3 Instance ID, Endpoint IPv4 Address, respectively
**LISP L3データベースの検証**
LISP L3データベースを確認するには、コマンドshow lisp instance-id <LISP L3 IID> ipv4 database <IPアドレス/サブネットマスク>
Edge-1#show lisp instance-id 4099 ipv4 database 10.47.4.2/32 LISP ETR IPv4 Mapping Database for LISP 0 EID-table vrf red_vn (IID 4099), LSBs: 0x1 Entries total 1, no-route 0, inactive 0, do-not-register 1 10.47.4.2/32, dynamic-eid red-IPV4, inherited from default locator-set rloc_222e1707-175d-4019-a783-060404f8bc2f -----> Endpoint IPv4 Address Uptime: 2d18h, Last-change: 2d18h Domain-ID: local Service-Insertion: N/A Locator Pri/Wgt Source State 10.47.1.12 10/10 cfg-intf site-self, reachable -----> Our own RLOC Map-server Uptime ACK Domain-ID 10.47.1.10 1d11h Yes 0 -----> RLOC of upstream collocated border 10.47.1.11 2d17h Yes 0 -----> RLOC of upstream collocated border
**CEFの検証**
CEFを確認するには、show ip cef vrf <vrf name> <IP address> internalコマンドを使用します
Edge-1#show ip cef vrf red_vn 10.47.4.2 internal
10.47.4.2/32, epoch 1, flags [att, sc], RIB[D], refcnt 6, per-destination sharing
sources: RIB, Adj, IPL
feature space:
IPRM: 0x00058000
Broker: linked, distributed at 3rd priority
subblocks:
SC owned,sourced: LISP local EID -
SC inherited: LISP remote EID - locator status bits 0x00000000
SC inherited: LISP cfg dyn-EID - LISP configured dynamic-EID
LISP EID attributes: localEID Yes, c-dynEID Yes, d-dynEID Yes, a-dynEID No
SC owned,sourced: LISP generalised SMR - [disabled, not inheriting, 0x7F06D0A67E40 locks: 1]
Adj source: IP adj out of Vlan1026, addr 10.47.4.2 7F06D300B738
Dependent covered prefix type adjfib, cover 10.47.4.0/24
2 IPL sources [no flags]
ifnums:
Vlan1026(29): 10.47.4.2
path list 7F06CEE8D720, 3 locks, per-destination, flags 0x49 [shble, rif, hwcn]
path 7F06D0A900C8, share 1/1, type attached nexthop, for IPv4
nexthop 10.47.4.2 Vlan1026, IP adj out of Vlan1026, addr 10.47.4.2 7F06D300B738
output chain:
IP adj out of Vlan1026, addr 10.47.4.2 7F06D300B738
SDAエッジノードのローカルLISPエントリに加えて、SDAコントロールノード(LISP MS/MR)にはエンドポイントに関する追加情報も含まれています。
コロケートされた境界L2 LISPサーバの検証：
L2 LISPサーバを確認するには、コマンドshow lisp instance-id <L2 LISP ID> ethernet server <MAC Address>を使用します。
Border-1#show lisp instance-id 8190 ethernet server 5254.0019.93e9
LISP Site Registration Information
Site name: site_uci
Description: map-server configured from Cisco DNA-Center
Allowed configured locators: any
Requested EID-prefix:
EID-prefix: 5254.0019.93e9/48 instance-id 8190 <-- Endpoint MAC Address
First registered: 2w5d
Last registered: 3d16h
Routing table tag: 0
Origin: Dynamic, more specific of any-mac
Merge active: No
Proxy reply: Yes
Skip Publication: No
Force Withdraw: No
TTL: 1d00h
State: complete
Extranet IID: Unspecified
Registration errors:
Authentication failures: 0
Allowed locators mismatch: 0
ETR 10.47.1.12:21038, last registered 3d16h, proxy-reply, map-notify <-- Egress Tunnel Router (Fabric Edge IP address)
TTL 1d00h, no merge, hash-function sha1
state complete, no security-capability
nonce 0xB60C4314-0x97BB332D
xTR-ID 0xAB3179F6-0xC774F22C-0x00F2C82E-0x3A66738D
site-ID unspecified
Domain-ID local
Multihoming-ID unspecified
sourced by reliable transport
Locator Local State Pri/Wgt Scope
10.47.1.12 yes up 10/10 IPv4 none <--(Fabric Edge IP address)
コロケートされた境界L2 LISPアドレス解決(AR)サーバの検証：
L2 LISP ARサーバを確認するには、コマンドshow lisp instance-id <LISP L2 IID> ethernet server address-resolution <IP address>を使用します。
登録履歴を確認するには、コマンドshow lisp instance-id <LISP L2 IID> ethernet server address-resolution <IP address> registration-history
Border-1#show lisp instance-id 8190 ethernet server address-resolution 10.47.4.2 Address-resolution data for router lisp 0 instance-id 8190 Site name: site_uci Host Address: 10.47.4.2/32 Hardware Address: 5254.0019.93e9 First registered: 2w5d Last registered: 3d16h Registration errors: Authentication failures: 0 ETR 10.47.1.12:21038 Last registered: 3d16h TTL: 1d00h xTR-ID: 0xAB3179F6-0xC774F22C-0x00F2C82E-0x3A66738D Site-ID: unspecified Registered addr: 5254.0019.93e9 L3 Instance ID: 4099
Border-1#show lisp instance-id 8190 ethernet server address-resolution 10.47.4.2 registration-history Map-Server registration history Roam = Did host move to a new location? WLC = Did registration come from a Wireless Controller? Prefix qualifier: + = Register Event, - = Deregister Event, * = AR register event Timestamp (UTC) Instance Proto Roam WLC Source EID prefix / Locator *Sep 29 16:50:27.762 8190 TCP No No 10.47.1.12 +*10.47.4.2/32 / 5254.0019.93e9 *Oct 1 21:05:11.086 8190 TCP No No 10.47.1.12 +*10.47.4.2/32 / 5254.0019.93e9 *Oct 2 06:51:11.882 8190 TCP No No 10.47.1.12 +*10.47.4.2/32 / 5254.0019.93e9 *Oct 3 00:56:33.642 8190 TCP No No 10.47.1.12 +*10.47.4.2/32 / 5254.0019.93e9 *Oct 3 01:53:45.934 8190 TCP No No 10.47.1.12 +*10.47.4.2/32 / 5254.0019.93e9 *Oct 6 04:36:08.685 8190 TCP No No 10.47.1.12 +*10.47.4.2/32 / 5254.0019.93e9
コロケートされたBorder L3 LISPサーバの検証
L3 LISPサーバを確認するには、コマンドshow lisp instance-id <LISP L3 IID> ipv4 server <IP address>を使用します。
L3 LISPサーバの登録履歴を確認するには、コマンドshow lisp instance-id <LISP L3 IID> ipv4 server <IPアドレス> registration-history
Border-1#show lisp instance-id 4099 ipv4 server 10.47.4.2
LISP Site Registration Information
Site name: site_uci
Description: map-server configured from Cisco DNA-Center
Allowed configured locators: any
Requested EID-prefix:
EID-prefix: 10.47.4.2/32 instance-id 4099
First registered: 2w5d
Last registered: 02:39:39
Routing table tag: 0
Origin: Dynamic, more specific of 10.47.4.0/24
Merge active: No
Proxy reply: Yes
Skip Publication: No
Force Withdraw: No
TTL: 1d00h
State: complete
Extranet IID: Unspecified
Registration errors:
Authentication failures: 0
Allowed locators mismatch: 0
ETR 10.47.1.12:21038, last registered 02:39:39, proxy-reply, map-notify
TTL 1d00h, no merge, hash-function sha1
state complete, no security-capability
nonce 0x128CB668-0xF7B85F77
xTR-ID 0xAB3179F6-0xC774F22C-0x00F2C82E-0x3A66738D
site-ID unspecified
Domain-ID local
Multihoming-ID unspecified
sourced by reliable transport
Locator Local State Pri/Wgt Scope
10.47.1.12 yes up 10/10 IPv4 none
Border-1#show lisp instance-id 4099 ipv4 server 10.47.4.2/32 registration-history
Map-Server registration history
Roam = Did host move to a new location?
WLC = Did registration come from a Wireless Controller?
Prefix qualifier: + = Register Event, - = Deregister Event, * = AR register event
Timestamp (UTC) Instance Proto Roam WLC Source
EID prefix / Locator
*Oct 6 04:36:01.548 4099 UDP No No 10.47.1.12
+ 10.47.4.2/32
*Oct 6 04:36:08.686 4099 TCP No No 10.47.1.12
+ 10.47.4.2/32
*Oct 9 18:35:48.058 4099 TCP No No 10.47.1.12
+ 10.47.4.2/32
SDAでのARP解決
SDAファブリックをデフォルト設定でプロビジョニングするためにCisco Catalyst Centerが使用されていることを前提としています。つまり、レイヤ2拡張が有効であり、ファブリック内のすべてのトラフィック（同じVLAN/VN）が、IPアドレスのルックアップやLISP IPインスタンスではなく、MACアドレスのルックアップやLISPイーサネットインスタンスに基づいて転送されます。
トラブルシューティングの観点からは、両方のホストでスタティックARPエントリを設定すると、問題がファブリック内の汎用的な接続にあるのか（このような場合は、ホスト間でpingが機能しない）、またはARP解決だけにあるのかを迅速に確認するのに役立ちます。
SDA FabricのARPプロセスは、LISPを利用してホストのIDと場所を解決します。これは、従来のルーティング/スイッチング環境におけるARPの動作とは異なります。
ステップ1：ファブリックエンドポイントがARP要求を送信して、他のファブリックエンドポイントのMAC/IPバインディングを決定します
入力インターフェイスでパケットキャプチャを設定して、ホストからARPパケットが受信されたことを確認できます。
Edge-1#monitor capture 1 interface g1/0/3 in match any
Edge-1#mon cap 1 start
Started capture point : 1
Edge-1#mon cap 1 stop
Capture statistics collected at software:
Capture duration - 22 seconds
Packets received - 13
Packets dropped - 0
Packets oversized - 0
Number of Bytes dropped at asic not collected
Capture buffer will exists till exported or cleared
Stopped capture point : 1
Edge-1#show monitor capture 1 buffer brief
Starting the packet display ........ Press Ctrl + Shift + 6 to exit
1 0.000000 52:54:00:19:93:e9 -> ff:ff:ff:ff:ff:ff ARP 60 Who has 10.47.4.3? Tell 10.47.4.2
2 1.028893 52:54:00:19:93:e9 -> ff:ff:ff:ff:ff:ff ARP 60 Who has 10.47.4.3? Tell 10.47.4.2
3 2.058244 52:54:00:19:93:e9 -> ff:ff:ff:ff:ff:ff ARP 60 Who has 10.47.4.3? Tell 10.47.4.2
Edge-1#show monitor capture 1 buffer display-filter arp detailed
Starting the packet display ........ Press Ctrl + Shift + 6 to exit
Frame 1: 60 bytes on wire (480 bits), 60 bytes captured (480 bits) on interface /tmp/epc_ws/wif_to_ts_pipe, id 0
Interface id: 0 (/tmp/epc_ws/wif_to_ts_pipe)
Interface name: /tmp/epc_ws/wif_to_ts_pipe
Encapsulation type: Ethernet (1)
Arrival Time: Oct 10, 2023 14:52:03.659290000 UTC
[Time shift for this packet: 0.000000000 seconds]
Epoch Time: 1696949523.659290000 seconds
[Time delta from previous captured frame: 0.000000000 seconds]
[Time delta from previous displayed frame: 0.000000000 seconds]
[Time since reference or first frame: 0.000000000 seconds]
Frame Number: 1
Frame Length: 60 bytes (480 bits)
Capture Length: 60 bytes (480 bits)
[Frame is marked: False]
[Frame is ignored: False]
[Protocols in frame: eth:ethertype:arp]
Ethernet II, Src: 52:54:00:19:93:e9 (52:54:00:19:93:e9), Dst: ff:ff:ff:ff:ff:ff (ff:ff:ff:ff:ff:ff) <-- SMAC/DMAC respectively
Destination: ff:ff:ff:ff:ff:ff (ff:ff:ff:ff:ff:ff)
Address: ff:ff:ff:ff:ff:ff (ff:ff:ff:ff:ff:ff)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...1 .... .... .... .... = IG bit: Group address (multicast/broadcast)
Source: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
Address: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
Type: ARP (0x0806)
Padding: 000000000000000000000000000000000000
Address Resolution Protocol (request)
Hardware type: Ethernet (1)
Protocol type: IPv4 (0x0800)
Hardware size: 6
Protocol size: 4
Opcode: request (1)
Sender MAC address: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
Sender IP address: 10.47.4.2
Target MAC address: 00:00:00:00:00:00 (00:00:00:00:00:00)
Target IP address: 10.47.4.3
ステップ 2：エッジノードはARPパケットを消費し、LISP要求を生成してHOST-02のMACアドレスを決定します。
Edge-1は、MACアドレス10.47.4.3を解決するためにLISPマップ要求をLISPコントロールプレーン（コロケート境界）に送信します。
Edge-1#debug lisp control-plane all
Edge-1#debug l2lisp all
LISP[REMT ]-0: Map Request: Delay is over for IID 8190 EID 10.47.4.3/32, requester 'AR'. LISP[REMT ]-0 IID 8190: Schedule processing of Map-Requests from 'remote EID prefix' in IPv4. LISP[REMT ]-0: Map Request: Sending request for IID 8190 EID 10.47.4.3/32, requester 'AR'.
ステップ 3：コントロールノードがIP/MACマッピングのLISP要求を受信し、応答をSDAエッジノードに返す
LISPマップ要求がファブリックエッジから受信され、10.47.4.3に結び付けられたMACアドレスでLISPマップ応答で応答する
Border-1#debug lisp control-plane all
Border-1#debug l2lisp all
LISP[TRNSP]-0: Processing received Map-Request(1) message on GigabitEthernet1/0/3 from 10.47.4.3:4342 to 10.47.4.3:4342. LISP[MR ]-0: Received Map-Request with 1 records, first EID IID 8190 10.47.4.3/32, source EID UNSPEC, nonce 0x73F75F36-0x061CAF58. LISP[MR ]-0 IID 8190 Eth-ARP: MS EID 10.47.4.3/32: Sending proxy reply to 10.47.1.12.
LISPコントロールプレーンは、ローカルデータベースに保存されているアドレス解決エントリに基づいて、プロキシ応答で応答します
Border-1#show lisp instance-id 8190 ethernet server address-resolution 10.47.4.3 Address-resolution data for router lisp 0 instance-id 8190 Site name: site_uci Host Address: 10.47.4.3/32 Hardware Address: 5254.001e.ad00 First registered: 21:11:17 Last registered: 21:11:17 Registration errors: Authentication failures: 0 ETR 10.47.1.13:16056 Last registered: 21:11:17 TTL: 1d00h xTR-ID: 0x8CEE6478-0x9358E248-0xE935FF07-0x8C3C5450 Site-ID: unspecified Registered addr: 5254.001e.ad00 L3 Instance ID: 4099
ステップ 4：エッジノードがMACアドレス10.47.4.3のLISP応答を受信
ファブリックエッジノードがLISPプロキシ応答を受信します。
LISP[REMT ]-0: Processing Map-Reply mapping record for IID 8190 MAC 5254.001e.ad00/48 LCAF 2, ttl 1440, action none, not authoritative, 1 locator. LISP[REMT ]-0: Processing mapping information for EID prefix IID 8190 5254.001e.ad00/48.
ステップ 5：エッジノードがMACアドレスのRLOCの場所を決定するためにLISPマップ要求パケットを送信
最初の3つの手順が正常に完了すると、エッジノードはARPが最初に生成されたMACアドレス10.47.4.3を認識します。レイヤ2拡張が有効な場合、エッジノードはこの情報を10.47.4.2に返信せず、代わりにこの情報を使用して出力ノードエッジのRLOCロケーションを決定します。これにより、従来のレイヤ2ネットワークと同様に、10.47.4.3に向けてARPを転送できます。
このため、エッジノードはイーサネットインスタンスでさらに別のLISPマップ要求パケットを生成し、今度は10.47.4.2のMACアドレスのRLOC情報を要求します。
Edge-1#debug lisp control-plane all
Edge-1#debug l2lisp all
*Oct 10 17:01:41.430: LISP[REMT ]-0 IID 8190: Schedule processing of Map-Requests from 'remote EID prefix' in IPv4. *Oct 10 17:01:41.430: LISP[REMT ]-0: Map Request: Sending request for IID 8190 EID 5254.001e.ad00/48, requester 'remote EID prefix'
ステップ6：コントロールノードがLISPマップ要求パケットを受信し、MACアドレスのRLOCの場所を決定します。
コントロールノードはLISPパケットを受信し、ローカルデータベースの状態に基づいて応答します
Border-1#debug lisp control-plane all Border-1#debug l2lisp all *Oct 10 16:04:42.055: LISP[MR ]-0 IID 8190 Eth-ARP: MS EID 10.47.4.3/32: Sending proxy reply to 10.47.1.12. *Oct 10 16:04:42.407: LISP[MR ]-0: Received Map-Request with 1 records, first EID IID 8190 5254.001e.ad00/48, source EID 0000.0c9f.f341, nonce 0x75E13E8C-0x40DE7912. *Oct 10 16:04:42.408: LISP[MR ]-0 IID 8190 MAC: MS EID 5254.001e.ad00/48: Sending proxy reply to 10.47.1.12.
ステップ7：エッジノードがLISPマップ応答を受信する
制御ノードによって生成されたLISPマップ応答がエッジノードによって受信されました：
Edge-1#debug lisp control-plane all
Edge-1#debug l2lisp all
*Oct 10 17:44:00.181: LISP[TRNSP]-0: Processing received Map-Reply(2) message on GigabitEthernet1/0/2 from 10.47.1.13:4342 to 10.47.1.12:4342. *Oct 10 17:44:00.181: LISP[REMT ]-0: Received Map-Reply with nonce 0xF954EC80-0x039D7E4A, 1 records. *Oct 10 17:44:00.181: LISP[REMT ]-0: Map-Reply nonce matches pending request for IID 8190 EID 5254.001e.ad00/48, requester 'remote EID RLOC'. *Oct 10 17:44:00.181: LISP[REMT ]-0: Processing Map-Reply mapping record for IID 8190 MAC 5254.001e.ad00/48 LCAF 2, ttl 1440, action none, authoritative, 1 locator. *Oct 10 17:44:00.181: LISP[REMT ]-0: Map Request: Received reply with rtt 560ms. *Oct 10 17:44:00.181: LISP[REMT ]-0: Processing mapping information for EID prefix IID 8190 5254.001e.ad00/48.
これにより、LISPイーサネットインスタンスのマップキャッシュにエントリが作成され、10.47.4.3が接続されているEdge-2にARPパケットを転送できるようになります
Edge-1#show lisp instance-id 8190 ethernet map-cache 5254.001e.ad00
LISP MAC Mapping Cache for LISP 0 EID-table Vlan 1026 (IID 8190), 1 entries
5254.001e.ad00/48, uptime: 00:04:11, expires: 23:55:48, via map-reply, complete
Sources: map-reply
State: complete, last modified: 00:04:11, map-source: 10.47.1.13
Active, Packets out: 8(0 bytes), counters are not accurate (~ 00:00:04 ago)
Encapsulating dynamic-EID traffic
Locator Uptime State Pri/Wgt Encap-IID
10.47.1.13 00:04:11 up 10/10 -
Last up-down state change: 00:04:11, state change count: 1
Last route reachability change: 00:04:11, state change count: 1
Last priority / weight change: never/never
RLOC-probing loc-status algorithm:
Last RLOC-probe sent: 00:04:11 (rtt 560ms)
ステップ 8：ARPはVXLANでカプセル化され、HOST-02に送信されます。
エッジノードが元のARP（ブロードキャスト）パケットをユニキャストとして適切なエッジノードに送信できるように、10.47.4.3が存在する場所を特定するには、LISP関連のすべての手順が必要でした。 元のARP要求は、すべての手順が完了するまでエッジノードCPUによってキャッシュ（廃棄されません）されるため、10.47.4.2から1つのARPパケットが送信された場合でも適切にARP解決できます。
ARPパケットは、次の例に示すようにVXLANにカプセル化されます。
Edge-2#show monitor capture 1 buffer display-filter arp brief Starting the packet display ........ Press Ctrl + Shift + 6 to exit
67 15.149181 52:54:00:19:93:e9 -> 52:54:00:1e:ad:00 ARP 110 Who has 10.47.4.3? Tell 10.47.4.2 68 15.155511 52:54:00:19:93:e9 -> 52:54:00:1e:ad:00 ARP 110 Who has 10.47.4.3? Tell 10.47.4.2
ARP要求はVXLANにカプセル化され、ブロードキャストARP要求からユニキャストARP要求に変換されます。
Frame 68: 110 bytes on wire (880 bits), 110 bytes captured (880 bits) on interface /tmp/epc_ws/wif_to_ts_pipe, id 0
Interface id: 0 (/tmp/epc_ws/wif_to_ts_pipe)
Interface name: /tmp/epc_ws/wif_to_ts_pipe
Encapsulation type: Ethernet (1)
Arrival Time: Oct 10, 2023 17:56:43.256570000 UTC
[Time shift for this packet: 0.000000000 seconds]
Epoch Time: 1696960603.256570000 seconds
[Time delta from previous captured frame: 0.006330000 seconds]
[Time delta from previous displayed frame: 0.006330000 seconds]
[Time since reference or first frame: 15.155511000 seconds]
Frame Number: 68
Frame Length: 110 bytes (880 bits)
Capture Length: 110 bytes (880 bits)
[Frame is marked: False]
[Frame is ignored: False]
[Protocols in frame: eth:ethertype:ip:udp:vxlan:eth:ethertype:arp]
Ethernet II, Src: 52:54:00:0a:42:11 (52:54:00:0a:42:11), Dst: 52:54:00:17:fe:65 (52:54:00:17:fe:65)
Destination: 52:54:00:17:fe:65 (52:54:00:17:fe:65)
Address: 52:54:00:17:fe:65 (52:54:00:17:fe:65)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
Source: 52:54:00:0a:42:11 (52:54:00:0a:42:11)
Address: 52:54:00:0a:42:11 (52:54:00:0a:42:11)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
Type: IPv4 (0x0800)
Internet Protocol Version 4, Src: 10.47.1.12, Dst: 10.47.1.13 <-- 10.47.1.12 is Edge-1 RLOC, 10.47.1.13 is Edge-2 RLOC
0100 .... = Version: 4
.... 0101 = Header Length: 20 bytes (5)
Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT)
0000 00.. = Differentiated Services Codepoint: Default (0)
.... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0)
Total Length: 96
Identification: 0x1781 (6017)
Flags: 0x4000, Don't fragment
0... .... .... .... = Reserved bit: Not set
.1.. .... .... .... = Don't fragment: Set
..0. .... .... .... = More fragments: Not set
Fragment offset: 0
Time to live: 253
Protocol: UDP (17)
Header checksum: 0x4f95 [validation disabled]
[Header checksum status: Unverified]
Source: 10.47.1.12
Destination: 10.47.1.13
User Datagram Protocol, Src Port: 65354, Dst Port: 4789
Source Port: 65354
Destination Port: 4789
Length: 76
[Checksum: [missing]]
[Checksum Status: Not present]
[Stream index: 0]
[Timestamps]
[Time since first frame: 15.155511000 seconds]
[Time since previous frame: 0.006330000 seconds]
Virtual eXtensible Local Area Network
Flags: 0x8800, GBP Extension, VXLAN Network ID (VNI)
1... .... .... .... = GBP Extension: Defined
.... .... .0.. .... = Don't Learn: False
.... 1... .... .... = VXLAN Network ID (VNI): True
.... .... .... 0... = Policy Applied: False
.000 .000 0.00 .000 = Reserved(R): 0x0000
Group Policy ID: 0
VXLAN Network Identifier (VNI): 8190 <-- L2 LISP IID
Reserved: 0
Ethernet II, Src: 52:54:00:19:93:e9 (52:54:00:19:93:e9), Dst: 52:54:00:1e:ad:00 (52:54:00:1e:ad:00) <--Unicast ARP Request
Destination: 52:54:00:1e:ad:00 (52:54:00:1e:ad:00)
Address: 52:54:00:1e:ad:00 (52:54:00:1e:ad:00)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
Source: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
Address: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
Type: ARP (0x0806)
Trailer: 000000000000000000000000000000000000
Address Resolution Protocol (request)
Hardware type: Ethernet (1)
Protocol type: IPv4 (0x0800)
Hardware size: 6
Protocol size: 4
Opcode: request (1)
Sender MAC address: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
Sender IP address: 10.47.4.2
Target MAC address: 00:00:00:00:00:00 (00:00:00:00:00:00)
Target IP address: 10.47.4.3
ステップ 9：ARP応答は10.47.4.3によって生成され、10.47.4.2に向けて送信されます。
Edge-2#show monitor capture 1 buffer display-filter arp brief
Starting the packet display ........ Press Ctrl + Shift + 6 to exit
1 0.000000 52:54:00:1e:ad:00 -> 52:54:00:19:93:e9 ARP 60 10.47.4.3 is at 52:54:00:1e:ad:00
2 0.069429 52:54:00:1e:ad:00 -> 52:54:00:19:93:e9 ARP 60 10.47.4.3 is at 52:54:00:1e:ad:00
11 5.960508 52:54:00:1e:ad:00 -> 52:54:00:19:93:e9 ARP 60 Who has 10.47.4.2? Tell 10.47.4.3
この時点で、パケットはブロードキャストアドレス（元のARP要求として）ではなく、10.47.4.2のMACアドレスを宛先としており、入力エッジノード(Edge-2)に到達すると、通常のLISP動作がトリガーされます。最初に、エッジノードのLISPイーサネットインスタンスに10.47.4.2のMACアドレスが不足しています。パケットはCPUにパントされ、HOST-01のRLOCを決定するLISPマップ要求が生成されます。この動作は、このドキュメントの他のセクションで説明されているものとまったく同じで、Edge-2で10.47.4.2のLISPマップキャッシュエントリを作成できます。
Edge-2#show lisp instance-id 8190 ethernet map-cache 5254.0019.93e9
LISP MAC Mapping Cache for LISP 0 EID-table Vlan 1026 (IID 8190), 1 entries
5254.0019.93e9/48, uptime: 03:18:28, expires: 20:41:32, via map-reply, complete
Sources: map-reply
State: complete, last modified: 03:18:28, map-source: 10.47.1.12
Active, Packets out: 386(0 bytes), counters are not accurate (~ 00:00:12 ago)
Encapsulating dynamic-EID traffic
Locator Uptime State Pri/Wgt Encap-IID
10.47.1.12 03:18:28 up 10/10 -
Last up-down state change: 03:18:28, state change count: 1
Last route reachability change: 03:18:28, state change count: 1
Last priority / weight change: never/never
RLOC-probing loc-status algorithm:
Last RLOC-probe sent: 03:18:28 (rtt 710ms)
このエントリにより、VXLANカプセル化でARP応答がEdge-1に正常に送信され、競合するARP解決プロセス全体の10.47.4.2にさらに転送されます。
SDAファブリックでの基本的なホスト到達可能性（同じVLAN/同じVN）
ARP解決が正常に完了し、ホスト10.47.4.2と10.47.4.3の両方が互いに適切なARPエントリを持っていると仮定します。
トラブルシューティングの観点からは、両方のホストでスタティックARPエントリを設定すると、ファブリック内の汎用的な接続に問題があるか（このような場合は、ホスト間でpingが機能しない）、またはARPプロセスでのみ問題が発生するかどうかを迅速に確認できるので非常に便利です。
10.47.4.2は10.47.4.3へのICMP要求を生成します。
Edge-1#show monitor capture 1 buffer brief
Starting the packet display ........ Press Ctrl + Shift + 6 to exit
1 0.000000 10.47.4.2 -> 10.47.4.3 ICMP 98 Echo (ping) request id=0x0040, seq=3/768, ttl=64
Edge-1#show monitor capture 1 buffer detail
Starting the packet display ........ Press Ctrl + Shift + 6 to exit
Frame 1: 98 bytes on wire (784 bits), 98 bytes captured (784 bits) on interface /tmp/epc_ws/wif_to_ts_pipe, id 0
Interface id: 0 (/tmp/epc_ws/wif_to_ts_pipe)
Interface name: /tmp/epc_ws/wif_to_ts_pipe
Encapsulation type: Ethernet (1)
Arrival Time: Oct 10, 2023 18:21:21.484694000 UTC
[Time shift for this packet: 0.000000000 seconds]
Epoch Time: 1696962081.484694000 seconds
[Time delta from previous captured frame: 0.000000000 seconds]
[Time delta from previous displayed frame: 0.000000000 seconds]
[Time since reference or first frame: 0.000000000 seconds]
Frame Number: 1
Frame Length: 98 bytes (784 bits)
Capture Length: 98 bytes (784 bits)
[Frame is marked: False]
[Frame is ignored: False]
[Protocols in frame: eth:ethertype:ip:icmp:data]
Ethernet II, Src: 52:54:00:19:93:e9 (52:54:00:19:93:e9), Dst: 52:54:00:1e:ad:00 (52:54:00:1e:ad:00) <-- Endpoint MAC, Anycast GW MAC respectively
Destination: 52:54:00:1e:ad:00 (52:54:00:1e:ad:00)
Address: 52:54:00:1e:ad:00 (52:54:00:1e:ad:00)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
Source: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
Address: 52:54:00:19:93:e9 (52:54:00:19:93:e9)
.... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
.... ...0 .... .... .... .... = IG bit: Individual address (unicast)
Type: IPv4 (0x0800)
Internet Protocol Version 4, Src: 10.47.4.2, Dst: 10.47.4.3
0100 .... = Version: 4
.... 0101 = Header Length: 20 bytes (5)
Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT)
0000 00.. = Differentiated Services Codepoint: Default (0)
.... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0)
Total Length: 84
Identification: 0x7321 (29473)
Flags: 0x4000, Don't fragment
0... .... .... .... = Reserved bit: Not set
.1.. .... .... .... = Don't fragment: Set
..0. .... .... .... = More fragments: Not set
Fragment offset: 0
Time to live: 64
Protocol: ICMP (1)
Header checksum: 0xab25 [validation disabled]
[Header checksum status: Unverified]
Source: 10.47.4.2
Destination: 10.47.4.3
Internet Control Message Protocol
Type: 8 (Echo (ping) request)
Code: 0
Checksum: 0x02ea [correct]
[Checksum Status: Good]
Identifier (BE): 64 (0x0040)
Identifier (LE): 16384 (0x4000)
Sequence number (BE): 3 (0x0003)
Sequence number (LE): 768 (0x0300)
Data (56 bytes)
0000 68 95 8c 3d 00 00 00 00 00 00 00 00 00 00 00 00 h..=............
0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 00 00 00 00 00 00 00 00 ........
Data: 68958c3d0000000000000000000000000000000000000000b^@&
[Length: 56]
ICMPパケットは10.47.4.3に向けて、ロケータフィールド10.47.1.13(Edge-2)で指定されたエッジノードに送信され、組み込みパケットキャプチャによってキャプチャできます。
L2拡張が有効になっているVLANでパケットが受信されると、ルックアップはLISPイーサネットインスタンスで実行されます。
Edge-1#show lisp instance-id 8190 ethernet map-cache 5254.001e.ad00
LISP MAC Mapping Cache for LISP 0 EID-table Vlan 1026 (IID 8190), 1 entries
5254.001e.ad00/48, uptime: 00:22:29, expires: 23:37:32, via map-reply, complete
Sources: map-reply
State: complete, last modified: 00:22:29, map-source: 10.47.1.13
Active, Packets out: 42(0 bytes), counters are not accurate (~ 00:00:58 ago)
Encapsulating dynamic-EID traffic
Locator Uptime State Pri/Wgt Encap-IID
10.47.1.13 00:22:29 up 10/10 -
Last up-down state change: 00:22:29, state change count: 1
Last route reachability change: 00:22:29, state change count: 1
Last priority / weight change: never/never
RLOC-probing loc-status algorithm:
Last RLOC-probe sent: 00:22:28 (rtt 1609ms)
リモートエンドポイントのMACアドレスを確認し、予期されるL2LI0をポイントします
Edge-1#show mac add add 5254.001e.ad00
Mac Address Table
-------------------------------------------
Vlan Mac Address Type Ports
---- ----------- -------- -----
1026 5254.001e.ad00 CP_LEARN L2LI0
Total Mac Addresses installed by LISP: REMOTE: 1
FEDのMACアドレスを確認すると、追加情報を収集できます
Edge-1#show platform software fed sw active matm macTable vlan 1026 mac 5254.001e.ad00 VLAN MAC Type Seq# EC_Bi Flags machandle siHandle riHandle diHandle *a_time *e_time ports Con ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 1026 5254.001e.ad00 0x1000001 0 0 64 0x7f65ecfdd3a8 0x7f65ecfdd1f8 0x7f65ecfdd048 0x0 0 2 RLOC 10.47.1.13 adj_id 97 No ======platform hardware details ====== Asic: 0 htm-handle = 0x7f65ecc4d188 MVID = 7 gpn = 1 SI = 0xc7 RI = 0x12 DI = 0x5012 Asic: 1 SI = 0xc7 RI = 0x12 DI = 0x5013
MACアドレスmacHandleのデコード
前のコマンドのmacHandle(0x7f65ecfdd3a8)を取得し、コマンドshow platform hardware fed switch active fwd-asic abstraction print-resource-handle <macHandle> 1で使用します。
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ecfdd3a8 1 Handle:0x7f65ecfdd3a8 Res-Type:ASIC_RSC_HASH_TCAM Res-Switch-Num:0 Asic-Num:255 Feature-ID:AL_FID_L2_WIRELESS Lkp-ftr-id:LKP_FEAT_L2_SRC_MAC_VLAN ref_count:1 priv_ri/priv_si Handle: (nil)Hardware Indices/Handles: handle [ASIC: 0]: 0x7f65ecc4d188 Features sharing this resource:Cookie length: 12 1e 00 54 52 00 ad 07 80 07 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- Number of HTM Entries: 1 Entry 0: (handle 0x7f65ecc4d188) Absolute Index: 4706 Time Stamp: 14 KEY - vlan:7 mac:0x5254001ead00 l3_if:0 gpn:3401 epoch:0 static:0 flood_en:0 vlan_lead_wless_flood_en: 0 client_home_asic: 0 learning_peerid 0, learning_peerid_valid 0 lvx:1 MASK - vlan:0 mac:0x0 l3_if:0 gpn:0 epoch:0 static:0 flood_en:0 vlan_lead_wless_flood_en: 0 client_home_asic: 0 learning_peerid 0, learning_peerid_valid 0 lvx:0 SRC_AD - need_to_learn:0 lrn_v:0 catchall:0 static_mac:0 chain_ptr_v:0 chain_ptr: 0 static_entry_v:0 auth_state:0 auth_mode:0 auth_behavior_tag:0 traf_m:0 is_src_ce:0 DST_AD - si:0xc7 bridge:0 replicate:0 blk_fwd_o:0 v4_rmac:0 v6_rmac:0 catchall:0 ign_src_lrn:0 port_mask_o:0 afd_cli_f:0 afd_lbl:0 prio:3 dest_mod_idx:0 destined_to_us:0 pv_trunk:0 smr:1 ==============================================================
MACアドレスのsiHandleデコード
前のコマンドのsiHandle(0x7f65ecfdd1f8)を取得し、コマンドshow platform hardware fed switch active fwd-asic abstraction print-resource-handle <siHandle> 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ecfdd1f8 1 Handle:0x7f65ecfdd1f8 Res-Type:ASIC_RSC_SI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L2_WIRELESS Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ecfdd048Hardware Indices/Handles: index0:0xc7 mtu_index/l3u_ri_index0:0x0 index1:0xc7 mtu_index/l3u_ri_index1:0x0 Features sharing this resource:58 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 02 04 00 00 00 00 00 00 00 00 00 00 07 00 61 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- Station Index (SI) [0xc7] <-- Contains the Rewrite Index (RI) and Outgoing Interface Information (DI) RI = 0x12 <-- Rewrite Index = Contains information for forwarding DI = 0x5012 <-- Destination Index = Outgoing Interface stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: LD Detailed Resource Information (ASIC_INSTANCE# 1) ---------------------------------------- Station Index (SI) [0xc7] <-- Contains the Rewrite Index (RI) and Outgoing Interface Information (DI)
RI = 0x12 <-- Rewrite Index = Contains information for forwarding
DI = 0x5013 <-- Destination Index = Outgoing Interface stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: LD ==============================================================
インデックスのデコードの書き換え
RI(0x12)を取得し、コマンドshow platform hardware fed switch active fwd-asic resource asic all rewrite-index range <RI> <RI>で使用します。
Edge-1#show platform hardware fed switch active fwd-asic resource asic all rewrite-index range 0x12 0x12 ASIC#:0 RI:18 Rewrite_type:AL_RRM_REWRITE_L2_PAYLOAD_L2LISP_ENCAP(115) Mapped_rii:LVX_L2_ENCAP_L2_PAYLOAD_ROUTED(133) Src IP: 10.47.1.12 <-- Local RLOC Dst IP: 10.47.1.13 <-- Remote RLOC iVxlan dstMac: 0x5254:0x01c:0x7de0 iVxlan srcMac: 0x00:0x00:0x00 IPv4 TTL: 0 iid present: 1 lisp iid: 0 lisp flags: 0 dst Port: 4789 update only l3if: 0 is Sgt: 1 is TTL Prop: 0 L3if LE: 0 (0) Port LE: 0 (0) Vlan LE: 7 (0) ASIC#:1 RI:18 Rewrite_type:AL_RRM_REWRITE_L2_PAYLOAD_L2LISP_ENCAP(115) Mapped_rii:LVX_L2_ENCAP_L2_PAYLOAD_ROUTED(133) Src IP: 10.47.1.12 <-- Local RLOC Dst IP: 10.47.1.13 <-- Remote RLOC iVxlan dstMac: 0x5254:0x01c:0x7de0 iVxlan srcMac: 0x00:0x00:0x00 IPv4 TTL: 0 iid present: 1 lisp iid: 0 lisp flags: 0 dst Port: 4789 update only l3if: 0 is Sgt: 1 is TTL Prop: 0 L3if LE: 0 (0) Port LE: 0 (0) Vlan LE: 7 (0)
宛先インデックスのデコード
DI(0x5012)を取得し、コマンドshow platform hardware fed switch active fwd-asic resource asic all destination-index range <DI> <DI>で使用します
Edge-1#show platform hardware fed switch active fwd-asic resource asic all destination-index range 0x5012 0x5012 ASIC#0: Destination index = 0x5012 DI_RCP_PORT1 <-- Recirculation port for VXLAN imposition pmap = 0x00000000 0x00000000 cmi = 0x0 rcp_pmap = 0x1 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0 ASIC#1: Destination index = 0x5012 DI_RCP_PORT1 <-- Recirculation port for VXLAN imposition pmap = 0x00000000 0x00000000 cmi = 0x0 rcp_pmap = 0x0 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0
siHandleデコード
siHandle(0x7f65ecfdd048)を取得し、コマンドshow platform hardware fed switch active fwd-asic abstraction print-resource-handle <siHandle> 1で使用します。
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ecfdd048 1 Handle:0x7f65ecfdd048 Res-Type:ASIC_RSC_RI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L2_WIRELESS Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ecfdcd78Hardware Indices/Handles: index0:0x12 mtu_index/l3u_ri_index0:0x0 index1:0x12 mtu_index/l3u_ri_index1:0x0 Features sharing this resource:58 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 02 04 00 00 00 00 00 00 00 00 00 00 07 00 61 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- ASIC#:0 RI:18 Rewrite_type:AL_RRM_REWRITE_L2_PAYLOAD_L2LISP_ENCAP(115) Mapped_rii:LVX_L2_ENCAP_L2_PAYLOAD_ROUTED(133) Src IP: 10.47.1.12 <-- Local RLOC Dst IP: 10.47.1.13 <-- Remote RLOC iVxlan dstMac: 0x610:0x00:0x00 iVxlan srcMac: 0x00:0x00:0x00 IPv4 TTL: 0 iid present: 1 lisp iid: 0 lisp flags: 0 dst Port: 4789 update only l3if: 0 is Sgt: 1 is TTL Prop: 0 L3if LE: 0 (0) Port LE: 279 (0) Vlan LE: 7 (0) Detailed Resource Information (ASIC_INSTANCE# 1) ---------------------------------------- ASIC#:1 RI:18 Rewrite_type:AL_RRM_REWRITE_L2_PAYLOAD_L2LISP_ENCAP(115) Mapped_rii:LVX_L2_ENCAP_L2_PAYLOAD_ROUTED(133)
Src IP: 10.47.1.12 <-- Local RLOC
Dst IP: 10.47.1.13 <-- Remote RLOC iVxlan dstMac: 0x610:0x00:0x00 iVxlan srcMac: 0x00:0x00:0x00 IPv4 TTL: 0 iid present: 1 lisp iid: 0 lisp flags: 0 dst Port: 4789 update only l3if: 0 is Sgt: 1 is TTL Prop: 0 L3if LE: 0 (0) Port LE: 279 (0) Vlan LE: 7 (0) ==============================================================
アンダーレイルートの確認
トラフィックは10.47.1.12を使用してIID 8190のVXLANにカプセル化され、Gig1/0/1およびG1/0/2からロードバランシングされる機能を備えています
Edge-1#show ip route 10.47.1.13
Routing entry for 10.47.1.13/32
Known via "isis", distance 115, metric 30, type level-2
Redistributing via isis
Last update from 10.47.1.4 on GigabitEthernet1/0/2, 2d22h ago
Routing Descriptor Blocks:
10.47.1.4, from 10.47.1.13, 2d22h ago, via GigabitEthernet1/0/2
Route metric is 30, traffic share count is 1
* 10.47.1.0, from 10.47.1.13, 2d22h ago, via GigabitEthernet1/0/1
Route metric is 30, traffic share count is 1
Edge-1#show ip cef 10.47.1.13
10.47.1.13/32
nexthop 10.47.1.0 GigabitEthernet1/0/1
nexthop 10.47.1.4 GigabitEthernet1/0/2
si_hdl、ri_hdl情報を取得するには、show platform software fed switch active ip adjコマンドを使用します。
Edge-1#show platform software fed switch active ip adj IPV4 Adj entries dest if_name dst_mac si_hdl ri_hdl pd_flags adj_id Last-modified ---- ------- ------- ------ ------ -------- ------ ------------- 225.0.0.0 GigabitEthernet1/0/1 0100.5e00.0000 0x7f65ec958128 0x7f65ec957e18 0x0 0xf80001a1 2023/09/19 17:57:41.399 10.47.1.10 LISP0.4100 4500.0000.0000 0x7f65ec895ed8 0x7f65ec895a68 0x60 0x5c 2023/09/19 17:58:16.545 225.0.0.0 GigabitEthernet1/0/2 0100.5e00.0000 0x7f65ec958f68 0x7f65ec95b2b8 0x0 0xf80001b1 2023/09/19 17:57:41.938 10.47.1.4 GigabitEthernet1/0/2 5254.001c.7de0 0x7f65ec8a5458 0x7f65ec8a4eb8 0x0 0x4c 2023/09/19 17:58:02.150 225.0.0.0 Null0 f800.0011.0000 0x7f65ec3740c8 0x0 0x0 0xf8000011 2023/09/19 17:57:29.404 10.47.1.0 GigabitEthernet1/0/1 5254.000a.42f3 0x7f65ec8b8468 0x7f65ec8b8158 0x0 0x55 2023/09/19 17:58:08.864
アンダーレイのネクストホップsi_hdlデコード
si_hdl(0x7f65ec8a5458)を確認するには、show platform hardware fed switch active fwd-asic abstraction print-resource-handle <si_hdl> 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ec8a5458 1 Handle:0x7f65ec8a5458 Res-Type:ASIC_RSC_SI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L3_UNICAST_IPV4 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ec8a4eb8Hardware Indices/Handles: index0:0xbc mtu_index/l3u_ri_index0:0x0 index1:0xbc mtu_index/l3u_ri_index1:0x0 Features sharing this resource:66 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 26 00 00 00 00 00 00 00 00 00 00 00 08 00 52 54 00 1c 7d e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- Station Index (SI) [0xbc] -----> Contains RI and DI information RI = 0x1a -----> Rewrite Index = MAC address rewrite information for L3 forwarding to the next-hop adjacency DI = 0x526d -----> Destination Index = Outgoing Interface stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: LD -----> Local Data, indicating that this ASIC is directly connected to the adjacency interface Detailed Resource Information (ASIC_INSTANCE# 1) ---------------------------------------- Station Index (SI) [0xbc] -----> Contains RI and DI information RI = 0x1a -----> Rewrite Index = MAC address rewrite information for L3 forwarding to the next-hop adjacency DI = 0x526d -----> Destination Index = Outgoing Interface stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: CD -----> Core Data, indicating that this instance of the ASIC is on the same ASIC, but different core. ==============================================================
アンダーレイのネクストホップ書き換えインデックスデコード
RI(0x1a)をデコードするには、コマンドshow platform hardware fed switch active fwd-asic resource asic all rewrite-index range <RI> <RI>で使用します
Edge-1#show platform hardware fed switch active fwd-asic resource asic all rewrite-index range 0x1a 0x1a ASIC#:0 RI:26 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) -----> Decimal 26 is hex 0x1a MAC Addr: MAC Addr: 52:54:00:1c:7d:e0, -----> MAC address 5254.001c.7de0 for the next-hop adjacency L3IF LE Index 38 ASIC#:1 RI:26 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) MAC Addr: MAC Addr: 52:54:00:1c:7d:e0, -----> MAC address 5254.001c.7de0 for the next-hop adjacency L3IF LE Index 38
アンダーレイのネクストホップ宛先インデックスのデコード
DI(0x526d)をデコードするには、show platform hardware fed switch active fwd-asic resource asic all destination-index range <DI> <DI>を使用します。
Edge-1#show platform hardware fed switch active fwd-asic resource asic all destination-index range 0x526d 0x526d ASIC#0: Destination index = 0x526d pmap = 0x00000000 0x00000002 <-- Convert decimal 2 to binary, which is 0010. Count this binary right to left, zero-based, so Port 1. pmap_intf : [GigabitEthernet1/0/2] cmi = 0x0 rcp_pmap = 0x0 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0 ASIC#1: Destination index = 0x526d pmap = 0x00000000 0x00000000 cmi = 0x0 rcp_pmap = 0x0 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0
Edge-1#show platform software fed switch active ifm mappings Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x1a 0 0 0 0 0 1 0 1 1 NIF Y GigabitEthernet1/0/2 0x1b 0 0 0 1 0 2 1 2 2 NIF Y <-- Port 1 lines up to G1/0/2 GigabitEthernet1/0/3 0xb 0 0 0 2 0 3 2 3 3 NIF Y GigabitEthernet1/0/4 0xc 0 0 0 3 0 4 3 4 4 NIF Y GigabitEthernet1/0/5 0xd 0 0 0 4 0 5 4 5 5 NIF Y GigabitEthernet1/0/6 0xe 0 0 0 5 0 6 5 6 6 NIF Y GigabitEthernet1/0/7 0xf 0 0 0 6 0 7 6 7 7 NIF Y GigabitEthernet1/0/8 0x10 0 0 0 7 0 8 7 8 8 NIF Y
アンダーレイのネクストホップri_hdlデコード
ri_hdl(0x7f65ec8a4eb8)をデコードするには、show platform hardware fed switch active fwd-asic abstraction print-resource-handle(ri_hdl) 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ec8a4eb8 1 Handle:0x7f65ec8a4eb8 Res-Type:ASIC_RSC_RI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L3_UNICAST_IPV4 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ec903b28Hardware Indices/Handles: index0:0x1a mtu_index/l3u_ri_index0:0x0 index1:0x1a mtu_index/l3u_ri_index1:0x0 Features sharing this resource:66 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 26 00 00 00 00 00 00 00 00 00 00 00 08 00 52 54 00 1c 7d e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- ASIC#:0 RI:26 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) <-- Decimal 26 is 0x1a in hex MAC Addr: MAC Addr: 52:54:00:1c:7d:e0, <-- MAC address 5254.001c.7de0 for the next-hop adjacency L3IF LE Index 38 Detailed Resource Information (ASIC_INSTANCE# 1) ---------------------------------------- ASIC#:1 RI:26 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)<-- Decimal 26 is 0x1a in hex MAC Addr: MAC Addr: 52:54:00:1c:7d:e0, MAC Addr: MAC Addr: 52:54:00:1c:7d:e0,<-- MAC address 5254.001c.7de0 for the next-hop adjacency
L3IF LE Index 38 ==============================================================
SDAファブリックでの基本的なホスト到達可能性（異なるVLAN/同じVN）
このセクションでは、10.47.4.2と10.47.10.2の間の通信について説明します。これらのホストは異なるVLANに属しているため、両方ともデフォルトゲートウェイを指すデフォルトゲートウェイを設定する必要があります。10.47.4.2の場合は10.47.4.1、10.47.10.2の場合は10.47.10.1です。
ステップ 1：エンドポイントとデフォルトゲートウェイ間の接続が機能していることを確認します。
Edge-1#ping vrf red_vn 10.47.4.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.47.4.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 155/164/181 ms
Edge-2#ping vrf red_vn 10.47.10.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.47.10.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 41/46/62 ms
ステップ 2：10.47.4.2からのパケットがEdge-1で正常に受信されたことを確認します。
パケットは、10.47.4.2に面する入力インターフェイスでキャプチャできます。
Edge-1#monitor capture 1 interface g1/0/3 in match any Edge-1#mon cap 1 start Started capture point : 1 Edge-1#mon cap 1 stop Capture statistics collected at software: Capture duration - 12 seconds Packets received - 9 Packets dropped - 0 Packets oversized - 0 Number of Bytes dropped at asic not collected Capture buffer will exists till exported or cleared Stopped capture point : 1
Edge-1#show monitor capture 1 buffer brief Starting the packet display ........ Press Ctrl + Shift + 6 to exit 1 0.000000 10.47.4.2 -> 10.47.10.2 ICMP 98 Echo (ping) request id=0x0041, seq=0/0, ttl=64 2 0.023447 10.47.4.2 -> 10.47.10.2 ICMP 98 Echo (ping) request id=0x0041, seq=0/0, ttl=64
Edge-1#show monitor capture 1 buffer detailed Starting the packet display ........ Press Ctrl + Shift + 6 to exit Frame 1: 98 bytes on wire (784 bits), 98 bytes captured (784 bits) on interface /tmp/epc_ws/wif_to_ts_pipe, id 0 Interface id: 0 (/tmp/epc_ws/wif_to_ts_pipe) Interface name: /tmp/epc_ws/wif_to_ts_pipe Encapsulation type: Ethernet (1) Arrival Time: Oct 11, 2023 15:27:46.033825000 UTC [Time shift for this packet: 0.000000000 seconds] Epoch Time: 1697038066.033825000 seconds [Time delta from previous captured frame: 0.000000000 seconds] [Time delta from previous displayed frame: 0.000000000 seconds] [Time since reference or first frame: 0.000000000 seconds] Frame Number: 1 Frame Length: 98 bytes (784 bits) Capture Length: 98 bytes (784 bits) [Frame is marked: False] [Frame is ignored: False] [Protocols in frame: eth:ethertype:ip:icmp:data] Ethernet II, Src: 52:54:00:19:93:e9 (52:54:00:19:93:e9), Dst: 00:00:0c:9f:f3:41 (00:00:0c:9f:f3:41) <-- SMAC and DMAC respectively Destination: 00:00:0c:9f:f3:41 (00:00:0c:9f:f3:41) Address: 00:00:0c:9f:f3:41 (00:00:0c:9f:f3:41) .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Source: 52:54:00:19:93:e9 (52:54:00:19:93:e9) Address: 52:54:00:19:93:e9 (52:54:00:19:93:e9) .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Type: IPv4 (0x0800) Internet Protocol Version 4, Src: 10.47.4.2, Dst: 10.47.10.2 0100 .... = Version: 4 .... 0101 = Header Length: 20 bytes (5) Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT) 0000 00.. = Differentiated Services Codepoint: Default (0) .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0) Total Length: 84 Identification: 0x395e (14686) Flags: 0x4000, Don't fragment 0... .... .... .... = Reserved bit: Not set .1.. .... .... .... = Don't fragment: Set ..0. .... .... .... = More fragments: Not set Fragment offset: 0 Time to live: 64 Protocol: ICMP (1) Header checksum: 0xdee9 [validation disabled] [Header checksum status: Unverified] Source: 10.47.4.2 Destination: 10.47.10.2 Internet Control Message Protocol Type: 8 (Echo (ping) request) Code: 0 Checksum: 0x248a [correct] [Checksum Status: Good] Identifier (BE): 65 (0x0041) Identifier (LE): 16640 (0x4100) Sequence number (BE): 0 (0x0000) Sequence number (LE): 0 (0x0000) Data (56 bytes) 0000 2a 46 a8 ee 00 00 00 00 00 00 00 00 00 00 00 00 *F.............. 0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 00 00 00 00 00 00 00 00 ........ Data: 2a46a8ee0000000000000000000000000000000000000000b^@& [Length: 56]
手順3:LISPルックアップ
入力エッジノードは、パケットの送信先であるHOST-03のロケーション(RLOC)を決定する必要があります。この場合と同様に、エンドホストHOST-03は異なるVLANに存在します（ただし、同じVN / VRF:USERS）。LISP IPv4インスタンスは、IPアドレス（MACアドレスがエッジノード自体に属している）に基づくルックアップとして使用されます。
Edge-1#debug lisp control-plane all
LISP[REMT ]-0: Map Request: Sending request for IID 4099 EID 10.47.10.2/32, requester 'remote EID prefix'. LISP[REMT ]-0: Map-Reply nonce matches pending request for IID 4099 EID 10.47.10.2/32, requester 'remote EID prefix'.
LISPマップ要求がコントロールノード（LISPマップサーバ）Border-1に到達：
Border-1#debug lisp control-plane all
LISP[TRNSP]-0: Processing received Map-Request(1) message on GigabitEthernet1/0/3 from 10.47.10.2:4342 to 10.47.10.2:4342.
LISP[MR ]-0: Received Map-Request with 1 records, first EID IID 4099 10.47.10.2/32, source EID 10.47.4.2, nonce 0x1CFAB931-0x8207CB93. LISP[MR ]-0 IID 4099 IPv4: MS EID 10.47.10.2/32: Sending proxy reply to 10.47.1.12.
LISPマップ応答がエッジノードに到達：
LISP[REMT ]-0: Processing Map-Reply mapping record for IID 4099 IPv4 10.47.10.2/32 LCAF 2, ttl 1440, action none, not authoritative, 1 locator. LISP[REMT ]-0: Processing mapping information for EID prefix IID 4099 10.47.10.2/32.
ファブリックエッジが10.47.10.2のRLOCを照会し、マップ応答を処理します
LISP[REMT ]-0: Map Request: Sending request for IID 4099 EID 10.47.10.2/32, requester 'remote EID RLOC'.
LISP[REMT ]-0: Processing Map-Reply mapping record for IID 4099 IPv4 10.47.10.2/32 LCAF 2, ttl 1440, action none, authoritative, 1 locator. LISP[REMT ]-0: Processing mapping information for EID prefix IID 4099 10.47.10.2/32.
エントリが存在しない場合は、LISPプロセスの観点からデバッグを収集する必要があります。LIG(LISP Grouper)というツールもあり、これを使用して手動でLISPプロセスを起動できます（これは、冗長な制御ノードの設定と両方の制御ノード間のデータベースの一貫性をテストする非常に効果的な方法です）。
Edge-1#lig instance-id 4099 10.47.10.2 to 10.47.1.10 Mapping information for EID 10.47.10.2 from 10.47.1.10 with RTT 334 msecs 10.47.10.2/32, uptime: 00:00:00, expires: 23:59:59, via map-reply, complete Locator Uptime State Pri/Wgt Encap-IID 10.47.1.13 00:00:00 up 10/10 -
Edge-1#lig instance-id 4099 10.47.10.2 to 10.47.1.11 Mapping information for EID 10.47.10.2 from 10.47.1.11 with RTT 327 msecs 10.47.10.2/32, uptime: 00:00:06, expires: 23:59:59, via map-reply, complete Locator Uptime State Pri/Wgt Encap-IID 10.47.1.13 00:00:06 up 10/10 -
ルートの検証
CEFはLISPを使用し、LISPは受信したマップキャッシュエントリを使用します
Edge-1#show ip cef vrf red_vn 10.47.10.2 10.47.10.2/32 nexthop 10.47.1.13 LISP0.4099
Edge-1#show ip route 10.47.1.13 Routing entry for 10.47.1.13/32 Known via "isis", distance 115, metric 30, type level-2 Redistributing via isis Last update from 10.47.1.4 on GigabitEthernet1/0/2, 3d19h ago Routing Descriptor Blocks: 10.47.1.4, from 10.47.1.13, 3d19h ago, via GigabitEthernet1/0/2 Route metric is 30, traffic share count is 1 * 10.47.1.0, from 10.47.1.13, 3d19h ago, via GigabitEthernet1/0/1 Route metric is 30, traffic share count is 1
Edge-1#show lisp instance-id 4099 ipv4 map-cache 10.47.10.2 LISP IPv4 Mapping Cache for LISP 0 EID-table vrf red_vn (IID 4099), 1 entries 10.47.10.2/32, uptime: 00:08:48, expires: 23:51:17, via map-reply, complete Sources: map-reply State: complete, last modified: 00:08:48, map-source: 10.47.1.11 Active, Packets out: 51(29376 bytes), counters are not accurate (~ 00:00:15 ago) Encapsulating dynamic-EID traffic Locator Uptime State Pri/Wgt Encap-IID 10.47.1.13 00:08:48 up 10/10 - Last up-down state change: 00:08:48, state change count: 1 Last route reachability change: 22:07:12, state change count: 1 Last priority / weight change: never/never RLOC-probing loc-status algorithm: Last RLOC-probe sent: 00:08:48 (rtt 931ms)
LISPネクストホップの検証
このパケットはVXLANでカプセル化されるため、LISPネクストホップの確認が必要です。show platform software fed switch active ip adjコマンドを使用して、10.47.1.13（LISPネクストホップ）に関する追加情報を取得します
Edge-1#show platform software fed switch active ip adj IPV4 Adj entries dest if_name dst_mac si_hdl ri_hdl pd_flags adj_id Last-modified ---- ------- ------- ------ ------ -------- ------ ------------- 10.47.1.10 LISP0.4100 4500.0000.0000 0x7f65ec895ed8 0x7f65ec895a68 0x60 0x5c 2023/09/19 17:58:16.545 10.47.1.4 GigabitEthernet1/0/2 5254.001c.7de0 0x7f65ec8a5458 0x7f65ec8a4eb8 0x0 0x4c 2023/09/19 17:58:02.150 10.47.1.0 GigabitEthernet1/0/1 5254.000a.42f3 0x7f65ec8b8468 0x7f65ec8b8158 0x0 0x55 2023/09/19 17:58:08.864 10.47.4.2 Vlan1026 5254.0019.93e9 0x7f65ec7c21f8 0x7f65ec7c2498 0x0 0x1a 2023/09/19 23:59:34.081 10.47.1.13 LISP0.4099 4500.0000.0000 0x7f65ed00f668 0x7f65ed00fd58 0x60 0x20 2023/10/11 15:36:06.243
LISPネクストホップsi_hdlのデコード
si_hdl(0x7f65ed00f668)を使用して、show platform hardware fed switch active fwd-asic abstraction print-resource-handle <si_hdl> 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ed00f668 1 Handle:0x7f65ed00f668 Res-Type:ASIC_RSC_SI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_LISP Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ed00fd58Hardware Indices/Handles: index0:0xc8 mtu_index/l3u_ri_index0:0x0 index1:0xc8 mtu_index/l3u_ri_index1:0x0 Features sharing this resource:109 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 38 5f 84 ec 0a 2f 01 0d ff ff ff ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- Station Index (SI) [0xc8] <-- Contains the RI and DI RI = 0x2c <-- Rewrite Index contains information for L3 Forwarding DI = 0x5012 <-- Destination Index contains information for the destination port stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0xc rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: LD Detailed Resource Information (ASIC_INSTANCE# 1) ----------------------------------------
Station Index (SI) [0xc8] <-- Contains the RI and DI
RI = 0x2c <-- Rewrite Index contains information for L3 Forwarding
DI = 0x5013 <-- Destination Index contains information for the destination port stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0xc rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: LD ==============================================================
LISPネクストホップRIデコード
RI(0x2c)を取得し、show platform hardware fed switch active fwd-asic resource asic all rewrite-index range <RI> <RI>で使用します。
Edge-1#show platform hardware fed switch active fwd-asic resource asic all rewrite-index range 0x2c 0x2c ASIC#:0 RI:44 Rewrite_type:AL_RRM_REWRITE_IPV4_VXLAN_INNER_IPV4_ENCAP(110) Mapped_rii:LVX_L3_ENCAP_L2_PAYLOAD(123) Dst Mac: MAC Addr: ba:25:cd:f4:ad:38, Src IP: 10.47.1.12 <-- Local RLOC Dst IP: 10.47.1.13 <-- RLOC of Edge-2 IPv4 TTL: 0 LISP INSTANCEID: 0 L3IF LE Index: 46 ASIC#:1 RI:44 Rewrite_type:AL_RRM_REWRITE_IPV4_VXLAN_INNER_IPV4_ENCAP(110) Mapped_rii:LVX_L3_ENCAP_L2_PAYLOAD(123) Dst Mac: MAC Addr: ba:25:cd:f4:ad:38,
Src IP: 10.47.1.12 <-- Local RLOC
Dst IP: 10.47.1.13 <-- RLOC of Edge-2 IPv4 TTL: 0 LISP INSTANCEID: 0 L3IF LE Index: 46
LISPネクストホップDIデコード
DI(0x5012)を取得し、show platform hardware fed switch active fwd-asic resource asic all destination-index range <DI> <DI>で使用します。
Edge-1#show platform hardware fed switch active fwd-asic resource asic all destination-index range 0x5012 0x5012 ASIC#0:
Destination index = 0x5012 DI_RCP_PORT1 <-- Expected, this means the packet is recirculated for VXLAN imposition
pmap = 0x00000000 0x00000000
cmi = 0x0
rcp_pmap = 0x1
al_rsc_cmi
CPU Map Index (CMI) [0]
ctiLo0 = 0
ctiLo1 = 0
ctiLo2 = 0
cpuQNum0 = 0
cpuQNum1 = 0
cpuQNum2 = 0
npuIndex = 0
stripSeg = 0
copySeg = 0
ASIC#1:
Destination index = 0x5012 DI_RCP_PORT1 <-- Expected, this means the packet is recirculated for VXLAN imposition
pmap = 0x00000000 0x00000000
cmi = 0x0
rcp_pmap = 0x0
al_rsc_cmi
CPU Map Index (CMI) [0]
ctiLo0 = 0
ctiLo1 = 0
ctiLo2 = 0
cpuQNum0 = 0
cpuQNum1 = 0
cpuQNum2 = 0
npuIndex = 0
stripSeg = 0
copySeg = 0
LISPネクストホップri_hdlデコード
ri_hdl(0x7f65ed00fd58)を取得し、コマンドshow platform hardware fed switch active fwd-asic abstraction print-resource-handle <ri_hdl> 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ed00fd58 1 Handle:0x7f65ed00fd58 Res-Type:ASIC_RSC_RI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_LISP Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ed00b618Hardware Indices/Handles: index0:0x2c mtu_index/l3u_ri_index0:0x0 index1:0x2c mtu_index/l3u_ri_index1:0x0 Features sharing this resource:109 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 2e 00 00 00 0a 2f 01 0d ff ff ff ff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- ASIC#:0 RI:44 Rewrite_type:AL_RRM_REWRITE_IPV4_VXLAN_INNER_IPV4_ENCAP(110) Mapped_rii:LVX_L3_ENCAP_L2_PAYLOAD(123) Dst Mac: MAC Addr: ba:25:cd:f4:ad:38, Src IP: 10.47.1.12 <-- Local RLOC Dst IP: 10.47.1.13 <-- Edge-2 RLOC IPv4 TTL: 0 LISP INSTANCEID: 0 L3IF LE Index: 46 Detailed Resource Information (ASIC_INSTANCE# 1) ---------------------------------------- ASIC#:1 RI:44 Rewrite_type:AL_RRM_REWRITE_IPV4_VXLAN_INNER_IPV4_ENCAP(110) Mapped_rii:LVX_L3_ENCAP_L2_PAYLOAD(123) Dst Mac: MAC Addr: ba:25:cd:f4:ad:38,
Src IP: 10.47.1.12 <-- Local RLOC
Dst IP: 10.47.1.13 <-- Edge-2 RLOC IPv4 TTL: 0 LISP INSTANCEID: 0 L3IF LE Index: 46 ==============================================================
アンダーレイのネクストホップの確認
LISPネクストホップに到達するには、アンダーレイに2つの可能なパスがあります。一方のアンダーレイに対して検証が行われ、もう一方のアンダーレイのネクストホップの検証にも同じロジックが適用されます。
Edge-1#show ip route 10.47.1.13
Routing entry for 10.47.1.13/32
Known via "isis", distance 115, metric 30, type level-2
Redistributing via isis
Last update from 10.47.1.4 on GigabitEthernet1/0/2, 3d19h ago
Routing Descriptor Blocks:
10.47.1.4, from 10.47.1.13, 3d19h ago, via GigabitEthernet1/0/2
Route metric is 30, traffic share count is 1
* 10.47.1.0, from 10.47.1.13, 3d19h ago, via GigabitEthernet1/0/1
Route metric is 30, traffic share count is 1
ネクストホップの詳細を取得するには、show platform software fed switch active ip adjを使用します。
Edge-1#show platform software fed switch active ip adj IPV4 Adj entries dest if_name dst_mac si_hdl ri_hdl pd_flags adj_id Last-modified ---- ------- ------- ------ ------ -------- ------ ------------- 10.47.1.4 GigabitEthernet1/0/2 5254.001c.7de0 0x7f65ec8a5458 0x7f65ec8a4eb8 0x0 0x4c 2023/09/19 17:58:02.150 10.47.1.0 GigabitEthernet1/0/1 5254.000a.42f3 0x7f65ec8b8468 0x7f65ec8b8158 0x0 0x55 2023/09/19 17:58:08.864 <snip>
アンダーレイのネクストホップsi_hdlデコード
si_hdl(0x7f65ec8a5458)を取得し、コマンドshow platform hardware fed switch active fwd-asic abstraction print-resource-handle <si_hdl> 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ec8a5458 1 Handle:0x7f65ec8a5458 Res-Type:ASIC_RSC_SI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L3_UNICAST_IPV4 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ec8a4eb8Hardware Indices/Handles: index0:0xbc mtu_index/l3u_ri_index0:0x0 index1:0xbc mtu_index/l3u_ri_index1:0x0 Features sharing this resource:66 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 26 00 00 00 00 00 00 00 00 00 00 00 08 00 52 54 00 1c 7d e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- Station Index (SI) [0xbc] <-- Contains the RI and DI RI = 0x1a <-- Rewrite index contains information for L3 Forwarding DI = 0x526d <-- Destination index contains information for the destination port stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: LD Detailed Resource Information (ASIC_INSTANCE# 1) ----------------------------------------
Station Index (SI) [0xbc] <-- Contains the RI and DI
RI = 0x1a <-- Rewrite index contains information for L3 Forwarding
DI = 0x526d <-- Destination index contains information for the destination port stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0 Replication Bitmap: CD ==============================================================
アンダーレイのネクストホップRIデコード
RI(0x1a)を取得し、コマンドshow platform hardware fed switch active fwd-asic resource asic all rewrite-index range <RI> <RI>で使用します。
Edge-1#show platform hardware fed switch active fwd-asic resource asic all rewrite-index range 0x1a 0x1a ASIC#:0 RI:26 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) <-- Decimal 26 is hex 0x1a MAC Addr: MAC Addr: 52:54:00:1c:7d:e0, <-- MAC Address 5254.001c.7de0 corresponds to the next-hop L3IF LE Index 38 ASIC#:1 RI:26 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9)<-- Decimal 26 is hex 0x1a MAC Addr: MAC Addr: 52:54:00:1c:7d:e0, <-- MAC Address 5254.001c.7de0 corresponds to the next-hop L3IF LE Index 38
アンダーレイのネクストホップDIデコード
DI(0x526d)を取得し、コマンドshow platform hardware fed switch active fwd-asic resource asic all destination-index range <DI> <DI>で使用します。
Edge-1#show platform hardware fed switch active fwd-asic resource asic all destination-index range 0x526d 0x526d ASIC#0: Destination index = 0x526d pmap = 0x00000000 0x00000002 <-- Take decimal 2 and convert to binary, so 0010, and then count this binary right to left zero-based, so Port 1 pmap_intf : [GigabitEthernet1/0/2] cmi = 0x0 rcp_pmap = 0x0 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0 ASIC#1: Destination index = 0x526d pmap = 0x00000000 0x00000000 cmi = 0x0 rcp_pmap = 0x0 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0
Edge-1#show platform software fed switch active ifm mappings Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x1a 0 0 0 0 0 1 0 1 1 NIF Y GigabitEthernet1/0/2 0x1b 0 0 0 1 0 2 1 2 2 NIF Y <-- Port 1 maps to Gig1/0/2 GigabitEthernet1/0/3 0xb 0 0 0 2 0 3 2 3 3 NIF Y GigabitEthernet1/0/4 0xc 0 0 0 3 0 4 3 4 4 NIF Y GigabitEthernet1/0/5 0xd 0 0 0 4 0 5 4 5 5 NIF Y GigabitEthernet1/0/6 0xe 0 0 0 5 0 6 5 6 6 NIF Y GigabitEthernet1/0/7 0xf 0 0 0 6 0 7 6 7 7 NIF Y GigabitEthernet1/0/8 0x10 0 0 0 7 0 8 7 8 8 NIF Y
アンダーレイのネクストホップri_hdlデコード
ri_hdl(0x7f65ec8b8158)を取得し、コマンドshow platform hardware fed switch active fwd-asic abstraction print-resource-handle <ri_hdl> 1
Edge-1#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f65ec8b8158 1 Handle:0x7f65ec8b8158 Res-Type:ASIC_RSC_RI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L3_UNICAST_IPV4 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:1 priv_ri/priv_si Handle: 0x7f65ec7a6338Hardware Indices/Handles: index0:0x1b mtu_index/l3u_ri_index0:0x0 index1:0x1b mtu_index/l3u_ri_index1:0x0 Features sharing this resource:66 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 25 00 00 00 00 00 00 00 00 00 00 00 08 00 52 54 00 0a 42 f3 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- ASIC#:0 RI:27 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) MAC Addr: MAC Addr: 52:54:00:0a:42:f3, L3IF LE Index 37 Detailed Resource Information (ASIC_INSTANCE# 1) ---------------------------------------- ASIC#:1 RI:27 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) MAC Addr: MAC Addr: 52:54:00:0a:42:f3, L3IF LE Index 37 ==============================================================
パケットはVXLANにカプセル化され、ロードバランシングルールに基づいて送信されます。Embedded Packet Capture(EPC)を使用すると、すべてのインターフェイス上のトラフィックを同時にキャプチャできます。この時点で、パケットはVXLANカプセル化されています。EPCフィルタは、内部IPv4アドレスではなく、RLOCからRLOCに対して適用される必要があります。
Edge-1#monitor capture 1 interface range g1/0/1-2 out match ipv4 host 10.47.1.12 host 10.47.1.13 Edge-1#monitor capture 1 start Started capture point : 1 Edge-1# Edge-1#monitor capture 1 stop Capture statistics collected at software: Capture duration - 18 seconds Packets received - 4 Packets dropped - 0 Packets oversized - 0 Number of Bytes dropped at asic not collected Capture buffer will exists till exported or cleared Stopped capture point : 1
Edge-1#show monitor capture 1 buffer brief Starting the packet display ........ Press Ctrl + Shift + 6 to exit 1 0.000000 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0046, seq=0/0, ttl=63 2 0.980849 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0046, seq=1/256, ttl=63 3 1.984077 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0046, seq=2/512, ttl=63 4 2.999989 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0046, seq=3/768, ttl=63
Edge-1#show monitor capture 1 buffer detailed Starting the packet display ........ Press Ctrl + Shift + 6 to exit Frame 1: 148 bytes on wire (1184 bits), 148 bytes captured (1184 bits) on interface /tmp/epc_ws/wif_to_ts_pipe, id 0 Interface id: 0 (/tmp/epc_ws/wif_to_ts_pipe) Interface name: /tmp/epc_ws/wif_to_ts_pipe Encapsulation type: Ethernet (1) Arrival Time: Oct 11, 2023 16:50:52.262553000 UTC [Time shift for this packet: 0.000000000 seconds] Epoch Time: 1697043052.262553000 seconds [Time delta from previous captured frame: 0.000000000 seconds] [Time delta from previous displayed frame: 0.000000000 seconds] [Time since reference or first frame: 0.000000000 seconds] Frame Number: 1 Frame Length: 148 bytes (1184 bits) Capture Length: 148 bytes (1184 bits) [Frame is marked: False] [Frame is ignored: False] [Protocols in frame: eth:ethertype:ip:udp:vxlan:eth:ethertype:ip:icmp:data] Ethernet II, Src: 00:00:00:00:00:00 (00:00:00:00:00:00), Dst: 00:00:00:00:00:00 (00:00:00:00:00:00) <-- EPC does not capture L3 rewrite on egress properly, this is OK Destination: 00:00:00:00:00:00 (00:00:00:00:00:00) Address: 00:00:00:00:00:00 (00:00:00:00:00:00) .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Source: 00:00:00:00:00:00 (00:00:00:00:00:00) Address: 00:00:00:00:00:00 (00:00:00:00:00:00) .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Type: IPv4 (0x0800) Internet Protocol Version 4, Src: 10.47.1.12, Dst: 10.47.1.13 <-- RLOC to RLOC 0100 .... = Version: 4 .... 0101 = Header Length: 20 bytes (5) Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT) 0000 00.. = Differentiated Services Codepoint: Default (0) .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0) Total Length: 134 Identification: 0x1d6f (7535) Flags: 0x4000, Don't fragment 0... .... .... .... = Reserved bit: Not set .1.. .... .... .... = Don't fragment: Set ..0. .... .... .... = More fragments: Not set Fragment offset: 0 Time to live: 64 Protocol: UDP (17) Header checksum: 0x0682 [validation disabled] [Header checksum status: Unverified] Source: 10.47.1.12 Destination: 10.47.1.13 User Datagram Protocol, Src Port: 65354, Dst Port: 4789 Source Port: 65354 Destination Port: 4789 Length: 114 [Checksum: [missing]] [Checksum Status: Not present] [Stream index: 0] [Timestamps] [Time since first frame: 0.000000000 seconds] [Time since previous frame: 0.000000000 seconds] Virtual eXtensible Local Area Network Flags: 0x8800, GBP Extension, VXLAN Network ID (VNI) 1... .... .... .... = GBP Extension: Defined .... .... .0.. .... = Don't Learn: False .... 1... .... .... = VXLAN Network ID (VNI): True .... .... .... 0... = Policy Applied: False .000 .000 0.00 .000 = Reserved(R): 0x0000 Group Policy ID: 0 VXLAN Network Identifier (VNI): 4099 <-- LISP L3 IID Reserved: 0 Ethernet II, Src: 00:00:00:00:61:00 (00:00:00:00:61:00), Dst: ba:25:cd:f4:ad:38 (ba:25:cd:f4:ad:38) <-- Dummy Ethernet header for VXLAN Destination: ba:25:cd:f4:ad:38 (ba:25:cd:f4:ad:38) Address: ba:25:cd:f4:ad:38 (ba:25:cd:f4:ad:38) .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Source: 00:00:00:00:61:00 (00:00:00:00:61:00) Address: 00:00:00:00:61:00 (00:00:00:00:61:00) .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Type: IPv4 (0x0800) Internet Protocol Version 4, Src: 10.47.4.2, Dst: 10.47.10.2 <-- True IPv4 addresses 0100 .... = Version: 4 .... 0101 = Header Length: 20 bytes (5) Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT) 0000 00.. = Differentiated Services Codepoint: Default (0) .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0) Total Length: 84 Identification: 0x92f6 (37622) Flags: 0x4000, Don't fragment 0... .... .... .... = Reserved bit: Not set .1.. .... .... .... = Don't fragment: Set ..0. .... .... .... = More fragments: Not set Fragment offset: 0 Time to live: 63 Protocol: ICMP (1) Header checksum: 0x8651 [validation disabled] [Header checksum status: Unverified] Source: 10.47.4.2 Destination: 10.47.10.2 Internet Control Message Protocol Type: 8 (Echo (ping) request) Code: 0 Checksum: 0xa383 [correct] [Checksum Status: Good] Identifier (BE): 70 (0x0046) Identifier (LE): 17920 (0x4600) Sequence number (BE): 0 (0x0000) Sequence number (LE): 0 (0x0000) Data (56 bytes) 0000 78 1e dc 17 00 00 00 00 00 00 00 00 00 00 00 00 x............... 0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 00 00 00 00 00 00 00 00 ........ Data: 781edc170000000000000000000000000000000000000000b^@& [Length: 56]
カプセル化されたVXLANパケットがEdge-2に到達します。
Edge-2#monitor capture 1 interface range g1/0/1-2 in match ipv4 host 10.47.1.12 host 10.47.1.13 Edge-2#monitor capture 1 start Started capture point : 1 Edge-2#monitor capture 1 stop Capture statistics collected at software: Capture duration - 7 seconds Packets received - 6 Packets dropped - 0 Packets oversized - 0 Number of Bytes dropped at asic not collected Capture buffer will exists till exported or cleared Stopped capture point : 1
Edge-2#show monitor capture 1 buffer brief Starting the packet display ........ Press Ctrl + Shift + 6 to exit 1 0.000000 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0047, seq=0/0, ttl=63 2 0.007826 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0047, seq=0/0, ttl=63 3 0.086345 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0047, seq=1/256, ttl=63 4 0.097490 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0047, seq=1/256, ttl=63 5 1.150969 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0047, seq=2/512, ttl=63 6 1.163817 10.47.4.2 -> 10.47.10.2 ICMP 148 Echo (ping) request id=0x0047, seq=2/512, ttl=63
Edge-2#show monitor capture 1 buffer detailed Starting the packet display ........ Press Ctrl + Shift + 6 to exit Frame 1: 148 bytes on wire (1184 bits), 148 bytes captured (1184 bits) on interface /tmp/epc_ws/wif_to_ts_pipe, id 0 Interface id: 0 (/tmp/epc_ws/wif_to_ts_pipe) Interface name: /tmp/epc_ws/wif_to_ts_pipe Encapsulation type: Ethernet (1) Arrival Time: Oct 11, 2023 16:58:12.702159000 UTC [Time shift for this packet: 0.000000000 seconds] Epoch Time: 1697043492.702159000 seconds [Time delta from previous captured frame: 0.000000000 seconds] [Time delta from previous displayed frame: 0.000000000 seconds] [Time since reference or first frame: 0.000000000 seconds] Frame Number: 1 Frame Length: 148 bytes (1184 bits) Capture Length: 148 bytes (1184 bits) [Frame is marked: False] [Frame is ignored: False] [Protocols in frame: eth:ethertype:ip:udp:vxlan:eth:ethertype:ip:icmp:data] Ethernet II, Src: 52:54:00:0a:42:11 (52:54:00:0a:42:11), Dst: 52:54:00:17:fe:65 (52:54:00:17:fe:65) <-- True MAC addresses post L3 rewrite Destination: 52:54:00:17:fe:65 (52:54:00:17:fe:65) Address: 52:54:00:17:fe:65 (52:54:00:17:fe:65) .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Source: 52:54:00:0a:42:11 (52:54:00:0a:42:11) Address: 52:54:00:0a:42:11 (52:54:00:0a:42:11) .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Type: IPv4 (0x0800) Internet Protocol Version 4, Src: 10.47.1.12, Dst: 10.47.1.13 <-- RLOC to RLOC 0100 .... = Version: 4 .... 0101 = Header Length: 20 bytes (5) Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT) 0000 00.. = Differentiated Services Codepoint: Default (0) .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0) Total Length: 134 Identification: 0x1d7b (7547) Flags: 0x4000, Don't fragment 0... .... .... .... = Reserved bit: Not set .1.. .... .... .... = Don't fragment: Set ..0. .... .... .... = More fragments: Not set Fragment offset: 0 Time to live: 62 Protocol: UDP (17) Header checksum: 0x0876 [validation disabled] [Header checksum status: Unverified] Source: 10.47.1.12 Destination: 10.47.1.13 User Datagram Protocol, Src Port: 65354, Dst Port: 4789 Source Port: 65354 Destination Port: 4789 Length: 114 [Checksum: [missing]] [Checksum Status: Not present] [Stream index: 0] [Timestamps] [Time since first frame: 0.000000000 seconds] [Time since previous frame: 0.000000000 seconds] Virtual eXtensible Local Area Network Flags: 0x8800, GBP Extension, VXLAN Network ID (VNI) 1... .... .... .... = GBP Extension: Defined .... .... .0.. .... = Don't Learn: False .... 1... .... .... = VXLAN Network ID (VNI): True .... .... .... 0... = Policy Applied: False .000 .000 0.00 .000 = Reserved(R): 0x0000 Group Policy ID: 0 VXLAN Network Identifier (VNI): 4099 <-- LISP L3 IID Reserved: 0 Ethernet II, Src: 00:00:00:00:61:00 (00:00:00:00:61:00), Dst: ba:25:cd:f4:ad:38 (ba:25:cd:f4:ad:38) <-- Dummy Ethernet header for VXLAN Destination: ba:25:cd:f4:ad:38 (ba:25:cd:f4:ad:38) Address: ba:25:cd:f4:ad:38 (ba:25:cd:f4:ad:38) .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Source: 00:00:00:00:61:00 (00:00:00:00:61:00) Address: 00:00:00:00:61:00 (00:00:00:00:61:00) .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Type: IPv4 (0x0800) Internet Protocol Version 4, Src: 10.47.4.2, Dst: 10.47.10.2 0100 .... = Version: 4 .... 0101 = Header Length: 20 bytes (5) Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT) 0000 00.. = Differentiated Services Codepoint: Default (0) .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0) Total Length: 84 Identification: 0x1abb (6843) Flags: 0x4000, Don't fragment 0... .... .... .... = Reserved bit: Not set .1.. .... .... .... = Don't fragment: Set ..0. .... .... .... = More fragments: Not set Fragment offset: 0 Time to live: 63 Protocol: ICMP (1) Header checksum: 0xfe8c [validation disabled] [Header checksum status: Unverified] Source: 10.47.4.2 Destination: 10.47.10.2 Internet Control Message Protocol Type: 8 (Echo (ping) request) Code: 0 Checksum: 0x044f [correct] [Checksum Status: Good] Identifier (BE): 71 (0x0047) Identifier (LE): 18176 (0x4700) Sequence number (BE): 0 (0x0000) Sequence number (LE): 0 (0x0000) Data (56 bytes) 0000 e8 37 0b 32 00 00 00 00 00 00 00 00 00 00 00 00 .7.2............ 0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 00 00 00 00 00 00 00 00 ........ Data: e8370b320000000000000000000000000000000000000000b^@& [Length: 56]
Edge-2はVXLANヘッダーのカプセル化を解除し、ARPテーブルを参照してICMP要求を10.47.10.2に転送します。
Edge-2#show ip cef vrf red_vn 10.47.10.2 10.47.10.2/32 nexthop 10.47.10.2 Vlan1028
Edge-2#show platform software fed switch active ip adj IPV4 Adj entries dest if_name dst_mac si_hdl ri_hdl pd_flags adj_id Last-modified ---- ------- ------- ------ ------ -------- ------ ------------- 10.47.10.2 Vlan1028 5254.0002.cbf5 0x7f5744f89988 0x7f5744f8afa8 0x0 0x26 2023/10/09 18:57:59.026
<snip>
エンドポイントsi_hdlデコード
si_hdl(0x7f5744f89988)を使用して、show platform hardware fed switch active fwd-asic abstraction print-resource-handle <si_hdl> 1
Edge-2#show platform hardware fed switch active fwd-asic abstraction print-resource-handle 0x7f5744f89988 1 Handle:0x7f5744f89988 Res-Type:ASIC_RSC_SI Res-Switch-Num:255 Asic-Num:255 Feature-ID:AL_FID_L3_UNICAST_IPV4 Lkp-ftr-id:LKP_FEAT_INVALID ref_count:2 priv_ri/priv_si Handle: 0x7f5744f8afa8Hardware Indices/Handles: index0:0xc8 mtu_index/l3u_ri_index0:0x0 index1:0xc8 mtu_index/l3u_ri_index1:0x0 Features sharing this resource:66 (1)] 57 (1)] Cookie length: 56 00 00 00 00 00 00 00 00 04 04 00 00 00 00 00 00 00 00 00 00 07 00 52 54 00 02 cb f5 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Detailed Resource Information (ASIC_INSTANCE# 0) ---------------------------------------- Station Index (SI) [0xc8] <-- Station Index contains RI and DI RI = 0x2c <-- Rewrite Index contains information for L2 Forwarding DI = 0x526e <-- Rewrite Index contains destination port information stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0x1 Replication Bitmap: LD Detailed Resource Information (ASIC_INSTANCE# 1) ----------------------------------------
Station Index (SI) [0xc8] <-- Station Index contains RI and DI
RI = 0x2c <-- Rewrite Index contains information for L2 Forwarding
DI = 0x526e <-- Rewrite Index contains destination port information stationTableGenericLabel = 0 stationFdConstructionLabel = 0x7 lookupSkipIdIndex = 0 rcpServiceId = 0 dejaVuPreCheckEn = 0x1 Replication Bitmap: CD ==============================================================
エンドポイントRIデコード
RI(0x2c)を取得し、コマンドshow platform hardware fed switch active fwd-asic resource asic all rewrite-index range <RI> <RI>で使用します。
Edge-2#show platform hardware fed switch active fwd-asic resource asic all rewrite-index range 0x2c 0x2c ASIC#:0 RI:44 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) <-- Decimal 44 is hex 0x2c MAC Addr: MAC Addr: 52:54:00:02:cb:f5, <-- MAC Address 5254.0002.cbf5 is 10.47.10.2 L3IF LE Index 50 ASIC#:1 RI:44 Rewrite_type:AL_RRM_REWRITE_L3_UNICAST_IPV4_SHARED(1) Mapped_rii:L3_UNICAST_IPV4(9) <-- Decimal 44 is hex 0x2c MAC Addr: MAC Addr: 52:54:00:02:cb:f5,<-- MAC Address 5254.0002.cbf5 is 10.47.10.2 L3IF LE Index 50
エンドポイントDIのデコード
DI(0x526e)を取得し、show platform hardware fed switch active fwd-asic resource asic all destination-index range <DI> <DI>で使用します。
Edge-2#show platform hardware fed switch active fwd-asic resource asic all destination-index range 0x526e 0x526e ASIC#0: Destination index = 0x526e pmap = 0x00000000 0x00000010 <-- Convert 10 into binary, 0001 and 0000, so 00010000, and count from right to left, zero-based, so Port 4 pmap_intf : [GigabitEthernet1/0/5] cmi = 0x0 rcp_pmap = 0x0 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0 ASIC#1: Destination index = 0x526e pmap = 0x00000000 0x00000000 cmi = 0x0 rcp_pmap = 0x0 al_rsc_cmi CPU Map Index (CMI) [0] ctiLo0 = 0 ctiLo1 = 0 ctiLo2 = 0 cpuQNum0 = 0 cpuQNum1 = 0 cpuQNum2 = 0 npuIndex = 0 stripSeg = 0 copySeg = 0
Edge-2#show platform software fed switch active ifm mappings Interface IF_ID Inst Asic Core Port SubPort Mac Cntx LPN GPN Type Active GigabitEthernet1/0/1 0x1a 0 0 0 0 0 1 0 1 1 NIF Y GigabitEthernet1/0/2 0x1b 0 0 0 1 0 2 1 2 2 NIF Y GigabitEthernet1/0/3 0xb 0 0 0 2 0 3 2 3 3 NIF Y GigabitEthernet1/0/4 0xc 0 0 0 3 0 4 3 4 4 NIF Y GigabitEthernet1/0/5 0xd 0 0 0 4 0 5 4 5 5 NIF Y <-- Port 4 corresponds to Gig1/0/5 GigabitEthernet1/0/6 0xe 0 0 0 5 0 6 5 6 6 NIF Y GigabitEthernet1/0/7 0xf 0 0 0 6 0 7 6 7 7 NIF Y GigabitEthernet1/0/8 0x10 0 0 0 7 0 8 7 8 8 NIF Y
Edge-2はパケットのカプセル化を解除し、HOST-03が接続されている出力インターフェイスにパケットを送信します。
Edge-2#monitor capture 1 interface g1/0/5 out match ipv4 host 10.47.4.2 host 10.47.10.2 Edge-2#monitor capture 1 start Started capture point : 1 Edge-2#monitor capture 1 stop Capture statistics collected at software: Capture duration - 6 seconds Packets received - 3 Packets dropped - 0 Packets oversized - 0 Number of Bytes dropped at asic not collected Capture buffer will exists till exported or cleared Stopped capture point : 1
Edge-2#show monitor capture 1 buffer brief Starting the packet display ........ Press Ctrl + Shift + 6 to exit 1 0.000000 10.47.4.2 -> 10.47.10.2 ICMP 106 Echo (ping) request id=0x0048, seq=0/0, ttl=62 2 0.984985 10.47.4.2 -> 10.47.10.2 ICMP 106 Echo (ping) request id=0x0048, seq=1/256, ttl=62 3 1.985357 10.47.4.2 -> 10.47.10.2 ICMP 106 Echo (ping) request id=0x0048, seq=2/512, ttl=62
Edge-2#show monitor capture 1 buffer detailed Starting the packet display ........ Press Ctrl + Shift + 6 to exit Frame 1: 106 bytes on wire (848 bits), 106 bytes captured (848 bits) on interface /tmp/epc_ws/wif_to_ts_pipe, id 0 Interface id: 0 (/tmp/epc_ws/wif_to_ts_pipe) Interface name: /tmp/epc_ws/wif_to_ts_pipe Encapsulation type: Ethernet (1) Arrival Time: Oct 11, 2023 17:22:20.730331000 UTC [Time shift for this packet: 0.000000000 seconds] Epoch Time: 1697044940.730331000 seconds [Time delta from previous captured frame: 0.000000000 seconds] [Time delta from previous displayed frame: 0.000000000 seconds] [Time since reference or first frame: 0.000000000 seconds] Frame Number: 1 Frame Length: 106 bytes (848 bits) Capture Length: 106 bytes (848 bits) [Frame is marked: False] [Frame is ignored: False] [Protocols in frame: eth:ethertype:cmd:ethertype:ip:icmp:data] Ethernet II, Src: 00:00:00:00:61:00 (00:00:00:00:61:00), Dst: ff:ff:ff:ff:ff:ff (ff:ff:ff:ff:ff:ff) <-- Dummy Ethernet header, EPC does not capture it properly Destination: ff:ff:ff:ff:ff:ff (ff:ff:ff:ff:ff:ff) Address: ff:ff:ff:ff:ff:ff (ff:ff:ff:ff:ff:ff) .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default) .... ...1 .... .... .... .... = IG bit: Group address (multicast/broadcast) Source: 00:00:00:00:61:00 (00:00:00:00:61:00) Address: 00:00:00:00:61:00 (00:00:00:00:61:00) .... ..0. .... .... .... .... = LG bit: Globally unique address (factory default) .... ...0 .... .... .... .... = IG bit: Individual address (unicast) Type: CiscoMetaData (0x8909) Cisco MetaData Version: 1 Length: 1 Options: 0x0001 SGT: 0 Type: IPv4 (0x0800) Internet Protocol Version 4, Src: 10.47.4.2, Dst: 10.47.10.2 <-- True IP addresses 0100 .... = Version: 4 .... 0101 = Header Length: 20 bytes (5) Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT) 0000 00.. = Differentiated Services Codepoint: Default (0) .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0) Total Length: 84 Identification: 0x35e4 (13796) Flags: 0x4000, Don't fragment 0... .... .... .... = Reserved bit: Not set .1.. .... .... .... = Don't fragment: Set ..0. .... .... .... = More fragments: Not set Fragment offset: 0 Time to live: 62 Protocol: ICMP (1) Header checksum: 0xe463 [validation disabled] [Header checksum status: Unverified] Source: 10.47.4.2 Destination: 10.47.10.2 Internet Control Message Protocol Type: 8 (Echo (ping) request) Code: 0 Checksum: 0x2693 [correct] [Checksum Status: Good] Identifier (BE): 72 (0x0048) Identifier (LE): 18432 (0x4800) Sequence number (BE): 0 (0x0000) Sequence number (LE): 0 (0x0000) Data (56 bytes) 0000 69 9c 67 88 00 00 00 00 00 00 00 00 00 00 00 00 i.g............. 0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 0030 00 00 00 00 00 00 00 00 ........ Data: 699c67880000000000000000000000000000000000000000b^@& [Length: 56]
更新履歴
| 改定 | 発行日 | コメント |
|---|---|---|
1.0 |
12-Oct-2023 |
初版 |
フィードバック
