Introduzione

Prerequisiti

Requisiti:

Componente utilizzato:

Introduzione

Architettura di distribuzione

Log

Webex Connect Portal

Cloud Connect - Routing digitale

Router

Console del browser

Informazioni correlate

Introduzione

Questo documento descrive il flusso di messaggi per una nuova attività instradata a un agente in una soluzione Contact Center Enterprise integrata con Webex Connect.

Prerequisiti

Requisiti:

Cisco raccomanda la conoscenza dei seguenti argomenti:

Cisco Packaged Contact Center Enterprise (PCCE)
Cisco Unified Contact Center Enterprise (UCCE)
Webex Connect

Componente utilizzato:

Le informazioni fornite in questo documento si basano sulle seguenti versioni software e hardware:

Versione ICM: 12.6(2)
Versione Finesse: 12.6(2)
Webex Control Hub
Webex Connect Portal
Webex Engage Portal

Le informazioni discusse in questo documento fanno riferimento a dispositivi usati in uno specifico ambiente di emulazione. Su tutti i dispositivi menzionati nel documento la configurazione è stata ripristinata ai valori predefiniti. Se la rete è operativa, valutare attentamente eventuali conseguenze derivanti dall'uso dei comandi.

Introduzione

Webex Connect consente all'azienda di Contact Center e ai suoi clienti di interagire utilizzando canali digitali come e-mail, chat e SMS. La soluzione Contact Center Enterprise (CCE) si integra con Webex Connect per offrire ai clienti un'esperienza multicanale ottimale. Questa integrazione aiuta i clienti a interagire attraverso la voce e i canali digitali di comunicazione. Webex Connect offre una ricca integrazione self-service e bot per consentire ai clienti di ottenere risposte ad alcune domande comuni. Fornisce una soluzione unificata per il routing integrato, Agent Desktop e il servizio di reporting. Webex Connect fornisce una struttura semplificata che aiuta partner e clienti a interagire attraverso i canali digitali.

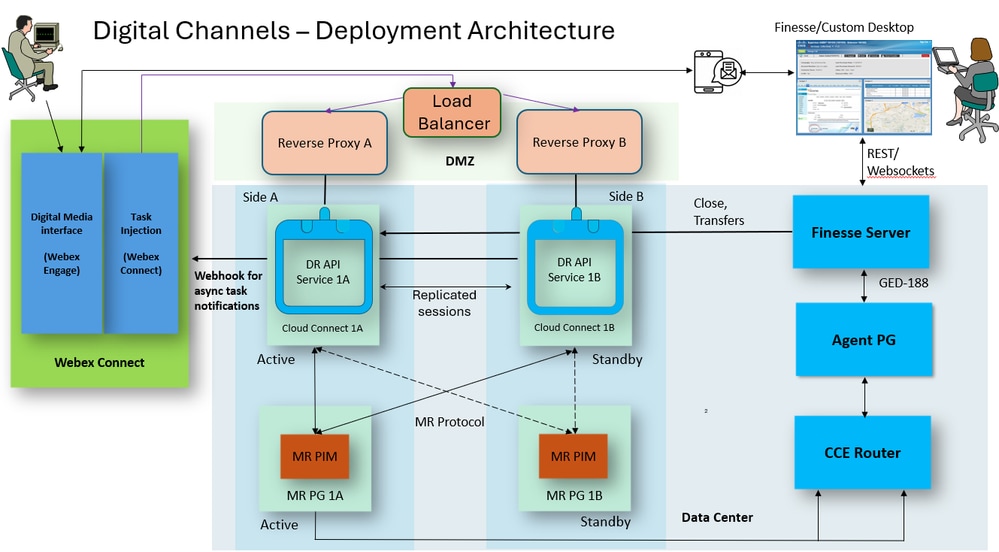

Architettura di distribuzione

alt-tag-for-image

Component Summary Riepilogo componenti

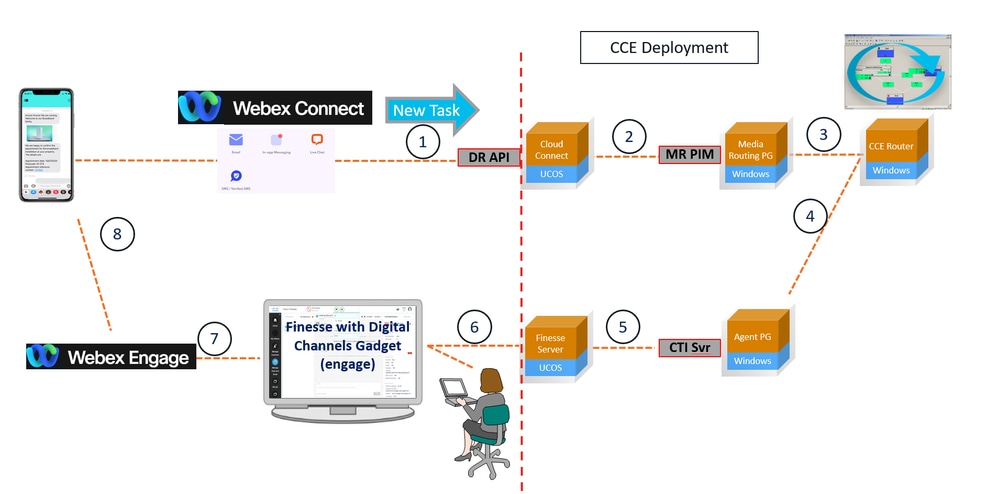

Routing attività

alt-tag-for-image

Log

Webex Connect Portal

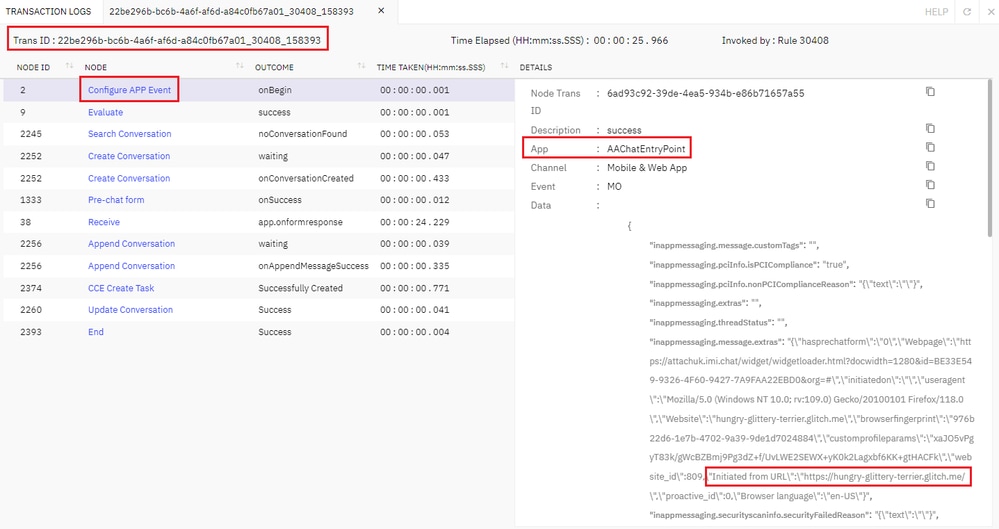

Nodo - Configura evento APP

Questo nodo è il punto iniziale del flusso. I log per questo nodo mostrano dettagli come il punto di ingresso dell'app configurato sul portale Webex Connect, l'URL da cui è stato avviato il form chat e così via.

alt-tag-for-image

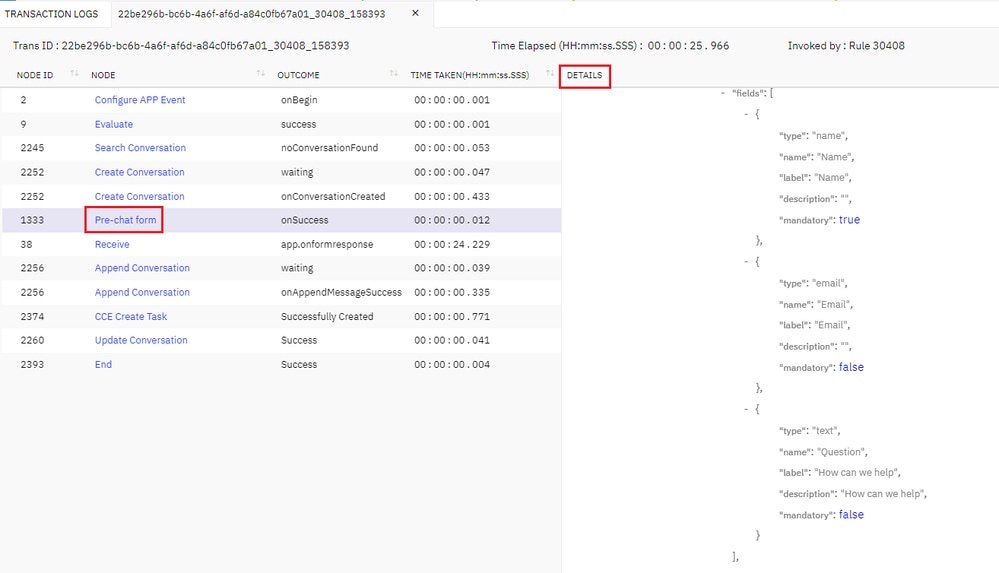

Nodo - Modulo pre-chat

I log per questo nodo mostrano le domande caricate dal modello di chat creato sul portale Webex Connect.

alt-tag-for-image

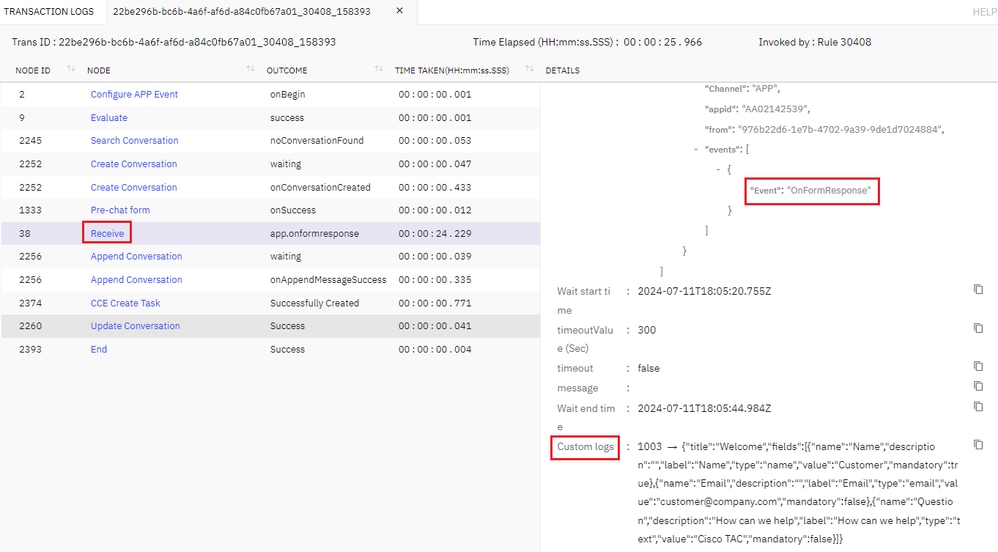

Nodo - Ricezione

Nei log di questo nodo vengono visualizzate le risposte fornite alle domande caricate dal modello di chat.

alt-tag-for-image

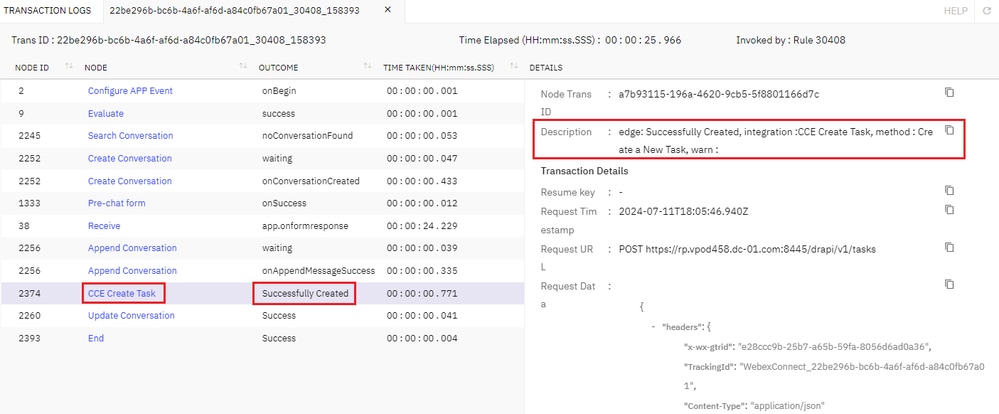

Nodo - Attività creazione CCE

Questo nodo chiama l'API Attività organizzazione Contact Center per creare una nuova attività. Durante la configurazione dei flussi in Webex Connect, questo nodo è necessario per la creazione dell'attività in Contact Center Enterprise.

alt-tag-for-image

Cloud Connect - Routing digitale

## Incoming NEW_TASK request coming in from the 'CCE Create Task' node Webex Connect Flow:
[INFO ] 2024-07-11 14:05:45.989 [http-nio-127.0.0.1-8091-exec-9:60] [WebexConnect_22be296b-bc6b-4a6f-af6d-a84c0fb67a01] TrackingIdFilter - Request with trackingId WebexConnect_22be296b-bc6b-4a6f-af6d-a84c0fb67a01 received from remote address 198.18.134.93.
[DEBUG] 2024-07-11 14:05:46.024 [TaskNotificationProcessor-3:153] [] TaskNotificationProcessor - Notification received from queue for task: WebhookNotification(id=dfedd569-f202-4d20-8baa-ff91e3ab0337, specversion=v1, refUrl=/v1/tasks/22be296b-bc6b-4a6f-af6d-a84c0fb67a01, data=Task{taskType='null', id='22be296b-bc6b-4a6f-af6d-a84c0fb67a01', orgId='null', customerId='customer@example.com', origin='976b22d6-1e7b-4702-9a39-9de1d7024884', destination='AA02142539', mediaType='chat', mediaChannel='chat', state='created', owner=null, queue='null', direction='inbound', createdTime=1720721146009, lastUpdatedTime=1720721146016, scriptSelector='WxConnectChat1', preferredOwner=null', estimatedWaitTime =-1, variables=[Variable{name='user_DR_CustomerName', type='String', value='Customer'}, Variable{name='user_DR_MediaResourceID', type='String', value='CSR4PMKEIFWI7EMX'}, Variable{name='ChatThreadID', type='String', value='4d2bf67e-42af-4fd8-840d-95dc0cb847da'}], links=Links{webhook=Link{href='https://integrations.eu.webexconnect.io/v1/integration/cce/tenant/Ciscolivetenant01', method='POST'}}, history=null})
[DEBUG] 2024-07-11 14:05:46.025 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: created on URL: https://integrations.eu.webexconnect.io/v1/integration/cce/tenant/Ciscolivetenant01
[DEBUG] 2024-07-11 14:05:46.025 [TaskNotificationProcessor-3:153] [] NotificationRestClient - incrementing the current webhook counter from 0 to 1
[INFO ] 2024-07-11 14:05:46.025 [http-nio-127.0.0.1-8091-exec-9:60] [WebexConnect_22be296b-bc6b-4a6f-af6d-a84c0fb67a01] MediaChannelMaxTasksController - Enqueuing Request message at Media layer : NEW_TASK
[INFO ] 2024-07-11 14:05:46.031 [http-nio-127.0.0.1-8091-exec-9:60] [WebexConnect_22be296b-bc6b-4a6f-af6d-a84c0fb67a01] MediaChannelMaxTasksController - Enqueued NEW_TASK:22be296b-bc6b-4a6f-af6d-a84c0fb67a01 for chat NewTaskProcessor

## This NEW_TASK request is then sent to the MR-PIM:
[INFO ] 2024-07-11 14:05:46.038 [ApiRequestsProcessorThread:211] [] MrRequestProcessor - NEW_TASK Request is sent for TaskID 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 DialogID 14
[INFO ] 2024-07-11 14:05:46.038 [ApiRequestsProcessorThread:211] [] MrRequestProcessor - Sent RequestMessage{requestType=NEW_TASK, taskID=22be296b-bc6b-4a6f-af6d-a84c0fb67a01} to MRPIM
[DEBUG] 2024-07-11 14:05:46.038 [ApiRequestsProcessorThread:211] [] MrRequestProcessor - Sent NewTaskV5{dialogueID=14, sendSeqNo=1, mrDomainID=5016, previousTask= ICMTaskId: -1.-1.-1, preferredAgent=-1, service=-1, ciscoReserved=0, serviceRequested=0, queueType=0, queueID=-1, scriptSelector=WxConnectChat1, applicationString1=null, applicationString2=22be296b-bc6b-4a6f-af6d-a84c0fb67a01} to MRPIM

## Task state is queued and then routed:
[INFO ] 2024-07-11 14:05:46.044 [ApiRequestsProcessorThread:211] [] RedissonQueues - Enqueued Notification on queue webhookQueue-3 for Task 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 and State queued
[INFO ] 2024-07-11 14:05:46.052 [MRProcessorThread:136] [] RedissonQueues - Enqueued Notification on queue webhookQueue-3 for Task 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 and State routed
[DEBUG] 2024-07-11 14:05:46.055 [MRProcessorThread:136] [] ServiceCounterTrace - DrapiCountersCurrentIntervalMXBean : TasksRouted counter value is 1 ,task id is 22be296b-bc6b-4a6f-af6d-a84c0fb67a01
[INFO ] 2024-07-11 14:05:46.540 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification succeeded for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: created in 514 ms
[DEBUG] 2024-07-11 14:05:46.542 [TaskNotificationProcessor-3:153] [] ServiceCounterTrace - DrapiCountersCurrentIntervalMXBean : WebhookNotify counter value is 1 ,task id is 22be296b-bc6b-4a6f-af6d-a84c0fb67a01
[DEBUG] 2024-07-11 14:05:46.543 [TaskNotificationProcessor-3:153] [] TaskNotificationProcessor - Notification received from queue for task: WebhookNotification(id=957bf67e-3169-430e-a3d8-2667bcd90f73, specversion=v1, refUrl=/v1/tasks/22be296b-bc6b-4a6f-af6d-a84c0fb67a01, data=Task{taskType='null', id='22be296b-bc6b-4a6f-af6d-a84c0fb67a01', orgId='null', customerId='customer@example.com', origin='976b22d6-1e7b-4702-9a39-9de1d7024884', destination='AA02142539', mediaType='chat', mediaChannel='chat', state='queued', owner=null, queue='null', direction='inbound', createdTime=1720721146009, lastUpdatedTime=1720721146040, scriptSelector='WxConnectChat1', preferredOwner=null', estimatedWaitTime =-1, variables=[Variable{name='user_DR_CustomerName', type='String', value='Customer'}, Variable{name='user_DR_MediaResourceID', type='String', value='CSR4PMKEIFWI7EMX'}, Variable{name='ChatThreadID', type='String', value='4d2bf67e-42af-4fd8-840d-95dc0cb847da'}], links=Links{webhook=Link{href='https://integrations.eu.webexconnect.io/v1/integration/cce/tenant/Ciscolivetenant01', method='POST'}}, history=null})
[DEBUG] 2024-07-11 14:05:46.543 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: queued on URL: https://integrations.eu.webexconnect.io/v1/integration/cce/tenant/Ciscolivetenant01
[INFO ] 2024-07-11 14:05:46.656 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification succeeded for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: queued in 112 ms
[DEBUG] 2024-07-11 14:05:46.658 [TaskNotificationProcessor-3:153] [] ServiceCounterTrace - DrapiCountersCurrentIntervalMXBean : WebhookNotify counter value is 2 ,task id is 22be296b-bc6b-4a6f-af6d-a84c0fb67a01
[DEBUG] 2024-07-11 14:05:46.659 [TaskNotificationProcessor-3:153] [] TaskNotificationProcessor - Notification received from queue for task: WebhookNotification(id=e40b105f-0863-4bc9-bb02-e9732e4bdf02, specversion=v1, refUrl=/v1/tasks/22be296b-bc6b-4a6f-af6d-a84c0fb67a01, data=Task{taskType='null', id='22be296b-bc6b-4a6f-af6d-a84c0fb67a01', orgId='null', customerId='customer@example.com', origin='976b22d6-1e7b-4702-9a39-9de1d7024884', destination='AA02142539', mediaType='chat', mediaChannel='chat', state='routed', owner=5172, queue='null', direction='inbound', createdTime=1720721146009, lastUpdatedTime=1720721146050, scriptSelector='WxConnectChat1', preferredOwner=null', estimatedWaitTime =-1, variables=[Variable{name='user_DR_MediaResourceID', type='String', value='CSR4PMKEIFWI7EMX'}, Variable{name='user_DR_CustomerName', type='String', value='Customer'}, Variable{name='user_DR_MediaChannelName', type='String', value='chat'}, Variable{name='user_DR_Primary', type='String', value='0cloudconnect1.dcloud.cisco.com'}, Variable{name='user_DR_Backup', type='String', value='0'}, Variable{name='ChatThreadID', type='String', value='4d2bf67e-42af-4fd8-840d-95dc0cb847da'}], links=Links{webhook=Link{href='https://integrations.eu.webexconnect.io/v1/integration/cce/tenant/Ciscolivetenant01', method='POST'}}, history=null})
[DEBUG] 2024-07-11 14:05:46.659 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: routed on URL: https://integrations.eu.webexconnect.io/v1/integration/cce/tenant/Ciscolivetenant01
[DEBUG] 2024-07-11 14:05:46.659 [TaskNotificationProcessor-3:153] [] NotificationRestClient - incrementing the current webhook counter from 2 to 3
[INFO ] 2024-07-11 14:05:46.764 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification succeeded for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: routed in 104 ms
[DEBUG] 2024-07-11 14:05:46.765 [TaskNotificationProcessor-3:153] [] ServiceCounterTrace - DrapiCountersCurrentIntervalMXBean : WebhookNotify counter value is 3 ,task id is 22be296b-bc6b-4a6f-af6d-a84c0fb67a01
.
.
.
.
## TASK is now ended successfully:
[DEBUG] 2024-07-11 14:07:37.615 [http-nio-127.0.0.1-8091-exec-7:58] [] FilterChainProxy - Securing POST /v1/tasks/22be296b-bc6b-4a6f-af6d-a84c0fb67a01/taskAction
[DEBUG] 2024-07-11 14:07:37.615 [http-nio-127.0.0.1-8091-exec-7:58] [] FilterChainProxy - Securing POST /v1/tasks/22be296b-bc6b-4a6f-af6d-a84c0fb67a01/taskAction
[DEBUG] 2024-07-11 14:07:37.679 [http-nio-127.0.0.1-8091-exec-7:58] [FINESSE_b8526c49-5dfc-43b4-ba55-1a2b3ee0734b] RequestMappingHandlerMapping - Mapped to com.cisco.ccbu.dr.api.taskaction.TaskActionController#taskActionRequest(String, TaskActionRequest)
[INFO ] 2024-07-11 14:07:37.679 [http-nio-127.0.0.1-8091-exec-7:58] [FINESSE_b8526c49-5dfc-43b4-ba55-1a2b3ee0734b] InactiveRequestFilter - No handler found or filter not enabled for the request /drapi/v1/tasks/22be296b-bc6b-4a6f-af6d-a84c0fb67a01/taskAction. Proceed with default filter..
[INFO ] 2024-07-11 14:07:37.701 [http-nio-127.0.0.1-8091-exec-7:58] [FINESSE_b8526c49-5dfc-43b4-ba55-1a2b3ee0734b] RedissonQueues - Enqueued Notification on queue webhookQueue-3 for Task 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 and State closed
[DEBUG] 2024-07-11 14:07:37.703 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: closed on URL: https://integrations.eu.webexconnect.io/v1/integration/cce/tenant/Ciscolivetenant01
[DEBUG] 2024-07-11 14:07:37.703 [TaskNotificationProcessor-3:153] [] NotificationRestClient - incrementing the current webhook counter from 3 to 4
[INFO ] 2024-07-11 14:07:38.171 [TaskNotificationProcessor-3:153] [] NotificationRestClient - Sending notification succeeded for taskId: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01 with state: closed in 467 ms
[DEBUG] 2024-07-11 14:07:38.173 [TaskNotificationProcessor-3:153] [] ServiceCounterTrace - DrapiCountersCurrentIntervalMXBean : WebhookNotify counter value is 4 ,task id is 22be296b-bc6b-4a6f-af6d-a84c0fb67a01

Router

## NewCall request received from MR PG:
14:05:46:019 ra-rtr Trace: (14 x 0 : 0 0) NewCall: CID=(154689,2448), DN=WxConnectChat1, ANI=, CED=, RCID=5007, MRDID=5016, CallAtVRU=1, OpCode=0, CallGUID=, CCAIConfigParam=, OpType=0
14:05:46:019 ra-rtr Trace: RCKSeqNum=-1, NIC_DN= ServiceRequested=0 OrigRCCallID{PhyCtrlID=0, RCID=0, DlgID=0}
14:05:46:019 ra-rtr Trace: ID Name Type Index Value
14:05:46:019 ra-rtr Trace: 5041 user_DR_CustomerName Scalar Customer
14:05:46:019 ra-rtr Trace: 5040 user_DR_MediaResourceID Scalar CSR4PMKEIFWI7EMX
14:05:46:019 ra-rtr Trace: 5038 user_DR_Primary Scalar 0cloudconnect1.dcloud.cisco.com
14:05:46:019 ra-rtr Trace: 5039 user_DR_Backup Scalar 0
14:05:46:019 ra-rtr Trace: 5042 user_DR_MediaChannelName Scalar chat

## RouteComplete:
14:05:46:019 ra-rtr Trace: (14 x 0 : 0 0) RouteComplete:
14:05:46:019 ra-rtr Trace: Route: DN=WxConnectChat1, ANI=, CED=, Label=
14:05:46:019 ra-rtr Trace: Route: CID=(154689,2448), Labels=1

## DeviceTargetPreCall message sent to the Agent PG with the ECC variables:
14:05:46:019 ra-rtr Trace: (14 x 0 : 0 0) DeviceTargetPreCall_V15: CID=(154689,2448), PerID=5000, SGSTID=5239, AGSTID=5172 NetworkCallFlags=0, InvokeID=28058, GREET=, NumEnabledServices=2, EnabledServiceTypes=[ 1 2 ], CCAIConfigParam=4f62417b-bbea-44b9-9ba0-ba3e51ad8272, UserToUser=22be296b-bc6b-4a6f-af6d-a84c0fb67a01
14:05:46:019 ra-rtr Trace: DN=WxConnectChat1, ANI=, CED=, CustDBProvidedDigits=, RouteID=5039, NetworkTargetID=0
14:05:46:019 ra-rtr Trace: RCKSeqNum=0, DelayQTime=0, DelayRouterTime=0, SGDelayQTime=0
14:05:46:019 ra-rtr Trace: CallGUID=, CustomerID=1 ServiceRequested=0
14:05:46:019 ra-rtr Trace: LocationParamPKID=, LocationParamName=, SIPHeader=
14:05:46:019 ra-rtr Trace: NIC_CalledPartyNumber=WxConnectChat1 ECCPayloadID=1
14:05:46:019 ra-rtr Trace: OrigRCCallID{PhyCtrlID=0, RCID=0, DlgID=0x0} OrigOperationType=0
14:05:46:019 ra-rtr Trace: PV1= PV2= PV3= PV4= PV5=
14:05:46:019 ra-rtr Trace: PV6= PV7= PV8= PV9= PV10=
14:05:46:019 ra-rtr Trace: ID Name Type Index Value
14:05:46:019 ra-rtr Trace: 5038 user_DR_Primary            Scalar  0cloudconnect1.dcloud.cisco.com
14:05:46:019 ra-rtr Trace: 5039 user_DR_Backup             Scalar  0
14:05:46:019 ra-rtr Trace: 5040 user_DR_MediaResourceID    Scalar  CSR4PMKEIFWI7EMX
14:05:46:019 ra-rtr Trace: 5041 user_DR_CustomerName       Scalar  Customer
14:05:46:019 ra-rtr Trace: 5042 user_DR_MediaChannelName   Scalar  chat

## Connect Label sent to MR PG with the ECC variables:
14:05:46:019 ra-rtr Trace: (14 x 0 : 0 0) Connect: CID=(154689,2448), EventSelect=0x0, ServiceType=0, RCID=5007, ECCPayloadID=1 Label(s)= InvokeID=28058
14:05:46:019 ra-rtr Trace: ID Name Type Index Value
14:05:46:019 ra-rtr Trace: 5038 user_DR_Primary            Scalar  0cloudconnect1.dcloud.cisco.com
14:05:46:019 ra-rtr Trace: 5039 user_DR_Backup             Scalar  0
14:05:46:019 ra-rtr Trace: 5040 user_DR_MediaResourceID    Scalar  CSR4PMKEIFWI7EMX
14:05:46:019 ra-rtr Trace: 5041 user_DR_CustomerName       Scalar  Customer
14:05:46:019 ra-rtr Trace: 5042 user_DR_MediaChannelName   Scalar  chat
14:05:46:019 ra-rtr Trace: (14 x 0 : 0 0) Deleting Dialog.

PG

MR-PG PIM

## NEW_TASK request on mr pim:
14:05:46:132 PG2A-pim5 Trace: Application->PG:
Message = NEW_TASK; Length = 280 bytes
DialogueID = (14) Hex 0000000e
SendSeqNo = (1) Hex 00000001
MRDomainID = (5016) Hex 00001398
PreviousTask = -1:-1:-1
PreferredAgent = Undefined
Service = Undefined
CiscoReserved = (0) Hex 00000000
ScriptSelector: WxConnectChat1
ApplicationString2: 22be296b-bc6b-4a6f-af6d-a84c0fb67a01
ServiceRequested = (0) Hex 00000000
QueueType = (0) Hex 00000000
QueueID = Undefined

## NewCall request is now sent to the Router:
14:05:46:132 PG2A-pim5 Trace: Send INRCMSGNewCall to Router : :
NEW_CALL RCID=5007 PID=5001 DID=14 DIDRelSeq#=1 GrpDelKey=5007 CRS(RtrDate=-1,RtrCID=-1) RCKSeq#=-1 NICCallID={N/A} PGCallID={N/A} OperationCode=CLASSIC OperationFlags=COOP_NONE CalledParty#=WxConnectChat1 CallingParty#= CED= MsgOrigin=1 RouteDevType=6 Originator=cloudconnect NICCalledParty#= NetDelay=0 Priority=0 OrigType=0 atVRU=T CLIDRestrict=F PrefAGSTID=-1 MRDomainID=5016 LegacyPreCallMsgEnabled=F CID=0, ServiceReq=0 QueueType=0 QueueID=-1 UUI(Type=1)=22be296b-bc6b-4a6f-af6d-a84c0fb67a01

## Router responds back with the Connect label:
14:05:46:132 PG2A-pim5 Trace: MR_Peripheral::On_Router_Connect:
CONNECT RCID=5007 PID=5001 DID=14 DIDRelSeq#=0 CRS(RtrDate=154689,RtrCID=2448) RCKSeq#=0 ErrorCode=0 TRTargetID=-1 CorrID= EventSel=0 SvcType=0 NICCallID={N/A} PGCallID={N/A} OperationCode=CLASSIC OperationFlags=COOP_NONE NetworkTransferEnabled=F ECCPayloadID=1 InvokeID=28058 NICCalledParty#=WxConnectChat1 SGSTID=5239 PQID=0 SvcSTID=-1 AGSTID=5172 AGInfo=5172, MRDID=5016 Interruptible=0 UUI(Type=1)=22be296b-bc6b-4a6f-af6d-a84c0fb67a01

## DO_THIS_WITH_TASK message sent over to WxConnect:
14:05:46:132 PG2A-pim5 Trace: PG->Application:
Message = DO_THIS_WITH_TASK; Length = 250 bytes
DialogueID = (14) Hex 0000000e
SendSeqNo = (1) Hex 00000001
IcmTaskID = 154689:2448: 1
SkillGroup = (5239) Hex 00001477
Service = Undefined
Agent = (5172) Hex 00001434
AgentInfo: 5172
Label:
ApplicationString2:
MRDID = (5016) Hex 00001398
Interruptible = (0) Hex 00000000
PrecisionQueueID = (0) Hex 00000000

MR-PG OPC

## NEW_CALL request received from the digital routing service on the Cloud Connect server, with the ECC variables:
14:05:46:132 PG2A-opc Trace: SendINRCMessage: NEW_CALL RCID=5007 PID=5001 DID=14 DIDRelSeq#=1 GrpDelKey=5007 CRS(RtrDate=-1,RtrCID=-1) RCKSeq#=-1 NICCallID={N/A} PGCallID={N/A} OperationCode=CLASSIC OperationFlags=COOP_NONE CalledParty#=WxConnectChat1 CallingParty#= CED= MsgOrigin=1 RouteDevType=6 Originator=cloudconnect NICCalledParty#= NetDelay=0 Priority=0 OrigType=0 atVRU=T CLIDRestrict=F PrefAGSTID=-1 MRDomainID=5016 LegacyPreCallMsgEnabled=F CID=0, ServiceReq=0 QueueType=0 QueueID=-1 UUI(Type=1)=22be296b-bc6b-4a6f-af6d-a84c0fb67a01 PV1= PV2= PV3= PV4= PV5= PV6= PV7= PV8= PV9= PV10=
Name Type Index Value
user_DR_CustomerName       Scalar  Customer
user_DR_MediaResourceID    Scalar  CSR4PMKEIFWI7EMX
user_DR_Primary            Scalar  0cloudconnect1.dcloud.cisco.com
user_DR_Backup             Scalar  0
user_DR_MediaChannelName   Scalar  chat
14:05:46:132 PG2A-opc Trace: ProcessINRCMsgs - BEGIN Msg=8 src=48 dest=1 flag=2 size=444

## CONNECT label received from router with the ECC variables:
14:05:46:132 PG2A-opc Trace: SendPIMINRCMessage: CONNECT RCID=5007 PID=5001 DID=14 DIDRelSeq#=0 CRS(RtrDate=154689,RtrCID=2448) RCKSeq#=0 ErrorCode=0 TRTargetID=-1 CorrID= EventSel=0 SvcType=0 NICCallID={N/A} PGCallID={N/A} OperationCode=CLASSIC OperationFlags=COOP_NONE NetworkTransferEnabled=F ECCPayloadID=1 InvokeID=28058 NICCalledParty#=WxConnectChat1 SGSTID=5239 PQID=0 SvcSTID=-1 AGSTID=5172 AGInfo=5172, MRDID=5016 Interruptible=0 UUI(Type=1)=22be296b-bc6b-4a6f-af6d-a84c0fb67a01 PV1= PV2= PV3= PV4= PV5= PV6= PV7= PV8= PV9= PV10=
Name Type Index Value
user_DR_Primary            Scalar  0cloudconnect1.dcloud.cisco.com
user_DR_Backup             Scalar  0
user_DR_MediaResourceID    Scalar  CSR4PMKEIFWI7EMX
user_DR_CustomerName       Scalar  Customer
user_DR_MediaChannelName   Scalar  chat

## BuildClosedCallRecord after chat ends:
14:05:46:132 PG2A-opc Trace: BuildClosedCallRecord: CallObj=0x4473dc8 DateTime=07/11 18:05:45 IntervalDatetime=07/11/2024 18:00:00 BuildClosedCallRecord(PID=5007): MRDomainID=5016 CID=14 RCK(RtrDate=154689,RtrCID=2448) RCKSeq#=1 CD=14(DBCD_DROP_HANDLED_OTHER) CDF=1(DBCDF_HANDLED) PeriphCallType=1,DBCD_ACD_IN AppTaskCD=0 ICRCK=268435468, ICRCKParent=-1 ICRCKChild=-1 NetworkTime=0 Duration=0 RingTime=0 DelayTime=0 TimeToAband=0 HoldTime=0 TlkTime=0 WorkTime=0 LocalQTime=0 NetworkQTime=0 BillRate=-1 SegmentTime=-1 NewTransaction=78 RouteID=-1 AGSTID=-1() SGSTID=-1(0x1477) SvcSTID=-1(-1) RoutedAGSGID=0 RoutedSGSTID=0 RoutedSvcSTID=0 SRCAGSTID=-1() DigDialed=(null) NetworkTID=-1 TrkGID=-1(-1) InstPort#=-1 DNIS=(null) UUIData=22be296b-bc6b-4a6f-af6d-a84c0fb67a01 AnsWithinSvcLevel=N ConfTime=0 Priority=-1 Trk=-1 BadCallTag=N CallTypeID=-1 CED=22be296b-bc6b-4a6f-af6d-a84c0fb67a01 ANI=(null) WrapupData=(null) ECCSize=85 NetworkConsult=FALSE CallGUID= LocationParamPKID= LocationParamName= PstnTrkGrpID= PstnTrkGrpChann#=10410908 CallOrginiated=0 CallReferenceID=(null) ProtocolID=10 ApplicationData='\0'BuildClosedCallRecord(PID=5007): CID=14 RCK(RtrDate=154689,RtrCID=2448) ECCPayloadID=1 AgentAnswersEnabled=N AGTeamI
14:05:46:132 PG2A-opc Trace: PV1=(null) PV2=(null) PV3=(null) PV4=(null) PV5=(null) PV6=(null) PV7=(null) PV8=(null) PV9=(null) PV10=(null)
14:05:46:132 PG2A-opc Trace: BuildClosedCallRecord:
Name Type Index Value
user_DR_Primary            Scalar  0cloudconnect1.dcloud.cisco.com
user_DR_Backup             Scalar  0
user_DR_MediaResourceID    Scalar  CSR4PMKEIFWI7EMX
user_DR_CustomerName       Scalar  Customer
user_DR_MediaChannelName   Scalar  chat

Agente PG - OPC

## Agent PG receives the Device Precall Indicator message along with the ECC variables as agent '5172' is reserved:
14:05:46:132 PG3A-opc Trace: ProcessARMPreCallMsg - Precall received for Agent '5172' MRDomainID '5016' PeripheralID '5000' TaskID '154689.2448.0 SkillGroupSTID '5239' ServiceSTID '-1' TaskStartTimeout '0' QueueTime '0' DelayTime '0' CallTypeID '5082' InvokeID '28058'
14:05:46:132 PG3A-opc Trace: callVar1 '' callVar2 '' callVar3 '' callVar4 ''
callVar5 '' callVar6 '' callVar7 '' callVar8 ''
callVar9 '' callVar10 ''
ECCDataSize '85'
14:05:46:132 PG3A-opc Trace: Name Type Index Value
14:05:46:132 PG3A-opc Trace: user_DR_Primary            Scalar  0cloudconnect1.dcloud.cisco.com
14:05:46:132 PG3A-opc Trace: user_DR_Backup             Scalar  0
14:05:46:132 PG3A-opc Trace: user_DR_MediaResourceID    Scalar  CSR4PMKEIFWI7EMX
14:05:46:132 PG3A-opc Trace: user_DR_CustomerName       Scalar  Customer
14:05:46:132 PG3A-opc Trace: user_DR_MediaChannelName   Scalar  chat
14:05:46:132 PG3A-opc Trace: MergeECCData Task ID 154689:2448:1, Payload ID 0, New Payload 1

## OfferTaskInd >> StartTaskInd >> EndTaskInd:
14:05:51:321 PG3A-opc Trace: OfferTaskInd - InvokeID = 2375719, ClientInvokeID = 2375719, MRDID = 5016, ICMAgentID = 5172, TaskID = 154689/2448/1
SkillGroupID = 5239, ServiceID = -1, SessionID = 2
14:05:52:133 PG3A-opc Trace: StartTaskInd - InvokeID = 2375721, ClientInvokeID = 2375721, MRDID = 5016, ICMAgentID = 5172, TaskID = 154689/2448/1
SkillGroupID = 5239, ServiceID = -1, SessionID = 2
14:07:35:168 PG3A-opc Trace: EndTaskInd - InvokeID = 2376024, ClientInvokeID = 2376024, TaskID = 154689/2448/1, ICMDisposition = 38, ApplicationDisposition = 38, SessionID = 2
WrapupData = , ApplicationData =

## BuildTerminationRecordMsg:
14:07:35:168 PG3A-opc Trace: TaskObj::BuildTerminationRecordMsg - DateTime='07/11 18:07:34' Periph=5000 MRDomainID=5016 TaskID=154689.2448.1 PeriphCallKey=-1 PeriphCallType=25,'DBCD_TASK_ROUTED_BY_ICM' ICRCallKey=12, ICRCallKeyParent=-1 ICRCallKeyChild=-1 CallDisp=38,'DBCD_NORMAL_END_TASK' ApplicationTaskDisposition=38 Duration=109 NetworkTime=5 RingTime=1 DelayTime=0 TimeToAband=0 PausedTime=0 ActiveTime=101 WrapupTime=2 LocalQTime=0 NetworkQueueTime=0 BillRate=-1 SegmentTime=-1 NewTransaction=0 RouteID=5039 AgentSkillTargetID=5172(1080) SkillGroupSkillTargetID=5239(11180119) ServiceSkillTargetID=-1(-1) RoutedAgentSkillTargetID=5172 RoutedSkillGroupSkillTargetID=5239 RoutedServiceSkillTargetID=-1 SRCAgentPeriphNum=''(STID=-1) CallDispositionFlag=1 DigitsDialed=' ECCPayloadID=1 ActiveStartTime=07/11 18:05:51 WrapupStartTime=07/11 18:07:32 TransferredTime=-- TaskTerminatedTime=07/11 18:07:34
14:07:35:168 PG3A-opc Trace: Var1='(null)' Var2='(null)' Var3='(null)' Var4='(null)' Var5='(null)' Var6='(null)' Var7='(null)' Var8='(null)' Var9='(null)' Var10='(null)'
14:07:35:168 PG3A-opc Trace: AgentSessionID=5172-133650295444320000 NetworkTargetID=-1 TrunkGroupID=-1 InstrumentPortNumber=-1 DNIS='' UserToUser='22be296b-bc6b-4a6f-af6d-a84c0fb67a01' AnsweredWithinServiceLevel=N ConferenceTime=-1 Priority=0 Trunk=-1 BadCallTag=
14:07:35:168 PG3A-opc Trace: Name Type Index Value
14:07:35:168 PG3A-opc Trace: user_DR_Primary             Scalar  0cloudconnect1.dcloud.cisco.com
14:07:35:168 PG3A-opc Trace: user_DR_Backup              Scalar  0
14:07:35:168 PG3A-opc Trace: user_DR_MediaResourceID     Scalar  CSR4PMKEIFWI7EMX
14:07:35:168 PG3A-opc Trace: user_DR_CustomerName        Scalar  Customer
14:07:35:168 PG3A-opc Trace: user_DR_MediaChannelName    Scalar  chat

Console del browser

## Agent is RESERVED:
14:05:57.964 2024-07-11T14:05:57.964 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.963 -0400: CallControl : EventTunnel.eventHandlerImpl() - Event received::<Update>
<data>
<media>
<description>WxConnect Chat</description>
<dialogLogoutAction>CLOSE</dialogLogoutAction>
<id>5016</id>
<interruptAction>IGNORE</interruptAction>
<interruptible>false</interruptible>
<maxDialogLimit>3</maxDialogLimit>
<name>WxConnectChat</name>
<routable>true</routable>
<state>RESERVED</state>
<stateChangeTime>2024-07-11T18:05:57.952Z</stateChangeTime>
<uri>/finesse/api/User/1080/Media/5016</uri>
</media>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016</source>
</Update>
14:05:57.966 2024-07-11T14:05:57.966 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.965 -0400: CallControl : [ClientServices] MasterPublisher._parseAndPublishXMLEvent() - Received XML event on node '/finesse/api/User/1080/Media': <Update>
<data>
<media>
<description>WxConnect Chat</description>
<dialogLogoutAction>CLOSE</dialogLogoutAction>
<id>5016</id>
<interruptAction>IGNORE</interruptAction>
<interruptible>false</interruptible>
<maxDialogLimit>3</maxDialogLimit>
<name>WxConnectChat</name>
<routable>true</routable>
<state>RESERVED</state>
<stateChangeTime>2024-07-11T18:05:57.952Z</stateChangeTime>
<uri>/finesse/api/User/1080/Media/5016</uri>
</media>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016</source>
</Update>
14:05:57.968 2024-07-11T14:05:57.968 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.967 -0400: CallControl : [WorkflowEngine] Received Media change event finesse.api.User.1080.Media
14:05:57.972 :: Media change a{_super: undefined, _id: '5016', _restObj: a, autoSubscribe: true, contextId: '',…} RESERVED true
14:05:57.972 Finesse-IMI Gadget : [useDigitalChannel Hook] [handleMediaChange] : media change event received for : 5016, state : RESERVED, routable: true, recovered : false and restoreAfterFailoverInProgress : false


## Agent is OFFERED the chat with the ACCEPT action available to the agent:
14:05:57.975 Finesse-IMI Gadget : [useDigitalChannel Hook] [cacheMediaStates] : final cached item : {"5016":"READY","5017":"READY","5018":"READY","5019":"READY"}
14:05:57.975 2024-07-11T14:05:57.975 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.974 -0400: CallControl : EventTunnel.eventHandlerImpl() - Event received::<Update>
<data>
<dialogs>
<Dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
<action>ACCEPT</action>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:57.955Z</startTime>
<state>OFFERED</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:05:57.955Z</stateChangeTime>
</Participant>
</participants>
<state>OFFERED</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</Dialog>
</dialogs>
</data>
<event>POST</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016/Dialogs</source>
</Update>
14:05:57.978 2024-07-11T14:05:57.978 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.977 -0400: CallControl : [ClientServices] MasterPublisher._parseAndPublishXMLEvent() - Received XML event on node '/finesse/api/User/1080/Dialogs/Media': <Update>
<data>
<dialogs>
<Dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
<action>ACCEPT</action>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:57.955Z</startTime>
<state>OFFERED</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:05:57.955Z</stateChangeTime>
</Participant>
</participants>
<state>OFFERED</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</Dialog>
</dialogs>
</data>
<event>POST</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016/Dialogs</source>
</Update>
14:05:57.979 2024-07-11T14:05:57.979 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.978 -0400: CallControl : [WorkflowEngine] Received dialog event
14:05:57.979 2024-07-11T14:05:57.979 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.978 -0400: CallControl : [WorkflowEngine] Received dialog event for: WxConnectChat
14:05:57.980 2024-07-11T14:05:57.980 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.979 -0400: CallControl : [WorkflowEngine] Converting event to xml document. Type: Dialog Action: change Uri: /finesse/api/Dialog/154689_2448_1 Event: {"Dialog":{"taskId":{"routerCallKeyDay":"154689","routerCallKeyCallID":"2448","routerCallKeySequenceNum":"1"},"id":"154689_2448_1","mediaProperties":{"mediaId":"5016","dialedNumber":"WxConnectChat1","callvariables":{"CallVariable":[{"name":"callVariable1","value":null},{"name":"callVariable2","value":null},{"name":"callVariable3","value":null},{"name":"callVariable4","value":null},{"name":"callVariable5","value":null},{"name":"callVariable6","value":null},{"name":"callVariable7","value":null},{"name":"callVariable8","value":null},{"name":"callVariable9","value":null},{"name":"callVariable10","value":null},{"name":"user_DR_Primary","value":"cloudconnect1.dcloud.cisco.com"},{"name":"user_DR_Backup","value":null},{"name":"user_DR_MediaResourceID","value":"CSR4PMKEIFWI7EMX"},{"name":"user_DR_CustomerName","value":"Customer"},{"name":"user_DR_MediaChannelName","value":"chat"}]},"queueNumber":"11180119","queueName":"WxConnectChat1","callKeyCallId":"2448","callKeyPrefix":"154689","callKeySequenceNum":"1"},"mediaType":"WxConnectChat","mediaChannel":"chat","mediaClass":"chat","participants":{"Participant":{"actions":{"action":"ACCEPT"},"mediaAddress":"1080","mediaAddressType":null,"startTime":"2024-07-11T18:05:57.955Z","state":"OFFERED","stateCause":null,"stateChangeTime":"2024-07-11T18:05:57.955Z"}},"state":"OFFERED","uri":"/finesse/api/Dialog/154689_2448_1"}}
14:05:57.981 2024-07-11T14:05:57.981 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:05:57.980 -0400: CallControl : [WorkflowEngine] Calling state machine's workflowEvent method for /finesse/api/Dialog/154689_2448_1 (action: change)
14:05:57.988 :: usemediasetup processTask- a{_id: '154689_2448_1', _restObj: undefined, autoSubscribe: true, contextId: '', _super: ƒ,…} OFFERED
14:05:57.989 ::- MediaPopover _showPopOver before popover {taskId: {…}, id: '154689_2448_1', mediaProperties: {…}, mediaType: 'WxConnectChat', mediaChannel: 'chat',…} {callVariable1: null, callVariable2: null, callVariable3: null, callVariable4: null, callVariable5: null,…}


## Agent ACCEPT's the chat:
14:06:00.353 2024-07-11T14:06:00.353 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.352 -0400: DigitalChannelsGadget : [ClientServices] PopoverService: Received Message from PopoverComp: {"id":"940a0c56-c305-456f-90a6-9aaf8871fcee","source":"Accept"}
14:06:00.354 2024-07-11T14:06:00.354 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.353 -0400: DigitalChannelsGadget : [ClientServices] PopoverService: Calling gadget action handler
14:06:00.355 ::- MediaPopover popOverCallBack:Received popover callback with response {popoverId: '940a0c56-c305-456f-90a6-9aaf8871fcee', source: 'Accept'}
14:06:00.356 ::- MediaPopover _handleMedia {popoverId: '940a0c56-c305-456f-90a6-9aaf8871fcee', source: 'Accept'}
14:06:00.358 2024-07-11T14:06:00.357 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.356 -0400: DigitalChannelsGadget : [ClientServices] Dialog: requestId='98a08220-41a0-4151-96dd-23eba7f13cad', Making REST request: method=PUT, url='https://finesse1.dcloud.cisco.com:8445/finesse/api/Dialog/154689_2448_1'
14:06:00.364 ::- MediaPopover dismissPopOver before dismiss a{_super: undefined, _id: '154689_2448_1', _restObj: undefined, autoSubscribe: true, contextId: '',…} {_fakeConstuctor: ƒ, init: ƒ, generatePayload: ƒ, showPopover: ƒ, updatePopover: ƒ,…} {940a0c56-c305-456f-90a6-9aaf8871fcee: {…}} {current: {…}}
14:06:00.365 2024-07-11T14:06:00.365 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.364 -0400: DigitalChannelsGadget : [ClientServices] PopoverService: Received popover dismiss request for popover id 940a0c56-c305-456f-90a6-9aaf8871fcee
14:06:00.367 ::- MediaPopover dismissPopOver after dismiss {} {} {}
14:06:00.371 2024-07-11T14:06:00.371 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.370 -0400: CallControl : [ClientServices] [ ToastPopover topicHandler received data ] - {"id":"940a0c56-c305-456f-90a6-9aaf8871fcee","action":"dismiss"}
14:06:00.427 2024-07-11T14:06:00.427 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.426 -0400: DigitalChannelsGadget : [ClientServices] Dialog: requestId='98a08220-41a0-4151-96dd-23eba7f13cad', Returned with status=202, content='null', isUnsent = false
14:06:00.428 success: Could move the task to ACCEPT state {status: 202, content: null, isUnsent: false, object: {…}}


## Chat state is now ACCEPTED:
14:06:00.543 2024-07-11T14:06:00.543 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.542 -0400: CallControl : EventTunnel.eventHandlerImpl() - Event received::<Update>
<data>
<dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
<action>UPDATE_CALL_DATA</action>
<action>TRANSFER</action>
<action>START</action>
<action>CLOSE</action>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:57.955Z</startTime>
<state>ACCEPTED</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:06:00.421Z</stateChangeTime>
</Participant>
</participants>
<state>ACCEPTED</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</dialog>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/Dialog/154689_2448_1</source>
</Update>
14:06:00.546 2024-07-11T14:06:00.546 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.545 -0400: CallControl : [ClientServices] MasterPublisher._parseAndPublishXMLEvent() - Received XML event on node '/finesse/api/User/1080/Dialogs/Media': <Update>
<data>
<dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
<action>UPDATE_CALL_DATA</action>
<action>TRANSFER</action>
<action>START</action>
<action>CLOSE</action>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:57.955Z</startTime>
<state>ACCEPTED</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:06:00.421Z</stateChangeTime>
</Participant>
</participants>
<state>ACCEPTED</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</dialog>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/Dialog/154689_2448_1</source>
</Update>
14:06:00.548 2024-07-11T14:06:00.548 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.547 -0400: CallControl : [WorkflowEngine] Received dialog event
14:06:00.548 2024-07-11T14:06:00.548 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.547 -0400: CallControl : [WorkflowEngine] Received dialog event for: WxConnectChat
14:06:00.549 2024-07-11T14:06:00.549 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.548 -0400: CallControl : [WorkflowEngine] Converting event to xml document. Type: Dialog Action: change Uri: /finesse/api/Dialog/154689_2448_1 Event: {"Dialog":{"taskId":{"routerCallKeyDay":"154689","routerCallKeyCallID":"2448","routerCallKeySequenceNum":"1"},"id":"154689_2448_1","mediaProperties":{"mediaId":"5016","dialedNumber":"WxConnectChat1","callvariables":{"CallVariable":[{"name":"callVariable1","value":null},{"name":"callVariable2","value":null},{"name":"callVariable3","value":null},{"name":"callVariable4","value":null},{"name":"callVariable5","value":null},{"name":"callVariable6","value":null},{"name":"callVariable7","value":null},{"name":"callVariable8","value":null},{"name":"callVariable9","value":null},{"name":"callVariable10","value":null},{"name":"user_DR_Primary","value":"cloudconnect1.dcloud.cisco.com"},{"name":"user_DR_Backup","value":null},{"name":"user_DR_MediaResourceID","value":"CSR4PMKEIFWI7EMX"},{"name":"user_DR_CustomerName","value":"Customer"},{"name":"user_DR_MediaChannelName","value":"chat"}]},"queueNumber":"11180119","queueName":"WxConnectChat1","callKeyCallId":"2448","callKeyPrefix":"154689","callKeySequenceNum":"1"},"mediaType":"WxConnectChat","mediaChannel":"chat","mediaClass":"chat","participants":{"Participant":{"actions":{"action":["UPDATE_CALL_DATA","TRANSFER","START","CLOSE"]},"mediaAddress":"1080","mediaAddressType":null,"startTime":"2024-07-11T18:05:57.955Z","state":"ACCEPTED","stateCause":null,"stateChangeTime":"2024-07-11T18:06:00.421Z"}},"state":"ACCEPTED","uri":"/finesse/api/Dialog/154689_2448_1"}}
14:06:00.549 2024-07-11T14:06:00.549 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:06:00.548 -0400: CallControl : [WorkflowEngine] Calling state machine's workflowEvent method for /finesse/api/Dialog/154689_2448_1 (action: change)
14:06:00.552 :: usemediasetup processTask- a{_super: undefined, _id: '154689_2448_1', _restObj: undefined, autoSubscribe: true, contextId: '',…} ACCEPTED


## Chat session ended and agent is moved to the WORK_READY state:
14:07:32.910 moved to wrap-up state successfully
14:07:32.911 2024-07-11T14:07:32.911 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:32.955 -0400: CallControl : EventTunnel.eventHandlerImpl() - Event received::<Update>
<data>
<media>
<description>WxConnect Chat</description>
<dialogLogoutAction>CLOSE</dialogLogoutAction>
<id>5016</id>
<interruptAction>IGNORE</interruptAction>
<interruptible>false</interruptible>
<maxDialogLimit>3</maxDialogLimit>
<name>WxConnectChat</name>
<routable>true</routable>
<state>WORK_READY</state>
<stateChangeTime>2024-07-11T18:07:32.895Z</stateChangeTime>
<uri>/finesse/api/User/1080/Media/5016</uri>
</media>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016</source>
</Update>
14:07:32.914 2024-07-11T14:07:32.914 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:32.958 -0400: CallControl : [ClientServices] MasterPublisher._parseAndPublishXMLEvent() - Received XML event on node '/finesse/api/User/1080/Media': <Update>
<data>
<media>
<description>WxConnect Chat</description>
<dialogLogoutAction>CLOSE</dialogLogoutAction>
<id>5016</id>
<interruptAction>IGNORE</interruptAction>
<interruptible>false</interruptible>
<maxDialogLimit>3</maxDialogLimit>
<name>WxConnectChat</name>
<routable>true</routable>
<state>WORK_READY</state>
<stateChangeTime>2024-07-11T18:07:32.895Z</stateChangeTime>
<uri>/finesse/api/User/1080/Media/5016</uri>
</media>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016</source>
</Update>
14:07:32.915 2024-07-11T14:07:32.915 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:32.959 -0400: CallControl : [WorkflowEngine] Received Media change event finesse.api.User.1080.Media
14:07:32.920 :: Media change a{_super: undefined, _id: '5016', _restObj: a, autoSubscribe: true, contextId: '',…} WORK_READY true
14:07:32.920 Finesse-IMI Gadget : [useDigitalChannel Hook] [handleMediaChange] : media change event received for : 5016, state : WORK_READY, routable: true, recovered : false and restoreAfterFailoverInProgress : false
14:07:32.921 Finesse-IMI Gadget : [useDigitalChannel Hook] [handleMediaChange] : caching all mrd's
14:07:32.921 Finesse-IMI Gadget : [useDigitalChannel Hook] [cacheMediaStates] : mediaListToBeCached : undefined, existing cache : {"5016":"ACTIVE","5017":"READY","5018":"READY","5019":"READY"}
14:07:32.922 Finesse-IMI Gadget : [useDigitalChannel Hook] [cacheMediaStates] : final cached item : {"5016":"READY","5017":"READY","5018":"READY","5019":"READY"}


## Chat activity is now in the WRAPPING_UP state:
14:07:32.924 2024-07-11T14:07:32.924 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:32.968 -0400: CallControl : EventTunnel.eventHandlerImpl() - Event received::<Update>
<data>
<dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
<action>PAUSE</action>
<action>UPDATE_CALL_DATA</action>
<action>TRANSFER</action>
<action>CLOSE</action>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:46.096Z</startTime>
<state>WRAPPING_UP</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:07:32.895Z</stateChangeTime>
</Participant>
</participants>
<state>WRAPPING_UP</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</dialog>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/Dialog/154689_2448_1</source>
</Update>
14:07:32.926 2024-07-11T14:07:32.926 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:32.970 -0400: CallControl : [ClientServices] MasterPublisher._parseAndPublishXMLEvent() - Received XML event on node '/finesse/api/User/1080/Dialogs/Media': <Update>
<data>
<dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
<action>PAUSE</action>
<action>UPDATE_CALL_DATA</action>
<action>TRANSFER</action>
<action>CLOSE</action>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:46.096Z</startTime>
<state>WRAPPING_UP</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:07:32.895Z</stateChangeTime>
</Participant>
</participants>
<state>WRAPPING_UP</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</dialog>
</data>
<event>PUT</event>
<requestId></requestId>
<source>/finesse/api/Dialog/154689_2448_1</source>
</Update>


## Chat session is now CLOSED:
14:07:35.185 finesse.js:3766 2024-07-11T14:07:35.185 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:35.229 -0400: CallControl : EventTunnel.eventHandlerImpl() - Event received::<Update>
<data>
<dialogs>
<Dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<wrapUpReason></wrapUpReason>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:46.096Z</startTime>
<state>CLOSED</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:07:35.124Z</stateChangeTime>
</Participant>
</participants>
<dispositionCode>CD_NORMAL_END_TASK</dispositionCode>
<state>CLOSED</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</Dialog>
</dialogs>
</data>
<event>DELETE</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016/Dialogs</source>
</Update>
14:07:35.188 finesse.js:3766 2024-07-11T14:07:35.188 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:35.232 -0400: CallControl : [ClientServices] MasterPublisher._parseAndPublishXMLEvent() - Received XML event on node '/finesse/api/User/1080/Dialogs/Media': <Update>
<data>
<dialogs>
<Dialog>
<taskId>
<routerCallKeyDay>154689</routerCallKeyDay>
<routerCallKeyCallID>2448</routerCallKeyCallID>
<routerCallKeySequenceNum>1</routerCallKeySequenceNum>
</taskId>
<id>154689_2448_1</id>
<mediaProperties>
<mediaId>5016</mediaId>
<wrapUpReason></wrapUpReason>
<dialedNumber>WxConnectChat1</dialedNumber>
<callvariables>
<CallVariable>
<name>callVariable1</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable2</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable3</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable4</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable5</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable6</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable7</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable8</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable9</name>
<value></value>
</CallVariable>
<CallVariable>
<name>callVariable10</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_Primary</name>
<value>cloudconnect1.dcloud.cisco.com</value>
</CallVariable>
<CallVariable>
<name>user_DR_Backup</name>
<value></value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaResourceID</name>
<value>CSR4PMKEIFWI7EMX</value>
</CallVariable>
<CallVariable>
<name>user_DR_CustomerName</name>
<value>Customer</value>
</CallVariable>
<CallVariable>
<name>user_DR_MediaChannelName</name>
<value>chat</value>
</CallVariable>
</callvariables>
<queueNumber>11180119</queueNumber>
<queueName>WxConnectChat1</queueName>
<callKeyCallId>2448</callKeyCallId>
<callKeyPrefix>154689</callKeyPrefix>
<callKeySequenceNum>1</callKeySequenceNum>
</mediaProperties>
<mediaType>WxConnectChat</mediaType>
<mediaChannel>chat</mediaChannel>
<mediaClass>chat</mediaClass>
<participants>
<Participant>
<actions>
</actions>
<mediaAddress>1080</mediaAddress>
<mediaAddressType></mediaAddressType>
<startTime>2024-07-11T18:05:46.096Z</startTime>
<state>CLOSED</state>
<stateCause></stateCause>
<stateChangeTime>2024-07-11T18:07:35.124Z</stateChangeTime>
</Participant>
</participants>
<dispositionCode>CD_NORMAL_END_TASK</dispositionCode>
<state>CLOSED</state>
<uri>/finesse/api/Dialog/154689_2448_1</uri>
</Dialog>
</dialogs>
</data>
<event>DELETE</event>
<requestId></requestId>
<source>/finesse/api/User/1080/Media/5016/Dialogs</source>
</Update>

14:07:35.188 2024-07-11T14:07:35.188 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:35.232 -0400: CallControl : [WorkflowEngine] Received dialog event
14:07:35.189 2024-07-11T14:07:35.189 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:35.233 -0400: CallControl : [WorkflowEngine] Received dialog event for: WxConnectChat
14:07:35.189 2024-07-11T14:07:35.189 -04:00: : finesse1.dcloud.cisco.com: Jul 11 2024 14:07:35.233 -0400: CallControl : [WorkflowEngine] Converting event to xml document. Type: Dialog Action: change Uri: /finesse/api/Dialog/154689_2448_1 Event: {"Dialog":{"taskId":{"routerCallKeyDay":"154689","routerCallKeyCallID":"2448","routerCallKeySequenceNum":"1"},"id":"154689_2448_1","mediaProperties":{"mediaId":"5016","wrapUpReason":null,"dialedNumber":"WxConnectChat1","callvariables":{"CallVariable":[{"name":"callVariable1","value":null},{"name":"callVariable2","value":null},{"name":"callVariable3","value":null},{"name":"callVariable4","value":null},{"name":"callVariable5","value":null},{"name":"callVariable6","value":null},{"name":"callVariable7","value":null},{"name":"callVariable8","value":null},{"name":"callVariable9","value":null},{"name":"callVariable10","value":null},{"name":"user_DR_Primary","value":"cloudconnect1.dcloud.cisco.com"},{"name":"user_DR_Backup","value":null},{"name":"user_DR_MediaResourceID","value":"CSR4PMKEIFWI7EMX"},{"name":"user_DR_CustomerName","value":"Customer"},{"name":"user_DR_MediaChannelName","value":"chat"}]},"queueNumber":"11180119","queueName":"WxConnectChat1","callKeyCallId":"2448","callKeyPrefix":"154689","callKeySequenceNum":"1"},"mediaType":"WxConnectChat","mediaChannel":"chat","mediaClass":"chat","participants":{"Participant":{"actions":null,"mediaAddress":"1080","mediaAddressType":null,"startTime":"2024-07-11T18:05:46.096Z","state":"CLOSED","stateCause":null,"stateChangeTime":"2024-07-11T18:07:35.124Z"}},"dispositionCode":"CD_NORMAL_END_TASK","state":"CLOSED","uri":"/finesse/api/Dialog/154689_2448_1"}}

Informazioni correlate

Guida alle funzionalità - Integrazione di canali digitali con Webex Connect:

Guida per l'utente dei gadget per i canali digitali Cisco Contact Center Enterprise Manager:

https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cust_contact/contact_center/finesse/finesse_1262/user/guide/rcct_b_12_6_2_manage-digital-channels/rcct_m_1262_manage-digital-channels.html

Guida all'amministrazione e alla configurazione di Webex Engage con Cisco Contact Center Enterprise:

https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cust_contact/contact_center/icm_enterprise/wxengage_for_digital_channels/admin/guide/Administration_and_Setup_Guide_for_Webex_Engage_with_CCE.pdf

Integrazione di Cisco Contact Center Enterprise (CCE) con Webex Connect
https://help.imiconnect.io/docs/cce_overview

Cronologia delle revisioni

Revisione	Data di pubblicazione	Commenti
1.0	09-Apr-2025	Versione iniziale

Contributo dei tecnici Cisco

Joshua Raja
Cisco TAC
Robert Rogier
Cisco TAC

Questo documento ti è stato utile?

Feedback

Contattaci

Apri una richiesta di assistenza
(Occorre un contratto di servizio Cisco)

Tracciamento degli eventi di routing delle attività in un ambiente CCE integrato con Webex Connect

Opzioni per il download

Linguaggio senza pregiudizi

Informazioni su questa traduzione

Sommario

Introduzione

Prerequisiti

Requisiti:

Componente utilizzato:

Introduzione

Architettura di distribuzione

Log

Webex Connect Portal

Cloud Connect - Routing digitale

Router

PG

Console del browser

Informazioni correlate

Cronologia delle revisioni

Contributo dei tecnici Cisco

Questo documento ti è stato utile?

Contattaci

Questo documento si applica a questi prodotti
