Configuring L3 Forwarding
This chapter contains the following sections:
- Layer 3 Forwarding Overview
- Enabling and Verifying Layer 3 Forwarding
- Viewing Layer 3 Forwarding Information
- Monitoring Layer 3 Forwarding Statistics
- Layer 3 Forwarding Guidelines and Limitations
- Feature History for Layer 3 Forwarding
Layer 3 Forwarding Overview
 Note | Layer 3 Forwarding requires a Cisco Nexus 1000V Advanced Edition license. |

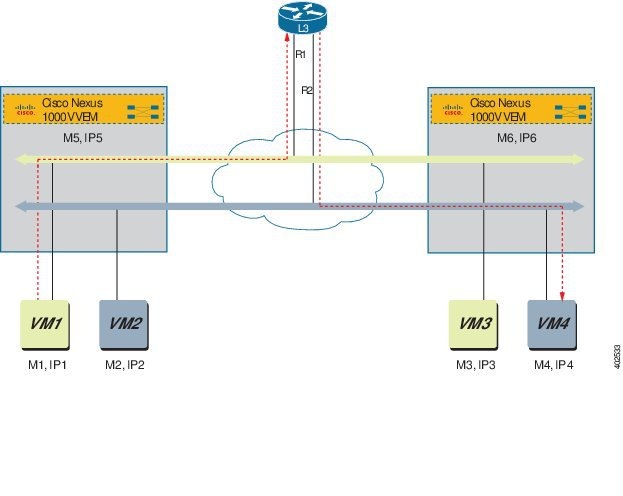

In a typical, centralized Layer 3 forwarding model, a Layer 3 router (virtual and physical) receives packets from a Cisco Nexus 1000V and forwards the traffic across the segments. In this model, the Layer 3 router can become a point of congestion or blockage for the flow of traffic. For example, in the following figure, data packets from VM1 are routed to the Layer 3 router. The Layer 3 router decides where the data packets need to go and forwards the packets to VM4.

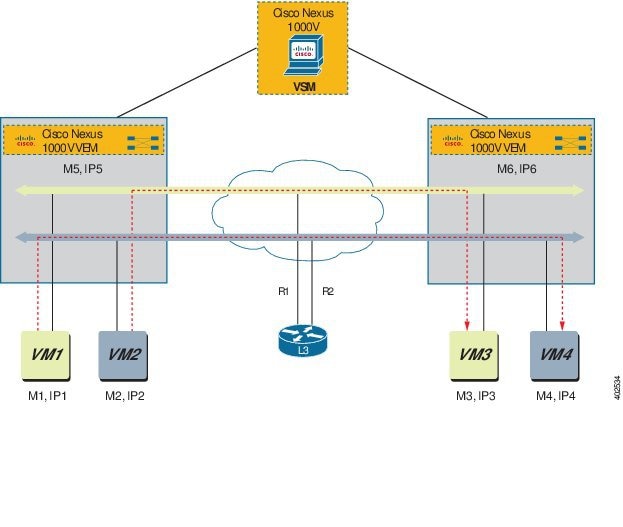

In a distributed forwarding model, the VSM manages all the configurations and the VEMs are instantiated on each host to provide packet switching functionality. In this model, the VSM shares the VM packet routing information with the VEMs, so that the VEMs can forward the packets to the correct host. Distributed forwarding reduces the traffic that is sent to the Layer 3 router because the VEMs send the packets directly to the destination VM. For example, in the following figure, the VEM is aware of VM1 and VM2 routing information. The VEM automatically directs the traffic from VM1 to VM4 and VM2 to VM3. There is no longer a need to forward the packet information to the Layer 3 router.
Enabling and Verifying Layer 3 Forwarding
Log in to the CLI in EXEC mode.
Note | Layer 3 Forwarding requires a Cisco Nexus 1000V Advanced Edition license. |
| Command or Action | Purpose |
|---|
This example shows how to enable the Layer 3 forwarding feature and display the output:
switch# configure terminal Enter configuration commands, one per line. End with CNTL/Z. switch(config)# feature l3forwarding switch(config)# show feature Feature Name Instance State -------------------- -------- -------- cts 1 disabled dhcp-snooping 1 disabled http-server 1 enabled lacp 1 disabled netflow 1 disabled network-segmentation 1 enabled port-profile-roles 1 disabled private-vlan 1 disabled segmentation 1 enabled sshServer 1 enabled tacacs 1 disabled telnetServer 1 disabled vtracker 1 disabled vxlan-gateway 1 disabled l3forwarding 1 enabled switch(config)#
Viewing Layer 3 Forwarding Information
Use the following commands to view Layer 3 forwarding information:
Note | Make sure that you are logged into the VEM when issuing vemcmd commands. |
| Command | Purpose |
|---|---|
|
vemcmd show ip-forwarding-table |
Displays the complete IP forwarding table. |
|
vemcmd show l3-forwarding-table l3-table-id |
Displays the Layer 3 forwarding table. If a Layer 3 table ID is not specified, then the complete Layer 3 forwarding table is displayed. |
| vemcmd show l2 segment segment-id |
Displays the router-mac for that segment. |
|
show segment statistics module [vlan | bridge-domain-name] number |
Displays segment statistics for the specified VLAN or bridge domain |
|
show l3-segment-attribute-table [vlan | bridge-domain-name] number |
Displays the Layer 3 segment attribute table for the specified VLAN or bridge domain. |
| show interface counters |
Displays related interface counter information. |
This example shows how to display information about Layer 3 forwarding:
switch# show ip-forwarding-table
Flags:(Rtr)=Router MAC; (L)=Local; (R)=Remote;
VLAN/SEGID|L3 TableID| MAC | IP | Flags
----------+----------+--------------------+---------------+----------
1172 9 FA:16:3E:49:88:D6 192.168.72.65 L,Rtr
1170 9 FA:16:3E:2D:87:5B 192.168.70.101 L
1170 9 FA:16:3E:42:8C:AF 192.168.70.50 L,Rtr
1170 9 FA:16:3E:E4:8D:8A 192.168.70.104 L
1171 9 FA:16:3E:1A:06:0A 192.168.71.2 L
VEM# vemcmd show l3-forwarding-table 1
L3-table-id IP address mac address BD
1 192.168.1.150 bc:16:65:22:ac:42 130
1 192.168.1.48 bc:16:65:22:ac:42 130
1 192.168.1.179 bc:16:65:22:ac:42 130
1 192.168.1.92 bc:16:65:22:ac:42 130
VEM# vemcmd show flow-mgr l3-flows
Flow-id L3-table-id IP address mac address BD
--------------------------------------------------------------------------------------
0 5000 10.10.163.20 00:16:3e:a9:03:c8 163
1 5000 10.10.163.64 00:16:3e:20:a9:b4 163
2 5000 10.10.162.63 00:16:3e:20:a9:a3 162
3 5000 10.10.162.10 00:1b:35:ab:45:0e 162
VEM# vemcmd show l2 segment 50001
Bridge domain 11 brtmax 4096, brtcnt 3, timeout 300
Segment ID 50001, swbd 4096, "bd1"
Flags: P - PVLAN S - Secure D - Drop R - Router-mac
Type MAC Address LTL timeout Flags PVLAN Remote IP DSN Slot
Static 52:54:00:98:b4:ff 65 0 0.0.0.0 0
Static 52:54:00:62:12:3a 63 0 0.0.0.0 0
Static 52:54:00:61:13:bd 0 0 R 0.0.0.0 0
switch# show segment statistics module 3
VLAN/ Rx Rx Tx Tx Missed Missed Dropped Dropped
BD Pkts Bytes Pkts Bytes Pkts Bytes Pkts Bytes
1 0 0 0 0 0 0 0 0
3972 0 0 0 0 0 0 0 0
3970 0 0 0 0 0 0 0 0
3968 0 0 0 0 0 0 0 0
3971 0 0 0 0 0 0 0 0
switch# show l3-segment-attribute-table
-------------------------------------------------------
Segment-id Segment-type Attribute Value
-------------------------------------------------------
111127 Vxlan Router IP 45.11.9.1
111127 Vxlan Router MAC FA:16:3E:8B:59:05
111127 Vxlan SUBNET 0.0.0.0/0
111126 Vxlan Router IP 45.11.8.1
111126 Vxlan Router MAC FA:16:3E:CD:ED:A1
111126 Vxlan SUBNET 0.0.0.0/0
111125 Vxlan Router IP 45.11.7.1
111125 Vxlan Router MAC FA:16:3E:B9:A7:D2
111125 Vxlan SUBNET 0.0.0.0/0
111124 Vxlan Router IP 45.11.6.1
111124 Vxlan Router MAC FA:16:3E:4D:D9:20
111124 Vxlan SUBNET 0.0.0.0/0
111123 Vxlan Router IP 45.11.5.1
111123 Vxlan Router MAC FA:16:3E:8F:3E:48
switch# show interface counters
--------------------------------------------------------------------------------
Port InOctets InUcastPkts
--------------------------------------------------------------------------------
mgmt0 846142352 1456395
Eth3/1 234693677 48980
Eth4/1 14229614 4606
Eth5/1 198530588 21751
Eth5/2 201360061 35320
Eth6/1 276841979 3298
Eth7/1 72027394 153
Eth7/2 74577517 22113
Po1 276808574 3298
Po2 399811656 57064
Po3 146577970 22259
Veth1 987879 3671
Veth2 343513 2618
Monitoring Layer 3 Forwarding Statistics
Use the following commands to view Layer 3 forwarding statistics:
Note | Make sure that you are logged into the VEM when issuing vemcmd commands. |
| Command | Purpose |
|---|---|
|
vemcmd show stats |
Displays general Layer 3 forwarding port statistics. |
|
vemcmd show packets |
Displays Layer 3 forwarded packets. |
|
vemcmd show bd stats [vlan | segment | bridge-domain-name] number |
Displays Layer 3 forwarded packets per BD. |
|
vemcmd clear bd stats [vlan | segment | bridge-domain-name] number |
Clears the bridge domain statistics for the specified VLAN, segment, or bridge domain. |
|
show l3-segment-attribute-table [vlan | bridge-domain-name] number |
Displays the Layer 3 segment attribute table for the specified VLAN or bridge domain. |
| show interface counters |
Displays related interface counter information. |
This example shows how to view Layer 3 forwarding statistics :
VEM# vemcmd show stats LTL Received Bytes Sent Bytes RxL3frwd Bytes TxL3frwd Bytes Txflood Rxdrop Txdrop Name 52 525 50666 483 47182 121 7096 120 7032 4 0 0 vnet0 53 520 50352 478 46844 119 7085 119 7085 0 0 0 vnet2 VEM# vemcmd show packets LTL RxUcast TxUcast RxMcast TxMcast RxBcast TxBcast RxL3frwd TxL3frwd Txflood Rxdrop Txdrop RxJumbo TxJumbo Name 52 2026 2000 16 16 18 0 121 120 16 0 0 0 0 vnet0 53 2026 2000 0 0 16 0 119 119 0 0 0 0 0 vnet2 VEM# vemcmd show bd stats vlan 107 BD L3Rx Bytes L3Tx Bytes L3Rxmiss bytes 6 97 6456 95 6359 0 0 L3RxMiss – Miss in the L3 hash table for /32 addresses.
Layer 3 Forwarding Guidelines and Limitations
-
Layer 3 forwarding must be enabled before system host setup or the information in the forwarding tables will be inconsistent. To enable Layer 3 forwarding on active VSMs, you must reload the VSM.
-
Layer 3 forwarding is not supported for packets with VXLAN encapsulation received from VMs behind a VEM, such as a VXLAN gateway.
-
Same segment Layer 3 forwarding is supported, but ICMP redirect messages are not generated.
-
In Anycast forwarding (non-gateway forwarding) mode, external traffic is forwarded using the gateway. Also, packets with a router_mac destination are dropped if there is no matching entry in the Layer 3 forwarding table. An ICMP unreachable message will not be generated.
-
There can be only one gateway per segment.
-
In Openstack mode, there can be only one subnet in a network. Multiple subnets in one network is not supported.
-
QoS and security policies applied to packets on the Layer 3 router are skipped in the distributed Layer 3 forwarding model.
-
Destination interface MTU validation is not done in VEM forwarding. There have been no traffic issues observed in testing between VMs on the same VEM.
-
There can only be one router per tenant.
-
VTEP IP address changes may result in transient packet loss for a brief period.
-
The network cannot be changed from shared to non-shared and vice-versa.
-
A MAC cannot be associated with multiple IP addresses.
-
The following are not supported:
Feature History for Layer 3 Forwarding
|
Feature Name |
Release |
Feature Information |
|---|---|---|
|
Layer 3 Forwarding |
5.2(1)SK3(2.2) |
This feature was introduced. |
