Onboard Devices and Services

You can onboard both live devices and model devices to CDO. Model devices are uploaded configuration files that you can view and edit using CDO.

Most live devices and services require an open HTTPS connection so that the Secure Device Connector can connect CDO to the device or service.

See Secure Device Connector (SDC) for more information on the SDC and its state.

This chapter covers the following sections:

Onboard a Cisco IOS Device

You can onboard a live Cisco device running Cisco IOS (Internetwork Operating System).

Onboard a Cisco IOS Device

Before you begin

Ensure that the ciphers your Cisco IOS server supports are supported by CDO.

At this time, CDO supports a limited set of ciphers for onboarding Cisco IOS devices. The supported ciphers are:

aes128-ctr, aes192-ctr, aes256-ctr, aes128-gcm, aes128-gcm@openssh.com, aes256-gcm, aes256-gcm@openssh.com

To determine the ciphers your server supports, log in to your SDC and run this command: ssh -vv <ip_address>. Now you can successfully onboard you Cisco IOS device.

Procedure

Step 1

From the CDO Navigation Bar, click Inventory.

Step 2

Click the blue plus button to begin onboarding the device.

Step 3

Click Connect to Integrations.

Step 4

Click the Secure Device Connector (SDC) button and select the SDC in your network that this device will communicate with. The default SDC is displayed but you can change it by clicking the SDC name.

Step 5

Give the device a name.

Step 6

Enter the location (IP address, fully qualified domain name, or hostname) of the device. The default connection port is 22.

Step 7

From the Integrations menu, select IOS.

Step 8

Click Go.

Step 9

(Optional) At the Create Integration page, you have an opportunity to download and review the SSH fingerprint.

Step 10

Enter the device's administrator name and password.

Note



CDO does not support connections using public key authentication at this time.

Step 11

If you have set an enable password on the device, enter that in the EnablePassword field.

Step 12

Click Connect.

Step 13

(Optional) Enter a label for the device. See Labels and Label Groups for more information.

Step 14

Click Continue.

Step 15

Onboard another IOS device or click Finish.

Step 16

Return to the Inventory page. After the device has been successfully onboarded, you will see that the Configuration Status is "Synced" and the Connectivity state is "Online."

Step 17

(Optional) If you want you can write a note about the device by typing it in the device's Notes pate. See Device Notes for more information.

Create and Import an ASR or ISR Model

A Cisco IOS model is a copy of the running configuration file of a Cisco IOS device that you have onboarded to CDO. You can download the Cisco IOS device configuration to a text file and import it as an IOS model to another tenant that you manage.

Download ASR or ISR Configuration
Procedure

Step 1

In the navigation bar, click Inventory.

Step 2

Click the Devices tab.

Step 3

Click the IOS tab and select a device.

Step 4

In the Management on the left pane, click Configuration.

Step 5

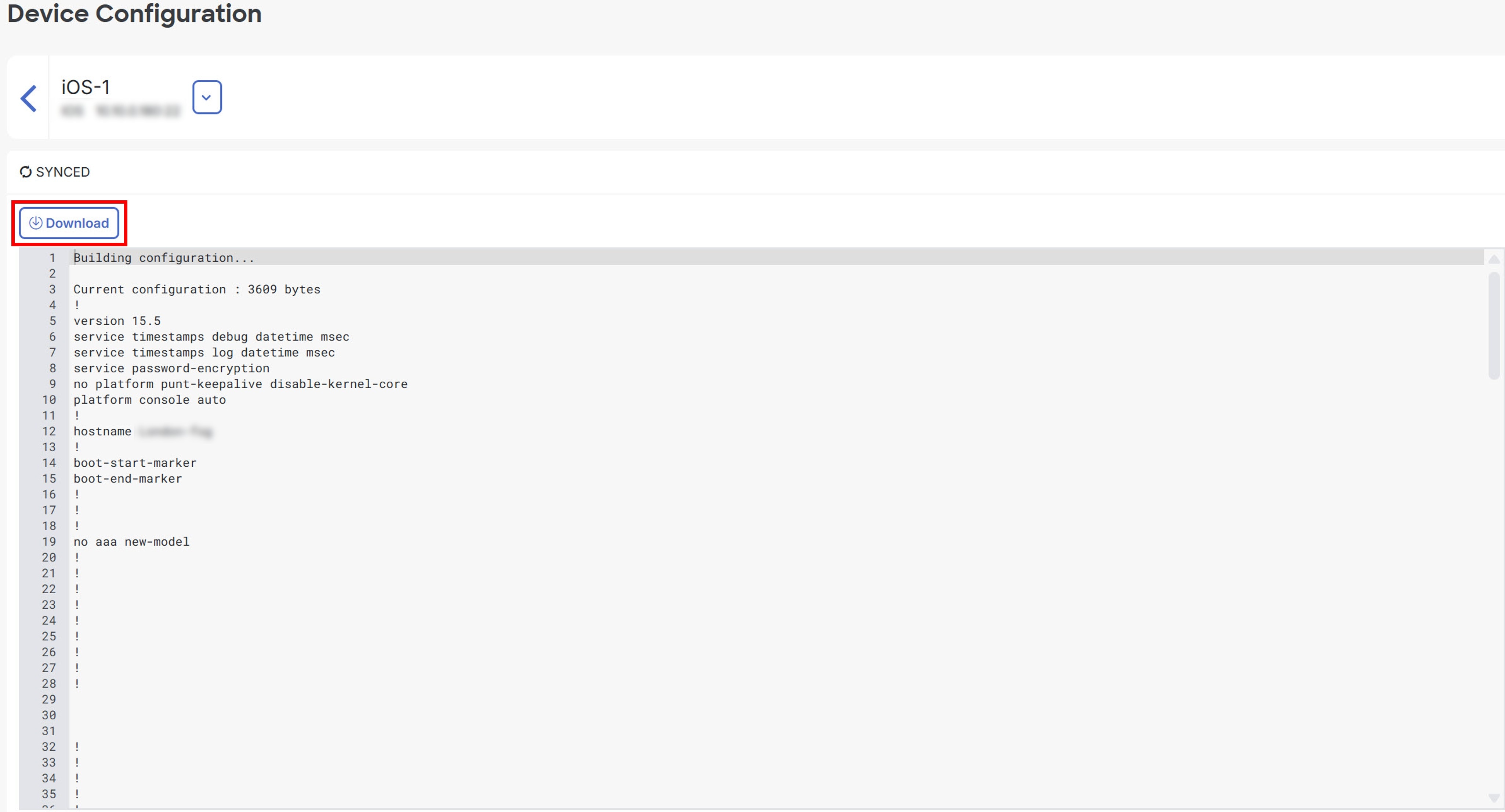

Click Download to download the device configuration to your local computer.

Import ASR or ISR Configuration
Procedure

Step 1

Navigate to the Inventory page.

Step 2

Click the blue plus () button to import the configuration.

Step 3

Click on Import a config file without a device.

Step 4

Select the Device Type as ASR or ISR.

Step 5

Click Browse and select the configuration file (text format) to upload.

Step 6

Once the configuration is verified, you're prompted to label the device or service. See Labels and Label Groups for more information.

Step 7

After labeling your model device, you can view it in the Inventory list.

Note



Depending on the size of the configuration and the number of other devices or services, it may take some time for the configuration to be analyzed.

Delete a Device from CDO

Use the following procedure to delete a device from CDO:

Procedure

Step 1

Log into CDO.

Step 2

Navigate to the Inventory page.

Step 3

Locate the device you want to delete and check the device in the device row to select it.

Step 4

In the Device Actions panel located to the right, select Remove.

Step 5

When prompted, select OK to confirm the removal of the selected device. Select Cancel to keep the device onboarded.

Importing a Device's Configuration for Offline Management

Importing a device's configuration for offline management allows you to review and optimize a device's configuration without having to work on a live device in your network. CDO also refers to these uploaded configuration files as "models."

You can import the configurations of these devices to CDO:

  • Adaptive Security Applicance (ASA).

  • FDM-Managed Device.

  • Cisco IOS devices like the Aggregation Services Routers (ASR) and Integrated Services Routers (ISRs). See Create and Import an ASR or ISR Model.

Delete a Device from CDO

Use the following procedure to delete a device from CDO:

Procedure

Step 1

Log into CDO.

Step 2

Navigate to the Inventory page.

Step 3

Locate the device you want to delete and check the device in the device row to select it.

Step 4

In the Device Actions panel located to the right, select Remove.

Step 5

When prompted, select OK to confirm the removal of the selected device. Select Cancel to keep the device onboarded.
