Object Model
Introduction
Cisco PTC provides access to these types of objects:
•Physical elements (shelf, card, slot, port, etc.)
•Logical configuration elements (Ethernet, Interface, Voice Port, Fax Application, etc.)
•Virtual entities (region, zone, virtual gateway, gatekeeper group, etc.)
Naming, Classes Diagrams, and Attributes
Regarding the difference between the scoping and the naming relationships, please note that the relationship between objects that defines their naming is different and separate from the scoping relationship that determines the result of a scoped query-contained operation.
The naming relationship determines the fully qualified name of an object, naming it relative to other objects. An example is a gateway that is named relative to a network. The fully qualified name is unambiguous within the system. The naming relationship is fixed and does not change for the entire lifetime of an object, as otherwise, its name would have to change. This poses issues in the case where the name is no longer unambiguous, and would make it extremely hard for northbound applications to establish a notion of object identity.
The scoping relationship is a relationship that is traversed for scoped management operations. It has nothing to do with naming (although in some instances, both scoping and naming relationships may exist between the same objects). An example is the gateways contained in a virtual zone. Over the lifetime of the object, an object's scope may change, for instance a gateway being assigned to a zone, or being migrated from one zone to another.
Formal Specification
This section provides the formal specification of the following:
•External object model, which includes the CIM/CX model and the Cisco PTC external object model
•Java API definition
•XML DTD specification (see "XML and DTD.")
Name Binding
The naming hierarchy of the model is presented in Figure 2-1. The arrows are used to point from the subordinate object classes to the superior object classes. Each arrow represents a name binding defined in the following session.
Note Four additional service objects (TrunkGroup, VoiceClass, VoiceParameter, and CallAcctTemplate) that connect to VoiceGateway object have been added as new features. The fifth, GTD, connects to an SCComplex.

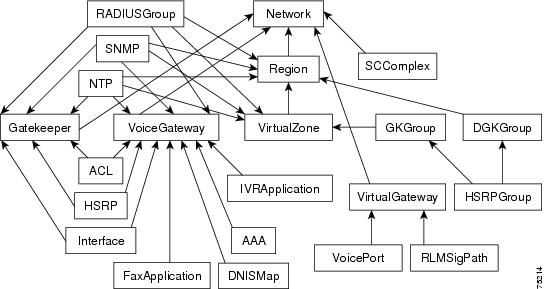

Figure 2-1 Object Model Naming Hierarchy
Network
NetworkId is the name attribute. For example, the name /NetworkId=1 refers to a Network object.
Region
Network/Region NAME BINDING
SUBORDINATE OBJECT CLASS — Region;
SUPERIOR OBJECT CLASS — Network;
RegionId is the name attribute. For example, the name /NetworkId=1/RegionId=SanJose refers to a Region object in the context of /NetworkId=1.
VirtualZone
Region/VirtualZone NAME BINDING
SUBORDINATE OBJECT CLASS — VirtualZone;
SUPERIOR OBJECT CLASS — Region;
VirtualZoneId is the name attribute. For example, the name /NetworkId=1/RegionId=SanJose/zoneId=VirtualZone_1 refers to a VirtualZone object in the context of /NetworkId=1/RegionId=SanJose.
Gatekeeper
Network/Gatekeeper NAME BINDING
SUBORDINATE OBJECT CLASS — Gatekeeper;
SUPERIOR OBJECT CLASS — Network;
GateKeeperId is the name attribute. For example, the name /NetworkId=1 /GatekeeperId=tv-5300-1 refers to a Gatekeeper object in the context of /NetworkId=1.
VoiceGateway
Network/VoiceGateway NAME BINDING
SUBORDINATE OBJECT CLASS — VoiceGateway;
SUPERIOR OBJECT CLASS — Network;
VoiceGatewayId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2 refers to a VoiceGateway object in the context of /NetworkId=1.
VirtualGateway
Network/VirtualGateway NAME BINDING
SUBORDINATE OBJECT CLASS — VirtualGateway;
SUPERIOR OBJECT CLASS — Network;
VirtualGatewayId is the name attribute. For example, the name /NetworkId=1/VirtualGatewayId=tv-5300-2 refers to a VirtualGateway object in the context of /NetworkId=1.
GKGroup
VirtualZone/GKGroup NAME BINDING
SUBORDINATE OBJECT CLASS — GKGroup;
SUPERIOR OBJECT CLASS — VirtualZone;
GKGroupId is the name attribute. For example, the name /NetworkId=1/RegionId=SanJose/zoneId=VirtualZone_1/GKGroupId=gkg-1 refers to a GKGroup object in the context of /NetworkId=1/RegionId=SanJose/zoneId=VirtualZone_1.
DGKGroup
Region/DGKGroup NAME BINDING
SUBORDINATE OBJECT CLASS — DGKGroup;
SUPERIOR OBJECT CLASS — Region;
DGKGroupId is the name attribute. For example, the name /NetworkId=1/RegionId=SanJose/zoneId=VirtualZone_1/DGKGroupId=dgkg-1 refers to a DGKGroup object in the context of /NetworkId=1/RegionId=SanJose.
AAA
Region, VirtualZone, VoiceGateway, Gatekeeper/AAA NAME BINDING
SUBORDINATE OBJECT CLASS — AAA;
SUPERIOR OBJECT CLASS — Region, VirtualZone, VoiceGateway, Gatekeeper;
AAAId is the name attribute. For example, the name /NetworkId=1/RegionId=SanJose/VoiceGatewayId=tv-5300-1/AAAId=aaa-1 refers to a AAA object in the context of /NetworkId=1/RegionId=SanJose/VoiceGatewayId=tv-5300-1.
SCComplex
Network/SCComplex NAME BINDING
SUBORDINATE OBJECT CLASS — SCComplex;
SUPERIOR OBJECT CLASS— Network;
SCComplexId is the name attribute. For example, the name /NetworkId=1/SCComplexId=scc-1 refers to an SCComplex object in the context of /NetworkId=1.
NTP
Region, VirtualZone, VoiceGateway, Gatekeeper/NTP NAME BINDING
SUBORDINATE OBJECT CLASS — NTP;
SUPERIOR OBJECT CLASS — Region, VirtualZone, VoiceGateway, Gatekeeper;
NTPId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/NTPId=ntp-1 refers to an NTP object in the context of /NetworkId=1/VoiceGatewayId=tv-5300-2.
SNMP
Region, VirtualZone, VoiceGateway, Gatekeeper/SNMP NAME BINDING
SUBORDINATE OBJECT CLASS — SNMP;
SUPERIOR OBJECT CLASS — Region, VirtualZone, VoiceGateway, Gatekeeper;
SNMPId is the name attribute. For example, the name /NetworkId=1/GatekeeperId=tv-5300-2/SNMPId=snmp-1 refers to an SNMP object in the context of /NetworkId=1/GatekeeperId=tv-5300-2.
Security Server Group
Region, VirtualZone, VoiceGateway, Gatekeeper/RADIUS Group NAME BINDING
SUBORDINATE OBJECT CLASS — RADIUS Group;
SUPERIOR OBJECT CLASS — Region, VirtualZone, VoiceGateway, Gatekeeper;
RADIUSGroupId is the name attribute. For example, the name /NetworkId=1/RegionId=SanJose/zoneId=VirtualZone_1/RADIUSGroupId=radius-1 refers to a RADIUS Group object in the context of /NetworkId=1/RegionId=SanJose/zoneId=VirtualZone_1.
ACL
VoiceGateway, Gatekeeper/ACL NAME BINDING
SUBORDINATE OBJECT CLASS — ACL;
SUPERIOR OBJECT CLASS — VoiceGateway, Gatekeeper;
ACLId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/ACLId=acl-1 refers to an ACL object in the context of /NetworkId=1/VoiceGatewayId=tv-5300-2.
Interface
VoiceGateway, Gatekeeper/Interface NAME BINDING
SUBORDINATE OBJECT CLASS — Interface;
SUPERIOR OBJECT CLASS — VoiceGateway, Gatekeeper;
InterfaceId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/InterfaceId=interface-1 refers to an Interface object in the context of /NetworkId=1/VoiceGatewayId=tv-5300-2.
DNISMap
VoiceGateway/DNISMap NAME BINDING
SUBORDINATE OBJECT CLASS — DNISMap;
SUPERIOR OBJECT CLASS — VoiceGateway;
DNISMapId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/DNISMapId=dnismap-1 refers to a DNISMap object in the context of /NetworkId=1/VoiceGatewayId=tv-5300-2.
IVRApplication
VoiceGateway/IVRApplication NAME BINDING
SUBORDINATE OBJECT CLASS — IVRApplication;
SUPERIOR OBJECT CLASS — VoiceGateway;
IVRApplicationId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/IVRApplicationId=ivr-1 refers to an IVRApplication object in the context of /NetworkId=1/VoiceGatewayId=tv-5300-2.
FaxApplication
VoiceGateway/FaxApplication NAME BINDING
SUBORDINATE OBJECT CLASS — FaxApplication;
SUPERIOR OBJECT CLASS — VoiceGateway;
FaxId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/FaxId=fax-1 refers to a Fax object in the context of /NetworkId=1/VoiceGatewayId=tv-5300-2.
RLMSigPath
VirtualGateway/RLMSigPath NAME BINDING
SUBORDINATE OBJECT CLASS — RLMSigPath;
SUPERIOR OBJECT CLASS — VirtualGateway;
RLMSigPathId is the name attribute. For example, the name /NetworkId=1/VirtualGatewayId=tv-5300-2/RLMSigPathId=rlm-1 refers to a RLMSigPath object in the context of /NetworkId=1/VirtualGatewayId=tv-5300-2.
TrunkGroup
VoiceGateway/TrunkGroup NAME BINDING
SUBORDINATE OBJECT CLASS — TrunkGroup;
SUPERIOR OBJECT CLASS — VoiceGateway;
TrunkGroupId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/TrunkGroupId=25 refers to a TrunkGroup object in the context of /NetworkId=1/VoiceGatewayId=tv-5400-1
VoiceClass
VoiceGateway/VoiceClass NAME BINDING
SUBORDINATE OBJECT CLASS — VoiceClass;
SUPERIOR OBJECT CLASS — VoiceGateway;
VoiceClassId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/VoiceClassId=25 refers to a VoiceClass object in the context of /NetworkId=1/VoiceGatewayId=tv-5400-1
VoiceParameter
VoiceGateway/VoiceParameter NAME BINDING
SUBORDINATE OBJECT CLASS — VoiceParameter;
SUPERIOR OBJECT CLASS — VoiceGateway;
VoiceParameterId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/VoiceParameterId=25 refers to a VoiceParameter object in the context of /NetworkId=1/VoiceGatewayId=tv-5400-1
CallAcctTemplate
VoiceGateway/CallAcctTemplate NAME BINDING
SUBORDINATE OBJECT CLASS — VoiceParameter;
SUPERIOR OBJECT CLASS — CallAcctTemplate;
CallAcctTemplateId is the name attribute. For example, the name /NetworkId=1/VoiceGatewayId=tv-5300-2/CallAcctTemplateId=25 refers to a CallAcctTemplate object in the context of /NetworkId=1/VoiceGatewayId=tv-5400-1
GTD
SCComplex/GTD NAME BINDING
SUBORDINATE OBJECT CLASS — SCComplex;
SUPERIOR OBJECT CLASS — GTD;
GTD is the name attribute. For example, the name /NetworkId=1/ManagedElementComplexId=MGC-Node-2/GTDParamId=gtd250 refers to a GTD object in the context of /NetworkId=1/ManagedElementComplexId=MGC-Node-2
Object Scoping & Association

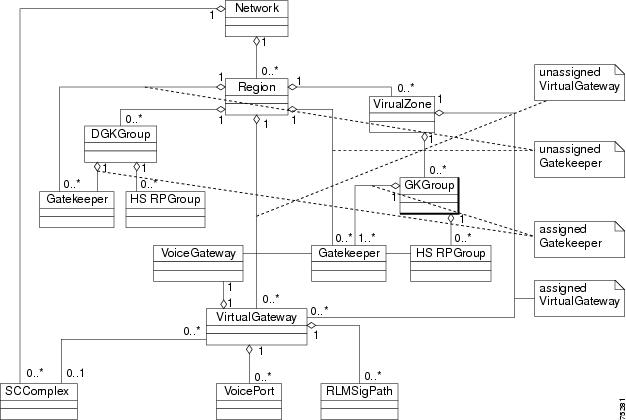

The object scoping and association relationships are presented in Figure 2-2, Figure 2-3, and Figure 2-4.
The line with a diamond symbol on one end represents a parent-child containment (or scoping) relationship, with the object towards the diamond end being the containing parent and the objects on the other end being the contained children.
Take, for example, the Region object. A Region contains (0..n) Gatekeepers, (0..n) Directory Gatekeepers, (0..n) Voice Gateways, one DGK Group, (0..n) Virtual Zones, and (0..n) Virtual Gateways. For a given Region object instance, an API client can retrieve these types of objects contained under that region.
A plain line (with no symbol on either end) represents an association relationship between the two objects linked by the line.
Take, for example, the association between the SCComplex and Virtual Gateway: an SC can manage (0..n) Virtual Gateways, while a Virtual Gateway is controlled by (0..1) SCs.
Figure 2-2 Virtual Gateway

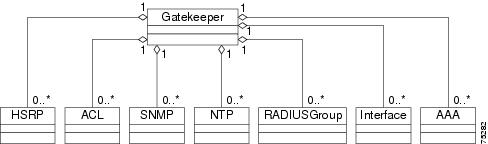

Figure 2-3 The Gatekeeper

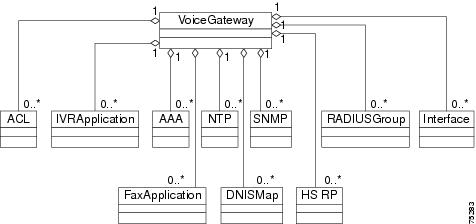

Figure 2-4 As part of new features, Voice Gateway has acquired four new service objects: TrunkGroup, VoiceClass, VoiceParameter, and CallAcctTemplate
Region
Table 2-1 Region Parameter
Parameter
|
|
|
Modifiable on Router?
|
RegionId |
String |
Name of the Region. This is the class naming attribute. |
No |
Virtual Zone
Table 2-2 Virtual Zone Parameters
Parameter
|
|
|
Modifiable on Router?
|
ZoneId |
String |
Name of the Virtual Zone. This is the class naming attribute. |
No |
VirtualGWs |
SeqOf |
Associated Virtual Gateways. |
No |
Virtual Gateway
Table 2-3 Virtual Gateway Parameters
Parameter
|
|
|
Modifiable on Router?
|
VirtualGatewayId |
String |
Name of the Virtual Gateway. This is the class naming attribute. |
No |
VirtualZone |
String |
Associated Virtual Zone. |
No |
VoiceGWs |
SeqOf String |
Associated Voice Gateways. |
No |
SCComplexes |
SeqOf String |
Associated SC Complexes. |
No |
DGK Group
Table 2-4 Directory Gatekeeper Group Parameters
Parameter
|
|
|
Modifiable on Router?
|
DGKGroupId |
String |
Name of the Directory Gatekeeper Group. This is the class naming attribute. |
No |
DGKs |
SeqOf String |
Associated Directory Gatekeepers. |
No |
GK Group
Table 2-5 Gatekeeper Group Parameters
Parameter
|
|
|
Modifiable on Router?
|
GKGroupId |
String |
Name of the Gatekeeper Group. This is the class naming attribute. |
No |
Gatekeepers |
SeqOf String |
Associated Gatekeepers. |
No |
SC2200 Complex
Table 2-6 SC2200 Complex Parameters
Parameter
|
|
|
Modifiable on Router?
|
SC2200ComplexId |
String |
Name of the SC2200 Complex. This is the class naming attribute. |
No |
VirtualGWs |
SeqOf String |
Associated Virtual Gateways. |
No |
Network
Table 2-7 Network Parameter
Parameter
|
|
|
Modifiable on Router?
|
NetworkId |
String |
Name of the Network. This is the class naming attribute. |
No |
Gatekeeper
Table 2-8 Gatekeeper Parameters
Parameter
|
|
|
Modifiable on Router?
|
GatekeeperId |
String |
Name of the Gatekeeper This is the class naming attribute. |
No |
HSRPGroup |
SeqOf String |
Associated HSRP Group. |
No |
GKGroup |
SeqOf String |
Associated Gatekeeper Group. |
No |
Voice Gateway
Table 2-9 Voice Gateway Parameters
Parameter
|
|
|
Modifiable on Router?
|
VoiceGatewayId |
String |
Name of the Voice Gateway. This is the class naming attribute. |
No |
GK |
SeqOf String |
Associated Gatekeeper. |
No |
AltGK |
SeqOf String |
Associated Alternative Gatekeeper. |
No |
VirtualGW |
SeqOf String |
Associated Virtual Gateway. |
No |
RLMSig-Path Parameters
Table 2-10 Q931/RLM Signaling Path Parameters
Parameter
|
Category/Parameter Tab
|
Type
|
Value
|
Description
|
Modifiable on Router?
|
RLM SigPath Number |
Basic & GW |
GW |
int (0-255) |
RLM Group number on the gateway. |
No |
SC Primary Ethernet Interface |
Basic & General |
GW |
enum (consisting of all of the interfaces currently configured on the SC) |
Primary Ethernet interface on the PGW2200/SC2200 for the IP link. |
No |
SC Secondary Ethernet Interface |
Basic & General |
GW |
enum (consisting of all of the interfaces currently configured on the SC) |
Secondary Ethernet interface on the PGW2200/SC2200 for the IP link. |
No |
GW Primary Interface |
Basic & General |
GW |
enum (consisting of all of the interfaces currently configured on the SC |
Primary interface on the gateway for the RLM link to the PGW2200/SC2200. |
No |
GW Secondary Interface |
Basic & General |
GW |
enum (consisting of all of the interfaces currently configured on the SC |
Secondary interface on the gateway for the RLM link to the PGW2200/SC2200. |
No |
RLM UDP Port |
Basic & General |
GW |
int (even number between 3000-65533) |
The UDP port on the gateway and PGW2200/SC2200 upon which the gateway and PGW2200/SC2200 communicate RLM messages. The Q931 messages are communicated on the UDP port that numbers one more than this port number. |
No |
MDO |
Basic & General |
SC: NASPath - mdo |
enum {unset, ANSISS7 CLEAR, ANSISS7 MCI, ANSISS7 SPRINT, ANSISS7 STANDARD, ATT 41459, ATT 41459 C2, BELL 1268, BELL 1268 C3, BTNUP BTNR167, BTNUP NRC, DPNSS BTNR188, EISUP, ETS 300 102, ETS 300 102 C1, ETS 300 121, ETX 300 172, ETS 300 356, FINLAND 5779, HKTA 2202, ISUPV1 POLI, ISUPV2 FRENCH, ISUPV2 GERMAN, ISUPV2 JAPAN, ISUPV2 KPNPB, ISUPV2 NTT, ISUPV2 SWISS, ISUPV2 UK, NORTEL IBN7, NTT INS 1500, Q721 BASE, Q721 CHINA, Q721 FRENCH, Q721 AUSTRL, Q761 BASE, Q761 BELG MOB1, Q761 KOREAN, Q767 BASE, Q767 ITAL, Q767 ITAL INTERCONNECT, Q767 MEXICAN, Q767 RUSS, Q767 SPAN, Q767 SWED, T113 BEL} Default: BELL 1268 C3 |
Message Definition Object file. |
No |
Description |
Basic & General |
|
|
Description of the RLM group and NAS path. |
Yes |
RLM Link1 Priority |
Detail & General |
|
int (1-100,000) |
Priority of the RLM link between the gateway and PGW2200/SC2200. |
No |
RLM Link2 Priority |
Detail & General |
|
int (1-100,000) |
Priority of the RLM link between the gateway and PGW2200/SC2200. |
No |
RLM Link3 Priority |
Detail & General |
|
int (1-100,000) |
Priority of the RLM link between the gateway and PGW2200/SC2200. |
No |
RLM Link4 Priority |
Detail & General |
|
int (1-100,000) |
Priority of the RLM link between the gateway and PGW2200/SC2200. |
No |
B Originating Start Node |
Detail & Call processing |
SC: NASPath - sigsvcprop |
enum {no dialplan, first node in originating digit tree} Default: no dialplan |
B Originating Start Node. |
Yes |
B Terminating Start Node |
Detail & Call processing |
SC: NASPath - sigsvcprop |
enum {no dialplan, first node in originating digit tree} Default: no dialplan |
B Terminating Start Node. |
Yes |
BC Initial State |
Detail & Call processing |
SC: NASPath - sigsvcprop |
enum {In Service, Out of Service} Default: In Service |
Initial status the SC places its nailed up bearer channels following an application restart. The gateway can override this status with the GSM messages. |
Yes |
Bothway Working |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default: 1 |
Specifies if bothway release/circuit-free handling for BTNUP protocol is enabled. Set to 0 to disable. |
Yes |
CGBA2 |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default: 0 |
Determines if paired (0) or single (1) Circuit Group Blocking Acknowledgements (CGBAs) are required before the blocking is considered successful. Only applicable to ANSI SS7, IBN7, and CTUP protocols. |
Yes |
CLIPEss |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default: 0 |
Set to 1 to force request of Calling Line Identity (CLI) if not automatically provided. |
Yes |
COT In Tone |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (1780 or 2010) Default: 2010 |
Receive tone (in Hz) for Continuity Test (COT) hardware. The tone to listen for when doing a COT. |
Yes |
COT Out Tone |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (1780 or 2010) Default: 2010 |
Transmit tone (in Hz) for COT hardware. The tone that is produced. |
Yes |
COT Percentage |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int {0-100} Default: 0 |
Statistical COT. |
Yes |
External COT |
Detail & Call processing |
SC: NASPath - sigsvcprop |
enum {Zero, Loop, Transponder} Default: Loop |
Determines the type of COT handling for the specified destination. |
Yes |
Fast Connect |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 3) Default: 0 |
Allows you to set this property for NI2+ only (PRI BELL 1268 customer 3, Cisco MGW). The purpose of this property is to allow/disallow the signal being sent to LCM when a CALL PROCEEDING, a PROGRESS and an ALERTING message is received from the gateway. 0—Normal behavior, enabled all signals to LCM. 1—Disable signals to LCM when a Call Proceeding message is received from the gateway. 2—Disable signals to LCM when a Call Proceeding or Progress message is received from the gateway. 3—Disable signals to LCM when a Call Proceeding, or a Progress, or an Alerting message is received from the gateway. |
Yes |
Forward CLI in IAM |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default: 0 |
Set to 1 if outgoing IAM should contain the Calling Line Identity (CLI), if available. Only applicable for BTNUP when interworking from other protocols. |
Yes |
Forward Segmented NEED |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default: 1 |
Set to 0 to disable the forwarding of segmented NEED messages within the BTNUP_NRC protocol. If segmenting is disabled, all mandatory DPNSS information elements are packed into a single BTNUP NEED message. |
Yes |
Glare |
Detail & Call processing |
SC: NASPath - sigsvcprop |
enum {no glare handling, always, even/odd, no control} Default: even/odd |
Call Collision Handling. no glare handling—call collision results in a REL sent to both calls. Also known as yield to all double seizures. always—the SC has control of all circuits and the SC handles any call collisions. It ignores incoming IAMs and proceeds with its own calls as normal. even/odd—highest point code controls the even circuits. Depending on the OPC of the SC, the side that has the higher point code controls the even circuits, while the side with the lower point code controls the odd circuits. no control—The SC specified with this option does not control any circuits. The SC accepts incoming IAMs from the side with control. |
Yes |
GRA2 |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default: 0 |
Determines if paired (0) or single (1) Group Reset Acknowledgements (GRAs) are required before the reset is considered successful. Only applicable to ANSI SS7, IBN7, and CTUP protocols. |
Yes |
International Prefix |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:0 |
International prefix string to be added to the international dialed number when normalization is enabled. |
Yes |
National Prefix |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:0 |
National prefix string to be added to the national dialed number when normalization is enabled. |
Yes |
Normalization |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default:0 |
Normalization of dialed number to unknown. Set to 0 for disabled or 1 for enabled. |
Yes |
O Maximum digits |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:24 |
Specifies the maximum number of digits to receive for overlap digit processing for call origination from this traffic path. |
Yes |
O Minimum digits |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:0 |
Specifies the minimum number of digits to receive for overlap digit processing for call origination from this traffic path. |
Yes |
O Overlap |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:0 |
Set to 1 to enable overlap signaling for call origination from this traffic path. |
Yes |
Overlap Digit Time |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0-60) Default:6 |
Overlap inter-digit timer. The time to wait for the rest of the digits. |
Yes |
Propagate Service Message Block |
Detail & Call processing |
SC: NASPath - sigsvcprop |
enum {Enable, Disable} Default: Disable |
Enable—the protocols supporting group blocking send individual blocking messages. Disable—protocols supporting group blocking continue to send group messages. |
Yes |
Maximum Redir |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:3 |
Specifies the maximum allowable value of the redirection counter parameter available in some C7 signaling systems before the call is force-released. Used to prevent routing loops in certain applications. |
Yes |
Release Mode |
Detail & Call processing |
SC: NASPath - sigsvcprop |
enum {Asynchronous, Synchronous} Default: Synchronous |
Defines the type of releasing. Asynchronous clearing allows both OCC and TCC sides to clear independently; circuits are freed earlier in the release sequence. Synchronous clearing requires that the clearing at the two sides is synchronized. Normally, nailed-up configurations use synchronous clearing and VSC configurations use asynchronous clearing. |
Yes |
Route Preference |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0-9) Default:0 |
Determines the preferred route. |
Yes |
Suppress CLI Digits |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:0 |
Suppress the calling party number. |
Yes |
T309Time |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:90,000 |
For timer NT309 (in milliseconds). |
Yes |
T310Time |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:10,000 |
For timer NT310 (in milliseconds). |
Yes |
T Maximum Digits |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:24 |
Specifies the maximum number of digits to receive for overlap digit processing for call termination to this traffic path. |
Yes |
T Minimum Digits |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:0 |
Specifies minimum number of digits to receive for overlap digit processing for call termination to this traffic path. |
Yes |
T Overlap |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int (0 or 1) Default:0 |
Set to 1 to enable overlap signaling for call termination to this traffic path. |
Yes |
VoIP Prefix |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:0 |
A numeric string. |
Yes |
LAPD Drop Error |
Detail & LAPD |
SC: NASPath - sigsvcprop |
enum {Enable, Disable} Default: Disable |
Boolean to determine if some LAPD sequence errors are discarded. Used in large IP networks where latency may cause LAPD sequence errors. According to Q.921, this causes the link layer to reset. This parameter allows sequence errors to be discarded without setting the link. |
Yes |
LAPD K Value |
Detail & LAPD |
SC: NASPath - sigsvcprop |
int (1-127) Default:7 |
Number of outstanding frames in the Q.921 transmission window. |
Yes |
LAPD N200 |
Detail & LAPD |
SC: NASPath - sigsvcprop |
int (0-10) Default:6 |
Maximum number of retransmissions of a Q.921 frame. |
Yes |
LAPD N201 |
Detail & LAPD |
SC: NASPath - sigsvcprop |
int Default:260 |
Maximum number of octets in a Q.921 frame. |
Yes |
LAPD T200 |
Detail & LAPD |
SC: NASPath - sigsvcprop |
int (10-60) Default:10 |
Maximum wait time (in 1/10 seconds) for a LAPD frame acknowledgement before retransmission. |
Yes |
LAPD T203 |
Detail & LAPD |
SC: NASPath - sigsvcprop |
int (50-600) Default:100 |
Maximum time (in 1/10 seconds) the Q.921 link is idle before sending a frame. |
Yes |
Resume Ack Timer |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:1 |
|
Yes |
RUDP Ack |
Detail & RUDP |
SC: NASPath - sigsvcprop |
enum {Enable, Disable} Default: Enable |
|
Yes |
RUDP Keep Alives |
Detail & RUDP |
SC: NASPath - sigsvcprop |
enum {Enable, Disable} Default: Enable |
|
Yes |
RUDP Number of Retx |
Detail & RUDP |
SC: NASPath - sigsvcprop |
int (1-100) Default:2 |
Maximum number of retransmissions count. |
Yes |
RUDP Retx Timer |
Detail & RUDP |
SC: NASPath - sigsvcprop |
int (2-100) Default:6 |
The retransmission timeout value. |
Yes |
RUDP Sdm |
Detail & RUDP |
SC: NASPath - sigsvcprop |
enum {Enable, Disable} Default: Enable |
|
Yes |
RUDP Window Size |
Detail & RUDP |
SC: NASPath - sigsvcprop |
int (2-64) Default:32 |
Maximum number of Unacknowledged Segments in the RUDP window. |
Yes |
Session Pause Timer |
Detail & RUDP |
SC: NASPath - sigsvcprop |
int Default:8 |
|
Yes |
Span ID |
Detail & Call processing |
SC: NASPath - sigsvcprop |
int Default:65535 |
E1/T1 ID for FAS and DPNSS, ffff for SS7. |
Yes |
Force-down Timer |
Detail & GW RLM |
GW: rlm group - timer force-down |
int {1-600} Default:30 |
Timeout value (in seconds) to force staying in the down state. |
Yes |
Keep-alive Timer |
Detail & GW RLM |
GW: rlm group - timer keepalive |
int {1-600} Default:1 |
Keepalive timeout value, in seconds. |
Yes |
Minimum Up Link Timer |
Detail & GW RLM |
GW: rlm group - timer minimum-up |
int {1-600} Default:60 |
Minimum time (in seconds) to wait for the up link to stabilize. |
Yes |
Open-wait Timer |
Detail & GW RLM |
GW: rlm group - timer open-wait |
int {1-600} Default:3 |
Open connection timeout value, in seconds. |
Yes |
Recovery Timer |
Detail & GW RLM |
GW: rlm group - timer recovery |
int {1-600} Default:12 |
Recovery timeout value, in seconds. |
Yes |
Retransmit Timer |
Detail & GW RLM |
GW: rlm group - timer retransmit |
int {2-100} Default:6 |
RLM command retransmission timeout value, in seconds. |
Yes |
Switch-link Timer |
Detail & GW RLM |
GW: rlm group - timer switch-link |
int {1-600} Default:5 |
Switch to newly recovered link with higher weighting timeout value, in seconds. |
Yes |
Generic Transparency Descriptor (GTD) Parameters
Table 2-11 GTD Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
GTD Name |
Basic & Common |
string |
Name of the GTD. |
No |
GTD Parameters |
Basic & Common |
string |
The parameters in this GTD. |
Yes |
GTD Override Parameters |
Basic & Common |
list {CGN.noa, CPN.noa} |
The override parameters in this GTD. |
Yes |
Description |
Basic & Common |
string |
Description of this GTD. |
Yes |
Carrier Parameters
Table 2-12 Carrier Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Carrier Name |
Basic & Common |
string |
Name of the Carrier. |
No |
Description |
Basic & Common |
string |
Description of this Carrier. |
Yes |
Trunk Group Parameters
Table 2-13 Trunk Group Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Carrier Id |
Basic & General |
string |
The carrier that owns the trunk group. |
Yes |
Hunt Scheme |
Basic & General |
enum {Least Idle Both, Least Idle Even, Least Idle Odd, Least Used Both Up, Least Used Both Down, Least Used Even Up, Least Used Even Down, Least Used Odd Up, Least Used Odd Down, Longest Idle Both, Longest Idle Even, Longest Idle Odd, Round Robin Both Up, Round Robin Both Down, Round Robin Even Up, Round Robin Even Down, Round Robin Odd Up, Round Robin Odd Down, Sequential Both Up, Sequential Both Down, Sequential Even Up, Sequential Even Down, Sequential Odd Up, Sequential Odd Down, Random} |
The search method for finding an available voice channel in the trunk group. |
Yes |
Max Calls Any InOut |
Detail & MaxCalls |
integer (0-1000) |
Specifies the number of allowed incoming and outgoing calls (both data and voice). |
Yes |
Max Calls Any In |
Detail & MaxCalls |
integer (0-1000) |
Specifies the number of allowed incoming calls (both data and voice). |
Yes |
Max Calls Any Out |
Detail & MaxCalls |
integer (0-1000) |
Specifies the number of allowed outgoing calls (both data and voice). |
Yes |
Max Calls Data InOut |
Detail & MaxCalls |
integer (0-1000) |
Specifies the number of allowed incoming and outgoing data calls. |
Yes |
Max Calls Data In |
Detail & MaxCalls |
integer (0-1000) |
Specifies the number of allowed incoming data calls. |
Yes |
Max Calls Data Out |
Detail & MaxCalls |
integer (0-1000) |
Specifies the number of allowed outgoing data calls. |
Yes |
Max Calls Voice InOut |
Detail & MaxCalls |
integer (0-1000) |
Specifies the number of allowed incoming and outgoing voice calls. |
Yes |
Max Calls Voice In |
Detail & MaxCalls |
integer |
Specifies the number of allowed incoming voice calls. |
Yes |
Max Calls Voice Out |
Detail & MaxCalls |
integer |
Specifies the number of allowed outgoing voice calls. |
Yes |
Voice Port Parameters
Voice Port - Common Parameters
Table 2-14 Common Voice Port Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
DS0 Channels |
Basic & GW |
int (1-24 for T1, 1-30 for E1) |
|
No |
Controller Framing |
Basic & Controller |
enum for T1{SF, ESF} for E1 {CRC4, NO CRC4} |
Type of framing on a DS1 link. |
Yes |
Controller Line Coding |
Basic & Controller |
enum for T1{ami, b8zs} for E1 {ami, hdb3} |
Line encoding method for a DS1 link. |
Yes |
Controller Clock Source |
Basic & Controller |
enum {Free Running Clock, Internal Clock, Line(Recovered) Clock - Primary, Line(Recovered) Clock - Secondary} |
Clock source for a DS1 link. |
Yes |
Controller Cable Length |
Basic & Controller |
enum {Long Gain26 -15dB pulse, Long Gain26 -22.5dBpulse, Long Gain26 -7.5dBpulse, Long Gain26 0dBpulse, Long Gain36 -15dB pulse, Long Gain36 -22.5dBpulse, Long Gain36 -7.5dBpulse, Long Gain36 0dBpulse, Short 0-133ft Short 134-266ft Short 267-399ft Short 400-533ft Short 534-655ft} |
Cable length for a DS1 link. |
Yes |
Call Progress Tone |
Basic & Controller |
enum {Argentina, Australia, Austria, Belgium, Brazil, Canada, China, Columbia, Cyprus, Czech Republic, Denmark, Egypt, Finland, France, Germany, Ghana, Greece, Hong Kong, Iceland, India, Indonesia, Ireland, Israel, Italy, Japan, Jordan, Kenya, Korea Republic, Lebanon, Luxembourg, Malaysia, Mexico, Nepal, Netherlands, New Zealand, Nigeria, Norway, Pakistan, Panama, Peru, Philippines, Poland, Portugal, Russian Federation, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Thailand, Turkey, United Kingdom, United States, Venezuela, Zimbabwe} Default: United States |
|
Yes |
Companding Type |
Basic & General |
enum {u-law, a-law} |
|
Yes |
Description |
Basic & General |
string |
|
Yes |
Call Disconnect Timeout |
Detail & Timeouts |
int (0-120) Default: 60 |
Call disconnect time out value, in seconds. |
Yes |
Initial Digit Timeout |
Detail & Timeouts |
int (0-120) Default: 10 |
Number of seconds the system waits between the caller input of the initial digit and the subsequent digit of the dialed string. |
Yes |
Inter Digit Timeout |
Detail & Timeouts |
|
Number of seconds the system waits after the caller input of the initial digit or a subsequent digit of the dialed strings. |
Yes |
Ringing Timeout |
Detail & Timeouts |
int (5-60000), infinity) Default: 180 |
Duration, in seconds, the voice port allows ringing to continue if a call is not answered. |
Yes |
Wait Release Timeout |
Detail & Timeouts |
int (5-3600, infinity) Default: 30 |
Duration, in seconds, the voice port stays in the call failure state. |
Yes |
Clear Wait Timing |
Detail & Timing |
int (200-2000) Default:400 |
Minimum amount of time, in seconds. |
Yes |
Delay Duration Timing |
Detail & Timing |
int (100-5000) Default: 2000 |
Delay duration, in milliseconds, for delay dial signaling. |
Yes |
Delay Start Timing |
Detail & Timing |
int (20-2000) Default: 300 |
Minimum delay, in milliseconds, from outgoing seizure to out-dial address. |
Yes |
Digit Timing |
Detail & Timing |
int (50-100) Default: 100 |
DTMF digit signal duration, in milliseconds. |
Yes |
Guard OutTiming |
Detail & Timing |
int (300-3000) Default: 2000 |
Duration of the guard out period that prevents this port from seizing a remote FXS port before the remote port detects a disconnected signal. |
Yes |
Hookflash Out Timing |
Detail & Timing |
int (50-500) Default: 300 |
Hookflash duration, in milliseconds. |
Yes |
Inter Digit Timing |
Detail & Timing |
int (50-500) Default: 100 |
DTMF inter-digit duration, in milliseconds. |
Yes |
Pulse Timing |
Detail & Timing |
int (10-20) Default: 20 |
Pulse dialing rate, in pulses per second. |
Yes |
Pulse Digit Timing |
Detail & Timing |
int (10-20) Default: 20 |
Pulse digit signal duration, in milliseconds. |
Yes |
Pulse Inter-digit Timing |
Detail & Timing |
int (10-1000) Default: 500 |
Pulse dialing inter-digit duration, in milliseconds. |
Yes |
Wink Duration Timing |
Detail & Timing |
int (100-400) Default: 200 |
Maximum wink signal duration, in milliseconds, for a wink-start signal. |
Yes |
Wink Wait Timing |
Detail & Timing |
int (100-5000) Default: 200 |
Maximum wink wait duration, in milliseconds, for a wink-start signal. |
Yes |
Music Threshold |
Detail & VAD |
int (-70 to -30) Default: -38 |
Minimum decibel level of music played when calls are put on hold. |
Yes |
Comfort Noise |
Detail & VAD |
enum {enable, disable} Default: enable |
Enable comfort noise creates background noise to fill silent gaps during the calls when VAD is enabled on voice dial peers. |
Yes |
Playout Delay Mode |
Detail & Voice Quality |
enum {adaptive, fixed} Default: adaptive |
Mode in which the jitter buffer will operate for calls on this voice port. |
Yes |
Playout Nominal Delay |
Detail & Voice Quality |
int (0-250) Default: 10 |
Amount of playout delay, in milliseconds, applied at the beginning of a call by the jitter buffer in the gateway. |
Yes |
Playout Maximum Delay |
Detail & Voice Quality |
int (0-250) Default: 80 |
The jitter buffer upper limit or highest value to which the adaptive delay is set. |
Yes |
Playout Minimum Delay |
Detail & Voice Quality |
enum {default, low, high} Default: default |
The jitter buffer lower limit or lowest value to which the adaptive delay is set. |
Yes |
Echo Cancellation |
Detail & Voice Quality |
enum {enable, disable} Default: enable |
The cancellation of voice that is sent and received on the same interface. |
Yes |
Echo Cancellation Coverage |
Detail & Voice Quality |
enum {8, 16, 24, 32} Default: 16 |
Adjust the echo cancellation by this number. |
Yes |
Nonlinear Processing |
Detail & Voice Quality |
enum {enable, disable} Default: enable |
Enable nonlinear processing in the echo canceller which shuts off any signal if no near-end speech is detected. |
Yes |
Input Gain |
Detail & Voice Quality |
int (-6 to 14) Default:0 |
The amount of gain, in decibels, to be inserted at the receiver side of the interface, increasing or decreasing the signal. |
Yes |
Output Attenuation |
Detail & Voice Quality |
int (-6 to 14) Default:0 |
The amount of attenuation, in decibels, at the transmit side of the interface, decreasing the signal. |
Yes |
Impedance |
Detail & Voice Quality |
enum {600c, 600r, 900c, complex1, complex2} Default: 600r |
The terminating impedance of a voice port interface, which must match the specifications from the specific telephony system to which it is connected. |
Yes |
Voice Port - E1 R2 Parameters
Table 2-15 E1 R2 Voice Port Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Signaling Type |
Basic & General |
enum {E&M FGB, E&M FGD, E&M Immediate Start, FXS Ground Start, FXS Loop Start, R2 Analog, R2 Digital, and R2 Pulse} Default: E&M FGB |
The type of CAS signaling. |
No |
DNIS Address Info |
Basic & General |
enum {enable, disable} Default: enable |
DNIS address information. |
No |
Minimum ANI Digits |
Detail & CAS Custom |
int (0-64) Default: 0 |
Minimum number of collected ANI digits. |
Yes |
Maximum ANI Digits |
Detail & CAS Custom |
int (0-64) Default: 0 |
Maximum number of collected ANI digits. |
Yes |
Answer Signal Group |
Detail & CAS Custom |
enum {Group A, Group B} Default: Group B |
Answer Signal Group. |
Yes |
Answer Signal Number |
Detail & CAS Custom |
int (1-15) Default: 6 |
Answer Signal number. |
Yes |
Caller Digits |
Detail & CAS Custom |
int (1-10) Default: 1 |
Number of digits the gateway needs to collect before it requests ANI or CallerID information. |
Yes |
CAS Custom Category |
Detail & CAS Custom |
int (1-15) Default: 1 |
Type of incoming call, which is mapped to a group signal number. |
Yes |
Country |
Detail & CAS Custom |
enum {Argentina, Australia, Brazil, Columbia, CostaRica, East Europe, Ecuador ITU, Ecuador LME, Greece, Guatemala, Honkkong China, Indonesia, Israel, ITU, Korea, Malaysia, New Zealand, Paraguay, Peru, Philippines, Saudi Arabia, Singapore, South Africa - PanAfTel, Telmex, Telnor, Thailand, Uruguay, Venezuela, Vietnam} Default: ITU |
The local country settings to use with R2 signaling. |
Yes |
Minimum DNIS Digits |
Detail & CAS Custom |
int (0-64) Default: 0 |
Maximum number of collected DNIS digits. |
Yes |
Maximum DNIS Digits |
Detail & CAS Custom |
int (0-64) Default: 0 |
Maximum number of collected DNIS digits. |
Yes |
Group A Caller-id End |
Detail & CAS Custom |
enum {enable, disable} Default: disable |
Send Group-A Caller ID End. |
Yes |
KA Signal Code |
Detail & CAS Custom |
int (0-15) Default: 0 |
KA signal code. |
Yes |
KD Signal Code |
Detail & CAS Custom |
int (0-15) Default: 0 |
KD signal code. |
Yes |
Metering |
Detail & CAS Custom |
enum {Enable, Disable} Default: Disable |
Specifies sending a metering pulse when the gateway is making an outgoing call. |
Yes |
Non Compelled Congestion |
Detail & CAS Custom |
enum {B4} Default: B4 |
The noncompelled congestion signal which is sent to the central office when the gateway is congested and cannot accept the call. |
Yes |
ANI Timeout |
Detail & CAS Custom |
int (1-15) |
|
Yes |
Answer Guard Time |
Detail & CAS Custom |
int (1-1000) |
Answer Guard Timer, in milliseconds. |
Yes |
Requested DNIS Digits |
Detail & CAS Custom |
int (1-65) Default: 1 |
The DNIS Digits to be collected before requesting category. |
Yes |
Caller Digits |
Detail & CAS Custom |
int (1-64) Default: 1 |
Specifies the number of digits the gateway needs to collect before it requests ANI or CallerID information. |
Yes |
DNIS Complete |
Detail & CAS Custom |
enum {default, enable, disable} |
|
Yes |
Call Guard Timer |
Detail & CAS Custom |
int (1000-2000) Default: 1000 |
Guard Timer value, in milliseconds. |
Yes |
Action on Guard Timer Expiry |
Detail & CAS Custom |
enum {Accept, Reject} Default: Reject |
Action upon expiration of Guard Timer. |
Yes |
Debounce Time |
Detail & CAS Custom |
int (10-40) Default: 10 |
Debounce time, in milliseconds. |
Yes |
Double Answer |
Detail & CAS Custom |
enum {Enable, Disable} Default: Disable |
Send Double Answer to block connect calls. |
Yes |
Invert ABCD A Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Invert the A bits before transmit and after receive. |
Yes |
Invert ABCD B Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Invert the B bits before transmit and after receive. |
Yes |
Invert ABCD C Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Invert the C bits before transmit and after receive. |
Yes |
Invert ABCD D Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Invert the D bits before transmit and after receive. |
Yes |
Suppress Proceed to Send Signal |
Detail & CAS Custom |
enum {Enable, Disable} Default: Disable |
Suppress proceed-to-send signal for pulse line signaling. |
Yes |
Reanswer Time |
Detail & CAS Custom |
int (1000-120000) Default: 1000 |
Reanswer time, in milliseconds. |
Yes |
Release ACK to Clear Forward |
Detail & CAS Custom |
enum {Enable, Disable} Default: Disable |
Send Release Acknowledgement to Clear Forward. |
Yes |
Release Guard Time |
Detail & CAS Custom |
int (1-2000) Default: 1 |
Released Guard timer, in milliseconds. |
Yes |
Seizure ACK Time |
Detail & CAS Custom |
int (2-100) Default: 2 |
Seizure to acknowledge time, in milliseconds. |
Yes |
Unused ABCD A Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Specifies unused ABCD A bit values which can have a 0 or 1 value. |
Yes |
Unused ABCD B Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Specifies unused ABCD B bit values which can have a 0 or 1 value. |
Yes |
Unused ABCD C Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Specifies unused ABCD C bit values which can have a 0 or 1 value. |
Yes |
Unused ABCD D Bit |
Detail & CAS Custom |
enum {default, 0, 1} |
Specifies unused ABCD D bit values which can have a 0 or 1 value. |
Yes |
Voice Port - CAS-E&M Parameters
Table 2-16 CAS-E&M Voice Port Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Signaling Type |
Basic & General |
enum {E&M FGB, E&M FGD, E&M Immediate Start, EnM FGB DTMF, EnM FGB DTMF DNIS, EnM FGB MF, EnM FGB MF DNIS} Default: E&M FGB |
The type of E&M signaling. |
No |
Auto Cut Through |
Basic & EnM |
enum {enable, disable} Default: enable |
Enables call completion when a PBX does not provide an M-lead response. |
Yes |
Signal Operation |
Basic & EnM |
enum {2-wire, 4-wire} Default: 2-wire |
Selects a specific cabling scheme for EnM ports. |
Yes |
Interface Type |
Basic & EnM |
enum {Type I, Type II, Type III, Type V} Default: Type I |
Specifies the EnM interface for a particular voice port. |
Yes |
ANI Type |
Basic & EnM |
|
Specifies ANI to be sent out when the T1-CAS signaling type is E&M-FGD. |
Yes |
Rx A Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Receive A Bit. |
Yes |
Rx B Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Receive B Bit. |
Yes |
Rx C Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Receive C Bit. |
Yes |
Rx D Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Receive D Bit. |
Yes |
Tx A Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Transmit A Bit. |
Yes |
Tx B Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Transmit B Bit. |
Yes |
Tx C Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Transmit C Bit. |
Yes |
Tx D Bit Condition |
Basic & EnM |
enum {Invert, Off, On} |
Specifies the condition of the Transmit D Bit. |
Yes |
Transmit Idle Bit Pattern |
Basic & EnM |
enum {0000, 0001, 0010, 0011, 0100, 0101, 0111, 1000, 1001, 1010, 1011, 1100, 1101, 1111} Default:T1 - 0000, E1 - 0001 |
Specifies the bit pattern applies to the transmit signaling bits for the idle state. |
Yes |
Transmit Seize Bit Pattern |
Basic & EnM |
enum {0000, 0001, 0010, 0011, 0100, 0101, 0111, 1000, 1001, 1010, 1011, 1100, 1101, 1111} Default:1111 |
Specifies the bit pattern applies to the transmit signaling bits for the seized state. |
Yes |
Receive Idle Bit Pattern |
Basic & EnM |
enum {0000, 0001, 0010, 0011, 0100, 0101, 0111, 1000, 1001, 1010, 1011, 1100, 1101, 1111} Default:0000 |
Specifies the bit pattern applies to the receive signaling bits for the idle state. |
Yes |
Receive Seize Bit Pattern |
Basic & EnM |
enum {0000, 0001, 0010, 0011, 0100, 0101, 0111, 1000, 1001, 1010, 1011, 1100, 1101, 1111} Default:1111 |
Specifies the bit pattern applies to the receive signaling bits for the seized state. |
Yes |
Ignore Rx A Bit |
Basic & EnM |
enum {YES, NO} Default: NO |
|
Yes |
Ignore Rx B Bit |
Basic & EnM |
enum {YES, NO} Default: NO |
|
Yes |
Voice Port - ISDN Parameters
Table 2-17 ISDN Voice Port Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
NFAS D-Channel Role |
Basic & ISDN |
enum {none, primary, backup} |
The operation of the D-Channel timeslot. |
No |
NFAS Interface Id |
Basic & ISDN |
int (0-8) |
Provisioned NFAS interface value. |
No |
NFAS Group Id |
Basic & ISDN |
int (0-31) |
Provisioned NFAS group value. |
No |
ISDN Switch Type |
Basic & ISDN |
enum {Primary 4ESS switch, Primary 5ESS switch, NorTel DMS-100, NETS, National ISDN, NTT, QSIG} Default: National ISDN |
ISDN Interface switch type. |
No |
ISDN Protocol Emulation |
Basic & ISDN |
enum {Network, User} Default: User |
Protocol (L2/L3) emulation network/user side. |
No |
ISDN Incoming Voice |
Basic & ISDN |
enum {data, modem} Default: data |
Options for incoming calls. |
No |
ISDN Outgoing Voice |
Basic & ISDN |
enum {3.1 KHz-audio, speech} |
Information transfer capability for voice calls. |
No |
ISDN BChannel Negotiate |
Basic & ISDN |
enum {disable, enable, enable-resend-setup} Default: disable |
Enables the router to accept a B channel that is different from the B channel requested in the outgoing call setup message. |
No |
ISDN Send Alerting |
Basic & ISDN |
enum {disable, enable} Default: disable |
Specifies that an Alerting message be sent before a Connect message when making ISDN calls. |
No |
ISDN Sending Complete |
Basic & ISDN |
enum {disable, enable} Default: disable |
Specifies that the Sending Complete information element (IE) is included in the outgoing Setup message. |
No |
ISDN BChan Number Order |
Basic & ISDN |
enum {Ascending, Descending} Default: Descending |
|
No |
ISDN T310 Timer |
Basic & ISDN |
int (1-400000) |
Number of milliseconds the router waits before disconnecting a call after receiving a Call Proceeding message. |
No |
ISDN TEI Negotiation |
Basic & ISDN |
enum {default, first-call, powerup} |
|
No |
ISDN Address Map: Address |
Basic & ISDN |
string |
ISDN address to map. |
No |
ISDN Address Map: Plan |
Basic & ISDN |
enum {Data, ISDN, National, Reserved extension, Reserved value 10, Reserved value 11, Reserved value 12, Reserved value 13, Reserved value 14, Reserved value 2, Reserved value 5, Reserved value 6, Reserved value, TELEX, Unknown} |
|
No |
ISDN Address Map: Type |
Basic & ISDN |
enum {Abbreviated, International, National, Network, Reserved, Reserved value 5, Subscriber, Unknown} |
|
No |
Voice Port - SS7 Parameters
Table 2-18 SS7 Voice Port Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
RLM Group Number |
Basic & ISDN |
int |
RLM Group Number for this PRI. |
No |
SS7Path on SC2200 |
Basic & General |
enum {consisting of the SS7 paths currently configured} |
Specifies the SS7Path to be used as the source service for this PRI. |
No |
CIC Range |
Basic & General |
string |
Specifies the range of CICs to be used for this PRI. The range is separated by "," or "-". |
No |
Trunk Number Range |
Basic & General |
string |
Specifies the range of trunk numbers to be used for this PRI. The range is separated by "," or "-". |
No |
NTP Parameters
NTP - Client Poll or Peer Poll Parameters
Table 2-19 NTP Client Poll or Peer Poll Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Server IPAddress |
Basic & GW |
string (IPAddress) |
The IP address of the server providing the clock synchronization. |
No |
NTP Version |
Basic & General |
enum {1-3) Default: 3 |
NTP protocol version number. |
No |
Authentication Key |
Basic & General |
int |
Authentication key. |
No |
Source Interface |
Basic & General |
enum {all interfaces on router} For Operations on Zone and Region: enum {Any Ethernet, Any FastEthernet, Any Ethernet or FastEthernet} |
Interface from which to pick up the IP source address. |
No |
Prefer |
Basic & General |
enum {enabled, disabled} |
Prefer this peer when possible. |
Yes |
Access Group Table - Access Group Mode |
Detail & General |
enum {queryOnly, serverOnly, server, peer} |
Access control to the NTP services. |
Yes |
Access Group Table - Access List |
Detail & General |
int (1- 99) |
Number of a standard IP access list. |
Yes |
Authentication Table - Authentication Key |
Detail & General |
int (0-4294967295000) |
Authentication key number. |
Yes |
Authentication Table - MD5 Key |
Detail & General |
integer |
MD5 key value. |
Yes |
Authentication Table - Authentication Type |
Detail & General |
integer |
Authentication type. |
Yes |
Trust Key |
Detail & General |
list of integers |
Key number of the authentication key to be trusted. |
Yes |
Update Calendar |
Basic & General |
enum {enable, disable} |
Update the software calendar or not. |
Yes |
NTP - Client Broadcast Parameters
Table 2-20 NTP Client Broadcast Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Source Interface |
Basic & General |
enum {all interfaces on router} |
The interface from which to pick up the IP source address. |
No |
Broadcast Delay |
Basic & General |
int (0-999999) Default: 3000 |
Round-trip time for NTP broadcasts. |
Yes |
Access Group Table - Access Group Mode |
Detail & General |
enum {queryOnly, serverOnly, server, peer} |
Access control to the NTP services. |
Yes |
Access Group Table - Access List |
Detail & General |
int (1- 99) |
Number of a standard IP access list. |
Yes |
Authentication Table - Authentication Key |
Detail & General |
int (0-4294967295000) |
Authentication key number. |
Yes |
Authentication Table - MD5 Key |
Detail & General |
integer |
MD5 key value. |
Yes |
Authentication Table - Authentication Type |
Detail & General |
integer |
Authentication type. |
Yes |
Trust Key |
Detail & General |
list of integers |
Key number of the authentication key to be trusted. |
Yes |
Update Calendar |
Basic & General |
enum {enable, disable} |
Update the software calendar or not. |
Yes |
NTP - Server Broadcast Parameters
Table 2-21 NTP Server Broadcast Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Server Broadcast Table - NTP Version |
Basic & General |
enum {1-3} Default: 3 |
NTP protocol version number. |
Yes |
Server Broadcast Table - Server Broadcast Key |
Basic & General |
integer |
Broadcast authentication key. |
Yes |
Server Broadcast Table - Destination IP Address |
Basic & General |
string (IPAddress) |
Destination broadcast IP address. |
Yes |
Source Interface |
Basic & General |
enum {all interfaces on router} For Operations on Zone and region: enum {Any Ethernet, Any FastEthernet, Any Ethernet or FastEthernet} |
Interface from which to pick up the IP source address. |
No |
Broadcast Delay |
Basic & General |
int (0-999999) Default: 3000 |
Round-trip time for NTP broadcasts. |
Yes |
Access Group Table - Access Group Mode |
Detail & General |
enum {queryOnly, serverOnly, server, peer} |
Access control to the NTP services. |
Yes |
Access Group Table - Access List |
Detail & General |
int (1- 99) |
Number of a standard IP access list. |
Yes |
Authentication Table - Authentication Key |
Detail & General |
int (0-4294967295000) |
Authentication key number. |
Yes |
Authentication Table - MD5 Key |
Detail & General |
integer |
MD5 key value. |
Yes |
Authentication Table - Authentication Type |
Detail & General |
integer |
Authentication type. |
Yes |
Trust Key |
Basic & General |
list of integers |
Key number of the authentication key to be trusted. |
Yes |
Update Calendar |
Basic & General |
enum {enable, disable} Default: disable |
Update the software calendar or not. |
Yes |
NTP - Server Parameters
Table 2-22 NTP Server Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Access Group Table - Access Group Mode |
Detail & General |
enum {queryOnly, serverOnly, server, peer} |
Access control to the NTP services. |
Yes |
Access Group Table - Access List |
Detail & General |
int (1- 99) |
Number of a standard IP access list. |
Yes |
Authentication Table - Authentication Key |
Detail & General |
int (0-4294967295000) |
Authentication key number. |
Yes |
Authentication Table - MD5 Key |
Detail & General |
integer |
MD5 key value. |
Yes |
Authentication Table - Authentication Type |
Detail & General |
integer |
Authentication type. |
Yes |
Trust Key |
Basic & General |
int |
Key number of the authentication key to be trusted. |
Yes |
NTP Stratum |
Basic & General |
int (0-15) |
NTP stratum number. |
Yes |
Update Calendar |
Basic & General |
enum {enable, disable} Default: disable |
Update the software calendar or not. |
Yes |
Security Server Group Parameters
Security Server Group - RADIUS Parameters
Table 2-23 Security Server Group - RADIUS Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
RADIUS Hosts - HostName |
Basic & General |
string |
Hostid/IP address of the remote RADIUS server host. |
No |
RADIUS Hosts - Authentication Port |
Basic & General |
integer |
UDP port on the RADIUS server to be used solely for authentication. |
No |
RADIUS Hosts - Accounting Port |
Basic & General |
integer |
UDP port on the RADIUS server to be used solely for accounting. |
No |
RADIUS Hosts - Timeout |
Basic & General |
int (1-1000) |
The number of seconds a router waits for a reply to a RADIUS request before retransmitting the request. |
No |
RADIUS Hosts - RetransmitRetries |
Basic & General |
int (1-1000) Default: 3 |
The number of times the router transmits each RADIUS request to the server before giving up. |
No |
RADIUS Hosts - KeyType |
Basic & General |
enum {unencrypted, encrypted, none} |
Use the unencrypted option to configure an unencrypted shared secret. Use the encrypted option to configure an encrypted shared secret. |
No |
RADIUS Hosts - Key |
Basic & General |
string |
The shared secret text string used between the router and a RADIUS server. |
No |
RADIUS Server Group Deadtime |
Basic & General |
integer |
The deadtime value, in minutes. |
Yes |
Security Server Group - TACACS+ Parameters
Table 2-24 Security Server Group - TACACS+ Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
TACACS+ Hosts - HostName |
Basic & General |
string |
Hostid/IP address of the remote RADIUS server host. |
No |
TACACS+ Hosts - Timeout |
Basic & General |
int (1-1000) |
The number of seconds a router waits for a reply to a RADIUS request before retransmitting the request. |
No |
TACACS+ Hosts - Key |
Basic & General |
string |
The shared secret text string used between the router and a RADIUS server. |
No |
Security Server End Point Parameters
Security Server End Point - RADIUS Parameters
Table 2-25 Security Server End Point - RADIUS Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
RADIUS Hosts - HostName |
Basic & General |
string |
Hostid/IP address of the remote RADIUS server host. |
No |
RADIUS Hosts - Authentication Port |
Basic & General |
integer |
UDP port on the RADIUS server to be used solely for authentication. |
No |
RADIUS Hosts - Accounting Port |
Basic & General |
integer |
UDP port on the RADIUS server to be used solely for accounting. |
No |
RADIUS Hosts - Timeout |
Basic & General |
int (1-1000) |
The number of seconds a router waits for a reply to a RADIUS request before retransmitting the request. |
No |
RADIUS Hosts - RetransmitRetries |
Basic & General |
int (1-1000) Default: 3 |
The number of times the router transmits each RADIUS request to the server before giving up. |
No |
RADIUS Hosts - KeyType |
Basic & General |
enum {unencrypted, encrypted, none} |
Use the unencrypted option to configure an unencrypted shared secret. Use the encrypted option to configure an encrypted shared secret. |
No |
RADIUS Hosts - Key |
Basic & General |
string |
The shared secret text string used between the router and a RADIUS server. |
No |
RADIUS Server Group Deadtime |
Basic & General |
integer |
The deadtime value, in minutes. |
Yes |
Security Server End Point - TACACS+ Parameters
Table 2-26 Security Server End Point - TACACS+ Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
TACACS+ Hosts - HostName |
Basic & General |
string |
Hostid/IP address of the remote RADIUS server host. |
No |
TACACS+ Hosts - Timeout |
Basic & General |
int (1-1000) |
The number of seconds a router waits for a reply to a RADIUS request before retransmitting the request. |
No |
TACACS+ Hosts - Key |
Basic & General |
string |
The shared secret text string used between the router and a RADIUS server. |
No |
AAA Parameters
AAA - Login Authentication Parameters
Table 2-27 AAA - Login Authentication Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Login Authentication Method List Name |
Basic & Authentication |
string |
A local authentication list. |
No |
Login Authentication Methods |
Basic & Authentication |
list {all RADIUS Server Groups configured on the router, RADIUS, enable, line, local, local-case, none} |
|
No |
Login Authentication Password Prompt |
Basic & Authentication |
string |
The default text displayed when a user is prompted to enter a password. |
Yes |
Authentication Banner |
Basic & Authentication |
string |
Personalized login banner. |
Yes |
Authentication Fail Banner |
Basic & Authentication |
string |
Personalized authentication fail message. |
Yes |
AAA - Authorization Parameters
Table 2-28 AAA - Authorization Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Authorization Method List Name |
Basic & Authorization |
string |
|
No |
Authorization Type |
Basic & Authorization |
enum {Network, Auth-proxy, Commands, EXEC, Network, Reverse Access, Configuration, IP Mobile} Default: Network |
|
No |
Command Level |
Basic & Authorization |
int (1-12) |
If the Authorization Type is Commands, a Command Level value must be specified. |
No |
Authorization Methods |
Basic & Authorization |
list {all RADIUS Server Groups configured on the router, RADIUS, enable, line, local, local-case, none} |
|
No |
AAA - Accounting Parameters
Table 2-29 AAA - Accounting Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Accounting Method List Name |
Basic & Accounting |
string |
|
No |
Accounting Type |
Basic & Accounting |
seqof {Network, Commands, Connection, EXEC, Resource, System} Default: Network |
|
No |
Accounting Methods |
Basic & Accounting |
list {all RADIUS Server Groups configured on the router, RADIUS} |
|
No |
Accounting Record Type |
Basic & Accounting |
enum {start-stop, stop-only, none} Default: stop-only |
For minimal accounting, use stop-only, which instructs the specified method (RADIUS or TACACS+) to send a stop record accounting notice at the end of the requested user process. For more accounting information, use start-stop to send a start accounting notice at the beginning of the requested event and a stop accounting notice at the end of the event. To stop all accounting activities on this line or interface, use none. |
No |
Broadcast Mode |
Basic & Accounting |
enum {enable, disable} Default: disable |
|
No |
Interface Parameters
Interface - Ethernet Parameters
Table 2-30 Ethernet Interface Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Interface Id |
Basic & Common |
integer |
Interface ID. |
No |
In Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the In Hold queue. |
Yes |
Out Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the Out Hold queue. |
Yes |
Bandwidth |
Basic & Common |
int (1-10000000) |
Bandwidth value, in kilobytes. |
Yes |
Delay |
Basic & Common |
int (1-16777215) |
Delay value for the interface. |
Yes |
Keepalive Timer |
Basic & Common |
int (0-32767) |
Adjusts the frequency that Cisco IOS sends messages to itself (Ethernet and Token Ring) or to the other end (HDLC-serial and PPP-serial links) to ensure that a network interface is alive for a specified interface. |
Yes |
IP Address |
Basic & LAN |
string |
IP address for this interface. |
Yes |
Subnet Mask |
Basic & LAN |
string |
Subnet mask for this interface. |
Yes |
Media Type |
Basic & LAN |
enum {AUI, 10baseT} Default: AUI |
Physical connection on the interface. |
Yes |
Squelch |
Basic & LAN |
enum {Normal, Reduced} Default: Normal |
Specifies whether to extend the Ethernet twisted-pair 10BASE-T capability beyond the standard 100 meters. |
Yes |
Interface - Fast-Ethernet Parameters
Table 2-31 Fast Ethernet Interface Parameters
Parameter
|
Category
|
Values
|
Description
|
Modifiable on Router?
|
Interface ID |
Basic & Common |
integer |
Interface ID. |
No |
In Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the in hold queue. |
Yes |
Out Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the out hold queue. |
Yes |
Bandwidth |
Basic & Common |
int (1-10000000) |
Bandwidth value, in kilobytes. |
Yes |
Delay |
Basic & Common |
int (1-16777215) |
Delay value for the interface. |
Yes |
Keepalive Timer |
Basic & Common |
int (0-32767) |
Adjusts the frequency that Cisco IOS sends messages to itself (Ethernet and Token Ring) or to the other end (HDLC-serial and PPP-serial links) to ensure that a network interface is alive for a specified interface. |
Yes |
MTU |
Basic & Common |
integer |
Adjusts the maximum packet size or MTU size, in bytes. |
Yes |
IP Address |
Basic & LAN |
string (IPAddress) |
IP address for this interface. |
No |
Subnet Mask |
Basic & LAN |
string (IPAddress) |
Subnet mask for this interface. |
No |
Media Type |
Basic & LAN |
enum {100baseX, MII (Media Independent Interface} 5800: enum {MII} Default: MII |
Physical connection on the interface. |
Yes |
Duplex |
Basic & LAN |
enum {auto, full, half} Default: half |
Duplex operation on the interface. |
Yes |
Speed |
Basic & LAN |
enum {10, 100, auto} Default: 100 |
Speed of a Fast Ethernet interface. |
Yes |
Interface - Gigabit-Ethernet Parameters
Table 2-32 Gigabit Ethernet Interface Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Interface Id |
Basic & Common |
integer |
Interface ID. |
No |
In Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the In Hold queue. |
Yes |
Out Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the Out Hold queue. |
Yes |
Bandwidth |
Basic & Common |
int (1-10000000) |
Bandwidth value, in kilobytes. |
Yes |
Delay |
Basic & Common |
int (1-16777215) |
Delay value for the interface. |
Yes |
Keepalive Timer |
Basic & Common |
int (0-32767) |
Adjusts the frequency that Cisco IOS sends messages to itself (Ethernet and Token Ring) or to the other end (HDLC-serial and PPP-serial links) to ensure that a network interface is alive for a specified interface. |
Yes |
MTU |
Basic & Common |
integer |
Adjusts the maximum packet size or MTU size, in bytes. |
No |
IP Address |
Basic & LAN |
string |
IP address for this interface. |
No |
Subnet Mask |
Basic & LAN |
string |
Subnet mask for this interface. |
No |
Media Type |
Basic & LAN |
enum {AUI, 10baset, 100baset, and Media Independent Interface (MII)} Default: AUI |
Physical connection on the interface. |
Yes |
Duplex |
Basic & LAN |
enum {auto, full, half} Default: half |
Duplex operation on the interface. |
Yes |
Interface - Loopback Parameters
Table 2-33 Loopback Interface Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Interface Id |
Basic & Common |
integer |
Interface ID. |
No |
In Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the In Hold queue. |
Yes |
Out Hold Q Length |
Basic & Common |
int (0-4096) |
Maximum number of packets allowed in the Out Hold queue. |
Yes |
Bandwidth |
Basic & Common |
int (1-10000000) |
Bandwidth value, in kilobytes. |
Yes |
Delay |
Basic & Common |
int (1-16777215) |
Delay value for the interface. |
Yes |
Keepalive Timer |
Basic & Common |
int (0-32767) |
Adjusts the frequency that Cisco IOS sends messages to itself (Ethernet and Token Ring) or to the other end (HDLC-serial and PPP-serial links) to ensure that a network interface is alive for a specified interface. |
Yes |
IP Address |
Basic & LAN |
string |
IP address for this interface. |
No |
Subnet Mask |
Basic & LAN |
string |
Subnet mask for this interface. |
No |
H.323 Voice Class Parameters
Table 2-34 H.323 Voice Class
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
H323 Voice Class ID |
Basic & Common |
int (1-10000) |
H.323 Voice Class ID. |
No |
H225 Setup Timeout |
Basic & Common |
int (0-30) |
H225 SETUP timeout value, in seconds. |
Yes |
H225 TCP Establish Timeout |
Basic & Common |
int (0-30) |
H225 TCP connection timeout value, in seconds. |
Yes |
H323 Call Start |
Basic & Common |
enum {Fast-Start, Slow-Start} Default: Fast-Start |
Global setting for H.323 Call Start procedures. |
Yes |
Gateway Accounting |
Basic & Common |
enum {H323, H323-VSA, VoIP, Syslog} |
Type of VoIP gateway accounting. |
Yes |
IVR/Voice XML Application Parameters
Table 2-35 IVR/Voice XML Application Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
IVR Application Name |
Basic & Common |
string |
Name of the application. |
No |
Location |
Basic & Common |
string (valid prefix - tftp:// and http://) |
Location of the TCL file, in URL format. |
Yes |
Pin Length |
Basic & Common |
int (0-10) |
Number of characters in the PIN for the designated application. |
Yes |
Retry Count |
Basic & Common |
int (1-5) |
Number of times a caller is permitted to reenter the PIN for a designated application. |
Yes |
UID Length |
Basic & Common |
int (1-20) |
Number of characters in the UID for the designated application and passes this information to the application. |
Yes |
Redirect Number |
Basic & Common |
string |
Telephone number to which a call will be redirected (for example, the operator telephone number of the service provider) for the designated application. |
Yes |
Warning Time |
Basic & Common |
int (10-600) |
Length of the warning period, in seconds, before the allowed calling time runs out. |
Yes |
IVR Application - tag |
Basic & Common |
int (0-9) |
|
Yes |
IVR Application - Language |
Basic & Common |
enum {English, Spanish, Mandarin, All} |
Language of the audio file for the designated application and passes this information to the application. |
Yes |
IVR Application - Category |
Basic & Common |
int (0-4) |
Category for the audio files for this location. |
Yes |
IVR Application - Location |
Basic & Common |
string (prefix - tftp:// or http:// and postfix - /) |
Location of the TCL file in URL format. Valid storage locations are TFTP, FTP, and Flash. |
Yes |
DNIS Map Parameters
DNIS MAP - Internal Mode Parameters
Table 2-36 DNIS Map Parameters - Internal Mode
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
DNIS Map Name |
Basic & Common |
string |
Name of the DNIS Map. |
No |
DNIS Name URL - DNIS |
Basic & Common |
string |
DNIS name. |
Yes |
DNIS Name URL - URL |
Basic & Common |
string (valid prefix: http:// or tftp:// or ftp:// valid postfix: .xml or .vxml) |
URL. |
Yes |
DNIS MAP - External Mode Parameters
Table 2-37 DNIS Map Parameters - External Mode
Parameter
|
Category
|
Values
|
Description
|
Modifiable on Router?
|
DNIS Map Name |
Basic & Common |
string |
Name of the DNIS Map. |
No |
Subcommands File Location |
Basic & Common |
string (valid prefix: http:// or tftp:// or ftp://) |
URL to a file containing subcommands. |
Yes |
Fax Application Parameters
Fax - On Ramp Parameters
Table 2-38 Fax On Ramp Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Fax Interface |
Basic & General |
enum {Fax-Mail} For AS5300: enum {Modem, Fax-Mail} Default: Fax-Mail |
Interface type. |
Yes |
Fax Protocol |
Basic & General |
enum {T.38} For AS5300: enum {Cisco, T.38} Default: T.38 |
Global default Fax protocol. |
Yes |
High Speed Redundancy |
Basic & General |
For AS5300: int (0-2) For AS5350 and 5400: int (0-3) Default: 0 |
The redundancy for sending redundant T.38 Fax packets in the high-speed V.17, V.27, V.29 T.4, or T.6 Fax machine image data. |
Yes |
Low Speed Redundancy |
Basic & General |
For AS5300: int (0-5) For AS5350 and 5400: int (0-7) Default: 0 |
The redundancy for sending redundant T.38 Fax packets in the low-speed V.21-based T.30 Fax machine protocol. |
Yes |
Called Subscriber Id |
Basic & MTA |
string Default: $d$ |
Number (called subscriber ID) that is displayed in the LCD of the sending Fax machine. |
Yes |
Host Name Sent |
Basic & MTA |
string |
Originator host name of the E-mail Fax message. |
Yes |
User Name Sent |
Basic & MTA |
string Default: $s$ |
Originator username of the E-mail Fax message. |
Yes |
Destination Server |
Basic & MTA |
string |
Destination server. |
Yes |
E-Mail Subject Sent |
Basic & MTA |
string |
Text that appears in the Subject field of the E-mail Fax message. |
Yes |
Post Master |
Basic & MTA |
string |
The sending address if the evaluated string is blank. |
Yes |
originPrefix |
Basic & MTA |
string |
Additional identifying information to be prepended to the E-mail header. |
Yes |
Return Receipt Host Name |
Basic & MTA |
string |
Address where MDNs are sent, if MDNs are requested. |
Yes |
Return Receipt User Name |
Basic & MTA |
string |
User name where MDNs are sent, if MDNs are requested. |
Yes |
Fax - Off Ramp Parameters
Table 2-39 Fax Off Ramp Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Fax Interface |
Basic & General |
For AS5300: enum {Modem, Fax-Mail} For AS5350 and 5400: enum {Fax-Mail} Default: Fax-Mail |
Interface type. |
Yes |
Fax Protocol |
Basic & General |
For AS5300: enum {Cisco, T.38} For AS5350 and 5400: enum {T.38} Default: T.38 |
Global default Fax protocol. |
Yes |
High Speed Redundancy |
Basic & General |
For AS5300: int (0-2) For AS5350 and 5400: int (0-3) Default: 0 |
The redundancy for sending redundant T.38 Fax packets in the high-speed V.17, V.27, V.29 T.4, or T.6 Fax machine image data. |
Yes |
Low Speed Redundancy |
Basic & General |
For AS5300: int (0-5) For AS5350 and 5400: int (0-7) Default: 0 |
The redundancy for sending redundant T.38 Fax packets in the low-speed V.21-based T.30 Fax machine protocol. |
Yes |
Transmitting Subscriber Id |
Basic & General |
string Default: $d$ |
Number (transmitting subscriber ID) that is displayed in the LCD of the receiving Fax machine. |
Yes |
Fax Transmission Speed |
Basic & General |
enum {2400, 4800, 7200, 7600, 12000, 14400} |
Maximum Fax speed. |
Yes |
Receive Aliases |
Basic & MTA |
Sequence of Aliases |
Host name to be used as an alias for the off-ramp Cisco AS5300 universal access server device. Up to ten different aliases can be specified. |
Yes |
Generate MDN |
Basic & MTA |
enum {disable, enable} Default: disable |
Configures the Cisco AS5300 universal access server to generate an MDN message when requested to do so. |
Yes |
Maximum Recipients |
Basic & MTA |
integer |
Number of simultaneous SMTP recipients handled by this device. This is intended to limit the number of resources (modems) allocated for Fax transmissions. |
Yes |
Host Name Sent |
Basic & MTA |
string |
Originator host name of the E-mail Fax message. |
Yes |
User Name Sent |
Basic & MTA |
string Default: $s$ |
Originator username of the E-mail Fax message. |
Yes |
Return Receipt Host Name |
Basic & MTA |
string |
Address where MDNs are sent, if MDNs are requested. |
Yes |
Return Receipt User Name |
Basic & MTA |
string |
User name where MDNs are sent, if MDNs are requested. |
Yes |
Center Header |
Basic & FaxHeader |
string |
Defines the header information to be displayed in the center position. The keywords and arguments are: $d$—destination address. $s$—sender address $p$—page count. $t$—transmission time. string—inserts a personalized text string. |
Yes |
Right Header |
Basic & FaxHeader |
string |
Defines the header information to be displayed in the right position. The keywords and arguments are: $d$—destination address. $s$—sender address. $p$—page count. $t$—transmission time. string—inserts a personalized text string. |
Yes |
Left Header |
Basic & FaxHeader |
string |
Defines the header information to be displayed in the left position. The keywords and arguments are: $d$—destination address. $s$—sender address. $p$—page count. $t$—transmission time. string—inserts a personalized text string. |
Yes |
Cover Page Comment |
Basic & CoverPage |
string |
Adds personalized text in the title field of the Fax cover sheet. |
Yes |
Show Detail |
Basic & CoverPage |
enum {Disable, Enable} Default: Disable |
Prints all of the E-mail header information as part of the Fax cover sheet. |
Yes |
E-Mail Control |
Basic & CoverPage |
string |
Configures the router to defer to the cover page setting in the E-mail header. For example, if the address has a parameter set to "cover=no" or "cover=yes", it will override the setting for the Fax send coverpage enable command. |
Yes |
SNMP Parameters
Table 2-40 SNMP Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Server Hosts |
Basic & Common |
List of IP addresses |
IP addresses of the hosts to receive SNMP notifications. |
Yes |
Notifications Mode |
Basic & Common |
enum {Default, Informs, Traps} |
Mode of notifications. |
Yes |
SNMP Version |
Basic & Common |
enum {Default, v1, v2c, v3} |
SNMP version number. |
Yes |
Community String |
Basic & Common |
string |
SNMPv1/v2c community string or SNMPv3 user name. |
Yes |
Notification Type |
Basic & Common |
Selection of {Default, AAA, BGP State Change, Call Tracker, Config, DLSW, DNIS, DS0-Busyout, DS1-Loopback, DSP, DSPU Event, Entity, Environmental Monitor, Frame Relay, HSRP, IP Multicast, ISDN, Modem, MSDP, RSRB Event, RSVP Flow Change, RTR, SDLC Event, SDLLC Event, Stun Event, Syslog, TCP Connection, Voice, x25 Event, XGCP} |
Types of traps that trigger a notification. |
Yes |
Server Host UDP Port |
Basic & Common |
string |
Notification host's UDP port number. |
Yes |
Server Host Trap Source |
Basic & Common |
enum {Async, Bridge-Group Virtual, CTunnel, Dialer, Ethernet - IEEE 802.3, FastEthernet - IEEE 802.3, Lex, Loopback, Multilink-group, Null, Tunnel, PGM Multicast Host, Virtual Template, and Virtual TokenRing} |
Interface for the source address of all traps. |
Yes |
Trap Source Interface Id |
Basic & Common |
integer |
Interface for the source address of all traps. |
Yes |
Message Queue Length |
Basic & Common |
int (1-1000) Default: 10 |
Message queue length for each notification. |
Yes |
Server Timeout |
Basic & Common |
int (1-1000) Default: 30 |
How often to resend notifications on the retransmission queue. |
Yes |
HSRP Parameters
Table 2-41 HSRP Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Primary Router's Interface |
Basic & General |
enum {all interfaces configured on the router} |
Primary router's interface to be used for HSRP. |
No |
Secondary Router's Interface |
Basic & General |
enum {all interfaces configured on the router} |
Secondary router's interface to be used for HSRP. |
No |
Primary Router Priority |
Basic & General |
int (1-255) |
Sets the Hot Standby priority used in choosing the active router, where 1 denotes the lowest priority and 255 denotes the highest priority. |
No |
Secondary Router Priority |
Basic & General |
int (1-255) |
Sets the Hot Standby priority used in choosing the active router, where 1 denotes the lowest priority and 255 denotes the highest priority. |
No |
Primary Authentication String |
Detail & Primary |
string |
Authentication string to be carried in all HSRP messages. |
Yes |
Secondary Authentication String |
Detail & Secondary |
string |
Authentication string to be carried in all HSRP messages. |
Yes |
HSRP Preempt Delay |
Detail |
int (0-3600) |
Preemption delay time value after which the Hot Standby router preempts and becomes the active router. |
Yes |
HSRP Min Preempt Delay |
Detail |
int (0-3600) Default: 0 |
Minimum time to wait before preempting. |
Yes |
HSRP Preempt Sync Delay |
Detail |
int (0-3600) Default: 0 |
Minimum time to wait for a synchronization to complete. |
Yes |
Interface Tracked |
Detail |
enum {all interfaces configured on the router} |
Configures the interface to track other interfaces so that if one of the other interfaces goes down, the Hot Standby priority of the device is lowered. |
Yes |
Tracked Interface Priority |
Basic & General |
int (1-255) Default: 10 |
Configures the priority. |
Yes |
HSRP Hello Time |
Basic & General |
int (20-255000) Default: 3000 |
Time (in msec) between hello packets. |
Yes |
HSRP Hold Time |
Basic & General |
int (20-255000) Default: 3000 |
Hold time (in msec) before other routers declare the active router to be down. |
Yes |
Access Control List Parameters
ACL - Standard Parameters
Table 2-42 Standard Access Control List Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
ACL Number |
Basic & General |
int (1-99) |
IP Access Control List number. |
No |
ACL Entries - Mode |
Basic & General |
enum (deny, permit) |
deny—specifies to reject packets. permit—specifies to forward packets. |
Yes |
ACL Entries - Source Host Id |
Basic & General |
string |
IP address or hostname or keyword any. |
Yes |
ACL Entries - Source Wildcard |
Basic & General |
string |
Source wild card such as A.B.C.D |
Yes |
ACL Entries - Protocol |
Basic & General |
enum {IPv4, IPv6, IP, Authentication Header Protocol (ahp), EIGRP, Encapsulation Security Payload (esp), GRE tunneling, ICMP, IGMP, ipinip, KA9Q NOS compatible IP over IP tunneling (nos), ospf, Payload Compression Protocol (pcp), Protocol Independent Multicast (pim), TCP, UDP} |
|
Yes |
ACL Entries - Destination Host ID |
Basic & General |
string |
IP address or hostname or keyword any. |
Yes |
ACL Entries - Destination Wildcard |
Basic & General |
string |
Destination wild card such as A.B.C.D |
Yes |
ACL Entries - Precedence |
Basic & General |
enum {0 - Routine, 1 - Priority, 2 - Immediate, 3 - Flash, 4 - Flash Override, 5 - Critical, 6 - Internet, 7 - Network} |
|
Yes |
ACL Entries - TOS |
Basic & General |
enum {0 - Normal, 1 - Min Monetary Cost, 2 - Max Reliability, 3, 4 - Max Throughput, 5, 6, 7, 8 - Min Delay, 9, 10, 11, 12, 13, 14, 15} |
Match packets with specified TOS value. |
Yes |
ACL Entries - Time Range |
Basic & General |
string |
Time range. |
Yes |
ACL Entries - Logging |
Basic & General |
enum (None, Log, Log-input) |
Log matches against this entry. |
Yes |
ACL Entries - Remark |
Basic & General |
string |
Access Control List entry comment. |
Yes |
ACL - Extended Parameters
Table 2-43 Extended Access Control List Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
ACL Number |
Basic & General |
int (1-99) |
IP Access Control List number. |
No |
Dynamic List Name |
Basic & General |
string |
Name of a dynamic list. |
No |
ACL Entries - Timeout |
Basic & General |
int |
Maximum time for the dynamic ACL to exist. |
Yes |
ACL Entries - Mode |
Basic & General |
enum (deny, permit) |
deny—specifies to reject packets. permit—specifies to forward packets. |
Yes |
ACL Entries - Source Host ID |
Basic & General |
string |
IP address or hostname or keyword any. |
Yes |
ACL Entries - Source Wildcard |
Basic & General |
string |
Source wild card such as A.B.C.D |
Yes |
ACL Entries - Protocol |
Basic & General |
enum {IPv4, IPv6, IP, Authentication Header Protocol (ahp), EIGRP, Encapsulation Security Payload (esp), GRE tunneling, ICMP, IGMP, ipinip, KA9Q NOS compatible IP over IP tunneling (nos), ospf, Payload Compression Protocol (pcp), Protocol Independent Multicast (pim), TCP, UDP} |
|
Yes |
ACL Entries - Destination Host ID |
Basic & General |
string |
IP address or hostname or keyword any. |
Yes |
ACL Entries - Destination Wildcard |
Basic & General |
string |
Destination wild card such as A.B.C.D |
Yes |
ACL Entries - Precedence |
Basic & General |
enum {0 - Routine, 1 - Priority, 2 - Immediate, 3 - Flash, 4 - Flash Override, 5 - Critical, 6 - Internet, 7 - Network} |
|
Yes |
ACL Entries - TOS |
Basic & General |
enum {0 - Normal, 1 - Min Monetary Cost, 2 - Max Reliability, 3, 4 - Max Throughput, 5, 6, 7, 8 - Min Delay, 9, 10, 11, 12, 13, 14, 15} |
Match packets with specified TOS value. |
Yes |
ACL Entries - Time Range |
Basic & General |
string |
Time range. |
Yes |
ACL Entries - Logging |
Basic & General |
enum {None, Log, Log-input} |
Log matches against this entry. |
Yes |
ACL Entries - Remark |
Basic & General |
string |
Access Control List entry comment. |
Yes |
ACL - Dynamic Parameters
Table 2-44 Dynamic Access Control List Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
ACL Number |
Basic & General |
int (1-99) |
IP Access Control List number. |
No |
Dynamic List Name |
Basic & General |
|
Name of a dynamic list. |
No |
ACL Entries - Timeout |
Basic & General |
|
Maximum time for a dynamic Access Control List to live. |
No |
ACL Entries - Mode |
Basic & General |
enum (deny, permit) |
deny—specifies to reject packets. permit—specifies to forward packets. |
No |
ACL Entries - Source Host ID |
Basic & General |
string |
IP address or hostname or keyword any. |
No |
ACL Entries - Source Wildcard |
Basic & General |
string |
Source wild card such as A.B.C.D |
No |
ACL Entries - Protocol |
Basic & General |
enum {IPv4, IPv6, IP, Authentication Header Protocol (ahp), EIGRP, Encapsulation Security Payload (esp), GRE tunneling, ICMP, IGMP, ipinip, KA9Q NOS compatible IP over IP tunneling (nos), ospf, Payload Compression Protocol (pcp), Protocol Independent Multicast (pim), TCP, UDP} |
|
No |
ACL Entries - Destination Host ID |
Basic & General |
string |
IP address or hostname or keyword any. |
No |
ACL Entries - Destination Wildcard |
Basic & General |
string |
Destination wild card such as A.B.C.D |
No |
ACL Entries - Precedence |
Basic & General |
enum {0 - Routine, 1 - Priority, 2 - Immediate, 3 - Flash, 4 - Flash Override, 5 - Critical, 6 - Internet, 7 - Network} |
|
No |
ACL Entries - TOS |
Basic & General |
enum {0 - Normal, 1 - Min Monetary Cost, 2 - Max Reliability, 3, 4 - Max Throughput, 5, 6, 7, 8 - Min Delay, 9, 10, 11, 12, 13, 14, 15} |
Match packets with specified TOS value. |
No |
ACL Entries - Time Range |
Basic & General |
string |
Time range. |
No |
ACL Entries - Logging |
Basic & General |
enum {None, Log, Log-input} |
Log matches against this entry. |
No |
ACL Entries - Remark |
Basic & General |
string |
Access Control List entry comment. |
No |
AAA Voice Class Parameters
Table 2-45 AAA Voice Class Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Voice Class Id |
Basic & Common |
integer |
The Voice Class ID. |
No |
Authentication Method |
Basic & Common |
enum of all AAA Authentication Methods configured |
Authentication method list name to be used for this voice class. |
Yes |
Authorization Method |
Basic & Common |
enum of all AAA Authorization Methods configured |
Authorization method list name to be used for this voice class. |
Yes |
Accounting Method |
Basic & Common |
enum of all AAA Accounting Methods configured |
Accounting method list name to be used for this voice class. |
Yes |
Accounting Template |
Basic & Common |
enum of all Call Accounting Templates configured |
Accounting template list name to be used for this voice class. |
Yes |
Suppress Accounting |
Basic & Common |
enum {disable-inbound, disable-outbound, disable-both, enable} |
Enables or disables accounting suppression for inbound, outbound, or both directions. |
Yes |
Call Accounting Template Parameters
Table 2-46 Call Accounting Template Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Call Accounting Template: Name |
Basic & Common |
string |
The name of the call accounting template. |
No |
Call Accounting Template: URL |
Basic & Common |
string |
The location of this accounting template. Should start with ftp://, tftp:// or http:// and end with cdr. |
Yes |
Voice Parameters Parameters
Table 2-47 Voice Parameters Parameters
Parameter
|
Category/Parameter Tab
|
Value
|
Description
|
Modifiable on Router?
|
Signaling Forward |
Basic & Common |
enum {None, Unconditional} |
Global setting for signal forwarding. |
Yes |
H323 Call Start |
Basic & Common |
enum {Fast-Start, Slow-Start} Default: Fast-Start |
Global setting for H.323 Call Start procedures. |
Yes |
Gateway Accounting |
Basic & Common |
list {H323, H3232-VSA, VoIP, Syslog} |
Type of VoIP gateway accounting. |
Yes |
Accounting Method |
Basic & Common |
enum of all AAA Accounting Methods configured Default: h323 |
Accounting method used for gateway accounting. |
Yes |
Call Accounting Template |
Basic & Common |
enum of all Call Accounting Templates configured |
Accounting template used for gateway accounting. Use callhistory-detail to send all voice attributes for accounting. |
Yes |
Accounting Session Id |
Basic & Common |
enum {enable, disable} |
Overload acct-session-id attribute with voice VSAs. |
Yes |
H323 Remote Id Resolved |
Basic & Common |
enum {enable, disable} |
Resolve H323-remote-id attribute and send. |
Yes |
Suppress Accounting |
Basic & Common |
enum {POTS, VoIP, Both} |
Enables or disables accounting for a call leg on POTs or VoIP dial peer. |
Yes |
