ASA 9.x: AnyConnect VPN Client U-turning Configuration Examples

Introduction

This document describes how to set up an Adaptive Security Appliance (ASA) Release 9.1(2) in order to perform Secure Sockets Layer (SSL) VPN on a stick with Cisco AnyConnect VPN Client. This setup applies to a specific case where the ASA does not allow split tunneling and users connect directly to the ASA before they are permitted to go to the Internet.

Note:  In order to avoid an overlap of IP addresses in the network, assign a completely different pool of IP addresses to the VPN Client (for example, 10.x.x.x , 172.16.x.x, and 192.168.x.x). This IP addressing scheme is helpful in order to troubleshoot your network.

Hairpinning or U-turn

This feature is useful for VPN traffic that enters an interface, but is then routed out of that same interface. For example, if you have a hub-and-spoke VPN network where the security appliance is the hub and the remote VPN networks are spokes, in order for one spoke to communicate with another spoke traffic must go to the security appliance and then out again to the other spoke.

Enter the same-security-traffic command in order to allow traffic to enter and exit the same interface.

ciscoasa(config)#same-security-traffic permit intra-interface

Prerequisites

Requirements

Cisco recommends that you meet these requirements before you attempt this configuration:

• The hub ASA Security Appliance needs to run Release 9.x.

• Cisco AnyConnect VPN Client 3.x

  Note: Download the AnyConnect VPN Client package (anyconnect-win*.pkg) from the Cisco Software Download (registered customers only) . Copy the AnyConnect VPN client to the ASA's flash memory, which is to be downloaded to the remote user computers in order to establish the SSL VPN connection with the ASA. Refer to the Installing the AnyConnect Client section of the ASA configuration guide for more information.

Components Used

The information in this document is based on these software and hardware versions:

• Cisco 5500 Series ASA that runs software version 9.1(2)

• Cisco AnyConnect SSL VPN Client version for Windows 3.1.05152

• PC which runs an supported OS per the Compatibility Chart.

• Cisco Adaptive Security Device Manager (ASDM) version 7.1(6)

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, make sure that you understand the potential impact of any command.

Background Information

The Cisco AnyConnect VPN Client provides secure SSL connections to the security appliance for remote users. Without a previously installed client, remote users enter the IP address in their browser of an interface configured to accept SSL VPN connections. Unless the security appliance is configured to redirect http:// requests to https://, users must enter the URL in the form https://<address>.

After the URL is entered, the browser connects to that interface and displays the login screen. If the user satisfies the log in and authentication, and the security appliance identifies the user as requiring the client, it downloads the client that matches the operating system of the remote computer. After the download, the client installs and configures itself, establishes a secure SSL connection and either remains or uninstalls itself (this depends on the security appliance configuration) when the connection terminates.

In the case of a previously installed client, when the user authenticates, the security appliance examines the revision of the client and upgrades the client as necessary.

When the client negotiates an SSL VPN connection with the security appliance, it connects with Transport Layer Security (TLS), and also uses Datagram Transport Layer Security (DTLS). DTLS avoids latency and bandwidth problems associated with some SSL connections and improves the performance of real-time applications that are sensitive to packet delays.

The AnyConnect client can be downloaded from the security appliance, or it can be installed manually on the remote PC by the system administrator. For more information on how to install the client manually, refer to the Cisco AnyConnect VPN Client Administrator Guide.

The security appliance downloads the client based on the group policy or username attributes of the user that establishes the connection. You can configure the security appliance to automatically download the client, or you can configure it to prompt the remote user about whether to download the client. In the latter case, if the user does not respond, you can configure the security appliance to either download the client after a timeout period or present the login page.

Configure

In this section, you are presented with the information to configure the features described in this document.

Note: Use the Command Lookup Tool (registered customers only) in order to obtain more information on the commands used in this section.

AnyConnect VPN Client for Public Internet VPN on a Stick Configuration Example

Network Diagram

This document uses this network setup:

ASA Release 9.1(2) Configurations with ASDM Release 7.1(6)

This document assumes that the basic configuration, such as interface configuration, is already completed and works properly.

Note: Refer to Configuring HTTPS Access for ASDM in order to allow the ASA to be configured by the ASDM.

Note: In Release 8.0(2) and later, the ASA supports both clientless SSL VPN (WebVPN) sessions and ASDM administrative sessions simultaneously on Port 443 of the outside interface. In versions earlier than Release 8.0(2), WebVPN and ASDM cannot be enabled on the same ASA interface unless you change the port numbers. Refer to ASDM and WebVPN Enabled on the Same Interface of ASA for more information.

Complete these steps in order to configure the SSL VPN on a stick in ASA:

1. Choose Configuration > Device Setup > Interfaces and check the Enable traffic between two or more hosts connected to the same interface check box in order to allow SSL VPN traffic to enter and exit the same interface. Click Apply.



   Equivalent CLI Configuration:

   ciscoasa(config)#same-security-traffic permit intra-interface

2. Choose Configuration > Remote Access VPN > Network (Client) Access > Address Assignment > Address Pools > Add in order to create an IP address pool vpnpool.



3. Click Apply.

   Equivalent CLI Configuration:

   ciscoasa(config)#ip local pool vpnpool 192.168.10.1-192.168.10.254 mask 255.255.255.0

4. Enable WebVPN.
   1. Choose Configuration > Remote Access VPN > Network (Client) Access > SSL VPN Connection Profiles and under Access Interfaces, click the check boxes Allow Access and Enable DTLS for the outside interface. Also, check the Enable Cisco AnyConnect VPN Client or legacy SSL VPN Client access on the interface selected in the table below check box in order to enable SSL VPN on the outside interface.



   2. Click Apply.
   3. Choose Configuration > Remote Access VPN > Network (Client) Access > Anyconnect Client Software > Add in order to add the Cisco AnyConnect VPN client image from the flash memory of ASA as shown.





      Equivalent CLI Configuration:

      ciscoasa(config)#webvpn
      ciscoasa(config-webvpn)#enable outside
      ciscoasa(config-webvpn)#anyconnect image disk0:/anyconnect-win-3.1.05152-k9.pkg 1
      ciscoasa(config-webvpn)#tunnel-group-list enable
      ciscoasa(config-webvpn)#anyconnect enable

5. Configure Group Policy.
   1. Choose Configuration > Remote Access VPN > Network (Client) Access > Group Policies in order to create an internal group policy clientgroup. Under the General tab, select the SSL VPN Client check box in order to enable the WebVPN as tunneling protocol.



   2. In the Advanced > Split Tunneling tab, choose Tunnel All Networks from the Policy drop-down list of the Policy in order to make all the packets coming from the remote PC through a secure tunnel.



      Equivalent CLI Configuration:

      ciscoasa(config)#group-policy clientgroup internal
      ciscoasa(config)#group-policyclientgroup attributes
      ciscoasa(config-group-policy)#vpn-tunnel-protocol ssl-client
      ciscoasa(config-group-policy)#split-tunnel-policy tunnelall

6. Choose Configuration > Remote Access VPN > AAA/Local Users > Local Users > Add in order to create a new user account ssluser1. Click OK and then Apply.



   Equivalent CLI Configuration:

   ciscoasa(config)#username ssluser1 password asdmASA@

7. Configure Tunnel Group.
   1. Choose Configuration > Remote Access VPN > Network (Client) Access > Anyconnect Connection Profiles > Add in order to create a new tunnel group sslgroup.
   2. In the Basic tab, you can perform the list of configurations as shown:
      • Name the Tunnel group as sslgroup.
      • Under Client Address Assignment, choose the address pool vpnpool from the Client Address Pools drop-down list.
      • Under Default Group Policy, choose the group policy clientgroup from the Group Policy drop-down list.



      • Under the Advanced  > Group Alias/Group URL tab, specify the group alias name as sslgroup_users and click OK.

        Equivalent CLI Configuration:

        ciscoasa(config)#tunnel-group sslgroup type remote-access
        ciscoasa(config)#tunnel-group sslgroup general-attributes
        ciscoasa(config-tunnel-general)#address-pool vpnpool
        ciscoasa(config-tunnel-general)#default-group-policy clientgroup
        ciscoasa(config-tunnel-general)#exit
        ciscoasa(config)#tunnel-group sslgroup webvpn-attributes
        ciscoasa(config-tunnel-webvpn)#group-alias sslgroup_users enable

8. Configure NAT

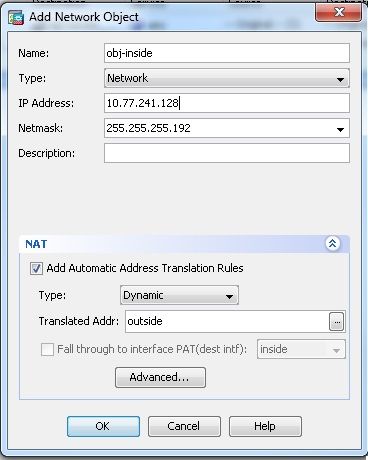

   1. Choose Configuration > Firewall > NAT Rules > Add "Network Object" NAT Rule so the traffic that comes from the inside network can be translated with outside IP address 172.16.1.1.




   2. Choose Configuration > Firewall > NAT Rules > Add "Network Object" NAT Rule so the traffic that VPN traffic that comes from the outside network can be translated with outside IP address 172.16.1.1.



      Equivalent CLI Configuration:

      ciscoasa(config)# object network obj-inside
      ciscoasa(config-network-object)# subnet 10.77.241.128 255.255.255.192
      ciscoasa(config-network-object)# nat (inside,outside) dynamic interface
      ciscoasa(config)# object network obj-AnyconnectPool
      ciscoasa(config-network-object)# subnet 192.168.10.0 255.255.255.0
      ciscoasa(config-network-object)# nat (outside,outside) dynamic interface

ASA Release 9.1(2) Configuration in the CLI

ciscoasa(config)#show running-config
: Saved
:
ASA Version 9.1(2)
!
hostname ciscoasa
domain-name default.domain.invalid
enable password 8Ry2YjIyt7RRXU24 encrypted
names
!
interface GigabitEthernet0/0
 nameif outside
 security-level 0
 ip address 172.16.1.1 255.255.255.0
!
interface GigabitEthernet0/1
 nameif inside
 security-level 100
 ip address 10.77.241.142 255.255.255.192
!
interface Management0/0
 shutdown
 no nameif
 no security-level
 no ip address

!
passwd 2KFQnbNIdI.2KYOU encrypted
boot system disk0:/asa802-k8.bin
ftp mode passive
clock timezone IST 5 30
dns server-group DefaultDNS
 domain-name default.domain.invalid
same-security-traffic permit intra-interface

!--- Command that permits the SSL VPN traffic to enter and exit the same interface.

object network obj-AnyconnectPool
 subnet 192.168.10.0 255.255.255.0
object network obj-inside
 subnet 10.77.241.128 255.255.255.192

!--- Commands that define the network objects we will use later on the NAT section.

pager lines 24
logging enable
logging asdm informational
mtu inside 1500
mtu outside 1500
ip local pool vpnpool 192.168.10.1-192.168.10.254 mask 255.255.255.0


!--- The address pool for the Cisco AnyConnect SSL VPN Clients


no failover
icmp unreachable rate-limit 1 burst-size 1
asdm image disk0:/asdm-602.bin
no asdm history enable
arp timeout 14400

nat (inside,outside) source static obj-inside obj-inside destination static
 obj-AnyconnectPool obj-AnyconnectPool

!--- The Manual NAT that prevents the inside network from getting translated
 when going to the Anyconnect Pool.

object network obj-AnyconnectPool
 nat (outside,outside) dynamic interface
object network obj-inside
 nat (inside,outside) dynamic interface

!--- The Object NAT statements for Internet access used by inside users and
 Anyconnect Clients.
!--- Note: Uses an RFC 1918 range for lab setup.

route outside 0.0.0.0 0.0.0.0 172.16.1.2 1
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout uauth 0:05:00 absolute
dynamic-access-policy-record DfltAccessPolicy
http server enable
http 0.0.0.0 0.0.0.0 inside
no snmp-server location
no snmp-server contact
snmp-server enable traps snmp authentication linkup linkdown coldstart
no crypto isakmp nat-traversal
telnet timeout 5
ssh timeout 5
console timeout 0
threat-detection basic-threat
threat-detection statistics access-list
!
class-map inspection_default
 match default-inspection-traffic
!
!
policy-map type inspect dns preset_dns_map
 parameters
  message-length maximum 512
policy-map global_policy
 class inspection_default
  inspect dns preset_dns_map
  inspect ftp
  inspect h323 h225
  inspect h323 ras
  inspect netbios
  inspect rsh
  inspect rtsp
  inspect skinny
  inspect esmtp
  inspect sqlnet
  inspect sunrpc
  inspect tftp
  inspect sip
  inspect xdmcp
!
service-policy global_policy global
webvpn
 enable outside


!--- Enable WebVPN on the outside interface


 anyconnect image disk0:/anyconnect-win-3.1.05152-k9.pkg 1


!--- Assign an order to the AnyConnect SSL VPN Client image


anyconnect enable


!--- Enable the security appliance to download SVC images to remote computers


tunnel-group-list enable


!--- Enable the display of the tunnel-group list on the WebVPN Login page


group-policy clientgroup internal


!--- Create an internal group policy "clientgroup"


group-policy clientgroup attributes
 vpn-tunnel-protocol ssl-client


!--- Specify SSL as a permitted VPN tunneling protocol


split-tunnel-policy tunnelall


!--- Encrypt all the traffic coming from the SSL VPN Clients.

username ssluser1 password ZRhW85jZqEaVd5P. encrypted


!--- Create a user account "ssluser1"


tunnel-group sslgroup type remote-access


!--- Create a tunnel group "sslgroup" with type as remote access


tunnel-group sslgroup general-attributes
 address-pool vpnpool


!--- Associate the address pool vpnpool created


 default-group-policy clientgroup


!--- Associate the group policy "clientgroup" created


tunnel-group sslgroup webvpn-attributes
 group-alias sslgroup_users enable


!--- Configure the group alias as sslgroup-users

prompt hostname context
Cryptochecksum:af3c4bfc4ffc07414c4dfbd29c5262a9
: end
ciscoasa(config)#

Allow Communication between AnyConnect VPN Clients with the TunnelAll Configuration in Place

Network Diagram

If communication between Anyconnect Clients is required and the NAT for Public Internet on a Stick is in place; a manual NAT is also needed to allow bidirectional communication.

This is a common scenario when Anyconnect Clients use phone services and should be able to call each other.

ASA Release 9.1(2) Configurations with ASDM Release 7.1(6)

Choose Configuration > Firewall > NAT Rules > Add NAT Rule Before "Network Object" NAT Rules so the traffic that comes from the outside network (Anyconect Pool) and it's destined to another Anyconnect Client from the same pool does not get translated with outside IP address 172.16.1.1.

Equivalent CLI Configuration:

nat (outside,outside) source static obj-AnyconnectPool obj-AnyconnectPool destination
 static obj-AnyconnectPool obj-AnyconnectPool

ASA Release 9.1(2) Configuration in the CLI

ciscoasa(config)#show running-config
: Saved
:
ASA Version 9.1(2)
!
hostname ciscoasa
domain-name default.domain.invalid
enable password 8Ry2YjIyt7RRXU24 encrypted
names
!
interface GigabitEthernet0/0
 nameif outside
 security-level 0
 ip address 172.16.1.1 255.255.255.0
!
interface GigabitEthernet0/1
 nameif inside
 security-level 100
 ip address 10.77.241.142 255.255.255.192
!
interface Management0/0
 shutdown
 no nameif
 no security-level
 no ip address

!
passwd 2KFQnbNIdI.2KYOU encrypted
boot system disk0:/asa802-k8.bin
ftp mode passive
clock timezone IST 5 30
dns server-group DefaultDNS
 domain-name default.domain.invalid
same-security-traffic permit intra-interface

!--- Command that permits the SSL VPN traffic to enter and exit the same interface.

object network obj-AnyconnectPool
 subnet 192.168.10.0 255.255.255.0
object network obj-inside
 subnet 10.77.241.128 255.255.255.192

!--- Commands that define the network objects we will use later on the NAT section.

pager lines 24
logging enable
logging asdm informational
mtu inside 1500
mtu outside 1500
ip local pool vpnpool 192.168.10.1-192.168.10.254 mask 255.255.255.0


!--- The address pool for the Cisco AnyConnect SSL VPN Clients


no failover
icmp unreachable rate-limit 1 burst-size 1
asdm image disk0:/asdm-602.bin
no asdm history enable
arp timeout 14400

nat (inside,outside) source static obj-inside obj-inside destination static
 obj-AnyconnectPool obj-AnyconnectPool
nat (outside,outside) source static obj-AnyconnectPool obj-AnyconnectPool
 destination static obj-AnyconnectPool obj-AnyconnectPool

!--- The Manual NAT statements used so that traffic from the inside network
 destined to the Anyconnect Pool and traffic from the Anyconnect Pool destined
 to another Client within the same pool does not get translated.

object network obj-AnyconnectPool
 nat (outside,outside) dynamic interface
object network obj-inside
 nat (inside,outside) dynamic interface

!--- The Object NAT statements for Internet access used by inside users and
 Anyconnect Clients.
!--- Note: Uses an RFC 1918 range for lab setup.

route outside 0.0.0.0 0.0.0.0 172.16.1.2 1
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout uauth 0:05:00 absolute
dynamic-access-policy-record DfltAccessPolicy
http server enable
http 0.0.0.0 0.0.0.0 inside
no snmp-server location
no snmp-server contact
snmp-server enable traps snmp authentication linkup linkdown coldstart
no crypto isakmp nat-traversal
telnet timeout 5
ssh timeout 5
console timeout 0
threat-detection basic-threat
threat-detection statistics access-list
!
class-map inspection_default
 match default-inspection-traffic
!
!
policy-map type inspect dns preset_dns_map
 parameters
  message-length maximum 512
policy-map global_policy
 class inspection_default
  inspect dns preset_dns_map
  inspect ftp
  inspect h323 h225
  inspect h323 ras
  inspect netbios
  inspect rsh
  inspect rtsp
  inspect skinny
  inspect esmtp
  inspect sqlnet
  inspect sunrpc
  inspect tftp
  inspect sip
  inspect xdmcp
!
service-policy global_policy global
webvpn
 enable outside


!--- Enable WebVPN on the outside interface


 anyconnect image disk0:/anyconnect-win-3.1.05152-k9.pkg 1


!--- Assign an order to the AnyConnect SSL VPN Client image


anyconnect enable


!--- Enable the security appliance to download SVC images to remote computers


tunnel-group-list enable


!--- Enable the display of the tunnel-group list on the WebVPN Login page


group-policy clientgroup internal


!--- Create an internal group policy "clientgroup"


group-policy clientgroup attributes
 vpn-tunnel-protocol ssl-client


!--- Specify SSL as a permitted VPN tunneling protocol


split-tunnel-policy tunnelall


!--- Encrypt all the traffic coming from the SSL VPN Clients.

username ssluser1 password ZRhW85jZqEaVd5P. encrypted


!--- Create a user account "ssluser1"


tunnel-group sslgroup type remote-access


!--- Create a tunnel group "sslgroup" with type as remote access


tunnel-group sslgroup general-attributes
 address-pool vpnpool


!--- Associate the address pool vpnpool created


 default-group-policy clientgroup


!--- Associate the group policy "clientgroup" created


tunnel-group sslgroup webvpn-attributes
 group-alias sslgroup_users enable


!--- Configure the group alias as sslgroup-users

prompt hostname context
Cryptochecksum:af3c4bfc4ffc07414c4dfbd29c5262a9
: end
ciscoasa(config)#

Allow Communication between AnyConnect VPN Clients with Split-Tunnel

Network Diagram

If communication between Anyconnect Clients is required and Split-Tunnel is being used; no manual NAT is required in order to allow bidirectional communication unless there is a NAT rule that affects this traffic configured. However the Anyconnect VPN Pool must be included on the Split-Tunnel ACL.

This is a common scenario when Anyconnect Clients use phone services and should be able to call each other.

ASA Release 9.1(2) Configurations with ASDM Release 7.1(6)

1. Choose Configuration > Remote Access VPN > Network (Client) Access > Address Assignment> Address Pools > Add in order to create an IP address pool vpnpool.



2. Click Apply.

   Equivalent CLI Configuration:

   ciscoasa(config)#ip local pool vpnpool 192.168.10.1-192.168.10.254 mask 255.255.255.0

3. Enable WebVPN.
   1. Choose Configuration > Remote Access VPN > Network (Client) Access > SSL VPN Connection Profiles and under Access Interfaces, click the check boxes Allow Access and Enable DTLS for the outside interface. Also, check the Enable Cisco AnyConnect VPN Client or legacy SSL VPN Client access on the interface selected in the table below check box in order to enable SSL VPN on the outside interface.



   2. Click Apply.
   3. Choose Configuration > Remote Access VPN > Network (Client) Access > Anyconnect Client Software > Add in order to add the Cisco AnyConnect VPN client image from the flash memory of ASA as shown.






      Equivalent CLI Configuration:

      ciscoasa(config)#webvpn
      ciscoasa(config-webvpn)#enable outside
      ciscoasa(config-webvpn)#anyconnect image disk0:/anyconnect-win-3.1.05152-k9.pkg 1
      ciscoasa(config-webvpn)#tunnel-group-list enable
      ciscoasa(config-webvpn)#anyconnect enable

4. Configure Group Policy.
   1. Choose Configuration > Remote Access VPN > Network (Client) Access > Group Policies in order to create an internal group policy clientgroup. Under the General tab, select the SSL VPN Client check box in order to enable the WebVPN as tunneling protocol.



   2. In the Advanced > Split Tunneling tab, choose Tunnel Network List Below from the Policy drop-down list in order to make all the packets coming from the remote PC through a secure tunnel.



      Equivalent CLI Configuration:

      ciscoasa(config)#access-list SPLIt-ACL standard permit 10.77.241.0 255.255.255.0
      ciscoasa(config)#access-list SPLIt-ACL standard permit 192.168.10.0 255.255.255.0

      ciscoasa(config)#group-policy clientgroup internal
      ciscoasa(config)#group-policy clientgroup attributes
      ciscoasa(config-group-policy)#vpn-tunnel-protocol ssl-client
      ciscoasa(config-group-policy)#split-tunnel-policy tunnelspecified
      ciscoasa(config-group-policy)#split-tunnel-network-list SPLIt-ACL

5. Choose Configuration > Remote Access VPN > AAA/Local Users > Local Users > Add in order to create a new user account ssluser1. Click OK and then Apply.



   Equivalent CLI Configuration:

   ciscoasa(config)#username ssluser1 password asdmASA@

6. Configure Tunnel Group.
   1. Choose Configuration > Remote Access VPN > Network (Client) Access > Anyconnect Connection Profiles > Add in order to create a new tunnel group sslgroup.
   2. In the Basic tab, you can perform the list of configurations as shown:
      • Name the Tunnel group as sslgroup.
      • Under Client Address Assignment, choose the address pool vpnpool from the Client Address Pools drop-down list.
      • Under Default Group Policy, choose the group policy clientgroup from the Group Policy drop-down list.



      • Under the Advanced > Group Alias/Group URL tab, specify the group alias name as sslgroup_users and click OK.

        Equivalent CLI Configuration:

        ciscoasa(config)#tunnel-group sslgroup type remote-access
        ciscoasa(config)#tunnel-group sslgroup general-attributes
        ciscoasa(config-tunnel-general)#address-pool vpnpool
        ciscoasa(config-tunnel-general)#default-group-policy clientgroup
        ciscoasa(config-tunnel-general)#exit
        ciscoasa(config)#tunnel-group sslgroup webvpn-attributes
        ciscoasa(config-tunnel-webvpn)#group-alias sslgroup_users enable

ASA Release 9.1(2) Configuration in the CLI



ciscoasa(config)#show running-config
: Saved
:
ASA Version 9.1(2)
!
hostname ciscoasa
domain-name default.domain.invalid
enable password 8Ry2YjIyt7RRXU24 encrypted
names
!
interface GigabitEthernet0/0
 nameif outside
 security-level 0
 ip address 172.16.1.1 255.255.255.0
!
interface GigabitEthernet0/1
 nameif inside
 security-level 100
 ip address 10.77.241.142 255.255.255.192
!
interface Management0/0
 shutdown
 no nameif
 no security-level
 no ip address

!
passwd 2KFQnbNIdI.2KYOU encrypted
boot system disk0:/asa802-k8.bin
ftp mode passive
clock timezone IST 5 30
dns server-group DefaultDNS
 domain-name default.domain.invalid
same-security-traffic permit intra-interface

!--- Command that permits the SSL VPN traffic to enter and exit the same interface.

object network obj-inside
 subnet 10.77.241.128 255.255.255.192

!--- Commands that define the network objects we will use later on the NAT section.

access-list SPLIt-ACL standard permit 10.77.241.0 255.255.255.0
access-list SPLIt-ACL standard permit 192.168.10.0 255.255.255.0

!--- Standard Split-Tunnel ACL that determines the networks that should travel the
 Anyconnect tunnel.

pager lines 24
logging enable
logging asdm informational
mtu inside 1500
mtu outside 1500
ip local pool vpnpool 192.168.10.1-192.168.10.254 mask 255.255.255.0

!--- The address pool for the Cisco AnyConnect SSL VPN Clients

no failover
icmp unreachable rate-limit 1 burst-size 1
asdm image disk0:/asdm-602.bin
no asdm history enable
arp timeout 14400

nat (inside,outside) source static obj-inside obj-inside destination static
 obj-AnyconnectPool obj-AnyconnectPool

!--- The Manual NAT that prevents the inside network from getting translated when
 going to the Anyconnect Pool

object network obj-inside
 nat (inside,outside) dynamic interface

!--- The Object NAT statements for Internet access used by inside users.
!--- Note: Uses an RFC 1918 range for lab setup.

route outside 0.0.0.0 0.0.0.0 172.16.1.2 1
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout uauth 0:05:00 absolute
dynamic-access-policy-record DfltAccessPolicy
http server enable
http 0.0.0.0 0.0.0.0 inside
no snmp-server location
no snmp-server contact
snmp-server enable traps snmp authentication linkup linkdown coldstart
no crypto isakmp nat-traversal
telnet timeout 5
ssh timeout 5
console timeout 0
threat-detection basic-threat
threat-detection statistics access-list
!
class-map inspection_default
 match default-inspection-traffic
!
!
policy-map type inspect dns preset_dns_map
 parameters
  message-length maximum 512
policy-map global_policy
 class inspection_default
  inspect dns preset_dns_map
  inspect ftp
  inspect h323 h225
  inspect h323 ras
  inspect netbios
  inspect rsh
  inspect rtsp
  inspect skinny
  inspect esmtp
  inspect sqlnet
  inspect sunrpc
  inspect tftp
  inspect sip
  inspect xdmcp
!
service-policy global_policy global
webvpn
 enable outside


!--- Enable WebVPN on the outside interface


 anyconnect image disk0:/anyconnect-win-3.1.05152-k9.pkg 1


!--- Assign an order to the AnyConnect SSL VPN Client image


anyconnect enable


!--- Enable the security appliance to download SVC images to remote computers


tunnel-group-list enable


!--- Enable the display of the tunnel-group list on the WebVPN Login page


group-policy clientgroup internal


!--- Create an internal group policy "clientgroup"


group-policy clientgroup attributes
 vpn-tunnel-protocol ssl-client


!--- Specify SSL as a permitted VPN tunneling protocol


split-tunnel-policy tunnelspecified


!--- Encrypt  only traffic specified on the split-tunnel ACL coming from the SSL
 VPN Clients.


split-tunnel-network-list value SPLIt-ACL


!--- Defines the previosly configured ACL to the split-tunnel policy.

username ssluser1 password ZRhW85jZqEaVd5P. encrypted


!--- Create a user account "ssluser1"


tunnel-group sslgroup type remote-access


!--- Create a tunnel group "sslgroup" with type as remote access


tunnel-group sslgroup general-attributes
 address-pool vpnpool


!--- Associate the address pool vpnpool created


 default-group-policy clientgroup


!--- Associate the group policy "clientgroup" created


tunnel-group sslgroup webvpn-attributes
 group-alias sslgroup_users enable


!--- Configure the group alias as sslgroup-users

prompt hostname context
Cryptochecksum:af3c4bfc4ffc07414c4dfbd29c5262a9
: end
ciscoasa(config)#

Verify

Use this section to confirm that your configuration works properly.

The Output Interpreter Tool (registered customers only) (OIT) supports certain show commands. Use the OIT to view an analysis of show command output.

• show vpn-sessiondb svc-Displays the information about the current SSL connections.

  ciscoasa#show vpn-sessiondb anyconnect

  Session Type: SVC

  Username     : ssluser1               Index        : 12
  Assigned IP  : 192.168.10.1           Public IP    : 192.168.1.1
  Protocol     : Clientless SSL-Tunnel DTLS-Tunnel
  Encryption   : RC4 AES128             Hashing      : SHA1
  Bytes Tx     : 194118                 Bytes Rx     : 197448
  Group Policy : clientgroup            Tunnel Group : sslgroup
  Login Time   : 17:12:23 IST Mon Mar 24 2008
  Duration     : 0h:12m:00s
  NAC Result   : Unknown
  VLAN Mapping : N/A                    VLAN         : none

• show webvpn group-alias-Displays the configured alias for various groups.

  ciscoasa#show webvpn group-alias
  Tunnel Group: sslgroup   Group Alias: sslgroup_users enabled

• In ASDM, choose Monitoring > VPN > VPN Statistics > Sessions in order to know the current sessions in the ASA.



Troubleshoot

This section provides information you can use to troubleshoot your configuration.

• vpn-sessiondb logoff name <username>-Command to log off the SSL VPN session for the particular username.

  ciscoasa#vpn-sessiondb logoff name ssluser1
  Do you want to logoff the VPN session(s)? [confirm] Y
  INFO: Number of sessions with name "ssluser1" logged off : 1

  ciscoasa#Called vpn_remove_uauth: success!
  webvpn_svc_np_tear_down: no ACL
  webvpn_svc_np_tear_down: no IPv6 ACL
  np_svc_destroy_session(0xB000)

  Similarly, you can use the vpn-sessiondb logoff anyconnect command in order to terminate all the AnyConnect sessions.

• debug webvpn anyconnect <1-255>-Provides the real time webvpn events in order to establish the session.

  Ciscoasa#debug webvpn anyconnect 7
  CSTP state = HEADER_PROCESSING
  http_parse_cstp_method()
  ...input: 'CONNECT /CSCOSSLC/tunnel HTTP/1.1'
  webvpn_cstp_parse_request_field()
  ...input: 'Host: 10.198.16.132'
  Processing CSTP header line: 'Host: 10.198.16.132'
  webvpn_cstp_parse_request_field()
  ...input: 'User-Agent: Cisco AnyConnect VPN Agent for Windows 3.1.05152'
  Processing CSTP header line: 'User-Agent: Cisco AnyConnect VPN Agent for Windows
   3.1.05152'
  Setting user-agent to: 'Cisco AnyConnect VPN Agent for Windows 3.1.05152'
  webvpn_cstp_parse_request_field()
  ...input: 'Cookie: webvpn=146E70@20480@567F@50A0DFF04AFC2411E0DD4F681D330922F4B21F60'
  Processing CSTP header line: 'Cookie: webvpn=
  146E70@20480@567F@50A0DFF04AFC2411E0DD4F681D330922F4B21F60'
  Found WebVPN cookie: 'webvpn=146E70@20480@567F@50A0DFF04AFC2411E0DD4F681D330922F4B21F60'
  WebVPN Cookie: 'webvpn=146E70@20480@567F@50A0DFF04AFC2411E0DD4F681D330922F4B21F60'
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-Version: 1'
  Processing CSTP header line: 'X-CSTP-Version: 1'
  Setting version to '1'
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-Hostname: WCRSJOW7Pnbc038'
  Processing CSTP header line: 'X-CSTP-Hostname: WCRSJOW7Pnbc038'
  Setting hostname to: 'WCRSJOW7Pnbc038'
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-MTU: 1280'
  Processing CSTP header line: 'X-CSTP-MTU: 1280'
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-Address-Type: IPv6,IPv4'
  Processing CSTP header line: 'X-CSTP-Address-Type: IPv6,IPv4'
  webvpn_cstp_parse_request_field()
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-Base-MTU: 1300'
  Processing CSTP header line: 'X-CSTP-Base-MTU: 1300'
  webvpn_cstp_parse_request_field()
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-Full-IPv6-Capability: true'
  Processing CSTP header line: 'X-CSTP-Full-IPv6-Capability: true'
  webvpn_cstp_parse_request_field()
  ...input: 'X-DTLS-Master-Secret: F1810A764A0646376F7D254202A0A602CF075972F91EAD1
  9BB6BE387BB8C6F893BFB49886D47F9A4BE2EA2A030BF620D'
  Processing CSTP header line: 'X-DTLS-Master-Secret: F1810A764A0646376F7D254202A0
  A602CF075972F91EAD19BB6BE387BB8C6F893BFB49886D47F9A4BE2EA2A030BF620D'
  webvpn_cstp_parse_request_field()
  ...input: 'X-DTLS-CipherSuite: AES256-SHA:AES128-SHA:DES-CBC3-SHA:DES-CBC-SHA'
  Processing CSTP header line: 'X-DTLS-CipherSuite: AES256-SHA:AES128-SHA:DES-CBC3
   -SHA:DES-CBC-SHA'
  webvpn_cstp_parse_request_field()
  ...input: 'X-DTLS-Accept-Encoding: lzs'
  Processing CSTL header line: 'X-DTLS-Accept-Encoding: lzs'
  webvpn_cstp_parse_request_field()
  ...input: 'X-DTLS-Header-Pad-Length: 0'
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-Accept-Encoding: lzs,deflate'
  Processing CSTP header line: 'X-CSTP-Accept-Encoding: lzs,deflate'
  webvpn_cstp_parse_request_field()
  ...input: 'X-CSTP-Protocol: Copyright (c) 2004 Cisco Systems, Inc.'
  Processing CSTP header line: 'X-CSTP-Protocol: Copyright (c) 2004 Cisco Systems, Inc.'
  Validating address: 0.0.0.0
  CSTP state = WAIT_FOR_ADDRESS
  webvpn_cstp_accept_address: 192.168.10.1/255.255.255.0
  webvpn_cstp_accept_ipv6_address: No IPv6 Address
  CSTP state = HAVE_ADDRESS
  SVC: Sent gratuitous ARP for 192.168.10.1.
  SVC: NP setup
  np_svc_create_session(0x5000, 0xa930a180, TRUE)
  webvpn_svc_np_setup
  SVC ACL Name: NULL
  SVC ACL ID: -1
  vpn_put_uauth success for ip 192.168.10.1!
  No SVC ACL
  Iphdr=20 base-mtu=1300 def-mtu=1500 conf-mtu=1406
  tcp-mss = 1260
  path-mtu = 1260(mss)
  mtu = 1260(path-mtu) - 0(opts) - 5(ssl) - 8(cstp) = 1247
  tls-mtu = 1247(mtu) - 20(mac) = 1227
  DTLS Block size = 16
  mtu = 1300(base-mtu) - 20(ip) - 8(udp) - 13(dtlshdr) - 16(dtlsiv) = 1243
  mod-mtu = 1243(mtu) & 0xfff0(complement) = 1232
  dtls-mtu = 1232(mod-mtu) - 1(cdtp) - 20(mac) - 1(pad) = 1210
  computed tls-mtu=1227 dtls-mtu=1210 conf-mtu=1406
  DTLS enabled for intf=2 (outside)
  tls-mtu=1227 dtls-mtu=1210
  SVC: adding to sessmgmt

  Unable to initiate NAC, NAC might not be enabled or invalid policy
  CSTP state = CONNECTED
  webvpn_rx_data_cstp
  webvpn_rx_data_cstp: got internal message
  Unable to initiate NAC, NAC might not be enabled or invalid policy

• In ASDM, choose Monitoring > Logging > Real-time Log Viewer > View in order to see the real time events. This example shows the session information between the AnyConnect 192.168.10.1 and Telnet Server 10.2.2.2 in the Internet via ASA 172.16.1.1.



Related Information

• Cisco 5500 Series Adaptive Security Appliance Support Page
• PIX/ASA and VPN Client for Public Internet VPN on a Stick Configuration Example
• SSL VPN Client (SVC) on ASA with ASDM Configuration Example
• Technical Support & Documentation - Cisco Systems
