Product overview

Cisco® Unified SIP Proxy (CUSP) is a high-performance, highly scalable SIP proxy server that may be deployed in a virtualized environment to help enterprises aggregate their Session Initiation Protocol (SIP) elements into a centralized architecture in order to simplify and improve the flexibility of their network.

CUSP simplifies call routing within multielement SIP networks, using call routing rules to improve control and flexibility of the overall network. For example, an enterprise network may include Cisco Unified Communications Manager for call control, Cisco Unified Border Element for session control, and Cisco Unified Customer Voice Portal for interactive voice response as well as other Cisco and third-party SIP-based elements. CUSP interconnects these different elements so that SIP network design and troubleshooting, when needed, are greatly simplified. Because CUSP acts as a “stateless” routing intermediary between these elements, it greatly reduces the call routing combinations to help identify problems faster and speed troubleshooting. As such, each SIP-based element need only route its call activities to CUSP to help ensure proper call routing to any other SIP-based element in its network. By forwarding call routing requests between call-control elements, CUSP provides the means for routing sessions within enterprise and service provider networks.


By simplifying SIP-based call routing, Cisco Unified SIP Proxy enables a broad range of unified communications applications and services, as described in the following paragraphs:

Cisco Unified Border Element Scalability and Load Balancing

Cisco Unified Border Element (CUBE) is Cisco’s enterprise session border controller providing session control, security, interworking, and demarcation in SIP trunking deployments. Cisco Unified SIP Proxy provides a central route point for management of multiple CUBEs, helping simplify and scale large SIP trunking deployments. You can establish logical separations and use a single Cisco Unified SIP Proxy for ingress or egress traffic or both. You can apply load balancing and rule-based routing with SIP message normalization where needed (Figure 1).

If a CUBE is unavailable, CUSP can intelligently reroute to an alternate CUBE. When the original CUBE returns to service, CUSP resumes the original call routing. This design enables demand driven growth of service provider interconnects and reduces the risk associated with a single point of failure.

Cisco Unified Border Element Scalability and Load Balancing in a SIP Trunking Deployment

Figure 1.

Cisco Unified Border Element Scalability and Load Balancing in a SIP Trunking Deployment

SIP Trunk for Contact Center

Whether for inbound or outbound traffic, CUSP enables routing and management across service provider trunks. Routing is also provided across multiple Cisco Unified Customer Voice Portals (CVPs) and Virtualized Voice Browsers (VVB). If a destination is unavailable, Cisco Unified SIP Proxy can intelligently reroute to an alternate resource until the original becomes available again. You can apply load balancing and rule-based routing with SIP message normalization where needed (Figure 2).

SIP Trunk for Contact Center

Figure 2.

SIP Trunk for Contact Center

Cisco Unified Communications Manager and Cisco Unified Communications Manager Express SIP Aggregation

CUSP can also simplify the network for an enterprise deploying a distributed call-control network using Cisco Unified Communications Manager at large sites and Cisco Unified Communications Manager Express at the branch offices, Management of SIP dial peers across midsize and large Cisco Unified Communications Manager and Cisco Unified Communications Manager Express networks presents a challenge. Rather than building a full mesh, each system can be pointed to Cisco Unified SIP Proxy, which provides a central route point. This process also simplifies the addition and removal of new call-processing agents. If a call-processing agent is unavailable, alternate routing and recovery can be provided. You can apply load balancing and rule-based routing with SIP message normalization where needed (Figure 3).

Cisco Unified Communications Manager and Cisco Unified Communications Manager Express SIP Aggregation

Figure 3.

Cisco Unified Communications Manager and Cisco Unified Communications Manager Express SIP Aggregation

Service Provider SIP Interconnect Services

For interconnection among service providers, CUSP enables normalization of dial strings and SIP signaling variants. CUSP also provides routing and load balancing among SIP elements, including CUBEs (Figure 4).

Service Provider SIP Interconnect

Figure 4.

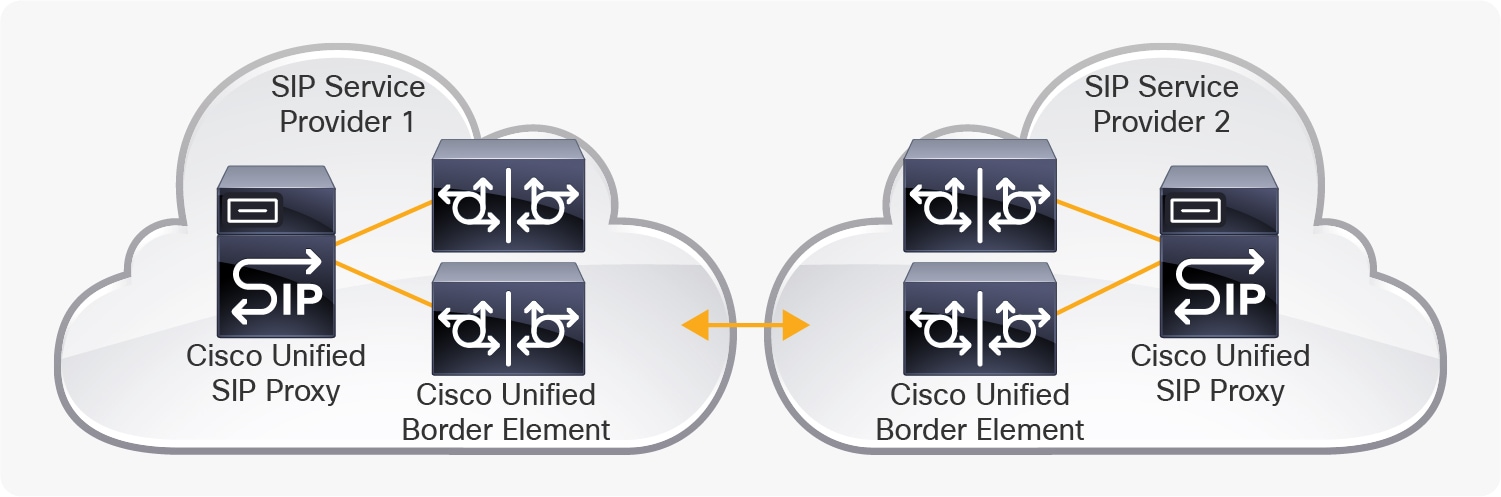

Service Provider SIP Interconnect

Cisco unified SIP Proxy call processing architecture

The Cisco Unified SIP Proxy is a call and dialog stateless SIP proxy. This means that after CUSP determines the correct SIP-based routing, it withdraws from the signaling interaction and allows the SIP-based elements to perform midcall signaling directly with one another. In a network with multiple SIP-based elements, this stateless proxy function greatly simplifies the various SIP protocol interactions between these elements. Furthermore, CUSP does not perform any media-handling functions. Instead, session media flows bypass CUSP and go directly to the SIP-based endpoints, which CUSP has interacted with in the session signaling process. CUSP can also modify SIP headers (normalization). Routing and normalization are determined based on administrator-configured policies. Policies are selected based on triggers, administrator-configured conditions that are matched based on information in the SIP message.

As SIP messages are presented to CUSP, a determination is made as to whether any pre-normalization policies need to be applied. Following pre-normalization, new triggers are used to determine application of routing policies. A further series of triggers provide for further header modification; for example, post-normalization policies after the routing decision has been made. In cases where a policy is not asserted, the proxy provides for pass-through of the SIP message (Figure 5).

Cisco Unified SIP Proxy Call-Processing Model

Figure 5.

Cisco Unified SIP Proxy Call-Processing Model

You can apply distinct rules to groups of requests to create independent “virtualized proxies” within a single Cisco Unified SIP Proxy. The rules are highly flexible and scalable to form routing or normalization policies.


      Proxy for SIP unified communications signaling

      Signaling support: voice, video, fax, physical terminal line (TTY), modem, caller ID, caller name, updates, transfer, forward, hold, conference, status, Message Waiting Indicator (MWI), Dual-Tone Multifrequency (DTMF) relay, and SIP for Instant Messaging and Presence Leveraging Extensions (SIMPLE) (presence)

      Address resolution (DNS: Type A and SRV and Type NAPTR)

    Domain name resolution based on RFC 3263, Locating SIP Servers

      TCP, User Datagram Protocol (UDP), and Transport Layer Security (TLS)

      Standard (Record Route ON) mode: This mode keeps a record of the SIP sessions it connects. This record can be very valuable in the SIP-based network to determine if the call-routing policies (dial plan) defined within CUSP are working as intended

      Lite (Record Route OFF) mode: This mode allows Cisco Unified SIP Proxy to run at a higher SIP request rate than the standard mode call rate by disabling record-route functions. This mode is typically used after the SIP-based network call routing using CUSP has been thoroughly tested. For more details about lite mode, refer to the Performance section

      CUSP version 10 is deployed as a virtual machine on a Cisco Unified Computing System (Cisco UCS®) server running VMware ESXi



      Routing based on policy

      Configurable multistep routing policies with route-table lookup

    Configurable match rules (for example, longest prefix, exact match, and fixed-length match)

    Configurable keys selected from the SIP request: Remote address, local address, request for uniform Resource Identifier (URI), P-Asserted-Identity (caller ID), diversion, remote-party ID, To, and From; within these headers Cisco Unified SIP Proxy can select the user, host, port, domain, phone number, URI, carrier codes, and location routing numbers

    Configurable key modifiers (for example, case insensitivity, ignore plus, ignore display characters, etc.)

    Numerous routing decisions: Forward to a single route, forward to a route group, reject, and chain to another route policy

      Table-based routing for mapping of requests to destinations

    Support for large number of routes in a table (10,000+)

    Routes populated through Command-Line Interface (CLI) or upload of a route file

      Example routing scenarios:

    URI-based routing (number and name)

    Call block between specified sources and destinations, including policy-based transit routing (policy may require certain calls to either avoid or take certain routes)

    Class of restriction

    Translation of on-net to off-net dial plans (including public switched telephone network [PSTN] and IP-IP); simplifies network management, eliminating the need to configure translations in each call agent

      Percentage and weight-based routing

    Load balancing among downstream elements based on preset weight

    Priority values assignable for routing of selected calls; also enables configuration for least-cost routing

      Time policy routing

    Time(s) in a day, day(s) in a week, day(s) in a month, and month(s) in a year

      Ability to form downstream elements into a single logical group for load balancing and failover

      SIP element health management and monitoring

    Rerouting around unavailable SIP elements

    Ping for service availability and restoration of routing when unavailable SIP element is restored

      Rerouting based on redirect responses (routing policy and post-normalization applies to the new destination specified in the contact header of the redirect response, and provides for sequential forking)

      Transport protocol conversion: TCP, UDP, TLS (for example, an incoming call received over UDP can be forwarded to a destination over TLS)

      Configurable record routing (on/off)

      Global unique caller ID pass-through


      Normalization of SIP headers based on configurable policy

    Ability to add, remove, or update headers and header parameters

    Ability to update URI components such as user, domain, and host and ability to add, remove, and update URI parameters

    Digit manipulation

    Address manipulation

    TEL URI <=> SIP URI conversion

    Domain conversions

    Regular-expression processing

      Construction of multistep normalization policies

      Pre- and post-normalization

    Pre-normalization prior to proxy application of routing rules (for example, applied to message coming into the proxy)

    Post-normalization after proxy application of routing rules (for example, applied to message going out from the proxy)

Rules-Based Selection of Routing and Normalization Policies

      Rich set of configurable rules

    SIP message type (for example, request and response)

    SIP method: INVITE, UPDATE, REFER, PRACK, BYE, SUBSCRIBE, NOTIFY, unsolicited NOTIFY, MESSAGE, PUBLISH, REGISTER, INFO, OPTIONS, and any custom or future SIP extensions

    Request-URI: User, host, phone number, etc.

    Local and remote IP, port, and protocol of the received SIP message

    Network name of the incoming and outgoing request (a network is a set of SIP listening points)

    Transport protocol

    Regular expression match on any SIP header

    Time policy check

    SIP response code

    Mid-dialog message check

      Call Admission Control

    Call counting based

Security and Privacy

      TLS (bidirectional)

      Through-header stripping (for topology hiding)

      User privacy (RFC 3325 P-Asserted ID: Removes P-Asserted ID when receiving a message from an element not configured as trusted, and removes P-Asserted ID and Privacy header when forwarding a message to an element not configured as trusted)

Network Design

      Multiple IP addresses (up to eight) to provide for flexible configuration and network topology design; you can group IP addresses to form networks and apply rules on these networks

      Multiple SIP listening points; each listening point can have a configurable port

      “Virtualized proxies” with multiple independent routing and normalization processing in a single server

      Redundancy through clustered network design for high availability

    Clusters addressed as fully qualified domain names (FQDNs). DNS resolution through service (SRV) record

      Very high scalability with clustering of multiple Cisco Unified SIP Proxies

    Hierarchical and peer requests among clustered Cisco Unified SIP Proxies, either as server-based on virtualized platforms


      Flexible management through GUI and CLI

      Configuration backup and restore

      Graceful shutdown and restore, allowing for completion of transactions in process

      RADIUS accounting for SIP events

      SIP message logging for call monitoring

      Trace logging for troubleshooting

      SFTP access to CUSP for easy download of trace logs, SIP message logs, configuration files, and route files, and upload of configuration files and route files

      SIP message metrics logging (peg counting); for example, count of incoming and outgoing messages over a period of time and logging to a file

      Detailed call statistics with call attempt, success, and failure rates per element

      SNMPv2 traps and events, as follows:

    CUSP application status (trap)

    License limit call drop exception

    Calls per second (1-second and 1-minute average, 1-minute max)

    Last counter reset (date/time)

    Server Groups table (name, status, total calls, failed calls) (since last counter reset) (trap on these)

    Server Group Elements table (hostname/IP, status, total calls, failed calls) (since last counter reset) (trap on these)

    Calls routed (1-second and 1-minute average, 1-minute max)

    Calls dropped (1-second and 1-minute average, 1-minute max)

    Total calls (since last counter reset)

    Total failed calls (since last counter reset)

      Database store for debugs and logs

    Selectively log messages using regular expressions

    Search through stored log messages

    Store up to 1 million log messages (from version 10.2.2 onwards)

Supported Standards as a SIP Proxy

      IETF RFC 2246: TLS Protocol Version 1.0

      IETF RFC 2327: SDP - Session Description Protocol

      IETF RFC 2617: HTTP Authentication: Basic and Digest Access Authentication

      IETF RFC 2782: A DNS RR for specifying the location of services (DNS SRV)

      IETF RFC 2806: URLs for Telephone Calls

      IETF RFC 2976: The SIP INFO Method

      IETF RFC 3204: MIME Media Types for ISUP and QSIG Objects

      IETF RFC 3261: SIP - Session Initiation Protocol

      IETF RFC 3262: Reliability of Provisional Responses in SIP

      IETF RFC 3263: Locating SIP Servers

      IETF RFC 3264: An Offer/Answer Model with the Session Description Protocol (SDP)

      IETF RFC 3265: SIP-Specific Event Notification

      IETF RFC 3311: The SIP UPDATE Method

      IETF RFC 3325: Private Extensions to the SIP for Asserted Identity within Trusted Networks

      IETF RFC 3326: The Reason Header Field for SIP

      IETF RFC 3515: The SIP Refer Method

      IETF RFC 3665: SIP Basic Call Flow Examples

      IETF RFC 3666: SIP Public Switched Telephone Network (PSTN) Call Flows

      IETF RFC 3725: Best Current Practices for Third-Party Call Control (3PCC) in SIP

      IETF RFC 3842: A Message Summary and Message Waiting Indication Event Package for SIP

      IETF RFC 3856: A Presence Event Package for SIP

      IETF RFC 3891: The SIP "Replaces" Header

      IETF RFC 3892: SIP Referred-By Mechanism

      IETF RFC 4480: RPID - Rich Presence Extensions to the Presence Information Data Format (PIDF)

      IEFT RFC 5246: TLS Protocol Version 1.2

      SIP for Instant Messaging and Presence Leveraging Extensions (SIMPLE)


Cisco Unified SIP Proxy Version 10 may be used in either standard or lite mode.

Standard mode (also referred to as Record Route ON) supports the performance described by the SIP calls-per-second (CPS) licenses installed. The CUSP10-5CPS Smart License authorizes five SIP CPS. This mode is particularly recommended for contact center deployments, as it provides a complete history of SIP requests.

Lite mode (also referred to as Record Route OFF) enables CUSP to run at a higher call rate when the Record Route feature is disabled. In this mode, 2.5 times the number of configured licenses is authorized. For example, a system configured to use five CUSP10-5CPS licenses would be authorized to process up to 62 SIP CPS (rounded down).

CUSP licensing should be properly matched to the platform performance in terms of SIP calls per second.

Hardware requirements

Cisco Unified SIP Proxy Version 10 may be run on any Cisco UCS E, C, or B series server running VMware ESXi version 5.1 and newer virtualization software. When installed, Cisco Unified SIP Proxy uses 6 GB vRAM and 80 GB disk space. Virtual CPU requirements are determined based on the performance of the host server CPUs and the required call processing rate. Table 1 summarizes the vCPU requirements for different scenarios. Find out more information on Cisco UCS products.

Table 1.        Cisco Unified SIP Proxy Version 10 Virtualized CPU Requirements (call routing only)

Maximum CPS

Host CPU less than 2.99 GHz

2.99 GHz host CPU and above
















Note:      Maximum performance will be reduced when features such as DNS lookup, SIP logging, or RADIUS logging are enabled.


Cisco Unified SIP Proxy Version 10 uses Cisco Smart Licensing, which provides the following benefits:

      Licenses are delivered directly to a common customer Smart Account, ready for us

      Common view of licensed devices and entitlement usage

      Cisco Unified SIP Proxy Licenses are freely portable between CUSP systems, regardless of host platform

      Licenses are additive. You don’t need to purchase confusing license upgrades to increase capacity. Simply order the appropriate number of licenses to cover your total business requirement. If more capacity is required later, simply add more licenses to your Smart Account.

Read more information about Cisco Smart Licensing.

Each Cisco Unified SIP Proxy version 10 license provides the entitlement to process 5 Calls Per Second (CPS) for either version 9 or 10 systems. Systems request a quantity of these licenses from a common Smart Account pool, based on configuration.

When ordering, use the Smart License-enabled product codes in Table 2 to ensure that entitlements are delivered directly to the customer Smart Account. All license options require at least one year of Software Support Service (SWSS) coverage.

Table 2.        Cisco Unified SIP Proxy Version 10 Software Licensing Product IDs

Part Number



Cisco Unified SIP Proxy (CUSP) Smart Licenses – top-level product ID


Cisco Unified SIP Proxy 10.x: 5 calls/sec (Smart License)
