Businesses are facing daunting new challenges in security operations. The growing number and increasing complexity of security technologies, combined with the reduction and redirection of IT headcount once dedicated to security management, has dramatically increased the potential for human error, which can lead to security exposures and incidents. To counteract these challenges, it's invaluable for security operations teams to have an integrated, end-to-end management solution that enables consistent policy enforcement, allows rapid troubleshooting of security events, and delivers summarized reports across the security deployment.
Cisco® Security Manager is a comprehensive management solution that enables advanced management and rapid troubleshooting of multiple security devices. Cisco Security Manager provides scalable, centralized management from which administrators can efficiently manage a wide range of Cisco security devices, gain visibility across the network deployment, and securely share information with other essential network services such as compliance systems and advanced security analysis systems. Designed to maximize operational efficiency, Cisco Security Manager also includes a powerful suite of automated capabilities, such as health and performance monitoring, software image management, auto-conflict detection, and integration of trouble tickets.
Cisco Security Manager supports a wide range of Cisco security devices, including Cisco ASA 5500 Series Adaptive Security Appliances, Cisco IPS 4200 and 4300 Series Sensors, Cisco Secure Routers, and the Cisco AnyConnect™ Secure Mobility Client.
Features and Benefits
Table 1 summarizes additional Cisco Security Manager 4.3 features and benefits.
Table 1. Cisco Security Manager 4.3 Features and Benefits
Feature
Benefit
Firewall Configuration
Manages the Cisco Security Deployment
Enables centralized management of the Cisco security environment, including:
• Cisco ASA 5500 Series Adaptive Security Appliances
• Cisco IPS 4200 and 4300 Series Sensor Appliances
• Cisco AnyConnect Secure Mobility Client
• Cisco Secure Routers
• Cisco Catalyst® 6500 Series Firewall Services Modules (FWSM) and ASA Services Modules (ASASM)
Enables zone-based firewall (ZBF) policy settings to be deployed on supported device platforms
Botnet Traffic Filter
Supports the Botnet Traffic Filter on the Cisco ASA platform, for application-layer inspection and blockage of "phone-home" activity by botnets
Content Filtering
Supports content filtering on Cisco IOS Software-based device platforms to filter traffic based on deep content inspection
Enables the management of multiple device platforms using a single rule table
Efficient Policy Definition
Increases the efficiency with which administrators can define policies by clearly displaying which rules match a specific source, destination, and service flow, including wildcards
Simplified Setup
Streamlines configuration and simplifies initial security management setup by enabling device information to be imported from a device repository or configuration file, added in the software, or discovered from the device itself
Streamlined Operations
Significantly reduces manual tasks while reducing errors and optimizing the security environment, through:
• Rule Conflict Detection, Hit Count Analysis, Rule Combiner, and other powerful tools to analyze and optimize rule sets
• Role-based access control (RBAC) and workflow to help ensure error-free deployments and process compliance
Interface Roles
Enables rule policies to be applied to groups of interfaces and centrally managed, to maximize flexibility and scalability
IPS Configuration
Configuration And Update Policies
Enables administrators to easily and effectively manage intrusion protection system (IPS)-based configuration and update policies for:
• Cisco Catalyst® 6500 Series Intrusion Detection System Services Module 2 (IDSM-2)
• Cisco IDS Network Module
• Cisco IPS Advanced Integration Module (AIM)
• Cisco IOS IPS
Signature Updates
Enables incremental provisioning of new and updated signatures before deploying them to the enterprise
Threat Research
Allows administrators to tune to their environment based on insights gained from Security Intelligence Operations (SIO), the Cisco IntelliShield Alert Manager Service, and Cisco IPS Security Research Team recommendations before distributing the signature update
Update Wizard
Enables efficient, automatic IPS updates, scheduling, and distribution of policies with status and detail notification
Reusable Policies
Enables IPS signature policies and event action filters to be inheritable and assignable to any device; all other IPS polices can be assigned to and shared with other IPS devices
Policy Rollback
Includes IPS policy rollback, a configuration archive, and cloning or creation of signatures
CSV Export
Comma-separated value (CSV) export for select IPS features such as signatures, event action filters, and signature delta settings facilitates storage and exchange of this data between different Cisco Security Manager server instances
VPN Configuration
VPN Wizard
Provides easy configuration of site-to-site, hub-and-spoke, full-mesh, and extranet VPNs
Supports Common VPN Deployment Scenarios
Enables common VPN deployment scenarios with support for Group Encrypted Transport VPN (GET VPN), Dynamic Multipoint VPN (DMVPN), and generic routing encapsulation (GRE) IP Security (IPsec), both with dynamic IP and hierarchical certificates
Remote Configuration
Enables centralized management of VPNs
Efficiency and Usability Features
Ticketing Integration
Changes made in multiple ticketing systems can be tagged with a single ticket identifier, enabling them to be easily queried for audit
Global Search
Enables all devices, policies, and policy objects in the configuration database using a particular IP address or service to be found
Find Usage
Enables administrators to quickly find usage information about objects by pointing to the exact rules that use a particular policy object, in addition to providing details about all the policies that use the object
Auto-Conflict Detection
Provides a clear picture about rule conflicts, to simplify rule optimization and troubleshooting
Integrated Event Management
Enables administrators to monitor status and troubleshoot security issues, including:
• Receipt of syslog messages from Cisco ASA appliances and Security Device Event Exchange (SDEE) messages from Cisco IPS sensors
• Real-time and historical event viewing
• Cross-linkages to firewall access rules and IPS signatures for quick navigation to the source policies
• Prebundled set of views for firewall, IPS, and VPN monitoring
• Customizable views for monitoring select devices or a select time range
• Intuitive GUI controls for searching, sorting, and filtering events
• Administrative options to turn event collection on or off for select security devices
Report Manager
Supports system reports and the creation of predefined reports, all of which can be:
• Viewed as charts and grids
• Exported to PDF/Excel
• Scheduled for delivery via email
Bulk Operations
Reduces administrative overhead in networks that have a large number of devices. The feature includes:
• Bulk import and export of policy objects
• Bulk addition for offline devices
• Bulk import of device-level overrides
Device Grouping
Allows administrators to create and define device groups based on business function or location, and then manage all devices in a group as a single device
Policy Object Manager
Objects such as network addresses, services, device settings, time ranges, or VPN parameters can be defined once and then used any number of times to avoid manual entry of values
Other Capabilities
Third-Party Device Support
Supports "unmanaged" endpoints and third-party devices
Security Services Management
Enables the management of integrated security services, including quality of service (QoS) for VPN, routing, and Network Admission Control (NAC)
Multiple Application Views
Provides multiple views into the application to support different use cases and experience levels
Flexible Deployment Options
Security deployments can be implemented on either an on-demand or scheduled basis
Rollback
Deployments can be rolled back to a previous configuration if required
Role-Based Access Control
Up to five administrator roles can be defined and enforced; additional roles are available with the optional Cisco Secure Access Control Server (ACS)
Workflow
Specific tasks can be assigned to each administrator during the deployment of a policy, with formal change control and tracking
Distributed Deployment
Includes the Auto Update Server and the Cisco Network Services Configuration Engine to simplify updates to large numbers of remote firewalls, which may have dynamic addresses or NAT addresses
Operational Management
Includes CiscoWorks Resource Manager Essentials (RME) to assist with operational functions such as software distribution or device inventory reporting
Health and Performance Monitoring
Continuously analyzes the security environment and sends alerts when preset thresholds are reached
Integrated Policy and Object Management
Cisco Security Manager helps enable the reuse of security rules and objects, and enhances the ability to monitor security threats from throughout the deployment, minimizing the potential for errors, and maximizing efficiency. Administrators can implement security deployments on either an on-demand or scheduled basis, and can roll back to a previous configuration if required. Role-based access control and deployment workflows help ensure that compliance processes are followed (see Figure 1).
Figure 1. Security Policy Management with Cisco Security Manager 4.3
Event Management and Troubleshooting
Integrated event management helps enable viewing of real-time and historical events for rapid incident analysis and troubleshooting, and provides rapid navigation from events to source policies. In addition, advanced filtering and search capabilities enable administrators to quickly identify and isolate interesting events. Cross-linkages between the Event Manager and Configuration Manager reduce troubleshooting time for firewall rules, as well as for IPS signatures. (see Figure 2).

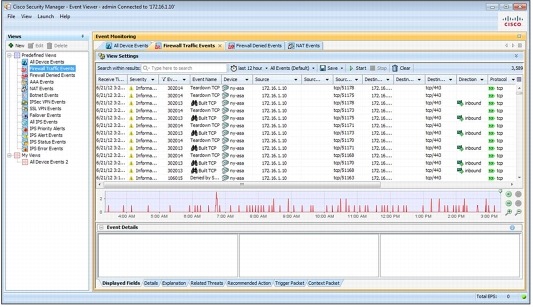

Figure 2. Event Management and Troubleshooting with Cisco Security Manager
The Event Manager in Cisco Security Manager provides:
• Support for syslog messages created by Cisco ASA appliances, the Cisco Firewall Services Module (FWSM), and Cisco Catalyst 6500 Series ASA Services Module, as well as Security Device Event Exchange (SDEE) messages from Cisco IPS sensors
• Real-time and historical event viewing
• Cross-linkages to firewall access rules and IPS signatures, for quick navigation to the source policies
• A prebundled set of views for firewall, IPS, and VPN
• Customizable views for monitoring select devices or a select time range
• Intuitive GUI controls for searching, sorting, and filtering events
• Administrative options to turn event collection on or off for select security devices
• Tools such as ping, traceroute, and packet tracer for further troubleshooting capabilities
More information on event management for multivendor environments, event correlation, and historical event analysis is available at: http://www.cisco.com/go/securitypartners.
Reporting
Cisco Security Manager (Figure 3) generates detailed system reports based on events and other essential information gathered from throughout the security deployment. Table 1 lists the available system reports. In addition, administrators can define and save predefined reports to meet specific reporting needs. Whether system-generated or predefined, all reports can be exported and scheduled for email delivery as PDF or CSV files.

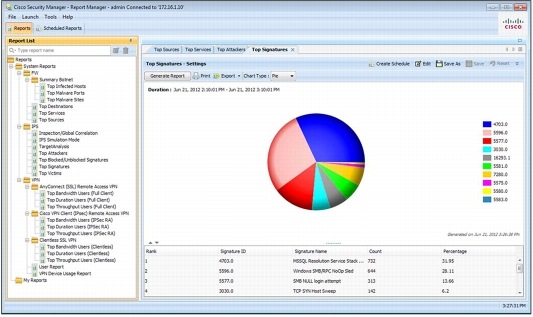

Figure 3. Report Manager in Cisco Security Manager
Table 2. Cisco Security Manager System Reports
Firewall
IPS
VPN
• Top Infected Hosts
• Top Malware Ports
• Top Malware Sites
• Top Destinations
• Top Services
• Top Sources
• Inspection/Global Correlation
• IPS Simulation Mode
• Target Analysis
• Top Attackers
• Top Blocked/Unblocked Signatures
• Top Signatures
• Top Victims
• Top Bandwidth Users (SSL/IPsec)
• Top Duration Users (SSL/IPsec)
• Top Throughput Users (SSL/IPsec)
• User Report
• VPN Device Usage Report
Health and Performance Monitoring
The integrated Health and Performance Monitor can help administrators increase their productivity by continuously analyzing the security environment and sending alerts when preset thresholds are reached. Customizable alert notifications can be set for such events as critical firewall failover, IPS sensor application failures, or excessive CPU or memory utilization.
Using a simple color-coded interface, administrators can immediately identify any devices that are in critical condition, and view commonly monitored attributes (for example, CPU or memory utilization) to rapidly ascertain the general health and performance of all devices across the security deployment. Detailed charts can be used to gain additional insights regarding health, traffic, and performance metrics of each device, as desired. Figure 4 shows the primary monitoring interface.

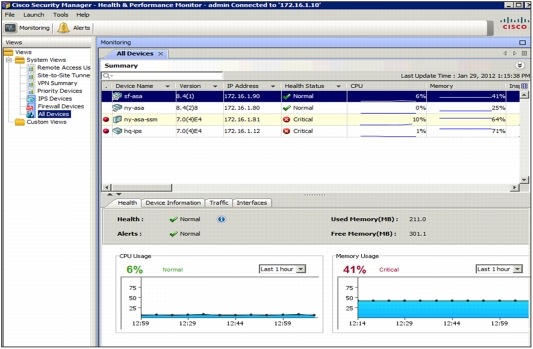

Figure 4. Health and Performance Monitor in Cisco Security Manager
Software Image Upgrade
Firewall software images can be upgraded using an intuitive wizard. The wizard will lead administrators through the steps required to download the images, create the image bundle, and ensure that the image is appropriate for each device. The tool will then perform the backup, take the devices down, and perform the update. The updates can be performed on each firewall individually, or updates can be run in groups to maximize speed and efficiency. The process is automated, so it can be run overnight or during noncritical times to minimize disruption to the operating environment. Figure 5 shows the primary image management interface of Cisco Security Manager.

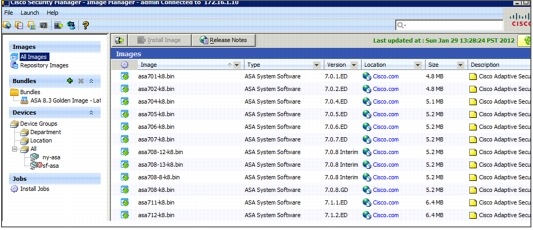

Figure 5. Software Image Upgrade in Cisco Security Manager
API-Based Access to Cisco Security Manager
API-based access enables Cisco Security Manager to securely share information with other essential network services such as compliance and advanced security analysis systems to streamline their security operations and compliance. Using representational state transfer, external firewall compliance systems can directly request access to data from any security device managed by Cisco Security Manager.
Technical Specifications
Detailed hardware specifications and sizing guidelines for Cisco Security Manager 4.3 are available at: http://www.cisco.com/go/csmanager.
The Cisco Security Manager product bulletin describes the licensing options and ordering details. The bulletin is published at: http://www.cisco.com/go/csmanager.
Cisco Security Manager Standard Edition
Cisco Security Manager Professional Edition
Cisco Services
Cisco takes a lifecycle approach to services and, with its partners, provides a broad portfolio of security services so enterprises can design, implement, operate, and optimize network platforms that defend critical business processes against attack and disruption, protect privacy, and support policy and regulatory compliance controls.
Cisco Services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco Services, visit: http://www.cisco.com/en/US/products/svcs/ps2961/ps2952/serv_group_home.html.
• Cisco Security Intelligence Operations (SIO) provides a central location for early warning threat and vulnerability intelligence and analysis, Cisco IPS signatures, and mitigation techniques. Visit and bookmark Cisco SIO at: http://www.cisco.com/security.
• Cisco Security IntelliShield Alert Manager Service provides a customizable, web-based threat and vulnerability alert service that allows organizations to easily access timely, accurate, and credible information about potential vulnerabilities in their environment.
• Cisco Software Application Support (SAS) Service keeps Cisco Security Manager up and running with around-the-clock access to technical support and software updates.
• Cisco Security Optimization Service helps organizations maintain peak network health. The network infrastructure is the foundation of an agile and adaptive business. The Cisco Security Optimization Service supports the continuously evolving security system to meet ever-changing security threats through a combination of planning and assessments, design, performance tuning, and ongoing support for system changes.
Cisco Security Manager software is eligible for technical support service coverage under the Cisco Software Application Support (SAS) service agreement, which features:
• Unlimited access to the Cisco Technical Assistance Center (TAC) for award-winning support. Technical assistance is provided by Cisco software application experts trained in Cisco security software applications. Support is available 24 hours a day, 7 days a week, 365 days a year, worldwide.
• Registered access to Cisco.com, a robust repository of application tools and technical documents to assist in diagnosing network security problems, understanding new technologies, and staying current with innovative software enhancements. Utilities, white papers, application design data sheets, configuration documents, and case management tools help expand your in-house technical capabilities.
• Access to application software bug fixes and maintenance, and minor software releases.
