The Cisco® LCD 100L PRO 32N is a 32-inch professional LCD that complements the Cisco Digital Media System (DMS) (Figure 1). It is fully compatible with Cisco Digital Media Players. You can manage the display centrally from the Cisco Digital Media Manager platform, giving you a single-vendor solution for your DMS deployment. Using industry-best technology, the Cisco LCD 100L PRO 32N offers cutting-edge features along with visual appeal to emphasize your customer-facing communications.

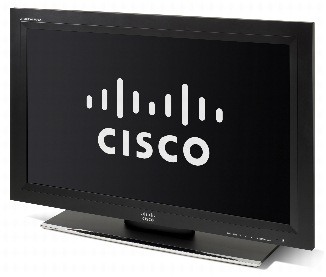

Figure 1. Cisco LCD 100L PRO 32N
Features of the Cisco LCD 100L PRO 32N follow; Table 1 lists the benefits of this new product.
• Full high-definition (HD) 1080p resolution (HDMI)
• High brightness and high built-in contrast ratio
• Landscape and portrait mode support
• High-Definition Multimedia Interface (HDMI) inputs for real full-HD content rendering
• Optional speakers for advanced audio applications
• Central management through the Cisco Digital Media Manager
Table 1. Benefits of Cisco LCD 100L PRO 32N
Integrated with Cisco DMS
Tested to work with Cisco DMS products
Low total cost of ownership (TCO)
Single vendor for all requirements to reduce costs and save time and long-term operating expenses
Cisco Services (Cisco SMARTnet® Next Business Day [NBD] replacement)
Exceptional, dependable, and proven service from industry-renowned Cisco support organization
Cisco CapitalSM leasing and financing options
Easy availability of financing options
Table 2 lists the product specifications.
Table 2. Product Specifications
1366 x 768 (WXGA), 1920x1080 (HDMI)
1080p, 1080i, and 720p
Contrast ratio (typical)
3000:1 (Dynamic Contrast Ratio)
Viewing angle (Horizontal/Vertical)
0.170 x 0.511
30 ~ 83kHz (RGB, HDMI/DVI)
56 ~ 75 Hz (RGB), 60 Hz (HDMI/DVI)
HDMI, VGA, and DVI (composite, component, s-video also exist)
Power consumption (maximum)
Power consumption at standby (maximum)
1W (RGB)/2W (HDMI/DVI)
200 x 200 mm
31.7 lb/39.2 lb
Dimensions (H x W x D)
31.61 x 19.41 x 3.93"
Mean time between failure (MTBF)
Built-in TV tuner
• Lamp error detection
• Temperature sensor
• Built-in fan
• Video wall
The Cisco LCD 100L PRO 32N requires a corresponding mount (not sold through Cisco) for suitable installation, depending on your deployment location and situation.
You can order the Cisco LCD 100L PRO 32N as part of a Cisco DMS deployment or independently. Table 3 gives ordering information.
Table 3. Ordering Information
Cisco LCD L-Series 32" Display, 1080p Bezel N, With Remote Control
Service and Support
Using the Cisco Lifecycle Services approach, Cisco and our partners provide a broad portfolio of end-to-end services and support that can help increase the business value and return on investment of your Cisco Digital Media System. Specifically for Cisco LCD products, you can buy standard Cisco SMARTnet Next Business Day (NBD) replacement service and 24-hour phone support from the Cisco Technical Assistance Center (TAC) worldwide.
For More Information
For more information about the Cisco LCD 100 PRO 40N, visit: http://www.cisco.com/go/dms or contact your local Cisco account representative.
