The Cisco® CRS-1 Carrier Routing System is the industry's first carrier router offering continuous system operation, unprecedented service flexibility, and system longevity. The Cisco CRS-1 is powered by Cisco IOS® XR Software-a unique self-healing, distributed operating system. As part of a video-enabled IP Next-Generation Network (NGN), the Cisco CRS-1 Series delivers continuous, always-on operation that easily scales to support the massive bandwidth requirements of visual networking experiences such as high-definition IPTV and Cisco TelePresence. These services demand a platform that delivers predictable forwarding performance and efficient, intelligent fabric-based multicast replication. The Cisco CRS-1 Series enables the Internet and NGNs to handle the approaching zettabyte era of carrier IP communications while protecting network investments for decades to come.
Product Overview
The Cisco CRS-1 Series Forwarding Processor 40G card provides 40-Gbps distributed forwarding-engine capability for the Cisco CRS-1 Series. The 40G card is responsible for the data-plane processing tasks, and all network traffic flows through it. The 40G card performs all baseline packet routing operations, including Layer 3 forwarding, quality-of-service (QoS) classification, policing and shaping, security access control lists (ACLs), VPNs, load balancing, and NetFlow. Performance highlights of the 40G card include hardware-assisted policing, and jitter- and latency-minimizing multicast packet replication.
This data sheet provides detailed product specifications for the Cisco CRS-1 Series Forwarding Processor 40G card (Figure 1).

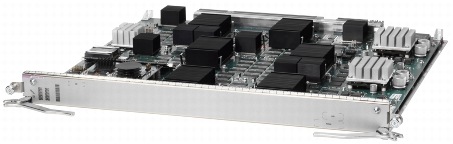

Figure 1. Cisco CRS-1 Series Forwarding Processor 40G
Key Features and Benefits
The Cisco CRS-1 Series Forwarding Processor 40G card offers many advantages:
• Supported across both the 4-slot and 8-slot Cisco CRS-1 Series chassis
• Paired with a variety of interface modules, providing deployment flexibility
• Provides Layer 3 forwarding with wire-rate performance at 40 Gbps and predictable throughput with features enabled such as Unicast Reverse Path Forwarding (uRPF) and large access control lists (ACLs).
• Additional services such as class-of-service (CoS) processing, Multicast, Traffic Engineering (TE), and NetFlow, are also performed at 40-Gbps line rate
• Supports several forwarding protocols including IPv4, IPv6, and Multiprotocol Label Switching (MPLS)
• Enhances performance with hardware-based prefix lookup for IPv4, IPv6, and MPLS
Product Specifications
Table 1. Product Specifications
Feature
Description
Chassis Compatibility
Compatible with both 4-slot and 8-slot Cisco CRS-1 chassis
Paired with the following interface modules: 4-10GE, 42-1GE, 20-1GE-FLEX and
2-10GE-WL-FLEX
Software Compatibility
Cisco IOS XR Software Release 3.8.1 or later
Features
IP features:
• IPv4 unicast services
• IPv6 unicast services
• IPv4/IPv6 ECMP
• IPv4/IPv6 Load Balancing
Forwarding features:
• Access control lists (ACLs/xACLs)
• Quality of service/class of service (QoS/CoS) using Modular QoS CLI (MQC)
• IP packet classification/marking
• Queuing (both ingress and egress)
• Policing (both ingress and egress)
• Diagnostic and network management support
IPv4 Multicast features:
• Multicast Reverse Path Forwarding (RPF)
• Multicast Nonstop Forwarding (NSF)
• Multicast Forwarding Information Base (MFIB)
MPLS features:
• MPLS forwarding
• MPLS load balancing
• UNI
• LMP
Security features:
• Control packet policing
• Dynamic control plane protection
• GTSM RFC 3682 (Formally BTSH)
Memory
• 2 GB of route table memory
• 1 GB of packet buffer memory per side (2 GB total per line card [ingress and egress])
Performance
40 Gbps line rate performance
Reliability and Availability
• Line-card online insertion and removal (OIR) support
• Out of resource management
• Process re-startability
• MPLS Fast Reroute (FRR)
MIBs
• CISCO-MEMORY-POOL-MIB
• Cisco Process MIB
• CISCO-CDP-MIB
• IF-MIB (RFC 2233/RFC 2863)
Network Management
• Enhanced command-line interface (CLI)
• Extensible Markup Language (XML) interface
• XML schemas
• Simple Network Management Protocol (SNMP) and MIB support
Programmatic Interfaces
XML Schema support
Physical Dimensions
• Occupies one slot
• Weight: 12 lb (5.44 kg)
• Height: 20.6 in. (52.2 cm)
• Depth: 18.62 in. (47.25 cm)
• Width: 1.8 in. (4.49 cm)
Power
270W
Environmental Conditions
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Operating temperature:
- Normal: 5°C to 40°C (41°F to 104°F)
- Short term: -5°C to 50°C (23°F to 122°F) short term
• Relative humidity:
- Normal: 5% to 85%
- Short-term: 5% to 90% but not to exceed 0.024 kg water/kg of dry air
Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year. (This refers to a total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period.)
Approvals and Compliance
Table 2. Compliance and Agency Approvals
Feature
Description
Safety Standards
• UL/CSA/IEC/EN 60950-1
• IEC/EN 60825 Laser Safety
• ACA TS001
• AS/NZS 60950
• FDA - Code of Federal Regulations Laser Safety
EMI
• FCC Class A
• ICES 003 Class A
• AS/NZS 3548 Class A
• CISPR 22 (EN55022) Class A
• VCCI Class A
• BSMI Class A
• IEC/EN 61000-3-2: Power Line Harmonics
• IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Cisco offers numerous innovative services programs to accelerate customer success. These programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and prepare the network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, visit: Cisco Technical Support Services or Cisco Advanced Services.
For More Information
For more information about the Cisco CRS-1 Series Forwarding Processor 40G card, contact your local account representative or visit Cisco at: www.cisco.com/go/crs
