The Cisco® 7600 Series Ethernet Services Plus 40-Gbps (ES+40) Line Cards use an extensible design that allows service prioritization for voice, video, data, and wireless mobility services. Service provider and enterprise customers can benefit from the improved economics, density, advanced Carrier Ethernet features, and the high performance of the ES+40 fixed-configuration line cards. With the same architecture and features, the Cisco 7600 Series Ethernet Services Plus 20-Gbps (ES+20) Line Cards are designed for networks with lower interface density requirements. In the following sections, the ES+40 and ES+20 line cards are referred to as the ES Plus cards.
The Cisco 7600 ES Plus cards programmable interface processors protect network investments and reduce total cost of ownership. The design increases connectivity options and offers superior service intelligence through programmable interface processors operating at line rate. This data sheet contains the specifications for the Cisco 7600 ES Plus line cards (Figure 1).

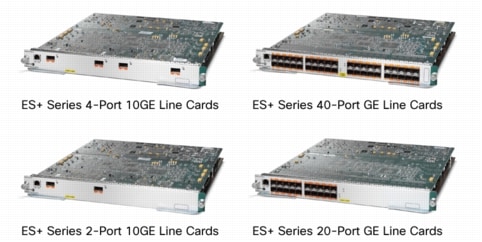

Figure 1. Cisco 7600 ES Plus Line Cards: 4-Port 10 Gigabit Ethernet and 40-Port Gigabit Ethernet;
2-Port 10 Gigabit Ethernet and 20-Port Gigabit Ethernet
Product Overview
Designed for Carrier Ethernet, IP/Multiprotocol Label Switching Provider Edge (MPLS PE), mobile wireless backhaul, and enterprise WAN/metropolitan-area network (MAN) applications, the Cisco 7600 Series Ethernet Services Plus 40-Gbps Line Cards (7600-ES+40) support up to 40 Gbps of bandwidth with 40 ports of Gigabit Ethernet or 4 ports of 10 Gigabit Ethernet interfaces. With the same architecture and features, the Cisco 7600 Series Ethernet Services Plus 20-Gbps Line Cards (7600-ES+20) offer 20 Gbps of bandwidth with 20 ports of Gigabit or 2 ports of 10 Gigabit Ethernet interfaces. The cards feature hierarchical quality of service (QoS), locally significant VLANs, distributed MAC learning, and up to 16,000 Ethernet service instances per line card for rich services. The Cisco 7600 ES Plus line cards provide the unique ability to combine both Layer 2 and Layer 3 services on the same line card. The combination of native Ethernet Layer 2 switching, bridging, Virtual Private LAN Services (VPLS), Ethernet over MPLS (EoMPLS), and Layer 3 IP/MPLS routing distinguishes this line card among other products on the market, particularly in Carrier Ethernet applications.
The innovative architecture of these industry-leading, premium ES Plus line cards is designed to deliver cost-effective, high-touch features, combining both application-specific integrated circuit (ASIC) and network processor technologies for an optimal combination of performance and flexibility. The Cisco 7600 ES Plus line cards provide distributed forwarding with proven ASIC technology in the forwarding path (routing, switching, NetFlow, and access control lists [ACLs]), as well as for queuing and shaping functions to provide the maximum performance for these foundational features. Additionally, four (for the ES+40 line cards) or two (for the ES+20 line cards) programmable network processors are included in the forwarding plane to facilitate flexibility and feature growth. This ideal technology combination offers customers the necessary flexibility for future service deployments and allows them to scale the system capacity as required.
Key Features and Benefits
Table 1 lists the features and benefits of the ES Plus line cards.
Table 1. Features and Benefits of ES Plus Line Cards
Feature
ES Plus Line Card
Benefit
Line-card form factor
4-port 10 GE or 40-port GE and 2-port 10 GE or 20-port GE
Provides line-rate forwarding performance on GE and 10 GE interfaces with services enabled
Packet memory
512 MB
Up to 200 ms combined bidirectional buffering (100 ms ingress and 100 ms egress) at 10 Gbps
Switch-fabric connectivity
Two 20-Gbps fabric channels
Uses the Cisco 7600 Series 720-Gbps switch fabric for data forwarding; two fabric channels are used
Online insertion and removal (OIR)
Supports OIR of the line cards
Provides hitless OIR to minimize effect of add, change, and remove operations
Product Specifications
Table 2 gives specifications of the ES Plus line cards, and Table 3 lists features supported.
Table 2. Product Specifications
Description
Specification
Chassis compatibility
• Cisco 7603-S
• Cisco 7604
• Cisco 7606 and Cisco 7606-S
• Cisco 7609 and Cisco 7609-S
• Cisco 7613
Central-forwarding-engine compatibility
• The line cards are compatible with the Cisco 7600 Series Supervisor Engine 720-3B/3BXL and Cisco 7600 Series Route Switch Processor 720 (RSP720) and later.
• The ES Plus line cards require dual-channel switch-fabric connectivity; therefore, these line cards are not supported with the Cisco 7600 Series Supervisor Engine 32 or in slots 1 through 8 of the Cisco 7613 chassis.
Distributed Forwarding Card (DFC)
• Choice of Cisco Distributed Forwarding Card 3C or 3CXL (DFC-3C or DFC-3CXL, respectively)
• Line-rate distributed forwarding with services enabled; up to ~48 mpps per line card
• Distributed Forwarding Card 3C (DFC-3C)
• Designed for Carrier Ethernet-based infrastructures
• Allows up to 256,000 hardware-based forwarding entries
• Allows up to 128,000 NetFlow entries
• Distributed Forwarding Card 3CXL (DFC-3CXL)
• Optimized for IP/MPLS PE offering multiple IP services such as Layer 3 VPNs, IPv6, and triple- or quadruple-play services (data, voice, and video or data, voice, video, and mobility, respectively)
• Up to 1 million hardware-based forwarding entries
• Up to 256,000 NetFlow entries
Minimum software
Cisco IOS® Software Release 12.2(33)SRD or later
Packet memory
512 MB for 200 ms of combined input and output buffering at 10 Gbps (100 ms ingress and 100 ms egress)
Link encapsulations
Ethernet II and IEEE 802.1q encapsulations
Hardware queues
ES+40 series line cards
• 128,000 ingress queues
• 128,000 egress queues
ES+20 series line cards
• 64,000 ingress queues
• 64,000 egress queues
Hierarchical QoS (H-QoS)
MAC addresses
• Up to 96,000 MAC addresses per ES+ line card
• Hardware-based MAC learning at wire rate
Environmental conditions
• Operating temperature: 32 to 104°F (0 to 40°C)
• Storage temperature: -40 to 167°F (-40 to 75°C)
• Relative humidity: 10 to 90 percent, noncondensing
• Operating altitude: -60 to 2000 m
MIBs
• Cisco Entity MIB (CISCO-ENTITY-MIB)
• Cisco Entity Asset MIB
• Cisco Entity Field-Replaceable Unit (FRU) Control MIB
• Cisco Entity Alarm MIB
• Interface IF MIB (RFC 2233)
• Definitions of Managed Objects for Bridges (RFC 1493)
• Evolution of Interfaces Group of MIB-II (RFC 1573)
• Simple Network Management Protocol (SNMP) MIB II (RFC 1213)
• Policer: One rate two color and two rate three color on both ingress and egress
ACLs and security
Up to 32,000 access-list entries with no forwarding degradation
Hardware counters for ACL hits
Layer 2 and Layer 3 VPNs
• Layer 2 VPNs
• EoMPLS
• VPLS
• H-VPLS (MPLS Edge or QinQ Edge)
• Flexible QinQ
• Layer 3 VPNs
• MPLS VPN (RFC 2547-bis)
• Inter-AS and Carrier-Supporting-Carrier
• Multicast VPN
Protection and bundling
MPLS FRR
IEEE 802.3ad and Cisco EtherChannel technology
Licensing Information
The ES Plus line cards have two feature license options; the part numbers follow: 76-ES+BASIC (basic license, including IPv6), 76-ES+ADVIP (advance IP license).
The basic license entitles you to use the Cisco IOS Software Release 12.2SR functions on the Cisco 7600 ES Plus line cards with the following exceptions:
• Multicast VPN (MVPN)
• Layer 3 IP/MPLS VPN/6VPE
• Cisco Intelligent Services Gateway (ISG)
The advance IP license entitles you to use the Cisco IOS Software Release 12.2SR on the Cisco 7600 ES Plus line cards with the following functions in addition to the basic license:
• 6VPE
• Layer 3 IP/MPLS VPN
• MVPN
The advance IP license does not entitle you to use the ISG function on the Cisco 7600 ES Plus line cards.
One advance IP license is needed for each of the ES+ line cards in the system where these features are enabled.
Interface Module Support
Table 4 lists the interface modules supported.
Table 4. ES Plus Line Card XFP and SFP Modules Supported
Part Number for ES Plus Line Cards 10-Gbps Small Form-Factor Pluggable (XFP)
Wavelength
Mode
Distance
XFP-10GZR-OC192LR, LAN-PHY
1550 nm
Single mode (SM)
49.7 miles (80 km)
XFP-10GER-OC192IR+, LAN-PHY
1550 nm
SM
24.8 miles (40 km)
XFP-10GLR-OC192SR, LAN-PHY
1310 nm
SM
6.2 miles (10 km)
SFP-GE-S
850 nm
Multimode (MM)
1804 ft (550m)
SFP-GE-L
1310 nm
SM
6.2 miles (10 km)
SFP-GE-Z
1550 nm
SM
43.5 miles (70 km)
SFP-GE-T
-
-
328 ft (100m)
Tables 5 through 9 give ordering information for the modules and line cards.
Table 5. Ordering Information for Cisco ES Plus Line Cards GE Gigabit Interface Converter (GLC) Modules
Product Number
Description
GLC-BX-D
1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength
GLC-BX-U
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1490-nm RX wavelength
Table 6. Ordering Information for Cisco ES Plus Line Cards 10 GE Dense Wavelength-Division Multiplexing (DWDM) XFP Modules Note: The following DWDM XFP products are orderable as spares only.
Product Number
Description
ITU Channel
DWDM-XFP-60.61=
10GBASE-DWDM 1560.61 nm XFP (100-GHz ITU grid)
21
DWDM-XFP-59.79=
10GBASE-DWDM 1559.79 nm XFP (100-GHz ITU grid)
22
DWDM-XFP-58.98=
10GBASE-DWDM 1558.98 nm XFP (100-GHz ITU grid)
23
DWDM-XFP-58.17=
10GBASE-DWDM 1558.17 nm XFP (100-GHz ITU grid)
24
DWDM-XFP-56.55=
10GBASE-DWDM 1556.55 nm XFP (100-GHz ITU grid)
26
DWDM-XFP-55.75=
10GBASE-DWDM 1555.75 nm XFP (100-GHz ITU grid)
27
DWDM-XFP-54.94=
10GBASE-DWDM 1554.94 nm XFP (100-GHz ITU grid)
28
DWDM-XFP-54.13=
10GBASE-DWDM 1554.13 nm XFP (100-GHz ITU grid)
29
DWDM-XFP-52.52=
10GBASE-DWDM 1552.52 nm XFP (100-GHz ITU grid)
31
DWDM-XFP-51.72=
10GBASE-DWDM 1551.72 nm XFP (100-GHz ITU grid)
32
DWDM-XFP-50.92=
10GBASE-DWDM 1550.92 nm XFP (100-GHz ITU grid)
33
DWDM-XFP-50.12=
10GBASE-DWDM 1550.12 nm XFP (100-GHz ITU grid)
34
DWDM-XFP-48.51=
10GBASE-DWDM 1548.51 nm XFP (100-GHz ITU grid)
36
DWDM-XFP-47.72=
10GBASE-DWDM 1547.72 nm XFP (100-GHz ITU grid)
37
DWDM-XFP-46.92=
10GBASE-DWDM 1546.92 nm XFP (100-GHz ITU grid)
38
DWDM-XFP-46.12=
10GBASE-DWDM 1546.12 nm XFP (100-GHz ITU grid)
39
DWDM-XFP-44.53=
10GBASE-DWDM 1544.53 nm XFP (100-GHz ITU grid)
41
DWDM-XFP-43.73=
10GBASE-DWDM 1543.73 nm XFP (100-GHz ITU grid)
42
DWDM-XFP-42.94=
10GBASE-DWDM 1542.94 nm XFP (100-GHz ITU grid)
43
DWDM-XFP-42.14=
10GBASE-DWDM 1542.14 nm XFP (100-GHz ITU grid)
44
DWDM-XFP-40.56=
10GBASE-DWDM 1540.56 nm XFP (100-GHz ITU grid)
46
DWDM-XFP-39.77=
10GBASE-DWDM 1539.77 nm XFP (100-GHz ITU grid)
47
DWDM-XFP-38.98=
10GBASE-DWDM 1538.98 nm XFP (100-GHz ITU grid)
48
DWDM-XFP-38.19=
10GBASE-DWDM 1538.19 nm XFP (100-GHz ITU grid)
49
DWDM-XFP-36.61=
10GBASE-DWDM 1536.61 nm XFP (100-GHz ITU grid)
51
DWDM-XFP-35.82=
10GBASE-DWDM 1535.82 nm XFP (100-GHz ITU grid)
52
DWDM-XFP-35.04=
10GBASE-DWDM 1535.04 nm XFP (100-GHz ITU grid)
53
DWDM-XFP-34.25=
10GBASE-DWDM 1534.25 nm XFP (100-GHz ITU grid)
54
DWDM-XFP-32.68=
10GBASE-DWDM 1532.68 nm XFP (100-GHz ITU grid)
56
DWDM-XFP-31.90=
10GBASE-DWDM 1531.90 nm XFP (100-GHz ITU grid)
57
DWDM-XFP-31.12=
10GBASE-DWDM 1531.12 nm XFP (100-GHz ITU grid)
58
DWDM-XFP-30.33=
10GBASE-DWDM 1530.33 nm XFP (100-GHz ITU grid)
59
Table 7. Cisco ES Plus Line Cards GE DWDM SFP Modules Note: The following DWDM SFP products are orderable as spares only.
Product Number
Description
ITU Channel
DWDM-SFP-6061=
1000BASE-DWDM 1560.61 nm SFP (100-GHz ITU grid)
21
DWDM-SFP-5979=
1000BASE-DWDM 1559.79 nm SFP (100-GHz ITU grid)
22
DWDM-SFP-5898=
1000BASE-DWDM 1558.98 nm SFP (100-GHz ITU grid)
23
DWDM-SFP-5817=
1000BASE-DWDM 1558.17 nm SFP (100-GHz ITU grid)
24
DWDM-SFP-5655=
1000BASE-DWDM 1556.55 nm SFP (100-GHz ITU grid)
26
DWDM-SFP-5575=
1000BASE-DWDM 1555.75 nm SFP (100-GHz ITU grid)
27
DWDM-SFP-5494=
1000BASE-DWDM 1554.94 nm SFP (100-GHz ITU grid)
28
DWDM-SFP-5413=
1000BASE-DWDM 1554.13 nm SFP (100-GHz ITU grid)
29
DWDM-SFP-5252=
1000BASE-DWDM 1552.52 nm SFP (100-GHz ITU grid)
31
DWDM-SFP-5172=
1000BASE-DWDM 1551.72 nm SFP (100-GHz ITU grid)
32
DWDM-SFP-5092=
1000BASE-DWDM 1550.92 nm SFP (100-GHz ITU grid)
33
DWDM-SFP-5012=
1000BASE-DWDM 1550.12 nm SFP (100-GHz ITU grid)
34
DWDM-SFP-4851=
1000BASE-DWDM 1548.51 nm SFP (100-GHz ITU grid)
36
DWDM-SFP-4772=
1000BASE-DWDM 1547.72 nm SFP (100-GHz ITU grid)
37
DWDM-SFP-4692=
1000BASE-DWDM 1546.92 nm SFP (100-GHz ITU grid)
38
DWDM-SFP-4612=
1000BASE-DWDM 1546.12 nm SFP (100-GHz ITU grid)
39
DWDM-SFP-4453=
1000BASE-DWDM 1544.53 nm SFP (100-GHz ITU grid)
41
DWDM-SFP-4373=
1000BASE-DWDM 1543.73 nm SFP (100-GHz ITU grid)
42
DWDM-SFP-4294=
1000BASE-DWDM 1542.94 nm SFP (100-GHz ITU grid)
43
DWDM-SFP-4214=
1000BASE-DWDM 1542.14 nm SFP (100-GHz ITU grid)
44
DWDM-SFP-4056=
1000BASE-DWDM 1540.56 nm SFP (100-GHz ITU grid)
46
DWDM-SFP-3977=
1000BASE-DWDM 1539.77 nm SFP (100-GHz ITU grid)
47
DWDM-SFP-3898=
1000BASE-DWDM 1538.98 nm SFP (100-GHz ITU grid)
48
DWDM-SFP-3819=
1000BASE-DWDM 1538.19 nm SFP (100-GHz ITU grid)
49
DWDM-SFP-3661=
1000BASE-DWDM 1536.61 nm SFP (100-GHz ITU grid)
51
DWDM-SFP-3582=
1000BASE-DWDM 1535.82 nm SFP (100-GHz ITU grid)
52
DWDM-SFP-3504=
1000BASE-DWDM 1535.04 nm SFP (100-GHz ITU grid)
53
DWDM-SFP-3425=
1000BASE-DWDM 1534.25 nm SFP (100-GHz ITU grid)
54
DWDM-SFP-3268=
1000BASE-DWDM 1532.68 nm SFP (100-GHz ITU grid)
56
DWDM-SFP-3190=
1000BASE-DWDM 1531.90 nm SFP (100-GHz ITU grid)
57
DWDM-SFP-3112=
1000BASE-DWDM 1531.12 nm SFP (100-GHz ITU grid)
58
DWDM-SFP-3033=
1000BASE-DWDM 1530.33 nm SFP (100-GHz ITU grid)
59
Table 8. Cisco ES Plus Line Cards GE CWDM SFP Modules Note: The following CWDM SFP products are orderable as spares only.
Product Number
Description
Color
CWDM-SFP-1470=
Cisco CWDM 1470-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fiber Channel
Gray
CWDM-SFP-1490=
Cisco CWDM 1490-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fiber Channel
Violet
CWDM-SFP-1510=
Cisco CWDM 1510-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fiber Channel
Blue
CWDM-SFP-1530=
Cisco CWDM 1530-nm SFP; Gigabit Ethernet and 1 and 2-Gb Fiber Channel
Green
CWDM-SFP-1550=
Cisco CWDM 1550-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fiber Channel
Yellow
CWDM-SFP-1570=
Cisco CWDM 1570-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fiber Channel
Orange
CWDM-SFP-1590=
Cisco CWDM 1590-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fiber Channel
Red
CWDM-SFP-1610=
Cisco CWDM 1610-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fiber Channel
Brown
Ordering Information
Table 9. Ordering Information for Cisco 7600 Series Ethernet Services Plus Line Cards
Product Name
Part Number
Cisco 7600 Series Ethernet Services Plus 20G Line Card, 2-port 10 GE XFP and DFC-3C
7600-ES+2TG3C
Cisco 7600 Series Ethernet Services Plus 20G Line Card, 2-port 10 GE XFP and DFC-3CXL
7600-ES+2TG3CXL
Cisco 7600 Series Ethernet Services Plus 20G Line Card, 20-port GE SFP and DFC-3C
7600-ES+20G3C
Cisco 7600 Series Ethernet Services Plus 20G Line Card, 20-port GE SFP and DFC-3CXL
7600-ES+20G3CXL
Cisco 7600 Series Ethernet Services Plus 40G Line Card, 4-port 10 GE XFP and DFC-3C
7600-ES+4TG3C
Cisco 7600 Series Ethernet Services Plus 40G Line Card, 4-port 10 GE XFP and DFC-3CXL
7600-ES+4TG3CXL
Cisco 7600 Series Ethernet Services Plus 40G Line Card, 40-port GE SFP and DFC-3C
7600-ES+40G3C
Cisco 7600 Series Ethernet Services Plus 40G Line Card, 40-port GE SFP and DFC-3CXL
7600-ES+40G3CXL
Cisco 7600 Series Ethernet Services Plus Basic License
76-ES+BASIC-LIC
Cisco 7600 Series Ethernet Services Plus Advance License
Cisco offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services can help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco Services, refer to Cisco Technical Support Services or Cisco Advanced Services.
For More Information
For more information about the Cisco 7600 Series Ethernet Services Plus 20- and 40-Gbps Line Cards, visit http://www.cisco.com/ or contact your local Cisco account representative.
