The Cisco® SCE 2000 Series Service Control Engine is a network element specifically designed for carrier-grade deployments requiring high-capacity stateful application and session-based classification and control of application-level IP traffic per subscriber.

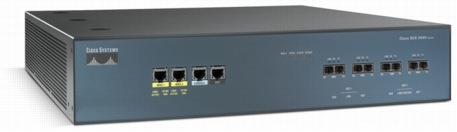

Figure 1. Cisco SCE 2020 Service Control Engine
Service providers have an ever-increasing need to track subscriber traffic patterns, manage network bandwidth resources, and expand their service differentiation.
The Cisco SCE 2000 Series Service Control Engine is designed for carrier-grade deployments that require high-capacity stateful application- and session-based classification and control of all network traffic. Powered by a patented architecture employing hardware acceleration and multiple high-speed Reduced Instruction Set Computer (RISC) processors, the Cisco SCE 2000 Series is at the nucleus of the Cisco Service Control technology solution. It is a high-performance, purpose-built traffic metering and control device with a highly programmable core that can track and manage up to 2 million concurrent unidirectional application flows over an IP network. This extensible network element is specifically designed for scalable control of application flows.
Carriers and service providers deploy the Cisco SCE 2000 Series in high-performance metropolitan-area (metro), cable, DSL, mobile, or Wi-Fi networks to provide advanced application-level bandwidth optimization, management, and service control functions. The Cisco SCE 2000 Series resides at the edge of the network where two high-speed gigabit links are used for connecting aggregation access devices to the Internet backbone infrastructure.
Residing at this critical part of the network, the Cisco SCE 2000 Series has a multitude of carrier-grade features to help ensure nonstop network availability and overall IP service control. Two cascaded Cisco SCE 2000 Series engines can be deployed on dual gigabit links to achieve high availability and failover without imposing any single point of failure. To achieve higher performance and maximum capacity, the Cisco SCE 2000 Series takes advantage of patented system logic and stateful deep packet inspection analysis technology.
This solution provides state-based protocol monitoring that allows for the detection and control of virtually any network application, including: Web browsing, multimedia streaming, and peer-to-peer (P2P). The result is overall reduction of network congestion by optimizing application-level traffic, eliminating costly network link usage and infrastructure upgrades. Application and subscriber awareness become the foundation for the deployment of application tiers of service that can be based on content and premium IP service delivery.

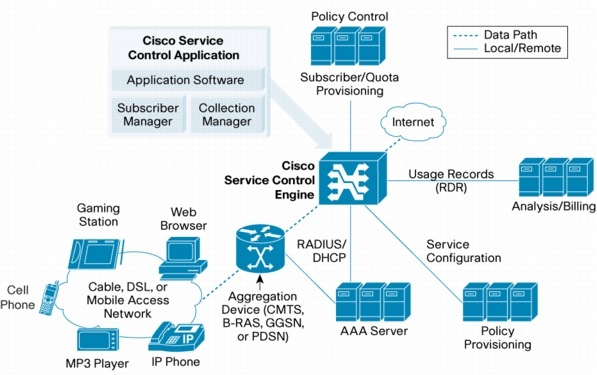

Figure 2. Cisco Service Control Engine with Cisco Service Control Application
The Cisco SCE 2000 Series Service Control Engine is the highest-performing member of the Cisco SCE Family. Working with the Cisco Service Control Application for Broadband, it supports application-level classification of IP traffic for the real-time control of content-based services for a given subscriber or group. This solution offers programmable application detection and subscriber awareness.
Cisco Service Control solutions analyze the payload of individual packets using stateful deep packet inspection at Layer 3-7. The Cisco SCE 2000 Series is an advanced IP service control solution offering throughput and capacity to support wire-speed processing of 4 Gbps of traffic over 2 gigabit links supporting 2 million unidirectional flows and using customized ASICs and hardware acceleration to help ensure carrier-grade performance.
10 Gigabit and Multi-Gigabit Solution
The Cisco SCE2000 serves as the foundation for Cisco's deep packet inspection solution for multi-gigabit and 10 gigabit speeds, making Cisco the industry's first in implementing service control functionality for these very fast network connections.
A group of Cisco SCE 2000s can be connected to Cisco 7600s or Catalyst 6500s providing 10 gigabit or multi-gigabit links, and then used for load-balancing the IP traffic, while ensuring that the traffic of each IP flow and subscriber is processed by the same Cisco SCE 2000. This breakthrough solution protects the investment in existing Cisco gear, and delivers scalability by inserting additional SCE 2000s as traffic increases for implementing a pay-as-you-grow strategy (Figure 3).
Figure 3. 10 Gigabit and Multi-Gigabit Solution
Stateful Deep Packet Inspection
Instead of processing packets as individual events, the Cisco SCE 2000 Series fully reconstructs individual traffic flows and the Layer 7 state of each individual application flow. By maintaining state information, the Cisco SCE 2000 Series readily identifies applications that employ dynamically assigned port numbers, and tracks applications that involve multiple inter-related or spawned flows commonly found in voice-over-IP (VoIP) or multimedia streaming protocols. The Cisco Service Control Engine applies rules as part of controlling the admission policies or session characteristics of a data flow.
Application level classification of IP traffic helps ensure real-time analysis and control of content-based services for a given subscriber or group of subscribers. Real-time advanced control functions include granular bandwidth shaping, quota, and redirection that uses protocol-specific, state-based traffic flow analysis.
The performance requirements of a carrier-grade network demand that all network elements be capable of 24-hour operation. High availability is managed by using two Cisco SCE 2000 Series Service Control Engines in a unique cascading configuration overlaying dual gigabit links, without imposing any single point of failure. The primary Cisco SCE 2000 Series processes IP traffic of the two links while sharing state information with the secondary engine, which takes over if an interruption in the operation of the primary platform occurs. This unique architecture provides for stateful deep packet inspection in network environments with asymmetrical traffic flows.
The Cisco SCE 2000 Series is programmable and extensible, helping to ensure that the solution can be readily adapted to new protocols and IP traffic-management requirements. SML, a programming language specifically developed for service delivery, can adapt the Cisco SCE Engines to the dynamic requirements of application-level analysis and traffic optimization while enabling the system to identify and manage complex protocols such as Session Initiation Protocol (SIP) and Real Time Streaming Protocol (RTSP).
The programmability of the Cisco SCE 2000 Series helps ensure that carriers can protect their network investments and adapt their service control infrastructure to meet the changing needs of new and emerging protocols and applications. This results in a decrease in the total cost of ownership of the Cisco SCE 2000 Series because capital equipment and operational costs can be further reduced by deploying a flexible, extensible network element for overall service control of application traffic.
Integration and Management
The Cisco SCE 2000 Series Service Control Engine integrates with existing network infrastructure, management, provisioning, operation, and support systems using industry-standard APIs.
Powerful management and infrastructure supporting the CLI and SNMP for configuration, monitoring, and fault management are provided to facilitate transparent deployment and interoperability. Extensible Markup Language (XML)- and GUI-based interfaces are provided for service management and delivery.
The Cisco SCE 2000 Series manages a wide variety of IP traffic while providing the highest throughput and supporting the greatest number of concurrent subscribers of any competitive offering in its class. Additionally, the system is equipped to provide failover protection, helping to ensure that no single point of failure exists for management of application-level traffic. This powerful solution is provided in a compact, 2-rack unit (RU) form factor (Table 1).
Table 1. Cisco SCE 2000 Series Features
Programmable Protocol Detection
• More than 600 protocols supported
• Extensible to emerging protocols
• Adaptive peer-to-peer (P2P) recognition
Tunneling Support and Stateful Layer 7 Deep Packet Inspection
Cisco Service Control Application Capacity Control
Cisco Service Control Application Tiered Control
* XXX represents number of subscribers: 10K, 50K, 250K, or 1M
