Note: *12.4(11)T2 is the minimum IOS version CCP works with IOS IPS for version 5.x signature format. Cisco recommends using 12.4(15)T4 or later releases.

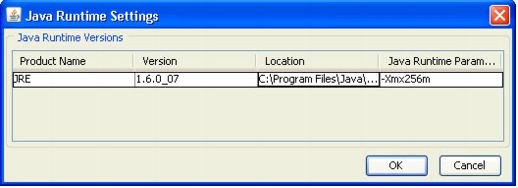

Note: Cisco CCP requires Java memory heap size to be no less than 256MB in order to configure IOS IPS. To change the Java memory heap size, open the Java control panel, selects the Java tab, click the `View' button under Java Applet Runtime Settings, then enter -Xmx256m in the Java Runtime Parameter column.
Note: Open a console or telnet (with `term monitor' on) session to the router to monitor messages while provisioning IOS IPS using CCP.
Task 1: Download and Install CCP
Step 1. Download CCP from Cisco.com at http://tools.cisco.com/support/downloads/pub/Redirect.x?mdfid=281795035 and install it on a local PC. You will need a Cisco.com registered account in order to download CCP.
Task 2: Download IOS IPS Signature Package to a Local PC using CCP Auto Update
Step 2. Run CCP from the local PC. When prompted to verify digital signature for CCP, select "Always trust content from this publisher." Select `Run' to continue.

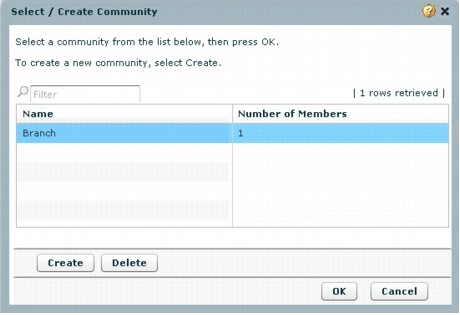

Step 3. Select the `community' that has the router you want to configure IOS IPS.

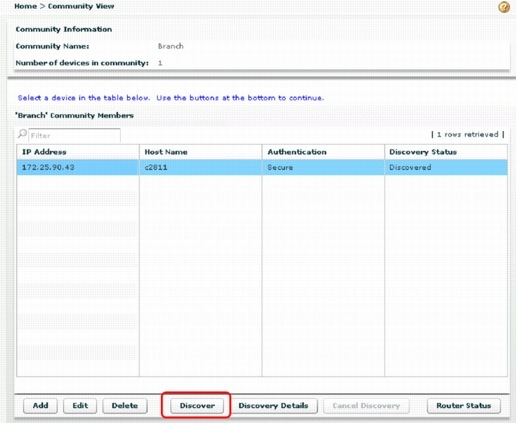

Step 4. Highlight the router and click "Discover" if the router has not been discovered already. Discovering allows CCP to login to the router and to modify configurations.

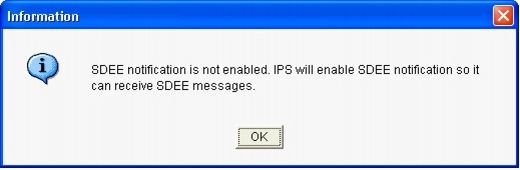

Step 5. Navigate to the Auto Update screen. From CCP home page, at the left panel, select Configure -> Security -> Advanced Security -> Intrusion Prevention, then at the right panel select Edit IPS -> Auto Update. If SDEE notification is not enabled on the router, click `OK' to enable SDEE notification.

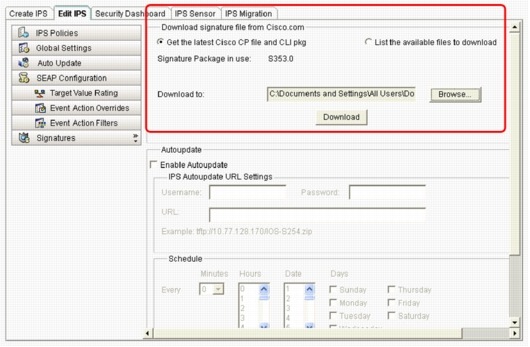

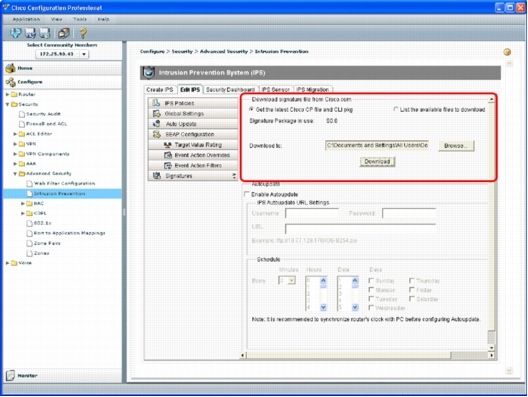

Step 6. Download the latest IOS IPS signature package to a local TFTP or FTP server. On the Auto Update screen, select `Get the latest CCP file and CLI pkg' radio button. Next click the `Browse...' button to select a directory on your local PC to save the downloaded files, you can choose the TFTP or FTP server root directory, which will be used later on when deploying signature package to the router. Next click the `Download' button.
Step 7. When prompted to provide CCO login credential, use your CCO registered username and password.
Step 8. CCP connects to Cisco.com and starts to download both the CCP signature file (e.g. sigv5-SDM-S353.zip) and the CLI signature pkg file (e.g. IOS-S353-CLI.pkg) to the directory selected in Step 6. After both files are downloaded, CCP will prompt the user to push the downloaded signature package to the router, select `No' as we have not configured IOS IPS on the router yet.
Task 3: Launch IPS Policies Wizard to Configure IOS IPS

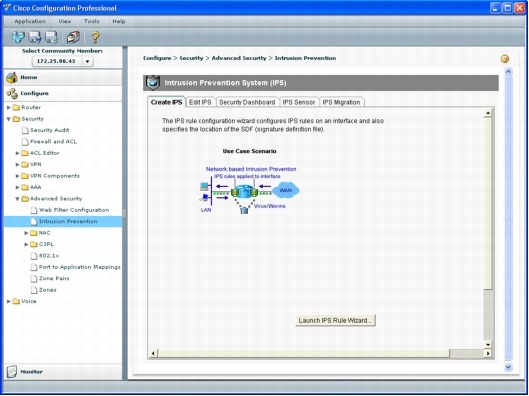

Step 9. After CCP downloaded the latest IOS CLI signature package, go to `Create IPS' tab to create initial IOS IPS configuration. If prompted to apply changes to the router, click the `Apply Changes' button. Next click the `Launch IPS Rule Wizard...' button. A pop up window informs you that CCP needs to establish a SDEE subscription to the router to retrieve alerts, click `OK'.
Step 10. Click `Next' at the `Welcome to the IPS Policies Wizard' screen.
Step 11. At the `Select Interfaces' screen, select the interface and the direction that IOS IPS will be applied to, then click `Next' to continue.

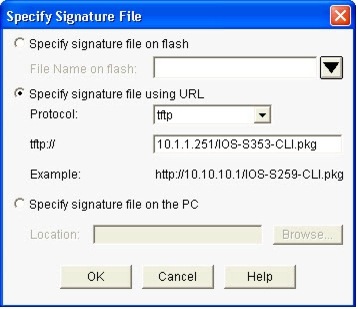

Step 12. At the `IPS Policies Wizard' screen, in the `Signature File' section, select the first radio button "Specify the signature file you want to use with IOS IPS", then click the "..." button to bring up a dialog box to specify the location of the signature package file, which will be the directory specified in Step 6. In this example, we use tftp to download the signature package to the router.
Step 13. In the `Configure Public Key' section, enter `realm-cisco.pub' in the `Name' text field, then copy and paste the following public key's key-string in the `Key' text field. This public key can be download from Cisco.com at: http://www.cisco.com/pcgi-bin/tablebuild.pl/ios-v5sigup. Click `Next' to continue.
Step 14. At the `Config Location and Category' screen, select a location where the signatures definition and configuration files will be stored by click on the `...' button in the `Config Location' section.
At the `Add Config Location' dialog box, choose the first option "Specify the config location on this router" and then click the `...' button.
Step 15. Back at the `IPS Policies Wizard' screen, select the signature category according to the amount of memory installed on the router. There are two signature categories you can choose in CCP - `Basic' and `Advanced'. If the router has 128MB DRAM installed, Cisco recommends choosing 'Basic' category to avoid memory allocation failures. If the router has 256MB or more DRAM installed, you may choose either category. Once you select a category to use, click `Next' to continue to the last page of the wizard - the summary page. The summary page provides a brief description about the tasks IOS IPS initial configuration.
Step 16. Click `Finish' on the summary page to deliver the configurations and signature package to the router. If the preview commands option is enabled on the Preferences settings in CCP, then CCP will display the `Deliver Configuration to Router' dialog, which shows a summary of CLI commands that CCP will deliver to the router. Click `Deliver' to proceed.
Step 17. A `Commands Delivery Status' dialog screen is then displayed to show the commands delivery status. When the commands are delivered to the router, click `OK' to continue.

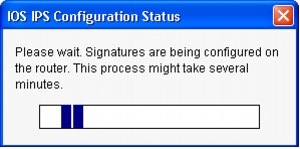

Step 18. An `IOS IPS Configuration Status' dialog screen is displayed to show that signatures are being loaded on the router.
Task 4: Verify IOS IPS Configuration and Signatures are Properly Loaded
Step 19. When the signatures are loaded, CCP then displays the `Edit IPS' tab with the current configuration. Verify the configuration by checking which interface and in what direction is the IOS IPS enabled.
Step 20. The router console shows that signatures' loading is complete
Step 21. Verify the signatures are loaded properly by using this command at the router prompt:
Step 22. Under Edit IPS tab, select Signatures. Verify the signature numbers with CCP.
Task 5: Signature Tuning
Step 23. To retire/unretire and enable/disable signatures, select the Edit IPS tab, then select Signatures. Highlight the signature(s), and then click the Enable, Disable, Retire, or Unretire button. Notice the status changed in the Enabled or the Retired column. A yellow icon appears for the signature(s) in the column next to Enabled. The yellow icon means changes have been made to the signature, but have not been applied. Click the Apply Changes button to make the changes take effect.
Retire/unretire is to select/de-select which signatures are being used by IOS IPS to scan traffic.
Retiring a signature means IOS IPS will NOT compile that signature into memory for scanning.
Unretiring a signature instructs IOS IPS to compile the signature into memory and use the signature to scan traffic.
Enable/disable does NOT select/de-select signatures to be used by IOS IPS.
Enabling a signature means that when triggered by a matching packet (or packet flow), the signature takes the appropriate action associated with it. However, only unretired AND successfully compiled signatures will take the action when they are enabled. In other words, if a signature is retired, even though it is enabled, it will not be compiled (because it is retired) and it will not take the action associated with it.
Disabling a signature means that when triggered by a matching packet (or packet flow), the signature DOES NOT take the appropriate action associated with it. In other words, when a signature is disabled, even though it is unretired and successfully compiled, it will not take the action associated with it.
Step 24. To change the action associated with a signature, highlight the signature, then right click, select Actions, then select/de-select the actions to be associated with this signature. A yellow icon appears for the signature in the column next to Enabled. The yellow icon means changes have been made to the signature, but have not been applied. Click the Apply Changes button to make the changes take effect.
Step 25. You can also use the signature edit function to retire/unretired/enable/disable signature(s) and change signature actions. Highlight the signature, the click the Edit button next to the Enable button. The edit function also allows granular signature customization by allowing you to modify all parameters associated with the signature.
Task 6: Update Signature Package
Step 26. To update signature package when signature updates are available, go to Edit IPS tab and select Auto Update. Select `Get the latest CCP file and CLI pkg' radio button. Next click the `Browse...' button to select a directory on your local PC to save the downloaded files. Next click the `Download' button.
Step 27. When prompted to provide CCO login credential, use your CCO registered username and password.

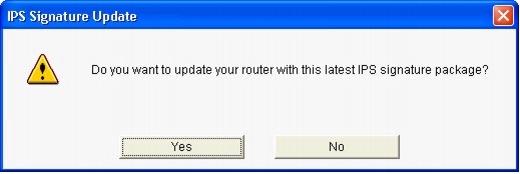

Step 28. CCP connects to Cisco.com and starts to download both the CCP signature file (e.g. sigv5-SDM-S354.zip) and the CLI signature pkg file (e.g. IOS-S353-CLI.pkg) to the directory selected in Step 26. After both files are downloaded, CCP prompts the user to update the latest signature package to the router, select `Yes'.

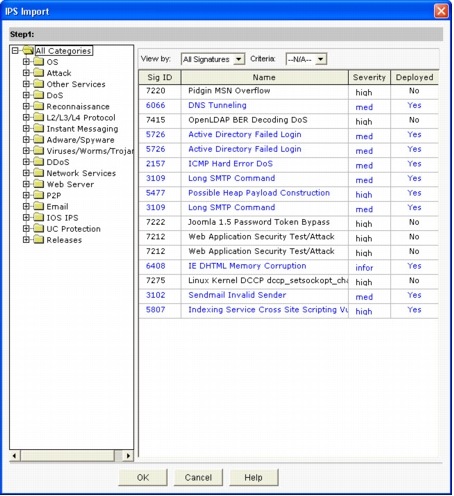

Step 29. Click OK when the IPS Import prompt appears.
Step 30. An Importing Signatures dialog screen is displayed to show that signatures are being loaded on the router

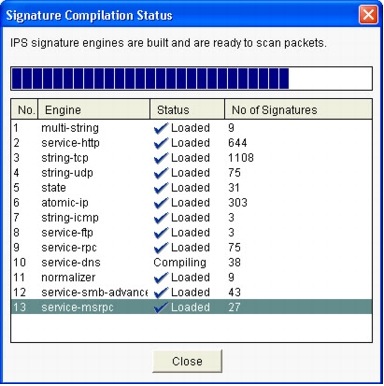

Step 31. Once the new signature package is loaded on the router, click Close at the Signature Compilation Status dialog screen.

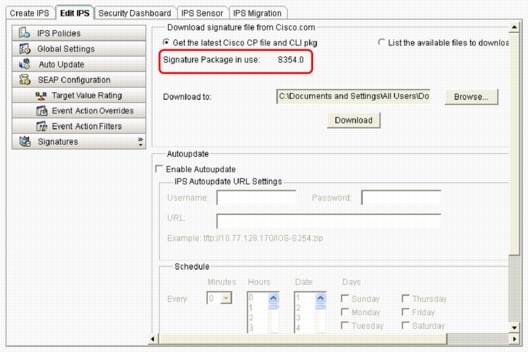

Step 32. At the Auto Update window, notice that the signature package version changed to the new version in Signature Package in use.
