Cisco® Wide Area Application Services (WAAS) Release 4.1.3 introduces support for SSL acceleration. Among the several cryptographic protocols used for encryption, one of the most important is SSL Version 3 (SSLv3), also known as Transport Layer Security Version 1 (TLSv1). SSL provides data encryption, server authentication, message integrity, and optionally, client authentication. With SSL, each certificate is signed either by a trusted third-party certificate authority (CA), or root CA, such as VeriSign, or by an internal enterprise authority, or enterprise CA, such as Microsoft Active Directory Certificate Authority. The clients and servers must trust these authorities to accept their signed certificates.
SSL and TLS secured applications represent a growing proportion of traffic traversing the WAN links today. This encrypted secure traffic cannot be accelerated natively by Cisco WAAS data redundancy elimination (DRE) because the encryption process generates an ever-changing stream of data, making it inherently nonredundant. Even without its new specific SSL acceleration feature, Cisco WAAS could provide some generic optimization with its transport flow optimization (TFO) feature. Full SSL optimization requires termination of the SSL session, decryption of the traffic to apply Cisco WAAS DRE or Lempel-Ziv (LZ) compression techniques to the data, reencryption of the traffic for transport over the WAN using Cisco WAAS TFO, and then reversal of the process before delivery of the original encrypted traffic to the destination host.
Cisco WAAS now provides SSL optimization capabilities that integrate easily with existing data center key management and trust models and can be used by both WAN optimization and application acceleration components. Private keys and certificates are stored in a secure vault on the Cisco WAAS Central Manager. The private keys and certificates are distributed in a secure manner to the Cisco WAAS devices in the data center and stored in a secure vault, maintaining the trust boundaries of server private keys.
This document provides guidelines and best practices for the configuration, management, and support of the Cisco WAAS SSL Application Optimizer solution. The Cisco WAAS SSL Application Optimizer can be used to accelerate any web application that uses SSLv3 or TLSv1.
Prerequisites
The following prerequisites are required to deploy the Cisco WAAS SSL Application Optimizer:
• Experience with basic networking and troubleshooting
• Experience installing the Cisco WAAS product families
• Experience with SSL certificates and public key infrastructure (PKI)
• Working knowledge of Cisco IOS® Software
Hardware Platform Considerations
Cisco WAAS SSL acceleration is supported on all Cisco Wide Area Application Engine (WAE) and Wide Area Virtualization Engine (WAVE) platforms, running Cisco WAAS Software Version 4.1.3 or later. An Enterprise license is also required to enable the Cisco WAAS SSL Application Optimizer services.
Solution Description
Cisco WAAS is an industry-leading, comprehensive WAN optimization and application acceleration solution. It now includes SSL optimization features that integrate transparently into the existing PKI trust model in customer deployments and can be easily deployed without compromising the existing data center key management security.
With Cisco WAAS, the SSL trusted model is maintained in the data center. Server private keys are stored securely on the core Cisco WAE and WAAS Central Manager and never leave the security of the data center. The temporary SSL session keys are distributed from the secure core Cisco WAEs to the edge Cisco WAEs over a secure HTTPS connection between an edge Cisco WAE and a core Cisco WAE. In addition, the Cisco WAAS SSL Application Optimizer operates in a transparent mode that does not require any changes to either the client or the server participating in the SSL connection. Figure 1 shows how Cisco WAAS SSL optimization integrates transparently into existing application key exchanges and preserves the trust boundaries of server private keys.
• During the initial client SSL handshake, the core Cisco WAE in the data center participates in the conversation. The connection between the Cisco WAEs is established securely using the Cisco WAE device certificates, and the Cisco WAEs cross-authenticate each other.
• After the client SSL handshake is complete and the data center Cisco WAE has the session key, the data center Cisco WAE will transmit the session key (which is temporary) over its secure link to the edge Cisco WAE so that the edge Cisco WAE can start decrypting the client transmissions and apply DRE.
• The optimized traffic is then reencrypted using the Cisco WAE peer session key and transmitted, in-band, over the current connection, maintaining full transparency, to the core Cisco WAE in the data center.
• The core Cisco WAE then decrypts the optimized traffic, reassembles the original messages, and reencrypts the traffic using a separate session key negotiated between the server and the data center Cisco WAE.
• If the back-end SSL server requests the client to submit an SSL certificate, the core Cisco WAE will request one from the client. The core Cisco WAE will authenticate the client by verifying the SSL certificate using a trusted CA or an Online Certificate Status Protocol (OCSP) responder.

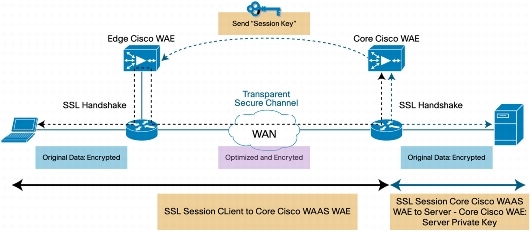

Figure 1. Cisco WAAS SSL Optimization
Information Collection
You must collect some basic information about the SSL services running in the customer environment before applying Cisco WAAS SSL acceleration. Study the customer environment to gather information on the SSL application type to be accelerated before implementing proof-of-concept testing or deployment. The minimum basic information required prior to SSL accelerated service configuration is listed in Table 1.
Table 1. Minimum Information Required for SSL Acceleration
Information
Requirement
Server hostname or IP address and port number
Mandatory
SSL server certificate and private key (or collect information about alternate certificates)
Mandatory
Certificate chain if the back-end SSL server is set up to send a certificate chain instead of the server certificate alone
Important
HTTPS proxy server port number if clients in the branch office use an HTTPS proxy server in the data center
Important
CA server certificate if a private root CA server is used
Optional
Determination of whether client certificate authentication is required for SSL negotiation
Important
OCSP responder URL if an OCSP responder is in use
Optional
SSL version supported by the SSL server
Optional
SSL cipher suites supported by the SSL server
Optional
SSL Accelerated Service Configuration
The SSL accelerator is similar to other application accelerator services running on Cisco WAAS devices. It is enabled by default on all Cisco WAE devices. The SSL accelerator requires the server private key and SSL server certificate to participate in the SSL session and obtain the session key required for encrypting and decrypting traffic. A basic SSL accelerated service configuration requires two additional configuration steps, summarized in Table 2.
Table 2. Configuration Steps
Step
Configuration Task
Device to Which Step Applies
Step 1
Initialize and open the Cisco WAAS Central Manager secure store.
Cisco WAAS Central Manager
Step 2
Create an SSL accelerated service on the core Cisco WAE:
• Add the server hostname and IP address and port information
• Add the server certificate and private key data
• Enable service
Core Cisco WAAS WAE
The Cisco WAAS Central Manager secure store must be initialized and then opened to allow it to store the SSL server private data and certificates before you configure an SSL accelerated service. While initialization is a one-time configuration activity, the Cisco WAAS Central Manager secure store must be reopened whenever the Cisco WAAS Central Manager is reloaded. The SSL accelerated service can then be configured on core Cisco WAAS devices so that they can identify SSL connections that should be accelerated by the Cisco WAAS SSL Application Optimizer.
Deployment Details
Enable Cisco WAAS Central Manager Secure Store
The Cisco WAAS Central Manager is used to securely store the certificates and private keys associated with SSL accelerator services configured on the core Cisco WAE appliances. The storage location for these keys and certificates on the Cisco WAAS Central Manager is called the CM Secure Store. Before enabling SSL acceleration on any Cisco WAAS appliance, this secure store needs to be initialized and open.
To initialize and open the CM Secure Store using the Cisco WAAS Central Manager GUI, go to the Cisco WAAS Central Manager homepage. On the homepage, from the navigation pane, choose Admin > Secure Store and enter the passphrase to initialize and open the CM Secure Store for the first time. Each time the Cisco WAAS Central Manager is rebooted, the CM Secure Store must be reopened by entering the same passphrase that was entered when the CM Secure Store was initialized. Figure 2 shows a CM Secure Store initialized and in an open state.

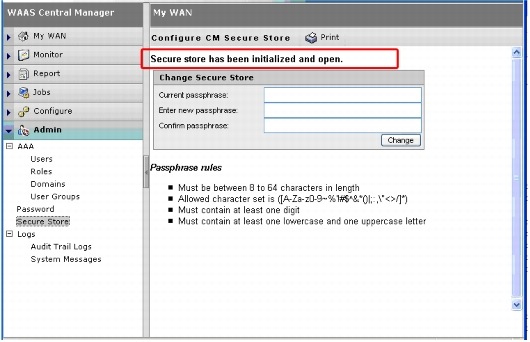

Figure 2. Cisco WAAS CM Secure Store
The Cisco WAAS Central Manager GUI process just described can also be achieved using the device command-line interface (CLI) by issuing the commands shown here.
***** WARNING : REBOOTING CM REQUIRES RE-OPENING SECURE STORE MANUALLY. AFTER REBOOT, DISK ENCRYPTION AND CIFS PREPOSITION FEATURES ON REMOTE WAE(S) WILL NOT OPERATE PROPERLY UNTIL USER RE-OPENS SECURE STORE ON CM BY INPUTTING THE PASSPHRASE *****
successfully initialized and opened secure-store.
Starting cms.
WAAS-CM# show cms secure-store
secure-store is initialized and open.
CM#
After opening the CM Secure Store on the Cisco WAAS Central Manager, verify the status of the secure store by issuing the CLI command show cms secure-store.
CM# show cms secure-store
secure-store is initialized, enter pass-phrase to open store.
WAAS-CM# cms secure-store open
enter current pass-phrase:
Successfully migrated key store
***** WARNING : REBOOTING CM REQUIRES RE-OPENING SECURE STORE MANUALLY. AFTER REBOOT, DISK ENCRYPTION AND CIFS PREPOSITION FEATURES ON REMOTE WAE(S) WILL NOT OPERATE PROPERLY UNTIL USER RE-OPENS SECURE STORE ON CM BY INPUTTING THE PASSPHRASE *****
successfully opened secure-store
CM# show cms secure-store
secure-store is initialized and open.
CM#
Verify the Status of SSL Accelerator Services
The SSL accelerator is enabled by default on all Cisco WAAS WAE devices. The SSL accelerator must be enabled and running to accelerate SSL traffic passing through the Cisco WAAS WAE devices. If the SSL accelerator is not enabled on a Cisco WAE device, use the Cisco WAAS Central Manager GUI to enable it. Select the Cisco WAE from the My WAN/Managed Devices page; then from the navigation pane choose Configure > Acceleration > Enabled Features > SSL Accelerator. Select the Enable check box and then click Submit. Figure 3 shows how to enable SSL accelerator service on a Cisco WAE appliance through the Cisco WAAS Central Manager GUI.

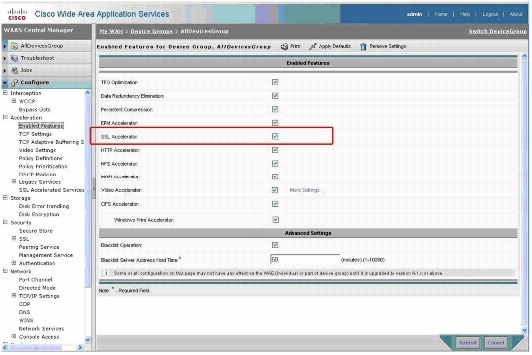

Figure 3. Enabling SSL Accelerator Service on a Cisco WAE Appliance
Note: The Cisco WAAS SSL accelerator requires an Enterprise license to be installed before it can run. Verify that the Cisco WAAS appliance has the Enterprise license applied before enabling the SSL accelerator.
The license information from the device CLI can be checked by issuing the following command:
The Cisco WAAS Central Manager GUI process just described can also be achieved using the device CLI by issuing the command shown here.
CLI Equivalent
WAE(config)# accelerator ssl enable
Enabled ssl accelerator
WAE(config)#
After enabling the SSL accelerator on the Cisco WAE, verify the status by issuing the CLI command show accelerator ssl. The SSL accelerator should be reported as Enabled and Running.
WAE# show accelerator ssl
Accelerator Licensed Config State Operational State
Configure SSL Accelerated Service on the Core Cisco WAE Devices in the Data Center
SSL accelerated service configuration is required on the core Cisco WAAS WAE appliance to apply the full set of optimizations, DRE, LZ compression, and TFO to the SSL traffic. The SSL accelerated service terminates the SSL session on the core Cisco WAE and performs encryption and decryption of SSL traffic to apply or remove DRE and LZ compression from the data traversing the WAN.
Note: By default, Cisco WAAS optimizes SSL encrypted traffic. However, the benefit it provides for SSL encrypted traffic is limited to TFO because the default application policy configuration on Cisco WAAS for SSL traffic is TFO only. Applying TFO only to the encrypted secure data is helpful in many situations in which the network has a high bandwidth delay product and the need is only to fill the WAN pipe.
As a design best practice, a core Cisco WAE devices group should be created with the Cisco WAAS Central Manager GUI and the SSL accelerator service configuration applied to that group. This step eliminates the risk of having inconsistent configuration across multiple core Cisco WAE devices in the data center as may be the case when each core Cisco WAE is configured individually.
In the sample configuration example here, a new core device group has been created for SSL accelerated service configuration. This device group is named coreSSLdevicegroup.
To configure an SSL accelerated service for coreSSLdevicegroup, from Cisco WAAS Central Manager GUI choose My WAN > Managed Device Groups and select the coreSSLdevicegroup Cisco WAE. On the selected coreSSLdevicegroup device group navigation pane, choose Configure > Acceleration > SSL Accelerated Services and then click the Create button. Figure 4 shows how to create a new SSL accelerated service on coreSSLdevicegroup using the Cisco WAAS Central Manager GUI.

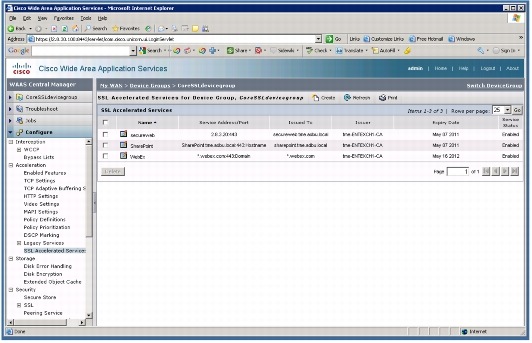

Figure 4. Cisco WAAS SSL Accelerated Service Configuration
To create a new SSL accelerated service on the coreSSLdevicegroup device group, go to the Cisco WAAS Central Manager GUI Creating new SSL Accelerated Service page (Figure 5) and follow the steps in Table 3.
Table 3. Steps for Creating a New SSL Accelerated Service
Step
Configuration Task
Step 1
Enter a unique service name for the SSL accelerated service. The service Description entry is optional.
Step 2
• In the Server hostname or address field, enter the hostname or IP address of the SSL server in the data center.
• In the Server Port field, enter the TCP port number on which the SSL service is running.
• Click the Add button to add the server IP address and server port to the configuration. A single SSL accelerated service can be used with multiple IP addresses and port numbers.
Step 3
If you have an existing server SSL certificate and private key corresponding to that certificate, the certificate and private key can be imported in either Privacy Enhanced Mail (PEM) or Public Key Cryptography Standards 12 (PKCS#12) format. The PEM format can be copied and pasted into the Cisco WAAS Central Manager GUI directly, or it can be uploaded through the browser.
Step 4
Mark the new service operational by clicking the check box to the right of In service.
Step 5
Click the Submit button to create the new SSL accelerated service.

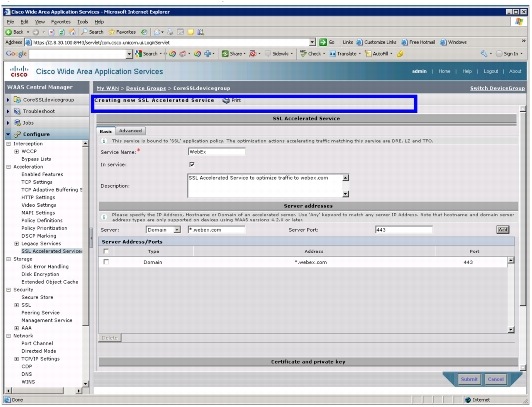

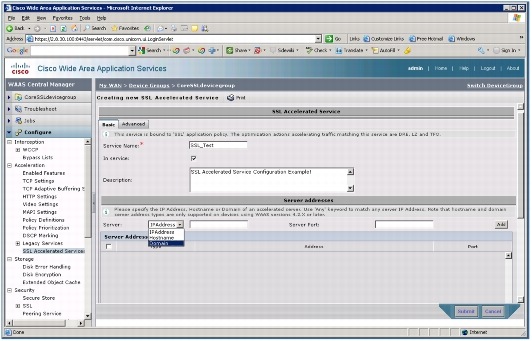

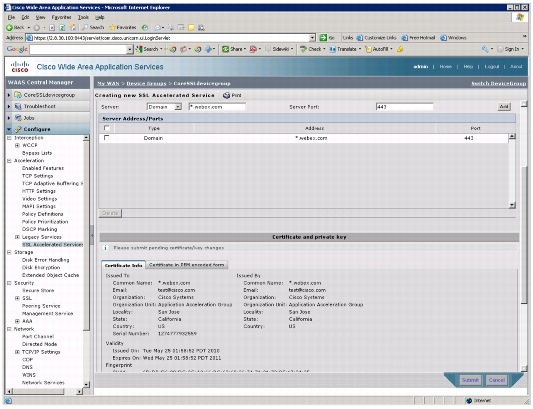

Figure 5. Creating a New SSL Accelerated Service
To verify the SSL accelerated service configuration, telnet to the core Cisco WAE console and enter the show running-config | begin crypto command.
WAE# show running-config | begin crypto
...skipping
crypto ssl services global-settings
version all
exit
!
!
!
crypto ssl services accelerated-service SSL_Test
description SSL accelerated service config
server-cert-key SSL_Test.p12
server-ip 2.8.3.30 port 443
inservice
exit
!
... many lines omitted ...
Configure SSL Accelerated Service and SSL Server Certificate
The Cisco WAAS Central Manager GUI supports various options to add an SSL server certificate to the SSL accelerated service. Table 4 describes the options and when to use them.
Table 4. SSL Accelerated Service and SSL Server Certificate Configuration Options
Configuration Option
Description

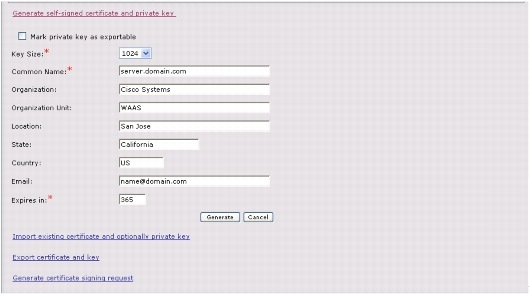

Generate a self-signed certificate and private key
This option lets the admin user create a self-signed certificate and private key to be associated with an SSL accelerated service. This key can be used for demonstration testing when the actual back-end server private key and certificate are not available for import.
The client browser will display a security warning message stating that the certificate is invalid with this option. However, SSL acceleration will work, and the user will see SSL accelerated connections.
Import existing certificate and optionally private key
The Import option allows the admin user to import an SSL server certificate and private key to associate with the SSL accelerated service configuration. The import method supports two certificate formats:
• PEM format (allows both file import and plain text copy and paste)
• PKCS#12 format (this format is the same as the .pfx format used by the Microsoft Internet Information Services (IIS) server)
Export certificate and key
This option allows the Cisco WAAS admin user to export the server private key and certificate from the core Cisco WAE if required.
Generate certificate signing request
This option can be used to generate a PKCS#10 format certificate signing request (CSR), which can be submitted offline to a CA server to obtain an X.509 SSL certificate.
Note: In a proof-of-concept pilot testing environment, the self-signed certificate can be used to quickly demonstrate the SSL acceleration benefits.
In cases in which customers have their own CA servers and the capability to issue SSL server certificates, the admin user can use the Generate certificate signing request option to create a CSR and submit it to the CA server to obtain an SSL certificate.
The import option supports two formats: PEM and PKCS#12. The PEM file format may contain either the private key or the server certificate in Base-64 encoded ASCII text. The certificate and private key can be copied and pasted into the Cisco WAAS Central Manager GUI through the browser when Base-64 encoding is used with the PEM file. The PEM files can also be imported by choosing the browse-to-file option.

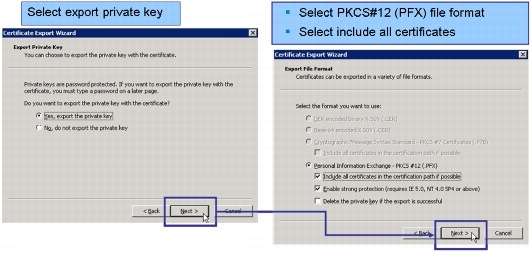

The PKCS#12 format is the same as the format obtained with the Microsoft IIS server and Microsoft SharePoint Server .pfx file extension. Typically, the PKCS#12 file contains both the private key and certificate in the same file and can be imported as a file.
Note: Tools such as OpenSSL can be used to convert certificate and key files from one format to the other if required.
The following example shows how to import a PKCS #12 file that contains the SSL server private key and certificate into the SSL accelerated service configuration. The PKCS#12 file used in this example was exported from a Microsoft IIS web server with a .PFX file extension. Please refer to Appendix A to learn about how to export private keys and certificates from a Microsoft IIS web server.
Note: To use the Generate a self-signed certificate and private key option, refer to Appendix A.
Import SSL Server Private Key and Certificate in PKCS#12 Format
To import the PKCS#12 file with the server private key and certificate in the SSL accelerated service configuration, scroll down to the Device certificate and private key section. Figure 6 shows how to import a PKCS#12 file with a server certificate and private key. In the web browser, click the Import existing certificate and optionally private key link and select Upload file in PKCS#12 format. Enter the exact passphrase used at the time of private key export into the text box next to Passphrase to decrypt private key. Click the Browse button and browse to the file folder on the local machine where the PKCS#12 file is located. After selecting the file to import, click the Import button.

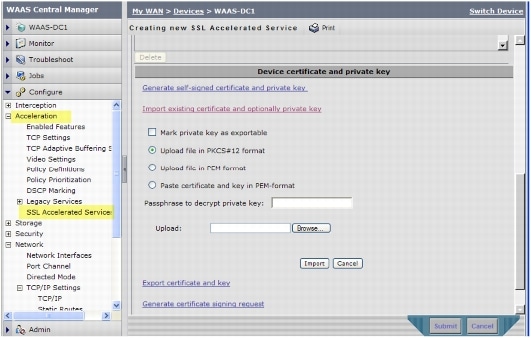

Figure 6. Cisco WAAS SSL Accelerated Service Certificate Import Using PKCS#12 File
The certificate will appear in the SSL accelerated service configuration after it is successfully imported. Figure 7 shows the certificate information after it was imported by uploading a PKCS#12 file. To finish the SSL accelerated service configuration, click the Submit button.
After an SSL accelerated service is configured on the Cisco WAAS Central Manager, it sends the SSL accelerated service configuration and the server private key and certificate to the core Cisco WAE devices. To verify that the service is configured and the certificate is installed on the core Cisco WAE device, telnet to the core Cisco WAE device and enter the CLI command show crypto certificates.
In this example, an SSL accelerated service named SSL_Test is configured, and a PKCS#12 file with a certificate and private key is added to the service configuration. The show output on the core Cisco WAE shows the file certificate stored with the filename SSL_Test.p12 in PKCS#12 format on the core Cisco WAE.

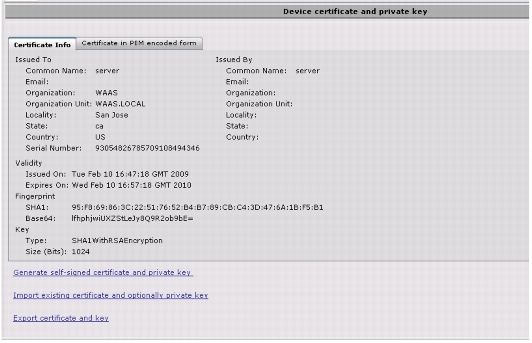

Figure 7. SSL Accelerated Service Certificate Information After Importing the Certificate
Verify SSL Acceleration Policy
When an SSL accelerated service is created and put into service on the core Cisco WAE, the following policy actions take place:
• The server IP address and port number are used to generate a dynamic classifier.
• This dynamic classifier is attached to the application policy called SSL.
• The optimization action for this dynamic classifier is set to DRE, LZ, and TFO.
SSL accelerated services use the application policy named SSL for statistics collection. The SSL application policy is predefined in the Cisco WAAS policy definitions and is applied to the HTTPS classifier by default. If the SSL application policy is missing from the policy definition on the Cisco WAE, it must be defined by the administrator. From the Cisco WAE CLI console, enter the show policy-engine application dynamic command to verify that the dynamic policy for SSL accelerated service exists.
WAE# show policy-engine application dynamic
Dynamic Match Freelist Information:
Allocated: 32768 In Use: 1 Max In Use: 3 Allocations: 76
Dynamic Match Type/Count Information:
None 0
Clean-Up 0
Host->Host 0
Host->Local 0
Local->Host 0
Local->Any 0
Any->Host 1
Any->Local 0
Any->Any 0
Individual Dynamic Match Information:
Number: 1 Type: Any->Host (6) User Id: SSL (4)
Src: ANY:ANY Dst: 2.8.3.20:443
Map Name: basic
Flags: SSL
Seconds: 0 Remaining: - NA - DM Index: 32765
Hits: 21 Flows: - NA - Cookie: 0x00000000
WAE#
Note: Cisco WAAS treats SSL connections slightly differently than other traffic. By default, Cisco WAAS applies TFO only optimizations to all SSL connections as specified by the default HTTPS classifier settings.
However, when the Cisco WAAS SSL Application Optimizer is enabled on the Cisco WAE and the Cisco WAE finds a dynamic classifier match for the SSL connection, it applies full optimization (DRE, LZ, and TFO) to the SSL connection.
Test SSL Application Optimization
After successfully configuring an SSL accelerated service and verifying that a dynamic classifier was automatically configured on the core Cisco WAE devices, you can test SSL acceleration. Open a web browser on the client machine and send an HTTPS request to the SSL server in the data center. The SSL web request must go through the edge and the core Cisco WAEs for SSL acceleration.
From the Cisco WAE CLI console, enter the show statistics connection command to verify that the new SSL connections matching the dynamic classifier are, in fact, SSL accelerated. The SSL accelerated connections will report TSDL as the acceleration policy, where "S" stands for SSL accelerated connection.
The SSL accelerated connections on the Cisco WAAS Central Manager will display a lock icon in the applied policy as shown in Figure 8. Note that the SSL accelerated connections have a PC icon with a lock.

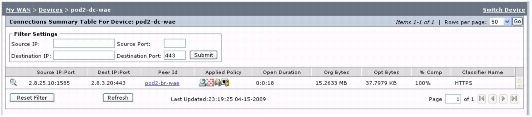

Figure 8. Connection Summary Table in Cisco WAAS Central Manager Showing an SSL Accelerated Connection
Monitor and Report SSL Accelerated Connections
Cisco WAAS Central Manager now has an SSL acceleration report in its monitoring and reporting section. The SSL acceleration report displays the SSL acceleration statistics. The following charts are included in the SSL acceleration report:
• SSL: Connection Statistics: The SSL: Connection Statistics chart displays the SSL session connection statistics, showing the total number of connections handled, the number of unaccelerated (bypassed) connections, and the number of dropped connections
• SSL: Bandwidth Optimization: The SSL: Bandwidth Optimization chart displays the effective bandwidth capacity of the WAN link as a result of SSL acceleration, as a multiplier of its base capacity.
• SSL: Acceleration Bypass Reason: The SSL: Acceleration Bypass Reason pie chart displays the reasons that SSL traffic is not accelerated: version mismatch, cipher mismatch, revocation failure, certificate verification failure, other failure, or non-SSL traffic.

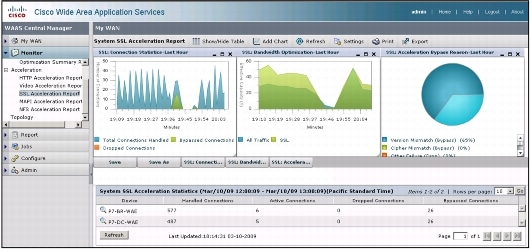

Figure 9 shows the Cisco WAAS Central Manager SSL Acceleration Report with the three charts.
Figure 9. Cisco WAAS Central Manager SSL Acceleration Report
A new application definition named SSL is added to the default policy definition list in Cisco WAAS 4.1.3.
Non-HTTPS Proxy SSL Connections
Statistics for all optimized SSL traffic is reported under application SSL in the Cisco WAAS Central Manager traffic summary chart. The traffic summary report for SSL includes both SSL accelerated connections using the SSL accelerator as well as HTTPS connections optimized using TFO only.
HTTPS Proxy SSL Connections
For SSL connections going through an HTTPS proxy server in the data center, the initial request is handled by an HTTP accelerator, and these connections are reported as application web traffic. Figure 10 shows how SSL connections are accelerated by Cisco WAAS and how they are reported in the Central Manager Traffic optimization reports.

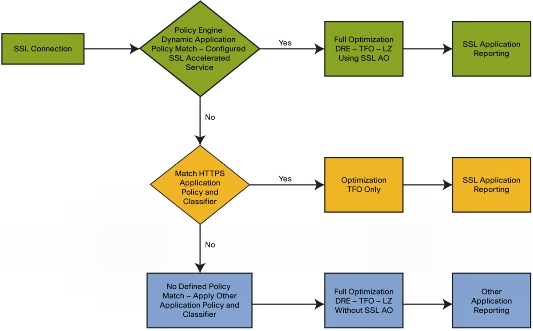

Figure 10. Cisco WAAS Reporting Flow for Optimized SSL Connections (Non-HTTPS Proxy Use Case)

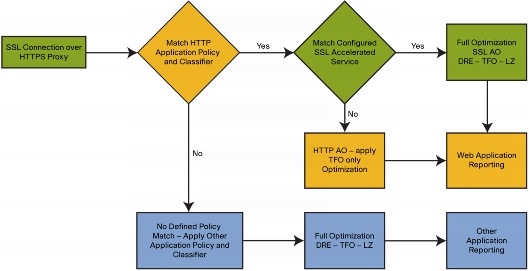

The flow chart in Figure 11 explains how SSL connections going through an HTTPS proxy server are accelerated by Cisco WAAS and how they are reported in the Cisco WAAS Central Manager traffic optimization reports.
Figure 11. Cisco WAAS Reporting Flow for Optimized SSL Connections (HTTPS Proxy Use Case)
Manage the Certificate Authority
A CA is a trusted third party that issues certificates used to verify a site's identity. Cisco WAAS SSL acceleration features by default include a list of many well-known CA certificates that can be used on the Cisco WAE. This feature also allows you to import your own CA certificate into the CA store on a Cisco WAE. The CA certificates are mainly used to verify a client or a server certificate.
Certificate authorities provide third-party verification of client and server certificates and act as trust points for other Cisco WAAS SSL services. Well-known CA certificates can be imported into the core Cisco WAE device through device group configuration as shown in Figure 12.

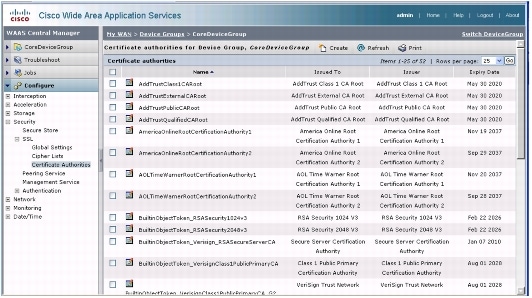

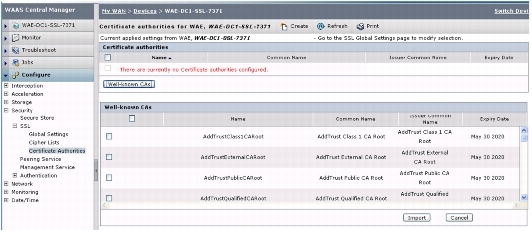

Figure 12. Well-Known CA Certificates Imported into the Core Cisco WAE CA Store
By default, Cisco WAAS includes a list of well-known root CA certificates that are already preinstalled and can be used. The Cisco WAAS SSL accelerator also allows import of a new CA certificate. To import a new CA certificate, from the Cisco WAAS Central Manager GUI, choose My WAN > Managed Devices and select the Cisco WAE. In the selected Cisco WAE device's navigation pane, choose Configure > Security > SSL > Certificate Authorities and click Import button. Figure 13 shows how to import a new CA certificate from the Cisco WAAS Central Manager.
Figure 13. Importing new CA Certificate on the Core Cisco WAE from the Cisco WAAS Central Manager
From the Cisco WAE CLI console, enter the show crypto certificates command to view the imported CA certificates. The command lists all the certificates imported into the Cisco WAE, including the management service certificate.
Issuer: C=US/ST=California/L=San Jose/OU=ADBU/O=Cisco Systems/CN=NO-HOSTNAME/emailAddress=tac@cisco.comThe WAAS Self Signed Certificate is being used as the Management Service Certificate
WAE#
The CA certificates are used when certificate verification is turned on for either the client or server certificate, or both.
Verify the Certificate
In an SSL-protected session, the server and client can authenticate one another and negotiate an encryption algorithm and cryptographic keys before the application protocol transmits or receives its first byte of data. The core Cisco WAE in the data center acts a trusted intermediary node and terminates the SSL session with the client and initiates another SSL session with the back-end server. The core Cisco WAE can be configured to verify the server certificate before accepting the SSL connection.
Client certificates provide an additional way to authenticate a client to a server using SSL. The Cisco WAAS WAE can also perform a verification check on the client before allowing the SSL session with the server to proceed. Client certificate authentication is commonly deployed in highly secure environments in which message-layer authentication mechanisms using user IDs and passwords or tokens are not considered sufficient for security purposes.
The Cisco WAAS SSL feature checks the certificate presented to it by the client or the server by validating the certificate all the way up to a trusted root CA certificate in its CA store. If it fails to verify the certificate in the hierarchy, the Cisco WAE reports that the certificate verification process failed. The certificate verification process can also include an OCSP revocation check on the presented certificate to check the validity of the certificate in real time. This check can be disabled in environments in which an OCSP responder is unavailable for revocation check.
To configure certificate verification for an SSL accelerated service for a Cisco WAE using the Cisco WAAS Central Manager GUI, choose My WAN > Managed Devices and select the Cisco WAE. In the selected Cisco WAE device's navigation pane, choose Configure > Acceleration > SSL Accelerated Service. From the SSL Accelerated Services list, click the service you want to edit and select the Advanced properties tab. To enable client and server certificate verification, check the appropriate check boxes in the Authentication section as shown in Figure 14.

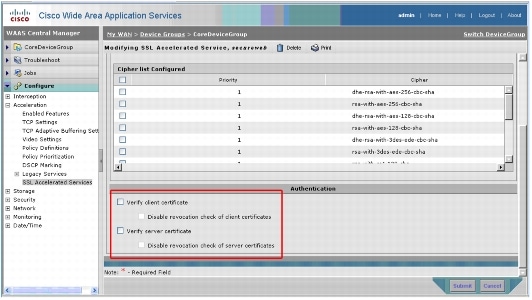

Figure 14. Configuring certificate verification for SSL accelerated service
Perform Certificate Revocation Check
Certificates may be revoked by a certification authority for various reasons. For example, if a certificate and its associated key are compromised or need to be retired for any reason, the certification authority can revoke the existing certificate. Certification authorities can provide an online service called an OCSP responder that can be used to check the revocation status of a certificate issued by the certification authority.
Cisco WAAS supports OCSP for real-time revocation status of a certificate in compliance with the U.S. Department of Defense (DoD) Class 3 PKI definition. This support is especially useful in highly secure environments because OCSP can provide the real-time status of a certificate. OCSP is also useful when client certificates are used in the SSL handshake for client authentication.
Cisco WAAS WAE performs an OCSP revocation check on a certificate presented to it during the SSL handshake when certificate verification is configured for the SSL accelerated service. The certificate verification process follows the SSL global settings on the device to determine the OCSP responder.
Global settings for OCSP revocation check can be configured under the device or device group SSL Global Settings page as shown in Figure 15.
Figure 15. SSL Global Settings for OCSP Responder Service
Following are the global settings for the OCSP revocation check feature:
• Disabled: If revocation check is disabled globally, then an OCSP revocation check is performed.
• ocsp-url: If revocation check is configured to use ocsp-url, then the Cisco WAE uses the OCSP responder URL configured as shown in Figure 15.
• ocsp-cert-url: If revocation check is configured to use ocsp-cert-url, then the Cisco WAE looks for an OCSP responder URL included in the certificate presented to it. If it does not find one, it will use the OCSP responder URL configured as shown in Figure 15.
Configure Certificate Chaining Support in Cisco WAAS
A certificate chain is a sequence of certificates in which each certificate is signed by the next. The final certificate, called the root certificate, is owned by a certificate authority. Client web browsers may not accept an SSL server certificate if it is signed by an intermediate CA server, and the client machine then will be unable to verify the certificate hierarchy up to a root CA certificate. This scenario is commonly observed when browsing a secure site in the following cases:
• The SSL server sends only the server certificate during negotiation.
• The client cannot verify the issuer of the certificate (intermediate CA).
• The client has an expired copy of the intermediate CA server certificate.
Cisco WAAS SSL accelerated service configuration supports certificates chains with a depth of up to eight certificates in the chain, including the server SSL certificate. The Cisco WAAS Central Manager allows import of a certificate chain consisting of an end certificate that must be specified first, a chain of intermediate CA certificates that sign the end certificate or intermediate CA certificate, and a root CA at the end. The Cisco WAAS Central Manager validates the chain and rejects it if the validity date of the CA certificate is expired or if the signing order of certificates in the chain is not consecutive.
Configure Global SSL Settings: Supported SSL Versions and Cipher Lists
The Cisco WAAS SSL feature supports both SSLv3 and TLSv1 by default. Cipher lists are sets of cipher suites that can be assigned to your SSL acceleration configuration. A cipher suite is an SSL encryption method that includes the key exchange algorithm, the encryption algorithm, and the secure hash algorithm. Cisco WAAS comes configured with a predefined cipher list that is applied to all SSL services by default.
The predefined cipher list contains the following cipher suites:
dhe-rsa-with-aes-256-cbc-sha:1
rsa-with-aes-256-cbc-sha:1
dhe-rsa-with-aes-128-cbc-sha:1
rsa-with-aes-128-cbc-sha:1
dhe-rsa-with-3des-ede-cbc-sha:1
rsa-with-3des-ede-cbc-sha:1
rsa-with-rc4-128-sha:1
rsa-with-rc4-128-md5:1
dhe-rsa-with-des-cbc-sha:1
rsa-with-des-cbc-sha:1
rsa-export1024-with-rc4-56-sha:1
rsa-export1024-with-des-cbc-sha:1
dhe-rsa-export-with-des40-cbc-sha:1
rsa-export-with-des40-cbc-sha:1
rsa-export-with-rc4-40-md5:1

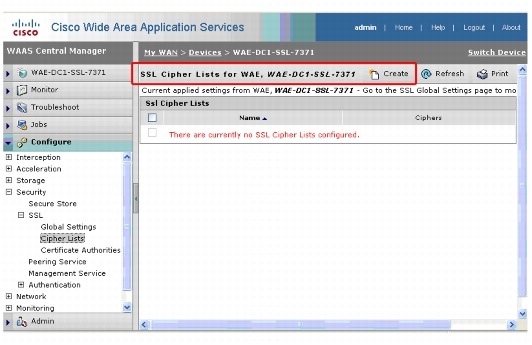

To configure a new cipher list, from the Cisco WAAS Central Manager GUI, choose My WAN > Managed Devices and select the Cisco WAE. In the selected Cisco WAE device's navigation pane, choose Configure > Security > SSL > Cipher Lists and then click Create. Figure 16 shows how to create a new cipher list from the Cisco WAAS Central Manager.
Figure 16. Creating a New Cipher List on the Core Cisco WAE in the Cisco WAAS Central Manager
From the Cisco WAE CLI console, enter the show running-config command to verify the new cipher list configuration.
WAE# show running-config
... many lines omitted ...
!
crypto ssl cipher-list test
cipher dhe-rsa-with-aes-256-cbc-sha priority 1
cipher rsa-with-aes-256-cbc-sha priority 1
exit
!
... many lines omitted ...
The new cipher list can either be set as the default in the global SSL settings or applied to an SSL accelerated service.
Configure SSL Management Service
The Cisco WAAS Central Manager and the Cisco WAE appliances communicate with each other over a secure channel using SSL. This process is known as SSL management service, and it uses the default settings from the global SSL configuration page. The SSL management service uses a self-signed certificate by default, and this setting cannot be changed. However, the SSL management service allows you to specify the SSL version and cipher list that will be used for secure communication between the Cisco WAAS Central Manager and the Cisco WAE.

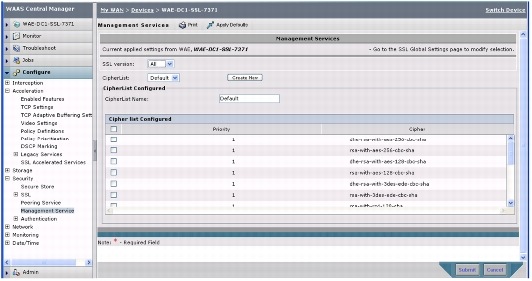

To change or view the properties for the SSL management service for a Cisco WAE, from the Cisco WAAS Central Manager GUI, choose My WAN > Managed Devices and select the Cisco WAE. In the selected Cisco WAE device's navigation pane, choose Configure > Security > Management Service. Figure 17 shows the SSL management service configuration page in the Cisco WAAS Central Manager.
Figure 17. SSL Management Service Configuration in the Cisco WAAS Central Manager
Configure SSL Peering Service
The SSL peering service defines the secure communication between the edge and the core Cisco WAE appliances. The SSL peering service uses a self-signed machine certificate, default cipher list, and SSLv3. The SSL peering service allows you to change the certificate used for secure communication and specify the SSL version and cipher list that will be used for secure communication between the Cisco WAAS Central Manager and the Cisco WAE. The SSL peering service also allows you to configure peer certificate verification if required.

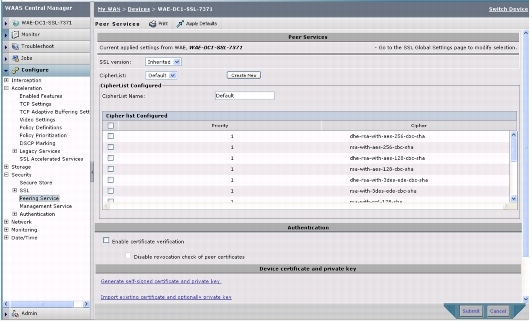

To change or view the properties for the SSL peering service for a Cisco WAE, from the Cisco WAAS Central Manager GUI, choose My WAN > Managed Devices and select the Cisco WAE. In the selected Cisco WAE device's navigation pane, choose Configure > Security > Peering Service. Figure 18 shows the SSL peering service configuration page in the Cisco WAAS Central Manager.
Figure 18. SSL Peering Service Configuration in the Cisco WAAS Central Manager
Appendix A
Exporting the Server Private Key and SSL Certificate from Microsoft IIS Server
The SSL certificate and private key used to secure a Microsoft SharePoint Server and IIS server can be exported by using the IIS Certificate Export Wizard. The Microsoft IIS server allows the user to export server private keys only if they were marked as exportable at the time of import. Cisco WAAS requires the SSL certificate and private key associated with the SSL server in the data center to accelerate client connections from the branch-office users to the SSL server.
The SSL certificate and private key associated with a website under the Microsoft IIS server or SharePoint Server can be exported in PKCS#12 (.pfx extension) format. To export the server private key and certificate, start the Microsoft IIS Manager. Choose IIS Site Properties > Directory Security > View Certificate and launch the IIS Certificate Export Wizard.
Figures 19 and 20 show how to export the private key and certificate from a Microsoft IIS web server.
Figure 19. Microsoft IIS Certificate Export Wizard
Figure 20. Exporting the Server Private Key and Certificate Using the Microsoft IIS Certificate Export Wizard
If the option to export a private key with the SSL server certificate is not available, or if the SSL certificate and private key cannot otherwise be obtained due to other constraints, the following other choices are available:
• Generate a self-signed certificate and key pair in the Cisco WAAS SSL accelerated service configuration. The client browser will display a security warning stating that the certificate could not be verified.
• Create a CSR by generating a new key pair and submit the CSR to an Enterprise CA server to obtain a new X.509 SSL certificate.
Generating a Self-Signed Certificate and Private Key
A self-signed certificate is an identity certificate that is signed by itself. Typically, a digital certificate is signed by a third-party trusted CA that the client web browsers are configured to trust.
When an SSL server presents a self-signed certificate to a web browser, the browser will display a warning stating that the certificate could not be verified. The user can either accept the certificate and allow the SSL handshake to continue or stop the SSL connection from being established.
Self-signed certificates are useful in proof-of-concept testing or small pilot designs when access to an actual SSL server certificate and private key is restricted. Cisco WAAS provides an option to generate a self-signed certificate for use with an SSL accelerated service.
To generate a self-signed certificate and private key for an SSL accelerated service, follow these steps:
• Select the Mark private key as exportable check box to export this certificate or key in the Cisco WAAS Central Manager and device CLI later.
• Fill in the fields for the certificate and private key.

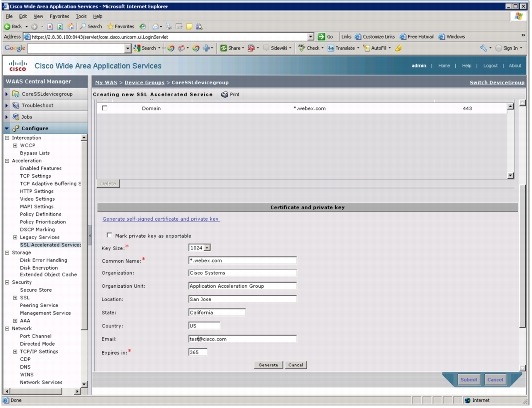

Figure 21 shows how to generate a self-signed certificate.
