Preface
This section describes the objectives, audience, organization, and conventions of the Cisco Aironet 1550 Series for Hazardous Locations Installation Guide.
Objectives
This publication explains the steps for installing the Cisco Aironet 1550 Series Outdoor Mesh Access Point for Hazardous Locations (called the access point in this document). The access point is available in model 1552.
The 1552 model is a dual-radio platform that supports dual-band (2.4- and 5-GHz) operation.
Audience
This publication is for the person installing and configuring an access point for the first time. The installer should be familiar with network structures, terms, and concepts.
 |
Warning  Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
|
|
Warning This equipment must be installed in restricted access locations in Norway, Finland, and Sweden. Only trained and qualified personnel are allowed to install, replace, or service this equipment as instructed in this installation guide.
|
Organization
This guide contains the following sections:
Chapter
|
Title
|
Description
|
Chapter 1
|
Overview
|
Describes the major components and features of the access point.
|
Chapter 2
|
Installing the Access Point
|
Provides warnings, safety information, and mounting information you need to install your access point. The chapter contains a new section that provides information and procedures for mounting the access point in Class I, Division 2, Zone 2 hazardous locations.
|
Chapter 3
|
Troubleshooting
|
Provides basic troubleshooting procedures for the access point.
|
Appendix A
|
Translated Safety Warnings
|
Indicates how to access the document that provides translations of the safety warnings that appear in this publication.
|
Appendix B
|
Declarations of Conformity and Regulatory Information
|
Describes the regulatory conventions to which the access point conforms and provides guidelines for operating access points in Japan.
|
Appendix C
|
Channels and Power Levels
|
Indicates how to access the document that lists the access point radio channels and the maximum power levels supported by the world regulatory domains.
|
Appendix D
|
Access Point Specifications
|
Lists technical specifications for the access point.
|
Appendix E
|
Access Point Pinouts
|
Describes the connector pinouts for the access point.
|
Appendix F
|
Configuring DHCP Option 43
|
Describes the procedure to configure DHCP Option 43.
|
Conventions
This publication uses the following conventions:
Convention
|
Description
|
boldface font
|
Commands, command options, and keywords are in boldface.
|
italic font
|
Arguments for which you supply values are in italics.
|
[ ]
|
Elements in square brackets are optional.
|
|
Terminal sessions and information the system displays are in screen font.
|
|
Information you must enter is in boldface screen font.
|
|
Arguments for which you supply values are in italic screen font.
|
^
|
The symbol ^ represents the key labeled Control. For example, the key combination ^D in a screen display means hold down the Control key while you press the D key.
|
< >
|
Nonprinting characters, such as passwords, are in angle brackets.
|
Notes use the following conventions:
Note Means reader take note. Notes contain helpful suggestions or references to materials not contained in this manual.
Cautions use the following conventions:
Caution Means
reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.
Warnings use the following conventions:
|
Warning
|
|
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
SAVE THESE INSTRUCTIONS
|
Related Documents
These documents provide complete information about the access point:
•Release Notes for Cisco Wireless LAN Controllers and Lightweight Access Points
•Getting Start Guide: Cisco Aironet 1552S Outdoor Mesh Access Points
•Cisco Wireless LAN Controller Configuration Guide
•Cisco Aironet 1550 Series Outdoor Mesh Access Point Power Injector Installation Instructions
Click this link to browse to the Cisco Wireless documentation home page:
http://www.cisco.com/en/US/products/hw/wireless/index.html
To browse to the access point documentation, click Cisco Aironet 1550 Series listed under "Outdoor Wireless." The documentation can be accessed from the Support box.
To browse to the Cisco Wireless LAN Controller documentation, click Standalone Controllers listed under "Wireless LAN Controllers." The documentation can be accessed from the Support box.
Finding the Product Serial Number
The access point serial number is on the bottom of the access point (refer to Figure 1).

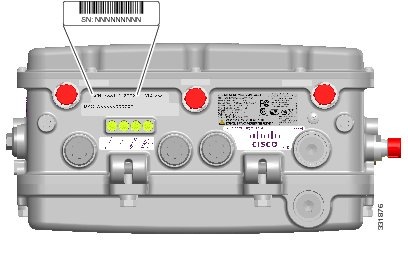

Figure 1 Location of Serial Number Label
The access point serial number label contains the following information:
•Model number, such as AIR-CAP1552S-x-K9.
•Serial number, such as WCN0636279B (11 alphanumeric digits).
•Access point MAC address, for example 68BDABF54600 (12 hexadecimal digits). It is located under the serial number.
You need your product serial number when requesting support.
Obtaining Documentation, Support, and Security Guidelines
This access point is sold through Honeywell Process Solutions group (https://www.honeywellprocess.com/en-US/pages/default.aspx) as part of their OneWireless solution. For support for this access point please contact Honeywell via the web at: https://www.honeywellprocess.com/en-US/support/Pages/default.aspx or by phone at 1-800-822-7673 (Option 1).
For information on obtaining documentation and support, providing documentation feedback, security guidelines, and recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
To view all new wireless documentation, click on Wireless.
