Cisco Unified Wireless IP Phone 7920 Accessory Guide


This guide describes the various accessories that are available for your Cisco Unified Wireless IP Phone 7920 and provides this information:

Available Accessories and Part Numbers

Battery

Power Supply

Desktop Charger

Multi-Charger

Carrying Cases

Protective Cover Cases

Standard Wired Earbud

Cisco 7920 Configuration Utility CD and USB Cables

Guidelines for Using Accessories and the Phone

Related Documentation

Obtaining Documentation

Documentation Feedback

Cisco Product Security Overview

Product Alerts and Field Notices

Obtaining Technical Assistance

Obtaining Additional Publications and Information

Available Accessories and Part Numbers

Table 1 lists the available accessories and part numbers for the Cisco Unified Wireless IP Phone 7920. To purchase these accessories, contact your local dealer or your corporate representative.

.

Table 1 Accessories and Part Numbers for the Cisco Unified Wireless IP Phone 7920

Accessory
Part Number

Standard battery

CP-BATT-7920-STD=

Extended battery

CP-BATT-7920-EXT=

Phone power supply for Australia and New Zealand

CP-PWR-7920-AU=

Phone power supply for Central Europe

CP-PWR-7920-CE=

Phone power Supply for China

CP-PWR-7920-CN=

Phone power supply for Japan

CP-PWR-7920-JP=

Phone power supply for North America

CP-PWR-7920-NA=

Phone power supply for United Kingdom

CP-PWR-7920-UK=

Desktop charger, standard (no power supply)

CP-DSKCH-BUN-7920

Carrying case, holster

CP-CASE-7920-HOL=

Carrying case, full cover

CP-CASE-7920-FLC=

Standard wired earbud

CP-EARBUD-7920-ST=

Cisco Unified Wireless IP Phone 7920 Configuration Utility CD and USB cables

CP-CFGPR-BUN-7920

Cisco Unified Wireless IP Phone 7920 Multi-Charger bundle (includes multi-charger, power supply, and AC power cord)

CP-MCHGR-7920-BUN

Cisco Unified Wireless IP Phone 7920 Multi-Charger

CP-MULTICHGR-7920=

Power supply for multi-charger

CP-PWR-MC7920=

Multi-charger AC power cord for Australia and New Zealand

CAB-AC2AUS=

Multi-charger AC power cord for China

CAB-AC2CHI=

Multi-charger AC power cord for Europe

CAB-AC2E=

Multi-charger AC power cord for Japan

CAB-AC2J=

Multi-charger AC power cord for North America

CAB-AC2=

Multi-charger AC power cord for United Kingdom

CAB-AC2UK=


Battery

Table 2 describes the battery types for the Cisco Unified Wireless IP Phone 7920. Refer to the Cisco Unified Wireless IP Phone 7920 Guide for instructions on installing your battery.

.

Table 2 Battery Types for the Cisco Unified Wireless IP Phone 7920

Type
Technology
Talk Time
Standby Time
Battery Part Numbers

Standard

Lithium ion

3.5 hours

Up to 30 hours

CP-BATT-7920-STD=

Extended

Lithium ion

4.25 hours

Up to 40 hours

CP-BATT-7920-EXT=



Caution Use only Cisco supplied batteries with the Cisco Unified Wireless IP Phone 7920.

Power Supply

The power supply with AC adapter shown in Figure 1 enables you to quickly charge your phone battery. To use the adapter, plug it into a wall outlet, and insert the connector into the base of your Cisco Unified Wireless IP Phone 7920 or to the back of the desktop charger.


Note You can use the phone while you are charging the battery.


Figure 1 Power Supply

Table 3 provides approximate battery charging times for the two battery types and power supply configurations. You can check the battery charging state on the phone display.

.

Table 3 Battery Charging Times with Power Supply Configurations

Battery Type
Power Supply Connected to Phone
Power Supply Connected to Desktop Charger

Standard

4.5 hours

4.5 hours

Extended

6 hours

6 hours



Caution Use only Cisco supplied power supplies for the Cisco Unified Wireless IP Phone 7920.

Desktop Charger

You can use the desktop charger, as shown in Figure 2, to charge both the phone battery installed in the phone and a spare battery at the same time.


Note The desktop charger does not include the power supply which must be ordered separately.


To use the desktop charger, see Figure 2 and follow these steps:

Procedure


Step 1 Plug the power supply with AC adapter into a wall outlet, and insert the connector into the back of the desktop charger.

Step 2 Insert the Cisco Unified Wireless IP Phone 7920 into the upper compartment of the charger.

Step 3 Insert the spare battery into the lower compartment.


Note You can insert and charge both the phone and the spare battery at the same time, or you can insert and charge them separately.


Step 4 To use the Cisco Unified 7920 Configuration Utility to import or export settings while charging the Cisco Unified Wireless IP Phone 7920 and the battery, connect the desktop charger to your computer with the standard USB A-type to B-type cable.



Note Place the desktop charger on a table or desk where you can easily lift the phone up and out of the desktop charger cradle.
If the charger is placed on a high shelf, it is difficult to see how to insert or remove the phone properly and you might damage the connection.

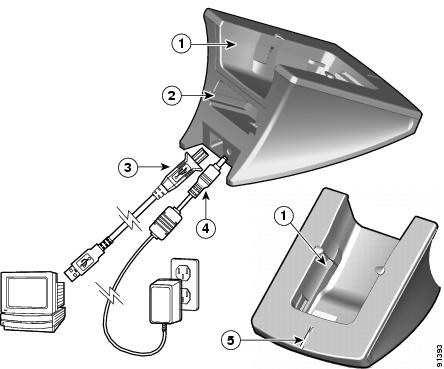

Figure 2 Desktop Charger

1

Upper compartment—For phone

4

AC adapter—Plugs into wall outlet

2

Lower compartment—For spare battery

5

LED indicator—Indicates charging status

3

USB A-type to B-type cable—Connects phone to PC



The LED indicator in Figure 2, turns red when the battery is charging. The indicator turns green when the battery is charged. Check the LED for charging state of the phone or battery.

Table 4 provides the approximate charging times for the standard battery with these desktop charger configurations.

Table 4 Battery Charging Times for Desktop Charger

Desktop Charger Configuration
Charging Times
Standard Battery
Extended Battery

Battery only

4.5 hours

6 hours

Battery installed in the phone with phone powered on

4.5 hours

6 hours

Battery installed in the phone (powered on) and a spare battery

4.5 hours

6 hours


Multi-Charger

The multi-charger, as shown in Figure 3, can charge up to six phones and up to six batteries at the same time. You can place the multi-charger on a desk or mount it on the wall to save space.

To use the multi-charger, see Figure 3 and follow these steps:

Procedure


Step 1 Install and power the multi-charger by following the instructions in the installation guide that accompanies the multi-charger.

Step 2 Insert a phone into the upper compartment and the LED indicator turns red.

Step 3 Insert a spare battery into the lower compartment and the LED indicator turns red.

Step 4 When the LED indicator turns green, the battery is charged and you can remove the phone or battery.


Figure 3 Multi-Charger

1

Upper compartment—For phone

3

LED indicators—Indicates charging status

2

Lower compartment—For spare battery



Table 5 provides approximate battery charging times for various multi-charger configurations.

Table 5 Battery Charging Time and Multi-Charger Charging Configurations

Charging Configuration
Charging Time

Standard battery in lower compartment

3 hours

Extended battery in lower compartment

4 hours

Standard battery installed in the phone with phone powered on

4.5 hours

Extended battery installed in the phone with phone powered on

6 hours



Note Separate AC power cords for use outside of the United States are available for the multi-charger power supply.


Carrying Cases

The holster case, shown in Figure 4, and the full cover case, shown in Figure 5 are available for carrying your Cisco Unified Wireless IP Phone 7920.

Figure 4 Holster Case

Figure 5 Full Cover Case

Protective Cover Cases

Phone cover cases provide extra protection for the phone in special environments such as these:

Healthcare—Cover cases keep liquids and other substances on hands from contaminating the phone. You can disinfect the phone cover case while protecting the phone from moisture.

Manufacturing—Heavy-duty cover cases protect phones from dust, electro-static discharge (ESD), and provide drop protection.

Retail and Service—Cover cases keep the phone free from moisture, hair, and dust, and protect against hard impacts from dropping a phone.


Note You can invalidate the one-year hardware warranty by not adequately protecting your phone from moisture, contaminants, or hard impacts from dropping the phone.


You can order protective cover cases from these suppliers:

System Wear provides a heavy duty vinyl case which can be cleaned or disinfected. It is ideal for healthcare, manufacturing or retail environments where drop protection is important.

Order from System Wear at www.systemwear.com

zCover makes a silicon cover case for phones that need to be cleaned or disinfected.

Order from zCover at www.zcover.com

Standard Wired Earbud

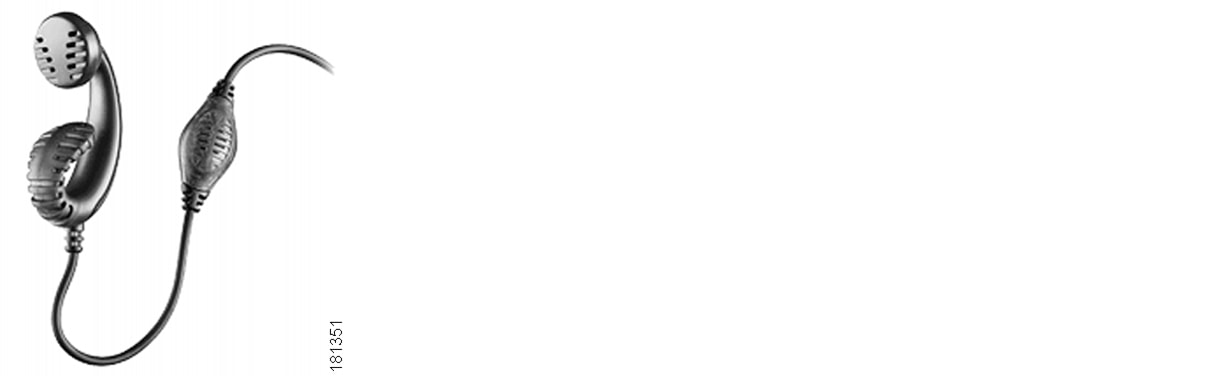

The standard wired earbud, shown in Figure 6, has a 2.5 mm, 3-band/4connector plug and is designed for indoor and outdoor use with the Cisco Unified Wireless IP Phone 7920.

Figure 6 Standard Wired Earbud


Note For Australia and New Zealand, the Cisco supplied earbud for the Cisco Unified Wireless IP Phone 7920 is not supported. Contact your sales representative for assistance.


Cisco 7920 Configuration Utility CD and USB Cables

The Cisco 7920 Configuration Utility enables system administrators to save settings to configuration files for exporting from a computer to the Cisco Unified Wireless IP Phone 7920 and to upgrade firmware on the phone. The Cisco 7920 Configuration Utility also enables system administrators to import configuration files from the Cisco Unified Wireless IP Phone 7920 to the computer. Refer to the Cisco Unified Wireless IP Phone 7920 Administration Guide for Cisco Unified CallManager for information about using the Cisco 7920 Configuration Utility.

The computer and the Cisco Unified Wireless IP Phone 7920 are connected by using a USB cable. Two USB cables are shipped with the Cisco 7920 Configuration Utility CD. Refer to the following sections for more information about the USB cables.

Phone to A-Type 48-Inch USB Cable

Standard A-Type to B-Type 48-Inch USB Cable


Note USB cables are not sold separately from the Cisco 7920 Configuration Utility CD bundle. See Table 1 for information about accessory bundle contents.


Computer Hardware and Software Requirements

The Cisco 7920 Configuration Utility application requires the following computer hardware and software.

Computer Hardware Requirements

IBM-compatible PC that runs Microsoft Windows

CD-ROM drive

USB port and cable

Keyboard and mouse or other pointing device

Computer Software Requirements

The computer must run one of these Windows operating systems:

Windows 98 (Second Edition)

Windows ME

Windows 2000 Professional (SP1 or later)

Windows XP (Home Edition or Professional)

USB Cables

You can use these USB cables with your Cisco Unified Wireless IP Phone 7920:

Phone to A-Type 48-Inch USB Cable

Standard A-Type to B-Type 48-Inch USB Cable

Phone to A-Type 48-Inch USB Cable

You can use the phone to A-type 48-inch USB cable, as shown in Figure 7, to connect your Cisco Unified Wireless IP Phone 7920 to a computer that is running the Cisco 7920 Configuration Utility.

Figure 7 Phone to A-Type 48-Inch USB Cable

Standard A-Type to B-Type 48-Inch USB Cable

You can use the standard A-type to B-type 48-inch USB cable, as shown in Figure 8, to connect your computer to a Cisco Unified Wireless IP Phone 7920 that is in the desktop charger. You can charge your Cisco Unified Wireless IP Phone 7920 while simultaneously transmitting data between the Cisco Unified Wireless IP Phone 7920 and your computer that is running the Cisco 7920 Configuration Utility. (See Figure 2.)

Figure 8 Standard A-Type to B-Type 48-Inch USB Cable

Guidelines for Using Accessories and the Phone

Follow these guidelines when using accessories and your Cisco Unified Wireless IP Phone 7920:

Use only chargers, batteries, and accessories that are approved by the Cisco Unified Wireless IP Phone 7920 manufacturer.

Do not adhere a clip to the back of the phone or insert a clip between the phone and battery cover because it can damage the battery.

Use a protective cover case to shield the phone from moisture, dust, hair, grease, and other contaminants that might get on your hands. For example, in Healthcare environments, where phones must be cleaned with sterilizing wipes, you must use a protective cover case to prevent moisture damage to the phone.

Use a protective cover case in environments where the phone might be bumped or dropped, such as manufacturing or warehouse environments.

When disconnecting the power cord of any accessory, grasp and pull the plug. Do not pull the cord.

Clean the phone only with a soft dry cloth. Do not use moist wipes or cleaning powders that might damage the phone.


Note Using unapproved accessories, not protecting the phone from moisture, contaminants, and hard impacts can invalidate the one-year hardware warranty on the phone.


Related Documentation

The following publications are companion documents to the Cisco Unified Wireless IP Phone 7920 Accessory Guide:

Cisco Unified Wireless IP Phone 7920 Guide for Cisco Unified CallManager.

Cisco Unified Wireless IP Phone 7920 Administration Guide for Cisco Unified CallManager.

Regulatory Compliance and Safety Information for the Cisco Unified Wireless IP Phone 7920.

Cisco Unified Wireless IP Phone 7920 Installation Guide


Note For the latest information about the Cisco Unified Wireless IP Phone 7920, refer to the Cisco Unified Wireless IP Phone 7920 Release Notes for Cisco Unified CallManager. You can access the release notes from Cisco.com by performing a keyword search for "7920 release notes."


Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. This section explains the product documentation resources that Cisco offers.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/techsupport

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/web/siteassets/locator/index.html

Product Documentation DVD

The Product Documentation DVD is a library of technical product documentation on a portable medium. The DVD enables you to access installation, configuration, and command guides for Cisco hardware and software products. With the DVD, you have access to the HTML documentation and some of the PDF files found on the Cisco website at this URL:

http://www.cisco.com/univercd/home/home.htm

The Product Documentation DVD is created and released regularly. DVDs are available singly or by subscription. Registered Cisco.com users can order a Product Documentation DVD (product number DOC-DOCDVD= or DOC-DOCDVD=SUB) from Cisco Marketplace at the Product Documentation Store at this URL:

http://www.cisco.com/go/marketplace/docstore

Ordering Documentation

You must be a registered Cisco.com user to access Cisco Marketplace. Registered users may order Cisco documentation at the Product Documentation Store at this URL:

http://www.cisco.com/go/marketplace/docstore

If you do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

Documentation Feedback

You can provide feedback about Cisco technical documentation on the Cisco Technical Support & Documentation site area by entering your comments in the feedback form available in every online document.

Cisco Product Security Overview

Cisco provides a free online Security Vulnerability Policy portal at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

From this site, you will find information about how to do the following:

Report security vulnerabilities in Cisco products

Obtain assistance with security incidents that involve Cisco products

Register to receive security information from Cisco

A current list of security advisories, security notices, and security responses for Cisco products is available at this URL:

http://www.cisco.com/go/psirt

To see security advisories, security notices, and security responses as they are updated in real time, you can subscribe to the Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed. Information about how to subscribe to the PSIRT RSS feed is found at this URL:

http://www.cisco.com/en/US/products/products_psirt_rss_feed.html

Reporting Security Problems in Cisco Products

Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you have identified a vulnerability in a Cisco product, contact PSIRT:

For emergencies only — security-alert@cisco.com

An emergency is either a condition in which a system is under active attack or a condition for which a severe and urgent security vulnerability should be reported. All other conditions are considered nonemergencies.

For nonemergencies — psirt@cisco.com

In an emergency, you can also reach PSIRT by telephone:

1 877 228-7302

1 408 525-6532


Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product (for example, GnuPG) to encrypt any sensitive information that you send to Cisco. PSIRT can work with information that has been encrypted with PGP versions 2.x through 9.x.

Never use a revoked encryption key or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

The link on this page has the current PGP key ID in use.

If you do not have or use PGP, contact PSIRT to find other means of encrypting the data before sending any sensitive material.


Product Alerts and Field Notices

Modifications to or updates about Cisco products are announced in Cisco Product Alerts and Cisco Field Notices. You can receive Cisco Product Alerts and Cisco Field Notices by using the Product Alert Tool on Cisco.com. This tool enables you to create a profile and choose those products for which you want to receive information.

To access the Product Alert Tool, you must be a registered Cisco.com user. (To register as a Cisco.com user, go to this URL: http://tools.cisco.com/RPF/register/register.do) Registered users can access the tool at this URL:

new URL http://www.cisco.com/cisco/support/notifications.html

Obtaining Technical Assistance

Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco Technical Support & Documentation website on Cisco.com features extensive online support resources. In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not have a valid Cisco service contract, contact your reseller.

Cisco Technical Support & Documentation Website

The Cisco Technical Support & Documentation website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do


Note Use the Cisco Product Identification Tool to locate your product serial number before submitting a request for service online or by phone. You can access this tool from the Cisco Technical Support & Documentation website by clicking the Tools & Resources link, clicking the All Tools (A-Z) tab, and then choosing Cisco Product Identification Tool from the alphabetical list. This tool offers three search options: by product ID or model name; by tree view; or, for certain products, by copying and pasting show command output. Search results show an illustration of your product with the serial number label location highlighted. Locate the serial number label on your product and record the information before placing a service call.



Tip Displaying and Searching on Cisco.com

If you suspect that the browser is not refreshing a web page, force the browser to update the web page by holding down the Ctrl key while pressing F5.

To find technical information, narrow your search to look in technical documentation, not the entire Cisco.com website. On the Cisco.com home page, click the Advanced Search link under the Search box and then click the Technical Support & Documentation radio button.

To provide feedback about the Cisco.com website or a particular technical document, click Contacts & Feedback at the top of any Cisco.com web page.


Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests, or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411
Australia: 1 800 805 227
EMEA: +32 2 704 55 55
USA: 1 800 553 2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.

Severity 1 (S1)—An existing network is "down" or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.

Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operations are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.

Severity 3 (S3)—Operational performance of the network is impaired while most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online and printed sources.

The Cisco Online Subscription Center is the website where you can sign up for a variety of Cisco e-mail newsletters and other communications. Create a profile and then select the subscriptions that you would like to receive. To visit the Cisco Online Subscription Center, go to this URL:

http://www.cisco.com/offer/subscribe

The Cisco Product Quick Reference Guide is a handy, compact reference tool that includes brief product overviews, key features, sample part numbers, and abbreviated technical specifications for many Cisco products that are sold through channel partners. It is updated twice a year and includes the latest Cisco channel product offerings. To order and find out more about the Cisco Product Quick Reference Guide, go to this URL:

http://www.cisco.com/go/guide

Cisco Marketplace provides a variety of Cisco books, reference guides, documentation, and logo merchandise. Visit Cisco Marketplace, the company store, at this URL:

http://www.cisco.com/go/marketplace/

Cisco Press publishes a wide range of general networking, training, and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:

http://www.ciscopress.com

Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

Networking products offered by Cisco Systems, as well as customer support services, can be obtained at this URL:

http://www.cisco.com/en/US/products/index.html

Cisco Support Community is an interactive website where networking professionals share questions, suggestions, and information about networking products and technologies with Cisco experts and other networking professionals. Join a discussion at this URL:

https://supportforums.cisco.com/index.jspa

"What's New in Cisco Documentation" is an online publication that provides information about the latest documentation releases for Cisco products. Updated monthly, this online publication is organized by product category to direct you quickly to the documentation for your products. You can view the latest release of "What's New in Cisco Documentation" at this URL:

http://www.cisco.com/univercd/cc/td/doc/abtunicd/136957.htm

World-class networking training is available from Cisco. You can view current offerings at this URL:

http://www.cisco.com/en/US/learning/index.html
