If you purchased E-Series Server Option 1 (E-Series Server without preinstalled operating system or hypervisor), you must install an operating system or hypervisor.
Operating System or Hypervisor Installation Methods
E-Series Servers support several operating systems and hypervisors. Regardless of the platform being installed, you can install it on your server using one of the following tools:
KVM console
PXE installation server
Host image mapping
KVM Console
The KVM console is an interface accessible from CIMC that emulates a direct keyboard, video, and mouse connection to the server. The KVM console allows you to connect to the server from a remote location. Instead of using CD/DVD or floppy drives physically connected to the server, the KVM console uses virtual media, which are actual disk drives or disk image files that are mapped to virtual CD/DVD or floppy drives. You can map any of the following to a virtual drive:
CD/DVD or floppy drive on your computer
Disk image files (ISO or IMG files) on your computer
USB flash drive on your computer
You can use the KVM console to install an operating system or hypervisor on the server and to do the following:
Access the BIOS setup menu by pressing F2 during bootup.
Access the CIMC Configuration Utility by pressing F8 during bootup.
Access the WebBIOS to configure RAID, by pressing the Ctrl and H keys during bootup.
Load the operating system or hypervisor installation disk into your CD/DVD drive, or copy the disk image files to your computer.
Step 2
If CIMC is not open, log into the CIMC GUI.
Step 3
In the
Navigation pane, click the
Server tab.
Step 4
On the Server tab, click Summary.
Step 5
From the Actions area, click Launch KVM Console.
The KVM Console opens in a separate window.
Step 6
From the KVM console, click the Virtual Media tab.

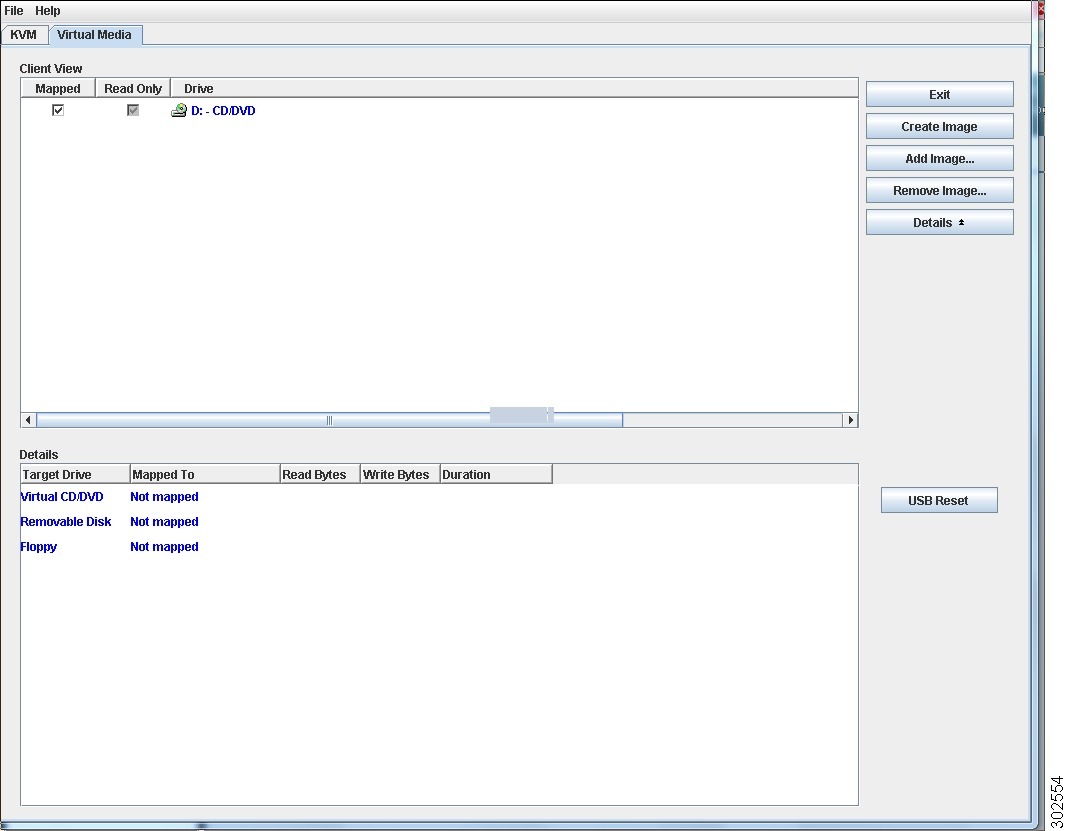

Figure 1.
Step 7
In the Virtual Media tab, map the virtual media using either of the following methods:
Check the Mapped check box for the CD/DVD drive containing the operating system or hypervisor installation disk.
Click Add Image, navigate to and select the operating system or hypervisor installation disk image, click Open to mount the disk image, and then check the Mapped check box for the mounted disk image.
Note
You must keep the Virtual Media tab open during the installation process. Closing the tab unmaps all virtual media.
Step 8
Set the boot order to make the virtual CD/DVD drive as the boot device.
When the server reboots, it begins the installation process from the virtual CD/DVD drive. Refer to the installation guide for the platform being installed to guide you through the rest of the installation process.
Step 10
If disk drives are not displayed after you install the operating system or hypervisor, you must install drivers. See the appropriate operating system or hypervisor documentation for instructions on how to install drivers. For instructions on how to install drivers on a Microsoft Windows operating system, see Installing Drivers for the Microsoft Windows Operating System.
What to Do Next
After the installation is complete, reset the virtual media boot order to its original setting.
PXE Installation Servers
A Preboot Execution Environment (PXE) installation server allows a client to boot and install an operating system or hypervisor from a remote location. To use this method, a PXE environment must be configured and available on your LAN, typically a dedicated provisioning LAN. In addition, the server must be set to boot from the network. When the server boots, it sends a PXE request across the network. The PXE installation server acknowledges the request, and starts a sequence of events that installs the operating system or hypervisor on the server.
PXE servers can use installation disks, disk images, or scripts to install the operating system or hypervisor. Proprietary disk images can also be used to install the platform, additional components, or applications.
Note
PXE installation is an efficient method for installing a platform on a large number of servers. However, considering that this method requires setting up a PXE environment, it might be easier to use another installation method.
If a PXE install server is available on the VLAN, the installation process begins when the server reboots. PXE installations are typically automated and require no additional user input. Refer to the installation guide for the operating system or hypervisor being installed to guide you through the rest of the installation process.
What to Do Next
After the installation is complete, reset the LAN boot order to its original setting.
Host Image Mapping
The Host Image Mapping feature allows you to download, map, unmap, or delete a host image. Download a host image, such as a Microsoft Windows, Linux, or VMware from a remote FTP, FTPS, HTTP, or HTTPS server onto the CIMC internal repository, then map the image onto the virtual drive of a USB controller in the E-Series Server. After you map the image, set the boot order to make the virtual drive, in which the image is mounted, as the first boot device, and then reboot the server. The host image must have .iso as the file extension.
The Host Image Mapping feature also allows you to download and mount a diagnostics image. The diagnostics image must have .diag as the file extension.
If you start an image update while an update is already in process, both updates will fail.
Procedure
Step 1
In the
Navigation pane, click the
Server tab.
Step 2
On the Server tab, click Host Image Mapping.
Figure 2. Host Image Mapping
Step 3
In the Install Pane, complete the following fields:
Name
Description
URL field
The URL of the remote server on which the image is located.
If the remote server requires user authentication, you must add the username and password of the remote server in the URL. The remote server can be an FTP, FTPS, HTTP, or HTTPS server.
The URL syntax must be: protocol://username:password@server-ip-address/path/filename
Image Name field
The name of the image.
If you are installing a host image, that image must have .iso as the file extension.
If you are installing a diagnostics image, that image must have .diag as the file extension.
Step 4
Click Download.
The image file is downloaded from the specified FTP, FTPS, HTTP, or HTTPS server onto the CIMC internal repository.
Step 5
Click Map Image to Host.
The image is mounted on the virtual drive of a USB controller. The virtual drive can be one of the following:
HDD—Hard disk drive
FDD—Floppy disk drive
CDROM—Bootable CD-ROM
Step 6
Set the boot order to make the virtual drive in which the image is mounted as the first boot device.
To determine in which virtual drive the image is mounted, see the Host Image Update area in the Host Image Mapping page.
Step 7
Reboot the server.
Step 8
If the image contains an answer file, the operating system or hypervisor installation is automated and the image is installed. Otherwise, the installation wizard is displayed. Follow the wizard steps to install the image.
Step 9
If disk drives are not displayed after you install the operating system or hypervisor, you must install drivers. See the appropriate operating system or hypervisor documentation for instructions on how to install drivers. For instructions on how to install drivers on a Microsoft Windows operating system, see Installing Drivers for the Microsoft Windows Operating System.
What to Do Next
After the installation is complete, reset the virtual media boot order to its original setting.
The image is unmounted from the virtual drive of the USB controller.
Installing Drivers for the Microsoft Windows Server
Note
If you purchased E-Series Server Option 1 (E-Series Server without preinstalled operating system or hypervisor), and you installed your own version of the Microsoft Windows Server, you must install drivers.
Microsoft Windows operating system requires that you install three drivers:
On-Board Network Drivers for Windows 2008 R2
LSI Drivers (On-Board Hardware RAID Controller) for Windows 2008 R2
Intel Drivers for Windows 2008 R2
If you have purchased a 10 Gigabit add-on card, you must also install the 10G PCIe Network Drivers for Windows 2008 R2.
Install your own version of Microsoft Windows Server.
During the installation process, you will be prompted for the LSI Drivers.
Step 4
Plug the USB flash drive into the USB slot in the E-Series Server, and then install the LSI Drivers.
Step 5
After the Microsoft Windows Server installation is complete, install the On-Board Network Drivers (Broadcom) and the Intel Drivers.
Basic Workflow for Downloading and Installing the VMware vSphere Hypervisor
Caution
If you are using VMware FL-SRE-V-HOST license (equivalent to VMware vSphere Hypervisor™ 5.X), make sure that the RAM that you are using is 32GB or less. If the RAM is more than 32GB, you will get an error message, and you will not be able to apply the license. If you want to use 48GB RAM, upgrade your license to FL-SRE-V-HOSTVC.
Download the customized VMware vSphere Hypervisor™ image.
Install the VMware vSphere Hypervisor image.
Assign a static IP address to the VMware vSphere Hypervisor™.
You must have an account with VMware to download the customized image.
Install the image onto the E-Series Server. For installation instructions, see Mapping the Host Image.
Procedure
Step 1
In your web browser, enter the IP address that you configured to access CIMC during initial setup and then log into CIMC.
The CIMC Home page, which is the Server Summary page, appears.
Step 2
From the Actions area of the Server Summary page, click the Launch KVM Console icon.
The KVM Console opens in a separate window.
Step 3
From the KVM console, click the KVM tab, and then do the following to configure the IP address:
Press F2 to access the VMware vSphere Hypervisor™ DCUI customization menu.
The DCUI login page appears.
Log into the DCUI.
The System Customization page appears.
From the System Customization page, click Configure Management Network.
The Configure Management Network page appears, which has several menu options,
including Network Adapter. The Network Adapter
menu option allows you to view the existing network adapters and
activate them.
Note
By default, the network adapter, vmnic0, is activated. Make sure that it stays activated.
From the Configure Management Network page, click the IP Configuration menu option.
To assign a static IP address, do the following:
In the IP Configuration dialog box, click the radio box
to specify that a static IP address will be used.
In the appropriate fields, enter the IP address, network mask, and the gateway IP address, and then press Enter. The Configure Management Network page appears.
In the Configure Management Network page, click the ESC key. The Configure
Management Network Confirm dialog box appears.
Enter y to accept the changes and restart the management network.
In the router configuration, add a route to the VMware vSphere Hypervisor™ host IP address.
For example, if the host IP address is 192.168.1.25 and the ucse interface is ucse 2/0, add the following route:
Verify that you
have network connectivity.
To download the vSphere Client, connection to the Internet is
required.
Note
The vSphere Client contains an online tutorial for first time
users. It also contains embedded in-line getting started
assistance, which allows you to set up your virtual infrastructure
through an easy to use, step-by-step process. If you are an
experienced user, you can choose to turn-off the getting started
in-line assistance.
Procedure
Step 1
Go to https://hypervisor-ip-address. You
are directed to the VMware website and the Welcome page opens.
Step 2
Click Download vSphere Client, and then
click Run to download the vSphere Client. The
VMware vSphere Client is installed and a shortcut icon to the
client appears on your desktop.
Step 3
Click the VMware vSphere Client icon to open the login window.
Step 4
To manage the VMware vSphere Hypervisor™, enter the IP address or hostname of
the VMware vSphere Hypervisor
™
and
the username and password, and then click
Login
. The vSphere Client GUI opens.
Note
The default username for the preinstalled VMware vSphere Hypervisor™ is root, which cannot be changed; and the default password is password. After you login, we recommend that you change the password.
Configuring the Server Boot Order
You can use the CIMC GUI or the BIOS setup menu to configure the server boot order.
Configuring the Server Boot Order Using the CIMC GUI
Before You Begin
Log into CIMC as a user with admin privileges.
Procedure
Step 1
In the
Navigation pane, click the
Server tab.
Step 2
On the Server tab, click BIOS.
Figure 4. BIOS
Step 3
In the Actions area, click Configure Boot Order.
The Configure Boot Order dialog box appears.

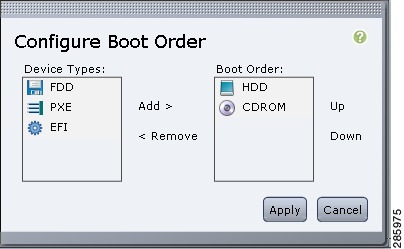

Figure 5. Configure Boot Order Dialog Box
Step 4
In the Configure Boot Order dialog box, complete the following fields as appropriate:
Name
Description
Device Types table
The server boot options. You can select one or more of the following:
HDD—Hard disk drive
FDD—Floppy disk drive
CDROM—Bootable CD-ROM
PXE—PXE boot
EFI—Extensible Firmware Interface
Add >
Moves the selected device type to the Boot Order table.
< Remove
Removes the selected device type from the Boot Order table.
Boot Order table
Displays the device types from which this server can boot, in the order in which the boot will be attempted.
Up
Moves the selected device type to a higher priority in the Boot Order table.
Down
Moves the selected device type to a lower priority in the Boot Order table.
Step 5
Click Apply.
Additional device types may be appended to the actual boot order, depending on what devices you have connected to your server.
What to Do Next
Reboot the server to boot with your new boot order.
If you want the server to boot from an external bootable device, such as an USB or an external CD ROM drive, which is directly connected to the E-Series Server, you must change the boot order priority. See Configuring the Boot Order Using the BIOS Setup Menu.
Configuring the Boot Order Using the BIOS Setup Menu
Use this procedure if you want the server to boot from an external bootable device, such as an USB or an external CD ROM drive that is directly connected to the E-Series Server.
Procedure
Step 1
In the
Navigation pane, click the
Server tab.
Step 2
On the Server tab, click Summary.
Step 3
From the Actions area, click Launch KVM Console.
The KVM Console opens in a separate window.
Step 4
From the Server Summary page, click Power Cycle Server to reboot the server.
Step 5
When prompted, press F2 during bootup to access the BIOS setup menu.
The Aptio Setup Utility appears, which provides the BIOS setup menu options.
Figure 6. BIOS Setup Menu
Step 6
Click the Boot tab.
Step 7
Scroll down to the bottom of the page below the Boot Options Priority area. The following boot option priorities are listed:
Floppy Drive BBS Priorities
Network Device BBS Priorities
Hard Drive BBS Priorities
CD/DVD ROM Drive BBS Priorities
Step 8
Use the Up or Down arrow keys on your keyboard to highlight the appropriate option.
Step 9
Press Enter to select the highlighted field.
Step 10
Choose the appropriate device as Boot Option 1.
Step 11
Press F4 to save changes and exit.
The Main tab of the BIOS setup displays the device that you configured as Boot Option 1.
