Cisco TelePresence Manager Reporting API Developer's Guide for Release 1.8
November 2011Cisco TelePresence Manager (CTS-Manager) provides programmatic access to an organization's Cisco TelePresence meeting details via a secure application programming interface (API). This API is known as the CTS-Manager Reporting API. The following sections provide information about this guide and the Reporting API:
•
Creating and Using the Reporting API Client
Who Should Use this Guide
The primary intent of this document is to provide information to the software developer who will implement the Reporting API. Developers who use this document should have a basic familiarity with software development, web services, and the functionality offered by CTS-Manager.
This guide also provides a Reporting API overview, which is appropriate for an audience with a less technical background than software developers.
Although the Reporting API works in conjunction with CTS-Manager, this document is not intended for the CTS-Manager administrator who is responsible for some prerequisites that ensure the Reporting API works, for example, uploading a valid Metrics Dashboard and Reporting API license to CTS-Manager.
For complete information intended for the CTS-Manager administrator, see the technical documents at the following location:
http://www.cisco.com/en/US/products/ps7074/tsd_products_support_series_home.html
Accessing Additional Reporting API Information
The Cisco Developer Network (CDN) portal provides access to multiple Cisco technology developer interfaces and collaborative support communities. The CDN also provides formalized support services for these interfaces to enable developers, customers, and partners to accelerate their development.
Developers can access additional Reporting API documentation, forums, blogs, and a Wiki on the CDN. A Cisco.com login is required to access this information.
To access the CDN, go to this location:
For more information about the formalized support service, see the "Service and Support" section.
Overview
This section provides the following overview information for the Reporting API:
•
Functional Overview

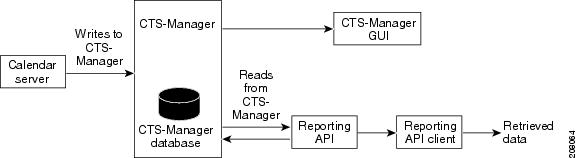

Figure 1 shows a simple Cisco TelePresence System (CTS) topology with components that illustrate how the Reporting API works.
Figure 1 Sample Reporting API Topology
When end users schedule meetings, the calendar server, as shown in Figure 1, handles the scheduling, then writes the meeting data to CTS-Manager. CTS-Manager stores this data, some of which can be viewed using the CTS-Manager graphical user interface (GUI).
An organization can optionally implement the Reporting API, which enables a developer to retrieve additional detailed meeting and associated user survey data from the CTS-Manager database. For information on how the organization can use the retrieved data, see the "Benefits of Using the Reporting API" section.
Benefits of Using the Reporting API
CTS-Manager provides the Metrics Dashboard, which graphically displays pre-defined reports based on meeting data stored in the CTS-Manager database. For example, the Metrics Dashboard displays a graphical representation of the number of meetings scheduled during a specified timeframe.
For complete information on the Metrics Dashboard, see the CTS Manager Administration and Installation Guide, which you can access at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
In addition to the data provided in the Metrics Dashboard, the Reporting API is available. When implemented, the Reporting API can provide the following benefits:
•
Using this detailed data in conjunction with the higher-level Metrics Dashboard data, an organization can get a comprehensive view of their Cisco TelePresence return on investment (ROI) and usage statistics.
•
•
•
•
Reporting API Output
In general, the Reporting API can capture the following data:
•
–
–
–
–
•
•
•
•
•
For a complete list of what the Reporting API can retrieve, see the "API Details" section.
The Reporting API provides meeting objects for the specified start and end dates in XML format. The Reporting API developer can transform this output into the format that best suits the needs of their organization.
Requirements
Before using the Reporting API, you must ensure that the following requirements are met:
•
•
•
–
–
After these user accounts are created, any user who belongs to this LDAP group is authorized to access CTS-Manager data using the Reporting API's web services. If no user accounts exist, a user who tries to access the data receives an unauthorized error.
•
For complete information on the CTS-Manager Licenses, Access Management, and Application Setting pages, see the CTS Manager Administration and Installation Guide, which you can access at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
Standards Compliance
Table 1 outlines the specifications with which the Reporting API implementation complies.
Table 1 Reporting API-Supported Specifications
Simple Object Access Protocol (SOAP) 1.2
Web Services Description Language (WSDL) 2.0
Web Services Base Notification 1.3
http://www.oasis-open.org/committees/tc_home.php?wg_abbrev=wsn
Note
Development Platforms
The Reporting API works in most SOAP development environments but has been tested with CTS-Manager release 1.8 and with Apache Axis 1.3.
This document provides examples in the Java programming language. The Java examples are based on Apache Axis 1.3 and JDK 5.0 (Java 2 Platform Standard Edition Development Kit 5.0). For more information about Apache Axis 1.3, go to the following location:
Note
Implementation Overview
API calls represent specific operations that an application can invoke at runtime to perform tasks. The Reporting API enables you to run a query on the following:
•
•
This section provides the following overview information on the Reporting API:
•
Reporting API Host URL Format
The following URL provides a means for the Reporting API client to access the web service, which runs on CTS-Manager:
http://hostname:port/rsoapis/services/ReportingMgmt
Where:
hostname is the CTS-Manager hostname.
port should be 8080.
A sample URL is as follows:
http://myCTSManager.mydomain.com:8080/rsoapis/services/ReportingMgmt
Data Model
The Reporting API uses the following class hierarchy for the java.lang.Object:
•
•
–
–
•
•
•
Reporting APIs
The CTS-Manager Reporting API supports the following APIs.
These APIs are read-only and do not provide the capability of writing data to CTS-Manager. For more information about these APIs, see the "API Details" section.
Query Survey Questionnaire
Description
This API returns the survey questions that meeting organizers can access via the CTS-Manager GUI.
API
getMeetingUsageSurveyQuestionaire
Input
None.
Output:
UsageSurveyQuestionnaire object, which contains an array of UsageSurveyQuestion objects and LastModifedDate. If the request itself is successfully completed, the response code is set to OK.
Possible Errors
•
•
•
For information on what to do if you receive these errors, see the "Troubleshooting" section.
Query Meetings
Description
This API returns all scheduled and ad hoc meetings between the specified start and end times and the usage survey responses for each meeting record.
API
searchMeetingRecordsByMeetingTime
Input
Start Date and End Date (UTC time-zone)
Note
Output
Array of MeetingRecord object.
Possible Errors
•
•
•
•
For information on what to do if you receive these errors, see the "Troubleshooting" section.
Implementation Details
Before implementing the Reporting API, you must be aware of these implementation details:
•
–
–
•
•
Creating and Using the Reporting API Client
Table 2 provides a high-level task flow that describes how to implement the Reporting API client, who is responsible for performing each task, and where to find additional information if applicable.
Table 2 Reporting API Client Creation and Usage Task Flow
1
Create a user account for the Reporting API client on the LDAP server, which entails performing these two sub-tasks:
•
•
LDAP administrator
-
2
Designate a machine as the host of the Reporting API client.
CTS-Manager administrator
For information on the URL that enables the Reporting API client to access the web service on this host, see "Reporting API Host URL Format" section.
3
If not already done, install CTS-Manager.
CTS-Manager administrator
CTS Manager Administration and Installation Guide, which is available at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
4
Upload a valid Metrics Dashboard and Reporting API license to CTS-Manager.
CTS-Manager administrator
CTS Manager Administration and Installation Guide, which is available at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
5
Map the "Reporting API User" role in CTS-Manager to the LDAP user group.
CTS-Manager administrator
CTS Manager Administration and Installation Guide, which is available at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
6
Enable the optional Meeting Organizer Usage Survey and Benefits Report feature.
CTS-Manager administrator
CTS Manager Administration and Installation Guide, which is available at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
7
On the Reporting API client host, download Apache Ant and Apache Axis version 1.3 or later.
Alternatively, you can use Eclipse, NetBeans, or another integrated development environment (IDE).
Reporting API developer
-
8
Generate stubs to be used by the Reporting API client code.
Reporting API developer
For more information about generating the stub code, see the "Stub Code Generation" section.
9
Deploy the Reporting API client as a separate web application on the designated machine.
Reporting API developer
-
After finishing these tasks, the Reporting API client should be able to invoke web services from CTS-Manager.
Sample Code
This section provides sample code. It also describes the following aspects of implementing the Reporting API.
Note
Development Prerequisites
The sample code assumes that you use Apache Ant for building Java code. For more information about Apache Ant, go to this location:
You can also use the Eclipse software development kit (SDK) when working on the Reporting API client Java code.
WDSL File
You can use the following sample web service definition language (WDSL) file content to generate automated client code stubs for the service:
<?xml version="1.0" encoding="UTF-8"?><wsdl:definitions targetNamespace="http://rsoapis.soap.scheduler.ts.cisco.com" xmlns:apachesoap="http://xml.apache.org/xml-soap" xmlns:impl="http://rsoapis.soap.scheduler.ts.cisco.com" xmlns:intf="http://rsoapis.soap.scheduler.ts.cisco.com" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/" xmlns:tns10="http://lang.java" xmlns:tns2="http://object.api.rsoapis.soap.scheduler.ts.cisco.com" xmlns:tns3="http://exception.rsoapis.soap.scheduler.ts.cisco.com" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:wsdlsoap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:xsd="http://www.w3.org/2001/XMLSchema"><!--WSDL created by Apache Axis version: 1.3Built on Oct 05, 2005 (05:23:37 EDT)--><wsdl:types><schema targetNamespace="http://object.api.rsoapis.soap.scheduler.ts.cisco.com" xmlns="http://www.w3.org/2001/XMLSchema"><import namespace="http://exception.rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://xml.apache.org/xml-soap"/><import namespace="http://rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://lang.java"/><import namespace="http://schemas.xmlsoap.org/soap/encoding/"/><complexType abstract="true" name="UsageSurveyItem"><sequence><element name="ID" nillable="true" type="soapenc:string"/><element name="deleted" type="xsd:boolean"/></sequence></complexType><complexType name="UsageSurveyResponseOption"><complexContent><extension base="tns2:UsageSurveyItem"><sequence><element name="displayText" nillable="true" type="soapenc:string"/></sequence></extension></complexContent></complexType><complexType name="UsageSurveyQuestion"><complexContent><extension base="tns2:UsageSurveyItem"><sequence><element name="displayText" nillable="true" type="soapenc:string"/><element name="required" type="xsd:boolean"/><element name="responseDataType" nillable="true" type="soapenc:string"/><element name="responseOptionType" nillable="true" type="soapenc:string"/><element name="responseOptions" nillable="true" type="impl:ArrayOf_tns2_UsageSurveyResponseOption"/><element name="responseValueType" nillable="true" type="soapenc:string"/></sequence></extension></complexContent></complexType><complexType name="UsageSurveyQuestionnaire"><sequence><element name="lastModified" nillable="true" type="xsd:dateTime"/><element name="questions" nillable="true" type="impl:ArrayOf_tns2_UsageSurveyQuestion"/></sequence></complexType><complexType name="UsageSurveyResponse"><sequence><element name="owningQuestionID" nillable="true" type="soapenc:string"/><element name="value" nillable="true" type="xsd:anyType"/><element name="valueType" nillable="true" type="soapenc:string"/></sequence></complexType><complexType name="MeetingRecord"><sequence><element name="MCUNames" nillable="true" type="impl:ArrayOf_soapenc_string"/><element name="meetingEndTime" nillable="true" type="xsd:dateTime"/><element name="meetingActualEndTime" nillable="true" type="xsd:dateTime"/><element name="meetingFeatures" nillable="true" type="impl:ArrayOf_soapenc_int"/><element name="meetingStartTime" nillable="true" type="xsd:dateTime"/><element name="meetingActualStartTime" nillable="true" type="xsd:dateTime"/><element name="meetingState" nillable="true" type="soapenc:int"/><element name="meetingSubject" nillable="true" type="soapenc:string"/><element name="meetingSystemID" nillable="true" type="soapenc:string"/><element name="normal" type="xsd:boolean"/><element name="organizerID" nillable="true" type="soapenc:string"/><element name="organizerTimezone" nillable="true" type="soapenc:string"/><element name="recurringMeeting" type="xsd:boolean"/><element name="roomNames" nillable="true" type="impl:ArrayOf_soapenc_string"/><element name="participatedRoomNames" nillable="true" type="impl:ArrayOf_soapenc_string"/><element name="surveyLastModifiedTime" nillable="true" type="xsd:dateTime"/><element name="surveyResponses" nillable="true" type="impl:ArrayOf_tns2_UsageSurveyResponse"/></sequence></complexType></schema><schema targetNamespace="http://rsoapis.soap.scheduler.ts.cisco.com" xmlns="http://www.w3.org/2001/XMLSchema"><import namespace="http://exception.rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://object.api.rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://xml.apache.org/xml-soap"/><import namespace="http://lang.java"/><import namespace="http://schemas.xmlsoap.org/soap/encoding/"/><complexType name="ArrayOf_tns2_UsageSurveyResponseOption"><complexContent><restriction base="soapenc:Array"><attribute ref="soapenc:arrayType" wsdl:arrayType="tns2:UsageSurveyResponseOption[]"/></restriction></complexContent></complexType><complexType name="ArrayOf_tns2_UsageSurveyQuestion"><complexContent><restriction base="soapenc:Array"><attribute ref="soapenc:arrayType" wsdl:arrayType="tns2:UsageSurveyQuestion[]"/></restriction></complexContent></complexType><complexType name="ArrayOf_xsd_anyType"><complexContent><restriction base="soapenc:Array"><attribute ref="soapenc:arrayType" wsdl:arrayType="xsd:anyType[]"/></restriction></complexContent></complexType><complexType name="ArrayOf_soapenc_string"><complexContent><restriction base="soapenc:Array"><attribute ref="soapenc:arrayType" wsdl:arrayType="soapenc:string[]"/></restriction></complexContent></complexType><complexType name="ArrayOf_soapenc_int"><complexContent><restriction base="soapenc:Array"><attribute ref="soapenc:arrayType" wsdl:arrayType="soapenc:int[]"/></restriction></complexContent></complexType><complexType name="ArrayOf_tns2_UsageSurveyResponse"><complexContent><restriction base="soapenc:Array"><attribute ref="soapenc:arrayType" wsdl:arrayType="tns2:UsageSurveyResponse[]"/></restriction></complexContent></complexType><complexType name="ArrayOf_tns2_MeetingRecord"><complexContent><restriction base="soapenc:Array"><attribute ref="soapenc:arrayType" wsdl:arrayType="tns2:MeetingRecord[]"/></restriction></complexContent></complexType></schema><schema targetNamespace="http://exception.rsoapis.soap.scheduler.ts.cisco.com" xmlns="http://www.w3.org/2001/XMLSchema"><import namespace="http://object.api.rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://xml.apache.org/xml-soap"/><import namespace="http://rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://lang.java"/><import namespace="http://schemas.xmlsoap.org/soap/encoding/"/><complexType name="ErrorCode"><sequence><element name="ID" nillable="true" type="soapenc:string"/><element name="code" type="xsd:int"/><element name="correctiveAction" nillable="true" type="soapenc:string"/><element name="description" nillable="true" type="soapenc:string"/><element name="module" nillable="true" type="soapenc:string"/><element name="rawMessage" nillable="true" type="soapenc:string"/><element name="severity" nillable="true" type="soapenc:string"/></sequence></complexType><complexType abstract="true" name="TSException"><sequence><element name="ID" nillable="true" type="soapenc:string"/><element name="cause" nillable="true" type="xsd:anyType"/><element name="code" type="xsd:int"/><element name="errorCode" nillable="true" type="tns3:ErrorCode"/><element name="erroredObjects" nillable="true" type="impl:ArrayOf_xsd_anyType"/><element name="message" nillable="true" type="soapenc:string"/><element name="module" nillable="true" type="soapenc:string"/></sequence></complexType><complexType name="APIDispatchException"><complexContent><extension base="tns3:TSException"><sequence/></extension></complexContent></complexType><complexType name="SearchException"><complexContent><extension base="tns3:TSException"><sequence/></extension></complexContent></complexType></schema><schema targetNamespace="http://xml.apache.org/xml-soap" xmlns="http://www.w3.org/2001/XMLSchema"><import namespace="http://exception.rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://object.api.rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://rsoapis.soap.scheduler.ts.cisco.com"/><import namespace="http://lang.java"/><import namespace="http://schemas.xmlsoap.org/soap/encoding/"/><complexType name="Vector"><sequence><element maxOccurs="unbounded" minOccurs="0" name="item" type="xsd:anyType"/></sequence></complexType></schema></wsdl:types><wsdl:message name="getMeetingUsageSurveyQuestionaireResponse"><wsdl:part name="getMeetingUsageSurveyQuestionaireReturn" type="tns2:UsageSurveyQuestionnaire"></wsdl:part></wsdl:message><wsdl:message name="SearchException"><wsdl:part name="fault" type="tns3:SearchException"></wsdl:part></wsdl:message><wsdl:message name="searchMeetingRecordsByMeetingTimeResponse"><wsdl:part name="searchMeetingRecordsByMeetingTimeReturn" type="impl:ArrayOf_tns2_MeetingRecord"></wsdl:part></wsdl:message><wsdl:message name="searchMeetingRecordsByMeetingTimeRequest"><wsdl:part name="in0" type="xsd:dateTime"></wsdl:part><wsdl:part name="in1" type="xsd:dateTime"></wsdl:part></wsdl:message><wsdl:message name="APIDispatchException"><wsdl:part name="fault" type="tns3:APIDispatchException"></wsdl:part></wsdl:message><wsdl:message name="getMeetingUsageSurveyQuestionaireRequest"></wsdl:message><wsdl:portType name="ReportingMgmt"><wsdl:operation name="getMeetingUsageSurveyQuestionaire"><wsdl:input message="impl:getMeetingUsageSurveyQuestionaireRequest" name="getMeetingUsageSurveyQuestionaireRequest"></wsdl:input><wsdl:output message="impl:getMeetingUsageSurveyQuestionaireResponse" name="getMeetingUsageSurveyQuestionaireResponse"></wsdl:output><wsdl:fault message="impl:APIDispatchException" name="APIDispatchException"></wsdl:fault><wsdl:fault message="impl:SearchException" name="SearchException"></wsdl:fault></wsdl:operation><wsdl:operation name="searchMeetingRecordsByMeetingTime" parameterOrder="in0 in1"><wsdl:input message="impl:searchMeetingRecordsByMeetingTimeRequest" name="searchMeetingRecordsByMeetingTimeRequest"></wsdl:input><wsdl:output message="impl:searchMeetingRecordsByMeetingTimeResponse" name="searchMeetingRecordsByMeetingTimeResponse"></wsdl:output><wsdl:fault message="impl:APIDispatchException" name="APIDispatchException"></wsdl:fault><wsdl:fault message="impl:SearchException" name="SearchException"></wsdl:fault></wsdl:operation></wsdl:portType><wsdl:binding name="ReportingMgmtSoapBinding" type="impl:ReportingMgmt"><wsdlsoap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http"/><wsdl:operation name="getMeetingUsageSurveyQuestionaire"><wsdlsoap:operation soapAction=""/><wsdl:input name="getMeetingUsageSurveyQuestionaireRequest"><wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://rsoapis.soap.scheduler.ts.cisco.com" use="encoded"/></wsdl:input><wsdl:output name="getMeetingUsageSurveyQuestionaireResponse"><wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://rsoapis.soap.scheduler.ts.cisco.com" use="encoded"/></wsdl:output><wsdl:fault name="APIDispatchException"><wsdlsoap:fault encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" name="APIDispatchException" namespace="http://rsoapis.soap.scheduler.ts.cisco.com" use="encoded"/></wsdl:fault></wsdl:operation><wsdl:operation name="searchMeetingRecordsByMeetingTime"><wsdlsoap:operation soapAction=""/><wsdl:input name="searchMeetingRecordsByMeetingTimeRequest"><wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://rsoapis.soap.scheduler.ts.cisco.com" use="encoded"/></wsdl:input><wsdl:output name="searchMeetingRecordsByMeetingTimeResponse"><wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://rsoapis.soap.scheduler.ts.cisco.com" use="encoded"/></wsdl:output><wsdl:fault name="APIDispatchException"><wsdlsoap:fault encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" name="APIDispatchException" namespace="http://rsoapis.soap.scheduler.ts.cisco.com" use="encoded"/></wsdl:fault><wsdl:fault name="SearchException"><wsdlsoap:fault encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" name="SearchException" namespace="http://rsoapis.soap.scheduler.ts.cisco.com" use="encoded"/></wsdl:fault></wsdl:operation></wsdl:binding><wsdl:service name="ReportingMgmtService"><wsdl:port binding="impl:ReportingMgmtSoapBinding" name="ReportingMgmt"><wsdlsoap:address location="http://localhost:8080/rsoapis/services/ReportingMgmt"/></wsdl:port></wsdl:service></wsdl:definitions>Runtime Prerequisites
For the sample code to run successfully, the following prerequisites must be met:
•
•
<deployment xmlns="http://xml.apache.org/axis/wsdd/" xmlns:java="http://xml.apache.org/axis/wsdd/providers/java"><transport name="http" pivot="java:org.apache.axis.transport.http.HTTPSender"/><service name="ReportingMgmt"><requestFlow ><handler type="java:org.apache.ws.axis.security.WSDoAllSender" ><parameter name="action" value="UsernameToken"/></handler></requestFlow ></service></deployment>Stub Code Generation
Use the Axis1.3 WSDL2Java tool to generate stub code, a sample of which is shown in the "Sample Ant Code" section. Your working directories will be different than the sample code and as a result, will require the appropriate changes for the code to work. Alternatively, you can use the Eclipse SDK or another IDE to automatically create the client stub from the WDSL file provided in the "WDSL File" section.
The sample code shows an ant target to generate stub code from API WSDL. This code generates stub code and the following supporting classes:
•
•
•
•
•
•
•
•
•
Sample Ant Code
<project name="ReportingAPI_Project" default="reportrun" basedir="c:\"><description> Generate Java code</description><!-- set global properties for this build --><property name="devdir" location="Report_TestClient"/><path id="myaxis.classpath"><fileset dir="C:\API\axis-1.3\lib"><include name="*.jar"/></fileset></path><target name="reportrun"description="Converts AXIS1.3 WSDL files to Java"><java classname="org.apache.axis.wsdl.WSDL2Java"fork="true" maxmemory="512m"><classpath refid="myaxis.classpath"/><arg line ="--output ${devdir} -v ${devdir}/ReportingMgmt.wsdl"/></java></target></project>Initialization
Each API invocation must pass along the username (login name) and password for the Reporting API User account, which exists on the LDAP server. CTS-Manager authenticates and authorizes the Reporting API user before it proceeds with the API invocation.
Sample Code for Initializing the API
package com.cisco.ts.scheduler.server.security;import java.io.IOException;import javax.security.auth.callback.Callback;import javax.security.auth.callback.CallbackHandler;import javax.security.auth.callback.NameCallback;import javax.security.auth.callback.PasswordCallback;import javax.security.auth.callback.UnsupportedCallbackException;import org.apache.ws.security.WSPasswordCallback;/*** <p>* ReportingCallBackHandler has constructor that takes a username and password so* its handle() method does not have to prompt the user for input. Useful for* server-side applications.*/public final class ReportingCallBackHandler implements CallbackHandler {private String username;private char[] password;/*** <p>* Creates a callback handler with the give username and password.* @param user String* @param pass String*/public ReportingCallBackHandler(String user, String pass) {this.username = user;this.password = pass.toCharArray();}/*** Handles the specified set of Callbacks. Uses the username and password* that were supplied to our constructor to popluate the Callbacks. This* class supports NameCallback and PasswordCallback.** @param callbacks* the callbacks to handle* @throws java.io.IOException* @throws UnsupportedCallbackException* if the callback is not an instance of NameCallback or* PasswordCallback* @throws IOException* if an input or output error occurs.* @see javax.security.auth.callback.CallbackHandler#handle(Callback[])*/public void handle(Callback[] callbacks) throws java.io.IOException,UnsupportedCallbackException {final int theLength = callbacks.length;for (int i = 0; i < theLength; i++) {if (callbacks[i] instanceof NameCallback) {((NameCallback) callbacks[i]).setName(username);} else if (callbacks[i] instanceof PasswordCallback) {((PasswordCallback) callbacks[i]).setPassword(password);} else if (callbacks[i] instanceof WSPasswordCallback) {((WSPasswordCallback) callbacks[i]).setPassword(new String(password));} else {throw new UnsupportedCallbackException(callbacks[i],"Callback class not supported");}}}/*** Clears out password state.*/public void clearPassword() {if (password != null) {final int theLength = password.length;for (int i=0; i<theLength; i++) {password[i] = ' ';}password = null;}}}import javax.xml.rpc.ServiceException;import org.apache.commons.httpclient.NameValuePair;import org.apache.log4j.Logger;import org.apache.ws.security.WSConstants;import org.apache.ws.security.handler.WSHandlerConstants;import com.cisco.ts.scheduler.server.security.ReportingCallBackHandler;import com.cisco.ts.scheduler.soap.rsoapis.ReportingMgmtServiceLocator;import com.cisco.ts.scheduler.soap.rsoapis.ReportingMgmtSoapBindingStub;import com.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyResponse;import com.cisco.ts.scheduler.soap.rsoapis.api.object.MeetingRecord;import com.cisco.ts.scheduler.exception.ErrorCodes;import com.cisco.ts.scheduler.exception.ServerInternalException;import com.cisco.ts.scheduler.util.GlobalConstants;import com.cisco.ts.scheduler.util.XMLParser;public class ReportingMgmtClient {private static final int TIME_OUT = 60000;private ReportingMgmtServiceLocator itsServiceLocator = null;private String userName = null;private String userPassword = null;String HTTP_URI = "http://";public ReportingMgmtClient(String aHostname, int aPort) {this();itsServiceLocator.setReportingMgmtEndpointAddress(formAddress(aHostname, aPort));}public void setUserName(String name) {userName = name;}public void setUserPassword(String psw) {userPassword = psw;}private ReportingMgmtSoapBindingStub getRsoapisBinding()throws ServiceException {ReportingMgmtSoapBindingStub theBinding = null;theBinding = (ReportingMgmtSoapBindingStub) itsServiceLocator.getReportingMgmt();theBinding.setTimeout(TIME_OUT);return theBinding;}private String formAddress(String aHostname, int aPort) {return HTTP_URI + aHostname + ":" + aPort + "/rsoapis/services/ReportingMgmt";}private ReportingMgmtClient() {itsServiceLocator = new ReportingMgmtServiceLocator();}// Use this stub for all API calls as shown laterQuery Survey Questionnaire
The Reporting API client uses the getMeetingUsageSurveyQuestionaire API to retrieve the survey questions.
Sample Client Code
The following sample reference code shows how you can retrieve the usage survey questions:
// Initialize the stub first as shown earlierpublic com.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyQuestionnaire querySurveyQuestions()throws Exception {ReportingMgmtSoapBindingStub theStub = getRsoapisBinding();if(userName != null && userPassword != null) {theStub._setProperty(WSHandlerConstants.PASSWORD_TYPE, WSConstants.PW_TEXT);theStub._setProperty(WSHandlerConstants.USER, userName);theStub._setProperty(WSHandlerConstants.PW_CALLBACK_REF,new ReportingCallBackHandler(userName, userPassword));}return theStub.getMeetingUsageSurveyQuestionaire();}Query Meetings
The Reporting API client uses the searchMeetingRecordsByMeetingTime API to retrieve scheduled and and ad hoc meetings between the specified start and end times and the usage survey responses for each meeting record.
Sample Client Code
// Initialize the stub first as shown earlierpublic Collection<MeetingRecord> querySurveyRecords(Date aStartTime, Date anEndTime)throws Exception {Calendar theStart = Calendar.getInstance();theStart.setTime(aStartTime);Calendar theEnd = Calendar.getInstance();theEnd.setTime(anEndTime);ReportingMgmtSoapBindingStub theStub = getRsoapisBinding();if(userName != null && userPassword != null) {theStub._setProperty(WSHandlerConstants.PASSWORD_TYPE, WSConstants.PW_TEXT);theStub._setProperty(WSHandlerConstants.USER, userName);theStub._setProperty(WSHandlerConstants.PW_CALLBACK_REF,new ReportingCallBackHandler(userName, userPassword));}MeetingRecord[] theRecords = theStub.searchMeetingRecordsByMeetingTime(theStart, theEnd);return theRecords;}API Details
This section provides details about the following Reporting APIs:
Reporting API
com.cisco.ts.scheduler.soap.rsoapisInterface ReportingMgmt
All Superinterfaces
java.rmi.Remote
All Known Implementing Classes
ReportingMgmtSoapBindingStub
public interface ReportingMgmtextends java.rmi.RemoteMethod Summary
Method Detail
getMeetingUsageSurveyQuestionaire
UsageSurveyQuestionnaire getMeetingUsageSurveyQuestionaire()Throws
java.rmi.RemoteExceptionAPIDispatchExceptionsearchMeetingRecordsByMeetingTime
MeetingRecord[] searchMeetingRecordsByMeetingTime(java.util.Calendar in0,java.util.Calendar in1)Throws
java.rmi.RemoteExceptionAPIDispatchExceptionMeetingRecord
com.cisco.ts.scheduler.soap.rsoapis.api.objectClass MeetingRecord
java.lang.Objectcom.cisco.ts.scheduler.soap.rsoapis.api.object.MeetingRecordAll Implemented Interfaces
java.io.Serializable
public class MeetingRecordextends java.lang.Objectimplements java.io.SerializableMethod Summary
Gets the MCUNames value for this MeetingRecord.
Gets the meetingActualEndTime value for this MeetingRecord.
Gets the meetingActualStartTime value for this MeetingRecord.
Gets the meetingEndTime value for this MeetingRecord.
Gets the meetingFeatures value for this MeetingRecord.
Gets the meetingStartTime value for this MeetingRecord.
Gets the meetingState value for this MeetingRecord.
Gets the meetingSubject value for this MeetingRecord.
Gets the meetingSystemID value for this MeetingRecord.
Gets the organizerID value for this MeetingRecord.
Gets the organizerTimezone value for this MeetingRecord.
Gets the participatedRoomNames value for this MeetingRecord.
Gets the roomNames value for this MeetingRecord.
Gets the surveyLastModifiedTime value for this MeetingRecord.
Gets the surveyResponses value for this MeetingRecord.
Gets the normal value for this MeetingRecord.
Gets the recurringMeeting value for this MeetingRecord.
Methods Inherited From class java.lang.Object
getClass, notify, notifyAll, toString, wait, wait, wait
Note
Constructor Detail
MeetingRecord
public MeetingRecord()MeetingRecord
public MeetingRecord(java.lang.String[] MCUNames,java.util.Calendar meetingEndTime,java.util.Calendar meetingActualEndTime,java.lang.Integer[] meetingFeatures,java.util.Calendar meetingStartTime,java.util.Calendar meetingActualStartTime,java.lang.Integer meetingState,java.lang.String meetingSubject,java.lang.String meetingSystemID,boolean normal,java.lang.String organizerID,java.lang.String organizerTimezone,boolean recurringMeeting,java.lang.String[] roomNames,java.lang.String[] participatedRoomNames,java.util.Calendar surveyLastModifiedTime,UsageSurveyResponse[] surveyResponses)Method Detail
getMCUNames
public java.lang.String[] getMCUNames()Gets the MCUNames value for this MeetingRecord. The MCUNames value is the Conference Bridges configured for this meeting.
Returns
MCUNames/Conference Bridges
getMeetingEndTime
public java.util.Calendar getMeetingEndTime()Gets the meetingEndTime value for this MeetingRecord.
Returns
meetingEndTime
getMeetingActualEndTime
public java.util.Calendar getMeetingActualEndTime()Gets the meetingActualEndTime value for this MeetingRecord. This value is the time the meeting actually ended (only for past meetings).
Returns
meetingActualEndTime
getMeetingFeatures
public java.lang.Integer[] getMeetingFeatures()Gets the Integer array of possible Meeting features for this MeetingRecord. Meetings can have more than one feature enabled simultaneously. If this array contains any of the possible Integer values, the corresponding feature was enabled for the meeting.
Possible Values
Example
To determine if a Cisco WebEx feature was enabled for a meeting, you can search the returned Integer array to see if the Integer Value of 16 is included. If this value is included, you can conclude that Cisco WebEx was enabled. If this value is not included, you can conclude that Cisco WebEx was not enabled.
Returns
meetingFeatures
getMeetingStartTime
public java.util.Calendar getMeetingStartTime()Gets the meetingStartTime value for this MeetingRecord. This value is the scheduled start time of this meeting.
Returns
meetingStartTime
getMeetingActualStartTime
public java.util.Calendar getMeetingActualStartTime()Gets the meetingActualStartTime value for this MeetingRecord. This value is the actual start time of this meeting (only for past meetings)
Returns
meetingActualStartTime
getMeetingState
public java.lang.Integer getMeetingState()Gets the meetingState value for this MeetingRecord. This value indicates the meeting state when the request is made.
Possible Values
Returns
meetingState
getMeetingSubject
public java.lang.String getMeetingSubject()Gets the meetingSubject value for this MeetingRecord. This value is the meeting subject, which is set by the meeting organizer.
Returns
meetingSubject
getMeetingSystemID
public java.lang.String getMeetingSystemID()Gets the meetingSystemID value for this MeetingRecord. This value is a globally unique identifier that is assigned to this meeting.
Returns
meetingSystemID
isNormal
public boolean isNormal()A "normal meeting" is a meeting wherein the following explicit features are not used:
•
•
•
•
•
This call returns a boolean value that indicates whether or not the meeting is normal.
Returns
normal
getOrganizerID
public java.lang.String getOrganizerID()Gets the organizerID value for this MeetingRecord.
Returns
organizerID
getOrganizerTimezone
public java.lang.String getOrganizerTimezone()Gets the organizerTimezone value for this MeetingRecord.
Returns
organizerTimezone
isRecurringMeeting
public boolean isRecurringMeeting()Gets the recurringMeeting value for this MeetingRecord. This value indicates whether or not the meeting is set up as recurring.
Returns
recurringMeeting
getRoomNames
public java.lang.String[] getRoomNames()Gets the roomNames value for this MeetingRecord. This value indicates the room names that were specified when the meeting was scheduled.
Returns
roomNames
getParticipatedRoomNames
public java.lang.String[] getParticipatedRoomNames()Gets the participatedRoomNames value for this MeetingRecord. This value indicates the room names that actually participated in the meeting.
In the case of VC endpoints (non-TelePresence endpoints), the value returned by the system depends on how the end points were configured using CTS-Manager. If configured correctly, the call returns the room names. However, if configured incorrectly, the call returns only the dial-in number for the end points.
For information on how to correctly configure VC endpoints, see the CTS Manager Administration and Installation Guide, which you can access at the following location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
Returns
participatedRoomNames
getSurveyLastModifiedTime
public java.util.Calendar getSurveyLastModifiedTime()Gets the surveyLastModifiedTime value for this MeetingRecord.
Returns
surveyLastModifiedTime
getSurveyResponses
public UsageSurveyResponse[] getSurveyResponses()Gets the surveyResponses value for this MeetingRecord.
Returns
surveyResponses
UsageSurveyItem
com.cisco.ts.scheduler.soap.rsoapis.api.objectClass UsageSurveyItem
java.lang.Objectcom.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyItemAll Implemented Interfaces
java.io.Serializable
Direct Known Subclasses:
UsageSurveyQuestion, UsageSurveyResponseOption
public abstract class UsageSurveyItemextends java.lang.Objectimplements java.io.SerializableConstructor Summary
Method Summary
Gets the Custom Deserializer.
Gets the ID value for the UsageSurveyItem.
Gets the Custom Serializer.
Gets the type metadata object.
Gets the deleted value for this UsageSurveyItem.
Methods Inherited From Class java.lang.Object
getClass, notify, notifyAll, toString, wait, wait, waitConstructor Detail
UsageSurveyItem
public UsageSurveyItem()UsageSurveyItem
public UsageSurveyItem(java.lang.String ID,boolean deleted)Method Detail
getID
public java.lang.String getID()Gets the ID value for this UsageSurveyItem.
Returns
ID
isDeleted
public boolean isDeleted()Gets the deleted value for this UsageSurveyItem. The value indicates whether or not this survey item was deleted.
Returns
deleted
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Return the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
UsageSurveyQuestion
com.cisco.ts.scheduler.soap.rsoapis.api.objectClass UsageSurveyQuestion
java.lang.Objectcom.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyItemcom.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyQuestionAll Implemented Interfaces:
java.io.Serializable
public class UsageSurveyQuestionextends UsageSurveyItemimplements java.io.SerializableConstructor Summary
Method Summary
Gets the Custom Deserializer.
Gets the displayText value for the UsageSurveyQuestion.
Gets the responseDataType value for the UsageSurveyQuestion.
Gets the responseOptions value for the UsageSurveyQuestion.
Gets the responseOptionType value for the UsageSurveyQuestion.
Gets the responseValueType value for this UsageSurveyQuestion.
Gets the Custom Serializer.
Gets the type metadata object.
Gets the required value for the UsageSurveyQuestion.
Methods Inherited From Class com.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyItem
getID, isDeletedConstructor Detail
UsageSurveyQuestion
public UsageSurveyQuestion()UsageSurveyQuestion
public UsageSurveyQuestion(java.lang.String ID,boolean deleted,java.lang.String displayText,boolean required,java.lang.String responseDataType,java.lang.String responseOptionType,UsageSurveyResponseOption[] responseOptions,java.lang.String responseValueType)Method Detail
getDisplayText
public java.lang.String getDisplayText()Gets the displayText value for the UsageSurveyQuestion.
Returns
displayText
isRequired
public boolean isRequired()Gets the required value for the UsageSurveyQuestion. The system returns a response if the question is marked as required in the Usage Survey.
Returns
required
getResponseDataType
public java.lang.String getResponseDataType()Gets the responseDataType value for the UsageSurveyQuestion.
Returns
responseDataType
getResponseOptionType
public java.lang.String getResponseOptionType()Gets the responseOptionType value for the UsageSurveyQuestion.
Returns
responseOptionType
getResponseOptions
public UsageSurveyResponseOption[] getResponseOptions()Gets the responseOptions value for the UsageSurveyQuestion.
Returns
responseOptions
getResponseValueType
public java.lang.String getResponseValueType()Gets the responseValueType value for the UsageSurveyQuestion.
Returns
responseValueType
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Gets the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
UsageSurveyQuestionnaire
com.cisco.ts.scheduler.soap.rsoapis.api.objectClass UsageSurveyQuestionnaire
java.lang.Objectcom.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyQuestionnaireAll Implemented Interfaces
java.io.Serializable
public class UsageSurveyQuestionnaireextends java.lang.Objectimplements java.io.SerializableConstructor Summary
Method Summary
Gets the Custom Deserializer.
Gets the lastModified value for the UsageSurveyQuestionnaire.
Gets the questions value for the UsageSurveyQuestionnaire.
Gets the Custom Serializer.
Gets the type metadata object.
Constructor Detail
UsageSurveyQuestionnaire
public UsageSurveyQuestionnaire()UsageSurveyQuestionnaire
public UsageSurveyQuestionnaire(java.util.Calendar lastModified,UsageSurveyQuestion[] questions)Method Details
getLastModified
public java.util.Calendar getLastModified()Gets the lastModified value for the UsageSurveyQuestionnaire.
Returns
lastModified
getQuestions
public UsageSurveyQuestion[] getQuestions()Gets the questions value for the UsageSurveyQuestionnaire.
Returns
questions
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Gets the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
UsageSurveyResponse
com.cisco.ts.scheduler.soap.rsoapis.api.objectClass UsageSurveyResponse
java.lang.Objectcom.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyResponseAll Implemented Interfaces
java.io.Serializable
public class UsageSurveyResponseextends java.lang.Objectimplements java.io.SerializableConstructor Summary
Method Summary
Gets the Custom Deserializer.
Gets the owningQuestionID value for the UsageSurveyResponse.
Gets the Custom Serializer.
Gets the type metadata object.
Gets the value value for the UsageSurveyResponse.
Gets the valueType value for the UsageSurveyResponse.
Constructor Detail
UsageSurveyResponse
public UsageSurveyResponse()UsageSurveyResponse
public UsageSurveyResponse(java.lang.String owningQuestionID,java.lang.Object value,java.lang.String valueType)Method Detail
getOwningQuestionID
public java.lang.String getOwningQuestionID()Gets the owningQuestionID value for the UsageSurveyResponse.
Returns
owningQuestionID
getValue
public java.lang.Object getValue()Gets the value value for the UsageSurveyResponse.
Returns
value
getValueType
public java.lang.String getValueType()Gets the valueType value for the UsageSurveyResponse.
Returns
valueType
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Gets the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
UsageSurveyResponseOption
com.cisco.ts.scheduler.soap.rsoapis.api.objectClass UsageSurveyResponseOption
java.lang.Objectcom.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyItemcom.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyResponseOptionAll Implemented Interfaces
java.io.Serializable
public class UsageSurveyResponseOptionextends UsageSurveyItemimplements java.io.SerializableConstructor Summary
Method Summary
Gets the Custom Deserializer.
Gets the displayText value for the UsageSurveyResponseOption.
Gets the Custom Serializer.
Gets the type metadata object.
Methods Inherited From Class com.cisco.ts.scheduler.soap.rsoapis.api.object.UsageSurveyItem
getID, isDeletedConstructor Detail
UsageSurveyResponseOption
public UsageSurveyResponseOption()UsageSurveyResponseOption
public UsageSurveyResponseOption(java.lang.String ID,boolean deleted,java.lang.String displayText)Method Detail
getDisplayText
public java.lang.String getDisplayText()Gets the displayText value for the UsageSurveyResponseOption.
Returns
displayText
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Gets the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
SearchException
com.cisco.ts.scheduler.soap.rsoapis.exceptionClass SearchException
java.lang.Objectjava.lang.Throwablejava.lang.Exceptionjava.io.IOExceptionjava.rmi.RemoteExceptionorg.apache.axis.AxisFaultcom.cisco.ts.scheduler.soap.rsoapis.exception.TSExceptioncom.cisco.ts.scheduler.soap.rsoapis.exception.SearchExceptionAll Implemented Interfaces
java.io.Serializable
public class SearchExceptionextends TSExceptionimplements java.io.SerializableField Summary
Fields Inherited From class java.rmi.RemoteException
detailConstructor Summary
Method Summary
Gets the Custom Deserializer.
Gets the Custom Serializer.
Gets the type metadata object.
Writes the exception data to the faultDetails.
Methods Inherited From Class com.cisco.ts.scheduler.soap.rsoapis.exception.TSException
getCause1, getCode, getErrorCode, getErroredObjects, getID, getMessage1, getModuleConstructor Detail
SearchException
public SearchException()SearchException
public SearchException(java.lang.String ID,java.lang.Object cause1,int code,ErrorCode errorCode,java.lang.Object[] erroredObjects,java.lang.String message1,java.lang.String module)Method Detail
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Gets the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
writeDetails
public void writeDetails(javax.xml.namespace.QName qname,org.apache.axis.encoding.SerializationContext context)throws java.io.IOExceptionWrites the exception data to the faultDetails.
Overrides
writeDetailsin classTSExceptionThrows
java.io.IOExceptionTSException
com.cisco.ts.scheduler.soap.rsoapis.exceptionClass TSException
java.lang.Objectjava.lang.Throwablejava.lang.Exceptionjava.io.IOExceptionjava.rmi.RemoteExceptionorg.apache.axis.AxisFaultcom.cisco.ts.scheduler.soap.rsoapis.exception.TSExceptionAll Implemented Interfaces
java.io.Serializable
Direct Known Subclasses
APIDispatchException, AuthenticationException, AuthorizationException, SearchExceptionpublic abstract class TSExceptionextends org.apache.axis.AxisFaultimplements java.io.SerializableField Summary
Fields Inherited From Class java.rmi.RemoteException
detailConstructor Summary
Method Summary
Gets the cause1 value for the TSException.
Gets the code value for the TSException.
Gets the Custom Deserializer.
Gets the errorCode value for the TSException.
Gets the erroredObjects value for the TSException.
Gets the ID value for the TSException.
Gets the message1 value for the TSException.
Gets the module value for the TSException.
Gets the Custom Serializer.
Gets the type metadata object.
Constructor Detail
TSException
public TSException()TSException
public TSException(java.lang.String ID,java.lang.Object cause1,int code,ErrorCode errorCode,java.lang.Object[] erroredObjects,java.lang.String message1,java.lang.String module)Method Detail
getID
public java.lang.String getID()Gets the ID value for the TSException.
Returns
ID
getCause1
public java.lang.Object getCause1()Gets the cause1 value for the TSException.
Returns
cause1
getCode
public int getCode()Gets the code value for the TSException.
Returns
code
getErrorCode
public ErrorCode getErrorCode()Gets the errorCode value for the TSException.
Returns
errorCode
getErroredObjects
public java.lang.Object[] getErroredObjects()Gets the erroredObjects value for the TSException.
Returns
erroredObjects
getMessage1
public java.lang.String getMessage1()Gets the message1 value for the TSException.
Returns
message1
getModule
public java.lang.String getModule()Gets the module value for the TSException.
Returns
module
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Gets the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
writeDetails
public void writeDetails(javax.xml.namespace.QName qname,org.apache.axis.encoding.SerializationContext context)throws java.io.IOExceptionWrites the exception data to the faultDetails.
Overrides
writeDetailsin classorg.apache.axis.AxisFaultThrows
java.io.IOExceptionErrorCode
com.cisco.ts.scheduler.soap.rsoapis.exceptionClass ErrorCode
java.lang.Objectcom.cisco.ts.scheduler.soap.rsoapis.exception.ErrorCodeAll Implemented Interfaces
java.io.Serializable
public class ErrorCodeextends java.lang.Objectimplements java.io.SerializableConstructor Summary
Method Summary
Gets the code value for the ErrorCode.
Gets the correctiveAction value for the ErrorCode.
Gets the description value for the ErrorCode.
Gets the Custom Deserializer.
Gets the ID value for the ErrorCode.
Gets the module value for the ErrorCode.
Gets the rawMessage value for the ErrorCode.
Get the Custom Serializer.
Gets the severity value for the ErrorCode.
Gets the type metadata object.
Methods Inherited From Class java.lang.Object
getClass, notify, notifyAll, toString, wait, wait, waitConstructor Detail
ErrorCode
public ErrorCode()ErrorCode
public ErrorCode(java.lang.String ID,int code,java.lang.String correctiveAction,java.lang.String description,java.lang.String module,java.lang.String rawMessage,java.lang.String severity)Method Detail
getID
public java.lang.String getID()Gets the ID value for the ErrorCode.
Returns
ID
getCode
public int getCode()Gets the code value for the ErrorCode.
Returns
code
getCorrectiveAction
public java.lang.String getCorrectiveAction()Gets the correctiveAction value for the ErrorCode.
Returns
correctiveAction
getDescription
public java.lang.String getDescription()Gets the description value for the ErrorCode.
Returns
description
getModule
public java.lang.String getModule()Gets the module value for the ErrorCode.
Returns
module
getRawMessage
public java.lang.String getRawMessage()Gets the rawMessage value for the ErrorCode.
Returns
rawMessage
getSeverity
public java.lang.String getSeverity()Gets the severity value for the ErrorCode.
Returns
severity
getTypeDesc
public static org.apache.axis.description.TypeDesc getTypeDesc()Gets the type metadata object.
getSerializer
public static org.apache.axis.encoding.SerializergetSerializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Serializer.
getDeserializer
public static org.apache.axis.encoding.DeserializergetDeserializer(java.lang.String mechType,java.lang.Class _javaType,javax.xml.namespace.QName _xmlType)Gets the Custom Deserializer.
Troubleshooting
Table 3 provides a summary of the error codes you might receive when using the Reporting API. This table describes the errors and where to find more information about them.
This section also describes some common problems that can occur when you are setting up the Reporting API client or using the Reporting API. For more information about these problems, including solutions, see the "Troubleshooting Common Problems" section.
Unauthorized Error
Symptom
Reporting API invocation fails and throws a search exception with the UNAUTHORIZED_ERROR error code.
Possible Cause
•
•
•
Solution
Depending on the suspected cause of the error, take the appropriate action:
•
•
•
For complete information on the Configure > Licenses and Configure > Access Management pages, see the CTS Manager Administration and Installation Guide, which you can access at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
Excessive Date Range Error
Symptom
API invocation fails and throws a search exception with the EXCESSIVE_DATE_RANGE_ERROR error code.
Possible Cause
CTS-Manager refuses the client request if the start and end date range provided for a meeting query exceeds 6 months. A maximum range of 6 months is established to prevent spikes in the CPU usage of CTS-Manager.
Solution
Reduce the date range to less than 6 months, then re-submit your query.
Too Many Attempts Error
Symptom
API invocation fails and throws a search exception with the TOO_MANY_ATTEMPT_ERROR error code.
Possible Cause
CTS-Manager refuses a request if the Reporting API client is making calls too frequently to the Reporting API web service. A minimum interval of 5 minutes between two consecutive calls is established to prevent spikes in the CPU usage of CTS-Manager.
Solution
Wait 10 to 15 minutes, then re-submit your query.
Internal Error
Symptom
API invocation fails and throws a search exception with the INTERNAL_ERROR error code.
Possible Cause
There is an internal problem with the CTS-Manager server.
Solution
Wait 10 to 15 minutes, then re-submit your query. If the problem persists, ask the CTS-Manager administrator to restart the CTS-Manager server.
Troubleshooting Common Problems
Table 4 presents common problems that can occur when setting up the Reporting API client and using the Reporting API. It also presents solutions for each of the problems.
Note
Table 4 Common Problems and Solutions
Reporting API Client Setup
URL for Reporting API client to access web service is incorrect.
Reporting API developer
CTS-Manager administratorCheck to make sure the URL adheres to this format:
http://hostname:port/rsoapis/services/ReportingMgmt
For example:
http://myCTSManager.mydomain.com:8080/
rsoapis/services/ReportingMgmtThe ReportingCallbackHandler is not defined.
Reporting API developer
When using secure web services, this handler, which authenticates and authorizes the Reporting API client, is invoked.
If not already done, define this handler. For information on implementing this handler, see the "Sample Code for Initializing the API" section.
A license required to access the Reporting API functionality does not exist, or the license is invalid.
CTS-Manager administrator
Work with the CTS-Manager administrator to ensure that this license is uploaded in CTS-Manager and that the license has the status of valid. (In the left navigation panel of the CTS-Manager GUI, the administrator can click Configure > Licenses to access the Licenses page.)
For complete information on uploading and checking the status of the license, see the CTS Manager Administration and Installation Guide at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
The LDAP server does not include one or both of these authentication mechanisms for the Reporting API client:
•
•
LDAP administrator
Work with the LDAP administrator to ensure that these mechanisms are set up.
In CTS-Manager, the "Reporting API User" role is not mapped to the LDAP user group that contains the Reporting API client user accounts.
CTS-Manager administrator
Work with the CTS-Manager administrator to ensure that this mapping is created in the Access Management page. (In the left navigation panel of the CTS-Manager GUI, the administrator can click Configure > Access Management to access this page.)
For complete information on mapping the role to the LDAP user group, see the CTS Manager Administration and Installation Guide at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
The Reporting API client runs, but you notice that exceptions are being thrown.
Reporting API developer
To successfully access the Reporting API's web services, we recommend the use of the following libraries:
•
•
•
•
•
•
•
•
•
•
•
•
Reporting API Usage
You notice discrepancies between the usage survey responses and the results captured by the Reporting API.
Reporting API developer
Typically, there is a delay between a meeting organizer responding to the usage survey and the running of the Reporting API. During this delay, the meeting organizer can change their responses.
To avoid these discrepancies, you can do the following:
•
•
Running the MeetingUsageSurvey-
Questionnaire API does not return any results.CTS-Manager administrator
Work with the CTS-Manager administrator to ensure that the optional Meeting Organizer Usage Survey and Benefits Report feature is enabled. (In the left navigation panel of the CTS-Manager GUI, the administrator can click Configure > Application Setting, then click the Usage Survey tab. In the page that appears, the administrator must select Yes for the Enable Meeting Organizer Usage Survey and Benefits Report feature.)
For complete information on enabling this feature, see the CTS Manager Administration and Installation Guide at this location:
http://www.cisco.com/en/US/products/ps7074/prod_maintenance_guides_list.html
The searchMeetingRecordsByMeetingTime (calendar-start, calendar-end) API returns an array of MeetingRecord objects.
Reporting API developer
Returning an array of MeetingRecord objects instead of a list is expected behavior for the searchMeetingRecordsByMeetingTime API. No action is required.
For interoperability calls enabled by Cisco Unified Video Conferencing (CUVC), the Reporting API does not retrieve a list of video conferencing (VC) room participants in the meeting. Instead, a number is shown as the participant.
Reporting API developer
In this situation, a CUVC conference number is shown as a participant. This anomaly is caused by a CUVC limitation and is outside the scope of CTS Manager.
Service and Support
Technical support for the Reporting API is available through the CDN to developers with a CDN support contract. Before implementing the Reporting API, we recommend that you join the CDN as a technology developer or a registered developer.
For information on available CDN support services, go to this location:
At this location, developers with a CDN support contract can open a case when needed.
When opening a case, we recommend having the following information available:
•
•
•
•
References
•
•
Glossary
The following acronyms and terms are used throughout this document:
•
•
•
•
•
•
•
•
•
•
•
•
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
