Catalyst 6500 Series and Cisco 7600 Series Supervisor Engine 720 CompactFlash Memory Card Installation Note

---

This publication describes how to install and remove the CompactFlash memory card on the Supervisor Engine 720.

The CompactFlash memory card for the Supervisor Engine 720 is available in three sizes. (See Table 1.)

Table 1 Supervisor Engine 720 CompactFlash Memory Cards

Product Number	Description
MEM-C6K-CPTFL64M=	Cisco CompactFlash Memory Card, 64 MB
MEM-C6K-CPTFL128M=	Cisco CompactFlash Memory Card, 128 MB
MEM-C6K-CPTFL256M=	Cisco CompactFlash Memory Card, 256 MB

Installing and Removing a CompactFlash Memory Card

---

Note A CompactFlash memory card can be installed in either the DISK 0 or DISK 1 slots on the Supervisor Engine 720 faceplate.

---

Installing a CompactFlash Memory Card

To install a CompactFlash memory card, follow these steps:

---

Step 1 Hold the CompactFlash memory card with the connector end of the card toward the slot. (See Figure 1, view a.)

Step 2 Slide the CompactFlash memory card into the slot until the device completely seats in the connector at the back of the slot and the ejector button pops out toward you. (See Figure 1, view b.)

---

Caution Do not attempt to force the CompactFlash memory card fully into the slot or you could damage the connector pins. When correctly inserted, a portion of the device remains outside the slot.

---

Step 3 Format the CompactFlash memory card the first time that it is installed in the system. The formatting instructions are located in the software configuration guide for your system.

---

Removing a CompactFlash Memory Card

---

Caution Do not remove the CompactFlash memory card while the access LED light is on or the file may be corrupted.

---

To remove a CompactFlash memory card, follow these steps:

---

Step 1 Make sure that the LED on the slot is off (no operations are in progress).

Step 2 Press the ejector button to disconnect the CompactFlash memory card from the connector at the back of the slot. (See Figure 1, view c.)

Step 3 Remove the CompactFlash memory card from the slot and place it in an antistatic bag.

---

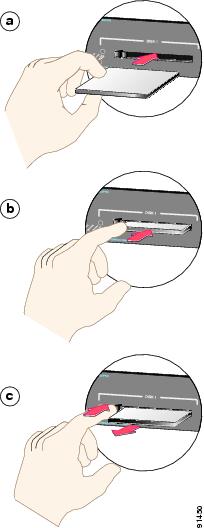

Figure 1 Installing and Removing a CompactFlash Memory Card

Additional Documentation

Refer to these publications for CompactFlash memory card configuration and usage information:

•Catalyst 6500 Series Switch Software Configuration Guide

•Catalyst 6500 Series Switch Command Reference

•Catalyst 6500 Series Switch IOS Software Configuration Guide

•Catalyst 6500 Series Switch IOS Command Reference

•Cisco 7600 Series Router IOS Software Configuration Guide

•Cisco 7600 Series Router IOS Command Reference
