Configuring QoS
This chapter describes how to configure quality of service (QoS) on the Catalyst 6500 series switches and includes the configuration information that is required to support Common Open Policy Service (COPS) and Resource ReSerVation Protocol (RSVP).
Note
•
For complete syntax and usage information for the commands used in this chapter, refer to the Catalyst 6500 Series Switch Command Reference publication.
•
For information on using automatic QoS, see "Using Automatic QoS."
You can configure QoS using one of the following:
•
SNMP
•
COPS protocol
•
RSVP null service template and receiver proxy functionality
•
Command-line interface (CLI)
This chapter consists of these sections:
•
Understanding How QoS Works
•
QoS Default Configuration
•
Configuring QoS on the Switch
Understanding How QoS Works
Note
•
Throughout this publication and all Catalyst 6500 series documents, the term "QoS" refers to the QoS feature as implemented on the Catalyst 6500 series.
•
Supervisor Engine 1 and Supervisor Engine 2 provide policing only for ingress traffic.
Typically, networks operate on a best-effort delivery basis, which means that all traffic has equal priority and an equal chance of being delivered in a timely manner. When congestion occurs, all traffic has an equal chance of being dropped.
The QoS feature on the Catalyst 6500 series switches selects network traffic, prioritizes it according to its relative importance, and provides priority-indexed treatment through congestion avoidance techniques. Implementing QoS in your network makes network performance more predictable and bandwidth utilization more effective.
QoS sets Layer 2 and Layer 3 values in network traffic to a configured value or to a value based on received Layer 2 or Layer 3 values. IP traffic retains the Layer 3 value when it leaves the switch.
These sections describe QoS:
•
QoS Terminology
•
Flowcharts
•
QoS Feature Set Summary
•
Ethernet Ingress Port Marking, Scheduling, Congestion Avoidance, and Classification
•
Classification, Marking, and Policing with a Layer 3 Switching Engine
•
Classification and Marking with a Layer 2 Switching Engine
•
Ethernet Egress Port Scheduling, Congestion Avoidance, and Marking
•
QoS Statistics Data Export
QoS Terminology
This section defines some QoS terminology:
•
Packets carry traffic at Layer 3.
•
Frames carry traffic at Layer 2. Layer 2 frames carry Layer 3 packets.
•
Labels are prioritization values that are carried in packets and frames:
–
Layer 2 class of service (CoS) values range between zero for low priority and seven for high priority:
Layer 2 Inter-Switch Link (ISL) frame headers have a 1-byte User field that carries an IEEE 802.1p CoS value in the three least significant bits.
Layer 2 802.1Q frame headers have a 2-byte Tag Control Information field that carries the CoS value in the three most significant bits, which are called the User Priority bits.
Other frame types cannot carry CoS values.
Note
On ports that are configured as ISL trunks, all traffic is in ISL frames. On ports that are configured as 802.1Q trunks, all traffic is in 802.1Q frames except for traffic in the native VLAN.
–
Layer 3 IP precedence values—The IP version 4 specification defines the three most significant bits of the 1-byte Type of Service (ToS) field as IP precedence. IP precedence values range between 0 for low priority and 7 for high priority.
–
Layer 3 differentiated services code point (DSCP) values—The Internet Engineering Task Force (IETF) defines the six most significant bits of the 1-byte ToS field as the DSCP. The priority represented by a particular DSCP value is configurable. DSCP values range between 0 and 63 (for more information, see the "Configuring DSCP Value Maps" section).
Note
Layer 3 IP packets can carry either an IP precedence value or a DSCP value. QoS supports the use of either value, because DSCP values can be set equal to IP precedence values.
•
Classification is the selection of traffic to be marked.
•
Marking, according to RFC 2475, is the process of setting a Layer 3 DSCP value in a packet; in this publication, the definition of marking is extended to include setting Layer 2 CoS values.
•
Scheduling is the assignment of traffic to a queue. QoS assigns traffic based on CoS values.
•
Congestion avoidance is the process by which QoS reserves ingress and egress port capacity for traffic with high-priority CoS values. QoS implements congestion avoidance with CoS value-based drop thresholds. A drop threshold is the percentage of buffer utilization at which traffic with a specified CoS value is dropped, leaving the buffer available for traffic with higher-priority CoS values.
•
Policing is the process by which the switch limits the bandwidth that is consumed by a flow of traffic. Policing can mark or drop traffic.
•
Except where specifically differentiated, Layer 3 switching engine refers to either of the following:
–
Supervisor Engine 2 with Layer 3 Switching Engine II (Policy Feature Card 2 or PFC2)
–
Supervisor Engine 1 with Layer 3 Switching Engine WS-F6K-PFC (Policy Feature Card or PFC)
•
Random early detection (RED) is a drop threshold algorithm.
•
Weighted random early detection (WRED) is a drop threshold algorithm.
•
Weighted round robin (WRR) is a dequeuing algorithm.
•
Deficit weighted round robin (DWRR) is a dequeuing algorithm.
Flowcharts
Figure 43-1 shows how traffic flows through the QoS features; Figure 43-2 through Figure 43-7 show more details of the traffic flow through QoS features.

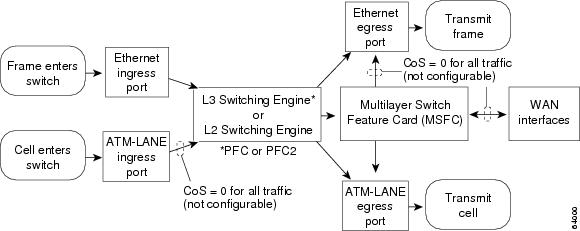

Figure 43-1 Traffic Flow Through QoS Features
Note
•
The PFC can provide Layer 3 switching for ingress WAN traffic. The PFC does not provide QoS for ingress WAN traffic. PFC QoS does not change the ToS byte in WAN traffic.
•
Ingress LAN traffic that is Layer 3 switched does not go through the Multilayer Switch Feature Card (MSFC or MSFC2) and retains the CoS value that is assigned by the Layer 3 switching engine.
•
Enter the show port capabilities command to see the queue structure of a port (for more information, see the "Receive Queues" section and the "Transmit Queues" section).
Figure 43-2 Ethernet ingress Port Classification, Marking, Scheduling, and Congestion Avoidance
Figure 43-3 Layer 3 Switching Engine Classification, Marking, and Policing
Figure 43-4 Layer 2 Switching Engine Classification and Marking
Figure 43-5 Multilayer Switch Feature Card Marking (MSFC and MSFC2)
Figure 43-6 Ethernet Egress Port Scheduling, Congestion Avoidance, and Marking
Figure 43-7 Single-Port ATM OC-12 Switching Module Marking
QoS Feature Set Summary
The QoS feature set on your switch is determined by the switching engine on the supervisor engine. Enter the show module command for the supervisor engine to display your switching engine configuration. The display shows the "Sub-Type" to be one of the following:
•
Supervisor Engine 2 (WS-X6K-SUP2-2GE) with Layer 3 Switching Engine II (WS-F6K-PFC2—Policy Feature Card 2 or PFC2)
•
Supervisor Engine 1 (WS-X6K-SUP1A-2GE or WS-X6K-SUP1-2GE) with one of the following:
–
Layer 3 Switching Engine (WS-F6K-PFC—Policy Feature Card or PFC)
–
Layer 2 Switching Engine II (WS-F6020A)
–
Layer 2 Switching Engine I (WS-F6020)
The Layer 3 Switching Engine WS-F6K-PFC and Layer 3 Switching Engine II support similar feature sets. The two Layer 2 switching engines support the same QoS feature set.
These sections describe the QoS feature sets:
•
Ethernet Ingress Port Features
•
Layer 3 Switching Engine Features
•
Layer 2 Switching Engine Features
•
Ethernet Egress Port Features
•
Single-Port ATM OC-12 Switching Module Features
•
Multilayer Switch Feature Card (MSFC or MSFC2)
Ethernet Ingress Port Features
With any switching engine, QoS supports classification, marking, scheduling, and congestion avoidance using Layer 2 CoS values at Ethernet ingress ports. Classification, marking, scheduling, and congestion avoidance at Ethernet ingress ports do not use or set Layer 3 IP precedence or DSCP values. With a Layer 3 switching engine, you can configure Ethernet ingress port trust states that can be used by the switching engine to set Layer 3 IP precedence or DSCP values and the Layer 2 CoS value. For more information, see the "Ethernet Ingress Port Marking, Scheduling, Congestion Avoidance, and Classification" section.
Layer 3 Switching Engine Features
With a Layer 3 switching engine, QoS supports classification, marking, and policing using IP, IPX, and Media Access Control (MAC) access control lists (ACLs). ACLs contain access control entries (ACEs) that specify Layer 2, 3, and 4 classification criteria, a marking rule, and policers. Marking sets the Layer 3 IP precedence or DSCP values and the Layer 2 CoS value to either received or configured Layer 2 or Layer 3 values. Policing uses bandwidth limits to either drop or mark nonconforming traffic. For more information, see the "Classification, Marking, and Policing with a Layer 3 Switching Engine" section.
During processing, a Layer 3 switching engine associates a DSCP value with all traffic, including non-IP traffic (for more information, see the "Internal DSCP Values" section).
Layer 2 Switching Engine Features
With a Layer 2 Switching Engine, QoS can classify traffic using Layer 2 destination MAC addresses, VLANs, and marking using Layer 2 CoS values. Classification and marking with a Layer 2 Switching Engine do not use or set Layer 3 IP precedence or DSCP values. For more information, see the "Classification and Marking with a Layer 2 Switching Engine" section.
Ethernet Egress Port Features
With any switching engine, QoS supports Ethernet egress port scheduling and congestion avoidance using Layer 2 CoS values. Ethernet egress port marking sets Layer 2 CoS values and, with a Layer 3 switching engine, Layer 3 DSCP values. For more information, see the "Ethernet Egress Port Scheduling, Congestion Avoidance, and Marking" section.
Single-Port ATM OC-12 Switching Module Features
The ingress interface from a single-port ATM OC-12 switching module is untrusted, and QoS sets CoS to zero in all traffic received from it. With a Layer 3 switching engine, QoS can mark IP traffic that is transmitted to a single-port ATM OC-12 switching module with Layer 3 DSCP values.
Multilayer Switch Feature Card (MSFC or MSFC2)
QoS marks IP traffic that is transmitted to an MSFC with Layer 3 DSCP values. CoS is zero in all traffic that is sent from an MSFC to egress ports.
Note
Traffic that is Layer 3 switched does not go through the MFSC and retains the CoS value that is assigned by the Layer 3 switching engine.
Ethernet Ingress Port Marking, Scheduling, Congestion Avoidance, and Classification
These sections describe Ethernet ingress port marking, scheduling, congestion avoidance, and classification:
•
Overview
•
Marking at Untrusted Ports
•
Marking at Trusted Ports
•
Ethernet Ingress Port Scheduling and Congestion Avoidance
•
Receive Queues
•
Ingress Scheduling
•
Ingress Congestion Avoidance
•
Ethernet Ingress Port Classification Features with a Layer 3 Switching Engine
Overview
The trust state of an Ethernet port determines how it marks, schedules, and classifies received traffic, and whether or not congestion avoidance is implemented. You can configure the trust state of each port with one of these keywords:
•
untrusted (default)
•
trust-ipprec (Layer 3 switching engine only—not supported on 1q4t ports except Gigabit Ethernet)
•
trust-dscp (Layer 3 switching engine only—not supported on 1q4t ports except Gigabit Ethernet)
•
trust-cos
Note
•
1q4t ports (except Gigabit Ethernet) do not support the trust-ipprec and trust-dscp port keywords. You must configure a trust-ipprec or trust-dscp ACL that matches the ingress traffic to apply the trust-ipprec or trust-dscp trust state.
•
On 1q4t ports (except Gigabit Ethernet), the trust-cos port keyword displays an error message, activates receive queue drop thresholds, and—as indicated by the error message—does not apply the trust-cos trust state to traffic. You must configure a trust-cos ACL that matches the ingress traffic to apply the trust-cos trust state.
For more information, see the "Configuring the Trust State of a Port" section.
In addition to the port configuration keywords listed above, with a Layer 3 switching engine, QoS uses trust-ipprec, trust-dscp, and trust-cos ACE keywords. Do not confuse the ACE keywords with the port keywords.
Ports that are configured with the untrusted keyword are called untrusted ports. Ports that are configured with the trust-ipprec, trust-dscp, or trust-cos keywords are called trusted ports. QoS implements ingress port congestion avoidance only on ports that are configured with the trust-cos keyword.
Ingress port marking, scheduling, and congestion avoidance use Layer 2 CoS values. Ingress port marking, scheduling, and congestion avoidance do not use or set Layer 3 IP precedence or DSCP values.
Marking at Untrusted Ports
QoS marks all frames that are received through untrusted ports with the port CoS value (the default is zero). QoS does not implement ingress port congestion avoidance on untrusted ports: the traffic goes directly to the switching engine.
Marking at Trusted Ports
When an ISL frame enters the switch through a trusted port, QoS accepts the three least significant bits in the User field as a CoS value. When an 802.1Q frame enters the switch through a trusted port, QoS accepts the User Priority bits as a CoS value. QoS marks all traffic that is received in other frame types with the port CoS value.
The port CoS value is configurable for each Ethernet port (for more information, see the "Configuring the CoS Value for a Port" section).
Ethernet Ingress Port Scheduling and Congestion Avoidance
QoS does not implement ingress port congestion avoidance on ports that are configured with the untrusted, trust-ipprec, or trust-dscp keywords: the traffic goes directly to the switching engine.
QoS uses CoS-value-based receive-queue drop thresholds to avoid congestion in traffic entering the switch through a port that is configured with the trust-cos keyword (for more information, see the "Configuring the Trust State of a Port" section).
Receive Queues
Enter the show port capabilities command to see the queue structure of a port. The command displays one of the following:
•
rx-(1q2t) indicates one standard queue with one configurable tail-drop threshold and one nonconfigurable tail-drop threshold.
•
rx-(1q4t) indicates one standard queue with four configurable tail-drop thresholds.
•
rx-(1p1q4t) indicates one strict-priority queue and one standard queue with four configurable tail-drop thresholds.
•
rx-(1p1q0t) indicates one strict-priority queue and one standard queue with a nonconfigurable threshold.
•
rx-(1p1q8t) indicates one strict-priority queue and one standard queue with eight configurable WRED-drop thresholds (on 1p1q8t ports, the standard queue also has one nonconfigurable tail-drop threshold).
Strict-priority queues are serviced in preference to other queues. QoS services traffic in a strict-priority queue before servicing the standard queue. When QoS services the standard queue, after receiving a packet, it checks for traffic in the strict-priority queue. If QoS detects traffic in the strict-priority queue, it suspends its service of the standard queue and completes service of all traffic in the strict-priority queue before returning to the standard queue.
Ingress Scheduling
QoS schedules traffic through the receive queues based on CoS values. In the 1p1q4t, 1p1q0t, and 1p1q8t default configurations, QoS assigns all traffic with CoS 5 to the strict-priority queue; QoS assigns all other traffic to the standard queue. In the 1q4t default configuration, QoS assigns all traffic to the standard queue.
Ingress Congestion Avoidance
Note
The explanations in this section use default values. You can configure many of the parameters (for more information, see the "Configuring QoS on the Switch" section). All ports of the same type use the same drop-threshold configuration.
If a port is configured with the trust-cos keyword, QoS implements CoS-value-based receive-queue drop thresholds to avoid congestion in received traffic.
1q2t ports have this default drop threshold configuration:
•
Frames with CoS 0, 1, 2, 3, or 4 go to tail-drop threshold 1, where the switch drops incoming frames when the standard receive-queue buffer is 80 percent full.
•
Frames with CoS 5, 6, or 7 go to tail-drop threshold 2, where the switch drops incoming frames when the standard receive-queue buffer is 100 percent full.
1q4t ports have this default drop threshold configuration:
•
Using receive-queue tail-drop threshold 1, the switch drops incoming frames with CoS 0 or 1 when the receive-queue buffer is 50 percent or more full.
•
Using receive-queue tail-drop threshold 2, the switch drops incoming frames with CoS 2 or 3 when the receive-queue buffer is 60 percent or more full.
•
Using receive-queue tail-drop threshold 3, the switch drops incoming frames with CoS 4 or 5 when the receive-queue buffer is 80 percent or more full.
•
Using receive-queue tail-drop threshold 4, the switch drops incoming frames with CoS 6 or 7 when the receive-queue buffer is 100 percent full.
1p1q4t ports have this default drop-threshold configuration:
•
Frames with CoS 5 go to the strict-priority receive queue (queue 2), where the switch drops incoming frames only when the strict-priority receive-queue buffer is 100 percent full.
•
Frames with CoS 0, 1, 2, 3, 4, 6, or 7 go to the standard receive queue as follows:
–
Using standard receive-queue tail-drop threshold 1, the switch drops incoming frames with CoS 0 or 1 when the receive-queue buffer is 50 percent or more full.
–
Using standard receive-queue tail-drop threshold 2, the switch drops incoming frames with CoS 2 or 3 when the receive-queue buffer is 60 percent or more full.
–
Using standard receive-queue tail-drop threshold 3, the switch drops incoming frames with CoS 4 when the receive-queue buffer is 80 percent or more full.
–
Using standard receive-queue tail-drop threshold 4, the switch drops incoming frames with CoS 6 or 7 when the receive-queue buffer is 100 percent full.
1p1q0t ports have this default drop-threshold configuration:
•
Frames with CoS 5 go to the strict-priority receive queue (queue 2), where the switch drops incoming frames when the strict-priority receive-queue buffer is 100 percent full.
•
Frames with CoS 0, 1, 2, 3, 4, 6, or 7 go to the standard receive queue, which uses a nonconfigurable tail-drop threshold that drops incoming frames when the standard receive-queue buffer is 100 percent full.
1p1q8t ports have this default drop-threshold configuration:
•
Frames with CoS 5 go to the strict-priority receive queue (queue 2), where the switch drops incoming frames only when the strict-priority receive-queue buffer is 100 percent full.
•
Frames with CoS 0, 1, 2, 3, 4, 6, or 7 go to the standard receive queue, which uses WRED-drop thresholds as follows:
–
Using standard receive-queue drop threshold 1 for incoming frames with CoS 0, the switch starts to drop frames when the receive-queue buffer is 40 percent full and drops all frames with CoS 0 when the receive-queue buffer is 70 percent or more full.
–
Using standard receive-queue drop threshold 2 for incoming frames with CoS 1, the switch starts to drop frames when the receive-queue buffer is 40 percent full and drops all frames with CoS 1 when the receive-queue buffer is 70 percent or more full.
–
Using standard receive-queue drop threshold 3 for incoming frames with CoS 2, the switch starts to drop frames when the receive-queue buffer is 50 percent full and drops all frames with CoS 2 when the receive-queue buffer is 80 percent or more full.
–
Using standard receive-queue drop threshold 4 for incoming frames with CoS 3, the switch starts to drop frames when the receive-queue buffer is 50 percent full and drops all frames with CoS 3 when the receive-queue buffer is 80 percent or more full.
–
Using standard receive-queue drop threshold 5 for incoming frames with CoS 4, the switch starts to drop frames when the receive-queue buffer is 60 percent full and drops all frames with CoS 4 when the receive-queue buffer is 90 percent or more full.
–
Using standard receive-queue drop threshold 6 for incoming frames with CoS 6, the switch starts to drop frames when the receive-queue buffer is 60 percent full and drops all frames with CoS 6 when the receive-queue buffer is 90 percent or more full.
–
Using standard receive-queue drop threshold 7 for incoming frames with CoS 7, the switch starts to drop frames when the receive-queue buffer is 70 percent full and drops all frames with CoS 7 when the receive-queue buffer is 100 percent or more full.
Note
You can configure the standard receive queue to use both a tail-drop and a WRED-drop threshold by mapping a CoS value to the queue or to the queue and a threshold. The switch uses the tail-drop threshold for traffic carrying the CoS values that are mapped only to the queue. The switch uses WRED-drop thresholds for traffic carrying the CoS values that are mapped to the queue and a threshold. See the "1p1q8t Receive Queues" section.
Figure 43-8 shows the drop thresholds for a 1q4t port. Drop thresholds in other configurations function similarly.
Figure 43-8 Receive-Queue Drop Thresholds
Ethernet Ingress Port Classification Features with a Layer 3 Switching Engine
You can use the untrusted, trust-ipprec, trust-dscp, and trust-cos port keywords to classify traffic on a per-port basis for a Layer 3 switching engine to mark.
The trust-ipprec and trust-dscp keywords are supported only with a Layer 3 switching engine and are not supported on 1q4t ports except Gigabit Ethernet. On 1q4t ports (except Gigabit Ethernet), the trust-cos port keyword displays an error message, activates receive-queue drop thresholds, and—as indicated by the error message—does not apply the trust-cos trust state to traffic. You must configure the trust-cos ACL that matches the ingress traffic to apply the trust-cos trust state.
In addition to per-port classification, you can create ACEs that classify traffic on a per-packet basis (for IP and IPX traffic, see the "Named IP ACLs" section and the "Creating or Modifying Named IPX ACLs" section) or on a per-frame basis (for other traffic, see the "Creating or Modifying Named MAC ACLs" section), regardless of the port configuration (see the "Marking Rules" section).
To mark traffic in response to per-port classification, the traffic must match an ACE that contains the dscp ACE keyword (see the "Marking Rules" section). In their default configuration, the ACEs in the default ACLs contain the dscp ACE keyword. Table 43-1 lists the per-port classifications and the marking rules that they invoke.
Table 43-1 Marking Based on Per-Port Classification
Port Keyword
|
ACE Keyword
|
Marking Rule
|
untrusted
|
dscp
|
Set internal and egress DSCP as specified in the ACE.
|
trust-ipprec
|
dscp
|
For IP traffic, set internal and egress DSCP from the received Layer 3 IP precedence value. For other traffic, set internal and egress DSCP from the received or port Layer 2 CoS value.
Note—With the trust-ipprec port keyword, QoS uses only the IP precedence bits. If traffic with a DSCP value enters the switch through a port that is configured with the trust-ipprec port keyword, the three most significant bits of the DSCP value are interpreted as an IP precedence value; QoS ignores the rest of the DSCP value.
|
trust-dscp
|
dscp
|
For IP traffic, set internal and egress DSCP from the received Layer 3 DSCP value. For other traffic, set internal and egress DSCP from the received or port Layer 2 CoS value.
|
trust-cos
|
dscp
|
Set internal and egress DSCP from the received or port Layer 2 CoS value.
|
QoS uses configurable mapping tables to set internal and egress DSCP, which is a 6-bit value, from CoS and IP precedence, which are 3-bit values (for more information, see the "Internal DSCP Values" section and the "Configuring DSCP Value Maps" section).
Classification, Marking, and Policing with a Layer 3 Switching Engine
Note
With a Layer 3 switching engine, the Catalyst 6500 series switches provide QoS only for the following frame types: Ethernet_II, Ethernet_802.3, Ethernet_802.2, and Ethernet_SNAP.
These sections describe classification, marking, and policing with a Layer 3 switching engine:
•
Internal DSCP Values
•
ACLs
•
Named ACLs
•
Default ACLs
•
Marking Rules
•
Policers
•
PFC2 Policing Decisions
•
Attaching ACLs
•
Final Layer 3 Switching Engine CoS and ToS Values
Note
Classification with a Layer 3 switching engine uses Layer 2, 3, and 4 values. Marking with a Layer 3 switching engine uses Layer 2 CoS values and Layer 3 IP precedence or DSCP values.
Internal DSCP Values
These sections describe the internal DSCP values:
•
Internal DSCP Sources
•
Egress DSCP and CoS Sources
Internal DSCP Sources
During processing, the priority of all traffic (including non-IP traffic) is represented with an internal DSCP value. QoS derives the internal DSCP value from the following:
•
For trust-cos traffic, from received or port Layer 2 CoS values (traffic from an untrusted port has the port CoS value and if traffic from an untrusted port matches a trust-cos ACL, QoS derives the internal DSCP value from the port CoS value)
•
For trust-ipprec traffic, from received IP precedence values
•
For trust-dscp traffic, from received DSCP values
•
For untrusted traffic, from port CoS or configured DSCP values
The trust state of traffic is the trust state of the ingress port unless set otherwise by the matching ACE.
Note
A trust-cos ACL cannot restore received CoS in traffic from untrusted ports. Traffic from untrusted ports always has the port CoS value.
QoS uses configurable mapping tables to derive the internal 6-bit DSCP value from CoS or IP precedence, which are 3-bit values (see the"Mapping Received CoS Values to Internal DSCP Values" section or the "Mapping Received IP Precedence Values to Internal DSCP Values" section).
Egress DSCP and CoS Sources
For egress IP traffic, QoS creates a ToS byte from the internal DSCP value (which you can set equal to an IP precedence value) and sends it to the egress port to be written into IP packets. For trust-dscp and untrusted IP traffic, the ToS byte includes the original 2 least-significant bits from the received ToS byte.
For all egress traffic, QoS uses a configurable mapping table to derive a CoS value from the internal DSCP value that is associated with traffic (see the "Mapping Internal DSCP Values to Egress CoS Values" section). QoS sends the CoS value to Ethernet egress ports for use in scheduling and to be written into ISL and 802.1Q frames.
ACLs
QoS uses ACLs that contain ACEs. The ACEs specify classification criteria, a marking rule, and policers. QoS compares received traffic to the ACEs in ACLs until a match occurs. When the traffic matches the classification criteria in an ACE, QoS marks and polices the packet as specified in the ACE and makes no further comparisons.
There are three ACL types: IP, and with a Layer 3 switching engine, IPX and MAC. QoS compares traffic of each type (IP, IPX, and MAC) only to the corresponding ACL type (see Table 43-2).
Table 43-2 Supported Ethertype Field Values
ACL Type
|
Ethertype Field Value
|
Protocol
|
IP
|
0x0800
|
IP
|
IPX
|
0x8137 and 0x8138
|
IPX
|
MAC1
|
0x0600 and 0x0601
|
XNS
|
0x0BAD and 0x0BAF
|
Banyan VINES
|
0x6000-0x6009 and 0x8038-0x8042
|
DECnet
|
0x809b and 0x80f3
|
AppleTalk
|
QoS supports user-created named ACLs, each containing an ordered list of ACEs, and user-configurable default ACLs, each containing a single ACE.
Named ACLs
You create a named ACL when you enter an ACE with a new ACL name. You add an ACE to an existing ACL when you enter an ACE with the name of the existing ACL.
You can specify the classification criteria for each ACE in a named ACL. The classification criteria can be specific values or wildcards (for more information, see the "Creating or Modifying ACLs" section).
These sections describe the classification criteria that can be specified in a named ACL:
•
IP ACE Layer 3 Classification Criteria
•
IP ACE Layer 4 Protocol Classification Criteria
•
IP ACE Layer 4 TCP Classification Criteria
•
IP ACE Layer 4 UDP Classification Criteria
•
IP ACE Layer 4 ICMP Classification Criteria
•
IP ACE Layer 4 IGMP Classification Criteria
•
IPX ACE Classification Criteria
•
MAC ACE Layer 2 Classification Criteria
IP ACE Layer 3 Classification Criteria
You can create IP ACEs that match traffic with specific Layer 3 values by including these Layer 3 parameters (see the "Named IP ACLs" section):
•
IP source address and mask, entered as specific values or with the any keyword or with the host keyword and a host address.
•
IP destination address and mask, entered as specific values or with the any keyword or with the host keyword and a host address.
•
DSCP value (0-63) or IP precedence that is specified with a numeric value (0-7) or these keywords:
–
Network (IP precedence 7)
–
Internet (IP precedence 6)
–
Critical (IP precedence 5)
–
Flash-override (IP precedence 4)
–
Flash (IP precedence 3)
–
Immediate (IP precedence 2)
–
Priority (IP precedence 1)
–
Routine (IP precedence 0)
Note
IP ACEs that do not include a DSCP or IP precedence value parameter match all DSCP or IP precedence values.
IP ACE Layer 4 Protocol Classification Criteria
You can create IP ACEs that match specific Layer 4 protocol traffic by including a Layer 4 protocol parameter (see the "IP ACLs for Other Layer 4 Protocols" section). You can specify the protocol numerically (0-255) or with these keywords: ahp (51), eigrp (88), esp (50), gre (47), igrp (9), icmp (1), igmp (2), igrp (9), ip (0), ipinip (4), nos (94), ospf (89), pcp (108), pim (103), tcp (6), or udp (17).
Note
IP ACEs that do not include a Layer 4 protocol parameter or that include the ip keyword match all IP traffic.
IP ACE Layer 4 TCP Classification Criteria
You can create Transmission Control Protocol (TCP) ACEs that match traffic for specific TCP ports by including TCP source and/or destination port parameters (for more information, see the "IP ACEs for TCP Traffic" section). You can specify TCP port parameters numerically (0-65535) or with these keywords:
Keyword
|
Port
|
|
Keyword
|
Port
|
|
Keyword
|
Port
|
|
Keyword
|
Port
|
bgp
|
179
|
|
ftp
|
21
|
|
lpd
|
515
|
|
telnet
|
23
|
chargen
|
19
|
ftp-data
|
20
|
nntp
|
119
|
time
|
37
|
daytime
|
13
|
gopher
|
70
|
pop2
|
109
|
uucp
|
540
|
discard
|
9
|
hostname
|
101
|
pop3
|
110
|
whois
|
43
|
domain
|
53
|
irc
|
194
|
smtp
|
25
|
www
|
80
|
echo
|
7
|
klogin
|
543
|
sunrpc
|
111
|
|
|
finger
|
79
|
kshell
|
544
|
tacacs
|
49
|
|
|
Note
TCP ACEs that do not include a Layer 4 TCP port parameter match all TCP traffic.
IP ACE Layer 4 UDP Classification Criteria
You can create User Datagram Protocol (UDP) ACEs that match traffic for specific UDP source and/or destination ports by including UDP port parameters (for more information, see the "IP ACEs for UDP Traffic" section). You can specify UDP port parameters numerically (0-65535) or with these keywords:
Keyword
|
Port
|
|
Keyword
|
Port
|
|
Keyword
|
Port
|
|
Keyword
|
Port
|
biff
|
512
|
|
echo
|
7
|
|
rip
|
520
|
|
talk
|
517
|
bootpc
|
68
|
mobile-ip
|
434
|
snmp
|
161
|
tftp
|
69
|
bootps
|
67
|
nameserver
|
42
|
snmptrap
|
162
|
time
|
37
|
discard
|
9
|
netbios-dgm
|
138
|
sunrpc
|
111
|
who
|
513
|
dns
|
53
|
netbios-ns
|
137
|
syslog
|
514
|
xdmcp
|
177
|
dnsix
|
195
|
ntp
|
123
|
tacacs
|
49
|
|
|
Note
UDP ACEs that do not include a Layer 4 UDP port parameter match all UDP traffic.
IP ACE Layer 4 ICMP Classification Criteria
You can create Internet Control Management Protocol (ICMP) ACEs that match traffic containing specific ICMP messages by including ICMP types and optionally, ICMP codes (for more information, see the "IP ACEs for ICMP Traffic" section). You can specify ICMP types and codes numerically (0-255) or with these keywords:
Keyword
|
Type
|
Code
|
Keyword
|
Type
|
Code
|
administratively-prohibited
|
3
|
13
|
net-tos-unreachable
|
3
|
11
|
alternate-address1
|
6
|
—
|
net-unreachable
|
3
|
0
|
conversion-error
|
31
|
0
|
network-unknown
|
3
|
6
|
dod-host-prohibited
|
3
|
10
|
no-room-for-option
|
12
|
2
|
dod-net-prohibited
|
3
|
9
|
option-missing
|
12
|
1
|
echo
|
8
|
0
|
packet-too-big
|
3
|
4
|
echo-reply
|
0
|
0
|
parameter-problem
|
12
|
0
|
general-parameter-problem1
|
12
|
—
|
port-unreachable
|
3
|
3
|
host-isolated
|
3
|
8
|
precedence-unreachable
|
3
|
15
|
host-precedence-unreachable
|
3
|
14
|
protocol-unreachable
|
3
|
2
|
host-redirect
|
5
|
1
|
reassembly-timeout
|
11
|
1
|
host-tos-redirect
|
5
|
3
|
redirect1
|
5
|
—
|
host-tos-unreachable
|
3
|
12
|
router-advertisement
|
9
|
0
|
host-unknown
|
3
|
7
|
router-solicitation
|
10
|
0
|
host-unreachable
|
3
|
1
|
source-quench
|
4
|
0
|
information-reply
|
16
|
0
|
source-route-failed
|
3
|
5
|
information-request
|
15
|
0
|
time-exceeded1
|
11
|
—
|
mask-reply
|
18
|
0
|
timestamp-reply
|
14
|
0
|
mask-request
|
17
|
0
|
timestamp-request
|
13
|
0
|
mobile-redirect
|
32
|
0
|
traceroute
|
30
|
0
|
net-redirect
|
5
|
0
|
ttl-exceeded
|
11
|
0
|
net-tos-redirect
|
5
|
2
|
unreachable1
|
3
|
—
|

Note
ICMP ACEs with only a Layer 4 ICMP type parameter match all code values for that type value. ICMP ACEs that do not include any Layer 4 ICMP type and code parameters match all ICMP traffic.
IP ACE Layer 4 IGMP Classification Criteria
You can create IGMP ACEs that match traffic containing specific IGMP messages by including an IGMP type parameter (for more information, see the "IP ACEs for IGMP Traffic" section). You can specify the IGMP type numerically (0-255) or with these keywords: host-query (1), host-report (2), dvmrp (3), pim (4), or trace (5).
Note
QoS does not support IGMP traffic when IGMP snooping is enabled. QoS supports IGMP classification using version 1 four-bit Type fields.
Note
IGMP ACEs that do not include a Layer 4 IGMP type parameter match all IGMP traffic.
IPX ACE Classification Criteria
You can create IPX ACEs that match specific IPX traffic by including these parameters (for more information, see the "Creating or Modifying Named IPX ACLs" section):
•
IPX source network (-1 matches any network number)
•
Protocol, which can be specified numerically (0-255) or with these keywords: any, ncp (17), netbios (20), rip (1), sap (4), spx (5)
•
IPX ACEs support the following optional parameters:
–
IPX destination network (-1 matches any network number)
–
If you specify an IPX destination network, IPX ACEs support the following optional parameters: an IPX destination network mask (-1 matches any network number), an IPX destination node, and an IPX destination node mask
MAC ACE Layer 2 Classification Criteria
You can create MAC ACEs that match specific Ethernet traffic by including these Layer 2 parameters (for more information, see the "Creating or Modifying Named MAC ACLs" section):
•
Ethernet source and destination addresses and masks, entered as specific values or with the any keyword or with the host keyword and a host Ethernet address
•
Optionally, an ethertype parameter from this list:
–
0x809B (or ethertalk)
–
0x80F3 (or aarp)
–
0x6001 (or dec-mop-dump)
–
0x6002 (or dec-mop-remote-console)
–
0x6003 (or dec-phase-iv)
–
0x6004 (or dec-lat)
–
0x6005 (or dec-diagnostic-protocol)
–
0x6007 (or dec-lavc-sca)
–
0x6008 (or dec-amber)
–
0x6009 (or dec-mumps)
–
0x8038 (or dec-lanbridge)
–
0x8039 (or dec-dsm)
–
0x8040 (or dec-netbios)
–
0x8041 (or dec-msdos)
–
0x8042 (no keyword)
–
0x0BAD (no keyword)
–
0x0baf (or banyan-vines-echo)
–
0x0600 (or xerox-ns-idp)
QoS MAC ACLs that do not include an ethertype parameter match traffic with any value in the ethertype field, which allows MAC-level QoS to be applied to any traffic except IP and IPX.
Default ACLs
There are three default ACLs, one each for IP, and with a Layer 3 switching engine, IPX and MAC traffic. Each ACL has a single ACE that has a configurable marking rule and configurable policers. The default ACLs have nonconfigurable classification criteria that matches all traffic. QoS compares any traffic with a supported ethertype field value that does not match a named ACL to the default ACLs. Unmatched IP traffic matches the default IP ACL. Unmatched IPX traffic matches the default IPX ACL. Unmatched Ethernet traffic matches the default MAC ACL.
Note
All traffic matches an ACE in an ACL (either an ACE in a named ACL or one of the default ACLs) because the default ACLs match all traffic.
Marking Rules
Note
Marking is not supported for IPX or MAC traffic with a PFC2.
Marking rules specify how QoS marks traffic when the traffic matches the filtering parameters in an ACE (see the "ACE Name, Marking Rule, Policing, and Filtering Syntax" section). QoS supports four marking rules, that are specified with the following four ACE keywords: trust-dscp, trust-ipprec, trust-cos, and dscp. Each ACE contains one of the keywords. The marking rules are as follows:
•
trust-dscp (IP ACLs only)—Instructs QoS to set internal and egress DSCP from received DSCP values (see the "Internal DSCP Values" section).
•
trust-ipprec (IP ACLs only)—Instructs QoS to set internal and egress DSCP from received IP precedence values.
Note
With the trust-ipprec port keyword, QoS uses only the IP precedence bits. If traffic with a DSCP value enters the switch through a port that is configured with the trust-ipprec port keyword, the three most significant bits of the DSCP value are interpreted as an IP precedence value; QoS ignores the rest of the DSCP value.
•
trust-cos (all ACLs except IPX and MAC with a PFC2)—Instructs QoS to set internal and egress DSCP from received or port CoS values. In traffic from ports that are configured with the trust-cos keyword, the CoS value is received in ISL and 802.1Q frames; in all other cases, the CoS value is configured on the port (the default is zero).
•
dscp (all ACLs except IPX and MAC with a PFC2)—Instructs QoS to mark traffic as indicated by the port trust keywords:
–
In IP traffic from ingress ports that are configured with the trust-dscp port keyword, the dscp ACE keyword instructs QoS to set the internal and egress DSCP values from the received DSCP values. In non-IP traffic, QoS sets the DSCP from the received or port CoS value.
–
In IP traffic from ingress ports that are configured with the trust-ipprec port keyword, the dscp ACE keyword instructs QoS to set the internal and egress DSCP values from the received IP precedence values. In non-IP traffic, QoS sets the DSCP value from the received or port CoS value.
–
In traffic from ingress ports that are configured with the trust-cos port keyword, the dscp ACE keyword instructs QoS to set the internal and egress DSCP values from the received or port CoS values.
–
In traffic from ingress ports that are configured with the untrusted port keyword, the dscp ACE keyword instructs QoS to set the internal and egress DSCP values from the DSCP value in the ACE.
Note
The default configuration of the ACEs in the default ACLs contains the dscp ACE keyword, which supports per-port classification of traffic. With the default values, the ACEs in the default ACLs apply DSCP zero to traffic from ingress ports that are configured with the untrusted port keyword.
QoS uses configurable mapping tables to set the DSCP value, which is 6 bits, from CoS and IP precedence, which are 3-bit values (for more information, see the "Mapping Received CoS Values to Internal DSCP Values" section and the "Mapping Received IP Precedence Values to Internal DSCP Values" section).
Policers
You can create named policers that specify bandwidth utilization limits, which you can apply to traffic by including the policer name in an ACE (for more information, see the "Creating Policers" section).
Policing uses a token bucket scheme. As packets arrive, the packet size in bytes is added to the bucket level. Every 0.25 ms, a value equal to the token rate is subtracted from the bucket level.
You specify the bandwidth utilization limits as an average rate and a maximum burst size. Packets that exceed these limits are "out of profile." Traffic is in profile as long as it flows in at an average rate and never bursts beyond the burst size.
In each policer, you specify if out-of-profile packets are to be dropped or to have a new DSCP value applied to them (applying a new DSCP value is called "markdown"). Since out-of-profile packets do not retain their original priority, they are not counted as part of the bandwidth that is consumed by in-profile packets.
For all policers, QoS uses a configurable table that maps received DSCP values to marked-down DSCP values (for more information, see the "Mapping DSCP Markdown Values" section). When markdown occurs, QoS gets the marked-down DSCP value from the table. You cannot specify a marked-down DSCP value in individual policers.
Note
By default, the markdown table is configured so that no markdown occurs; the marked-down DSCP values are equal to the received DSCP values. To enable markdown, configure the table appropriately for your network.
You give each policer a unique name when you create it and then use the name to include the policer in an ACE. The same policer can be used in multiple ACEs.
You can create these policers:
•
Microflow—QoS applies the bandwidth limit that is specified in a microflow policer separately to each flow that matches any ACEs that use that particular microflow policer. You can create up to 63 microflow policers.
•
Aggregate—QoS applies the bandwidth limits that are specified in an aggregate policer cumulatively to all flows that match any ACEs that use that particular aggregate policer. You can create up to 1023 aggregate policers.
•
With a PFC2, you can specify a dual rate aggregate policer with a normal rate and an excess rate:
–
Normal rate—Packets exceeding this rate are marked down.
–
Excess rate—Packets exceeding this rate are either marked down or dropped as specified by the drop indication flag.
Note
The drop indication flag applies to the excess rate policer and cannot be set for the normal rate policer. To achieve the effect of a drop indication flag for the normal rate aggregate policer, set the excess rate equal to the normal rate and set the drop indication flag. Alternatively, you can set the normal rate without specifying an excess rate, which automatically sets the excess rate to the normal rate when the drop indicator flag is on.
You can include both a microflow policer and an aggregate policer in each ACE to police a flow based on both its own bandwidth utilization and on its bandwidth utilization combined with that of other flows.
For example, you could create a microflow policer named "group_individual" with bandwidth limits that are suitable for individuals in a group and you could create an aggregate policer named "group_all" with bandwidth limits that are suitable for the group as a whole. You could include both policers in ACEs that match the group's traffic. The combination would affect individuals separately and the group cumulatively.
For ACEs that include both a microflow policer and an aggregate policer, QoS responds to an out-of-profile status from either policer, and as specified by the policer, applies a new DSCP value or drops the packet. If both policers return an out-of-profile status, then if either policer specifies that the packet is to be dropped, it is dropped; otherwise, QoS applies a new DSCP value.
Follow these guidelines when creating policers:
•
You can include a microflow policer in IP ACEs. You cannot include a microflow policer in IPX or MAC ACEs. IPX and MAC ACEs support only aggregate policers.
•
By default, microflow policers do not affect bridged traffic. To enable microflow policing of bridged traffic, enter the set qos bridged-microflow-policing command (for more information, see the "Enabling or Disabling Microflow Policing of Bridged Traffic" section).
•
With a Layer 3 Switching Engine II, to do any microflow policing, you must enable microflow policing of bridged traffic.
•
With an MSFC, QoS does not apply microflow policers to Multilayer Switching (MLS) candidate frames (MSFC2 does not use candidate and enabler frames).
•
To avoid inconsistent results, all ACEs that include the same aggregate policer must use the same ACE keyword: trust-dscp, trust-ipprec, trust-cos, or dscp. If the ACE uses the dscp keyword, all traffic that matches the ACE must come through ports that are configured with the same port keyword: trust-dscp, trust-ipprec, trust-cos, or untrusted. If the ACL is attached to a VLAN, you must configure all ports in the VLAN with the same port keyword.
PFC2 Policing Decisions
With a PFC2, the policing decision consists of two levels:
•
Normal Police Level—Set if either the microflow policer or the aggregate normal rate policer returns an out-of-profile decision.
•
Excess Police Level—Set if the aggregate excess rate policer returns an out-of-profile decision.
Packets are dropped if the excess rate aggregate policer returns an out-of-profile decision and the drop indication flag is set, or if the microflow policer returns an out-of-profile decision and the drop indication flag is set.
If an excess police level is set, the excess DSCP mapping is used to replace the original DSCP value with a marked-down value. If only a normal police level is set, the normal DSCP mapping is used. The excess police level has precedence for selecting mapping rules when both police levels are set because the excess police level represents the worst out-of-profile transgression.
Attaching ACLs
You can configure each port for either port-based QoS (default) or VLAN-based QoS (see the "Enabling Port-Based or VLAN-Based QoS" section) and attach ACLs to the selected interface (see the "Attaching ACLs to Interfaces" section). You can attach up to three named ACLs, one of each type (IP, IPX, and Ethernet) to each port and VLAN.
On ports that are configured for VLAN-based QoS, you can attach named ACLs to the port's VLAN. For a trunk, you can attach named ACLs to any VLANs that are allowed on the trunk as follows:
•
On a port that is configured for VLAN-based QoS, traffic that is received through the port is compared to any named ACLs that are attached to the port's VLAN. If you do not attach any named ACLs to the port's VLAN, or if the traffic does not match an ACE in a named ACL, QoS compares the traffic that is received through the port to the default ACLs.
•
On a trunk that is configured for VLAN-based QoS, traffic that is received through the port is compared to any named ACLs that are attached to the traffic's VLAN. For traffic in VLANs that have no named ACLs attached, or if the traffic does not match an ACE in a named ACL, QoS compares the traffic to the default ACLs.
On ports that are configured for port-based QoS, you can attach named ACLs to the port as follows:
•
On a port that is configured for port-based QoS, traffic that is received through the port is compared to any named ACLs that are attached to the port. If you do not attach any named ACLs to the port, or if the traffic does not match an ACE in a named ACL, QoS compares the traffic that is received through the port to the default ACLs.
•
On a trunk that is configured for port-based QoS, traffic in all VLANs that are received through the port is compared to any named ACLs that are attached to the port. If you do not attach any named ACLs to the port, or if the traffic does not match an ACE in a named ACL, QoS compares the traffic that is received through the port to the default ACLs.
Final Layer 3 Switching Engine CoS and ToS Values
With a Layer 3 switching engine, QoS associates CoS and ToS values with traffic as specified by the marking rules and policers in the ACE that the traffic matches (see the "Internal DSCP Values" section). The associated CoS and ToS are used at the Ethernet egress port (see the "Ethernet Egress Port Scheduling, Congestion Avoidance, and Marking" section).
Classification and Marking with a Layer 2 Switching Engine
With a Layer 2 Switching Engine, QoS can classify traffic that is addressed to specified MAC address/VLAN pairs to be marked with a configured CoS value (for more information, see the "QoS Terminology" section and the "Mapping a CoS Value to a Host Destination MAC Address/VLAN Pair" section).
Note
Classification and marking with a Layer 2 Switching Engine uses Layer 2 CoS values. Classification and marking with a Layer 2 Switching Engine does not use or set Layer 3 IP precedence or DSCP values.
Ethernet Egress Port Scheduling, Congestion Avoidance, and Marking
These sections describe Ethernet egress port scheduling, congestion avoidance, and marking:
•
Overview
•
Transmit Queues
•
Scheduling and Congestion Avoidance
•
Marking
Overview
QoS schedules traffic through the transmit queues based on CoS values and uses CoS-value-based transmit-queue drop thresholds to avoid congestion in traffic that is transmitted from Ethernet ports.
Note
Ethernet egress port scheduling and congestion avoidance uses Layer 2 CoS values. Ethernet egress port marking writes Layer 2 CoS values, and for IP traffic, the Layer 3 ToS byte.
Transmit Queues
Enter the show port capabilities command to see the queue structure of a port. The command displays one of the following:
•
tx-(2q2t) indicates two standard queues, each with two configurable tail-drop thresholds.
•
tx-(1p2q2t) indicates one strict-priority queue and two standard queues, each with two configurable WRED-drop thresholds.
•
tx-(1p3q1t) indicates one strict-priority queue and three standard queues, each with one configurable WRED-drop threshold (on 1p3q1t ports, each standard queue also has one nonconfigurable tail-drop threshold).
•
tx-(1p2q1t) indicates one strict-priority queue and two standard queues, each with one configurable WRED-drop threshold (on 1p2q1t ports, each standard queue also has one nonconfigurable tail-drop threshold).
All port types have a low-priority and a high-priority standard transmit queue. 1p3q1t ports have a medium-priority standard transmit queue. 1p2q2t, 1p3q1t, and 1p2q1t ports have a strict-priority transmit queue in addition to the standard queues.
On 2q2t ports, the default QoS configuration allocates a minimum of 80 percent of the total transmit queue size to the low-priority standard queue and a minimum of 20 percent to the high-priority standard queue.
On 1p2q2t, 1p3q1t, and 1p2q1t ports, the switch services traffic in the strict-priority queue before servicing the standard queues. When the switch is servicing a standard queue, after transmitting a packet, it checks for traffic in the strict-priority queue. If the switch detects traffic in the strict-priority queue, it suspends its service of the standard queue and completes service of all traffic in the strict-priority queue before returning to the standard queue.
On 1p2q2t ports, the default QoS configuration allocates a minimum of 70 percent of the total transmit queue size to the low-priority standard queue, a minimum of 15 percent to the high-priority standard queue, and a minimum of 15 percent to the strict-priority queue.
On 1p3q1t ports, the transmit queue size is not configurable and is allocated equally among all queues.
On 1p2q1t ports, the default QoS configuration allocates a minimum of 50 percent of the total transmit queue size to the low-priority standard queue, a minimum of 30 percent to the high-priority standard queue, and a minimum of 20 percent to the strict-priority queue.
Scheduling and Congestion Avoidance
These sections describe scheduling and congestion avoidance:
•
2q2t Ports
•
1p2q2t Ports
•
1p3q1t Ports
•
1p2q1t Ports
Note
The explanations in these sections use default values. You can configure many of the parameters (for more information, see the "Configuring QoS on the Switch" section). All ports of the same type use the same drop-threshold configuration.
2q2t Ports
For 2q2t ports, each transmit queue has two tail-drop thresholds that function as follows:
•
Frames with CoS 0, 1, 2, or 3 go to the low-priority transmit queue (queue 1):
–
Using transmit queue 1, tail-drop threshold 1, the switch drops frames with CoS 0 or 1 when the low-priority transmit-queue buffer is 80 percent full.
–
Using transmit queue 1, tail-drop threshold 2, the switch drops frames with CoS 2 or 3 when the low-priority transmit-queue buffer is 100 percent full.
•
Frames with CoS 4, 5, 6, or 7 go to the high-priority transmit queue (queue 2):
–
Using transmit queue 2, tail-drop threshold 1, the switch drops frames with CoS 4 or 5 when the high-priority transmit-queue buffer is 80 percent full.
–
Using transmit queue 2, tail-drop threshold 2, the switch drops frames with CoS 6 or 7 when the high-priority transmit-queue buffer is 100 percent full.
1p2q2t Ports
1p2q2t ports have a strict-priority queue and two standard transmit queues. The two standard transmit queues each have two WRED-drop thresholds.
•
Frames with CoS 5 go to the strict-priority transmit queue (queue 3), where the switch drops frames only when the buffer is 100 percent full.
•
Frames with CoS 0, 1, 2, or 3 go to the low-priority standard transmit queue (queue 1) as follows:
–
Using standard transmit queue 1, WRED-drop threshold 1, the switch drops frames with CoS 0 or 1 when the low-priority transmit-queue buffer is 80 percent full.
–
Using standard transmit queue 1, WRED-drop threshold 2, the switch drops frames with CoS 2 or 3 when the low-priority transmit-queue buffer is 100 percent full.
•
Frames with CoS 4, 6, or 7 go to the high-priority standard transmit queue (queue 2) as follows:
–
Using standard transmit queue 2, WRED-drop threshold 1, the switch drops frames with CoS 4 when the high-priority transmit-queue buffer is 80 percent full.
–
Using standard transmit queue 2, WRED-drop threshold 2, the switch drops frames with CoS 6 or 7 when the high-priority transmit-queue buffer is 100 percent full.
1p3q1t Ports
1p3q1t ports have a strict-priority queue and three standard transmit queues. The standard transmit queues each have one WRED-drop threshold and one nonconfigurable tail-drop threshold.
•
Frames with CoS 5 go to the strict-priority transmit queue (queue 4), where the switch drops frames only when the buffer is 100 percent full.
•
Frames with CoS 0 and 1 go to the low-priority standard transmit queue (queue 1).
•
Frames with CoS 2, 3, or 4 go to the medium-priority standard transmit queue (queue 2).
•
Frames with CoS 6 or 7 go to the high-priority standard transmit queue (queue 3).
Note
You can configure each standard transmit queue to use both a nonconfigurable 100 percent tail-drop threshold and a configurable WRED-drop threshold (see the "1p3q1t Transmit Queues" section). The switch uses tail-drop thresholds for traffic carrying CoS values that are mapped only to a queue. The switch uses WRED-drop thresholds for traffic carrying CoS values that are mapped to a queue and a threshold.
1p2q1t Ports
1p2q1t ports have a strict-priority queue and two standard transmit queues. The standard transmit queues each have one WRED-drop threshold and one nonconfigurable tail-drop threshold.
•
Frames with CoS 5 go to the strict-priority transmit queue (queue 3), where the switch drops frames only when the buffer is 100 percent full.
•
The standard transmit queues have WRED-drop thresholds as follows:
–
Frames with CoS 0, 1, 2, or 3 go to the low-priority transmit queue (queue 1), where the switch starts to drop frames when the low-priority transmit-queue buffer is 70 percent full and drops all frames with CoS 0, 1, 2, or 3 when the buffer is 100 percent full.
–
Frames with CoS 4, 6, or 7 go to the high-priority transmit queue (queue 2), where the switch starts to drop frames when the high-priority transmit-queue buffer is 70 percent full and drops all frames with CoS 4, 6, or 7 when the buffer is 100 percent full.
Note
You can configure each standard transmit queue to use both the tail-drop and the WRED-drop threshold by mapping a CoS value to a queue or to a queue and a threshold. The switch uses tail-drop thresholds for traffic carrying CoS values that are mapped only to a queue. The switch uses WRED-drop thresholds for traffic carrying CoS values that are mapped to a queue and a threshold. See the "1p2q1t Transmit Queues" section.
Marking
When traffic is transmitted from the switch, QoS writes the ToS byte into IP traffic (Layer 3 switching engine only) and the CoS value that was used for scheduling and congestion avoidance into ISL or 802.1Q traffic (for more information, see the "Final Layer 3 Switching Engine CoS and ToS Values" section).
QoS Statistics Data Export
The QoS statistics data export feature generates per-port and per-aggregate policer utilization information and forwards this information in UDP packets to traffic monitoring, planning, or accounting applications. You can enable QoS statistics data export on a per-port or per-aggregate policer basis. The statistics data that is generated per port consists of counts of the input and output packets and bytes. The aggregate policer statistics consists of counts of allowed packets and counts of packets exceeding the policed rate.
The QoS statistics data collection occurs periodically at a fixed interval, but the interval at which the data is exported is configurable. QoS statistics collection is enabled by default, and the data export feature is disabled by default for all ports and all aggregate policers that are configured on the Catalyst 6500 series switch.
Note
•
Per-port counter information and utilization statistics are not available for ATM ports.
•
The QoS statistics data export feature is completely separate from TopN and NetFlow Data Export and does not interact with either of these features.
For information on configuring QoS statistics data export, see the "Configuring QoS Statistics Data Export" section.
QoS Default Configuration
Table 43-3 shows the QoS default configuration.
Table 43-3 QoS Default Configuration
Feature
|
Default Value
|
QoS enable state
|
Disabled
Note—With QoS enabled and all other QoS parameters at default values, QoS sets Layer 3 DSCP to 0 and Layer 2 CoS to 0 in all traffic that is transmitted from the switch.
|
Port CoS value
|
0
|
IntraVLAN microflow policing
|
Disabled
|
CoS to internal DSCP map (internal DSCP set from CoS values)
|
CoS 0 = DSCP 0 CoS 1 = DSCP 8 CoS 2 = DSCP 16 CoS 3 = DSCP 24 CoS 4 = DSCP 32 CoS 5 = DSCP 40 CoS 6 = DSCP 48 CoS 7 = DSCP 56
|
IP precedence to internal DSCP map (internal DSCP set from IP precedence values)
|
IP precedence 0 = DSCP 0 IP precedence 1 = DSCP 8 IP precedence 2 = DSCP 16 IP precedence 3 = DSCP 24 IP precedence 4 = DSCP 32 IP precedence 5 = DSCP 40 IP precedence 6 = DSCP 48 IP precedence 7 = DSCP 56
|
Internal DSCP to egress CoS map (egress CoS set from internal DSCP values)
|
DSCP 0-7 = CoS 0 DSCP 8-15 = CoS 1 DSCP 16-23 = CoS 2 DSCP 24-31 = CoS 3 DSCP 32-39 = CoS 4 DSCP 40-47 = CoS 5 DSCP 48-55 = CoS 6 DSCP 56-63 = CoS 7
|
Marked-down DSCP from DSCP map
|
Marked-down DSCP value equals original DSCP value (no markdown)
|
Policers
|
None
|
Named ACLs
|
None
|
Default ACLs
|
Supports per-port classification and marking, sets DSCP to 0 in traffic from untrusted ports, no policing
|
COPS1 support
|
Disabled
|
RSVP support
|
Disabled
|
QoS statistics data export
|
Disabled
|
With QoS enabled
|
Runtime—Port based or VLAN based
|
Port based
|
Config—Port based or VLAN based
|
Port based
|
Port trust state
|
Untrusted
|
2q2t transmit-queue size ratio
|
Low priority: 80%; high priority: 20%
|
1p1q0t receive-queue size ratio
|
Standard: 80%; strict priority: 20%
|
1p2q2t transmit-queue size ratio
|
Low priority: 70%; high priority: 15%; strict priority: 15%
|
1p2q1t transmit-queue size ratio
|
Low priority: 70%; high priority: 15%; strict priority: 15%
|
1p2q1t standard transmit-queue low:high priority bandwidth allocation ratio
|
100:255
|
2q2t, 1p2q2t, and 1p2q1t standard transmit-queue low:high priority bandwidth allocation ratio
|
5:255
|
1p3q1t standard transmit-queue low:medium:high-priority bandwidth allocation ratio
|
100:150:200
|
1q4t/2q2t receive and transmit-queue CoS value/drop-threshold mapping
|
• Receive queue 1/drop threshold 1 (50%) and transmit queue 1/drop threshold 1 (80%): CoS 0 and 1
• Receive queue 1/drop threshold 2 (60%) and transmit queue 1/drop threshold 2 (100%): CoS 2 and 3
• Receive queue 1/drop threshold 3 (80%) and transmit queue 2/drop threshold 1 (80%): CoS 4 and 5
• Receive queue 1/drop threshold 4 (100%) and transmit queue 2/drop threshold 2 (100%): CoS 6 and 7
|
1q2t port receive-queue CoS value/drop-threshold mapping and threshold percentages
|
• Receive queue 1/drop threshold 1:
– CoS 0, 1, 2, 3, and 4
– Drop threshold: 80%
• Receive queue 1/drop threshold 2:
– CoS 5, 6, and 7
– Drop threshold: 100% (not configurable)
Note Transmit queues same as 1p1q4t/1p2q2t.
|
1p1q4t/1p2q2t port receive and transmit-queue CoS value/drop-threshold mapping and threshold percentages
|
• Strict-priority receive queue 1 and strict-priority transmit queue 1: CoS 5
• Receive queue 1/drop threshold 1 and transmit queue 1/drop threshold 1:
– CoS 0 and 1
– Transmit queue low and high WRED-drop thresholds: 40% and 70%
• Receive queue 1/drop threshold 2 and transmit queue 1/drop threshold 2:
– CoS 2 and 3
– Transmit queue low and high WRED-drop thresholds: 70% and 100%
• Receive queue 1/drop threshold 3 and transmit queue 2/drop threshold 1:
– CoS 4
– Transmit queue low and high WRED-drop thresholds: 40% and 70%
• Receive queue 1/drop threshold 4 and transmit queue 2/drop threshold 2:
– CoS 6 and 7
– Transmit queue low and high WRED-drop thresholds: 70% and 100%
|
1p1q0t receive-queue CoS value mapping
|
• Receive queue 1 (standard) nonconfigurable 100% tail-drop threshold: CoS 0, 1, 2, 3, 4, 6, and 7
• Receive queue 2 (strict priority): CoS 5
|
1p3q1t transmit-queue CoS value/drop-threshold mapping
|
• Transmit queue 1 (standard low priority) tail-drop threshold:
– CoS 0 and 1
– Low and high WRED-drop threshold: 70% and 100%
• Transmit queue 2 (standard medium priority) tail-drop threshold:
– CoS 2, 3, and 4
– Low and high WRED-drop threshold: 70% and 100%
• Transmit queue 3 (standard high priority) tail-drop threshold:
– CoS 6 and 7
– Low and high WRED-drop threshold: 70% and 100%
• Transmit queue 4 (strict priority): CoS 5
|
1p1q8t receive-queue port CoS value/drop-threshold mapping
|
• Receive queue 1 (standard) WRED-drop threshold: CoS 0, 1, 2, 3, 4, 6, and 7:
– Drop threshold 1: CoS 0 Low WRED threshold: 40% High WRED-drop threshold: 70%
– Drop threshold 2: CoS 1 Low WRED threshold: 40% High WRED-drop threshold: 70%
– Drop threshold 3: CoS 2 Low WRED threshold: 50% High WRED-drop threshold: 80%
– Drop threshold 4: CoS 3 Low WRED threshold: 50% High WRED-drop threshold: 80%
– Drop threshold 5: CoS 4 Low WRED threshold: 60% High WRED-drop threshold: 90%
– Drop threshold 6: CoS 6 Low WRED threshold: 60% High WRED-drop threshold: 90%
– Drop threshold 6: CoS 7 Low WRED threshold: 70% High WRED-drop threshold: 100%
• Receive queue 2 (strict priority): CoS 5
|
1p2q1t transmit-queue port CoS value/drop-threshold mapping
|
• Transmit queue 1 (standard low priority) WRED-drop threshold:
– CoS 0, 1, 2, and 3
– Low WRED threshold: 70%
– High WRED-drop threshold: 100%
• Transmit queue 2 (standard high priority) WRED-drop threshold:
– CoS 4, 6, or 7
– Low WRED threshold: 70%
– High WRED-drop threshold: 100%
• Transmit queue 3 (strict-priority): CoS 5
|
With QoS disabled
|
Runtime—Port based or VLAN based
|
VLAN based
|
Config—Port based or VLAN based
|
Port based
|
Port trust state
|
trust-cos (Layer 2 switching engine) trust-dscp (Layer 3 switching engine)
|
Receive-queue drop-threshold percentages
|
All thresholds set to 100%
|
Transmit-queue drop-threshold percentages
|
All thresholds set to 100%
|
Transmit-queue low-priority/high-priority bandwidth allocation ratio
|
255:1
|
Transmit-queue size ratio
|
• Low priority: 100%
• High priority: Not used
|
CoS value/drop-threshold mapping
|
Receive-drop threshold 1 and transmit-queue 1/drop threshold 1: CoS 0-7
|
Configuring QoS on the Switch
These sections describe how to configure QoS on the Catalyst 6500 series switches:
•
Enabling QoS
•
Enabling Port-Based or VLAN-Based QoS
•
Configuring the Trust State of a Port
•
Configuring the CoS Value for a Port
•
Creating Policers
•
Deleting Policers
•
Creating or Modifying ACLs
•
Attaching ACLs to Interfaces
•
Detaching ACLs from Interfaces
•
Mapping a CoS Value to a Host Destination MAC Address/VLAN Pair
•
Deleting a CoS Value to a Host Destination MAC Address/VLAN Pair
•
Enabling or Disabling Microflow Policing of Bridged Traffic
•
Configuring Standard Receive-Queue Tail-Drop Thresholds
•
Configuring 2q2t Port Standard Transmit-Queue Tail-Drop Thresholds
•
Configuring Standard Queue WRED-Drop Thresholds
•
Allocating Bandwidth Between Standard Transmit Queues
•
Configuring the Receive-Queue Size Ratio
•
Configuring the Transmit-Queue Size Ratio
•
Mapping CoS Values to Drop Thresholds
•
Configuring DSCP Value Maps
•
Displaying QoS Information
•
Displaying QoS Statistics
•
Reverting to QoS Defaults
•
Disabling QoS
•
Configuring COPS Support
•
Configuring RSVP Support
•
Configuring QoS Statistics Data Export
Note
Some QoS show commands support the config and runtime keywords. Use the runtime keyword to display the QoS values that are currently programmed into the hardware. When you disable QoS, the display with the runtime keyword is "QoS is disabled." Use the config keyword to display values from commands that have been entered but which may not currently be programmed into the hardware (for example, locally configured QoS values that are currently not used because COPS has been selected as the QoS policy source or QoS values that are configured when QoS is disabled).
Enabling QoS
To enable QoS, perform this task in privileged mode:
Task
|
Command
|
Enable QoS on the switch.
|
set qos {enable | disable}
|
This example shows how to enable QoS:
Console> (enable) set qos enable
Enabling Port-Based or VLAN-Based QoS
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
By default, QoS uses ACLs that are attached to ports. On a per-port basis, you can configure QoS to use ACLs that are attached to a VLAN. To enable VLAN-based QoS on a port, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Enable VLAN-based QoS on a port.
|
set port qos mod/port {port-based | vlan-based}
|
Step 2
|
Verify the configuration.
|
show port qos mod/port
|
For more information, see the "Attaching ACLs" section.
This example shows how to enable VLAN-based QoS on a port:
Console> (enable) set port qos 1/1-2 vlan-based
Hardware programming in progress...
QoS interface is set to vlan-based for ports 1/1-2.
Changing a port from port-based to VLAN-based QoS detaches all ACLs from the port. Any ACLs that are attached to the VLAN apply to the port immediately (for more information, see the "Attaching ACLs to Interfaces" section).
Configuring the Trust State of a Port
This command configures the trust state of a port (for more information, see the "Ethernet Ingress Port Marking, Scheduling, Congestion Avoidance, and Classification" section). By default, all ports are untrusted.
To configure the trust state of a port, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure the trust state of a port.
|
set port qos trust {untrusted | trust-cos | trust-ipprec | trust-dscp}
|
Step 2
|
Verify the configuration.
|
show port qos
|
Note the following syntax guidelines when configuring the trust state of a port:
•
The trust-ipprec and trust-dscp keywords are supported only with a Layer 3 switching engine.
•
1q4t ports (except Gigabit Ethernet) do not support the trust-ipprec and trust-dscp port keywords. You must configure a trust-ipprec or trust-dscp ACL that matches the ingress traffic to apply the trust-ipprec or trust-dscp trust state.
•
On 1q4t ports (except Gigabit Ethernet), the trust-cos port keyword displays an error message, activates receive-queue drop thresholds, and—as indicated by the error message—does not apply the trust-cos trust state to traffic. You must configure a trust-cos ACL that matches the ingress traffic to apply the trust-cos trust state.
This example shows how to configure port 1/1 with the trust-cos keyword:
Console> (enable) set port qos 1/1 trust trust-cos
Port 1/1 qos set to trust-cos
Note
Only ISL or 802.1Q frames carry CoS values. Configure ports with the trust-cos keyword only when the received traffic is ISL or 802.1Q frames carrying CoS values that you know to be consistent with network policy.
Configuring the CoS Value for a Port
Note
Whether or not QoS uses the CoS value that is applied with the set port qos ...cos command depends on the trust state of the port and the trust state of the traffic that is received through the port. The set port qos ... cos command does not configure the trust state of the port or the trust state of the traffic that is received through the port. To use the CoS value that is applied with the set port qos ... cos command, configure a trust-CoS ACL that matches the ingress traffic; or for a port that receives no tagged traffic, configure the port to trust CoS.
Unmarked frames from ports that are configured as trusted and all frames from ports that are configured as untrusted are assigned the CoS value that is specified with this command.
To configure the CoS value for a port, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure the CoS value for a port.
|
set port qos cos cos_value
|
Step 2
|
Verify the configuration.
|
show port qos
|
This example shows how to configure the port CoS value to 3 for port 1/1:
Console> (enable) set port qos 1/1 cos 3
Port 1/1 qos cos set to 3
To revert to the default CoS value for a port, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Revert to the default CoS value for a port.
|
clear port qos cos
|
Step 2
|
Verify the configuration.
|
show port qos
|
This example shows how to revert to the default CoS value for port 1/1:
Console> (enable) clear port qos 1/1 cos
Port 1/1 qos cos setting cleared.
Creating Policers
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
To create a policer, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create a policer.
|
set qos policer microflow microflow_name {rate rate} {burst burst_value} {drop | policed-dscp}
With PFC or PFC2: set qos policer aggregate aggregate_name {rate rate} {burst burst_value} {drop | policed-dscp}
With PFC2: set qos policer aggregate aggregate_name {rate rate} policed-dscp {erate erate_value} {drop | policed-dscp} burst burst_value [eburst eburst_value]
|
Step 2
|
Verify the configuration.
|
show qos policer {config | runtime} {microflow | aggregate | all}
|
For more information, see the "Policers" section and the"PFC2 Policing Decisions" section.
The policer_name parameter can be up to 31 characters long, is case sensitive, and may include a-z, A-Z, 0-9, the dash character (-), the underscore character (_), and the period character (.). Policer names must start with an alphabetic character (not a digit) and must be unique across all microflow and aggregate policers. You cannot use keywords from any command as a policer name.
The valid values for the rate and erate parameters are 32 Kbps (entered as 32) to 32 Gbps (entered as 32000000); or to classify all traffic as out of profile, set the rate parameter to zero (0). Set the erate parameter to a higher value than the rate parameter. The PFC1 and PFC2 have the following hardware granularity for rate values:
Rate Value Range
|
Granularity
|
Rate Value Range
|
Granularity
|
1 to 1000 (1 Mbs)
|
32768 (32 K)
|
64001 to 128000 (128 Mbs)
|
4194304 (4 M)
|
1001 to 2000 (2 Mbs)
|
65536 (64 K)
|
128001 to 256000 (256 Mbs)
|
8388608 (8 M)
|
2001 to 4000 (4 Mbs)
|
131072 (128 K)
|
256001 to 512000 (512 Mbs)
|
16777216 (16 M)
|
4001 to 8000 (8 Mbs)
|
262144 (256 K)
|
512001 to 1024000 (1 Gps)
|
33554432 (32 M)
|
8001 to 16000 (16 Mbs)
|
524288 (512 K)
|
1024001 to 2048000 (2 Gps)
|
67108864 (64 M)
|
16001 to 32000 (32 Mbs)
|
1048576 (1 M)
|
2048001 to 4096000 (4 Gps)
|
134217728 (128 M)
|
32001 to 64000 (64 Mbs)
|
2097152 (2 M)
|
4096001 to 8192000 (8 Gps)
|
268435456 (256 M)
|
Within each range, QoS programs the hardware with rate values that are multiples of the granularity values.
The valid values for the burst and eburst parameters are 1 Kb (entered as 1) to 32 Mb (entered as 32000). When configuring burst and eburst parameters, note the following:
•
The burst keyword, the burst_value parameter, the optional eburst keyword, and the eburst_value parameter set the token bucket sizes. To sustain a specific rate, set the token bucket size to be at least the rate divided by 4000, because tokens are removed from the bucket every 1/4000th of a second (0.25 ms) and the bucket needs to be at least as large as the burst size to sustain the specified rate.
•
If you do not enter the eburst keyword and the eburst_value parameter, QoS sets both token buckets to the size that is configured with the burst keyword and the burst_value parameter.
•
Because any packet larger than the burst size is considered an out-of-profile packet, make sure that the burst size is greater than or equal to the largest packet size being policed.
•
QoS programs the hardware with values that are multiples of 32K (32,768), not with the specific value entered.
Enter either the drop keyword to cause all out-of-profile packets to be dropped or the policed-dscp keyword to cause all out-of-profile packets with the normal rate to be marked down as specified in the normal markdown DSCP map (for more information, see the "Mapping DSCP Markdown Values" section).
This example shows how to create a microflow policer with a 1-Mbps rate limit and a 10-Mb burst limit that marks down out-of-profile traffic:
Console> (enable) set qos policer microflow my-micro rate 1000 burst 10000 policed-dscp
Hardware programming in progress...
QoS policer for microflow my-micro created successfully.
For PFC2, this example shows how to create an aggregate excess rate policer with a 64-Kbps rate limit and a 128-Kb burst limit that drops traffic exceeding these values:
Console> (enable) set qos policer aggregate test rate 64 burst 128 drop
QoS policer for aggregate test created successfully.
Console> (enable) show qos policer config aggregate test
Aggregate name Normal rate (kbps) Burst size (kb) Normal action
----------------------------- ------------------ --------------- -------------
Excess rate (kbps) Burst size (kb) Excess action
------------------ --------------- -------------
------------------------------------
For PFC2, this example shows how to create an aggregate excess rate policer with a 64-Kbps rate limit and a 100-Kb burst limit that will cause all out-of-profile packets to be marked down as specified in the normal markdown DSCP map:
Console> (enable) set qos policer aggregate test2 rate 64 burst 100 policed-dscp
QoS policer for aggregate test2 created successfully.
Console> (enable) show qos policer config aggregate test2
Aggregate name Normal rate (kbps) Burst size (kb) Normal action
----------------------------- ------------------ --------------- -------------
test2 64 100 policed-dscp
Excess rate (kbps) Burst size (kb) Excess action
------------------ -------------- ---------------
------------------------------------
For PFC2, this example shows how to create an aggregate excess rate policer with a 64-Kbps rate limit and a 128-Kb burst limit that will cause traffic that exceeds the normal rate of 64 Kbps and a burst size of 96 Kb to be marked down as specified in the normal markdown DSCP map, and traffic that exceeds 128 Kbps and a burst size of 96 Kb to be dropped:
Console> (enable) set qos policer aggregate test3 rate 64 policed-dscp erate 128 drop
burst 96
QoS policer for aggregate test3 created successfully.
Console> (enable) show qos policer config aggregate test3
Aggregate name Normal rate (kbps) Burst size (kb) Normal action
----------------------------- ------------------ --------------- -------------
Excess rate (kbps) Burst size (kb) Excess action
------------------ --------------- ---------------
------------------------------------
Deleting Policers
Note
You can only delete policers if they are not attached to any interfaces (for more information, see the "Detaching ACLs from Interfaces" section).
To delete one or all policers, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Delete one or all policers.
|
clear qos policer {microflow | aggregate} {policer_name | all}
|
Step 2
|
Verify the configuration.
|
show qos policer {config | runtime} {microflow | aggregate | all}
|
This example shows how to delete the microflow policer named my_micro:
Console> (enable) clear qos policer microflow my_micro
my_micro QoS microflow policer cleared.
Creating or Modifying ACLs
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
These sections describe ACL creation and modification:
•
ACL Names
•
ACE Name, Marking Rule, Policing, and Filtering Syntax
•
Named IP ACLs
•
Modifying the Default IP ACL
•
Creating or Modifying Named IPX ACLs
•
Creating or Modifying Named MAC ACLs
•
Creating or Modifying the Default IPX and MAC ACLs
•
Deleting Named ACLs
•
Reverting to Default Values in Default ACLs
•
Discarding Uncommitted ACLs
•
Committing ACLs
ACL Names
ACL names can be up to 31 characters long, are case sensitive, and may include a-z, A-Z, 0-9, the dash character (-), the underscore character (_), and the period character (.). ACL names must start with an alphabetic character and must be unique across all QoS ACLs of all types. You cannot use keywords from any command as an ACL name.
ACE Name, Marking Rule, Policing, and Filtering Syntax
ACE command syntax is organized as follows:
ACL_command ACL_type_and_name marking_rule policing_rule filtering
For example, in an IP ACE, the command syntax is as follows:
set qos acl ip acl_name {dscp dscp_value | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name] src_ip_spec [precedence precedence | dscp-field dscp] [before editbuffer_index | modify editbuffer_index]
•
set qos acl ip acl_name—Creates a named ACL of the specified type or adds the ACE to the ACL if it already exists. See the "ACL Names" section.
•
{dscp dscp_value | trust-cos | trust-ipprec | trust-dscp}—Selects a marking rule. See the "Marking Rules" section.
•
[microflow microflow_name] [aggregate aggregate_name]—Optionally configures policing in the ACE. See the "Policers" section.
•
src_ip_spec [precedence precedence | dscp-field dscp]—The rest of the parameters, except the editbuffer keywords, configure filtering.
Named IP ACLs
These sections describe creating or modifying IP ACLs:
•
Source and Destination IP Addresses and Masks
•
Port Operator Parameters
•
Precedence Parameter Options
•
IP ACEs for TCP Traffic
•
IP ACEs for UDP Traffic
•
IP ACEs for ICMP Traffic
•
IP ACEs for IGMP Traffic
•
IP ACLs for Other Layer 4 Protocols
•
IP ACEs for Any IP Traffic
Source and Destination IP Addresses and Masks
In IP ACEs, specify the source and destination IP addresses and masks (represented by the src_ip_spec and dest_ip_spec parameters in the following sections) in the form ip_address mask. The mask is mandatory. Use one bits, which need not be contiguous, where you want wildcards.
Use any of the following formats for the address and mask:
•
Four-part dotted-decimal 32-bit values
•
The keyword any as an abbreviation for a wildcard address and wildcard mask of 0.0.0.0 255.255.255.255
•
The abbreviation host ip_address for an address and wildcard mask of ip_address 0.0.0.0
Port Operator Parameters
In IP ACEs, the operator parameter can be one of the following:
•
lt (less than)
•
gt (greater than)
•
eq (equal)
•
neq (not equal)
•
range (with a pair of port parameters)
See the "Layer 4 Operations Configuration Guidelines" section for restrictions that apply to QoS ACLs.
Precedence Parameter Options
For precedence parameter keyword options in IP ACEs, see the "IP ACE Layer 3 Classification Criteria" section.
IP ACEs for TCP Traffic
To create or modify an IP ACE for TCP traffic, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify an IP ACE for TCP traffic.
|
set qos acl ip {acl_name} {{dscp dscp_value} | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name] tcp {src_ip_spec} [{operator} {port} [port]] {dest_ip_spec} [{operator} {port} [port]] [established] [precedence precedence_value | dscp-field dscp] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
For port parameter keyword options, see the "IP ACE Layer 4 TCP Classification Criteria" section.
The established keyword matches traffic with the ACK or RST bits set.
This example shows how to create an IP ACE for TCP traffic:
Console> (enable) set qos acl ip my_IPacl trust-ipprec microflow my-micro aggregate my-agg
tcp any any
my_IPacl editbuffer modified. Use `commit' command to apply changes.
IP ACEs for UDP Traffic
To create or modify an IP ACE for UDP traffic, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify an IP ACE for UDP traffic.
|
set qos acl ip {acl_name} {{dscp dscp_value} | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name] udp {src_ip_spec} [{operator} {port} [port]] {dest_ip_spec} [{operator} {port} [port]] [precedence precedence_value | dscp-field dscp] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
For port parameter keyword options, see the "IP ACE Layer 4 UDP Classification Criteria" section.
This example shows how to create an IP ACE for UDP traffic:
Console> (enable) set qos acl ip my_IPacl trust-ipprec microflow my-micro aggregate my-agg
udp any any
my_IPacl editbuffer modified. Use `commit' command to apply changes.
IP ACEs for ICMP Traffic
To create or modify an IP ACE for ICMP traffic, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify an IP ACE for ICMP traffic.
|
set qos acl ip acl_name {dscp dscp | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name] icmp src_ip_spec dest_ip_spec [icmp_type [icmp_code] | icmp_message] [precedence precedence | dscp-field dscp] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
For icmp_code and icmp_type parameter keyword options, see the "IP ACE Layer 4 ICMP Classification Criteria" section.
This example shows how to create an IP ACE for ICMP echo traffic:
Console> (enable) set qos acl ip my_IPacl trust-ipprec microflow my-micro aggregate my-agg
icmp any any echo
my_IPacl editbuffer modified. Use `commit' command to apply changes.
IP ACEs for IGMP Traffic
Note
QoS does not support IGMP traffic when IGMP snooping is enabled.
To create or modify an IP ACE for IGMP traffic, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify an IP ACE for IGMP traffic.
|
set qos acl ip acl_name {dscp dscp_value | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name] igmp src_ip_spec dest_ip_spec [igmp_type] [precedence precedence_value | dscp-field dscp] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
For igmp_type parameter keyword options, see the "IP ACE Layer 4 IGMP Classification Criteria" section.
This example shows how to create an IP ACE for IGMP Protocol Independent Multicast (PIM) traffic:
Console> (enable) set qos acl ip my_IPacl trust-ipprec microflow my-micro aggregate my-agg
igmp any any pim
my_IPacl editbuffer modified. Use `commit' command to apply changes.
IP ACLs for Other Layer 4 Protocols
To create or modify a named IP ACL with additional parameters that match all Layer 4 protocols, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify an IP ACE.
|
set qos acl ip acl_name {dscp dscp_value | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name] protocol src_ip_spec dest_ip_spec [precedence precedence_value | dscp-field dscp] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
For protocol parameter keyword options, see the "IP ACE Layer 4 Protocol Classification Criteria" section.
This example shows how to create an IP ACE for IPINIP traffic:
Console> (enable) set qos acl ip my_IPacl trust-ipprec microflow my-micro aggregate my-agg
ipinip any any
my_IPacl editbuffer modified. Use `commit' command to apply changes.
IP ACEs for Any IP Traffic
To create or modify an IP ACE that matches all IP traffic, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify an IP ACE.
|
set qos acl ip acl_name {dscp dscp | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name] src_ip_spec [precedence precedence | dscp-field dscp] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
This example shows how to create an IP ACE:
Console> (enable) set qos acl ip my_IPacl trust-ipprec microflow my-micro aggregate my-agg
any
my_IPacl editbuffer modified. Use `commit' command to apply changes.
Modifying the Default IP ACL
To modify the default IP ACL, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Modify the default IP ACL.
|
set qos acl default-action ip {dscp dscp | trust-cos | trust-ipprec | trust-dscp} [microflow microflow_name] [aggregate aggregate_name]
|
Step 2
|
Verify the configuration.
|
show qos acl info default-action {ip | ipx | mac | all}
|
For more information, see the "Default ACLs" section.
This example shows how to modify the default IP ACL:
Console> (enable) set qos acl default-action ip dscp 5 microflow my-micro aggregate my-agg
QoS default-action for IP ACL is set successfully.
Creating or Modifying Named IPX ACLs
To create or modify a named IPX ACL, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify a named IPX ACL.
|
With PFC: set qos acl ipx acl_name {dscp dscp_value | trust-cos} [aggregate aggregate_name] protocol src_net [dest_net[.dest_node] [[dest_net_mask] .dest_node_mask]] [before editbuffer_index | modify editbuffer_index]
With PFC2: set qos acl ipx acl_name aggregate aggregate_name protocol src_net [dest_net[.dest_node] [[dest_net_mask] .dest_node_mask]] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
The protocol parameter can be specified numerically (0-255) or with these keywords: any, ncp (17), netbios (20), rip (1), sap (4), or spx (5).
The src_net and dest_net parameters are IPX network numbers, entered as up to 8 hexadecimal digits in the range 1 to FFFFFFFE (-1 matches any network number). You do not need to enter leading zeros.
If you specify an IPX destination network, IPX ACEs support the following optional parameters:
•
An IPX destination network mask, entered as up to 8 hexadecimal digits in the range 1 to FFFFFFFE (-1 matches any network number). Use one bits, which need not be contiguous, where you want wildcards.
•
An IPX destination node, entered as 12 hexadecimal digits (48 bits), formatted as a dotted triplet of four-digit hexadecimal digits each (xxxx.xxxx.xxxx).
•
If you specify an IPX destination node, IPX ACEs support an IPX destination node mask, entered as 12 hexadecimal digits (48 bits), formatted as a dotted triplet of four-digit hexadecimal digits each (xxxx.xxxx.xxxx). Use one bits, which need not be contiguous, where you want wildcards.
This example shows how to create an IPX ACE:
Console> (enable) set qos acl ipx my_IPXacl trust-cos aggregate my-agg -1
my_IPXacl editbuffer modified. Use `commit' command to apply changes.
Creating or Modifying Named MAC ACLs
To create or modify a named MAC ACL, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify a named MAC ACL.
|
With PFC: set qos acl mac acl_name {dscp dscp_value | trust-cos} [aggregate aggregate_name] src_mac_spec dest_mac_spec [ethertype] [before editbuffer_index | modify editbuffer_index]
With PFC2: set qos acl mac acl_name aggregate aggregate_name src_mac_spec dest_mac_spec [ethertype] [before editbuffer_index | modify editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all} editbuffer [editbuffer_index]
|
Enter the src_mac_spec and dest_mac_spec parameters as a MAC address and a mask. Each parameter is 12 hexadecimal digits (48 bits), formatted as dash-separated pairs. Use one bits, which need not be contiguous, where you want wildcards. Use the any keyword for a MAC address and mask of 0-0-0-0-0-0 ff-ff-ff-ff-ff-ff. Use the host keyword with a MAC address to specify an all-zero mask (mac_address 0-0-0-0-0-0).
Enter the ethertype parameter as 4 hexadecimal digits (16 bits) prefaced with 0x (for example, 0x0600) or as a keyword (see the "MAC ACE Layer 2 Classification Criteria" section).
This example shows how to create a MAC ACE:
Console> (enable) set qos acl mac my_MACacl trust-cos aggregate my-agg any any
my_MACacl editbuffer modified. Use `commit' command to apply changes.
Note
QoS MAC ACLs that do not include an ethertype parameter match traffic with any value in the ethertype field, which allows MAC-level QoS to be applied to any traffic except IP and IPX.
Creating or Modifying the Default IPX and MAC ACLs
To create or modify the default IPX or MAC ACL, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Create or modify the default IPX or MAC ACL.
|
With PFC: set qos acl default-action {ipx | mac} {dscp dscp | trust-cos} [aggregate aggregate_name]
With PFC2: set qos acl default-action {ipx | mac} aggregate aggregate_name
|
Step 2
|
Verify the configuration.
|
show qos acl info default-action {ip | ipx | mac | all}
|
For more information, see the "Default ACLs" section.
This example shows how to modify the default IPX ACL:
Console> (enable) set qos acl default-action ipx dscp 5 aggregate my-agg
QoS default-action for IPX ACL is set successfully.
Note
IPX and MAC ACLs do not support microflow policers.
Deleting Named ACLs
To delete a named ACL, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Delete a named ACL.
|
clear qos acl acl_name [editbuffer_index]
|
Step 2
|
Verify the configuration.
|
show qos acl info {acl_name | all}
|
This example shows how to delete the ACL named icmp_acl:
Console> (enable) clear qos acl icmp_acl 1
ACL icmp_acl ACE# 1 is deleted.
icmp_acl editbuffer modified. Use `commit' command to apply changes.
Reverting to Default Values in Default ACLs
To revert to the default values for a default ACL, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Revert to the default values for a default ACL.
|
clear qos acl default-action {ip | ipx | mac}
|
Step 2
|
Verify the configuration.
|
show qos acl info default-action {ip | ipx | mac | all}
|
This example shows how to revert to the default values for the default IP ACL:
Console> (enable) clear qos acl default-action ip
Hardware programming in progress...
QoS default-action for IP ACL is restored to default setting.
Discarding Uncommitted ACLs
To discard an uncommitted new ACL or uncommitted changes to an existing ACL, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Discard an uncommitted ACL.
|
rollback qos acl {acl_name | all}
|
Step 2
|
If you discarded changes to an existing ACL, verify the configuration.
|
show qos acl info {acl_name | all}
|
This example shows how to discard an uncommitted ACL named my_acl:
Console> (enable) rollback qos acl my_acl
Rollback for QoS ACL my_acl is successful.
Note
Changes to the default ACLs take effect immediately and cannot be discarded.
Committing ACLs
When you create, change, or delete a named ACL, the changes exist temporarily in an edit buffer in memory. To commit the ACL so that it can be used, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Commit an ACL.
|
commit qos acl acl_name
|
Step 2
|
Verify the configuration.
|
show config qos acl {acl_name | all}
|
This example shows how to commit an ACL named my_acl:
Console> (enable) commit qos acl my_acl
Hardware programming in progress...
ACL my_acl is committed to hardware.
Note
When you commit an ACL that has already been attached to interfaces, the new values go into effect immediately. Changes to the default ACLs do not need to be committed.
See the "Configuring and Storing VACLs and QoS ACLs in Flash Memory" section for information about where QoS ACLs are stored.
Attaching ACLs to Interfaces
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
You can attach one ACL of each type to each VLAN and to each port that is configured for port-based QoS. You cannot attach ACLs to a port that is configured for VLAN-based QoS (for more information, see the "Enabling Port-Based or VLAN-Based QoS" section). When an ACL of a particular type (IP, IPX, or Ethernet) is already attached to an interface, attaching a different ACL of the same type detaches the previous ACL.
To attach an ACL to a port or a VLAN, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Attach an ACL to an interface.
|
set qos acl map acl_name {mod/port | vlan}
|
Step 2
|
Verify the configuration.
|
show qos acl map {config | runtime} {acl_name | mod/port | vlan | all}
|
This example shows how to attach an ACL named my_acl to port 2/1:
Console> (enable) set qos acl map my_acl 2/1
Hardware programming in progress...
ACL my_acl is attached to port 2/1.
This example shows how to attach an ACL named my_acl to VLAN 4:
Console> (enable) set qos acl map my_acl 4
Hardware programming in progress...
ACL my_acl is attached to vlan 4.
Note
The default ACLs do not need to be attached to any interfaces.
Detaching ACLs from Interfaces
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
To detach an ACL from a port or a VLAN, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Detach an ACL from an interface.
|
clear qos acl map acl_name {mod/port | vlan | all}
|
Step 2
|
Verify the configuration.
|
show qos acl map {config | runtime} {acl_name | mod/port | vlan | all}
|
This example shows how to detach an ACL named my_acl from port 2/1:
Console> (enable) clear qos acl map my_acl 2/1
Hardware programming in progress...
ACL my_acl is detached from port 2/1.
This example shows how to detach an ACL named my_acl from VLAN 4:
Console> (enable) clear qos acl map my_acl 4
Hardware programming in progress...
ACL my_acl is detached from vlan 4.
Note
The default ACLs cannot be detached from any interfaces.
Mapping a CoS Value to a Host Destination MAC Address/VLAN Pair
Note
QoS only supports this command with a Layer 2 Switching Engine.
To map a CoS value to all frames that are destined for a particular host destination MAC address and VLAN number value pair, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Map a CoS value to a host destination MAC address/VLAN pair.
|
set qos mac-cos dest_mac VLAN cos_value
|
Step 2
|
Verify the configuration.
|
show qos mac-cos {dest_mac [vlan] | all}
|
This example shows how to map CoS 2 to a destination MAC address and VLAN 525:
Console> (enable) set qos mac-cos 00-40-0b-30-03-48 525 2
CoS 2 is assigned to 00-40-0b-30-03-48 vlan 525.
Deleting a CoS Value to a Host Destination MAC Address/VLAN Pair
Note
QoS only supports this command with a Layer 2 Switching Engine.
To delete a host destination MAC address and VLAN number value pair CoS assignment, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Delete a host destination MAC address and VLAN number value pair CoS assignment.
|
clear qos mac-cos {dest_mac [vlan] | all}
|
Step 2
|
Verify the configuration.
|
show qos mac-cos {dest_mac [vlan] | all}
|
This example shows how to delete all CoS assignments to destination MAC addresses and VLANs:
Console> (enable) clear qos mac-cos all
All CoS to Mac/Vlan entries are cleared.
Enabling or Disabling Microflow Policing of Bridged Traffic
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
By default, microflow policers affect only Layer 3-switched traffic. To enable or disable microflow policing of bridged traffic on the switch or on specified VLANs, perform one of these tasks in privileged mode:
| |
Task
|
Command
|
| |
Enable microflow policing of bridged traffic on the switch or on specified VLANs.
|
set qos bridged-microflow-policing {enable | disable} vlan
|
| |
Disable microflow policing of bridged traffic on the switch or on specified VLANs.
|
set qos bridged-microflow-policing {enable | disable} vlan
|
| |
Verify the configuration.
|
show qos bridged-microflow-policing runtime {config | runtime} vlan
|
Note
With Layer 3 Switching Engine II, to do any microflow policing, you must enable microflow policing of bridged traffic.
For more information, see the "Policers" section.
This example shows how to enable microflow policing of traffic in VLANs 1 through 20:
Console> (enable) set qos bridged-microflow-policing enable 1-20
QoS microflow policing is enabled for bridged packets on vlans 1-20.
Configuring Standard Receive-Queue Tail-Drop Thresholds
To configure the standard receive-queue tail-drop thresholds on the switch, perform this task in privileged mode:
Task
|
Command
|
Configure the standard receive-queue tail-drop thresholds.
|
set qos drop-threshold port_type rx queue 1 thr1 thr2 thr3 thr4
|
For more information, see the "Receive Queues" section.
QoS maintains separate configurations for 1q2t, 1q4t, and 1p1q4t ports. This command configures the standard queue. Specify queue 1 (the threshold in the strict-priority queue, when present, is not separately configurable; it uses threshold 4 as specified for queue 1).
The thresholds are all specified as percentages ranging from 1-100. A value of 10 indicates a threshold when the buffer is 10 percent full.
This example shows how to configure the standard receive-queue tail-drop thresholds:
Console> (enable) set qos drop-threshold 1q4t rx queue 1 20 40 75 100
Receive drop thresholds for queue 1 set at 20% 40% 75% 100%
Note
You cannot configure a drop threshold in a 1p1q0t receive queue.
Configuring 2q2t Port Standard Transmit-Queue Tail-Drop Thresholds
To configure the standard transmit-queue tail-drop thresholds on all 2q2t ports, perform this task in privileged mode:
Task
|
Command
|
Configure the standard transmit-queue tail-drop thresholds on all 2q2t ports.
|
set qos drop-threshold port_type tx queue q# thr1 thr2
|
Queue number 1 is the low-priority transmit queue and queue number 2 is high priority. In each queue, the low-priority threshold number is 1 and the high-priority threshold number is 2.
The thresholds are all specified as percentages ranging from 1-100. A value of 10 indicates a threshold when the buffer is 10 percent full.
This example shows how to configure the low-priority transmit-queue tail-drop thresholds:
Console> (enable) set qos drop-threshold 2q2t tx queue 1 40 100
Transmit drop thresholds for queue 1 set at 40% 100%
Note
You cannot configure the tail-drop thresholds in 1p3q1t transmit queues.
Configuring Standard Queue WRED-Drop Thresholds
1p2q2t, 1p3q1t, and 1p2q1t ports have weighted random early detection (WRED)-drop thresholds in their standard transmit queues.
A 1p1q8t port has WRED-drop thresholds in its standard receive queue.
Note
1p3q1t (transmit), 1p2q1t (transmit), and 1p1q8t (receive) ports also have nonconfigurable tail-drop thresholds (see the "1p3q1t Ports" section).
To configure the standard queue WRED-drop thresholds on all ports of each type, perform this task in privileged mode:
Task
|
Command
|
Configure the standard queue WRED-drop thresholds on all ports of a given type.
|
set qos wred 1p2q2t [tx] queue q# [thr1Lo:]thr1Hi [thr2Lo:]thr2Hi
set qos wred 1p3q1t [tx] queue q# [thr1Lo:]thr1Hi
set qos wred 1p1q8t queue q# [thr1Lo:]thr1Hi [thr2Lo:]thr2Hi [thr_n_Lo:]thr_n_Hi... [thr8Lo:]thr8Hi
set qos wred 1p2q1t [tx] queue q# [thr1Lo:]thr1Hi
|
When configuring 1p2q2t ports, note the following:
•
Queue 1 is the low-priority standard transmit queue.
•
Queue 2 is the high-priority standard transmit queue.
•
When configuring each standard transmit queue, note the following:
–
The first percentage that you enter sets the low-priority threshold.
–
The second percentage that you enter sets the high-priority threshold.
When configuring 1p3q1t ports, note the following:
•
Queue 1 is the low-priority standard transmit queue.
•
Queue 2 is the medium-priority standard transmit queue.
•
Queue 3 is the high-priority standard transmit queue.
•
When you configure each standard transmit queue, the single percentage that you enter sets the threshold.
When configuring 1p1q8t ports, note the following:
•
Queue 1 is the single standard receive queue.
•
When you configure the single standard receive queue, note the following:
–
The first percentage that you enter sets the lowest-priority threshold.
–
The second percentage that you enter sets the next highest-priority threshold.
–
The eighth percentage that you enter sets the highest-priority threshold.
When configuring 1p2q1t ports, note the following:
•
Queue 1 is the low-priority standard transmit queue.
•
Queue 2 is the high-priority standard transmit queue.
•
When you configure each standard transmit queue, the single percentage that you enter sets the threshold.
When configuring thresholds, note the following:
•
The thresholds are all specified as percentages ranging from 0-100. A value of 10 indicates a threshold when the buffer is 10 percent full.
•
You can configure both the low WRED threshold and the high WRED threshold. You must set the low threshold to a lower percentage than the high threshold.
•
The low WRED threshold is the traffic level under which no traffic is dropped. The high WRED threshold is the traffic level above which all traffic is dropped. Traffic in the queue between the low and high WRED thresholds has an increasing chance of being dropped as the queue fills. The default low WRED threshold is zero (all traffic has some chance of being dropped).
This example shows how to configure the low-priority transmit-queue WRED-drop thresholds:
Console> (enable) set qos wred 1p2q2t queue 1 40:70 70:100
WRED thresholds for queue 1 set to 40:70 and 70:100 on all WRED-capable 1p2q2t ports.
Note
The threshold in the strict-priority queue is not configurable.
Allocating Bandwidth Between Standard Transmit Queues
The switch transmits frames from one standard queue at a time using a weighted-round robin (WRR) algorithm. WRR uses a weight value to decide how much to transmit from one queue before switching to the other. The higher the weight assigned to a queue, the more transmit bandwidth is allocated to it.
To allocate bandwidth between standard transmit queues, perform this task in privileged mode:
Task
|
Command
|
Allocate bandwidth between standard transmit queues.
|
set qos wrr port_type queue1-weight queue2-weight [queue3-weight]
|
The valid values for the port_type parameter are 2q2t, 1p2q2t, 1p3q1t, and 1p2q1t.
Note
1p2q1t ports use deficit weighted round robin (DWRR), which transmits from the queues without starving the low-priority queue by keeping track of low-priority queue under-transmission and compensating in the next round.
QoS maintains separate configurations for each port type. This command configures only the standard queues; the strict-priority queue requires no configuration. The valid values for weight range from 1-255.
This example shows how to allocate bandwidth for the 2q2t ports:
Console> (enable) set qos wrr 2q2t 30 70
QoS wrr ratio is set successfully.
Configuring the Receive-Queue Size Ratio
For 1p1q0t and 1p1q8t ports, estimate the mix of standard-priority and strict-priority traffic on your network (for example, 85 percent standard-priority traffic and 15 percent strict-priority traffic). Specify queue ratios with the estimated percentages, which must range from 1-99 and together add up to 100.
To configure the receive-queue size ratio, perform this task in privileged mode:
Task
|
Command
|
Configure the receive-queue size ratio between receive queue 1 (standard priority) and receive queue 2 (strict priority).
|
set qos rxq-ratio {1p1q0t | 1p1q8t} queue1-val queue2-val
|
This example shows how to configure the receive-queue size ratio:
Console> (enable) set qos rxq-ratio 1p1q0t 80 20
QoS rxq-ratio is set successfully.
Configuring the Transmit-Queue Size Ratio
For 2q2t, 1p2q2t, and 1p2q1t ports, estimate the mix of traffic of various priorities on your network (for example, 75 percent low-priority traffic, 15 percent high-priority traffic, and 10 percent strict-priority traffic). Specify queue ratios with the estimated percentages, which must range from 1-99 and together add up to 100.
To configure the transmit-queue size ratio for each port type, perform this task in privileged mode:
Task
|
Command
|
Configure the transmit-queue size ratio.
|
set qos txq-ratio {2q2t | 1p2q2t | 1p2q1t} queue1-val queue2-val [queue3-val]
|
This example shows how to configure the transmit-queue size ratio:
Console> (enable) set qos txq-ratio 2q2t 80 20
QoS txq-ratio is set successfully.
Mapping CoS Values to Drop Thresholds
This command associates CoS values with receive- and transmit-queue drop thresholds. QoS maintains separate configurations for each port type.
These sections describe mapping CoS values to drop thresholds:
•
Associating 1q4t/2q2t Ports
•
Associating 1q2t/1p2q2t and 1p1q4t/1p2q2t Ports
•
Associating 1p1q8t/1p2q1t Ports
•
Reverting to CoS Map Defaults
Associating 1q4t/2q2t Ports
On 1q4t/2q2t ports, you configure the receive queues and the transmit queues with the same command.
To associate CoS values to the drop thresholds on 1q4t/2q2t ports, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a drop threshold.
|
set qos map 2q2t tx q# thr# cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config {1q4t rx | 2q2t tx }
|
The receive- and transmit-drop thresholds have this relationship:
•
Receive queue 1 (standard) threshold 1 = transmit queue 1 (standard low priority) threshold 1
•
Receive queue 1 (standard) threshold 2 = transmit queue 1 (standard low priority) threshold 2
•
Receive queue 1 (standard) threshold 3 = transmit queue 2 (standard high priority) threshold 1
•
Receive queue 1 (standard) threshold 4 = transmit queue 2 (standard high priority) threshold 2
Use the transmit queue and transmit-queue drop-threshold values in this command. This example shows how to associate the CoS values 0 and 1 to both standard receive-queue 1/threshold 1 and standard transmit-queue 1/threshold 1:
Console> (enable) set qos map 2q2t tx 1 1 cos 0,1
Qos tx priority queue and threshold mapped to cos successfully.
Associating 1q2t/1p2q2t and 1p1q4t/1p2q2t Ports
On 1q2t/1p2q2t and 1p1q4t/1p2q2t ports, you configure the receive queues and the transmit queues separately.
1q2t Receive Queues
To associate CoS values to 1q2t receive-queue drop thresholds, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a receive-queue drop threshold.
|
set qos map 1q2t rx 1 1 cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config 1q2t rx
|
Threshold 1 is the low-priority threshold. Threshold 2, the high-priority threshold, is not configurable.
This example shows how to associate the CoS value 3 to high-priority threshold 2:
Console> (enable) set qos map 1q2t rx 1 1 cos 3
QoS rx priority queue and threshold mapped to cos successfully.
1p1q4t Receive Queues
To associate CoS values to 1p1q4t receive-queue drop thresholds, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a receive-queue drop threshold.
|
set qos map 1p1q4t rx q# thr# cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config 1p1q4t rx
|
Queue 1 is the standard queue, and queue 2 is the strict-priority queue.
Threshold numbers range from 1 for low priority to 4 for high priority.
This example shows how to associate the CoS value 5 to strict-priority receive-queue 2/threshold 1:
Console> (enable) set qos map 1p1q4t rx 2 1 cos 5
Qos rx strict queue and threshold mapped to cos successfully.
1p2q2t Transmit Queues
To associate CoS values to the 1p2q2t transmit-queue drop thresholds, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a transmit-queue drop threshold.
|
set qos map 1p2q2t tx q# thr# cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config 1p2q2t tx
|
Queue 1 is standard low priority, queue 2 is high priority, and queue 3 is strict priority.
Threshold 1 is low priority and threshold 2 is high priority.
This example shows how to associate the CoS value 5 to strict-priority transmit-queue 3/drop threshold 1:
Console> (enable) set qos map 1p2q2t tx 3 1 cos 5
Qos tx strict queue and threshold mapped to cos successfully.
Associating 1p1q0t/1p3q1t Ports
On 1p1q0t/1p3q1t ports, you configure the receive queues and the transmit queues separately.
1p1q0t Receive Queues
To associate CoS values to 1p1q0t receive queues, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a receive queue.
|
set qos map 1p1q0t rx q# cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config 1p1q0t rx
|
Queue 1 is the standard queue, and queue 2 is the strict-priority queue.
This example shows how to associate the CoS value 5 to strict-priority receive-queue 2:
Console> (enable) set qos map 1p1q0t rx 2 cos 5
QoS queue mapped to cos successfully.
1p3q1t Transmit Queues
With 1p3q1t transmit queues, you can associate a CoS value with either the nonconfigurable tail-drop threshold or the configurable WRED-drop threshold as follows:
•
To associate a CoS value with the tail-drop threshold, map the CoS value to the queue.
•
To associate a CoS value with the WRED-drop threshold, map the CoS value to the queue and threshold.
To associate CoS values to the 1p3q1t transmit-queue drop thresholds, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a transmit-queue drop threshold.
|
set qos map 1p3q1t tx q# [thr#] cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config 1p3q1t tx
|
Queue 1 is the standard low-priority queue, queue 2 is the medium-priority queue, queue 3 is the high-priority queue, and queue 4 is the strict-priority queue.
To map CoS values to the tail-drop threshold, omit the threshold number or enter 0.
The WRED-drop threshold number is 1.
This example shows how to associate the CoS value 0 to transmit-queue 1/drop threshold 1:
Console> (enable) set qos map 1p3q1t tx 1 1 cos 0
Qos tx strict queue and threshold mapped to cos successfully.
Associating 1p1q8t/1p2q1t Ports
When you configure 1p1q8t/1p2q1t ports, note the following:
•
You configure the receive queues and the transmit queues separately.
•
You can associate a CoS value with either the nonconfigurable tail-drop threshold or the configurable WRED-drop threshold:
–
To associate a CoS value with the tail-drop threshold, map the CoS value to the queue.
–
To associate a CoS value with the WRED-drop threshold, map the CoS value to the queue and threshold.
1p1q8t Receive Queues
To associate CoS values to 1p1q8t receive queues, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a receive queue.
|
set qos map 1p1q8t rx q# [thr#] cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config 1p1q8t rx
|
Queue 1 is the standard queue, and queue 2 is the strict-priority queue.
To map CoS values to the tail-drop threshold, omit the threshold number or enter 0.
The WRED-drop threshold number is 1.
This example shows how to associate the CoS value 5 to strict-priority receive-queue 2:
Console> (enable) set qos map 1p1q8t rx 2 cos 5
QoS queue mapped to cos successfully.
1p2q1t Transmit Queues
To associate CoS values to the 1p2q1t transmit-queue drop thresholds, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Associate a CoS value to a transmit-queue drop threshold.
|
set qos map 1p2q1t tx q# [thr#] cos coslist
|
Step 2
|
Verify the configuration.
|
show qos info config 1p2q1t tx
|
Queue 1 is the standard low-priority queue, queue 2 is the standard high-priority queue, and queue 3 is the strict-priority queue.
To map CoS values to the tail-drop threshold, omit the threshold number or enter 0.
The WRED-drop threshold number is 1.
This example shows how to associate the CoS value 0 to transmit-queue 1/drop threshold 1:
Console> (enable) set qos map 1p2q1t tx 1 1 cos 0
Qos tx strict queue and threshold mapped to cos successfully.
Reverting to CoS Map Defaults
To revert to default CoS value/drop threshold mapping, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Revert to CoS map defaults.
|
clear qos map {1p1q4t rx | 1p1q0t rx | 1p2q2t tx | 2q2t tx | 1p3q1t tx}
|
Step 2
|
Verify the configuration.
|
show qos info config {1q4t rx | 1p1q4t rx | 1p1q0t rx | 1p1q8t rx | 1p2q2t tx | 2q2t tx | 1p3q1t tx | 1p2q1t tx}
|
This example shows how to revert to CoS map defaults:
Console> (enable) clear qos map 1p3q1t tx
Configuring DSCP Value Maps
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
These sections describe how DSCP values are mapped to other values:
•
Mapping Received CoS Values to Internal DSCP Values
•
Mapping Received IP Precedence Values to Internal DSCP Values
•
Mapping Internal DSCP Values to Egress CoS Values
•
Mapping DSCP Markdown Values
Mapping Received CoS Values to Internal DSCP Values
To map received CoS values to the internal DSCP value (see the "Internal DSCP Values" section), perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Map received CoS values to internal DSCP values.
|
set qos cos-dscp-map dscp1 dscp2 dscp3 dscp4 dscp5 dscp6 dscp7 dscp8
|
Step 2
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
Enter 8 DSCP values to which QoS maps received CoS values 0 through 7. This example shows how to map received CoS values to internal DSCP values:
Console> (enable) set qos cos-dscp-map 20 30 1 43 63 12 13 8
QoS cos-dscp-map set successfully.
To revert to default CoS to DSCP value mapping, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Revert to CoS value/DSCP value map defaults.
|
clear qos cos-dscp-map
|
Step 2
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
This example shows how to revert to CoS-DSCP map defaults:
Console> (enable) clear qos cos-dscp-map
QoS cos-dscp-map setting restored to default.
Mapping Received IP Precedence Values to Internal DSCP Values
To map received IP precedence values to the internal DSCP value (see the "Internal DSCP Values" section), perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Map received IP precedence values to internal DSCP values.
|
set qos ipprec-dscp-map dscp1 dscp2 dscp3 dscp4 dscp5 dscp6 dscp7 dscp8
|
Step 2
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
Enter 8 internal DSCP values to which QoS maps received IP precedence values 0 through 7. This example shows how to map received IP precedence values to internal DSCP values:
Console> (enable) set qos ipprec-dscp-map 20 30 1 43 63 12 13 8
QoS ipprec-dscp-map set successfully.
To revert to default IP precedence to DSCP value mapping, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Revert to IP precedence value to DSCP value map defaults.
|
clear qos ipprec-dscp-map
|
Step 2
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
This example shows how to revert to QoS map defaults:
Console> (enable) clear qos ipprec-dscp-map
QoS ipprec-dscp-map setting restored to default.
Mapping Internal DSCP Values to Egress CoS Values
To map internal DSCP values to the egress CoS values that are used for egress port scheduling and congestion avoidance, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Map internal DSCP values to egress CoS values.
|
set qos dscp-cos-map dscp_list:cos ...
|
Step 2
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
For more information, see the "Internal DSCP Values" section and the "Ethernet Egress Port Scheduling, Congestion Avoidance, and Marking" section.
Enter up to 64 internal DSCP value list/egress CoS value pairs. This example shows how to map internal DSCP values to egress CoS values:
Console> (enable) set qos dscp-cos-map 20-25:7 33-38:3
QoS dscp-cos-map set successfully.
To revert to default DSCP/CoS value mapping, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Revert to DSCP value/CoS value map defaults.
|
clear qos dscp-cos-map
|
Step 2
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
This example shows how to revert to DSCP-CoS map defaults:
Console> (enable) clear qos dscp-cos-map
QoS dscp-cos-map setting restored to default.
Mapping DSCP Markdown Values
To map DSCP markdown values used by policers, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Map DSCP values to markdown DSCP values.
|
set qos policed-dscp-map dscp_list:markdown_dscp ...
|
Step 2
|
With PFC2, map DSCP values to markdown DSCP values.
|
set qos policed-dscp-map [normal | excess] in_profile_dscp_list:policed_dscp ...
|
Step 3
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
For more information, see the "Policers" section.
Enter up to 64 DSCP-value-list/DSCP-value pairs.
This example shows how to map DSCP markdown values:
Console> (enable) set qos policed-dscp-map 20-25:7 33-38:3
QoS dscp-dscp-map set successfully.
This example shows how to map DSCP markdown values for packets exceeding the excess rate:
Console> (enable) set qos policed-dscp-map 33:30
QoS normal-rate policed-dscp-map set successfully.
Console> (enable) set qos policed-dscp-map excess-rate 33:30
QoS excess-rate policed-dscp-map set successfully.
Note
Configure marked-down DSCP values that map to CoS values that are consistent with the markdown penalty (see the "Mapping Internal DSCP Values to Egress CoS Values" section).
To revert to default DSCP markdown value mapping, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Revert to DSCP markdown map defaults.
|
clear qos policed-dscp-map [normal-rate | excess-rate]
|
Step 2
|
Verify the configuration.
|
show qos maps {config | runtime} [cos-dscp-map | ipprec-dscp-map | dscp-cos-map | policed-dscp-map]
|
This example shows how to revert to DSCP markdown map defaults:
Console> (enable) clear qos policed-dscp-map
QoS dscp-cos-map setting restored to default.
Note
Without the normal-rate or the excess-rate keywords, the clear qos policed-dscp-map command clears only the normal policed-dscp map.
Displaying QoS Information
To display QoS information, perform this task:
Task
|
Command
|
Display QoS information.
|
show qos info [runtime | config]
|
This example shows how to display the QoS runtime information for port 2/1:
Console> show qos info config 2/1
Port 2/1 has 2 transmit queue with 2 drop thresholds (2q2t).
Port 2/1 has 1 receive queue with 4 drop thresholds (1q4t).
Interface type:vlan-based
The qos trust type is set to untrusted.
Queue and Threshold Mapping:
----- --------- ---------------
Rx drop thresholds are disabled for untrusted ports.
Queue # Thresholds - percentage (abs values )
------- -------------------------------------
Queue # Thresholds - percentage (abs values )
------- -------------------------------------
WRED feature is not supported for this port_type.
Queue # Sizes - percentage (abs values )
------- -------------------------------------
WRR Configuration of ports with speed 1000Mbps:
Queue # Ratios (abs values )
------- -------------------------------------
Displaying QoS Statistics
To display QoS statistics, perform this task:
Task
|
Command
|
Display QoS statistics.
|
show qos statistics {mod[/port] | l3stats | aggregate-policer [policer_name]}
|
This example shows how to display QoS statistics for port 2/1:
Console> (enable) show qos statistics 2/1
On Transmit:Port 2/1 has 2 Queue(s) 2 Threshold(s)
Q # Threshold #:Packets dropped
--- -----------------------------------------------
On Receive:Port 2/1 has 1 Queue(s) 4 Threshold(s)
Q # Threshold #:Packets dropped
--- -----------------------------------------------
1 1:0 pkts, 2:0 pkts, 3:0 pkts, 4:0 pkts
This example shows how to display QoS Layer 3 statistics:
Console> (enable) show qos statistics l3stats
QoS Layer 3 Statistics show statistics since last read.
Packets dropped due to policing: 0
IP packets with ToS changed: 0
IP packets with CoS changed: 26
Non-IP packets with CoS changed: 0
This example shows how to display QoS aggregate policer statistics:
Console> (enable) show qos statistics aggregate-policer
QoS aggregate-policer statistics:
Aggregate Policer Packet Count Packets exceed Packets exceed
-------------------------------- ------------ -------------- -----------------
Reverting to QoS Defaults
Note
Reverting to defaults disables QoS, because QoS is disabled by default.
To revert to QoS defaults, perform this task in privileged mode:
Task
|
Command
|
Revert to QoS defaults.
|
clear qos config
|
This example shows how to revert to QoS defaults:
Console> (enable) clear qos config
This command will disable QoS and take values back to factory default.
Do you want to continue (y/n) [n]? y
Disabling QoS
To disable QoS, perform this task in privileged mode:
Task
|
Command
|
Disable QoS on the switch.
|
set qos {enable | disable}
|
This example shows how to disable QoS:
Console> (enable) set qos disable
Configuring COPS Support
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
Note
COPS can configure QoS only for IP traffic. Use the CLI or SNMP to configure QoS for all other traffic.
These sections describe configuring COPS support:
•
Port ASICs
•
Understanding QoS Policy
•
Selecting COPS as the QoS Policy Source
•
Selecting Locally Configured QoS Policy
•
Enabling Use of Locally Configured QoS Policy
•
Assigning Port Roles
•
Removing Roles from Port ASICs
•
Deleting Roles
•
Configuring Policy Decision Point Servers
•
Deleting the PDP Server Configuration
•
Configuring the COPS Domain Name
•
Deleting the COPS Domain Name
•
Configuring the COPS Communications Parameters
Note
Throughout this publication and all Catalyst 6500 series documents, the term COPS refers to COPS support as implemented on the Catalyst 6500 series switches.
Port ASICs
Some COPS support features affect all ports that are controlled by a port ASIC. The following sections use the term per-ASIC to identify the features that configure all ports on the same port ASIC:
•
The port ASICs on Gigabit Ethernet switching modules control up to 4 ports each: 1-4, 5-8, 9-12, and 13-16.
•
A port ASIC on 10-Mbps, 10/100-Mbps, and 100-Mbps Ethernet switching modules controls all ports.
•
On 10-Mbps, 10/100-Mbps, and 100-Mbps Ethernet switching modules, another set of port ASICs control 12 ports each (1-12, 13-24, 25-36, and 37-48), but COPS cannot configure them.
•
Changes to an EtherChannel port apply to all ports in the EtherChannel and to all ports controlled by the ASIC (or ASICs) that control the EtherChannel ports.
Understanding QoS Policy
The term QoS policy refers to the QoS values in effect, such as port trust state and which ACLs are applied to ports and VLANs.
Selecting COPS as the QoS Policy Source
QoS uses locally configured QoS values as the default QoS policy source. To select COPS as the QoS policy source, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Select COPS as the QoS policy source.
|
set qos policy-source {local | cops}
|
Step 2
|
Verify the QoS policy source.
|
show qos policy-source
|
This example shows how to select COPS as the QoS policy source:
Console> (enable) set qos policy-source cops
QoS policy source for the switch set to COPS.
Console> (enable) show qos policy-source
QoS policy source for the switch set to COPS.
Selecting COPS as the QoS policy source switches the following values from locally configured values to received COPS values:
•
All DSCP maps
•
Named and default ACL definitions
•
Microflow and aggregate policers
•
CoS to queue assignments
•
Threshold configuration
•
WRR weight and buffer configuration
•
Default port CoS and ACL-to-interface attachments
Selecting Locally Configured QoS Policy
To select locally configured QoS policy, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Select locally configured QoS policy.
|
set qos policy-source {local | cops}
|
Step 2
|
Verify the QoS policy source.
|
show qos policy-source
|
This example shows how to select locally configured QoS policy:
Console> (enable) set qos policy-source local
QoS policy source for the switch set to local.
Console> (enable) show qos policy-source
QoS policy source for the switch set to local.
Enabling Use of Locally Configured QoS Policy
When enabled, COPS is the default QoS policy source for all ports. You can use locally configured QoS policy on a per-ASIC basis. To enable use of locally configured QoS policy on a port ASIC, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Enable use of locally configured QoS policy on a port.
|
set port qos policy-source {local | cops}
|
Step 2
|
Verify the QoS policy source for the port.
|
show port qos
|
This example shows how to enable use of locally configured QoS policy:
Console> (enable) set port qos 1/1 policy-source local
QoS policy source set to local on port(s) 1/1-2.
Assigning Port Roles
COPS does not configure ports using slot number and port number parameters. COPS uses roles that you create and assign to port ASICs.
A role is a name that describes the capability of ports (for example, access or mod2_1-4). QoS supports 64 roles per switch. You can assign more than one role to a port ASIC (for example, mod2ports1-12 and access), with the limitation that the combined length of role names that are assigned to a port ASIC cannot exceed 255 characters.
The role name can be up to 31 characters long, is not case sensitive but may include uppercase and lowercase characters, and may consist of a-z, A-Z, 0-9, the dash character (-), the underscore character (_), and the period character (.). Role names cannot start with the underscore character.
The first assignment of a new role to a port creates the role.
To assign roles to a port ASIC, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Assign roles to a port ASIC.
|
set port cops {mod/port} roles role1 [role2] ...
|
Step 2
|
Verify the roles for the port.
|
show port cops [mod[/port]]
|
This example shows how to assign two new roles to the ASIC controlling port 2/1:
Console> (enable) set port cops 2/1 roles mod2ports1-12 access
New role `mod2ports1-12' created.
New role `access' created.
Roles added for port 2/1-12.
Removing Roles from Port ASICs
To remove a role from a port ASIC, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Remove a role from a port ASIC.
|
clear port cops {mod/port} {all-roles | roles role1 [role2] ...}
|
Step 2
|
Verify the roles for the port.
|
show port cops [mod[/port]]
|
This example shows how to remove a role from a port ASIC:
Console> (enable) clear port cops 3/1 roles backbone_port main_port
Roles cleared for port(s) 3/1-4.
Deleting Roles
To delete a role (which removes it from all ports), perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Delete a role.
|
clear cops {all-roles | roles role1 [role2] ...}
|
Step 2
|
Verify the roles for the port.
|
show port cops [mod[/port]]
|
This example shows how to delete a role:
Console> (enable) clear cops roles backbone_port main_port
Configuring Policy Decision Point Servers
Note
COPS and RSVP can use the same policy decision point (PDP) server.
COPS obtains QoS policy from a PDP server. Configure a primary PDP server and optionally, a backup PDP server.
To configure a PDP server, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure a PDP server.
|
set cops server ip_address [port] [primary] [diff-serv | rsvp]
|
Step 2
|
Verify the PDP server configuration.
|
show cops info
|
The ip_address parameter can be the IP address or the name of the server.
The port variable is the PDP server TCP port number.
Use the diff-serv keyword to set the address only for COPS.
This example shows how to configure a PDP server:
Console> (enable) set cops server my_server1 primary
my_server1 added to the COPS diff-serv server table as primary server.
my_server1 added to the COPS rsvp server table as primary server.
Deleting the PDP Server Configuration
To delete the PDP server configuration, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Delete the PDP server configuration.
|
clear cops server {all | ip_address [diff-serv | rsvp]}
|
Step 2
|
Verify the PDP server configuration.
|
show cops info
|
This example shows how to delete the PDP server configuration:
Console> (enable) clear cops server all
All COPS diff-serv servers cleared.
All COPS rsvp servers cleared.
Configuring the COPS Domain Name
PDP servers use a COPS domain name to communicate with policy enforcement point (PEP) devices such as switches. To configure a COPS domain name for the switch, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure the COPS domain name.
|
set cops domain-name domain_name
|
Step 2
|
Verify the COPS domain name.
|
show cops info
|
This example shows how to configure a COPS domain name:
Console> (enable) set cops domain-name my_domain
Domain name set to my_domain.
Deleting the COPS Domain Name
To delete the COPS domain name, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Delete the COPS domain name.
|
clear cops domain-name
|
Step 2
|
Verify the configuration.
|
show cops info
|
This example shows how to delete the COPS domain name:
Console> (enable) clear cops domain-name
Configuring the COPS Communications Parameters
To configure the parameters that COPS uses to communicate with the PDP server, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure the parameters that COPS uses to communicate with the PDP server.
|
set cops retry-interval initial increment maximum
|
Step 2
|
Verify the configuration.
|
show cops info
|
Enter the parameters as a number of seconds in the range from 0 to 65535. The value of the initial parameter plus the value of the increment parameter must not exceed the value of the maximum parameter.
This example shows how to configure the parameters that COPS uses to communicate with the PDP server:
Console> (enable) set cops retry-interval 15 1 30
Connection retry intervals set.
Configuring RSVP Support
Note
The commands in this section are not supported with a Layer 2 Switching Engine.
These sections describe configuring RSVP null service template and receiver proxy functionality support:
•
Enabling RSVP Support
•
Disabling RSVP Support
•
Enabling Participation in the DSBM Election
•
Disabling Participation in the DSBM Election
•
Configuring Policy Decision Point Servers
•
Deleting the PDP Server Configuration
•
Configuring RSVP Policy Timeout
•
Configuring RSVP Use of Local Policy
Note
Throughout this publication and all Catalyst 6500 series switch documents, the term RSVP refers to RSVP null service template and receiver proxy functionality support as implemented on the Catalyst 6500 series switches.
Enabling RSVP Support
To enable RSVP support, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Enable RSVP support on the switch.
|
set qos rsvp {enable | disable}
|
Step 2
|
Verify the configuration.
|
show qos rsvp info
|
Step 3
|
Display RSVP activity.
|
show qos rsvp flow-info
|
This example shows how to enable RSVP support:
Console> (enable) set qos rsvp enable
RSVP enabled on the switch.
Disabling RSVP Support
To disable RSVP support, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Disable RSVP support on the switch.
|
set qos rsvp {enable | disable}
|
Step 2
|
Verify the configuration.
|
show qos rsvp info
|
This example shows how to disable RSVP support:
Console> (enable) set qos rsvp disable
RSVP disabled on the switch.
Enabling Participation in the DSBM Election
Catalyst 6500 series switches can serve as the Designated Subnet Bandwidth Manager (DSBM). You can enable participation in the election of the DSBM on a per-port basis.
Note
The DSBM is not reelected when additional RSVP devices join the network. To control which device is the DSBM, disable election participation in all devices except the one that you want elected as DSBM. After the DSBM is elected, reenable election participation in other devices, as appropriate for the network configuration.
To enable the participation of a port in the election of the DSBM, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Enable the participation of a port in the election of the DSBM.
|
set port rsvp {mod/port} dsbm-election {disable | enable priority}
|
Step 2
|
Verify the configuration of the port.
|
show port rsvp [mod | mod/port]
|
The range for the priority parameter is from 128 to 255.
This example shows how to enable the participation of ports 2/1 and 3/2 in the election of the DSBM:
Console> (enable) set port rsvp 2/1,3/2 dsbm-election enable 232
DSBM enabled and priority set to 232 for ports 2/1,3/2.
Disabling Participation in the DSBM Election
To disable the participation of a port in the election of the DSBM, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Disable the participation of a port in the election of the DSBM.
|
set port rsvp {mod/port} dsbm-election {disable | enable priority}
|
Step 2
|
Verify the configuration.
|
show port rsvp show port rsvp [mod[/port]]
|
This example shows how to disable the participation of port 2/1 in the election of the DSBM:
Console> (enable) set port rsvp 2/1 dsbm-election disable
DSBM disabled for port 2/1.
Configuring Policy Decision Point Servers
Note
COPS and RSVP can use the same PDP server.
When the switch is the DSBM, RSVP communicates with a PDP server. Configure a primary PDP server and optionally, a backup PDP server.
To configure a PDP server, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure a PDP server.
|
set cops server ip_address [port] [primary] [diff-serv | rsvp]
|
Step 2
|
Verify the PDP server configuration.
|
show cops info
|
The ip_address parameter can be the IP address or the name of the server.
The port variable is the PDP server TCP port number.
Use the rsvp keyword to set the address only for RSVP.
This example shows how to configure a PDP server:
Console> (enable) set cops server my_server1 primary rsvp
my_server1 added to the COPS rsvp server table as primary server.
Deleting the PDP Server Configuration
To delete the PDP server configuration, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Delete the PDP server configuration.
|
clear cops server {all | ip_address [diff-serv | rsvp]}
|
Step 2
|
Verify the PDP server configuration.
|
show cops info
|
Use the rsvp keyword to delete only the RSVP address.
This example shows how to delete the PDP server configuration:
Console> (enable) clear cops server all
All COPS diff-serv servers cleared.
All COPS rsvp servers cleared.
Configuring RSVP Policy Timeout
When the switch is the DSBM and communication with the PDP server is lost, the switch continues to function as the DSBM, using cached values, for the period specified by the timeout value; the behavior for new or modified RSVP path messages is determined by the RSVP local policy setting.
If communication with the PDP server is not reestablished before the timeout period expires, the switch reverts to the role of the Subnet Bandwidth Manager (SBM) client for all ports and forwards RSVP messages to a newly elected DSBM on the segment. When there is no communication with the PDP server, the switch does not participate in election of the DSBM.
To configure the time that the switch continues to be the DSBM after communication with the PDP server is lost, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure the RSVP policy timeout.
|
set qos rsvp policy-timeout timeout
|
Step 2
|
Verify the configuration.
|
show qos rsvp info
|
Enter the timeout parameter as a number of minutes in the range from 0 to 65535 (the default is 30).
This example shows how to configure the RSVP policy timeout:
Console> (enable) set qos rsvp policy-timeout 45
RSVP database policy timeout set to 45 minutes.
Configuring RSVP Use of Local Policy
To configure how RSVP operates after communication with the PDP is lost, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure how RSVP operates when there is no communication with the PDP server.
|
set qos rsvp local-policy {forward | reject}
|
Step 2
|
Verify the configuration.
|
show qos rsvp info
|
The forward keyword sets the local policy to forward all new or modified RSVP path messages. The reject keyword sets the local policy to reject all new or modified RSVP path messages. This example shows how to change the default local RSVP policy setting to reject all new or modified RSVP path messages:
Console> (enable) set qos rsvp local-policy reject
RSVP local policy set to reject.
Note
The RSVP local policy is used only until the RSVP policy timeout expires after the connection to the PDP is lost. After the RSVP policy timeout expires, the switch behaves as an SBM client. The RSVP messages pass through the switch unchanged regardless of the RSVP local policy setting. The RSVP local policy setting is not used if the switch never establishes a connection to the PDP.
Configuring QoS Statistics Data Export
These sections describe how to configure the QoS statistics data export feature:
•
Enabling QoS Statistics Data Export Globally
•
Enabling Per-Port QoS Statistics Data Export
•
Enabling Per-Aggregate Policer QoS Statistics Data Export
•
Clearing the Aggregate Policer QoS Statistics
•
Setting the QoS Statistics Data Export Time Interval
•
Configuring the QoS Statistics Data Export Destination Host and UDP Port
•
Displaying QoS Statistics Information
Enabling QoS Statistics Data Export Globally
To export QoS statistics data for ports and aggregate policers, you must first configure the feature globally.
To enable QoS statistics data export globally, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Enable QoS statistics data export.
|
set qos statistics export enable | disable
|
Step 2
|
Verify the configuration.
|
show qos statistics export info
|
This example shows how to enable QoS statistics data export globally and verify the configuration:
Console> (enable) set qos statistics export enable
Export destination:172.20.52.3 SYSLOG facility LOG_LOCAL6 (176), severity LOG_DE
Aggregate policer export is not supported
Console> (enable) show qos statistics export info
Statistics export status and configuration information
------------------------------------------------------
Export time interval: 300
Export destination:172.20.52.3 SYSLOG facility LOG_LOCAL6 (176), severity LOG_DE
Enabling Per-Port QoS Statistics Data Export
To enable QoS statistics data export on a per-port basis, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Enable QoS statistics data export per port.
|
set qos statistics export port mod/port enable | disable
|
Step 2
|
Verify the configuration.
|
show qos statistics export info
|
Note
You must enable QoS statistics data export globally in order for the per-port configuration to take effect.
This example shows how to enable the QoS statistics data export feature per port and verify the configuration:
Console> (enable) set qos statistics export port 5/1 enable
Port export enabled on 5/1.
Console> (enable) show qos statistics export info
Statistics export status and configuration information
------------------------------------------------------
Export time interval: 300
Export destination:172.20.52.3 SYSLOG facility LOG_LOCAL6 (176), severity LOG_DE
When enabled on a port, QoS statistics data export contains the following fields, separated by the delimiter character:
•
Export type ("1" for a port)
•
Slot/port
•
Number of ingress packets
•
Number of ingress bytes
•
Number of egress packets
•
Number of egress bytes
•
Time stamp
Enabling Per-Aggregate Policer QoS Statistics Data Export
To enable QoS statistics data export on a per-aggregate policer basis, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Enable QoS statistics data export per-aggregate policer.
|
set qos statistics export aggregate name {enable | disable}
|
Step 2
|
Verify the configuration.
|
show qos statistics export info
|
Note
You must enable QoS statistics data export globally in order for the per-aggregate policer configuration to take effect.
This example shows how to enable QoS statistics data export for a specific aggregate policer and verify the configuration:
Console> (enable) set qos statistics export aggregate ipagg_3 enable
Statistics data export enabled for aggregate policer ipagg_3
Console> (enable) show qos statistics export info
Statistics export status and configuration information
------------------------------------------------------
Export time interval: 300
Export destination:172.20.52.3 SYSLOG facility LOG_LOCAL6 (176), severity LOG_DE
When enabled for a named aggregate policer, QoS statistics data export contains the following fields, separated by the delimiter character:
•
Export type ("2" for an aggregate policer)
•
Aggregate policer name
•
Direction ("in")
•
PFC slot number
•
Number of in-profile packets
•
Number of packets that exceed the CIR (this field does not apply if you are using a Supervisor Engine 2)
•
Number of packets that exceed the PIR
•
Time stamp
Clearing the Aggregate Policer QoS Statistics
To clear the aggregate policer QoS statistics, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Clear the aggregate policer QoS statistics.
|
clear qos statistics aggregate-policer [policer_name]
|
Step 2
|
Verify the configuration.
|
show qos statistics export info
|
This example shows how to clear the QoS aggregate policer statistics for a specific aggregate policer:
Console> (enable) clear qos statistics aggregate-policer aggr_1
Aggregate policer 'aggr_1' statistical counters cleared.
If you do not specify the aggregate policer, all aggregate policer statistics are cleared:
Console> (enable) clear qos statistics aggregate-policer
QoS aggregate policers statistical counters cleared.
Setting the QoS Statistics Data Export Time Interval
The default interval at which QoS statistics is exported is 30 seconds. To set the time interval for the QoS statistics data export, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Set the time interval for the QoS statistics data export.
|
set qos statistics export interval interval_seconds
|
Step 2
|
Verify the configuration.
|
show qos statistics export info
|
This example shows how to set the QoS statistics data export interval and verify the configuration:
Console> (enable) set qos statistics export interval 500
Console> (enable) show qos statistics export info
Statistics export status and configuration information
------------------------------------------------------
Export time interval: 500
Export destination:172.20.52.3 SYSLOG facility LOG_LOCAL6 (176), severity LOG_DE
Configuring the QoS Statistics Data Export Destination Host and UDP Port
To configure the QoS statistics data export destination host and UDP port number, perform this task in privileged mode:
| |
Task
|
Command
|
Step 1
|
Configure the QoS statistics data export destination host and UDP port number.
|
set qos statistics export destination {host_name | ip_address} [syslog [facility | severity] port]
|
Step 2
|
Verify the configuration.
|
show qos statistics export info
|
This example shows how to configure the QoS statistics data export destination host and UDP port number and verify the configuration:
Console> (enable) set qos statistics export destination stargate 9996
Statistics data export destination set to stargate port 9996.
Console> (enable) show qos statistics export info
Statistics export status and configuration information
------------------------------------------------------
Export time interval: 500
Export destination:Stargate, UDP port 9996
Displaying QoS Statistics Information
To display the QoS statistics per-aggregate policer packet and byte rates, perform this task in privileged mode:
Task
|
Command
|
Display the QoS statistics per-aggregate policer packet and byte rates.
|
show qos statistics aggregate-policer [policer_name]
|
This example shows how to display the QoS statistics per-aggregate policer packet and byte rates:
Console> show qos statistics aggregate-policer
QoS aggregate-policer statistics:
Aggregate Policer Packet Count Packets exceed Packets exceed
-------------------------------- ------------ -------------- -----------------
