Context Directory Agent Overview
The Cisco Context Directory Agent (CDA) is an application that runs on a Cisco Linux machine; monitors in real time a collection of Active Directory domain controller (DC) machines for authentication-related events that generally indicate user logins; learns, analyzes, and caches mappings of IP addresses and user identities in its database; and makes the latest mappings available to its client devices.
Client devices, such as the Cisco Adaptive Security Appliance (ASA) and the Cisco IronPort Web Security Appliance (WSA), interact with the Cisco CDA using the RADIUS protocol in order to obtain the latest set of IP-to-user-identity mappings, in any one of the following ways:
•
On-Demand—The Cisco CDA can respond to an on-demand query from the client device for a specific mapping.
•
For both the on-demand and full-download methods, the request from the client device can be specially tagged to indicate that it also includes a registration regarding any subsequent updates.
For example, when a client device requests a basic on-demand query, the Cisco CDA responds with the specific mapping that might have been found in its cache, and does not send any further updates about that mapping. On the other hand, if the on-demand query also includes a registration, the initial response from Cisco CDA is the same as before and if, at a later point in time, that specific mapping undergoes a change, then Cisco CDA proactively notifies the requesting client device (as well as any other client devices that have registered for notification) about the change in that specific mapping.
Similarly, when a client device requests a basic full download, the Cisco CDA transfers a snapshot of the session data containing all of the mappings currently found in its cache, and does not send any further updates. On the other hand, if the request is to register for replication, then the initial response from the Cisco CDA is the same as before. At a later point in time, if the set of mappings undergoes any sort of change (new mappings added or certain mappings changed and so on), then the Cisco CDA proactively notifies the requesting client device (as well as any other client devices that have registered for replication) about these changes, relative to the snapshot that was previously sent.
The IP-to-user-identity mappings that are discovered, maintained, and provided by the Cisco CDA can include not only IPv4 addresses, but also IPv6 addresses.
The Cisco CDA can send logs to one or more syslog servers.
The Cisco CDA continues to function if any of the Active Directory domain controllers or the client devices have failed. It obtains information from other domain controllers. However, there is no failover for the Cisco CDA. The Cisco CDA internally contains a "watchdog" functionality that continuously monitors the Linux processes internal to it, automatically restarting them if it detects that they have crashed. While there is no failover for CDA in itself, the solution as a whole does support failover, controlled by the consumer devices, using their capability to configure a primary and secondary CDA (similar to primary and secondary RADIUS server), and failover to the secondary server in case the primary is unresponsive. It should be noted that primary and secondary CDAs are completely unaware of each other, and do not exchange any state information.
Related Topic:
Functional Overview
Figure 1-1 represents a simplified view of the Cisco CDA solution. In this example, a user logs in from a computer and generates web traffic by requesting access to a server. The client device intercepts the web traffic and sends a RADIUS request to the Cisco CDA asking for the user who logged into the computer. The Cisco CDA, which has been maintaining the latest set of IP-to-user-identity mappings, sends the user information to the client device. The client device uses the user identity information to determine whether or not to grant access to the end user.
In case ASA is deployed in the network as a VPN concentrator, the Cisco CDA accepts mapping update events in addition to the login events received from the Active Directory.

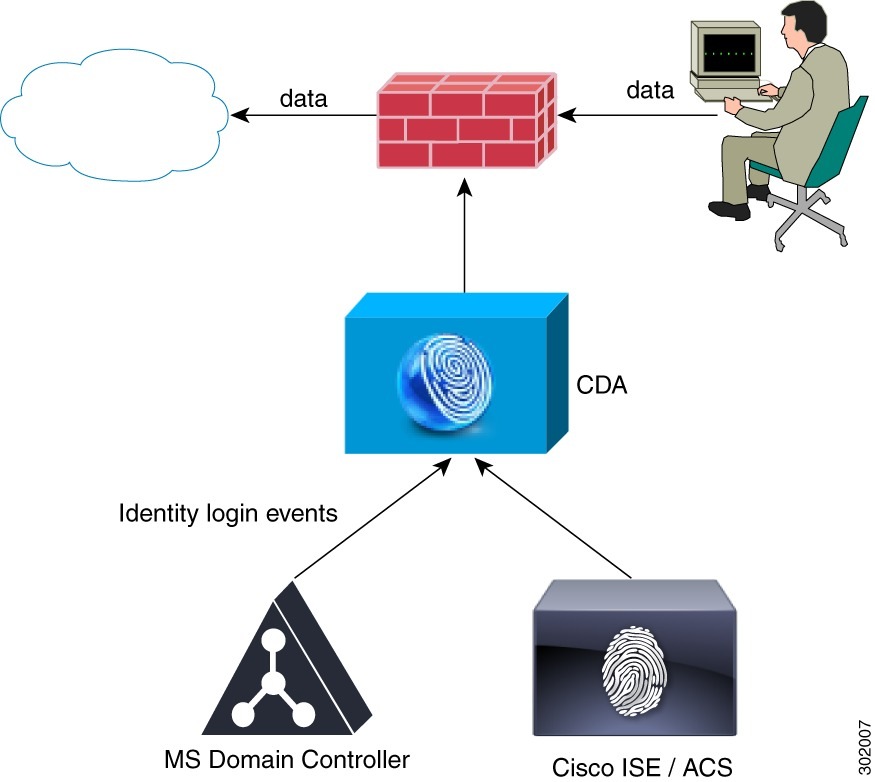

Figure 1-1 Cisco CDA Architecture
The Cisco CDA is responsible for:
•
•
•
•
•
•
•
•
•
The Cisco CDA interacts with the following components in a network:
•
Consumer Device
Client devices are responsible for actively retrieving (and/or passively receiving) the latest IP-to-user-identity mappings from the Cisco CDA. A consumer device is responsible for:
•
•
•
•
•
•
•
•
•
These updates are sent as RADIUS Accounting-Request messages.
Related Topics:
•
Active Directory Domain Controller Machines
The Cisco Context Directory Agent monitors the security event log of the Active Directory Domain Controllers in order to retrieve information about user logins and deliver this data to the consumer devices.
Upon startup CDA reads a time based window (history) of users that are already logged-in. After CDA is up and running it monitors and retrieves user logins in realtime. Connection is required between CDA and the Active Directory domain controller for retrieving the user login events.
To connect to the Active Directory Domain Controllers, the CDA uses an Active Directory user.
An Active Directory user used by CDA must have the required permissions in order to connect and monitor the Active Directory Domain Controllers
The Active directory user used by CDA can be a member of the Domain Admin Group; however this is not mandatory if you have installed Cisco CDA patch 1 (any future CDA patches would include patch 1 functionality as well).
The connection between CDA and the Active Directory Domain Controller is also authenticated using MS NTLM protocol. CDA patch 1 supports NTLMv1 and NTLMv2.
Related Topics
•
•
Syslog Servers
The Cisco CDA can forward logs containing administrative and troubleshooting information to one or more syslog servers. It also updates the IP-to-user-identity mapping information. The contents of these logs are identical to that of the customer logs that are locally available on the Cisco CDA machine. The syslog mechanism allows this information to be distributed remotely, to any target machine running a syslog server and capable of receiving syslog messages.
Related Topics:
•
Cisco CDA Performance and Scalability
The Cisco CDA can support up to 80 domain controller machines, and can internally cache up to 64,000 IP-to-user-identity mappings. It supports up to 100 Identity consumer devices. Cisco CDA processes 1000 IP-to-user-identity mappings per second (input and output).
The Cisco CDA is tested to support three Syslog servers, twenty administrators, and five concurrent admin GUI sessions.
CDA Deployment Recommendations
It is recommended to consider the following aspects while deploying CDA:
•
•
•

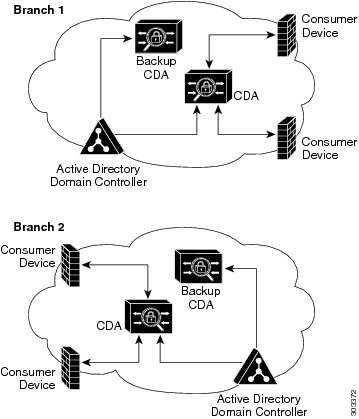

Figure 1-2 The Recommended Cisco CDA Deployment Type
