Specifications


This appendix provides system, port, and cabling specifications for Cisco 850 series and Cisco 870 series routers. It contains the following sections:

Router Specifications

Power-over-Ethernet Module Specifications

LAN Port Pinouts

Console Connector Pinouts

ADSL Port Connector Pinouts

Power Output Connector Pinouts

Cable Specifications

Router Specifications

Table A-1 outlines the system specifications for the routers.

Table A-1 Router Specifications

Description
Design Specification
Physical Dimensions

Dimensions (H x W x D)

With antenna connectors: 2.0 x 10.25 x 9.13 in. (51 x 260 x 232 mm)

Without antenna connectors: 2.0 x 10.25 x 8.5 in. (51 x 260 x 216 mm)

Weight (not including desktop power supply)

2.10 lb (0.95 kg)

Environmental Operating Ranges

Nonoperating temperature

-4 to 149°F (-20 to 65°C)

Nonoperating humidity

5 to 95% relative humidity

Nonoperating altitude

0 to 15,000 ft (4570 m)

Operating temperature

32 to 104°F (0 to 40°C)

Operating humidity

10 to 85% relative humidity

Operating altitude

0 to 10,000 ft (3000 m)

Router Power

AC input voltage

100 to 240 VAC

Frequency

50 to 60 Hz

Power output

26 W maximum

Output voltages

5 V and 12 V

Integrated 802.11b/g Radio Module

Radio technology

IEEE 802.11b and 802.11g standard compliant

Operating frequency

2412 to 2484 MHz ISM1 band

Modulation schemes

OFDM2 , DQPSK3 , DBPSK4 16 QAM5 , 64 QAM, and CCK6

Number of channels

11 channels for the U.S., 13 channels for Europe, 14 channels for Japan

Data rate

54 Mbps with fallback rates of 48, 36, 24, 18, 12, 9, and 6 Mbps

Media access protocol

CSMA/CA7 with ACK8

Power consumption (typical)

500 mA.3.3V at transmit mode, 320 mA/3.3V at receive mode

1 ISM = Industrial, Scientific, and Medical

2 OFDM = orthogonal frequency-division multiplexing

3 DQPSK = differential quaternary phase shift keying

4 DBPSK = differential binary phase shift keying

5 QAM = quadrature amplitude modulation

6 CCK = complementary code keying

7 CSMA/CA = carrier sense multiple access with collision avoidance

8 ACK = acknowledgement


Power-over-Ethernet Module Specifications

Table A-2 shows the specifications for the power-over-Ethernet (PoE) module.

Table A-2 POE Module Specifications

Description
Design Specification
Physical Dimensions

Dimensions (H x W x D)

1.13 x 4.0 x 10.25 in. (29 x 102 x 260 mm)

Weight (not including desktop power supply)

0.32 lb (0.14 kg)

Environmental Operating Ranges

Nonoperating temperature

-4 to 149°F (-20 to 65°C)

Nonoperating humidity

5 to 95% relative humidity

Nonoperating altitude

0 to 15,000 ft (4570 m)

Operating temperature

32 to 104°F (0 to 40°C)

Operating humidity

10 to 85% relative humidity

Operating altitude

0 to 10,000 ft (3000 m)

Power

AC input voltage

100 to 240 VAC

Frequency

50 to 60 Hz

Power output

80 W maximum

Output voltage

48 VDC


For information on regulatory compliance, see the Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers document that was shipped with your router.


Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040

LAN Port Pinouts

Table A-3 provides pinouts for the Ethernet LAN port on the routers.

Table A-3 Ethernet LAN Port Pinouts

Pin
Function

1

RX+

2

RX-

3

TX+

4

Unused

5

Unused

6

TX-

7

Unused

8

Unused


Console Connector Pinouts

Table A-4 provides pinouts for the console connector (for connecting a terminal or PC).

Table A-4 Console Connector Pinouts (RJ-45-to-DB-9)

RJ-45 Pin
Function
DB-9 Pin

1

RTS

8

2

DTR

6

3

TXD

2

4

GND

5

5

GND

5

6

RXD

3

7

DSR

4

8

CTS

7


The console port is configured as a data communications equipment (DCE) device. The default parameters for the console port are as follows:

9600 baud

8 data bits

No parity

One stop bit

ADSL Port Connector Pinouts

Table A-5 shows ADSL connector pinouts.

Table A-5 ADSL Connector Pinouts (RJ-11-to-RJ-45)

RJ-11 Pin
Function
RJ-45 Pin
Function

1

Unused

1

Unused

2

Unused

2

Unused

3

Ring

3

Unused

4

Tip

4

Ring

5

Unused

5

Tip

6

Unused

6

Unused



7

Unused



8

Unused


Power Output Connector Pinouts

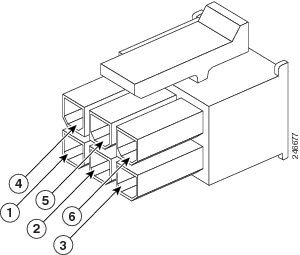

Figure A-1shows the power output connector and pin numbers.

Figure A-1 Power Connector Ports

Table A-6 provides pinouts for the power output connector for the power supply.

Table A-6 Power Output Connector Pinouts

Pin
Signal

1

Ground

2

Ground

3

Ground

4

+12V

5

+5V

6

+5V


Cable Specifications

This section provides specifications for the following Ethernet cables, which you might need to provide:

Straight-through cable

Crossover cable

Because of the autocrossover (autosensing) function, both straight-through and crossover cables can be used for the Ethernet LAN port.

Ethernet Cable Specifications

Table A-7 provides specifications that apply to both straight-through and crossover Ethernet cables.

Table A-7 Ethernet Cable Specifications

Type
Category

10BASE-T

Category 3 or 5

100BASE-T

Category 5 or higher


Maximum Cable Length

The maximum length for the Ethernet cables that connect equipment to the router is 328 ft (100 m). The length also indicates the maximum distance between the router and the equipment connected to it.
