Installing the FlexWAN and Enhanced FlexWAN Modules
This chapter contains the following sections:
•
Preparing to Install the FlexWAN or Enhanced FlexWAN Module
•Installing the FlexWAN and Enhanced FlexWAN Modules
•Installing a FlexWAN or Enhanced FlexWAN Module Port Adapter
Preparing to Install the FlexWAN or Enhanced FlexWAN Module
Note Before you can install the FlexWAN or Enhanced FlexWAN modules, you must install at least one supervisor engine in the chassis. Throughout this publication, the term supervisor engine refers to Supervisor 720 Engine.
The following tools adn equipment are required to install the FlexWAN and Enhanced FlexWAN modules:
•3/16-inch flat-blade screwdriver for the captive installation screws on the FlexWAN and Enhanced FlexWAN modules.
•Antistatic mat or antistatic foam.
•Your own electrostatic discharge (ESD)-prevention equipment or the disposable grounding wrist strap included with all upgrade kits, field-replaceable units (FRUs), and spares.
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperly handled, results in complete or intermittent failures. Port adapters and processor modules consist of printed circuit boards that are fixed in metal carriers. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the board from ESD, use a preventive antistatic strap during handling.
Follow these guidelines for preventing ESD damage:
•Always use an ESD wrist or ankle strap, and ensure that it makes maximum contact with the skin. Make sure that the wrist or ankle strap is in contact with bare skin.
•Avoid contact between the printed circuit boards and clothing. The wrist strap only protects components from ESD voltages on the body; ESD voltages on clothing can still cause damage.
•The disposable ESD grounding strap supplied with field replaceable units (FRUs) has a metal clip at one end. Attach the metal clip (equipment end of the strap) to an unfinished (bare metal) chassis surface.

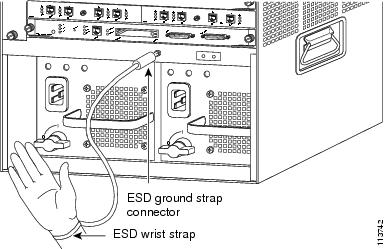

•The Catalyst 7600 series chassis also has a built-in ESD grounding connector. This is a banana plug connector and is identified by the ground symbol next to the connector. See Figure 1-1 for an example of a chassis ESD wrist strap connection.
•When installing a component, use any available ejector levers or captive installation screws to properly seat the bus connectors in the backplane or midplane. These devices prevent accidental removal, provide proper grounding for the system, and help to ensure that bus connectors are properly seated.
•When removing a component, use any available ejector levers or captive installation screws to release the bus connectors from the backplane or midplane.
•Handle carriers by available handles or edges only; avoid touching the printed circuit boards or connectors.
•Place a removed component board-side-up on an antistatic surface or in a static shielding container. If you plan to return the component to the factory, immediately place it in a static shielding container.
•Never attempt to remove the printed circuit board from the metal carrier.
Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should be between 1 and 10 megohms (Mohm).
Figure 1-1 Example of Chassis ESD Wrist Strap Ground
Installing the FlexWAN and Enhanced FlexWAN Modules
Warning Only trained and qualified personnel should be allowed to install or replace this equipment.

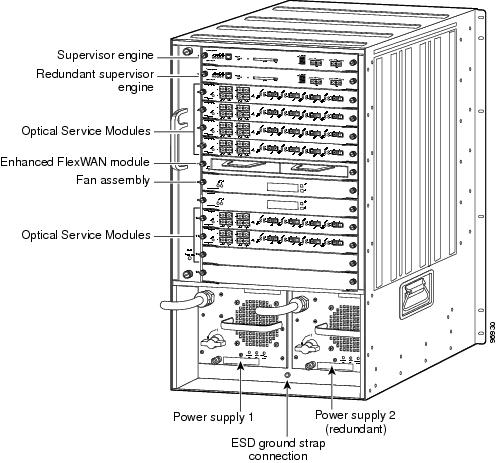

In the procedure that follows, the FlexWAN and Enhanced FlexWAN modules are installed into the horizontal slots of a Cisco 7613 router chassis. (see Figure 1-2).
Note The FlexWAN and Enhanced FlexWAN modules are not supported without port adapters. You must install at least one port adapter before installing the module in the chassis.
Figure 1-2 Slots on the Cisco 7613 Router
To install the FlexWAN or Enhanced FlexWAN modules, follow these steps:
Step 1 Make sure that you take the necessary precautions to prevent ESD damage.
Caution Handle modules by the carrier edges only. Always use an ESD wrist strap when handling modules or coming into contact with internal components.
Step 2 Install port adapters on the FlexWAN or Enhanced FlexWAN module (see the "Installing a FlexWAN or Enhanced FlexWAN Module Port Adapter" section). Tighten any screws provided to secure the port adapter.
Step 3 Choose a slot for the FlexWAN or Enhanced FlexWAN module.
Step 4 Use a screwdriver to loosen the captive installation screws that secure the switching-module filler plate (or the existing switching module) from the desired slot, if present.
Step 5 Remove the switching-module filler plate (or the existing switching module), if present.
Step 6 Hold the module handle with one hand, and place your other hand under the carrier to support the module. Do not touch the printed circuit boards or connector pins.
Step 7 Place the module in the slot. Align the notch on the sides of the module carrier with the groove in the slot.
Step 8 Keep the modules at a 90-degree orientation to the backplane, and carefully slide the module into the slot until the module faceplate contacts the ejector levers (see Figure 1-3).
Figure 1-3 Ejector Levers and Captive Installation Screws
Step 9 Use the thumb and forefinger of each hand and simultaneously push in the left and right levers to fully seat the module in the backplane connector.
Caution Always use the ejector levers when installing or removing modules. A module that is partially seated in the backplane causes the system to halt and subsequently crash.
Step 10 Tighten the captive installation screws on the left and right ends of the module.
Step 11 Enter the show module command to verify that the system acknowledges the new module and has brought it online.
The following example shows the output of the show module command:
Mod Ports Card Type Model Serial No.
--- ----- -------------------------------------- ------------------ -----------
5 2 Supervisor Engine 720 (Active) WS-SUP720-BASE SAD0719027M
6 0 2 port adapter Enhanced FlexWAN WS-X6582-2PA SAD073103PD
Mod MAC addresses Hw Fw Sw Status
--- ---------------------------------- ------ ------------ ------------ -------
5 000c.ce63.e290 to 000c.ce63.e293 2.1 7.7(1) 12.2(TETONS_ Ok
6 00e0.aabb.cc00 to 00e0.aabb.cc3f 1.x 12.2(TETONS_ 12.2(TETONS_ Ok
Mod Sub-Module Model Serial Hw Status
--- --------------------------- ------------------ ------------ ------- -------
5 Policy Feature Card 3 WS-F6K-PFC3A SAD072000G6 1.1 Ok
5 MSFC3 Daughterboard WS-SUP720 SAD072001YS 1.2 Ok
--------------------------------------------------------------------------------
Note The status field in the output of the show module command indicates by "Ok" that the module is operational.
The show module command displays "Ok" status and "Mod Online Diag Status" only after the FlexWAN or Enhanced FlexWAN module has booted completely. While the FlexWAN or Enhanced FlexWAN module is booting (the STATUS LED is orange or red), the "Ok" status and the "Mod Online Diag Status" is unknown.
Step 12 After you install the FlexWAN or Enhanced FlexWAN modules, you must connect the port adapter cables and configure the port adapter interfaces.
For complete cabling and configuration information for the port adapters, refer to the documentation that shipped with your port adapter.
Installing a FlexWAN or Enhanced FlexWAN Module Port Adapter
This section describes how to install a port adapter in the FlexWAN or Enhanced FlexWAN module in the Catalyst 6500 series switches or Cisco 7600 series routers.

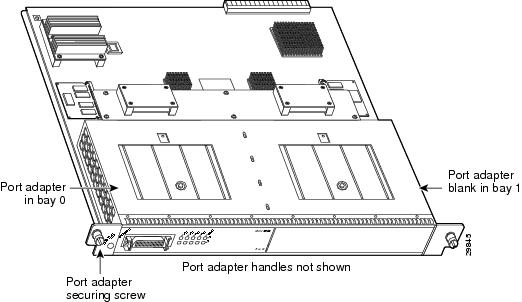

You can install port adapters in either port adapter bay 0 or port adapter bay 1. Figure 1-4 shows one PA-H port adapter installed in port adapter bay 0 on a FlexWAN or Enhanced FlexWAN module.
Figure 1-4 Port Adapter Installed in Bay 0
Required Tools and Equipment
You need the following tools and equipment to install a port adapter. If you need additional equipment, contact a service representative for ordering information.
•Any specific cables for your port adapter
•Number 2 Phillips screwdriver
•Your own electrostatic discharge (ESD)-prevention equipment or the disposable grounding wrist strap included with all upgrade kits, field-replaceable units (FRUs), and spares
•Antistatic mat
•Antistatic container
Handling Port Adapters
Each port adapter circuit board is mounted to a metal carrier and is sensitive to electrostatic discharge (ESD) damage.
Caution Always handle the port adapter by the carrier edges and handle. Never touch the port adapter's components or connector pins.
Figure 1-5 Handling a Port Adapter
Caution To prevent system problems, do not remove port adapters from the FlexWAN or Enhanced FlexWAN modules or attempt to install other port adapters on the modules when the module is operating.
Replacing Port Adapters
Although the FlexWAN or Enhanced FlexWAN module supports online insertion and removal, individual port adapters do not. To replace port adapters, you must first remove the module from the chassis, and then install or replace the port adapters as required.
When a Port Adapter Is Not in Use
When a port adapter slot is not in use, a blank port adapter must fill the empty slot to allow the router or switch to conform to electromagnetic interference (EMI) emissions requirements and to allow proper airflow across the port adapters.
If there is a blank port adapter on the FlexWAN or Enhanced FlexWAN module in which you want to install a new port adapter, you must first remove the module from the chassis, and then remove the blank port adapter.
Installing a New Port Adapter in an Enhanced FlexWAN Module
This section describes how to first remove a port adapter from an Enhanced FlexWAN module, then how to install a new port adapter into its bay. (The procedure for the FlexWAN module is similar.)
Warnings and Cautions
Observe the following warnings and cautions when installing or removing port adapters.
Caution Do not slide a port adapter all the way into the slot until you have connected all the required cables.
Caution To prevent jamming the carrier between the upper and the lower edges of the port adapter slot, and to ensure that the edge connector at the rear of the port adapter mates with the connection at the rear of the port adapter slot, make certain that the carrier is positioned correctly.
Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Warning This equipment must be installed and maintained by service personnel as defined by AS/NZS 3260. Incorrectly connecting this equipment to a general-purpose outlet could be hazardous. The telecommunications lines must be disconnected 1) before unplugging the main power connector or 2) while the housing is open, or both.
