Installing the Cisco 7609 Internet Router
Unpacking the Cisco 7609 Internet Router
Installing the Rack-Mount Kit
Rack-Mounting Guidelines
Required Tools
Installing the Shelf and Crossbar Brackets
Installing the L Brackets and Cable Guides
Installing the Cisco 7609 Chassis in the Rack
Installing the Stabilizer Kit
System Ground Connection
Required Tools and Equipment
Connecting the System Ground
Installing the Power Supplies in the Cisco 7609 Chassis
Attaching the Interface Cables
Connecting the Supervisor Engine Console Port
Connecting the Supervisor Engine Uplink Ports
Connecting to the Interface Ports
Verifying Cisco 7609 Chassis Installation
Installing the Cisco 7609 Internet Router
Note
This document describes the Cisco 7609 Internet Router (OSR-7609) and not the Cisco 7609 Internet Router (CISCO7609).
This chapter describes how to install a Cisco 7609 Internet Router (OSR-7609) in a rack. For first-time installations, perform the procedures in the following sections in the order listed:
•Unpacking the Cisco 7609 Internet Router
•Installing the Rack-Mount Kit
•Installing the Cisco 7609 Chassis in the Rack
•Installing the Stabilizer Kit
Note If you are installing a free-standing (not rack-mounted) Cisco 7609 Internet Router, you must install the stabilizer kit, which is included in the accessories box.
•System Ground Connection
•Installing the Power Supplies in the Cisco 7609 Chassis
•Attaching the Interface Cables
•Verifying Cisco 7609 Chassis Installation
Before starting the installation procedures in this chapter, see the "Site Preparation Checklist" section to verify that all site planning activities were completed.
For information on installing modules, refer to the Cisco 7600 Series Internet Router Module Installation Guide.
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Unpacking the Cisco 7609 Internet Router
Tip Do not discard the shipping container when you unpack the Cisco 7609 Internet Router. Flatten the shipping cartons and store them with the pallet. You will need these containers if you need to move or ship the Cisco 7609 Internet Router in the future. Repacking instructions are provided in "Repacking the Cisco 7609 Internet Router."
Perform the following to check the contents of the shipping container:
•Check the contents of the accessories box against the Accessories Box Components Checklist and the packing slip. Verify that you received all listed equipment, which should include the following:
–Cisco 7609 Internet Router hardware and software documentation, if ordered
–Optional equipment that you ordered, such as network interface cables, transceivers, or special connectors
•Check the modules in each slot. Ensure that the configuration matches the packing list and that all the specified interfaces are included.
Installing the Rack-Mount Kit
This section describes how to install the rack-mount kit provided in the accessories box. The kit contains a shelf bracket and crossbar assembly that attaches directly to the rack and L brackets that attach to the chassis.
Open the rack-mount kit and use the checklist in Table 3-1Table 3-1 to verify that all parts are included.
Table 3-1 Rack-Mount Kit Checklist
Part Description
|
Received
|
L brackets
|
|
M3 Phillips countersunk-head screws
|
|
M4 Phillips countersunk-head screws
|
|
12-24 x 3/4-inch Phillips binder-head screws
|
|
10-32 x 3/4-inch Phillips binder-head screws
|
|
Shelf brackets
|
|
Crossbar bracket
|
|
M3 Phillips pan-head screws
|
|
Rack-Mounting Guidelines
Before rack-mounting the Cisco 7609 Internet Router, ensure that the equipment rack complies with the following guidelines:
•The width of the rack, measured between the two front mounting strips or rails, must be 17.75 inches (45.09 cm).
•The depth of the rack, measured between the front and rear mounting strips, must be at least 19.25 inches (48.9 cm) but not more than 32 inches (81.3 cm).
•The rack must have sufficient vertical clearance to insert the chassis. The chassis height for the Cisco 7609 Internet Router is 33.5 inches (85.1 cm) (20 RU).
Note Chassis height is measured in rack units (RU).
Caution If the rack is on wheels, ensure that the brakes are engaged or that the rack is otherwise stabilized.
This kit is not suitable for use with racks with obstructions (such as a power strip) that could impair access to field-replaceable units (FRUs).
Required Tools
These tools and equipment are required to install the rack-mount kit:
•Number 1 and number 2 Phillips-head screwdrivers
•3/16-inch flat-blade screwdriver
•Tape measure and level
Installing the Shelf and Crossbar Brackets
To install the shelf and crossbar brackets, perform these steps:
Step 1 Position one of the two shelf brackets in the rack as shown in Figure 3-1.
Step 2 Secure the shelf bracket to the rack by using three 12-24 x 3/4-inch or 10-32 x 3/4-inch screws.
Step 3 Repeat Steps 1 and 2 for the second shelf bracket. Make sure that the second shelf bracket is level with the first bracket.
Step 4 Attach the crossbar bracket to the back of the shelf brackets using two M3 screws as shown in Figure 3-2.

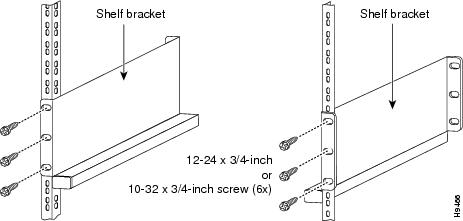

Figure 3-1 Installing the Shelf Brackets

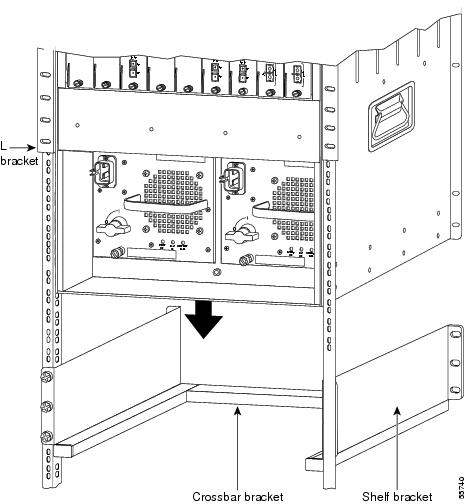

Figure 3-2 Attaching the Crossbar Bracket to the Shelf Brackets
Installing the L Brackets and Cable Guides
The Cisco 7609 Internet Router L bracket screw holes are stamped + and -. You can install the brackets either on the left or right side of the chassis; use the + holes on one side and the - holes on the other side. The L brackets are installed with eight M4 Phillips countersunk-head screws (four screws on each side).
The optional cable guide installs on the front of the chassis and is secured with four M3 screws.
Step 1 Position one of the L brackets against the Cisco 7609 chassis side and align the screw holes (use either the + or the - holes).
Step 2 Secure the L bracket to the Cisco 7609 chassis with the four M4 screws.
Step 3 Repeat Steps 1 and 2 for the other L bracket. If you used the + set of holes for the first L bracket, use the - set of holes for the second L bracket.
If you want to install the optional cable guide, perform these steps:
Step 1 Position the cable guide against the front of the chassis and align the four screw holes as shown in Figure 3-3.
Step 2 Secure the cable guide with four M4 screws.

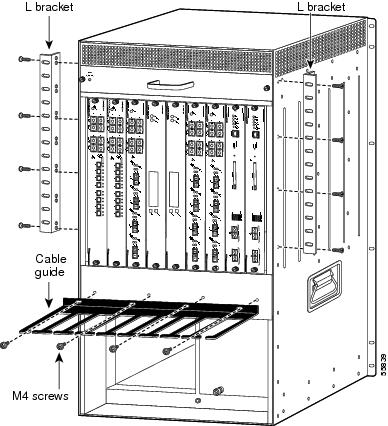

Figure 3-3 Attaching L Brackets and Cable Guides
Installing the Cisco 7609 Chassis in the Rack
Note If you are not installing the Cisco 7609 Internet Router in the rack, you must install the stabilizer kit. See "Installing the Stabilizer Kit" section.
Caution Mount the chassis in the rack before installing the power supplies or line cards.
You are now ready to install the Cisco 7609 chassis in the rack.
Tip We recommend that you have a third person to assist in this procedure.
Warning Two people are required to lift the empty chassis. Grasp the chassis underneath the lower edge and lift with both hands. To prevent injury, keep your back straight and lift with your legs, not your back.
To install the Cisco 7609 chassis in the equipment rack, perform these steps:
Step 1 With a person standing at each side of the chassis, grasp the chassis handle with one hand and use the other hand near the back of the chassis for balance. Slowly lift the chassis in unison. Avoid sudden twists or moves to prevent injury.
Step 2 Position the chassis in the rack as follows. (See Figure 3-4.)
a. If the front of the chassis (front panel) is at the front of the rack, insert the rear of the chassis between the mounting posts.
b. If the rear of the chassis is at the front of the rack, insert the front of the chassis between the mounting posts.
Step 3 Rest the chassis on the shelf brackets and crossbar bracket.
Step 4 Align the mounting holes in the L bracket with the mounting holes in the equipment rack.
Figure 3-4 Installing the Cisco 7609 Chassis in the Rack
Step 5 Install the eight or ten (four or five per side) 12-24 x 3/4-inch or 10-32 x 3/4-inch screws through the holes in the L bracket and into the threaded holes in the equipment rack posts.
Step 6 Use a tape measure and level to verify that the chassis is installed straight and level.
Installing the Stabilizer Kit
Note The stabilizer kit is included only in the accessory kits for the Cisco 7609 Internet Router.
If you are not installing the Cisco 7609 Internet Router in a rack, you must install stabilizer brackets to the bottom of the chassis. The stabilizer brackets reduce the possibility that the freestanding chassis will tip over.
Open the stabilizer kit package and use the kit contents list in Table 3-2 to verify that all parts are included.
Table 3-2 Stabilizer Kit Contents
Quantity
|
Part Description
|
Received
|
16
|
M4 Phillips countersunk-head screws
|
|
2
|
Stabilizer brackets
|
|
Note Have a second person available to perform this procedure.
To install the stabilizer brackets, perform these steps:
Step 1 Have one person tilt and hold the chassis to one side.
Step 2 With the chassis tilted, attach the stabilizer bracket to the side of the chassis with the eight M4 screws as shown in Figure 3-5.

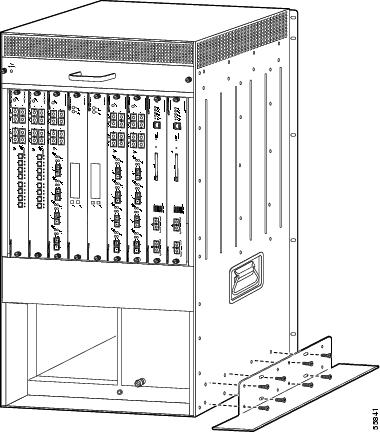

Figure 3-5 Installing the Stabilizer Brackets
Step 3 Tilt the chassis to the other side.
Step 4 Attach the second stabilizer bracket to the other side of the chassis with eight M4 screws.
Step 5 Lower the chassis so that it rests on both stabilizer brackets.
System Ground Connection
This section describes how to connect a system (earth) ground to the Cisco 7609 Internet Router.
Note You must connect both the system ground connection and the power supply ground connection to an earth ground. The system ground connection is required if Foreign Exchange Station (FXS) modules are installed or if this equipment is installed in a US or European Central Office.
Two threaded M4 holes are provided on the chassis frame to attach the ground cable. (See Figure 3-6.)
Note If FXS modules are installed or if this equipment is installed in a US or European Central Office, you must use the system (earth) ground on both AC- and DC-powered systems.
Required Tools and Equipment
To connect the system ground, you need the following tools and materials:
Note Materials are not provided; contact any commercial cable vendor for the required parts.
•Grounding lug
The grounding lug must have two M4 screw holes and accept 6 AWG wire.
•Two M4 (metric) hex-head screws with locking washers
•One grounding wire
The grounding wire should be sized according to local and national installation requirements. The length of the grounding wires depends on the proximity of the Cisco 7609 Internet Router to proper grounding facilities.
•Number 2 Phillips-head screwdriver
•Crimping tool
•Wire-stripping tool

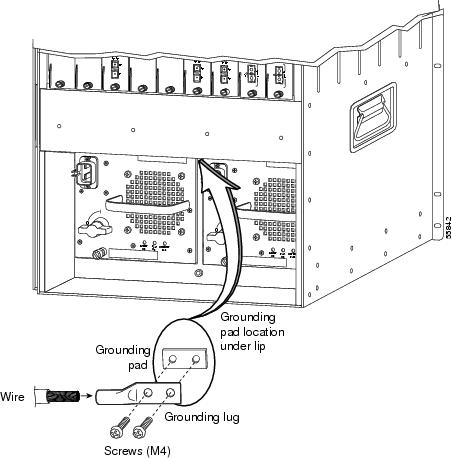

Figure 3-6 System Ground Location
Connecting the System Ground
You must complete this procedure before connecting system power or turning on the Cisco 7609 Internet Router.
To attach the grounding lug and cable to the grounding pad, perform these steps:
Step 1 Use a wire-stripping tool to remove approximately 0.75 inch (19 mm) of the covering from the end of the grounding wire.
Step 2 Insert the stripped end of the grounding wire into the open end of the grounding lug.
Step 3 Use a crimping tool to secure the grounding wire in place in the grounding lug.
Step 4 Locate and remove the adhesive label from the system grounding pad on the Cisco 7609 chassis.
Step 5 Place the grounding wire lug against the grounding pad, making sure there is good metal-to-metal contact.
Step 6 Secure the grounding lug to the chassis with two M4 screws. Ensure that the grounding lug will not interfere with other Cisco 7609 hardware or rack equipment.
Step 7 Prepare the other end of the grounding wire and connect it to an appropriate grounding point in your site to ensure adequate earth ground for the Cisco 7609 Internet Router.
Installing the Power Supplies in the Cisco 7609 Chassis
The Cisco 7609 Internet Router power supply (AC or DC) is shipped separately from the chassis. Remove the power supply from its shipping packaging. Install and connect it to the site power by referring to the "Installing an AC-Input Power Supply" section or the "Installing a DC-Input Power Supply" section.
Attaching the Interface Cables
This section provides general information on attaching interface cables to the supervisor engines and to the modules.
Depending on the modules you have installed in your chassis, you will have different styles of connectors to attach.
Note Refer to the Cisco 7600 Series Internet Router Module Installation Guide for additional module information.
Connecting the Supervisor Engine Console Port
This section describes how to connect to the supervisor engine console port from a terminal or modem.
The console port on the supervisor engine allows you to perform the following functions:
•Configure the Cisco 7609 Internet Router from the CLI
•Monitor network statistics and errors
•Configure SNMP agent parameters
•Download software updates to the Cisco 7609 Internet Router or distribute software images residing in Flash memory to attached devices
The console port, located on the front panel of the supervisor engine, is shown in Figure 3-7.
Figure 3-7 Supervisor Engine Console Port Connector
Note The accessory kit that shipped with your Cisco 7609 Internet Router contains the necessary cable and adapters to connect a terminal or modem to the console port.
To connect a terminal to the console port using the cable and adapters provided, perform these steps:
Step 1 Place the console port mode switch in the in position (factory default).
Step 2 Connect to the port using the RJ-45-to-RJ-45 cable and RJ-45-to-DB-25 DTE adapter or RJ-45-to-DB-9 DTE adapter (labeled "Terminal").
Step 3 Position the cable in the cable guide (if installed). Make sure that there are no sharp bends in the cable.
Step 4 Check the terminal documentation to determine the baud rate. The baud rate of the terminal must match the default baud rate (9600 baud) of the console port. Set up the terminal as follows:
•9600 baud
•8 data bits
•No parity
•2 stop bits
To connect a terminal using a Catalyst 5000 family Supervisor Engine III console cable, perform these steps:
Step 1 Place the console port mode switch in the out position.
Step 2 Connect to the port using the Supervisor Engine III cable and the appropriate adapter for the terminal connection.
Step 3 Position the cable in the cable guide (if installed). Make sure there are no sharp bends in the cable.
Step 4 Check the terminal documentation to determine the baud rate. The baud rate of the terminal must match the default baud rate (9600 baud) of the console port. Set up the terminal as follows:
•9600 baud
•8 data bits
•No parity
•2 stop bits
To connect a modem to the console port, perform these steps:
Step 1 Place the console port mode switch in the in position.
Step 2 Connect to the port using the RJ-45-to-RJ-45 rollover cable and the RJ-45-to-DB-25 DCE adapter (labeled "Modem").
Step 3 Position the cable in the cable guide (if installed). Make sure there are no sharp bends in the cable.
Connecting the Supervisor Engine Uplink Ports
This section describes how to connect to the supervisor engine uplink ports.
Warning Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures.
Note In a redundant configuration with two supervisor engines, the uplink ports on the redundant (standby) supervisor engine are active and can be used for normal traffic, like any other ports in the chassis.
To connect to the supervisor engine uplink ports, perform these steps:
Step 1 Remove the plugs from the Gigabit Interface Converter (GBIC) optical bores; store them for future use.
Step 2 Remove the plugs from the SC-type connector on the fiber-optic cable. Insert the connector into the GBIC. (See Figure 3-8.)
Figure 3-8 Connecting the Supervisor Engine Uplink Ports
Note When you plug the SC-type connector into the GBIC, make sure that both the transmit (Tx) and receive (Rx) fiber-optic cables are fully inserted into the SC-type connector.
Note If you are using the LX/LH GBIC with MMF, you need to install a patch cord between the GBIC and the MMF cable.
Connecting to the Interface Ports
Note For connector specifications, see "Connector and Cable Specifications."
The Optical Services Modules (OSMs) and supported Catalyst 6000 family modules have the following interface ports:
•OC-3 POS, OC-12 POS, OC-48 POS, and OC-12 ATM OSMs—SC-Type Fiber Optic (See Figure 3-9.)
•Channelized OC-12 and OC-48 OSMs—LC fiber-optic connectors (See Figure 3-10.)
•OC-48 POS OSM—MT-RJ fiber-optic connector (See Figure 3-11.)
•Catalyst 6000 family 48-port 10/100TX switching modules—RJ-45 (See Figure 3-12.)
Figure 3-9 SC-Type Fiber-Optic Connector
Figure 3-10 LC Fiber-Optic Connector
Figure 3-11 MT-RJ Fiber-Optic Connector
Figure 3-12 RJ-45 Connectors
Verifying Cisco 7609 Chassis Installation
After you finish connecting the modules, you need to verify that the modules, power supplies, and fan assembly are correctly and securely installed. To verify the Cisco 7609 chassis installation, perform these steps:
Step 1 Verify that the ejector levers of each module are fully closed (parallel to the faceplate) to ensure that the supervisor engine and all modules are fully seated in the backplane connectors.
Step 2 Check the captive installation screws of each module, the power supply, and the fan assembly. Tighten any loose captive installation screws.
Step 3 Verify that all empty module slots have blank faceplates (WS-X6K-SLOT-CVR) installed and that the screws holding the plates in place are tight.
Step 4 Turn on the power supply switches to power up the system.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain EMI that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all modules, faceplates, front covers, and rear covers are in place.
