Installing the OPT-BST-L Card in the Cisco ONS 15454 SONET/SDH
Product Names: 15454-OPT-BST-L
This document provides a card description, specifications, and installation procedure for the dense wavelength division multiplexer (DWDM) OPT-BST-L card. The OPT-BST-L card is compatible with the ONS 15454 SONET (ANSI) and the Cisco ONS 15454 SDH (ETSI) shelf assemblies. Use this document in conjunction with the Cisco ONS 15454 DWDM Procedure Guide.
This document contains the following sections:
•
OPT-BST-L Card Specifications
•
•
•
OPT-BST-L Card Description
The OPT-BST-L standard gain range is 8 to 20 dB in the controllable gain tilt mode, and 20 to 27 dB in the uncontrolled gain tilt mode. The OPT-BST-L is designed to support 64 channels at 50-GHz channel spacing, but is currently limited to 32 channels at 100 GHz spacing. The OPT-BST-L is an L-band DWDM erbium-doped fiber amplifier (EDFA) with optical service channel (OSC) add-and-drop capability. The card is well suited for use in networks that employ dispersion shifted (DS) fiber or SMF-28 single-mode fiber. When an ONS 15454 has an OPT-BST-L installed, it is only necessary to have the OSCM to process the OSC. You can install the OPT-BST-L in Slots 1 to 6 and 12 to 17. To control the gain tilt, the OPT-BST-L is equipped with a built-in VOA.
The OPT-BST-L features include:
•
•
•
•
•
•
•
•
•
•
Note
Figure 1 shows the faceplate and the block diagram for OPT-BST-L. Figure 2 shows optical module functional diagram of the OPT-BST-L card.

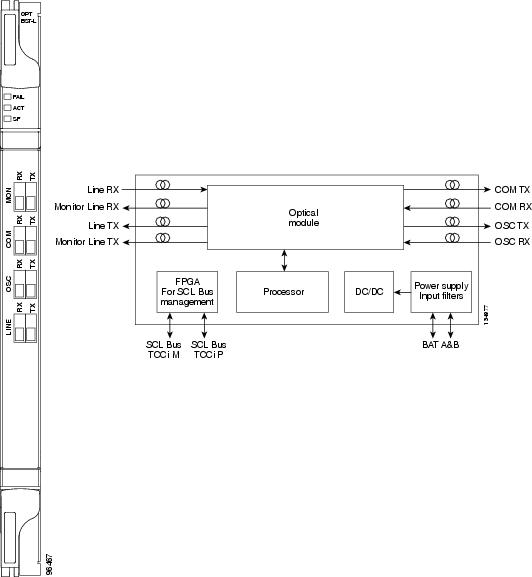

Figure 1 OPT-BST-L Faceplate and Block Diagram
Figure 2 OPT-BST Optical Module Functional Diagram
Power Monitoring
Physical photodiodes P1, P2, P3, P4, and P5 monitor the power for the OPT-BST-L card. The returned power level values are calibrated to the ports as shown in Table 1.
Card Level Indicators
The OPT-BST-L card has three card-level LED indicators described in Table 2.
Port-Level Indicators
You can find the status of the card ports using the LCD screen on the ONS 15454 ANSI fan-tray assembly. Use the LCD to view the status of any port or card slot; the screen displays the number and severity of alarms for a given port or slot.
The OPT-BST-L amplifier has eight optical ports located on the faceplate:
•
•
•
•
•
•
•
•
OPT-BST-L Card Specifications
The OPT-BST-L amplifier card has the following specifications:
•
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
•
–
C-Temp: -5 to +55 degrees Celsius (+23 to +131 degrees Fahrenheit)
–
•
–
–
–
Install the OPT-BST-L Card
Warning
Warning
Warning
Caution
Note
Note
Note
Figure 3 shows general card installation.
Figure 3 Installing a Card in the Cisco ONS 15454 SONET (ANSI) Shelf Assembly
Install OPT-BST-L card in any open east and west pair of slots.
Step 1
•
•
•
•
•
Step 2
Step 3
Step 4
Step 5
Note
The following LED activity will occur:
•
•
•
•
•
Step 6
•
•
•
•
Note
Related Documentation
•
•
•
•
