Provision Transponder and Muxponder Cards
This chapter explains how to provision transponder (TXP), muxponder (MXP), Xponder (GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE), and ADM-10G cards. The provisioning must be performed before you provision the dense wavelength division multiplexing (DWDM) network and create circuits.
Note
Unless otherwise specified, "ONS 15454" refers to both ANSI and ETSI shelf assemblies.
Before You Begin
Before performing any of the following procedures, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15454 DWDM Troubleshooting Guide as necessary.
Caution Provisioning TXP and MXP cards can be service affecting. You should make all changes during a scheduled maintenance window.
This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
1. G128 Manage Pluggable Port Modules—Complete this procedure to provision a multirate pluggable port module (PPM), provision or change the optical line rate of a PPM, or delete a PPM. PPMs provide the fiber interface to the TXP, MXP, and ADM-10G cards. With the exception of the TXP_MR_10G card, all TXPs, MXPs, and ADM-10G cards accept PPMs.
2. G33 Create a Y-Cable Protection Group—As needed, complete this procedure for TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP cards that will be protected with Y-cable protection.
3. G199 Create a Splitter Protection Group for the OTU2_XP Card—As needed, complete this procedure to create a splitter protection group for an OTU2_XP card.
4. G198 Create 1+1 Protection for GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards—As needed, complete this procedure to create 1+1 protection for GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE cards.
5. G98 Provision the 2.5G Multirate Transponder Card Line Settings and PM Parameter Thresholds—As needed, complete this procedure to change the transmission settings for TXP_MR_2.5G and TXPP_MR_2.5G cards.
6. G96 Provision the 10G Multirate Transponder Card Line Settings, PM Parameters, and Thresholds—As needed, complete this procedure to change the transmission settings for TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L cards.
7. G170 Provision the ADM-10G Card Peer Group, Ethernet Settings, Line Settings, PM Parameters, and Thresholds—As needed, complete this procedure to provision the transmission settings for ADM-10G cards.
8. G97 Modify the 4x2.5G Muxponder Card Line Settings and PM Parameter Thresholds—As needed, complete this procedure to change the transmission settings for MXP_2.5G_10G, MXP_2.5G_10E, MXP_2.5G_10E_C, and MXP_2.5G_10E_L cards.
9. G99 Modify the 2.5G Data Muxponder Card Line Settings and PM Parameter Thresholds—As needed, complete this procedure to change the transmission settings for MXP_MR_2.5G and MXPP_MR_2.5G cards.
10. G148 Modify the 10G Data Muxponder Card Line Settings and PM Parameter Thresholds—As needed, complete this procedure to change the transmission settings for MXP_MR_10DME_C and MXP_MR_10DME_L cards.
11. G165 Modify the GE_XP, 10GE_XP, GE_XPE, 10GE_XPE Cards Ethernet Parameters, Line Settings, and PM Thresholds—As needed, complete this procedure to change the transmission settings for GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE cards.
12. G197 Provision the OTU2_XP Card Line Settings, PM Parameters, and Thresholds—As needed, complete this procedure to change the transmission settings for OTU2_XP cards.
13. G162 Change the ALS Maintenance Settings—As needed, complete this procedure to change the automatic laser shutdown settings for a TXP or MXP card.
14. G192 Force FPGA Update—As needed, complete this procedure to force an upgrade of the FPGA image on the MXP_MR_10DME_C and MXP_MR_10DME_L cards.
15. G196 Force FPGA Update When the Card is Part of a Protection Group—As needed, complete this procedure to force an upgrade of the FPGA image on the MXP_MR_10DME_C and MXP_MR_10DME_L cards when the card is part of a protection group.
NTP-G128 Manage Pluggable Port Modules
Purpose
|
Complete this procedure to provision a multirate PPM, provision the optical line rate of a multirate PPM, or delete a single-rate or multirate PPM.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G63 Install an SFP or XFP, page 3-60
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note If a single-rate PPM is installed, the PPM screen will autoprovision and no further steps are necessary.
Note When you autoprovision a PPM, initial alarm and TCA defaults are supplied by Cisco Transport Controller (CTC) depending on your port and rate selections and the type of PPM. These default values can be changed after you install the PPM.
Note The hardware device that plugs into a TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, or OTU2_XP card faceplate to provide a fiber interface to the card is called a Small Form-factor Pluggable (SFP or XFP). In CTC, SFPs and XFPs are called pluggable port modules (PPMs). SFPs/XFPs are hot-swappable input/output devices that plug into a port to link the port with the fiber-optic network. Multirate PPMs have provisionable port rates and payloads. For more information about SFPs and XFPs, refer to the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual.
Step 1 Complete the "DLP-G46 Log into CTC" task on page 2-26 to log into an ONS 15454 on the network. If you are already logged in, continue with Step 2.
Step 2 Click the Alarms tab:
a. Verify that the alarm filter is not turned on. See the "DLP-G128 Disable Alarm Filtering" task on page 9-29 as necessary.
b. Verify that no unexplained conditions appear. If unexplained conditions appear, resolve them before continuing. Refer to the Cisco ONS 15454 DWDM Troubleshooting Guide.
Step 3 If you are provisioning a MXP_MR_2.5G or MXPP_MR_2.5G card, complete the "DLP-G235 Change the 2.5G Data Muxponder Card Mode" task. If not, continue with Step 4
Step 4 If you are provisioning a MXP_MR_10DME_C or MXP_MR_10DME_L card, complete the "DLP-G332 Change the 10G Data Muxponder Port Mode" task. If not, continue with Step 5.
Step 5 If you are provisioning a GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE card, complete the "DLP-G379 Change the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE Card Mode" task. If not, continue with Step 6.
Step 6 If you are provisioning a OTU2_XP card, complete the "DLP-G452 Change the OTU2_XP Card Mode" task. If not, continue with Step 7.
Step 7 If you are provisioning a PPM on an ADM-10G card, complete the "DLP-G411 Provision an ADM-10G PPM and Port" task. If not, continue with Step 8.
Step 8 Complete the "DLP-G277 Provision a Multirate PPM" task for TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP ports with multirate PPMs. If you already preprovisioned the multirate PPM (DLP-G273 Preprovision an SFP or XFP Slot, page 3-61), skip this step and continue with Step 9.
Step 9 If you are provisioning an IBM ETR_CLO (External Time Reference - Control Link Oscillator) or InterSystem Coupling Link (ISC) service on the PPM, complete "DLP-G274 Verify Topologies for ETR_CLO and ISC Services" task. Otherwise, continue with Step 10.
Step 10 Complete the "DLP-G278 Provision the Optical Line Rate" task to assign a line rate to a TXP, MXP, or OTU2_XP port after the PPM is provisioned. (This task is not performed for GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE cards.)
Step 11 If you need to delete a PPM at any point in this procedure, complete the "DLP-G280 Delete a PPM" task.
Stop. You have completed this procedure.
DLP-G235 Change the 2.5G Data Muxponder Card Mode
Purpose
|
This task changes the card mode for MXP_MR_2.5G and MXPP_MR_2.5G muxponder cards. The card mode determines which PPMs can be provisioned for the card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the MXP_MR_2.5G or MXPP_MR_2.5G card where you want to change the card settings.
Step 2 Click the Provisioning > Line > SONET (ANSI) or SDH (ETSI) tabs.
Step 3 Locate the Trunk port table row and verify that the Service State column value is OOS-MA,DSBLD (ANSI) or Locked-enabled,disabled (ETSI). If the service state is correct, continue with Step 6. If not, complete the following steps:
a. Click the Admin State table cell and choose OOS,DSBLD (ANSI) or Locked,Maintenance (ETSI).
b. Click Apply, then Yes.
Step 4 Click the Provisioning > Line > Client tabs.
Step 5 Locate the Trunk port table row and verify that the Service State column value is OOS-MA,DSBLD (ANSI) or Locked-enabled,disabled (ETSI). If the service state is correct, continue with Step 6. If not, complete the following steps:
a. Click the Admin State table cell and choose OOS,DSBLD (ANSI) or Locked,Maintenance (ETSI).
b. Click Apply, then Yes.
Step 6 Click the Provisioning > Card tabs.
Step 7 Change the Card Mode as needed:
•FC-GE—Choose this option if you will provision any of the following PPM port rates: FC1G (Ports 1-1 and 2-1 only), FC2G (Port 1-1 only), FICON1G (Ports 1-1 and 2-1 only), FICON2G (Port 1-1 only), and ONE_GE (Ports 1-1 through 8-1).
•Mixed—Choose this option if you will provision any of the following PPM port rates: FC1G and ONE_GE (Port 1-1 only), ESCON (Ports 5-1 through 8-1 only)
•ESCON—Choose this option if you will provision the ESCON PPM on Ports 1-1 through 8-1.
Note The Provisioning > Card tab also has the display-only Tunable Wavelengths field. This field shows the supported wavelengths of the trunk port after the card is installed in the format:
first wavelength-last wavelength-frequency spacing-number of supported wavelengths.
For example, 1529.55nm-1561.83nm-50gHz-82.
Step 8 Click Apply.
Step 9 Return to your originating procedure (NTP).
DLP-G332 Change the 10G Data Muxponder Port Mode
Purpose
|
This task changes the port mode for the MXP_MR_10DME_C and MXP_MR_10DME_L muxponder cards. The port mode determines which PPMs can be provisioned on the ports.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note The MXP_MR_10DME_C and MXP_MR_10DME_L cards have two port mode groups, one for Ports 1 through 4, and the second for Ports 5 through 8. To change the port mode, all ports within the selected port group must be in OOS (out-of-service) service state. Ports in the second port group do not need to be in OOS service state if you are not changing the port mode for the second port group. Before you change the port mode, you must also ensure that any PPM port rate provisioned for the selected port group is deleted (see "DLP-G280 Delete a PPM" task).
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the MXP_MR_10DME_C or MXP_MR_10DME_L card where you want to change the port mode.
Step 2 Click the Provisioning > Card tabs.
Step 3 Change the port mode as described in Table 5-1.
Note The PPM port rates are provisioned in the "DLP-G277 Provision a Multirate PPM" task.
Table 5-1 10G Data Muxponder Card Port Modes
Parameter
|
Description
|
Options
|
Port 1-4 Mode
|
Sets the mode of operation for Ports 1-1 through 4-1.
|
Chose one of the following:
•FC-GE_ISC—Choose this option if you will provision any of the following PPM port rates: FC1G (Ports 1-1 through 4-1), FC2G (Ports 1-1 and 3-1 only), FICON1G (Ports 1-1 through 4-1), FICON2G (Ports 1-1 and 3-1 only), ONE_GE (Ports 1-1 through 4-1), ISC3 COMPAT (Ports 1-1 through 4-1), ISC3 PEER 1G (Ports 1-1 through 4-1), and ISC3 PEER 2G (Ports 1-1 and 3-1 only).
•FC4G—Choose this option if you will provision an FC4G or FICON4G PPM (Port 1-1 only).
|
Port 5-8 Mode
|
Sets the mode of operation for Ports 5-1 through 8-1.
|
Chose one of the following:
•FC-GE_ISC—choose this option if you will provision any of the following PPM port rates: FC1G (Ports 5-1 through 8-1), FC2G (Ports 5-1 and 7-1 only), FICON1G (Ports 5-1 through 8-1), FICON2G (Ports 5-1 and 7-1 only), ONE_GE (Ports 5-1 through 8-1), ISC3 COMPAT (Ports 5-1 through 8-1), ISC3 PEER 1G (Ports 5-1 through 8-1), and ISC3 PEER 2G (Ports 5-1 and 7-1 only).
•FC4G—choose this option if you will provision an FC4G or FICON4G PPM port rate (Port 5-1 only).
|
Note The Provisioning > Cards tab also has a display-only Tunable Wavelengths field which shows the wavelengths supported by the card. If a MXP_MR_10DME_C card is installed, the 32 C-band wavelengths appear. If the MXP_MR_10DME_L card is installed, the 32 L-band wavelengths appear.
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
Note Loopbacks on MXP-MR-10DME are not applicable when Fiber Channel switches are present.
Note If the Fiber Channel switch version is not present then the Distance Extension settings are not supported.
DLP-G379 Change the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE Card Mode
Purpose
|
This task changes the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE card mode. 10GE_XP and 10GE_XPE cards can be provisioned as a Layer 2 Ethernet switch or a 10G Ethernet TXP. GE_XP and GE_XPE cards can be provisioned as a Layer 2 Ethernet switch, 10G Ethernet MXP, or 20G Ethernet MXP.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE card where you want to change the card mode.
Step 2 In card view, click Provisioning > Ether Ports > Ports.
Step 3 Verify that any provisioned client or trunk ports have an OOS-MA,DSBLD (ANSI) or Locked-enabled,disabled (ETSI) service state in the Service State column. If so, continue with Step 4. If not, complete the following substeps.
a. For the first port that is not out of service, in the Admin State column, choose OOS,DSBLD (ANSI) or Locked,disabled (ETSI).
b. Repeat Step a for each port that is not out of service.
c. Click Apply.
Step 4 Click the Provisioning > Card tabs.
Step 5 Choose one of the card modes shown in Table 5-2.
Table 5-2 GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE Card Modes
Mode
|
Cards
|
Description
|
L2 over DWDM
|
GE_XP
10GE_XP
GE_XPE
10GE_XPE
|
Provisions the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE as a Layer 2 switch.
|
10GE TXP
|
10GE_XP
10GE_XPE
|
Provisions the 10GE_XP or 10GE_XPE as a 10 Gigabit Ethernet transponder. Traffic received on the 10GE client Port 1-1 is sent to 10 Gigabit Ethernet trunk Port 3-1, and traffic received on 10 Gigabit Ethernet client Port 2-1 is sent to 10 Gigabit Ethernet trunk Port 4-1.
|
10GE MXP
|
GE_XP
GE_XPE
|
Provisions the GE_XP or GE_XPE as a 10 Gigabit Ethernet muxponder. Traffic received on Gigabit Ethernet client Ports 1-1 through 10-1 is multiplexed and sent to 10 Gigabit Ethernet trunk Port 21-1, and traffic received on Gigabit Ethernet client Ports 11-1 through 20-1 is multiplexed and sent to 10 Gigabit Ethernet trunk Port 22-1.
|
20GE MXP
|
GE_XP
GE_XPE
|
Provisions the GE_XP or GE_XPE as a 20 Gigabit Ethernet muxponder. Traffic received on Gigabit Ethernet client Ports 1-1 through 20-1 is multiplexed and sent to 10 Gigabit Ethernet trunk Port 21-1. Trunk port 22-1 is not used.
|
:
Step 6 Click Apply, then click Yes in the confirmation dialog box.
Step 7 Return to your originating procedure (NTP).
DLP-G411 Provision an ADM-10G PPM and Port
Purpose
|
This task provisions a fixed-rate PPM and port on an ADM-10G PPM card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the ADM-10G card where you want to provision PPM settings.
Step 2 Click the Provisioning > Pluggable Port Modules tabs.
Step 3 In the Pluggable Port Modules area, click Create. The Create PPM dialog box appears.
Step 4 In the Create PPM dialog box, complete the following:
•PPM—Choose the SFP you want to install from the drop-down list.
•PPM Type—Choose the number of ports supported by your SFP from the drop-down list. If only one port is supported, PPM (1 port) is the only option.
Step 5 Click OK. The newly created PPM appears in the Pluggable Port Modules area. The row in the Pluggable Port Modules area turns white and the Actual Equipment Type column lists the equipment name.
Step 6 In the Pluggable Ports area, click Create. The Create Ports dialog box appears.
Step 7 In the Create Ports dialog box, complete the following:
•Port—Choose the port you want to configure from the drop-down list.
•Port Type—Choose the port type, such as OC-3, OC-12, OC-48, or ONE-GE from the drop-down list.
–Ports 1 - 8 can only be OC-3, OC-12, or ONE_GE
–Ports 9 - 12 can on be OC-3 or OC-12
–Ports 13 - 16 can only be OC-3, OC-12, or OC-48
Step 8 Click OK. The newly created port appears in the Pluggable Ports area. The port type you provisioned is listed in the Rate column.
Step 9 If you want to provision a PPM or another port, repeat Steps 4 through 8.
Step 10 Return to your originating procedure (NTP).
DLP-G452 Change the OTU2_XP Card Mode
Purpose
|
This task changes the OTU2_XP card mode. The card mode determines which PPMs can be provisioned for the card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the OTU2_XP card where you want to change the card mode.
Step 2 In card view, click the Provisioning > Line > Ports tab.
Step 3 Verify that any provisioned client or trunk ports have an OOS-MA,DSBLD (ANSI) or Locked-enabled,disabled (ETSI) service state in the Service State column. If so, continue with Step 4. If not, complete the following substeps.
a. For the first port that is not out of service, in the Admin State column, choose OOS,DSBLD (ANSI) or Locked,disabled (ETSI).
b. Repeat Step a for each port that is not out of service.
c. Click Apply.
Step 4 Click the Provisioning > Card tab.
Step 5 Change the Card Configuration as needed:
•Transponder—Choose this option to provision the OTU2_XP card as a transponder. Port pairs 1-3 and 2-4 are both configured as transponders. This is the default card configuration.
•Standard Regen—Choose this option to provision the OTU2_XP card as a standard regenerator (with E-FEC only on one port). Port pairs 1-3 and 2-4 are both configured as regenerators.
•Enhanced FEC—Choose this option to provision the OTU2_XP card as an E-FEC regenerator (with E-FEC on two ports). Port pair 3-4 is configured as enhanced regenerator. Ports 1 and 2 are not used.
•Mixed—Choose this option to provision the OTU2_XP card as a transponder and a standard regenerator (mixed configuration). One of the port pair (1-3 or 2-4) is configured as a transponder and the other port pair as a standard regenerator.
For more information on OTU2_XP card configuration rules, refer to the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual.
Step 6 Click Apply, then Yes in the confirmation dialog box.
Step 7 Return to your originating procedure (NTP).
DLP-G277 Provision a Multirate PPM
Purpose
|
This task provisions a multirate PPM on a TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, or OTU2_XP card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note If the PPM was preprovisioned using the "DLP-G273 Preprovision an SFP or XFP Slot" task on page 3-61 this task is unnecessary, unless the PPM has an Out-of-Service and Autonomous Management, Unassigned (OOS-AUMA,UAS) (ANSI) or unlocked-disabled, unassigned (ETSI) service state.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, or OTU2_XP card where you want to provision PPM settings.
Step 2 Click the Provisioning > Pluggable Port Modules tabs.
Step 3 In the Pluggable Port Modules area, click Create. The Create PPM dialog box appears.
Step 4 In the Create PPM dialog box, complete the following:
•PPM—Choose the PPM slot number where the SFP is installed from the drop-down list.
•PPM Type—Choose the number of ports supported by your SFP from the drop-down list. If only one port is supported, PPM (1 port) is the only option.
Step 5 Click OK. The newly created port appears in the Pluggable Port Modules area. The row in the Pluggable Port Modules area turns white and the Actual Equipment Type column lists the equipment name.
Step 6 If you want to provision a PPM on another port, repeat Steps 3 through 5. If not, continue with Step 7.
Step 7 Return to your originating procedure (NTP).
DLP-G274 Verify Topologies for ETR_CLO and ISC Services
Purpose
|
This task verifies that the DWDM network topology can support the IBM ETR_CLO and ISC services.
|
Tools/Equipment
|
Cisco TransportPlanner site plan
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Display your site plan in Cisco TransportPlanner.
Step 2 Verify that the topology where you plan to run the ETR_CLO or ISC service can support the service. The following topologies support ETR_CLO or ISC:
•Single span—Two terminal sites with no intermediate sites in between and one of the following sets of cards installed:
–32MUX-O and 32DMX-O cards
–32WSS and 32DMX cards
–32WSS and 32-DMX-O cards
–40-MUX-C and 40-DMX-C/40-DMX-CE cards
–40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE cards
Figure 5-1 shows a single-span topology as displayed in Cisco TransportPlanner.
Figure 5-1 Single-Span Topology
•Point-to-Point—Two terminal sites with one of the following sets of cards installed:
–32MUX-O and 32DMX-O cards
–32WSS and 32DMX cards
–32WSS and 32-DMX-O cards
–40-MUX-C and 40-DMX-C/40-DMX-CE cards
–40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE cards
Line amplifiers can be installed between the terminal sites, but intermediate (traffic terminating) sites cannot be installed. Figure 5-2 shows a point-to-point topology as shown in Cisco TransportPlanner.
Figure 5-2 Point-to-Point Topology
•Two hubs—Two hub nodes in a ring with one of the following sets of cards installed:
–32MUX-O and 32DMX-O cards
–32WSS and 32DMX cards
–32WSS and 32-DMX-O cards
–40-MUX-C and 40-DMX-C/40-DMX-CE cards
–40-WSS-C/40-WSS-CE and 40-DMX-C/40-DMX-CE cards
Line amplifiers can be installed between the hubs. Figure 5-3 shows two hub nodes with no line amplifier nodes installed. Figure 5-4 shows two hub nodes with line amplifier nodes installed.
Figure 5-3 Hubs with No Line Amplifiers
Figure 5-4 Hubs with Line Amplifiers
Step 3 Return to your originating procedure (NTP).
DLP-G278 Provision the Optical Line Rate
Note The optical line rate for cards with single-rate PPMs is provisioned automatically when you complete the "DLP-G277 Provision a Multirate PPM" task if the trunk port is out of service. If the optical line rate was provisioned automatically, you do not need to complete this task for the MXP_2.5G_10G, MXP_2.5G_10E, MXP_2.5G_10E_C, MXP_2.5G_10E_L, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP card. If the trunk port was in-service when you provisioned the PPM, complete this task to provision the optical line rate manually for those cards.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP card where you want to provision PPM ports. If the data rate that you are provisioning is DV-6000, HDTV, ESCON, SDI/D1 Video, ISC-3 (all cards except the MXP_MR_10DME_C or MXP_MR_10DME_L), or ETR_CLO, complete the following steps. Otherwise, continue with Step 4.
a. Click the Provisioning > OTN > OTN Lines tabs.
b. In the ITU-T G.709 OTN field for the respective PPM, choose Disable.
c. In the FEC field for the respective PPM, choose Disable.
d. Click Apply.
Step 2 For the TXP_MR-10G card, click the Provisioning > Data Rate Selection tabs. For all other cards, go to Step 4.
Step 3 In the Data Rate Selection area, click Create and choose the type of port from the drop-down list. The supported port types are SONET (including 10G Ethernet WAN Phy) and 10G Ethernet LAN Phy.
Step 4 Click the Provisioning > Pluggable Port Modules tabs.
Step 5 In the Pluggable Ports area, click Create. The Create Port dialog box appears.
Step 6 In the Create Port dialog box, complete the following:
•Port—Choose the port and port number from the drop-down list. The first number indicates the PPM in the Pluggable Port Modules area, and the second number indicates the port number on the PPM. For example, the first PPM with one port appears as 1-1 and the second PPM with one port appears as 2-1. The PPM number can be 1 to 4, but the port number is always 1.
•Port Type—Choose the type of port from the drop-down list. The port type list displays the supported port rates on your PPM. See Table 5-3 for definitions of the supported rates on the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP card.
Step 7 Click OK. The row in the Pluggable Ports area turns white if the physical SFP is installed and light blue if the SFP is not installed.
Step 8 Repeat Steps 5 through 7 to configure the rest of the port rates as needed.
Table 5-3 PPM Port Types
Card
|
Port Type
|
TXP_MR_2.5G
TXPP_MR_2.5G
|
•OC-3/STM1—155 Mbps
•OC-12/STM4—622 Mbps
•OC-48/STM16—2.48 Gbps
•ONE_GE—One Gigabit Ethernet 1.125 Gbps
•ESCON—Enterprise System Connection 200 Mbps (IBM signal)
•DV6000—Proprietary signal from video vendor
•SDI_D1_VIDEO—Serial Digital Interface and Digital Video signal type 1
•HDTV—High Definition Television
•PASS-THRU—Not specified
•FC1G—Fibre Channel 1.06 Gbps
•FC2G—Fibre Channel 2.125 Gbps
•FICON1G—Fiber connectivity1.06 Gbps (IBM signal)
•FICON2G—Fiber connectivity 2.125 Gbps (IBM signal)
•ETR_CLO—External Time Reference-Control Link Oscillator
•ISC compat—InterSystem Coupling Link 1 (ISC1)
•ISC peer—InterSystem Coupling Link 3 (ISC3)
|
MXP_2.5G_10G
MXP_2.5G_10E
MXP_2.5G_10E_C
MXP_2.5G_10E_L
|
•OC-48/STM16—2.48 Gbps1
|
TXP_MR_10G2
|
•SONET (OC-192)/SDH (STM-64) including 10G Ethernet WAN Phy
•10G Ethernet LAN Phy
|
TXP_MR_10E
TXP_MR_10E_C
TXP_MR_10E_L
|
•SONET (OC-192)/SDH (STM-64) including 10G Ethernet WAN Phy—10 Gbps
•10G Ethernet LAN Phy—10 Gbps Ethernet
•10G Fibre Channel—10 Gbps Fibre Channel
|
MXP_MR_2.5G
MXPP_MR_2.5G
|
If the card mode is FC_GE:
•FC1G ISL—Fibre Channel 1.06 Gbps (Ports 1-1 and 2-1)
•FC2G ISL—Fibre Channel 2.125 Gbps (Port 1-1 only)
•FICON1G ISL—Fiber connectivity 1.06 Gbps (IBM signal) (Ports 1-1 and 2-1)
•FICON2G ISL—Fiber connectivity 2.125 Gbps (IBM signal) (Port 1-1 only)
•ONE_GE—One Gigabit Ethernet 1.125 Gbps (Ports 1-1 and 2-1 only)
If the card mode is Mixed:
•FC1G ISL—Fibre Channel 1.06 Gbps (Port 1-1 only)
•FICON1G ISL—Fiber connectivity 1.06 Gbps (IBM signal) (Port1-1 only)
•ONE_GE—One Gigabit Ethernet 1.125 Gbps (Port 1-1 only)
•ESCON—Enterprise System Connection 200 Mbps (IBM signal) (Ports 5-1 through 8-1)
If the card mode is ESCON:
•ESCON—Enterprise System Connection 200 Mbps (IBM signal) (Ports 1-1 through 8-1)
|
MXP_MR_10DME_C
MXP_MR_10DME_L
|
If the port mode is FC_GE_ISC:
•FC1G—Fibre Channel 1.06 Gbps (Ports 1-1 through 8-1)
•FC2G—Fibre Channel 2.125 Gbps (Ports 1-1, 3-1, 5-1, and 7-1 only; ports are not available if the port that follows—2-1, 4-1, 6-1, or 8-1—has a PPM provisioned.)
•FICON1G—Fiber connectivity 1.06 Gbps (IBM signal) (Ports 1-1 through 8-1)
•FICON2G—Fiber connectivity 2.125 Gbps (IBM signal) (Ports 1-1, 3-1, 5-1, and 7-1 only; ports are not available if the port that follows—2-1, 4-1, 6-1, or 8-1—has a PPM provisioned.)
•ONE_GE—One Gigabit Ethernet 1.125 Gbps (Ports 1-1 through 8-1)
•ISC COMPAT (Ports 1-1 through 8-1)
•ISC3 PEER 1G (Ports 1-1 through 8-1)
•ISC3 PEER 2G (Ports 1-1, 3-1, 5-1, and 7-1 only; ports are not available if the port that follows—2-1, 4-1, 6-1, or 8-1—has a PPM provisioned.)
If the port mode is FC4G:
•FC4G—Fibre Channel 4.25 Gbps (Ports 1-1 or 5-1 only; ports are not available if any of the three ports that follow has a PPM provisioned.)
•FICON4G—Fiber connectivity 4.25 Gbps (IBM signal) (Ports 1-1 or 5-1 only; ports are not available if any of the three ports that follow has a PPM provisioned.)
|
GE_XP
10GE_XP
GE_XPE
10GE_XPE
|
•GE_XP and GE_XPE client ports1
•10GE_XP and 10GE_XPE client and trunk ports; GE_XP and GE_XPE trunk ports1
|
OTU2_XP
|
•SONET (including 10G Ethernet WAN Phy)—10 Gbps
•10G Ethernet LAN Phy—10 Gbps Ethernet
•10G Fiber Channel—10 Gbps Fibre Channel
Note If you have an OTU2 signal in which the OPU2 has been generated by multiplexing four ODU1 signals, choose SONET as the port rate. This allows the OTU2 signal to be transported transparently in standard or E-FEC regenerator configuration.
|
Step 9 Return to your originating procedure (NTP).
DLP-G280 Delete a PPM
Purpose
|
This task deletes PPM provisioning for SFPs or XFPs installed on TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, or OTU2_XP card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G63 Install an SFP or XFP, page 3-60 or
DLP-G273 Preprovision an SFP or XFP Slot, page 3-61
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note Before deleting a PPM, delete the PPM fromthe provisioning pane.
Note This task does not apply to the TXP_MR_10G card. To change the TXP_MR_10G data rate, complete the "DLP-G365 Provision the TXP_MR_10G Data Rate" task.
Note You cannot delete a PPM if the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or ADM-10G card is part of a regenerator group. For OTU2_XP card, you cannot delete a PPM if the card configuration is in Standard Regen or Enhanced FEC mode.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, or OTU2_XP card where you want to delete PPM settings.
Step 2 Verify that the PPM port Service State is OOS,DSBLD. If the PPM port is OOS,DSBLD, go to Step 3. If it is not OOS,DSBLD, follow the tasks in G128 Manage Pluggable Port Modules, to change the Service State of the PPM port to OOS,DSBLD.
Step 3 Click the Provisioning > Pluggable Port Modules tabs.
Step 4 To delete a PPM and the associated ports:
a. In the Pluggable Port Modules area, click the PPM that you want to delete. The highlight changes to dark blue.
b. Click Delete. The Delete PPM dialog box appears.
c. Click Yes. The PPM provisioning is removed from the Pluggable Port Modules area and the Pluggable Ports area.
Note You cannot delete a PPM until its port is in the OOS,DSBLD state. You cannot delete a client port if the client is in the In Service and Normal (IS-NR) (ANSI) or Unlocked-enabled (ETSI) service state, is in a protection group, has a generic communications channel (GCC) or data communications channel (DCC), is a timing source, has circuits or overhead circuits, or transports Link Management Protocol channels or links. You can delete a client port (except the last port) if the trunk port is in service and the client port is in the OOS,DSBLD (ANSI) or Locked-enabled,disabled (ETSI) service state. You can delete the last client port only if the trunk port is in a OOS,DSBLD (ANSI) or Locked-enabled,disabled (ETSI) service state for all cards except the MXP_MR_2.5G, MXPP_MR_2.5G, MXP_MR_10DME_C, and MXP_MR_10DME_L cards. For more information about port states, refer to the "Administrative and Service States" appendix in the Cisco ONS 15454 DWDM Reference Manual.
Step 5 Verify that the PPM provisioning is deleted:
•In the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, or OTU2_XP card view, CTC shows an empty port after the PPM is deleted.
•If the SFP or XFP is physically present when you delete the PPM provisioning, CTC transitions to the deleted state, the ports (if any) are deleted, and the PPM is represented as a gray graphic in CTC. The SFP or XFP can be provisioned again in CTC, or the equipment can be removed. If the equipment is removed, the graphic disappears.
Step 6 If you need to remove the PPM hardware (the SFP or XFP), complete the "DLP-G64 Remove an SFP or XFP" task on page 3-62.
Step 7 Return to your originating procedure (NTP).
NTP-G33 Create a Y-Cable Protection Group
Purpose
|
This procedure creates a Y-cable protection group between the client ports of two TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP cards. For additional information about Y-cable protection, see the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual.
|
Tools/Equipment
|
Installed TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP card
Cisco TransportPlanner Traffic Matrix
|
Prerequisite Procedures
|
NTP-G15 Install the Common Control Cards, page 1-76
NTP-G14 Install DWDM Equipment, page 1-68
DLP-G46 Log into CTC, page 2-26
NTP-G139 Verify Cisco TransportPlanner Reports and Files, page 3-3
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note Y-cable protection is available for the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE cards when they are provisioned in 10GE MXP, 20GE MXP, or 10GE TXP mode. Y-cable protection cannot be provisioned for the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE cards when they are provisioned in L2-over-DWDM mode. Y-cable protection is available for the OTU2_XP card when it is provisioned in the TXP card mode.
Note If you are provisioning Y-cable protection for GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE cards, the Ethernet mode must be set to 1000 and 10000 Mbps respectively. To provision the Ethernet mode, see the "DLP-G380 Provision the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE Card Ethernet Settings" task.
Note There is a traffic hit of upto a couple hundred milliseconds on the MXP_MR_2.5G and MXP_MR_10DME cards in Y-cable configuration when a fiber cut or SFP failure occurs on one of the client ports.
Note For SONET or SDH payloads, Loss of Pointer Path (LOP-P) alarms can occur on a split signal if the ports are not in a Y-cable protection group.
Step 1 View the Cisco TransportPlanner Traffic Matrix (see Table 3-1 on page 3-3) for your site. Verify the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP cards that need Y-cable protection groups. (Cards requiring Y-cable protection are indicated with "Y-Cable" in the Traffic Matrix table Protection Type column. Refer to the Cisco TransportPlanner DWDM Operations Guide for more information.)
Step 2 Verify that the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP cards are installed according to the requirements specified in Table 3-4 on page 3-92. Table 5-4 lists the protection types available in the ONS 15454 for DWDM client cards.
Table 5-4 Protection Types
Protection Type
|
Cards
|
Description and Installation Requirements
|
Y-cable
|
MXP_2.5_10G
MXP_2.5_10E
MXP_2.5_10E_C
MXP_2.5_10E_L
TXP_MR_10G
TXP_MR_10E
TXP_MR_10E_C
TXP_MR_10E_L
TXP_MR_2.5G
MXP_MR_2.5G
MXP_MR_10DME_C
MXP_MR_10DME_L
GE_XP1
10GE_XP2
GE_XPE
10GE_XPE
OTU2_XP
|
Pairs a working transponder or muxponder card or port with a protect transponder or muxponder card or port. The protect port must be on a different card than the working port and it must be the same card type as the working port. The working and protect port numbers must be the same, that is, Port 1 can only protect Port 1, Port 2 can only protect Port 2, and so on.
|
Splitter
|
TXPP_MR_2.5G
MXPP_MR_2.5G
|
A splitter protection group is automatically created when a TXPP_MR_2.5G or MXPP_MR_2.5G card is installed. You can edit the splitter protection group name.
|
OTU2_XP
|
A splitter protection group is configurable for the OTU2_XP card. You can create a splitter protection group on Ports 3 and 4 of the OTU2_XP card using the "G199 Create a Splitter Protection Group for the OTU2_XP Card" procedure.
|
1+1
|
GE_XP
10GE_XP
GE_XPE
10GE_XPE
|
In the Layer 2 (L2) card mode 1+1 protection is provided to protect the card against client port and card failure.
|
Step 3 Verify that pluggable ports are provisioned for the same payload and payload rate on the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP cards where you will create the Y-cable protection group:
a. Display the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or OTU2_XP card in card view.
b. Click the Provisioning > Pluggable Port Module tab.
c. Verify that a pluggable port is provisioned in the Pluggable Port Module area, and the payload type and rate is provisioned for it in the Pluggable Ports area. If they are not the same, for example, if the pluggable port and rate are not the same, you must either delete the provisioned rate and create a new rate to match using the "DLP-G273 Preprovision an SFP or XFP Slot" task on page 3-61 or replace the pluggable port (SFP or XFP) using the "DLP-G64 Remove an SFP or XFP" task on page 3-62.
Step 4 In node view (single-shelf mode) or shelf view (multishelf mode), click the Provisioning > Protection tabs.
Step 5 In the Protection Groups area, click Create.
Step 6 In the Create Protection Group dialog box, enter the following:
•Name—Type a name for the protection group. The name can have up to 32 alphanumeric (a-z, A-Z, 0-9) characters. Special characters are permitted. For TL1 compatibility, do not use question mark (?), backslash (\), or double quote (") characters.
•Type—Choose Y Cable from the drop-down list.
•Protect Port—From the drop-down list, choose the port that will be the standby or protection port to the active port. The list displays the available transponder or muxponder ports. If transponder or muxponder cards are not installed, no ports appear in the drop-down list.
After you choose the protect port, a list of available working ports appear in the Available Ports list, as shown in Figure 5-5. If no cards are available, no ports appear. If this occurs, you can not complete this task until you install the physical cards or preprovision the ONS 15454 slots using the "DLP-G353 Preprovision a Single Slot" task on page 3-48.
Figure 5-5 Creating a Y-Cable Protection Group
Step 7 From the Available Ports list, select the port that will be protected by the port you selected in Protect Ports. Click the top arrow button to move the port to the Working Ports list.
Step 8 Complete the remaining fields:
•Revertive—Check this check box if you want traffic to revert to the working port after failure conditions remain corrected for the amount of time entered in the Reversion Time field.
•Reversion time—If Revertive is checked, select a reversion time from the drop-down list. The range is 0.5 to 12.0 minutes. The default is 5.0 minutes. Reversion time is the amount of time that will elapse before the traffic reverts to the working card. The reversion timer starts after conditions causing the switch are cleared.
Note The Bidirectional switching option is available for Y-cable protection groups only in the following cases:
•On the MXP_MR_10DME card when ISC3_PEER_1G/ISC3_PEER_2G is the client payload.
•On the MXP_MR_10DME and MXP_MR_2.5G cards when Fibre Channel is the client payload. In this case Bidirectional switching is:
–Automatically enabled when Distance Extension is enabled.
–Automatically disabled when Distance Extension is disabled.
The Bidirectional switching option is available for all SONET and SDH 1+1 protection groups.
Step 9 Click OK.
Step 10 Repeat this procedure for every Y-cable protection group indicated in the Cisco TransportPlanner Traffic Matrix.
Stop. You have completed this procedure.
NTP-G199 Create a Splitter Protection Group for the OTU2_XP Card
Note A splitter protection group is automatically created when a TXPP_MR_2.5G, MXPP_MR_2.5G, or PSM card is installed. You can edit the splitter protection group name for these cards. The splitter protection group is deleted when you delete the TXPP_MR_2.5G, MXPP_MR_2.5G, or PSM card.
Note Splitter protection is available for the OTU2_XP card when it is provisioned in Transponder configuration only. In a splitter-protected Transponder configuration, Port 1 is the client port, Port 3 is the working trunk port, and Port 4 is the standby trunk port.
Note For SONET or SDH payloads, Loss of Pointer Path (LOP-P) alarms can occur on a split signal if the ports are not in a splitter protection group.
Step 1 View the Cisco TransportPlanner Traffic Matrix (see Table 3-1 on page 3-3) for your site. Verify which OTU2_XP card needs a splitter protection group. (Cards requiring splitter protection are indicated with "Splitter" in the Traffic Matrix table Protection Type column. Refer to the Cisco TransportPlanner DWDM Operations Guide for more information.)
Step 2 Verify that the OTU2_XP card is installed according to the requirements specified in Table 3-4 on page 3-92.
Step 3 Verify that the pluggable port (SFP or XFP) slot is provisioned for the same payload rate as the pluggable port on the OTU2_XP card where you will create the splitter protection group:
a. Display the OTU2_XP card in card view.
b. Click the Provisioning > Pluggable Port Module tabs.
c. Verify that a pluggable port (SFP or XFP) slot is provisioned in the Pluggable Port Module area, and that the payload rate of the pluggable port (SFP or XFP) slot is same as the payload rate of the pluggable port on the OTU2_XP card provisioned in the Pluggable Ports area. If they are not the same, you must either delete the provisioned rate and create a new rate to match using the "DLP-G273 Preprovision an SFP or XFP Slot" task on page 3-61 or replace the pluggable port (SFP or XFP) using the "DLP-G64 Remove an SFP or XFP" task on page 3-62.
Step 4 In node view (single-shelf mode) or shelf view (multishelf view), click the Provisioning > Protection tabs.
Step 5 In the Protection Groups area, click Create.
Step 6 In the Create Protection Group dialog box, enter the following:
•Name—Type a name for the protection group. The name can have up to 32 alphanumeric (a-z, A-Z, 0-9) characters. Special characters are permitted. For TL1 compatibility, do not use question mark (?), backslash (\), or double quote (") characters.
•Type—Choose Splitter from the drop-down list.
•Protect Card—From the drop-down list, choose the port that will be the standby or protection port to the active port. The list displays the available OTU2_XP ports. If transponder or muxponder cards are not installed or if the trunk ports of the card are part of a regenerator group, no ports appear in the drop-down list.
After you choose the protect port, a list of available working ports appear in the Available Cards list, as shown in Figure 5-6. If no cards are available, no ports appear. If this occurs, you cannot complete this task until you install the physical cards or preprovision the ONS 15454 slots using the "DLP-G353 Preprovision a Single Slot" task on page 3-48.

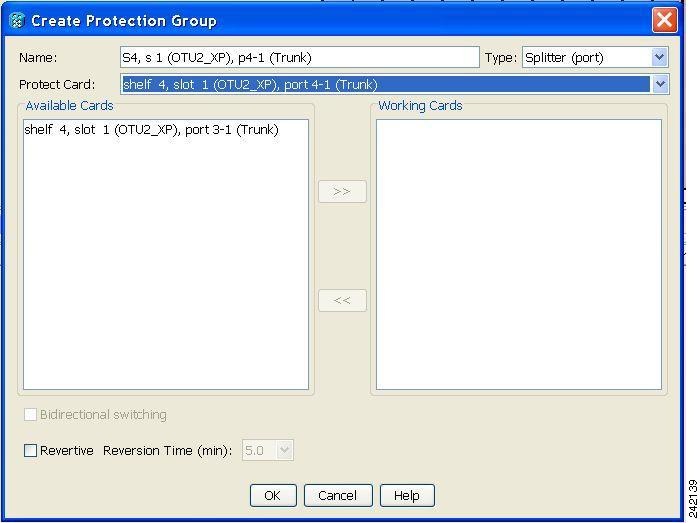

Figure 5-6 Creating a Splitter Protection Group
Step 7 From the Available Cards list, select the port that will be protected by the port you selected in Protect Cards. Click the top arrow button to move the port to the Working Cards list.
Step 8 Complete the remaining fields:
•Revertive—Check this check box if you want traffic to revert to the working port after failure conditions remain corrected for the amount of time entered in the Reversion Time field.
•Reversion time—If Revertive is checked, select a reversion time from the drop-down list. The range is 0.5 to 12.0 minutes. The default is 5.0 minutes. Reversion time is the amount of time that will elapse before the traffic reverts to the working card. The reversion timer starts after conditions causing the switch are cleared.
Note The Bidirectional Switching option is not applicable for splitter protection groups.
Step 9 Click OK.
Step 10 Repeat this procedure for every splitter protection group indicated in the Cisco TransportPlanner Traffic Matrix.
Stop. You have completed this procedure.
NTP-G198 Create 1+1 Protection for GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards
Step 1 Complete the "DLP-G46 Log into CTC" task on page 2-26 at the node where you want to protect the card against client port and card failure. If you are already logged in, continue with Step 2.
Step 2 Verify that the GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE card is installed according to the requirements specified in Table 3-4 on page 3-92.
Step 3 Complete the DLP-G354 Create an Internal Patchcord Manually, page 3-97 by selecting the Trunk to Trunk (L2) option, at the trunk port where you want to create 1+1 protection.
Step 4 Complete the "DLP-G461 Create a 1+1 Protection Group for GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards" task to create a protection group.
Step 5 Configure the standby port behavior, by setting the Protection Action to None or Squelch. For detailed information on how to configure the standby port behavior, see the, "DLP-G380 Provision the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE Card Ethernet Settings" task.
Step 6 Configure the standby and active port speed, by setting the mode parameter to Auto or 1000 or any other values. For detailed information on how to configure the standby port behavior, see the "DLP-G380 Provision the GE_XP, 10GE_XP, GE_XPE, and 10GE_XPE Card Ethernet Settings" task.
Stop. You have completed this procedure.
DLP-G461 Create a 1+1 Protection Group for GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE Cards
Purpose
|
This procedure creates a 1+1 protection group for GE_XP, 10GE_XP, GE_XPE, or 10GE_XPE slots where internal patchcords were created.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G344 Verify Provisionable and Internal Patchcords, page 7-42
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or multishelf view (multishelf mode), click the Provisioning > Protection tabs.
Step 2 In the Protection Groups area, click Create.
Step 3 In the Create Protection Group dialog box, enter the following:
•Name—Type a name for the protection group. The name can have up to 32 alphanumeric (a-z, A-Z, 0-9) characters. Special characters are permitted. For TL1 compatibility, do not use question mark (?), backslash (\), or double quote (") characters.
•Type—Choose L2 1+1 (port) from the drop-down list.
•Protect Port—From the drop-down list, choose the port that will be the standby or protection port for the active port. The list displays the available transponder or muxponder ports. If transponder or muxponder cards are not installed, no ports appear in the drop-down list.
After you choose the protect port, a list of available working ports appear in the Available Ports list, as shown in Figure 5-7. If no cards are available, no ports appear. If this occurs, you cannot complete this task until you install the physical cards or preprovision the ONS 15454 slots using the "DLP-G353 Preprovision a Single Slot" task on page 3-48.
Figure 5-7 Creating a 1+1 Protection Group
Step 4 From the Available Ports list, select the port that will be protected by the port you selected in the Protected Port drop-down list. Click the top arrow button to move the port to the Working Ports list.
Step 5 Complete the remaining fields:
•Revertive—Check this check box if you want traffic to revert to the working port after failure conditions remain corrected for the amount of time entered in the Reversion Time field.
•Reversion time—If Revertive is checked, select a reversion time from the drop-down list. The range is 0.5 to 12.0 minutes. The default is 5.0 minutes. Reversion time is the amount of time that will elapse before the traffic reverts to the working card. The reversion timer starts after conditions causing the switch are cleared.
The bidirectional switching option is available for SONET and SDH 1+1 protection groups.
Step 6 Click OK.
Step 7 Repeat this procedure for every 1+1 protection group indicated in the Cisco TransportPlanner Traffic Matrix.
Step 8 Return to your originating procedure (NTP).
NTP-G98 Provision the 2.5G Multirate Transponder Card Line Settings and PM Parameter Thresholds
Step 1 Complete the "DLP-G46 Log into CTC" task on page 2-26 at the node where you want to change the transponder card settings. If you are already logged in, continue with Step 2.
Step 2 As needed, complete the "NTP-G103 Back Up the Database" procedure on page 13-2 to preserve the existing transmission settings.
Step 3 Perform any of the following tasks as needed:
•G229 Change the 2.5G Multirate Transponder Card Settings
•G230 Change the 2.5G Multirate Transponder Line Settings
•G231 Change the 2.5G Multirate Transponder Line Section Trace Settings
•G232 Change the 2.5G Multirate Transponder SONET or SDH Line Threshold Settings
•G320 Change the 2.5G Multirate Transponder Line RMON Thresholds for 1G Ethernet or 1G FC/FICON Payloads
•G305 Provision the 2.5G Multirate Transponder Trunk Port Alarm and TCA Thresholds
•G306 Provision the 2.5G Multirate Transponder Client Port Alarm and TCA Thresholds
•G234 Change the 2.5G Multirate Transponder OTN Settings
•G367 Change the 2.5G Multirate Transponder Trunk Wavelength Settings
Stop. You have completed this procedure.
DLP-G229 Change the 2.5G Multirate Transponder Card Settings
Purpose
|
This task changes the card settings for TXP_MR_2.5G and TXPP_MR_2.5G transponder cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the card settings.
Step 2 Click the Provisioning > Card tabs.
Step 3 Modify any of the settings described in Table 5-5.
Note The Card subtab Framing Type and Tunable Wavelengths fields are display-only. Framing Type shows the card framing type, either SONET or SDH, depending on whether the card is installed in an ANSI or ETSI chassis. The Tunable Wavelengths field shows the tunable wavelengths for the physical TXP_MR_2.5G or TXPP_MR_2.5G that is installed.
Table 5-5 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card Settings
Parameter
|
Description
|
Options
|
Termination Mode
|
Sets the mode of operation (option only supported for SONET/SDH payloads). Refer to the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual for more details.
|
•Transparent
•Section (ANSI) or Regeneration Section (ETSI)
•Line (ANSI) or Multiplex Section (ETSI)
|
Regeneration Peer Slot
|
Sets the slot containing another TXP_MR_2.5G or TXPP_MR_2.5G card to create a regeneration peer group. A regeneration peer group facilitates the management of two TXP_MR_2.5G or TXPP_MR_2.5G cards that are needed to perform a complete signal regeneration.
The regeneration peer group synchronizes provisioning of the two cards. Payload type and ITU-T G.709 optical transport network (OTN) changes made on one TXP_MR_2.5G or TXPP_MR_2.5G card are reflected on the peer TXP_MR_2.5G or TXPP_MR_2.5G card.
Note Y-cable protection groups cannot be created on TXP_MR_2.5G or TXPP_MR_2.5G cards that are in a regeneration peer group.
|
•None
•1
•2
•3
•4
•5
•6
•12
•13
•14
•15
•16
•17
|
Regeneration Group Name
|
Sets the regeneration peer group name.
|
User defined
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G230 Change the 2.5G Multirate Transponder Line Settings
Purpose
|
This task changes the line settings for the client port of the TXP_MR_2.5G and TXPP_MR_2.5G transponder cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the line settings.
Step 2 Click the Provisioning > Line > SONET tabs.
Step 3 Modify any of the settings described in Table 5-6.
Note The 2.5G multirate transponder trunk settings are provisioned in the "DLP-G305 Provision the 2.5G Multirate Transponder Trunk Port Alarm and TCA Thresholds" task.
Table 5-6 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card Line Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Displays the port number.
|
•1
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G card only)
|
Port Name
|
The user can assign a logical name for each of the ports shown by filling in this field.
|
User-defined. Name can be up to 32 alphanumeric/ special characters. Blank by default.
See the "DLP-G104 Assign a Name to a Port" task on page 7-3.
|
Admin State
|
Sets the port service state unless network conditions prevent the change. For more information about administrative states, refer to the "Administrative and Service States" appendix in the Cisco ONS 15454 DWDM Reference Manual.
|
•IS (ANSI) or Unlocked (ETSI)
•IS,AINS (ANSI) or Unlocked,automaticInService (ETSI)
•OOS,DSBLD (ANSI) or Locked,disabled (ETSI)
•OOS,MT (ANSI) or Locked,maintenance (ETSI)
|
Service State
|
(Display only) Identifies the autonomously generated state that gives the overall condition of the port. Service states appear in the format: Primary State-Primary State Qualifier, Secondary State. For more information about service states, refer to the "Administrative and Service States" appendix in the Cisco ONS 15454 DWDM Reference Manual.
|
•IS-NR (ANSI) or Unlocked-enabled (ETSI)
•OOS-AU,AINS (ANSI) or Unlocked-disabled,
automaticInService (ETSI)
•OOS-MA,DSBLD (ANSI) or Locked-enabled,disabled (ETSI)
•OOS-MA,MT (ANSI) or Locked-enabled,maintenance (ETSI)
|
SF BER
|
(OC-N and STM-N payloads only) Sets the signal fail bit error rate.
|
•1E-3
•1E-4
•1E-5
|
SD BER
|
(OC-N and STM-N payloads only) Sets the signal degrade bit error rate.
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
ALS Mode
|
Sets the automatic laser shutdown (ALS) function.
|
•Disabled (default)
•Auto Restart
•Manual Restart
•Manual Restart for Test
|
Reach
|
Displays the optical reach distance of the client port.
|
Options: ANSI/ETSI
•Autoprovision/Autoprovision (default)
•SR
•SR 1/I-1—Short reach up to 2-km distance
•IR 1/S1—Intermediate reach, up to 15-km distance
•IR 2/S2—Intermediate reach up to 40-km distance
•LR 1/L1—long reach, up to 40-km distance
•LR 2/L2—long reach, up to 80-km distance
•LR 3/L3—long reach, up to 80-km distance
|
Wavelength
|
Displays the wavelength of the client port.
|
•First Tunable Wavelength
•Further wavelengths: 1310 nm through 1560.61 nm, 100-GHz ITU spacing; coarse wavelength division multiplexing (CWDM) spacing
Note: supported wavelengths are marked by asterisks (**)
|
AINS Soak
|
(OC-N and STM-N payloads only) Sets the automatic in-service soak period.
|
•Duration of valid input signal, in hh.mm format, after which the card becomes in service (IS) automatically
•0 to 48 hours, 15-minute increments
|
Type
|
(OC-N and STM-N payloads only) The optical transport type.
|
•SONET
•SDH
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G231 Change the 2.5G Multirate Transponder Line Section Trace Settings
Purpose
|
This task changes the section trace settings for TXP_MR_2.5G and TXPP_MR_2.5G transponder cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note This task only applies to SONET services.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the section trace settings.
Step 2 Click the Provisioning > Line > Section Trace tabs.
Step 3 Modify any of the settings described in Table 5-7.
Table 5-7 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card Section Trace
Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Port number.
|
•1
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G only)
|
Received Trace Mode
|
Sets the trace mode.
|
•Off/None
•Manual
|
Disable AIS/RDI on TIM-S
|
If an TIM on Section overhead alarm arises because of a J0 overhead string mismatch, no alarm indication signal is sent to downstream nodes if this box is checked.
|
•Checked (AIS/RDI on TIM-S is disabled)
•Unchecked (AIS/RDI on TIM-S is not disabled)
|
Transmit Section Trace String Size
|
Sets the trace string size.
|
•1 byte
•16 byte
|
Transmit
|
Displays the current transmit string; sets a new transmit string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
Expected
|
Displays the current expected string; sets a new expected string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
Received
|
(Display only) Displays the current received string. You can click Refresh to manually refresh this display, or check the Auto-refresh every 5 sec check box to keep this display updated automatically.
|
String of trace string size
|
Auto-refresh
|
If checked, automatically refreshes the display every 5 seconds.
|
Checked/unchecked (default)
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G367 Change the 2.5G Multirate Transponder Trunk Wavelength Settings
Purpose
|
This task changes the trunk wavelength settings for the TXP_MR_2.5G and TXPP_MR_2.5G cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the trunk wavelength settings.
Step 2 Click the Provisioning > Line > Wavelength Trunk Settings tabs.
Step 3 Modify any of the settings as described in Table 5-8.
Table 5-8 TXP_MR_2.5G and TXPP_MR_2.5G Card Wavelength Trunk Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Displays the port number.
|
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G only)
|
Wavelength
|
The wavelength provisioned for the trunk.
|
•First Tunable Wavelength
•Further wavelengths in 100-GHz ITU-T, C-band spacing. If the card is installed, the wavelengths it carries are identified with two asterisks. Other wavelengths have a dark grey background. If the card is not installed, all wavelengths appear with a dark grey background.
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G232 Change the 2.5G Multirate Transponder SONET or SDH Line Threshold Settings
Purpose
|
This task changes the line threshold settings for TXP_MR_2.5G and TXPP_MR_2.5G transponder cards carrying OC-3/STM-1, OC-12/STM-4, and OC-48/STM-16 payloads.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the line threshold settings.
Step 2 Click the Provisioning > Line Thresholds tabs.
Note You must modify Near End and Far End independently; 15 Min and 1 Day independently; and Line and Section independently. To do so, choose the appropriate radio button and click Refresh.
Step 3 Modify any of the settings in Table 5-9.
Note Some parameters and options in Table 5-9 do not apply to all TXP_MR_2.5G or TXPP_MR_2.5G cards. If a parameter or option does not apply, that parameter or option does not appear in CTC.
Table 5-9 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card Line Thresholds Settings
for OC-3/STM-1, OC-12/STM-4, and OC-48/STM-16 Payloads
Parameter
|
Description
|
Options - ANSI
|
Options - ETSI
|
Port
|
(Display only) Port number
|
•1
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G only)
|
•1
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G only)
|
EB
|
Path Errored Block indicates that one or more bits are in error within a block
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
CV
|
Coding violations
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
—
|
ES
|
Errored seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
SES
|
Severely errored seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
FC
|
(Line or Multiplex Section only) Failure count
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
—
|
SEFS
|
(Near End Section or Regeneration Section only) Severely errored framing seconds
|
—
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
UAS
|
Unavailable seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
|
BBE
|
Background block errors
|
—
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G320 Change the 2.5G Multirate Transponder Line RMON Thresholds for 1G Ethernet or 1G FC/FICON Payloads
Purpose
|
This task changes the line remote monitoring (RMON) threshold settings for TXP_MR_2.5G and TXPP_MR_2.5G transponder cards carrying the 1G Ethernet or 1G FC/FICON payloads.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In card view, display the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the line threshold settings.
Step 2 Click the Provisioning > Line Thresholds > RMON Thresholds tabs.
Step 3 Click Create. The Create Threshold dialog box appears.
Step 4 From the Port drop-down list, choose the applicable port.
Step 5 From the Variable drop-down list, choose an Ethernet variable. See Table 5-10 for a list of available Ethernet variables.
Table 5-10 TXP_MR_2.5G and TXPP_MR_2.5G Card 1G Ethernet and 1G FC/FICON
Thresholds
Variable
|
Description
|
ifInErrors
|
Number of inbound packets that contained errors preventing them from being delivered to a higher-layer protocol.
|
rxTotalPkts
|
Total number of received packets.
|
8b10bStatsEncodingDispErrors
|
Number of IETF 8b10b disparity violations on the Fibre Channel line side.
|
8b10bIdleOrderedSets
|
Number of received packets containing idle ordered sets.
|
8b10bNonIdleOrderedSets
|
Number of received packets containing non-idle ordered sets.
|
8b10bDataOrderedSets
|
Number of received packets containing data ordered sets.
|
Step 6 From the Alarm Type drop-down list, indicate whether the event will be triggered by the rising threshold, the falling threshold, or both the rising and falling thresholds.
Step 7 From the Sample Type drop-down list, choose either Relative or Absolute. Relative restricts the threshold to use the number of occurrences in the user-set sample period. Absolute sets the threshold to use the total number of occurrences, regardless of time period.
Step 8 Enter the appropriate number of seconds for the Sample Period.
Step 9 Enter the appropriate number of occurrences for the Rising Threshold.
For a rising type of alarm, the measured value must move from below the falling threshold to above the rising threshold. For example, if a network is running below a rising threshold of 1000 collisions every 15 seconds and a problem causes 1001 collisions in 15 seconds, the excess occurrences trigger an alarm.
Step 10 Enter the appropriate number of occurrences in the Falling Threshold field. In most cases a falling threshold is set lower than the rising threshold.
A falling threshold is the counterpart to a rising threshold. When the number of occurrences is above the rising threshold and then drops below a falling threshold, it resets the rising threshold. For example, when the network problem that caused 1001 collisions in 15 seconds subsides and creates only 799 collisions in 15 seconds, occurrences fall below a falling threshold of 800 collisions. This resets the rising threshold so that if network collisions again spike over a 1000 per 15-second period, an event again triggers when the rising threshold is crossed. An event is triggered only the first time a rising threshold is exceeded (otherwise, a single network problem might cause a rising threshold to be exceeded multiple times and cause a flood of events).
Step 11 Click OK.
Step 12 Return to your originating procedure (NTP).
DLP-G305 Provision the 2.5G Multirate Transponder Trunk Port Alarm and TCA Thresholds
Purpose
|
This task changes the TXP_MR_2.5G and TXPP_MR_2.5G trunk port alarm and threshold crossing alert (TCA) thresholds.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note In this task, trunk port refers to Port 2 for TXP_MR_2.5G cards, and to Ports 2 and 3 for TXPP_MR_2.5G cards.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the trunk port alarm and TCA settings.
Step 2 Click the Pluggable Port Modules tab. Under Pluggable Ports, record the Rate that is provisioned.
Step 3 Look up the rate in Table 5-11 and note whether it is 2R or 3R.
Table 5-11 2R and 3R Mode and ITU-T G.709 Compliance by Client Interface
Client Interface
|
Input Bit Rate
|
3R vs. 2R
|
ITU-T G.709
|
OC-48/STM-16
|
2.488 Gbps
|
3R
|
On or Off
|
DV-6000
|
2.38 Gbps
|
2R
|
—
|
2 Gigabit Fibre Channel (2G-FC)/fiber connectivity (FICON)
|
2.125 Gbps
|
3R1
|
On or Off
|
High-Definition Television (HDTV)
|
1.48 Gbps
|
2R
|
—
|
Gigabit Ethernet (GE)
|
1.25 Gbps
|
3R
|
On or Off
|
1 Gigabit Fibre Channel (1G-FC)/FICON
|
1.06 Gbps
|
3R
|
On or Off
|
OC-12/STM-4
|
622 Mbps
|
3R
|
On or Off
|
OC-3/STM-1
|
155 Mbps
|
3R
|
On or Off
|
Enterprise System Connection (ESCON)
|
200 Mbps
|
2R
|
—
|
SDI/D1 video
|
270 Mbps
|
2R
|
—
|
ISC-1 Compact
|
1.06 Gbps
|
3R
|
Off
|
ISC-3
|
1.06 or 2.125 Gbps
|
2R
|
—
|
ETR_CLO
|
16 Mbps
|
2R
|
—
|
Step 4 Click the Provisioning > Optics Thresholds tabs.
Step 5 Under Types, verify that the TCA radio button is checked. If not, check it and click Refresh.
Step 6 Referring to Table 5-12, verify the trunk port TCA thresholds for RX Power High and RX Power Low depending on whether the rate is 2R or 3R. Provision new thresholds as needed by double-clicking the threshold value you want to change, deleting it, entering a new value, and hitting Enter.
Note Do not modify the Laser Bias parameters.
Note You must modify 15 Min and 1 Day independently. To do so, choose the appropriate radio button and click Refresh.
Table 5-12 TXP_MR_2.5G and TXPP_MR_2.5G Trunk Port TCA Thresholds
Signal
|
TCA RX Power Low
|
TCA RX Power High
|
3R
|
-23 dBm
|
-9 dBm
|
2R
|
-24 dBm
|
-9 dBm
|
Step 7 Click Apply.
Step 8 Under Types, click the Alarm radio button and click Refresh.
Step 9 Verify the trunk port Alarm thresholds for RX Power High is -7 dBm, and for RX Power Low is -26 dBm. Provision new thresholds as needed by double-clicking the threshold value you want to change, deleting it, entering a new value, and hitting Enter.
Step 10 Click Apply.
Step 11 Return to your originating procedure (NTP).
DLP-G306 Provision the 2.5G Multirate Transponder Client Port Alarm and TCA Thresholds
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the client port alarm and TCA settings.
Step 2 Click the Provisioning > Optics Thresholds tabs. The TCA thresholds are shown by default.
Step 3 Referring to Table 5-13, verify the Port 1 (client) TCA thresholds for RX Power High, RX Power Low, TX Power High, and TX Power Low based on the client interface at the other end. Provision new thresholds as needed by double-clicking the threshold value you want to change, deleting it, entering a new value, and hitting Enter.
Note Do not modify the Laser Bias parameters.
Note You must modify 15 Min and 1 Day independently. To do so, choose the appropriate radio button and click Refresh.
Note The hardware device that plugs into a TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or ADM-10G card faceplate to provide a fiber interface to the card is called a Small Form-factor Pluggable (SFP or XFP). In CTC, SFPs and XFPs are called pluggable port modules (PPMs). SFPs/XFPs are hot-swappable input/output devices that plug into a port to link the port with the fiber-optic network. Multirate PPMs have provisionable port rates and payloads. For more information about SFPs and XFPs, refer to the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual.
Table 5-13 TXP_MR_2.5G and TXPP_MR_2.5G Card Client Interface TCA Thresholds
Port Type
(by CTC)
|
Pluggable Port Module
(SFP)
|
TCA RX
Power Low
|
TCA RX
Power High
|
TCA TX
Power Low
|
TCA TX
Power High
|
OC-3
|
15454-SFP3-1-IR
|
-23
|
-8
|
-21
|
-2
|
STM-1
|
15454E-SFP-L.1.1
|
-24
|
-10
|
-21
|
-2
|
OC-12
|
15454-SFP12-4-IR
|
-28
|
-7
|
-21
|
-2
|
STM-4
|
15454E-SFP-L.4.1
|
-28
|
-8
|
-21
|
-2
|
OC-48
|
ONS-SE-2G-S1
|
-18
|
-3
|
-16
|
3
|
15454-SFP-OC48-IR
|
-18
|
0
|
-11
|
6
|
STM-16
|
ONS-SE-2G-S1
15454E-SFP-L.16.1
|
-18
|
-3
|
-16
|
3
|
ONE_GE
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-17
|
0
|
-16
|
3
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
ESCON
|
15454-SFP-200
15454E-SFP-200
ONS-SE-200-MM
|
-21
|
-14
|
-35
|
-8
|
DV6000
|
15454-SFP-OC48-IR
|
-18
|
0
|
-11
|
6
|
15454E-SFP-L.16.1
|
-18
|
-3
|
-16
|
3
|
SDI_D1_ VIDEO
|
15454-SFP12-4-IR
|
-28
|
-7
|
-21
|
-2
|
15454E-SFP-L.4.1
|
-28
|
-8
|
-21
|
-2
|
HDTV
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
PASS-THRU
|
2R MODE
(not specified)
|
—
|
—
|
—
|
—
|
FC1G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-17
|
0
|
-16
|
3
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
FC2G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-15
|
0
|
-16
|
3
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
FICON1G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-17
|
0
|
-16
|
3
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
FICON2G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-15
|
0
|
-16
|
3
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
ETR_CLO
|
15454-SFP-200
15454E-SFP-200
ONS-SE-200-MM
|
-17
|
0
|
-16
|
3
|
ISC compat
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
ISC peer
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-20
|
-3
|
-16
|
3
|
Step 4 Click Apply.
Step 5 Under Types, click the Alarm radio button and click Refresh.
Step 6 Referring to Table 5-14, verify the Alarm thresholds for RX Power High, RX Power Low, TX Power High, and TX Power Low based on the client interface that is provisioned. Provision new thresholds as needed by double-clicking the threshold value you want to change, deleting it, entering a new value, and hitting Enter.
Table 5-14 TXP_MR_2.5G and TXPP_MR_2.5G Card Client Interface Alarm
Thresholds
Port Type
(by CTC)
|
Pluggable Port Module
(SFP)
|
Alarm RX
Power Low
|
Alarm RX
Power High
|
Alarm TX
Power Low
|
Alarm TX
Power High
|
OC-3
|
15454-SFP3-1-IR
|
-26
|
-5
|
-17
|
-6
|
STM-1
|
15454E-SFP-L.1.1
|
-27
|
-7
|
-17
|
-6
|
OC-12
|
15454-SFP12-4-IR
|
-31
|
-4
|
-17
|
-6
|
STM-4
|
15454E-SFP-L.4.1
|
-31
|
-5
|
-17
|
-6
|
OC-48
|
ONS-SE-2G-S1
|
-21
|
0
|
-12
|
-1
|
15454-SFP-OC48-IR
|
-21
|
3
|
-7
|
2
|
STM-16
|
ONS-SE-2G-S1
15454E-SFP-L.16.1
|
-21
|
0
|
-12
|
-1
|
ONE_GE
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-20
|
3
|
-12
|
-2
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
ESCON
|
15454-SFP-200
15454E-SFP-200
ONS-SE-200-MM
|
-24
|
-11
|
-31
|
-12
|
DV6000
|
15454-SFP-OC48-IR
|
-21
|
3
|
-7
|
2
|
15454E-SFP-L.16.1
|
-21
|
0
|
-12
|
-5
|
SDI_D1_ VIDEO
|
15454-SFP12-4-IR
|
-31
|
-4
|
-17
|
-6
|
15454E-SFP-L.4.1
|
-31
|
-5
|
-17
|
-6
|
HDTV
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
PASS-THRU
|
2R MODE
(not specified)
|
—
|
—
|
—
|
—
|
FC1G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-20
|
3
|
-12
|
-2
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
FC2G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-18
|
3
|
-12
|
-2
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
FICON1G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-20
|
3
|
-12
|
-2
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
FICON2G
|
15454-SFP-GEFC-SX
15454E-SFP-GEFC-S
ONS-SE-G2F-SX
|
-18
|
3
|
-12
|
-2
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
ETR_CLO
|
15454-SFP-200
15454E-SFP-200
ONS-SE-200-MM
|
-20
|
3
|
-12
|
-2
|
ISC compat
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
ISC peer
|
15454-SFP-GE+-LX
15454E-SFP-GE+-LX
ONS-SE-G2F-LX
|
-23
|
0
|
-12
|
-1
|
Step 7 Click Apply.
Step 8 Return to your originating procedure (NTP).
DLP-G234 Change the 2.5G Multirate Transponder OTN Settings
Purpose
|
This task changes the OTN settings for TXP_MR_2.5G and TXPP_MR_2.5G transponder cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_2.5G or TXPP_MR_2.5G card where you want to change the OTN settings.
Step 2 Click the Provisioning > OTN tabs, then choose one of the following subtabs: OTN Lines, G.709 Thresholds, FEC Thresholds, or Trail Trace Identifier.
Step 3 Modify any of the settings described in Tables 5-15 through 5-18.
Note You must modify Near End and Far End; 15 Min and 1 Day; and SM and PM settings independently. To do so, choose the appropriate radio button and click Refresh.
Table 5-15 describes the values on the Provisioning > OTN > OTN Lines tab.
Table 5-15 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card OTN Line Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Displays the port number.
|
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G)
|
G.709 OTN
|
Sets the OTN lines according to ITU-T G.709.
|
•Enable
•Disable
|
FEC
|
Sets the OTN lines to forward error correction (FEC).
|
•Enable
•Disable
|
SF BER
|
(Display only) The signal fail bit error rate.
|
•1E-5
|
SD BER
|
Sets the signal degrade bit error rate.
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Table 5-16 describes the values on the Provisioning > OTN > G.709 Thresholds tab.
Table 5-16 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card ITU-T G.709 Threshold Settings
Parameter
|
Description
|
Options
|
Port1
|
(Display only) Port number.
|
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G)
|
ES
|
Errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for SM (OTUk) or PM (ODUk). Select a bullet and click Refresh.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for SM (OTUk) or PM (ODUk). Select a bullet and click Refresh.
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for SM (OTUk) or PM (ODUk). Select a bullet and click Refresh.
|
BBE
|
Background block errors
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for SM (OTUk) or PM (ODUk). Select a bullet and click Refresh.
|
FC
|
Failure counter
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for SM (OTUk) or PM (ODUk). Select a bullet and click Refresh.
|
Table 5-17 describes the values on the Provisioning > OTN > FEC Threshold tab.
Table 5-17 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card FEC Threshold Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Port number.
|
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G)
|
Bit Errors Corrected
|
Sets the value for bit errors corrected.
|
Numeric. Can be set for 15-minute or one-day intervals.
|
Uncorrectable Words
|
Sets the value for uncorrectable words.
|
Numeric. Can be set for 15-minute or one-day intervals.
|
Table 5-18 describes the values on the Provisioning > OTN > Trail Trace Identifier tab.
Table 5-18 TXP_MR_2.5G and TXPP_MR_2.5G Transponder Card Trail Trace Identifier
Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Port number.
|
•2 (Trunk)
•3 (Trunk) (TXPP_MR_2.5G)
|
Level
|
Sets the level.
|
•Section
•Path
|
Received Trace Mode
|
Sets the trace mode.
|
•Off/None
•Manual
|
Disable FDI on TIM
|
If an TIM on Section overhead alarm arises because of a J0 overhead string mismatch, no alarm indication signal is sent to downstream nodes if this box is checked.
|
•Checked (AIS/RDI on TIM-S is disabled)
•Unchecked (AIS/RDI on TIM-S is not disabled)
|
Transmit
|
Displays the current transmit string; sets a new transmit string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
Expected
|
Displays the current expected string; sets a new expected string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
Received
|
(Display only) Displays the current received string. You can click Refresh to manually refresh this display, or check the Auto-refresh every 5 sec check box to keep this panel updated.
|
String of trace string size
|
Auto-refresh
|
If checked, automatically refreshes the display every 5 minutes.
|
Checked/unchecked (default)
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
NTP-G96 Provision the 10G Multirate Transponder Card Line Settings, PM Parameters, and Thresholds
Purpose
|
This procedure changes the line and threshold settings for 10G multirate transponder cards including the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-G179 Install the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, and OTU2_XP Cards, page 3-57
DLP-G63 Install an SFP or XFP, page 3-60
G277 Provision a Multirate PPM (if necessary)
G278 Provision the Optical Line Rate (if necessary)
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note The TXP_MR_10G card does not support PPMs.
Step 1 Complete the "DLP-G46 Log into CTC" task on page 2-26 at the node where you want to change the transponder card settings. If you are already logged in, continue with Step 2.
Step 2 As needed, complete the "NTP-G103 Back Up the Database" procedure on page 13-2 to preserve the existing transmission settings.
Step 3 If you are provisioning a TXP_MR_10G card, complete the "DLP-G365 Provision the TXP_MR_10G Data Rate" task. If not, continue with Step 4.
Step 4 Perform any of the following tasks as needed:
•G216 Change the 10G Multirate Transponder Card Settings
•G217 Change the 10G Multirate Transponder Line Settings
•G218 Change the 10G Multirate Transponder Line Section Trace Settings
•G219 Change the 10G Multirate Transponder Line Thresholds for SONET or SDH Payloads Including 10G Ethernet WAN Phy
•G319 Change the 10G Multirate Transponder Line RMON Thresholds for 10G Ethernet LAN Phy Payloads
•G301 Provision the 10G Multirate Transponder Trunk Port Alarm and TCA Thresholds
•G302 Provision the 10G Multirate Transponder Client Port Alarm and TCA Thresholds
•G221 Change the 10G Multirate Transponder OTN Settings
•G368 Change the 10G Multirate Transponder Trunk Wavelength Settings
Stop. You have completed this procedure.
DLP-G365 Provision the TXP_MR_10G Data Rate
Purpose
|
This task changes the TXP_MR_10G card data rate.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G card where you want to change the card data rate settings.
Step 2 Click the Provisioning > Data Rate Selection tabs.
Step 3 Click Create.
Step 4 In the Create Port dialog box, choose one of the following data rates:
•SONET (ANSI) or SDH (ETSI) (including 10G Ethernet WAN Phy)
•10G Ethernet LAN Phy
Step 5 Click Ok.
Step 6 Return to your originating procedure.
DLP-G216 Change the 10G Multirate Transponder Card Settings
Purpose
|
This task changes the card settings for the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the card settings.
Step 2 Click the Provisioning > Card tabs.
Step 3 Modify any of the settings described in Table 5-19.
Table 5-19 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Card Settings
Parameter
|
Description
|
ONS 15454 Options
|
ONS 15454 SDH Options
|
Termination Mode
|
Sets the mode of operation. (This option is only available for SONET/SDH payloads). Refer to the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual for more details.
|
•Transparent
•Section (TXP_MR_10E only)
•Line
|
•Transparent
•Regeneration Section (TXP_MR_10E only)
•Multiplex Section
|
AIS/Squelch
Configuration
|
(TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L only) Sets the transparent termination mode configuration.
|
•Squelch
•AIS
|
•Squelch
•AIS
|
Regeneration Peer Slot
|
Sets the slot containing another TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card to create a regeneration peer group. A regeneration peer group facilitates the management of two TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L cards that are needed to perform a complete signal regeneration.
The regeneration peer group synchronizes provisioning of the two cards. Payload type and ITU-T G.709 optical transport network (OTN) changes made on one TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card are reflected on the peer TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card.
Note Y-cable protection groups cannot be created on TXP cards that are in a regeneration peer group.
|
•None
•1
•2
•3
•4
•5
•6
•12
•13
•14
•15
•16
•17
|
•None
•1
•2
•3
•4
•5
•6
•12
•13
•14
•15
•16
•17
|
Regeneration Group Name
|
(Display only) The regeneration peer group name.
|
—
|
—
|
Tunable Wavelengths
|
(Display only) Shows the supported wavelengths of the trunk port after the card is installed. For the TXP_MR_10E_C, or TXP_MR_10E_L cards, the first and last supported wavelength, frequency spacing, and number of supported wavelengths are shown in the format: first wavelength-last wavelength-frequency spacing-number of supported wavelengths. For example, the TXP_MR_10E_C card would show: 1529.55nm-1561.83nm-50gHz-82. The TXP_MR_10G and TXP_MR_10E show the four wavelengths supported by the card that is installed.
|
—
|
—
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G217 Change the 10G Multirate Transponder Line Settings
Purpose
|
This task changes the line settings for TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the line settings.
Step 2 Click the Provisioning > Line > SONET/SDH/Ethernet tabs. SONET is the option for ANSI shelves when 10G Ethernet WAN phy is the Pluggable Port Rate, SDH is the option for ETSI shelves when 10G Ethernet WAN phy is the Pluggable Port Rate, and Ethernet is the option for ANSI or ETSI shelves when 10GE LAN Phy is the Pluggable Port Rate.
Step 3 Modify any of the settings described in Table 5-20.
Note In Table 5-20, some parameter tabs do not always apply to all 10G multirate transponder cards. If a tab does not apply, it will not appear in CTC.
Table 5-20 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Line Settings
Parameter
|
Description
|
ONS 15454 (ANSI) Options
|
ONS 15454 SDH (ETSI) Options
|
Port
|
(Display only) Displays the port number.
|
•1 (OC192) (10G Ethernet WAN Phy) (if TXP_MR_10G)
•1 (Client) (if Ethernet LAN is provisioned)
•1-1 (OC192) (10G Ethernet WAN Phy)
•2 (Trunk)
|
•1 (STM-64) (10G Ethernet WAN Phy) (if TXP_MR_10G)
•1 (Client) (if Ethernet LAN is provisioned)
•1-1 (STM-64) (10G Ethernet WAN Phy)
•2 (Trunk)
|
Port Name
|
Provides the ability to assign the specified port a name.
|
User-defined. Name can be up to 32 alphanumeric/special characters. Blank by default.
See the "DLP-G104 Assign a Name to a Port" task on page 7-3.
|
User-defined. Name can be up to 32 alphanumeric/special characters. Blank by default.
See the "DLP-G104 Assign a Name to a Port" task on page 7-3.
|
Admin State
|
Sets the port service state. For more information about administrative states, refer to the "Administrative and Service States" appendix in the Cisco ONS 15454 DWDM Reference Manual.
|
•IS
•IS,AINS
•OOS,DSBLD
•OOS,MT
|
•Unlocked
•Unlocked,automaticInService
•Locked,disabled
•Locked,maintenance
|
Service State
|
(Display only) Identifies the autonomously generated state that gives the overall condition of the port. Service states appear in the format: Primary State-Primary State Qualifier, Secondary State. For more information about service states, refer to the "Administrative and Service States" appendix in the Cisco ONS 15454 DWDM Reference Manual.
|
•IS-NR
•OOS-AU,AINS
•OOS-MA,DSBLD
•OOS-MA,MT
|
•Unlocked-enabled
•Unlocked-disabled,
automaticInService
•Locked-enabled,disabled
•Locked-enabled,maintenance
|
SF BER
|
(SONET [ANSI] or SDH [ETSI] including 10G Ethernet WAN Phy only) Sets the signal fail bit error rate.
|
•1E-3
•1E-4
•1E-5
|
•1E-3
•1E-4
•1E-5
|
SD BER
|
(SONET [ANSI] or SDH [ETSI] including 10G Ethernet WAN Phy only) Sets the signal degrade bit error rate.
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Type
|
(SONET [ANSI] or SDH [ETSI] including 10G Ethernet WAN Phy only) The optical transport type.
|
•SONET
•SDH
|
•SONET
•SDH
|
ALS Mode
|
Sets the ALS function mode. The DWDM transmitter supports ALS according to ITU-T G.644 (06/99). ALS can be disabled, or it can be set for one of three mode options.
|
•Disabled (default): ALS is off; the laser is not automatically shut down when traffic outages (LOS) occur.
•Auto Restart: ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. It automatically restarts when the conditions that caused the outage are resolved.
• Manual Restart: ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. However, the laser must be manually restarted when conditions that caused the outage are resolved.
•Manual Restart for Test: Manually restarts the laser for testing.
|
•Disabled (default): ALS is off; the laser is not automatically shut down when traffic outages (LOS) occur.
•Auto Restart: ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. It automatically restarts when the conditions that caused the outage are resolved.
• Manual Restart: ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. However, the laser must be manually restarted when conditions that caused the outage are resolved.
•Manual Restart for Test: Manually restarts the laser for testing.
|
AINS Soak
|
(SONET [ANSI] or SDH [ETSI] including 10G Ethernet WAN Phy only) Sets the automatic in-service soak period. Double-click the time and use the up and down arrows to change settings.
|
•Duration of valid input signal, in hh.mm format, after which the card becomes in service (IS) automatically
•0 to 48 hours, 15-minute increments
|
•Duration of valid input signal, in hh.mm format, after which the card becomes in service (IS) automatically
•0 to 48 hours, 15-minute increments
|
ProvidesSync
|
(TXP_MR_10G, TXP_MR_10E, OC192 only) Sets the ProvidesSync card parameter. If checked, the card is provisioned as a network element (NE) timing reference.
|
Checked or unchecked
|
Checked or unchecked
|
SyncMsgIn
|
(TXP_MR_10G, TXP_MR_10E, OC192 only) Sets the EnableSync card parameter. Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source.
|
Checked or unchecked
|
Checked or unchecked
|
Send DoNotUse
|
(TXP_MR_10E, OC192 only) Sets the Send DoNotUse card state. When checked, sends a do not use (DUS) message on the S1 byte.
|
Checked or unchecked
|
Checked or unchecked
|
Max Size
|
(TXP_MR_10E, TXP_MR_10G LAN Phy only) Sets the maximum Ethernet packet size.
|
•1548 bytes
•Jumbo (64 to 9,216 bytes)
|
•1548 bytes
•Jumbo (64 to 9,216 bytes)
|
Incoming MAC Address
|
(TXP_MR_10E, TXP_MR_10G LAN Phy only) Sets the incoming MAC address.
|
Value of MAC address. Six bytes in hexadecimal format.
|
Value of MAC address. Six bytes in hexadecimal format.
|
Wavelength
|
Displays the wavelength of the client port.
|
•First Tunable Wavelength
•Further wavelengths: 1310 nm through 1560.61 nm, 100-GHz ITU spacing; coarse wavelength division multiplexing (CWDM) spacing
Note: supported wavelengths are marked by asterisks (**)
|
•First Tunable Wavelength
•Further wavelengths: 1310 nm through 1560.61 nm, 100-GHz ITU spacing; coarse wavelength division multiplexing (CWDM) spacing
Note: supported wavelengths are marked by asterisks (**)
|
Reach
|
Displays the optical reach distance of the client port.
|
The Reach options depend on the traffic type that has been selected.
|
The Reach options depend on the traffic type that has been selected.
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G218 Change the 10G Multirate Transponder Line Section Trace Settings
Purpose
|
This task changes the line section trace settings for the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L transponder cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note The Section Trace tab is available for the 10G Multirate Transponder cards only if no PPMs are provisioned, or the OC192 PPM is provisioned. The tab is not available if a 10G Ethernet LAN Phy or 10G Fibre Channel PPM is provisioned.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the section trace settings.
Step 2 Click the Provisioning > Line > Section Trace tabs.
Step 3 Modify any of the settings described in Table 5-21.
Table 5-21 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Section Trace Settings
Parameter
|
Description
|
ONS 15454 Options
|
Options — ONS 15454 SDH
|
Port
|
Sets the port number.
|
•1-1 (OC192)
•2—Trunk
|
•1-1 (STM64)
•2—Trunk
|
Received Trace Mode
|
Sets the trace mode.
|
•Off/None
•Manual
|
•Off/None
•Manual
|
Transmit Section Trace String Size
|
Sets the trace string size.
|
•1 byte
•16 byte
|
•1 byte
•16 byte
|
Transmit
|
Displays the current transmit string; sets a new transmit string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
String of trace string size
|
Disable AIS/RDI on TIM-S
|
If an TIM on Section overhead alarm arises because of a J0 overhead string mismatch, no alarm indication signal is sent to downstream nodes if this box is checked.
|
•Checked (AIS/RDI on TIM-S is disabled)
•Unchecked (AIS/RDI on TIM-S is not disabled)
|
•Checked (AIS/RDI on TIM-S is disabled)
•Unchecked (AIS/RDI on TIM-S is not disabled)
|
Expected
|
Displays the current expected string; sets a new expected string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
String of trace string size
|
Received
|
(Display only) Displays the current received string. You can click Refresh to manually refresh this display, or check the Auto-refresh every 5 sec check box to keep this panel updated.
|
String of trace string size
|
String of trace string size
|
Auto-refresh
|
If checked, automatically refreshes the display every 5 seconds.
|
Checked/unchecked (default)
|
Checked/unchecked (default)
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G368 Change the 10G Multirate Transponder Trunk Wavelength Settings
Purpose
|
This task changes the trunk wavelength settings for the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L card where you want to change the trunk wavelength settings.
Step 2 Click the Provisioning > Line > Wavelength Trunk Settings tabs.
Step 3 Modify any of the settings as described in Table 5-22.
Table 5-22 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L Card Wavelength Trunk Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Displays the port number.
|
Port 2 (Trunk)
|
Band
|
Indicates the wavelength band that can be provisioned. If the physical TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L is installed, this field is display-only.
|
•C—The C-band wavelengths are available in the Wavelength field.
•L—The L-band wavelengths are available in the Wavelength field.
|
Even/Odd
|
Sets the wavelengths available for provisioning for TXP_MR_10E_C, and TXP_MR_10E_L cards. (This field does not apply to TXP_MR_10G or TXP_MR_10E cards.)
|
•Even—Displays even C-band or L-band wavelengths in the Wavelength field.
•Odd—Displays odd C-band or L-band wavelengths in the Wavelength field.
|
Wavelength
|
The wavelength provisioned for the trunk.
|
•First Tunable Wavelength
•Further wavelengths in 100-GHz ITU-T C-band or L-band spacing, depending on the card that is installed. For TXP_MR_10G and TXP_MR_10E cards, the wavelengths carried by the card are identified with two asterisks. If the card is not installed, all wavelengths appear with a dark grey background.
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G219 Change the 10G Multirate Transponder Line Thresholds for SONET or SDH Payloads Including 10G Ethernet WAN Phy
Purpose
|
This task changes the line threshold settings for TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L transponder cards carrying SONET or SDH payloads, including the physical 10G Ethernet WAN Phy payload.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the line threshold settings.
Step 2 Click the Provisioning > Line Thresholds > SONET Thresholds (ANSI) or SDH Thresholds (ETSI) tabs.
Step 3 Modify any of the settings described in Table 5-23.
Note Parameters shown in Table 5-23 do not apply to all 10G multirate transponder cards. If the parameter or option does not apply, it is not shown in CTC.
Table 5-23 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_LCard Line Threshold Settings
Parameter
|
Description
|
Options - ANSI
|
Options - ETSI
|
Port
|
(Display only) Port number
|
•1-1 (OC192)
•2 (Trunk)
|
•1-1 (STM64)
•2 (Trunk)
|
EB
|
Path Errored Block indicates that one or more bits are in error within a block
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
CV
|
Coding violations
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
ES
|
Errored seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
SES
|
Severely errored seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
SEFS
|
(Near End Section or Regeneration Section only) Severely errored framing seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
BBE
|
Background block errors
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
FC
|
(Line or Multiplex Section only) Failure count
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
UAS
|
(Line or Multiplex Section only) Unavailable seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Line or Section (near end only)
Choose an option in each category and click Refresh.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—Multiplex Section or Regeneration Section (near end only)
Choose an option in each category and click Refresh.
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G319 Change the 10G Multirate Transponder Line RMON Thresholds for 10G Ethernet LAN Phy Payloads
Purpose
|
This task changes the line threshold settings for TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L transponder cards carrying the physical 10G Ethernet LAN payload.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Display the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the line threshold settings in card view.
Step 2 Click the Provisioning > Line Thresholds > RMON Thresholds tabs.
Step 3 Click Create. The Create Threshold dialog box appears.
Step 4 From the Port drop-down list, choose the applicable port.
Step 5 From the Variable drop-down list, choose an Ethernet variable. See Table 5-24 for a list of available Ethernet variables.
Table 5-24 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Card GE LAN Phy Variables
Variable
|
Description
|
ifInOctets
|
Total number of octets received on the interface, including framing characters.
|
rxTotalPkts
|
Total number of received packets.
|
ifInMulticastPkts
|
Number of multicast frames received error free.
|
ifInBroadcastPkts
|
Number of packets, delivered by a sublayer to an higher sublayer, that were addressed to a broadcast address at this sublayer.
|
ifInErrors
|
Number of inbound packets that contained errors preventing them from being delivered to a higher-layer protocol.
|
ifInErrorBytePkts (TXP_MR_10G only)
|
Number of receive error bytes.
|
ifInFramingErrorPkts (TXP_MR_10G only)
|
Number of receive framing error counters.
|
ifInJunkInterPkts (TXP_MR_10G only)
|
Number of receive interpacket junk counters.
|
ifOutOctets
(TXP_MR_10G only)
|
Total number of octets transmitted out of the interface, including framing characters.
|
txTotalPkts
(TXP_MR_10G only)
|
Total number of transmit packets.
|
ifOutMulticastPkts (TXP_MR_10G only)
|
Number of multicast frames transmitted error free.
|
ifOutBroadcastPkts (TXP_MR_10G only)
|
Total number of packets that higher-level protocols requested be transmitted, and that were addressed to a broadcast address at this sublayer, including those that were discarded or not sent.
|
dot3StatsFCSErrors
|
Number of frames with frame check errors, that is, there is an integral number of octets, but an incorrect Frame Check Sequence (FCS).
|
dot3StatsFrameTooLong (TXP_MR_10G only)
|
Number of received frames that were larger than the maximum size permitted.
|
etherStatsUndersizePkts
|
Total number of packets received that were less than 64 octets long (excluding framing bits, but including FCS octets) and were otherwise well formed.
|
etherStatsFragments
|
Total number of packets received that were less than 64 octets in length (excluding framing bits but including FCS octets) and had either a bad FCS with an integral number of octets (FCS Error) or a bad FCS with a nonintegral number of octets (Alignment Error). Note that it is entirely normal for etherStatsFragments to increment. This is because it counts both runts (which are normal occurrences due to collisions) and noise hits.
|
etherStatsPkts64Octets
|
Total number of packets (including bad packets) received that were 64 octets in length (excluding framing bits but including FCS octets).
|
etherStatsPkts65to127Octets
|
Total number of packets (including bad packets) received that were between 65 and 127 octets in length inclusive (excluding framing bits but including FCS octets).
|
etherStatsPkts128to255Octets
|
The total number of packets (including bad packets) received that were between 128 and 255 octets in length inclusive (excluding framing bits but including FCS octets).
|
etherStatsPkts256to511Octets
|
Total number of packets (including bad packets) received that were between 256 and 511 octets in length inclusive (excluding framing bits but including FCS octets).
|
etherStatsPkts512to1023Octets
|
Total number of packets (including bad packets) received that were between 512 and 1023 octets in length inclusive (excluding framing bits but including FCS octets).
|
etherStatsPkts1024to1518Octets
|
Total number of packets (including bad packets) received that were between 1024 and 1518 octets in length inclusive (excluding framing bits but including FCS octets).
|
etherStatsBroadcastPkts
|
Total number of good packets received that were directed to the broadcast address. Note that this does not include multicast packets.
|
etherStatsMulticastPkts
|
Total number of good packets received that were directed to a multicast address. Note that this number does not include packets directed to the broadcast address.
|
etherStatsOversizePkts
|
Total number of packets received that were longer than 1518 octets (excluding framing bits, but including FCS octets) and were otherwise well formed.
|
etherStatsJabbers
|
Total number of packets received that were longer than 1518 octets (excluding framing bits, but including FCS octets), and had either a bad FCS with an integral number of octets (FCS Error) or a bad FCS with a nonintegral number of octets (Alignment Error).
|
etherStatsOctets
|
Total number of octets of data (including those in bad packets) received on the network (excluding framing bits but including FCS octets).
|
etherStatsCRCAlignErrors (TXP_MR_10G only)
|
Total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets, inclusive, but had either a bad FCS with an integral number of octets (FCS Error) or a bad FCS with a nonintegral number of octets (Alignment Error).
|
rxPauseFrames
(TXP_MR_10G only)
|
Number of received IETF 802.x pause frames.
|
rxControlFrames
|
Number of MAC control frames passed by the MAC sublayer to the MAC control sublayer.
|
rxUnknownOpcodeFrames (TXP_MR_10G only)
|
Number of MAC control frames received that contain an opcode that is not supported by the device.
|
Step 6 From the Alarm Type drop-down list, indicate whether the event will be triggered by the rising threshold, the falling threshold, or both the rising and falling thresholds.
Step 7 From the Sample Type drop-down list, choose either Relative or Absolute. Relative restricts the threshold to use the number of occurrences in the user-set sample period. Absolute sets the threshold to use the total number of occurrences, regardless of time period.
Step 8 Type in an appropriate number of seconds for the Sample Period.
Step 9 Type in the appropriate number of occurrences for the Rising Threshold.
For a rising type of alarm, the measured value must move from below the falling threshold to above the rising threshold. For example, if a network is running below a rising threshold of 1000 collisions every 15 seconds and a problem causes 1001 collisions in 15 seconds, the excess occurrences trigger an alarm.
Step 10 Enter the appropriate number of occurrences in the Falling Threshold field. In most cases a falling threshold is set lower than the rising threshold.
A falling threshold is the counterpart to a rising threshold. When the number of occurrences is above the rising threshold and then drops below a falling threshold, it resets the rising threshold. For example, when the network problem that caused 1001 collisions in 15 seconds subsides and creates only 799 collisions in 15 seconds, occurrences fall below a falling threshold of 800 collisions. This resets the rising threshold so that if network collisions again spike over a 1000 per 15-second period, an event again triggers when the rising threshold is crossed. An event is triggered only the first time a rising threshold is exceeded (otherwise, a single network problem might cause a rising threshold to be exceeded multiple times and cause a flood of events).
Step 11 Click OK.
Note To view all RMON thresholds, click Show All RMON thresholds.
Step 12 Return to your originating procedure (NTP).
DLP-G301 Provision the 10G Multirate Transponder Trunk Port Alarm and TCA Thresholds
Purpose
|
This task provisions the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L trunk port alarm and threshold cross alert (TCA) thresholds.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the trunk port alarm and TCA settings.
Step 2 Click the Provisioning > Optics Thresholds tabs.
Step 3 Under Types, verify that the TCA radio button is checked. If not, check it, then click Refresh.
Step 4 Referring to Table 5-25, verify the trunk port (Port 2) TCA thresholds for RX Power High, RX Power Low, TX Power High, and TX Power Low. Provision new thresholds as needed by double-clicking the threshold value you want to change, deleting the existing value, and entering the new value. Hit Enter, then click Apply.
Note You must modify 15 Min and 1 Day independently. To do so, choose the appropriate radio button and click Refresh.
Note Do not modify the Laser Bias parameters.
Table 5-25 10G Multirate Transponder Trunk Port TCA Thresholds
Card
|
TCA RX
Power High
|
TCA RX
Power Low
|
TCA TX
Power High
|
TCA TX
Power Low
|
TXP_MR_10G
|
-8 dBm
|
-18 dBm
|
7 dBm
|
-1 dBm
|
TXP_MR_10E
TXP_MR_10E_C
TXP_MR_10E_L
|
-9 dBm
|
-18 dBm
|
9 dBm
|
0 dBm
|
Step 5 Click Apply.
Step 6 Under Types, click the Alarm radio button and click Refresh.
Step 7 Referring to Table 5-26, verify the trunk port (Port 2) Alarm thresholds for RX Power High, RX Power Low, TX Power High, and TX Power Low. Provision new thresholds as needed by double-clicking the threshold value you want to change, deleting the existing value, and entering the new value. Hit Enter, then click Apply.
Note You must modify 15 Min and 1 Day independently. To do so, choose the appropriate radio button and click Refresh.
Table 5-26 10G Multirate Transponder Trunk Port Alarm Thresholds
Card
|
Alarm RX
Power High
|
Alarm RX
Power Low
|
Alarm TX
Power High
|
Alarm TX
Power Low
|
TXP_MR_10G
|
-8 dBm
|
-20 dBm
|
4 dBm
|
2 dBm
|
TXP_MR_10E
TXP_MR_10E_C
TXP_MR_10E_L
|
-8 dBm
|
-20 dBm
|
7 dBm
|
3 dBm
|
Step 8 Click Apply.
Step 9 Return to your originating procedure (NTP).
DLP-G302 Provision the 10G Multirate Transponder Client Port Alarm and TCA Thresholds
Purpose
|
This task provisions the client port alarm and TCA thresholds for the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
G278 Provision the Optical Line Rate
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the client port alarm and TCA settings.
Step 2 Click the Provisioning > Optics Thresholds tabs. The TCA thresholds are shown by default.
Step 3 Under Types, verify that the TCA radio button is checked. If not, check it, then click Refresh.
Step 4 Referring to Table 5-27, verify the Port 1 (Client) TCA thresholds for RX Power High, RX Power Low, TX Power High, and TX Power Low based on the client interface at the other end. Provision new thresholds as needed by double-clicking the threshold value you want to change, deleting the existing value, and entering the new value. Hit Enter, then click Apply.
Note You must modify 15 Min and 1 Day independently. To do so, choose the appropriate radio button and click Refresh.
Note Do not modify the Laser Bias parameters.
Note The hardware device that plugs into a TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, or ADM-10G card faceplate to provide a fiber interface to the card is called a Small Form-factor Pluggable (SFP or XFP). In CTC, SFPs and XFPs are called pluggable port modules (PPMs). SFPs/XFPs are hot-swappable input/output devices that plug into a port to link the port with the fiber-optic network. Multirate PPMs have provisionable port rates and payloads. For more information about SFPs and XFPs, refer to the "Transponder and Muxponder Cards" chapter in the Cisco ONS 15454 DWDM Reference Manual.
Table 5-27 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Card Client Interface TCA Thresholds
Pluggable Port Rate
|
Pluggable Port Module (XFP)
|
TCA RX
Power High
|
TCA RX
Power Low
|
TCA TX
Power High
|
TCA TX
Power Low
|
SONET (or SDH)
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
-1
|
-11
|
-1
|
-6
|
10G Ethernet LAN Phy
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
0.5
|
-14.4
|
-1
|
-6
|
10G Ethernet WAN PHY
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
0.5
|
-14.4
|
-1
|
-6
|
10G Fibre Channel
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
0.5
|
-14.4
|
-1
|
-6
|
Step 5 Click Apply.
Step 6 Under Types, click the Alarm radio button and click Refresh.
Step 7 Referring to Table 5-28, provision the Port 1 (Client) Alarm thresholds for RX Power High, RX Power Low, TX Power High, and TX Power Low based on the client interface that is provisioned.
Note You must modify 15 Min and 1 Day independently. To do so, choose the appropriate radio button and click Refresh.
Table 5-28 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Card Client Interface Alarm Thresholds
Pluggable Port Rate
|
Pluggable Port Module (XFP)
|
Alarm RX
Power High
|
Alarm RX
Power Low
|
Alarm TX
Power High
|
Alarm TX
Power Low
|
SONET (or SDH)
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
3
|
-16
|
1
|
-8
|
10G Ethernet LAN Phy
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
3
|
-16
|
1
|
-8
|
10G Ethernet WAN PHY
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
3
|
-16
|
1
|
-8
|
10G Fibre Channel
|
TXP_MR_10E uses
ONS-XC-10G-S1
TXP_MR_10G
(XFP not present)
|
3
|
-16
|
1
|
-8
|
Step 8 Click Apply.
Step 9 Return to your originating procedure (NTP).
DLP-G221 Change the 10G Multirate Transponder OTN Settings
Purpose
|
This task changes the line OTN settings for the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, and TXP_MR_10E_L transponder cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L card where you want to change the OTN settings.
Step 2 Click the Provisioning > OTN tabs, then click one of the following subtabs: OTN Lines, G.709 Thresholds, FEC Thresholds, or Trail Trace Identifier.
Step 3 Modify any of the settings described in Tables 5-29 through 5-32.
Note You must modify Near End and Far End independently, 15 Min and 1 Day independently, and SM and PM independently. To do so, choose the appropriate radio button and click Refresh.
Table 5-29 describes the values on the Provisioning > OTN > OTN Lines tab.
Table 5-29 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Card OTN Lines Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Displays the port number and optional name.
|
2
|
G.709 OTN
|
Sets the OTN lines according to ITU-T G.709. Check the box to enable.
|
•Enable
•Disable
|
FEC
|
Sets the OTN lines FEC mode. FEC mode can be Disabled, Enabled, or, for the TXP_MR_10E, Enhanced FEC mode can be enabled to provide greater range and lower bit error rate. For TXP_MR_10E cards, Standard is the same as enabling FEC.
|
•Enable—(TXP_MR_10G only) FEC is on.
•Disable—FEC is off.
•Standard—(TXP_MR_10E only) Standard FEC is on.
•Enhanced—(TXP_MR_10E only) Enhanced FEC is on.
|
SD BER
|
Sets the signal degrade bit error rate.
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
SF BER
|
(Display only) Indicates the signal fail bit error rate.
|
•1E-5
|
Asynch/Synch Mapping
|
(TXP_MR_10E only) Sets how the ODUk (client payload) is mapped to the optical channel (OTUk).
|
•Asynch mapping
•Synch mapping
|
Table 5-30 describes the values on the Provisioning > OTN > G.709 Thresholds tab.
Table 5-30 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Card ITU-T G.709 Threshold Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Displays the port number and optional name.
|
2
|
ES
|
Severely errored seconds. Two types of thresholds can be asserted. Selecting the SM (OTUk) radio button selects FEC, overhead management, and PM using OTUk. Selecting the PM radio button selects path PM using ODUk.
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
Note SM (OTUk) is the ITU-T G.709 optical channel transport unit order of k overhead frame used for management and performance monitoring. PM (ODUk) is the ITU-T G.709 optical channel data unit order of k overhead frame unit used for path performance monitoring.
|
SES
|
Severely errored seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
|
UAS
|
Unavailable seconds
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
|
BBE
|
Background block errors
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
|
FC
|
Failure counter
|
Numeric. Threshold display options include:
•Direction—Near End or Far End
•Interval—15 Min (minutes) or 1 day
•Types—SM (OTUk) or PM (ODUk)
Choose an option in each category and click Refresh.
|
Table 5-31 describes the values on the Provisioning > OTN > FEC Thresholds tab.
Table 5-31 TXP_MR_10G, TXP_MR_10E, TXP_MR_10E_C, or TXP_MR_10E_L Card FEC Threshold Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) Displays the port number and optional name.
|
2
|
Bit Errors Corrected
|
Displays the number of bit errors corrected during the selected time period.
|
Numeric display. Can be set for 15-minute or one-day intervals.
|
Uncorrectable Words
|
Displays the number of uncorrectable words in the selected time period.
|
Numeric display. Can be set for 15-minute or one-day intervals.
|
Table 5-32 describes the values on the Provisioning > OTN > Trail Trace Identifier tab.
Table 5-32 10G Multirate Transponder Trail Trace Identifier Settings
Parameter
|
Description
|
Options
|
Port
|
Sets the port number.
|
•1
•2
|
Level
|
Sets the level.
|
•Section
•Path
|
Received Trace Mode
|
Sets the trace mode.
|
•Off/None
•Manual
|
Disable FDI on TTIM
|
If a Trace Identifier Mismatch on Section overhead alarm arises because of a J0 overhead string mismatch, no Forward Defect Indication (FDI) signal is sent to the downstream nodes if this box is checked.
|
•Checked (FDI on TTIM is disabled)
•Unchecked (FDI on TTIM is not disabled)
|
Transmit
|
Displays the current transmit string; sets a new transmit string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size;
trail trace identifier is 64 bytes in length.
|
Expected
|
Displays the current expected string; sets a new expected string. You can click the button on the right to change the display. Its title changes, based on the current display mode. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
Received
|
(Display only) Displays the current received string. You can click Refresh to manually refresh this display, or check the Auto-refresh every 5 sec check box to keep this panel updated.
|
String of trace string size
|
Auto-refresh
|
If checked, automatically refreshes the display every 5 minutes.
|
Checked/unchecked (default)
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
NTP-G170 Provision the ADM-10G Card Peer Group, Ethernet Settings, Line Settings, PM Parameters, and Thresholds
Purpose
|
This procedure creates an ADM-10G peer group and changes line settings, PM parameters, and threshold settings for ADM-10G cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-G179 Install the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, and OTU2_XP Cards, page 3-57
DLP-G63 Install an SFP or XFP, page 3-60
G411 Provision an ADM-10G PPM and Port (if necessary)
G278 Provision the Optical Line Rate (if necessary)
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-G46 Log into CTC" task on page 2-26 at the node where you want to change the ADM-10G card settings. If you are already logged in, continue with Step 2.
Step 2 As needed, complete the "NTP-G103 Back Up the Database" procedure on page 13-2 to preserve the existing transmission settings.
Step 3 To provision a peer group, complete the "DLP-G403 Create the ADM-10G Peer Group" task.
Step 4 To provision Ethernet settings, complete the "DLP-G469 Provision the ADM-10G Card Ethernet Settings" task.
Step 5 To change line settings, complete the following tasks as needed:
•G397 Change the ADM-10G Line Settings
•G398 Change the ADM-10G Line Section Trace Settings
•G399 Change the ADM-10G Line Thresholds for SONET and SDH Payloads
•G412 Change the ADM-10G Line RMON Thresholds for the 1G Ethernet Payload
Step 6 To change thresholds, complete the following tasks as needed:
•G400 Provision the ADM-10G Interlink or Trunk Port Alarm and TCA Thresholds
•G401 Provision the ADM-10G Client Port Alarm and TCA Thresholds
•G402 Change the ADM-10G OTN Settings
Stop. You have completed this procedure.
DLP-G403 Create the ADM-10G Peer Group
Purpose
|
This task creates peer group protection for two ADM-10G cards within the same node, located on the same shelf.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-G179 Install the TXP, MXP, GE_XP, 10GE_XP, GE_XPE, 10GE_XPE, ADM-10G, and OTU2_XP Cards, page 3-57, for two ADM-10G cards (located on the same shelf) for which a peer group is desired.
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note You cannot perform this task on a single ADM-10G card; it is only available if a second ADM-10G card can be accessed through the interlink ports.
Note Perform this task on only one of the two peer cards.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the ADM-10G card where you want to change the card settings.
Step 2 Click the Provisioning > Card tabs.
Step 3 In the ADM Group Peer drop-down list, choose the slot number (for example, 14) where the companion ADM-10G card is located.
Step 4 In the ADM Peer Group field, enter a group name.
Step 5 Click Apply.
Note The Card Parameters Tunable Wavelengths area is read-only and does not contain any wavelengths until circuits are separately provisioned for the card.
Step 6 Return to your originating procedure (NTP).
DLP-G469 Provision the ADM-10G Card Ethernet Settings
Purpose
|
This task changes the Ethernet settings for the ADM-10G card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the ADM-10G card where you want to change the Ethernet settings. The card view appears.
Step 2 Click the Provisioning > Line > Ethernet tabs.
Step 3 Modify any of the settings for the Ethernet tab as described in Table 5-33. The parameters that appear depend on the card mode.
Table 5-33 ADM-10G Card Ethernet Settings
Parameter
|
Description
|
Options
|
Port
|
(Display only) The Port number (n-n) and rate.
|
—
|
MTU
|
The maximum size of the Ethernet frames accepted by the port.
|
Numeric. Default: 9216
Range 64 to 9216 (jumbo frame)
|
AINS Soak
|
Automatic in-service soak time. The duration of time that must pass with an uninterrupted signal before the traffic/termination transitions to the IS-NR (ANSI) or unlocked-enabled (ETSI) service state.
|
•Duration of valid input signal, in hh.mm format, after which the card becomes in service (IS) automatically
•0 to 48 hours, 15-minute increments
|
Mode
|
Sets the Ethernet mode.
|
•Auto (default)
•1000 Mbps
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G397 Change the ADM-10G Line Settings
Purpose
|
This task changes the line settings for ADM-10G cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the ADM-10G card where you want to change the line settings.
Step 2 Click the Provisioning > Line > Ports tabs.
Step 3 Modify any of the settings described in Table 5-34 as needed.
Note In Table 5-34, some parameter tabs do not always apply to all ADM-10G cards. If a tab does not apply, it will not appear in CTC.
Table 5-34 ADM-10G Line Port Tab Settings
Parameter
|
Description
|
ONS 15454 (ANSI) Options
|
ONS 15454 SDH (ETSI) Options
|
Port
|
(Display only) Displays the port number.
|
•1-1 to 1-16 (OC3/OC12/OC48/GE)
•17-1 (Interlink)
•18-1 (Trunk/Interlink)
•19-1 (Trunk)
Note Port 18 is a trunk port in single-card configuration and an interlink port in double-card configuration (ADM-10G peer group).
|
•1-1 to 1-16 (STM1/STM4/STM16/GE)
•17-1 (Interlink)
•18-1 (Trunk/Interlink)
•19-1 (Trunk)
Note Port 18 is a trunk port in single-card configuration and an interlink port in double-card configuration (ADM-10G peer group).
|
Port Name
|
Provides the ability to assign the specified port a name.
|
User-defined. Name can be up to 32 alphanumeric/special characters. Blank by default.
See the "DLP-G104 Assign a Name to a Port" task on page 7-3.
|
User-defined. Name can be up to 32 alphanumeric/special characters. Blank by default.
See the "DLP-G104 Assign a Name to a Port" task on page 7-3.
|
Admin State
|
Sets the port service state. For more information about administrative states, refer to the "Administrative and Service States" appendix in the Cisco ONS 15454 DWDM Reference Manual.
|
•IS
•IS,AINS
•OOS,DSBLD
•OOS,MT
|
•Unlocked
•Unlocked,automaticInService
•Locked,disabled
•Locked,maintenance
|
Service State
|
(Display only) Identifies the autonomously generated state that gives the overall condition of the port. Service states appear in the format: Primary State-Primary State Qualifier, Secondary State. For more information about service states, refer to the "Administrative and Service States" appendix in the Cisco ONS 15454 DWDM Reference Manual.
|
•IS-NR
•OOS-AU,AINS
•OOS-MA,DSBLD
•OOS-MA,MT
|
•Unlocked-enabled
•Unlocked-disabled,
automaticInService
•Locked-enabled,disabled
•Locked-enabled,maintenance
|
ALS Mode
|
Sets the ALS function mode. The DWDM transmitter supports ALS according to ITU-T G.644 (06/99). ALS can be disabled, or it can be set for one of three mode options.
|
•Disabled (default): ALS is off; the laser is not automatically shut down when traffic outages (LOS) occur.
•Auto Restart: (Not applicable for Gigabit Ethernet client interfaces) ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. It automatically restarts when the conditions that caused the outage are resolved.
•Manual Restart: ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. However, the laser must be manually restarted when conditions that caused the outage are resolved.
•Manual Restart for Test: Manually restarts the laser for testing.
|
•Disabled (default): ALS is off; the laser is not automatically shut down when traffic outages (LOS) occur.
•Auto Restart: (Not applicable for Gigabit Ethernet client interfaces) ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. It automatically restarts when the conditions that caused the outage are resolved.
•Manual Restart: ALS is on; the laser automatically shuts down when traffic outages (LOS) occur. However, the laser must be manually restarted when conditions that caused the outage are resolved.
•Manual Restart for Test: Manually restarts the laser for testing.
|
AINS Soak
|
(SONET [ANSI] including 10G Ethernet WAN Phy only) Sets the automatic in-service soak period. Double-click the time and use the up and down arrows to change settings.
|
•Duration of valid input signal, in hh.mm format, after which the card becomes in service (IS) automatically
•0 to 48 hours, 15-minute increments
Note The AINS service state is not supported on interlink ports.
|
•Duration of valid input signal, in hh.mm format, after which the card becomes in service (IS) automatically
•0 to 48 hours, 15-minute increments
Note The AINS service state is not supported on interlink ports.
|
Reach
|
Displays the optical reach distance of the client port.
|
The Reach options depend on the traffic type that has been selected.
|
The Reach options depend on the traffic type that has been selected.
|
Wavelength
|
Tunable wavelength.
|
Shows the supported wavelengths of the trunk port after the card is installed in the format: first wavelength-last wavelength-frequency spacing-number of supported wavelengths. For example, 1529.55nm-1561.83nm-50gHz-8 are supported wavelengths.
|
Shows the supported wavelengths of the trunk port after the card is installed in the format: first wavelength-last wavelength-frequency spacing-number of supported wavelengths. For example, 1529.55nm-1561.83nm-50gHz-8 are supported wavelengths.
|
Step 4 Click Apply.
Step 5 Click the Provisioning > Line > SONET or SDH tabs.
Step 6 Modify any of the settings described in Table 5-35 as needed.
Table 5-35 ADM-10G Line SONET or SDH Tab Settings
Parameter
|
Description
|
ONS 15454 (ANSI) Options
|
ONS 15454 SDH (ETSI) Options
|
Port
|
(Display only) Displays the client and trunk port number.
|
•1-1 to 1-16 (OC3/OC12/OC48/GE)
•18-1 (OC192/Interlink)
•19-1 (OC192 or STM64)
Note Port 18 is a trunk port that supports OC192 payload in single-card configuration and an interlink port in double-card configuration (ADM-10G peer group).
|
•1-1 to 1-16 (STM1/STM4/STM16/GE)
•18-1 (STM64/Interlink)
•19-1 (STM64
Note Port 18 is a trunk port that supports STM64 payload in single-card configuration and an interlink port in double-card configuration (ADM-10G peer group).
|
ProvidesSync
|
When checked, the card is provisioned as an NE timing reference.
|
Checked or unchecked
|
Checked or unchecked
|
SyncMsgIn
|
Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source.
|
Checked or unchecked
|
Checked or unchecked
|
SF BER
|
Sets the signal fail bit error rate.
|
•1E-3
•1E-4
•1E-5
|
•1E-3
•1E-4
•1E-5
|
Send DoNotUse
|
When checked, sends a DUS message on the S1 byte.
|
Checked or unchecked
|
Checked or unchecked
|
SD BER
|
Sets the signal degrade bit error rate.
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Type
|
(Display only) Type of node.
|
•SONET
•SDH
|
•SONET
•SDH
|
Admin SSM In
|
Overrides the synchronization status message (SSM) synchronization traceability unknown (STU) value. If the node does not receive an SSM signal, it defaults to STU.
|
· PRS—Primary Reference Source (Stratum 1)
· ST2—Stratum 2
· TNC—Transit node clock
· ST3E—Stratum 3E
· ST3—Stratum 3
· SMC—SONET minimum clock
· ST4—Stratum 4
· DUS—Do not use for timing synchronization
· RES—Reserved; quality level set by user
|
· PRS—Primary Reference Source (Stratum 1)
· ST2—Stratum 2
· TNC—Transit node clock
· ST3E—Stratum 3E
· ST3—Stratum 3
· SMC—SONET minimum clock
· ST4—Stratum 4
· DUS—Do not use for timing synchronization
· RES—Reserved; quality level set by user
|
Step 7 Return to your originating procedure (NTP).
DLP-G398 Change the ADM-10G Line Section Trace Settings
Purpose
|
This task changes the line section trace settings for the ADM-10G cards.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-G46 Log into CTC, page 2-26
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note The Section Trace tab is available for ports configured as OC-N (Ports 1 through 16, Port 18 (only in single-card configuration) and Port 19). Section trace is not available on interlink ports.
Step 1 In node view (single-shelf mode) or shelf view (multishelf view), double-click the ADM-10G card where you want to change the section trace settings. The card view opens.
Step 2 Click the Provisioning > Line > Section Trace tabs.
Step 3 Modify any of the settings described in Table 5-36.
Table 5-36 ADM-10G Section Trace Settings
Parameter
|
Description
|
ONS 15454 (ANSI) Options
|
ONS 15454 SDH (ETSI) Options
|
Port
|
Sets the port number.
|
•1-1 to 1-16 (OC3/OC12/OC48/GE)
•18-1 (OC192/Interlink)
•19-1 (OC192)
Note Port 18 is a trunk port that supports OC192 payload in single-card configuration and an interlink port in double-card configuration (ADM-10G peer group).
|
•1-1 to 1-16 (STM1/STM4/STM16/GE)
•18-1 (STM64/Interlink)
•19-1 (STM64)
Note Port 18 is a trunk port that supports STM64 payload in single-card configuration and an interlink port in double-card configuration (ADM-10G peer group).
|
Received Trace Mode
|
Sets the trace mode.
|
•Off/None
•Manual
|
•Off/None
•Manual
|
Transmit Section Trace String Size
|
Sets the trace string size.
|
•1 byte
•16 byte
•64 byte
|
•1 byte
•16 byte
•64 byte
|
Current
|
Current Transmit String displays the current transmit string; New Transmit String sets a new transmit string. Current String Type allows you to choose between ASCII or Hexadecimal format. Click Hex to change the display to hexadecimal (button changes to ASCII); click ASCII to change the display to ASCII (button changes to Hex).
|
String of trace string size
|
String of trace string size
|
Received
|
(Display only) Current Received String displays the current received string. You can click Refresh to manually refresh this display, or check the Auto-refresh every 5 sec check box to keep this panel updated.
|
String of trace string size
|
String of trace string size
|
Auto-refresh
|
If checked, automatically refreshes the display every 5 seconds.
|
Checked/unchecked (default)
|
Checked/unchecked (default)
|
Step 4 Click Apply.
Step 5 Return to your originating procedure (NTP).
DLP-G399 Change the ADM-10G Line Thresholds for SONET and SDH Payloads
