IGMP-Triggered VDOC Broadcast Support on the Cisco CMTS Routers

First Published: December 17, 2008
Last Updated: 12/31/12

The Cisco universal broadband router supports the Video over DOCSIS (VDOC) Broadcast feature enabling multiple service operators (MSOs) to broadcast video content on RF-spanned downstream signals.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the "Feature Information for Configuring VDOC Broadcast" section.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Contents

•Prerequisites for Configuring VDOC Broadcast

•Restrictions for Configuring VDOC Broadcast

•Information About Configuring VDOC Broadcast

•How to Configure VDOC Broadcast

•How to Configure Inter Line Card RF Spanning

•Configuration Examples for VDOC Broadcast

•Configuration Examples for Inter Line Card RF Spanning

•Verifying VDOC Broadcast and Inter Line Card RF Spanning

•Additional References

•Feature Information for Configuring VDOC Broadcast

Prerequisites for Configuring VDOC Broadcast

Table 1 shows the hardware compatibility prerequisites for the VDOC broadcast feature.

Note The hardware components introduced in a given Cisco IOS Release are supported in all subsequent releases unless otherwise specified.

Table 1 Cable Hardware Compatibility Matrix for the VDOC Broadcast Feature

CMTS Platform
Processor Engine
Cable Interface Cards

Cisco uBR10012 Universal Broadband Router

Cisco IOS Release 12.2(33)SCA and later

•PRE2

Cisco IOS Release 12.2(33)SCB and later

•PRE4

Cisco IOS Release 12.2(33)SCB and later

•Cisco uBR10-MC5X20U/H

Cisco IOS Release 12.2(33)SCC and later

•Cisco UBR-MC20X20V

Cisco IOS Release 12.2(33)SCE and later

•Cisco uBR-MC3GX60V1

Cisco uBR7246VXR Universal Broadband Router

Cisco IOS Release 12.2(33)SCA and later

•NPE-G1

•NPE-G2

Cisco IOS Release 12.2(33)SCA and later

•Cisco uBR-MC28U/X

Cisco IOS Release 12.2(33)SCD and later

•Cisco uBR-MC88V2

Cisco uBR7225VXR Universal Broadband Router

Cisco IOS Release 12.2(33)SCA and later

•NPE-G1

Cisco IOS Release 12.2(33)SCB and later

•NPE-G2

Cisco IOS Release 12.2(33)SCA and later

•Cisco uBR-E-28U

•Cisco uBR-E-16U

•Cisco uBR-MC28U/X

Cisco IOS Release 12.2(33)SCD and later

•Cisco uBR-MC88V

1 Cisco uBR3GX60V cable interface line card is compatible only with PRE4.

2 Cisco uBR-MC88V cable interface line card is compatible only with NPE-G2.


•The Cisco uBR10012 router must have the M-CMTS setup.

•The Cable Modem Termination System (CMTS) and the cable modem must have the latest DOCSIS 3.0 setup with the Multicast DSID-based Forwarding (MDF) and Dynamic Bonding Change (DBC) capability.

•The cable modem software must support the channel change capability via Receive Channel Configuration (RCC) TLV (49.5) in the DBC message.

•Support for DOCSIS 3.0 channel bonding.

Restrictions for Configuring VDOC Broadcast

•The VDOC Broadcast feature supports:

–Only one tuner per cable modem.

–Only one video stream per IP set-top box.

–Only one IP set-top box for every cable modem.

•Internet Group Management Protocol version 3 (IGMPv3) configuration is required on the bundle interface.

•Secondary bonding groups used for video streams must be created using one or more downstream RF channels.

•The secondary bonding group must not be used for forwarding by other features, such as video on demand (VOD) and service flow attribute-based forwarding interface selection.

•The DPC3010 cable modem (DPC3010 firmware version) might experience 3 seconds delay if receive channel configuration is changed using Dynamic Bonding Change (DBC).

Information About Configuring VDOC Broadcast

The VDOC Broadcast feature facilitates broadcasting video over DOCSIS. Video streams are broadcast to one or more downstream RF channels using static multicast. Depending on the video stream selected for viewing by the IP set-top box, the multituner cable modem is tuned to the appropriate RF channel carrying the specific video stream.

The process to broadcast video over the cable is as follows:

1. When a channel is selected, the IP set-top box sends an IGMP join message to a particular bonding group.

2. The CMTS locates the secondary bonding group that has the video streaming channel and the RCC template that contains the channel corresponding to the secondary bonding group.

3. The CMTS sends a dynamic bonding change request (DBC-REQ) message to the modem. The DBC-REQ message contains the DSID. It also contains a new RCC (that contains frequencies for the primary bonding group and the secondary bonding group that was selected in Step 2), if the modem is not currently tuned to the frequencies selected in Step 2.

4. The cable modem retunes to the new channel and receives the video stream.

Note In the case of subsequent channel changes, the IP set-top box sends an IGMP leave message for the old video stream. CMTS responds with the DBC-REQ message to remove the DSID corresponding to this stream.

Inter Line Card RF Spanning

The Inter Line Card RF Spanning feature, introduced in Cisco IOS Release 12.2(33)SCF, supports sharing of downstream channels across line cards installed on the Cisco uBR10012 router. This feature is an extension to the existing downstream channel sharing functionality supported within the bonding groups configured on a single line card. This feature enables you to associate downstream channels of a line card to a service group that is hosted on a different line card.

Note The Inter Line Card RF Spanning feature is supported only on the Cisco uBR10012 router with Cisco UBR-MC20X20V and Cisco uBR-MC3GX60V cable interface line cards.

The Inter Line Card RF Spanning feature supports the following two methods of downstream channel sharing:

•RF Spanning of Bonding Groups Carrying Static Multicast Traffic

•RF Spanning of Remote Bonding Groups

RF Spanning of Bonding Groups Carrying Static Multicast Traffic

In this RF spanning (unrestricted RF spanning) method, a downstream bonding group is configured on one of the line cards and included in one or more fiber nodes as required. Then, one or more static multicast sessions are configured for the bonding group, and any service group can use this bonding group. When this is configured, a cable modem can send a multicast join request and receive multicast streams using this bonding group. This enables service providers to broadcast a set of popular channels and make them available to customers at any time.

As shown in Figure 1, each service group is made of 16 downstream channels. Of these 16 channels, 12 downstream channels are from the local card and can carry unicast traffic. The remaining four channels are from one of the line cards and spanned to all downstream service groups. These four channels can carry multicast traffic so that all service groups can use the same channels without creating any replication.

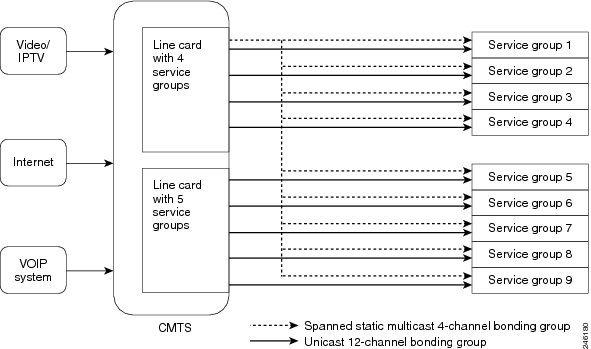

Figure 1 illustrates how a bonding group carries static multicast traffic.

Figure 1 RF Spanning of Bonding Groups Carrying Static Multicast Traffic

RF Spanning of Remote Bonding Groups

In the RF spanning of remote bonding groups method, downstream channels physically located on a single line card can be used by MAC domains of a different line card for VDOC services. This method supports both unicast VDOC services and static unencrypted multicast services over RF spanned downstream bonding groups. This is similar to the RF spanning functionality supported on the shared port adapter (SPA) bonding groups together with the Cisco uBR10-MC5X20 line card. With this extended RF spanning functionality, you can directly configure remote bonding groups on the Cisco UBR-MC20X20V and Cisco uBR-MC3GX60V line cards for unicast VDOC services. Bonding groups configured on a remote line card are called remote bonding groups.

Note We recommend using a remote bonding group and its associated channels on a single line card only to avoid bandwidth fragmentation and non-deterministic bandwidth allocation behavior.

RF spanning of remote bonding groups is configured in the following ways:

•Remote Downstream to a Single Host Line Card

•Remote Downstream to Multiple Line Cards

Remote Downstream to a Single Host Line Card

As shown in Figure 2, each service group is made of 16 downstream channels. Because the Cisco uBR-MC3GX60V line card supports 72 downstream channels, a single line card is not sufficient to make five service groups. Therefore eight downstream channels are taken from another Cisco uBR-MC3GX60V line card to configure five service groups. Also, the service group is made of two or more bonding groups as downstream channels cannot be bonded across line cards.

Figure 2 illustrates how remote downstream works with a single host line card.

Figure 2 Remote Downstream to a Single Host Line Card

Remote Downstream to Multiple Line Cards

In this configuration, a Cisco uBR-MC3GX60V line card provides all its downstream channels to other Cisco uBR-MC3GX60V line cards installed on the Cisco uBR10012 router. As shown in Figure 3, some of the downstream channels are shared with one line card and others are shared with another line card, and none are used locally.

Note This type of configuration may not be efficient even though it is supported to provide flexibility.

Figure 3 illustrates how remote downstream works with multiple line cards.

Figure 3 Remote Downstream to Multiple Line Cards

This feature also supports mixing of different types of line cards for downstream channel sharing. That is, a MAC domain configured on a Cisco UBR-MC20X20V line card can use a wideband interface configured on a Cisco uBR-MC3GX60V line card and vice versa. However, this type of configuration is generally not required and is not recommended.

How to Configure VDOC Broadcast

This section describes the configuration tasks that are performed when using the VDOC broadcast feature on the Cisco CMTS platform.

1. Configuring the Primary and Secondary Bonding Group (required)

2. Configuring the RCC Template (required)

3. Configuring the Multicast Static Group (required)

Configuring the Primary and Secondary Bonding Group

This section describes the tasks required to configure the MAC domain and the bonding group. Follow the summary steps to complete the configuration.

Configure the modular cable controller for four RF channels, two of which will be used for primary bonding group and the other two will be used for broadcasting video specific bonding groups.

Secondary bonding groups may be constructed using multiple RF channels.

Prerequisites

•The modular controller is already configured for RF channels used for the primary and secondary bonding groups. The RF channels used for secondary bonding groups are non-primary capable and can be served by legacy Edge Quadrature Amplitude Modulation (EQAM) applications. The "udp-port" option can be used instead of Downstream External PHY Interface (DEPI) remote ID.

•The MAC domain is configured by specifying the fiber node configuration.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface wideband-cable slot/subslot/port:wideband-channel

4. cable bonding-group-secondary

5. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface wideband-cable slot/subslot/port:wideband-channel

Example:

Router(config)# interface wideband-cable 6/0/1:22

Enters cable interface configuration mode. Variables for this command may vary depending on the Cisco CMTS router and the Cisco IOS software release. For details, see the Cisco IOS CMTS Cable Command Reference.

•slot—Slot where the Cisco Wideband SIP or a cable line card resides. On the Cisco uBR10012 router, slots 1 and 3 can be used for the Cisco Wideband SIP. The valid range for a cable line card is from 5 to 8.

•subslot—Subslot where the Cisco Wideband SIP or a cable line card resides. On the Cisco uBR10012 router, subslot 0 is always specified for the Cisco Wideband SIP. For a cable line card, subslot is 0 or 1.

•port—Bay in the SIP where the Cisco Wideband SPA is located. Valid values are 0 (upper bay) and 1 (lower bay). It also refers to the downstream port of the line card. The valid range varies depending on the line card.

•wideband-channel—Wideband channel number. The valid range varies depending on the Cisco CMTS router and the line card.

Step 4

cable bonding-group-secondary

Example:

Router(config-if)# cable bonding-group-secondary

Specifies a secondary bonding group.

Note The cable bonding-group-secondary command replaced the cable bonding-group-id command in Cisco IOS Release 12.2(33)SCE.

Step 5

end

Example:

Router(config-if)# end

Exits interface configuration mode and returns to privileged EXEC mode.

Configuring the RCC Template

This section describes the tasks required to configure the RCC template and associate it to a MAC domain.

RCC templates must be configured and then applied to the MAC domain interface. With 3-channel cable modems, the first two channels are part of the primary bonding group, and the third channel is used for video. If two RF channels are used for carrying video streams, then two RCC templates must be configured.

Dynamic RCC Selection

The dynamic RCC selection feature facilitates multicast forwarding. The RCC selection occurs after the multicast forwarding selection algorithm identifies that the stream being requested is related to the VDOC Broadcast feature. It will select the RCC, which is superset of the primary bonding group of the cable modem, and the secondary bonding group where the stream is forwarded.

RCC Assignment Across SPAs

The VDOC Broadcast feature requires modems to be tuned to RF spanned channels carrying video streams. The RF spanned channels originate from a SPA other than the SPA hosting the primary bonding group assigned to the cable modem. RCCs are generated from RCC templates that contain Receive Channels (RC) from multiple SPAs.

Limitations while assigning RCCs are:

•For static multicast streams, only SPA downstream channels can be used in RCC templates.

•Encrypted multicast or unicast traffic is not supported on the RC from a secondary SPA.

•For encrypted or unicast downstream VDOC broadcast, traffic will not be forwarded to CPEs even when the cable modem is properly tuned to the downstream.

Prerequisites

Modular controller and MAC domain configuration must be complete before you proceed to configuring the RCC template.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface cable slot/subslot/port

4. cable rcc-template index

5. rcp-id rcp-id

6. receive-module index first-channel-center-frequency

7. receive-channel index center-frequency Hz connected-receive-module index [primary]

8. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface cable {slot/subslot/port |slot/subslot/cable-interface-index}

Example:

Router(config)# interface cable 8/0/0

Associates the RCC template to a MAC domain. Enters interface configuration mode. Variables for this command may vary depending on the Cisco CMTS router and the Cisco IOS software release. For details, see the Cisco IOS CMTS Cable Command Reference.

•slot—Slot where the line card resides. The valid range is from 5 to 8 on the Cisco uBR10012 router.

•subslot—(Cisco uBR10012 only) Secondary slot number of the cable interface line card. The valid subslots are 0 or 1.

•port—Downstream port number. The valid range is from 0 to 4 (depending on the cable interface) on the Cisco uBR10012 router.

•cable-interface-index—Downstream port of the Cisco uBR10-MC5X20 and Cisco uBR-MC28 line cards, or MAC domain index of the Cisco UBR-MC20X20V and Cisco uBR-MC3GX60V line cards. The valid range for the Cisco UBR-MC20X20V and Cisco uBR-MC5X20 line cards is from 0 to 4. The valid range for the Cisco uBR-MC3GX60V line card is from 0 to 14.

Step 4

cable rcc-template index

Example:

Router(config)# cable rcc-template 1

Defines the RCC template for a Receive Channel Profile (RCP) outside the MAC domain configuration mode.

•index—RCC index value. The valid range is from 1 to 255.

Step 5

rcp-id rcp-id

Example:

Router(config-rcc-template)# rcp-id 0010000004

Configures the RCP ID.

•rcp-id— RCP ID.

Step 6

receive-module index first-channel-center-frequency Hz

Example:

Router(config-rcc-template)#receive-module 1 first-channel-center-frequency 453000000

Configures the receive module.

•Hz—Assigned center frequency of the first channel of the receive module channel block in hertz.

Step 7

receive-channel index center-frequency Hz connected-receive-module index [primary]

Example:

Router(config-rcc-template)# receive-channel 1 center-frequency 453000000 connected-receive-module 1 primary

Configures the receive channel.

•Hz—Center frequency of a receive channel in Hz.

•connected-receive-module index—Specifies the index value for the connected receive module. The valid range is from 1 to 10. The configuration will be rejected if the connected receive module has not been previously configured.

•primary— (Optional) Indicates an RCC can be derived with this channel designated as the primary channel of the cable modem.

Step 8

end

Example:

Router(config-rcc-template)# end

Exits RCC template configuration mode and returns to privileged EXEC mode.

Note Run the show cable mac-domain cable interface rcc command to verify that RCC templates are applied to the MAC domain.

Configuring the Multicast Static Group

This section describes the tasks required to configure the multicast static group.

One or more IGMP static groups corresponding to the broadcast video channels are configured on the specified secondary bonding group. The same groups should be specified under the cable bundle interface as part of the ip igmp static-group command.

Multicast Static Group

Multicast static group configuration is used to statically forward (broadcast) video streams on secondary bonding groups. This configuration specifies certain video streams should be broadcast on particular bonding groups.

Prerequisites

•Multicast routing must be configured on the Cisco CMTS.

•PIM sparse-mode must be configured on the bundle interface.

•IGMPv3 must be configured on the bundle interface.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface bundle bundle-number

4. interface wideband-cable slot/subslot/port:wideband-channel

5. cable igmp static-group [multicast group] source [source IP] [subinterface number]

6. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface bundle bundle-number

Example:

Router# interface bundle 1

Indicates the bundle interface.

Step 4

interface wideband-cable slot/subslot/port:wideband-channel

Example:

Router(config)# interface wideband-cable 6/0/1:22

Enters cable interface configuration mode. Variables for this command may vary depending on the Cisco CMTS router and the Cisco IOS software release. For details, see the Cisco IOS CMTS Cable Command Reference.

•slot—Slot where the Cisco Wideband SIP or a cable line card resides. On the Cisco uBR10012 router, slots 1 and 3 can be used for the Cisco Wideband SIP. The valid range for a cable line card is from 5 to 8.

•subslot—Subslot where the Cisco Wideband SIP or a cable line card resides. On the Cisco uBR10012 router, subslot 0 is always specified for the Cisco Wideband SIP. For a cable line card, subslot is 0 or 1.

•port—Bay in the SIP where the Cisco Wideband SPA is located. Valid values are 0 (upper bay) and 1 (lower bay). It also refers to the downstream port of the line card. The valid range varies depending on the line card.

•wideband-channel—Wideband channel number. The valid range varies depending on the Cisco CMTS router and the line card.

Step 5

cable igmp static-group [multicast group] source [source IP] [subinterface number]

Example:

Router(config-if)# cable igmp static-group 224.0.0.0

Configures the cable per physical downstream static multicast support on the Cisco CMTS.

•multicast group—Multicast IP address of the group.

•source [source IP]— (Optional) Source IP address for SSM.

•subinterface number—Subinterface number. The default is 0 for the main interface.

Note If the subinterface is configured at the virtual bundle interface, the subinterface number option must be configured to match up with the desired subinterface devices.

Step 6

end

Example:

Router(config-if)# end

Exits interface configuration mode and returns to privileged EXEC mode.

How to Configure Inter Line Card RF Spanning

The following tasks describe how to configure RF spanning of bonding groups carrying static multicast traffic and RF spanning of remote bonding groups to enable RF spanning on the line cards on the Cisco uBR10012 router:

•Configuring RF Spanning of Bonding Groups Carrying Static Multicast Traffic (optional)

•Configuring RF Spanning of Remote Bonding Groups (optional)

Configuring RF Spanning of Bonding Groups Carrying Static Multicast Traffic

To configure RF spanning of bonding groups carrying static multicast traffic, you need to associate downstream channels to one or more fiber nodes after configuring VDOC features on the Cisco UBR-MC20X20V and Cisco uBR-MC3GX60V line cards.

Prerequisites

•An RCC template must be created and associated to a MAC domain. For details, see "Configuring the RCC Template" section.

•A multicast static group must be created. For details, see "Configuring the Multicast Static Group" section for details.

Restrictions

RF spanning of bonding groups carrying static multicast traffic is supported only with static, unencrypted multicast.

SUMM ARY STEPS

1. enable

2. configure terminal

3. cable fiber-node fiber-node-id

4. downstream modular-cable slot/subslot/controller rf-channel grouplist

5. upstream cable slot/subslot connector grouplist

6. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

cable fiber-node fiber-node-id

Example:

Router (config)# cable fiber-node 70

Enters fiber node configuration mode.

•fiber-node-id—Unique numerical ID of the fiber node. The valid range is from 1 to 256.

Step 4

downstream modular-cable slot/subslot/controller rf-channel grouplist

Example:

Router(config-fiber-node)# downstream modular-cable 6/1/0 rf-channel 7

Associates the downstream channels to the fiber node of the cable interface line card.

•slot—Cable interface line card slot. The valid values range from 5 to 8.

•subslot—Cable interface line card subslot. The valid values are 0 and 1.

•controller—Cable interface number. The valid range is from 0 to 2.

•grouplist—Group of RF channels. The valid range is from 0 to 23.

Step 5

upstream cable slot/subslot connector grouplist

Example:

Router(config-fiber-node)# upstream Cable 6/1 connector 3

Specifies the upstream channel ports for the fiber node.

•slot—Cable interface line card slot. The valid values range from 5 to 8.

•subslot—Cable interface line card subslot. The valid values are 0 and 1.

•connector—Specifies the physical upstream port connector on the cable interface line card.

•grouplist—Range of physical port numbers on the cable interface line card. The grouplist can be one or more port numbers, or a range of port numbers separated by a hyphen or combinations of both. The valid range for port numbers is from 0 to 19.

Step 6

end

Example:

Router(config-fiber-node)# end

Exits fiber node configuration mode and returns to privileged EXEC mode.

Configuring RF Spanning of Remote Bonding Groups

To configure RF spanning of remote bonding groups, you need to configure a wideband interface on the Cisco uBR10012 router.

Prerequisites

•An RCC template must be created and assigned to a cable interface. For details, see "Configuring the RCC Template" section.

•RF channels must be associated to a fiber node. For details, see "Configuring RF Spanning of Bonding Groups Carrying Static Multicast Traffic" section.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface wideband-cable slot/subslot/port:wideband-channel

4. cable bundle bundle-id

5. cable rf-channel rf-channel bandwidth-percent bw-percent

6. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface wideband-cable slot/subslot/port:wideband-channel

Example:

Router(config)# interface wideband-cable 6/0/1:22

Enters cable interface configuration mode. Variables for this command may vary depending on the Cisco CMTS router and the Cisco IOS software release. For details, see the Cisco IOS CMTS Cable Command Reference.

•slot—Slot where the Cisco Wideband SIP or a cable line card resides. On the Cisco uBR10012 router, slots 1 and 3 can be used for the Cisco Wideband SIP. The valid range for a cable line card is from 5 to 8.

•subslot—Subslot where the Cisco Wideband SIP or a cable line card resides. On the Cisco uBR10012 router, subslot 0 is always specified for the Cisco Wideband SIP. For a cable line card, subslot is 0 or 1.

•port—Bay in the SIP where the Cisco Wideband SPA is located. Valid values are 0 (upper bay) and 1 (lower bay). It also refers to the downstream port of the line card. The valid range varies depending on the line card.

•wideband-channel—Wideband channel number. The valid range varies depending on the Cisco CMTS router and the line card.

Step 4

cable bundle bundle-id

Example:

Router(config-if)# cable bundle 1

Configures the wideband cable interface to belong to an interface bundle.

•bundle-id—Bundle identifier. The valid range is from 1 to 255.

Step 5

cable rf-channel rf-channel bandwidth-percent bw-percent

Example:

Router(config-if)# cable rf-channel 0 bandwidth-percent 25

Configures the bandwidth of the RF channel that would be allocated to a specified wideband channel or bonding group.

•rf-channel—RF channel on the physical port of the field-programmable gate array (FPGA).

•bandwidth-percent bw-percent—(Optional) Indicates the percentage of bandwidth from this RF channel that is used for the wideband interface. The valid range is from 0 to 100 percent. The default bandwidth value is 100.

Step 6

end

Example:

Router(config-if)# end

Exits interface configuration mode and returns to privileged EXEC mode.

Configuration Examples for VDOC Broadcast

This section describes a sample configuration example for configuring the VDOC broadcast feature.

This configuration supports four video channels (IGMP groups) over two bonding groups, with two channels over one bonding group each. Depending on the video channel selected by the set-top box, the cable modem tunes to frequencies in either RCC template 1 or 2.

•Example: Configuring the Primary and Secondary Bonding Groups

•Example: Configuring the RCC Template

•Example: Configuring the Multicast Static Group

Example: Configuring the Primary and Secondary Bonding Groups

The following example shows how to configure the primary and secondary bonding groups. This example is valid for Cisco IOS Release 12.2(33)SCD and earlier.

Note Secondary bonding group configuration is required only for the VDOC Broadcast feature. This configuration is not required for Inter Line Card RF Spanning.

controller modular-cable 1/0/0

 ip-address 192.0.2.0

 modular-host subslot 6/0

 rf-channel 0 cable downstream channel-id 24

 rf-channel 0 frequency 453000000 annex B modulation 256qam interleave 32

 rf-channel 0 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 20000

 rf-channel 1 cable downstream channel-id 25

 rf-channel 1 frequency 459000000 annex B modulation 256qam interleave 32

 rf-channel 1 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 21000

 rf-channel 2 cable downstream channel-id 26

 rf-channel 2 frequency 465000000 annex B modulation 256qam interleave 32

 rf-channel 2 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 21001

 rf-channel 3 cable downstream channel-id 27

 rf-channel 3 frequency 471000000 annex B modulation 256qam interleave 32

 rf-channel 3 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 21002

!

Router(config)# interface Wideband-Cable1/0/0:0

cable bundle 1

 cable bonding-group-id 1

0 bandwidth-percent 80

 cable rf-channel 1

!

Router(config)# interface Wideband-Cable1/0/0:1

 cable bundle 1

 cable bonding-group-id 2 secondary

 cable rf-channel 2

!

Router(config)# interface Wideband-Cable1/0/0:2

 cable bundle 1

 cable bonding-group-id 3 secondary

 cable rf-channel 3

!

Router(config)# interface Modular-Cable1/0/0:0

 cable bundle 1

 cable rf-bandwidth-percent 10

!

cable fiber-node 1

 downstream Modular-Cable 1/0/0 rf-channel 0-3

!

The following example shows how to configure secondary bonding groups in Cisco IOS Release 12.2(33)SCE and later.

controller modular-cable 1/0/0

 ip-address 192.0.2.0

 modular-host subslot 6/0

 rf-channel 0 cable downstream channel-id 24

 rf-channel 0 frequency 453000000 annex B modulation 256qam interleave 32

 rf-channel 0 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 20000

 rf-channel 1 cable downstream channel-id 25

 rf-channel 1 frequency 459000000 annex B modulation 256qam interleave 32

 rf-channel 1 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 21000

 rf-channel 2 cable downstream channel-id 26

 rf-channel 2 frequency 465000000 annex B modulation 256qam interleave 32

 rf-channel 2 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 21001

 rf-channel 3 cable downstream channel-id 27

 rf-channel 3 frequency 471000000 annex B modulation 256qam interleave 32

 rf-channel 3 ip-address 192.0.2.0 mac-address 0090.f001.930c depi-remote-id 21002

!

Router(config)# interface Wideband-Cable1/0/0:0

cable bundle 1

cable bonding-group-secondary

cable rf-channel 0 bandwidth-percent 80 cable rf-channel 1

!

Router(config)# interface Wideband-Cable1/0/0:1

cable bundle 1

cable bonding-group-secondary
cable rf-channel 2

!

Router(config)# interface Wideband-Cable1/0/0:2

cable bundle 1

cable bonding-group-secondary

cable rf-channel 3

!

Router(config)# interface Modular-Cable1/0/0:0

 cable bundle 1

 cable rf-bandwidth-percent 10

!

cable fiber-node 1

 downstream Modular-Cable 1/0/0 rf-channel 0-3

!

Example: Configuring the RCC Template

The following example shows how to apply RCC templates to the MAC domain host interface. The frequencies used to configure the MAC domain and bonding group are also used here.

cable rcc-template 1

  rcp-id 00 10 18 33 81

  receive-module 1 first-center-frequency 453000000

  receive-channel 1 center-frequency 453000000 connected-receive-module 1 primary

  receive-channel 2 center-frequency 459000000 connected-receive-module 1

  receive-channel 3 center-frequency 465000000 connected-receive-module 1

!

cable rcc-template 2

rcp-id 00 10 18 80 61

  receive-module 1 first-center-frequency 465000000

  receive-module 2 first-center-frequency 489000000

  receive-channel 1 center-frequency 465000000 connected-receive-module 1 primary

  receive-channel 2 center-frequency 471000000 connected-receive-module 1

  receive-channel 3 center-frequency 477000000 connected-receive-module 1

  receive-channel 4 center-frequency 483000000 connected-receive-module 1

  receive-channel 5 center-frequency 489000000 connected-receive-module 2

  receive-channel 6 center-frequency 495000000 connected-receive-module 2

  receive-channel 7 center-frequency 501000000 connected-receive-module 2

  receive-channel 8 center-frequency 507000000 connected-receive-module 2

!

interface Cable 6/0/0

 downstream Modular-Cable 1/0/0 rf-channel 0 upstream 0-3

cable rcc-template 1

cable rcc-template 2

 no cable packet-cache

 cable bundle 1

 cable downstream channel-id 119

 cable downstream annex B

 cable downstream modulation 256qam

 cable downstream interleave-depth 32

 cable downstream frequency 615000000

 cable downstream rf-shutdown

 cable upstream max-ports 4

 cable upstream 0 connector 0

 cable upstream 0 frequency 10000000

 cable upstream 0 docsis-mode tdma

 cable upstream 0 channel-width 1600000 1600000

 cable upstream 0 minislot-size 4

 cable upstream 0 range-backoff 3 6

 cable upstream 0 modulation-profile 21

 no cable upstream 0 shutdown

 cable upstream 1 connector 1

 cable upstream 1 docsis-mode tdma

 cable upstream 1 channel-width 1600000 1600000

 cable upstream 1 minislot-size 4

 cable upstream 1 range-backoff 3 6

 cable upstream 1 modulation-profile 21

 cable upstream 1 shutdown

 cable upstream 2 connector 2

 cable upstream 2 docsis-mode tdma

 cable upstream 2 channel-width 1600000 1600000

 cable upstream 2 minislot-size 4

 cable upstream 2 range-backoff 3 6

 cable upstream 2 modulation-profile 21

 cable upstream 2 shutdown

 cable upstream 3 connector 3

 cable upstream 3 docsis-mode tdma

 cable upstream 3 channel-width 1600000 1600000

 cable upstream 3 minislot-size 4

 cable upstream 3 range-backoff 3 6

 cable upstream 3 modulation-profile 21

 cable upstream 3 shutdown

!

Example: Configuring the Multicast Static Group

The following example shows how to configure multicast static groups on the bundle interface and on bonding groups in Cisco IOS Release 12.2(33)SCD and earlier:

interface Bundle 1

 ip address 192.0.2.8 255.255.255.0

 ip pim sparse-mode

 ip helper-address 2.39.16.1

 ip igmp static-group 224.0.2.1

 ip igmp static-group 224.0.2.2

 ip igmp static-group 224.0.2.3

 ip igmp static-group 224.0.2.4

 cable arp filter request-send 3 2

 cable arp filter reply-accept 3 2

!

Router(config)# interface Wideband-Cable1/0/0:1

 cable bundle 1

Router(config)#cable igmp static-group 224.0.2.3

Router(config)#cable igmp static-group 224.0.2.4

 cable bonding-group-id 2 secondary

 cable rf-channel 2

!

Router(config)#interface Wideband-Cable1/0/0:2

 cable bundle 1

Router(config)#cable igmp static-group 224.0.2.1

Router(config)#cable igmp static-group 224.0.2.2

 cable bonding-group-id 3 secondary

 cable rf-channel 3

The following example shows how to configure multicast static groups on the bundle interface and on bonding groups in Cisco IOS Release 12.2(33)SCE and later:

interface Bundle 1

 ip address 192.0.2.8 255.255.255.0

 ip pim sparse-mode

 ip helper-address 2.39.16.1

 ip igmp static-group 224.0.2.1

 ip igmp static-group 224.0.2.2

 ip igmp static-group 224.0.2.3

 ip igmp static-group 224.0.2.4

 cable arp filter request-send 3 2

 cable arp filter reply-accept 3 2

!

Router(config)# interface Wideband-Cable1/0/0:1

 cable bundle 1

Router(config)#cable igmp static-group 224.0.2.3

Router(config)#cable igmp static-group 224.0.2.4

 cable bonding-group-secondary

 cable rf-channel 2

!

Router(config)#interface Wideband-Cable1/0/0:2

 cable bundle 1

Router(config)#cable igmp static-group 224.0.2.1

Router(config)#cable igmp static-group 224.0.2.2

 cable bonding-group-secondary 3

 cable rf-channel 3

Configuration Examples for Inter Line Card RF Spanning

This section provides configuration examples for the Inter Line Card RF Spanning feature.

•Example: RF Spanning of Bonding Groups Carrying Static Multicast Traffic

•Example: RF Spanning of Remote Bonding Groups

Example: RF Spanning of Bonding Groups Carrying Static Multicast Traffic

The following example shows how to configure RF spanning of bonding groups carrying static multicast traffic on the Cisco uBR100 router:

controller Modular-Cable 1/2/0

 modular-host subslot 7/0

 rf-channel 0 cable downstream channel-id 193

 rf-channel 0 frequency 549000000 annex B modulation 256qam interleave 32

 rf-channel 0 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500025

 rf-channel 1 cable downstream channel-id 194

 rf-channel 1 frequency 555000000 annex B modulation 256qam interleave 32

 rf-channel 1 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500026

 rf-channel 2 cable downstream channel-id 195

 rf-channel 2 frequency 561000000 annex B modulation 256qam interleave 32

 rf-channel 2 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500027

 rf-channel 3 cable downstream channel-id 196

 rf-channel 3 frequency 567000000 annex B modulation 256qam interleave 32

 rf-channel 3 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500028

interface Wideband-Cable1/2/0:0

 cable bundle 11

 cable rf-channel 0 bandwidth-percent 10

 cable rf-channel 1 bandwidth-percent 10

 cable rf-channel 2 bandwidth-percent 10

 cable rf-channel 3 bandwidth-percent 10

controller Modular-Cable 5/0/0

 ip-address 60.3.2.4

 rf-channel 0 cable downstream channel-id 5

 rf-channel 0 frequency 501000000 annex B modulation 256qam interleave 32

 rf-channel 0 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500017

 rf-channel 1 cable downstream channel-id 1

 rf-channel 1 frequency 507000000 annex B modulation 256qam interleave 32

 rf-channel 1 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500018

 rf-channel 2 cable downstream channel-id 2

 rf-channel 2 frequency 513000000 annex B modulation 256qam interleave 32

 rf-channel 2 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500019

 rf-channel 3 cable downstream channel-id 3

 rf-channel 3 frequency 519000000 annex B modulation 256qam interleave 32

 rf-channel 3 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500020

interface Wideband-Cable5/0/0:0

 cable bundle 11

 cable rf-channel 0 bandwidth-percent 10

 cable rf-channel 1 bandwidth-percent 10

 cable rf-channel 2 bandwidth-percent 10

 cable rf-channel 3 bandwidth-percent 10

controller Modular-Cable 6/0/0

 ip-address 60.3.2.3

 rf-channel 0 cable downstream channel-id 4

 rf-channel 0 frequency 405000000 annex B modulation 256qam interleave 32

 rf-channel 0 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500001

 rf-channel 1 cable downstream channel-id 22

 rf-channel 1 frequency 411000000 annex B modulation 256qam interleave 32

 rf-channel 1 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500002

 rf-channel 2 cable downstream channel-id 23

 rf-channel 2 frequency 417000000 annex B modulation 256qam interleave 32

 rf-channel 2 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500003

 rf-channel 3 cable downstream channel-id 24

 rf-channel 3 frequency 423000000 annex B modulation 256qam interleave 32

 rf-channel 3 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500004

interface Wideband-Cable6/0/0:0

 cable bundle 11

 cable igmp static-group 230.1.1.1 1

 cable igmp static-group 230.5.5.5 1

 cable rf-channel 0 bandwidth-percent 10

 cable rf-channel 1 bandwidth-percent 10

 cable rf-channel 2 bandwidth-percent 10

 cable rf-channel 3 bandwidth-percent 10

cable fiber-node 50

 downstream Modular-Cable 5/0/0 rf-channel 0-3

 downstream Modular-Cable 6/0/0 rf-channel 0-3

 upstream Cable 5/0 connector 0-3

cable fiber-node 70

 downstream Modular-Cable 1/2/0 rf-channel 0-3

 downstream Modular-Cable 6/0/0 rf-channel 0-3

 upstream Cable 7/0 connector 0-3

Example: RF Spanning of Remote Bonding Groups

The following example shows how to configure RF spanning of remote bonding groups on the Cisco uBR100 router:

controller Modular-Cable 5/0/0

 ip-address 60.3.2.4

 rf-channel 0 cable downstream channel-id 5

 rf-channel 0 frequency 501000000 annex B modulation 256qam interleave 32

 rf-channel 0 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500017

 rf-channel 1 cable downstream channel-id 1

 rf-channel 1 frequency 507000000 annex B modulation 256qam interleave 32

 rf-channel 1 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500018

 rf-channel 2 cable downstream channel-id 2

 rf-channel 2 frequency 513000000 annex B modulation 256qam interleave 32

 rf-channel 2 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500019

 rf-channel 3 cable downstream channel-id 3

 rf-channel 3 frequency 519000000 annex B modulation 256qam interleave 32

 rf-channel 3 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500020

interface Wideband-Cable5/0/0:0

 cable bundle 11

 cable rf-channel 0 bandwidth-percent 10

 cable rf-channel 1 bandwidth-percent 10

 cable rf-channel 2 bandwidth-percent 10

 cable rf-channel 3 bandwidth-percent 10

controller Modular-Cable 6/0/0

 ip-address 60.3.2.3

 rf-channel 0 cable downstream channel-id 4

 rf-channel 0 frequency 405000000 annex B modulation 256qam interleave 32

 rf-channel 0 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500001

 rf-channel 1 cable downstream channel-id 22

 rf-channel 1 frequency 411000000 annex B modulation 256qam interleave 32

 rf-channel 1 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500002

 rf-channel 2 cable downstream channel-id 23

 rf-channel 2 frequency 417000000 annex B modulation 256qam interleave 32

 rf-channel 2 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500003

 rf-channel 3 cable downstream channel-id 24

 rf-channel 3 frequency 423000000 annex B modulation 256qam interleave 32

 rf-channel 3 ip-address 60.3.2.1 mac-address 0022.9084.8d7f depi-remote-id 500004

interface Wideband-Cable6/0/0:0

 cable bundle 11

 cable igmp static-group 230.1.1.1 1

 cable igmp static-group 230.5.5.5 1

 cable rf-channel 0 bandwidth-percent 10

 cable rf-channel 1 bandwidth-percent 10

 cable rf-channel 2 bandwidth-percent 10

 cable rf-channel 3 bandwidth-percent 10

cable fiber-node 50

 downstream Modular-Cable 5/0/0 rf-channel 0-3

 downstream Modular-Cable 6/0/0 rf-channel 0-3

 upstream Cable 5/0 connector 0-3

Verifying VDOC Broadcast and Inter Line Card RF Spanning

To verify configuration of VDOC broadcast and inter line card RF spanning, use the following commands:

•show controller integrated-cable

•show controller modular-cable

•show cable multicast db

•show cable mac-domain rcc

•show cable modem service-flow

•show cable active-reman

To verify that the bonding group being shared by service groups is associated with all relevant MAC domains of the Cisco UBR-MC20X20V line card, use the show controller integrated-cable command with the association keyword as shown in the following example:

Router# show controller integrated-cable 8/0/1 association

WB Association Info for 8/0 No of WB 30

WB                      BG   Bundle  NB          NB chan  Reserved  Total

channel                 ID   num     channel     ID       CIR       CIR

Wideband-Cable8/0/0:0   1217 11      Cable7/0/0  0        0         6000000

                                     Multicast            0         6000000

Wideband-Cable8/0/0:1   1218 11      Cable7/0/0  0        0         1500000

                                     Multicast            0         1500000

Wideband-Cable8/0/0:2   1219 11      Cable7/0/0  0        0         1500000

                                     Multicast            0         1500000

Wideband-Cable8/0/1:0   1249 11      Cable7/0/0  0        0         6000000

                                     Multicast            0         6000000

To verify that the bonding group being shared by service groups is associated with all relevant MAC domains of the Cisco uBR-MC3GX60V line card, use the show controller modular-cable command with the association keyword as shown in the following example:

Router# show controller modular-cable 5/0/0 association

WB Association Info for 5/0 No of WB 96

WB                      BG   Bundle  NB          NB chan  Reserved  Total

channel                 ID   num     channel     ID       CIR       CIR

Wideband-Cable5/0/0:0   257  11      Cable5/0/0  0        0         6000000

                                     Multicast            0         6000000

Wideband-Cable5/0/0:1   258  11      Cable5/0/0  0        0         4500000

                                     Multicast            0         4500000

Wideband-Cable5/0/0:2   259  11      Cable5/0/1  0        0         6000000

                                     Multicast            0         6000000

Wideband-Cable5/0/0:3   260  11      Cable5/0/1  0        0         4500000

                                     Multicast            0         4500000

To verify the multicast bundle interface, use the show cable multicast db command with the bundle keyword as shown in the following example:

Router# show cable multicast db bundle 11

Interface : Bundle11.1

Session (S,G) : (*,230.40.40.40)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo5/0/0:4  Bundle11.1           Ca5/0/1      ff05.0000.0024       1

Interface : Bundle11.1

Session (S,G) : (*,230.40.40.40)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo5/0/0:0  Bundle11.1           Ca5/0/0      ff05.0000.0020       1

Interface : Bundle11.1

Session (S,G) : (*,230.40.40.40)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo1/2/0:1  Bundle11.1           Ca7/0/0      ff01.0002.0021       1

Interface : Bundle11.1

Session (S,G) : (*,230.40.40.40)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo1/2/0:0  Bundle11.1           Ca7/0/0      ff01.0002.0020       1

Interface : Bundle11.1

Session (S,G) : (*,230.50.50.50)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo5/0/0:4  Bundle11.1           Ca5/0/1      ff05.0000.0024       1

Interface : Bundle11.1

Session (S,G) : (*,230.50.50.50)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo5/0/0:0  Bundle11.1           Ca5/0/0      ff05.0000.0020       1

Interface : Bundle11.1

Session (S,G) : (*,230.50.50.50)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo1/2/0:1  Bundle11.1           Ca7/0/0      ff01.0002.0021       1

Interface : Bundle11.1

Session (S,G) : (*,230.50.50.50)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo1/2/0:0  Bundle11.1           Ca7/0/0      ff01.0002.0020       1

Interface : Bundle11.1

Session (S,G) : (*,230.7.7.7)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Wi6/0/0:1  Bundle11.1           Ca6/0/0      ff06.0000.0001       1

Interface : Bundle11.1

Session (S,G) : (*,230.5.5.5)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Wi6/0/0:0  Bundle11.1           Ca6/0/0      ff06.0000.0000       1

Interface : Bundle11.1

Session (S,G) : (*,230.2.2.2)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Wi6/0/0:1  Bundle11.1           Ca6/0/0      ff06.0000.0001       1

Interface : Bundle11.1

Session (S,G) : (*,230.1.1.1)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Wi6/0/0:0  Bundle11.1           Ca6/0/0      ff06.0000.0000       1

Interface : Bundle11.1

Session (S,G) : (*,230.30.30.30)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo5/0/0:4  Bundle11.1           Ca5/0/1      ff05.0000.0024       1

Interface : Bundle11.1

Session (S,G) : (*,230.30.30.30)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo5/0/0:0  Bundle11.1           Ca5/0/0      ff05.0000.0020       1

Interface : Bundle11.1

Session (S,G) : (*,230.30.30.30)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo1/2/0:1  Bundle11.1           Ca7/0/0      ff01.0002.0021       1

Interface : Bundle11.1

Session (S,G) : (*,230.30.30.30)

Fwd Intfc  Sub Intfc            Host Intfc   CM Mac           Hosts

Mo1/2/0:0  Bundle11.1           Ca7/0/0      ff01.0002.0020       1

To verify that the right RCC templates are available for the remote MAC domain, use the show cable mac-domain rcc command as shown in the following example:

Router# show cable mac-domain cable 5/0/0 rcc

RCC-ID RCP RCs MD-DS-SG CMs WB/RCC-TMPL

1 00 10 00 00 04 4 1 0 RCC-TMPL (1)

2 00 10 00 00 04 4 1 8 RCC-TMPL (2)

3 00 10 00 00 04 8 1 2 RCC-TMPL (5)

4 00 10 00 00 04 8 1 2 RCC-TMPL (6)

5 00 00 00 00 00 4 0 0 WB (Wi5/0/0:0)

6 00 00 00 00 00 3 0 0 WB (Wi5/0/0:1)

7 00 00 00 00 00 2 0 0 WB (Wi5/0/0:4)

8 00 00 00 00 00 1 0 0 WB (Wi5/0/0:5)

9 00 00 00 00 00 1 0 0 WB (Wi5/0/0:6)

10 00 00 00 00 00 1 0 0 WB (Wi5/0/0:7)

11 00 00 00 00 00 1 0 0 WB (Wi5/0/0:8)

12 00 00 00 00 00 2 0 0 WB (Wi5/0/0:9)

13 00 00 00 00 00 4 0 0 WB (Wi6/0/0:1)

14 00 00 00 00 00 1 0 0 WB (Wi6/0/0:2)

15 00 00 00 00 00 1 0 0 WB (Wi6/0/0:3)

16 00 00 00 00 00 3 0 0 WB (Wi6/0/0:6)

17 00 00 00 00 00 3 0 0 WB (Wi6/0/0:7)

18 00 00 00 00 00 2 0 0 WB (Wi6/0/0:8)

To verify that the service flows are established correctly on local and remote bonding groups, use the show cable modem service-flow command as shown in the following example:

Router# show cable modem 0022.ce89.9664 service-flow

SUMMARY:

MAC Address    IP Address      Host          MAC           Prim  Num Primary

DS

                               Interface     State         Sid   CPE Downstream

RfId

0022.ce89.9664 30.13.2.74      C5/0/0/UB     w-online(pt)  1     0   Mo5/0/0:0

240

Sfid  Dir Curr  Sid   Sched  Prio MaxSusRate  MaxBrst     MinRsvRate  Throughput

          State       Type

15    US  act   1     BE     0    0           3044        0           0

16    DS  act   N/A   BE     0    1000012     6000000     0           0

33    DS  act   N/A   BE     0    1000012     6000000     0           0

UPSTREAM SERVICE FLOW DETAIL:

SFID  SID   Requests   Polls      Grants     Delayed    Dropped    Packets

                                             Grants     Grants

15    1     0          0          401        0          0          416

DOWNSTREAM SERVICE FLOW DETAIL:

SFID  RP_SFID QID    Flg Policer               Scheduler             FrwdIF

                         Xmits      Drops      Xmits      Drops

16    33559   132579     51         0          51         0          Wi5/0/0:1

33    33560   132580     0          0          0          0          Wi6/0/0:2

Flags Legend:

$: Low Latency Queue (aggregated)

~: CIR Queue

To verify the line card high availability information for all interfaces, use the show cable active-reman command as shown in the following example:

Router# show cable active-reman all

-------------------------------------------------------------

Active Reman info on LC 5/0:

[slot_index 0]:  work_slot:1/0,  active_slot:1/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 1]:  work_slot:3/0,  active_slot:3/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 2]:  work_slot:5/0,  active_slot:5/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 3]:  work_slot:5/1,  active_slot:5/1,  is_protect:TRUE ,  is_standby

:TRUE

[slot_index 4]:  work_slot:6/0,  active_slot:6/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 5]:  work_slot:6/1,  active_slot:6/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 6]:  work_slot:7/0,  active_slot:7/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 7]:  work_slot:7/1,  active_slot:7/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 8]:  work_slot:8/0,  active_slot:8/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 9]:  work_slot:8/1,  active_slot:8/1,  is_protect:FALSE,  is_standby

:FALSE

-------------------------------------------------------------

Active Reman info on LC 5/1:

[slot_index 0]:  work_slot:1/0,  active_slot:1/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 1]:  work_slot:3/0,  active_slot:3/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 2]:  work_slot:5/0,  active_slot:5/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 3]:  work_slot:5/1,  active_slot:5/1,  is_protect:TRUE ,  is_standby

:TRUE

[slot_index 4]:  work_slot:6/0,  active_slot:6/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 5]:  work_slot:6/1,  active_slot:6/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 6]:  work_slot:7/0,  active_slot:7/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 7]:  work_slot:7/1,  active_slot:7/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 8]:  work_slot:8/0,  active_slot:8/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 9]:  work_slot:8/1,  active_slot:8/1,  is_protect:FALSE,  is_standby

:FALSE

-------------------------------------------------------------

Active Reman info on LC 6/0:

[slot_index 0]:  work_slot:1/0,  active_slot:1/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 1]:  work_slot:3/0,  active_slot:3/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 2]:  work_slot:5/0,  active_slot:5/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 3]:  work_slot:5/1,  active_slot:5/1,  is_protect:TRUE ,  is_standby

:TRUE

[slot_index 4]:  work_slot:6/0,  active_slot:6/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 5]:  work_slot:6/1,  active_slot:6/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 6]:  work_slot:7/0,  active_slot:7/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 7]:  work_slot:7/1,  active_slot:7/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 8]:  work_slot:8/0,  active_slot:8/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 9]:  work_slot:8/1,  active_slot:8/1,  is_protect:FALSE,  is_standby

:FALSE

-------------------------------------------------------------

Active Reman info on LC 7/0:

[slot_index 0]:  work_slot:1/0,  active_slot:1/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 1]:  work_slot:3/0,  active_slot:3/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 2]:  work_slot:5/0,  active_slot:5/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 3]:  work_slot:5/1,  active_slot:5/1,  is_protect:TRUE ,  is_standby

:TRUE

[slot_index 4]:  work_slot:6/0,  active_slot:6/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 5]:  work_slot:6/1,  active_slot:6/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 6]:  work_slot:7/0,  active_slot:7/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 7]:  work_slot:7/1,  active_slot:7/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 8]:  work_slot:8/0,  active_slot:8/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 9]:  work_slot:8/1,  active_slot:8/1,  is_protect:FALSE,  is_standby

:FALSE

-------------------------------------------------------------

Active Reman info on LC 8/0:

[slot_index 0]:  work_slot:1/0,  active_slot:1/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 1]:  work_slot:3/0,  active_slot:3/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 2]:  work_slot:5/0,  active_slot:5/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 3]:  work_slot:5/1,  active_slot:5/1,  is_protect:TRUE ,  is_standby

:TRUE

[slot_index 4]:  work_slot:6/0,  active_slot:6/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 5]:  work_slot:6/1,  active_slot:6/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 6]:  work_slot:7/0,  active_slot:7/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 7]:  work_slot:7/1,  active_slot:7/1,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 8]:  work_slot:8/0,  active_slot:8/0,  is_protect:FALSE,  is_standby

:FALSE

[slot_index 9]:  work_slot:8/1,  active_slot:8/1,  is_protect:FALSE,  is_standby

Additional References

The following sections provide references related to configuring the VDOC Broadcast feature.

Related Documents

Related Topic
Document Title

CMTS Command Reference

Cisco IOS CMTS Cable Command Reference http://www.cisco.com/en/US/docs/ios/cable/command/reference/cbl_book.html

PacketCable and PacketCable Multimedia

PacketCable and PacketCable Multimedia for the Cisco CMTS Routers

http://www.cisco.com/en/US/docs/ios/cable/configuration/guide/cmts_pktcable_mm.html

DOCSIS 3.0 multicast

DOCSIS 3.0 Multicast Support on the CMTS Routers

http://www.cisco.com/en/US/docs/ios/cable/configuration/guide/ubr_d30_mcast_support.html


Standards

Standard
Title

None

—


MIBs

MIB
MIBs Link

None

To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs


RFCs

RFC
Title

No new or modified RFCs are supported, and support for existing RFCs has not been modified.

—


Technical Assistance

Description
Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html


Feature Information for Configuring VDOC Broadcast

Table 2 lists the release history for this feature.

Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Note Table 2 lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

Table 2 Feature Information for Configuring VDOC Broadcast

Feature Name
Releases
Feature Information

IGMP-Triggered VDOC Broadcast Support

12.2(33)SCB

The Cisco universal broadband router supports VDOC feature enabling MSOs to broadcast video content on RF spanned downstream signals.

The following sections provide information about this feature:

•Information About Configuring VDOC Broadcast

•How to Configure VDOC Broadcast

•Configuration Examples for VDOC Broadcast

•Verifying VDOC Broadcast and Inter Line Card RF Spanning

Inter Line Card RF Spanning

12.2(33)SCF

The Inter Line Card RF Spanning feature supports sharing of downstream channels among the line cards installed on the Cisco uBR10012 router.

The following sections provide information about this feature:

•Inter Line Card RF Spanning

•How to Configure Inter Line Card RF Spanning

•Configuration Examples for Inter Line Card RF Spanning

The following commands were introduced or modified:

•show cable active-reman

•show cable multicast db


Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

©2009-2011Cisco Systems, Inc. All rights reserved.
