Debug Commands

---

This chapter contains an alphabetical listing of the debug commands and their descriptions. Documentation for each command includes a brief description of its use, command syntax, usage guidelines, sample output, and a description of that output.

Output formats vary with each debug command. Some commands generate a single line of output per packet, whereas others generate multiple lines of output per packet. Some generate large amounts of output; others generate only occasional output. Some generate lines of text, and others generate information in field format. Thus, the way debug command output is documented also varies. For example, the output for debug commands that generate lines of text is usually described line by line, and the output for debug commands that generate information in field format is usually described in tables.

By default, the network server sends the output from the debug commands to the console. Sending output to a terminal (virtual console) produces less overhead than sending it to the console. Use the privileged EXEC command terminal monitor to send output to a terminal. For more information about redirecting output, see the "Using Debug Commands" chapter.

debug aaa accounting

Use the debug aaa accounting privileged EXEC command to display information on accountable events as they occur. Use the no form of the command to disable debugging output.

debug aaa accounting

no debug aaa accounting

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The information displayed by the debug aaa accounting command is independent of the accounting protocol used to transfer the accounting information to a server. Use the debug tacacs and debug radius protocol specific commands to get more detailed information about protocol-level issues.

You can also use the show accounting command to step through all active sessions and to print all the accounting records for actively accounted functions. The show accounting command allows you to display the active "accountable events" on the system. It provides systems administrators a quick look at what is going on, and may also be useful for collecting information in the event of a data loss of some kind on the accounting server. The show accounting command displays additional data on the internal state of the Authentication, Authorization, and Accounting (AAA) security system if debug aaa accounting is turned on as well.

Examples

The following is sample output from the debug aaa accounting command:

Router# debug aaa accounting

16:49:21: AAA/ACCT: EXEC acct start, line 10

16:49:32: AAA/ACCT: Connect start, line 10, glare

16:49:47: AAA/ACCT: Connection acct stop:

task_id=70 service=exec port=10 protocol=telnet address=172.31.3.78 cmd=glare
bytes_in=308 bytes_out=76 paks_in=45 paks_out=54 elapsed_time=14

Related Commands

Command	Description
debug aaa authentication	Displays information on accountable events as they occur.
debug aaa authorization	Displays the information on AAA/TACACS+ authorization.
debug radius	Displays the information associated with the Remote Authentication Dial-In Server (RADIUS).
debug tacacs	Displays the information associated with the Terminal Access Controller Access Control System (TACACS).

debug aaa authentication

Use the debug aaa authentication privileged EXEC command to display information on AAA/Terminal Access Controller Access Control System Plus (TACACS+) authentication. Use the no form of the command to disable debugging command.

debug aaa authentication

no debug aaa authentication

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use this command to see what methods of authentication are being used and what the results of these methods are.

Examples

The following is sample output from the debug aaa authentication command. A single EXEC login that uses the "default" method list and the first method, TACACS+, is displayed. The TACACS+ server sends a GETUSER request to prompt for the username and then a GETPASS request to prompt for the password, and finally a PASS response to indicate a successful login. The number 50996740 is the session ID, which is unique for each authentication. Use this ID number to distinguish between different authentications if several are occurring concurrently.

Router# debug aaa authentication

6:50:12: AAA/AUTHEN: create_user user='' ruser='' port='tty19' rem_addr='172.31.60.15'
authen_type=1 service=1 priv=1

6:50:12: AAA/AUTHEN/START (0): port='tty19' list='' action=LOGIN service=LOGIN

6:50:12: AAA/AUTHEN/START (0): using "default" list

6:50:12: AAA/AUTHEN/START (50996740): Method=TACACS+

6:50:12: TAC+ (50996740): received authen response status = GETUSER

6:50:12: AAA/AUTHEN (50996740): status = GETUSER

6:50:15: AAA/AUTHEN/CONT (50996740): continue_login

6:50:15: AAA/AUTHEN (50996740): status = GETUSER

6:50:15: AAA/AUTHEN (50996740): Method=TACACS+

6:50:15: TAC+: send AUTHEN/CONT packet

6:50:15: TAC+ (50996740): received authen response status = GETPASS

6:50:15: AAA/AUTHEN (50996740): status = GETPASS

6:50:20: AAA/AUTHEN/CONT (50996740): continue_login

6:50:20: AAA/AUTHEN (50996740): status = GETPASS

6:50:20: AAA/AUTHEN (50996740): Method=TACACS+

6:50:20: TAC+: send AUTHEN/CONT packet

6:50:20: TAC+ (50996740): received authen response status = PASS

6:50:20: AAA/AUTHEN (50996740): status = PASS

debug aaa authorization

Use the debug aaa authorization privileged EXEC command to display information on AAA/TACACS+ authorization. Use the no form of the command to disable debugging output.

debug aaa authorization

no debug aaa authorization

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use this command to see what methods of authorization are being used and what the results of these methods are.

Examples

The following is sample output from the debug aaa authorization command. In this display, an EXEC authorization for user "carrel" is performed. On the first line, the username is authorized. On the second and third lines, the AV (attribute value) pairs are authorized. The debug output displays a line for each attribute value pair that is authenticated. Next, the display indicates the authorization method used. The final line in the display indicates the status of the authorization process, which, in this case, has failed.

Router# debug aaa authorization

2:23:21: AAA/AUTHOR (0): user='carrel'

2:23:21: AAA/AUTHOR (0): send AV service=shell

2:23:21: AAA/AUTHOR (0): send AV cmd*

2:23:21: AAA/AUTHOR (342885561): Method=TACACS+

2:23:21: AAA/AUTHOR/TAC+ (342885561): user=carrel

2:23:21: AAA/AUTHOR/TAC+ (342885561): send AV service=shell

2:23:21: AAA/AUTHOR/TAC+ (342885561): send AV cmd*

2:23:21: AAA/AUTHOR (342885561): Post authorization status = FAIL

The aaa authorization command causes a request packet containing a series of attribute value pairs to be sent to the TACACS daemon as part of the authorization process. The daemon responds in one of the following three ways:

•Accepts the request as is

•Makes changes to the request

•Refuses the request, thereby refusing authorization

Table 4 describes attribute value pairs associated with the debug aaa authorization command that may show up in the debug output.

Table 4 Attribute Value Pairs for Authorization

Attribute Value	Description
service=arap	Authorization for AppleTalk Remote Access is being requested.
service=shell	Authorization for EXEC startup and command authorization is being requested.
service=ppp	Authorization for PPP is being requested.
service=slip	Authorization for SLIP is being requested.
protocol=lcp	Authorization for LCP is being requested (lower layer of PPP).
protocol=ip	Used with service=slip and service=slip to indicate which protocol layer is being authorized.
protocol=ipx	Used with service=ppp to indicate which protocol layer is being authorized.
protocol=atalk	Used with service=ppp or service=arap to indicate which protocol layer is being authorized.
protocol=vines	Used with service=ppp for VINES over PPP.
protocol=unknown	Used for undefined or unsupported conditions.
cmd=x	Used with service=shell, if cmd=NULL, this is an authorization request to start an EXEC. If cmd is not NULL, this is a command authorization request and will contain the name of the command being authorized. For example, cmd=telnet.
cmd-arg=x	Used with service=shell. When performing command authorization, the name of the command is given by a cmd=x pair for each argument listed. For example, cmd-arg=archie.sura.net.
acl=x	Used with service=shell and service=arap. For ARA, this pair contains an access list number. For service=shell, this pair contains an access class number. For example, acl=2.
inacl=x	Used with service=ppp and protocol=ip. Contains an IP input access list for SLIP or PPP/IP. For example, inacl=2.
outacl=x	Used with service=ppp and protocol=ip. Contains an IP output access list for SLIP or PPP/IP. For example, outacl=4.
addr=x	Used with service=slip, service=ppp, and protocol=ip. Contains the IP address that the remote host should use when connecting via SLIP or PPP/IP. For example, addr=172.30.23.11.
routing=x	Used with service=slip, service=ppp, and protocol=ip. Equivalent in function to the /routing flag in SLIP and PPP commands. Can either be true or false. For example, routing=true.
timeout=x	Used with service=arap. The number of minutes before an ARA session disconnects. For example, timeout=60.
autocmd=x	Used with service=shell and cmd=NULL. Specifies an autocommand to be executed at EXEC startup. For example, autocmd=telnet yxz.com.
noescape=x	Used with service=shell and cmd=NULL. Specifies a noescape option to the username configuration command. Can be either true or false. For example, noescape=true.
nohangup=x	Used with service=shell and cmd=NULL. Specifies a nohangup option to the username configuration command. Can be either true or false. For example. nohangup=false.
priv-lvl=x	Used with service=shell and cmd=NULL. Specifies the current privilege level for command authorization as a number from 0 to 15. For example, priv-lvl=15.
zonelist=x	Used with service=arap. Specifies an AppleTalk zonelist for ARA. For example, zonelist=5.
addr-pool=x	Used with service=ppp and protocol=ip. Specifies the name of a local pool from which to get the address of the remote host.

debug alps ascu

To enable debugging for ALPS ASCUs, use the debug alps ascu privileged EXEC command. To disable debugging, use the no form of this command.

debug alps ascu {event | packet | detail | all} [interface [ascu id]]

no debug alps ascu {event | packet | detail | all} [interface [ascu id]]

Syntax Description

event	Displays ASCU events or protocol errors.
packet	Displays transmitted or received packets.
detail	Displays all ASCU protocol events.
all	Enables event, packet, and detail debugging.
interface	(Optional) Enables debugging on a specified interface.
ascu id	(Optional) Enables debugging for a specified ASCU.

Defaults

Debugging is off.

Command History

Release	Modification
11.3(6)T	This command was introduced for limited availability.
12.0(1)	This command was available for general release.
12.0(5)T	This command was modified.

Usage Guidelines

To enable debugging for a group of ASCUs enter a separate command for each ASCU interface and IA combination.

Examples

The following output is from the debug alps ascu event command, showing events or protocol errors for ASCU 42 on interface Serial7:

router# debug alps ascu event Serial7 42

ALPS ASCU: T1 expired for ascu 42 on i/f Serial7

ALPS ASCU: DOWN event while UP for ascu 42 on i/f Serial7 : C1 count = 1

The following output is from the debug alps ascu detail command, showing all protocol events for ASCU 42 on interface Serial6:

router# debug alps ascu detail Serial6 42

ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6

ALPS ASCU: ALC GO AHD MSG rcvd from ascu 42 on i/f Serial6

ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6

ALPS ASCU: ALC GO AHD MSG rcvd from ascu 42 on i/f Serial6

ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6

ALPS ASCU: Rx ALC DATA MSG (14 bytes + CCC) from ascu 42 on i/f Serial6, fwd ckt

RTP_MATIP

ALPS ASCU: ALC GO AHD MSG rcvd from ascu 42 on i/f Serial6

ALPS ASCU: Tx ALC DATA MSG (14 bytes + CCC) to ascu 42 on i/f Serial6

ALPS ASCU: Tx ALC POLL MSG (3 bytes + CCC) to ascu 42 on i/f Serial6

The following output is from the debug alps ascu packet command, showing all packets transmitted or received for ASCU 42 on interface Serial6:

router# debug alps ascu packet Serial6 42

ALPS ASCU: Tx ALC SERVICE MSG (18 bytes + CCC) to ascu 42 on i/f Serial6

0405B530:                   02321D26 0C261616

0405B540: 140C0D18 26163135 0611C6

ALPS ASCU: Rx ALC DATA MSG (14 bytes + CCC) from ascu 42 on i/f Serial6, fwd ckt

RTP_MATIP

040730B0:                   42607866 65717866

040730C0: 65717966 755124

ALPS ASCU: Tx ALC DATA MSG (14 bytes + CCC) to ascu 42 on i/f Serial6

0405B540:                     022038 26253138

0405B550: 26253139 263511E4

debug alps circuit event

Use the debug alps circuit event privileged EXEC command to enable event debugging for ALPS circuits. Use the no form of this command to disable debugging.

debug alps circuit event [name]

no debug alps circuit event [name]

Syntax Description

name	(Optional) Name given to identify an ALPS circuit on the remote CPE.

Defaults

If no circuit name is specified, then debugging is enabled for every ALPS circuit.

Command History

Release	Modification
11.3T	This command was introduced.

Usage Guidelines

To enable debugging for a single ALPS circuit, specify the name of the circuit.

To enable debugging for a group of circuits, enter a separate command for each circuit name.

Examples

The following is sample output from the debug alps circuit event command for circuit RTP_AX25:

alps-rcpe# debug alps circuit event RTP_AX25

ALPS P1024 CKT: FSM - Ckt= RTP_AX25, State= OPEN, Event= DISABLE:

(CloseAndDisable)->DISC

ALPS P1024 CKT: FSM - Ckt= RTP_AX25, State= DISC, Event= ENABLE:

(TmrStartNullRetry)->INOP

ALPS P1024 CKT: Ckt= RTP_AX25, Open - peer set to 200.100.40.2

ALPS P1024 CKT: Ckt= RTP_AX25, Open - peer open.

ALPS P1024 CKT: FSM - Ckt= RTP_AX25, State= INOP, Event= RETRY_TIMEOUT:

(Open)->OPNG

ALPS P1024 CKT: FSM - Ckt= RTP_AX25, State= OPNG, Event= CKT_OPEN_CFM:

(CacheAndFwdAscuData)->OPEN

alps-ccpe# debug alps circuit event RTP_AX25

ALPS AX.25 FSM: Ckt= RTP_AX25, State= OPEN, Event= CktClose, Rsn= 12:

(PvcKill,CktRemove,TmrStartClose)->INOP

ALPS AX.25 FSM: Ckt= RTP_AX25, State= INOP, Event= X25PvcInact, Rsn= 0:

(-,-,-)->INOP

ALPS AX.25 FSM: Ckt= RTP_AX25, State= INOP, Event= X25VcDeleted, Rsn= 0:

(-,CktDestroy,TmrStop)->INOP

ALPS AX.25 FSM: Ckt= RTP_AX25, State= INOP, Event= CktOpReq, Rsn= 4:

(PvcMake,CktAdd,TmrStartOpen)->OPNG

ALPS AX.25 FSM: Ckt= RTP_AX25, State= OPNG, Event= X25ResetTx, Rsn= 0:

(-,-,-)->OPNG

ALPS AX.25 FSM: Ckt= RTP_AX25, State= OPNG, Event= X25VcUp, Rsn= 0:

(-,OpnCfm,TmrStop)->OPEN

debug alps peer

Use the debug alps peer privileged EXEC command to enable event or packet debugging for ALPS peers. To disable debugging, use the no form of this command.

debug alps peer {event | packet} [ipaddr]

no debug alps peer {event | packet} [ipaddr]

Syntax Description

event	Specifies debugging for an event.
packet	Specifies debugging for a packet.
ipaddr	(Optional) Remote peer IP address.

Defaults

If no IP address is specified, then debugging is enabled for every peer connection.

Command History

Release	Modification
11.3(6)T	This command was introduced for limited availability.
12.0(1)	This command was available for general release.
12.0(5)T	The packet keyword was added. The format for the output was modified for consistency.

Usage Guidelines

To enable debugging for a single remote ALPS peer, specify the peer IP address.

To enable debugging for a set of remote peers, enter the command for each peer IP address.

Examples

The following output is from the debug alps peer packet command:

router# debug alps peer packet

ALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - TX Peer Data Msg (18 bytes)

040A5320:                        01 00001241

040A5330:45546B5F 6F4F7757 67477B5B 51

ALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - RX Peer Data Msg (18 bytes)

04000550:         01000012 4145546B 5F6F4F77

04000560:5767477B 5B51

ALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - TX Peer Data Msg (18 bytes)

0409F6E0:               01 00001241 45546B5F

0409F6F0:6F4F7757 67477B5B 51

ALPS PEER:Peer (10.227.50.106, MATIP_A_CKT-1) - RX Peer Data Msg (18 bytes)

04000680:                  01000012 4145546B

04000690:5F6F4F77 5767477B 5B51

debug alps peer event

Use the debug alps peer event privileged EXEC command to enable event debugging for ALPS peers. Use the no form of this command to disable debugging.

debug alps peer event ipaddr

no debug alps peer event ipaddr

Syntax Description

ipaddr

(Optional) Peer IP address.

Defaults

If no IP address is specified, then debugging is enabled for every peer connection.

Command History

Release	Modification
11.3T	This command was introduced.

Usage Guidelines

To enable debugging for a single remote ALPS peer, specify the peer IP address.

To enable debugging for a set of remote peers, enter the command for each peer IP address.

Examples

The following is sample output from the debug alps peer event command:

alps-ccpe# debug alps peer event

ALPS PEER: FSM - Peer 200.100.25.2, Event ALPS_CLOSED_IND, State OPENED

ALPS PEER: peer 200.100.25.2 closed - closing peer circuits.

ALPS PEER: Promiscuous peer created for 200.100.25.2

ALPS PEER: TCP Listen - passive open 200.100.25.2(11003) -> 10000

ALPS PEER: FSM - Peer 200.100.25.2, Event ALPS_OPEN_IND, State DISCONN

ALPS PEER: peer 200.100.25.2 opened OK.

debug alps snmp

Use the debug alps snmp privileged EXEC command to enable debugging for ALPS SNMP agents. To disable debugging, use the no form of this command.

debug alps snmp

no debug alps snmp

Syntax Description

This command has no arguments or keywords.

Defaults

Debugging for SNMP agents is not enabled.

Command History

Release	Modification
11.3(6)T	This command was introduced for limited availability.
12.0(1)	This command was available for general release.
12.0(5)T	This command was added to the documentation.

Examples

The following output is from the debug alps snmp command. The first line shows a circuit event status change. The second line shows an ASCU status change. The third line shows a peer connection status change.

ALPS CktStatusChange Notification for circuit CKT-1

ALPS AscuStatusChange Notification for ascu (Serial3, 41)

PeerConnStatusChange Notification for peer (10.227.50.106, MATIP_A_CKT-1)

debug apple arp

Use the debug apple arp privileged EXEC command to enable debugging of the AppleTalk Address Resolution Protocol (AARP). The no form of this command disables debugging output.

debug apple arp [type number]

no debug apple arp [type number]

Syntax Description

type	(Optional) Interface type.
number	(Optional) Interface number.

Usage Guidelines

This command is helpful when you experience problems communicating with a node on the network you control (a neighbor). If the debug apple arp display indicates that the router is receiving AARP probes, you can assume that the problem does not reside at the physical layer.

Examples

The following is sample output from the debug apple arp command:

Router# debug apple arp

Ether0: AARP: Sent resolve for 4160.26

Ether0: AARP: Reply from 4160.26(0000.0c00.0453) for 4160.154(0000.0c00.8ea9)

Ether0: AARP: Resolved waiting request for 4160.26(0000.0c00.0453)

Ether0: AARP: Reply from 4160.19(0000.0c00.0082) for 4160.154(0000.0c00.8ea9)

Ether0: AARP: Resolved waiting request for 4160.19(0000.0c00.0082)

Ether0: AARP: Reply from 4160.19(0000.0c00.0082) for 4160.154(0000.0c00.8ea9)

Explanations for representative lines of output follow.

The following line indicates that the router has requested the hardware MAC address of the host at network address 4160.26:

Ether0: AARP: Sent resolve for 4160.26

The following line indicates that the host at network address 4160.26 has replied, giving its MAC address (0000.0c00.0453). For completeness, the message also shows the network address to which the reply was sent and its hardware MAC address (also in parentheses).

Ether0: AARP: Reply from 4160.26(0000.0c00.0453) for 4160.154(0000.0c00.8ea9)

The following line indicates that the MAC address request is complete:

Ether0: AARP: Resolved waiting request for 4160.26(0000.0c00.0453)

debug apple domain

Use the debug apple domain privileged EXEC command to enable debugging of the AppleTalk domain activities. The no form of this command disables debugging output.

debug apple domain

no debug apple domain

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use the debug apple domain command to observe activity for domains and subdomains. Use this command in conjunction with the debug apple remap command to observe interaction between remapping and domain activity. Messages are displayed when the state of a domain changes, such as creating a new domain, deleting a domain, and updating a domain.

Examples

The following is sample output from the debug apple domain command intermixed with output from the debug apple remap command; the two commands show related events.

Router# debug apple domain

Router# debug apple remap

AT-REMAP: RemapProcess for net 30000 domain AURP Domain 1

AT-REMAP: ReshuffleRemapList for subdomain 1

AT-REMAP: Could not find a remap for cable 3000-3001

AT-DOMAIN: atdomain_DisablePort for Tunnel0

AT-DOMAIN: CleanUpDomain for domain 1 [AURP Domain 1]

AT-DOMAIN: Disabling interface Ethernet1

AT-DOMAIN: atdomain_DisablePort for Ethernet1

AT-DOMAIN: CleanUpDomain for domain 1 [AURP Domain 1]

AT-DOMAIN: CleanSubDomain for inbound subdomain 1

AT-REMAP: Remap for net 70 inbound subdomain 1 has been deleted

AT-DOMAIN: DeleteAvRemapList for inbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-DOMAIN: DeleteAvRemapList for inbound subdomain 1

AT-DOMAIN: CleanSubDomain for outbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-REMAP: RemapProcess for net 30000 domain AURP Domain 1 Remapped Net 10000

AT-REMAP: Remap for net 50 outbound subdomain 1 has been deleted

AT-DOMAIN: DeleteAvRemapList for outbound subdomain 1

AT-DOMAIN: DeleteAvRemapList for outbound subdomain 1

AT-DOMAIN: CleanUpDomain for domain 1 [AURP Domain 1]

AT-DOMAIN: CleanSubDomain for inbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-DOMAIN: DeleteAvRemapList for inbound subdomain 1

AT-DOMAIN: CleanSubDomain for outbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-DOMAIN: DeleteAvRemapList for outbound subdomain 1

Related Commands

Command	Description
debug apple remap	Enables debugging of the AppleTalk remap activities.

debug apple eigrp-all

Use the debug apple eigrp-all privileged EXEC command to enable debugging output from the Enhanced IGRP routines. The no form of this command disables debugging output.

debug apple eigrp-all

no debug apple eigrp-all

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug apple eigrp-all command can be used to monitor acquisition of routes, aging route table entries, and advertisement of known routes through Enhanced IGRP.

---

Caution Because the debug apple eigrp-all command can generate many messages, use it only when the router's CPU utilization is less than 50 percent.

---

Examples

The following is sample output from the debug apple eigrp-all command:

Router# debug apple eigrp-all

3:54:34: atigrp2_router: peer is 83.195

3:54:37: AT: atigrp2_write: about to send packet

3:54:37: Ethernet2: output AT packet: enctype UNKNOWN, size 65

3:54:37: 07FFFFFF0000FFFFFFFFFFFF00000C1485B00046|0041ACD100000053FF8F58585802059110

3:54:37: 000000000000000000000000000000010001000C010001000000000F0204000C0053005300

3:54:37: AT: atigrp2, src=Ethernet2:83.143, dst=83-83, size=52, EIGRP pkt sent

3:54:39: atigrp2_router: peer is 83.195

3:54:42: AT: atigrp2_write: about to send packet

3:54:42: Ethernet2: output AT packet: enctype UNKNOWN, size 65

3:54:42: 07FFFFFF0000FFFFFFFFFFFF00000C1485B00046|0041ACD100000053FF8F58585802059110

3:54:42: 000000000000000000000000000000010001000C010001000000000F0204000C0053005300

3:54:42: AT: atigrp2, src=Ethernet2:83.143, dst=83-83, size=52, EIGRP pkt sent

Table 5 describes the fields in the debug apple eigrp-all command output.

Table 5 debug apple eigrp Command Field Descriptions

Field	Description
atigrp2_router:	Neighbor's AppleTalk address.
AT:	Indicates that this is an AppleTalk packet.
Ethernet2:	Name of the interface through which the router received the packet.
src=	Name of the interface sending the Enhanced IGRP packet, as well at its AppleTalk address.
dst=	Cable range of the packet's destination.
size=	Size of the packet (in bytes).

debug apple errors

Use the debug apple errors privileged EXEC command to display errors occurring in the AppleTalk network. The no form of this command disables debugging output.

debug apple errors [type number]

no debug apple errors [type number]

Syntax Description

type	(Optional) Interface type.
number	(Optional) Interface number.

Usage Guidelines

In a stable AppleTalk network, the debug apple errors command produces little output.

To solve encapsulation problems, enable debug apple errors and debug apple packet together.

Examples

The following is sample output from the debug apple errors command when a router is brought up with a zone that does not agree with the zone list of other routers on the network:

Router# debug apple errors

%AT-3-ZONEDISAGREES: Ethernet0: AppleTalk port disabled; zone list incompatible with
4160.19

%AT-3-ZONEDISAGREES: Ethernet0: AppleTalk port disabled; zone list incompatible with
4160.19

%AT-3-ZONEDISAGREES: Ethernet0: AppleTalk port disabled; zone list incompatible with
4160.19

As the output suggests, a single error message indicates zone list incompatibility; this message is sent out periodically until the condition is corrected or debug apple errors is turned off.

Most of the other messages that debug apple errors can generate are obscure or indicate a serious problem with the AppleTalk network. Some of these other messages follow.

In the following message, RTMPRsp, RTMPReq, ATP, AEP, ZIP, ADSP, or SNMP could replace NBP, and "llap dest not for us" could replace "wrong encapsulation":

Packet discarded, src 4160.12-254,dst 4160.19-254,NBP,wrong encapsulation

In the following message, in addition to invalid echo packet, other possible errors are unsolicited AEP echo reply, unknown echo function, invalid ping packet, unknown ping function, and bad responder packet type:

Ethernet0: AppleTalk packet error; no source address available

AT: pak_reply: dubious reply creation, dst 4160.19

AT: Unable to get a buffer for reply to 4160.19

Processing error, src 4160.12-254,dst 4160.19-254,AEP, invalid echo packet

The debug apple errors command can print out additional messages when other debugging commands are also turned on. When you turn on both debug apple errors and debug apple events, the following message can be generated:

Proc err, src 4160.12-254,dst 4160.19-254,ZIP,NetInfo Reply format is invalid

In the preceding message, in addition to NetInfo Reply format is invalid, other possible errors are NetInfoReply not for me, NetInfoReply ignored, NetInfoReply for operational net ignored, NetInfoReply from invalid port, unexpected NetInfoReply ignored, cannot establish primary zone, no primary has been set up, primary zone invalid, net information mismatch, multicast mismatch, and zones disagree.

When you turn on both debug apple errors and debug apple nbp, the following message can be generated:

Processing error,...,NBP,NBP name invalid

In the preceding message, in addition to NBP name invalid, other possible errors are NBP type invalid, NBP zone invalid, not operational, error handling brrq, error handling proxy, NBP fwdreq unexpected, No route to srcnet, Proxy to "*" zone, Zone "*" from extended net, No zone info for "*", and NBP zone unknown.

When you turn on both debug apple errors and debug apple routing, the following message can be generated:

Processing error,...,RTMPReq, unknown RTMP request

In the preceding message, in addition to unknown RTMP request, other possible errors are RTMP packet header bad, RTMP cable mismatch, routed RTMP data, RTMP bad tuple, and Not Req or Rsp.

debug apple events

Use the debug apple events privileged EXEC command to display information about AppleTalk special events, neighbors becoming reachable or unreachable, and interfaces going up or down. Only significant events (for example, neighbor and route changes) are logged. The no form of this command disables debugging output.

debug apple events [type number]

no debug apple events [type number]

Syntax Description

type	(Optional) Interface type.
number	(Optional) Interface number.

Usage Guidelines

The debug apple events command is useful for solving AppleTalk network problems because it provides an overall picture of the stability of the network. In a stable network, the debug apple events command does not return any information. If the command generates numerous messages, those messages can indicate possible sources of the problems.

When configuring or making changes to a router or interface for AppleTalk, enable debug apple events. Doing so alerts you to the progress of the changes or to any errors that might result. Also use this command periodically when you suspect network problems.

The debug apple events command is also useful to determine whether network flapping (nodes toggling online and offline) is occurring. If flapping is excessive, look for routers that only support 254 networks.

When you enable debug apple events, you will see any messages that the configuration command apple event-logging normally displays. Turning on debug apple events, however, does not cause apple event-logging to be maintained in nonvolatile memory. Only turning on apple event-logging explicitly stores it in nonvolatile memory. Furthermore, if apple event-logging is already enabled, turning on or off debug apple events does not affect apple event-logging.

Examples

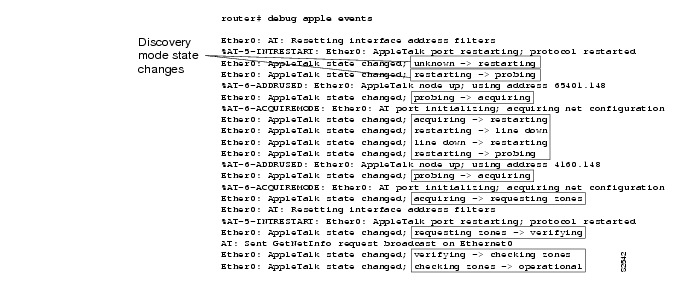

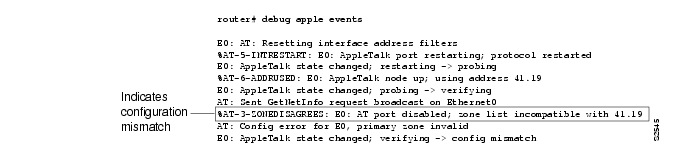

The following is sample output from the debug apple events command that describes a nonseed router coming up in discovery mode:

As the output shows, the debug apple events command is useful in tracking the discovery mode state changes through which an interface progresses. When no problems are encountered, the state changes progress as follows:

1. Line down

2. Restarting

3. Probing (for its own address [node ID] using AARP)

4. Acquiring (sending out GetNetInfo requests)

5. Requesting zones (the list of zones for its cable)

6. Verifying (that the router's configuration is correct. If not, a port configuration mismatch is declared.)

7. Checking zones (to make sure its list of zones is correct)

8. Operational (participating in routing)

Explanations for individual lines of output follow.

The following message indicates that a port is set. In this case, the zone multicast address is being reset.

Ether0: AT: Resetting interface address filters

The following messages indicate that the router is changing to restarting mode:

%AT-5-INTRESTART: Ether0: AppleTalk port restarting; protocol restarted

Ether0: AppleTalk state changed; unknown -> restarting

The following message indicates that the router is probing in the startup range of network numbers (65280-65534) to discover its network number:

Ether0: AppleTalk state changed; restarting -> probing

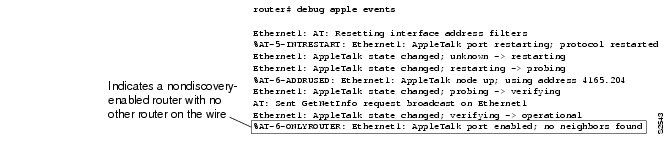

The following message indicates that the router is enabled as a nonrouting node using a provisional network number within its startup range of network numbers. This type of message only appears if the network address the router will use differs from its configured address. This is always the case for a discovery-enabled router; it is rarely the case for a nondiscovery-enabled router.

%AT-6-ADDRUSED: Ether0: AppleTalk node up; using address 65401.148

The following messages indicate that the router is sending out GetNetInfo requests to discover the default zone name and the actual network number range in which its network number can be chosen:

Ether0: AppleTalk state changed; probing -> acquiring

%AT-6-ACQUIREMODE: Ether0: AT port initializing; acquiring net configuration

Now that the router has acquired the cable configuration information, the following message indicates that it restarts using that information:

Ether0: AppleTalk state changed; acquiring -> restarting

The following messages indicate that the router is probing for its actual network address:

Ether0: AppleTalk state changed; restarting -> line down

Ether0: AppleTalk state changed; line down -> restarting

Ether0: AppleTalk state changed; restarting -> probing

The following message indicates that the router has found an actual network address to use:

%AT-6-ADDRUSED: Ether0: AppleTalk node up; using address 4160.148

The following messages indicate that the router is sending out GetNetInfo requests to verify the default zone name and the actual network number range from which its network number can be chosen:

Ether0: AppleTalk state changed; probing -> acquiring

%AT-6-ACQUIREMODE: Ether0: AT port initializing; acquiring net configuration

The following message indicates that the router is requesting the list of zones for its cable:

Ether0: AppleTalk state changed; acquiring -> requesting zones

The following messages indicate that the router is sending out GetNetInfo requests to make sure its understanding of the configuration is correct:

Ether0: AppleTalk state changed; requesting zones -> verifying

AT: Sent GetNetInfo request broadcast on Ethernet0

The following message indicates that the router is rechecking its list of zones for its cable:

Ether0: AppleTalk state changed; verifying -> checking zones

The following message indicates that the router is now fully operational as a routing node and can begin routing:

Ether0: AppleTalk state changed; checking zones -> operational

The following shows sample debug apple events output that describes a nondiscovery-enabled router coming up when no other router is on the wire.

As the output shows, a nondiscovery-enabled router can come up when no other router is on the wire; however, it must assume that its configuration (if accurate syntactically) is correct, because no other router can verify it. Notice that the last line indicates this situation.

The following is sample output from the debug apple events command that describes a discovery-enabled router coming up when there is no seed router on the wire:

Router# debug apple events

Ether0: AT: Resetting interface address filters

%AT-5-INTRESTART: Ether0: AppleTalk port restarting; protocol restarted

Ether0: AppleTalk state changed; unknown -> restarting

Ether0: AppleTalk state changed; restarting -> probing

%AT-6-ADDRUSED: Ether0: AppleTalk node up; using address 65401.148

Ether0: AppleTalk state changed; probing -> acquiring

AT: Sent GetNetInfo request broadcast on Ether0

AT: Sent GetNetInfo request broadcast on Ether0

AT: Sent GetNetInfo request broadcast on Ether0

AT: Sent GetNetInfo request broadcast on Ether0

AT: Sent GetNetInfo request broadcast on Ether0

As the output shows, when you attempt to bring up a nonseed router without a seed router on the wire, it never becomes operational; instead, it hangs in the acquiring mode and continues to send out periodic GetNetInfo requests.

The following is sample output from the debug apple events command when a nondiscovery-enabled router is brought up on an AppleTalk internetwork that is in compatibility mode (set up to accommodate extended as well as nonextended AppleTalk) and the router has violated internetwork compatibility:

.

The following three configuration command lines indicate the part of the router's configuration that caused the configuration mismatch:

lestat(config)#int e 0

lestat(config-if)#apple cab 41-41

lestat(config-if)#apple zone Marketing

The router shown had been configured with a cable range of 41-41 instead of 40-40, which would have been accurate. Additionally, the zone name was configured incorrectly; it should have been "Marketing," rather than being misspelled as "Markting."

debug apple nbp

Use the debug apple nbp privileged EXEC command to display debugging output from the Name Binding Protocol (NBP) routines. The no form of this command disables debugging output.

debug apple nbp [type number]

no debug apple nbp [type number]

Syntax Description

type	(Optional) Interface type.
number	(Optional) Interface number.

Usage Guidelines

To determine whether the router is receiving NBP lookups from a node on the AppleTalk network, enable debug apple nbp at each node between the router and the node in question to determine where the problem lies.

---

Caution Because the debug apple nbp command can generate many messages, use it only when the router's CPU utilization is less than 50 percent.

---

Examples

The following is sample output from the debug apple nbp command:

Router# debug apple nbp

AT: NBP ctrl = LkUp, ntuples = 1, id = 77

AT: 4160.19, skt 2, enum 0, name: =:ciscoRouter@Low End SW Lab

AT: LkUp =:ciscoRouter@Low End SW Lab

AT: NBP ctrl = LkUp-Reply, ntuples = 1, id = 77

AT: 4160.154, skt 254, enum 1, name: lestat.Ether0:ciscoRouter@Low End SW Lab

AT: NBP ctrl = LkUp, ntuples = 1, id = 78

AT: 4160.19, skt 2, enum 0, name: =:IPADDRESS@Low End SW Lab

AT: NBP ctrl = LkUp, ntuples = 1, id = 79

AT: 4160.19, skt 2, enum 0, name: =:IPGATEWAY@Low End SW Lab

AT: NBP ctrl = LkUp, ntuples = 1, id = 83

AT: 4160.19, skt 2, enum 0, name: =:ciscoRouter@Low End SW Lab

AT: LkUp =:ciscoRouter@Low End SW Lab

AT: NBP ctrl = LkUp, ntuples = 1, id = 84

AT: 4160.19, skt 2, enum 0, name: =:IPADDRESS@Low End SW Lab

AT: NBP ctrl = LkUp, ntuples = 1, id = 85

AT: 4160.19, skt 2, enum 0, name: =:IPGATEWAY@Low End SW Lab

AT: NBP ctrl = LkUp, ntuples = 1, id = 85

AT: 4160.19, skt 2, enum 0, name: =:IPGATEWAY@Low End SW Lab

The first three lines describe an NBP lookup request:

AT: NBP ctrl = LkUp, ntuples = 1, id = 77

AT: 4160.19, skt 2, enum 0, name: =:ciscoRouter@Low End SW Lab

AT: LkUp =:ciscoRouter@Low End SW Lab

Table 6 describes the fields in the first line of output.

Table 6 debug apple nbp Command Field Descriptions

Field	Description
AT: NBP	Indicates that this message describes an AppleTalk NBP packet.
ctrl = LkUp	Identifies the type of NBP packet. Possible values include LkUp—NBP lookup request. LkUp-Reply—NBP lookup reply.
ntuples = 1	Indicates the number of name-address pairs in the lookup request packet. Range: 1to 31 tuples.
id = 77	Identifies an NBP lookup request value.

Table 7 describes the fields in the second line of output.

Table 7 debug apple nbp Command Field Descriptions

Field	Description
AT:	Indicates that this message describes an AppleTalk packet.
4160.19	Indicates the network address of the requester.
skt 2	Indicates the internet socket address of the requester. The responder will send the NBP lookup reply to this socket address.
enum 0	Indicates the enumerator field. Used to identify multiple names registered on a single socket. Each tuple is assigned its own enumerator, incrementing from 0 for the first tuple.
name: =:ciscoRouter@Low End SW Lab	Indicates the entity name for which a network address has been requested. The AppleTalk entity name includes three components: Object (in this case, a wildcard character [=], indicating that the requester is requesting name-address pairs for all objects of the specified type in the specified zone). Type (in this case, ciscoRouter). Zone (in this case, Low End SW Lab).

The third line in the output essentially reiterates the information in the two lines above it, indicating that a lookup request has been made regarding name-address pairs for all objects of the ciscoRouter type in the Low End SW Lab zone.

Because the router is defined as an object of type ciscoRouter in zone Low End SW Lab, the router sends an NBP lookup reply in response to this NBP lookup request. The following two lines of output show the router's response:

AT: NBP ctrl = LkUp-Reply, ntuples = 1, id = 77

AT: 4160.154, skt 254, enum 1, name: lestat.Ether0:ciscoRouter@Low End SW Lab

In the first line, ctrl = LkUp-Reply identifies this NBP packet as an NBP lookup request. The same value in the id field (id = 77) associates this lookup reply with the previous lookup request. The second line indicates that the network address associated with the router's entity name (lestat.Ether0:ciscoRouter@Low End SW Lab) is 4160.154. The fact that no other entity name/network address is listed indicates that the responder only knows about itself as an object of type ciscoRouter in zone Low End SW Lab.

debug apple packet

Use the debug apple packet privileged EXEC command to display per-packet debugging output. The output reports information online when a packet is received or a transmit is attempted. The no form of this command disables debugging output.

debug apple packet [type number]

no debug apple packet [type number]

Syntax Description

type	(Optional) Interface type.
number	(Optional) Interface number.

Usage Guidelines

With this command, you can monitor the types of packets being slow switched. It displays at least one line of debugging output per AppleTalk packet processed.

When invoked in conjunction with the debug apple routing, debug apple zip, and debug apple nbp commands, the debug apple packet command adds protocol processing information in addition to generic packet details. It also reports successful completion or failure information.

When invoked in conjunction with the debug apple errors command, the debug apple packet command reports packet-level problems, such as those concerning encapsulation.

---

Caution Because the debug apple packet command can generate many messages, use it only when the router's CPU utilization is less than 50 percent.

---

Examples

The following is sample output from the debug apple packet command:

Router# debug apple packet

Ether0: AppleTalk packet: enctype SNAP, size 60, encaps000000000000000000000000

AT: src=Ethernet0:4160.47, dst=4160-4160, size=10, 2 rtes, RTMP pkt sent

AT: ZIP Extended reply rcvd from 4160.19

AT: ZIP Extended reply rcvd from 4160.19

AT: src=Ethernet0:4160.47, dst=4160-4160, size=10, 2 rtes, RTMP pkt sent

Ether0: AppleTalk packet: enctype SNAP, size 60, encaps000000000000000000000000

Ether0: AppleTalk packet: enctype SNAP, size 60, encaps000000000000000000000000

Table 8 describes the fields in the first line of output.

Table 8 debug apple packet Command Field Descriptions

Field	Description
Ether0:	Name of the interface through which the router received the packet.
AppleTalk packet	Indicates that this is an AppleTalk packet.
enctype SNAP	Encapsulation type for the packet.
size 60	Size of the packet (in bytes).
encaps000000000000000000000000	Encapsulation.

Table 9 describes the fields in the second line of output.

Table 9 debug apple packet Command Field Descriptions

Field	Description
AT:	Indicates that this is an AppleTalk packet.
src = Ethernet0:4160.47	Name of the interface sending the packet and its AppleTalk address.
dst = 4160-4160	Cable range of the packet's destination.
size = 10	Size of the packet (in bytes.)
2 rtes	Indicates that two routes in the routing table link these two addresses.
RTMP pkt sent	Type of packet sent.

The third line indicates the type of packet received and its source AppleTalk address. This message is repeated in the fourth line because AppleTalk hosts can send multiple replies to a given GetNetInfo request.

debug apple remap

Use the debug apple remap privileged EXEC command to enable debugging of the AppleTalk remap activities. The no form of this command disables debugging output.

debug apple remap

no debug apple remap

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use the debug apple remap command with the debug apple domain command to observe activity between domains and subdomains. Messages from debug apple remap are displayed when a particular remapping function occurs, such as creating remaps or deleting remaps.

Examples

The following is sample output from the debug apple remap command intermixed with output from the debug apple domain command; the two commands show related events.

Router# debug apple remap

Router# debug apple domain

AT-REMAP: RemapProcess for net 30000 domain AURP Domain 1

AT-REMAP: ReshuffleRemapList for subdomain 1

AT-REMAP: Could not find a remap for cable 3000-3001

AT-DOMAIN: atdomain_DisablePort for Tunnel0

AT-DOMAIN: CleanUpDomain for domain 1 [AURP Domain 1]

AT-DOMAIN: Disabling interface Ethernet1

AT-DOMAIN: atdomain_DisablePort for Ethernet1

AT-DOMAIN: CleanUpDomain for domain 1 [AURP Domain 1]

AT-DOMAIN: CleanSubDomain for inbound subdomain 1

AT-REMAP: Remap for net 70 inbound subdomain 1 has been deleted

AT-DOMAIN: DeleteAvRemapList for inbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-DOMAIN: DeleteAvRemapList for inbound subdomain 1

AT-DOMAIN: CleanSubDomain for outbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-REMAP: RemapProcess for net 30000 domain AURP Domain 1 Remaped Net 10000

AT-REMAP: Remap for net 50 outbound subdomain 1 has been deleted

AT-DOMAIN: DeleteAvRemapList for outbound subdomain 1

AT-DOMAIN: DeleteAvRemapList for outbound subdomain 1

AT-DOMAIN: CleanUpDomain for domain 1 [AURP Domain 1]

AT-DOMAIN: CleanSubDomain for inbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-DOMAIN: DeleteAvRemapList for inbound subdomain 1

AT-DOMAIN: CleanSubDomain for outbound subdomain 1

AT-DOMAIN: DeleteRemapTable for subdomain 1

AT-DOMAIN: DeleteAvRemapList for outbound subdomain 1

Related Commands

Command	Description
debug apple domain	Enables debugging of the AppleTalk domain activities.

debug apple routing

Use the debug apple routing privileged EXEC command to enable debugging output from the Routing Table Maintenance Protocol (RTMP) routines. The no form of this command disables debugging output.

debug apple routing [type number]

no debug apple routing [type number]

Syntax Description

type	(Optional) Interface type.
number	(Optional) Interface number.

Usage Guidelines

This command can be used to monitor acquisition of routes, aging of routing table entries, and advertisement of known routes. It also reports conflicting network numbers on the same network if the network is misconfigured.

---

Note Because the debug apple routing command can generate many messages, use it only when router CPU utilization is less than 50 percent.

---

Examples

The following is sample output from the debug apple routing command:

Router# debug apple routing

AT: src=Ethernet0:4160.41, dst=4160-4160, size=19, 2 rtes, RTMP pkt sent

AT: src=Ethernet1:41069.25, dst=41069, size=427, 96 rtes, RTMP pkt sent

AT: src=Ethernet2:4161.23, dst=4161-4161, size=427, 96 rtes, RTMP pkt sent

AT: Route ager starting (97 routes)

AT: Route ager finished (97 routes)

AT: RTMP from 4160.19 (new 0,old 94,bad 0,ign 0, dwn 0)

AT: RTMP from 4160.250 (new 0,old 0,bad 0,ign 2, dwn 0)

AT: RTMP from 4161.236 (new 0,old 94,bad 0,ign 1, dwn 0)

AT: src=Ethernet0:4160.41, dst=4160-4160, size=19, 2 rtes, RTMP pkt sent

Table 10 describes the fields in the first line of sample debug apple routing output.

Table 10 debug apple routing Command Field Descriptions

Field	Description
AT:	Indicates that this is AppleTalk debugging output.
src = Ethernet0:4160.41	Indicates the source router interface and network address for the RTMP update packet.
dst = 4160-4160	Indicates the destination network address for the RTMP update packet.
size = 19	Shows the size of this RTMP packet (in bytes).
2 rtes	Indicates that this RTMP update packet includes information on two routes.
RTMP pkt sent	Indicates that this type of message describes an RTMP update packet that the router has sent (rather than one that it has received).

The following two messages indicate that the ager has started and finished the aging process for the routing table and that this table contains 97 entries:

AT: Route ager starting (97 routes)

AT: Route ager finished (97 routes)

Table 11 describes the fields in the following line of debug apple routing output:

AT: RTMP from 4160.19 (new 0,old 94,bad 0,ign 0, dwn 0)

Table 11 debug apple routing Command Field Descriptions

Field	Description
AT:	Indicates that this is AppleTalk debugging output.
RTMP from 4160.19	Indicates the source address of the RTMP update the router received.
new 0	Shows the number of routes in this RTMP update packet that the router did not already know about.
old 94	Shows the number of routes in this RTMP update packet that the router already knew about.
bad 0	Shows the number of routes the other router indicates have gone bad.
ign 0	Shows the number of routes the other router ignores.
dwn 0	Shows the number of poisoned tuples included in this packet.

debug apple zip

Use the debug apple zip privileged EXEC command to display debugging output from the Zone Information Protocol (ZIP) routines. The no form of this command disables debugging output.

debug apple zip [type number]

no debug apple zip [type number]

Syntax Description

type	(Optional) Interface type.
number	(Optional) Interface number.

Usage Guidelines

This command reports significant events such as the discovery of new zones and zone list queries. It generates information similar to that generated by debug apple routing, but generates it for ZIP packets instead of RTMP packets.

You can use the debug apple zip command to determine whether a ZIP storm is taking place in the AppleTalk network. You can detect the existence of a ZIP storm when you see that no router on a cable has the zone name corresponding to a network number that all the routers have in their routing tables.

Examples

The following is sample output from the debug apple zip command:

Router# debug apple zip

AT: Sent GetNetInfo request broadcast on Ether0

AT: Recvd ZIP cmd 6 from 4160.19-6

AT: 3 query packets sent to neighbor 4160.19

AT: 1 zones for 31902, ZIP XReply, src 4160.19

AT: net 31902, zonelen 10, name US-Florida

The first line indicates that the router has received an RTMP update that includes a new network number and is now requesting zone information:

AT: Sent GetNetInfo request broadcast on Ether0

The second line indicates that the neighbor at address 4160.19 replies to the zone request with a default zone:

AT: Recvd ZIP cmd 6 from 4160.19-6

The third line indicates that the router responds with three queries to the neighbor at network address 4160.19 for other zones on the network:

AT: 3 query packets sent to neighbor 4160.19

The fourth line indicates that the neighbor at network address 4160.19 responds with a ZIP extended reply, indicating that one zone has been assigned to network 31902:

AT: 1 zones for 31902, ZIP XReply, src 4160.19

The fifth line indicates that the router responds that the zone name of network 31902 is US-Florida, and the zone length of that zone name is 10:

AT: net 31902, zonelen 10, name US-Florida

debug appn all

Use the debug appn all privileged EXEC command to turn on all possible debugging messages for Advanced Peer-to-Peer Networking (APPN). The no form of this command disables debugging output.

debug appn all

no debug appn all

---

Note Refer to the other forms of the debug appn command to enable specific debug output selectively.

---

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

This command shows all APPN events. Use other forms of the debug appn command to display specific types of events.

---

Caution Because the debug appn all command can generate many messages and alter timing in the network node, use it only when instructed by authorized support personnel.

---

---

Caution Debugging output takes priority over other network traffic. The debug appn all command generates more output than any other debug appn command and can alter timing in the network node. This command can severely diminish router performance or even render it unusable. In virtually all cases, it is best to use specific debug appn commands.

---

Examples

Refer to the documentation for specific debug appn commands for examples and explanations.

Related Commands

Command	Description
debug appn cs	Displays the APPN Configuration Services (CS) component activity.
debug appn ds	Displays debugging information on APPN Directory Services (DS) component activity.
debug appn hpr	Displays information related to High Performance-Routing (HPR) code execution.
debug appn ms	Displays debugging information on APPN Management Services (MS) component activity.
debug appn nof	Displays information on APPN Node Operator Facility (NOF) component activity.
debug appn pc	Displays debugging information on APPN Path Control (PC) component activity.
debug appn ps	Displays debugging information on (PS) component activity.
debug appn scm	Displays debugging information on APPN Session Connector Manager (SCM) component activity.
debug appn ss	Displays session services (SS) events.
debug appn trs	Displays debugging information on APPN Topology and Routing Services (TRS) component activity.

debug appn cs

Use the debug appn cs privileged EXEC command to display APPN Configuration Services (CS) component activity. The no form of this command disables debugging output.

debug appn cs

no debug appn cs

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The CS component is responsible for defining link stations, ports, and connection networks. It is responsible for the activation and deactivation of ports and link stations and handles status queries for these resources.

Examples

The following is sample output from the debug appn cs command. In this example a link station is being stopped.

Router# debug appn cs

Turned on event 008000FF

Router# appn stop link PATTY

APPN: ----- CS ----- Deq STOP_LS message

APPN: ----- CS ----- FSM LS: 75 17 5 8

APPN: ----- CS ----- Sending DEACTIVATE_AS - station PATTY

APPN: ----- CS ----- deactivate_as_p->ips_header.lpid = A80A60

APPN: ----- CS ----- deactivate_as_p->ips_header.lpid = A80A60

APPN: ----- CS ----- Sending DESTROY_TG to PC - station PATTY - lpid=A80A60

APPN: ----- CS ----- Deq DESTROY_TG - station PATTY

APPN: ----- CS ----- FSM LS: 22 27 8 0

APPN: ----- CS ----- Sending TG update for LS PATTY to TRS

APPN: ----- CS ----- ENTERING XID_PROCESSING: 4

%APPN-6-APPNSENDMSG: Link Station PATTY stopped

Table 12 describes the fields and messages shown.

Table 12 debug appn cs Command Field Descriptions

Field	Description
APPN	APPN debugging output.
CS	CS component output.
Deq	CS received a message from another component.
FSM LS	Link station finite state machine is being referenced.
Sending	CS is sending a message to another component.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for Advanced Peer-to-Peer Networking (APPN).

debug appn ds

Use the debug appn ds privileged EXEC command to display debugging information on APPN Directory Services (DS) component activity. The no form of this command disables debugging output.

debug appn ds

no debug appn ds

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The DS component manages searches for resources in the APPN network. DS is also responsible for registration of resources within the network.

Examples

The following is sample output from the debug appn ds command. In this example a search has been received.

Router# debug appn ds

Turned on event 080000FF

APPN: NEWDS: LS: search from: NETA.PATTY

APPN: NEWDS: pcid: DD3321E8B5667111

APPN: NEWDS: Invoking FSM NNSolu

APPN: NEWDS: LSfsm_NNSolu: 00A67AA0 pcid: DD3321E8B5667111 row: 0 col: 0 inp: 80200000

APPN: NEWDS: LSfsm_parent: 00A89940 row: 0 col: 0 inp: 80000000

APPN: NEWDS: Rcvd a LMRQ

APPN: NEWDS: LSfsm_NNSolu: 00A67AA0 pcid: DD3321E8B5667111 row: 12 col: 1 inp: 40000000

APPN: NEWDS: LSfsm_parent: 00A89940 row: 8 col: 1 inp: 40000000

APPN: NEWDS: LSfsm_child: 00A89BE8 row: 0 col: 0 inp: 80000080

APPN: NEWDS: PQenq REQUEST_ROUTE(RQ) to TRS

APPN: NEWDS: LSfsm_child: 00A8A1C0 row: 1 col: 0 inp: 80000008

APPN: NEWDS: LSfsm_NNSolu: 00A67AA0 pcid: DD3321E8B5667111 row: 5 col: 1 inp: 80C04000

APPN: NEWDS: LSfsm_child: 00A8A1C0 row: 7 col: 1 inp: 80844008

APPN: NEWDS: Rcvd a LMRY

APPN: NEWDS: LSfsm_NNSolu: 00A67AA0 pcid: DD3321E8B5667111 row: 16 col: 6 inp: 40800000

APPN: NEWDS: LSfsm_child: 00A8A1C0 row: 14 col: 5 inp: 40800000

APPN: NEWDS: LSfsm_parent: 00A89940 row: 3 col: 1 inp: 80840000

APPN: NEWDS: send locate to node: NETA.PATTY

Table 13 describes the fields in the debug appn ds output.

Table 13 debug appn ds Command Field Descriptions

Field	Description
APPN	APPN debugging output.
NEWDS	Directory Services component output.
search from	Locate was received from NETA.PATTY.
LSfsm_	Locate Search finite state machine is being referenced.
PQenq	Message was sent to another component.
Rcvd	Message was received from another component.
send locate	Locate will be sent to NETA.PATTY.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn hpr

Use the debug appn hpr privileged EXEC command to display debugging information related to High Performance Routing (HPR) code execution. The no form of this command disables debugging output.

debug appn hpr

no debug appn hpr

Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug appn hpr command:

Router# debug appn hpr

APPN: -- ncl.ncl_map_dlc_type() -- mapping TOKEN_RING(4) to NCL_TR(3)

APPN: -- ncl.ncl_port() -- called with port_type:3, cisco_idb:893A14, hpr_ssap:C8

APPN: -- ncl.process_port_change() -- port coming up

APPN: -- ncl.process_port_change() -- PORT_UP

APPN: -- ncl.ncl_port_fsm -- FSM Invoked: Input:0, State:0->1, Action:0

APPN: -- ncl.ncl_port_fsm -- FSM Invoked: Input:1, State:1->2, Action:1

APPN: -- ncl.ncl_unmap_dlc_type() -- mapping NCL(3) to CLS(3)

APPN: ----- ANR  ----- Sending ACTIVATE_SAP.req

APPN: -- cswncsnd.main() -- received LSA_IPS ips.

APPN: -- ncl.ncl_port_fsm -- FSM Invoked: Input:3, State:2->3, Action:4

APPN: -- ncl.ncl_assign_anr() -- Assigned ANR,anr:8002

APPN: -- ncl.ncl_map_dlc_type() -- mapping TOKEN_RING(4) to NCL_TR(3)

APPN: -- ncl.ncl_populate_anr() -- anr:8002, dlc_type:3, idb 893A14

APPN: -- ncl.ncl_populate_anr() -- send anr_tbl_update to owning cswncsnd

APPN: -- ncl.ncl_ls_fsm -- FSM Invoked: Input:0, State:0->1, Action:0

APPN: ncl.ncl_send_reqopn_stn_req

APPN: -- ncl.ncl_unmap_dlc_type() -- mapping NCL(3) to CLS(3)

APPN: -- ncl.ncl_ls_fsm() -- send anr_tbl_update to owning cswncsnd

APPN: -- cswncsnd.main() -- received ANR_TBL_UPDATE ips.

APPN: -- cswncsnd.apply_anr_table_update() -- ANR:8002

APPN: -- cswncsnd.main() -- received ANR_TBL_UPDATE ips.

APPN: -- cswncsnd.apply_anr_table_update() -- ANR:8002

APPN: -- cswncsnd.main() -- received LSA_IPS ips.

APPN: -- ncl.ncl_ls_fsm -- FSM Invoked: Input:1, State:1->2, Action:1

APPN: -- ncl.ncl_ls_fsm -- P_CEP_ID:AAF638

APPN: -- ncl.ncl_ls_fsm() -- send anr_tbl_update to owning cswncsnd

APPN: -- cswncsnd.main() -- received ANR_TBL_UPDATE ips.

APPN: -- cswncsnd.apply_anr_table_update() -- ANR:8002

APPN: rtpm:  rtp_send() sent data over connection B9D5E8

APPN: hpr timer: rtt start time clocked at 135952 ms

APPN: -- cswncsnd.main() -- received NCL_SND_MSG ips.

APPN: -- cswncsnd.process_nlp_from_rtp() -- label: 8002, send to p_cep 00AAF638.

APPN: hpr timer: rtt end time clocked at 135972 ms

APPN: hpr timer: round trip time measured at 20 ms

Table 14 describes the debug appn hpr fields.

Table 14 debug appn hpr Field Descriptions

Field	Description
APPN	APPN debugging output.
NCL	Network control layer debugging output. Network control layer is the component that deals with ANR packets.
ncl_port_fsm	Network control layer port finite state machine has been invoked.
ncl_assign_anr	ANR label has been assigned to a activating link station.
ncl_populate_anr	System is updating the ANR record with information specific to the link station.
ncl_ls_fsm	Network control layer link finite state machine has been invoked.
rtp_send	RTP is about to send a packet.
hpr timer	Debugging output related to an HPR timer.
rtt start time	RTP is measuring the round-rip time for an HPR status request packet. This is the start time.
NCL_SND_MSG	Network control layer has been requested to send a packet.
process_nlp_from_rtp	Network control layer has been requested by RTP to send a packet.
rtt end time	RTP is measuring the round trip time for an HPR status request packet. This is the time.
round trip time	Round-trip time for this HPR status exchange has been computed.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn ms

Use the debug appn ms privileged EXEC command to display debugging information on APPN Management Services (MS) component activity. The no form of this command disables debugging output.

debug appn ms

no debug appn ms

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The MS component is responsible for generating, sending, and forwarding network management information in the form of traps and alerts to a network management focal point, such as Netview, in the APPN network.

Examples

The following is sample output from the debug appn ms command. In this example an error occurred that caused an alert to be generated.

Router# debug appn ms

APPN: ----- MSS00 ---- Deq ALERT_MSU msg

APPN: --- MSP70 --- ALERT MV FROM APPN WITH VALID LGTH

APPN: --- MSCPL --- Find Active FP

APPN: --- MSP30 --- Entering Build MS Transport

APPN: --- MSP31 --- Entering Building Routing Info.

APPN: --- MSP34 --- Entering Build GDS

APPN: --- MSP32 --- Entering Building UOW correlator

APPN: --- MSP34 --- Entering Build GDS

APPN: --- MSP30 --- Building GDS 0x1310

APPN: --- MSP30 --- Building MS Transport

APPN: --- MSP72 --- ACTIVE FP NOT FOUND, SAVE ONLY

APPN: --- MSUTL --- UOW <= 60, ALL COPIED in extract_uow

APPN: --- MSCAT --- by enq_cached_ms QUEUE SIZE OF QUEUE after enq 4

Table 15 describes fields in the debug appn ms output.

Table 15 debug appn ms Command Output Field Descriptions

Field	Description
APPN	Indicates that this is APPN debugging output.
MSP	Indicates that this is MS component output.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn nof

Use the debug appn nof privileged EXEC command to display debugging information on APPN Node Operator Facility (NOF) component activity. The no form of this command disables debugging output.

debug appn nof

no debug appn nof

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The NOF component is responsible for processing commands entered by the user such as start, stop, show, and configuration commands. NOF forwards these commands to the proper component and wait for the response.

Examples

The following is sample output from the debug appn nof command. In this example, an APPN connection network is being defined.

Router# debug appn nof

Turned on event 010000FF

Router# config term

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)# appn connection-network NETA.CISCO

Router(config-appn-cn)# port TR0

Router(config-appn-cn)# complete

router(config)#

APPN: ----- NOF ----- Define Connection Network Verb Received

APPN: ----- NOF ----- send define_cn_t ips to cs

APPN: ----- NOF ----- waiting for define_cn rsp from cs

router(config)#

Table 16 describes fields in the debug appn nof output.

Table 16 debug appn nof Command Field Descriptions

Field	Description
APPN	APPN debugging output.
NOF	NOF component output.
Received	Configuration command was entered.
send	Message was sent to CS.
waiting	Response was expected from CS.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn pc

Use the debug appn pc privileged EXEC command to display debugging information on APPN Path Control (PC) component activity. The no form of this command disables debugging output.

debug appn pc

no debug appn pc

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The PC component is responsible for passing Message Units (MUs) between the Data Link Control (DLC) layer and other APPN components. PC implements transmission priority by passing higher priority MUs to the DLC before lower priority MUs.

Examples

The following is sample output from the debug appn pc command. In this example a MU is received from the network.

Router# debug appn pc

Turned on event 040000FF

APPN: ----- PC-----PC Deq REMOTE msg variant_name 2251

APPN: --PC-- mu received to PC lpid: A80AEC

APPN: --PC-- mu received from p_cep_id: 67C6F8

APPN: ----- PC-----PC Deq LSA_IPS from DLC

APPN: --PCX dequeued a DATA.IND

APPN: --- PC processing DL_DATA.ind

APPN: --PC-- mu_error_checker with no error, calling frr

APPN: --PC-- calling frr for packet received on LFSID: 1 2 3

APPN: ----- PC-----PC is sending MU to SC A90396

APPN: ----- SC-----send mu: A90396, rpc: 0, nws: 7, rh.b1: 90

APPN: SC: Send mu.snf: 8, th.b0: 2E, rh.b1: 90, dcf: 8

Table 17 describes fields in the debug appn pc output.

Table 17 debug appn pc Field Descriptions

Field	Description
APPN	APPN debugging output.
PC	PC component output.
Deq REMOTE	Message was received from the network.
mu received	Message is a MU.
DATA.IND	MU contains data.
sending MU	MU is session traffic for an ISR session. The MU is forwarded to the Session Connector component for routing.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn ps

Use the debug appn ps privileged EXEC command to display debugging information on APPN Presentation Services (PS) component activity. The no form of this command disables debugging output.

debug appn ps

no debug appn ps

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The PS component is responsible for managing the Transaction Programs (TPs) used by APPN. TPs are used for sending and receiving searches, receiving resource registration, and sending and receiving topology updates.

Examples

The following is sample output from the debug appn ps command. In this example a CP capabilities exchange is in progress.

Router# debug appn ps

Turned on event 200000FF

APPN: ---- CCA --- CP_CAPABILITIES_TP has started

APPN: ---- CCA --- About to wait for Partner to send CP_CAP

APPN: ---- CCA --- Partner LU name: NETA.PATTY

APPN: ---- CCA --- Mode Name: CPSVCMG

APPN: ---- CCA --- CGID: 78

APPN: ---- CCA --- About to send cp_cp_session_act to SS

APPN: ---- CCA --- Waiting for cp_cp_session_act_rsp from SS

APPN: ---- CCA --- Received cp_cp_session_act_rsp from SS

APPN: ---- CCA --- About to send CP_CAP to partner

APPN: ---- CCA --- Send to partner completed with rc=0, 0

APPN: ---- RCA --- Allocating conversation

APPN: ---- RCA --- Sending CP_CAPABILITIES

APPN: ---- RCA --- Getting conversation attributes

APPN: ---- RCA --- Waiting for partner to send CP_CAPABILITIES

APPN: ---- RCA --- Normal processing complete with cgid = 82

APPN: ---- RCA --- Deallocating CP_Capabilities conversation

Table 18 describes fields in the debug appn ps output.

Table 18 debug appn ps Command Field Descriptions

Field	Description
APPN	APPN debugging output.
CCA	CP Capabilities TP output.
RCA	Receive CP Capabilities TP output.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn scm

Use the debug appn scm privileged EXEC command to display debugging information on APPN Session Connector Manager (SCM) component activity. The no form of this command disables debugging output.

debug appn scm

no debug appn scm

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The SCM component is responsible for the activation and deactivation the local resources that route an intermediate session through the router.

Examples

The following is sample output from the debug appn scm command. In this example an intermediate session traffic is being routed.

Router# debug appn scm

Turned on event 020000FF

Router#

APPN: ----- SCM-----SCM Deq a MU

APPN: ----- SCM-----SCM send ISR_INIT to SSI

APPN: ----- SCM-----(i05) Enter compare_fqpcid()

APPN: ----- SCM-----Adding new session_info table entry. addr=A93160

APPN: ----- SCM-----SCM Deq ISR_CINIT message

APPN: ----- SCM-----(i05) Enter compare_fqpcid()

APPN: ----- SCM-----SCM sends ASSIGN_LFSID to ASM

APPN: ----- SCM-----SCM Rcvd sync ASSIGN_LFSID from ASM

APPN: ----- SCM-----SCM PQenq a MU to ASM

APPN: ----- SCM-----SCM Deq a MU

APPN: ----- SCM-----(i05) Enter compare_fqpcid()

APPN: ----- SCM-----SCM PQenq BIND rsp to ASM

Table 19 describes fields in the debug appn ps output.

Table 19 debug appn scm Command Field Descriptions

Field	Description
APPN	APPN debugging output.
SCM	SCM component output.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn ss

Use the debug appn ss privileged EXEC command to display session services (SS) events. The no form of this command disables debugging output.

debug appn ss

no debug appn ss

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The SS component generates unique session identifiers, activates and deactivates control point-to-control point (CP-CP) sessions, and assists LUs in initiating and activating LU-LU sessions.

Examples

The following is sample output from the debug appn ss command. In this example CP-CP sessions between the router and another node are being activated.

Router# debug appn ss

Turned on event 100000FF

APPN: ----- SS ----- Deq ADJACENT_CP_CONTACTED message

APPN: ----- SS ----- Deq SESSST_SIGNAL message

APPN: ----- SS ----- Deq CP_CP_SESSION_ACT message

APPN: Sending ADJACENT_NN_1015 to SCM, adj_node_p=A6B980,cp_name=NETA.PATTY

APPN: ----- SS ----- Sending REQUEST_LAST_FRSN message to TRS

APPN: ----- SS ----- Receiving REQUEST_LAST_FRSN_RSP from TRS

APPN: ----- SS ----- Sending ACTIVE CP_STATUS CONLOSER message to DS

APPN: ----- SS ----- Sending ACTIVE CP_STATUS CONLOSER message to MS

APPN: ----- SS ----- Sending ACTIVE CP_STATUS CONLOSER message to TRS

APPN: ----- SS ----- Sending CP_CP_SESSION_ACT_RSP message to CCA TP

APPN: ----- SS ----- Sending PENDING_ACTIVE CP_STATUS CONWINNER message to DS

APPN: ----- SS ----- Sending REQUEST_LAST_FRSN message to TRS

APPN: ----- SS ----- Receiving REQUEST_LAST_FRSN_RSP from TRS

APPN: ----- SS ----- Sending ACT_CP_CP_SESSION message to RCA TP

APPN: ----- SS ----- Deq ASSIGN_PCID message

APPN: ----- SS ----- Sending ASSIGN_PCID_RSP message to someone

APPN: ----- SS ----- Deq INIT_SIGNAL message

APPN: ----- SS ----- Sending REQUEST_COS_TPF_VECTOR message to TRS

APPN: ----- SS ----- Receiving an REQUEST_COS_TPF_VECTOR_RSP from TRS

APPN: ----- SS ----- Sending REQUEST_SINGLE_HOP_ROUTE message to TRS

APPN: ----- SS ----- Receiving an REQUEST_SINGLE_HOP_ROUTE_RSP from TRS

APPN: ----- SS ----- Sending ACTIVATE_ROUTE message to CS

APPN: ----- SS ----- Deq ACTIVATE_ROUTE_RSP message

APPN: ----- SS ----- Sending CINIT_SIGNAL message to SM

APPN: ----- SS ----- Deq ACT_CP_CP_SESSION_RSP message

APPN: -- SS----SS ssp00, act_cp_cp_session_rsp received, sense_code=0, cgid=5C,
ips@=A93790

APPN: Sending ADJACENT_NN_1015 to SCM, adj_node_p=A6B980,cp_name=18s

APPN: ----- SS ----- Sending ACTIVE CP_STATUS CONWINNER message to DS

APPN: ----- SS ----- Sending ACTIVE CP_STATUS CONWINNER message to MS

APPN: ----- SS ----- Sending ACTIVE CP_STATUS CONWINNER message to TRS

Table 20 describes fields in the debug appn ss output.

Table 20 debug appn ss Command Field Descriptions

Field	Description
APPN	APPN debugging output.
SS	SS component output.

Related Commands

Command	Description
debug appn all	Turns on all possible debugging messages for APPN.

debug appn trs

Use the debug appn trs privileged EXEC command to display debugging information on APPN Topology and Routing Services (TRS) component activity. The no form of this command disables debugging output.

debug appn trs

no debug appn trs

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The TRS component is responsible for creating and maintaining the topology database, creating and maintaining the class of service database, and computing and caching optimal routes through the network.

Examples

The following is sample output from the debug appn trs command:

Router# debug appn trs

Turned on event 400000FF

APPN: ----- TRS ----- Received a QUERY_CPNAME

APPN: ----- TRS ----- Received a REQUEST_ROUTE

APPN: ----- TRS ----- check_node node_name=NETA.LISA

APPN: ----- TRS ----- check_node node_index=0

APPN: ----- TRS ----- check_node node_weight=60

APPN: ----- TRS ----- add index 484 to origin description list

APPN: ----- TRS ----- add index 0 to dest description list

APPN: ----- TRS ----- origin tg_vector is NULL

APPN: ----- TRS ----- weight_to_origin = 0

APPN: ----- TRS ----- weight_to_dest = 0

APPN: ----- TRS ----- u_b_s_f weight = 30

APPN: ----- TRS ----- u_b_s_f prev_weight = 2147483647

APPN: ----- TRS ----- u_b_s_f origin_index = 484

APPN: ----- TRS ----- u_b_s_f dest_index = 0

APPN: ----- TRS ----- b_r_s_f weight = 30

APPN: ----- TRS ----- b_r_s_f origin_index = 484

APPN: ----- TRS ----- b_r_s_f dest_index = 0

APPN: ----- TRS ----- Received a REQUEST_ROUTE

APPN: ----- TRS ----- check_node node_name=NETA.LISA

APPN: ----- TRS ----- check_node node_index=0

APPN: ----- TRS ----- check_node node_weight=60

APPN: ----- TRS ----- check_node node_name=NETA.BART

APPN: ----- TRS ----- check_node node_index=484

APPN: ----- TRS ----- check_node node_weight=60

APPN: ----- TRS ----- add index 484 to origin description list

APPN: ----- TRS ----- add index 0 to dest description list

APPN: ----- TRS ----- origin_tg_weight to non-VN=30

APPN: ----- TRS ----- origin_node_weight to non-VN=60

APPN: ----- TRS ----- weight_to_origin = 90

APPN: ----- TRS ----- weight_to_dest = 0

APPN: ----- TRS ----- u_b_s_f weight = 120

APPN: ----- TRS ----- u_b_s_f prev_weight = 2147483647

APPN: ----- TRS ----- u_b_s_f origin_index = 484

APPN: ----- TRS ----- u_b_s_f dest_index = 0

APPN: ----- TRS ----- b_r_s_f weight = 120

APPN: ----- TRS ----- b_r_s_f origin_index = 484

APPN: ----- TRS ----- b_r_s_f dest_index = 0

Table 21 describes fields in the debug appn trs output.

Table 21 debug appn trs Command Field Descriptions

Field	Description
APPN	APPN debugging output.
TRS	TRS component output.
