Domain-Based Routing Support on the Cisco UBE

Last Updated: August 04, 2011

First Published: June 15, 2011

Last Updated: July 22, 2011

The Domain-based routing feature provides support for matching an outbound dial peer based on the domain name or IP address provided in the request URI of the incoming SIP message or an inbound dial peer.

Domain-based routing enables for calls to be routed on the outbound dialpeer based on the domain name or IP address provided in the request Uniform Resource Identifier (URI) of incoming Session IP message.

Restrictions for Domain-Based Routing Support on the Cisco UBE

Domain-based routing support is available only for SIP-SIP call flows.

Information About Domain-Based Routing Support on the Cisco UBE

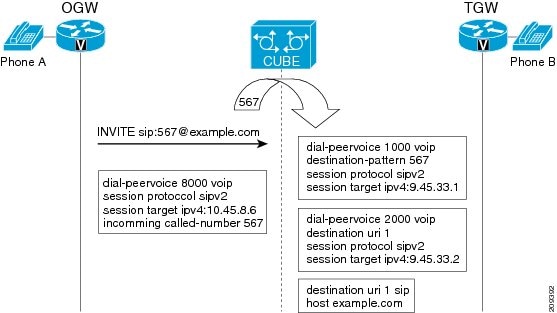

When a dial peer has an application configured as a session application, then only the user parameter of the request URI is used and is sent from the inbound SIP SPI to the application. The session application performs a match on an outbound dial peer based on the user parameter of the request URI sent from the inbound dial peer. In the figure below, 567 is the user portion of the request-URI that is passed from the inbound dial peer to the application and the matching outbound dial-peer found is 1000.



With the introduction of the domain-based routing feature, all parameters including the domain name of the request URI will be sent to the application and the outbound dial peer can be matched with any parameter. In Figure 1, when the domain name example.com is used to match an outbound dial peer the resulting dial peer is 2000. The call route url command is used for configuring domain-based routing.

How to Configure Domain-Based Routing Support on the Cisco UBE

Configuring Domain-Based Routing at Global Level

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    voice service voip

4.    sip

5.    call-route url

6.    exit


DETAILED STEPS
 Command or ActionPurpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
voice service voip


Example:

Router(config)# voice service voip



Enters voice service configuration mode.


Step 4
sip


Example:

Router(conf-voi-serv)# sip



Enters voice service SIP configuration mode.


Step 5
call-route url


Example:

Router(conf-serv-sip)# call-route url



Example:

Routes calls based on the URL.


Step 6
exit


Example:

Router(conf-serv-sip)# exit



Exits the current mode.



Configuring Domain-Based Routing at Dial Peer Level

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    dial-peer voice dial-peer tag voip

4.    voice-class sip call-route url

5.    exit


DETAILED STEPS
 Command or ActionPurpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password if prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
dial-peer voice dial-peer tag voip


Example:

Router(config)# dial-peer voice 2 voip



Enter dial peer voice configuration mode.


Step 4
voice-class sip call-route url


Example:

Router(config-dial-peer)#



Example:

Routes calls based on the URL



Step 5
exit


Example:

Router(config-dial-peer)# exit



Exits the current mode.



Verifying and Troubleshooting Domain-Based Routing Support on the Cisco UBE

SUMMARY STEPS

1.    enable

2.    debug ccsip all

3.    debug voip dialpeer inout


DETAILED STEPS
Step 1   enable

Enables privileged EXEC mode.



Example:

Router> enable

Step 2   debug ccsip all

Enables all SIP-related debugging.



Example:

Router# debug ccsip all Received: INVITE sip:5555555555@[2208:1:1:1:1:1:1:1118]:5060 SIP/2.0 Via: SIP/2.0/UDP [2208:1:1:1:1:1:1:1115]:5060;branch=z9hG4bK83AE3 Remote-Party-ID: <sip:2222222222@[2208:1:1:1:1:1:1:1115]>;party=calling;screen=no;privacy=off From: <sip:2222222222@[2208:1:1:1:1:1:1:1115]>;tag=627460F0-1259 To: <sip:5555555555@[2208:1:1:1:1:1:1:1118]> Date: Tue, 01 Mar 2011 08:49:48 GMT Call-ID: B30FCDEB-431711E0-8EDECB51-E9F6B1F1@2208:1:1:1:1:1:1:1115 Supported: 100rel,timer,resource-priority,replaces Require: sdp-anat Min-SE: 1800 Cisco-Guid: 2948477781-1125585376-2396638033-3925258737 User-Agent: Cisco-SIPGateway/IOS-15.1(3.14.2)PIA16 Allow: INVITE, OPTIONS, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY, INFO, REGISTER CSeq: 101 INVITE Max-Forwards: 70 Timestamp: 1298969388 Contact: <sip:2222222222@[2208:1:1:1:1:1:1:1115]:5060> Expires: 180 Allow-Events: telephone-event Content-Type: application/sdp Content-Disposition: session;handling=required Content-Length: 495 v=0 o=CiscoSystemsSIP-GW-UserAgent 7880 7375 IN IP6 2208:1:1:1:1:1:1:1115 s=SIP Call c=IN IP6 2208:1:1:1:1:1:1:1115 t=0 0 a=group:ANAT 1 2 m=audio 17836 RTP/AVP 0 101 19 c=IN IP6 2208:1:1:1:1:1:1:1115 a=mid:1 a=rtpmap:0 PCMU/8000 a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-16 a=rtpmap:19 CN/8000 a=ptime:20 m=audio 18938 RTP/AVP 0 101 19 c=IN IP4 9.45.36.111 a=mid:2 a=rtpmap:0 PCMU/8000 a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-16 a=rtpmap:19 CN/8000 a=ptime:20 “Received: INVITE sip:2222222222@[2208:1:1:1:1:1:1:1117]:5060 SIP/2.0 Via: SIP/2.0/UDP [2208:1:1:1:1:1:1:1116]:5060;branch=z9hG4bK38ACE Remote-Party-ID: <sip:5555555555@[2208:1:1:1:1:1:1:1116]>;party=calling;screen=no;privacy=off From: <sip:5555555555@[2208:1:1:1:1:1:1:1116]>;tag=4FE8C9C-1630 To: <sip:2222222222@[2208:1:1:1:1:1:1:1117]>;tag=1001045C-992 Date: Thu, 10 Feb 2011 12:15:08 GMT Call-ID: 5DEDB77E-ADC11208-808BE770-8FCACF34@2208:1:1:1:1:1:1:1117 Supported: 100rel,timer,resource-priority,replaces,sdp-anat Min-SE: 1800 Cisco-Guid: 1432849350-0876876256-2424621905-3925258737 User-Agent: Cisco-SIPGateway/IOS-15.1(3.14.2)PIA16 Allow: INVITE, OPTIONS, BYE, CANCEL, ACK, PRACK, UPDATE, REFER, SUBSCRIBE, NOTIFY, INFO, REGISTER CSeq: 101 INVITE Max-Forwards: 70 Timestamp: 1297340108 Contact: <sip:5555555555@[2208:1:1:1:1:1:1:1116]:5060> Expires: 180 Allow-Events: telephone-event Content-Type: application/sdp Content-Length: 424 v=0 o=CiscoSystemsSIP-GW-UserAgent 8002 7261 IN IP6 2208:1:1:1:1:1:1:1116 s=SIP Call c=IN IP6 2208:1:1:1:1:1:1:1116 t=0 0 m=image 17278 udptl t38 c=IN IP6 2208:1:1:1:1:1:1:1116 a=T38FaxVersion:0 a=T38MaxBitRate:14400 a=T38FaxFillBitRemoval:0 a=T38FaxTranscodingMMR:0 a=T38FaxTranscodingJBIG:0 a=T38FaxRateManagement:transferredTCF a=T38FaxMaxBuffer:200 a=T38FaxMaxDatagram:320 a=T38FaxUdpEC:t38UDPRedundancy”

Step 3   debug voip dialpeer inout
The debug ccsip all and debug voip dialpeer inout commands can be entered in any order and any of the commands can be used for debugging depending on the requirement.

Example:

Displays information about the voice dial peers Router# debug voip dialpeer inout voip dialpeer inout debugging is on

The following event shows the calling and called numbers:



Example:

*May 1 19:32:11.731: //-1/6372E2598012/DPM/dpAssociateIncomingPeerCore: Calling Number=4085550111, Called Number=3600, Voice-Interface=0x0, Timeout=TRUE, Peer Encap Type=ENCAP_VOIP, Peer Search Type=PEER_TYPE_VOICE, Peer Info Type=DIALPEER_INFO_SPEECH

The following event shows the incoming dial peer:



Example:

*May 1 19:32:11.731: //-1/6372E2598012/DPM/dpAssociateIncomingPeerCore: Result=Success(0) after DP_MATCH_INCOMING_DNIS; Incoming Dial-peer=100 *May 1 19:32:11.731: //-1/6372E2598012/DPM/dpAssociateIncomingPeerCore: Calling Number=4085550111, Called Number=3600, Voice-Interface=0x0, Timeout=TRUE, Peer Encap Type=ENCAP_VOIP, Peer Search Type=PEER_TYPE_VOICE, Peer Info Type=DIALPEER_INFO_SPEECH *May 1 19:32:11.731: //-1/6372E2598012/DPM/dpAssociateIncomingPeerCore: Result=Success(0) after DP_MATCH_INCOMING_DNIS; Incoming Dial-peer=100 *May 1 19:32:11.735: //-1/6372E2598012/DPM/dpMatchPeersCore: Calling Number=, Called Number=3600, Peer Info Type=DIALPEER_INFO_SPEECH *May 1 19:32:11.735: //-1/6372E2598012/DPM/dpMatchPeersCore: Match Rule=DP_MATCH_DEST; Called Number=3600 *May 1 19:32:11.735: //-1/6372E2598012/DPM/dpMatchPeersCore: Result=Success(0) after DP_MATCH_DEST *May 1 19:32:11.735: //-1/6372E2598012/DPM/dpMatchPeersMoreArg: Result=SUCCESS(0)

The following event shows the matched dial peers in the order of priority:



Example:

List of Matched Outgoing Dial-peer(s): 1: Dial-peer Tag=3600 2: Dial-peer Tag=36

Configuration Examples for Domain-Based Routing Support on the Cisco UBE

Example Configuring Domain-Based Routing Support on the Cisco UBE

The following example shows how to enable domain-based routing support on the Cisco UBE:

Router> enable
Router# configure terminal
Router(config)# voice service voip
Router(conf-voi-serv)# sip
Router(conf-serv-sip)# call-route url
Router(conf-serv-sip)# exit
Router(config)# dial-peer voice
2
voip
Router(config-dial-peer)# voice-class sip call-route url
Router(config-dial-peer)# exit

Additional References

Related Documents

Related Topic

Document Title

Cisco IOS commands

Cisco IOS Master Commands List, All Releases

Cisco UBE fundaments and basic setup

Cisco Unified Border Element Fundaments and Basic Setup

Cisco IOS voice configuration

Cisco IOS Voice Configuration Library

Cisco IOS voice commands

Cisco IOS Voice Command Reference

Cisco IOS debug commands

Cisco IOS Debug Command Reference

Standards

Standard

Title

None

--

MIBs

MIB

MIBs Link

None

To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs

RFCs

RFC

Title

None

--

Technical Assistance

Description

Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html

Feature Information for Domain-Based Routing Support on the Cisco UBE

GUID-1EA5A0E5-BB6C-456E-A82D-41DA769EB88C2 lists the release history for this feature.

Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn . An account on Cisco.com is not required.


Note
GUID-1EA5A0E5-BB6C-456E-A82D-41DA769EB88C2 lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.
Table 1Feature Information for Domain-Based Routing Support on the Cisco UBE

Feature Name

Releases

Feature Information

Domain Based Routing Support on the Cisco UBE

15.2(1)T

The domain-based routing enables for calls to be routed on the outbound dialpeer based on the domain name or IP address provided in the request URI (Uniform Resource Identifier) of incoming SIP message.

The following commands were introduced or modified: call-route, voice-class sip call-route.
