Sample Configuration

Sample Configurations for Hash-based Load Balancing

Branch-side Configuration

NCE Module Configuration

Cisco IOS Configuration

Data Center Configuration

NCE Configurations on Modules 1 and 2

WCCP Router

Configuration for Mask-based Load Balancing

NCE Configuration on the Head-end Module

Sample Configuration

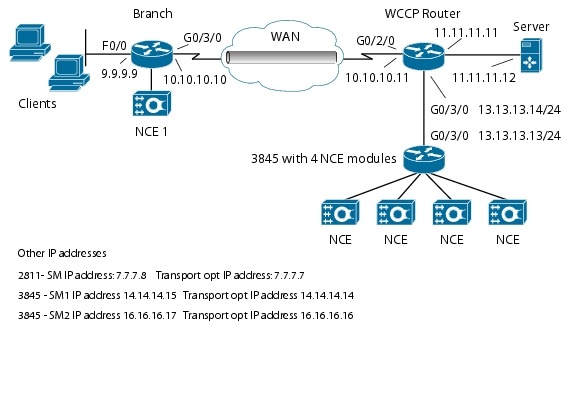

Figure 9-1shows the topology for the configuration examples in this section.

Figure 9-1

WCCP Topology

Sample Configurations for Hash-based Load Balancing

Branch-side Configuration

NCE Module Configuration

tpo wccp group-id 3 bind map-tpo-id

tpo id 4

 default policy-action  compress-sctp

 bandwidth-profile default-sctp

 wccp group-id 3

 sctp-peer 14.14.14.15 tos 0

 exit

tpo id 6

 bandwidth 3000 2000

 default policy-action  compress-sctp

 bandwidth-profile rate-control

 wccp group-id 3

 sctp-peer 16.16.16.17 tos 0

 sctp-peer 16.16.16.17 tos 1

 sctp-peer 16.16.16.17 tos 2

 sctp-peer 16.16.16.17 tos 3

 sctp-peer 16.16.16.17 tos 4

 sctp-peer 16.16.16.17 tos 5

 sctp-peer 16.16.16.17 tos 6

 sctp-peer 16.16.16.17 tos 7

 exit

tpo lookup tpo-id

Cisco IOS Configuration

Note TPO ID in Cisco IOS should be same as the WCCP group ID in the NCE configuration.

interface Tunnel0

 ip address 100.100.100.100 255.255.0.0

 transport-opt 3 interface Transport-Opt-Service-Engine4/0

 tunnel source GigabitEthernet0/1/0

 tunnel destination 10.10.10.10

Data Center Configuration

The following example shows the Cisco IOS configuration on the NCE router with two NCE service modules.

interface GigabitEthernet0/2/0

 ip address 13.13.13.14 255.255.0.0

interface Transport-Opt-Service-Engine0/1

 ip address 14.14.14.14 255.255.0.0

 load-interval 30

 service-module ip address 14.14.14.15 255.255.0.0

 service-module ip default-gateway 14.14.14.14

 hold-queue 60 out

end

interface Transport-Opt-Service-Engine1/0

 ip address 16.16.16.16 255.255.0.0

 load-interval 30

 service-module ip address 16.16.16.17 255.255.0.0

 service-module ip default-gateway 16.16.16.16

 hold-queue 60 out

ip route 0.0.0.0 0.0.0.0 13.13.13.13

ip route 14.14.14.15 255.255.255.255 Transport-Opt-Service-Engine0/1

ip route 16.16.16.17 255.255.255.255 Transport-Opt-Service-Engine1/0

NCE Configurations on Modules 1 and 2

Configuration is the same for both modules.

tpo wccp 61

tpo wccp load-balance hash src-ip dst-ip

tpo wccp router-list 13.13.13.13

tpo id 1

 default policy-action  compress-sctp

 bandwidth-profile high-speed-sctp

 bind 0.0.0.0 0.0.0.0

 sctp-peer 7.7.7.8 tos 0

 sctp-peer 7.7.7.8 tos 1

 sctp-peer 7.7.7.8 tos 2

 sctp-peer 7.7.7.8 tos 3

 sctp-peer 7.7.7.8 tos 4

 sctp-peer 7.7.7.8 tos 5

 sctp-peer 7.7.7.8 tos 6

 sctp-peer 7.7.7.8 tos 7

 exit

tpo lookup bind

WCCP Router

ip wccp 61

interface Tunnel0

 ip address 100.100.100.101 255.255.0.0

ip wccp 61 redirect out    //To redirect packets on WAN to NCE modules.

 tunnel source GigabitEthernet0/3/0

 tunnel destination 10.10.10.11

 crypto map MAP

interface GigabitEthernet0/1/0

 description CONNECTED TO Data Center Module Router

 ip address 13.13.13.13 255.255.0.0

 load-interval 30

 negotiation auto

ip route 0.0.0.0 0.0.0.0 Tunnel0

ip route 14.14.14.0 255.255.255.0 13.13.13.14

ip route 16.16.16.0 255.255.255.0 13.13.13.14

Configuration for Mask-based Load Balancing

Branch router configurations are similar to hash-based configurations.

For the Data Center router housing the NCE service modules, you must configure the concurrent routing and bridging (CRB) in Cisco IOS.

bridge crb

interface GigabitEthernet0/0

 ip address 13.13.13.14 255.255.0.0

 duplex auto

 speed auto

 bridge-group 1

interface Transport-Opt-Service-Engine1/0

 ip unnumbered GigabitEthernet0/0

 service-module ip address 13.13.13.15 255.255.0.0

 service-module ip default-gateway 13.13.13.14

 bridge-group 1

 hold-queue 60 out

interface Transport-Opt-Service-Engine0/0

 ip unnumbered GigabitEthernet0/0

 service-module ip address 13.13.13.16 255.255.0.0

 service-module ip default-gateway 13.13.13.14

 bridge-group 1

 hold-queue 60 out

ip route 0.0.0.0 0.0.0.0 50.50.50.50

ip route 13.13.13.15 255.255.255.255 Transport-Opt-Service-Engine1/0

ip route 13.13.13.16 255.255.255.255 Transport-Opt-Service-Engine0/0

bridge 1 protocol ieee

NCE Configuration on the Head-end Module

Configuration is the same on both modules in the router.

tpo wccp 61

tpo wccp load-balance mask src-ip-mask 0x0 dst-ip-mask 0x1741 src-port-mask 0x0
dst-port-mask 0x0

tpo wccp router-list 13.13.13.13

tpo id 1

 default policy-action  compress-sctp

 bandwidth-profile high-speed-sctp

 bind 0.0.0.0 0.0.0.0

 sctp-peer 7.7.7.8 tos 0

 sctp-peer 7.7.7.8 tos 1

 sctp-peer 7.7.7.8 tos 2

 sctp-peer 7.7.7.8 tos 3

 sctp-peer 7.7.7.8 tos 4

 sctp-peer 7.7.7.8 tos 5

 sctp-peer 7.7.7.8 tos 6

 sctp-peer 7.7.7.8 tos 7

 exit

tpo lookup bind
