Port Configuration Examples

---

This appendix describes port configuration examples relating to FCoE topologies and it includes the following sections:

•VE Port Configuration Example

•FCoE VE Port Topology Example

•Enabling FCoE and Verifying QoS Configuration

•Configuring VE Ports

VE Port Configuration Example

This section provides a sample configuration of the Cisco Nexus 5000 Series switch FCoE VE Port implementation. The configuration covers the switches in switch mode. FCoE initiators are used in this lab. You can attach either FC F Port storage directly to a Nexus 5000 Series switch FC GEMs, or use an FCoE target.

---

Note This example can be used for configuring VE ports between two Cisco Nexus 5000 Series switches in both fabrics. It does not include server configurations.

---

FCoE VE Port Topology Example

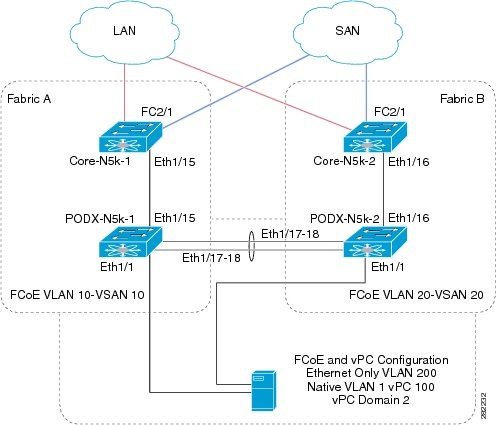

Figure B-1 shows the topology that was used for the configuration example. The following configuration parameters are used in this topology:

•FCoE VLAN for Fabric A: 10

•FCoE VSAN for Fabric A: 10

•FCoE VLAN for Fabric B: 20

•FCoE VSAN for Fabric B: 20

•Ethernet Only VLAN across both fabrics: 200

You should choose these values before the time of configuration.

Figure B-1 FCoE VE Port Topology

---

Note The FCoE VLAN/VSAN numbering does not have to be the same within the fabric. As a best practice, use different FCoE VLANs and VSAN numbers between the two fabrics to avoid confusion. Configurations have often been set up to assign ODD VLAN/VSANs for one fabric and EVEN VLANs/VSANs for the other fabric. This is just one example of keeping the numbers separate between the two fabrics

---

Enabling FCoE and Verifying QoS Configuration

---

Step 1 Enable FCoE.

switch# configure terminal

switch(config)# feature fcoe

FC license checked out successfully

fc_plugin extracted successfully

FC plugin loaded successfully

FCoE manager enabled successfully

FC enabled on all modules successfully

Step 2 (Optional) If you do not want to use the default Quality of Service (QoS) settings, specify your own policies:

---

Note Note: if you use custom policies, class-fcoe must be included in your QoS policies.

---

switch(config) system qos

switch(config-sys-qos)# service-policy type qos input fcoe-customized-in-policy-name

switch(config-sys-qos)# service-policy type queuing input
fcoe-customized-in-policy-name

switch(config-sys-qos)# service-policy type queuing output
fcoe-customized-out-policy-name

switch(config-sys-qos)# service-policy type network-qos fcoe-customized-nq-policy-name

Step 3 Verify that the FCoE policy maps can be found in the running configuration:

---

Note Note: If you specified customized QoS policy map names in Step 2, make sure you replace the default map names with your customized map names.

---

switch(config-sys-qos)# show policy-map system

  Type network-qos policy-maps

  ===============================

  policy-map type network-qos system

    class type network-qos class-fcoe

      match qos-group 1

      pause no-drop

      mtu 2158

    class type network-qos class-default

      match qos-group 0

      mtu 1500

  Service-policy (qos) input:   system

    policy statistics status:   disabled

    Class-map (qos):   class-fcoe (match-any)

      Match: cos 3

      set qos-group 1

    Class-map (qos):   class-default (match-any)

      Match: any

      set qos-group 0

  Service-policy (queuing) input:   default-in-policy

    policy statistics status:   disabled

    Class-map (queuing):   class-fcoe (match-any)

      Match: qos-group 1

      bandwidth percent 50

    Class-map (queuing):   class-default (match-any)

      Match: qos-group 0

      bandwidth percent 50

  Service-policy (queuing) output:   default-out-policy

    policy statistics status:   disabled

    Class-map (queuing):   class-fcoe (match-any)

      Match: qos-group 1

      bandwidth percent 50

    Class-map (queuing):   class-default (match-any)

      Match: qos-group 0

      bandwidth percent 50

Quality of Service configuration on the Nexus 5000 series consists of three main constructs:

•Class-map and policy-map type qos: for classification purposes

•Class-map and policy-map type network: for network properties such as drop and no drop, queue size

•Class-map and policy-map type queueing: for bandwidth allocation

This exercise consists of changing the bandwidth allocation and the COS settings for FCoE.

Without proper configuration of class-fcoe in QoS, the following problems may occur:

•vFC interfaces do not come up (CNAs require advertisement of DCB parameters for FCoE)

•Drops noticed for I/Os

---

Note QoS has the following guidelines:

•A classification policy-map only applies in input

•A network policy-map applies globally (system)

•A queueing policy-map normally is meaningful in output, but since the exercise uses it to control the bandwidth allocation from CNA to the Cisco Nexus 5000 Series switch, in this case it is applied in input

---

Beginning in Cisco NX-OS Release 5.0(2)N1(1), you can modify the buffer allocation for no-drop classes:

switch(config-pmap-nq)# policy-map type network-qos nqos_policy

switch(config-pmap-nq)# class type network-qos nqos_class

switch(config-pmap-nq-c)# pause no-drop buffer-size <size> pause-threshold <threshold>
resume-threshold <threshold>

Step 4 Verify the FCoE system class is active:

switch(config-sys-qos)# show queuing interface ethernet 1/1

Ethernet1/1 queuing information:

TX Queuing

        qos-group sched-type oper-bandwidth

        0 WRR 50

        1 WRR 50

RX Queuing

        qos-group 0

        q-size: 370240, HW MTU: 1500 (1500 configured)

        drop-type: drop, xon: 0, xoff: 2314

        Statistics:

        Pkts received over the port : 0

        Ucastpkts sent to the cross-bar : 0

        Mcastpkts sent to the cross-bar : 0

        Ucastpkts received from the cross-bar : 0

        Pkts sent to the port : 0

        Pkts discarded on ingress : 0

        Per-priority-pause status : Rx (Inactive), Tx (Inactive)

        qos-group 1

        q-size: 79360, HW MTU: 2158 (2158 configured)

        drop-type: no-drop, xon: 128, xoff: 252

        Statistics:

        Pkts received over the port : 0

        Ucastpkts sent to the cross-bar : 0

        Mcastpkts sent to the cross-bar : 0

        Ucastpkts received from the cross-bar : 0

        Pkts sent to the port : 0

        Pkts discarded on ingress : 0

        Per-priority-pause status : Rx (Inactive), Tx (Inactive)

Total Multicast crossbar statistics:

        Mcastpkts received from the cross-bar : 0

Step 5 Repeat Step 1 through Step 4 on both upstream Cisco Nexus 5000 Series switches (CORE_N5k-1 and CORE_N5k-2 in this example).

Configuring VE Ports

FCoE VLAN and VSAN numbering in this example is as follows:

•Fabric A uses FCoE VLAN 10 and VSAN 10

•Fabric B uses FCoE VLAN 20 and VSAN 20

---

Note There are two switches in Fabric A and two switches in Fabric B. The FCoE VLAN/VSANs must match between the switches in the same fabric in order to bring up the VE port between them.

---

---

Step 1 Configure the VSAN on the Nexus 5000 Series switch for Fabric A:

switch(config)#

switch(config)# vsan database

switch(config-vsan-db)# vsan 10

Step 2 Configure the FCoE VLAN to VSAN mapping and verify that it is up and operational for Fabric A:

switch(config)# vlan 10

switch(config-vlan)# fcoe vsan 10

switch(config-vlan)#

switch(config-vlan)# show vlan fcoe

Original VLAN ID        Translated VSAN ID      Association State

----------------      ------------------    	  -----------------

10                       10 Operational

switch(config-vlan)#

Step 3 Repeat Step 1 and Step 2 on the upstream Nexus 5000 Series switch in Fabric A.

Step 4 Configure the VSAN on the Nexus 5000 for Fabric B:

switch(config)#

switch(config)# vsan database

switch(config-vsan-db)# vsan 20

Step 5 Configure the FCoE VLAN to VSAN mapping and verify that it is up and operational for Fabric B

switch(config)# vlan 20

switch(config-vlan)# fcoe vsan 20

switch(config-vlan)#

switch(config-vlan)# show vlan fcoe

Original VLAN ID        Translated VSAN ID      Association State

----------------      ------------------ -----------------

20                       20 Operational

switch(config-vlan)#

Step 6 Repeated Step 1 and Step 2 on the upstream Nexus 5000 Series switch in Fabric B.

Step 7 Configure the underlying 10-Gigabit Ethernet port that the vFC interface will be bound to. The VE port will use this interface as the physical transport for FCoE traffic between the two switches. This interface needs to be configured to trunk the appropriate FCoE VLAN as well as the Ethernet VLAN (in this example, we are using VLAN 200 to carry Ethernet traffic).

The 10-Gigabit Ethernet interfaces connecting the switches in this lab are shown in the topology above:

•Fabric A uses FCoE VLAN 10 and VSAN 10

•Fabric B uses FCoE VLAN 20 and VSAN 20

•PODX-N5K-1 (Fabric A) uses Ethernet 1/15 to connect to CORE N5K1

•PODX-N5K-2 (Fabric B) uses Ethernet 1/16 to connect to CORE N5K2

Configuration for both switches in Fabric A:

switch(config)# vlan 200

switch(config)# interface ethernet 1/15

switch(config-if)# switchport mode trunk

switch(config-if)# switchport trunk allowed vlan 10, 200

switch(config-if)#

Configuration for both switches in Fabric A:

switch(config)# vlan 200

switch(config)# interface ethernet 1/16

switch(config-if)# switchport mode trunk

switch(config-if)# switchport trunk allowed vlan 20, 200

switch(config-if)#

Step 8 Configure the vFC interface on the switch that will be bound to the VE port and add this vFC interface to VSAN 44 in the VSAN database:

The vFC numbers for the VE ports are as follows:

•Fabric A uses FCoE VLAN 10 and VSAN 10

•Fabric B uses FCoE VLAN 20 and VSAN 20

•POD1-N5K-1 (Fabric A) uses Ethernet 1/15 to connect to CORE N5K1

•POD1-N5K-2 (Fabric B) uses Ethernet 1/16 to connect to CORE N5K2

•POD1-N5K-1 (Fabric A) uses vfc 15 and binds it to Ethernet 1/15

•POD1-N5K-2 (Fabric B) uses vfc 16 and binds it to Ethernet 1/16

Configuration for both switches in Fabric A:

switch(config)# int vfc 15

switch(config-if)# switchport mode e

switch(config-if)# switchport trunk allowed vsan 10

switch(config-if)# bind interface eth 1/15

switch(config-if)# no shutdown

switch(config-if)# exit

switch(config)# vsan database

switch(config-vsan-db)# vsan 10 interface vfc 15

switch(config-vsan-db)# show vsan membership

vsan 1 interfaces:

fc2/1             fc2/2             fc2/3             fc2/4

fc2/5             fc2/6             fc2/7             fc2/8

vsan 10 interfaces:

vfc15

vsan 4079(evfp_isolated_vsan) interfaces:

vsan 4094(isolated_vsan) interfaces:

switch(config-vsan-db)# exit

Configuration for both switches in Fabric B:

switch(config)# int vfc 16

switch(config-if)# switchport mode e

switch(config-if)# switchport trunk allowed vsan 20

switch(config-if)# bind interface eth 1/16

switch(config-if)# no shutdown

switch(config-if)# exit

switch(config)# vsan database

switch(config-vsan-db)# vsan 20 interface vfc 16

switch(config-vsan-db)# show vsan membership

vsan 1 interfaces:

fc2/1             fc2/2             fc2/3             fc2/4

fc2/5             fc2/6             fc2/7             fc2/8

vsan 20 interfaces:

vfc16

vsan 4079(evfp_isolated_vsan) interfaces:

vsan 4094(isolated_vsan) interfaces:

switch(config-vsan-db)# exit

---

Note Don't forget that these interface configurations must be configured on both sides of the ISL connecting the two switches in the same fabric.

---

Step 9 Verify that the vFC is up and operational. By default, the vFC will show as trunking. Make sure that it is bound to the correct physical interface and that VSAN 44 shows as allowed and active as well as up on the vFC interface.

Verify both switches in Fabric A:

switch(config)# show int vfc 15

        vfc15 is trunking

        Bound interface is Ethernet1/15

            Hardware is Virtual Fibre Channel

            Port WWN is 20:0e:00:0d:ec:b4:43:7f

            Peer port WWN is 00:00:00:00:00:00:00:00

            Admin port mode is E, trunk mode is on

        snmp link state traps are enabled

            Port mode is TE

            Port vsan is 10

        Trunk vsans (admin allowed and active) (10)

            Trunk vsans (up)                       (10)

            Trunk vsans (isolated)                 ()

            Trunk vsans (initializing)             ()

            1 minute input rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

            1 minute output rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

              13 frames input, 1028 bytes

                0 discards, 0 errors

              13 frames output, 1180 bytes

                0 discards, 0 errors

        last clearing of "show interface" counters never

            Interface last changed at Sat Nov  6 17:58:39 2010

Verify both switches in Fabric A:

switch(config)# show int vfc 16

        vfc16 is trunking

        Bound interface is Ethernet1/16

            Hardware is Virtual Fibre Channel

            Port WWN is 20:0e:00:0d:ec:b4:43:7d

            Peer port WWN is 00:00:00:00:00:00:00:00

            Admin port mode is E, trunk mode is on

        snmp link state traps are enabled

            Port mode is TE

            Port vsan is 20

        Trunk vsans (admin allowed and active) (20)

            Trunk vsans (up)                       (20)

            Trunk vsans (isolated)                 ()

            Trunk vsans (initializing)             ()

            1 minute input rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

            1 minute output rate 0 bits/sec, 0 bytes/sec, 0 frames/sec

              13 frames input, 1028 bytes

                0 discards, 0 errors

              13 frames output, 1180 bytes

                0 discards, 0 errors

        last clearing of "show interface" counters never

            Interface last changed at Sat Nov  6 17:58:39 2010
