Individual Subscriber Configuration Profile Example

Individual Subscriber Configuration Profile Adjacencies

Individual Subscriber Configuration Profile (in Segments

Individual Subscriber Configuration Profile (for Copy and Paste)

Individual Subscriber Configuration Profile (with CLI Prompts)


Individual Subscriber Configuration Profile Example


This section provides a complete example of an Individual Subscriber Configuration Profile in the following sections:

Individual Subscriber Configuration Profile Adjacencies

Individual Subscriber Configuration Profile (in Segments

Individual Subscriber Configuration Profile (for Copy and Paste)

Individual Subscriber Configuration Profile (with CLI Prompts)

Individual Subscriber Configuration Profile Adjacencies

The User Network Interface (UNI) feature of the Cisco Unified Border Element provides individual subscribers with secure connections to service provider networks.

For a UNI, the adjacencies are the signaling peers for the Cisco Unified Border Element. In this example, the adjacencies are the softswitch of the service provider and the IP DSLAM. (See Figure 5.)

The Cisco Unified Border Element routes messages from the IP DSLAM to the softswitch of the service provider.

The following components are configured on UNI adjacencies:

SIP trunk between the Cisco Unified Border Element and the softswitch of the service provider

VRF between the Cisco Unified Border Element and the IP DSLAM

Registration of subscribers with the softswitch

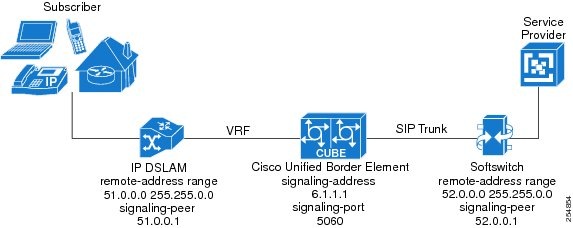

Figure 5 shows a subscriber connected to the softswitch of a service provider via an IP DSLAM and how the Cisco Unified Border Element provides a secure connection between the subscriber and the service provider. The softswitch and the IP DSLAM are the signaling peers for the Cisco Unified Border Element.

Figure 5

User Network Interface (UNI)

In subscriber adjacency, the signaling peer is the IP DSLAM and the remote-address is the range of IP addresses that are allowed for the IP DSLAM. The registration outgoing timer command enables softswitch shielding and sets the timeout period during which the Cisco Unified Border Element has to send outgoing register messages to the softswitch.

Subscriber Adjacency

adjacency sip subscribers
    vrf subscribers
    inherit profile preset-access
    signaling-address ipv4 6.1.1.1
    signaling-port 5060
    remote-address ipv4 51.0.0.0 255.255.0.0
    signaling-peer 51.0.0.1
    registration outgoing timer 3600
    registration rewrite-register
    account subscribers
    attach



In the softswitch adjacency, the signaling peer is the softswitch and the remote-address is the range of IP addresses that are allowed for the softswitch. The registration contact username rewrite command allows the contact username in a SIP REGISTER request to be changed or rewritten.

Softswitch Adjacency

adjacency sip softswitch
    vrf softswitch
    inherit profile preset-core
    signaling-address ipv4  6.1.1.1
    signaling-port 5060
    remote-address ipv4 52.0.0.0 255.255.255.255
    signaling-peer 52.0.0.1
    registration contact username rewrite
    account softswitch
    attach



Individual Subscriber Configuration Profile (in Segments

This Individual Subscriber Configuration Profile example shows each segment of the example separated by a Heading describing the function of that segment.

Configuration Mode

config t

SBC SBE Configuration Setup

sbc MY_SBC
	sbe

Media Characteristics (Security)

secure-media
...
...

White List, Pass Headers

sip header-profile PASS-HEADERS
	description pass non-essential headers
	header Allow entry 1
	action pass
	header Min-SE entry 1
	action pass
	header Reason entry 1
	action pass
	header SERVER entry 1
	action pass
	header DIVERSION entry 1
	action pass
	header Allow-Events entry 1
	action pass
	header Remote-Party-ID entry 1
	action pass
	header Session-Expires entry 1
	action pass
	header session-expiry entry 1
	action pass
	header RESOURCE-PRIORITY entry 1
	action pass

White List, Methods and Options

sip method-profile method1
	description pass default methods
	pass-body
	method INFO
	action as-profile
	method OPTION
	action pass
	method UPDATE
	action pass
	sip option-profile option1
	description pass default options plus timer
	option TIMER
	option REPLACES



Subscriber Adjacency

adjacency sip subscribers
    vrf subscribers
    inherit profile preset-access
    signaling-address ipv4 6.1.1.1
    signaling-port 5060
    remote-address ipv4 51.0.0.0 255.255.0.0
    signaling-peer 51.0.0.1
    registration outgoing timer 3600
    registration rewrite-register
    account subscribers
    attach



Softswitch Adjacency

adjacency sip softswitch
    vrf softswitch
    inherit profile preset-core
    signaling-address ipv4  6.1.1.1
    signaling-port 5060
    remote-address ipv4 52.0.0.0 255.255.255.255
    signaling-peer 52.0.0.1
    registration contact username rewrite
    account softswitch
    attach



Call Policy, Subscriber to Softswitch Connection

call-policy-set 1
	first-call-routing-table start-table
	rtg-src-adjacency-table start-table
	entry 1
		match-adjacency softswitch
		dst-adjacency subscribers
		action complete
	entry 2
		match-adjacency subscribers
		dst-adjacency softswitch
		action complete
	complete
active-call-policy-set 1



Call Policy, Number Analysis Stage - Number Validation

call-policy-set 2
	first-number-analysis-table VALIDATE-DEST-PREFIX
	na-dst-prefix-table VALIDATE-DEST-PREFIX
	entry 1
		match-prefix 8XX
		action accept
		exit
	entry 2
		match-prefix 911
		action accept
		exit
	entry 3
		match-prefix 1XX
		action accept
		exit
	entry 4
		match-prefix X
		action reject
		exit
	complete
active-call-policy-set 2



Call Policy, Number Analysis Stage - Number Categorization

call-policy-set 3
	first-number-analysis-table VALIDATE-DEST-PREFIX
	na-dst-prefix-table VALIDATE-DEST-PREFIX
	entry 1
		match-prefix 8X
		category Non-emergency
		action accept
		exit
	entry 2
		match-prefix 1XX
		category Non-Emergency
		action accept
		exit
	entry 3
		match-prefix 911
		category Emergency
		action accept
		exit
	entry 4
		match-prefix X
		action reject
		exit
		complete
active-call-policy-set 3



Call Policy, Number Analysis Stage - Digit Manipulation

call-policy-set 4
	first-number-analysis-table VALIDATE-DEST-PREFIX
	na-dst-prefix-table VALIDATE-DEST-PREFIX
	entry 1
		match-prefix 8X
		category Non-emergency
		edit-dst del-prefix 1
		action accept
		exit
	entry 2
		match-prefix 1XX
		category Non-Emergency
		action accept
		exit
	entry 3
		match-prefix 911
		category Emergency
		action accept
		exit
		entry 4
		match-prefix X
		action reject
		exit
	complete
active-call-policy-set 4



Call Policy, Routing Stage - Destination Adjacency

call-policy-set 5
	first-call-routing-table ROUTE-ON-DEST-NUM
	rtg-dst-address-table ROUTE-ON-DEST-NUM
	entry 1
		match-address 212
		prefix
		edit add-prefix 1
		dst-adjacency subscribers
		action complete
		exit
	entry 2
		match-address 215
		prefix
		dst-adjacency subscribers
		 action complete
		entry 3
		match-address 732
		prefix
		dst-adjacency softswitch
		action complete
		exit
	entry 4
		match-address 908
		prefix
		dst-adjacency softswitch
		edit replace 609
		action complete
		complete
		exit
active-call-policy-set 5

Call Admission Control, CAC Policy Media Bandwidth Field Ignore

cac-policy-set 1
	description Ignore the  bandwidth field in SDP
	first-cac-table BW
	first-cac-scope call
	cac-table BW
	table-type policy-set
	entry 1
		media bandwidth-field ignore
		action cac-complete
	complete
active-cac-policy-set 1



Show Command, Display Adjacencies

Router# show sbc MY_SBC sbe adjacencies


SBC Service "MY_SBC"
      Name                      Type    State        Description
      -----------------------------------------------------------
      subscribers                     SIP     Attached
      softswitch                     SIP     Attached
TPX-SBC#

Individual Subscriber Configuration Profile (for Copy and Paste)

This is a complete Individual Subscriber Configuration Profile example that can be copied and pasted into the CLI of an ASR1000 running the Cisco Unified Border Element. Each segment is separated only by returns.

config t


sbc MY_SBC
sbe
secure-media




sip header-profile PASS-HEADERS
description pass non-essential headers
header Allow entry 1
action pass
header Min-SE entry 1
action pass
header Reason entry 1
action pass
header SERVER entry 1
action pass
header DIVERSION entry 1
action pass
header Allow-Events entry 1
action pass
header Remote-Party-ID entry 1
action pass
header Session-Expires entry 1
action pass
header session-expiry entry 1
action pass
header RESOURCE-PRIORITY entry 1
action pass






sip method-profile method1
description pass default methods
pass-body
method INFO
action as-profile
method OPTION
action pass
method UPDATE
action pass
sip option-profile option1
description pass default options plus timer
option TIMER
option REPLACES






adjacency sip subscribers
vrf subscribers
inherit profile preset-access
signaling-address ipv4 6.1.1.1
signaling-port 5060
remote-address ipv4 51.0.0.0 255.255.0.0
signaling-peer 51.0.0.1
registration outgoing timer 3600
registration rewrite-register
account subscribers
attach






adjacency sip softswitch
vrf softswitch
inherit profile preset-core
signaling-address ipv4  6.1.1.1
signaling-port 5060
remote-address ipv4 52.0.0.0 255.255.255.255
signaling-peer 52.0.0.1
registration contact username rewrite
account softswitch
attach






call-policy-set 1
first-call-routing-table start-table
rtg-src-adjacency-table start-table
entry 1
match-adjacency softswitch
dst-adjacency subscribers
action complete
entry 2
match-adjacency subscribers
dst-adjacency softswitch
action complete
complete
active-call-policy-set 1






call-policy-set 2
first-number-analysis-table VALIDATE-DEST-PREFIX
na-dst-prefix-table VALIDATE-DEST-PREFIX
entry 1
match-prefix 8XX
action accept
exit
entry 2
match-prefix 911
action accept
exit
entry 3
match-prefix 1XX
action accept
exit
entry 4
match-prefix X
action reject
exit
complete
active-call-policy-set 2






call-policy-set 3
first-number-analysis-table VALIDATE-DEST-PREFIX
na-dst-prefix-table VALIDATE-DEST-PREFIX
entry 1
match-prefix 8X
category Non-emergency
action accept
exit
entry 2
match-prefix 1XX
category Non-Emergency
action accept
exit
entry 3
match-prefix 911
category Emergency
action accept
exit
entry 4
match-prefix X
action reject
exit
complete
active-call-policy-set 3






call-policy-set 4
first-number-analysis-table VALIDATE-DEST-PREFIX
na-dst-prefix-table VALIDATE-DEST-PREFIX
entry 1
match-prefix 8X
category Non-emergency
edit-dst del-prefix 1
action accept
exit
entry 2
match-prefix 1XX
category Non-Emergency
action accept
exit
entry 3
match-prefix 911
category Emergency
action accept
exit
entry 4
match-prefix X
action reject
exit
complete
active-call-policy-set 4






call-policy-set 5
first-call-routing-table ROUTE-ON-DEST-NUM
rtg-dst-address-table ROUTE-ON-DEST-NUM
entry 1
match-address 212
prefix
edit add-prefix 1
dst-adjacency subscribers
action complete
exit
entry 2
match-address 215
prefix
dst-adjacency subscribers
action complete
entry 3
match-address 732
prefix
dst-adjacency softswitch
action complete
exit
entry 4
match-address 908
prefix
dst-adjacency softswitch
edit replace 609
action complete
complete
exit
active-call-policy-set 5






cac-policy-set 1
description Ignore the  bandwidth field in SDP
first-cac-table BW
first-cac-scope call
cac-table BW
table-type policy-set
entry 1
media bandwidth-field ignore
action cac-complete
complete
active-cac-policy-set 1









Individual Subscriber Configuration Profile (with CLI Prompts)

This complete Individual Subscriber Configuration Profile example shows the CLI prompts.

Router#
Router#config t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#
Router(config)#sbc MY_SBC
Router(config-sbc)#sbe
Router(config-sbc-sbe)#secure-media
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#sip header-profile PASS-HEADERS
Router(config-sbc-sbe-sip-hdr)#description pass non-essential headers
Router(config-sbc-sbe-sip-hdr)#header Allow entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header Min-SE entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header Reason entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header SERVER entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header DIVERSION entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header Allow-Events entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header Remote-Party-ID entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header Session-Expires entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#header session-expiry entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#$URCE-PRIORITY entry 1
Router(config-sbc-sbe-sip-hdr-ele)#action pass
Router(config-sbc-sbe-sip-hdr-ele-act)#
Router(config-sbc-sbe-sip-hdr-ele-act)#
Router(config-sbc-sbe-sip-hdr-ele-act)#
Router(config-sbc-sbe-sip-hdr-ele-act)#sip method-profile method1
Router(config-sbc-sbe-sip-mth)#description pass default methods
Router(config-sbc-sbe-sip-mth)#pass-body
Router(config-sbc-sbe-sip-mth)#method INFO
Router(config-sbc-sbe-sip-mth-ele)#action as-profile
Router(config-sbc-sbe-sip-mth-ele)#method OPTION
Router(config-sbc-sbe-sip-mth-ele)#action pass
Router(config-sbc-sbe-sip-mth-ele)#method UPDATE
Router(config-sbc-sbe-sip-mth-ele)#action pass
Router(config-sbc-sbe-sip-mth-ele)#sip option-profile option1
Router(config-sbc-sbe-sip-opt)#$ pass default options plus timer
Router(config-sbc-sbe-sip-opt)#option TIMER
Router(config-sbc-sbe-sip-opt)#option REPLACES
Router(config-sbc-sbe-sip-opt)#
Router(config-sbc-sbe-sip-opt)#
Router(config-sbc-sbe-sip-opt)#
Router(config-sbc-sbe-sip-opt)#adjacency sip subscribers
Router(config-sbc-sbe-adj-sip)#vrf subscribers
Router(config-sbc-sbe-adj-sip)#inherit profile preset-access
Router(config-sbc-sbe-adj-sip)#signaling-address ipv4 6.1.1.1
Router(config-sbc-sbe-adj-sip)#signaling-port 5060
Router(config-sbc-sbe-adj-sip)#$ess ipv4 51.0.0.0 255.255.0.0
Router(config-sbc-sbe-adj-sip)#signaling-peer 51.0.0.1
Router(config-sbc-sbe-adj-sip)#registration outgoing timer 3600
Router(config-sbc-sbe-adj-sip)#registration rewrite-register
Router(config-sbc-sbe-adj-sip)#account subscribers
Router(config-sbc-sbe-adj-sip)#attach
Router(config-sbc-sbe-adj-sip)#
Router(config-sbc-sbe-adj-sip)#
Router(config-sbc-sbe-adj-sip)#
Router(config-sbc-sbe-adj-sip)#adjacency sip softswitch
Router(config-sbc-sbe-adj-sip)#vrf softswitch
Router(config-sbc-sbe-adj-sip)#inherit profile preset-core
Router(config-sbc-sbe-adj-sip)#signaling-address ipv4  6.1.1.1
Router(config-sbc-sbe-adj-sip)#signaling-port 5060
Router(config-sbc-sbe-adj-sip)#$ess ipv4 52.0.0.0 255.255.255.255
Router(config-sbc-sbe-adj-sip)#signaling-peer 52.0.0.1
Router(config-sbc-sbe-adj-sip)#registration contact username rewrite
Router(config-sbc-sbe-adj-sip)#account softswitch
Router(config-sbc-sbe-adj-sip)#attach
Router(config-sbc-sbe-adj-sip)#
Router(config-sbc-sbe-adj-sip)#
Router(config-sbc-sbe-adj-sip)#
Router(config-sbc-sbe-adj-sip)#call-policy-set 1
Router(config-sbc-sbe-rtgpolicy)#first-call-routing-table start-table
Router(config-sbc-sbe-rtgpolicy)#rtg-src-adjacency-table start-table
Router(config-sbc-sbe-rtgpolicy-rtgtable)#entry 1
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$ency softswitch
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$cy subscribers
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#action complete
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#entry 2
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$ency subscribers
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$cy softswitch
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#action complete
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#complete
Router(config-sbc-sbe-rtgpolicy)#active-call-policy-set 1
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#call-policy-set 2
Router(config-sbc-sbe-rtgpolicy)#$-table VALIDATE-DEST-PREFIX
Router(config-sbc-sbe-rtgpolicy)#$ix-table VALIDATE-DEST-PREFIX
Router(config-sbc-sbe-rtgpolicy-natable)#entry 1
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 8XX
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 2
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 911
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 3
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 1XX
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 4
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix X
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action reject
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#complete
Router(config-sbc-sbe-rtgpolicy)#active-call-policy-set 2
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#call-policy-set 3
Router(config-sbc-sbe-rtgpolicy)#$-table VALIDATE-DEST-PREFIX
Router(config-sbc-sbe-rtgpolicy)#$ix-table VALIDATE-DEST-PREFIX
Router(config-sbc-sbe-rtgpolicy-natable)#entry 1
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 8X
Router(config-sbc-sbe-rtgpolicy-natable-entry)#category Non-emergency
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 2
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 1XX
Router(config-sbc-sbe-rtgpolicy-natable-entry)#category Non-Emergency
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 3
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 911
Router(config-sbc-sbe-rtgpolicy-natable-entry)#category Emergency
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 4
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix X
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action reject
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#complete
Router(config-sbc-sbe-rtgpolicy)#active-call-policy-set 3
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#call-policy-set 4
Router(config-sbc-sbe-rtgpolicy)#$-table VALIDATE-DEST-PREFIX
Router(config-sbc-sbe-rtgpolicy)#$ix-table VALIDATE-DEST-PREFIX
Router(config-sbc-sbe-rtgpolicy-natable)#entry 1
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 8X
Router(config-sbc-sbe-rtgpolicy-natable-entry)#category Non-emergency
Router(config-sbc-sbe-rtgpolicy-natable-entry)#edit-dst del-prefix 1
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 2
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 1XX
Router(config-sbc-sbe-rtgpolicy-natable-entry)#category Non-Emergency
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 3
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix 911
Router(config-sbc-sbe-rtgpolicy-natable-entry)#category Emergency
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action accept
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#entry 4
Router(config-sbc-sbe-rtgpolicy-natable-entry)#match-prefix X
Router(config-sbc-sbe-rtgpolicy-natable-entry)#action reject
Router(config-sbc-sbe-rtgpolicy-natable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-natable)#complete
Router(config-sbc-sbe-rtgpolicy)#active-call-policy-set 4
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#call-policy-set 5
Router(config-sbc-sbe-rtgpolicy)#$routing-table ROUTE-ON-DEST-NUM
Router(config-sbc-sbe-rtgpolicy)#$ress-table ROUTE-ON-DEST-NUM
Router(config-sbc-sbe-rtgpolicy-rtgtable)#entry 1
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#match-address 212
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#prefix
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#edit add-prefix 1
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$cy subscribers
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#action complete
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-rtgtable)#entry 2
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#match-address 215
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#prefix
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$cy subscribers
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#action complete
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#entry 3
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#match-address 732
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#prefix
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$cy softswitch
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#action complete
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#exit
Router(config-sbc-sbe-rtgpolicy-rtgtable)#entry 4
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#match-address 908
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#prefix
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#$cy softswitch
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#edit replace 609
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#action complete
Router(config-sbc-sbe-rtgpolicy-rtgtable-entry)#complete
Router(config-sbc-sbe-rtgpolicy)#exit
Router(config-sbc-sbe)#active-call-policy-set 5
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#cac-policy-set 1
Router(config-sbc-sbe-cacpolicy)#$ Ignore the  bandwidth field in SDP
Router(config-sbc-sbe-cacpolicy)#first-cac-table BW
Router(config-sbc-sbe-cacpolicy)#first-cac-scope call
Router(config-sbc-sbe-cacpolicy)#cac-table BW
Router(config-sbc-sbe-cacpolicy-cactable)#table-type policy-set
Router(config-sbc-sbe-cacpolicy-cactable)#entry 1
Router(config-sbc-sbe-cacpolicy-cactable-entry)#$idth-field ignore
Router(config-sbc-sbe-cacpolicy-cactable-entry)#action cac-complete
Router(config-sbc-sbe-cacpolicy-cactable-entry)#complete
Router(config-sbc-sbe-cacpolicy)#active-cac-policy-set 1
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
Router(config-sbc-sbe)#
