Cisco Unified Border Element (SP Edition) Configuration Profile Examples

Introduction

Brief Overview of the Cisco Unified Border Element


Cisco Unified Border Element (SP Edition) Configuration Profile Examples


Introduction

This document is intended for Cisco Network Administrators who have experience with the Cisco Unified Border Element (SP Edition). This document provides configuration profile examples for configuring the Cisco Unified Border Element (SP Edition).

Complete configuration profile examples are provided. Individual segments of the configuration profile examples are explained individually.

The Cisco Unified Border Element (SP Edition) was formerly known as Session Border Controller (SBC). In this document, Cisco Unified Border Element (SP Edition) is the preferred term. However, SBC is used occasionally where necessary.

For more information on the Cisco Unified Border Element (SP) features, see the following documents:

Cisco Unified Border Element (SP Edition) Configuration Guide: Unified Model

Cisco Unified Border Element (SP Edition) Configuration Guide: Distributed Model

For more detailed information on the Cisco Unified Border Element (SP) commands, see the following documents:

Cisco Unified Border Element (SP Edition) Command Reference: Unified Model

Cisco Unified Border Element (SP Edition) Command Reference: Distributed Model

This document is compatible and current with the Cisco IOS XE 3.1S release.

Brief Overview of the Cisco Unified Border Element

The Cisco Unified Border Element is used to create secure connections between different networks, and to establish and maintain the routing between these networks. Typically, Cisco Unified Border Element customer networks are based on SIP-dialed numbers.

The Cisco Unified Border Element provides secure transport of media, such as video and audio, from one network to another, using call policies and Call Admission Control (CAC) policies. These configurable policies allow customers to control the volume of calls per customer and to restrict certain types of calls.

The two primary elements of a Cisco Unified Border Element configuration are call policies and CAC policies. A call policy handles number analysis and routing. A CAC policy controls call admissions only.

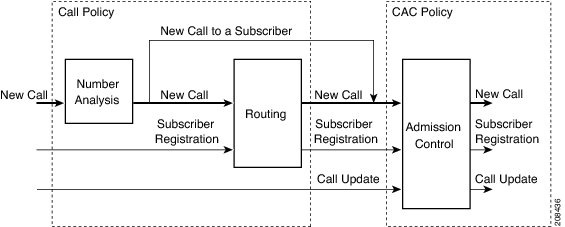

Figure 1 shows the order in which number analysis, routing, and CAC occur during a new call.

Figure 1

Call Policy Set and CAC Policy
