Monitor Performance

Table Of Contents

Monitor Performance

Before You Begin

NTP-A253 Change the PM Display

DLP-A124 Refresh PM Counts at 15-Minute Intervals

DLP-A125 Refresh PM Counts at One-Day Intervals

DLP-A126 View Near-End PM Counts

DLP-A127 View Far-End PM Counts

DLP-A128 Monitor PM Counts for a Selected Signal

DLP-A129 Reset Current PM Counts

DLP-A130 Clear Selected PM Counts

DLP-A260 Set Auto-Refresh Interval for Displayed PM Counts

DLP-A261 Refresh PM Counts for a Different Port

NTP-A197 Monitor Electrical Performance

NTP-A198 Monitor Ethernet Performance

DLP-A256 View Ethernet Statistics PM Parameters

DLP-A257 View Ethernet Utilization PM Parameters

DLP-A258 View Ethernet History PM Parameters

DLP-A320 View ML-Series Ether Ports PM Parameters

DLP-A321 View ML-Series POS Ports PM Parameters

DLP-A259 Refresh Ethernet PM Counts at a Different Time Interval

NTP-A250 Monitor OC-N Performance

DLP-A121 Enable/Disable Pointer Justification Count Performance Monitoring

DLP-A122 Enable/Disable Intermediate Path Performance Monitoring

DLP-A507 View OC-N PM Parameters

NTP-A251 Monitor Multirate Transport Performance

DLP-A500 Enable/Disable OTN G.709 Performance Monitoring

DLP-A501 Enable/Disable OTN FEC Performance Monitoring

DLP-A317 View Optics PM Parameters

DLP-A318 View Payload PM Parameters

DLP-A319 View Optical Transport Network PM Parameters

NTP-A252 Monitor DWDM Performance

DLP-A502 View Optical Service Channel PM Parameters

DLP-A503 View Optical Amplifier PM Parameters

DLP-A504 View Optical Multiplexer and Demultiplexer PM Parameters

DLP-A505 View Channel Filter Optical Add/Drop Multiplexer PM Parameters

DLP-A506 View Band Filter Optical Add/Drop Multiplexer PM Parameters


Monitor Performance


This chapter explains how to enable and view performance monitoring statistics for the Cisco ONS 15454. Performance monitoring (PM) parameters are used by service providers to gather, store, set thresholds, and report performance data for early detection of problems. For more PM information, details, and definitions refer to the Cisco ONS 15454 Reference Manual.

Before You Begin

Before performing any of the following procedures, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15454 Troubleshooting Guide as necessary.

This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).

1. A253 Change the PM Display—Complete as needed to change the displayed PM counts.

2. A197 Monitor Electrical Performance—Complete as needed to monitor electrical performance.

3. A198 Monitor Ethernet Performance—Complete as needed to monitor Ethernet performance.

4. A250 Monitor OC-N Performance—Complete as needed to monitor optical (OC-N) performance.

5. A251 Monitor Multirate Transport Performance—Complete as needed to monitor multirate transport performance.

6. A252 Monitor DWDM Performance—Complete as needed to monitor DWDM performance.


Note For additional information regarding PM parameters, refer to the Digital transmission surveillance section in Telcordia's GR-1230-CORE, GR-820-CORE, GR-499-CORE, and GR-253-CORE documents, and in the ANSI document entitled Digital Hierarchy - Layer 1 In-Service Digital Transmission Performance Monitoring.


NTP-A253 Change the PM Display

Purpose

This procedure enables you to change the display of PM counts by selecting drop-down menu or radio button options in the Performance window.

Tools/Equipment

None

Prerequisite Procedures

Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see "Create Circuits and VT Tunnels" and "Change Card Settings."

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Complete the "DLP-A60 Log into CTC" task at the node that you want to monitor. If you are already logged in, continue with Step 2

Step 2 In node view, double-click the electrical, Ethernet, optical (OC-N), multirate transport, or DWDM card where you want to view PM counts. The card view appears.

Step 3 As needed, use the following tasks to change the display of PM counts:

A124 Refresh PM Counts at 15-Minute Intervals

A125 Refresh PM Counts at One-Day Intervals

A126 View Near-End PM Counts

A127 View Far-End PM Counts

A128 Monitor PM Counts for a Selected Signal

A129 Reset Current PM Counts

A130 Clear Selected PM Counts

A260 Set Auto-Refresh Interval for Displayed PM Counts

A261 Refresh PM Counts for a Different Port

Stop. You have completed this procedure.


DLP-A124 Refresh PM Counts at 15-Minute Intervals

Purpose

This task changes the window view to display PM counts in 15-minute intervals.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 Click the 15 min radio button.

Step 4 Click Refresh. Performance monitoring parameters appear in 15-minute intervals synchronized with the time of day.

Step 5 View the Curr column to find PM counts for the current 15-minute interval.

Each monitored performance parameter has corresponding threshold values for the current time period. If the value of the counter exceeds the threshold value for a particular 15-minute interval, a threshold crossing alert (TCA) is raised. The number represents the counter value for each specific performance monitoring parameter.

Step 6 View the Prev-n columns to find PM counts for the previous 15-minute intervals.


Note If a complete 15-minute interval count is not possible, the value appears with a yellow background. An incomplete or incorrect count can be caused by monitoring for less than 15 minutes after the counter started, changing node timing settings, changing the time zone settings, replacing a card, resetting a card, or by changing port states. When the problem is corrected, the subsequent 15-minute interval appears with a white background.


Step 7 Return to your originating procedure (NTP).


DLP-A125 Refresh PM Counts at One-Day Intervals

Purpose

This task changes the window view to display PM parameters in 1-day intervals.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 Click the 1 day radio button.

Step 4 Click Refresh. Performance monitoring appears in 1-day intervals synchronized with the time of day.

Step 5 View the Curr column to find PM counts for the current 1-day interval.

Each monitored performance parameter has corresponding threshold values for the current time period. If the value of the counter exceeds the threshold value for a particular 1-day interval, a threshold crossing alert (TCA) is raised. The number represents the counter value for each specific performance monitoring parameter.

Step 6 View the Prev-n columns to find PM counts for the previous 1-day intervals.


Note If a complete count over a 1-day interval is not possible, the value appears with a yellow background. An incomplete or incorrect count can be caused by monitoring for less than 24 hours after the counter started, changing node timing settings, changing the time zone settings, replacing a card, resetting a card, or by changing port states. When the problem is corrected, the subsequent 1-day interval appears with a white background.


Step 7 Return to your originating procedure (NTP).


DLP-A126 View Near-End PM Counts

Purpose

Use this task to view near-end PM counts for the selected card and port.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 Click the Near End radio button.

Step 4 Click Refresh. All PM parameters occurring for the selected card on the incoming signal appear. For PM parameter definitions refer to the Cisco ONS 15454 Reference Manual.

Step 5 View the Curr column to find PM counts for the current time interval.

Step 6 View the Prev-n columns to find PM counts for the previous time intervals.

Step 7 Return to your originating procedure (NTP).


DLP-A127 View Far-End PM Counts

Purpose

Use this task to view far-end PM parameters for the selected card and port. Only cards that allow far-end monitoring have the Far End radio button as an option.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 Click the Far End radio button.

Step 4 Click Refresh. All PM parameters recorded by the far-end node for the selected card on the outgoing signal appear. For PM parameter definitions refer to the Cisco ONS 15454 Reference Manual.

Step 5 View the Curr column to find PM counts for the current time interval.

Step 6 View the Prev-n columns to find PM counts for the previous time intervals.

Step 7 Return to your originating procedure (NTP).


DLP-A128 Monitor PM Counts for a Selected Signal

Purpose

This task enables you to view near-end or far-end PM counts for a specific signal (STSn), path (VTn) and port (DSn) on a selected card.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.


Note Different port and signal-type menus appear depending on the card type and the circuit type. The appropriate types (DS1, DS3, VT path, STS path) appear based on the card. For example, the DS3XM card lists DS3, DS1, VT path, and STS path PM parameters as signal-types. This enables you to select both the DS-3 port and the DS-1 within the specified DS-3.


Step 3 In the signal type drop-down menus, click the desired following options:

DS: n or Port:n (card port number)

VT: n (VT path number)

STS: n (STS number within the VT path)

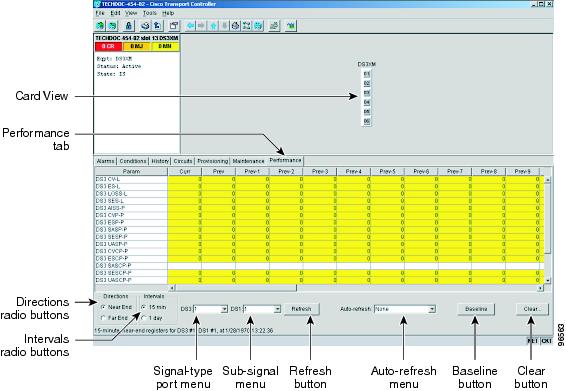

Figure 10-1 shows the Port and Signal-type menus on the Performance window for a DS3XM-6 card.

Figure 10-1 Signal-Type Menus for a DS3XM-6 Card

Step 4 Click Refresh. All PM counts recorded by the near-end or far-end node for the specified outgoing signal type on the selected card and port appear. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 5 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Curr (current) and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 6 Return to your originating procedure (NTP).


DLP-A129 Reset Current PM Counts

Purpose

This task clears the PM count, but it does not clear the cumulative PM count. This task allows you to see how quickly PM counts rise.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 Click Baseline.


Note The Baseline button clears the PM counts displayed in the current time interval but does not clear the PM counts on the card. When the current time interval expires or the window view changes, the total number of PM counts on the card and on the window appear in the appropriate column. The baseline values are discarded if you change views to a different window and then return to the Performance window.


Step 4 View the current statistics column(s) to observe changes to PM counts for the current time interval.

Step 5 Return to your originating procedure (NTP).


DLP-A130 Clear Selected PM Counts

Purpose

This task uses the Clear button to clear specified PM counts depending on the option selected.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Caution Pressing the Clear button can mask problems if used incorrectly. This button is commonly used for testing purposes.


Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 Click Clear.

Step 4 From the Clear Statistics menu, choose one of three options:

Selected statistics: Clearing selected statistics erases from the card and the window display all PM counts associated with the current combination of statistics on the selected port. This means the selected time interval, direction, and signal type counts are erased from the card and the window display.

All statistics on port x: Clearing all statistics on port x erases from the card and the window display all PM counts associated with all combinations of the statistics on the selected port. This means all time intervals, directions, and signal type counts are erased from the card and the window display.

All statistics in current view: Clearing all statistics in the current view erases from the card and the window display all PM counts for all ports.

Step 5 From the Clear Statistics menu, click Yes to clear the selected statistics.

Step 6 Verify that the selected PM counts have been cleared.

Step 7 Return to your originating procedure (NTP).


DLP-A260 Set Auto-Refresh Interval for Displayed PM Counts

Purpose

This task changes the window auto-refresh intervals for updating the displayed PM counts.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 From the Auto-refresh drop-down menu, choose one of six options:

None: This option disables the auto-refresh feature.

15 Seconds: This option sets the window auto-refresh to 15-second time intervals.

30 Seconds: This option sets the window auto-refresh to 30-second time intervals.

1 Minute: This option sets the window auto-refresh to 1-minute time intervals.

3 Minutes: This option sets the window auto-refresh to 3-minute time intervals.

5 Minutes: This option sets the window auto-refresh to 5-minute time intervals.

Step 4 Click Refresh. The PM counts for the newly-selected auto-refresh time interval appear.

Depending on the selected auto-refresh interval, the displayed PM counts automatically update when each refresh interval completes. If the auto-refresh interval is set to None, the PM counts that appear are not updated unless you click Refresh.

Step 5 Return to your originating procedure (NTP).


DLP-A261 Refresh PM Counts for a Different Port

Purpose

This task changes the window view to display PM counts for another port on a multi-port card.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 In the Port drop-down menu, click the desired port.

Step 4 Click the Refresh button. The PM counts for the newly-selected port appear.

Step 5 Return to your originating procedure (NTP).


NTP-A197 Monitor Electrical Performance

Purpose

This procedure enables you to view node near-end or far-end performance during selected time intervals on a selected electrical card and port to detect possible performance problems. This procedure does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

None

Prerequisite Procedures

Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see "Create Circuits and VT Tunnels" and "Change Card Settings."

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Complete the "DLP-A60 Log into CTC" task at the node that you want to monitor. If you are already logged in, continue with Step 2.

Step 2 In node view, double-click the electrical card where you want to view PM counts. The card view appears.

Step 3 Click the Performance tab (Figure 10-2).

Figure 10-2 Viewing Electrical Card Performance Monitoring Information

Step 4 In the signal type drop-down menus, click one of the following options:

DSn (card port)

VTn (VT path)

STSn (STS within the VT path)

Step 5 Click Refresh.

Step 6 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Curr (current) and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Stop. You have completed this procedure.


NTP-A198 Monitor Ethernet Performance

Purpose

This procedure enables you to view node transmit and receive performance during selected time intervals on a selected Ethernet card and port to detect possible performance problems. This procedure does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

None

Prerequisite Procedures

Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see "Create Circuits and VT Tunnels" and "Change Card Settings."

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Complete the "DLP-A60 Log into CTC" task at the node that you want to monitor. If you are already logged in, continue with Step 2.

Step 2 Complete the "DLP-A256 View Ethernet Statistics PM Parameters" task.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Step 3 Complete the "DLP-A257 View Ethernet Utilization PM Parameters" task.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Step 4 Complete the "DLP-A258 View Ethernet History PM Parameters" task.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Step 5 Complete the "DLP-A320 View ML-Series Ether Ports PM Parameters" task.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Step 6 Complete the "DLP-A321 View ML-Series POS Ports PM Parameters" task.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Stop. You have completed this procedure.


DLP-A256 View Ethernet Statistics PM Parameters

Purpose

This task enables you to view current statistical PM counts on an Ethernet card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the E-Series or G-Series Ethernet card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Statistics tabs (Figure 10-3).

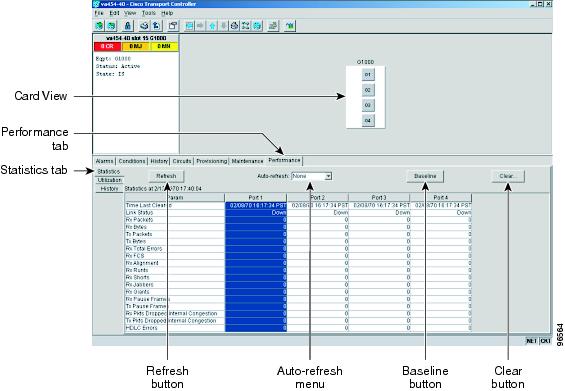

Figure 10-3 G-Series Statistics on the Card View Performance Window

Step 3 Click Refresh. Performance monitoring statistics for each port on the card appear.

Step 4 View the PM parameter names appear in the Param column. The current PM parameter values appear in the Port # columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.


Note In R 4.1.x, G-Series Ethernet performance-monitoring statistics are added cumulatively during the test process and are not immediately adjusted to equal total received packets until testing ends. To see the final PM count totals, allow a few moments for the PM window statistics to finish testing and update fully. PM counts are also listed in the G-Series Ethernet card Performance > History window. To view counts there, complete the "DLP-A258 View Ethernet History PM Parameters" task.


Step 5 Return to your originating procedure (NTP).


DLP-A257 View Ethernet Utilization PM Parameters

Purpose

This task enables you to view line utilization PM counts on an Ethernet card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the E-Series or G-Series Ethernet card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Utilization tabs (Figure 10-4).

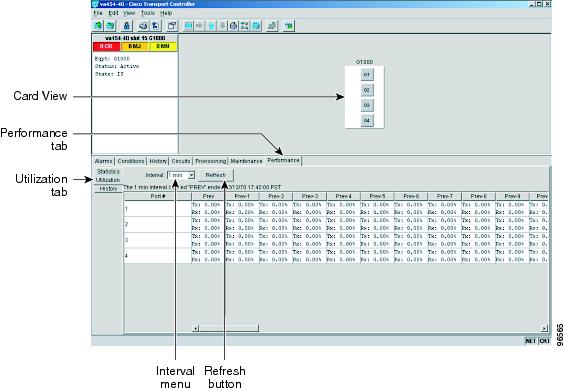

Figure 10-4 G-Series Utilization on the Card View Performance Window

Step 3 Click Refresh. Performance monitoring utilization values for each port on the card appear.

Step 4 View the Port # column to find the port you want to monitor.

Step 5 The transmit (Tx) and receive (Rx) bandwidth utilization values for the previous time intervals appear in the Prev-n columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 6 Return to your originating procedure (NTP).


DLP-A258 View Ethernet History PM Parameters

Purpose

This task enables you to view historical PM counts at selected time intervals on an Ethernet card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the E-Series or G-Series Ethernet card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > History tabs (Figure 10-5).

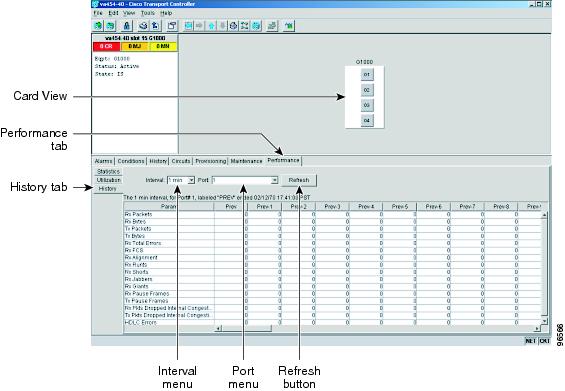

Figure 10-5 Ethernet History on the Card View Performance Window

Step 3 Click Refresh. Performance monitoring statistics for each port on the card appear.

Step 4 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Prev-n columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 5 Return to your originating procedure (NTP).


DLP-A320 View ML-Series Ether Ports PM Parameters

Purpose

This task enables you to view ML-Series Ethernet port PM counts at selected time intervals to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the ML-series Ethernet card where you want to view PM counts. The card view appears.

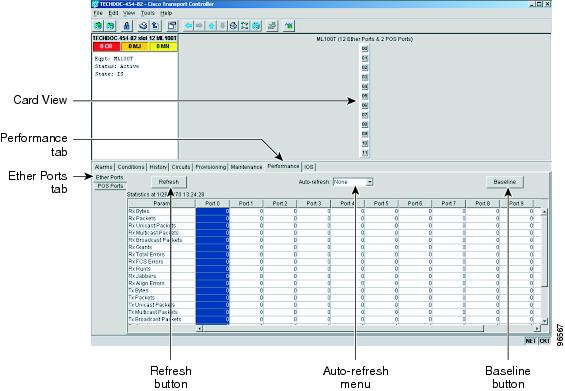

Step 2 Click the Performance > Ether Ports tabs (Figure 10-6).

Figure 10-6 Ether Ports on the Card View Performance Window

Step 3 Click Refresh. Performance monitoring statistics for each port on the card appear.

Step 4 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Port # columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 5 Return to your originating procedure (NTP).


DLP-A321 View ML-Series POS Ports PM Parameters

Purpose

This task enables you to view Packet Over SONET (POS) port PM counts at selected time intervals on an ML-Series Ethernet card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the ML-series Ethernet card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > POS Ports tabs (Figure 10-7).

Figure 10-7 POS Ports on the Card View Performance Window

Step 3 Click Refresh. Performance monitoring statistics for each port on the card appear.

Step 4 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Port # columns. For PM parameter definitions refer to the Cisco ONS 15454 Reference Manual.

Step 5 Return to your originating procedure (NTP).


DLP-A259 Refresh Ethernet PM Counts at a Different Time Interval

Purpose

This task changes the window view to display specified PM counts in time intervals depending on the interval option selected.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the Ethernet card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab.

Step 3 Click the Utilization or the History tab.

Step 4 From the Interval drop-down menu, choose one of four options:

1 min: This option appears the specified PM counts in one-minute time intervals.

15 min: This option appears the specified PM counts in 15-minute time intervals.

1 hour: This option appears the specified PM counts in one-hour time intervals.

1 day: This option appears the specified PM counts in one-day (24 hours) time intervals.

Step 5 Click Refresh. The PM counts refresh with values based on the selected time interval.

Step 6 Return to your originating procedure (NTP).


NTP-A250 Monitor OC-N Performance

Purpose

This procedure enables you to view node near-end or far-end performance during selected time intervals on a selected OC-N card and port to detect possible performance problems. This procedure does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

None

Prerequisite Procedures

Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see "Create Circuits and VT Tunnels" and "Change Card Settings."

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Complete the "DLP-A60 Log into CTC" task at the node that you want to monitor. If you are already logged in, continue with Step 2

Step 2 Complete the "DLP-A121 Enable/Disable Pointer Justification Count Performance Monitoring" task as needed to enable or disable clock synchronization monitoring.

Step 3 Complete the "DLP-A122 Enable/Disable Intermediate Path Performance Monitoring" task as needed to enable or disable monitoring of STS traffic through intermediate nodes.

Step 4 Complete the "DLP-A507 View OC-N PM Parameters" task.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Stop. You have completed this procedure.


DLP-A121 Enable/Disable Pointer Justification Count Performance Monitoring

Purpose

This task enables or disables pointer justification counts, which provide a way to align the phase variations in STS and VT payloads and to monitor the clock synchronization between nodes. A consistent, large pointer justification count indicates clock synchronization problems between nodes.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view, double-click the OC-N card you want to monitor. The card view appears.

See Table 10-1 for a list of OC-N LTE cards.

Table 10-1 OC-N Cards that Terminate the Line, Called LTEs

Line Terminating Equipment

OC3 IR4 1310

OC12 LR 1310

OC12 IR 1310

OC12 IR/STM4 SH 1310-4

OC12 LR 1550

OC48 LR 1550

OC48 IR 1310

OC48 LR/STM16 LH AS 1550

OC48 IR/STM16 SH AS 1310

OC48 ELR 200 Ghz ITU

OC48 ELR 100 Ghz ITU

OC192 LR 1550


Step 2 Click the Provisioning > Line tabs.

Step 3 Click the PJStsMon# drop-down menu (Figure 10-8) and make a selection based on the following rules:

Off means pointer justification monitoring is disabled (default).

1 to n are the number of STSs on the port. One STS per port can be enabled from the PJStsMon# card menu.

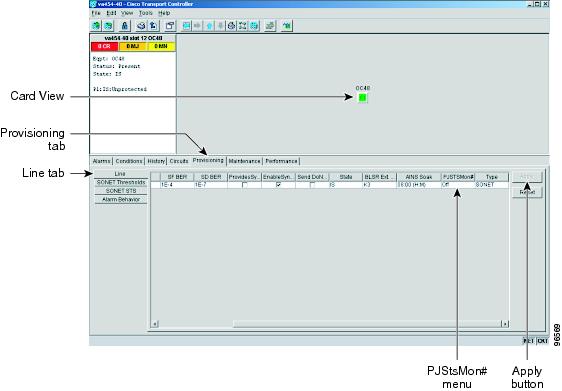

Figure 10-8 Enabling or Disabling Pointer Justification Count Parameters

Step 4 In the State field, confirm that the port is in service (IS).

Step 5 If the port is IS, click Apply. If the port is out of service (OOS, OOS_MT, OOS_AINS), select IS in the State field and click Apply.

Step 6 Click the Performance tab to view PM parameters. Figure 10-9 shows pointer justification counts. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.


Note The count fields for PPJC and NPJC PM parameters appear white and blank unless pointer justification count performance monitoring is enabled.

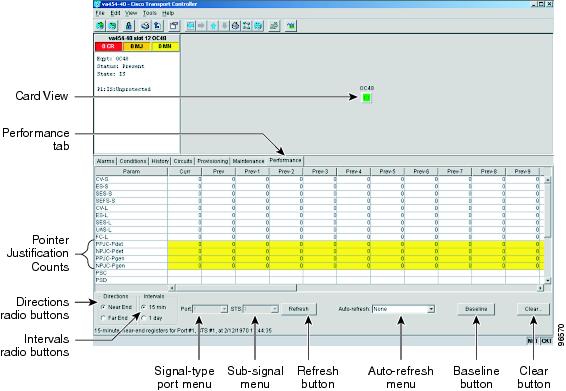

Figure 10-9 Pointer Justification Counts in the Performance Window

Step 7 Return to your originating procedure (NTP).


DLP-A122 Enable/Disable Intermediate Path Performance Monitoring

Purpose

This task enables or disables intermediate path performance monitoring, which allows you to monitor large amounts of STS traffic through intermediate nodes.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Note The monitored IPPM parameters are STS CV-P, STS ES-P, STS SES-P, STS UAS-P, and STS FC-P. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.



Step 1 In node view, double-click the OC-N card you want to monitor. The card view appears.

See Table 10-1 for a list of OC-N LTE cards.

Step 2 Click the Provisioning > SONET STS tabs (Figure 10-10).

Figure 10-10 SONET STS Tab for Enabling or Disabling IPPM

Step 3 Click the check box in the Enable IPPM column and make a selection based on the following rules:

Unchecked means IPPM is disabled for that STS (default)

Checked means IPPM is enabled for that STS

Step 4 Click Apply.

Step 5 Click the Performance tab to view PM parameters. For IPPM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 6 Return to your originating procedure (NTP).


DLP-A507 View OC-N PM Parameters

Purpose

This task enables you to view PM counts on a selected OC-N card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the OC-N card where you want to view PM counts. The card view appears.

Step 2 Click the Performance tab (Figure 10-11).

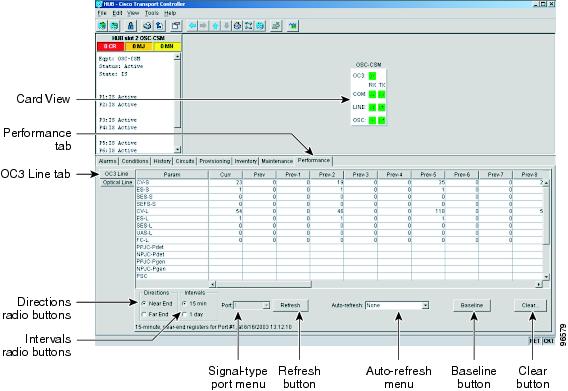

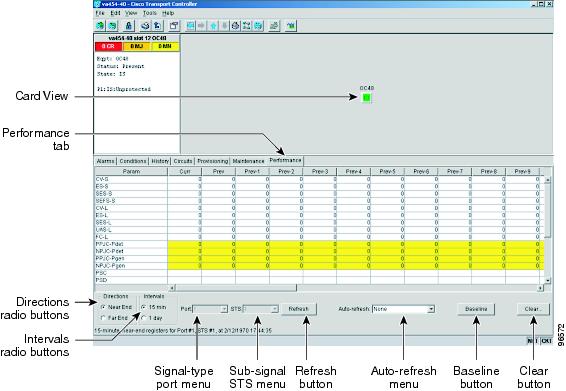

Figure 10-11 Viewing OC-N Card Performance Monitoring Information

Step 3 In the Port drop-down menu, click the port you want to monitor:

Step 4 Click Refresh.

Step 5 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 6 To monitor another port on a multiport card, choose another port from the Port drop-down menu and click Refresh.

Step 7 Return to your originating procedure (NTP).


NTP-A251 Monitor Multirate Transport Performance

Purpose

This procedure enables you to view node near-end or far-end performance during selected time intervals on a selected TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G, or MXP_2.5G_10G card and port to detect possible performance problems. This procedure does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

None

Prerequisite Procedures

Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see "Create Circuits and VT Tunnels" and "Change Card Settings."

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Complete the "DLP-A60 Log into CTC" task at the node that you want to monitor. If you are already logged in, continue with Step 2

Step 2 Complete the "DLP-A500 Enable/Disable OTN G.709 Performance Monitoring" task as needed to enable or disable optical transport network (OTN) G.709 monitoring.

Step 3 Complete the "DLP-A501 Enable/Disable OTN FEC Performance Monitoring" task as needed to enable or disable optical transport network (OTN) forward error correction (FEC) monitoring.

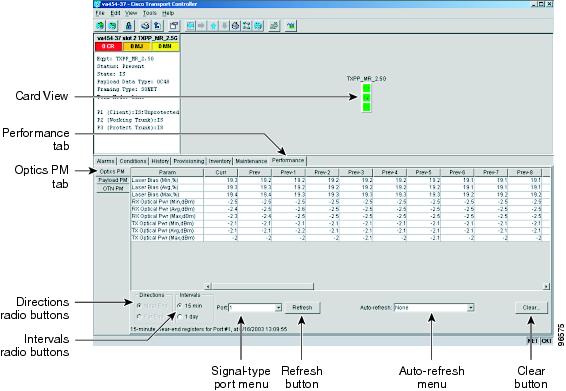

Step 4 Complete the "DLP-A317 View Optics PM Parameters" task as needed.

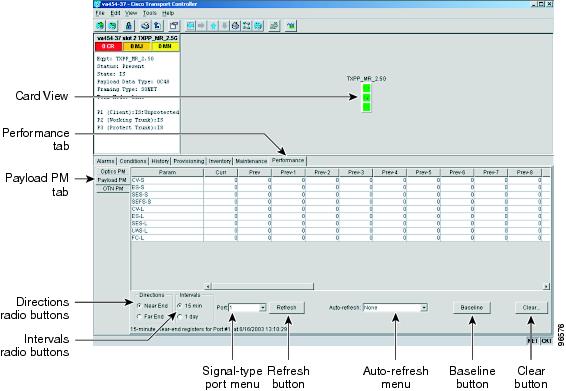

Step 5 Complete the "DLP-A318 View Payload PM Parameters" task as needed.

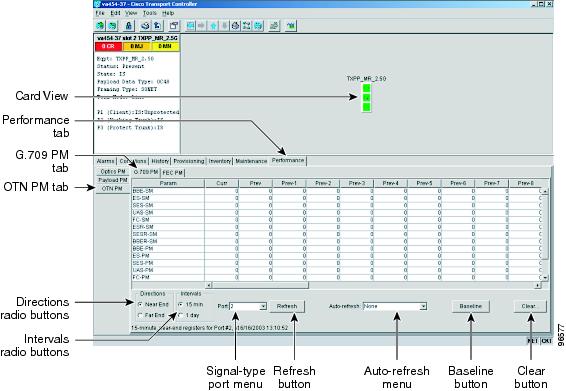

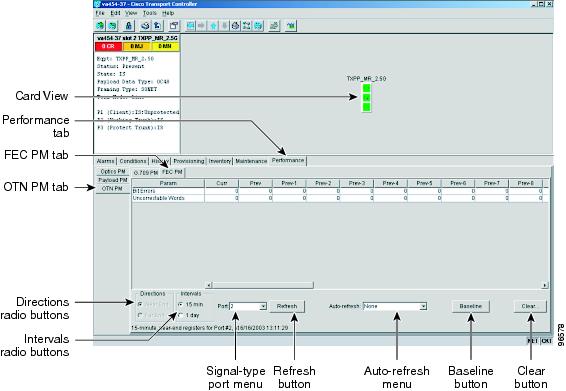

Step 6 Complete the "DLP-A319 View Optical Transport Network PM Parameters" task as needed.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Stop. You have completed this procedure.

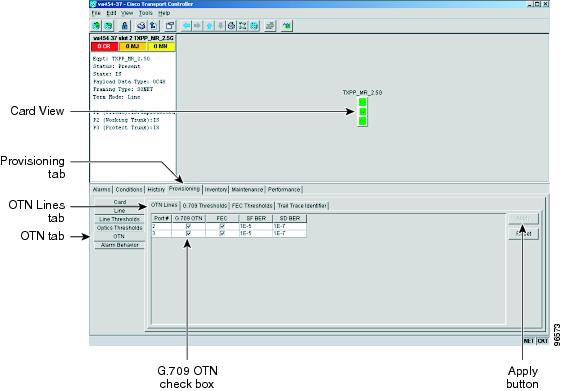

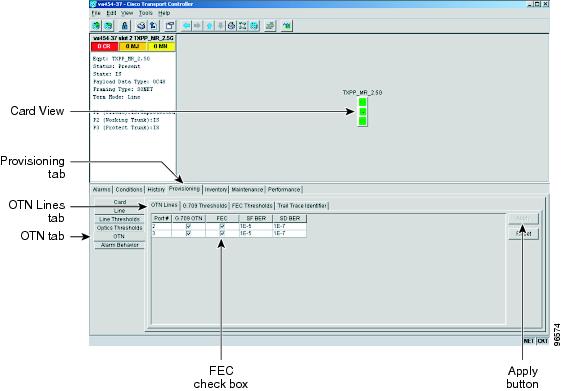

DLP-A500 Enable/Disable OTN G.709 Performance Monitoring

Purpose

This task enables or disables optical transport network (OTN) G.709 monitoring of near-end or far-end performance on a selected card and port during selected time intervals to detect possible problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view, double-click the card you want to monitor. The card view appears.

Step 2 Click the Provisioning > OTN > OTN Lines tabs (Figure 10-12).

Figure 10-12 OTN Lines Tab for Enabling/Disabling OTN G.709 Performance Monitoring

Step 3 Make a G.709 selection based on the following rules:

Unchecked disables G.709 for that port (default)

Checked enables G.709 for that port

Step 4 Click Apply.

Step 5 Click the Performance tab to view PM parameters. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 6 Return to your originating procedure (NTP).


DLP-A501 Enable/Disable OTN FEC Performance Monitoring

Purpose

This task enables or disables optical transport network (OTN) FEC monitoring of node near-end or far-end performance on a selected card and port during selected time intervals to detect possible problems

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 In node view, double-click the card you want to monitor. The card view appears.

Step 2 Click the Provisioning > OTN > OTN Lines tabs (Figure 10-13).

Figure 10-13 OTN Lines Tab for Enabling/Disabling OTN FEC Performance Monitoring

Step 3 Make a FEC selection based on the following rules:

Unchecked disables FEC for that port (default)

Checked enables FEC for that port

Step 4 Click Apply.

Step 5 Click the Performance tab to view PM parameters. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 6 Return to your originating procedure (NTP).


DLP-A317 View Optics PM Parameters

Purpose

This task enables you to view the optics PM counts on a selected TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G (transponder), or MXP_2.5G_10G (muxponder) optical card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the transponder or muxponder card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Optics PM tabs (Figure 10-14).

Figure 10-14 Viewing Optics Performance Monitoring Information

Step 3 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Curr (current) and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 4 Return to your originating procedure (NTP).


DLP-A318 View Payload PM Parameters

Purpose

This task enables you to view the payload PM counts on a selected TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G (transponder), or MXP_2.5G_10G (muxponder) optical card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the transponder or muxponder card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Payload PM tabs (Figure 10-15).

Figure 10-15 Viewing Payload Performance Monitoring Information

Step 3 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.


Note The PM parameters that appear depend upon the data payload and framing type provisioned on the port. Unframed data payloads such as ESCON, DV6000, DSI/D1 video, and HDTV do not provide payload performance monitoring information.


Step 4 Return to your originating procedure (NTP).


DLP-A319 View Optical Transport Network PM Parameters

Purpose

This task enables you to view the optical transport network (OTN) PM counts on a selected TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G (transponder), or MXP_2.5G_10G (muxponder) optical card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the transponder or muxponder card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > OTN PM > G.709 tabs (Figure 10-16).

Figure 10-16 Viewing OTN G.709 Performance Monitoring Information

Step 3 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Curr (current) and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 4 Click the FEC PM tab (Figure 10-17).

Figure 10-17 Viewing OTN FEC Performance Monitoring Information

Step 5 View the PM parameter names that appear in the Param column. The PM parameter values appear in the Curr (current) and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 Reference Manual.

Step 6 Return to your originating procedure (NTP).


NTP-A252 Monitor DWDM Performance

Purpose

This procedure enables you to view transmit and receive performance during selected time intervals on a selected DWDM card and port to detect possible performance problems. This procedure applies to DWDM (Software R4.5) nodes only.

Tools/Equipment

None

Prerequisite Procedures

Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see "Create Circuits and VT Tunnels" and "Change Card Settings."

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Retrieve or higher



Step 1 Complete the "DLP-A60 Log into CTC" task at the node that you want to monitor. If you are already logged in, continue with Step 2.

Step 2 Complete the "DLP-A502 View Optical Service Channel PM Parameters" task.

Step 3 Complete the "DLP-A503 View Optical Amplifier PM Parameters" task.

Step 4 Complete the "DLP-A504 View Optical Multiplexer and Demultiplexer PM Parameters" task.

Step 5 Complete the "DLP-A505 View Channel Filter Optical Add/Drop Multiplexer PM Parameters" task.

Step 6 Complete the "DLP-A506 View Band Filter Optical Add/Drop Multiplexer PM Parameters" task.

To refresh, reset, or clear PM counts, see the "A253 Change the PM Display" procedure.

Stop. You have completed this procedure.


DLP-A502 View Optical Service Channel PM Parameters

Purpose

This task enables you to view optical service channel PM counts at selected time intervals on an OSCM or OSC-CSM card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the OSCM or OSC-CSM card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > OC3 Line tabs (Figure 10-18).

Figure 10-18 OC3 Line Tab in the Optical Service Channel Card View Performance Window

Step 3 Click Refresh. OC3 line performance monitoring statistics for the selected port appear.

Step 4 Click the Optical Line tab (Figure 10-19).

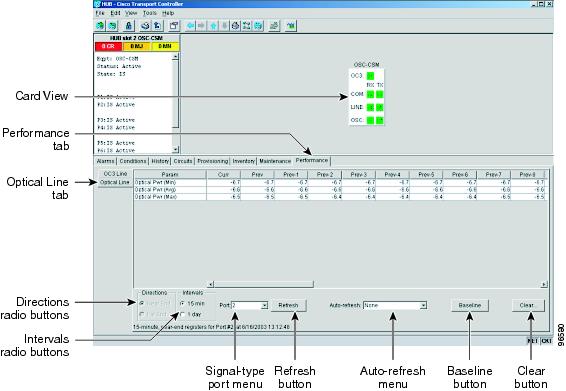

Figure 10-19 Optical Line Tab in the Optical Service Channel Card View Performance Window

Step 5 Click Refresh. Optical line performance monitoring statistics for the selected port appear.

Step 6 Return to your originating procedure (NTP).


DLP-A503 View Optical Amplifier PM Parameters

Purpose

This task enables you to view optical amplifier PM counts at selected time intervals on an OPT PRE or OPT BST card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the optical amplifier card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Optical Line tabs (Figure 10-20).

Figure 10-20 Optical Line Tab in the Optical Amplifier Card View Performance Window

Step 3 Click Refresh. Optical line performance monitoring statistics for the selected port appear.

Step 4 Click the Opt. Ampli. Line tab (Figure 10-21).

Figure 10-21 Optical Amplifier Line Tab in the Optical Amplifier Card View Performance Window

Step 5 Click Refresh. Optical amplifier line performance monitoring statistics for the selected port appear.

Step 6 Return to your originating procedure (NTP).


DLP-A504 View Optical Multiplexer and Demultiplexer PM Parameters

Purpose

This task enables you to view multiplexer or demultiplexer PM counts at selected time intervals on a 32MUX or 32DMX card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the 32MUX or 32DMX card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Optical Channel tabs (Figure 10-22).

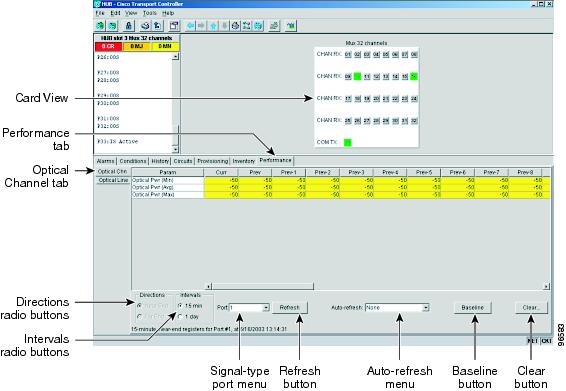

Figure 10-22 Optical Channel Tab in the Mux/Demux Card View Performance Window

Step 3 Click Refresh. Optical channel line performance monitoring statistics for the selected port appear.

Step 4 Click the Optical Line tab (Figure 10-23).

Figure 10-23 Optical Line Tab in the Mux/Demux Card View Performance Window

Step 5 Click Refresh. Optical line performance monitoring statistics for the selected port appear.

Step 6 Return to your originating procedure (NTP).


DLP-A505 View Channel Filter Optical Add/Drop Multiplexer PM Parameters

Purpose

This task enables you to view optical add/drop channel multiplexer PM counts at selected time intervals on an AD1C, AD2C, or AD4C card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the optical add/drop channel multiplexer card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Optical Line tabs (Figure 10-24).

Figure 10-24 Optical Line Tab in the Channel Filter OADM Card View Performance Window

Step 3 Click Refresh. Optical channel performance monitoring statistics for the selected port appear.

Step 4 Click the Optical Channel tab (Figure 10-25).

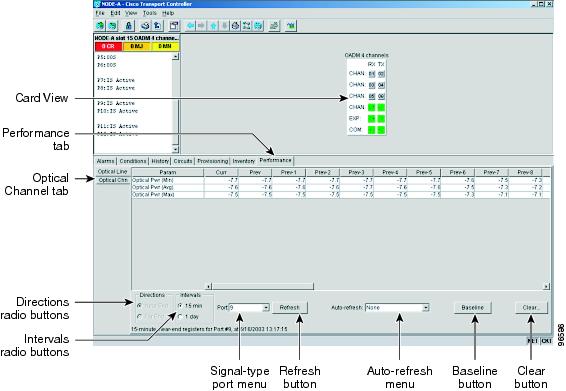

Figure 10-25 Optical Channel Tab in the Channel Filter OADM Card View Performance Window

Step 5 Click Refresh. Optical line performance monitoring statistics for the selected port appear.

Step 6 Return to your originating procedure (NTP).


DLP-A506 View Band Filter Optical Add/Drop Multiplexer PM Parameters

Purpose

This task enables you to view optical add/drop band multiplexer PM counts at selected time intervals on an AD1B, AD4B, or 4MD card and port to detect possible performance problems.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Retrieve or higher



Step 1 In node view, double-click the optical add/drop band multiplexer card where you want to view PM counts. The card view appears.

Step 2 Click the Performance > Optical Line tabs (Figure 10-26).

Figure 10-26 Optical Line Tab in the Band Filter OADM Card View Performance Window

Step 3 Click Refresh. Optical line performance monitoring statistics for the selected port appear.

Step 4 Click the Optical Band tab (Figure 10-27).

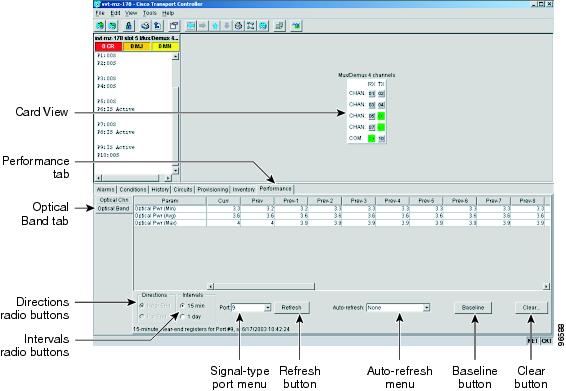

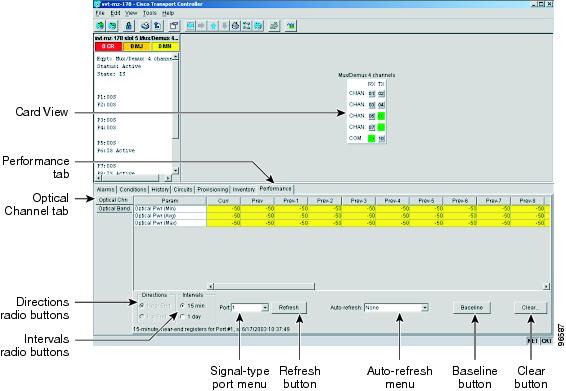

Figure 10-27 Optical Band Tab in the Band Filter OADM Card View Performance Window

Step 5 Click Refresh. Optical band performance monitoring statistics for the selected port appear.

Step 6 Return to your originating procedure (NTP).
