Install Cards and Fiber-Optic Cable



Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration. Cisco does not recommend using its path protection feature in any particular topological network configuration.


This chapter explains how to install the Cisco ONS 15454 cards and fiber-optic cable (fiber). ONS 15454 cards have symbols and are color-coded with their related slots.

Before You Begin

This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).

1. A15 Install the Common Control Cards—Complete this procedure first before installing any other cards.

Complete the following procedures only for non-DWDM nodes (Software Release 4.1 and earlier):

2. A16 Install the OC-N Cards—Complete as needed.

3. A249 Install the Transponder and Muxponder Cards—Complete as needed.

4. A17 Install the Electrical Cards—Complete as needed.

5. A246 Install Ethernet Cards and Connectors—Complete as needed.

6. A116 Remove and Replace a Card—Complete this procedure as needed to remove and replace a card, including deleting the card from Cisco Transport Controller (CTC) and changing an OC-N card without losing the card's provisioning.

7. A247 Install Fiber-Optic Cables on OC-N Cards—Complete this procedure to install fiber on OC-N cards or Ethernet Gigabit Interface Converters (GBICs).

Go to Chapter 5, "Turn Up a DWDM Node" before completing any of the following DWDM-only (Software R4.5) procedures:

1. A242 Install the DWDM Cards—Complete as needed.

2. A243 Install the DWDM Dispersion Compensating Cards—Complete as needed.

3. A244 Install Fiber-Optic Cables on DWDM Cards—Complete as needed.

Complete the following procedures as needed for all nodes (Software R4.5 and earlier):

A115 Preprovision a Slot—Complete this procedure as needed to provision an empty card slot with a card that will be installed later.

A245 Route Fiber-Optic Cables—Complete as needed.

A20 Replace the Front Door—If the front door was removed, complete this procedure to replace the front door and ground strap after installing cards and fiber.


Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.



Caution Unused card slots should be filled with a blank faceplate (Cisco P/N 15454-BLANK). The blank faceplate ensures proper airflow when operating the ONS 15454 without the front door attached, although Cisco recommends that the front door remain attached.


Note Protection schemes and EIA types can affect slot compatibility. Refer to Table 2-1, Table 2-2, and the Cisco ONS 15454 Reference Manual for more detailed compatibility information.


NTP-A15 Install the Common Control Cards

Purpose

This procedure describes how to install the common control cards.

Tools/Equipment

Redundant TCC+/TCC2 cards

Redundant XC, XCVT, or XC10G (cross-connect) cards

AIC/AIC-I card

Prerequisite Procedures

NTP-A13 Perform the Shelf Installation Acceptance Test, page 1-65

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool due to electrical hazard.



Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note If you install a card incorrectly, the FAIL LED flashes continuously.



Note The XC/XCVT/XC10G cross-connect cards are not compatible with DWDM cards (amplifier, add/drop, combiner, demultiplexer, dispersion compensator, or multiplexer).



Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Step 1 If you plan to install XC/XCVT cards, review Table 2-1 to determine card/slot compatibility. If you plan to install XC10G cards, review Table 2-2 to determine card/slot compatibility.

Step 2 Complete the "DLP-A36 Install the TCC+/TCC2 Cards" task.

Step 3 If you will not be installing DWDM cards, complete the "DLP-A37 Install the XC, XCVT, or XC10G Cards" task. If you are installing a DWDM shelf, omit this step and continue with Step 4.

Step 4 Complete the "DLP-A38 Install the Alarm Interface Controller or Alarm Interface Controller-International Card" task, if necessary.

Step 5 If you discover that you installed the wrong card in a slot, see the "A116 Remove and Replace a Card" procedure.

Step 6 Install the traffic cards. To determine the appropriate procedure, see the NTP list in Before You Begin.

In Table 2-1, X indicates that a card is supported in the slot. For information on exceptions based on protection schemes and backplanes, see the Card Protection chapter of the Cisco ONS 15454 Reference Guide. For descriptions of the card and slot symbols, refer to the Shelf and Backplane Hardware chapter of the Cisco ONS 15454 Reference Guide.

Table 2-1 Card and Slot Compatibility for the XC and XCVT Cards

Slot
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Type
MS 1
MS 1
MS 1
MS 1
HS 2
HS
TCC
XC
AIC
XC
TCC
HS
HS
MS 1
MS 1
MS 1
MS 1

TCC+



X



X



XC/XCVT



X



X



AIC



X



AIC-I



X



DS1-14

X

X

X

X

X

X



X

X

X

X

X

X

DS1N-14

X3

X3

X

X3

X3

X3



X3

X3

X3

X

X3

X3

DS3-12

X

X

X

X

X

X4



X4

X

X

X

X

X

DS3-12E

X

X

X

X

X

X4



X4

X

X

X

X

X

DS3N-12

X3

X3

X

X3

X3

X3, 4



X3, 4

X3

X3

X

X3

X3

DS3N-12E

X3

X3

X

X3

X3

X3, 4



X3, 4

X3

X3

X

X3

X3

DS3XM-6

X

X

X

X

X

X4



X4

X

X

X

X

X

EC1-12

X

X

X

X

X

X5



X5

X

X

X

X

X

E100T-12

X

X

X

X

X

X



X

X

X

X

X

X

E1000-2

X

X

X

X

X

X



X

X

X

X

X

X

E100T-G

X

X

X

X

X

X



X

X

X

X

X

X

E1000-2-G

X

X

X

X

X

X



X

X

X

X

X

X

G1000-4

Not supported with XC/XCVT cards. Requires XC10G cards.

G1K-4



X

X



X

X



ML100-12



X

X



X

X



ML1000-2



X

X



X

X



OC3 IR 4/STM1 SH 1310

X

X

X

X

X

X



X

X

X

X

X

X

OC3IR/STM1SH 1310-8

Not supported with XC/XCVT cards. Requires XC10G cards.

OC12 IR STM4 SH 1310

X

X

X

X

X

X



X

X

X

X

X

X

OC12 LR/STM4 LH 1310

X

X

X

X

X

X



X

X

X

X

X

X

OC12 LR/STM4 LH 1550

X

X

X

X

X

X



X

X

X

X

X

X

OC12 IR/STM4 SH 1310-4

Not supported with XC/XCVT cards. Requires XC10G cards.

OC48 IR 13106



X

X



X

X



OC48 LR 1550



X

X



X

X



OC48 IR/STM16 SH AS 1310



X

X



X

X



OC48 LR/STM16 LH AS 1550



X

X



X

X



OC48-ELR/STM16 EH 100 GHz



X

X



X

X



OC48 ELR 200 GHz



X

X



X

X



OC192 SR/STM64 IO 1310

Not supported with XC/XCVT cards. Requires XC10G cards.

OC192 IR/STM64 SH 1550

Not supported with XC/XCVT cards. Requires XC10G cards.

OC192 LR/STM64 LH 1550

Not supported with XC/XCVT cards. Requires XC10G cards.

OC192 LR/STM64 LH ITU 15xx.xx

Not supported with XC/XCVT cards. Requires XC10G cards.

TXP_MR_2.5G

X

X

X

X

X

X



X

X

X

X

X

X

TXPP_MR_2.5G

X

X

X

X

X

X



X

X

X

X

X

X

TXP_MR_10G

X

X

X

X

X

X



X

X

X

X

X

X

MXP_2.5G_10G

X

X

X

X

X

X



X

X

X

X

X

X

1 MS identifies slots 1 to 4 and 14 to 17 ("multispeed" slot).

2 HS identifies slots 5, 6, 12, and 13 ("high-speed" slot).

3 When not used in a 1:N configuration, a DS1 or DS3 card can be installed in this slot.

4 This DS3 card cannot be used in this slot if used with a high-density EIA or in a 1:N configuration.

5 EC1 cards cannot be used in this slot if used with a high-density EIA.

6 The OC48AS will operate in the high speed slots with the XC/XCVT in R3.4 and later. In Release R3.3, OC48AS with XC/XCVT is not supported.


In Table 2-2, X indicates that a card is supported in the slot. For information on exceptions based on protection schemes and backplanes, see the Card Protection chapter of the Cisco ONS 15454 Reference Guide. For descriptions of the card and slot symbols, refer to Table 1-13 in the Shelf and Backplane Hardware chapter of the Cisco ONS 15454 Reference Guide.

The XC10G card requires the ANSI shelf with high-speed fans.

Table 2-2 Card and Slot Compatibility for the XC10G Card

Slot
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Type
MS 1
MS 1
MS 1
MS 1
HS 2
HS 2
TCC
XC
AIC
XC
TCC
HS 2
HS 2
MS 1
MS 1
MS 1
MS 1

TCC2



X



X



XC10G



X



X



AIC



X



AIC-I



X



DS1-14

X

X

X

X

X

X



X

X

X

X

X

X

DS1N-14

X3

X3

X

X3

X3

X3



X3

X3

X3

X

X3

X3

DS3-12

X

X

X

X

X

X4



X4

X

X

X

X

X

DS3-12E

X

X

X

X

X

X4



X4

X

X

X

X

X

DS3N-12

X3

X3

X

X3

X3

X3, 4



X3, 4

X3

X3

X

X3

X3

DS3N-12E

X3

X3

X

X3

X3

X3, 4



X3, 4

X3

X3

X

X3

X3

DS3XM-6

X

X

X

X

X

X4



X4

X

X

X

X

X

EC1-12

X

X

X

X

X

X5



X5

X

X

X

X

X

E100T-12

Not supported with the XC10G card.

E1000-2

Not supported with the XC10G card.

E100T-G

X

X

X

X

X

X



X

X

X

X

X

X

E1000-2-G

X

X

X

X

X

X



X

X

X

X

X

X

G1000-4

X

X

X

X

X

X



X

X

X

X

X

X

G1K-4

X

X

X

X

X

X



X

X

X

X

X

X

ML100-12

X

X

X

X

X

X



X

X

X

X

X

X

ML1000-2

X

X

X

X

X

X



X

X

X

X

X

X

OC3 IR 4/STM1 SH 1310

X

X

X

X

X

X



X

X

X

X

X

X

OC3IR/STM1SH 1310-8

X

X

X

X



X

X

X

X

OC12 IR STM4 SH 1310

X

X

X

X

X

X



X

X

X

X

X

X

OC12 LR/STM4 LH 1310

X

X

X

X

X

X



X

X

X

X

X

X

OC12 IR/STM4 SH 1310-4

X

X

X

X



X

X

X

X

OC12 LR/STM4 LH 1550

X

X

X

X

X

X



X

X

X

X

X

X

OC48 IR 1310



X

X



X

X



OC48 LR 1550



X

X



X

X



OC48 IR/STM16 SH AS 1310

X

X

X

X

X

X



X

X

X

X

X

X

OC48 LR/STM16 LH AS 1550

X

X

X

X

X

X



X

X

X

X

X

X

OC48-ELR/STM16 EH 100 GHz



X

X



X

X



OC48 ELR 200 GHz



X

X



X

X



OC192 SR/STM64 IO 1310



X

X



X

X



OC192 IR/STM64 SH 1550



X

X



X

X



OC192 LR/STM64 LH 1550



X

X



X

X



OC192 LR/STM64 LH ITU 15xx.xx



X

X



X

X



TXP_MR_2.5G

X

X

X

X

X

X



X

X

X

X

X

X

TXPP_MR_2.5G

X

X

X

X

X

X



X

X

X

X

X

X

TXP_MR_10G

X

X

X

X

X

X



X

X

X

X

X

X

MXP_2.5G_10G

X

X

X

X

X

X



X

X

X

X

X

X

1 MS identifies slots 1 to 4 and 14 to 17 ("multispeed" slot).

2 HS identifies slots 5, 6, 12, and 13 ("high-speed" slot).

3 When not used in a 1:N configuration, a DS1 or DS3 card can be installed in this slot.

4 This DS3 card cannot be used in this slot if used with a high-density EIA or in a 1:N configuration.

5 EC1 cards cannot be used in this slot if used with a high-density EIA.


Stop. You have completed this procedure.


DLP-A36 Install the TCC+/TCC2 Cards

Purpose

This task installs redundant TCC+/TCC2 cards. The first card you install in the ONS 15454 must be a TCC+/TCC2, and it must initialize before you install any cross-connect or traffic cards. This task applies to both DWDM (Software R4.5) and non-DWDM (Software R4.1 and earlier) nodes; however, Release 4.5 nodes can only support TCC2 cards.

Tools/Equipment

Two TCC2 cards

Prerequisite Procedures

None

Required/As Needed

Redundant TCC+/TCC2 cards are required in all nodes.

Onsite/Remote

Onsite

Security Level

None



Note When installing cards, allow each card to boot completely before installing the next card.



Step 1 Open the latches/ejectors of the first TCC+/TCC2 card that you will install.

Step 2 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot (Slot 7 or 11).

Step 3 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


If you insert a card into a slot provisioned for a different card, all LEDS turn off.

Step 4 Verify the LED activity of the TCC+/TCC2:

All LEDs turn on briefly.

The red FAIL LED, the yellow ACT/STBY LED, the red REM LED, the green SYNC LED, and the green ACO LED turn on and remain illuminated for about 10 seconds.

The red FAIL LED and the green ACT/STBY LED turn on and remain illuminated for about 40 seconds.

The red FAIL LED blinks for about 10 seconds.

The red FAIL LED illuminates for about 5 seconds.

On the TCC2 card, both green PWR LEDs turn on for 5 seconds. The PWR LEDs then illuminate red for 2 to 3 minutes before going to steady green.

All LEDs (including the CRIT, MAJ, MIN, REM, SYNC, and ACO LEDs) blink once and turn off for about 10 seconds.

The ACT/STBY LED turns on. (The ACT/STBY LED might take several minutes to illuminate while the DCC processor boots.)


Note It may take up to 3 minutes for the A and B power alarms to clear.



Note If the FAIL LED is illuminated continuously on the TCC+/TCC2 card, see the tip below about the TCC+/TCC2 automatic upload.



Note Alarm LEDs might be illuminated; disregard alarm LEDs until you are logged into CTC and can view the Alarms tab.


Step 5 Verify that the ACT/STBY LED is green for active. The IP address for the node, the temperature of the ONS 15454, and the time of day should be displayed on the LCD. The default time and date is 12:00 AM, January 1, 1970.

Step 6 The LCD cycles through the IP address, node name, and software version. Verify that the correct software version displays on the LCD.

Step 7 If the LCD shows the correct software version, continue with Step 8. If the LCD does not show the correct software version, upgrade the software or remove the TCC+/TCC2 card and install a replacement card.

Refer to the Cisco ONS 15454 Software Upgrade Guide or the "NTP-A163 Restore the Node to Factory Configuration" procedure on page 17-11 to replace the software. To exchange the TCC+/TCC2, see the "A116 Remove and Replace a Card" procedure.

Step 8 Open the latches/ejectors of the redundant TCC+/TCC2 card.

Step 9 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot (Slot 7 or 11).

Step 10 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 11 Verify the LED activity of the redundant TCC+/TCC2:

All LEDs turn on for a short moment.

The red FAIL LED, the yellow ACT/STBY LED, the red REM LED, the green SYNC LED, and the green ACO LED turn on for about 10 seconds.

The red FAIL LED and the green ACT/STBY LED turn on for about 40 seconds.

The red FAIL LED blinks for about 10 seconds.

The red FAIL LED illuminates for about 5 seconds.

All LEDs (including the CRIT, MAJ, MIN, REM, SYNC, and ACO LEDs) blink once and turn off for about 10 seconds.

The ACT/STBY LED turns on. (The ACT/STBY LED might take several minutes to illuminate while the DCC processor boots.)


Tip If you install a standby TCC+/TCC2 card that has a different software version than the active TCC+/TCC2 card, the newly installed standby TCC+/TCC2 card automatically copies the software version from the active TCC+/TCC2. You do not need to do anything in this situation. However, the loading TCC+/TCC2 card does not boot up in the normal manner. When a standby TCC+ card is first inserted, the red FAIL LED stays on for a short period. The FAIL LED then blinks normally and all LEDs go dark. The FAIL LED and the ACT/STBY LED flash alternately every 30 to 45 seconds for up to 30 minutes as the new software loads onto the active TCC+ card. After loading the new software the upgraded TCC+ card becomes the standby card and the amber LED is illuminated.

When a standby TCC2 card is first inserted, the LEDs follow most of the sequence listed in Step 11. After the red FAIL LED turns on for about 5 seconds, the FAIL LED and the ACT/STBY LED begin to flash alternately for up to 30 minutes while the new software loads onto the active TCC2 card. After loading the new software the upgraded TCC2 card's LEDs repeat the sequence from Step 11, and the amber ACT/STBY LED turns on.



Note If the FAIL LED is illuminated continuously on the TCC+/TCC2 card, see the tip in Step 4 about the TCC+/TCC2 automatic upload.



Note If you insert a card into a slot provisioned for a different card, all LEDS turn off.



Note Alarm LEDs might be illuminated; disregard alarm LEDs until you are logged into CTC and can view the Alarms tab.


Step 12 Verify that the ACT/STBY LED is amber for standby.

Step 13 Return to your originating procedure (NTP).


DLP-A37 Install the XC, XCVT, or XC10G Cards

Purpose

This task installs the cross-connect (XC/XCVT/XC10G) cards. Do not install cross-connect cards in a DWDM (Software R4.5) shelf.

Tools/Equipment

XC/XCVT/XC10G (cross-connect) cards

Prerequisite Procedures

A36 Install the TCC+/TCC2 Cards

Required/As Needed

Redundant cross-connect cards are required in non-DWDM (Software R4.1 and earlier) shelves.

Onsite/Remote

Onsite

Security Level

None



Note This is not the procedure to use when upgrading from XC to XCVT cards or from XCVT to XC10G cards. If you are performing an XC to XCVT upgrade or an XCVT to a XC10G upgrade, see Chapter 14, "Upgrade Cards and Spans."



Note When installing cards, let each card completely boot before installing the next card.



Step 1 Open the latches/ejectors of the first XC, XCVT, or XC10G card that you will install.

Step 2 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot (Slot 8 or 10).

Step 3 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 4 Verify the LED activity:

The red LED turns on and illuminates for 20 to 30 seconds.

The red LED blinks for 35 to 45 seconds.

The red LED illuminates for 5 to 10 seconds.

All LEDs blink once and turn on.

The ACT/STBY LED turns on.


Note If you insert a card into a slot provisioned for a different card, all LEDS turn off.



Note If the red FAIL LED does not illuminate, check the power.



Note If the red FAIL LED is illuminated continuously or the LEDs act erratically, the card is not installed properly. Remove the card and repeat Steps 1 to 4.


Step 5 Verify that the ACT/STBY LED is green for active.

Step 6 Use the latches/ejectors to firmly slide the second cross-connect card along the guide rails until the card plugs into the receptacle at the back of the slot (Slot 8 or 10).

Step 7 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 8 Verify the LED activity:

The red LED turns on and illuminates for 20 to 30 seconds.

The red LED blinks for 35 to 45 seconds.

The red LED illuminates for 5 to 10 seconds.

All LEDs blink once and turn on.

The ACT/STBY LED turns on.


Note If you insert a card into a slot provisioned for a different card, all LEDS turn off.



Note If the red FAIL LED does not illuminate, check the power.



Note If the red FAIL LED is illuminated continuously or the LEDs act erratically, the card is not installed properly. Remove the card and repeat Steps 6 through 8.


Step 9 Verify that the ACT/STBY LED is amber for standby.

Step 10 Return to your originating procedure (NTP).


DLP-A38 Install the Alarm Interface Controller or Alarm Interface Controller-International Card

Purpose

This task installs the AIC or AIC-I card. The AIC or AIC-I card provides connections for external alarms and controls (environmental alarms). This task can be used for DWDM (Software R4.5) and non-DWDM (Software R4.1 and earlier) nodes.

Tools/Equipment

AIC or AIC-I card

Prerequisite Procedures

A36 Install the TCC+/TCC2 Cards

A37 Install the XC, XCVT, or XC10G Cards (R4.1 and earlier only)

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note When installing cards, let each card completely boot before installing the next card.



Step 1 Open the latches/ejectors on the card.

Step 2 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot (Slot 9).

Step 3 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 4 If you have installed the AIC card, verify the following:

The red FAIL LED illuminates for 1 second, then blinks for 1 to 5 seconds.

After 1 to 5 seconds, all LEDs blink once and turn off.

The ACT LED turns on.

Step 5 If you have installed the AIC-I card, verify the following:

The red FAIL LED illuminates for 1 second, then blinks for 1 to 5 seconds.

The PWR A and PWR B LEDs illuminate red and the two INPUT/OUTPUT LEDs illuminate green for approximately 3 seconds.

The PWR A LED turns green, the INPUT/OUTPUT LEDs turn off, and the ACT LED illuminates.


Note It may take up to 3 minutes for the PWR A and PWR B LEDs to update.



Note If the red FAIL LED does not illuminate, check the power.



Note Before you insert a card into a slot provisioned for a different card, complete the "DLP-A191 Delete a Card" task for the previously provisioned card.



Note If you do insert a card into a slot provisioned for a different card, no LEDs turn on.



Note If the red FAIL LED is illuminated continuously or the LEDs act erratically, the card is not installed properly. Remove the card and repeat Steps 1 to 5.


Step 6 Return to your originating procedure (NTP).


NTP-A16 Install the OC-N Cards

Purpose

This procedure describes how to install optical (OC-N) cards (OC-3, OC-12, OC-48, and OC-192). This procedure does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

OC-3, OC-12, OC-48, and OC-192 cards (as applicable)

Prerequisite Procedures

A15 Install the Common Control Cards

A249 Install the Transponder and Muxponder Cards (if applicable)

Required/As Needed

Required if the node will carry optical traffic. Install according to site plan, if available.

Onsite/Remote

Onsite

Security Level

None



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool due to electrical hazard.



Warning Class I (21 CFR 1040.10 and 1040.11) and Class 1M (IEC 60825-1 2001-01) laser products.



Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam or view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.



Warning On all OC-N cards except the OC192 LR/STM64 LH 1550 card, the laser is on even when the optical port is not in service. On the OC192 LR/STM64 LH 1550 card, the laser is active when the card is booted and the safety key is in the on position (labeled 1). The laser is off when the safety key is off (labeled 0).



Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Note To simplify path protection to bidirectional line switch ring (BLSR) conversion and node addition, equip OC-N cards according to a high-speed east (Slots 12 and 13) and west (Slots 5 and 6) configuration. This configuration is not mandatory.



Note If you install a card incorrectly, the FAIL LED flashes continuously.



Step 1 If you installed XC or XCVT cards, review Table 2-1 to determine card/slot compatibility. If you installed XC10G cards, review Table 2-2 to determine card/slot compatibility.

Install higher-capacity cards first; for example, install an OC-192 card before installing an OC-48 card. Let each card completely boot before installing the next card.

Step 2 Open the card latches/ejectors.


Warning Before installing an OC192 LR/STM64 LH 1550 card, make sure the safety key on the faceplate is in off position (labeled 0). When in the on position (labeled 1), the laser is activated.


Step 3 Use the latches/ejectors to firmly slide the OC-N card along the guide rails until the card plugs into the receptacle at the back of the slot.

Step 4 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 5 Verify the LED activity:

The red FAIL LED turns on and illuminates for 20 to 30 seconds.

The red FAIL LED blinks for 35 to 45 seconds.

All LEDs blink once and turn off for 5 to 10 seconds.

The ACT or ACT/STBY LED illuminates amber. The signal fail (SF) LED can persist until all card ports connect to their far end counterparts and a signal is present.

Step 6 If the card does not boot up properly, or the LED activity does not mirror Step 5, check the following:

When a physical card type does not match the type of card provisioned for that slot in CTC, the card might not boot. If an OC-N card does not boot, open CTC and ensure that the slot is not provisioned for a different card type before assuming the card is faulty.

If the red FAIL LED does not illuminate, check the power.

If you insert a card into a slot provisioned for a different card, all LEDS turn off.

If the red FAIL LED is illuminated continuously or the LEDs behave erratically, the card is not installed properly. Remove the card and repeat Steps 2 to 5.

Step 7 Complete the "A247 Install Fiber-Optic Cables on OC-N Cards" procedure.


Note If you discover that you installed the wrong card in a slot, complete the "A116 Remove and Replace a Card" procedure.


Step 8 As necessary, continue with the "A17 Install the Electrical Cards" procedure.

Stop. You have completed this procedure.


NTP-A249 Install the Transponder and Muxponder Cards

Purpose

This procedure describes how to install the TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G (transponder) and MXP_2.5G_10G (muxponder) cards.

Tools/Equipment

TXP_MR_10G, TXP_MR_2.5G, TXPP_MR_2.5G, and MXP_2.5G_10G cards (as applicable)

Prerequisite Procedures

A15 Install the Common Control Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool due to electrical hazard.



Warning Class 1 Laser Product.



Warning Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam or view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.



Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Note If you install a card incorrectly, the FAIL LED flashes continuously.



Step 1 If you installed XC or XCVT cards, review Table 2-1 to determine card/slot compatibility. If you installed XC10G cards, review Table 2-2 to determine card/slot compatibility.

Step 2 Open the card latches/ejectors.

Step 3 Use the latches/ejectors to firmly slide the transponder or muxponder card along the guide rails until the card plugs into the receptacle at the back of the slot.

Step 4 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 5 Verify the LED activity:

The red FAIL LED turns on and illuminates for 20 to 30 seconds.

The red FAIL LED blinks for 35 to 45 seconds.

All LEDs blink once and turn off for 5 to 10 seconds.

The ACT or ACT/STBY LED turns on. The signal fail (SF) LED can persist until all card ports connect to their far end counterparts and a signal is present.

Step 6 If the card does not boot up properly, or the LED activity does not mirror Step 5, check the following:

When a physical card type does not match the type of card provisioned for that slot in CTC, the card might not boot. If a transponder or muxponder card does not boot, open CTC and ensure that the slot is not provisioned for a different card type before assuming the card is faulty.

If the red FAIL LED does not illuminate, check the power.

If you insert a card into a slot provisioned for a different card, all LEDS turn off.

If the red FAIL LED is illuminated continuously or the LEDs behave erratically, the card is not installed properly. Remove the card and repeat Steps 2 to 5.

Step 7 If you installed an MXP_2.5G_10G, TXP_MR_2.5G, or TXPP_MR_2.5G card, complete the "DLP-A469 Install GBIC or SFP Connectors" task.

Step 8 Complete the "A247 Install Fiber-Optic Cables on OC-N Cards" procedure.

Step 9 If you discover that you installed the wrong card in a slot, complete the "A116 Remove and Replace a Card" procedure.

Step 10 Continue with the "A16 Install the OC-N Cards" procedure.

Stop. You have completed this procedure.


NTP-A17 Install the Electrical Cards

Purpose

This procedure describes how to install electrical cards (DS-1, DS-3, DS3XM-6 and EC-1). This procedure does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

Electrical cards

Prerequisite Procedures

A15 Install the Common Control Cards

A16 Install the OC-N Cards (if applicable)

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool due to electrical hazard.



Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Note Install higher-capacity cards first; for example, install a DS-3 card before installing a DS-1 card. Let each card boot completely before installing the next card.



Step 1 If you installed XC or XCVT cards, review Table 2-1 to determine card/slot compatibility. If you installed XC10G cards, review Table 2-2 to determine card/slot compatibility.

Step 2 Open the card latches/ejectors.

Step 3 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.

Step 4 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 5 Verify the LED activity:

The red FAIL LED turns on and illuminates for 10 to 15 seconds.

If the red FAIL LED does not illuminate, check the power.

The red FAIL LED blinks for 30 to 40 seconds.

All LEDs blink once and turn off for 1 to 5 seconds.

The ACT or ACT/STBY LED turns on. The SF LED can persist until all card ports connect to their far end counterparts and a signal is present.


Note If you insert a card into a slot provisioned for a different card, all LEDs turn off.



Note If the red FAIL LED is illuminated continuously or the LEDs behave erratically, the card is not installed properly. Remove the card and repeat Steps 2 to 5.



Note If you discover that you installed the wrong card in a slot, complete the "A116 Remove and Replace a Card" procedure.


Step 6 Continue with "A246 Install Ethernet Cards and Connectors" procedure if necessary.

Stop. You have completed this procedure.


NTP-A246 Install Ethernet Cards and Connectors

Purpose

This procedure describes how to install the Ethernet cards(E100T-12, E100T-G, E1000-2, E1000-2-G, G1000-4, G1K-4, ML100-T-12, and ML10002). It does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

Ethernet cards

Prerequisite Procedures

A15 Install the Common Control Cards

A16 Install the OC-N Cards (if applicable)

A17 Install the Electrical Cards (if applicable)

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool due to electrical hazard.



Warning Class I (21 CFR 1040.10 and 1040.11) and Class 1M (IEC 60825-1 2001-01) laser products.



Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam or view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.



Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Step 1 If you installed XC or XCVT cards review Table 2-1 to determine card/slot compatibility. If you installed XC10G cards, review Table 2-2 to determine card/slot compatibility.

Step 2 Complete the "DLP-A39 Install Ethernet Cards" task. Allow each card to boot completely before installing the next card.


Note If you discover that you installed the wrong card in a slot, complete the "A116 Remove and Replace a Card" procedure and install the correct card.


Step 3 Complete the "DLP-A469 Install GBIC or SFP Connectors" task if you are using E1000-2, E1000-2-G, G1000-4, or ML1000-2 cards.


Note If you need to remove a GBIC or SFP, complete the "DLP-A470 Remove GBIC or SFP Connectors" task.


Step 4 Continue with the "A247 Install Fiber-Optic Cables on OC-N Cards" procedure.

Stop. You have completed this procedure.


DLP-A39 Install Ethernet Cards

Purpose

This task installs the Ethernet cards.

Tools/Equipment

Ethernet cards

Prerequisite Procedures

A36 Install the TCC+/TCC2 Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Step 1 Open the card latches/ejectors.

Step 2 Use the latches/ejectors to firmly slide the card along the guide rails until the card plugs into the receptacle at the back of the slot.

Step 3 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 4 Verify the LED activity:

The red FAIL LED turns on and illuminates for 20 to 30 seconds.

The red FAIL LED blinks for 35 to 45 seconds.

All LEDs blink once and turn off for 1 to 5 seconds.

The ACT or ACT/STBY LED turns on. The SF LED can persist until all card ports connect to their far end counterparts and a signal is present.


Note If the red FAIL LED does not illuminate, check the power.



Note If you insert a card into a slot provisioned for a different card, all LEDs turn off.


Step 5 Return to your originating procedure (NTP).


DLP-A469 Install GBIC or SFP Connectors

Purpose

This task installs gigabit interface converters, which are required for E-Series and G-Series Ethernet cards, and small-form factor pluggables (SFPs), which are required for ML1000-2 and MXP cards, and attaches fiber to the connectors.

Tools/Equipment

For E1000-2-G use:

SX GBIC= for short-reach applications

LX GBIC= for long-reach applications

For the G1000-4 or G1K-4 card use:

SX GBIC= for short-reach applications

LX GBIC= for long-reach applications

ZX GBIC= for extra long-reach applications

DWDM GBIC= for DWDMapplications

CWDMGBIC= for CWDM applications

For the ML1000-2 card use:

SX SFP= for short-reach applications

LX SFP= for long-reach applications

Prerequisite Procedures

A39 Install Ethernet Cards

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note Existing G1000-4 cards are expected to support CWDM and DWDM GBICs, but final qualification testing was not complete at press time. Qualification testing is scheduled to complete in August, 2003. The online version of the 4.1 user documentation and release notes will be updated to reflect the final qualification status of CWDM and DWDM GBICs on the G1000-4 card, when this information is available.



Note Existing G1K-4 cards do not support CWDM or DWDM GBICs. G1K-4 cards with the CLEI code of WM5IRWPCAA (manufactured after August 2003) are expected to support CWDM and DWDM GBICs, but final qualification testing was not complete at press time. The online version of the 4.1 user documentation and release notes will be updated to reflect the final qualification status of CWDM and DWDM GBICs on the G1K-4 card with the CLEI code of WM5IRWPCAA, when this information is available.



Note The operating temperature range of the DWDM GBICs is -5 degrees C to 40 degrees C.



Note GBICs and SFPs are hot-swappable and can therefore be installed/removed while the card/shelf assembly is powered and running.



Note DWDM and CWDM GBICs are compatible with Software R 4.1 only.



Step 1 Remove the GBIC or SFP from its protective packaging.

Step 2 Check the label to verify that the GBIC or SFP is the correct type for your network.

Step 3 If you are using a GBIC with clips:

a. Grip the sides of the GBIC with your thumb and forefinger and insert the GBIC into the slot on the E1000-2-G, G1000-4, or G1K-4 card.


Note GBICs are keyed to prevent incorrect installation.


b. Slide the GBIC through the flap that covers the opening until you hear a click. The click indicates the GBIC is locked into the slot.

c. When you are ready to attach the network fiber-optic cable, remove the protective plug from the GBIC and save the plug for future use.

Step 4 If you are using a GBIC with a handle:

a. Remove the protective plug from the SC-type connector.

b. Grip the sides of the GBIC with your thumb and forefinger and insert the GBIC into the slot on the E1000-2-G, G1000-4, or G1K-4 card.

c. Lock the GBIC into place by closing the handle down. The handle is in the correct closed position when it does not obstruct access to SC-type connector.

d. Slide the GBIC through the cover flap until you hear a click.

The click indicates the GBIC is locked into the slot.


Warning GBICs are Class I laser products. These products have been tested and comply with Class I limits.



Warning Invisible laser radiation may be emitted from the aperture ports of the single-mode fiber optic modules when no cable is connected. Avoid exposure and do not stare into open apertures.


Step 5 If you are installing an SFP:

a. Plug the LC duplex connector of the fiber into a Cisco-supported SFP connector.

b. If the new SFP connector has a latch, close the latch over the cable to secure it.

c. Plug the cabled SFP connector into the ML1000-2 or MXP_2.5_10G card port until it clicks.

Step 6 Return to your originating procedure (NTP).


DLP-A470 Remove GBIC or SFP Connectors

Purpose

Use this task to disconnect fiber attached to GBICs or SFPs and to remove the GBICs or SFPs from Ethernet cards or MXP cards.

Tools/Equipment

None

Prerequisite Procedures

A469 Install GBIC or SFP Connectors

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments.



Step 1 Disconnect the network fiber cable from the GBIC SC connector or SFP LC duplex connector. If the SFP connector has a latch securing the fiber cable, pull it upward to release the cable.

Step 2 If you are using a GBIC with clips:

a. Release the GBIC from the slot by simultaneously squeezing the two plastic tabs on each side of it.

b. Slide the GBIC out of the Gigabit Ethernet module slot. A flap closes over the GBIC or SFP slot to protect the connector on the Gigabit Ethernet card.

Step 3 If you are using a GBIC with a handle:

a. Release the GBIC by opening the handle.

b. Pull the handle of the GBIC.

c. Slide the GBIC out of the Gigabit Ethernet card slot. A flap closes over the GBIC slot to protect the connector on the Gigabit Ethernet card.

Step 4 If you are using an SFP:

a. If the SFP connector has a latch securing the fiber cable, pull it upward to release the cable.

b. Pull the fiber cable straight out of the connector.

c. Unplug the SFP connector and fiber from the ML1000-2 or MXP_2.5_10G card.

d. Slide the SFP out of the Gigabit Ethernet card slot.

Step 5 Return to your originating procedure (NTP).


NTP-A242 Install the DWDM Cards

Purpose

This procedure describes how to install DWDM cards (OPT-PRE, OPT-BST, 32MUX-O, 32DMX-O, 4MD-xx.x, AD-1C-xx.x, AD-2C-xx.x, AD-4C-xx.x, AD-1B-xx.x, AD-4B-xx.x, OSCM, or OSC-CSM) in Release 4.5 shelves. Complete this procedure before you have provisioned the shelf by completing Chapter 5, "Turn Up a DWDM Node."

Tools/Equipment

OPT-PRE, OPT-BST, 32MUX-O, 32DMX-O, 4MD-xx.x, AD-1C-xx.x, AD-2C-xx.x, AD-4C-xx.x, AD-1B-xx.x, AD-4B-xx.x, OSCM, or OSC-CSM cards (as applicable)

Prerequisite Procedures

A36 Install the TCC+/TCC2 Cards

Required/As Needed

Required if the node will carry DWDM optical traffic. Install according to site plan, if available.

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool due to electrical hazard.



Warning Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Warning Class 1M Laser Product.



Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam or view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.



Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Note If you install a card incorrectly, the FAIL LED flashes continuously.



Note The automatic node setup (ANS) of the ONS 15454 DWDM system begins to determine what kind of site you are installing as soon as you install cards. For more information about node setup, see Chapter 5, "Turn Up a DWDM Node." The automatic power control (APC) is enabled after ANS initializes and after a channel has been provisioned. For instructions to provision a DWDM channel, see the "A227 Provision a DWDM Optical Channel Network Connection" procedure. For more information about amplifier power control, see the Cisco ONS 15454 Reference Manual.



Step 1 Plan your node installation or consult the site plan. As soon as you begin installing cards, ANS determines what kind of site to set up based on the following parameters:

Hub site—Two 32DMX-O and two 32MUX-O cards are provisioned but no AD-xC or AD-xB cards are present

Terminal—One 32DMX-O and one 32MUX-O card are provisioned, and no AD-xC or AD-xB cards are present

Line site—Only one OPT-PRE or OPT-BST is provisioned per line direction. (Up to two OPT-PRE and/or two OPT-BST cards can be present in the same shelf.)

OADM site—At least 1 AD-xC or AD-xB is provisioned and no 32DMX-O or 32MUX-O cards are present

Unknown—Provisioned cards do not follow any of the previously listed categories

Step 2 Open the card latches/ejectors.

Step 3 Use the latches/ejectors to firmly slide the DWDM card along the guide rails until the card plugs into the receptacle at the back of the slot.

Step 4 Use the following card placement guidelines. For specific information about each card, refer to the Cisco ONS 15454 Reference Manual.

OPT-BST cards can be installed in any open east and west pair of slots but are often installed in Slot 1 and Slot 17.

OPT-PRE cards can be installed in any open east and west pair of slots but are often installed in Slot 2 and Slot 16.

OSCM cards, if used, are installed in Slot 8 and Slot 10.

OSC-CSM cards, if used (when there is no OPT-BST), can be installed in any open east and west pair of slots.

32MUX-O cards are double-slot width cards and are often installed in Slot 3 or 4 and Slot 14 or 15.

32DMX-O cards are double-slot width and are often installed in Slot 5 or 6 and Slot 12 or 13.

AD cards (channel or band) and 4MD-xx.x combiner cards are installed in any open slots.

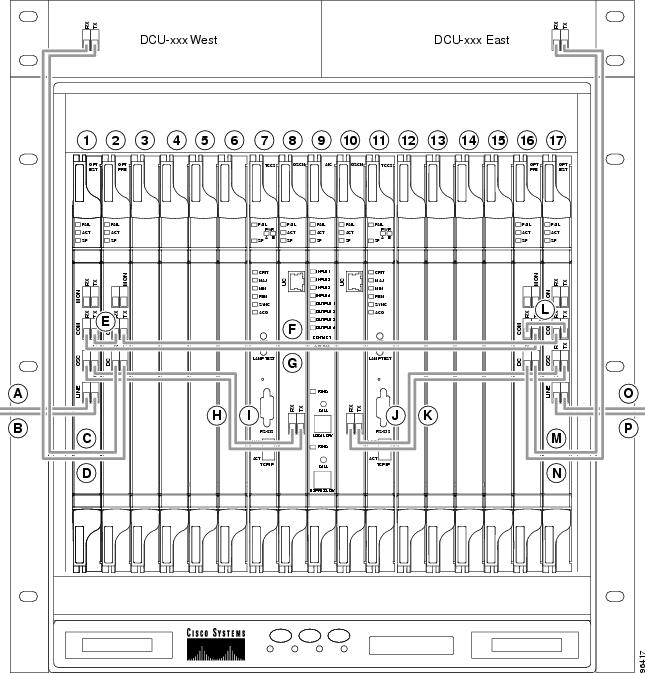

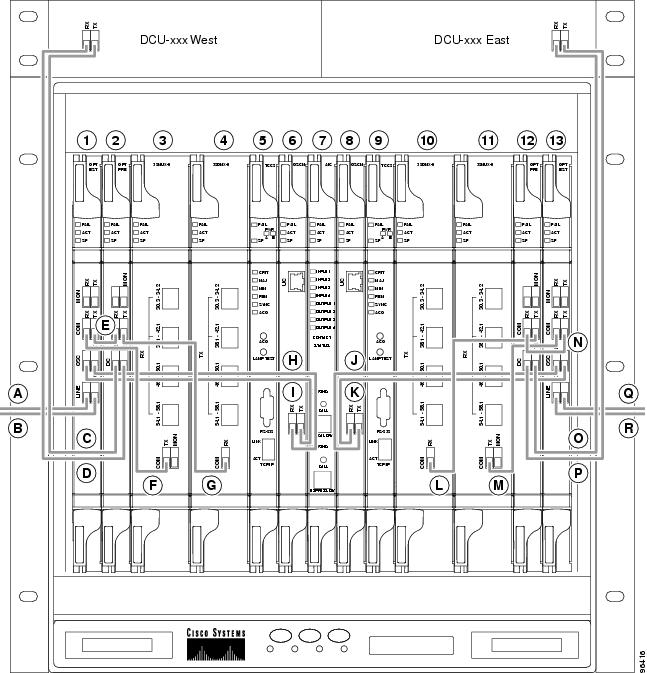

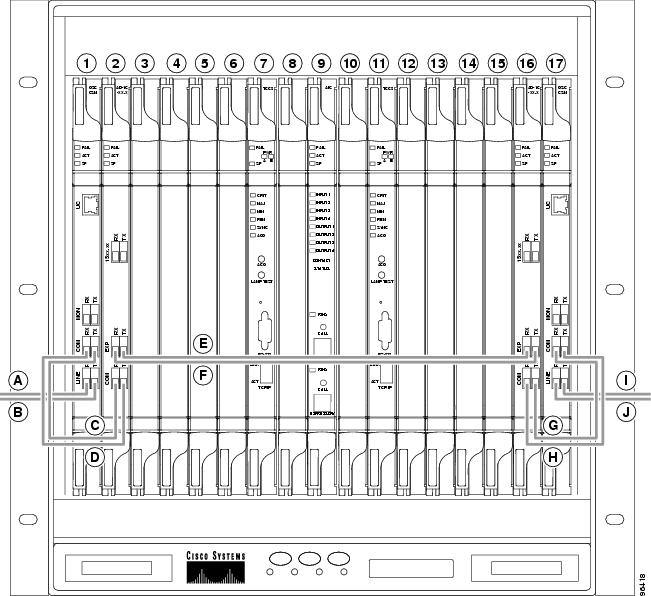

Note Refer to Figures 2-8, 2-9, 2-10, and 2-11 to see typical site shelf diagrams that contain cards and show cabling schemes.


Step 5 Verify that the card is inserted correctly and close the latches/ejectors on the card.


Note It is possible to close the latches/ejectors when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 6 Verify the LED activity:

The FAIL LED illuminates for approximately 35 seconds

The FAIL LED blinks for approximately 40 seconds

All LEDs illuminate and then turn off within 5 seconds

If new software is being downloaded to the card, the ACT and SF LEDs blink for 20 seconds to 3.5 minutes, depending on the card type

The ACT LED illuminates

The signal fail (SF) LED stays illuminated until all card ports connect to their far-end counterparts and a signal is present

Step 7 If the card does not boot up properly, or the LED activity does not mirror Step 5, check the following:

When a physical card type does not match the type of card provisioned for that slot in CTC, the card might not boot. If a DWDM card does not boot, open CTC and ensure that the slot is not provisioned for a different card type before assuming the card is faulty.

If the red FAIL LED does not illuminate, check the power.

If you insert a card into a slot provisioned for a different card, all LEDS turn off.

If the red FAIL LED is illuminated continuously or the LEDs behave erratically, the card is not installed properly. Remove the card and repeat Steps 2 to 6.

Step 8 If you installed OPT-PRE cards, complete the "A243 Install the DWDM Dispersion Compensating Cards" procedure.

Step 9 Complete the "A244 Install Fiber-Optic Cables on DWDM Cards" procedure.


Note If you discover that you installed the wrong card in a slot, complete the "A116 Remove and Replace a Card" procedure.


Stop. You have completed this procedure.


NTP-A243 Install the DWDM Dispersion Compensating Cards

Purpose

This procedure describes how to install the dispersion compensating cards (DCU-xx.x) for Release 4.5 DWDM shelves. This procedure applies to DWDM (Software R4.5) nodes only.

Tools/Equipment

DCU-xx.x cards

Prerequisite Procedures

A15 Install the Common Control Cards

A242 Install the DWDM Cards

Required/As Needed

Required whether the node bit rate is 2.5 Gbps or 10 Gbps or 2.5Gps, if the span is very long. If Metroplanner is used to generate the bill of materials, the need for DCUs will be indicated.

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool due to electrical hazard.



Warning Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Warning Class 1M laser product.



Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam or view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.



Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note If protective clips are installed on the backplane connectors of the cards, remove the clips before installing the cards.



Note If a DCU is not required, a 4 dB optical attenuated patch cord must be placed between the OPT-PRE DCC Tx and Tx ports.



Step 1 Pull the card latch inward with your finger.

Step 2 Firmly slide the DCU card along the guide rails until the card plugs into the receptacle at the back of the horizontal dispersion compensating card slots at the top of the shelf.


Note The West dispersion compensating card is commonly installed on the left side and the East card is commonly installed on the right.


Step 3 Release the finger latch.


Note It is possible to close the latch when the card is not completely plugged into the backplane. Ensure that you cannot insert the card any further.


Step 4 Verify that the card is engaged with the backplane by grasping and gently pulling the card handle. If the card does not move, it is fully installed. If it moves, repeat Step 2.

Step 5 Complete the "A244 Install Fiber-Optic Cables on DWDM Cards" procedure.

Step 6 If you discover that you installed the wrong card in a slot, complete the "A116 Remove and Replace a Card" procedure.

Step 7 Continue with the "A20 Replace the Front Door" procedure if necessary.

Stop. You have completed this procedure.


NTP-A116 Remove and Replace a Card

Purpose

This procedure describes how to remove and replace all cards housed in the
ONS 15454 shelf and rack.This procedure applies to both DWDM (Software R4.5) and non-DWDM (Software R4.1 and earlier) nodes.

Tools/Equipment

None

Prerequisite Procedures

A card installation procedure

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Step 1 If you are not logged into CTC and you need to remove a card, remove the card as described in Step 3. When you log into CTC, troubleshoot the mismatched equipment alarm (MEA) with the Cisco ONS 15454 Troubleshooting Guide.

Step 2 If you are logged into CTC, complete one of the following:

Complete the "DLP-A191 Delete a Card" task and continue with Step 3.

Complete the "DLP-A247 Change an OC-N Card" task to delete a card and replace it with a different OC-N card while maintaining existing provisioning.

Step 3 Physically remove the card:

a. Open the card latches/ejectors.

b. Use the latches/ejectors to pull the card forward and away from the shelf.

Step 4 Insert the new card using one of the following procedures as applicable:

A15 Install the Common Control Cards

A16 Install the OC-N Cards

A17 Install the Electrical Cards

A246 Install Ethernet Cards and Connectors

A242 Install the DWDM Cards

A243 Install the DWDM Dispersion Compensating Cards

Step 5 Continue with the "A247 Install Fiber-Optic Cables on OC-N Cards" procedure.

Stop. You have completed this procedure.


DLP-A191 Delete a Card

Purpose

This task deletes a card from CTC. This task applies to DWDM (Software R4.5) and non-DWDM (Software R4.1 and earlier) nodes.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Step 1 On the shelf graphic in CTC, right-click the card that you want to remove and choose Delete Card.

You cannot delete a card if any of the following conditions apply:

The card is a TCC+/TCC2 card. To replace a TCC+/TCC2 card, refer to the Cisco ONS 15454 Troubleshooting Guide.

The card is part of a protection group; see the "DLP-A155 Delete a Protection Group" task.

The card has circuits; see the "NTP-A152 Delete Circuits" procedure on page 11-20.

The card is part of a BLSR; see the "A213 Remove a BLSR Node" procedure.

The card is being used for timing; see the "DLP-A157 Change the Node Timing Source" task.

The card has a non-DWDM DCC/GCC termination; see the "A204 Delete a SONET DCC Termination" procedure.


Note If you delete a card in CTC but do not remove it from the shelf, it will reboot and reappear in CTC.


Step 2 Return to your originating procedure (NTP).


DLP-A247 Change an OC-N Card

Purpose

This task describes how to change an OC-N card while maintaining existing provisioning, including DCCs/GCCs, circuits, protection, timing, and rings. This task does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

None

Prerequisite Procedures

A60 Log into CTC

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

Provisioning or higher



Caution Physically removing an OC-N card can cause a loss of working traffic or a protection switch. See Chapter 14, "Upgrade Cards and Spans" for information on upgrading traffic to a higher speed.


Note You cannot change a multiport card to a card with a smaller number of ports. Do not use this procedure to replace a card with an identical card.Instead, use the "DLP-A191 Delete a Card" task.



Step 1 If the card the active card in a 1+1 protection group, switch traffic away from the card:

a. Log into a node on the network. If you are already logged in, go to Step b.

b. Display the CTC node (login) view.

c. Click the Maintenance > Protection tabs.

d. Double-click the protection group that contains the reporting card.

e. Click the active card of the selected group.

f. Click Switch and Yes in the Confirmation dialog box.

Step 2 In CTC, right-click the card that you want to remove and choose Change Card.

Step 3 From the Change Card drop-down menu, choose the desired card type and click OK. An MEA alarm appears until you replace the card.

Step 4 Physically remove the card:

a. Disconnect any fiber connections to the front of the card. See the Cisco ONS 15454 Troubleshooting Guide for fiber connection and fiber boot information.

b. Open the card latches/ejectors.

c. Use the latches/ejectors to pull the card forward and away from the shelf.

Step 5 Complete the "A16 Install the OC-N Cards" procedure.

Step 6 Return to your originating procedure (NTP).


NTP-A115 Preprovision a Slot

Purpose

This procedure describes how to preprovision a card slot in the CTC before completing physical installation. This procedure can be used for DWDM (Software R4.5) and non-DWDM (Software R4.1 and earlier) nodes.

Tools/Equipment

None

Prerequisite Procedures

"Connect the PC and Log into the GUI"

Required/As Needed

As needed

Onsite/Remote

Onsite or remote

Security Level

Provisioning or higher



Note Once you have preprovisioned a card slot, you can place ports in service, create circuits, and set loopbacks for the preprovisioned card.



Step 1 Log into the ONS 15454. See the "DLP-A60 Log into CTC" task for instructions. The node (default) view displays. If you are already logged in, continue with Step 2.

Step 2 Right-click the empty slot where you will later install a card.

Step 3 From the Add Card popup menu, choose the card type that will be installed.


Note When you preprovision a slot, the card appears purple in the CTC shelf display, rather than white when a card is physically in the slot.


Stop. You have completed this procedure.


NTP-A247 Install Fiber-Optic Cables on OC-N Cards

Purpose

This procedure describes how to install fiber-optic cables on OC-N cards according to topology. It does not apply to DWDM (Software R4.5) nodes.

Tools/Equipment

Fiber-optic cables

Fiber boot

Prerequisite Procedures

A16 Install the OC-N Cards

A17 Install the Electrical Cards (if applicable)

A246 Install Ethernet Cards and Connectors

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Warning Class I (21 CFR 1040.10 and 1040.11) and Class 1M (IEC 60825-1 2001-01) laser products.



Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not stare into the beam or view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.



Warning On all OC-N cards except the OC192 LR/STM64 LH 1550 card, the laser is on even when the optical port is not in service. On the OC192 LR/STM64 LH 1550 card, the laser is active when the card is booted and the safety key is in the on position (labeled 1). The laser is off when the safety key is off (labeled 0).



Warning Follow all directions and warning labels when working with optical fibers. To prevent eye damage, never look directly into a fiber or connector.



Caution Do not use fiber loopbacks with the OC192 LR/STM64 LH 1550 or OC192 LR/STM64 LH ITU 15xx.xx card unless you are using a 20-dB attentuator. Never connect a direct fiber loopback. Using fiber loopbacks causes irreparable damage to the OC192 LR/STM64 LH 1550 or OC192 LR/STM64 LH ITU 15xx.xx card.


Caution Do not use fiber loopbacks with the OC192 IR/STM64 SH 1550 card unless you are using a 5-dB attentuator. Never connect a direct, unattenuated fiber loopback. Using unattenuated fiber loopbacks causes irreparable damage to the OC192 IR/STM64 SH 1550 card.


Caution Always use the supplied ESD wristband when working with a powered ONS 15454. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.


Note Fiber boots are not recommended for the OC192 or the OC48AS because of the downward angle of the optical ports.



Note You can install the fiber immediately after installing the cards, or wait until you are ready to turn up the network. See "Turn Up Network."



Step 1 Test the optical receive levels for the cards installed and attenuate accordingly. See Table 2-3 for the minimum and maximum levels.

Table 2-3 OC-N Card Transmit and Receive Levels

Card
Transmit
Receive
Minimum
Maximum
Minimum
Maximum

OC3 IR 4/STM1 SH 1310

-15 dBm

-8 dBm

-28 dBm

-8 dBm

OC3IR/STM1SH 1310-8

-15 dBm

-8 dBm

-28 dBm

-8 dBm

OC12 IR/STM4 SH 1310

-15 dBm

-8 dBm

-28 dBm

-8 dBm

OC12 LR/STM4 LH 1310

-3 dBm

+2 dBm

-28 dBm

-8 dBm

OC12 LR/STM4 LH 1550

-3 dBm

+2 dBm

-28 dBm

-8 dBm

OC12 IR/STM4 SH 1310-4

-15 dBm

-8 dBm

-30 dBm

-8 dBm

OC48 IR 1310

-5 dBm

0 dBm

-18 dBm

0 dBm

OC48 LR 1550

-2 dBm

+3 dBm

-28 dBm

-8 dBm

OC48 IR/STM16 SH AS 1310

-5 dBm

0 dBm

-18 dBm

0 dBm

OC48 LR/STM16 LH AS 1550

-2 dBm

+3 dBm

-28 dBm

-8 dBm

OC48 ELR/STM16 EH 100 GHz

-2 dBm

0 dBm

-27 dBm at

1E-12 BER

-9 dBm

OC48 ELR/STM16 EH 200 GHz

-2 dBm

0 dBm

-28 dBm

-8 dBm

OC192 SR/STM64 IO 1310

-6 dBm

-1 dBm

-11 dBm

-1 dBm

OC192 IR/STM64 SH 1550

-1 dBm

+2 dBm

-14 dBm

-1 dBm

OC192 LR/STM64 LH 1550

+7 dBm

+10 dBm

-19 dBm

-10 dBm

OC192 LR/STM64 LH ITU 15xx.xx

+3 dBm

+6 dBm

-22 dBm

-9 dBm

TXP_MR_10G (trunk side)

-16 dBm1

+3 dBm1

-24 dBm

-8 dBm

TXP_MR_10G (client side)

-6 dBm

-1 dBm

-14 dBm

-1 dBm

MXP_2.5G_10G (trunk side)

-16 dBm1

+3 dBm1

-24 dBm

-8 dBm

MXP_2.5G_10G (client side)

-5 dBm

0 dBm

depends on SFP

depends on SFP

1 On transponder and muxponder cards, the optical output power on the trunk side can be configured from -16 to +3 dBm with an accuracy of +/-0.5 dB.


Step 2 As needed, complete the "DLP-A207 Install Fiber-Optic Cables on the LGX Interface" task.

Step 3 Inspect and clean all fiber connectors thoroughly. See the "NTP-A112 Clean Fiber Connectors" procedure on page 17-21 for instructions. Dust particles can degrade performance. Put caps on any fiber connectors that are not used.

Step 4 Complete the "DLP-A428 Install Fiber Optic Cables in a 1+1 Configuration" task.


Note To install fiber-optic cables on an Ethernet card GBIC, see the "DLP-A469 Install GBIC or SFP Connectors" task.


Step 5 As needed, complete the "DLP-A43 Install Fiber-Optic Cables for Path Protection Configurations" task.

Step 6 As needed, complete the "DLP-A44 Install Fiber-Optic Cables for BLSR Configurations" task.

Step 7 Complete the "DLP-A45 Install the Fiber Boot" task. Refer to the Cisco ONS 15454 Troubleshooting Guide for information about the fiber boot.

Step 8 Continue with "A245 Route Fiber-Optic Cables" procedure.

Stop. You have completed this procedure.


DLP-A207 Install Fiber-Optic Cables on the LGX Interface

Purpose

This task installs fiber-optic cables on the Lightguide Cross Connect (LGX) interface in the Central Office.

Tools/Equipment

Fiber-optic cables

Prerequisite Procedures

NTP-A112 Clean Fiber Connectors, page 17-21

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

None



Step 1 Align the keyed ridge of the cable connector with the receiving SC connector on the LGX faceplate connection point. Each module supports at least one transmit and one receive connector to create an optical carrier port.

Step 2 Gently insert the cable connector into the faceplate connection point until the connector snaps into place.

Step 3 Connect the fiber optic cable to the OC-N card. See the "DLP-A428 Install Fiber Optic Cables in a 1+1 Configuration" task.

Step 4 Return to your originating procedure (NTP).


DLP-A428 Install Fiber Optic Cables in a 1+1 Configuration

Purpose

This task installs fiber-optic cables on optical (OC-N) cards in a 1+1 linear configuration.

Tools/Equipment

Fiber-optic cables

Prerequisite Procedures

A16 Install the OC-N Cards

NTP-A112 Clean Fiber Connectors, page 17-21

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

None



Note The Cisco OC-3 IR/STM-1 SH, OC-12 IR/STM-4 SH, and OC-48 IR/STM-16 SH interface optics, all working at 1310 nm, are optimized for the most widely used SMF-28 fiber, available from many suppliers.



Note Corning MetroCor fiber is optimized for optical interfaces that transmit at 1550 nm or in the C and L DWDM windows. This fiber targets interfaces with higher dispersion tolerances than those found in OC-3 IR/STM-1 SH, OC-12 IR/STM-4 SH, and OC-48 IR/STM-16 SH interface optics. If you are using Corning MetroCor fiber, OC-3 IR/STM-1 SH, OC- 12 IR/STM-4 SH, and OC-48 IR/STM-16 SH interface optics will become dispersion limited before they will become attenuation limited. In this case, consider using OC-3 LR/STM-1 LH, OC-12 LR/STM-4 LH, and OC-48 LR/STM-16 LH cards instead of OC-3 IR/STM-1 SH, OC-12 IR/STM-4 SH, and OC-48 IR/STM-16 SH cards.



Note With all fiber types, network planners/engineers should review the relative fiber type and optics specifications to determine attenuation, dispersion, and other characteristics to ensure appropriate deployment.



Step 1 Align the keyed ridge of the cable connector with the receiving SC connector on the faceplate connection point. Each card supports at least one transmit and one receive connector to create an optical carrier port. Figure 2-1 shows the cable location.

Figure 2-1 Installing Fiber-Optic Cables

Step 2 Gently insert the cable connector into the faceplate connection point until the connector snaps into place.

Step 3 If you are installing fiber-optic cables on a multiport card, repeat Steps 1 and 2 until all SC connectors are in place.

Step 4 Return to your originating procedure (NTP).


DLP-A43 Install Fiber-Optic Cables for Path Protection Configurations

Purpose

This task connects the fiber-optic cables to the east and west path protection ports at each node. See "Turn Up Network" to provision and test path protection configurations.

Tools/Equipment

Fiber-optic cables

Prerequisite Procedures

A16 Install the OC-N Cards

NTP-A112 Clean Fiber Connectors, page 17-21

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

None



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Caution Do not provision the path protection east and west ports on the same OC-N card.


Step 1 Plan your fiber connections. Use the same plan for all path protection nodes.

Step 2 Plug the fiber into the transmit (Tx) connector of an OC-N card at one node and plug the other end of the fiber into the receive (Rx) connector of an OC-N card at the adjacent node. The card displays an SF LED if the transmit and receive fibers are mismatched (one fiber connects a receive port on one card to a receive port on another card, or the same situation with transmit ports).

Step 3 Repeat Step 2 until you have configured the ring.

Figure 2-2 shows fiber connections for a four-node path protection with trunk (span) cards in Slot 5 (west) and Slot 12 (east).

Figure 2-2 Connecting Fiber to a Four-Node Path Protection

Figure 2-3 shows a traditional path protection dual ring interconnect example. Figure 2-4 shows an integrated dual ring interconnect example.

Figure 2-3 Connecting Fiber to an Eight-Node Traditional Path Protection Dual-Ring Interconnect

Figure 2-4 Connecting Fiber to a Six-Node Integrated Path Protection Dual-Ring Interconnect

Step 4 Return to your originating procedure (NTP).


DLP-A44 Install Fiber-Optic Cables for BLSR Configurations

Purpose

This task installs the fiber-optics to the east and west BLSR ports at each node. See "Turn Up Network" to provision and test BLSR configurations.

Tools/Equipment

Fiber-optic cables

Prerequisite Procedures

A16 Install the OC-N Cards

NTP-A112 Clean Fiber Connectors, page 17-21

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Caution Do not provision the BLSR east and west ports on the same OC-N card.


Step 1 Plan your fiber connections. Use the same plan for all BLSR nodes.

Step 2 Plug the fiber into the transmit (Tx) connector of an OC-N card at one node and plug the other end into the receive (Rx) connector of an OC-N card at the adjacent node. The card displays a SF LED if the transmit and receive fibers are mismatched.


Note Do not mix working and protect card connections when connecting a four-fiber BLSR. The BLSR does not function if working and protect cards are interconnected. See Figure 2-6 for an example of correct four-fiber BLSR cabling.


Step 3 Repeat Step 2 until you have configured the ring.

Figure 2-5 shows fiber connections for a two-fiber BLSR with trunk (span) cards in Slot 5 (west) and Slot 12 (east).

Figure 2-5 Connecting Fiber to a Four-Node, Two-Fiber BLSR

Figure 2-6 shows fiber connections for a four-fiber BLSR. Slot 5 (west) and Slot 12 (east) carry the working traffic. Slot 6 (west) and Slot 13 (east) carry the protect traffic.

Figure 2-6 Connecting Fiber to a Four-Node, Four-Fiber BLSR

Step 4 Return to your originating procedure (NTP).


DLP-A45 Install the Fiber Boot

Purpose

This task installs the fiber boot.

Tools/Equipment

Fiber boot

Prerequisite Procedures

A16 Install the OC-N Cards

Required/As Needed

Required for all OC-N cards except the OC-192 and the OC-48 AS

Onsite/Remote

Onsite

Security Level

None



Note You can install the fiber boots on the fiber-optic cables before or after the fibers are attached to the OC-N card. The fiber boot ensures that the fiber has the appropriate bend radius. Refer to the Cisco ONS 15454 Troubleshooting Guide for additional information about the fiber boot.



Note The fiber boot does not support the OC-48 IR/STM-16 SH AS 1310, OC-48 LR/STM-16 LH AS 1550, and OC-192 LR/STM64 LH 1550 cards. The boots are not necessary for these cards because of the angled SC connectors on the cards.



Note If you are installing an OC3IR/STM1SH 1310-8 card, you must use a fiber clip instead of a fiber boot on the port 8 Rx fiber connector.



Step 1 Position the open slot of the fiber boot underneath the fiber cable.

Step 2 Push the fiber cable down into the fiber boot. Figure 2-7 shows the fiber boot attachment.

Step 3 Twist the fiber boot to lock the fiber cable into the tail end of the fiber boot.

Step 4 Slide the fiber boot forward along the fiber cable until the fiber boot fits snugly over the strain relief shroud onto the end of the SC cable connector. See Cisco ONS 15454 Troubleshooting Guide for a description of the Fiber boot.

Figure 2-7 Attaching a Fiber Boot

Step 5 Return to your originating procedure (NTP).


NTP-A244 Install Fiber-Optic Cables on DWDM Cards

Purpose

This procedure installs the fiber-optic cables for DWDM OSC and nodes. DWDM nodes (Software R4.5) use automatic node setup (ANS) to provision initial power settings between cards and nodes. This application depends upon the presence of correct cabling. See "Turn Up Network" to provision and test DWDM configurations.

Tools/Equipment

Fiber-optic cables

Prerequisite Procedures

A15 Install the Common Control Cards

A242 Install the DWDM Cards

A243 Install the DWDM Dispersion Compensating Cards (as applicable)

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

None



Warning Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.



Warning Class 1M laser product.



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Step 1 Test the optical receive levels for the cards installed and attenuate accordingly. See Table 2-4 for DWDM card minimum and maximum transmit and receive levels.

Table 2-4 DWDM Card Transmit and Receive Levels

Card
Transmit

Receive


Minimum
Maximum
Minimum
Maximum

32DMX-O

-29dBm

-8dBm

+2dBm

+17dBm

32MUX-O

-13dBm

+2dBm

-4.5dBm

+6dBm

4MD-xx.x
(client side)

-29 dBm

-8dBm

-4.5dBm

+6dBm

AD-1C-xx.x
(client side)

-29dBm

-8dBm

-4.5dBm

+6dBm

AD-2C-xx.x
(client side)

-29dBm

-8dBm

-4.5dBm

+6dBm

AD-4C-xx.x
(client side)

-29dBm

-8dBm

-4.5dBm

+6dBm

AD-1B-xx.x
(client side)

-29dBm

-8dBm

-4.5dBm

+6dBm

AD-4B-xx.x
(client side)

-29dBm

-8dBm

-4.5dBm

+6dBm

OSCM
(OC-3 channel only)

-24dBm

-0.5dBm

-42dBm

-7dBm


Step 2 Inspect and clean all fiber connectors thoroughly. See the "NTP-A112 Clean Fiber Connectors" procedure on page 17-21 for instructions. Dust particles can degrade performance. Put caps on any fiber connectors that are not used.

Step 3 Complete the "DLP-A423 Install Fiber-Optic Cables for Basic OSC on All DWDM Nodes" task.

Step 4 As required, complete the "DLP-A424 Install Fiber-Optic Cables for a Terminal Node" task.

Step 5 As required, complete the"DLP-A425 Install Fiber-Optic Cables for a Hub Node" task.

Step 6 As required, complete the "DLP-A426 Install Fiber-Optic Cables for a Line Amplifier Node" task.

Step 7 As required, complete the "DLP-A427 Install Fiber-Optic Cables for an Amplified or Passive OADM Node" task.

Step 8 Continue with the "A245 Route Fiber-Optic Cables" procedure.

Stop. You have completed this procedure.


DLP-A423 Install Fiber-Optic Cables for Basic OSC on All DWDM Nodes

Purpose

This task explains how to install fiber-optic cables for optical service channels on all Release 4.5 DWDM shelves.

Tools

Fiber-optic cables

Prerequisite Procedures

A15 Install the Common Control Cards

A242 Install the DWDM Cards

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

None



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Step 1 Refer to your site plan when cabling the node. Connect fiber optic cabling for the OSC by consulting the following rules:

The OPT-BST and the OSC-CSM are the only cards that directly interface with the line (span) fiber.

The OSCM only carries supervision channels, not DWDM channels.

The OSCM and the OSC-CSM cannot both be used on the same side of the NE (such as both being on the west side). You can have different cards on each side, for example an OSCM on the west side and an OSC-CSM on the east side.

When an OPT-BST and an OSC-CSM are both used on the same side of an NE, the OPT-BST combines the supervision channel with the DWDM channels and the OSC-CSM acts as an OSCM; it does not carry DWDM traffic.

When an OPT-BST and an OSC-CSM are used on opposite sides of the NE, the supervision channel does not require any additional connection.

The East OPT-BST OSC Rx port is connected to East OSCM Tx port.

The East OPT-BST OSC Tx port is connected to East OSCM Rx port.

The East OPT-BST OSC Rx port is connected to East OSC-CSM Line Tx port.

The East OPT-BST OSC Tx port is connected to East OSC-CSM Line Rx port.

The West OPT-BST OSC Tx port is connected to West OSCM Rx port.

The West OPT-BST OSC Rx port is connected to West OSCM Tx port.

The West OPT-BST OSC-Tx port is connected to West OSC-CSM Line Rx port.

The West OPT-BST OSC-Rx port is connected to West OSC-CSM Line Tx port.

Step 2 Plug the fiber into the West Line transmit (Rx) connector of an OPT-BST (or OSC-CSM) card and into the adjacent node East OPT-BST or OSC-CSM Line Tx connector; and then repeat in the other direction (east to west, Rx to Tx). Ensure you are connecting the West Line ports to the adjacent node East Line ports.


Note The card displays an SF LED if the transmit and receive fibers are mismatched (one fiber connects a receive port on one card to a receive port on another card, or the same situation with transmit ports).


Step 3 Repeat Step 2 until you have connected the nodes according to the site plan.

Step 4 At the West side of the first node, plug one end of a fiber cable into the West OPT-BST OSC Rx connector and the other end into West OSCM Tx connector. Repeat the cabling from the West OSCM Rx to the OPT-BST OSC Tx.


Note An OSC-CSM card takes the place of an OPT-BST and OSCM card for that side of the node and does not require OSC cabling.


Step 5 At the East side of the first node, plug one end of a fiber cable into the East OPT-BST OSC Rx connector and the other end into East OSCM Tx connector. Repeat the cabling from the East OSCM Rx to the OPT-BST OSC Tx.

Step 6 Repeat Steps 4 and 5 at each node.

Step 7 Return to your originating procedure (NTP).


DLP-A424 Install Fiber-Optic Cables for a Terminal Node

Purpose

This task gives instruction and rules to install fiber-optic cables on a terminal node DWDM shelf. See Chapter 7, "Turn Up DWDM Network" to provision and test DWDM configurations.

Tools

Fiber-optic cables

Prerequisite Procedures

A15 Install the Common Control Cards

A242 Install the DWDM Cards

A243 Install the DWDM Dispersion Compensating Cards (as applicable)

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Step 1 Refer to your site plan when cabling the node. Connect fiber optic cabling for the terminal site by consulting the following rules:

A terminal site has only one side (as compared to a hub node, which has two sides).

The port line direction is not significant.

The OPT-BST and OPT-PRE cards are not mandatory.

The OSC-CSM or OPT-BST Tx port is connected to the OPT-PRE COM Rx port.

The OPT-PRE COM Tx port is connected to the 32DMX-O COM Rx port.

The 32MUX-O Tx port is connected to the OSC-CSM or OPT-BST COM Rx port.

Refer to Figure 2-8 for an example of hub node cabling which, as noted above, is similar to a terminal node except that a terminal node only has one side.

Step 2 Plug one fiber cable end into the desired Rx port and other end into the desired Tx port.


Note The card displays an SF LED if the transmit and receive fibers are mismatched (one fiber connects a receive port on one card to a receive port on another card, or the same situation with transmit ports).


Step 3 Repeat Step 2 until you have connected the nodes according to the site plan.

Step 4 Return to your originating procedure (NTP).


DLP-A425 Install Fiber-Optic Cables for a Hub Node

Purpose

This task gives instructions, rules, and an example to install fiber-optic cables on a hub node DWDM shelf. See Chapter 7, "Turn Up DWDM Network" to provision and test DWDM configurations.

Tools

Fiber-optic cables

Prerequisite Procedures

A15 Install the Common Control Cards

A242 Install the DWDM Cards

A243 Install the DWDM Dispersion Compensating Cards (as applicable)

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Step 1 Refer to your site plan when cabling the node. Connect fiber optic cabling for the hub node by consulting the following rules:

The West OPT-BST or OSC-CSM card common (COM) Tx port is connected to the West OPT-PRE COM Rx port.

The West OPT-PRE COM Tx port is connected to the West 32DMX-O COM Rx port.

West 32MUX-O COM Tx port is connected to the West OPT-BST or OSC-CSM COM Rx port

The East 32MUX-O COM Tx port is connected to the East OPT-BST or OSC-CSM COM Rx port.

The East OPT-BST or OSC-CSM COM Tx port is connected to the OPT-PRE COM Rx port.

The East OPT-PRE COM Tx port is connected to the 32DMX-O COM Rx port.

Figure 2-8 shows a sample hub node with cabling.

Figure 2-8 Fibering a Hub Node

1

Slot 1OPT-BST West

D

DC West Rx from Slot 2 DCC Tx

2

Slot 2 OPT-PRE West

E

Slot 1 COM Tx to Slot 2 COM Rx

3

Slot 3-4 32 MUX-O West

F

Slot 1 COM Rx from Slot 3-4 COM Tx

4

Slot 5-6 32 DMX-O West

G

Slot 2 COM Tx to Slot 5-6 COM Rx

5

Slot 7 TCC2

H

Slot 1 OSC Tx to slot 8 Rx

6

Slot 8 OSCM West

I

Slot 1 OSC Rx from Slot 8 Tx

7

Slot 9 AIC

J

Slot 10 Tx to Slot 17 OSC Rx

8

Slot 10 OSCM East

K

Slot 10 Rx from Slot 17 OSC Tx

9

Slot 11 TCC2

L

Slot 12-13 COM Rx from Slot 16 COM Tx

10

Slot 12-13 32 DMX-O East

M

Slot 14-15 COM Tx to Slot 17 COM Rx

11

Slot 14-15 32 MUX-O East

N

Slot 16 COM Rx from Slot 17 COM Tx

12

Slot 16 OPT-PRE East

O

Slot 16 DC Tx to DCU East Rx

13

Slot 17 OPT-BST East

P

Slot 16 DC Rx from DCU East Tx

A

Slot 1 Line Rx from span fiber

Q

Slot 17 Line Tx to span fiber

B

Slot 1 Line Tx to span fiber

R

Slot 17 Line Rx from span fiber

C

DCU West Tx to Slot 2 DC Rx



Step 2 Plug one fiber cable end into the desired Rx port and other end into the desired Tx port.


Note The card displays an SF LED if the transmit and receive fibers are mismatched (one fiber connects a receive port on one card to a receive port on another card, or the same situation with transmit ports).


Step 3 Repeat Step 2 until you have connected the nodes according to the site plan.

Step 4 Return to your originating procedure (NTP).


DLP-A426 Install Fiber-Optic Cables for a Line Amplifier Node

Purpose

This task gives instructions, rules, and an example to install fiber-optic cables on a line amplifier node in a DWDM shelf. See Chapter 7, "Turn Up DWDM Network" to provision and test DWDM configurations.

Tools

Fiber-optic cables

Prerequisite Procedures

A15 Install the Common Control Cards

A242 Install the DWDM Cards

A243 Install the DWDM Dispersion Compensating Cards (as applicable)

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Step 1 Refer to your site plan when cabling the node. Connect fiber optic cabling for the line amplifier node by consulting the following rules:

Line amplifier node layout allows all combinations of OPT-PRE and OPT-BST and allows you to use asymmetrical card choices in west-to-east and east-to-west configurations. For a given line direction, you can configure the four following possibilities:

Only preamplification

Only booster amplification

Both pre- and booster amplification

Neither pre- nor booster amplification

If an OPT-PRE card is present west-to-east:

The West OSC-CSM or OPT-BST COM Tx is connected to the West OPT-PRE COM Tx port

The West OPT-PRE COM Tx port is connected to the East OSC-CSM COM Rx port

If an OPT-PRE card is not present west-to-east, the West OSC-CSM or OPT-BST COM Tx port is connected to the East OSC-CSM or OPT-BST COM Rx port.

If an OPT-PRE card is present east-to-west:

The East OSC-CSM or OPT-BST COM Tx port is connected to the East OPT-PRE COM Rx port.

The East OPT-PRE COM Tx port is connected to the West OSC-CSM or OPT-BST COM Rx port.

If an OPT-PRE card is not present east-to-west, the East OSC-CSM or OPT-BST COM Tx port is connected to the West OSC-CSM or OPT-BST COM Rx port.

Figure 2-9 shows a sample line amplifier node with cabling.

Figure 2-9 Fibering a Line Amplifier Node

1

Slot 1OPT-BST West

A

Slot 1 Line Rx from span fiber

2

Slot 2 OPT-PRE West

B

Slot 1 Line Tx to span fiber

3

Slot 3 (not required for configuration)

C

DCU West Tx to Slot 2 DC Rx

4

Slot 4 (not required for configuration)

D

DCU West Rx from Slot 2 DC Tx

5

Slot 5 (not required for configuration)

E

Slot 1 COM Tx to Slot 2COM Rx

6

Slot 6 (not required for configuration)

F

Slot 2 COM Tx to Slot 17 COM Rx

7

Slot 7 TCC2

G

Slot 1 COM Rx from Slot 16 COM Tx

8

Slot 8 OSCM West

H

Slot 1 OSC Rx from Slot 8 Tx

9

Slot 9 AIC

I

Slot 1 OSC Tx to Slot 8 Rx

10

Slot 10 OSCM East

J

Slot 10 Tx to Slot 17 OSC Rx

11

Slot 11 TCC2

K

Slot 10 Rx from Slot 17 OSC Tx

12

Slot 12 (not required for configuration)

L

Slot 16 COM Rx from Slot 17 COM Tx

13

Slot 13 (not required for configuration)

M

Slot 16 DC Tx to DCU-East Rx

14

Slot 14 (not required for configuration)

N

Slot 16 DC Rx from DCU-East Tx

15

Slot 15 (not required for configuration)

O

Slot 17 Line Tx to span fiber

16

Slot 16 OPT-PRE East

P

Slot 17 Line Rx from span fiber

17

Slot 17 OPT-BST East



Step 2 Plug one fiber cable end into the desired Rx port and other end into the desired Tx port.


Note The card displays an SF LED if the transmit and receive fibers are mismatched (one fiber connects a receive port on one card to a receive port on another card, or the same situation with transmit ports).


Step 3 Repeat Step 2 until you have connected the nodes according to the site plan.

Step 4 Return to your originating procedure (NTP).


DLP-A427 Install Fiber-Optic Cables for an Amplified or Passive OADM Node

Purpose

This task gives instructions, rules, and examples to install fiber-optic cables on an amplified or passive optical add/drop multiplexing (OADM) node in a DWDM shelf. See Chapter 7, "Turn Up DWDM Network" to provision and test DWDM configurations.

Tools

Fiber-optic cables

Prerequisite Procedures

A15 Install the Common Control Cards

A242 Install the DWDM Cards

A243 Install the DWDM Dispersion Compensating Cards (as applicable)

Required/As Needed

As needed

Onsite/Remote

Onsite

Security Level

None



Note Amplified OADM nodes contain OPT-PRE cards and OPT-BST cards. Passive OADM nodes do not. Both contain add/drop channel or band cards and/or 32MUX-O and 32DMX-O cards.



Note To avoid error, connect fiber-optic cable so that the farthest slot to the right represents the east port, and the farthest slot to the left represents the west port. Fiber connected to an east port at one node must plug into the west port on an adjacent node.



Step 1 Refer to your site plan when cabling the node. Connect fiber optic cabling for amplified or passive OADM nodes by consulting the following rules:

The two sides of the OADM node do not need to be symmetrical. On each side, you can create one of the following four configurations:

OPT-BST and OPT-PRE

OSC-CSM and OPT-PRE

Only OSC-CSM

Only OPT-BST

Regardless of direction, the TCC2 supervision always assumes the AD-xC or AD-xB COM Rx port and COM Tx ports are connected.

Step 2 Consult the following rules for OADM node express path cabled connections:

The TCC2 checks and guarantees that the AD-xB or AD-xC port sequence on the west line side is the same as the AD-xC or AD-xB port sequence on the East side.

Regardless of direction, the TCC2 supervision always assumes that the AD-xC or AD-xB EXP-Rx and EXP-Tx port are connected.

When you set a connection between an AD-xC or AD-xB 1 EXP Tx port and an AD-xC or AD-xB 2 COM Rx port, the TCC2 automatically assumes the same connection between the other AD-xC or AD-xB 1 EXP Rx port and AD-xC or AD-xC 2 COM Tx port.

Tx ports should only be connected to Rx ports.

EXP ports are connected only to COM ports in between AD-xC or AD-xB cards that all belong to the east side (that is, they are daisy-chained).

EXP ports are connected only to COM ports in between AD-xC or AD-xB cards that belong to the West side.

The EXP port of the last AD-xC or AD-xB card in the west side is connected to the EXP port of the first AD-xC or AD-xB card in the east side.

The OPT-BST COM Rx port is connected to the nearest (in slot position) AD-xC or AD-xB COM Tx port.

The OPT-PRE COM Tx port is connected to the nearest (in slot position) AD-xC or AD-xB COM Tx port.

If OADM cards are located in adjacent slots, the TCC2 assumes they are connected in a daisy-chain between the EXP ports and COM ports as noted above.

The first west AD-xC or AD-xB card COM Rx port is connected to the west OPT-PRE or OSC-CSM COM Tx port.

The first west AD-xC or AD-xB card COM Tx port is connected to the west OPT-BST or OPT-CSM COM Rx port.

The last east AD-xC or AD-xB card COM Rx port is connected to the east OPT-PRE or OSC-CSM COM Tx port.

The last east AD-xC or AD-xB COM Tx port is connected to the east OPT-BST or OSC-CSM Rx port.

If a west OPT-PRE is present, the west OPT-BST or OSC-CSM is connected to the west OPT-PRE COM Rx port.

If an east OPT-PRE is present, the east OPT-BST or OSC-CSM is connected to the east OPT-PRE COM Rx port.

Step 3 Consult the following rules for OADM node add/drop path cabled connections:

AD-xB add/drop (Rx or Tx) ports are only connected to the following ports:

4MD COM Tx or 4MD COM Rx ports

another AD-xB add/drop port (a pass-through configuration)

An AD-xB add/drop band port is only connected to a 4MD card belonging to the same band.

For each specific AD-xB, the add and drop ports for that band card are connected to the COM Tx and COM Rx ports of the same 4MD card.

The AD-xB and 4MD card are located in the same direction side (the connected ports will all have the same line direction).

Step 4 Consult the following rules for OADM node pass-through path cabled connections:

Pass-through connections are only established between add and drop ports on the same band or channel and same line direction.

Only connect AD-xC or AD-xB channel add/drop ports to other AD-xC or AD-xB add/drop ports (as pass-through configurations).

An add (Rx) port is only connected to a drop (Tx) port.

Only connect 4MD client input/output ports to other 4bMD input/outputs.

Only connect a 32DMX output port to a 32MUX-O input port.

Add (Rx) ports are connected to drop (Tx) ports.

A West AD-xB drop (Tx) port is connected to the corresponding west 4MD COM Rx port.

A West AD-xB add (Rx) port is connected to the corresponding west 4MD COM Tx port.

an East AD-xB drop (Tx) port is connected to the corresponding east 4MD COM Rx port.

An East AD-xB add (Rx) port is connected to the corresponding east 4MD COM Tx port.

Figure 2-10 shows a sample amplified OADM node with cabling. Figure 2-11 shows a sample passive OADM node.

Figure 2-10 Fibering an Amplified OADM Node

1

Slot 1 OPT-BST West

F

Slot 1 COM Rx from Slot 3 COM Tx

2

Slot 2 OPT-PRE West

G

Slot 2 COM Tx to Slot 3 COM Rx

3

Slot 3 AD-1C-xx.x (OADM card) West

H

Slot 3 channel Rx from Slot 4 DWDM Tx

4

Slot 4 TxP_MR_2.5G (Transponder) West

I

Slot 3 channel Tx to Slot 4 DWDM Rx

5

Slot 5-6 32MUX-O West

J

Slot 3 EXP Tx to Slot 15 EXP Rx

6

Slot 7 TCC2

K

Slot 3 EXP Rx from Slot 15 EXP Tx

7

Slot 8 OSCM West

L

Slot 1 OSC Tx to Slot 8 Rx

8

Slot 9 AIC-I

M

Slot 1 OSC Rx from Slot 8 Tx

9

Slot 10 OSCM East

N

Slot 10 Rx from Slot 17 OSC Tx

10

Slot 11 TCC2

O

Slot 10 Tx to Slot 17 OSC Rx

11

Slot 12-13 32MUX-O East

P

Slot 14 DWDM Rx from Slot 15 Channel Tx

12

Slot 14 TxP_MR_2.5G (Transponder) East

Q

Slot 14 DWDM Tx to Slot 15 Channel Rx

13

Slot 15 AD-1C-xx.x (OADM card) East

R

Slot 15 COM Rx from Slot 16 COM Tx

14

Slot 16 OPT-PRE East

S

Slot 15 COM Tx to Slot 17 COM Rx

15

Slot 17 OPT-BST East

T

Slot 16 COM Rx from Slot 17 COM Tx

A

Slot 1 Line Rx from span fiber

U

Slot 16 DC Tx to DCU-East Rx

B

Slot 1 Line Tx to span fiber

V

Slot 16 DC Rx from DCU-East Tx

C

DCU West Tx to Slot 2 DC Rx

W

Slot 17 Line Tx to span fiber

D

DCU West Rx from Slot 2 DC Tx

X

Slot 17 Line Rx from span fiber

E

Slot 1 COM Tx to Slot 2 COM Rx



Figure 2-11 Fibering a Passive OADM Node

1

Slot 1 OSC-CSM West

15

Slot 15 (not necessary for configuration)

2

Slot 2 AD-1C-xx.x (OADM) West

16

Slot 16 AD-1C-xx.x (OADM) West

3

Slot 3 (not necessary for configuration)

17

Slot 17 OSC-CSM East

4

Slot 4 (not necessary for configuration)

A

Slot 1 Line Rx from span fiber

5

Slot 5 (not necessary for configuration)

B

Slot 1 Line Tx to span fiber

6

Slot 6 (not necessary for configuration)

C

Slot 1 COM Tx to Slot 2 COM Rx

7

Slot 7 TCC2

D

Slot 1 COM Rx from Slot 2 COM Tx

8

Slot 7 TCC2

E

Slot 2 EXP Tx to Slot 16 EXP Rx

9

Slot 9 AIC

F

Slot 2 EXP Rx from Slot 16 EXP Tx

10

Slot 10 (not necessary for configuration

G

Slot 16 COM Tx to Slot 17 COM Rx

11

Slot 11 TCC2

H

Slot 16 COM Rx from Slot 17 COM Tx

12

Slot 12 (not necessary for configuration

I

Slot 17 Line Tx to span fiber

13

Slot 13 (not necessary for configuration)

J

Slot 17 Line Rx from span fiber

14

Slot 14 (not necessary for configuration)



Step 5 Plug one fiber cable end into the desired Rx port and other end into the desired Tx port.


Note The card displays an SF LED if the transmit and receive fibers are mismatched (one fiber connects a receive port on one card to a receive port on another card, or the same situation with transmit ports).


Step 6 Repeat Step 5 until you have connected the nodes according to the site plan.

Step 7 Return to your originating procedure (NTP).


NTP-A245 Route Fiber-Optic Cables

Purpose

This task describes how to route fiber-optic cables. This procedure can be used for DWDM (Software R4.5) and non-DWDM (Software R4.1 and earlier) nodes.

Tools/Equipment

None

Prerequisite Procedures

Any of the following:

A247 Install Fiber-Optic Cables on OC-N Cards

A244 Install Fiber-Optic Cables on DWDM Cards

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

None



Step 1 Open the fold-down front door on the cable-management tray.

Step 2 Route the fiber cable on the card faceplate through the fiber clip on the faceplate, if provided. Fiber clips are factory-attached to the faceplate of OC-N card and to some DWDM cards (32MUX-O, 32DMX-O, OSCM, OPT-PRE, and OPT-BST).

GBICs do not have fiber clips; therefore, if you are routing optical cable from an E1000-2-G, E1000-2, G1000-2-G, or G10002 card, skip to Step 3.

Step 3 Route the fiber cables into the cable-management tray.

Step 4 Route the fiber cables out either side of the cable-management tray through the cutouts on each side of the shelf assembly. Use the reversible fiber guides to route cables out the desired side.

Step 5 Close the fold-down front door when all fiber cables in the front compartment are properly routed.

Stop. You have completed this procedure.


NTP-A20 Replace the Front Door

Purpose

This procedure explains how to replace the front door and door ground strap after installing cards and fiber-optic cables. This procedure can be used for DWDM (Software R4.5) and non-DWDM (Software R4.1 and earlier) nodes.

Tools/Equipment

#2 Phillips screwdriver

Medium slot-head screwdriver

Small slot-head screwdriver

Prerequisite Procedures

NTP-A3 Open and Remove the Front Door, page 1-13

Required/As Needed

Required

Onsite/Remote

Onsite

Security Level

None



Note Be careful not to crimp any fiber cables that are connected to the OC-N cards or DWDM cards. Some might not have the fiber boot attached.



Step 1 Insert the front door into the hinges on the shelf assembly.

Step 2 Attach one end of the ground strap terminal lug (72-3622-01) to the male stud on the inside of the door. Attach and tighten the #6 Kepnut (49-0600-01) using the open-end wrench. See Figure 2-12.

Figure 2-12 Installing the Door Ground Strap Retrofit Kit

Step 3 Attach the other end of the ground strap to the longer screw on the fiber guide.

a. Attach the lock washer.

b. Attach the terminal lug.

c. Using the open-end wrench, attach and tighten the #4 Kepnut (49-0337-01) on the terminal lug.


Note To avoid interference with the traffic (line) card, make sure the ground strap is in a flat position when the door is open. To move the ground strap into a flat position, rotate the terminal lug counterclockwise before tightening the Kepnut.


Step 4 Replace the left cable-routing channel.

Step 5 Using a Phillips screwdriver, insert and tighten the screws for the cable-routing channel.

Figure 2-13 shows the shelf assembly with the front door and ground strap installed.

Figure 2-13 Shelf Assembly with Door Ground Strap Retrofit Kit Installed

Step 6 Swing the door closed.


Note The ONS 15454 comes with a pinned hex key tool for locking and unlocking the front door. Turn the key counterclockwise to unlock the door and clockwise to lock it.


Stop. You have completed this procedure.
