Branch Design Considerations


In today's global economy, companies are rapidly expanding their presence throughout the world. As they grow, so do their networks. Their branch offices must have effective and reliable network connectivity to their corporate HQs (and between branch offices) in support of business applications. For any branch network, the designer must consider the following key requirements:

Resiliency

Security

Network and application performance

Load sharing

This chapter considers different technologies that can address these requirements, and introduces sample branch designs.

9.1  Resiliency/High Availability

Providing uninterrupted network connectivity between branches and headquarters, and among branches, is critical to any network design. It is essential to avoid single points of failure.

The cost of business interruption caused by network failure, the probability of component or network device failure, and other factors must be carefully analyzed. Designers should consider the cost-benefit ratio of resiliency and plan for appropriate resiliency. In very small branch offices, the cost of providing resiliency may not provide adequate cost benefits.

9.2  Security

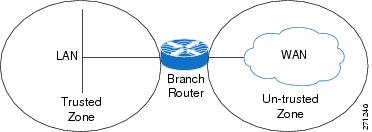

Security is a critical factor in any network design. Typically, data transfer between branches and corporate headquarters happens over a service provider (SP) network or over the Internet. Data that traverses the Internet is highly susceptible to snooping.

To protect against snooping and provide business confidentiality, some form of data encryption should be deployed. Additionally, many government regulations, such as Health Insurance Portability and Accountability Act (HIPAA) and Sarbanes-Oxley (SOX) mandate securing traffic.

9.3  Network and Application Performance

As global businesses evolve, some deploy more and more business critical applications that can provide split-second decisions. Network performance is a key consideration for such applications, which need fast connectivity and bandwidth.

9.4  Load Sharing

A good branch design also provides resources for scaling and growth. Load sharing can provide both improved availability and scalability to the network. In a branch network, load sharing can be implemented by having multiple WAN exit routers to share the load. In addition, branch routers can have multiple exit interfaces connected to the WAN for load sharing. These methods can improve both availability and scaling.

9.5  Common Branch Topologies

Although in many cases a branch might have overlapping features from the following profiles, a typical branch with WAN optimization can be categorized into one of the most widely deployed topologies.

9.5.1  Single Tier Branches

These branches typically have one branch router with a WAE (either internal or external) for optimizing traffic. This router typically has an inbuilt switching module so that multiple same subnet end hosts and IP phones can be connected without requiring an external switch.

In a typical small-enterprise/SOHO deployment, the branch routers are usually single-homed, as shown in Figure 9-1 (a). In small enterprise branches with few users, shown in Figure 9-1 (b), the branch router is often dual-homed to two SPs (or to the same SP), providing resiliency for the WAN connection. A variation of this design, shown in Figure 9-1 (c), adds another WAE to add WAE resiliency. The second WAE can be used to share bandwidth and application optimization loads.

Figure 9-1 SOHO and Single Tier Branches

9.5.2  Dual Tier Branches

Dual tier branches employ multiple (usually two) branch routers and an external Ethernet bridge providing connectivity to the two routers. Typically, both routers are homed to different SPs to provide more resilient WAN connectivity.

A router dual homed to WAN, or a dual branch router design enables efficient link utilization with load sharing, but can also increase the possibility of asymmetric routing and associated challenges. Asymmetric routing is explained in the following section.

The routers can share one WAE for optimization, as shown in Figure 9-2 (a). Alternatively, the routers can use multiple WAEs in a load-shared and redundant manner as shown in The routers can share one WAE for optimization, as shown in Figure 9-2 (b). WCCP can locally correct asymmetry issues and keep optimized session on a consistent WAE.

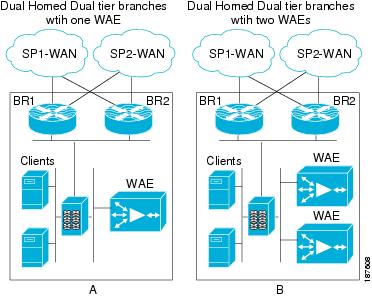

Figure 9-2 Dual Tier Branches

9.5.3  Asymmetric Routing

In hop-by-hop packet routing systems (the vast majority of IP routing systems), each router independently selects the outgoing path. While routing protocols ensure that loops are avoided, the symmetry of bidirectional traffic flows cannot be guaranteed when destination prefixes are reachable by multiple paths.

Asymmetric routing occurs when traffic does not traverse the same path in both directions of a conversation. A branch site that has multiple WAN connections, with either a single router or multiple routers, is always prone to asymmetric routing. This can occur because the routing protocol on each end selects a different path, by load or session balancing, or even by path optimization mechanisms.

Consider a simple branch network with one router dual-homed to the WAN, as shown in Figure 9-3, with a bidirectional traffic session between a client on the branch LAN and a headquarters server. As Figure 9-3 shows, traffic from the branch to headquarters can exit through one WAN link on the branch router (in this case, Link l). However, the server-side routers calculated the best path for the client network to be over the WAN2 link. This is the asymmetric routing case: server-sourced traffic arrives on Link 2 of the branch router.

Figure 9-3 Asymmetric Routing

Without proper design and placement of network services, asymmetric routing can create challenges in networks. For example, asymmetric routing results in suboptimal TCP performance; TCP assumes that the SYN from one end and the ACK from other end traverse the same path. Because data does not traverse the same physical path in both directions, suboptimal TCP performance results.

If state is built into network services for transiting traffic, full flow information might not be available to a network device. Network services that need to act on (or simply see) both directions of a conversation include firewalls, NAT devices, and stateful identification in some applications. Some monitoring tools also rely on bidirectional traffic flows.

Such tools have potential issues when traffic exits through one router and ingresses through the other. Challenges caused by asymmetric routing in a network with a multi-homed single router are a little easier to mitigate than designs where two routers are being used, because conversation state for both directions still transits the same router in the single router case.

9.5.4  Branch LAN-Side High Availability

When using two branch routers, Gateway Load Balancing Protocol (GLBP), Hot Standby Routing Protocol (HSRP), or Virtual Router Redundancy Protocol (VRRP) can be configured on the LAN interfaces of the routers to provide high availability for the default gateway of an end host. Table 9-1 lists the advantages of HSRP and GLBP.

Table 9-1 HSRP and GLBP Advantages

Routing
Protocol
Advantages

HSRP

Higher availability: Enhanced redundancy can eliminate single point of failure of the first-hop gateway. Enhanced object-tracking can be used with HSRP/GLBP to help ensure the redundant implementation mirrors network capabilities. Enhanced object tracking enables multiple technologies such as HSRP, GLBP, and Virtual Router Redundancy Protocol (VRRP) to track the same object and each take different actions.

Simpler access-layer design: More efficient use if resources is possible without configuring additional VLANs and subnets.

GLBP

Automatic load balancing: Off-net traffic is shared among available gateways on a per-host basis, according to the defined load-balancing algorithm.

Lower administration costs: Because all hosts on a subnet can use a common default gateway while load balancing is still achieved, administering multiple groups and gateways is unnecessary.

Efficient use of network resources: Multiple paths upstream from the gateways can be used simultaneously.


9.5.5  Branch WAN-Side High Availability

To ensure business continuity, it is essential to provide high availability on the WAN side. Therefore, branch routers are typically dual-homed to the SP network on the WAN side. In such cases, one path serves as the primary path, and the other is a secondary or backup path.

In other words, traffic normally takes the primary path. If the primary path fails, traffic can move to the secondary path. Routing protocols deployed over the WAN network provide reachability information that enables the branch routers to decide on the path to be taken.

However, when a path fails, it takes some time for routing protocols to converge and point to the alternate path, causing packet loss. Although routing protocol timers can be tweaked to alleviate some of these effects, this is not always fully effective. Additionally, some types of failures (brownouts, black holes, path congestion, and so on) are not captured by the routing protocol reachability information. Performance Routing (PfR), detailed in Path Optimization Using PfR, can be deployed to provide faster, efficient, more granular optimization per application path.

Figure 9-4 depicts a typical GLBP/HSRP implementation on the LAN side and dual homing on the WAN side on branch networks.

Figure 9-4 Typical Branch LAN/WAN High Availability

9.6  Optimization Tools

This section describes the major tools used in the Cisco WAN and application optimization solution:

NBAR

QoS

NetFlow

PfR

Web Cache Communication Protocol (WCCP) and WAEs

9.6.1  Application Visibility Using NBAR

To use WAN bandwidth efficiently, the user should be able to implement appropriate application-aware traffic policies. When using WAEs for TCP optimization, the user faces challenges; for example, L5 through L7 details are no longer visible after packets are optimized (especially with compression). This is shown in Figure 9-5.

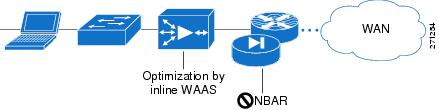

Figure 9-5 TCP Optimization and Application Visibility

Figure 9-6 NBAR Application Marking with TCP Optimization

This challenge makes implementing any application-aware traffic policies difficult. In such cases, using NBAR (as shown in Figure 9-6), with deep packet inspection (DPI) capabilities, and using QoS to mark traffic before WAAS, can be an ideal tool for classifying application traffic.

NBAR has stateful packet inspection capabilities that complement NetFlow, which collects flow information only up to the TCP or UDP port level. Therefore, NetFlow is limited in identifying some kinds of traffic. NBAR can be applied on branch router LAN interfaces to inspect and mark traffic using Differentiated Services Code Point (DSCP) or type of service (ToS) values as traffic enters the branch router.

Different applications of interest can be marked with different DSCP settings. For example, the user can configure specific policies to mark HTTP traffic based on URLs. Because the WAEs do not change IP header information, appropriate QoS egress policies can be configured on the branch router WAN interfaces of the to condition optimized traffic from WAE. A sample NBAR classification configuration follows.

!CONFIGURE APPROPRIATE NBAR CLASS MAPS TO MATCH DIFFERENT APPLICATION/PROTOCOLS
class-map match-any NBAR_FTP
 match protocol ftp
class-map match-any NBAR_voice
 match protocol sip
 match protocol skinny
class-map match-any NBAR_HTTP
 match protocol secure-http
 match protocol http url "*cisco.htm*"
 match protocol http url "*ba_HN.jpg*"

9.6.2  Congestion Management Using QoS

Congestion management using QoS can play a key role in regulating WAN traffic. In a branch, WAN traffic might comprise real-time traffic, Web traffic, and other application traffic. Each traffic patterns requires different handling for delay, packet loss, and so on. For example, real-time traffic such as voice requires low latency and jitter, and appropriate low latency queues should be configured to provide priority for this traffic.

Other traffic types, such as TCP traffic, can have huge packet sizes that can delay other queued traffic, especially on slow links, such as T1. These traffic types require configuration with some link efficiency mechanism, such as fragmentation interleaving, to help minimize the effect. Even with optimization by WAE, congestion can occur and the user must configure appropriate QoS mechanisms to help ensure that different traffic classes are guaranteed appropriate bandwidth.

Similarly, traffic to and from the WAE can be prioritized. If necessary, traffic policing and shaping can be applied on the WAN/LAN interfaces to ensure adherence to traffic limits. For more information, refer to Enterprise QoS Solution Reference Network Design Guide:

http://www.cisco.com/en/US/docs/solutions/Enterprise/WAN_and_MAN/QoS_SRND/QoS-SRND-Book.html

9.6.3  NetFlow

NetFlow supports accounting of IP flows traversing and terminating on the router. This data can be exported to a NetFlow collector and analyzer, which can generate reports, ranging from departmental usage and capacity planning to understanding, which applications are running on the network. NetFlow can also support early detection of security threats, such as denial of service (DoS) attacks. On the router itself, the NetFlow data can be a powerful troubleshooting tool.

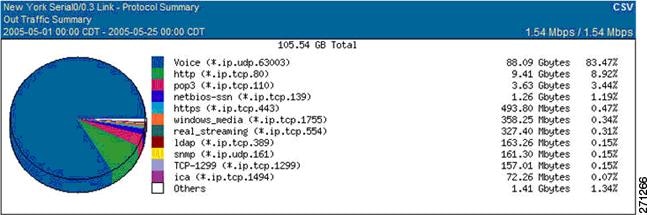

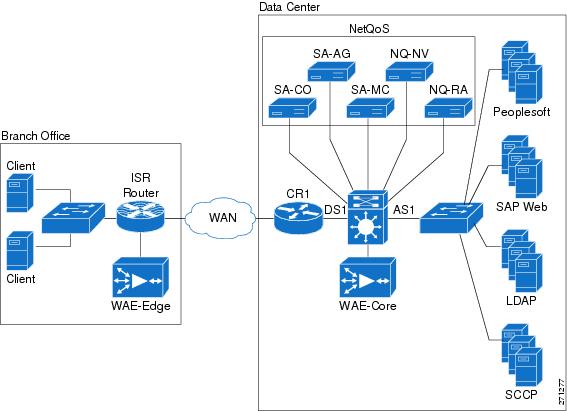

Figure 9-7 illustrates some charting examples from a specific product (NetQoS ReporterAnalyzer). This product is described in more detail in Network and Application Performance.

Seven unique fields (called key fields) identify a NetFlow flow: router source interface, source IP address, destination IP address, type of service (ToS) byte, IP protocol, L4 source port, and L4 destination port.

Additional fields are collected, such as destination interface (where the flow was forwarded), bytes sent, and number of packets sent. Because the deepest flow accounting is based on the L4 ports (in TCP, the source and destination ports), in certain cases it is impossible to identify the end application in use.

To address this problem in many cases, identify an L4 port range and IP addresses to help in identify the application. For example, voice traffic might use UDP port numbers between 16384 and 32767, and IP phones might be restricted to a certain IP address range. The identification data can be represented in the NetFlow collector, which can then use this information to name the application "voice."

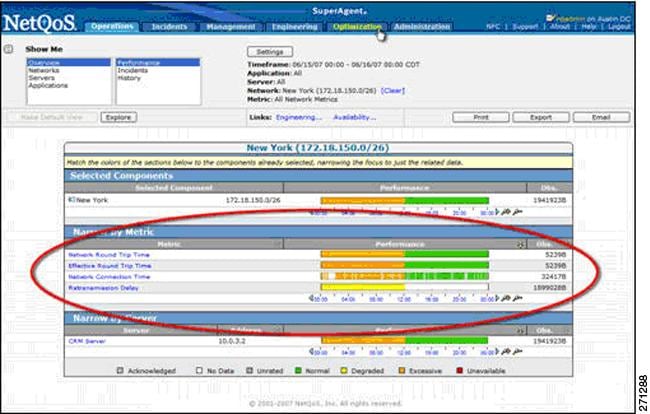

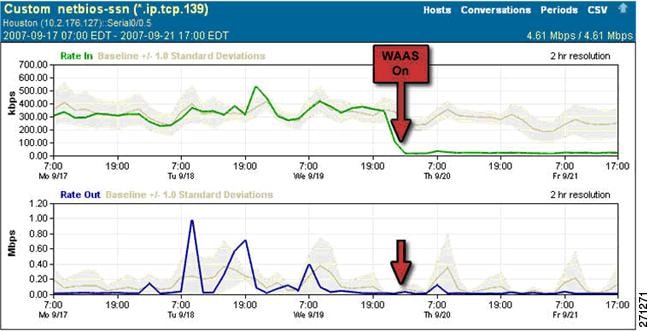

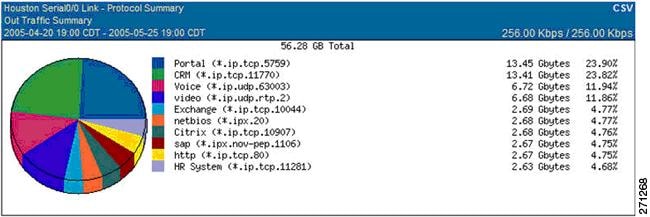

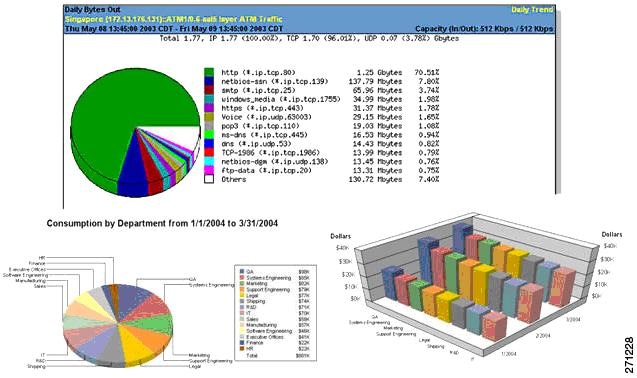

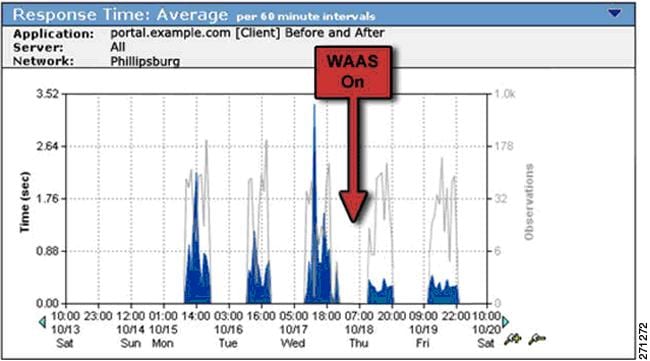

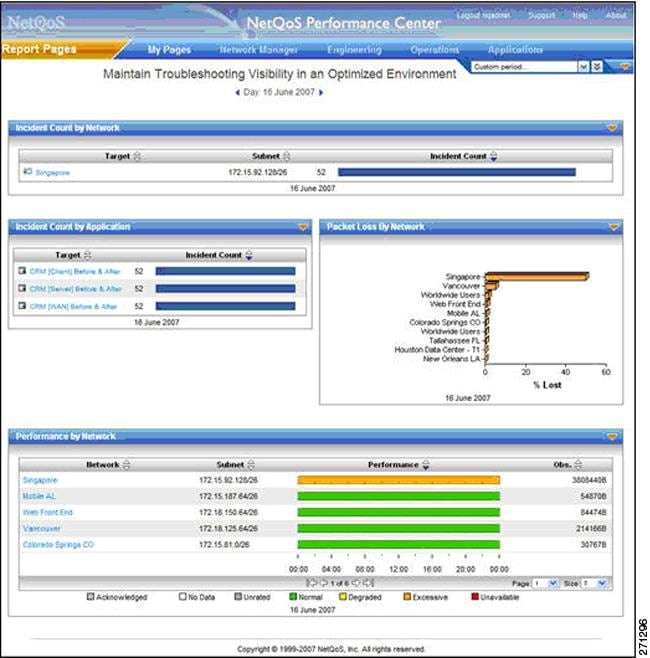

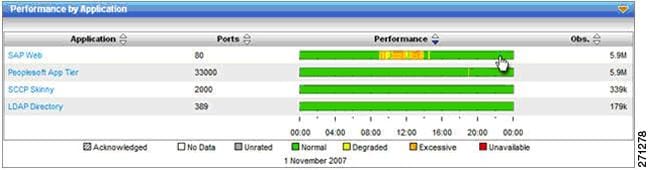

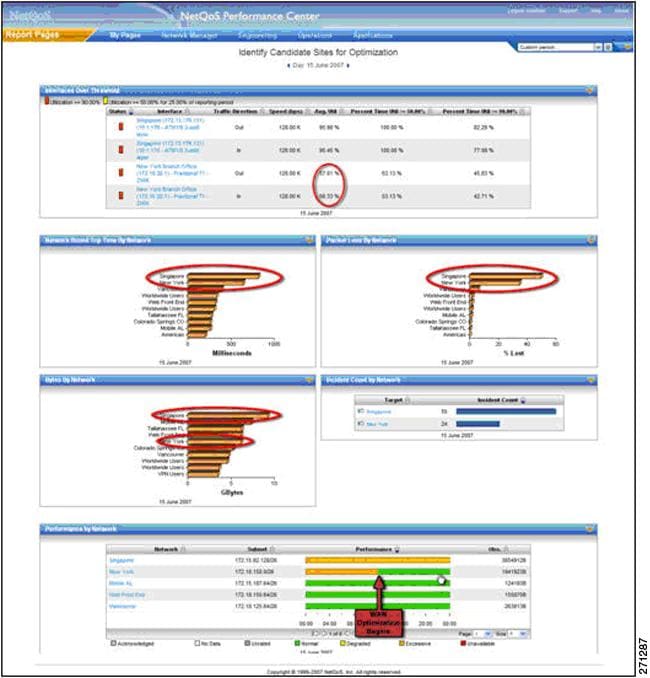

Figure 9-7 NetQoS NetFlow Analysis

Figure 9-8 shows these technologies and where they are applied.

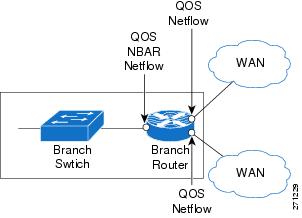

Figure 9-8 NetFlow, NBAR, QoS at a Branch Router

9.6.4  Path Optimization Using PfR

In any WAN design, the challenge is to provide application-specific bandwidth and resiliency while making efficient use of WAN bandwidth. While resiliency and some load sharing of WAN links can be ensured with routing protocols, traditional routing protocols do not provide best path selection based on link utilization or many of the other path characteristics. Therefore, the branch network might not be able to respond to dynamic network emergencies like intermittent congestion or a link failure upstream that does not cause a routing protocol transition. Even if the routing protocol does respond, it might take quite some time for the network to re-converge. In such cases, Cisco PfR can be used to respond to such failures dynamically.

PfR helps to provide dynamic route optimization based on latency, link utilization, and dynamic detection of data path failure. PfR enables a user to:

Improve network performance

Optimally distribute load among multiple links

Save costs through more intelligent bandwidth utilization

Reduce operating expenses (OpEx) through automatic performance optimization

Integrate directly with Cisco IOS IP routing, Cisco IOS NetFlow, Cisco IOS IP Service Level Agreements (IPSLA) and other Cisco IOS Software features

Cisco PfR implementation requires at least one border router (BR) and master controller (MC) process, both of which run on IOS routers. The BR has the branch exit interfaces (attached to the WAN) and is responsible for collecting information about traffic exiting the site, and for implementing policy decisions derived by the MC. For a small office, home office (SOHO), the MC and BR can be the same device.

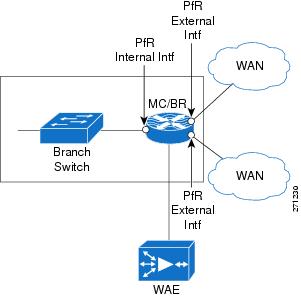

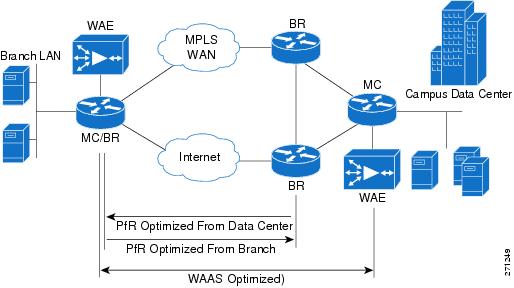

PfR also requires at least two exits towards the WAN. Figure 9-9 represents a typical PfR implementation with a dual-homed branch network. In this case, efficiently deploying PfR with NetFlow, NBAR, and QoS can enable the operator to maximize network performance and end user experience for different applications.

Figure 9-9 SOHO Deployment

However, most deployments have two BRs and one MC. Note that Cisco Express Forwarding (CEF) must be enabled on PfR routers. Figure 9-10 depicts such a deployment.

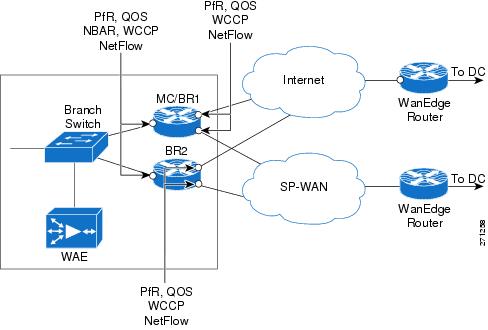

Figure 9-10 PfR Deployment with dual Branch Routers

9.7  How PfR Works

The BR on a PfR-enabled network monitors the performance of the traffic going out to the WAN and relays this information to the MC. The MC verifies whether the current performance conforms to the configured policy for each traffic class. If not, the MC instructs the BRs to change the route for that particular prefix.

To perform route control, a route is injected. The injected route can be a static route, a BGP route (if BGP is used), or a Policy Based Routing (PBR) policy (if the forwarding decision is based on something more than the IP destination). Support for other routing protocols, such as Enhanced Interior Gateway Routing Protocol (EIGRP), is under development. Note that the injected routes are local and should not be advertised.

A typical PfR MC/BR configuration geared toward load balancing traffic between two serial links follows:

!CONFIGURE THE OER KEY TO BE USED FOR MASTER-BORDER AUTHENTICATION
key chain oer-key
 key 1
   key-string WANOPT
!
!CONFIGURE PfR MASTER
oer master
 max-range-utilization percent 10
 logging
 !
!POINT TO THE BORDER ROUTER AND OER KEY TO USE FOR AUTHENTICATION
 border 10.0.0.173 key-chain oer-key
!DEFINE THE INTERNAL AND EXTERNAL INTERFACES ON THE BORDER ROUTER
  interface FastEthernet3/1 internal
  interface Serial6/1:0 external
   max-xmit-utilization percentage 50
  interface Serial6/0:0 external
   max-xmit-utilization percentage 50
 !
 !CONFIGURE THE PfR MASTER TO LEARN TRAFFIC CLASS OR PREFIXES
learn
!CONFIGURE THE PfR TO LEARN TOP PREFIXES BASED ON THROUGHPUT
  Throughput
!CONFIGURE THE PfR TIMERS
  periodic-interval 0
  monitor-period 1
!CONFIGURE THE NUMBER OF PREFIXES TO LEARN
  prefixes 500
  traffic-class keys dscp
 !CONFIGURE THE TYPE OF PREFIXES TO AGGREGATE
 aggregation-type prefix-length 32
 no max range receive
 backoff 90 90
!CONFIGURE THE PfR MODE
 mode route control
 mode select-exit best
 periodic 180
 resolve range priority 1
 resolve utilization priority 2 variance 10
 no resolve delay
!CONFIGURE PfR BORDER
 oer border
!ENABLE LOGGING
 logging
 local Loopback0
!POINT TO THE MASTER ROUTER AND OER KEY TO USE FOR AUTHENTICATION
 master 10.0.0.173 key-chain oer-key

9.7.1  PfR-Based Load Balancing

PfR can also track flows based on destination prefixes and link utilization. By intelligently combining destination prefixes into different groups, appropriate policy maps can be defined in PfR for different kinds of traffic. These different flows can then be appropriately routed and optimized for bandwidth. For example, consider the setup shown in Figure 9-11.

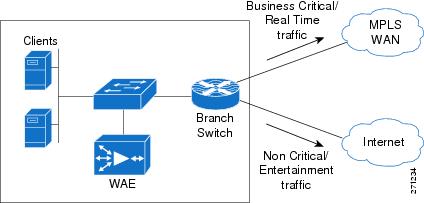

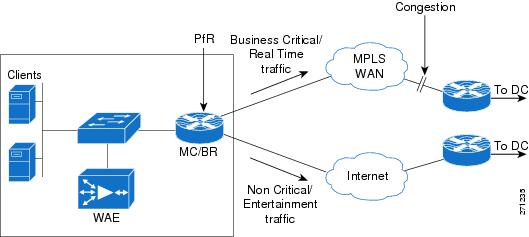

Figure 9-11 Dual-Homed SOHO Branch

This setup has a dual homed branch router with one link over an MPLS WAN and the other over the Internet. Although the available bandwidth for each path is the same, delay and jitter are not. With normal routing protocols, the path through the MPLS WAN is the preferred exit and all traffic flows through that interface. The entire bandwidth available through the Internet exit is unused and wasted.

Using PfR to route all critical and delay sensitive traffic over the primary exit and all entertainment and non-critical traffic over Internet is probably a better solution. Thus, PfR can be used for efficient load balancing to ensure better bandwidth utilization. Section How PfR Works provides sample configurations.

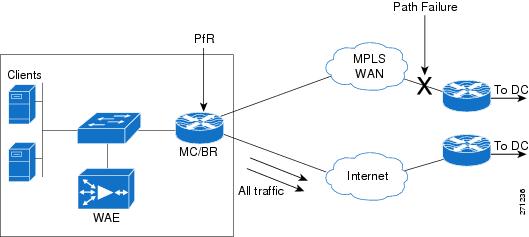

9.7.2  PfR Link/Path Congestion/Failure

Normal routing protocols are primarily limited because they are based primarily on reachability. Although some routing protocols include cost as a metric for route calculations, cost is typically based on the theoretical link bandwidth and is a static value. This seriously impedes their routing path decisions because they do not track dynamically changing metrics such as delay or jitter.

For example, if there is congestion along a path and data packets are dropped or delay increases, normal routing protocols cannot effect a change in the routing path. A failure of this kind can affect all critical and real time user traffic. Because PfR can track metrics such as delay, jitter, and true reachability, it provides a potential solution for such situations. For example, consider the setup shown in Figure 9-12.

This setup has a dual homed branch router with two exit links. The path over Link1 provides a 30ms delay and the path over Link2 provides a delay of 60ms. The router is configured with PfR to track delay, send real time traffic over the path with the least delay, and send all other traffic over the alternate path.

Figure 9-12 Dual-Homed SOHO Branch with Multiple Exit Links

9.7.2.1  Case 1: Normal Conditions: No Congestion

PfR is active and is tracking delay and reachability. Because path 1 provides the lowest delay, all delay sensitive traffic is routed over path 1. As can be seen using show commands, PfR introduces a static route through path1 for delay sensitive traffic. All other traffic is routed over path 2 because of the default route. This is shown in Figure 9-13.

Figure 9-13 SOHO Branch with No Congestion

9.7.2.2  Case 2: Sudden Congestion in Downstream Path 1

A sudden congestion occurs downstream on path 1. Because of this, the delay over path 1 increases to more than 100ms. PfR senses this delay and effects a route change, diverting all real time traffic through path 2. Other traffic is not affected and continues to flow through path 2. See Figure 9-14 and Figure 9-5. Also, see How PfR Works for sample configurations.

Figure 9-14 SOHO Branch with Congestion

Figure 9-15 SOHO Branch Path Congestion with PfR Path Optimization

9.7.2.3  Case 3: Path Failure in Downstream Path 1

A link on a router within the WAN cloud fails, but the routing protocol does not relay this failure, possibly because of static routes or summarization, or possibly because data traffic is failing but the routing protocol remains up. Because of the failure, user traffic does not reach the other end of enterprise network. PfR observes increasing packet retransmissions and failures of its own probes. In response to the failure, PfR can direct all traffic to the alternate WAN path. As in the preceding case, traffic continues to flow unhindered over path 2. This is shown in Figure 9-16.

Figure 9-16 SOHO Branch Path Failure with PfR Path Optimization

For more information about PfR and its deployment, refer to Transport Diversity: PfR Design Guide:

http://www.cisco.com/application/pdf/en/us/guest/netsol/ns483/c649/ccmigration_09186a008094e673.pdf

9.8  WCCP WAEs

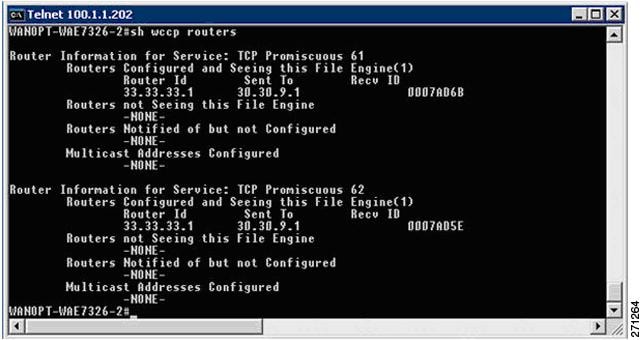

WCCP was introduced in content routing to redirect web traffic to content cache engines. The idea was that with intelligent cache engines, network web traffic could be reduced; conversely, access speed could increase to improve the user experience. WCCP v1, introduced in 1997, was superseded by WCCP v2.

Cisco WAEs are devices used with Cisco IOS routers running WCCP to provide TCP optimization. WCCP is a common deployment tool used to intercept TCP traffic. WCCP redirects selected TCP traffic to the WAE, which can perform TCP optimization and compression, and which has data redundancy elimination (DRE) cache to help optimize the TCP traffic.

Figure 9-17 shows a typical WCCP and WAE deployment in a branch network.

Figure 9-17 WCCP and WAE in a Branch Network

9.9  WANs

WANs are networks that cover a wide area. Typically, they interconnect LANs located in different areas. WANs imply a path of higher latency (generally 10s of milliseconds to several hundred milliseconds), relative lower bandwidth (therefore leading to more congestion), and a higher possibility of intermittent packet loss and path failures.

9.9.1  MPLS WANs

Enabling MPLS over the WANs provides multiple advantages to an enterprise network:

MPLS provides convergence of both L2 and L3 VPNs over the WAN.

MPLS WANs retain extensive QoS capabilities and traffic engineering tunnels to provide real-time and mission-critical traffic with assured bandwidth and resiliency.

Enterprises need not maintain any more specific WAN infrastructure.

Enterprise network designs involving hub-and-spoke topologies are simpler. Hubs do not need to maintain individual adjacencies with the spokes, and interspoke traffic does not need to go through the hub. Routing becomes much simpler because spoke routers need not maintain a full routing table.

All packet switching happens based on the labels the packets carry with less cumbersome route lookups.

Figure 9-18 shows a common deployment of branch to HQ connectivity over a MPLS WAN.

Figure 9-18 MPLS WAN

9.9.2  Internet-Based VPNs Secured using DMVPN

Even as MPLS-enabled WANs gain increased acceptance and deployment, a need remains for legacy WAN connectivity (direct leased line links, and so on), especially for SOHO and small branch offices. Additionally, Internet connectivity is useful in case the primary MPLS WAN link fails.

One major drawback for such a deployment is the lack of security for Internet traffic. Security for the traffic over Internet can be assured by securing the Internet connection with Dynamic Multicast VPN (DMVPN), which provide a variant of IP security (IPsec) protection with deployment friendly L3 features.

Figure 9-19 shows such a deployment.

Figure 9-19 Secure WAN over Internet

9.10  Security

The WAN and application optimization solution supports a variety of security options:

IOS Firewall (IOS FW)

Content-Based Access Control (CBAC)

Zone-based firewall

Intrusion Detection System (IDS)

DMVPN

9.10.1  IOS Firewall

IOS Firewall (IOS FW) provides users with a feature-rich and cost-effective way to implement security. IOS FW is particularly suited for branch networks where dedicated firewall boxes are not justified because of their complexity and cost. IOS FW provides users with protection along with seamless integration of other IOS features.

The Cisco IOS Firewall feature set has the following components:

Context-Based Access Control (CBAC)

Cisco Zone-Based Firewall

Intrusion Detection

9.10.1.1  Content-Based Access Control (CBAC)

CBAC inspects all TCP and UDP packets and can dynamically create temporary openings for outbound traffic at the firewall interface. Return traffic is supported only for established sessions. CBAC maintains state information for every session. CBAC is interface based and is configured using ACLs.

9.10.1.2  Zone-Based Firewall

Zone-based firewall, as the name implies, is based on zones. Interfaces are usually associated with zones, and a zone can have multiple interfaces. Typically, on a Cisco router, LAN interfaces on the corporate network are configured to be in the trusted or inside zone; WAN interfaces are placed in the untrusted or outside zone. Zone-based firewalls are simpler to deploy. A class-based policy language is used to configure policies. Figure 9-20 shows a typical zone-based Firewall deployment.

Figure 9-20 Zone-Based Firewall

9.10.1.3  Intrusion Detection

The Firewall's Intrusion Detection system (IDS) contains most common attack signatures to detect intrusion. When IDS detects suspicious activity, IDS logs the event and can either shut down the port or send an alarm before network security is compromised.

For a more detailed explanation of these features and their use, see http://www.cisco.com/en/US/products/ps6586/products_ios_technology_home.html

9.10.2  DMVPN

DMVPN is an IPSec-based secure VPN technology that provides a high degree of security for traffic transmitted over public networks such as the Internet. DMVPN combines protocols such as Generic Routing Encapsulation (GRE), Next Hop Resolution Protocol (NHRP), and IPSec. DMVPN provides a dynamic full mesh based on spoke-to-spoke traffic.

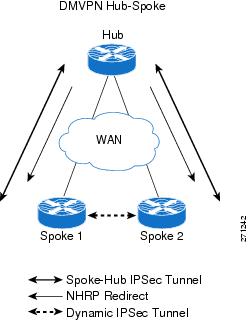

Figure 9-21 DMVPN Hub-and-Spoke Deployment

In a typical enterprise network with multiple branches, DMVPN is deployed in hub-and-spoke topology. Figure 9-21 shows such a deployment. The advantage of DMVPN is that the hub does not need to be configured for specific adjacency with each spoke. This helps scaling because hub reconfiguration is not necessary when new spokes are added. Another advantage with DMVPN is that spoke-to-spoke traffic does need not go through the hub. After spoke-to-spoke traffic is initiated, the hub sends a redirect message to the spokes. The spokes then set up a secure dynamic tunnel directly between them.

For more information, refer to Enterprise Branch Security Design Guide:

http://www.cisco.com/application/pdf/en/us/guest/netsol/ns171/c649/ccmigration_09186a00807593b6.pdf

Figure 9-22 shows a typical setup.

Figure 9-22 DMVPN Spoke-to-Spoke Dynamic Tunnel

For more detailed information about these features and their use, see http://www.cisco.com/en/US/docs/ios/12_2t/12_2t13/feature/guide/ftgreips.html

9.11  Interoperability Considerations

The WAN bandwidth available to most branches is typically less than that of the LANs. The challenge for the user is to make optimal use of the available WAN bandwidth and provide LAN-like performance and experience over WAN. The technologies described in the preceding sections must be combined to realize maximum performance optimization and gains over the WAN.

9.11.1  Putting QoS and NBAR Together

In a typical branch, a myriad of applications is running, each with its own needs and idiosyncrasies such as response times, jitter, bandwidth, and so on. In any well-designed branch, QoS plays an important role in allocating bandwidth between competing applications. However, traditional QoS cannot look very deeply into the packets and identify all applications. NBAR and its DPI capability can be used with QoS in a branch router to provide optimization. NBAR can be configured at the branch router ingress to mark flows from different applications with different ToS/DSCP. QoS can then use the marked flows on the egress to provide bandwidth optimization.

9.11.2  QoS, NBAR, NetFlow, and Path Optimization with PfR

NetFlow provides detailed tracking and statistics for each flow through the router. PfR uses NetFlow to track and monitor the prefixes that need to be controlled. Additionally, PfR can use DSCP values or L4 ports, and so on, to recognize flows based on different traffic classes.

A user can combine the DPI capability of NBAR and DSCP marking with the ability of PfR to track application classes based on those markings to provide resilience and route path optimization. Adding QoS to these provides bandwidth optimization. Figure 9-23 depicts a typical deployment scenario, and relevant sample configurations follow.

Figure 9-23 NBAR/NetFlow/PfR/QoS Interoperability

9.11.2.1  NBAR Configlets

!CONFIGURE APPROPRIATE NBAR CLASS MAPS TO MATCH DIFFERENT APPLICATION/PROTOCOLS
class-map match-all NBAR_UDP
 match access-group name UDP
class-map match-any NBAR_FTP
 match protocol ftp
class-map match-any NBAR_voice
 match protocol sip
 match protocol skinny
class-map match-any NBAR_HTTP
 match protocol http
 match protocol secure-http

!CONFIGURE APPROPRIATE POLICY MAPS TO SET THE IP DSCP VALUES FOR EACH APPLICATION/PROTOCOL
policy-map NBAR
 class NBAR_HTTP
  set dscp cs2
 class NBAR_UDP
  set dscp cs5
 class NBAR_voice
  set dscp cs6
 class NBAR_FTP
  set dscp cs4
 class class-default
  set ip precedence 3

9.11.2.2  QoS Configlets

!CONFIGURE APPROPRIATE QoS CLASS MAPS TO MAP TO THE IP DSCP VALUES IN THE PACKETS
class-map match-all QoS_HTTP
 match ip precedence 2
class-map match-all QoS_FTP
 match ip precedence 4
class-map match-all QoS_UDP
 match ip precedence 5
class-map match-all QoS_voice
 match ip precedence 6

!CONFIGURE APPROPRIATE POLICY MAPS TO ALLOT BANDWIDTH TO DIFFERENT TRAFFIC WHEN CONGESTED
policy-map QoS
 class QoS_HTTP
  bandwidth percent 25
 class QoS_UDP
  bandwidth percent 15
 class QoS_voice
  priority percent 10
 class QoS_FTP
  bandwidth percent 10
 class class-default
  bandwidth percent 15

9.11.2.3  PfR Configlets

!CONFIGURE THE OER KEY TO BE USED FOR MASTER-BORDER AUTHENTICATION
key chain oer-key
 key 1
   key-string WANOPT
!CONFIGURE PfR MASTER
oer master
!ASSIGN THE POLICY MAP TO BE USED FOR PATH-OPTIMIZATION (OPTIONAL)
 policy-rules delayPolicy
 logging
 !
!POINT TO THE BORDER ROUTER AND OER KEY TO USE FOR AUTHENTICATION
 border 10.0.0.172 key-chain oer-key
!DEFINE THE INTERNAL AND EXTERNAL INTERFACES ON THE BORDER ROUTER
  interface Serial6/1:0 external
  interface FastEthernet3/1 internal
  interface Serial6/0:0.1 external
 !
!CONFIGURE THE PfR MASTER TO LEARN TRAFFIC CLASS OR PREFIXES
 learn
!CONFIGURE THE PfR TO LEARN PREFIXES BASED ON DELAY
 delay
!CONFIGURE THE PfR TIMERS
  periodic-interval 0
  monitor-period 1
!CONFIGURE THE NUMBER OF PREFIXES TO LEARN
  prefixes 1000
!CONFIGURE THE TYPE OF PREFIXES TO AGGREGATE
  aggregation-type prefix-length 32
 no max range receive
!CONFIGURE THE PfR MODE
 mode monitor fast
 no resolve delay
 no resolve utilization
 !
!CONFIGURE AN ACTIVE PROBE TO ONE OF THE PREFIXES
active-probe echo 60.1.1.100
!
!CONFIGURE PfR BORDER
oer border
!ENABLE LOGGING
 logging
 local Loopback0
!POINT TO THE MASTER ROUTER AND OER KEY TO USE FOR AUTHENTICATION
 master 10.0.0.172 key-chain oer-key

Note This configuration does not work as intended in IOS release 12.4(15)T2. See Caveats for more details. However, for TCP traffic that is intercepted by WCCP, the preceding configuration and policy does work, as packets would then exit and reenter the router over the interface connected to WAE. NetFlow can then recognize those markings and PfR can act on them. Applications can still be recognized based on L4 information. As a workaround, an upstream router, rather than the WAN edge branch router, can mark packets with the required DSCP.


9.11.3  WAAS Interoperability

WCCP can be deployed with all of the preceding IOS features to further enhance performance and optimization. Figure 9-24 depicts such a deployment. WAE provides TCP optimization only so other traffic, such as voice (over UDP) flows, is not affected by WAE. The following sections detail interoperability considerations when using WCCP with other features.

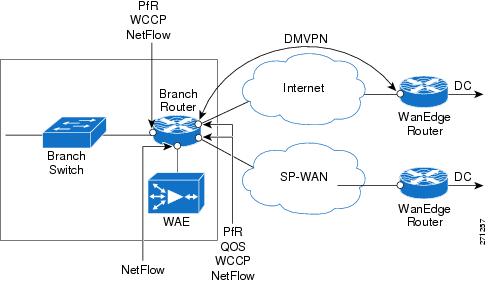

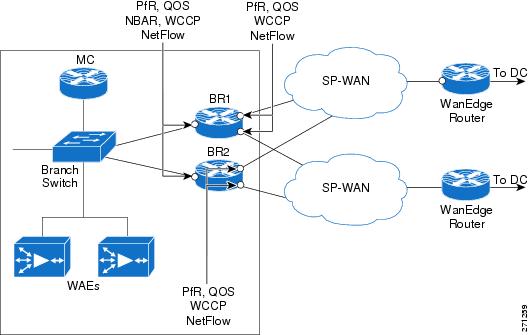

Figure 9-24 WCCP/NBAR/NetFlow/PfR/QoS Interoperability

9.11.3.1  WAAS and Firewalls

Introducing WAAS sets up three TCP segments along the data path, as shown in Figure 9-25. They include sessions between:

1. The client on the branch and the branch WAE

2. The branch WAE and the HQ/DC WAE, and

3. The HQ/DC WAE and the server

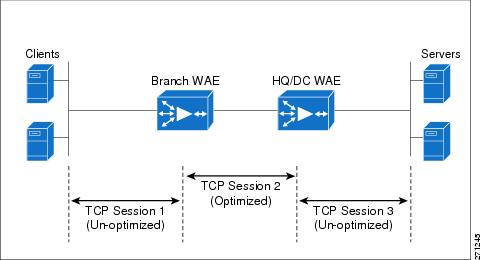

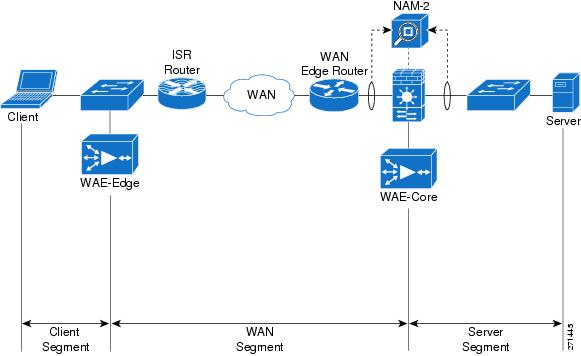

Figure 9-25 TCP Optimization with WAAS

In the second session, the segment between the two WAEs initially uses a TCP sequence to match the original client, but on confirmation of a remote WAE willing to perform optimization, the TCP sequence number jumps to greater than 2 million for the leg between the WAEs. This jump provides a different TCP window for the optimized leg to help differentiate it from the unoptimized leg that the client and server actually see.

TCP options are used in the WAE-WAE TCP segment. This behavior causes the firewall, if it is deployed anywhere along the path in the middle segment, to treat the traffic as suspicious and drop it. Table 9-2 lists the various operating systems and the versions in which firewall drop behavior was fixed.

Table 9-2 Firewall Fixes

Operating System
Version
Command

IOS

12.4(11)T2

inspect waas enable

FWSM

3.2.1

inspect waas

PIX

7.2(3)

inspect waas


9.11.3.2  WCCP and NetFlow

NetFlow, which helps track different flows as they traverse routers and networks, has become indispensable for network operators. PfR depends on NetFlow to track and work with flows. However, when enabling NetFlow along with WCCP on the branch router, note the following:

With both WCCP and NetFlow ingress enabled on the ingress interface of the branch router, a redirected flow cache entry has the output interface as "unknown," as shown in Figure 9-26.

When 61 WCCP in and 62 WCCP out are both configured on the branch router LAN interface, the router looks up some packets twice. This causes duplicate counts in the NetFlow statistics.

Figure 9-26 NetFlow and WCCP (NetFlow, WCCP, IP return (12.4T))

9.11.3.3  WCCP and PfR

When configuring PfR, interfaces must be explicitly labeled as "internal" and "external" so that outgoing WAN traffic can be identified. Because of the NetFlow-WCCP "Unknown" issue, the GRE return feature in WAAS must be enabled so that an explicit internal to external NetFlow cache entry is seen. Additionally, because there are cases where WAAS itself originates traffic (for example, CIFS tunnel traffic), the WAAS-facing interface should labeled as PfR "internal."

9.11.3.4  High Availability and WCCP

9.11.3.4.1  Branch WAE High Availability and Load Sharing

Consider a typical branch network with one branch router and one WAE. The WAE can become a single point of failure, disrupting branch activities. A WAE failure can be a complete failure (for example, power outage, software error, and so on) or a case in which the WAE single box performance limit is reached.

Although these failure possibilities are remote, deploying multiple WAEs at the branch can help minimize the effects of such failures. Using WCCP automatic load distribution features, the WAEs can work as a cluster and can share the load, and potentially protect against a single point of failure by providing backup if one WAE fails.

To help protect against branch router failure and improve availability, a user can set up two branch routers in the network. This also provides load sharing by the routers. In such cases, it is customary to implement HSRP or GLBP on the branch LANs. These two branch routers can share either one WAE or multiple WAEs.

9.11.3.4.2  Branch LAN High Availability with One Shared WAE

A typical network is shown in Figure 9-27.

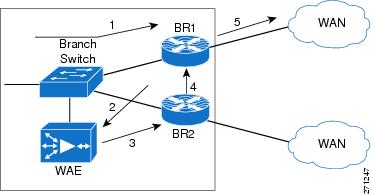

Figure 9-27 Branch LAN High Availability - One WAN

Configuring GLBP on the Branch LAN is more advantageous in such situations because GLBP provides load sharing. On the WAE side, the routers can be configured with HSRP and the WAE default gateway can be pointed toward the HSRP address. This, however, can result in inefficient routing.

Assume that branch routers BR1 and BR2 run a routing protocol between them and with the WAN routers. Let BR1 be the preferred exit to network X over the WAN. Let BR2 be the higher priority router for HSRP on the WAE VLAN. With this setup, let us look at a packet flow from branch to network X:

1. The client on the branch and the branch WAE.

2. WCCP intercepts the packet on BR1 and sends them to the WAE.

3. The WAE processes the packet and returns it to its default gateway, which is BR2.

4. BR2 does a lookup for the packet, realizes that BR1 is the preferred exit, and sends the packet to BR1.

5. BR1 forwards the packet through the WAN.

As can be easily seen, if the WAE could have returned the packet to BR1 instead of to BR2, the extra hop and the consequent delay could have been avoided. A workaround for such issues is to add static routes to pointing to the standby address of the preferred branch router on the WAE. The same problem can happen on the reverse path with asymmetric routing. The problem might be worse in that case, because it might involve unoptimized traffic flowing between the two branch routers. Therefore, there should be adequate bandwidth between the branch routers.

Starting with version 4.0.13, WAEs support negotiated GRE return for optimized packets. With GRE return, the WAE returns the packet directly to the router that sent it. Note that on the routers, HSRP on the WAE side and on the WAE pointing the default gateway to the HSRP address is still recommended. This provides higher availability for WAE connectivity to the network and Central Manager.

9.11.3.4.3  Branch LAN High Availability with Two Shared WAEs

Figure 9-28 shows this implementation.

Figure 9-28 Branch LAN High Availability with Two WAE

As in the previous case, on the routers, GLBP/HSRP is configured on the Branch LAN side and HSRP on the WAE side. The WAE default gateways are pointed to the HSRP address. Configuring GRE return is preferred on the WAEs.

Any multiple link/router environments might give rise to asymmetric routing issues, where packets exit the branch through one router (or one link), such as BR1, and return through another link on the same router (or, possibly, on a different router at the site). On the branch routers, WCCP handles intercepting and directing returning packets to the correct WAE. Figure 9-28 shows a packet flow in the asymmetric routing case.

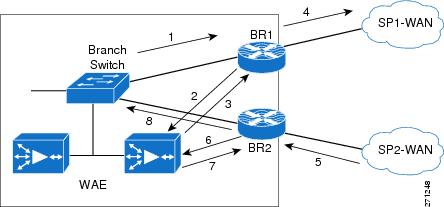

1. Packets from Branch LAN to network X are forwarded to BR1.

2. WCCP intercepts these packets on BR1 and sends them to the WAE.

3. The WAE processes it and returns the packet to its BR1 (GRE return).

4. BR1 forwards the packet to DC/HQ over SP1-WAN.

5. DC/HQ forwards return packet using SP2-WAN to BR2.

6. BR2 WCCP intercepts this packet and sends to WAE.

7. WAE processes and returns the packet to BR2 (GRE return).

8. BR2 now forwards the packet to the client through the LAN.

9.12  Caveats

This section lists caveats for the various components of the WAN and application optimization solution.

9.12.1  PfR Supports Only One Next Hop Per Interface

PfR, by design has traditionally supported only one next hop per interface. This means PfR can be deployed only in topologies using logical point-to-point technologies, such as:

Single-peer Ethernet and Packet over SONET/SDH (POS)

Frame-Relay (P2P), Point-to-Point Protocol (PPP), High-Level Data Link Control (HLDC), GRE

L3VPN Services

PfR cannot be deployed in topologies using:

ISP peering exchanges (generally, common Ethernet VLAN, or SONET ring)

VPLS

DMVPN (mGRE)

However, PfR can work with DMVPN solution using point-to-point GRE tunnels. PfR support for multipoint interfaces is under development.

9.12.2  PfR Supports only BGP or Static Routes for Path Optimization

For path optimization in a router, PfR uses static routes or BGP routes as parent routes. PfR cannot control routes learned using other protocols. However, many WAN deployments use EIGRP or Open Shortest Path First (OSPF). In such cases, the workaround is to use static summary routes and use PfR for route unreachability mitigation.

Support for EIGRP in PfR is under development.

9.12.3  PfR Might Break WAAS TCP Optimization if the WAAS Network Path Changes

PfR tracks various traffic parameters and, based on those parameters, shifts the network path of an application from one link to another to perform path optimization. While doing so, if WAAS is inside the PfR domain as shown in Figure 9-29, the WAAS TCP optimization will be broken. To avoid this, always place outer WAEs outside the PfR domain.

Figure 9-29 PfR-WAAS Network Path

9.12.4  PfR Interface Mapping and WAAS

PfR tracks traffic that enters and exits the router. PfR tags interfaces through which traffic flows as external interfaces or internal interfaces. Typically, the interface through which the traffic enters into the router from the LAN network is tagged as internal and the interfaces through which the traffic exits the router (the WAN) are tagged as external. PfR terms traffic that flows from internal to external interfaces as interesting. PfR needs the traffic in the reverse direction, from external to internal, for verification. Figure 9-30 shows this tagging.

If a router is doing TCP optimization with WAAS, the interface connecting the router to the WAAS cannot be clearly distinguished as internal or external. This is because it acts as the exit interface for traffic that is intercepted by WCCP on the router and as an ingress interface for optimized or un-optimized traffic. The workaround is to configure the WAE to do GRE return.

Additionally, if there is CIFS traffic, the CIFS traffic is not returned using GRE. Therefore, for CIFS traffic, the WAE interface on the router should be tagged as PfR internal.

Another option is to disable the return traffic verification of PfR by using the command no mode verify bidirectional. This, however, exposes PfR to self-created black holes.

9.12.5  PfR Cannot Recognize MQC Marking Done by the Same Router

If the branch router running PfR is doing DSCP or ToS marking on ingress traffic, PfR cannot recognize these remarkings. PfR uses ingress NetFlow to learn and verify traffic. Ingress NetFlow records the original received ToS marking when the packet entered the router and does not record the remarked value. Therefore, PfR cannot match locally remarked flows based on DSCP or ToS. Figure 9-30 illustrates this issue.

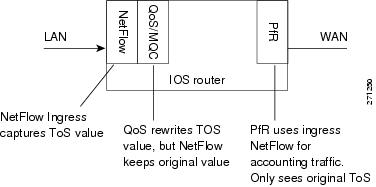

Figure 9-30 PfR and Modular QoS CLI (MQC) Mappings

This, however, does not affect TCP traffic redirected to WAAS because the markings on the packets on reentry are recorded by NetFlow, which PfR can then use. The workaround is to use upstream devices to mark the traffic. DDTS CSCsk99096 tracks this issue.

9.12.6  PFR Interface Mapping and NetFlow Sampling

When NetFlow sampling is enabled on an interface, that interface cannot be used as an internal or external PfR interface. A solution for this issue is under development.

9.12.7  CIFS tunneling on WAE and Network visibility

In Windows operating system environments, CIFS (also known as Windows file sharing) is predominantly used for file sharing. With CIFS application acceleration enabled on such networks with WAAS, WAEs tunnel CIFS traffic across the network over TCP port 4050 and the IP addresses of the WAEs involved.

This affects the visibility of technologies such as NetFlow and QoS, because they are no longer aware of the actual endpoints. Tunneled traffic affects the ability of PfR to granularly path optimize the optimized CIFS traffic because PfR relies on NetFlow. This issue will be resolved in the upcoming release of WAE software in late 2008.

Figure 9-31 illustrates CIFS tunneling with WAE.

Figure 9-31 WAE CIFS Tunneling

9.12.8  WAAS and Firewall

Introducing WAAS creates three different TCP segments: one between the client and the client side WAE, the second between the client side WAE and server side WAE, and the third between the server side WAE and the server.

The WAEs use TCP options (0x21) for autodiscovery and jump up the sequence number to more than 2 million in the WAE-WAE TCP session. Any firewall deployed in between the WAEs might view these activities as suspicious and might drop the packets. This behavior is fixed in the IOS versions detailed in WAAS and Firewalls.

9.12.9  WCCP and NHRP Redirect

Next Hop Routing Protocol (NHRP) is part of DMVPN technology. In a typical hub-and-spoke DMVPN deployment, when spoke-to-spoke traffic hits the hub, it sends a NHRP redirect to the spokes (as shown in Figure 9-32) to enable the spokes to establish a direct secure tunnel between them. For NHRP on the hub to send the redirect, it should see the same packet enter and exit the same tunnel interface. This breaks when WCCP is enabled on the DMVPN hub.

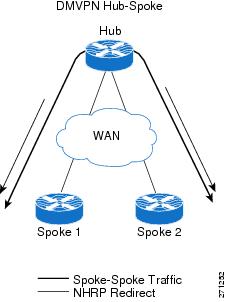

Figure 9-32 DMVPN-NHRP Redirect

In DMVPN deployments with WCCP, WCCP intercept is configured on the tunnels. Therefore, any packet traveling from spoke-to-spoke, on reaching the tunnel, is intercepted by WCCP and sent to the WAE. Assuming that the WAE is doing L3 return, the return packet from the WAE is then sent out the hub. This breaks the NHRP condition to send the redirect. Therefore, no redirect is sent to the spokes and no direct tunnels are established between them. With WAE doing GRE return, NHRP incorrectly sends the redirect to the WAE instead of the spokes, and no spoke-to-spoke tunnels can be established.

Note that this affects only spoke-to-spoke traffic and optimization, and does not affect spoke-to-hub or hub-to-spoke traffic. The workaround is to remove the WCCP intercept on the tunnel interface on the hub and configure it on its LAN interface. The LAN interface on the hub will have WCCP intercept for both in and out directions. This has some performance implications on the hub, as the hub router must do two route lookups for spoke-to-hub traffic.

9.12.10  WAAS Might Not Intercept IP SLA Probes Configured on the Branch Router

In any network, IP SLAs are an essential component for monitoring network performance parameters such as round-trip-time (RTT). On a branch network, it is typical to configure IP SLAs on the branch router connected to the WAN to measure performance. This is shown in Figure 9-33.

Current IOS code does not perform WCCP intercept of any IP SLA probes configured on the branch router. However, WCCP intercepts all regular TCP traffic that passes through the branch router. This can create monitoring issues because parameters, such as network RTT, reported by such SLAs on the branch router do not represent the actual user experience. WCCP does not intercept SLA probes, so WAAS does not optimize them. The workaround is to configure such SLA probes on an upstream router, where WCCP will intercept them on the branch router.

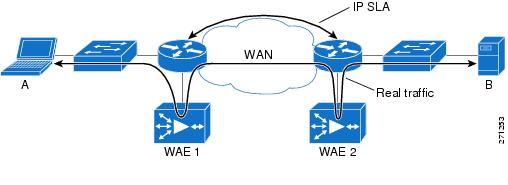

Figure 9-33 IP SLA and WCCP

9.12.11  NBAR Cannot Perform DPI if WAE TCP Optimization Occurs before NBAR Discovery

One of the key abilities of NBAR is its ability to look deep inside packets and classify protocols and applications. In a network using NBAR and inline WAE, an inline WAE located before the branch router, as shown in Figure 9-34, causes optimization to occur first on the TCP flows. Similarly, with WCCP interception along with egress NBAR on branch routers, optimization occurs before NBAR protocol discovery.

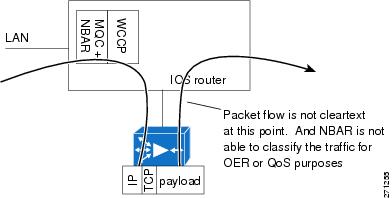

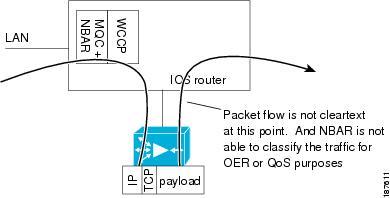

Figure 9-34 WAAS Inline and NBAR

For flows that WAE optimizes using LZ and DRE, packets that exit the WAE can be obfuscated and NBAR can no longer rely on DPI to identify such flows. NBAR can still identify flows based on L4 ports, but as discussed previously, such a classification is not always dependable.

Therefore, WAE and NBAR should be placed so that NBAR can operate on the flows before WAE can. For example, in the WCCP interception case, NBAR should be configured on the ingress of the branch router, as shown in Figure 9-35.

Figure 9-35 WCCP and Egress NBAR

9.13  Example Deployment Models

This section describes a variety of branch office deployment models, varying in size and optimization technologies.

Enterprise Branch Architecture Design Overview provides detailed information about the different types of branches and their deployments:

http://www.cisco.com/application/pdf/en/us/guest/netsol/ns171/c649/ccmigration_09186a00807593b7.pdf

9.13.1  Small Branch Office with Single-Homed SOHO Branch Router

This model, shown in Figure 9-36, is commonly deployed in SOHO branches. It is simple to configure and maintain.

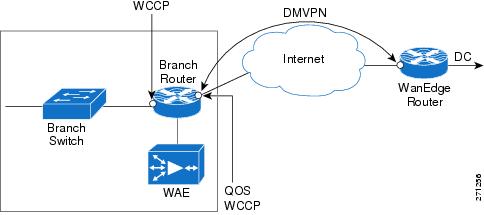

Figure 9-36 Small Branch Office with Single-Homed Branch Router

In this deployment, the branch router is single homed, and has one interface connected to Corporate HQ over Internet. The branch router is configured with the following:

Packets arriving on the LAN interface on the branch router are classified using DPI and the DSCP field is marked accordingly.

TCP packets are redirected to the WAE using WCCP.

The TCP flows are optimized by WAE and returned to the branch IOS router.

The WAE preserves the DSCP markings originally done by NBAR (using DPI) on the branch IOS router ingress interface.

Low latency traffic such as voice is not sent to the WAE, but directly to the WAN interface, which is connected through a DMVPN tunnel to the corporate HQ.

Return traffic from the WAE is mixed with the non-WAE optimized traffic and outbound QoS gives relative priority to the application that needs it, based on DSCP.

9.13.1.1  Sample Branch Router Configuration

A sample branch router configuration for this deployment model follows:

Current configuration: 8884 bytes
!
! Last configuration change at 19:37:45 EST Tue Jan 29 2008
! NVRAM config last updated at 19:27:30 EST Tue Jan 29 2008
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
service internal
!
hostname WANOPT-3845-BR1
!
boot-start-marker
boot system flash:c3845-adventerprisek9-mz.124-15.T2.fc3
boot-end-marker
!
logging buffered 16000000
enable password lab
!
no aaa new-model
clock timezone EST -5
clock summer-time EDT recurring
no network-clock-participate wic 1
!
!
crypto isakmp policy 10
 encr 3des
 authentication pre-share
 group 2
crypto isakmp key cisco address 0.0.0.0 0.0.0.0
crypto isakmp keepalive 30
!
!
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
 mode transport
!
crypto ipsec profile gre_prof
 set transform-set gre_set
!
!
ip wccp 61
ip wccp 62
ip cef
!
ip domain list wanopt4.cisco.com
ip domain name wanopt4.cisco.com
ip host www.cisco.com 60.1.1.100
ip name-server 52.1.1.100
ip inspect WAAS enable
!
multilink bundle-name authenticated
!
voice-card 0
 no dspfarm
!
username cisco privilege 15 secret 5 $1$D.pS$pRcbUNacHbYzs9.BnwDeP0
username lab privilege 15 password 0 lab
archive
 log config
  hidekeys
!
!
controller T1 0/1/0
 framing esf
 linecode b8zs
!
controller T1 0/1/1
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
vlan internal allocation policy ascending
!
ip ftp source-interface FastEthernet1/15
ip ftp username anonymous
ip ftp password nobody@cisco.com
!
class-map match-all NBAR_UDP
 match access-group name UDP
class-map match-any NBAR_FTP
 match protocol ftp
class-map match-all QoS_HTTP
 match ip precedence 2
class-map type inspect match-any wanopt
 match protocol tcp
 match protocol udp
 match protocol icmp
class-map match-any NBAR_voice
 match protocol sip
 match protocol skinny
class-map match-all QoS_FTP
 match ip precedence 4
class-map match-all QoS_UDP
 match ip precedence 5
class-map match-any NBAR_HTTP
 match protocol http
 match protocol secure-http
class-map match-all QoS_voice
 match ip precedence 6
!
!
policy-map NBAR
 class NBAR_HTTP
  set dscp cs2
 class NBAR_UDP
  set dscp cs5
 class NBAR_voice
  set dscp cs6
 class NBAR_FTP
  set dscp cs4
 class class-default
  set ip precedence 3
policy-map type inspect fromOutside
 class type inspect wanopt
  inspect
 class class-default
policy-map QoS
 class QoS_HTTP
  bandwidth percent 25
 class QoS_UDP
  bandwidth percent 15
 class QoS_voice
  priority percent 10
 class QoS_FTP
  bandwidth percent 10
 class class-default
  bandwidth percent 15
policy-map type inspect toOutside
 class type inspect wanopt
  inspect
 class class-default
!
!
interface Loopback0
 ip address 10.0.0.161 255.255.255.255
!
interface Tunnel1
 ip address 172.20.1.2 255.255.255.0
 no ip redirects
 ip mtu 1400
 ip wccp 62 redirect in
 ip flow ingress
 ip nhrp authentication nsite
 ip nhrp map 172.20.1.254 10.18.101.2
 ip nhrp map multicast 10.18.101.2
 ip nhrp network-id 101
 ip nhrp holdtime 300
 ip nhrp nhs 172.20.1.254
 ip nhrp cache non-authoritative
 ip nhrp shortcut
 zone-member security outside
 ip tcp adjust-mss 1360
 tunnel source Serial0/0/0
 tunnel mode gre multipoint
 tunnel protection ipsec profile gre_prof
!
interface GigabitEthernet0/0
 description To AGILENT via WANOPT-6500-MAIN1:G1/25
 ip address 10.19.1.1 255.255.255.0
 ip wccp 61 redirect in
ip flow ingress
load-interval 30
 duplex full
 speed 1000
 media-type rj45
 service-policy input NBAR
!
interface GigabitEthernet0/1
 description To CAT35k-BrMAN-1:F0/1
 ip address 100.1.1.161 255.255.255.0
 duplex full
 speed 100
 media-type rj45
 ntp broadcast client
!
interface Serial0/0/0
 description To WANOPT-7206-INTERNET:S5/0:0
 ip address 10.18.1.2 255.255.255.0
 ip flow ingress
 load-interval 30
 service-policy output QoS
!
interface Serial0/1/1:0
 no ip address
 shutdown
!
interface FastEthernet1/0
 duplex full
 speed 100
!
interface FastEthernet1/1
 duplex full
 speed 100
!
interface FastEthernet1/2
 duplex full
 speed 100
!
interface FastEthernet1/3
 duplex full
 speed 100
!
interface FastEthernet1/4
 duplex full
 speed 100
!
interface FastEthernet1/5
 duplex full
 speed 100
!
interface FastEthernet1/6
 duplex full
 speed 100
!
interface FastEthernet1/7
 duplex full
 speed 100
!
interface FastEthernet1/8
 duplex full
 speed 100
!
interface FastEthernet1/9
 duplex full
 speed 100
!
interface FastEthernet1/10
 duplex full
 speed 100
!
interface FastEthernet1/11
 duplex full
 speed 100
!
interface FastEthernet1/12
 description To CAT6K-MAIN:G1/20
 no switchport
 no ip address
 shutdown
 duplex full
 speed 100
!
interface FastEthernet1/13
 description To CAT6K-MAIN:G1/18
 no switchport
 no ip address
 shutdown
 duplex full
 speed 100
!
interface FastEthernet1/14
 description To CAT6K-MAIN:G1/16
 no switchport
 no ip address
 duplex full
 speed 100
!
interface FastEthernet1/15
 no switchport
 no ip address
 ip tcp adjust-mss 1260
 load-interval 30
 duplex full
 speed 100
!
interface GigabitEthernet1/0
!
interface Integrated-Service-Engine4/0
 ip address 10.18.51.1 255.255.255.0
 ip flow ingress
 service-module ip address 10.18.51.2 255.255.255.0
 service-module ip default-gateway 10.18.51.1
 no keepalive
!
interface Vlan1
 no ip address
!
router eigrp 10
 passive-interface default
 no passive-interface Tunnel1
 network 10.0.0.161 0.0.0.0
 network 10.19.1.0 0.0.0.255
 network 172.20.1.0 0.0.0.255
 no auto-summary
!
router bgp 171
 no synchronization
 bgp log-neighbor-changes
 network 10.0.0.161 mask 255.255.255.255
 network 10.17.1.0 mask 255.255.255.0
 network 10.18.51.0 mask 255.255.255.0
 network 10.19.1.0 mask 255.255.255.0
 neighbor 10.17.1.1 remote-as 103
 no auto-summary
!
ip route 0.0.0.0 0.0.0.0 10.18.1.1
ip route 100.1.1.22 255.255.255.255 10.18.1.1
!
ip flow-cache timeout active 1
ip flow-export source GigabitEthernet0/0
ip flow-export version 9
ip flow-export destination 52.1.1.22 9995
ip flow-top-talkers
 top 10
 sort-by bytes
!
ip http server
ip http authentication local
ip http secure-server
ip http timeout-policy idle 60 life 86400 requests 10000
!
ip sla 1
 http get http://www.cisco.com
 timeout 5000
 owner HTTP - 100.1.1.161
 tag WANOPT HTTP ECHO
ip sla schedule 1 life forever start-time now ageout 3600
ip sla 3
 icmp-echo 60.1.1.100
 owner ICMP Echo - 100.1.1.161 - 60.1.1.100
 tag WANOPT ICMP ECHO
ip sla schedule 3 life forever start-time now ageout 3600
ip sla 4
 dns www.cisco.com name-server 52.1.1.100
 timeout 5000
 owner DNS - 100.1.1.161
 tag WANOPT DNS SLA
ip sla schedule 4 life forever start-time now ageout 3600
logging 100.1.1.104
snmp-server community closed RW
snmp-server community open RO
snmp-server community public RO
snmp-server community private RW
snmp-server ifindex persist
snmp-server trap-source GigabitEthernet0/1
snmp-server enable traps cnpd
snmp-server host 100.1.1.21 version 2c public
!
tftp-server flash:c3845-adventerprisek9-mz.124-11.T2
!
control-plane
!
!
banner login ^C
-----------------------------------------------------------------------
Cisco Router and Security Device Manager (SDM) is installed on this device.
This feature requires the one-time use of the username "cisco"
with the password "cisco". The default username and password have a privilege level

Please change these publicly known initial credentials using SDM or the IOS CLI.
Here are the Cisco IOS commands.

username <myuser>  privilege 15 secret 0 <mypassword>
no username cisco

Replace <myuser> and <mypassword> with the username and password you want to use.

For more information about SDM please follow the instructions in the QUICK START
GUIDE for your router or go to http://www.cisco.com/go/sdm
-----------------------------------------------------------------------
^C
!
line con 0
 login local
line aux 0
line 258
 no activation-character
 no exec
 transport preferred none
 transport input all
 transport output pad telnet rlogin lapb-ta mop udptn v120 ssh
line vty 0 4
 exec-timeout 0 0
 privilege level 15
 password lab
 login
 transport input telnet ssh
line vty 5 15
 exec-timeout 0 0
 privilege level 15
 password lab
 login
 transport input telnet ssh
line vty 16 20
 password lab
 login
line vty 21 30
 password cisco
 login
!
scheduler allocate 20000 1000
ntp clock-period 17179694

!
webvpn cef
!
end

9.13.2  Small Branch Office with Dual-Homed, Single-Tier Branch Router

This deployment model (shown in Figure 9-37) is similar to the previous one. In this model, the branch router is dual-homed. One branch router exit interfaces is connected to the SP WAN, and the other is connected to the Internet.

Figure 9-37 Small Branch Office with Dual-Homed Router

The following protocols are deployed on the branch router:

QoS on the exit interface to do congestion avoidance and management

WCCP on the router to do TCP optimization

NetFlow on all LAN/WAN links

PfR on the router to do path optimization

DMVPN tunnel over Internet to the Corporate HQ to provide security

9.13.2.1  Sample Branch Router Configuration

Current configuration: 8234 bytes
!
! Last configuration change at 10:49:16 EST Wed Jan 30 2008
! NVRAM config last updated at 10:49:38 EST Wed Jan 30 2008
!
upgrade fpd auto
version 12.4
no service pad
service timestamps debug datetime msec localtime
service timestamps log datetime localtime
no service password-encryption
!
hostname WANOPT-7206-BR6
!
boot-start-marker
boot system flash disk0:c7200-adventerprisek9-mz.124-15.T2.fc3
boot-end-marker
!
logging buffered 16000000
no logging console
enable secret 5 $1$qmlj$FYkMGt1ksVs.eWxvzphXM1
enable password cisco
!
no aaa new-model
clock timezone EST -5
clock summer-time EDT recurring
ip wccp 61
ip wccp 62
ip cef
!
!
ip domain list wanopt4.cisco.com
ip domain name wanopt4.cisco.com
ip name-server 52.1.1.100
!
multilink bundle-name authenticated
!
!
key chain oer-key
 key 1
   key-string WANOPT
!
!
oer master
 policy-rules delayPolicy
 logging
 !
 border 10.0.0.172 key-chain oer-key
  interface Tunnel1 external
  interface Serial6/1:0 external
  interface FastEthernet3/1 internal
 no max range receive
 mode monitor fast
 no resolve delay
 no resolve utilization
 !
 active-probe echo 60.1.1.101
!
oer border
 logging
 local Loopback0
 master 10.0.0.172 key-chain oer-key
!
!
!
!
crypto isakmp policy 10
 encr 3des
 authentication pre-share
 group 2
crypto isakmp key cisco address 0.0.0.0 0.0.0.0
crypto isakmp keepalive 30
!
!
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
 mode transport
!
crypto ipsec profile gre_prof
 set transform-set gre_set
!
!
username lab privilege 15 password 0 lab
archive
 log config
  hidekeys
!
!
controller T1 6/0
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
controller T1 6/1
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
ip ftp username anonymous
ip ftp password nobody@cisco.com
!
class-map match-all NBAR_UDP
 match access-group name UDP
class-map match-any NBAR_FTP
 match protocol ftp
class-map match-all QoS_HTTP
 match ip precedence 2
class-map match-any NBAR_voice
 match protocol sip
 match protocol skinny
class-map match-all QoS_FTP
 match ip precedence 4
class-map match-all QoS_UDP
 match ip precedence 5
class-map match-any NBAR_HTTP
 match protocol http
 match protocol secure-http
class-map match-all QoS_voice
 match ip precedence 6
!
!
policy-map QoS
 class QoS_HTTP
  bandwidth percent 25
 class QoS_UDP
  bandwidth percent 15
 class QoS_voice
  priority percent 10
 class QoS_FTP
  bandwidth percent 10
 class class-default
  bandwidth percent 15
policy-map tunnel
 class class-default
  shape average percent 75
  service-policy QoS
policy-map NBAR
 class NBAR_HTTP
  set dscp cs2
 class NBAR_UDP
  set dscp cs5
 class NBAR_voice
  set dscp cs6
 class NBAR_FTP
  set dscp cs4
 class class-default
  set dscp cs3
policy-map fromWAE
 class QoS_HTTP
 class QoS_UDP
 class class-default
!
!
!
interface Loopback0
 ip address 10.0.0.172 255.255.255.255
!
interface Tunnel1
 ip address 172.20.1.1 255.255.255.0
 no ip redirects
 ip mtu 1400
 ip flow ingress
 ip nhrp authentication nsite
 ip nhrp map 172.20.1.254 10.18.101.2
 ip nhrp map multicast 10.18.101.2
 ip nhrp network-id 101
 ip nhrp holdtime 300
 ip nhrp nhs 172.20.1.254
 ip nhrp cache non-authoritative
 ip nhrp shortcut
 ip tcp adjust-mss 1360
 load-interval 30
 QoS pre-classify
 tunnel source Serial6/0:0.1
 tunnel mode gre multipoint
 tunnel protection ipsec profile gre_prof
!
interface FastEthernet0/0
 description To CAT6K-MAIN:G1/31
 no ip address
 no ip route-cache cef
 shutdown
 duplex full
!
interface FastEthernet2/0
 no ip address
 shutdown
 duplex half
!
interface FastEthernet3/0
 description To WANOPT-WAE512-BR6 via WANOPT-6500-MAIN1:G1/5
 ip address 10.18.56.1 255.255.255.0
 ip flow ingress
 load-interval 30
 duplex full
 speed 100
!
interface FastEthernet3/1
 description To WANOPT-6500-MAIN1:G1/31
 ip address 10.19.6.1 255.255.255.0
 ip wccp 61 redirect in
 ip nbar protocol-discovery
 ip flow ingress
 load-interval 30
 duplex full
 speed 100
 service-policy input NBAR
!
interface Ethernet5/0
 description To CAT35k-BrMAN-1:F0/7
 ip address 100.1.1.172 255.255.255.0
 duplex full
 ntp broadcast client
!
interface Ethernet5/1
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex half
!
interface Ethernet5/2
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex half
!
interface Ethernet5/3
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex half
!
interface Ethernet5/4
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex half
!
interface Ethernet5/5
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex half
!
interface Ethernet5/6
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex half
!
interface Ethernet5/7
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex half
!
interface Serial6/0:0
 description To WANOPT-7206-INTERNET-PE:S3/1:0
 no ip address
 encapsulation frame-relay
 load-interval 30
 no keepalive
!
interface Serial6/0:0.1 point-to-point
 ip address 10.18.6.2 255.255.255.0
 ip wccp 62 redirect in
 ip flow ingress
 snmp trap link-status
 frame-relay interface-dlci 101
 service-policy output tunnel
!
interface Serial6/1:0
 description To WANOPT-7206-MPLS-PE:S3/1:0
 ip address 10.17.6.2 255.255.255.0
 ip wccp 62 redirect in
 ip flow ingress
 load-interval 30
 service-policy output QoS
!
router eigrp 10
 passive-interface default
 no passive-interface Tunnel1
 network 10.0.0.172 0.0.0.0
 network 10.18.56.0 0.0.0.255
 network 10.19.6.0 0.0.0.255
 network 172.20.1.0 0.0.0.255
 no auto-summary
!
router bgp 176
 no synchronization
 bgp log-neighbor-changes
 network 10.17.6.0 mask 255.255.255.0
 network 10.18.56.0 mask 255.255.255.0
 network 10.19.6.0 mask 255.255.255.0
 neighbor 10.17.6.1 remote-as 103
 no auto-summary
!
ip route 0.0.0.0 0.0.0.0 10.18.6.1
ip route 0.0.0.0 0.0.0.0 10.17.6.1 100
no ip http server
no ip http secure-server
!
ip flow-cache timeout active 1
ip flow-export source FastEthernet3/1
ip flow-export version 5
ip flow-export destination 52.1.1.22 9995
!
!
ip access-list extended UDP
 permit udp any any
 deny   ip any any
ip access-list extended noHTTP
 permit ip any any dscp cs3
 permit ip any any dscp cs5
 deny   ip any any
ip access-list extended onlyHTTP_ip
 permit ip any host 60.1.1.100 log
 permit ip host 60.1.1.100 any log
 deny   ip any any
ip access-list extended onlyRT
 permit ip 10.19.0.0 0.0.255.255 60.1.1.0 0.0.0.255 dscp cs5
ip access-list extended onlyRealTime
 permit ip any any dscp cs5
ip access-list extended onlyTCP
 permit ip any any dscp cs2
ip access-list extended others
 permit ip any any dscp cs3
 permit ip any any dscp cs5
ip access-list extended permitList1
 permit ip any any dscp cs3
!
!
ip prefix-list onlyHTTP seq 5 permit 60.1.1.100/32
ip sla logging traps
ip sla 275
 http get http://www.cisco.com
 timeout 5000
 owner HTTP - 100.1.1.172
 tag WANOPT HTTP ECHO
ip sla schedule 275 life forever start-time now ageout 3600
ip sla 277
 icmp-echo 60.1.1.100
 owner ICMP Echo - 100.1.1.172 - 60.1.1.100
 tag WANOPT ICMP ECHO
ip sla schedule 277 life forever start-time now ageout 3600
ip sla 278
 dns www.cisco.com name-server 52.1.1.100
 timeout 5000
 owner DNS - 100.1.1.172
 tag WANOPT DNS Echo
ip sla schedule 278 life forever start-time now ageout 3600
logging alarm informational
logging 100.1.1.104
snmp-server community closed RW
snmp-server community open RO
snmp-server community public RO
snmp-server community private RW
snmp-server ifindex persist
snmp-server host 100.1.1.21 version 2c public
!
!
!
!
!
ttycap detected \
at '^' marker.
!
oer-map delayPolicy 10
 match traffic-class prefix-list onlyHTTP
 set mode select-exit best
 set delay threshold 55
 set mode route control
 set mode monitor fast
 set resolve delay priority 1 variance 5
 no set resolve utilization
 set probe frequency 2
!
control-plane
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 exec-timeout 0 0
 password lab
 login
line vty 5 20
 password lab
 login
line vty 21 30
 password cisco
 login
!
exception data-corruption buffer truncate
ntp clock-period 17179708

!
webvpn cef
!
end

9.13.3  Medium Branch Office with Dual-Homed, Dual-Tiered Branch Routers

A typical medium Branch Office has a number of users on the LAN. To allow for resiliency and scaling, the branch network is designed with two branch routers. Each router is dual homed, with one link connected to SP-WAN and the other is connected to Internet. Such a deployment is shown in Figure 9-38.

Figure 9-38 Typical Medium Branch Office

The branch routers have the following protocols deployed:

NetFlow on all LAN/WAN links

NBAR to do protocol discovery and QoS to perform marking

QoS on the exit interface to perform congestion avoidance and management

WCCP on the router to perform TCP optimization

PfR on the routers to perform path optimization. One branch router doubles as both Master Controller and Border Router

(Optional) DMVPN tunnel over Internet to the corporate HQ to provide security

9.13.3.1  Sample Branch Router Configuration (PfR-Master Controller/Border Router)

Current configuration: 7977 bytes
!
! Last configuration change at 13:14:35 EST Wed Jan 30 2008
! NVRAM config last updated at 13:17:03 EST Wed Jan 30 2008
!
upgrade fpd auto
version 12.4
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname WANOPT-7206-BR5
!
boot-start-marker
boot system flash disk0:c7200-adventerprisek9-mz.124-15.T2.fc3
boot-end-marker
!
logging buffered 16000000
no logging console
enable password lab
!
no aaa new-model
clock timezone EST -5
clock summer-time EDT recurring
ip wccp 61
ip wccp 62
ip cef
!
ip domain list wanopt4.cisco.com
ip domain name wanopt4.cisco.com
ip name-server 52.1.1.100
!
multilink bundle-name authenticated
!
!
key chain oer-key
 key 1
   key-string WANOPT
!
!
oer master
 policy-rules delayPolicy
 logging
 !
 border 10.0.0.171 key-chain oer-key
  interface Serial6/1:0 external
  interface Serial6/0:0 external
  interface FastEthernet3/1.3051 internal
  interface FastEthernet3/1.4051 internal
 !
 border 10.0.0.165 key-chain oer-key
  interface Serial0/2/1:0 external
  interface Serial0/2/0:0 external
  interface GigabitEthernet0/0.4051 internal
  interface GigabitEthernet0/0.3051 internal
 !
 learn
  delay
  periodic-interval 0
  monitor-period 1
  prefixes 1000
  aggregation-type prefix-length 32
 no max range receive
 mode monitor fast
 no resolve delay
 no resolve utilization
 !
 active-probe echo 60.1.1.100
!
oer border
 logging
 local Loopback0
 master 10.0.0.171 key-chain oer-key
!
!
username lab privilege 15 password 0 lab
archive
 log config
  hidekeys
!
!
controller T1 6/0
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
controller T1 6/1
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
controller T1 6/2
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
controller T1 6/3
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
ip ftp source-interface Ethernet5/2
ip ftp username anonymous
ip ftp password nobody@cisco.com
!
class-map match-all NBAR_UDP
 match access-group name UDP
class-map match-any NBAR_FTP
 match protocol ftp
class-map match-all QoS_HTTP
 match ip precedence 2
class-map match-any NBAR_voice
 match protocol sip
 match protocol skinny
class-map match-all QoS_FTP
 match ip precedence 4
class-map match-all QoS_UDP
 match ip precedence 5
class-map match-any NBAR_HTTP
 match protocol http
 match protocol secure-http
class-map match-all QoS_voice
 match ip precedence 6
class-map match-all ramki
!
!
policy-map NBAR
 class NBAR_HTTP
  set dscp cs2
 class NBAR_UDP
  set dscp cs5
 class NBAR_voice
  set dscp cs6
 class NBAR_FTP
  set dscp cs4
 class class-default
  set dscp cs3
policy-map QoS
 class QoS_HTTP
  bandwidth percent 25
 class QoS_UDP
  bandwidth percent 15
 class QoS_voice
  priority percent 10
 class QoS_FTP
  bandwidth percent 10
 class class-default
  bandwidth percent 15
!
!
interface Loopback0
 ip address 10.0.0.171 255.255.255.255
 no ip route-cache cef
 no ip route-cache
!
interface FastEthernet0/0
 description To CAT6K-MAIN:g1/43
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex full
!
interface FastEthernet3/0
 description To WANOPT-WAE512-BR5 via WANOPT-6500-MAIN1:G1/3
 ip address 10.18.55.65 255.255.255.192
 ip flow ingress
 duplex full
 speed 100
!
interface FastEthernet3/1
 description To AGILENT via WANOPT-6500-MAIN1:G1/30
 no ip address
 load-interval 30
 duplex full
 speed 100
!
interface FastEthernet3/1.3051
 encapsulation dot1Q 3051
 ip address 10.19.5.2 255.255.255.0
 ip wccp 61 redirect in
 ip flow ingress
 glbp 1 ip 10.19.5.1
 glbp 1 weighting 80
 glbp 1 load-balancing weighted
!
interface FastEthernet3/1.4051
 encapsulation dot1Q 4051
 ip address 110.19.19.1 255.255.255.0
 ip wccp 61 redirect in
 ip flow ingress
 shutdown
 service-policy input NBAR
!
interface Ethernet5/0
 description To CAT35k-BrMAN-1:F0/6
 ip address 100.1.1.171 255.255.255.0
 no ip route-cache cef
 no ip route-cache
 duplex full
 ntp broadcast client
!
interface Ethernet5/1
 description To WANOPT-6500-MAIN1:G1/34
 ip address 10.55.55.2 255.255.255.252
 duplex full
!
interface Ethernet5/2
 description To CAT6K-MAIN:g1/39
 no ip address
 no ip route-cache cef
 shutdown
 duplex full
!
interface Ethernet5/3
 description To CAT6K-MAIN:g1/41
 no ip address
 no ip route-cache cef
 no ip route-cache
 shutdown
 duplex full
!
interface Serial6/0:0
 description To WANOPT-7206-INTERNET-PE:S3/0:0
 ip address 10.18.5.66 255.255.255.192
 ip wccp 62 redirect in
 ip flow ingress
 load-interval 30
 service-policy output QoS
!
interface Serial6/1:0
 description To WANOPT-7206-MPLS-PE:S3/0:0
 ip address 10.17.5.66 255.255.255.192
 ip wccp 62 redirect in
 ip flow ingress
 load-interval 30
 service-policy output QoS
!
interface Serial6/2:0
 no ip address
 no ip route-cache cef
 no ip route-cache
!
interface Serial6/3:0
 no ip address
 no ip route-cache cef
 no ip route-cache
!
!
router bgp 175
 no synchronization
 bgp log-neighbor-changes
 network 10.0.0.171 mask 255.255.255.255
 network 10.17.5.64 mask 255.255.255.192
 network 10.18.55.64 mask 255.255.255.192
 network 10.19.5.0 mask 255.255.255.0
 network 10.55.55.0 mask 255.255.255.0
 network 110.19.19.0 mask 255.255.255.0
 neighbor 10.17.5.65 remote-as 103
 neighbor 10.55.55.1 remote-as 175
 no auto-summary
!
ip route 0.0.0.0 0.0.0.0 10.18.5.65
ip route 0.0.0.0 0.0.0.0 10.17.5.65 50
no ip http server
no ip http secure-server
!
ip flow-cache timeout active 1
ip flow-export source FastEthernet3/1.3051
ip flow-export version 5
ip flow-export destination 52.1.1.22 9995
!
!
ip access-list extended UDP
 permit udp any any
 deny   ip any any
ip access-list extended noHTTP
 permit ip any any dscp cs3
 permit ip any any dscp cs5
 deny   ip any any
ip access-list extended only35
 permit ip any any precedence critical log
 permit ip any any precedence flash log
 permit ip any any precedence immediate log
 permit ip any any log
ip access-list extended onlyRealTime
 permit ip any any dscp cs5
ip access-list extended ramki
!
!
ip prefix-list onlyHTTP seq 5 permit 60.1.1.100/32
ip sla 1
 http get http://www.cisco.com
 timeout 5000
 owner HTTP - 100.1.1.171
 tag WANOPT HTTP ECHO
ip sla schedule 1 life forever start-time now ageout 3600
ip sla 3
 icmp-echo 60.1.1.100
 owner ICMP Echo - 100.1.1.171 - 60.1.1.100
 tag WANOPT ICMP ECHO
ip sla schedule 3 life forever start-time now ageout 3600
ip sla 4
 dns www.cisco.com name-server 52.1.1.100
 timeout 5000
 owner DNS - 100.1.1.171
 tag WANOPT DNS
ip sla schedule 4 life forever start-time now ageout 3600
logging alarm informational
logging 100.1.1.104
access-list 1 permit 10.19.5.0 0.0.0.255 log
access-list 1 permit 110.19.5.0 0.0.0.255 log
access-list 1 permit any log
access-list 2 permit 10.19.5.0 0.0.0.255
access-list 2 deny   any
access-list 10 permit 110.19.5.0 0.0.0.255
access-list 10 permit 10.18.55.0 0.0.0.255
access-list 101 permit ip any 10.19.5.0 0.0.0.255 log
access-list 101 permit ip any 110.19.5.0 0.0.0.255 log
access-list 101 permit ip any any log
snmp-server community closed RW
snmp-server community open RO
snmp-server community public RO
snmp-server community private RW
snmp-server ifindex persist
snmp-server host 100.1.1.21 version 2c public
!
!
oer-map delayPolicy 10
 match traffic-class prefix-list onlyHTTP
 set mode select-exit best
 set delay threshold 55
 set mode route control
 set mode monitor fast
 set resolve delay priority 1 variance 20
 set probe frequency 10
!
control-plane
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 stopbits 1
line aux 0
 stopbits 1
line vty 0 4
 exec-timeout 0 0
 password lab
 login
line vty 5 20
 password lab
 login
line vty 21 30
 password cisco
 login
!
ntp clock-period 17180110

!
webvpn cef
!
end

9.13.3.2  Sample Configuration of Branch Router (PfR-Border Router)

Current configuration: 5321 bytes
!
! Last configuration change at 13:14:52 EST Wed Jan 30 2008
! NVRAM config last updated at 13:12:12 EST Wed Jan 30 2008
!
version 12.4
service timestamps debug datetime msec localtime
service timestamps log datetime msec localtime
no service password-encryption
!
hostname WANOPT-3825-BR5
!
boot-start-marker
boot system flash:c3825-adventerprisek9-mz.124-15.T2.fc3
boot-end-marker
!
enable password lab
!
no aaa new-model
clock timezone EST -5
clock summer-time edt recurring
no network-clock-participate wic 2
!
!
ip wccp 61
ip wccp 62
ip cef
!
!
no ip domain lookup
ip host aswan 24.1.1.1
!
multilink bundle-name authenticated
!
voice-card 0
 no dspfarm
!
!
key chain oer-key
 key 1
   key-string WANOPT
!
!
oer border
 logging
 local Loopback0
 master 10.0.0.171 key-chain oer-key
!
!
archive
 log config
  hidekeys
!
!
controller T1 0/2/0
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
controller T1 0/2/1
 framing esf
 linecode b8zs
 channel-group 0 timeslots 1-24
!
!
class-map match-all NBAR_UDP
 match access-group name UDP
class-map match-any NBAR_FTP
 match protocol ftp
class-map match-all QoS_HTTP
 match ip precedence 2
class-map match-any QCLASS_COS1
 match  dscp 47
 match  dscp ef
class-map match-any NBAR_voice
 match protocol sip
 match protocol skinny
class-map match-all QoS_FTP
 match ip precedence 4
class-map match-all QoS_UDP
 match ip precedence 5
class-map match-any NBAR_HTTP
 match protocol http
 match protocol secure-http
class-map match-all QoS_voice
 match ip precedence 6
!
!
policy-map NBAR
 class NBAR_HTTP
  set dscp cs2
 class NBAR_UDP
  set dscp cs5
 class NBAR_voice
  set dscp cs6
 class NBAR_FTP
  set dscp cs4
 class class-default
  set dscp cs3
policy-map QoS
 class QoS_HTTP
  bandwidth percent 25
 class QoS_UDP
  bandwidth percent 15
 class QoS_voice
  priority percent 10
 class QoS_FTP
  bandwidth percent 10
 class class-default
  bandwidth percent 15
!
!
interface Loopback0
 ip address 10.0.0.165 255.255.255.255
!
interface GigabitEthernet0/0
 description To AGILENT via WANOPT-6500-MAIN1:G1/29
 no ip address
 load-interval 30
 duplex full
 speed 1000
 media-type rj45
!
interface GigabitEthernet0/0.3051
 encapsulation dot1Q 3051
 ip address 10.19.5.3 255.255.255.0
 ip flow ingress
 glbp 1 ip 10.19.5.1
 glbp 1 weighting 20
 glbp 1 load-balancing weighted
!
interface GigabitEthernet0/0.3053
 encapsulation dot1Q 3053
 ip address 10.18.55.68 255.255.255.192
!
interface GigabitEthernet0/0.3055
 encapsulation dot1Q 3055
 ip address 10.55.55.1 255.255.255.252
!
interface GigabitEthernet0/0.4051
 encapsulation dot1Q 4051
 ip address 110.19.5.3 255.255.255.0
 ip wccp 61 redirect in
 ip flow ingress
 shutdown
 glbp 2 ip 110.19.5.1
 glbp 2 load-balancing weighted
 service-policy input NBAR
!
interface GigabitEthernet0/1
 description To CAT35k-BrMAN-1:F0/5
 ip address 100.1.1.165 255.255.255.0
 load-interval 30
 duplex full
 speed 100
 media-type rj45
 ntp broadcast client
 no keepalive
!
interface Serial0/2/0:0
 description To WANOPT-7206-INTERNET-PE:S5/4:0
 ip address 10.18.5.2 255.255.255.192
 ip wccp 62 redirect in
 ip flow ingress
 encapsulation frame-relay
 frame-relay map ip 10.18.5.1 101 broadcast
 service-policy output QoS
!
interface Serial0/2/1:0
 description To WANOPT-7206-MPLS-PE:S5/4:0
 ip address 10.17.5.2 255.255.255.192
 ip wccp 62 redirect in
 ip flow ingress
 service-policy output QoS
!
interface Integrated-Service-Engine2/0
 ip address 10.18.55.1 255.255.255.192
 shutdown
 service-module external ip address 10.18.55.67 255.255.255.192
 service-module ip address 10.18.55.2 255.255.255.192
 service-module ip default-gateway 10.18.55.65
 no keepalive
!
router bgp 175
 no synchronization
 bgp log-neighbor-changes
 network 10.0.0.165 mask 255.255.255.255
 network 10.17.5.0 mask 255.255.255.192
 network 10.18.55.64 mask 255.255.255.192
 network 10.19.5.0 mask 255.255.255.0
 network 10.55.55.0 mask 255.255.255.0
 neighbor 10.17.5.1 remote-as 103
 neighbor 10.55.55.2 remote-as 175
 no auto-summary
!
ip route 0.0.0.0 0.0.0.0 10.18.5.1
ip route 0.0.0.0 0.0.0.0 10.17.5.1 50
!
!
no ip http server
no ip http secure-server
!
ip access-list extended UDP
 permit udp any any
 deny   ip any any
!
!
ip prefix-list only110 seq 5 permit 110.19.19.2/32
ip sla 1
 http get http://www.cisco.com
 timeout 5000
 owner http - 60.1.1.100
 tag Cisco
ip sla schedule 1 life forever start-time now ageout 3600
logging 100.1.1.104
access-list 102 permit ip 10.19.5.0 0.0.0.255 60.1.1.0 0.0.0.255
access-list 102 deny   ip any any
snmp-server community closed RW
snmp-server community open RO
snmp-server community public RO
snmp-server community private RW
snmp-server ifindex persist
snmp-server host 100.1.1.21 version 2c public
!
!
!
control-plane
!
!
!
alias exec sib show ip interface brief
privilege exec level 0 terminal monitor
privilege exec level 0 terminal
!
line con 0
 exec-timeout 0 0
line aux 0
line 130
 no activation-character
 no exec
 transport preferred none
 transport input all
 transport output lat pad telnet rlogin lapb-ta mop udptn v120 ssh
line vty 0 4
 exec-timeout 0 0
 password lab
 login
 autocommand  term mon
 autocommand-options nohangup
!
scheduler allocate 20000 1000
ntp clock-period 17179645

!
webvpn cef
!
end

9.13.4  Large Branch Offices with Dual-Homed, Dual-Tiered Branch Routers

Larger branch offices need more resiliency and scaling than medium sized branches. In addition to using a higher capacity/platform router and WAEs, typical larger branch designs also use WAE clusters to provide WAE redundancy. Such branches have two branch routers, each dual-homed to two SP WANs (or one SP WAN) and two WAEs shared by the branch routers. Along with these branch routers, these branches also have a separate router to act as MC for PfR. Figure 9-39 shows such a deployment.

Figure 9-39 Typical Large Branch Office

The branch routers have the following protocols deployed:

NetFlow on all LAN and WAN links

NBAR to do protocol discovery and QoS to do marking

QoS on the exit interface to do congestion avoidance and management

WCCP on the router to do TCP optimization

PfR on the routers to do path optimization

9.14  Suggested Code Versions

Table 9-3 lists the recommended software version for each platform.

Table 9-3 Recommended Software Versions

Platform
Version

Cisco 28xx/38xx ISRs

12.4(15)T3

Cisco 72xx-VXRs

12.4(15)T3

Cisco WAE -511/611/7326 appliances/NM WAEs

4.0.13


9.15  Data Center Design

Content is consolidated for user access in the data center. A typical data center design, shown in Figure 9-40) comprises a core, aggregation, and access layer.

The Core/WAN focuses on bringing the packets into the data center reliably and quickly.

The aggregation layer, where the network services are located, often includes firewall, load balancing, and SSL offload.

The access layer typically includes web servers, databases, and middleware.

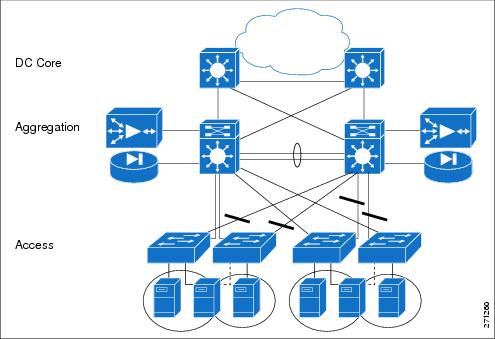

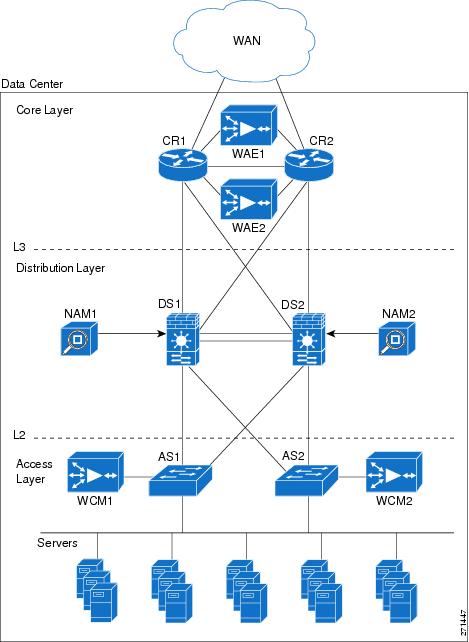

Figure 9-40 Typical Data Center Design

When it comes to the specific insertion of WAN optimization components, the WAAS cluster is placed at the WAN edge/core or the aggregation layer. This WAAS cluster placement can determine which servers traffic can be optimized for or affect the network services.

If the WAAS cluster is located closer to the WAN, the cluster can offer optimized content from many servers. On the other hand, if the WAAS cluster is located at the aggregation layer, it can only optimize content from the servers in its aggregation module.

As far as network services, the DC traffic could be optimized. This could affect how firewalls or other network services at the edge of the DC inspect traffic. These services might require code changes or configuration changes. Network services that only see unoptimized traffic would not require changes.

9.15.1  FWSM

The Firewall Services Module (FWSM) is a high-speed, integrated firewall module for Cisco Catalyst 6500 switches. FWSM can be deployed in pairs to provide intrachassis or interchassis stateful failover services to help ensure resilient network protection for the data center.

9.15.1.1  FWSM Deployment Options

The FWSM deployment options are:

Downstream of the DC WAAS

Unoptimized traffic - inspects L4 and L7

Upstream of the DC WAAS

Inspects optimized and non-optimized traffic

Optimized traffic - inspects only TCP at L4

Unoptimized traffic - inspects L4 and L7

WAAS alters the original TCP session through Transport Flow Optimization (TFO) and application data though DRE. DRE helps to improve efficiency and reduces unnecessary bandwidth consumption. On the other hand, TFO optimizes TCP to enable better performance and efficiency in WAN environments. FWSM introduced enhancements in 3.2(1) to handle TCP traffic optimized by WAAS. With these enhancements, L4 inspection can now be performed on a WAAS optimized TCP session. However, FWSM features that proxy the TCP connection stop WAAS from optimizing flows.

9.15.1.2  TCP Options

The WAAS implementation can decide which TCP connection to optimize on a TCP port basis. WAAS typically does not optimize TCP control channels (FTP control channel, for example). Any session it does optimize has the 0x21 option. When the option is seen, FWSM inspects at L4. Connections that are not optimized do not have option 0x21. Therefore, FWSM can apply all inspections to the connections.

9.15.1.3  Sequence Number Change

The initial SYN packet from the client is forwarded to the server with no changes in sequence number. The branch WAAS device intercepts this session and attaches TCP option 0x21 to the SYN. The DC WAAS device later intercepts this session and responds to the branch WAAS after the DC WAAS sees a SYN-ACK from the server side.

The branch WAAS device bumps up the TCP sequence number by 2^31 when it sends the final ACK of the TCP handshake to the server side. This ACK also contains option 0x21. FWSM then knows that the session will be optimized.

9.15.1.4  Configuration

FWSM uses Modular Policy Framework (MPF) to configure which class of traffic must be inspected. MPF uses class maps to identify traffic and policy maps are used to apply actions. MPF policy map actions include TCP connection limits/timeouts and application inspection.

The following configuration includes a default class map that the FWSM uses in the default global policy. It is called inspection_default and matches the default inspection traffic. To enable WAAS application inspection, use the inspect waas command.

class-map inspection_default
  match default-inspection-traffic
!
policy-map global_policy
  class inspection_default
    inspect waas
!
service-policy global_policy global

The inspect waas command, when applied to the default inspection class, checks all TCP traffic for option 0x21 and handles the 2G Sequence Space Bump. TCP option SACK, timestamp and window scale are also allowed even if TCP SYN/SYN-ACK did not contain those options. For WAAS optimized flows, FWSM uses a window scale of 7.

9.15.1.5  Show Commands

The show conn command displays the connection state for the designated connection type. A W indicates that the TCP flow is a WAAS Session.

wanopt-fwsm1/NSITE# show conn
79 in use, 130 most used
 Network Processor 1 connections
TCP out 10.19.7.140:62645 in 60.1.1.100:80 idle 0:00:00 Bytes 2647 FLAGS - UBfOIW
 Network Processor 2 connections
TCP out 10.19.7.140:62646 in 60.1.1.100:80 idle 0:00:00 Bytes 4623 FLAGS - UBOIW
TCP out 10.19.7.140:62647 in 60.1.1.100:80 idle 0:00:00 Bytes 2340 FLAGS - FRdUBfrOIW
TCP out 10.19.7.140:62648 in 60.1.1.100:80 idle 0:00:00 Bytes 5844 FLAGS - UBOIW

9.15.2  WAAS Catalyst 6500 Load Balancing

WCCPv2 is a protocol used in the data center to send relevant TCP traffic to the Core WAAS cluster. The WAAS cluster is positioned on a common VLAN at either the WAN edge or the at the distribution switch layer.

WCCPv2 introduced several concepts to improve traffic forwarding:

WCCP routers and clients were bundled together in service groups with multiple routers per service group being supported

Protocol messages were allowed to use multicast

Return traffic by clients was supported as well as the negotiation of forwarding, assignment, and return methods between the router and WCCP

Mask assignment with L2 forwarding and return were introduced allowing hardware forwarding of traffic packets

WAAS service groups 61 and 62:

Service group 61—Redirects TCP packets to a WAE device and distributes load based on the source IP address of the flow

Service group 62—Redirects packets to a WAE device and distributes load based on the IP destination address of the flow.

WCCP WAE devices leverage a combination of both groups so all traffic is redirected to the WAEs.

Refer to Enterprise Data Center Wide Area Application Services Design Guide for design guidance and best practices for WAAS implementations in enterprise data centers:

http://www.cisco.com/application/pdf/en/us/guest/netsol/ns377/c649/ccmigration_09186a008081c7da.pdf

9.15.2.1  WCCP Components

WCCP has three components: the Assignment method, the Redirection method, and the Return method. The Assignment method determines which WCCP appliance receives redirected traffic; the Redirection method refers to how traffic is sent to the WCCP appliance; the Return method determines how WCCP bypass traffic is handled.

9.15.2.1.1  Assignment Method

The Assignment method determines how traffic is load balanced across multiple WCCP appliances. The introduction of WCCPv2 enabled the negotiation of Mask Assignment per service group.

Mask-based assignment, as an ingress feature, can use an ACL redirect-adjacency entry in the ACL table. The mask, which is programmed in ACL Ternary Content Addressable Memory (TCAM) before packet forwarding, does not require the NetFlow table or software processing. The WCCP-designated appliance chooses several hash-buckets and assigns an address mask and WCCP appliance to each bucket.

After the assignments are done, the Supervisor programs one TCAM entry and one adjacency for each bucket. This enables the redirection of packets that match the address mask to the associated WCCP appliance through an L2 rewrite. If WCCP is configured as an egress feature, ACL redirect-adjacencies are not hardware supported, and the first packet of a flow is sent to software for processing. Once the proper redirect-adjacency is determined, it is programmed into the NetFlow hardware, where the entry points to an adjacency that performs either an L2 rewrite or GRE encapsulation.

9.15.2.1.2  Redirection Method

Redirection handles how traffic is sent to the WCCP appliance. Using L3 redirection, each WCCP packet is encapsulated in a GRE header marked with a protocol type of 0x883E followed by a four-octet WCCP redirect header. The WCCP packets are subsequently sent to the WCCP appliance.

With WCCP v2, "accelerated WCCP" or L2 redirection was added to take advantage of hardware switching platforms. With L2 redirection, the WCCP appliance must be L2 adjacent (on the same L2 VLAN); redirected traffic is forwarded through normal switching with a rewritten MAC destination address.

9.15.2.1.3  L2 Forwarding Method Detail

With L2 forwarding, WCCP appliances within a service group are part of the same subnet and L2 adjacent to the supporting switch. This supports higher throughput and low latency deployment. The packet is rewritten with the source MAC set to the router and the destination MAC set to the WCCP device.

L2 Forwarding Breakdown

Ingress - L2 redirection + Mask Assignment (Full Hardware Processing)

Mask assignments further enhance the performance of L2 redirection. When configured on ingress, L2 Redirection and Mask assignment is the most efficient WCCP method on the Catalyst 6500. All packet traffic, including the first packet, is switched in hardware and no software processing is needed.

The current Catalyst platform supports a 7-bit mask, with default mask of 0x1741 on the source IP address. Fine-tuning of the mask can yield better traffic distribution to the WAEs. For example, if a network uses only 191.x.x.x address space, the most significant bit can be reused on the last three octets, such as 0x0751, because the leading octet (191) is always the same.

The following example is a show output from show ip wccp 61 detail with a mask of 0x1000.

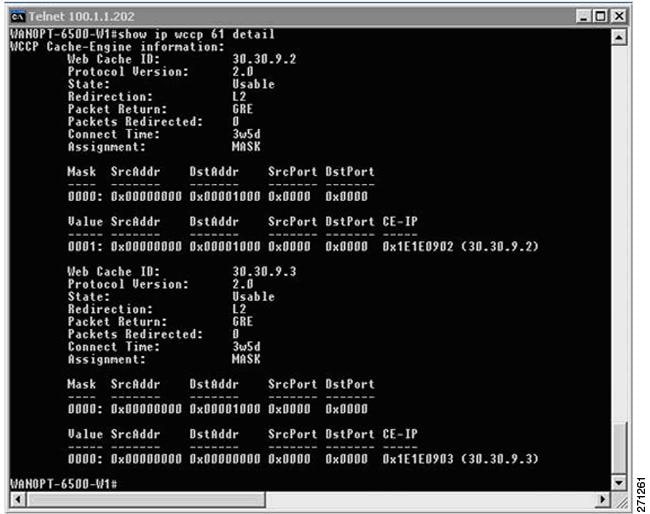

The WAE and Catalyst negotiate which redirect and return method to use when the service group is formed. There can be many access VLANs on the aggregation switches and redirection is configured on all VLANs that need optimization. L2 switching ports, including trunk ports, are not eligible for redirection.

L3 Forwarding Method Detail

WCCP L3 operation involves the use of GRE as the encapsulation method. Redirected packets are encapsulated in a GRE header with a protocol type of 0x883e, along with a 4-byte WCCP Redirection header that includes a service ID and hash bucket matched. Using GRE enables the WCCP client to be separated from the WCCP switch over multiple L3 hops.

Figure 9-41 L3 Forwarding Method Detail

L3 Forwarding Method Breakdown

Ingress - L3 (GRE) redirection + Mask Assignment (Full Hardware Processing -Sup32/Sup720 only)

When using the mask assignment method on the ingress, the initial and subsequent packets are both forwarded in hardware. Normally, the WCCP appliance returns traffic directly to the client, but if the WCCP device is unable to process the request, then it is encapsulated in GRE and returned to the Catalyst 6500. PFC 3 cannot process GRE protocol type 0x833E in hardware causing it to be processed in software instead.

Method Summary

While WCCP on the Catalyst 6500 offers many options, hardware acceleration is available only with ingress L2 redirection with mask assignment and ingress L3 (GRE) redirection with mask assignment. From a hardware perspective, all egress WCCP configurations require some software processing and have CPU utilization impact. Software processing is also required on the ingress when using the hash assignment method. Note that L2 redirection with mask assignments is the recommended deployment for Catalyst 6500 WCCP.

9.15.2.2  Configuring L2 Redirection with Catalyst 6500

On Catalyst 6500:

switch(config)# interface Vlan76      ! Dedicated VLAN for WAAS cluster
switch(config)# ip address 30.30.9.1 255.255.255.0
switch(config)# load-interval 120

switch(config)# int GigabitEthernet 0/1
switch(config-if)# switchport
switch(config-if)# switchport mode access
switch(config-if)# switchport access vlan 76 (shared VLAN of WCCP devices)
switch(config-if)# spanning-tree portfast
switch(config-if)# spanning-tree bpdugaurd enable

On WAE device:

Configure the interface:
wae(config)# int GigabitEthernet 0/1
wae(config-if)# ip address 30.30.9.3
wae(config)# primary-interface GigabitEthernet 0/1
wae(config)# wccp tcp-promiscuous mask src-ip-mask 0x0 dst-ip-mask 0x1000
wae(config)# wccp tcp-promiscuous router-list-num 1 l2-redirect mask-assign

Configuration Show Commands:

wae# sh wccp masks tcp-promiscuous  view currently configured masks
wae# sh wccp routers  show current routers the WCCP device is communicating with

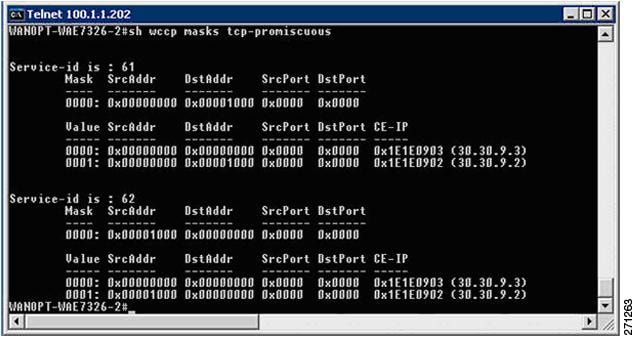

Output of show WCCP mask command:

Output of show WCCP router command:

9.15.3  ACE SSL

Secure Sockets Layer (SSL) provides a secure transport for HTTP applications. The SSL layer is logically situated between the application layer and TCP. The purpose of an SSL connection is to securely exchange information between two endpoints.

SSL provides the following security elements:

Confidentiality: encryption of traffic using ciphers

Authentication: verification of identity using certificates

Integrity: An optional Message Authentication Code (MAC) prevents data tampering

9.15.3.1  SSL Offload

SSL is used to secure many web transactions. The Application Control Engine (ACE) can encrypt and decrypt SSL traffic. For SSL offload, the ACE operates as a virtual SSL server where all inbound SSL traffic from a client terminates at the ACE. After the connection is terminated, the ACE decrypts the ciphertext from the client and sends the data as cleartext to an HTTP server.

The ACE module supports SSL version 3 and Transport Layer Security (TLS) version 1. A typical SSL session with the ACE requires encryption ciphers to establish and maintain the secure connection. Cipher suites provide the cryptographic algorithms required by the ACE to perform key exchange, authentication, and MAC.

The client and server use the SSL handshake protocol to establish an SSL session between the two devices. During the handshake process, the client and server negotiate the SSL parameters that they will use during the secure session. These sessions are fully proxied throughout the life of the connection, as every packet must be processed by the full TCP and SSL stacks.

Maximum number of SSL connections: 100 K

Maximum number of SSL TPS: 1000 with default license.

Maximum amount of SSL bandwidth: 2Gb/s

9.15.3.2  SSL PKI

SSL features on the ACE support both certificates and public key infrastructure (PKI). Digital certificates contain the following identification attributes: name of the CA, CA digital signature, serial number, name of the server, the subject's public key, and expiration date. The key pair refers to a public key and its corresponding private (secret) key. During the handshake, the RSA key pairs are used to encrypt the session key that both devices will use to encrypt the data that follows the handshake.

The ACE supports the creation of the public/private keys using the crypto generate key command. While the ACE does not support certificate generation, it does support configuring Certificate Signing Request (CSR) parameters as shown:

WANOPT-ACE1/NSITE-WAAS(config)# crypto csr-params CISCO-WANOPT
WANOPT-ACE1/NSITE-WAAS(config-csr-params)# ?

Configure CSR Parameters

common-name        Configure organization's common name
country            Configure country name
email              Configure email address
locality           Configure locality name
organization-name  Configure organization name
organization-unit  Configure organization unit's name
serial-number      Configure serial number
state              Configure state name

The CSR generated using the crypto generate csr command is sent to another system for processing into a certificate. The ACE can import PEM, DER, and PKCS12 certificates and the ACE supports 512, 1024, and 1536 length keys. In a HA environment, the same keys and certificates should be configured on both ACE modules.

WANOPT-ACE1/NSITE-WAAS#   show crypto certificate all
All Certificate Files Loaded:
ciscocert:
Subject: /C=US/ST=North
Carolina/L=RTP/O=Cisco/OU=NSITE/CN=www.cisco.com/emailAddress=wanopt@cisco.com
Issuer: /C=RM/ST=RMSTATE/L=RMCITY/O=RMCOMPANY/OU=RMUNIT/CN=RMNAME/emailAddress=RM@RM.COM
Not Before: Sep 14 19:46:04 2007 GMT
Not After: Sep 13 19:46:04 2008 GMT
CA Cert: FALSE

9.15.3.3  SSL Configuration

Before configuring your ACE for SSL operation, it must be configured for server load balancing (SLB). After configuring SLB, the SSL proxy server service is added to the existing SLB policy maps and class maps. The SSL proxy server service defines the handshake parameters that the ACE.

serverfarm host HTTPS-FARM
  probe CHECK
  rserver APACHE1 80
    inservice
  rserver APACHE3 80
    inservice
ssl-proxy service SSLPROXY
  key ciscokey
  cert ciscocert
policy-map multi-match L4_LB_WAAS
  class L4_HTTPS_VIP_ADDRESS
    loadbalance vip inservice
    loadbalance policy WAAS_HTTPS_POLICY
    loadbalance vip icmp-reply
    ssl-proxy server SSLPROXY

9.16  Network Performance Management

This section describes how the network performance management tools introduced in Chapter Network Management XREF TBD can be deployed and utilized to support the WAN and application optimization solution. After a brief overview of the needs for performance monitoring in this environment, each network performance management tool is presented.

Performance Monitoring for WAN and Application Optimization presents the NetQoS performance monitoring products and Cisco NAM Use Cases for WAN and Application Optimization presents the Cisco Network Analysis Module (NAM). Each section contains an overview of the product support features relevant to each phase of the WAN and application optimization solution, deployment considerations, and use cases. The use cases illustrate how enterprise users can use these tools to support the WAN and application optimization solution. NAM-2 Deployment Caveats presents common deployment caveats for both products.

9.17  Performance Monitoring for WAN and Application Optimization

Performance monitoring tools should be used in all phases of a WAN and application optimization initiative to help ensure a successful deployment.

During predeployment testing and baselining, network performance monitoring validates that the selected WAN and application optimization strategies will have the intended impact on the business critical applications and protocols. This enables proper prioritization of sites for WAN and application optimization based on usage and performance trends.

During deployment, monitoring validates the effectiveness of the WAN and application optimization strategy for the selected sites and applications.

After deployment, performance monitoring ensures the ongoing effectiveness of the WAN and application optimization strategy as network, datacenter, and usage conditions change and by maintaining the visibility necessary to enable efficient troubleshooting. Performance monitoring also helps in identifying new opportunities for WAN and application optimization.

NetQoS Support for WAN and Application Optimizationdescribes how to use NetQoS to support deployed WAN and application initiatives. NAM-2 Support for WAN and Application Optimization describes how to use Cisco NAM 3.6 to support such initiatives; in this case, the focus is on troubleshooting and conversation specific WAN and application optimization validation.

9.17.1  NetQoS Support for WAN and Application Optimization

NetQoS performance monitoring supports all phases of WAN and application optimization: predeployment, deployment, and postdeployment. The following sections describe each phase.

9.17.1.1  Predeployment Support

When developing a WAN and application optimization strategy, a first step is to profile traffic patterns and resource bottlenecks and establish a baseline of the performance of links, servers, and applications. Profiling involves identifying the applications running on the network, and understanding the consumption of WAN resources by different types of business and nonbusiness traffic.

NetQoS NetVoyant leverages NBAR to produce reports such as the one shown in Figure 9-42. Using NBAR statistics, IT staff can identify the applications running on the network.

Figure 9-42 NBAR Statistics by Protocol

NetQoS ReporterAnalyzer also uses NetFlow information to show traffic profiles of WAN resources. For example, Figure 9-43 is a report from NetQoS ReporterAnalyzer that shows the traffic profile for a hypothetical New York branch site. The report identifies applications on the WAN link and shows that most of the traffic is voice traffic (83.47%).

Figure 9-43 Protocol Summary Report for a Branch WAN Link

Figure 9-43 and Figure 9-44 show more ReporterAnalyzer custom reports generated from the NetFlow instrumentation provided on Cisco routers. These reports list the WAN links with the most time over a user-selected threshold, and traffic composition for two of the links.

A time-over-threshold report (shown in Figure 9-43) can indicate which links on the network might be good candidates for optimization. The protocol reports (Figure 9-43 and Figure 9-44) help to predict the likely outcome of different optimization strategies. For example, the report for a New York link (shown previously in Figure 9-43) shows high volumes of UDP (VoIP) traffic, suggesting that attention to routing and QoS policies might be a useful first step in optimizing this link. Conversely, the heavily-utilized Houston link (Figure 9-44) shows a mix of TCP/IP application traffic that would probably benefit most from WAN optimization appliances, such as Cisco WAAS.

Figure 9-44 ReporterAnalyzer Custom Report Showing Networks Having the Most Time over a Selected Threshold

Figure 9-45 Protocol Summary Report for another Branch WAN Link

Baselining involves determining typical application and network behavior based on traffic loads on the WAN resources and service levels experienced by end users. Understanding the user experience, and the contribution of the network to the delays experienced at each site, enables IT staff to prioritize the applications and links to be optimized. Knowing the composition of traffic consuming the links can help to predict the impact of WAN and application optimization on network utilization and future capacity.

IT staff must establish baselines with respect to the traffic loads on WAN resources and the composition of traffic. NetQoS ReporterAnalyzer leverages NetFlow data to help compute baseline and trends. IT staff also needs to establish baselines for network, server, and application performance. That can be achieved in two ways: using active or passive measurements. Active measurements are based on synthetic traffic, that is, network traffic generated strictly for the purpose of measuring a network/server/application characteristic, while passive measurements are based on actual end-user traffic.

Each measurement approach has advantages and disadvantages. The best practice is to use both active and passive measurements. Passive measurement is the most accurate approach for the end-user application traffic. However, passive measurement is limited to measuring the performance of existing traffic types (which may not be present on the network at all times) and existing traffic patterns (which may not reflect patterns for new and future applications).

Active measurements have the advantage of being more controllable; performance can be measured between any two points in the network, the type, frequency and traffic class can be specified for the generated traffic. On the other hand, active measurements are only an approximation for the performance of actual traffic. An additional disadvantage is that in order to perform active measurements, some traffic is injected in the network.

To establish baselines using active measurements, NetVoyant uses Cisco IP SLA to report performance metrics, and uses IP SLA synthetic traffic to compute SLA baselines. Figure 9-45 shows an example of a VoIP performance report where the current performance (98.7ms) is compared to the baseline (108.8ms).

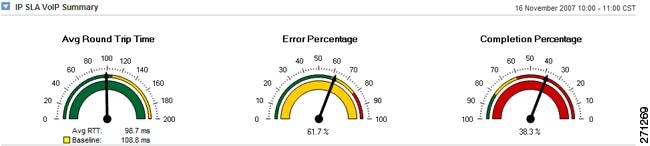

Figure 9-46 VoIP Performance Report Example

To establish baselines using passive measurements, NetQoS SuperAgent provides reports based on actual network traffic. SuperAgent product calculates baseline information for applications, networks, and servers each hour to indicate when performance conditions are normal for that hour of the day, factoring in the previous week, day of the week, and day of the month.

Figure 9-47 shows application response time performance maps from NetQoS SuperAgent. These reports list remote sites sorted by worst overall performance (as experienced by end users) for a selected application, and the contribution of network latency to the delay at each site. SuperAgent performance maps can serve as guides for prioritizing sites and applications for WAN and application optimization. Users in the Durham office experience the longest transaction time and the longest network latency, so the Durham site might be considered a top candidate for WAN and application optimization.

Figure 9-47 SuperAgent Performance Maps for a Selected Application

Passive response time measurements help pinpoint remote sites with the biggest performance issues, but the measurements must be used with measurements of utilization and traffic composition for individual links, and for the entire infrastructure. (Examples were shown previously in Figure 9-43, Figure 9-44, and Figure 9-45.

Protocols and transactions respond differently to optimization technologies. Therefore, the traffic mix must be well understood to determine an effective optimization strategy. As mentioned previously, TCP traffic is more likely to benefit from caching and compression technologies, while voice traffic is more likely to benefit from changes to routing and QoS policies.

Equipped with measurements of end-user experience and network latency for business applications across the network, and with measurements of utilization and protocol distribution on key links, IT personnel can undertake wider WAN and application optimization deployments with greater confidence. An example of a predeployment support use case is presented in Use Case 1: Predeployment Baselining.

9.17.1.2  Support during Deployment

Network performance monitoring products can help IT personnel measure the effectiveness of WAN and application optimization deployments. Users can see:

Detailed views of how the bandwidth consumption of target applications will change after optimization.

Changes in application response times as experienced by end users at remote locations.

For any optimized application, detailed maps showing how WAN and application optimization affects the volume of data transmitted by datacenter components, on the WAN, and at remote sites.

How server offload made possible by WAN and application optimization can change server response times and data volumes.

This section focuses mainly on validating Cisco WAAS, but some graphs and reports apply to validating other WAN and application optimization initiatives, such as changing QoS policies or deploying PfR.

Figure 9-48 shows how Cisco WAAS reduced the bandwidth usage of NetBIOS from a custom application on a WAN link. NetQoS ReporterAnalyzer shows the data rate before and after WAAS deployment. It also shows how the data rate relates to a baseline of data for the same period collected before deployment- the baseline is shown in light gray. Similar reports can be generated to show in detail how WAN and application optimization lowers individual application bandwidth consumption and overall link utilization.

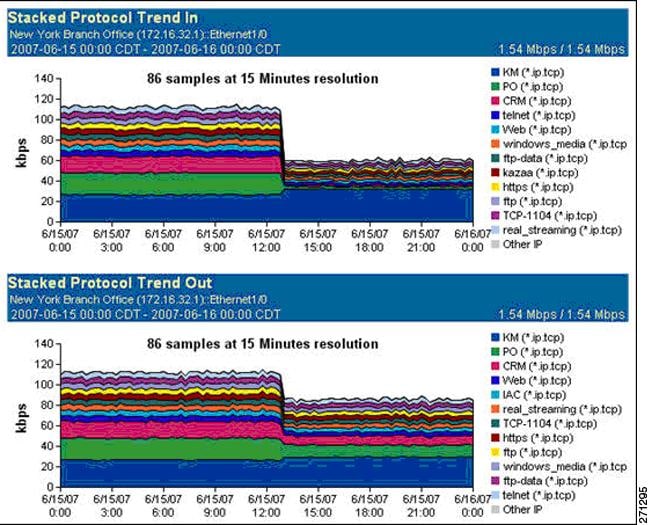

Figure 9-48 ReporterAnalyzer Displaying a Predeployment Baseline

Figure 9-49 shows the impact of Cisco WAAS on application response times experienced by users of an interactive web application at a particular site. Note the pattern of daily transaction delays before WAAS deployment. Users are likely to be dissatisfied and unproductive, since transaction delays are highly variable and last up to 3 seconds.

While the observed number of transactions (represented by the light gray "Observations" line) shows a consistent daily pattern, the average response time for users of the application at this location drops from 562 milliseconds before WAAS deployment to 205 milliseconds after, as indicated by SuperAgent response-time reports (not shown here). Furthermore, the WAAS deployment resulted in far more consistent application delivery to this remote site - with no transactions approaching the three-second delays seen before deployment - and is therefore likely to make a significant, positive impact on user satisfaction and productivity.

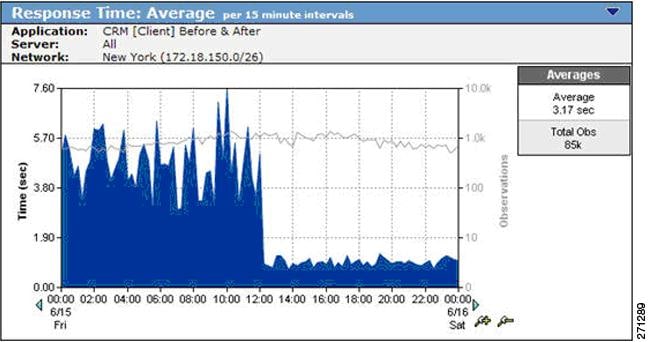

Figure 9-49 SuperAgent Reporting that WAAS Improves Application Performance

Figure 9-50 shows how network latency for the application dropped significantly after WAAS deployment because of reduced congestion on the optimized link.

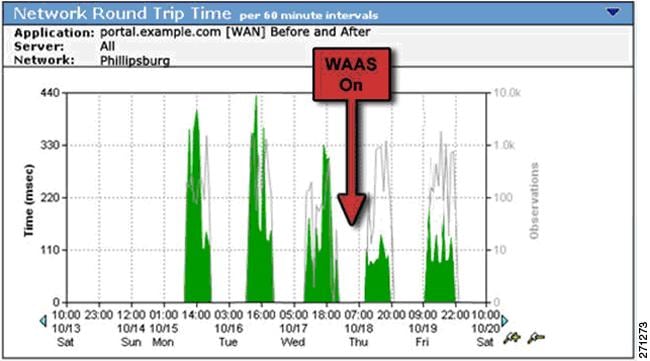

Figure 9-50 SuperAgent Reporting Reduced WAN Segment Latency after WAAS Optimization

Application delays caused by network retransmission, shown in Figure 9-51, were also significantly reduced by the WAAS deployment.

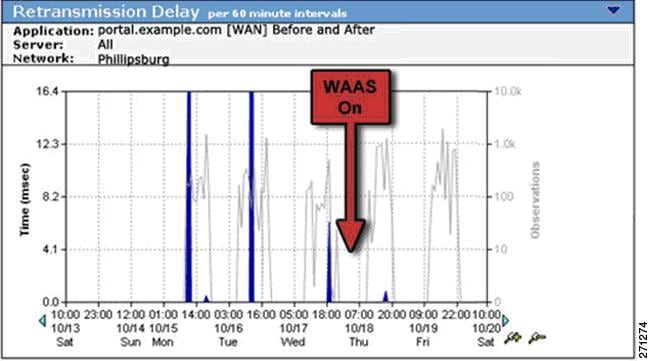

Figure 9-51 SuperAgent Reporting Decreased Network Retransmission Delay after WAAS Optimization

The effect of server offload made possible by Cisco WAAS can be observed in several ways. Figure 9-52 shows improved response time for a server hosting this CIFS (NetBIOS) intensive application after WAAS deployment.

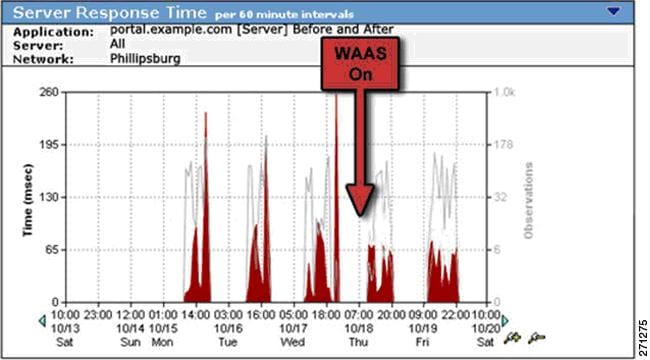

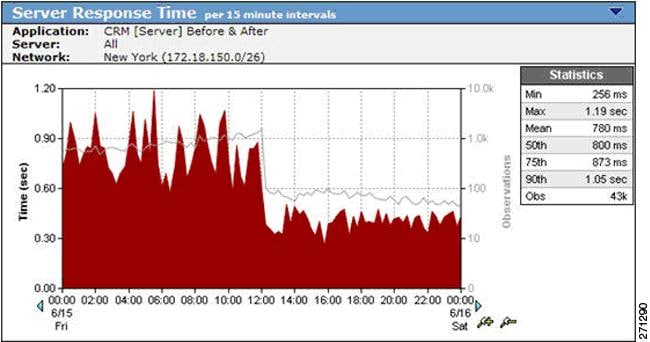

Figure 9-52 SuperAgent Reporting Faster, More Consistent Server Response Times after Server Offload

Figure 9-53 shows data volume reduction for a bandwidth-hungry email application. This SuperAgent performance map, configured to report email traffic over a single optimized link, shows that advanced data reduction and compression features of Cisco WAAS have reduced 180 MB of server data volume to only 99 MB of volume over the WAN.

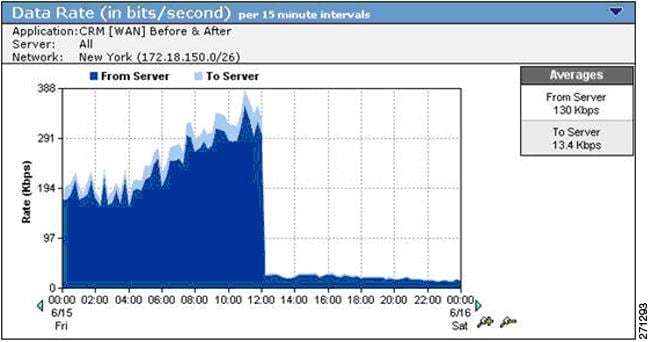

Figure 9-53 SuperAgent Performance Map Showing Reduced WAN Data Volumes after WAAS Optimization

Detailed documentation of the performance improvements experienced by end-users after WAN and application optimization deployment - in combination with performance metrics that show how data volume and network latency improvements can lead to better overall performance - help to prove the effectiveness of each WAN and application optimization initiative and can help to justify and fine-tune future efforts.

9.17.1.3  Postdeployment Support

NetQoS performance monitoring products, in combination with Cisco WAN and application optimization technologies, help IT professionals maintain the visibility necessary to ensure efficient application delivery regardless of how network, datacenter, and usage conditions change. Effective network performance monitoring also makes possible more efficient troubleshooting and capacity planning to meet the organization's future needs.

The NetQoS Performance Center can alert IT staff to performance problems no matter where they may occur in an overall transaction. The following example illustrates some of the performance reports used to support troubleshooting in the example network shown in Figure 9-54. The figure shows the following appliances: NetQoS Super Agent Collector (SA-CO), Super Agent Aggregator (SA-AG), Super Agent Management Console (SA-MC), NetVoyant (NQ-NV), and Reporter Analyzer (NQ-RA). In this example, the NetQoS appliances are connected to the distribution layer switch (DS1).

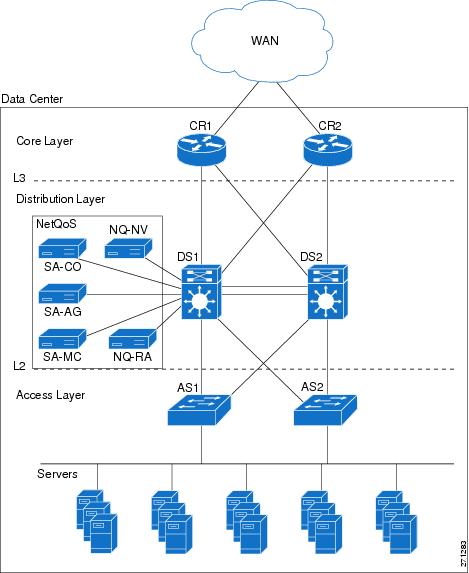

Figure 9-54 Post-Deployment Support Network Example

Figure 9-55 is a performance view, sorted by worst performing application, which highlights an application tier responsible for a recent slowdown.

Figure 9-55 NetQoS Performance Center Report: Performance by Application

Users can navigate to an Engineering view, shown in Figure 9-56, to see response-time metrics for a server in the data center that appears to be responsible for the slowdown. In this example, a response time composition graph reveals an increase in SRT (shown in red) without corresponding delays in application data transfer time (shown in yellow). This condition is associated with server resource issues caused by background processes, memory leaks, faulty configuration changes, and so on.

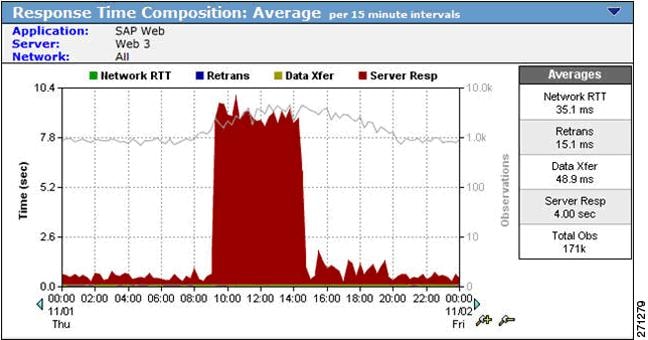

Figure 9-56 A SuperAgent Engineering View

SuperAgent can be configured to automatically investigate server and network performance issues. In this case, SuperAgent reports the presence of a backup process consuming significant CPU during the slowdown.

Figure 9-57 FA NetVoyant Device Performance View

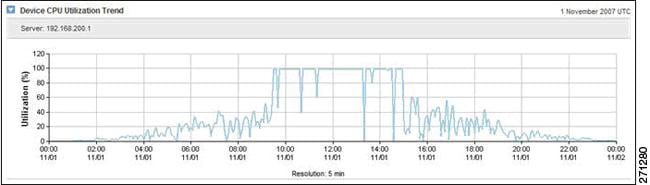

NetVoyant generates a detailed CPU utilization report, shown in Figure 9-57, and server process list, shown in Figure 9-58, and presents them in the NetQoS Performance Center. These document that a backup process, mistakenly configured to run during business hours, is responsible for the slowdown.

In the example, a combination of application response time monitoring, automated SuperAgent investigations, and SNMP device statistics help IT staff quickly and easily find the root cause of the performance problem. The data made it possible to quickly correct the backup schedule and help prevent the problem from recurring.

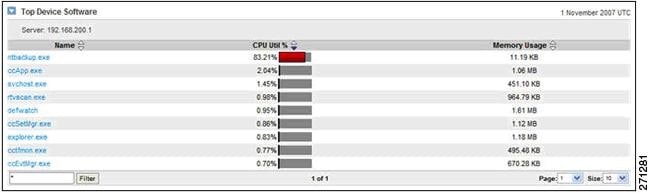

Figure 9-58 Process List Showing the Presence of a Backup Application

The presentation of comprehensive performance data in a single interface, including application response times, link traffic analysis, and SNMP device performance statistics, supports faster troubleshooting and better management decisions.

9.17.2  NetQoS Metrics for WAN and Application Optimization

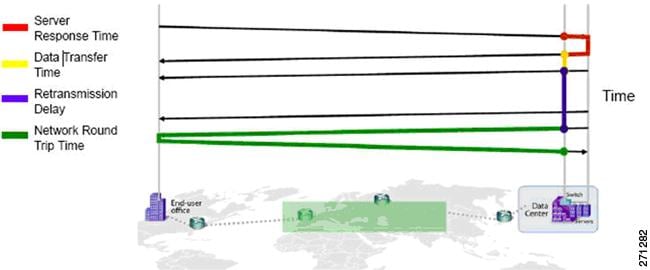

NetQoS SuperAgent analyzes the following metrics when reporting application response times. This analysis reports total transaction time for the network, server, and application components.

Table 9-4 NetQoS Metrics

Metric Type
Metric
Description

Network

Network RTT

Time that a packet takes to traverse the network.

Network connection time

Time it takes the client to confirm the server connection acknowledgment. Delay is probably caused by network latency.

Effective RTT

Network RTT plus delays due to any retransmissions.

Retransmission delay

Elapsed time between sending the original packet and sending of the last duplicate packet.Retransmission delay is reported as an average across all observations, not just retransmitted packets.

Packet loss percentage

The ratio of retransmitted data to total data.

Server

Server response time (SRT)

Time for the server to begin responding to a request.

Server connection time

Time the server takes to acknowledge an initial client connection request.

Refused sessions

The number of requests that the server explicitly rejected during the data collection interval.

Unresponsive sessions

The number of sessions in which a connection request was sent and the server never responded.

Applications

Data transfer time

Time to transmit a complete response, measured from initial to final packet. Excludes initial SRT, and includes network RTT only if there is the data to send does not fit in the TCP window.

Transaction time

Time to complete a TCP transaction or data request within a persistent TCP connection, from the moment a client sends the request to the time that the client receives the last packet in the response.


Figure 9-59 Four Primary Metrics That Sum to Total Transaction Time

9.17.3  NetQoS Deployment Considerations

Figure 9-60 shows NetQoS deployed in the data center. The NetQoS appliances (shown in a light gray box) are deployed in the distribution layer of the Data Center. The figure shows the following appliances: NetQoS Super Agent Collector (SA-CO), Super Agent Aggregator (SA-AG), Super Agent Management Console (SA-MC), NetVoyant (NQ-NV) and Reporter Analyzer (NQ-RA). In this example, the NetQoS appliances are connected to the distribution layer switch (DS1). For redundancy, they can also be connected to the secondary distribution layer switch, DS2, which is not shown in the figure.

Figure 9-60 NetQoS Placement in the Data Center

9.17.4  Application Response Time Analysis with NetQoS SuperAgent

A SuperAgent deployment comprises a SuperAgent Management Console and some combination of one or more Aggregators for collecting Flow Agent instrumentation from Cisco Wide Area Application Engine (WAE) devices, and Collectors for monitoring Switched Port Analyzer (SPAN) data from data center switches.

In a standalone configuration, a SuperAgent Management Console and one Collector or Aggregator reside on one server. In a distributed configuration, multiple Collectors and Aggregators are associated with one SuperAgent Management Console, and each component is installed on a separate server. Figure 9-61 illustrates a distributed configuration using a collector (SA-CO) and an aggregator (SA-AG) with a separate server Management Console (SA-MC).

Figure 9-61 SuperAgent Distributed Configuration Example

9.17.4.1  SuperAgent Data Feeds

When installing a SuperAgent Collector, IOS commands are executed on a distribution-layer switch (DS1) to configure SPAN settings. Advanced spanning techniques such as Remote SPAN (RSPAN)/ Encapsulated Remote SPAN (ERSPAN) and controls such as VLAN ACLs (VACLs) can be configured to direct only traffic of interest to the SuperAgent Collector. The SuperAgent Collector capacity is limited to 1Gb/s, so only business critical traffic should be monitored.

When installing a SuperAgent Aggregator, FlowAgent export is enabled on all deployed WAE devices. Configuration is through a CLI on individual WAE devices or GUI-enabled commands for an entire device group of WAE devices on the Devices tab of the WAAS Central Manager. Once enabled, WAE devices periodically poll a configuration file on the SuperAgent Management Console that specifies the set of data to be exported to the SuperAgent Aggregator.

Figure 9-61 illustrates data feeds for the different segments. Core WAE devices, such as WAE-Core, measure the WAN segment. Branch WAE devices, such as WAE-Edge, measure Client segments. There are two ways to get the data for the Server segment: use SPAN/VACL data from the SuperAgent Collector (SA-CO), or use FlowAgent data from the core WAE (WAE-Core).

The core WAE device (WAE-Core) sends server segment data to the aggregator. However, the SuperAgent Management Console uses the SPAN/VACL data for the server segment if SPAN/VACL data exists. Server segment FlowAgent data is used only if there is no SPAN/VACL data. This is because SPAN/VACL data is more accurate and more complete. SPAN/VACL data is measured closer to the server, so server response time (SRT) is slightly more accurate. Depending on how SPAN/VACL is configured, SPAN/VACL data can also include the server-to-server traffic, which makes the data more complete.

Therefore, the recommended practice is to use SPAN/VACL data for the Server Segment using the SuperAgent Collector. The alternative, using FlowAgent data from the core WAE, is possible for limited WAAS deployments but is not recommended.

Figure 9-62 shows an example network to illustrate how local SPAN can capture traffic on the L2 VLANs interconnecting the distribution switch and the access switch. The following snippet shows an example configuration at the distribution layer switch.

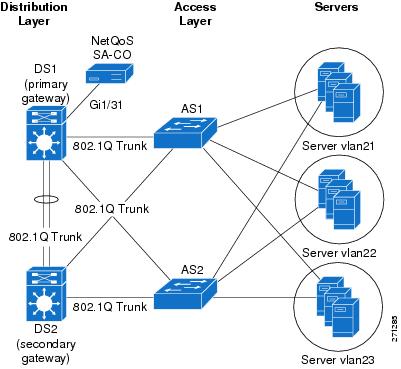

Figure 9-62 Monitoring the Server Segment Example Deployment

The example assumes that NetQoS SuperAgent Collector (SA-CO) connects to the Gi1/31 port of DS1. NetQoS SuperAgent Collector must monitor VLANs 21 and 22; VLAN 23 traffic does not need to be monitored.

1. CONFIGURE SOURCE OF SPAN TRAFFIC
DS1# monitor session 1 source vlan 21-22
2. CONFIGURE NETQOS SUPER AGENT COLLECTOR AS A DESTINATION TO SPAN TRAFFIC
DS1# monitor session 1 destination interface Gi1/31

The following commands can be used to verify the configuration.

3. VERIFY SPAN CONFIGURATION
DS1# show monitor session 1
Session 1
---------
Type                   : Local Session
Source VLANs           :
    Both               : 21-22
Destination Ports      : Gi1/31

9.17.4.2  SuperAgent Data Collection

To configure data collection on a Management Console, the administrator imports or enters a list of network subnets to be monitored. The administrator also configures network types so that groups of networks with similar performance characteristics can be managed collectively. SuperAgent can detect applications and servers, and application names are assigned based on well-know ports. SuperAgent can also import configuration information from third-party managers.

The administrator next assigns servers to Collectors, assigns WAE devices to Aggregators, and ensures that the graphs populate and active sessions are reported to verify the configuration. The administrator can also create aggregations for applications, networks, or servers so that they can be reported and compared as groups.

9.17.4.3  SuperAgent Baselines and Thresholds

SuperAgent automatically computes baselines and thresholds after 48 hours of data collection, and then periodically adapts them to changing conditions. Threshold sensitivity can be adjusted by application, metric, or network type, or can be set to a fixed value. These performance thresholds determine the Normal/Degraded/Excessive ratings, which are visible on the SuperAgent Operations page, for applications, networks, and servers.

When any threshold is violated, SuperAgent launches incidents and can respond to those incidents with email, SNMP trap notifications, and automated investigations. Automated investigations can be configured by application and network type, and can include trace routes, packet captures, application port connects, SNMP polling of affected resources, and ping tests.

The administrator enters thresholds to be referenced in the reports to configure performance SLA reporting. SuperAgent provides application and availability service-level reports and enables drill-down to display time-and resource-based patterns of compliance. This can reveal, for example, that violations tend to occur at certain times or only on certain servers.

The administrator also configures password, role, and permission settings to tailor access and functionality by user. All configurations offers default settings, with full customization available.

9.17.5  Link Traffic Analysis using NetQoS ReporterAnalyzer

In a distributed ReporterAnalyzer configuration, a Harvester collects and condenses raw NetFlow data from routers and switches while a Flow Manager gathers data from the Harvesters and sends it to one or more Data Storage Appliances. A Console processes the stored data and displays it in a web interface. In a standalone configuration, one server containing all of these software components is installed.

When installing ReporterAnalyzer, it is necessary to specify basic information about each router to be monitored, including the source address, SNMP read community string1 , and NetFlow version. It may also be necessary to configure firewalls and other access control lists (ACLs) to allow NetFlow, SNMP, and ReporterAnalyzer process communication.

To begin installation, the administrator executes IOS commands on selected routers to enable NetFlow export and index persistence and confirms that the ReporterAnalyzer Harvester is receiving the data. A management utility displays the interfaces associated with each router and enables the administrator to select or clear the interfaces to be monitored.

The administrator then modifies or confirms report settings that control the frequency of DNS host name resolution, reported interface speeds, router name resolution rules, and the inclusion of router-generated traffic. The administrator also defines roles and user accounts for any users who do not have full administrative privileges for ReporterAnalyzer.

After initial setup, communication settings for third-party applications are configured as required to automatically emailing reports and send SNMP traps. ReporterAnalyzer sends notifications if routers cease to send NetFlow data, or if product components are unavailable or exceed performance thresholds.

The administrator then configures additional features to make reports easy to understand. For example, interfaces can be grouped based on geography, speed, or other attributes for easier selection and comparative reporting. Interfaces can be aggregated so that they can appear together in reports. User-defined protocol groups can be configured so that protocol ranges for each custom application can be reported together. Type of Service (ToS) values are also labeled and grouped for reporting application classes.

9.17.6  Device Performance Analysis using NetQoS NetVoyant

NetVoyant uses SNMP management information bases (MIBs) to define the types of data to be collected. Users can view the MIBs to create event notifications or assist in other administrative tasks, and can compile new MIBs to add functionality to NetVoyant.

NetVoyant creates events and alarms to alert users to issues with NetVoyant services, missed SNMP polls, exceeded utilization, and other configurable thresholds. Administrators can set thresholds, create notifications that NetVoyant triggers in response to events, and view event and alarm logs.

NetVoyant provides a wizard for configuring Cisco IP SLA operations for supported devices. These operations provide data for IP SLA reports in the NetVoyant Reporting Interface.

In a standalone configuration, a NetVoyant Master Console performs administrative, reporting, and polling tasks. In a distributed configuration, the Master Console performs administrative and reporting tasks. Remote servers, called Polling Stations, discover and poll devices on the network.

During initial configuration, a wizard guides the process of discovering network devices. The configuration wizard prompts the user for read community strings of the devices to be polled; both read and write community strings are required for devices that NetVoyant configures to run IP SLA tests.

The configuration wizard prompts the administrator to enter or import the network address ranges of the devices to be discovered. If gateway or backbone routers, or other connectivity devices, are not discoverable (for example, because they are separated from NetVoyant by a public network), it might be necessary to provide the names or addresses of these devices. During setup, a user can also select device classes (for example, printers or workstations) and models to be excluded from automatic polling after discovery.

It might be necessary to configure access lists for routers and other network devices to accept SNMP polls from NetVoyant. Access to a naming service, such as DNS, is also required to present device names in NetVoyant reports.

After the configuration wizard performs initial discovery, NetVoyant performs rediscovery each Midnight by default to update device information. Rediscovery settings can be changed after setup, and rediscovery can also be initiated manually.

9.18  Use Case 1: Predeployment Baselining

Use case 1 illustrates the process of network baselining during the predeployment phase.

The following use case describes an implementation that was deployed in a test lab. The use case provides an example of how the WAN and application optimization solution might work in an real-world scenario. However, the use case is not intended to reflect actual performance or behavior in any environment.

The following use case example illustrates NetQoS capabilities and features that are useful for identifying candidate sites for WAN and application optimization.

9.18.1  Objectives

Identify candidate sites for WAN and application optimization.

9.18.2  Assumptions

1. WAAS and QoS Policies are not deployed.

2. NetQoS SuperAgent is deployed at the data center Catalyst 6000 Series distribution switch.

3. NetQoS SuperAgent Collector uses SPAN to monitor the DC links and VLANs.

4. NetFlow Data Export is configured on WAN routers to send data to NetQoS ReporterAnalyzer.

5. NetQoS SuperAgent has been deployed for more than 48 hours and has established a baseline.

9.18.3  Use Case Example

A multinational enterprise is considering WAN and application optimization and wants to identify the sites that would benefit most from WAN and application optimization. NetQoS has been deployed, and a baseline has been established.

9.18.4  Use Case Workflow


Step 1 Identify worst performing sites and use NetQoS Performance Center to create a customized report.

1. Create a new page containing the following information (see Figure 9-63).

2. Add Router/Switch | Interfaces Over Threshold.

3. Add Network | Bytes by Network

4. Add Network | Incident Count by Network.

5. Add Network | Network Round Trip Time by Network.

6. Add Network | Packet Loss by Network

7. Add Network | Performance by Network

Save and view the report (see Figure 9-63).


Note The Interfaces Over Threshold view shows that the Singapore and New York interfaces have average daily utilizations above 95%. Performance reports from SuperAgent indicate that these subnets have high data volumes, high latency, and high packet loss. The Performance by Network view shows excessively poor performance with several network incidents.


We must also ensure that the protocols on these links will benefit from WAN and application optimization.

Step 2 Use ReporterAnalyzer to identify the protocols on the interfaces with performance issues:

1. In the On Interfaces Over Threshold view, click on most utilized interface to get the protocol distribution and volumes optimization, similar to Figure 9-43, Figure 9-44, and Figure 9-45.

2. Repeat for each interface over threshold.


Note Protocol distribution on interface shows whether WAN and application optimization will be effective on an interface. Protocol distribution also shows what type of WAN and application optimization is most suitable. The Singapore and New York links both appear to be good candidates for WAAS optimization.


The customer chooses New York for the initial WAAS evaluation, without optimizing the Singapore link.

Figure 9-63 NetQoS Performance Center Identifying Candidate Sites for Optimization

9.19  Use Case 2: Validating WAAS Effectiveness

Use case 2 illustrates the process of demonstrating that deploying WAAS helps to optimize WAN and application performance.

The following use case describes an implementation that was deployed in a test lab. The use case provides an example of how the WAN and application optimization solution might work in an real-world scenario. However, the use case is not intended to reflect actual performance or behavior in any environment.

9.19.1  Objectives

Validate performance improvements made possible by WAN and application optimization initiatives.

9.19.2  Assumptions

1. WAAS and QoS policies are deployed.

2. NetQoS SuperAgent is deployed at the data center Catalyst 6000 Series distribution switch.

3. NetQoS SuperAgent Collector monitors the DC links/VLANs using SPAN.

4. NetFlow Data Export is configured to send data to NetQoS ReporterAnalyzer.

5. NetQoS has been deployed for more than 48 hours and has established a baseline.

The following example use case shows how the NetQoS Performance Center was used to validate performance improvements made possible by Cisco WAAS.

9.19.3  Use Case Example

The multinational enterprise in the previous use case has started a pilot WAN and application optimization deployment. During the pilot, WAAS was deployed at 12:00 PM on June 15 to optimize a remote site (New York) that has experienced poor performance. The customer uses NetQoS Performance Center to demonstrate to senior management that Cisco WAAS improves application service delivery, thereby justifying further deployments at other remote sites.

9.19.4  Use Case Workflow


Step 1 Check performance by network; use the customized report from the previous use case in NetQoS Performance Center.

As shown in Use Case 2: Validating WAAS Effectiveness, users in New York experience improved network performance as soon as WAAS and QoS policies are implemented. Latency and packet loss for New York show immediate improvement, while the unoptimized Singapore branch network continues to have serious performance issues.

Figure 9-64 NetQoS Performance Center Showing Improved Behavior

Step 2 Examine the impact of optimization on New York traffic.

Click on the New York link in the Performance by Network view (see the pointer in Use Case 2: Validating WAAS Effectiveness). This opens the SuperAgent Operations page (Figure 9-63), which shows four network metrics with Degraded or Excessive behavior before the WAAS rollout. The autogenerated performance thresholds, which exist for all Application, Network, Server, and Metric combinations, reveal the operational status (Normal, Excessive, or Degraded).In this example, (New York Network, Network Round Trip Time, CRM Server) shows Excessive status until WAAS is activated at 12:00PM.

Figure 9-65 Operations Page Showing Dramatic Improvement

Step 3 View reports of optimized transaction performance as experienced by users in New York.

1. Click on the Optimization tab (see Use Case 2: Validating WAAS Effectiveness) to open the Client Experience for Optimized Transactions view, which shows transaction times for each application (not shown).

2. Click the CRM application to open a Components Report, which includes several views for the application: Response Time (Figure 9-66), SRT (Figure 9-67), RTT (Figure 9-68), Retransmission Delay (Figure 9-69), Data Rate (Figure 9-70) and Data Volume (Figure 9-71).

3. Repeat for other key applications.

Figure 9-66 shows a view of response time for users of a CRM application. Although the number of CRM transactions (as represented by the light gray Observations line) remains relatively constant, response time for these transactions drops significantly. These measurements, showing true user experience, are from data collected at the New York branch office WAE device.

Figure 9-66 Response Time View Showing a Five-Fold Performance Improvement

On the same page, an SRT graph, measured from the data center WAE (Figure 9-67) shows how much WAAS improves server performance. This specific CRM application uses Windows file servers running CIFS in the data center. While Figure 9-66 shows that the observation count remains constant on the client, the observation count measured at the server declines dramatically because of the server offload made possible by CIFS optimization. With less load on the server after WAAS activation, SRT decreases and performance improves.

Figure 9-67 SRT Showing Server Offload Provided by WAAS

A Network RTT graph (Figure 9-68) shows how WAN latency and the number of transactions observed on the link decrease after WAAS deployment. WAN latency is reduced because of optimizing a previously congested link. The use of WAAS optimization techniques such as DRE, LZ, Transport Flow Optimization (TFO), and caching not only reduces WAN bandwidth, but also decreases the number of TCP transactions on the WAN.

Figure 9-68 Network RTT Showing the Effect of TFO on Network Latency

Retransmission delay, shown in Figure 9-69, disappears when WAAS is enabled. This is a typical result. After WAAS is deployed, fewer packets are be retransmitted (the bandwidth reduction causes less congestion), and less time is spent retransmitting packets.

Figure 9-69 Retransmission Delay Virtually Disappears after WAAS Deployment

On the same page, the Data Rate graph (Figure 9-70) and Data Volume graph (Figure 9-71) show the impact of WAAS data compression and suppression on WAN traffic. The reduced WAN bandwidth consumption shown in the graphs is the result of Cisco WAAS data redundancy elimination (DRE) and LZ compression. To document the impact of WAAS the user can access similar views for every critical TCP/IP application and every network.

Figure 9-70 Data Rate over the WAN Showing a Decrease after WAAS Deployment

Figure 9-71 Data Volume over the WAN Decreasing Because of WAAS DRE and LZ Compression

Step 4 View the overall effect of Cisco WAAS on the New York interface.

Click a link to return to the NetQoS Performance Center, and then click the New York interface in the Interfaces Over Threshold view to see stacked protocol trend plots (Figure 9-72).


Note All but one protocol is reduced significantly by the WAAS deployment. The KM protocol is a pass-through application that is not optimized by WAAS. The volume of KM traffic increases because the lower overall link utilization made possible by WAAS frees capacity for this application.


This result suggests that valid QoS policies should be implemented with WAN and application optimization devices to avoid having newly-freed bandwidth consumed by non-business traffic, such as Internet radio and recreational streaming video. Effective QoS policies can ensure that freed bandwidth is first allocated to business-critical applications.

Figure 9-72 A Stacked Protocol Trend Report Showing Reduced Bandwidth Consumption

Step 5 View the effect of Cisco WAAS on the New York interface on the second day of the WAAS pilot deployment.

Open the customized troubleshooting page in the NetQoS Performance Center (Figure 9-73).


Note The page shows no further application incidents and no packet loss for New York. Because it is not among the worst performing networks, New York no longer appears in the Performance by Network view.


After WAAS deployment, the NetQoS Performance Center continues to baseline performance so that any deviation from new, faster norms triggers incidents and automatic investigations. The NetQoS Performance Center continues to isolate problems, regardless of whether they occur on optimized links, on unoptimized links, or in the datacenter.

Figure 9-73 The New York Network No Longer Appears in the Performance by Network View

NetQoS reports helped the user to make the case for further Cisco WAN and application optimization deployments because they proved that:

The organization's remote sites and business-critical applications were good candidates for optimization by WAN and application optimization.

WAN and application optimization improved the performance of critical applications, as experienced by end users.

After WAN and application optimization deployment, it was possible to maintain network visibility necessary for effective troubleshooting.

9.20  Cisco NAM Use Cases for WAN and Application Optimization

This section focuses on use cases that are based on the deployment of NAM-2 running NAM 3.6 software in the data center. Using NME-NAMs in branch sites to support this solution is not covered in this guide.

The following use cases describes an implementation that was deployed in a test lab. The use case provides an example of how the WAN and application optimization solution might work in an real-world scenario. However, the use case is not intended to reflect actual performance or behavior in any environment.

9.20.1  NAM-2 Support for WAN and Application Optimization

Like NetQoS, NAM can be used to support the different phases of WAN and application optimization deployment. However, there are some differences in how the tools should be used. NAM is not a comprehensive monitoring solution like NetQoS. Instead, NAM is a versatile network tool that provides detailed packet data from the network for conversation-level traffic and response-time analysis. NAM is easy to deploy and configure through a Web graphical user interface.

9.20.1.1  Predeployment support

After NAM-2 is deployed in the data center, users can quickly generate TopN reports and real time charts that identify the application host pairs having the most traffic or the worst performance. This information helps to identify applications and branch sites for WAN and application optimization initiatives (see Figure 9-74).

Figure 9-74 NAM-2 Top Conversations

Unlike NetQoS, NAM-2 reporting shows specific conversation metrics and does not aggregate the information by site pair. The user must manually map host IP addresses to their site subnets to see the global site-to-site traffic pattern and its composition.

9.20.1.2  Support during Deployment

NAM-2 enables the user to examine the traffic or performance metrics for a specific conversation, either in real-time display or in predefined reports. To support WAAS optimization validation, NAM-2 can be configured to monitor both the WAN segment and the Server segment simultaneously.

NAM enables the user to examine the following WAAS benefits for a specific conversation:

The effectiveness of compression in real-time and history reports of traffic volume on the server and WAN segments (see Figure 9-75).

Bandwidth reduction on the WAN segment immediately after WAAS is turned on (Figure 9-76).

The response time metrics reduction on the Server segment immediately after WAAS is turned on.

Figure 9-75 Real-Time NAM-2 Reports Comparing Traffic Volume on the WAN and Server Segments

Figure 9-76 NAM-2 History Reports Showing Traffic Reduction on the WAN Segment

9.20.1.3  Postdeployment Support

NAM is particularly useful for troubleshooting performance problems, whether or not WAAS is deployed. Because NAM can obtain traffic flow information from different points of the network using SPAN, RSPAN/ERSPAN, VACL, or NetFlow, NAM can be used to isolate problems and help determine whether a problem is with an application server, the DC server network, the WAN access links, or the service provider (SP) WAN.

If WAAS is deployed in the data center, the troubleshooting procedure also includes a step to check whether WAAS is optimizing the target applications. When WAAS is deployed, the user must consider that the original client/server TCP session will now be split into three separate, interrelated segments: client, WAN, and server. NAM-2 can monitor and analyze traffic and performance on the server and WAN segments.

Figure 9-77 shows some questions that are useful to ask when troubleshooting performance problems.

Figure 9-77 Troubleshooting Performance Problems Using NAM-2

9.21  NAM 3.6 Metrics for WAN and Application Optimization

NAM-2 provides several ways to capture, measure, and report on application traffic and performance that are relevant to the WAN and application optimization solution. Two categories of reported metrics are useful for this solution: traffic metrics and response-time metrics.

Traffic metrics, such as volume and rate, can be monitored or reported along different aggregation dimensions (for example, application, host, conversation). Top N Charts based on traffic metrics can also be generated, as shown in Figure 9-74.

Response time metrics can be monitored and reported along different aggregation dimensions. Table 9-5 shows some key NAM-2 response time metrics relevant to WAN and application optimization.

Table 9-5 Key NAM-2 Response Time Metrics

Metric Type
Metric
Description

Network

Network Delay (ND)

The client-server round-trip delay during TCP connection setup.

Client Network Delay (CND)

RTT between NAM and client during TCP connection setup.

Server

Application Delay (AD)

Time f the application server to start responding to a request from the client.

Server Network Delay (SND)

RTT between NAM and server during TCP connection setup.

# of clients

Number of branch office clients connecting to a server in the data center.

# of connections

Number of TCP connections connecting to a server in the data center.

Application

Transaction Time (TT)

Time it takes to complete a client-server application transaction.

Number of transactions

Number of client-server application transactions seen by the NAM.


Figure 9-78 illustrates segments monitored by NAM-2 after WAAS is deployed. WAAS creates three network segments: client, WAN, and server. NAM-2 can monitor WAN and server segments.

In the server segment, NAM-2 monitors traffic between the WAE-Core and the server. Transaction time in this segment measures the time for a server to complete an application transaction. This time reflects the server experience, not the client experience.

In the WAN segment, NAM-2 monitors traffic between the WAE-Core and the WAE-Edge. The structure of the transactions is different from in the server segment because the WAAS devices exchange additional control traffic. Monitoring the WAN segment is useful to show WAAS benefits, such as bandwidth reduction on the WAN.

Figure 9-78 NAM-2 Monitoring Segments in the Presence of WAAS

9.22  NAM-2 Deployment Considerations

In a typical deployment scenario for WAN and application optimization, NAM-2 is deployed on a Catalyst 6000 Series distribution switch in the data center. This section describes two data center WAAS deployment scenarios.

In Data Center Deployment Scenario 1, the WAN optimization controllers (WAE1 and WAE2) are deployed at the distribution layer (see Figure 9-79). They are connected to the Catalyst 6000 Series distribution switches (DS1 and DS2). Each NAM-2 (NAM1 and NAM2) is installed on a slot of the DS1 and DS2. NAM-2 is a network blade on the Catalyst 6000 Series switch.

Figure 9-79 Data Center WAAS Deployment Scenario 1

In Data Center Deployment Scenario 2, the WAN optimization controllers (WAE1 and WAE2) are deployed at the core layer, as shown in Figure 9-80, and are connected to the core routers (CR1 and CR2). The core routers can be Cisco 7200 or 7600 Series routers or Catalyst 6000 Series switches.

Figure 9-80 Data Center WAAS Deployment Scenario 2

9.23  NAM-2 Data Collection for WAN and Application Optimization

NAM-2 enables the user to select data sources for computing the metrics. For NAM-2, the available data sources follow:

Local SPAN by VLANs, with visibility for each individual VLAN

Local SPAN by ports, aggregated by the destination NAM data port

RSPAN/ERSPAN from another switch by VLANs, with each individual VLAN visible

RSPAN/ERSPAN from another switch by ports, aggregated by destination data port

NetFlow data sources either local or remote

Because NAM-2 has only a 1Gb/s capacity, only business critical applications should be monitored.

9.23.1  Data Center Deployment Scenario 1

Figure 9-81 illustrates how the NAM monitors data center traffic for data center deployment scenario 2. In this scenario, WCCP redirects traffic to WAAS (WAE-Core). A NAM-2 monitors both nonintercepted and intercepted traffic. For intercepted traffic, NAM-2 use can use its two data-ports to simultaneously monitor the WAN segment (WAN-WAE traffic) and the server segment (LAN-WAE traffic).

Figure 9-81 NAM-2 Monitoring Configuration for Data Center Deployment Scenario 1

Either local SPAN or VACLs can be used to monitor the server segment. Local SPAN is easier to configure, but is limited to capturing either VLANs or ports. For more granular traffic analysis, VACLs can be used on specified VLANs to match traffic based on source IP address, destination IP address, L4 protocol type, source and destination L4 ports, and other information. VACLs are very useful for granular traffic identification and filtering.

Note that the optimized TCP traffic (WAN-WAE traffic and LAN-WAE traffic) is copied to the NAM-2, using SPAN or VACL, before the traffic is redirected to the WAAS device using Web Cache Coordination Protocol (WCCP).

To monitor the WAN segment, NetFlow Data Export on the WAN router can be configured using NAM-2 as a destination. Another option is to use SPAN on the uplinks to the core router; these are typically L3 links, and therefore it is possible to only SPAN the ports of the L3 links.

Note, however, that there is a limit of two local SPAN sessions on the Catalyst 6000 Series switch. This can become an issue if a Firewall Services Module (FWSM) is used on the distribution Catalyst 6500: FWSM uses by default a SPAN session. For more details, refer to Cisco Data Center Infrastructure Design Guide 2.1 Release Notes.

Possible workarounds to this issue follow:

1. Use VACLs for the server segment and SPAN for the WAN segment.

2. Use the no monitor session service module command to disable the FWSM SPAN session. In this case, care must be taken so that multicast sources are not placed behind the FWSM.

3. Use RSPAN on the access switch for the server segment.

9.23.1.1  Monitoring the Server Segment

To monitor the server segment, the recommended method is to use local SPAN to capture traffic on the L2 VLANs interconnecting the distribution Catalyst 6000 Series switch (see Figure 9-82) and the access switch.

Figure 9-82 illustrates how the NAM should monitor data center traffic for data center deployment scenario 2.

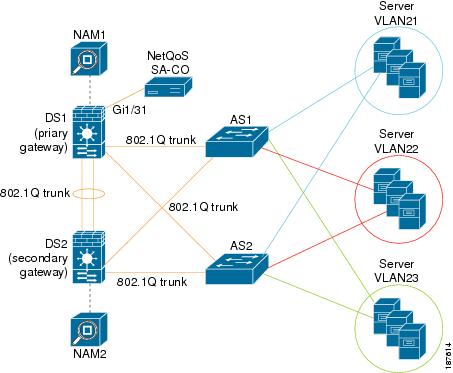

Figure 9-82 Monitoring the Server Segment Example Deployment

The following snippet shows an example configuration at the distribution layer switch. The example assumes that NAM-2 (NAM1) is installed on slot 9 of the Catalyst 6000 Series switch DS1. Here, VLANs 21 and 22 are monitored on NAM-2 data port 1. NAM does not monitor VLAN 23. The example also shows how to monitor the same VLANs using NetQoS SuperAgent Collector (SA-CO) connected at Gi1/31.

1. CONFIGURE SOURCE OF SPAN TRAFFIC
DS1# monitor session 1 source vlan 21-22

2. CONFIGURE NAM DATA PORT AS A DESTINATION TO SPAN TRAFFIC
DS1# monitor session 1 destination analysis-module 9 data-port 1

3. OPTIONAL : CONFIGURE NETQOS SUPER AGENT COLLECTOR
DS1# monitor session 1 destination interface Gi1/31

The following commands can be used to verify the configuration.

4. VERIFY SPAN CONFIGURATION
DS1# show monitor session 1
Session 1
---------
Type                   : Local Session
Source VLANs           :
    Both               : 21-22
Destination Ports      : Gi1/31analysis-module 9 data-port 1

An alternative option is to use VACLs. The following snippet shows an example configuration at the distribution layer switch. As before, the example assumes that NAM-2 is installed on slot 9 of the switch. Here only TCP traffic on VLANs 21, 22 and 23 is captured on data port 1 of NAM-2.

1. CONFIGURE NAM DATA PORT TO CAPTURE TRAFFIC
analysis module 9 data-port 1 capture
analysis module 9 data-port 1 capture allowed-vlan 1-4094

2. CONFIGURE ACCESS LISTS TO CAPTURE TRAFFIC - TCP TRAFFIC IN THIS CASE
access-list 110 permit ip any any
access-list 120 permit tcp any any

3. CONFIGURE VLAN ACCESS MAP - which packets to capture, which to forward on
vlan access-map LAN 100
 match ip address 120
 action forward capture
 exit
vlan access-map LAN 200
 match ip address 110
 action forward
 exit

4.APPLY ACCESS MAP TO VLANs
vlan filter LAN vlan-list 21-22

The following commands can be used to verify the configuration.

5. VERIFY VLAN FILTER CONFIGURATION
DS1# show vlan filter
VLAN Map LAN:
        Configured on VLANs:  21-22
            Active on VLANs:  21-22

6. VERIFY ACCESS-MAP CONFIGURATION
DS1# show vlan access-map LAN
Vlan access-map "LAN"  100
        match: ip address 120
        action: forward capture
Vlan access-map "LAN"  200
        match: ip address 110
        action: forward

7. VERIFY NAM PORT CONFIGURATION
DS1# show analysis module 9 data-port 1 state
Analysis module 9 data-port 1:

Switchport: Enabled
Administrative Mode: trunk
Operational Mode: capture
Administrative Trunking Encapsulation: dot1q
Negotiation of Trunking: Off
Access Mode VLAN: 1 (default)
Trunking Native Mode VLAN: 1 (default)
Trunking VLANs Enabled: NONE
Pruning VLANs Enabled: 2-1001
Capture Mode Enabled
Capture VLANs Allowed: ALL
Vlans allowed on trunk: none
Vlans allowed and active in management domain: none
Vlans in spanning tree forwarding state and not pruned:
   none
Administrative Capture Mode: Enabled
Administrative Capture Allowed-vlans: 1-4094

9.23.1.2  Monitoring the WAN Segment

The recommended option for monitoring the WAN segment is to export NetFlow Data from the core router WAN interface link to the NAM-2 at the distribution layer switch.

The following snippet shows an example configuration on the core router CR1 based on the network shown in Figure 9-83. The example assumes that the IP address for NAM-2 is 10.10.0.2.

Figure 9-83 NetFlow Data Export to NAM Example

1. CONFIGURE CORE ROUTER CR-1 NETFLOW DATA EXPORT
ip flow-export version 9
interface GigabitEthernet0/2
 description Interface to WAN
 ip address 10.0.3.1 255.255.255.252
 ip flow ingress
 ip flow egress
 ip route-cache flow
interface GigabitEthernet0/3
 description Interface to WAN
 ip address 10.0.3.5 255.255.255.252
 ip flow ingress
 ip flow egress
 ip route-cache flow

2. CONFIGURE NAM AS A DESTINATION FOR NETFLOW DATA EXPORT
ip flow-export destination 10.10.0.2 3000

The user can then use the Web GUI to configure NAM-2 to monitor traffic from that NetFlow data source.


Note NetFlow Data export supports traffic metrics in NAM-2, but does not support response time metrics.


SPAN on the uplinks to the core router can also be configured on the distribution layer Catalyst 6000 Series switch (DS1). As before, the example assumes that NAM-2 is installed on slot 9 of the switch. Here, traffic on the core uplink interfaces (Gi2/4 and Gi2/5) is captured on data port 2 of NAM-2.

1. CONFIGURE SOURCE OF SPAN TRAFFIC
DS1# monitor session 2 source interface Gi2/4, Gi2/5

2. CONFIGURE NAM DATA PORT AS A DESTINATION TO SPAN TRAFFIC
DS1# monitor session 2 destination analysis-module 9 data-port 2

3. VERIFY SPAN CONFIGURATION
DS1# show monitor session 2
Session 2
---------
Type                   : Local Session
Source Ports           :
    Both               : Gi2/4 Gi2/5
Destination Ports      : analysis-module 9 data-port 2

A similar configuration can be applied to the second NAM-2 on core router CR2 and distribution switch DS2.

9.23.2  Data Center Deployment Scenario 2

Figure 9-84 shows the monitoring setup options for NAM-2 in the context of WAAS Data Center Deployment Scenario 2. As before, WCCP redirects traffic to WAAS, and one NAM-2 uses its two data ports to simultaneously monitor the WAN segment and the server segment.

Figure 9-84 NAM-2 Monitoring Configuration for Data Center Deployment Scenario 2

Either local SPAN or VACLs can be used to monitor the server segment on the access links as in the previous scenario. Either ERSPAN or NetFlow Data Export can be used to monitor the WAN segment. If the data center core router is a Cisco 7200 Series, only the NetFlow Data Export option is available for monitoring the WAN side.

9.23.3  Monitoring the Server Segment

As in Data Center Deployment Scenario 1, the recommended option is to use local SPAN to capture traffic on the L2 VLANs. An alternative option is to use VACLs. See example configuration of previous deployment scenario.

9.23.4  Monitoring the WAN Segment

As in Data Center Deployment Scenario 1, the recommended option for monitoring the WAN segment is to export NetFlow Data from the core router to the NAM-2 at the distribution layer Catalyst 6000 Series switch. See example configuration of previous deployment scenario.

In this particular deployment scenario, an alternative option is to use ERSPAN. ERSPAN is only available on Catalyst 6000 Series switches and Cisco 7600 series routers on IOS Release 12.2(18)SXE and later. The disadvantage of ERSPAN is that it creates additional traffic between the core layer router and the distribution layer switch.

The following snippets show example configurations on the core router and the distribution switch. Figure 9-85 shows the network used in the configurations. First, the ERSPAN traffic source must be configured on the core router 7200-1.

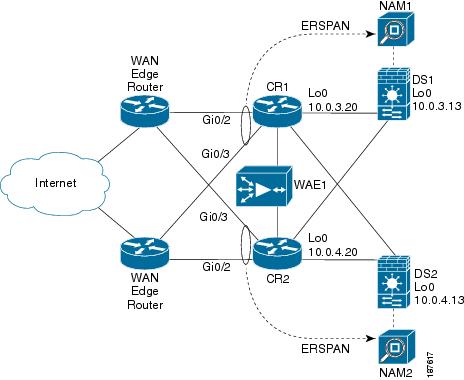

Figure 9-85 ERSPAN Configuration Example

1. CONFIGURE SOURCE OF SPAN TRAFFIC ON CORE ROUTER CR1
monitor session 3 type erspan-source
 source interface Gi0/2
 source interface Gi0/3
 destination
  erspan-id 101
  ip address 10.0.3.10
  origin ip address 10.0.3.20
!

After the ERSPAN traffic source is configured, ERSPAN traffic must be redirected to the NAM-2 on the distribution switch. Note that the same erspan-id is used at the distribution switch DS1.

2. CONFIGURE DESTINATION OF ERSPAN TRAFFIC ON DISTRIBUTION CAT6K SWITCH DS1
monitor session 3 type erspan-destination
 destination analysis-module 9 data-port 2
 source
  erspan-id 101
  ip address 10.0.3.10
!

A similar configuration can be applied to the second NAM-2 on core router CR2 and distribution switch DS2.

9.23.5  NAM-2 Deployment Caveats

A NAM-2 data port cannot be used for two different SPAN sessions.

A NAM-2 data port can be used as either a SPAN or VACL destination.

NAM-2 can separate and report measurements by VLAN in the same SPAN session. However, NAM-2 cannot separate measurements by ports in the same SPAN session.

NetFlow Data Export to NAM-2 does not support response time metrics. Only traffic metrics are available.

9.24  Use Case 1: Troubleshooting

This use case focuses on using NAM-2 in the data center to troubleshoot performance problems related to WAN and application optimization.

The following use case describes an implementation that was deployed in a test lab. The use case provides an example of how the WAN and application optimization solution might work in an real-world scenario. However, the use case is not intended to reflect actual performance or behavior in any environment.

9.24.1  Objectives

Use NAM-2 in the data center to troubleshoot performance problems related to WAN and application optimization.

9.24.2  Assumptions

1. WAAS and new QoS policies are deployed.

2. NAM-2 is deployed at the data center Catalyst 6000 Series distribution switch.

3. NAM-2 monitors the server segment using SPAN or VACL on DATA PORT 1.

4. NAM-2 monitors the WAN segment using SPAN on DATA PORT 2.

5. NAM-2 monitors the WAN links of the Data Center using NetFlow Data Export.

9.24.3  Use Case Example

The following use case example illustrates the NAM capabilities and features useful for troubleshooting application performance problems related to WAN and application optimization.

A multinational enterprise recently consolidated IT services and applications into fewer data centers to reduce costs. To ensure that remote branch offices can use critical business applications with good performance, the company deployed WAAS to perform WAN and application optimization. After the WAAS deployment WAN traffic from the branch offices was reduced by more than 60%, and application performance is no longer affected by long latencies and limited bandwidth.

Two months after the deployment, IT Support received a call from a user in a remote branch office who complained about the slow response time of an important web-based business application. Because NAM was also deployed in the company data centers, IT Support has an invaluable tool for potential real-time traffic visibility and performance problem isolation and resolution.

The data center and the remote branch office are multihomed to two SP networks (SP-A and SP-B). The SP-A network is for business critical applications and has a strict SLA, while the SP-B network is for best-effort traffic with no SLA. Therefore, critical business applications run on the SP-A network, which the enterprise monitors using Cisco IP SLA.

9.24.4  Use Case Workflow

IT Support first identifies the client IP address (10.0.1.10), and then uses NAM-2 to troubleshoot the problem as follows.


Step 1 Use NAM to focus on user conversations and identify which application and server the user at the remote branch is using.

1. Go to Monitor > Conversations > Application Hosts.

2. Filter conversations using User IP Address to identify the application (HTTP) and the Server IP address (10.3.1.10).

The user application and server are identified.

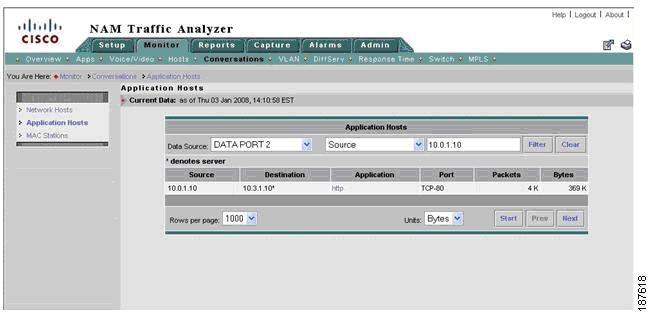

Figure 9-86 Identifying User Conversations at the Remote Branch

The next step is to isolate the problem. Is it in the server segment or in the WAN segment?

Step 2 [Server Segment] Check for conversation-specific application delay (that is, SRT) metrics in Real Time monitor mode to see if the server application is slow to respond.

1. Go to Monitor > Conversations > Application Hosts.

2. Filter conversations using User IP Address in order to identify the application (HTTP) and the Server IP address (10.3.1.10).

Application delay as shown in Figure 9-87 appears normal, so server problems can be ruled out. The next step is to investigate network problems.

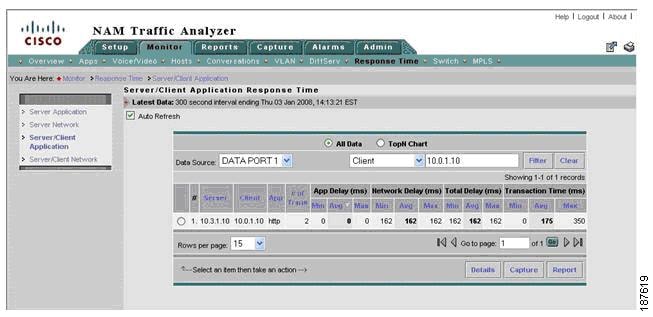

Figure 9-87 Checking Application Delay for a Specific Conversation

Step 3 [Server Segment] Check for conversation-specific network delays. Check server network delay. Are there long delays in the server side of the network? Check client network delay - Are there long delays in the client side of the network?

1. Go to Monitor > Response Time > Server/Client Network.

2. Focus on Server segment (DATA PORT 1).

3. Filter conversations using the user IP address (10.0.1.10).

4. Check SND and CND metrics.

As shown in Figure 9-88, server network delay appears normal, but client network delay for the conversation exceeds the SLA for the SP-A network.

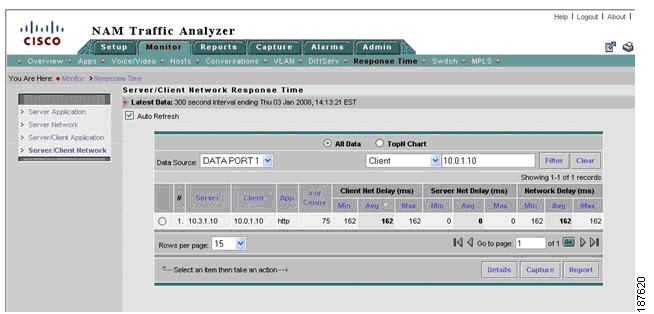

Figure 9-88 Check Network Delay for a Specific Conversation

Now we must verify whether client network delay (CND) consistently exceeds the SLA. If so, there might be a routing problem or a problem with the SP. Otherwise, a congestion event might have delayed the packets for that conversation.

Step 4 [Server Segment] Generate reports to identify whether longer than expected CND is due to network congestion.

In the real-time window of Step 2, click a specific conversation and then click Report to create history reports for server network delay, CND, and application delay for the conversation. Figure 9-89 shows the result.

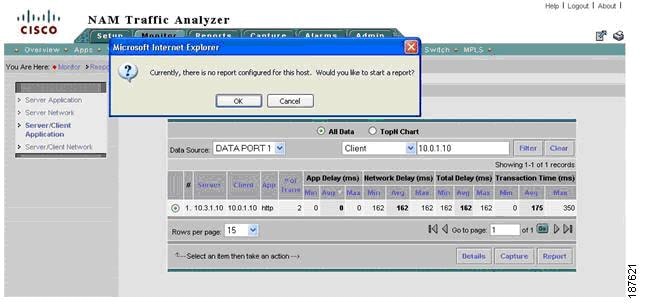

Figure 9-89 Create History Report for Specific Conversation

We must also check whether WAAS optimized the conversation.

Step 5 [Server and WAN Segment] Use real-time reports to check whether WAAS is optimizing the conversation. Compare traffic volume in the WAN and server segments and check whether there is a reduction of traffic in the WAN segment.

1. Go to Monitor > Conversations > Network Hosts...

2. Change the data source to focus on the server segment (DATA PORT 1).

3. Use the user IP address (10.0.1.10) to filter conversations.

4. Click a specific conversation and then click Real-Time (do not close window).

5. In Monitor > Conversations > Network Hosts, change the data source to focus on the WAN segment (DATA PORT 2).

6. Use the user IP address (10.0.1.10) to filter conversations.

7. Select a conversation and then click Real-Time (do not close window).

8. Compare WAN segment and server segment traffic volumes in the real-time windows from the preceding steps. Check whether traffic is reduced on the WAN segment.

In this case, there is a reduction of bandwidth at the WAN segment, as shown in Figure 9-90, so it appears that WAAS is optimizing the conversation.

Figure 9-90 Checking whether WAAS Reduces WAN Traffic

To confirm WAAS optimization, we can configure history reports for this conversation and determine whether it is being optimized by WAAS.

Step 6 [Server and WAN Segment] Configure reports to monitor WAAS traffic volume for the conversation.

1. Go to Monitor > Conversations > Network Hosts.

2. Change the data source to focus on the server segment (DATA PORT 1).

3. Use the user IP address (10.0.1.10) to filter conversations.

4. Click a specific conversation and then click Report.

5. In Monitor > Conversations > Network Hosts, change the data source to focus on the WAN Segment (DATA PORT 2).

6. Use the user IP address (10.0.1.10) to filter conversations.

7. Select a conversation and then click Report.

The reports generated in Step 6 are used to confirm the real-time view conclusions reached in Step 5.

Step 7 Ask the user to access the application a few more times.

The traffic generated by the user will be captured on historic reports set up in Steps 4 and 6.

Next, check for congestion on WAN links at the data center and branch site).

Step 8 [WAN Segment] While reports collect data, check whether WAN links at data center site are congested.

1. Go to Monitor > DiffServ > Traffic Stats.

2. Change the data source profile to focus on the SP-A data center WAN link NetFlow Data Export (NDE-DC-WANLinkIn/NDE-DC-WANLinkOut).

3. Check traffic by aggregation class.

As shown in Figure 9-91, there is no congestion on the SP-A data center WAN link.

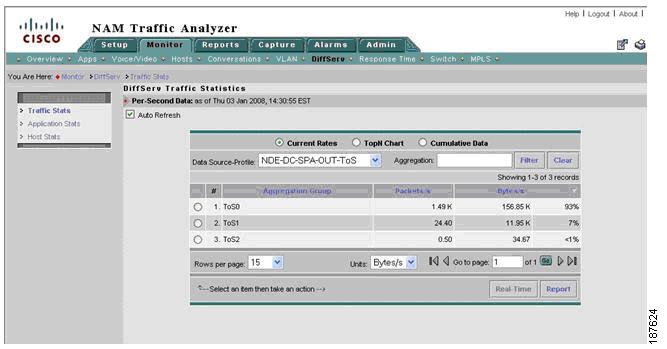

Figure 9-91 Checking for Congestion on the Data Center WAN Link

Step 9 [WAN Segment] Check whether the SP-A WAN link at the branch office site is congested.

Either check the router using CLI, use a third-party tool, or configure NetFlow Export to NAM-2 at DC and follow these steps:

1. Go to Monitor > DiffServ > Traffic Stats.

2. Change the data source profile to focus on the branch office WAN link NetFlow Data Export (NDE-DC-WANLinkIn/NDE-DC-WANLinkOut).

3. Check traffic by aggregation class.

As shown in Figure 9-92, there is no congestion on the SP-A branch site WAN link.

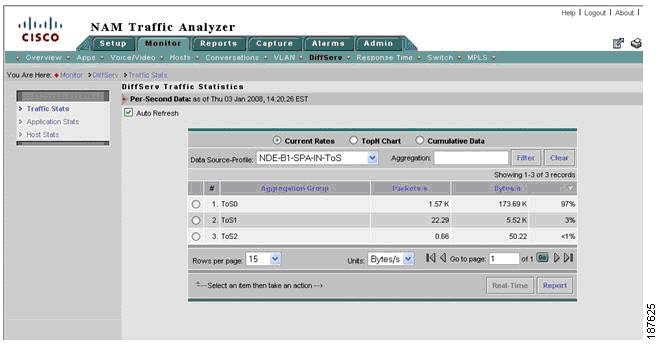

Figure 9-92 Checking for Congestion at the Remote Site WAN Link

Review the history reports to confirm real-time view metrics.

Step 10 [Server Segment] Review the conversation-specific history reports that were set up in Steps 4 and 6. Compare Network Delay (SND and CND) with IP SLA reports for the SP-A network.

1. Go to Reports > Basic Reports.

2. Select Type: Response Type and Source (DATA PORT 1).

3. Use the user IP address (10.0.1.10) to filter conversations.

4. Click Application Delay, Server Network Delay, and Client Network Delay Reports for the user conversation.

Figure 9-93 shows that CND and SND (160ms) is much longer than the IP SLA reported value (80ms) for the SP-A network. This suggests that the conversation is probably routed onto the wrong WAN link.

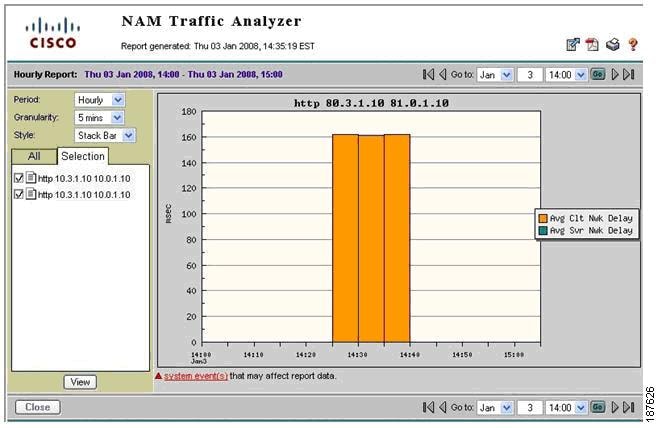

Figure 9-93 Network Delay History Report for a Specific Conversation

Next, compare bandwidth for the specific conversation on the server and WAN segments.

1. Go to Reports > Basic Reports.

2. Select Type: Conversation and filter by Source: Server Segment (DATA PORT 1).

3. Click on reports for the user conversation.

4. Select Type: Conversation and filter by Source: WAN Segment (DATA PORT 2).

5. Click on reports for the user conversation.

6. Compare conversation reports for server and WAN segments.

The reports in Figure 9-94 and Figure 9-95 show that conversation traffic on the server segment (18KB/s) is significantly greater than traffic on the WAN segment (5KB/s). This confirms that WAAS is optimizing conversation traffic.

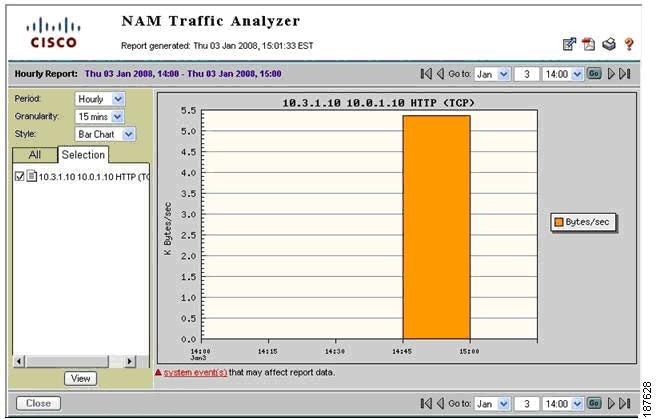

Figure 9-94 History Report for Server Segment Traffic

Figure 9-95 History Report for WAN Segment Traffic

Step 11 [WAN Segment] Check which WAN link is used at the branch site for this conversation.

1. Go to Monitor > Conversation > Application Hosts.

2. Change data source profile to focus on Data Center WAN links NetFlow Data Exports
NDE-DC-WANLinkIn/NDE-DC-WANLinkOut/NDE-DC-SPB-IN/NDE-DC-SPB-OUT).

3. Filter by user IP Address (10.0.1.10).

The conversation appears on NDE-DC-SPB-IN and on NDE-DC-WANLinkOut, as shown in Figure 9-96.

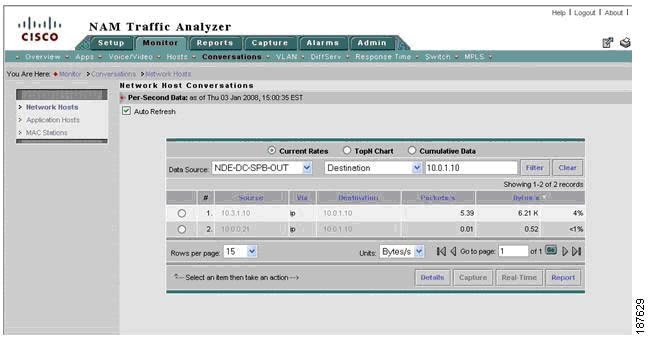

Figure 9-96 Viewing Conversations on the Data Center WAN Link

We established that the data center-to-branch traffic for this conversation is using SP-B instead of SP-A, as it is supposed to. The problem is traced to a typo in the load-balancing policy configuration of the multihomed data center router.

Here are the resolution actions:

Short term: Correct the load-balancing policy at the data center router and ensure that all business-critical applications are routed through SP-A.

Long term: Recommend using PfR for dynamic load balancing policy to ensure that business-critical applications are forwarded on best path.

9.25  Use Case 2: Conversation Analysis

This use case describes how to use NAM traffic volume, response time history reports, real-time monitoring to decide where to deploy WAAS and QoS and to validate WAN and application optimization benefits.

The use case describes an implementation that was deployed in a test lab. The use case provides an example of how the WAN and application optimization solution might work in an real-world scenario. However, the use case is not intended to reflect actual performance or behavior in any environment.

9.25.1  Objectives

Use NAM traffic volume and response time history reports and real-time monitoring to:

Make decisions where to deploy WAAS and QoS policies (before WAN and application optimization deployment - Scenario A)

Validate WAN and application optimization benefits (during deployment - Scenario B)

NAM TopN reports are used to target specific conversations and generate history reports for the required analysis.

Scenario A assumes that WAAS is not deployed yet while Scenario B assumes that WAAS is deployed.

9.25.2  Assumptions

1. NAM-2 is deployed at the data center Catalyst 6000 Series distribution switch.

2. NAM-2 uses SPAN or VACL to monitor the server segment on DATA PORT 1.

3. NAM-2 uses SPAN to monitor the WAN segment on DATA PORT 2

9.25.3  Use Case Example

Scenario A: A multinational enterprise is thinking about deploying WAN and application optimization and needs to identify the sites that would benefit most from WAN and application optimization.

Scenario B: The multinational enterprise in Scenario A started a pilot WAN and application optimization deployment. During the pilot, WAAS was deployed at 09:45 AM on November 15 to optimize a remote site that was experiencing poor performance. The customer uses NAM to demonstrate that WAAS improves application service delivery, thereby justifying WAAS deployments in other remote sites.

9.25.4  Use Case Workflow

9.25.4.1  Scenario A


Step 1 [Scenario A] Create a history report for top applications, as shown in Figure 9-97. This will identify the top applications running on the network. Even though this does not provide a breakdown per branch site, one can see if there is scope for improvement using WAN and application optimization.

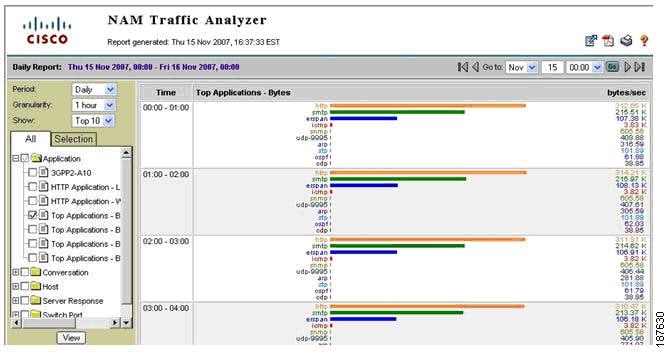

Figure 9-97 Top Applications

Step 2 [Scenario A] Create a history report for top conversations (including application layer (see Figure 9-98). This will help identify top application conversations and show the traffic volume (see Figure 9-99). Top application conversations will show up to the top 50 conversations. Based on this information, the user can deduce the most active branch sites and applications in terms of volume.

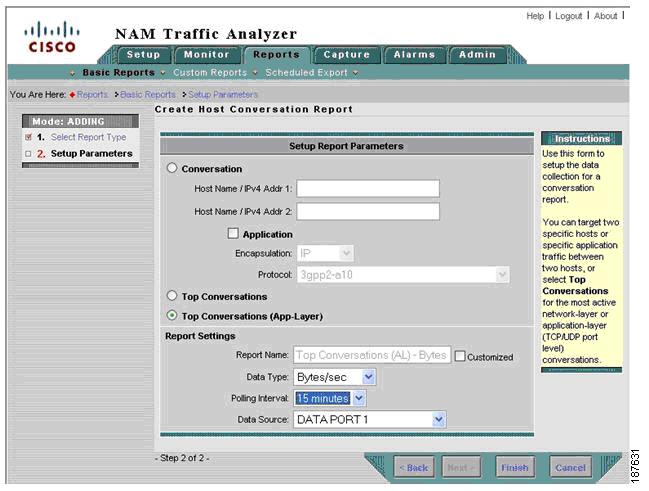

Figure 9-98 Conversation Report Creation Dialog

Figure 9-99 Top Conversations

Step 3 [Scenario A] Set the monitoring for response time to 24 hours or seven days and use real-time views to show TopN ART metrics and identify conversations with problems.

Figure 9-100 TopN Average and Maximum Transaction Time Conversations

For example, Figure 9-100 shows that the conversations with the highest average transaction time are all between networks 10.2.0.0/8 and servers 10.3.0.11 and 10.3.0.10.

Step 4 [Scenario A] Set up response time history reports for conversations identified by Steps 2 and 3, as shown in Figure 9-101.

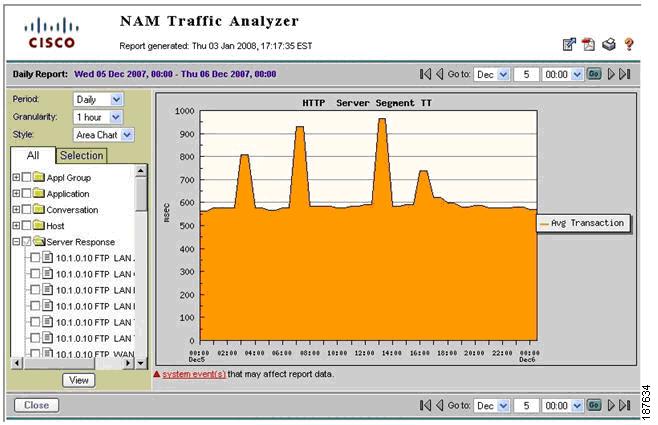

Figure 9-101 Average Transaction Time Historical Report

Step 5 [Scenario A] Set up conversation volume history reports for conversations identified by Steps 2 and 3 monitoring the server segment (DATA PORT 1).

After setting up the reports, data is collected for a specific period (for example, one week) before it is examined by the IT department. Based on the generated reports, applications and branch sites that experience long response times can be identified and a decision can be reached where to deploy WAAS.

9.25.4.2  Scenario B

During WAAS deployment, the benefits of WAAS can be validated by NAM as follows:

Before WAAS is turned on:


Step 1 [Scenario B] Set up conversation volume history reports for conversations in step 5 but this time monitoring the WAN segment (DATA PORT 2).

Both sides of WAAS are now being monitored by NAM-2.

After WAAS is turned on:

Step 2 [Scenario B] Review response time history reports for conversations set up in step 4. Applications optimized by WAAS should experience improved response times (See Figure 9-102).

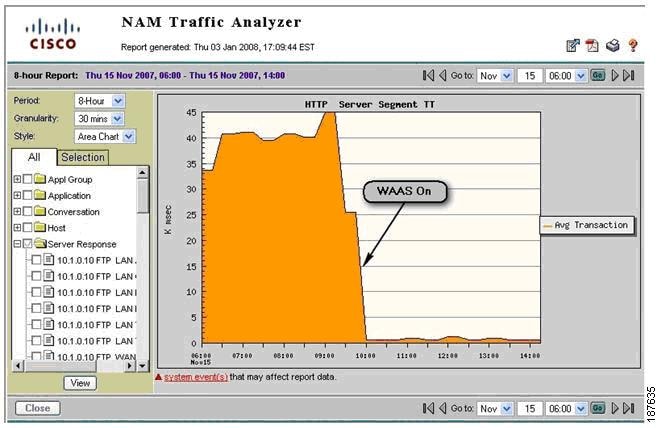

Figure 9-102 Conversation Transaction Time Before and After WAAS

Step 3 [Scenario B] Review conversation volume history reports for conversations set up in step 5 and 6. Applications optimized by WAAS should experience reduced traffic volume on the WAN Segment (see Figure 9-103).

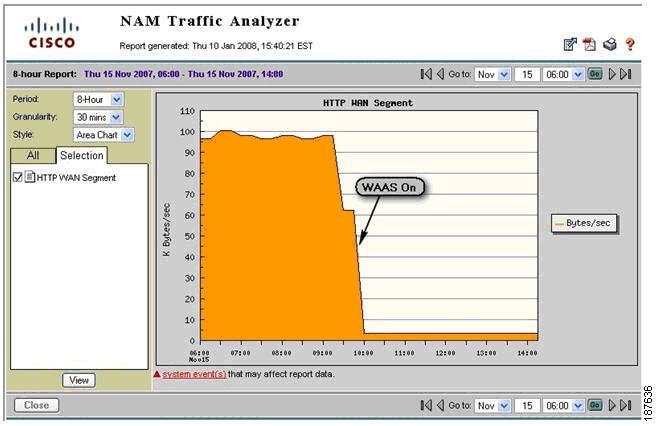

Figure 9-103 WAN Segment Conversation Traffic Volume

9.25.5  Deployment Caveats

The following deployment caveats apply to NetQoS and Cisco NAM.

If server load balancing (SLB) or SSL offloading takes place at the distribution layer (for example, using ACE), traffic seen at the WAN Segment shows the virtual IP address (VIP) of the SLB/SSL offloader. On the other hand, traffic in the server segment shows the real IP address of the server being used. This makes it difficult to correlate traffic on the WAN segment with traffic on the server segment.

If a FWSM is present at the distribution layer, the WAN segment accounts DC incoming traffic before the FWSM blocks it. Similarly, the LAN segment accounts DC outgoing traffic before FWSM blocks it. This can result in discrepancies in the volume of traffic in the LAN and WAN segments.

The Catalyst 6000 Series has a limit of two SPAN sessions. However, each session can have multiple sources and destinations. For example, both NetQoS and NAM-2 can share a single SPAN session on the server segment.

On PFC3, IOS Release 12.2(18) SXE and later releases support 128 sources in each local SPAN/RSPAN/ERSPAN session; 64 destinations per session are supported for local SPAN. See Configuring Local SPAN, Remote SPAN (RSPAN), and Encapsulated RSPAN section of Catalyst 6500 Release 12.2SXF Software Configuration Guide.

A SPAN session can have VLANs or ports as data sources, but not both in the same session. Therefore, one SPAN session cannot monitor both the WAN and server segments. An additional SPAN or VACL session is required.

Only two NetFlow Data Export destinations are supported. If NetFlow data is exported to NAM-2 and NetQoS Reporter Analyzer, NetFlow data cannot be exported to other destinations. To work around this limitation, use of a flow replicator.

NAM-2 and NetQoS have a 1Gb/s capacity limitation.

9.26  References

1. Enterprise Branch Wide Area Application Services Design Guide:

http://www.cisco.com/application/pdf/en/us/guest/netsol/ns377/c649/ccmigration_09186a008081c7da.pdf

2. Enterprise QoS Solution Reference Network Design Guide:

http://www.cisco.com/en/US/docs/solutions/Enterprise/WAN_and_MAN/QoS_SRND/QoS-SRND-Book.html

3. Transport Diversity: PfR Design Guide:

http://www.cisco.com/application/pdf/en/us/guest/netsol/ns483/c649/ccmigration_09186a008094e673.pdf

4. Enterprise Branch Security Design Guide:

http://www.cisco.com/application/pdf/en/us/guest/netsol/ns171/c649/ccmigration_09186a00807593b6.pdf

1 SNMP community strings are needed to obtain router and interface information. ReporterAnalyzer polls devices to obtain SNMP information such as sysName, ifName, ifDescr, ifSpeed, and so on. ReporterAnalyzer uses these names and descriptions when displaying routers and interfaces. If SNMP community strings are unavailable or incorrect, ReporterAnalyzer displays only device IP addresses and interface indexes.
