Integrating Data and Voice Services for ISDN PRI Interfaces on Multiservice Access Routers


Revised: June 19, 2006, OL-10383-01
First Published: February 27, 2006

This document describes how to configure ISDN PRI interfaces to support the integration of data and voice calls on multiservice access routers. This feature enables data (dial-in, dial-on-demand routing [DDR], and DDR backup) and voice call traffic to occur simultaneously from the supported ISDN PRI interfaces. You can also enable multilevel precedence and preemption (MLPP) for DDR calls over the active voice call when no idle channel is available during the DDR call setup.

Finding Feature Information in This Module

Your Cisco IOS software release may not support all of the features documented in this module. To reach links to specific feature documentation in this module and to see a list of the releases in which each feature is supported, use the "Feature Information for Integrating Data and Voice Services for ISDN PRI Interfaces" section.

Finding Support Information for Platforms and Cisco IOS and Catalyst OS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Contents

Prerequisites for Integrating Data and Voice Services for ISDN PRI Interfaces

Restrictions for Integrating Data and Voice Services for ISDN PRI Interfaces

Information About Integrating Data and Voice Services for ISDN PRI Interfaces

How to Configure Integrated Data and Voice Services for ISDN PRI Interfaces

Troubleshooting Tips for Integrated Data and Voice Services

Configuration Examples for Integrating Data and Voice Services for ISDN PRI Interfaces

Additional References

Command Reference

Feature Information for Integrating Data and Voice Services for ISDN PRI Interfaces

Glossary

Prerequisites for Integrating Data and Voice Services for ISDN PRI Interfaces

Establish a working H.323 or SIP network for voice calls.

Ensure that you have a Cisco IOS image that supports this feature. Access Cisco Feature Navigator at http://www.cisco.com/go/cfn.

Perform basic ISDN PRI voice configuration, including dial-on demand routing (DDR) configuration for data calls. For more information, see Configuring ISDN PRI Voice-Interface Support.

To support PRI data calls, a VWIC-1MFT-E1 voice cards must have a packet voice data module (PVDM).

Supported Modules

This feature supports the following modules:

NM-HD

NM-HDV2

Onboard DSPs

This feature supports the following voice cards:

VWIC-XMFT-X interface modules

VWIC2-XMFT-X interface modules


Note Data calls are supported only on the NM-HDV2-2T1/E1 and NM-HD-2V-E network modules, and the VWIC-2MFT-E1, VWIC-2MFT-T1 and VWIC2-T1/E1 voice cards.


Use the isdn switch-type ? command in interface configuration mode or global configuration mode to view the list of supported ISDN switch types. See the following example:

Router(config)# isdn switch-type ?
  primary-4ess    Lucent 4ESS switch type for the U.S.
  primary-5ess    Lucent 5ESS switch type for the U.S.
  primary-dms100  Northern Telecom DMS-100 switch type for the U.S.
  primary-dpnss   DPNSS switch type for Europe
  primary-net5    NET5 switch type for UK, Europe, Asia and Australia
  primary-ni      National ISDN Switch type for the U.S.
  primary-ntt     NTT switch type for Japan
  primary-qsig    QSIG switch type
  primary-ts014   TS014 switch type for Australia (obsolete)

Restrictions for Integrating Data and Voice Services for ISDN PRI Interfaces

This feature is supported only on C5510 DSP-based platforms.

ISDN backhaul is not supported.

This feature does not support modem calls.

For platforms that support HDLC resources on the motherboard, the available on board HDLC resources are limited to 31 if all resources are not enabled.

The Cisco 2801 platform does not support full channelized data or full integrated data and voice over T1/E1 PRI interfaces. However, data back up through one PRI channel, or one group of PRI channels for data backup, is supported on this platform.

Only PPP with multilink is supported for multiple channels. HDLC is not supported for multiple channels.

You can either configure ds0-groups or pri-groups on one controller, but not both. You receive a message, as in the following example:

Router(config-controller)#ds0-group 19 timeslots 20 type e&m-imme$9 timeslots 20 type
e&m-immediate-start
%A pri-group was configured already. Please remove it to configure a ds0-group

The following calls are not preempted by a DDR call:

Calls from a T.37 store-and-forward off-ramp gateway

Incoming ISDN calls

This feature is not supported from a BRI interface.

The following dialer commands are not supported with the integrated data and voice feature:

dialer aaa

dialer callback-secure

dialer callback-server

dialer dns

dialer order

dialer persistent

dialer redial

dialer vpdn

dialer watch-disable

dialer watch-group

dialer watch-list

dialer watch-list delay

Information About Integrating Data and Voice Services for ISDN PRI Interfaces

Before you configure integrated data and voice services on ISDN interfaces, you should understand the following concepts:

Integrated Services for Multiple Call Types

Resource Allocation for Voice and Data Calls

MLPP Call Preemption over Voice Calls

Integrated Services for Multiple Call Types

ISDN interfaces can support both data calls and voice calls. Typically, this is done using one interface for data and another for voice. This feature enables data (dial-in, dial-on-demand routing [DDR], and DDR backup) and voice call traffic to occur simultaneously from the supported ISDN PRI interfaces. To enable integrated services, the interface used for incoming voice calls is configured to accept multiple voice call types.

Figure 1 shows an ISDN network configured for integrated data and voice services.

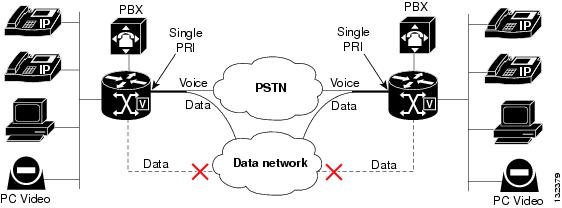

Figure 1 Integrated Voice with DDR Interface for WAN Failure Backup

Resource Allocation for Voice and Data Calls

Voice calls use DSP resources and data calls use HDLC resources for transmission. When an interface is configured for integrated services, the gateway allocates the HDLC resources dynamically during call setup and frees them back to the HDLC resource pools when the call terminates. This allows spare HDLC resources to support ISDN PRI data calls and DSP resources to support voice calls.

MLPP Call Preemption over Voice Calls

Multilevel precedence and preemption (MLPP) is the placement of priority calls through the network. Precedence designates the priority level that is associated with a call. Preemption designates the process of terminating lower-priority calls so that a call of higher precedence can be extended.

Preemption levels are assigned to outgoing voice calls and DDR backup calls. DDR backup is used to provide backup to a WAN link.

From the gateway, voice and DDR backup calls are controlled by different entities:

The preemption level of an outgoing voice call is determined using the selected outbound POTS dial peer.

The preemption level of a DDR backup call is determined using the dialer map class.

A trunk group is used as the common channel resource pool for outgoing voice call and DDR backup calls. Calls with a higher precedence preempt an active outgoing voice call, of a lower precedence, if an idle B channel is not available. An ISDN interface that is configured for integrated mode is assigned to this trunk group to allow dialer resources and voice resources to request an idle B channel from the same resource pool.

Preemption of Outgoing Voice Calls

The trunk group and preemption level are configured as part of a map class, which can be attached to a dialer map. The dialer map class supplies configuration parameters to dialer interfaces and can be referenced from multiple dialer interfaces.

During dial-on-demand routing (DDR) backup call setup, an idle B channel is selected from the trunk group. When no idle channel is found, the trunk group resource manager (TGRM) selects a B channel on the basis of the following:

The B channel currently active with a connected outgoing voice call

The preemption level of the connected voice call being lower than the preemption level of a DDR call

A guard timer, configured for the trunk group, is used to delay the idle channel notification and defer the DDR setup to allow the remote channel time to become ready and accept the incoming call with the higher precedence.

By default, the preemption level of dialer calls is set to the lowest level (routine) to disable the MLPP service for a DDR call.

The preemption level of an outgoing voice call is defined from the selected outbound POTS dial peer. During the voice call setup, the trunk group resource manager (TGRM) selects an idle B channel from a trunk group on the basis of the following:

The call ID of an outgoing voice call

The preemption level of an outgoing call as defined by the POTS dial peer

The voice interface B channel information of an outgoing voice call

When the preemption call notification is received, the TGRM saves the outgoing voice call to the preemption level link list based on FIFO.

Preemption Tones

When an outgoing voice call is preempted by a DDR backup call, the preemption call treatment starts by providing a preemption tone and starting the tone timer.

An MLPP preemption tone is a special tone played to the voice call announcing that the line is about to be seized by a call with a higher precedence. A steady tone, 1060 ms in duration, is played on all legs of the call until the user hangs up or the preemption tone times out.

For the telephony leg of the call, the preemption tone is played using the DSP.

For the IP leg (across the VoIP network) of the call, the preemption tone is played as media.

For the ephone leg on Cisco CME, a reorder tone is played for the local user and a preemption tone is played for the remote user.

Preemption Cause Codes

When the preemption tone timer is expired and the call is still in a connected state, both call legs are disconnected by the gateway with the following cause code:

Preemption - Circuit Reserved 0x8

If you release the call before the preemption tone timer expires, the following cause code is used:

Normal Call Clear 0x10

In both cases, the following internal cause code is used for the release calls:

Preemption Circuit Reserved 0x8

How to Configure Integrated Data and Voice Services for ISDN PRI Interfaces

This section describes the tasks required to configure integrated services for ISDN interfaces:

Configuring the ISDN PRI Interface for Multiple Call Types (Required)

Configuring MLPP Call Preemption over Outgoing Voice Calls (Optional)

Configuring the ISDN PRI Interface for Multiple Call Types

An ISDN serial interface configured for integrated mode supports data and voice calls using incoming call type checking to accept incoming voice and data calls when an inbound voice dial peer is matched.

Perform the following tasks to configure integrated services:

Prerequisites

Configuring the POTS Dial-Peer Incoming Called Number

Configuring the Data Dial Peer Lookup Preference

Enabling Integrated Services

Creating a Trunkgroup and Configuring Maximum Calls Based on Call Type

Disabling Integrated Services

Prerequisites

Unlike voice calls, which use DSP resources, data calls use HDLC resources for transmission. To use the integrated services feature, the gateway must allocate HDLC resources dynamically during call setup and free them back to the HDLC resource pools when the call terminates.

Use the following show commands to view the availability of HDLC resources:

show tdm connections

The following example shows HDLC resources on the TDM side.

Router# show tdm connections slot 0

              Active TDM connections for slot 0
              =================================
(Key: GT=FLEX TDM, V0=VWIC0, V1=VWIC1, V2=VWIC2, V3=VWIC3
      IC=EXPANSION, P0=PVDM0, P1=PVDM1, P2=PVDM2, P3=PVDM3
      HD=HDLC, BP=Backplane(AIM/NM))

V0:04/04-->HD:31/18, V0:04/06-->HD:31/06, V0:04/08-->HD:31/12
V0:04/10-->HD:31/36, V0:04/12-->HD:31/16, V0:04/14-->HD:31/10
V0:04/16-->HD:31/04, V0:04/18-->HD:31/14, V0:04/20-->HD:31/22
V0:04/22-->HD:31/20, V0:04/24-->HD:31/24, V0:04/26-->HD:31/30
V0:04/28-->HD:31/26, V0:04/30-->HD:31/32, V0:04/32-->HD:31/08
V0:04/34-->HD:31/34, V0:04/36-->HD:31/28, V0:04/38-->HD:31/38
V0:04/64-->HD:31/00, V0:04/66-->HD:31/02, HD:31/00-->V0:04/64
HD:31/02-->V0:04/66, HD:31/04-->V0:04/16, HD:31/06-->V0:04/06
HD:31/08-->V0:04/32, HD:31/10-->V0:04/14, HD:31/12-->V0:04/08
HD:31/14-->V0:04/18, HD:31/16-->V0:04/12, HD:31/18-->V0:04/04
HD:31/20-->V0:04/22, HD:31/22-->V0:04/20, HD:31/24-->V0:04/24
HD:31/26-->V0:04/28, HD:31/28-->V0:04/36, HD:31/30-->V0:04/26
HD:31/32-->V0:04/30, HD:31/34-->V0:04/34, HD:31/36-->V0:04/10
HD:31/38-->V0:04/38,

show controllers serial [slot/port]

In the following example, the -1 listings under the hdlc_chan column show the free HDLC channels.

Router# show controllers Serial 1/1:0

Interface Serial1/1:0
Hardware is HDLC32
HDLC32 resource allocated to this interface:
Slot 1, Vic_slot 1, Port 1
CRC on 1, idle flags 1, frame inverted 0, clocking 0
Channel-group number 0, hdlc32 channel number 2
Channel-group bitfield 0x80000000, hdlc32 quad used 0x4
Channel HW state: 2
TX Ring:
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x0, descriptor: 0x102
data_ptr: 0x2DD1918C, descriptor: 0xB8830102
data_ptr: 0x0, descriptor: 0x102
RX Ring:
data_ptr: 0x2EE83E04, descriptor: 0x88800102
data_ptr: 0x2EE84064, descriptor: 0x88800102
data_ptr: 0x2EE842C4, descriptor: 0x88800102
data_ptr: 0x2EE84524, descriptor: 0x88800102
hdlc_chan hdlc_quad owner_idb chan chan_bitfield vic_slot port
========= ========= ========= ==== ============= ======== ====
0         1         65C03D5C  15   10000         1        0
1         2         65CB80F8  15   10000         1        1
2         4         67B862B0  0    80000000      1        1
3         8         65C7B1E4  1    40000000      1        1
4         10        67B8EDFC  2    20000000      1        1
5         20        65C83D30  3    10000000      1        1
6         40        67B97948  4    8000000       1        1
7         80        65C8C87C  5    4000000       1        1
8         100       67BA0494  6    2000000       1        1
9         200       65C953C8  7    1000000       1        1
-1        0         0         8    800000        1        1
-1        0         0         28   8             1        1
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0
-1        0         0         0    0             0        0

Configuring the POTS Dial-Peer Incoming Called Number

The call type of an incoming call is determined using the incoming dial-peer. For data dial peer matching, the called number of an incoming call is used to match the incoming called-number of POTS dial peers. Use the following procedure to configure the POTS dial peer and incoming called number.

SUMMARY STEPS

1. enable

2. configure terminal

3. dial-peer data tag pots

4. incoming called number string

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

dial-peer data tag pots

Example:

Router(config)# dial-peer data 100 pots

Creates a data dial peer and enters data dial-peer configuration mode.

Step 4

incoming called number string

Example:

Router(config-dial-peer)# incoming called number 4085550110

For data dial-peer matching, only the called number of an incoming call is used to match the incoming called number of POTS dial peers. Wild cards are accepted.

Note The string must match the dialer string on the remote gateway.

Configuring the Data Dial Peer Lookup Preference

To optimize data or voice dial-peer searches for incoming ISDN calls, configure the preference of dial-peer lookup during the call type checking. Use the following procedure to configure a search for dial peers by type.

SUMMARY STEPS

1. enable

2. configure terminal

3. dial-peer search type {data | none | voice} {data | voice}

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

dial-peer search type {data | none | voice} {data | voice}

Example:

Router(config)# dial-peer search type data voice

Configures the preference of voice or data dial-peer lookup during the calltype checking for incoming ISDN calls.

data—Search dial peers with type data first.

none—Search dial peers with any type at the same preference.

voice—Search dial peers with type voice first.

By default, the data dial peer is searched first before voice dial peers.

Enabling Integrated Services

Enabling integrated services allows data and voice call traffic to occur from ISDN PRI interfaces simultaneously.

When an interface is in integrated service mode:

ISDN performs calltype checking for the incoming call. The call is rejected by ISDN if no voice or data dial peer is matched for an incoming call.

The voice option for the isdn incoming-voice command, which treats incoming calls as voice calls, is not available.

By default, the integrated service option is disabled from the supported interfaces. Use the following procedure to enable integrated mode on a serial interface.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface serial slot/port:timeslot

4. shutdown

5. isdn integrate calltype all

6. no shutdown

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface serial slot/port:timeslot

Example:

Router(config)# interface serial 0/1:15

Specifies a serial interface for ISDN PRI channel-associated signaling and enters interface configuration mode.

Step 4

shutdown

Example:

Router(config-if)# shutdown

Shuts down the interface.

Step 5

isdn integrate calltype all

Example:

Router(config-if)# isdn integrate calltype all

Enables the serial interface for integrated mode, which allows data and voice call traffic to occur simultaneously.

Note This configuration disables the voice option for the isdn incoming-voice command on the interface.

Step 6

no shutdown

Example:

Router(config-if)# no shutdown

Returns the interface to the active state.

Creating a Trunkgroup and Configuring Maximum Calls Based on Call Type

After an ISDN interface is assigned to a trunk group, you can configure maximum incoming and outgoing calls based on the call type (voice or data) or direction (inbound or outbound) through the trunk group.


Note If trunk groups are not configured, data and voice calls are treated as first-come first-served.


Use the following procedure to create a trunk group and configure maximum calls based on call type.

SUMMARY STEPS

1. enable

2. configure terminal

3. trunk group name

4. max-calls {any | data | voice} number [direction [in | out]]

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

trunk group name

Example:

Router(config)# trunk group 20

Defines a trunk group and enters trunk group configuration mode.

name—Name of the trunk group. Valid names contain a maximum of 63 alphanumeric characters.

Step 4

max-calls {any | data | voice} number [direction [in | out]]

Example:

Router(config-trunk-group)# max-calls data 100 direction out

Defines the maximum number of dial-in or DDR data calls, or voice calls (incoming or outgoing) that can be accepted.

any—Assigns the maximum number of calls that the trunk group can handle, regardless of the call type.

data—Assigns the maximum number of data calls to the trunk group.

voice—Assigns the maximum number of voice calls to the trunk group.

number—Specifies number of allowed calls. Range is from 0 to 1000.

direction—(Optional) Specifies direction of calls.

in—(Optional) Allows only incoming calls.

out—(Optional) Allows only outgoing calls.

Examples

See the following sample configurations for the max-calls command:

This example configuration for trunk group 1 accepts up to a maximum of 7 dial-in data or DDR calls and places no restriction on voice calls:

trunk group 1
 max-calls data 7

This sample configuration for trunk group 2 accepts up to a maximum of 2 data dial-in, 3 DDR calls, and 16 voice calls in any direction:

trunk group 2
 max-calls data 2 direction in
 max-calls data 3 direction out
 max-calls voice 16

This sample configuration for trunk group 3 accepts up to a maximum of 10 incoming voice and dial-in data calls.

trunk group 3
 max-calls any 10 direction in

Disabling Integrated Services

When the isdn integrate calltype all command is removed from the interface, the isdn incoming-voice voice setting is restored and the interface returns to voice mode. Use the following procedure to remove the integrated services option from the interface.

1. enable

2. configure terminal

3. interface serial slot/port:timeslot

4. shutdown

5. no isdn integrate calltype all

6. no shutdown

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface serial slot/port:timeslot

Example:

Router(config)# interface serial 0/1:15

Specifies a serial interface for ISDN PRI channel-associated signalling and enters interface configuration mode.

Step 4

shutdown

Example:

Router(config-if)# shutdown

Shuts down the interface.

Step 5

no isdn integrate calltype all

Example:

Router(config-if)# no isdn integrate calltype all

Disables the serial interface from being in integrated mode. You are prompted to confirm this command.

Note This configuration restores the voice option for the isdn incoming-voice command on the interface.

Step 6

no shutdown

Example:

Router(config-if)# no shutdown

Returns the interface to the active state.

Configuring MLPP Call Preemption over Outgoing Voice Calls

This feature adds support for multilevel precedence and preemption (MLPP) for dial-on-demand routing (DDR) backup calls over outgoing voice calls.

Precedence designates the priority level that is associated with a call. Preemption designates the process of terminating lower-precedence calls so that a call of higher precedence can be extended. DDR backup is used to provide backup to a WAN link using any DDR or a dial-capable interface, like ISDN PRI interfaces.

From the gateway, voice and DDR backup calls are controlled by different entities.

The preemption level of an outgoing voice call is determined using the selected outbound POTS dial peer.

The preemption level of a DDR backup call is determined using the dialer map class.

A DDR backup call with higher precedence preempts the active outgoing voice call with a lower precedence if the idle B channel is not available from a trunk group during the DDR backup call setup. If MLPP is not configured, data calls wait for a free channel.

Perform the following tasks to configure call preemption:

Enabling Preemption on the Trunk Group

Defining a Dialer Map Class and Setting the Preemption Level

Associating the Class Parameter on the Dialer Interface

Disabling TDM Hairpinning on the Voice Card

Configuring the POTS Dial Peer for Outgoing Voice Calls

Troubleshooting Tips for Integrated Data and Voice Services

Enabling Preemption on the Trunk Group

A trunk group is used as a common channel resource pool for idle channel allocation for outgoing voice calls and DDR backup calls. Multiple ISDN PRI interfaces that have been configured for integrated services are assigned to this trunk group to build up a channel resource pool for both voice and data calls. Enabling preemption on the trunk group allows DDR call preemption over a voice call per trunk group.


Note If the trunk group channel resource pool is not shared between voice and DDR calls, you should not enable preemption on the trunk group.


The tone timer defines the expiry timer for the preemption tone for the outgoing voice call, which is being preempted by a DDR backup call. When the tone timer expires, the call is disconnected.

Use the following procedure to create a trunk group resource pool and enable preemption on the trunk group.

SUMMARY STEPS

1. enable

2. configure terminal

3. trunk group name

4. preemption enable

5. preemption tone timer seconds

6. preemption guard timer value

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

trunk group name

Example:

Router(config)# trunk group 20

Defines a trunk group and enters trunk group configuration mode.

name—Name of the trunk group. Valid names contain a maximum of 63 alphanumeric characters.

Step 4

preemption enable

Example:

Router(config-trunk-group)# preemption enable

Enables preemption capabilities on a trunk group.

Step 5

preemption tone timer seconds

Example:

Router(config-trunk-group)# preemption tone timer 20

Defines the expiry time for the preemption tone for the outgoing call being preempted by a DDR backup call.

seconds—Expiry time, in seconds. The range is 4 to 30. The default value is 10.

Note Use the default preemption tone timer command to change back to the default value and no preemption tone timer to disable the tone timer.

Step 6

preemption guard timer value

Example:

Router(config-trunk-group)# preemption guard timer 60

Defines the guard timer for the DDR call to allow time to clear the last call from the channel.

value—Guard timer, in milliseconds. The range is 60 to 500. When preemption is enabled on the trunk group, the default value is 60.

Defining a Dialer Map Class and Setting the Preemption Level

During dial-on-demand routing (DDR) call setup, an idle B channel is selected from the trunk group. The trunk group and preemption level are configured as part of a map class, which can be attached to a dialer map or dialer string. By default, the preemption level of dialer calls is set to the lowest level (routine) to disable the MLPP service for a DDR call.

Use the following procedure to define a map class for the dialer interface.

SUMMARY STEPS

1. enable

2. configure terminal

3. map-class dialer class-name

4. dialer trunkgroup label

5. dialer preemption level {flash-override | flash | immediate | priority | routine}

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

map-class dialer class-name

Example:

Router(config)# map-class dialer dial1

Defines a class of shared configuration parameters associated with the dialer map command for outgoing calls from an ISDN interface. The class name is a unique class identifier.

class-name—Unique class identifier.

Step 4

dialer trunkgroup label

Example:

Router(config-map-class)# dialer trunkgroup 20

Defines the dial-on-demand trunk group label.

label—Unique name for the dialer interface trunk group. Valid names contain a maximum of 63 alphanumeric characters.

Step 5

dialer preemption level {flash-override | flash | immediate | priority | routine}

Example:

Router(config-map-class)# dialer preemption level flash

Defines the preemption level of the DDR call on the dialer interface. The default is routine.

flash-override—Level 0 (highest)

flash—Level 1

immediate—Level 2

priority—Level 3

routine—Level 4 (lowest)

Associating the Class Parameter on the Dialer Interface

The trunk group preemption level is configured as part of a map class, which can be attached to a dialer map or dialer string.

For legacy DDR, configure the dialer interface to associate the class parameter with the dialer in-band and dialer map commands.

For dialer profiles, configure the dialer interface to associate the class parameter with the dialer pool and dialer string commands.

Use the following procedure to associate the class parameter on the dialer interface.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface dialer dialer-rotary-group-number

4. dialer in-band [no-parity | odd-parity]

or

dialer pool number

5. dialer map protocol-keyword protocol-next-hop-address [name host-name] [speed 56 | speed 64] [broadcast] class dialer-map-class-name [dial-string[:isdn-subaddress]]

or

dialer string dial-string [class class-name]

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface dialer dialer-rotary-group-number

Example:

Router(config)# interface dialer 10

Defines a dialer rotary group.

dialer-rotary-group-number—Number of the dialer rotary group. The range is 0 to 255.

Step 4

dialer in-band [no-parity | odd-parity]


or


dialer pool number

Example:

Router(config-if)# dialer in-band


or

Example:

Router(config-if)# dialer pool 1

Specifies that dial-on-demand routing (DDR) is to be supported on this interface.

no-parity—(Optional) No parity is to be applied to the dialer string that is sent out to the modem on synchronous interfaces.

odd-parity—(Optional) Dialed number has odd parity (7-bit ASCII characters with the eighth bit as the parity bit) on synchronous interfaces.

or

Specifies, for a dialer interface, which dialing pool to use to connect to a specific destination subnetwork.

number—The dialing pool number. The range is 1 to 255.

Step 5

dialer map protocol-keyword protocol-next-hop-address [name host-name] [speed 56 | speed 64] [broadcast] class dialer-map-class-name [dial-string[:isdn-subaddress]]


or


dialer string dial-string [class class name]

Example:
Router(config-if)# dialer map ip 172.22.82.2
name gw3845 class dial1 20009

or

Example:

Router(config-if)# dialer string 4081234 class test


Configures an ISDN interface to place a call to multiple sites and to authenticate calls from multiple sites.

protocol-keyword protocol-next-hop-address—For ISDN services, you must use ip for the protocol-keyword.

name host-name—(Optional) The remote system with which the local router or access server communicates. Used for authenticating the remote system on incoming calls. The host-name argument is a case-sensitive name or ID of the remote device. For routers with ISDN interfaces, if calling line identification—sometimes called CLID, but also known as caller ID and automatic number identification (ANI)—is provided, the host-name argument can contain the number that the calling line ID provides.

speed 56 | speed 64—(Optional) Keyword and value indicating the line speed in kbps to use. Used for ISDN only. The default speed is 64 kbps.

broadcast—(Optional) Forwards broadcasts to the address specified with the protocol-next-hop-address argument.

class dialer-map-class-name—Dialer map class name.

dial-string[:isdn-subaddress]—(Optional) Dial string (telephone number) sent to the dialing device when it recognizes packets with the specified address that matches the configured access lists, and the optional subaddress number used for ISDN multipoint connections. The colon is required for separating numbers. The dial string and ISDN subaddress, when used, must be the last item in the command line.

or

Specifies the string (telephone number) to be used when placing a call from an interface.

dial-string—Telephone number to be sent to a DCE device.

class class name—(Optional) Dialer map class associated with this telephone number.

Examples

Legacy DDR Example

interface Dialer11
 ip address 172.22.82.1 255.255.255.0
 encapsulation ppp
 dialer in-band
 dialer map ip 172.22.82.2 name gw3845 class dial1 20009
 dialer load-threshold 1 outbound
 dialer-group 1
 ppp callback accept
 ppp authentication chap
 ppp multilink

 map-class dialer dial1
 dialer trunkgroup 1
 dialer preemption level flash-override

Dialer Profiles Example

interface Dialer10
 ip address 192.168.254.1 255.255.255.0
 dialer pool 1
 dialer remote-name is2811
 dialer string 4081234 class test
 dialer-group 1

map-class dialer test
 dialer trunkgroup 1
 dialer preemption level flash-override

Disabling TDM Hairpinning on the Voice Card

For TDM-only calls, or for calls that are hairpinned, the preemption tone is not heard as the DSPs are dropped. For this reason, you must disable TDM hairpinning on the voice card to use the MLPP DDR backup call preemption feature.

Use the following procedure to disable TDM hairpinning on the voice card.

SUMMARY STEPS

1. enable

2. configure terminal

3. voice-card slot

4. no local-bypass

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

voice-card slot

Example:

Router(config)# voice-card 1

Enters voice-card configuration mode to configure a voice card.

slot—Slot number for the card to be configured.

Note Valid entries vary by router platform; enter the show voice port summary command for available values.

Step 4

no local-bypass

Example:

Router(config-voicecard)# no local-bypass

Disables TDM hairpinning.

Configuring the POTS Dial Peer for Outgoing Voice Calls

The preemption level of an outgoing voice call is defined from the outbound POTS dial peer. The preemption level defines the preemption priority level of an outgoing voice call. Use the following procedure to set the preemption level for outgoing voice calls on a POTS dial peer.

SUMMARY STEPS

1. enable

2. configure terminal

3. dial-peer voice tag pots

4. trunkgroup name [preference number]

5. preemption level {flash-override | flash | immediate | priority | routine}

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

dial-peer voice tag pots

Example:

Router(config)# dial-peer voice 25 pots

Defines a particular dial peer, specifies the method of voice encapsulation, and enters dial-peer configuration mode.

tag—Digits that define a particular dial peer. The range is from 1 to 2147483647.

pots—Indicates that this is a POTS peer that uses VoIP encapsulation on the IP backbone.

Step 4

trunkgroup name [preference-number]

Example:

Router(config-dial-peer)# trunkgroup 1

Defines the trunk group associated with this dial peer.

name—Label of the trunk group to use for the call. Valid trunk group names contain a maximum of 63 alphanumeric characters.

preference-number—Preference or priority of the trunk group. Range is from 1 (highest priority) to 64 (lowest priority).

Step 5

preemption level {flash-override | flash | immediate | priority | routine}

Example:

Router(config-dial-peer)# preemption level flash

Sets the preemption level of the selected outbound dial peer. Voice calls can be preempted by a DDR call with a higher preemption level. The default is routine.

flash-override—Level 0 (highest)

flash—Level 1

immediate—Level 2

priority—Level 3

routine—Level 4 (lowest)

Note The preemption level flash-override setting can prevent the call to be preempted by a DDR call.

Troubleshooting Tips for Integrated Data and Voice Services

ISDN call failures are most commonly attributed to the following issues:

Dial-on-demand routing (DDR)

ISDN layers 1, 2 and 3

Point-to-Point Protocol (PPP): including link control protocol (LCP), Authentication, or IP Control Protocol (IPCP) related issues.

Use the following commands to troubleshoot integrated data and voice for ISDN interfaces:

debug dialer events—Used to display debugging information about the packets received on a dialer interface.

debug isdn q931—Used to check outgoing dial-peer matching for an ISDN incoming call. Enable this command on both sides of the call. The output indicates whether the messages are generated by the calling party router (indicated by TX ->) or by the called party router (indicated by RX <-).

debug tgrm inout—Used to check voice or DDR channel selection request and return status. From the output, you can determine what type of call enabled the preemption and which timeslot is selected from which trunkgroup.

debug voip ccapi individual 146—Used to troubleshoot the call control application programming interface (CCAPI) contents. The individual 146 command option is used to log call preemption indication information.

debug voip ccapi inout—Used to show how a call flows through the system. From the output, you can see the call setup and teardown operations performed on both the telephony and network call legs.

show call history voice | i Cause—Used to gather DisconnectCause information from the show call history voice command line display.

show isdn active and show isdn status—Used to show the active data and voice calls.

show trunk group—Used to check the preemption active or pending calls counter for MLPP preemption calls. The output shows the number of active channels from the trunkgroup and the current preemption levels. If a data call with a higher priority initiates the preemption of voice call, it is shown as pending against the higher priority preemption level.

Configuration Examples for Integrating Data and Voice Services for ISDN PRI Interfaces

This section provides the following configuration examples:

MLPP DDR Backup Call Preemption over Voice Call: Example

Legacy DDR (Dialer Map): Example

Dialer Profiles: Example

Maximum Number of Data and Voice Calls on the Dial-Out Trunk Group: Example

Dial-Peer Configuration: Example

MLPP DDR Backup Call Preemption over Voice Call: Example

The following example shows that preemption is enabled on the trunk group, the trunk group is associated with a map class, and the preemption level is set on the dialer interface.

Router# show running-config

Building configuration...

Current configuration : 5984 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Router
!
boot-start-marker
boot-end-marker
!
card type e1 0 3
no logging buffered
!
no aaa new-model
!
resource manager
!
network-clock-participate slot 1
network-clock-participate wic 3
ip subnet-zero
!
!
ip cef
no ip dhcp use vrf connected
!
ip dhcp pool ITS
   network 10.0.0.0 255.255.0.0
   option 150 ip 10.0.0.1
   default-router 10.0.0.1
!
!
no ip domain lookup
ip name-server 192.168.2.87
ftp-server enable
no ftp-server write-enable
ftp-server topdir flash:/
isdn switch-type primary-ntt
!
!
trunk group 1
 max-calls data 10 direction out
 preemption enable
 preemption tone 4!

voice-card 0
 dspfarm
 no local-bypass
!
voice-card 1
 dspfarm
 no local-bypass
!
!
voice call send-alert
!
!
!
controller E1 0/3/0
 clock source internal
 pri-group timeslots 1-5,16
 trunk-group 1 timeslots 1-5
!
controller E1 0/3/1
 clock source internal
 pri-group timeslots 1-2,16
 trunk-group 1 timeslots 1-2
!
controller E1 1/0/0
 clock source internal
 pri-group timeslots 1-31
 trunk-group 1 timeslots 1-31
!
controller E1 1/0/1
 clock source internal
 pri-group timeslots 1-10,16
 trunk-group 1 timeslots 1-10
!
!
!
interface Loopback0
 ip address 10.10.1.1 255.255.255.255
!
interface GigabitEthernet0/0
 ip address 10.3.202.87 255.255.0.0
 no ip proxy-arp
 duplex auto
 speed auto
!
interface GigabitEthernet0/1
 ip address 10.0.0.2 255.255.0.0
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet0/1/0
 switchport access vlan 2
 no ip address
 load-interval 30
 duplex full
 speed 100
!
interface FastEthernet0/1/1
 no ip address
!
interface FastEthernet0/1/2
 no ip address
!
interface FastEthernet0/1/3
 no ip address
!
interface FastEthernet0/1/4
 no ip address
!
interface FastEthernet0/1/5
 no ip address
!
interface FastEthernet0/1/6
 no ip address
!
interface FastEthernet0/1/7
 no ip address
!
interface FastEthernet0/1/8
 no ip address
!
interface Serial0/2/0
 no ip address
 encapsulation frame-relay
 load-interval 30
 shutdown
 no keepalive
 clockrate 2000000
!
interface Serial0/2/0.1 point-to-point
 ip address 10.3.3.1 255.255.255.0
 frame-relay interface-dlci 100
!
interface Serial0/2/1
 no ip address
 shutdown
 clockrate 2000000
!
interface Serial0/3/0:15
 no ip address
 dialer pool-member 1
 isdn switch-type primary-ntt
 isdn protocol-emulate network
 isdn T310 15000
 isdn bchan-number-order descending
 isdn integrate calltype all
 no cdp enable
!
interface Serial0/3/1:15
 no ip address
 dialer pool-member 1
 isdn switch-type primary-ntt
 isdn protocol-emulate network
 isdn T310 15000
 isdn bchan-number-order descending
 isdn integrate calltype all
 no cdp enable
!
interface Serial1/0/0:15
 no ip address
 dialer pool-member 1
 isdn switch-type primary-dms100
 isdn protocol-emulate network
 isdn T310 15000
 isdn bchan-number-order descending
 isdn integrate calltype all
 no cdp enable
!
interface Serial1/0/1:15
 no ip address
 encapsulation ppp
 dialer pool-member 1
 isdn switch-type primary-ntt
 isdn protocol-emulate network
 isdn T310 15000
 isdn bchan-number-order descending
 isdn integrate calltype all
 ppp multilink
!
interface Vlan1
 ip address 10.0.0.1 255.255.0.0
 load-interval 30
!
interface Vlan2
 ip address 10.7.7.7 255.255.0.0
!
interface Dialer0
 ip address 10.5.5.5 255.0.0.0
 encapsulation ppp
 load-interval 30
 dialer pool 1
 dialer remote-name Router
 dialer string 4081234 class test
 dialer load-threshold 10 outbound
 dialer-group 1
 ppp multilink
 ppp multilink load-threshold 5 outbound !
interface Dialer1
 ip address 192.168.253.1 255.255.255.0
 dialer pool 1
 dialer string 4085678 class test
 dialer-group 1
!
interface Dialer2
 ip address 192.168.252.1 255.255.255.0
 dialer pool 1
 dialer string 4087777 class test
 dialer-group 1
!
ip default-gateway 5.5.5.6
ip classless
ip route 172.16.254.254 255.255.255.255 10.3.0.1 !
ip http server
!
!
map-class dialer test
 dialer trunkgroup 1
 dialer preemption level flash
dialer-list 1 protocol ip permit
snmp-server community public RO
snmp-server enable traps tty
!
!
!
control-plane
!
!
!
voice-port 0/3/0:15
 echo-cancel enable type hardware
!
voice-port 0/3/1:15
 echo-cancel enable type hardware
!
voice-port 1/0/0:15
 compand-type u-law
!
voice-port 1/0/1:15
!
voice-port 2/0/0
 shutdown
!
voice-port 2/0/1
!
voice-port 2/0/2
!
voice-port 2/0/3
!
voice-port 2/0/4
!
voice-port 2/0/5
!
voice-port 2/0/6
!
voice-port 2/0/7
!
!
!
!
!
!
dial-peer voice 100 pots
 destination-pattern 1...
 port 2/0/1
 forward-digits all
!
dial-peer voice 2001 pots
 trunkgroup 1
 destination-pattern 2...
 forward-digits all
!
dial-peer voice 3001 pots
 trunkgroup 1
 destination-pattern 3...
 forward-digits all
!
dial-peer voice 300 pots
 destination-pattern 4...
 port 2/0/2
 forward-digits all
!
dial-peer voice 10 pots
 incoming called-number .
 direct-inward-dial
 forward-digits 0
!
dial-peer voice 5001 pots
 trunkgroup 1
 destination-pattern 5...
 forward-digits all
!
dial-peer voice 500 pots
 destination-pattern 6...
 port 2/0/3
 forward-digits all
!
dial-peer voice 800 pots
 trunkgroup 1
 destination-pattern 8...
 forward-digits all
!
dial-peer data 50 pots
 incoming called-number 650T
!
!
!
telephony-service
 load 7960-7940 P00303020214
 max-ephones 5
 max-dn 5
 ip source-address 10.0.0.1 port 2000
 create cnf-files version-stamp Jan 01 2002 00:00:00  max-conferences 8 gain -6
transfer-system full-consult  transfer-pattern .T !
!
ephone-dn  1  dual-line
 number 7000
!
!
ephone-dn  2
 number 7002
!
!
ephone-dn  3
 number 1003
!
!
ephone-dn  4
 number 1004
!
!
ephone  1
 mac-address 0030.94C2.6073
 type 7960
 button  1:1
!
!
!
ephone  2
 mac-address 000C.851C.ED81
 type 7960
 button  1:2
!
!
!
ephone  3
!
!
!
ephone  4
!
!
alias exec c conf t
alias exec s sh run
!
line con 0
 exec-timeout 0 0
 privilege level 15
line aux 0
line vty 0 4
 login
!
scheduler allocate 20000 1000
!
end

Legacy DDR (Dialer Map): Example

The following example shows how to associate the class parameter for legacy DDR.

Router# show running-config

Building configuration...

Current configuration : 1358 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname host2
!
boot-start-marker
boot-end-marker
!
card type t1 1
!
username client password 0 lab
memory-size iomem 10
no network-clock-participate aim 0
no network-clock-participate aim 1
no aaa new-model
ip subnet-zero
!
ip cef
!
ip ips po max-events 100
no ftp-server write-enable
isdn switch-type primary-ni
!
controller T1 1/0
framing esf
linecode b8zs
cablelength long 0db
pri-group timeslots 1-24
!
controller T1 1/1
framing sf
linecode ami
cablelength long 0db
!
interface FastEthernet0/0
ip address 10.10.193.77 255.255.0.0
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 192.168.10.1 255.255.255.0
shutdown
duplex auto
speed auto
!
interface Serial1/0:23
ip address 192.168.254.2 255.255.255.0
encapsulation ppp
dialer map ip 172.22.82.2 name gw3845 class dial1 20009
dialer-group 2
isdn switch-type primary-ni
ppp authentication chap
!
no ip classless
ip route 10.10.1.0 255.255.255.0 192.168.254.1
ip route 172.16.254.0 255.255.255.0 10.10.0.1
!
ip http server
no ip http secure-server
!
dialer-list 2 protocol ip permit
!
control-plane
!
line con 0
line aux 0
line vty 0 4
login
!
scheduler allocate 20000 1000
!
end

Dialer Profiles: Example

The following example shows how to associate the class parameter for dialer profiles.

Router# show running-config

Building configuration...

Current configuration : 1689 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname host3
!
boot-start-marker
boot-end-marker
!
card type t1 1
no logging console
!
username uut password 0 lab
no network-clock-participate aim 0
no network-clock-participate aim 1
no aaa new-model
ip subnet-zero
!
ip cef
!
ip ips po max-events 100
no ftp-server write-enable
isdn switch-type primary-ni
!
controller T1 1/0
framing esf
linecode b8zs
cablelength long 0db
pri-group timeslots 1-24
!
controller T1 1/1
framing sf
linecode ami
cablelength long 0db
!
no crypto isakmp enable
!
interface FastEthernet0/0
ip address 10.10.193.88 255.255.0.0
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 10.10.1.1 255.255.255.0
duplex auto
speed auto
!
interface Serial0/3/0
no ip address
clockrate 2000000
!
interface Serial0/3/1
no ip address
clockrate 2000000
!
interface Serial1/0:23
no ip address
encapsulation ppp
dialer pool-member 1
isdn switch-type primary-ni
isdn protocol-emulate network
isdn T310 30000
isdn bchan-number-order descending
ppp authentication chap
!
iinterface Dialer2
 ip address 192.168.252.1 255.255.255.0
 dialer pool 1
 dialer string 4087777 class test
 dialer-group 1
!
ip default-gateway 5.5.5.6
ip classless
ip route 172.16.254.254 255.255.255.255 10.3.0.1 !
ip http server
!
!
map-class dialer test
 dialer trunkgroup 1
 dialer preemption level flash
dialer-list 1 protocol ip permit
snmp-server community public RO
snmp-server enable traps tty
!
dialer-list 1 protocol ip permit
!
control-plane
!
line con 0
exec-timeout 0 0
line aux 0
line vty 0 4
login
!
scheduler allocate 20000 8000
end

Maximum Number of Data and Voice Calls on the Dial-Out Trunk Group: Example

The following sample configuration shows a maximum number of 500 data and voice calls configured on the trunk group, includes all B channels in the trunk group, and associates dialer test with the trunk group.

Router# show running-config

Building configuration...

Current configuration : 2283 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname host4
!
boot-start-marker
boot-end-marker
!
card type t1 1 1
no logging console
!
no aaa new-model
!
resource manager
!
no network-clock-participate slot 1
ip subnet-zero
!
ip cef
!
no ftp-server write-enable
isdn switch-type primary-ni
!
trunk group  1
 max-calls any 500
!
voice-card 0
dspfarm
!
voice-card 1
dspfarm
!
controller T1 1/0
framing esf
linecode b8zs
!
controller T1 1/0/0
framing esf
linecode b8zs
pri-group timeslots 1-12,24
!
controller T1 1/0/1
framing esf
linecode b8zs
!
interface GigabitEthernet0/0
ip address 10.10.212.212 255.255.0.0
duplex auto
speed auto
!
interface GigabitEthernet0/1
no ip address
duplex auto
speed auto
!
interface Serial1/0/0:23
no ip address
dialer pool-member 1
isdn switch-type primary-ni
isdn protocol-emulate network
isdn T310 30000
isdn bchan-number-order descending
isdn integrate calltype all
trunk-group 1 1
no cdp enable
!
interface Dialer0
ip address 192.168.254.1 255.255.255.0
dialer pool 1
dialer string 4081234 class test
dialer-group 1
!
interface Dialer1
ip address 192.168.253.1 255.255.255.0
dialer pool 1
dialer string 4085678 class test
dialer-group 1
!
interface Dialer2
ip address 192.168.252.1 255.255.255.0
dialer pool 1
dialer string 4087777 class test
dialer-group 1
!
ip classless
ip route 192.168.10.0 255.255.255.0 Dialer0
ip route 192.168.11.0 255.255.255.0 Dialer1
ip route 192.168.12.0 255.255.255.0 Dialer2
ip route 172.16.254.254 255.255.255.255 GigabitEthernet0/0
!
ip http server
!
map-class dialer test
dialer trunkgroup 1
dialer-list 1 protocol ip permit
!
control-plane
!
voice-port 1/0/0:23
!
voice-port 2/0/0
!
voice-port 2/0/1
!
voice-port 2/0/2
!
voice-port 2/0/3
!
voice-port 2/0/4
!
voice-port 2/0/5
!
voice-port 2/0/6
!
voice-port 2/0/7
!
dial-peer voice 100 pots
destination-pattern 1001
port 2/0/0
forward-digits all
!
dial-peer voice 2001 pots
destination-pattern 200.
port 1/0/0:23
forward-digits all
!
dial-peer voice 101 pots
destination-pattern 1002
port 2/0/1
!
line con 0
exec-timeout 0 0
line aux 0
line vty 0 4
login
!
scheduler allocate 20000 1000
!
end

Dial-Peer Configuration: Example

Data dial peers enable the configuration and order assignment of dial peers so that the gateway can identify incoming calls as voice or data. The incoming called number specifies the number associated with the data dial peer. The following example shows a configuration for the voice and data dial-peers and incoming called number.

Router# show running-config

Building configuration...

Current configuration : 1978 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname host6
!
boot-start-marker
boot-end-marker
!
no aaa new-model
!
resource manager
!
no network-clock-participate slot 1
ip subnet-zero
!
ip cef
!
no ftp-server write-enable
isdn switch-type primary-ni
!
trunk group  1
max-calls any 2
!
voice-card 0
dspfarm
!
voice-card 1
dspfarm
!
controller T1 1/1/0
framing esf
linecode b8zs
pri-group timeslots 1-12,24
trunk-group 1 timeslots 2
!
controller T1 1/1/1
framing esf
linecode b8zs
!
interface FastEthernet0/0
ip address 10.10.193.90 255.255.0.0
duplex half
speed 10
!
interface FastEthernet0/1
no ip address
shutdown
duplex auto
speed auto
!
interface FastEthernet0/1/0
no ip address
shutdown
!
interface FastEthernet0/1/1
no ip address
shutdown
!
interface FastEthernet0/1/2
no ip address
shutdown
!
interface FastEthernet0/1/3
no ip address
shutdown
!
interface Serial1/1/0:23
no ip address
dialer pool-member 2
isdn switch-type primary-ni
isdn integrate calltype all
no cdp enable
!
interface Vlan1
no ip address
!
interface Dialer0
ip address 192.168.254.2 255.255.255.0
dialer pool 2
dialer string 6501234
dialer-group 2
!
ip classless
ip route 10.10.1.0 255.255.255.0 Dialer0
ip route 172.16.254.0 255.255.255.0 10.10.0.1
!
ip http server
!
dialer-list 2 protocol ip permit
!
control-plane
!
voice-port 0/2/0
!
voice-port 0/2/1
!
voice-port 0/2/2
!
voice-port 0/2/3
!
voice-port 1/1/0:23
!
dial-peer voice 100 pots
destination-pattern 2001
port 0/2/0
forward-digits all
!
dial-peer voice 10 pots
incoming called-number .
direct-inward-dial
port 1/1/0:23
!
dial-peer data 50 pots
incoming called-number 408T
!
dial-peer voice 101 pots
destination-pattern 2002
port 0/2/1
forward-digits all
!
line con 0
exec-timeout 0 0
line aux 0
line vty 0 4
login
!
scheduler allocate 20000 1000
!
end

Disconnect Cause: Example

This example shows the DisconnectCause information for a preemption call.

Router# show call history voice

Telephony call-legs: 2
SIP call-legs: 0
H323 call-legs: 0
Call agent controlled call-legs: 0
Total call-legs: 2
GENERIC:
SetupTime=281680 ms
Index=1
PeerAddress=7002
PeerSubAddress=
PeerId=20002
PeerIfIndex=161
LogicalIfIndex=160
DisconnectCause=8
DisconnectText=preemption (8)
ConnectTime=286160 ms
DisconnectTime=441190 ms
CallDuration=00:02:35 sec
CallOrigin=2
ReleaseSource=7
InternalErrorCode=1.1.8.11.35.0
ChargedUnits=0
InfoType=speech
TransmitPackets=0
TransmitBytes=0
ReceivePackets=6910
ReceiveBytes=1105600
TELE:
ConnectionId=[0x4E9D9EF1 0x23E411DA 0x8002A31F 0xB25BECEF]
IncomingConnectionId=[0x4E9D9EF1 0x23E411DA 0x8002A31F 0xB25BECEF]
CallID=1
TxDuration=0 ms
VoiceTxDuration=0 ms
FaxTxDuration=0 ms
CoderTypeRate=g711ulaw
NoiseLevel=0
ACOMLevel=0
SessionTarget=
ImgPages=0
CallerName=
CallerIDBlocked=False
OriginalCallingNumber=7002
OriginalCallingOctet=0x0
OriginalCalledNumber=
OriginalCalledOctet=0x80
OriginalRedirectCalledNumber=
OriginalRedirectCalledOctet=0x0
TranslatedCallingNumber=7002
TranslatedCallingOctet=0x0
TranslatedCalledNumber=
TranslatedCalledOctet=0x80
TranslatedRedirectCalledNumber=
TranslatedRedirectCalledOctet=0x0
GwCollectedCalledNumber=2000
GwReceivedCallingNumber=7002
GwReceivedCallingOctet3=0x0
GwReceivedCallingOctet3a=0x0 GENERIC:
SetupTime=282800 ms
Index=2
PeerAddress=2000
PeerSubAddress=
PeerId=2001
PeerIfIndex=144
LogicalIfIndex=42
DisconnectCause=8
DisconnectText=preemption (8)
ConnectTime=286160 ms
DisconnectTime=441210 ms
CallDuration=00:02:35 sec
CallOrigin=1
ReleaseSource=7
InternalErrorCode=1.1.8.11.35.0
ChargedUnits=0
InfoType=speech
TransmitPackets=6910
TransmitBytes=1160880
ReceivePackets=6917
ReceiveBytes=1106720
TELE:
ConnectionId=[0x4E9D9EF1 0x23E411DA 0x8002A31F 0xB25BECEF]
IncomingConnectionId=[0x4E9D9EF1 0x23E411DA 0x8002A31F 0xB25BECEF]
CallID=2
TxDuration=0 ms
VoiceTxDuration=0 ms
FaxTxDuration=0 ms
CoderTypeRate=g711ulaw
NoiseLevel=-41
ACOMLevel=26
SessionTarget=
ImgPages=0
CallerName=
CallerIDBlocked=False
AlertTimepoint=282820 ms
Target tg label=1
OriginalCallingNumber=7002
OriginalCallingOctet=0x0
OriginalCalledNumber=
OriginalCalledOctet=0x80
OriginalRedirectCalledNumber=
OriginalRedirectCalledOctet=0x0
TranslatedCallingNumber=7002
TranslatedCallingOctet=0x0
TranslatedCalledNumber=2000
TranslatedCalledOctet=0x80
TranslatedRedirectCalledNumber=
TranslatedRedirectCalledOctet=0x0
GwCollectedCalledNumber=2000
GwOutpulsedCalledNumber=2000
GwOutpulsedCalledOctet3=0x80
GwReceivedCallingNumber=7002
GwReceivedCallingOctet3=0x0
GwReceivedCallingOctet3a=0x0
GwOutpulsedCallingNumber=7002
GwOutpulsedCallingOctet3=0x0
GwOutpulsedCallingOctet3a=0x0
DSPIdentifier=0/1:1

Additional References

The following sections provide references related to configuring integrated data and voice for ISDN interfaces.

Related Documents

Related Topic
Document Title

Cisco IOS Voice Configuration Library, including library preface and glossary, other feature documents, and troubleshooting documentation.

Cisco IOS Voice Configuration Library

Voice command reference

Cisco IOS Voice Command Reference

Cisco IOS ISDN voice technologies

Cisco IOS ISDN Voice Configuration Guide

Cisco dial technologies

Cisco IOS Dial Technologies Configuration Guide

Cisco IOS Dial Technologies Command Reference

ISDN PRI configuration information

Configuring Network Side ISDN PRI Signaling, Trunking, and Switching

Multilevel precedence and preemption (MLPP) information

Multilevel Precedence and Preemption

ISDN voice interface information.

Configuring ISDN PRI Voice-Interface Support


Standards

Standard
Title

No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.



MIBs

MIB
MIBs Link

CISCO-VOICE-COMMON-DIAL-CONTROL-MIB

CISCO-VOICE-DIAL-CONTROL-MIB

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs


RFCs

RFC
Title

No new or modified RFCs are supported by this feature, and support for existing RFCs has not been modified by this feature.



Technical Assistance

Description
Link

The Cisco Technical Support website contains thousands of pages of searchable technical content, including links to products, technologies, solutions, technical tips, and tools. Registered Cisco.com users can log in from this page to access even more content.

http://www.cisco.com/techsupport


Command Reference

This section documents the following new and modified commands:

New Commands

dialer preemption level

dialer trunkgroup

isdn integrate calltype all

preemption enable

preemption guard timer

preemption level

preemption tone timer

Modified Commands

debug voip ccapi

dial-peer data

dial-peer search type

show trunk group

debug voip ccapi

To troubleshoot the call control application programming interface (CCAPI) contents, use the debug voip ccapi command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug voip ccapi [all | default | detail | error [call [informational] | software [informational]] | individual range | inout | function | protoheaders | service]

no debug voip ccapi

Syntax Description

all

(Optional) Displays all CCAPI debugging messages.

default

(Optional) Displays CCAPI error and inout information. This option also runs if no keywords are added.

detail

(Optional) Displays CCAPI background messages.

error

(Optional) Displays CCAPI error messages. The debug voip ccapi error command traces the error logs in the call control API. Error logs are generated during normal call processing, if there are insufficient resources, or if there are problems in the underlying network-specific code, the higher call session application, or the call control API itself.

This debug command shows error events or unexpected behavior in system software. Usually no events will be generated.

call

(Optional) Displays call processing errors.

informational

(Optional) Displays minor errors and major errors. Without the informational keyword, only major errors are displayed.

software

(Optional) Displays software errors.

individual

(Optional) Enables individual CCAPI debug outputs.

range

For the individual keyword, the range is an integer value from 1 to 146. For specific range values, see Table 1.

inout

(Optional) Displays CCAPI in/out functions. The debug voip ccapi inout command traces the execution path through the call control API, which serves as the interface between the call session application and the underlying network-specific software. You can use the output from this command to understand how calls are being handled by the router.

This command shows how a call flows through the system. Using this debug level, you can see the call setup and teardown operations performed on both the telephony and network call legs.

function

(Optional) Displays CCAPI function tracing.

protoheaders

(Optional) Displays CCAPI protocol headers passing information.

service

(Optional) Logs debug messages that are not call related.


Table 1 CCAPI Individual Debug Values

Value
CCAPI Debug Function

1

CC_IDMSG_API_DISPLAY_IES

2

CC_IDMSG_SETUP_IND_COMM_2

3

CC_IDMSG_SETUP_IND_COMM_3

4

CC_IDMSG_SETUP_IND_COMM_4

5

CC_IDMSG_ALERT_IND_5

6

CC_IDMSG_ALERT_IND_6

7

CC_IDMSG_CONNECT_IND_7

8

CC_IDMSG_CONNECT_IND_8

9

CC_IDMSG_RECONNECT_IND_9

10

CC_IDMSG_DISCONNECTED_IND_10

11

CC_IDMSG_DISCONNECTED_IND_11

12

CC_IDMSG_DISCONNECTED_IND_12

13

CC_IDMSG_DISCONNECT_DONE_IND_13

14

CC_IDMSG_DISCONNECT_DONE_IND_14

15

CC_IDMSG_DISCONNECT_DONE_IND_15

16

CC_IDMSG_PRE_DISC_CAUSE_16

17

CC_IDMSG_PRE_DISC_CAUSE_17

18

CC_IDMSG_DIGIT_BEGIN_IND_18

19

CC_IDMSG_DIGIT_END_IND_19

20

CC_IDMSG_DIGIT_END_IND_20

21

CC_IDMSG_DIGIT_END_NO_TERM_21

22

CC_IDMSG_TONE_IND_22

23

CC_IDMSG_FEATURE_IND_23

24

CC_IDMSG_MODIFY_DONE_IND_24

25

CC_IDMSG_MODIFY_MODE_DONE_IND_25

26

CC_IDMSG_INBAND_MSG_RCVD_IND_26

27

CC_IDMSG_INBAND_MSG_DONE_IND_27

28

CC_IDMSG_UPD_CALL_INFO_IND_28

29

CC_IDMSG_GEN_NTK_ALERT_EVENT_29

30

CC_IDMSG_VOICE_MODE_EVENT_30

31

CC_IDMSG_VOICE_MODE_EVENT_31

32

CC_IDMSG_DIALING_COMPLETE_IND_32

33

CC_IDMSG_DIGITS_DONE_IND_33

34

CC_IDMSG_DIGITS_DONE_IND_34

35

CC_IDMSG_VBD_XMIT_DONE_IND_35

36

CC_IDMSG_FWD_SETUP_IND_36

37

CC_IDMSG_RSVP_DONE_IND_37

38

CC_IDMSG_AUDIT_RSP_IND_38

39

CC_IDMSG_XFR_STATUS_IND_39

40

CC_IDMSG_XFR_STATUS_IND_40

41

CC_IDMSG_XFR_DONE_IND_41

42

CC_IDMSG_XFR_DONE_IND_42

43

CC_IDMSG_XFR_DONE_IND_43

44

CC_IDMSG_TGT_CID_ACTIVE_RCD_44

45

CC_IDMSG_MODIFY_MEDIA_IND_45

46

CC_IDMSG_MODIFY_MEDIA_ACK_IND_46

47

CC_IDMSG_MODIFY_MEDIA_REJ_IND_47

48

CC_IDMSG_MODEM_CALL_START_IND_48

49

CC_IDMSG_MODEM_CALL_DONE_IND_49

50

CC_IDMSG_ACCT_STATUS_IND_50

51

CC_IDMSG_NW_STATUS_IND_51

52

CC_IDMSG_DESTINFO_IND_52

53

CC_IDMSG_LOOPBACK_DONE_IND_53

54

CC_IDMSG_RT_PACKET_STATS_IND_54

55

CC_IDMSG_CUT_PROGRESS_IND_55

56

CC_IDMSG_CUT_PROGRESS_IND_56

57

CC_IDMSG_PROCEEDING_IND_57

58

CC_IDMSG_FACILITY_IND_58

59

CC_IDMSG_INFO_IND_59

60

CC_IDMSG_PROGRESS_IND_60

61

CC_IDMSG_USERINFO_IND_61

62

CC_IDMSG_DISC_PROG_IND_62

63

CC_IDMSG_DISC_PROG_IND_63

64

CC_IDMSG_PING_DONE_IND_64

65

CC_IDMSG_COT_TEST_DONE_IND_65

66

CC_IDMSG_PROCESS_DONE_IND_66

67

CC_IDMSG_ASSOCIATED_IND_67

68

CC_IDMSG_SUSPEND_IND_68

69

CC_IDMSG_SUSPEND_ACK_IND_69

70

CC_IDMSG_SUSPEND_REJ_IND_70

71

CC_IDMSG_RESUME_IND_71

72

CC_IDMSG_RESUME_ACK_IND_72

73

CC_IDMSG_RESUME_REJ_IND_73

74

CC_IDMSG_IF_SETUP_REQ_PRIV_74

75

CC_IDMSG_IF_SETUP_REQ_PRIV_75

76

CC_IDMSG_IF_ALLOCATE_DSP_76

77

CC_IDMSG_CONNECT_77

78

CC_IDMSG_CONNECT_78

79

CC_IDMSG_PING_79

80

CC_IDMSG_DISCONNECT_80

81

CC_IDMSG_DISCONNECT_81

82

CC_IDMSG_DISCONNECT_82

83

CC_IDMSG_ALERT_83

84

CC_IDMSG_ALERT_84

85

CC_IDMSG_CUT_PROGRESS_85

86

CC_IDMSG_CUT_PROGRESS_86

87

CC_IDMSG_CUT_PROGRESS_87

88

CC_IDMSG_DISC_PROG_88

89

CC_IDMSG_DISC_PROG_89

90

CC_IDMSG_SET_PEER_90

91

CC_IDMSG_SET_PEER_91

92

CC_IDMSG_PROCEEDING_92

93

CC_IDMSG_SETUP_REQ_93

94

CC_IDMSG_SETUP_REQ_94

95

CC_IDMSG_SETUP_REQ_95

96

CC_IDMSG_SETUP_REQ_96

97

CC_IDMSG_SETUP_REQ_97

98

CC_IDMSG_SETUP_REQ_98

99

CC_IDMSG_SETUP_REQ_99

100

CC_IDMSG_SETUP_REQ_100

101

CC_IDMSG_SETUP_REQ_101

102

CC_IDMSG_SETUP_ACK_102

103

CC_IDMSG_FACILITY_103

104

CC_IDMSG_TRANSFER_REQ_104

105

CC_IDMSG_GET_CONSULT_ID_105

106

CC_IDMSG_FORWARD_TO_106

107

CC_IDMSG_INFO_107

108

CC_IDMSG_NOTIFY_108

109

CC_IDMSG_PROGRESS_109

110

CC_IDMSG_PRE_DISC_110

111

CC_IDMSG_PRE_DISC_111

112

CC_IDMSG_USER_INFO_112

113

CC_IDMSG_MODIFY_113

114

CC_IDMSG_DIGIT_114

115

CC_IDMSG_DIGIT_DIAL_115

116

CC_IDMSG_DIGIT_DIAL_STOP_116

117

CC_IDMSG_FEATURE_117

118

CC_IDMSG_FEATURE_ENABLE_118

119

CC_IDMSG_ASSOCIATE_STREAM_119

120

CC_IDMSG_ASSOCIATE_STREAM_120

121

CC_IDMSG_DISASSOCIATE_STREAM_121

122

CC_IDMSG_DISASSOCIATE_STREAM_122

123

CC_IDMSG_GENERATE_TONE_INFO_123

124

CC_IDMSG_SET_DIGIT_TIMEOUTS_124

125

CC_IDMSG_SET_DIGIT_TIMEOUTS_125

126

CC_IDMSG_SUSPEND_126

127

CC_IDMSG_SUSPEND_ACK_127

128

CC_IDMSG_SUSPEND_REJ_128

129

CC_IDMSG_RESUME_129

130

CC_IDMSG_RESUME_ACK_130

131

CC_IDMSG_RESUME_REJ_131

132

CC_IDMSG_UPDATE_REDIRECT_NUM_132

133

CC_IDMSG_BABBLER_AUDIT_133

134

CC_IDMSG_CONFERENCE_CREATE_134

135

CC_IDMSG_CONFERENCE_CREATE_135

136

CC_IDMSG_CONFERENCE_CREATE_136

137

CC_IDMSG_CONFERENCE_DESTROY_137

138

CC_IDMSG_CONFERENCE_DESTROY_138

139

CC_IDMSG_CONFERENCE_DESTROY_139

140

CC_IDMSG_LOOPBACK_140

141

CC_IDMSG_COT_TEST_141

142

CC_IDMSG_HANDOFF_142

143

CC_IDMSG_APP_RETURN_143

144

CC_IDMSG_T38_FAX_START_144

145

CC_IDMSG_T38_FAX_DONE_145

146

CC_IDMSG_CALL_PREEMPT_IND_146


Command Default

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release
Modification

11.3(6)NA2

This command was introduced.

12.2(11)T

This command was implemented on the following platforms: Cisco 2600 series, Cisco 3620, Cisco 3660, Cisco AS5350, Cisco AS5400, Cisco AS5850, Cisco AS5300, Cisco AS5800, and Cisco MC3810.

12.3(8)T

The all, default, detail, call, informational, software, individual, function, protoheaders, and service keywords were added.

12.4(4)XC

The range for the individual keyword was extended to 146, to include logs for call preemption indication information.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Examples

The following examples show output for variations of the debug voip ccapi command:

debug voip ccapi detail on the Originating Gateway: Example

debug voip ccapi detail on the Terminating Gateway: Example

debug voip ccapi inout on the Originating Gateway: Example

debug voip ccapi service on the Terminating Gateway: Example

debug voip ccapi individual 146 on the Originating Gateway: Example

For these examples, the topology shown in Figure 2 is used.

Figure 2 Network Topology for debug voip ccapi Output Examples

debug voip ccapi detail on the Originating Gateway: Example

Router# debug voip ccapi detail

voip ccapi detail debugging is on
Router#
*Apr 18 20:35:35.779: //-1/ABCE697D8005/CCAPI/cc_api_call_setup_ind_common:
   Interface Type=13, Protocol=0
*Apr 18 20:35:35.779: //-1/ABCE697D8005/CCAPI/ccCheckClipClir:
   Calling Party Number Is User Provided
*Apr 18 20:35:35.779: //11/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry:
   Total Call Count=0, Call Entry(Call Count On=FALSE, Incoming Call=TRUE)
*Apr 18 20:35:35.779: //11/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry:
   Total Call Count=1

The following event shows that the CallEntry ID 11 is used for the incoming call leg.

*Apr 18 20:35:35.779: //11/ABCE697D8005/CCAPI/cc_insert_guid_pod_entry:
   Incoming=TRUE, Call Id=11
*Apr 18 20:35:35.779: //11/ABCE697D8005/CCAPI/cc_setupind_registration_lookup:
   Matching Parameters; Called Number=83103, Call Transfer Consult Id=
*Apr 18 20:35:35.779: //11/ABCE697D8005/CCAPI/cc_setupind_registration_lookup:
   No Matching Node
*Apr 18 20:35:35.779: //11/ABCE697D8005/CCAPI/ccCheckClipClir:
   Calling Party Number Is User Provided
*Apr 18 20:35:35.779: //12/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry:
   Total Call Count=1, Call Entry(Call Count On=FALSE, Incoming Call=FALSE)

The following event shows that the incoming call leg with CallEntry ID 11 is bound to the outgoing call leg with CallEntry ID 12.

*Apr 18 20:35:35.779: //11/ABCE697D8005/CCAPI/cc_peer_bind:
   Bind=TRUE, Binder Call Id=11, Bindee Call Id=12

The next event shows that CallEntry ID 12 is used for the outgoing call leg.

*Apr 18 20:35:35.779: //12/ABCE697D8005/CCAPI/cc_insert_guid_pod_entry:
   Incoming=FALSE, Call Id=12
*Apr 18 20:35:35.779: //-1/xxxxxxxxxxxx/CCAPI/cc_api_supported_data:
   data_mode=0x10082

The next event shows an IP address for a remote device on the outgoing call leg, which indicates that this is the VoIP call leg.

*Apr 18 20:35:35.779: //12/ABCE697D8005/CCAPI/cc_incr_if_call_volume:
   Remote IP Address=172.16.13.81, Hwidb=FastEthernet0/0
*Apr 18 20:35:35.779: //12/ABCE697D8005/CCAPI/cc_incr_if_call_volume:
   Total Call Count=1, Voip Call Count=1, MMoip Call Count=0
*Apr 18 20:35:35.795: //11/ABCE697D8005/CCAPI/ccCallGetContext:
   Context=0x652C0168, Call Id=11
*Apr 18 20:36:31.419: //11/ABCE697D8005/CCAPI/ccCallDisconnect:
   Start Calling Accounting;
   Call Entry(Incoming=TRUE)
*Apr 18 20:36:31.419: //11/ABCE697D8005/CCAPI/ccCallDisconnect:
   Cause Value=16, Call Entry(Disconnect Cause=16)
*Apr 18 20:36:31.419: //11/ABCE697D8005/CCAPI/ccCallDisconnect:
   Call Entry(Disconnect Cause=16)

At this point, the CallEntry ID changes as the call accounting process begins. The accounting data is sent over the outgoing call leg. The GUID, which identifies the unique call, remains the same.

*Apr 18 20:36:31.419: //12/ABCE697D8005/CCAPI/ccCallDisconnect:
   Start Calling Accounting;
   Call Entry(Incoming=FALSE)
*Apr 18 20:36:31.419: //12/ABCE697D8005/CCAPI/ccCallDisconnect:
   Cause Value=16, Call Entry(Disconnect Cause=0)

The change of the CallEntry ID indicates that the call is using the incoming call leg, which is the POTS call leg in this case.

*Apr 18 20:36:31.423: //11/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Data Bitmask=0x1, Call Id=11
*Apr 18 20:36:31.423: //11/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Flag=FALSE
*Apr 18 20:36:31.423: //11/ABCE697D8005/CCAPI/cc_delete_guid_pod_entry:
   Incoming=TRUE
*Apr 18 20:36:31.423: //11/ABCE697D8005/CCAPI/cc_delete_call_entry:
   ccFreeRawMsgInfo=0x63FF8198
*Apr 18 20:36:31.423: //11/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Total Call Count=1, Call Entry(Call Count On=FALSE, Incoming Call=TRUE)
*Apr 18 20:36:31.423: //11/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Total Call Count=0
*Apr 18 20:36:31.423: //11/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Deleting profileTable[0x64F44700]

The next line shows the impairment calculation. This is the only CCAPI debug command that shows impairment.

*Apr 18 20:36:31.423: //-1/ABCE697D8005/CCAPI/g113_calculate_impairment:
   (delay=91(ms), loss=0%), Io=0 Iq=0 Idte=0 Idd=2 Ie=10 Itot=12
*Apr 18 20:36:31.423: //12/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Data Bitmask=0x1, Call Id=12
*Apr 18 20:36:31.423: //12/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Flag=FALSE
*Apr 18 20:36:31.423: //12/ABCE697D8005/CCAPI/cc_decr_if_call_volume:
   Remote IP Address=172.16.13.81, Hwidb=FastEthernet0/0
*Apr 18 20:36:31.423: //12/ABCE697D8005/CCAPI/cc_decr_if_call_volume:
   Total Call Count=0, Voip Call Count=0, MMoip Call Count=0
*Apr 18 20:36:31.423: //12/ABCE697D8005/CCAPI/cc_delete_guid_pod_entry:
   Incoming=FALSE
*Apr 18 20:36:31.423: //12/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Total Call Count=0, Call Entry(Call Count On=FALSE, Incoming Call=FALSE)
*Apr 18 20:36:31.423: //12/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Deleting profileTable[0x652E3310]
*Apr 18 20:36:31.427: //12/xxxxxxxxxxxx/CCAPI/cc_get_call_entry:
   Call Entry Is Not Found

debug voip ccapi detail on the Terminating Gateway: Example

Router# debug voip ccapi detail

voip ccapi detail debugging is on
Router#
*May  1 18:58:26.251: //-1/xxxxxxxxxxxx/CCAPI/cc_api_supported_data:
   data_mode=0x10082
*May  1 18:58:26.255: //8/xxxxxxxxxxxx/CCAPI/cc_get_call_entry:
   Call Entry Is Not Found
*May  1 18:58:26.255: //-1/ABCE697D8005/CCAPI/cc_api_call_setup_ind_common:
   Interface Type=0, Protocol=1
*May  1 18:58:26.255: //-1/ABCE697D8005/CCAPI/ccCheckClipClir:
   Calling Party Number Is User Provided

The following line shows the attributes of the calling number:

*May  1 18:58:26.255: //-1/ABCE697D8005/CCAPI/cc_api_call_setup_ind_common:
   After Number Translation Checking:
   Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed),
   Called Number=3600(TON=Unknown, NPI=Unknown)
*May  1 18:58:26.255: //8/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry:
   Total Call Count=0, Call Entry(Call Count On=FALSE, Incoming Call=TRUE)
*May  1 18:58:26.255: //8/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry:
   Total Call Count=1
*May  1 18:58:26.255: //8/ABCE697D8005/CCAPI/cc_insert_guid_pod_entry:
   Incoming=TRUE, Call Id=8

The following line shows the IP address of the originating gateway:

*May  1 18:58:26.255: //8/ABCE697D8005/CCAPI/cc_incr_if_call_volume:
   Remote IP Address=172.16.13.175, Hwidb=FastEthernet0/0
*May  1 18:58:26.255: //8/ABCE697D8005/CCAPI/cc_incr_if_call_volume:
   Total Call Count=1, Voip Call Count=1, MMoip Call Count=0
*May  1 18:58:26.255: //8/ABCE697D8005/CCAPI/cc_setupind_registration_lookup:
   Matching Parameters; Called Number=3600, Call Transfer Consult Id=
*May  1 18:58:26.255: //8/ABCE697D8005/CCAPI/cc_setupind_registration_lookup:
   No Matching Node
*May  1 18:58:26.255: //8/ABCE697D8005/CCAPI/ccCheckClipClir:
   Calling Party Number Is User Provided
*May  1 18:58:26.259: //9/xxxxxxxxxxxx/CCAPI/cc_insert_call_entry:
   Total Call Count=1, Call Entry(Call Count On=FALSE, Incoming Call=FALSE)
*May  1 18:58:26.259: //8/ABCE697D8005/CCAPI/cc_peer_bind:
   Bind=TRUE, Binder Call Id=8, Bindee Call Id=9
*May  1 18:58:26.259: //9/ABCE697D8005/CCAPI/cc_insert_guid_pod_entry:
   Incoming=FALSE, Call Id=9
*May  1 18:58:26.259: //9/ABCE697D8005/CCAPI/cc_set_voice_port_value:
   CC_IF_TELEPHONY: Echo=0, Playout=0
*May  1 18:58:26.263: //9/ABCE697D8005/CCAPI/ccCallGetContext:
   Context=0x64B6BB5C, Call Id=9
*May  1 18:59:21.871: //8/ABCE697D8005/CCAPI/ccCallDisconnect:
   Start Calling Accounting;
   Call Entry(Incoming=TRUE)
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/ccCallDisconnect:
   Cause Value=16, Call Entry(Disconnect Cause=16)
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/ccCallDisconnect:
   Call Entry(Disconnect Cause=16)
*May  1 18:59:21.875: //9/ABCE697D8005/CCAPI/ccCallDisconnect:
   Start Calling Accounting;
   Call Entry(Incoming=FALSE)
*May  1 18:59:21.875: //9/ABCE697D8005/CCAPI/ccCallDisconnect:
   Cause Value=16, Call Entry(Disconnect Cause=0)

The next line shows the impairment calculation. This is the only CCAPI debug command that shows impairment.

*May  1 18:59:21.875: //-1/ABCE697D8005/CCAPI/g113_calculate_impairment:
   (delay=99(ms), loss=0%), Io=0 Iq=0 Idte=0 Idd=2 Ie=10 Itot=12
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Data Bitmask=0x1, Call Id=8
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Flag=FALSE
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/cc_decr_if_call_volume:
   Remote IP Address=172.16.13.175, Hwidb=FastEthernet0/0
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/cc_decr_if_call_volume:
   Total Call Count=0, Voip Call Count=0, MMoip Call Count=0
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/cc_delete_guid_pod_entry:
   Incoming=TRUE
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/cc_delete_call_entry:
   ccFreeRawMsgInfo=0x644EB850
Router#
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Total Call Count=1, Call Entry(Call Count On=FALSE, Incoming Call=TRUE)
*May  1 18:59:21.875: //8/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Total Call Count=0
*May  1 18:59:21.879: //8/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Deleting profileTable[0x64B78600]
*May  1 18:59:21.879: //8/xxxxxxxxxxxx/CCAPI/cc_get_call_entry:
   Call Entry Is Not Found
*May  1 18:59:21.879: //8/xxxxxxxxxxxx/CCAPI/cc_get_call_entry:
   Call Entry Is Not Found
Router#
*May  1 18:59:24.587: //9/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Data Bitmask=0x1, Call Id=9
*May  1 18:59:24.587: //9/ABCE697D8005/CCAPI/ccCallGetVoipFlag:
   Flag=FALSE
*May  1 18:59:24.587: //9/ABCE697D8005/CCAPI/cc_api_call_disconnect_done:
   Prefix Is Not Defined From Peer; Peer=3600, Called Number=3600
*May  1 18:59:24.587: //9/ABCE697D8005/CCAPI/cc_delete_guid_pod_entry:
   Incoming=FALSE
*May  1 18:59:24.587: //9/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Total Call Count=0, Call Entry(Call Count On=FALSE, Incoming Call=FALSE)
*May  1 18:59:24.587: //9/ABCE697D8005/CCAPI/cc_delete_call_entry:
   Deleting profileTable[0x6453F228]

debug voip ccapi inout on the Originating Gateway: Example

Router# debug voip ccapi inout

voip ccapi inout debugging is on
Router#
*Apr 18 20:42:19.347: //-1/9C5A9CA88009/CCAPI/cc_api_display_ie_subfields:
   cc_api_call_setup_ind_common:
   acme-username=
   ----- ccCallInfo IE subfields -----
   acme-ani=4085550111
   acme-anitype=2
   acme-aniplan=1
   acme-anipi=0
   acme-anisi=1
   dest=83103
   acme-desttype=0
   acme-destplan=0
   acme-rdn=
   acme-rdntype=-1
   acme-rdnplan=-1
   acme-rdnpi=-1
   acme-rdnsi=-1
   acme-redirectreason=-1

The following lines show information about the calling and called numbers. The network presentation indicator (NPI) shows the type of transmission. The Incoming Dial-Peer field shows that the incoming dial peer has been matched.

*Apr 18 20:42:19.347: //-1/9C5A9CA88009/CCAPI/cc_api_call_setup_ind_common:
   Interface=0x64F26F10, Call Info(
   Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed),
   Called Number=83103(TON=Unknown, NPI=Unknown),
   Calling Translated=FALSE, Subsriber Type Str=RegularLine, FinalDestinationFlag=TRUE,
   Incoming Dial-peer=1, Progress Indication=NULL(0), Calling IE Present=TRUE,
   Source Trkgrp Route Label=, Target Trkgrp Route Label=, CLID Transparent=FALSE), Call
Id=-1
*Apr 18 20:42:19.347: //-1/9C5A9CA88009/CCAPI/ccCheckClipClir:
   In: Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed)
*Apr 18 20:42:19.347: //-1/9C5A9CA88009/CCAPI/ccCheckClipClir:
   Out: Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed)

In the following event, the call leg is established. The CallEntry ID field changes from -1 to 19.

*Apr 18 20:42:19.347: //19/9C5A9CA88009/CCAPI/cc_api_call_setup_ind_common:
   Set Up Event Sent;
   Call Info(Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed),
   Called Number=83103(TON=Unknown, NPI=Unknown))
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/cc_process_call_setup_ind:
   Event=0x63FF4730
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccCallSetContext:
   Context=0x652A9858
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/cc_process_call_setup_ind:
   >>>>CCAPI handed cid 19 with tag 1 to app "Default"
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccCallProceeding:
   Progress Indication=NULL(0)
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccCallSetupRequest:
   Destination=, Calling IE Present=TRUE, Mode=0,
   Outgoing Dial-peer=3600, Params=0x652AA4A8, Progress Indication=NULL(0)
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccCheckClipClir:
   In: Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed)
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccCheckClipClir:
   Out: Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed)
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccCallSetupRequest:
   Destination Pattern=360., Called Number=3600, Digit Strip=FALSE
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccCallSetupRequest:
   Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed),
   Called Number=3600(TON=Unknown, NPI=Unknown),
   Redirect Number=, Display Info=
   Account Number=, Final Destination Flag=TRUE,
   Guid=9C5A9CA8-5243-11D6-8009-00059A3A15A0, Outgoing Dial-peer=3600
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/cc_api_display_ie_subfields:
   ccCallSetupRequest:
   cisco-username=
   ----- ccCallInfo IE subfields -----
   cisco-ani=4085550111
   cisco-anitype=2
   cisco-aniplan=1
   cisco-anipi=0
   cisco-anisi=1
   dest=3600
   cisco-desttype=0
   cisco-destplan=0
   cisco-rdn=
   cisco-rdntype=-1
   cisco-rdnplan=-1
   cisco-rdnpi=-1
   cisco-rdnsi=-1
   cisco-redirectreason=-1

In the following lines, the outgoing dial peer is matched:

*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccIFCallSetupRequestPrivate:
   Interface=0x63EAF24C, Interface Type=1, Destination=, Mode=0x0,
   Call Params(Calling Number=4085550111(TON=National, NPI=ISDN, Screening=User, Passed,
Presentation=Allowed),
   Called Number=3600(TON=Unknown, NPI=Unknown), Calling Translated=FALSE,
   Subsriber Type Str=RegularLine, FinalDestinationFlag=TRUE, Outgoing Dial-peer=3600,
Call Count On=FALSE,
   Source Trkgrp Route Label=, Target Trkgrp Route Label=, tg_label_flag=0, Application
Call Id=)
*Apr 18 20:42:19.351: //20/9C5A9CA88009/CCAPI/ccIFCallSetupRequestPrivate:
   SPI Call Setup Request Is Success; Interface Type=1, FlowMode=1
*Apr 18 20:42:19.351: //20/9C5A9CA88009/CCAPI/ccCallSetContext:
   Context=0x652AA458
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccSaveDialpeerTag:
   Outgoing Dial-peer=3600
*Apr 18 20:42:19.351: //19/9C5A9CA88009/CCAPI/ccSaveDialpeerTag:
   Outgoing Dial-peer=3600
*Apr 18 20:42:19.367: //20/9C5A9CA88009/CCAPI/cc_api_call_proceeding:
   Interface=0x652F6388, Progress Indication=NULL(0)

The following lines show call progress. The progress and signal indications are shown.

*Apr 18 20:42:19.371: //20/9C5A9CA88009/CCAPI/cc_api_call_cut_progress:
   Interface=0x652F6388, Progress Indication=INBAND(8), Signal Indication=SIGNAL
RINGBACK(1),
   Cause Value=0
*Apr 18 20:42:19.371: //20/9C5A9CA88009/CCAPI/cc_api_call_cut_progress:
   Call Entry(Responsed=TRUE)
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/ccCallCutProgress:
   Progress Indication=INBAND(8), Signal Indication=SIGNAL RINGBACK(1), Cause Value=0
   Voice Call Send Alert=FALSE, Call Entry(AlertSent=FALSE)
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/ccCallCutProgress:
   Call Entry(Responsed=TRUE)

The following lines show the tone generation information:

*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/ccGenerateToneInfo:
   Stop Tone On Digit=FALSE, Tone=Null,
   Tone Direction=Network, Params=0x0, Call Id=19
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/ccConferenceCreate:
   Conference Id=0x652F723C, Call Id1=19, Call Id2=20, Tag=0x0
*Apr 18 20:42:19.371: //20/xxxxxxxxxxxx/CCAPI/cc_api_bridge_done:
   Conference Id=0x6, Source Interface=0x63EAF24C, Source Call Id=20,
   Destination Call Id=19, Disposition=0x0, Tag=0x0
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/ccConferenceCreate:
   Call Entry(Conference Id=0x6, Destination Call Id=20)
*Apr 18 20:42:19.371: //20/9C5A9CA88009/CCAPI/ccConferenceCreate:
   Call Entry(Conference Id=0x6, Destination Call Id=19)
*Apr 18 20:42:19.371: //19/xxxxxxxxxxxx/CCAPI/cc_api_bridge_done:
   Conference Id=0x6, Source Interface=0x64F26F10, Source Call Id=19,
   Destination Call Id=20, Disposition=0x0, Tag=0x0
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/cc_generic_bridge_done:
   Conference Id=0x6, Source Interface=0x64F26F10, Source Call Id=19,
   Destination Call Id=20, Disposition=0x0, Tag=0x0
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/cc_api_caps_ind:
   Destination Interface=0x63EAF24C, Destination Call Id=20, Source Call Id=19,
   Caps(Codec=0x2887F, Fax Rate=0xBF, Vad=0x3,
   Modem=0x2, Codec Bytes=0, Signal Type=3)
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/cc_api_caps_ind:
   Caps(Playout Mode=1, Playout Initial=60(ms), Playout Min=40(ms),
   Playout Max=300(ms), Fax Nom=300(ms))
*Apr 18 20:42:19.371: //19/9C5A9CA88009/CCAPI/cc_process_notify_bridge_done:
   Conference Id=0x6, Call Id1=19, Call Id2=20
*Apr 18 20:42:19.375: //20/9C5A9CA88009/CCAPI/cc_api_caps_ind:
   Destination Interface=0x64F26F10, Destination Call Id=19, Source Call Id=20,
   Caps(Codec=0x4, Fax Rate=0x1, Vad=0x2,
   Modem=0x2, Codec Bytes=20, Signal Type=2)
*Apr 18 20:42:19.375: //20/9C5A9CA88009/CCAPI/cc_api_caps_ind:
   Caps(Playout Mode=1, Playout Initial=60(ms), Playout Min=40(ms),
   Playout Max=300(ms), Fax Nom=300(ms))

The following lines show codec information:

*Apr 18 20:42:19.375: //20/9C5A9CA88009/CCAPI/cc_api_caps_ack:
   Destination Interface=0x64F26F10, Destination Call Id=19, Source Call Id=20,
   Caps(Codec=g729r8(0x4), Fax Rate=FAX_RATE_NONE(0x1), Vad=ON(0x2),
   Modem=ON(0x2), Codec Bytes=20, Signal Type=2, Seq Num Start=6872)
*Apr 18 20:42:19.375: //19/9C5A9CA88009/CCAPI/cc_api_caps_ack:
   Destination Interface=0x63EAF24C, Destination Call Id=20, Source Call Id=19,
   Caps(Codec=g729r8(0x4), Fax Rate=FAX_RATE_NONE(0x1), Vad=ON(0x2),
   Modem=ON(0x2), Codec Bytes=20, Signal Type=2, Seq Num Start=6872)
*Apr 18 20:42:19.375: //19/9C5A9CA88009/CCAPI/cc_api_voice_mode_event:
   Call Id=19
*Apr 18 20:42:19.375: //19/9C5A9CA88009/CCAPI/cc_api_voice_mode_event:
   Call Entry(Context=0x652A9858)

The following lines show progress indication information. In this case, the event shows that the destination is not ISDN.

*Apr 18 20:42:26.855: //20/9C5A9CA88009/CCAPI/cc_api_call_connected:
   Interface=0x652F6388, Data Bitmask=0x0, Progress Indication=DESTINATION IS NON ISDN(2),
   Connection Handle=0
*Apr 18 20:42:26.855: //20/9C5A9CA88009/CCAPI/cc_api_call_connected:
   Call Entry(Connected=TRUE, Responsed=TRUE, Retry Count=0)
*Apr 18 20:42:26.855: //19/9C5A9CA88009/CCAPI/ccCallConnect:
   Progress Indication=DESTINATION IS NON ISDN(2), Data Bitmask=0x0
*Apr 18 20:42:26.855: //19/9C5A9CA88009/CCAPI/ccCallConnect:
   Call Entry(Connected=TRUE, Responsed=TRUE)
*Apr 18 20:42:26.855: //20/9C5A9CA88009/CCAPI/ccSaveDialpeerTag:
   Incoming Dial-peer=1
*Apr 18 20:42:26.859: //19/9C5A9CA88009/CCAPI/ccSaveDialpeerTag:
   Outgoing Dial-peer=3600
*Apr 18 20:42:26.859: //20/9C5A9CA88009/CCAPI/ccCallFeature:
   Feature Type=24, Call Id=20

This event shows that the call is disconnected.

*Apr 18 20:43:16.795: //19/9C5A9CA88009/CCAPI/cc_api_call_disconnected:
   Cause Value=16, Interface=0x64F26F10, Call Id=19
*Apr 18 20:43:16.795: //19/9C5A9CA88009/CCAPI/cc_api_call_disconnected:
   Call Entry(Responsed=TRUE, Cause Value=16, Retry Count=0)
*Apr 18 20:43:16.795: //19/9C5A9CA88009/CCAPI/ccConferenceDestroy:
   Conference Id=0x6, Tag=0x0
*Apr 18 20:43:16.795: //20/xxxxxxxxxxxx/CCAPI/cc_api_bridge_drop_done:
   Conference Id=0x6, Source Interface=0x63EAF24C, Source Call Id=20,
   Destination Call Id=19, Disposition=0x0, Tag=0x0
*Apr 18 20:43:16.795: //19/xxxxxxxxxxxx/CCAPI/cc_api_bridge_drop_done:
   Conference Id=0x6, Source Interface=0x64F26F10, Source Call Id=19,
   Destination Call Id=20, Disposition=0x0, Tag=0x0
*Apr 18 20:43:16.795: //19/9C5A9CA88009/CCAPI/cc_generic_bridge_done:
   Conference Id=0x6, Source Interface=0x64F26F10, Source Call Id=19,
   Destination Call Id=20, Disposition=0x0, Tag=0x0
*Apr 18 20:43:16.795: //19/9C5A9CA88009/CCAPI/ccCallDisconnect:
   Cause Value=16, Tag=0x0, Call Entry(Previous Disconnect Cause=0, Disconnect Cause=16)
*Apr 18 20:43:16.795: //19/9C5A9CA88009/CCAPI/ccCallDisconnect:
   Cause Value=16, Call Entry(Responsed=TRUE, Cause Value=16)
*Apr 18 20:43:16.795: //19/9C5A9CA88009/CCAPI/cc_api_get_transfer_info:
   Transfer Number Is Null
*Apr 18 20:43:16.795: //20/9C5A9CA88009/CCAPI/ccCallDisconnect:
   Cause Value=16, Tag=0x0, Call Entry(Previous Disconnect Cause=0, Disconnect Cause=0)
*Apr 18 20:43:16.795: //20/9C5A9CA88009/CCAPI/ccCallDisconnect:
   Cause Value=16, Call Entry(Responsed=TRUE, Cause Value=16)
*Apr 18 20:43:16.795: //20/9C5A9CA88009/CCAPI/cc_api_get_transfer_info:
   Transfer Number Is Null
*Apr 18 20:43:16.803: //20/9C5A9CA88009/CCAPI/cc_api_call_disconnect_done:
   Disposition=0, Interface=0x652F6388, Tag=0x0, Call Id=20,
   Call Entry(Disconnect Cause=16, Voice Class Cause Code=0, Retry Count=0)
*Apr 18 20:43:16.803: //20/9C5A9CA88009/CCAPI/cc_api_call_disconnect_done:
   Call Disconnect Event Sent
*Apr 18 20:43:16.803: //19/9C5A9CA88009/CCAPI/cc_api_call_disconnect_done:
   Disposition=0, Interface=0x64F26F10, Tag=0x0, Call Id=19,
   Call Entry(Disconnect Cause=16, Voice Class Cause Code=0, Retry Count=0)
*Apr 18 20:43:16.803: //19/9C5A9CA88009/CCAPI/cc_api_call_disconnect_done:
   Call Disconnect Event Sent

debug voip ccapi service on the Terminating Gateway: Example

Router# debug voip ccapi service

voip ccapi service debugging is on
*May  1 19:08:41.803: //-1/xxxxxxxxxxxx/CCAPI/cc_setupind_match_search:
   Searching Node;
   Called Number=3600, Call Transfer Consult Id=

This debug shows noncall related events. In this case, information about the timer is shown.

*May  1 19:08:48.027: //-1/xxxxxxxxxxxx/CCAPI/cc_handle_periodic_timer:
   Calling The Callback, ccTimerctx=0x63B368C0
*May  1 19:08:48.027: //-1/xxxxxxxxxxxx/CCAPI/ccTimerStart:
   ccTimerctx=0x63B368C0
*May  1 19:10:08.615: //-1/xxxxxxxxxxxx/CCAPI/cc_api_icpif:
   ExpectFactor=0xA

debug voip ccapi individual 146 on the Originating Gateway: Example

This debug shows the preemption tone timer getting initiated.

*Aug 24 18:28:16.919: //18958/B37648B6AF48/CCAPI/cc_api_call_preempt_ind:


   PreemptionToneTimer=10(s)

dial-peer data

To create a data dial peer and to enter dial-peer configuration mode, use the dial-peer data command in global configuration mode. To remove a data dial peer, use the no form of this command.

dial-peer data tag pots

no dial-peer data tag

Syntax Description

tag

Specifies the dial-peer identifying number. Range is from 1 to 2147483647.

pots

Specifies an incoming POTS dial peer.


Command Default

No default behavior or values

Command Modes

Global configuration

Command History

Release
Modification

12.2(13)T

This command was introduced.

12.4(4)XC

This command was implemented on the Cisco 2600XM series, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Usage Guidelines

A data dial peer should be defined only for incoming data calls. The incoming called-number and shutdown commands on the data dial peer are allowed. However, the following POTS dial-peer commands are disabled on a data dial peer:

answer-address

carrier-id

destination-pattern

information-type

port

trunk-group-label

Examples

The following example is a data dial-peer configuration:

dial-peer data 100 pots
 incoming called-number 100

The following example is a voice dial-peer configuration:

dial-peer voice 2001 pots
 destination-pattern 2001
 no digit-strip
 port 3/1:1

Related Commands

Command
Description

dial-peer search

Optimizes voice or data dial-peer searches.

incoming called-number

Specifies an incoming called number of an MMoIP or POTS dial peer.

shutdown (dial peer)

Changes the administrative state of a selected dial peer from up to down.


dial-peer search type

To optimize voice or data dial-peer searches, use the dial-peer search type command in global configuration mode. To disable the search parameters, use the no form of this command.

dial-peer search type {data voice | voice data | none}

no dial-peer search type

Syntax Description

data

Searches for data dial peers.

none

Searches for all dial peers by order of input.

voice

Searches for voice dial peers.


Command Default

data and voice

Command Modes

Global configuration

Command History

Release
Modification

12.2(13)T

This command was introduced.

12.4(4)XC

This command was implemented on the Cisco 2600XM series, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Usage Guidelines

The search defines the search preference explicitly. If the data and voice keywords are specified, data dial peers are searched first. If no data dial peers are found, the voice dial peers are searched.

Examples

The following is sample output that shows that data dial peers are searched first. Then voice dial peers are searched if no data dial peers can be matched for an incoming call:

dial-peer search type data voice

The following is sample output that shows that voice dial peers are searched first. Then data dial peers are searched if no voice dial peers can be matched for an incoming call:

dial-peer search type voice data

Related Commands

Command
Description

dial-peer data

Enable a gateway to process incoming data calls first by assigning the POTS dial peer as data.


dialer preemption level

To set the precedence for voice calls to be preempted by a dial-on demand routing (DDR) call for the dialer map, use the dialer preemption level command in map-class dialer configuration mode. To remove the preemption setting, use the no form of this command.

dialer preemption level {flash-override | flash | immediate | priority | routine}

no dialer preemption level {flash-override | flash | immediate | priority | routine}

Syntax Description

flash-override

Sets the precedence for DDR calls to preemption level 0 (highest).

flash

Sets the precedence for DDR calls to preemption level 1.

immediate

Sets the precedence for DDR calls to preemption level 2.

priority

Sets the precedence for DDR calls to preemption level 3.

routine

Sets the precedence for DDR calls to preemption level 4 (lowest). This is the default.


Command Default

The preemption level default is routine (lowest).

Command Modes

Map-class dialer configuration

Command History

Release
Modification

12.4(4)XC

This command was introduced.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Examples

The following example sets a preemption level of priority (level 3) for the dialer map-class dial1.

Router(config)# map-class dialer dial1

Router(config-map-class)# dialer preemption level priority


Related Commands

Command
Description

dialer map

Configures a serial interface or ISDN interface to call one or multiple sites or to receive calls from multiple sites.

dialer trunkgroup

Defines the dial-on-demand trunk group label for the dialer interface.

map-class dialer

Defines a class of shared configuration parameters associated with the dialer map command for outgoing calls from an ISDN interface and for PPP callback.

preemption enable

Enables preemption capabilities on a trunk group.

preemption level

Sets the preemption level of the selected outbound dial peer. Voice calls can be preempted by a DDR call with higher preemption level.

preemption tone timer

Defines the expiry time for the preemption tone for the outgoing call being preempted by a DDR backup call.


dialer trunkgroup

To define the dial-on-demand trunk group label for the dialer interface, use the dialer trunkgroup command in map-class dialer configuration mode. To remove the trunk group label, use the no form of this command.

dialer trunkgroup label

no dialer trunkgroup label

Syntax Description

label

Unique name for the dialer interface trunk group. Valid names contain a maximum of 63 alphanumeric characters.


Command Default

No dialer trunk group is defined.

Command Modes

Map-class dialer configuration

Command History

Release
Modification

12.4(4)XC

This command was introduced.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Examples

The following example creates a trunk group named 20 for dialer map-class dial1.

Router(config)# map-class dialer dial1

Router(config-map-class)# dialer trunkgroup 20


Related Commands

Command
Description

dialer map

Configures a serial interface or ISDN interface to call one or multiple sites or to receive calls from multiple sites.

map-class dialer

Defines a class of shared configuration parameters associated with the dialer map command for outgoing calls from an ISDN interface and for PPP callback.

show dialer

Displays general diagnostic information for interfaces configured for dial-on-demand routing (DDR).

trunk group

Defines a trunk group (global configuration) and enters trunk group configuration mode.


isdn integrate calltype all

To enable integrated mode on an ISDN PRI interface, use the isdn integrate calltype all command in interface configuration mode. To disable integrated mode, use the no form of this command.

isdn integrate calltype all

no isdn integrate calltype all

Syntax Description

This command has no arguments or keywords.

Command Default

Integrated mode is disabled on the interface.

Command Modes

Interface configuration

Command History

Release
Modification

12.4(4)XC

This command was introduced.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Usage Guidelines

Configure this command from a PRI interface only. This command is not supported from a BRI interface.

Any incoming calls from an interface that has been configured for integrate calltype all is rejected with cause-code invalid number 0x1C if inbound dial-peer is not selected.

Examples

In the following example, the interface is shut down.

Router(config)# interface Serial4/1:15
Router(config-if)# shutdown

In the following example, integrated mode is enabled.

Router(config)# interface Serial4/1:15
Router(config-if)# isdn integrate calltype all
% This command line will enable the Serial Interface to "integrated service" mode.
% The "isdn incoming-voice voice" setting will be removed from the interface.
% Continue? [confirm]

When you confirm, the default incoming-voice configuration is removed from the interface, and the interface is now in integrated service mode. The interface does not reset back to voice mode if an incoming call is originated from the interface.

In the following example, the interface is set to active.

Router(config)# interface Serial4/1:15
Router(config-if)# no shutdown

Related Commands

Command
Description

dial-peer data tag pots

Creates a data dial peer and enters dial-peer configuration mode.

dial-peer search type

Optimizes voice or data dial-peer searches.

isdn incoming-voice

Routes all incoming voice calls to the modem and determine how they will be treated.


preemption enable

To enable preemption capability on a trunk group, use the preemption enable command in trunk group configuration mode. To disable preemption capabilities, use the no form of this command.

preemption enable

no preemption enable

Syntax Description

This command has no arguments or keywords.

Command Default

Preemption is disabled on the trunk group.

Command Modes

Trunk group configuration

Command History

Release
Modification

12.4(4)XC

This command was introduced.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Examples

The following command example enables preemption capabilities on trunk group test:

Router(config)# trunk group test
Router(config-trunk-group)# preemption enable

Related Commands

Command
Description

isdn integrate all

Enables integrated mode on an ISDN PRI interface.

max-calls

Sets the maximum number of calls that a trunk group can handle.

preemption guard timer

Defines time for a DDR call and allows time to clear the last call from the channel.

preemption level

Sets the preemption level of the selected outbound dial peer. Voice calls can be preempted by a DDR call with higher preemption level.

preemption tone timer

Defines the expiry time for the preemption tone for the outgoing call being preempted by a DDR backup call.


preemption guard timer

To define the time for a DDR call and to allow time to clear the last call from the channel, use the preemption guard timer command in trunk group configuration mode. To disable the preemption guard time, use the no form of this command.

preemption guard timer value

no preemption guard timer

Syntax Description

value

Number, in milliseconds for the preemption guard timer. The range is 60 to 500. The default is 60.


Command Default

No preemption guard timer is configured.

Command Modes

Trunk group configuration

Command History

Release
Modification

12.4(4)XC

This command was introduced.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Examples

The following set of commands configures a 60-millisecond preemption guard timer on the trunk group dial2.

Router(config)# trunk group dial2

Router(config-trunk-group)# preemption enable

Router(config-trunk-group)# preemption guard timer 60

Related Commands

Command
Description

isdn integrate all

Enables integrated mode on an ISDN PRI interface.

max-calls

Sets the maximum number of calls that a trunk group can handle.

preemption enable

Enables preemption capabilities on a trunk group.

preemption level

Sets the preemption level of the selected outbound dial-peer. Voice calls can be preempted by a DDR call with higher preemption level.

preemption tone timer

Sets the expiry time for the preemption tone for the outgoing call being preempted by a DDR backup call.


preemption level

To set the precedence for voice calls to be preempted by a dial-on demand routing (DDR) call for the trunk group, use the preemption level command in dial-peer configuration mode. To restore the default preemption level setting, use the no form of this command

preemption level {flash-override | flash | immediate | priority | routine}

no preemption level

Syntax Description

flash-override

Sets the precedence for voice calls to preemption level 0 (highest).

flash

Sets the precedence for voice calls to preemption level 1.

immediate

Sets the precedence for voice calls to preemption level 2.

priority

Sets the precedence for voice calls to preemption level 3.

routine

Sets the precedence for voice calls to preemption level 4 (lowest). This is the default.


Command Default

The preemption level default is routine (lowest).

Command Modes

Dial-peer configuration

Command History

Release
Modification

12.4(4)XC

This command was introduced.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Examples

The following command example sets a preemption level of flash (level 1) on POTS dial-peer 20:

Router(config)# dial-peer voice 20 pots
Router(config-dial-peer)# preemption level flash

Related Commands

Command
Description

dialer preemption level

Sets the precedence for voice calls to be preempted by a DDR call for the dialer map.

isdn integrate all

Enables integrated mode on an ISDN PRI interface.

max-calls

Sets the maximum number of calls that a trunk group can handle.

preemption enable

Enables preemption capabilities on a trunk group.

preemption guard timer

Defines time for a DDR call and allows time to clear the last call from the channel.

preemption tone timer

Defines the expiry time for the preemption tone for the outgoing call being preempted by a DDR backup call.


preemption tone timer

To set the expiry time for the preemption tone for the outgoing call being preempted by a DDR backup call, use the preemption tone timer command in trunk group configuration mode. To clear the expiry time, use the no form of this command. To set the expiry time to the default (10 seconds), use the default form of this command.

preemption tone timer seconds

no preemption tone timer

default preemption tone timer

Syntax Description

seconds

Number of seconds for the preemption tone. The range is 4 to 30 seconds. The default is value is 10.


Command Default

No preemption tone timer is configured.

Command Modes

Trunk group configuration

Command History

Release
Modification

12.4(4)XC

This command was introduced.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Examples

The following set of commands configures a 20-second preemption tone timer on trunk group dial2.

Router(config)# trunk group dial2

Router(config-trunk-group)# preemption enable

Router(config-trunk-group)# preemption tone timer 20

The default value is 10 seconds. To change back to the default value, enter the following command:

Router(config-trunk-group)# default preemption tone timer

Related Commands

Command
Description

isdn integrate all

Enables integrated mode on an ISDN PRI interface.

max-calls

Sets the maximum number of calls that a trunk group can handle.

preemption enable

Enables preemption capabilities on a trunk group.

preemption level

Sets the preemption level of the selected outbound dial peer. Voice calls can be preempted by a DDR call with higher preemption level.


show trunk group

To display one or more trunk groups, use the show trunk group command in privileged EXEC mode.

show trunk group [name | sort {ascending | descending}]

Syntax Description

name

(Optional) Trunk group to display.

sort

(Optional) Sorts the output by trunk group number, in ascending or descending order.

ascending

Specifies ascending display order for the trunk groups. This is the default.

descending

Specifies descending display order for the trunk groups.


Command Default

Ascending order

Command Modes

Privileged EXEC

Command History

Release
Modification

12.2(11)T

This command was introduced.

12.3(11)T

This command was enhanced to support dial-out trunk groups.

12.4(4)XC

This command was implemented on the Cisco 2600XM series, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series.

12.4(9)T

This command was integrated into Cisco IOS Release 12.4(9)T.


Usage Guidelines

Use the name argument to display the information for a specific trunk group.

Use the sort keyword to display all the trunks groups in either ascending or descending order.

Examples

The following sample output shows that for trunk group 1, preemption is enabled, with a preemption tone timer of 10 seconds, and the preemption level is flash.

Router# show trunk group 1
Trunk group: 1
        Description:
        trunk group label: 1

        Translation profile (Incoming):
        Translation profile (Outgoing):

        Preemption is enabled
        Preemption Tone Timer is 10 seconds
        Preemption Guard Timer is 60 milliseconds

        Hunt Scheme is least-used
        Max Calls (Incoming):   NOT-SET (Any)   NOT-SET (Voice) NOT-SET
(Data)
        Max Calls (Outgoing):   NOT-SET (Any)   NOT-SET (Voice) NOT-SET
(Data)
        Retries: 0

        Trunk Se0/3/0:15        Preference DEFAULT
                Member Timeslots : 1-5
                Total channels available : 5
                Data = 0, Voice = 0, Modem = 0, Pending = 0, Free = 5
        Trunk Se0/3/1:15        Preference DEFAULT
                Member Timeslots : 1-2
                Total channels available : 0
                Data = 0, Voice = 0, Modem = 0, Pending = 0, Free = 0
        Trunk Se1/0/0:15        Preference DEFAULT
                Member Timeslots : 1-31
                Total channels available : 0
                Data = 0, Voice = 0, Modem = 0, Pending = 0, Free = 0
        Trunk Se1/0/1:15        Preference DEFAULT
                Member Timeslots : 1-10
                Total channels available : 0
                Data = 0, Voice = 0, Modem = 0, Pending = 0, Free = 0

        Total calls for trunk group: Data = 0, Voice = 0, Modem = 0
                                     Pend = 0, Free = 5

        Preemption Call Type:   Active  Pending
                Flash-Override  NA      0
                Flash           0       0
                Immediate       0       0
                Priority        0       0
                Routine         0       0

                Total           0       0

        Active preemption call-type shows the number of calls
        of each priority level which can be preempted by
        higher preemption level calls.

        Pending preemption call-type shows the number of calls
        of each priority level which are pending for the completion
        of call preemption.

        advertise_flag 0x00000040, capacity timer 25 sec tripl_config_mask 0x00000000
        AC_curr 5, FD_curr 0, SD_curr 0

        succ_curr 0 tot_curr 1
        succ_report 0 tot_report 1
        changed 1 replacement position 0

Table 2 describes the significant fields shown in the output. Fields are listed in alphabetical order.

Table 2 show trunk group Field Descriptions

Field
Description

Data

Number of currently used data channels on the trunk or total data calls used by the trunk group.

Description

Description of the trunk group if entered with the description (trunk group) command.

Free

Number of currently available channels on the trunk or total available calls for the trunk group.

Hunt Scheme

Name of the idle channel hunt scheme used for this trunk group.

Max calls (incoming)

Maximum number of incoming calls handled by this trunk group.

Max calls (outgoing)

Maximum number of outgoing calls handled by this trunk group.

Member timeslots

Member timeslots for this trunk.

Pending

Number of pending channels.

Preemption Call Type

List of preemption levels for active and pending calls.

Preemption is

Indicates whether preemption is enabled or disabled.

Preemption level

The preemption level for voice calls to be preempted by a DDR call.

Preemption tone timer

The expiry time for the preemption tone for the outgoing calls being preempted by a DDR call.

Preference

Preference of the trunk in the trunk group. If DEFAULT appears, the trunk does not have a defined preference.

Retries

Number of times the gateway tries to complete the call on the same trunk group.

Total calls for trunk group

List of the total calls across all trunks in the trunk group.

Total channels available

Number of available channels for the trunk.

Translation profile (Incoming)

List of incoming translation profiles.

Translation profile (Outgoing)

List of outgoing translation profiles.

Trunk group

ID of the trunk group member.

trunk group label

Name of the trunk group.

Voice

Number of currently used voice channels on the trunk or total voice calls used by the trunk group.


Related Commands

Command
Description

description (trunk group)

Includes a specific description of the trunk group interface.

hunt-scheme least-idle

Specifies the method for selecting an available incoming or outgoing channel.

trunk group

Initiates a trunk group definition.

trunk group timeslots

Directs an outbound synchronous or asynchronous call initiated by DDR to use specific DS0 channels of an ISDN circuit.


Feature Information for Integrating Data and Voice Services for ISDN PRI Interfaces

Not all commands may be available in your Cisco IOS software release. For release information about a specific command, see the command reference documentation.

Cisco IOS software images are specific to a Cisco IOS software release, a feature set, and a platform. Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.


Note The following table lists only the Cisco IOS software release that introduced support for a given feature in a given Cisco IOS software release. Unless noted otherwise, subsequent releases of that Cisco IOS software release also support that feature.


History for the Integrating Data and Voice Services for ISDN PRI Interfaces Feature

Release
Modification

12.4(4)XC

This feature was introduced.

12.4(9)T

This feature was integrated into Cisco IOS Release 12.4(9)T.


Glossary

multi-level precedence and preemption (MLPP)—A service that allows placement of priority calls. Precedence designates the priority level that is associated with a call. Preemption designates the process of terminating lower-precedence calls so that a call of higher precedence can be extended.


Note See Internetworking Terms and Acronyms for terms not included in this glossary.


Copyright ©2006 Cisco Systems, Inc. All rights reserved.
