mGRE Tunnel Support over IPv6
Downloads: This chapterpdf (PDF - 1.39MB) The complete bookPDF (PDF - 5.86MB) | The complete bookePub (ePub - 1.28MB) | Feedback

mGRE Tunnel Support over IPv6

mGRE Tunnel Support over IPv6

The mGRE Tunnel Support over IPv6 feature enables service providers to deploy IPv6 in their core infrastructure.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Information About mGRE Tunnel Support over IPv6

mGRE Support over IPv6

Multiple sites of a Dynamic Multipoint Virtual Private Network (DMVPN) are interconnected by IPv6. A single logical multipoint generic routing encapsulation (mGRE) tunnel interface interconnects one VPN site to another. An IPv6 subnet connects a tunnel interface with other tunnel interfaces from various VPN sites. All tunnel interfaces connecting VPN sites act as hosts on the logical IPv6 subnet. This structure is referred to as the tunnel overlay network.

To enable service providers deploy IPv6 in their core infrastructure, mGRE tunnels over IPv6 are supported. DMVPN customers may run either IPv4 or IPv6 in their local networks, so the overlay endpoints can be either IPv4 or IPv6. For an IPv6 transport endpoint, the overlay endpoint can either be an IPv4 or IPv6 private network address.

GRE has a protocol field that identifies the passenger protocol. GRE tunnels allow Intermediate System-to-Intermediate System (IS-IS) or IPv6 to be specified as a passenger protocol, which allows both IS-IS and IPv6 traffic to run over the same tunnel. If GRE did not have a protocol field, it would be impossible to distinguish whether the tunnel was carrying IS-IS or IPv6 packets.

How to Configure mGRE Tunnel Support over IPv6

Configuring mGRE Tunnel Support over IPv6

Perform this task on the hub and spoke device of the multipoint generic routing encapsulation (mGRE) tunnel.

Before You Begin

Create a Next Hop Resolution Protocol (NHRP) ID to configure on a multipoint generic routing encapsulation (mGRE) tunnel.

For more information on configuring NHRP, see the “How to Configure NHRP” topic in the IP Addressing : NHRP Configuration Guide.

SUMMARY STEPS

    1.    enable

    2.    configure terminal

    3.    ipv6 unicast-routing

    4.    interface tunnel tunnel-number

    5.    description description-string

    6.    ipv6 address ip-address mask

    7.    ipv6 nhrp map mulitcast dynamic

    8.    ipv6 nhrp network-id network-id

    9.    ipv6 nhrp holdtime seconds

    10.    ipv6 nhrp nhs ipv6- nhs-address

    11.    tunnel source ip-address | ipv6-address | interface-type | interface-number

    12.    tunnel mode gre multipoint ipv6

    13.    end


DETAILED STEPS
     Command or ActionPurpose
    Step 1enable


    Example:
    Device> enable


    Enables privileged EXEC mode.

    • Enter your password if prompted.

    Step 2configure terminal


    Example:
    Device# configure terminal


    Enters global configuration mode.


    Step 3ipv6 unicast-routing


    Example:
    Device(config)# ipv6 unicast-routing


    Enables forwarding of IPv6 unicast datagrams.


    Step 4interface tunnel tunnel-number


    Example:
    Device(config)# interface tunnel 1


    Configures a tunnel interface and enters interface configuration mode.

    • The tunnel-number argument specifies the number of tunnel interfaces that you can create or configure. There is no limit on the number of tunnel interfaces that you can configure.


    Step 5description description-string


    Example:
    Device(config-if)# description DMVPN HUB


    Configures information specific to the interface.


    Step 6ipv6 address ip-address mask


    Example:
    Device(config-if)# ipv6 address 2001:0DB8:0C18:2::300/64


    Specifies the IPv6 address and mask of the hub.


    Step 7ipv6 nhrp map mulitcast dynamic


    Example:
    Device(config-if)# ipv6 nhrp map multicast dynamic


    Enables NHRP to initiate multipoint GRE tunnels to register their unicast NHRP mappings.


    Step 8ipv6 nhrp network-id network-id


    Example:
    Device(config-if)# ipv6 nhrp network-id 100


    Configures NHRP on an interface. The IPv6 NHRP network-id is a unique 32-bit network identifier from a nonbroadcast multiaccess (NBMA) network. The range is from 1 to 4294967295.


    Step 9ipv6 nhrp holdtime seconds


    Example:
    Device(config-if)# ipv6 nhrp holdtime 100


    Configures the time in seconds that NBMA addresses are advertised as valid in NHRP response.


    Step 10ipv6 nhrp nhs ipv6- nhs-address


    Example:
    Device(config-if)# ipv6 nhrp nhs 1101:1::1


    Specifies IPv6 prefix of one or more NHRP servers.


    Step 11tunnel source ip-address | ipv6-address | interface-type | interface-number


    Example:
    Device(config-if)# tunnel source ethernet 0


    Configures the source address of a tunnel interface.


    Step 12tunnel mode gre multipoint ipv6


    Example:
    Device(config-if)# tunnel mode gre multipoint ipv6


    Sets the encapsulation mode of the tunnel to mGRE IPv6.


    Step 13end


    Example:
    Device(config-if)# end


    Exits to global configuration mode.


    What to Do Next

    Verify the mGRE tunnel over IPv6.

    Verifying mGRE Tunnel Support over IPv6

    The show commands can be entered in any order.

    Before You Begin

    Configure mGRE tunnel over IPv6.

    SUMMARY STEPS

      1.    show interface tunnel tunnel-interface

      2.    show tunnel endpoints tunnel tunnel-interface

      3.    show ipv6 traffic


    DETAILED STEPS
      Step 1   show interface tunnel tunnel-interface

      This command displays information about the tunnel.



      Example:
      Device# show interface tunnel 1

      Tunnel1 is up, line protocol is down
      Hardware is Tunnel
      Description: DMVPN Spoke 1
      MTU 1456 bytes, BW 100 Kbit/sec, DLY 50000 usec,
      reliability 255/255, txload 1/255, rxload 1/255
      Encapsulation TUNNEL, loopback not set
      Keepalive not set
      Tunnel linestate evaluation down - transport reg down
      Tunnel source Ethernet1/0
      Tunnel Subblocks:
      src-track:
      Tunnel1 source tracking subblock associated with Ethernet1/0
      Set of tunnels with source Ethernet1/0, 1 member (includes iterators), on interface <OK>
      Tunnel protocol/transport multi-GRE/IPv6
      Key disabled, sequencing disabled
      Checksumming of packets disabled
      Tunnel TTL 255
      Tunnel transport MTU 1456 bytes
      Tunnel transmit bandwidth 8000 (kbps)
      Tunnel receive bandwidth 8000 (kbps)
      Last input never, output never, output hang never


      Step 2   show tunnel endpoints tunnel tunnel-interface

      This command displays tunnel interface endpoints and verifies if the tunnel is created correctly.



      Example:
      Device# show tunnel endpoints tunnel 1

      Tunnel 1 running in multi-GRE/IPv6 mode
      Endpoint transport 1101:2::1 Refcount 3 Base 0x2B83A87F83D8 Create Time 00:22:05
      overlay 1101:1::1 Refcount 2 Parent 0x2B83A87F83D8 Create Time 00:22:05
      Tunnel Subblocks:
      tunnel-nhrp-sb:
      NHRP subblock has 1 entries



      Step 3   show ipv6 traffic

      This command displays statistics about IPv6 traffic on a tunnel.



      Example:
      Device# show ipv6 traffic

      IPv6 statistics:
              Rcvd:  46 total, 34 local destination
                     0 source-routed, 0 truncated
                     0 format errors, 0 hop count exceeded
                     0 bad header, 0 unknown option, 0 bad source
                     0 unknown protocol, 0 not a router
                     0 fragments, 0 total reassembled
                     0 reassembly timeouts, 0 reassembly failures
              Sent:  54 generated, 0 forwarded
                     0 fragmented into 0 fragments, 0 failed
                     8 encapsulation failed, 0 no route, 0 too big
                     0 RPF drops, 0 RPF suppressed drops
              Mcast: 22 received, 21 sent

      ICMP statistics:
              Rcvd: 37 input, 0 checksum errors, 0 too short
                    0 unknown info type, 0 unknown error type
                    unreach: 0 routing, 0 admin, 0 neighbor, 0 address, 0 port
                             0 sa policy, 0 reject route
                    parameter: 0 error, 0 header, 0 option
                    0 hopcount expired, 0 reassembly timeout,0 too big
                    0 bad embedded ipv6
                    10 echo request, 0 echo reply
                    0 group query, 0 group report, 0 group reduce
                    0 router solicit, 7 router advert, 0 redirects
                    4 neighbor solicit, 6 neighbor advert
              Sent: 47 output, 0 rate-limited
                    unreach: 0 routing, 0 admin, 0 neighbor, 0 address, 0 port
                             0 sa policy, 0 reject route
                    parameter: 0 error, 0 header, 0 option
                    0 hopcount expired, 0 reassembly timeout,0 too big
                    0 echo request, 10 echo reply
                    0 group query, 0 group report, 0 group reduce
                    3 router solicit, 7 router advert, 0 redirects
                    6 neighbor solicit, 6 neighbor advert

      UDP statistics:
        Rcvd: 0 input, 0 checksum errors, 0 length errors
              0 no port, 0 dropped
        Sent: 0 output

      TCP statistics:
        Rcvd: 0 input, 0 checksum errors
        Sent: 0 output, 0 retransmitted

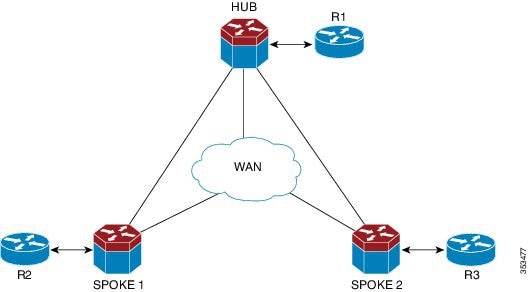

      Configuration Example for mGRE Tunnel over IPv6

      Example for mGRE Tunnel over IPv6

      mGRE Tunnel over IPv6

      Configuring mGRE tunnel over IPv6 transport.

      ! Configure the topology

      R1(config)# ipv6 unicast-routing
      R1(config)# ipv6 cef
      R1(config)# interface Ethernet0/1
      R1(config-if)# ipv6 address 2001:DB8:1111:1111::1/64
      R1(config-if)# no shutdown
      R1(config-if)# exit
      R1(config)# ipv6 route ::/0 2001:DB8:1111:1111::2

      ! Configure the tunnel interface on hub

      Hub(config)# ipv6 unicast-routing
      Hub(config)# interface tunnel 1
      Hub(config-if)# description DMVPN HUB
      Hub(config-if)# ipv6 address 2001:DB8:1111:4444::1/64
      Hub(config-if)# ipv6 nhrp map multicast dynamic
      Hub(config-if)# ipv6 nhrp network-id 100
      Hub(config-if)# ipv6 nhrp holdtime 100
      Hub(config-if)# tunnel source Ethernet0/1
      Hub(config-if)# tunnel mode gre multipoint ipv6

      ! Configure the physical interface on the hub

      Hub(config)# ipv6 unicast-routing
      Hub(config)# interface Ethernet0/0
      Hub(config-if)# ipv6 address 2001:DB8:1111:2222::1/64
      Hub(config-if)# no shutdown
      Hub(config-if)# exit
      Hub(config)# ipv6 route ::/0 2001:DB8:1111:2222::2


      ! Configure the tunnel interface on spoke

      Spoke1(config)# ipv6 unicast-routing
      Spoke1(config)# interface tunnel 1
      Spoke1(config-if)# description DMVPN Spoke 1
      Spoke1(config-if)# ipv6 address 2001:DB8:1111:4444::2/64
      Spoke1(config-if)# ipv6 nhrp map multicast dynamic
      Spoke1(config-if)# ipv6 nhrp map 2001:DB8:1111:4444::1/64 2001:DB8:1111:3333::1
      Spoke1(config-if)# ipv6 nhrp map multicast 2001:DB8:1111:3333::1
      Spoke1(config-if)# ipv6 nhrp network-id 100
      Spoke1(config-if)# ipv6 nhrp holdtime 100
      Spoke1(config-if)# ipv6 nhrp nhs 2001:DB8:1111:4444::1
      Spoke1(config-if)# tunnel source Ethernet0/0
      Spoke1(config-if)# tunnel mode gre multipoint ipv6

      ! Configure the physical interface on the spoke

      Spoke1(config)# interface Ethernet0/0
      Spoke1(config-if)# ipv6 address 2001:DB8:1111:2222::2/64
      Spoke1(config-if)# exit

      ! Configure the R2 device at the spoke

      R2(config)# interface Ethernet0/1
      R2(config-if)# ipv6 address 2001:DB8:1111:3333::1/64
      R2(config-if)# no shutdown
      R2(config-if)# exit
      R2(config)# ipv6 route 2001:DB8:1111:1111::/64 2001:DB8:1111:2222::1
