Introduction

This document is a how-to-use guide for provisioning services for use in Cisco Crosswork Hierarchical Controller.

The services supported are:

       Cisco Crosswork Hierarchical Controller for optical services:

         IP Link

         OCH Link

         OCH-NC Link

         OTN-Line

         SDH-Liner

         Circuit E-Line

         Packet E-Line

       Cisco Crosswork Hierarchical Controller for dynamic IP VPN services:

         L2-VPN

         L3-VPN

Note: The optical services are provisioned in Service Manager and the dynamic IP VPN services are provisioned via NSO. The dynamic IP services may be viewed in the Service Assurance application.

Architecture

The Crosswork Hierarchical Controller solution includes the Brain and embedded NSO. In the southbound interface, both the Brain and embedded NSO communicate with the domain controller.

A diagram of a software systemDescription automatically generated

Figure 1.

Crosswork Hierarchical Controller Architecture

In the Northbound interface:

       The embedded NSO provides an RESTCONF, IETF-based interface to L2-VPN and L3-VPN service CRUD (Create, Read, Update, Delete).

       The Brain provides a REST-based interface to get full topology, inventory, and TE paths, all using SHQL queries embedded into REST APIs, and get traffic utilization APIs for ports and TE tunnels.

Contents

The document contains the following sections and explains:

       The need for services management

       Tunnels

       Point to Point

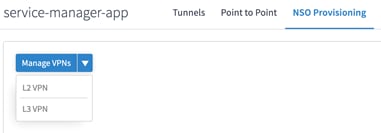

       NSO Provisioning

       Service Settings

       Service Manager Operations

       Network Services Orchestrator Crosswork Hierarchical Controller - Function Pack Appendix

Terminology

Table 1.           Terms

Term

Definition

Adapter

The software used by Cisco Crosswork Hierarchical Controller to connect to devices or to device managers.

Agg link

A Link Aggregation Group (LAG) where multiple ETH links are grouped to create higher bandwidth and resilient link.

BGP

Border Gateway Protocol

Circuit E-Line

An Ethernet connection between two ETH client ports on Transponder or Muxponder over OTN signal.

CNC

Cisco Crosswork Network Controller.

CO

Domain controller.

Device

Optical network element, router, or microwave device.

Device Manager

The application that manages the deployed adapters.

eMBB

Enhanced Mobile Broadband.

ETH link

An ETH L2 link that spans from one ETH UNI port of an optical device to another, and rides on top of ODU.

ETH chain

A link whose path is a chain of Ethernet links cross-subnet-connected (found using Crosswork Hierarchical Controller cross-mapping algorithm). Eth-chain is a replacement for R_PHYSICAL link in cases where one side of the link is in a device out of the scope discovered by Crosswork Hierarchical Controller.

Fiber segment

Physical fiber line that spans from one passive fiber endpoint (manhole, splice etc.) to another and is used as a segment in a fiber link.

Fiber

Chain of fiber segments that spans from one optical device to another.

GIS

Geographic Information System.

IGP

The link between two routers that carries IGP protocol messages. The link represents an IGP adjacency.

IP-MPLS

IP multi-protocol label switching.

L3-VPN link

The connection between two sites of a specific L3-VPN (can be a chain of LSP connections or IGP path).

L3 physical

L3 physical is the physical link connecting two router ports. It may ride on top of an ETH link if the IP link is carried over the optical layer.

L3-VPN

A virtual private network based on L3 routing for control and forwarding.

Logical link, IGP, LSP

Logical link connects VLANs on two IP ports.

LSP

Label Switched Path, used to carry MPLS traffic over a label-based path. LSP is the MPLS tunnel created between two routers over IGP links, with or without Traffic Engineering (TE) options.

NMC (OCH-NC, OTSiMC)

The link between the xPonder facing ports on two ROADMs. This link is the underlay for OCH and it is an overlay on top of OMS links. This is relevant only for disaggregation cases where the ROADM and OT box are separated.

NMS

Network Management System.

Nokia NSP

Nokia Network Service Provider.

OC/OCG

SONET/SDH links that span from one optical device to another and carry SONET/SDH lower bandwidth services, the links ride on top of OCH links and terminate in TDM client ports.

OCH

OCH is a wavelength connection spanning between the client port one OT device (transponder, muxponder, regen) and another. 40 or 80 OCH links can be created on top of OMS links. The client port can be a TDM or ETH port.

OCH-NC

 Wavelength link. New service is added as NMC link.

ODU

ODU links are sub-signals in OTU links. Each OTU links can carry multiple ODU links, and ODU links can be divided into finer granularity ODU links recursively.

ONC

Cisco Optical Controller (ONC).

OSPF

Open Shortest Path First, an Interior Gateway Protocol between routers.

OTN-Line

An OTN connection between two ODU client ports over OTN path.

OTS

OTS is the physical link connecting one line amplifier or ROADM to another. An OTS can be created over a fiber link.

out

OTU is the underlay link in OTN layer, used for ODU links. It can ride on top of an OCH.

Packet E-Line

A point-to-point connection between two routers or transponders/muxponders over MPLS-TP or IP-MPLS.

PCC

Path Computation Client. Delegated to controller. Router is responsible for initiating path setup and retains the control on path updates.

PCE

Path Computation Element. Controller-initiated.

QAM

Quadrature Amplitude Modulation.

QPSK

Quadrature Phase Shift Keying modulation. This carries less information per symbol than QAM modulation.

Radio Media

The media layer as a carrier of radio channels.

Radio Channel

Multiple radio channels can be on top of radio media, each channel represents a different ETH link with its own rate.

RD

Route Distinguisher.

RSVP-TE

Resource Reservation Protocol to control traffic engineered paths over MPLS network .

RT

Route Target.

SCH

A super-channel is an evolution of DWDM in which multiple, coherent optical carriers are combined to create a unified channel of a higher data rate, and which is brought into service in a single operational cycle.

SDH-Line

SDH line between STM-64 or STM-256 ports.

SDN Controller

Software that manages multiple routers or optical network elements.

SR Policy

Segment Routing Policy. A segment routing path between two nodes, with mapping to the IGP links based on SIDs list.

STS

Large and concatenated TDM circuit frame (such as STS-3c) into which ATM cells, IP packets, or Ethernet frames are placed. Rides on top of OC/OCG as optical carrier transmission rates.

TDM

Time Division Multiplexing.

uRLLC

Ultra-Reliable Low Latency Communications.

VRF

Virtual Routing Function, acts as a router in L3-VPN.

ZR Media

The media layer as a carrier of ZR channels, on top of OCH link.

ZR Channel

Multiple ZR channels can be on top of ZR media, each channel represents a different IP link with its own rate.




Service Provisioning

Crosswork Hierarchical Controller supports the creation of new transport client services and photonic services.

Crosswork Hierarchical Controller abstracts the service model and provides users with a simple and intuitive user interface to provision new services.

It is assumed that domain controller implicitly handles the creation/use of the underlay path (OTSiMC, OTN, MPLS-TP) as required to fulfil the service request.

The table below defines the required parameters per service type.

Crosswork Hierarchical Controller requires the optical controller to support the connectivity-service API by TAPI. A proper use of the layers is needed per the service type.

Table 2.           Provisioning parameters

Service Type

Provisioning Parameters

IP Links

     Service name

     Service ID

     Link rate mode

     Endpoints and transmit power

     Link IP addresses

     L Band/C Band

     Frequency

     Digital-to-Analog Converter (DAC) rate

     Modulation

     Included nodes/links in path

     Excluded nodes/links from path

     Disjoint from a path of an existing service

OCH-NC/OTSiMC (between ROADMs)

     Service name

     Service ID

     Bandwidth

     Baud rate

     Frequency

     Protection option (1+1, 1+1+r)

     Endpoints

     Optimization goal (minimize path by admin cost, latency, or number of hops)

     Per path, for main, redundant, and restored paths

         Included nodes/links in path

         Excluded nodes/links from path

     Disjoint from a path of an existing service

Photonic Services (OCH Trail between OT/Transponders)

     Service name

     Service ID

     Bandwidth

     Baud rate

     Frequency

     Protection option (1+1, 1+1+r)

     Endpoints

     Optimization goal (minimize path by admin cost, latency, or number of hops)

     Per path, for main, redundant, and restored paths

         Included nodes/links in path

         Excluded nodes/links from path

     Disjoint from a path of an existing service

Circuit E-Line /OTN Line/SDH Line

     Service name

     Service ID

     ODU signal/ETH rate/SDH STM rate

     Protection option (1+1, 1+1+r)

     Endpoints

     Optimization goal (minimize path by admin cost, latency, or number of hops)

     Per path, for main, redundant, and restored paths

         Included nodes/links in path

         Excluded nodes/links from path

     Disjoint from a path of an existing service

Packet E-Line

     Service name

     Service ID

     Protection option (1+1, 1+1+r)

     Endpoints

         CIR/EIR

         VLAN IDs

     Optimization goal (minimize path by admin cost, latency, or number of hops)

     Per path, for main, redundant, and restored paths

         Included nodes/links in path

         Excluded nodes/links from path

     Disjoint from a path of an existing service

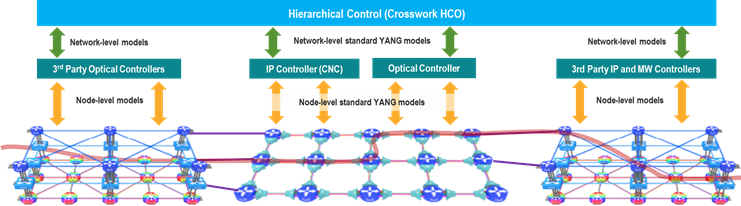

Crosswork Hierarchical Controller in Brief

The Crosswork Hierarchical Controller product family is a set of software applications built on a common Crosswork Hierarchical Controller platform, designed to accelerate automation and to increase efficiency and reliability of service providers networks. Crosswork Hierarchical Controller addresses the role of the multi-domain, multi-layer, and multi-vendor network controller.

This innovative capability to learn the mapping between IP/MPLS and optical layer ports (cross-layer mapping) is key to providing a comprehensive view of the network. This has historically been a very difficult problem to solve since there are no standards to automatically provide discovery of such links. This process applies to IP/MPLS-optical links, as well as to cross-domain optical links.

Achieving automation of the complete process, without compromising on resiliency must involve fibers discovery and GIS information. Both enable the understanding of risks in planning phases and crucial information to assess failure impact on services in operations.

Crosswork Hierarchical Controller is fully multi-layer and multi-vendor. The system interfaces with SDN Domain Controllers for the packet layers (IP, MPLS) and transport layers (WDM, OTN, Packet-Optical, Microwave) to create a coherent view of the entire transport network, as shown in Figure 1 below, and enables automation of its functions and simplified abstracted interaction with Service Orchestrators and OSS tools.



TimelineDescription automatically generated

Figure 2.

Transport SDN Architecture


Service Management – The Need

Service Manager is a key Cisco Crosswork Hierarchical Controller application that allows for the creation of L1-L3 services and L1-L3 underlay tunnels and links across the entire SP network.

Crosswork Hierarchical Controller can discover L1-L3 services from area/domain controllers. It can discover intra-domain and inter-domain E-Line and L3-VPN services while completing the information on all LSPs along the path, VRFs, and all inter-AS options. This allows Crosswork Hierarchical Controller to discover existing services, as well as new services it has provisioned.

Crosswork Hierarchical Controller supports service lifecycle state (provisioned, pending, planned), operational state and admin state.

Basic service instantiation is supported by the Domain Controller for each domain. However, none of the Domain Controllers understand how to achieve a globally optimal path for an end-to-end service.

Using its own global Path Computation Element (PCE), Crosswork Hierarchical Controller can calculate the optimal end-to-end multidomain path for the service, set it up in each Domain Controller and make sure the service parts are stitched together across domain boundaries.

In fact, a service can span different layers for its delivery. For example, an E-Line service can start on an OTN metro network, then be handed off to the MPLS core network, where it is carried over a pseudowire (PW) in an MPLS tunnel, and then over a packet-optical access network to its final destination. Crosswork Hierarchical Controller figures out which layers should be used to set up the service, based on user-defined policies.

Crosswork Hierarchical Controller supports IP services as defined by IETF in L2NM, L3NM and optical services as defined by ONF TAPI interface.

Crosswork Hierarchical Controller abstracts the service configuration and provides simple, intent-based API and UI to create new services with endpoint details, SLA, and associations to a predefined template that can be overridden for better adjustment.

Services and tunnels currently supported for provisioning and modification by the Service Manager:

       Tunnels:

         RSVP-TE tunnel over single domain

         SR policy over single domain

       Point-to-Point:

         IP links between two routers over ZR/+ and over alien lambda (as multi-vendor optical network)

         OCH Link

         OCH-NC Link

         OTN Line

         SDH Line

         Circuit E-Line

         Packet E-Line over packet-optical network

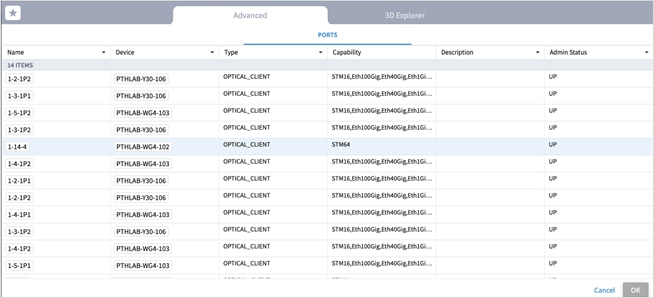

Endpoints can be added to the UI wizard by selecting them from the inventory. Ports enabled for selection are those applicable for the service type. Per endpoint, the bandwidth can be defined (as CIR, EIR, CBS, PBS) and VLAN and COS classification can be added.

Crosswork Hierarchical Controller has a sophisticated global multilayer PCE to calculate services and underlay paths. The calculation is based on the selected criteria: number of hops, latency, or admin cost. It also considers the preferences for protection, diversity, SRLG, specific links, devices, or service paths to include or exclude, and resources available per the requested bandwidth.

PCE works over multiple domains, where it can calculate paths’ diversity between domains as a full path of end-to-end service.

Depending on the implementation, PCE knows how to work with vendor-specific capabilities and constraints and how to verify the feasibility of a path before putting it in action.

Creation of a service is managed as a network transaction. Commands are sent to all participating Domain Controllers. Upon completion, the configuration undergoes validation in all domains before notifying the user of configuration success. In the event of failure, PCE knows to roll back and leave no broken configuration in any Domain Controller.

This transaction mechanism knows how to overcome a failure in Crosswork Hierarchical Controller because the backup system can continue tracking the transaction and act according to the response from the Domain Controllers.

Each action on a service or tunnel (creation, modification, deletion) done via the UI or via APIs is recorded as an operation. An operation contains the full details of the action and its results, log of the service scheme sent to the controllers, the returned results, error messages from domain controllers, and the operation status.

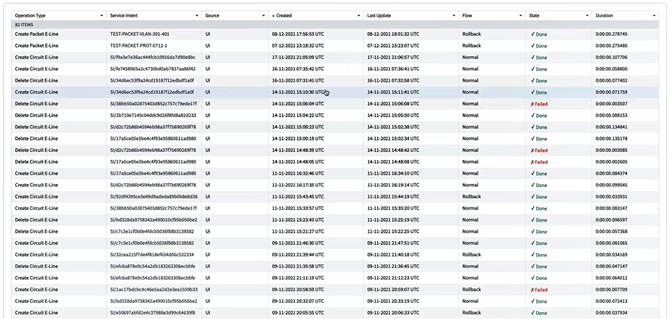

Operations can be viewed per selected service or tunnel and as a list of all operations.




Brownfield Services

Service Manager allows you to view and delete services that were not created by Crosswork Hierarchical Controller but are discovered and managed by the CO (domain controller). For these services, they appear as Is Brownfield: True.

The following delegated service types are supported: Packet E-Line, Circuit E-Line, OTN‑Line, and OCH (Wavelength) services.

Tunnels

A tunnel is a unidirectional link between source and destination routers, riding over IGP links with only primary, or primary and secondary LSPs. You can create tunnels of type:

       RSVP

       SR Policy

View Tunnels

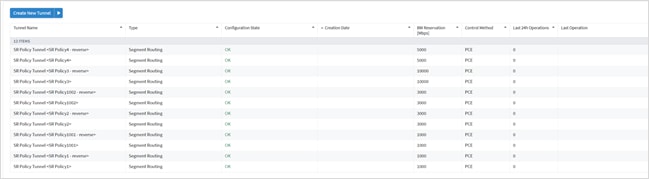

You can view a list of the tunnels.

To view tunnels:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Tunnels. A list of the tunnels appears in the Tunnels pane with the following information:

         Tunnel Name: The tunnel name.

         Type: The type of tunnel, for example, Segment Routing.

         Configuration State: The configuration state (OK, ABANDONED, REMOVED).

         Creation Date: The date the tunnel was created.

         BW Reservation (Mbps): The bandwidth reserved for the tunnel.

         Control Method: The control method: by device (PCC) or by controller (PCE).

         Last 24H Operations: The volume of operations in last 24 hours.

         Last Operation: The last operation executed on the tunnel.

Graphical user interface, application, TeamsDescription automatically generated

2.    Select the required tunnel.

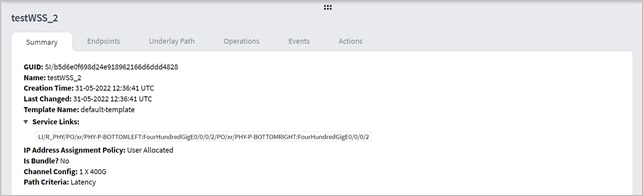

3.    To view more tunnel details, see the lower pane view with the following tabs:

         Summary: Additional details about the tunnel, such as, Description, Admin State.

         Endpoints: The source and destination endpoint details.

         Underlay Path: The underlay path items traversed by the tunnel.

         Operations: The tunnel operations.

         Events: The tunnel events.

         Actions: The modification actions (if applicable) and the option to Delete Tunnel.

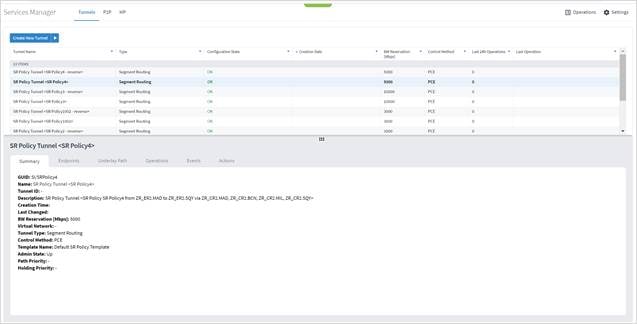

Graphical user interface, application, tableDescription automatically generated

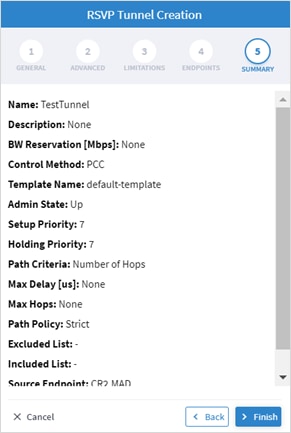

Add RSVP Tunnel

You can create an RSVP tunnel between source and target endpoints, with a bandwidth reservation, controlled by device or controller, associate with a specific virtual network. Various advanced settings and limitations (items to be included or excluded from the path) can be added. An RSVP tunnel can only be created over a single domain.

To add a RSVP tunnel:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

2.    Click Create New Tunnel.

3.    Select RSVP.

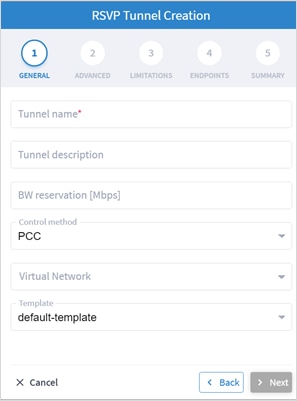

Graphical user interface, text, application, emailDescription automatically generated

4.    Specify the following GENERAL settings:

         Tunnel name: The unique user defined name of this tunnel.

         Tunnel description: A description of the tunnel.

         BW reservation (Mbps): The bandwidth reserved for this tunnel.

         Control method: The control method, by device (PCC) or by controller (PCE).

         Virtual Network: The virtual network (tunnels can be grouped using tags to construct a virtual network. L3-VPN can be assigned to specific virtual network).

         Template: This is not available in the current version (there is a default-template).

5.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

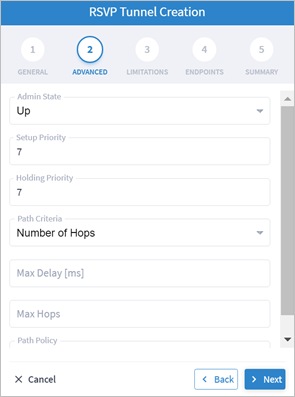

6.    Specify the following ADVANCED settings:

         Admin State: The admin state (Up or Down).

         Setup Priority: The setup priority (between 0 and 7). Default is 7.

         Holding Priority: The holding priority (between 0 and 7). Default is 7.

         Path Criteria: The path control method (Number of Hops or Latency or Admin Cost).

         Max Delay (ms): The maximum permissible delay in 100 of ms (between 0 to 500). Only relevant when the path criteria is set to Latency.

         Max Hops: The maximum number of hops (between 1 to 100). Only relevant when path criteria is set to Number of Hops.

         Path Policy: Select a policy (Strict or Loose). If Strict, must include the list of nodes and IGP links to be included in the new tunnel path.

7.    Click Next.

Graphical user interface, text, applicationDescription automatically generated

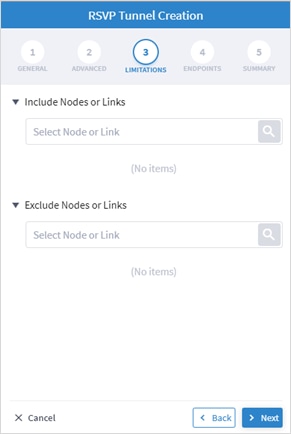

8.    Specify the following LIMITATIONS settings:

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

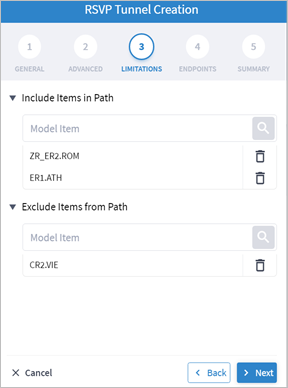

Graphical user interface, applicationDescription automatically generated

9.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

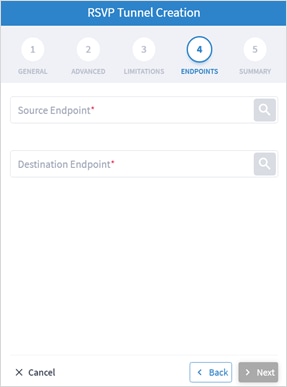

10.  Specify the following ENDPOINTS settings:

         Source Endpoint: Click IconDescription automatically generatedand select the node (router) or IGP interface as the source endpoint.

         Destination Endpoint: Click IconDescription automatically generatedand select the node (router) or IGP interface as the destination endpoint.

11.  Click Next.

12.  Review the SUMMARY.

Graphical user interface, application, WordDescription automatically generated

13.  Click Finish.

Add SR Policy Tunnel

The Crosswork Hierarchical Controller network model supports Segment Routing (SR) Policies and SR Segments over IGP links, and the Crosswork Hierarchical Controller adapters can discover policies from network controllers, with their SID list, color, preference, and candidate path attributes. It maps all discovered policies to create SR Segments as a layer between IGP links and SR policies. An SR Segment is the path between two SIDs, shared by multiple SR policies. An SR Policy tunnel can only be created over a single domain.

To add an SR Policy tunnel:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

1.    Click Create New Tunnel.

2.    Select SR Policy.

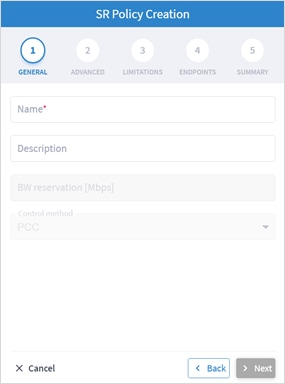

Graphical user interface, text, application, emailDescription automatically generated

3.    Specify the following GENERAL settings:

         Name: The unique user defined name of this SR Policy.

         Description: A description of the SR Policy.

4.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

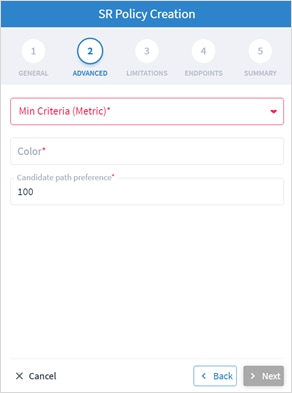

5.    Specify the following ADVANCED settings:

         Min Criteria (Metric): The criteria metric to minimize (IGP, TE, Delay or Number of Hops).

         Color: The SR Policy color (a unique identifier of the policy). This is a numerical value that distinguishes between two or more policies to the same node pairs.

         Candidate path preference: The candidate path preference (integer value). The highest preference path is the active one. Multiple candidate paths per policy are currently not support.

6.    Click Next.

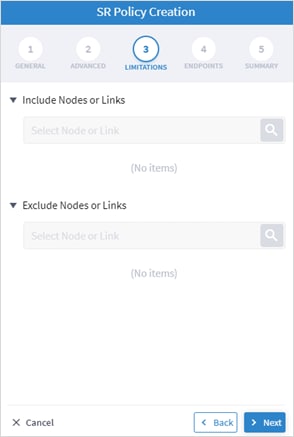

Graphical user interface, applicationDescription automatically generated

7.    Specify the following LIMITATIONS settings:

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select node or IGP link, or click on the 3D Explorer tab to select node or IGP link.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

8.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

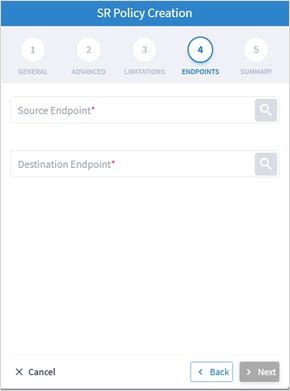

9.    Specify the following ENDPOINTS settings:

         Source Endpoint: Click IconDescription automatically generatedand select the node (router) or IGP interface as the source endpoint.

         Destination Endpoint: Click IconDescription automatically generatedand select the node (router) or IGP interface as the destination endpoint.

10.  Click Next.

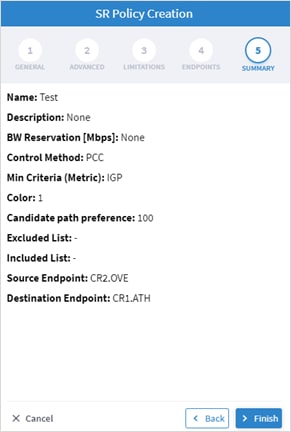

11.  Review the SUMMARY.

Related image, diagram or screenshot

12.  Click Finish.



Delete Tunnel

To delete a tunnel:

1.    In the applications bar in Crosswork Hierarchical Controller, select Device Manager.

2.    Select a tunnel.

3.    Select the Actions tab.

4.    Click Delete Tunnel. A confirmation message appears.

5.    Click Confirm. The tunnel is deleted.

Point-to-Point

You can create a point-to-point service of type:

       IP Link

       OCH Link

       OCH-NC Link

       OTN-Line

       SDH-Line

       Circuit E-Line

       Packet E-Line



View Point to Point

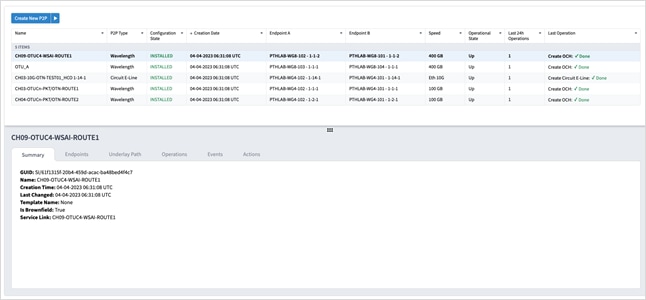

You can view a list of the Point to Point services.

To view PSP services:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Point to Point. A list of the point-to-point services appears in the Point to Point pane.

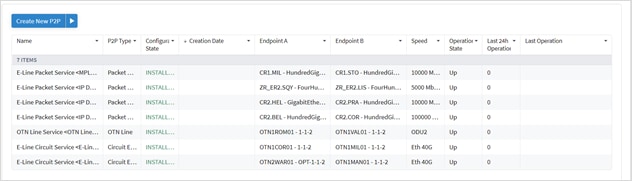

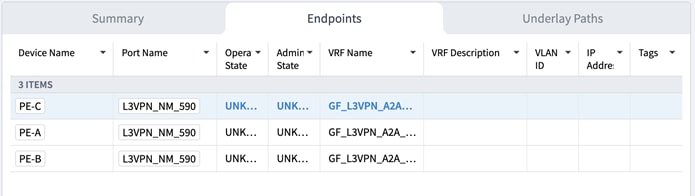

A screenshot of a computerDescription automatically generated

2.    Select the required point-to-point service.

3.    To view more point to point link details, see the lower pane view with the following tabs:

         Summary: Additional details about the point to point links.

         Endpoints: The source and destination endpoint details.

         Underlay Path: The underlay path items traversed by the link.

         Operations: The point to point link operations.

         Events: The point to point link events.

         Actions: The modification actions (if applicable) and the option to Delete P2P.



Graphical user interface, text, application, emailDescription automatically generated

For services that were created by using the MCP controller and not the Services Management application, the service appears as Is Brownfield: True. The Crosswork Hierarchical Controller MCP adapter discovers these services and creates service intent for each of them. The following delegated service types are supported: Packet E-Line, Circuit E-Line, OTN‑Line, SDH-Line and OCH (Wavelength) services.

Graphical user interface, applicationDescription automatically generated



Create IP Link

You can create an IP Link between two ZR pluggable components in routers (creating a new link or adding it to a LAG). Various advanced settings and limitations (such as node or link to be included in the path or excluded from the path of the OCH Link) can be added. The end-to-end service between ZR/+ ports may optionally traverse through OLSs (or ONEs, Optical Network Elements, Cisco, or 3rd party). Crosswork Hierarchical Controller decomposes the service into domains and provisions the optical line between ROADMs on the optical domain controller. The activation mode works directly from Crosswork Hierarchical Controller to IP and optical domain controllers (Cisco Crosswork Network Controller, ONC).

ZR and ZR+ pluggables manufactured by Cisco output a maximum of -10dBm. There are ROADM setups that can benefit from or require a stronger signal. The new ZR bright pluggable outputs 0dBm and is supported for IP provisioning. BRT appears in the device description, for example, Cisco QDD 400G BRT ZRP Pluggable Optics Module.



Related image, diagram or screenshot

You can create L Band and C Band links. L-Band introduces a second OMS over the line-side OTS.

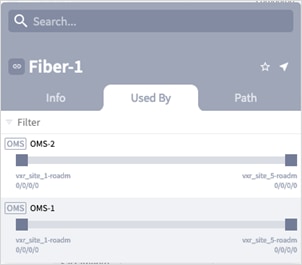

For example, Fiber-1 (OTS link is used) by two OMS-1 and OMS-2 (OMS links).

 Graphical user interface, applicationDescription automatically generated

With both L Band and C Band, for a single OTS there are 2 (or more) OMS links.

For example:

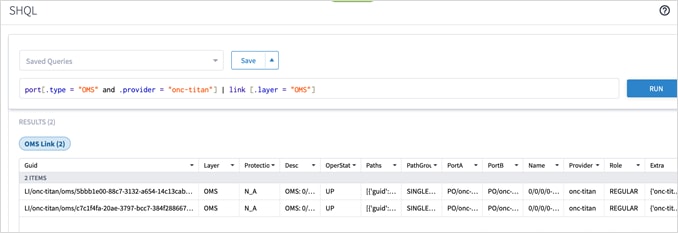

port[.type = "OMS" and .provider = "onc-titan"] | link [.layer = "OMS"]

Graphical user interface, application, tableDescription automatically generated

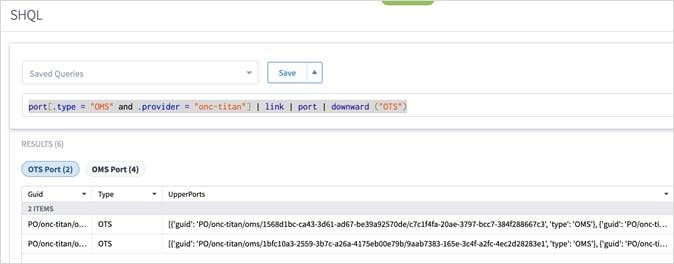

For a single OTS link, there are 2 OTS ports and 4 (or more) OMS ports where the UpperPorts field holds the “upper” OMS ports for each OTS port.

For example:

port[.type = "OMS"] | link | port | downward ("OTS")

Graphical user interface, text, application, emailDescription automatically generated

For more info on how to view links and ports in SHQL, see the Cisco Crosswork Hierarchical Controller NBI and SHQL Reference Guide.



To create an IP Link:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

2.    Select the Point to Point tab.

3.    Click IP Link.

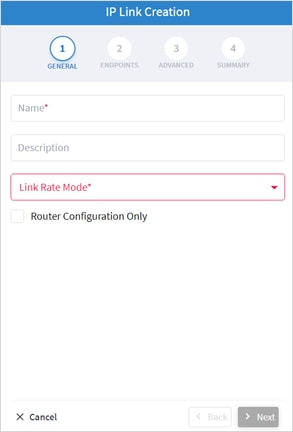

 Graphical user interface, text, application, emailDescription automatically generated

4.    Specify the following GENERAL settings:

         Name: Enter a name for the service.

         Description: Enter a description for the service.

         Link Rate Mode: Select a link rate mode, for example, 100G – 1x100G. Bundles are offered when the selected rate is for muxponder mode. From version 7.0, a bundle option is offered for 400G.

         Router Configuration Only: Select this option when configuring a router only (direct routers connections, not via OLS).

5.    Click Next.

 Graphical user interface, applicationDescription automatically generated

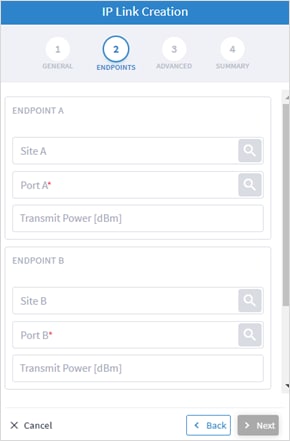

6.    Specify the following ENDPOINTS settings:

         Site A: Click IconDescription automatically generated and in the Advanced tab, select a site, or click on the 3D Explorer tab to select a site.

         Port A: Click IconDescription automatically generated and in the Advanced tab, select an OCH port, or click on the 3D Explorer tab to select a port. If the port selected is an adjacency port, endpoint B is automatically updated and cannot be edited.

         Transmit Power (dBm): Select the transmit power for Endpoint A.

         Site B: Click IconDescription automatically generated and in the Advanced tab, select a site, or click on the 3D Explorer tab to select a site.

         Port B: Click IconDescription automatically generated and in the Advanced tab, select an OCH port, or click on the 3D Explorer tab to select a port.

         Transmit Power (dBm): Select the transmit power for Endpoint B.

         LINK #1 IP ADDRESSES: Enter the IP Address A (CIDR) and IP Address B (CIDR).

         (Optional depending on the Link Rate Mode selected) Enter the LINK #2 IP ADDRESSES, LINK #3 IP ADDRESSES and LINK #4 IP ADDRESSES.

7.    Click Next.

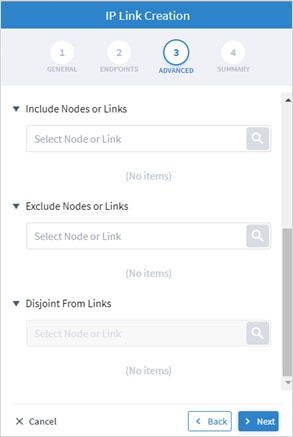

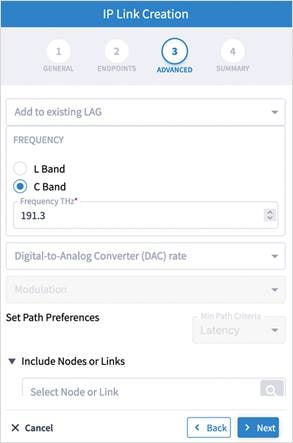

 Graphical user interface, applicationDescription automatically generated

Graphical user interface, applicationDescription automatically generated

8.    Specify the following ADVANCED settings:

         Add to existing LAG: Select one of the existing LAGs (bundles) between the two selected routers. This option is only available if there is a bundle already configured between the routers.

         Frequency: Select L Band or C Band and specify the Frequency Thz for this link. L-Band introduces a second OMS over the line-side OTS.

         Digital-to-Analog Converter (DAC) rate: The DAC rate is only relevant for ZR+ and bright ZR port selection. For 100G, there is no need to change the DAC rate. Select 1 X 1 (standard compatible mode) or 1 X 1.25 (Cisco-proprietary mode if both ends of the link are Cisco pluggables). For QAM modulation, only 1 x 1.25 is supported.

         Modulation: Select 8 QAM, 16 QAM or QPSK (default) to reduce the baud rate for 200G links. It is not necessary to apply modulation to 100G, 300G or 400G links as the correct modulation is automatically applied: 100G (QPSK), 300G (8 QAM) and 400G (16 QAM).

         Set Path Preferences: Not enabled. Set to Latency.

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a ONE node or OTS/OMS link, or click on the 3D Explorer tab to select the required item.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a ONE node or OTS/OMS link, or click on the 3D Explorer tab to select the required item.

         Disjoint From Link: Not enabled.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

9.    Click Next.

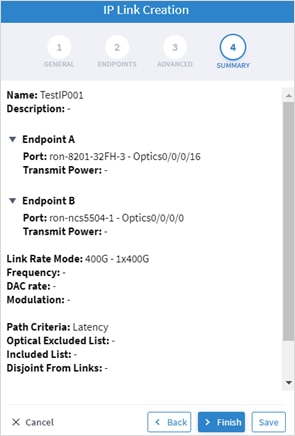

 Graphical user interface, applicationDescription automatically generated

10.  Review the SUMMARY.

11.  Click Finish.



Create OCH Link

You can create an OCH Link between line side of Transponders/Muxponders, define its capacity, add 1+1 protection if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as nodes or links to be included or excluded from the OCH Link) can be added.

In this phase, the Transponder and the ROADM must be controlled by the same optical controller.

To create an OCH Link:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

2.    Select the Point to Point tab.

3.    Click OCH Link.

Graphical user interface, application, emailDescription automatically generated

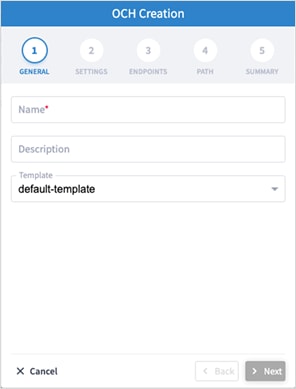

4.    Specify the following GENERAL settings:

         Name: The unique user defined name of this link.

         Description: A description of the link.

5.    Click Next.

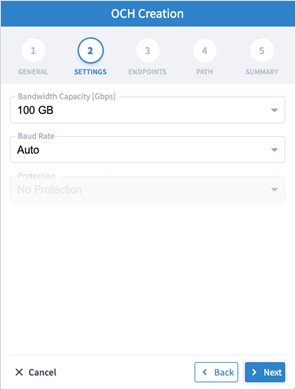

Graphical user interface, text, application, emailDescription automatically generated

6.    Specify the following SETTINGS:

         Bandwidth Capacity (Gbps): The bandwidth capacity for this OCH link (100 GB, 200 GB, 300 GB, 400 Gb or 800 GB).

         Baud Rate: The baud rate for this IP link (Auto or 35 G or 56 G).

7.    Click Next.

Graphical user interface, applicationDescription automatically generated

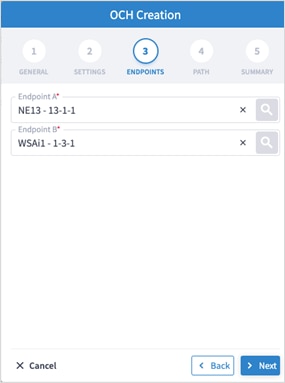

8.    Specify the following ENDPOINTS settings:

         Endpoint A: Click IconDescription automatically generated and in the Advanced tab, select an OCH endpoint, or click on the 3D Explorer tab to select an OCH endpoint.

         Endpoint B: Click IconDescription automatically generated and in the Advanced tab, select an OCH endpoint, or click on the 3D Explorer tab to select an OCH endpoint.

9.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

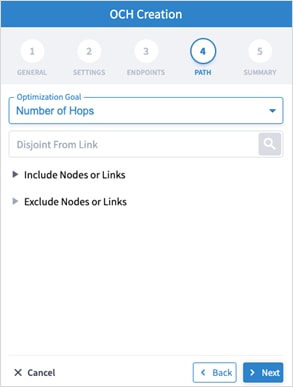

10.  Specify the following PATH settings:

         Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).

         Disjoint From Link: IconDescription automatically generated and in the Advanced tab, select an OCH link, or click on the 3D Explorer tab to select an OCH link. This means that the new OTN-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select an optical node or OMS link, or click on the 3D Explorer tab to select an optical node or OMS link.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select an optical node or OMS/OTS link, or click on the 3D Explorer tab to select an optical node or OMS/OTS link.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

11.  Click Next.

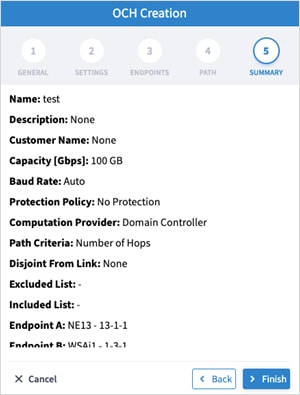

Graphical user interface, text, application, emailDescription automatically generated

12.  Click Finish.



Create OCH-NC Link

You can create an OCH-NC (or OTSiMC) link. This is the connection between client sides of ROADMs, the ports facing Transponder/Muxponder. You can define its capacity, add 1+1 protection if required, and optimize based on number of hops or admin cost. Various advanced settings and limitations (such as nodes or links to be included or excluded from the OCH-NC Link) can be added.

Before using this wizard, go to the Settings page and upload a file of app codes. Once the file is uploaded, the wizard enables you to select specific codes, which selects an item from the list in the uploaded file.

This only works with Cisco Optical Controller (ONC). The new service is added as an NMC link.

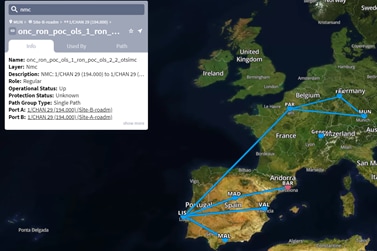

MapDescription automatically generated TimelineDescription automatically generated

To create an OCH-NC Link:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

2.    Select the Point to Point tab.

3.    Click OCH-NC Link.

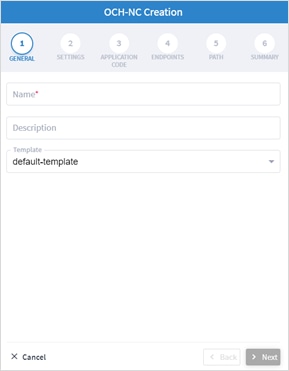

Graphical user interface, text, application, emailDescription automatically generated

4.    Specify the following GENERAL settings:

         Name: The unique user defined name of this link.

         Description: A description of the link.

5.    Click Next.

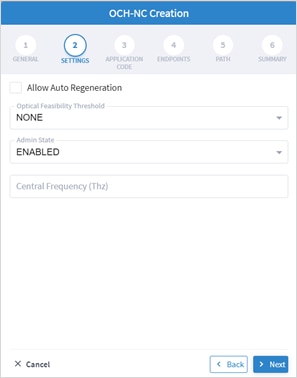

Graphical user interface, text, application, emailDescription automatically generated

6.    Specify the following SETTINGS:

         Allow Auto Regeneration: Whether to allow auto regeneration.

         Optical Feasibility Threshold: Select RED, GREEN, YELLOW or NONE.

         Admin State: Select ENABLED or DISABLED.

         Central Frequency (Thz): The frequency for this OCH-NC link. A number in range of nine digits, with a dot after the first 3 digits (xxx.xxxxxx). Range is between 000.000000 to 999.999999 in steps of 000.000001.

7.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

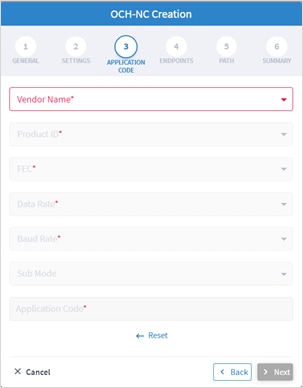

8.    Specify the following APPLICATION CODE settings to generate the required Application Code:

         Vendor Name: The vendor name.

         Product ID: The product ID.

         FEC: The FEC depending on the product, for example, CFEC or OFEC.

         Data Rate: The data rate supported by the selected product.

         Baud Rate: The baud rate supported by the selected product.

         Sub Mode: This may appear depending on the other settings.

9.    Click Next.

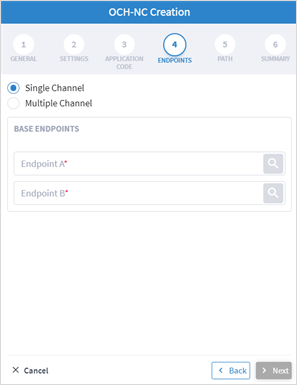

Graphical user interface, text, application, emailDescription automatically generated

10.  Specify the following ENDPOINTS settings:

         Select Single Channel or Multiple Channel.

         Endpoint A: Click IconDescription automatically generated and in the Advanced tab, select an NMC port, or click on the 3D Explorer tab.

         Endpoint B: Click IconDescription automatically generated and in the Advanced tab, select an NMC port, or click on the 3D Explorer tab.

11.  Click Next.

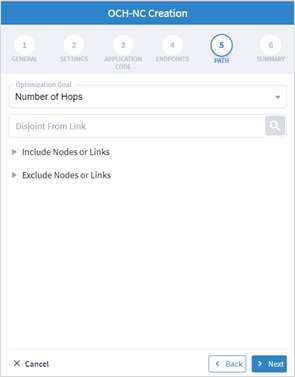

Graphical user interface, text, application, emailDescription automatically generated

12.  Specify the following PATH settings:

         Optimization Goal: The optimization goal (Number of Hops or Admin Cost).

         Disjoint From Link: IconDescription automatically generated and in the Advanced tab, select an OCH-NC link, or click on the 3D Explorer tab to select an OCH-NC link. This means that the new OCH-NC link must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a ONES or OMS link, or click on the 3D Explorer tab to select a ONES or OMS link.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a ONES or OMS/OTS link, or click on the 3D Explorer tab to select a ONES or OMS link.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

13.  Click Next.

Graphical user interface, text, application, emailDescription automatically generated

14.  Click Finish.



Create OTN-Line

You can create an OTN Line service between OTN client ports on Transponders/Muxponders, define its capacity, add 1+1 protection if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as node or links to be included in or excluded from the OTN Line) can be added.

To create an OTN Line:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

2.    Select the Point to Point tab.

3.    Click OTN Line.

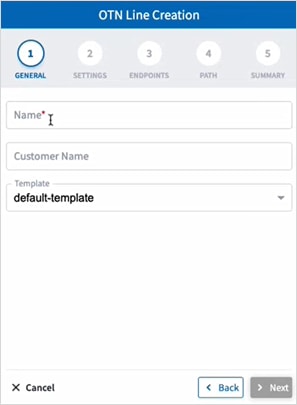

Graphical user interface, text, application, emailDescription automatically generated

4.    Specify the following GENERAL settings:

         Name: The unique user defined name of this OTN Line.

         Customer Name: The OTN Line customer name.

5.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

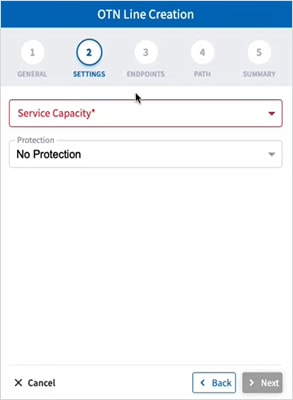

6.    Specify the following SETTINGS:

         Service Capacity: The capacity for this OTN-Line, for example, ODU2.

         Protection: The service protection (No Protection or Protection 1+1).

7.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

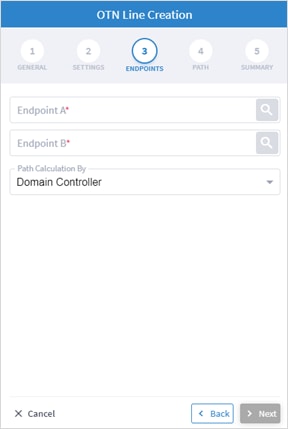

8.    Specify the following ENDPOINTS settings:

         Endpoint A: Click IconDescription automatically generated and in the Advanced tab, select an endpoint as ODU client port, or click on the 3D Explorer tab to select an endpoint.

         Endpoint B: Click IconDescription automatically generated and in the Advanced tab, select an endpoint as ODU client port, or click on the 3D Explorer tab to select an endpoint.

         Path Calculation By: Select Domain Controller or HCO.

9.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

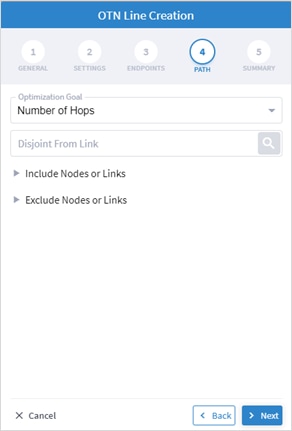

10.  Specify the following PATH settings:

         Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).

         Disjoint From Link: IconDescription automatically generated and in the Advanced tab, select an OTN line, or click on the 3D Explorer tab to select an OTN line. This means that the new OTN Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a node or OTU link, or click on the 3D Explorer tab to select a node or OTU link.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a node or any optical link, or click on the 3D Explorer tab to select a node or any optical link.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

11.  Click Next.

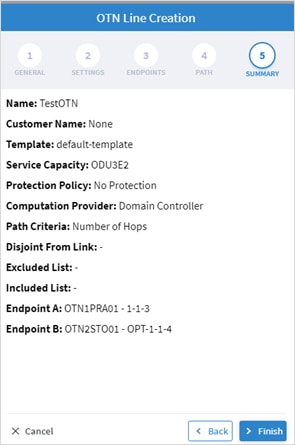

Graphical user interface, text, applicationDescription automatically generated

12.  Click Finish.



Create SDH-Line

You can create an SDH Line service between STM client ports, define its capacity, add 1+1 protection if required, allow the path to be calculated by the Domain Controller or HCO, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as node or links to be included in or excluded) can be added.

To create an SDH Line:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

2.    Select the Point to Point tab.

3.    Click SDH Line.

Graphical user interface, text, application, emailDescription automatically generated

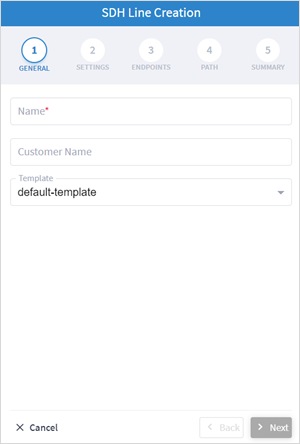

4.    Specify the following GENERAL settings:

         Name: The unique user defined name of this SDH Line.

         Customer Name: The SDH Line customer name.

5.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

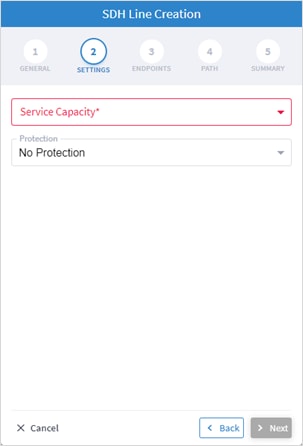

6.    Specify the following SETTINGS:

         Service Capacity: The capacity for this SDH Line, for example, STM64 or STM256.

         Protection: The service protection (No Protection or Protection 1+1).

7.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

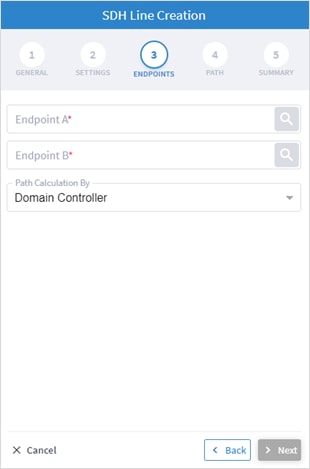

8.    Specify the following ENDPOINTS settings:

         Endpoint A: Click IconDescription automatically generated and in the Advanced tab, select an endpoint as STM client port, or click on the 3D Explorer tab to select an endpoint.

         Endpoint B: Click IconDescription automatically generated and in the Advanced tab, select an endpoint as STM client port, or click on the 3D Explorer tab to select an endpoint.

         Path Calculation By: Select Domain Controller or HCO.

Graphical user interface, application, emailDescription automatically generated

9.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

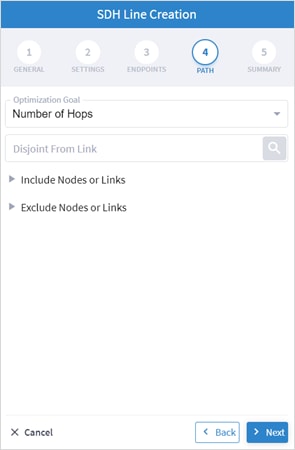

10.  Specify the following PATH settings:

         Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).

         Disjoint From Link: IconDescription automatically generated and in the Advanced tab, select an OTN line, or click on the 3D Explorer tab to select an SDH line. This means that the new SDH Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a node or SDH link, or click on the 3D Explorer tab to select a node or SDH link.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a node or any optical link, or click on the 3D Explorer tab to select a node or any optical link.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

11.  Click Next.

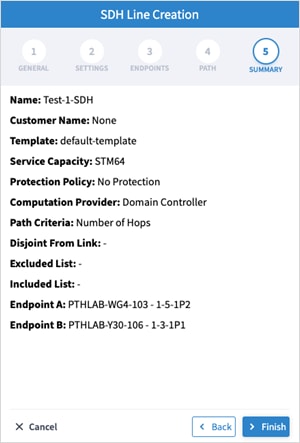

Graphical user interface, applicationDescription automatically generated

12.  Click Finish.



Create Circuit E-Line

You can create a Circuit E-Line, as an Ethernet connection between ETH client ports on Transponders/Muxponders, define its capacity, add 1+1 protection if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as nodes or links to be included in or excluded from the Circuit E-line) can be added.

To create a Circuit E-Line:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

2.    Select the Point to Point tab.

3.    Click Circuit E-Line.

Graphical user interface, text, application, emailDescription automatically generated

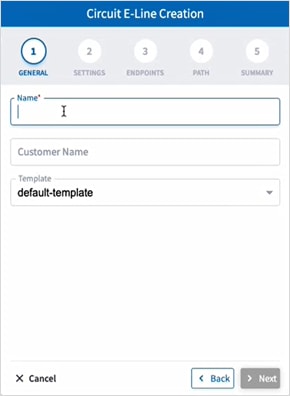

4.    Specify the following GENERAL settings:

         Name: The unique user defined name of this Circuit E-Line.

         Customer Name: The Circuit E-Line customer name.

5.    Click Next.

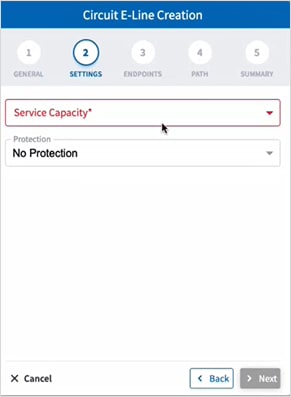

Graphical user interface, text, application, emailDescription automatically generated

6.    Specify the following SETTINGS:

         Service Capacity: The capacity for this Circuit E-Line, for example, 10 GB WAN.

         Protection: The service protection (No Protection or Protection 1+1).

7.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

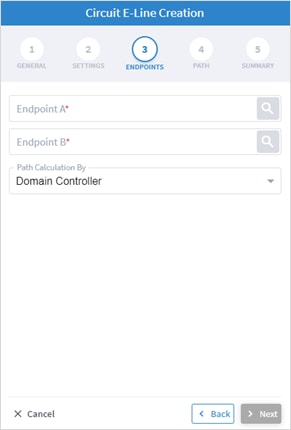

8.    Specify the following ENDPOINTS settings:

         Endpoint A: Click IconDescription automatically generated and in the Advanced tab, select an ETH endpoint, or click on the 3D Explorer tab to select an endpoint.

         Endpoint B: Click IconDescription automatically generated and in the Advanced tab, select an ETH endpoint, or click on the 3D Explorer tab to select an endpoint.

         Path Calculation By: Select Domain Controller or HCO.

9.    Click Next.

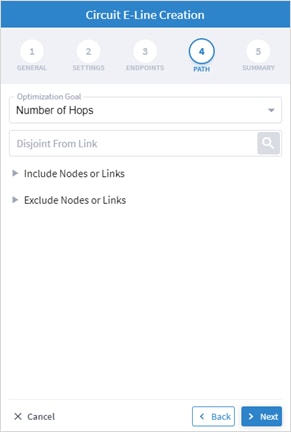

Graphical user interface, text, application, emailDescription automatically generated

10.  Specify the following PATH settings:

         Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).

         Disjoint From Link: IconDescription automatically generated and in the Advanced tab, select Circuit E-Line, or click on the 3D Explorer tab to select Circuit E-Line. This means that the new Circuit E-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select a Circuit E-Line, or click on the 3D Explorer tab to select a Circuit E-Line.

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select node or any optical link, or click on the 3D Explorer tab to select node or any optical link.

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

11.  Click Next.

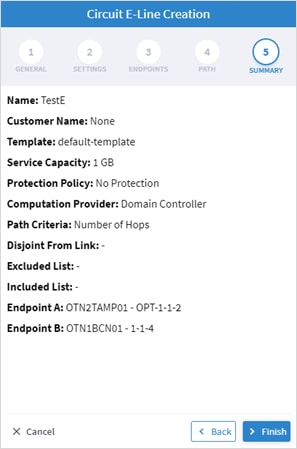

Related image, diagram or screenshot

12.  Click Finish.



Create Packet E-Line

You can create a Packet E-Line as an Ethernet service between Routers over RSVP-TE tunnels or SR policies, or between Transponders/Muxponders over MPLS-TP tunnels, define its capacity, add 1+1 protection if required, and optimize based on number of hops, latency, or admin cost. Various advanced settings and limitations (such as items to be included or excluded from the Circuit E-line) can be added.

To create a Packet E-Line:

1.    Before creating a Packet E-Line service, create the MPLS-TP tunnels to be used (this is assumed to be handled implicitly by the optical controller).

2.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager.

3.    Select the Point to Point tab.

4.    Click Packet E-Line.

Graphical user interface, text, application, emailDescription automatically generated

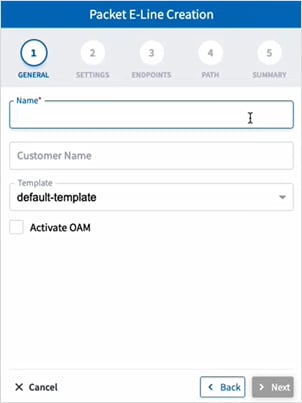

5.    Specify the following GENERAL settings:

         Name: The unique user defined name of this Packet E-Line.

         Customer Name: The Packet E-Line customer name.

         Activate OAM: Whether to enable OAM PM activation.

6.    Click Next.

 Graphical user interface, text, application, emailDescription automatically generated

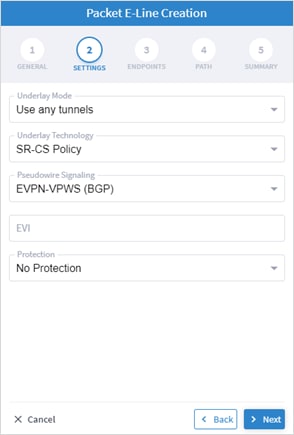

7.    Specify the following SETTINGS:

         Underlay Mode: The underlay mode, for example, Use any tunnels.

         Underlay Technology: The underlay technology, for example, MPLS-TP.

         Pseudowire Signaling: The pseudowire signaling, for example, EVPN-VPWS (BGP).

         EVI: The EVPN instance.

         Protection: The service protection (No Protection or Protection 1+1).

8.    Click Next.

Graphical user interface, text, application, emailDescription automatically generated

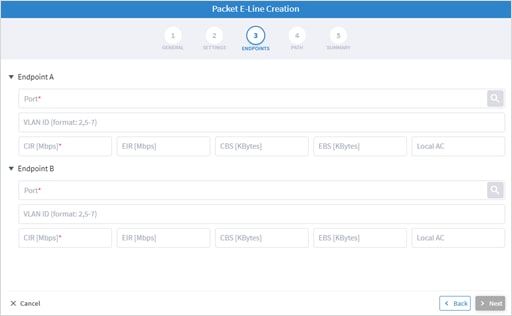

9.    Specify the following ENDPOINTS settings for Endpoint A and Endpoint B:

         Port: Click IconDescription automatically generated and in the Advanced tab, select a port, or click on the 3D Explorer tab to select an Ethernet port. The port rates should be the same. In case selected ports has already a packet E-Line service defined, with VLAN IDs, the VLAN IDs must be specified for per endpoint for the new service.

         VLAN ID: The VLAN ID in a range of 1-4094. Enter a single value, multiple values separate by commas, and/or ranges, where ‘-‘ designates the range, for example: 390-780. . If the selected endpoint has no services on it, the VLAN ID field is optional. Once defined, a VLAN ID must be defined in both endpoints, although different values/ranges can be specified. If you specify multiple VLANs, you must use the same values for both endpoints.

Bandwidth parameters are all optional

         CIR (Mbps): The CIR rate in Mbps, range is 0 to <port rate>. The values can be different per endpoint.

         EIR (Mbps): The EIR rate in Mbps, range is 0 to <port rate>. The values can be different per endpoint.

         CBS (Kbytes): The CBS rate in Kbytes, range is 0 to <port rate>. The values can be different per endpoint.

         EBD (Kbytes): The CBS rate in Kbytes, range is 0 to <port rate>. The values can be different per endpoint.

         Local AC: The local AC.

         Endpoint B: Click IconDescription automatically generated and in the Advanced tab, select a port, or click on the 3D Explorer tab to select a port.

10.  Click Next.

Graphical user interface, text, application, emailDescription automatically generated

11.  Specify the following PATH settings:

         (Only required if tunnels are implicitly created) Optimization Goal: The optimization goal (Number of Hops or Latency or Admin Cost).

         (Only required if tunnels are implicitly created) Path Calculation By: The path calculation mechanism: Domain Controller or HCO. Currently in this version only the Domain Controller option is available.

         Disjoint From Link: IconDescription automatically generated and in the Advanced tab, select a Packet E-Line, or click on the 3D Explorer tab to select a Packet E-Line. This means that the new Circuit E-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).

         Include Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select node or underlay link (IGP or OTU), or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).

         Exclude Nodes or Links: Click IconDescription automatically generated and in the Advanced tab, select node or underlay link (IGP or OTU) or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).

         (Only required with protections) Disjoint From Link (Protection): IconDescription automatically generated and in the Advanced tab, select a Packet E-Line, or click on the 3D Explorer tab to select a Packet E-Line. This means that the new Circuit E-Line must not traverse this exclusionary path (this would be equivalent to adding all the links that constitute the disjoint path to the exclude items from path list).

         (Only required with protections) Include Nodes or Links (Protection): Click IconDescription automatically generated and in the Advanced tab, select node or underlay link (IGP or OTU), or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).

         (Only required with protections) Exclude Nodes or Links (Protection): Click IconDescription automatically generated and in the Advanced tab, select node or underlay link (IGP or OTU) or click on the 3D Explorer tab to select node or underlay link (IGP or OTU).

         (Optional) Click Related image, diagram or screenshot to remove any of the include/exclude items.

12.  Click Next.

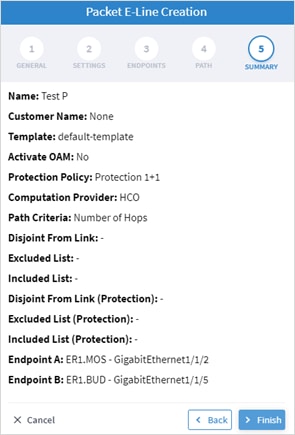

Graphical user interface, applicationDescription automatically generated

13.  Click Finish.



Delete P2P

To delete a P2P Link:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Point to Point.

2.    Select a link.

3.    Select the Actions tab.

4.    Click Delete P2P. A confirmation message appears.

5.    Click Accept. The link is deleted.

Service Settings

You can configure which rollbacks are allowed. For example, to prevent partial provisioning for IP Link, if the ONC provisioning succeeds and the CNC provisioning fails, and rollback is selected, the ONC provisioning is rolled back.

To view the service settings:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Settings. A list of the service settings appears.

A white rectangular object with black linesDescription automatically generated with medium confidence

2.    In NSO ADDRESS, enter the NSO host name or IP address. This appears in the NSO Provisioning tab.

3.    In OPTICAL TRANSCEIVERS APPLICATION CODES, click Related image, diagram or screenshot to select a file with the application codes. It is recommended to export the required JSON file from the ONC controller.

4.    Select which rollbacks are allowed when the services are provisioned (RSVP Tunnel, L3-VPN, IP Link, SR Policy, TE++ Container, Circuit E-Line, OTN Line, OCH, Packet E-Line and/or OCH-NC).

Service Manager Operations

You can view the latest Service Manager operations.

To view the operations:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager > Operations. A list of the operations appears.

Graphical user interface, application, table, ExcelDescription automatically generated

2.    Select the required operation.

Graphical user interface, applicationDescription automatically generated

3.    To view more details, select the required tab:

         Summary: Additional details about the operation, e.g., Status: Rollback Done.

         Logs: The operation logs for normal and rollback flows.

         Errors: The operation errors, e.g., Discovery took too long.

Network Services Orchestrator Crosswork Hierarchical Controller - Function Pack Appendix

Crosswork Hierarchical Controller uses the Network Services Orchestrator (NSO) Crosswork Hierarchical Controller - Function Pack to provision dynamic IP VPN services (L2-VPN and L3-VPN services).

Provisioning of L2-VPN and L3-VPN services in Crosswork Hierarchical Controller is based on the IETF RFC L2NM and L3NM service scheme. However, not all vendors support the same set of attributes in these models. To avoid failures in provisioning, it is recommended to review the available service scheme options.

There are several payload combinations that allow you to create or modify a service using Network Services Orchestrator:

·         Common Payload: The attributes that are commonly supported by Nokia NSP and Cisco Crosswork Network Controllers. This is the minimum subset that supports both Nokia NSP and Cisco Crosswork Network Controllers.

·         Nokia NSP Payload: All attributes supported by Nokia NSP IP controller. Although the Nokia NSP controller will accept the full set of parameters in the RFC LxNM, the Nokia NSP controller may not use all the data.

·         Cisco Crosswork Network Controller Payload: All attributes supported by Cisco Crosswork Network Controller IP controller. The Cisco Crosswork Network Controller does not accept the full set of parameters in the RFC LxNM and if a parameter is not supported, Crosswork Network Controller returns an error message.

Once the services are provisioned using NSO (using the UI or JSON files), they are detected by Cisco Crosswork Hierarchical Controller and can be viewed in the Service Assurance application.

This appendix describes some examples of the Network Services Orchestrator (NSO) deployment, as part of Cisco Crosswork Hierarchical Controller.

Note: These payload examples were tested with specific versions of the adapters. There may be some variation in these payloads with different versions of the adapters.

Note: This appendix is intended to introduce you to the capabilities of the function pack. For full details on L2-VPN and L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide. There are sample templates included in the function pack, for example, cisco-nsp-l2vpn-service.xml, cisco-nsp-l3vpn-service.xml, cisco-cnc-l2vpn-service.xml, and cisco-cnc-l3vpn-service.xml.

NSO has two major components to provide the service CRUD:

       NED – a driver to map the relevant get and set operations towards a device or controller and provide them as a YANG model that can contain configuration, NED provides a device configuration model (device can be controller as well). The NEDs for IP COs implement the LxNM model as exposed by the vendors.

       Function pack – a template of service specific configuration and the mapping to NED model. A function pack can abstract the service request, can include a complex processing to generate the request to the NED. Such processing can be to decompose a request into multiple NEDs, use topology info to complete configuration not provided by user, and more.

Note: Since optical services are not handled in NSO, NSO has no role in the deployment of optical use cases.



Configure Common L3-VPN (JSON)

A subset of the L3NM service scheme, with the attributes that are commonly supported by Nokia NSP and Cisco Crosswork Network Controllers.

For full details on L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.

Table 3.           Common L3-VPN Parameters

Parameter

Description

vpn-service



vpn-id

The VPN ID.

vpn-service-topology

The topology: ietf-vpn-common:hub-spoke or any-to-any.

vpn-instance-profiles



vpn-instance-profile



profile-id



role

The profile role: ietf-vpn-common:hub-role

rd

For example: 0:171:171

address-family



address-family

The address family, for example: ietf-vpn-common:ipv4

vpn-targets



vpn-target



id

The VPN target ID.

route-targets



route-targets

The route target, for example: 0:71:71

route-target-type

For example: both or import or export.

vpn-nodes



vpn-node



vpn-node-id

The VPN node ID. Use the vpn-id and add -R3 or -R4 as a suffix.

local-as



active-vpn-instance-profiles



vpn-instance-profile



profile-id

The VPN instance profile ID.

vpn-network-accesses



vpn-network-access



id

The VPN network access ID.

interface-id

The VPN network access interface ID, for example, GigabitEthernet0/0/0/2. This is the access port and may change according to the router.

connection



encapsulation



type

The connection encapsulation type: ietf-vpn-common:dot1q (VLAN) or untagged (port-mode).

dot1q





tag-type

The tag type: ietf-vpn-common:c-vlan

cvlan-id

The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 2060.

ip-connection



ipv4



local-address



prefix-length



routing-protocols



routing-protocol



id

The routing protocol id, for example: EBGP

type

The routing protocol type: ietf-vpn-common:bgp-routing

peer-as



address-family

ietf-vpn-common:ipv4

neighbor



multihop



redistribute-connected



address-family

ietf-vpn-common:ipv4



Detailed JSON Example

{

  "ietf-l3vpn-ntw:l3vpn-ntw": {

    "vpn-services": {

      "vpn-service": [

        {

          "vpn-id": "l3vpn-hub-spoke",

          "vpn-service-topology": "ietf-vpn-common:hub-spoke",

          "vpn-instance-profiles": {

            "vpn-instance-profile": [

              {

                "profile-id": "l3vpn-p1-70",

                "role": "ietf-vpn-common:hub-role",

                "rd": "0:171:171",

                "address-family": [

                  {

                    "address-family": "ietf-vpn-common:ipv4",

                    "vpn-targets": {

                      "vpn-target": [

                        {

                          "id": 71,

                          "route-targets": [

                            {

                              "route-target": "0:71:71"

                            }

                          ],

                          "route-target-type": "both"

                        },

                        {

                          "id": 72,

                          "route-targets": [

                            {

                              "route-target": "0:72:72"

                            }

                          ],

                          "route-target-type": "import"

                        },

                        {

                          "id": 73,

                          "route-targets": [

                            {

                              "route-target": "0:73:73"

                            }

                          ],

                          "route-target-type": "export"

                        }

                      ]

                    }

                  }

                ]

              },

              {

                "profile-id": "l3vpn-p2-70",

                "role": "ietf-vpn-common:spoke-role",

                "rd": "0:171:171",

                "address-family": [

                  {

                    "address-family": "ietf-vpn-common:ipv4",

                    "vpn-targets": {

                      "vpn-target": [

                        {

                          "id": 71,

                          "route-targets": [

                            {

                              "route-target": "0:71:71"

                            }

                          ],

                          "route-target-type": "both"

                        },

                        {

                          "id": 72,

                          "route-targets": [

                            {

                              "route-target": "0:72:72"

                            }

                          ],

                          "route-target-type": "import"

                        },

                        {

                          "id": 73,

                          "route-targets": [

                            {

                              "route-target": "0:73:73"

                            }

                          ],

                          "route-target-type": "export"

                        }

                      ]

                    }

                  }

                ]

              },

              {

                "profile-id": "l3vpn-p3-70",

                "role": "ietf-vpn-common:spoke-role",

                "rd": "0:171:171",

                "address-family": [

                  {

                    "address-family": "ietf-vpn-common:ipv4",

                    "vpn-targets": {

                      "vpn-target": [

                        {

                          "id": 71,

                          "route-targets": [

                            {

                              "route-target": "0:71:71"

                            }

                          ],

                          "route-target-type": "both"

                        },

                        {

                          "id": 72,

                          "route-targets": [

                            {

                              "route-target": "0:72:72"

                            }

                          ],

                          "route-target-type": "import"

                        },

                        {

                          "id": 73,

                          "route-targets": [

                            {

                              "route-target": "0:73:73"

                            }

                          ],

                          "route-target-type": "export"

                        }

                      ]

                    }

                  }

                ]

              }

            ]

          },

          "vpn-nodes": {

            "vpn-node": [

              {

                "vpn-node-id": "PE-A",

                "local-as": 1,

                "active-vpn-instance-profiles": {

                  "vpn-instance-profile": [

                    {

                      "profile-id": "l3vpn-p1-70"

                    }

                  ]

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "1",

                      "interface-id": "GigabitEthernet0/0/0/2",

                      "connection": {

                        "encapsulation": {

                          "type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "tag-type": "ietf-vpn-common:c-vlan",

                            "cvlan-id": 401

                          }

                        }

                      },

                      "ip-connection": {

                        "ipv4": {

                          "local-address": "70.70.10.1",

                          "prefix-length": 30

                        }

                      },

                      "routing-protocols": {

                        "routing-protocol": [

                          {

                            "id": "EBGP",

                            "type": "ietf-vpn-common:bgp-routing",

                            "bgp": {

                              "peer-as": 100,

                              "address-family": "ietf-vpn-common:ipv4",

                              "neighbor": [

                                "70.70.10.2"

                              ],

                              "multihop": 11,

                              "redistribute-connected": [

                                {

                                  "address-family": "ietf-vpn-common:ipv4"

                                }

                              ]

                            }

                          }

                        ]

                      }

                    }

                  ]

                }

              },

              {

                "vpn-node-id": "PE-B",

                "local-as": 1,

                "active-vpn-instance-profiles": {

                  "vpn-instance-profile": [

                    {

                      "profile-id": "l3vpn-p2-70"

                    }

                  ]

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "1",

                      "interface-id": "GigabitEthernet0/0/0/1",

                      "connection": {

                        "encapsulation": {

                          "type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "tag-type": "ietf-vpn-common:c-vlan",

                            "cvlan-id": 401

                          }

                        }

                      },

                      "ip-connection": {

                        "ipv4": {

                          "local-address": "70.70.11.1",

                          "prefix-length": 30

                        }

                      },

                      "routing-protocols": {

                        "routing-protocol": [

                          {

                            "id": "EBGP",

                            "type": "ietf-vpn-common:bgp-routing",

                            "bgp": {

                              "peer-as": 100,

                              "address-family": "ietf-vpn-common:ipv4",

                              "neighbor": [

                                "70.70.11.2"

                              ],

                              "multihop": 11,

                              "redistribute-connected": [

                                {

                                  "address-family": "ietf-vpn-common:ipv4"

                                }

                              ]

                            }

                          }

                        ]

                      }

                    }

                  ]

                }

              },

              {

                "vpn-node-id": "Spitfire-RON-16",

                "local-as": 1,

                "active-vpn-instance-profiles": {

                  "vpn-instance-profile": [

                    {

                      "profile-id": "l3vpn-p3-70"

                    }

                  ]

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "1",

                      "interface-id": "FourHundredGigE0/0/0/1",

                      "connection": {

                        "encapsulation": {

                          "type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "tag-type": "ietf-vpn-common:c-vlan",

                            "cvlan-id": 401

                          }

                        }

                      },

                      "ip-connection": {

                        "ipv4": {

                          "local-address": "70.70.12.1",

                          "prefix-length": 30

                        }

                      },

                      "routing-protocols": {

                        "routing-protocol": [

                          {

                            "id": "EBGP",

                            "type": "ietf-vpn-common:bgp-routing",

                            "bgp": {

                              "peer-as": 100,

                              "address-family": "ietf-vpn-common:ipv4",

                              "neighbor": [

                                "70.70.12.2"

                              ],

                              "multihop": 11,

                              "redistribute-connected": [

                                {

                                  "address-family": "ietf-vpn-common:ipv4"

                                }

                              ]

                            }

                          }

                        ]

                      }

                    }

                  ]

                }

              }

            ]

          },

          "cisco-hco-nm:hco-controller": "CNC"

        }

      ]

    }

  }

}

Configure Common L2-VPN using NSO (JSON)

A subset of the L2NM service scheme, with the attributes that are commonly supported by Nokia NSP and Cisco Crosswork Network Controllers.

For full details on L2-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.

Table 4.           Common L2-VPN Parameters

Parameter

Description

vpn-services



vpn-service



vpn-id

The VPN ID.

vpn-type

The VPN type: ietf-vpn-common:mpls-evpn.

vpn-service-topology

The topology: ietf-vpn-common:hub-spoke or any-to-any.

global-parameters-profiles



global-parameters-profile



profile-id



vpn-target



id



route-targets



route-target

The route target, for example: 0:12:12

route-target-type

The route target type, for example: both

vpn-nodes



vpn-node



vpn-node-id

The VPN node ID. Use the vpn-id and add -R3 or -R4 as a suffix.

role

The VPN node role, for example: ietf-vpn-common:hub-role or
ietf-vpn-common:spoke-role

signaling-option



evpn-policies



mac-learning-mode

The mac learning mode: ietf-l2vpn-ntw:control-plane

vpn-network-accesses



vpn-network-access



id

The VPN network access ID in the format int_<number>, for example, int_223_1.

interface-id

The VPN network access interface ID, for example, GigabitEthernet0/0/0/2. This is the access port and may change according to the router.

connection

encapsulation



encap-type

The connection encapsulation type: ietf-vpn-common:dot1q (VLAN).

dot1q

cvlan-id

The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 2060.

tag-operations



push

null

tag-1

The tag, for example: 202

cisco-hco-nm:hco-controller

The controller, for example: CNC



Detailed JSON Example

{

  "ietf-l2vpn-ntw:l2vpn-ntw": {

    "vpn-services": {

      "vpn-service": [

        {

          "vpn-id": "ETREE-HS-ABCD",

          "vpn-type": "ietf-vpn-common:mpls-evpn",

          "vpn-service-topology": "ietf-vpn-common:hub-spoke",

          "global-parameters-profiles": {

            "global-parameters-profile": [

              {

                "profile-id": "test",

                "vpn-target": [

                  {

                    "id": 1,

                    "route-targets": [

                      {

                        "route-target": "0:12:12"

                      }

                    ],

                    "route-target-type": "both"

                  }

                ]

              }

            ]

          },

          "vpn-nodes": {

            "vpn-node": [

              {

                "vpn-node-id": "PE-A",

                "role": "ietf-vpn-common:hub-role",

                "signaling-option": {

                  "evpn-policies": {

                    "mac-learning-mode": "ietf-l2vpn-ntw:control-plane"

                  }

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "285",

                      "interface-id": "GigabitEthernet0/0/0/2",

                      "connection": {

                        "encapsulation": {

                          "encap-type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "cvlan-id": 285,

                            "tag-operations": {

                              "push": [

                                null

                              ],

                              "tag-1": 202

                            }

                          }

                        }

                      }

                    }

                  ]

                }

              },

              {

                "vpn-node-id": "PE-B",

                "role": "ietf-vpn-common:spoke-role",

                "signaling-option": {

                  "evpn-policies": {

                    "mac-learning-mode": "ietf-l2vpn-ntw:control-plane"

                  }

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "285",

                      "interface-id": "GigabitEthernet0/0/0/2",

                      "connection": {

                        "encapsulation": {

                          "encap-type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "cvlan-id": 285,

                            "tag-operations": {

                              "push": [

                                null

                              ],

                              "tag-1": 202

                            }

                          }

                        }

                      }

                    }

                  ]

                }

              },

              {

                "vpn-node-id": "PE-C",

                "role": "ietf-vpn-common:spoke-role",

                "signaling-option": {

                  "evpn-policies": {

                    "mac-learning-mode": "ietf-l2vpn-ntw:control-plane"

                  }

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "285",

                      "interface-id": "GigabitEthernet0/0/0/2",

                      "connection": {

                        "encapsulation": {

                          "encap-type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "cvlan-id": 285,

                            "tag-operations": {

                              "push": [

                                null

                              ],

                              "tag-1": 202

                            }

                          }

                        }

                      }

                    }

                  ]

                }

              }

            ]

          },

          "cisco-hco-nm:hco-controller": "CNC"

        }

      ]

    }

  }

}

Configure Nokia NSP L3-VPN using NSO (JSON)

For full details on Nokia NSP L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.

The L3-VPN JSON requires the following high-level structure.

{

   "ietf-l3vpn-ntw:l3vpn-ntw":{

      "vpn-services":{

         "vpn-service":[

            {

               "vpn-id":"Abcd100",

               "vpn-name":"Abcd100",

               "vpn-description":"Abcd100",

               "customer-name":"1",

               "vpn-type":"ietf-vpn-common:l3vpn",

               "vpn-service-topology":"ietf-vpn-common:hub-spoke",

               "status":{},

               "vpn-instance-profiles":{},

               "underlay-transport":{},

               "vpn-nodes":{}

            }

         ]

      }

   }

}

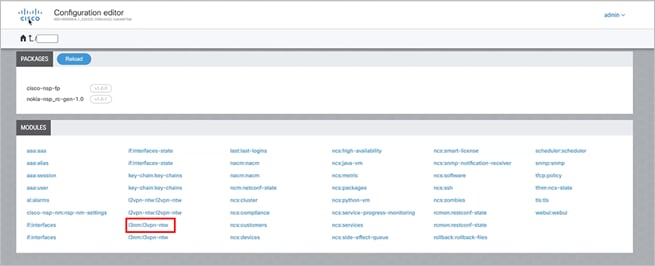

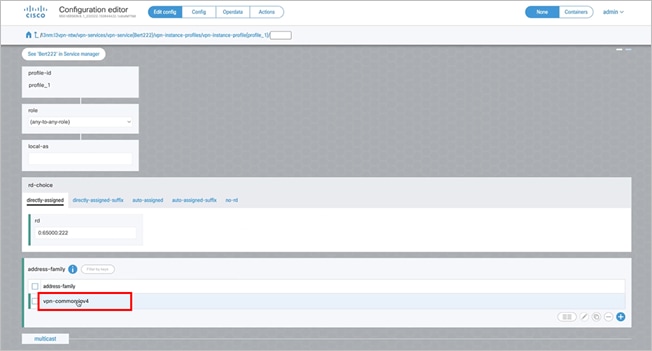

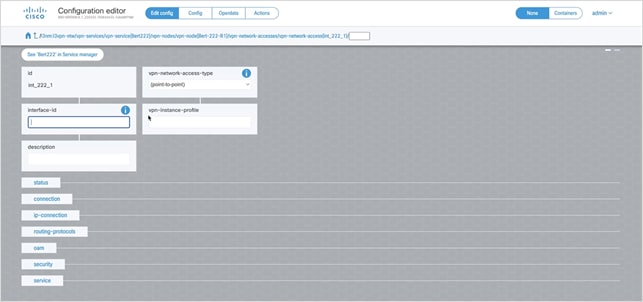

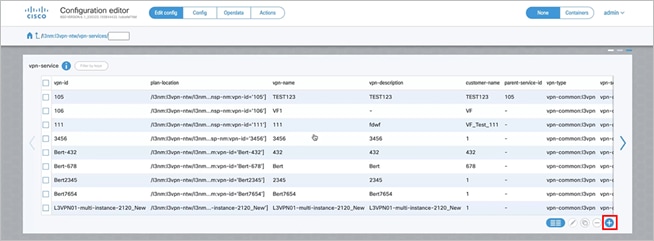

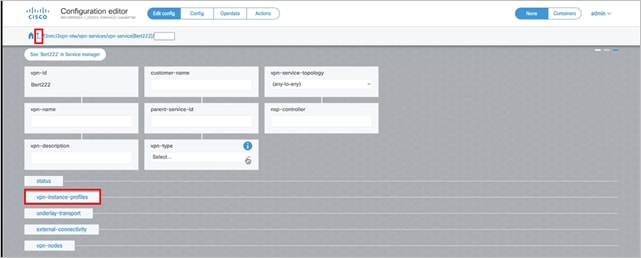

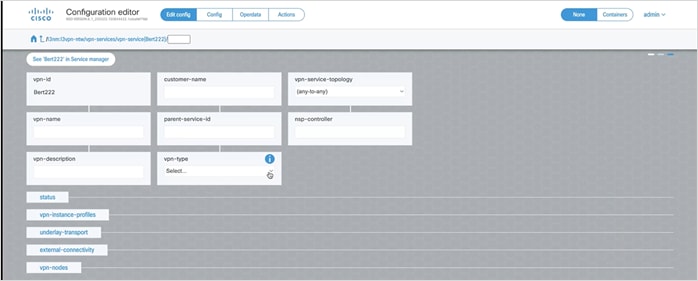

This corresponds to the L3-VPN service page in the NSO user interface.

Graphical user interface, applicationDescription automatically generated

Table 5.           Nokia NSP L3-VPN Parameters

Parameter

Description

vpn-service



vpn-id

The VPN ID.

vpn-name

The VPN name as a string.

vpn-description

The VPN description as a string.

customer-name

The customer’s name exactly as configured in the Nokia NSP controller (this is an integer and not a string)

vpn-type

The VPN type, ietf-vpn-common:l3vpn.

vpn-service-topology

The topology: ietf-vpn-common:hub-spoke or any-to-any.

status

admin-status

status

The status of the vpn-service: vpn-common:admin-up.

vpn-instance-profiles



vpn-instance-profile



profile-id

The profile ID.

rd

The rd. For example, 0:65000:223.

address-family



address-family

The address family. For example, ietf-vpn-common:ipv4.

vpn-targets



vpn-policies



import-policy

The import policy.

export-policy

The export policy.

underlay-transport

protocol

The underlay-transport: ietf-vpn-common:rsvp-te

vpn-nodes



vpn-node



vpn-node-id

The VPN node ID.

description

The VPN node description.

ne-id

The NE ID.

router-id

The router ID.

active-vpn-instance-profiles

vpn-instance-profile

profile-id

The profile ID.

vpn-network-access



id

The VPN network access ID in the format int_<number>, for example, int_223_1.

interface-id

The VPN network access interface ID, for example, 1/1/c1/1.

description

The VPN network access description.

vpn-instance-profile

The VPN network access VPN instance profile.

status

admin-status

status

The status of the VPN network access interface.

connection

encapsulation



type

The connection encapsulation type: ietf-vpn-common:dot1q

dot1q

cvlan-id

The CVLAN ID for the dot1q encapsulation.

ip-connection

ipv4



local-address

The IP connection local address.

prefix-length

The IP connection prefix length.



Detailed JSON Example

{

  "ietf-l3vpn-ntw:l3vpn-ntw": {

    "vpn-services": {

      "vpn-service": [

        {

          "vpn-id": "Abcd100",

          "vpn-name": "Abcd100",

          "vpn-description": "Abcd100",

          "customer-name": "1",

          "vpn-type": "ietf-vpn-common:l3vpn",

          "vpn-service-topology": "ietf-vpn-common:hub-spoke",

          "status": {

            "admin-status": {

              "status": "ietf-vpn-common:admin-up"

            }

          },

          "vpn-instance-profiles": {

            "vpn-instance-profile": [

              {

                "profile-id": "profile_1",

                "rd": "0:65000:223",

                "address-family": [

                  {

                    "address-family": "ietf-vpn-common:ipv4",

                    "vpn-targets": {

                      "vpn-policies": {

                        "import-policy": "Alpha-223-Import",

                        "export-policy": "Alpha-223-Export"

                      }

                    }

                  }

                ]

              }

            ]

          },

          "underlay-transport": {

            "protocol": [

              "ietf-vpn-common:rsvp-te"

            ]

          },

          "vpn-nodes": {

            "vpn-node": [

              {

                "vpn-node-id": "Alpha-223-R1",

                "description": "Alpha-223-R1",

                "ne-id": "10.10.10.1",

                "router-id": "10.10.10.1",

                "active-vpn-instance-profiles": {

                  "vpn-instance-profile": [

                    {

                      "profile-id": "profile_1"

                    }

                  ]

                },

                "status": {

                  "admin-status": {

                    "status": "ietf-vpn-common:admin-up"

                  }

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "int_223_1",

                      "interface-id": "1/1/c1/1",

                      "description": "int_223_1",

                      "vpn-instance-profile": "profile_1",

                      "status": {

                        "admin-status": {

                          "status": "ietf-vpn-common:admin-up"

                        }

                      },

                      "connection": {

                        "encapsulation": {

                          "type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "cvlan-id": 223

                          }

                        }

                      },

                      "ip-connection": {

                        "ipv4": {

                          "local-address": "1.1.1.1",

                          "prefix-length": 24

                        }

                      }

                    }

                  ]

                }

              },

              {

                "vpn-node-id": "Alpha-223-R5",

                "description": "Alpha-223-R5",

                "ne-id": "10.10.10.5",

                "router-id": "10.10.10.5",

                "active-vpn-instance-profiles": {

                  "vpn-instance-profile": [

                    {

                      "profile-id": "profile_1"

                    }

                  ]

                },

                "status": {

                  "admin-status": {

                    "status": "ietf-vpn-common:admin-up"

                  }

                },

                "vpn-network-accesses": {

                  "vpn-network-access": [

                    {

                      "id": "int_223_1",

                      "interface-id": "1/1/3",

                      "description": "int_223_1",

                      "vpn-instance-profile": "profile_1",

                      "status": {

                        "admin-status": {

                          "status": "ietf-vpn-common:admin-up"

                        }

                      },

                      "connection": {

                        "encapsulation": {

                          "type": "ietf-vpn-common:dot1q",

                          "dot1q": {

                            "cvlan-id": 223

                          }

                        }

                      },

                      "ip-connection": {

                        "ipv4": {

                          "local-address": "5.5.5.5",

                          "prefix-length": 24

                        }

                      }

                    }

                  ]

                }

              }

            ]

          }

        }

      ]

    }

  }

}



Configure Nokia NSP L3-VPN using NSO (UI)

To add a Nokia NSP L3-VPN service, add two VPN nodes, each with their interface. This is useful for testing a L3-VPN service.

To add a Nokia NSP L3-VPN:

1.    Launch NSO.

Graphical user interface, applicationDescription automatically generated

2.    Click l3nm:l3vpn-ntw.

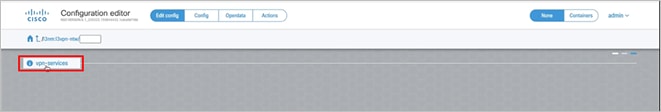

Related image, diagram or screenshot

3.    Click vpn-services.

Related image, diagram or screenshot

4.    Click +.

Graphical user interface, text, application, chat or text messageDescription automatically generated

5.    Enter a unique vpn-id and click confirm.

Related image, diagram or screenshot

6.    Click the vpn service.

Graphical user interface, applicationDescription automatically generated

7.    Enter the customer-name exactly as configured in the Nokia NSP controller (this is an integer and not a string).

8.    Enter the vpn-name as a string.

9.    Enter the vpn-description as a string.

10.  Set the vpn-type to l3vpn.

11.  Set the vpn-service-topology to hub-spoke or any-to-any.

12.  Select the nsp-controller (if there is a default nsp-controller, then you can skip this).

13.  Click status.

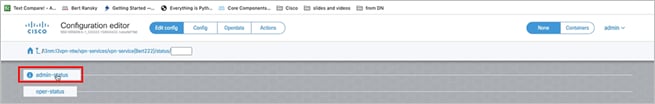

Related image, diagram or screenshot

14.  Click admin-status, and then set the status to admin-up.

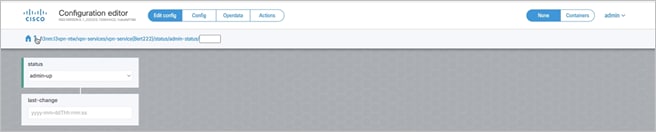

Graphical user interface, text, applicationDescription automatically generated

15.  Return to the vpn (using the breadcrumbs at the top of the page).

Related image, diagram or screenshot

16.  Click vpn-instance-profiles.

Related image, diagram or screenshot

17.  Click +.

Graphical user interface, text, application, chat or text messageDescription automatically generated

18.  Enter a profile-id and then click confirm.

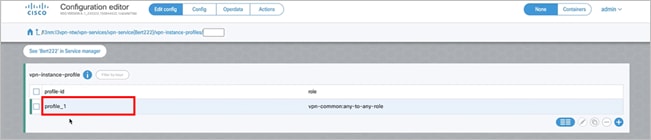

Related image, diagram or screenshot

19.  Click on the profile.

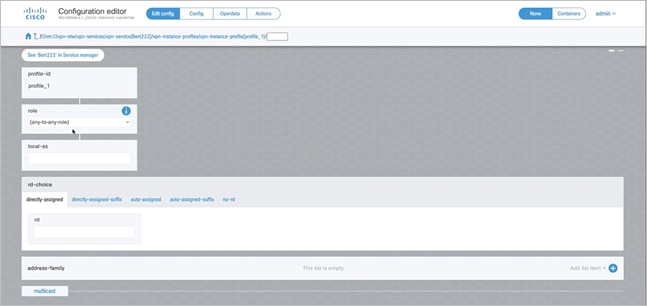

Related image, diagram or screenshot

20.  Enter the rd in the directly-assigned tab.

21.  Click + in the address-family.

Graphical user interface, text, application, chat or text messageDescription automatically generated

22.  Select ipv4 and click confirm.

Related image, diagram or screenshot

23.  Click on the address-family.

Related image, diagram or screenshot

24.  Click vpn-targets.

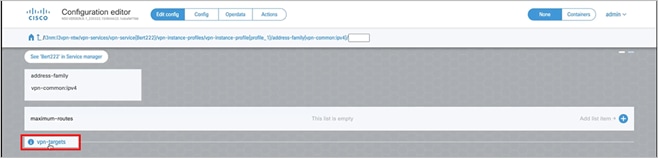

Related image, diagram or screenshot

25.  Click vpn-policies.

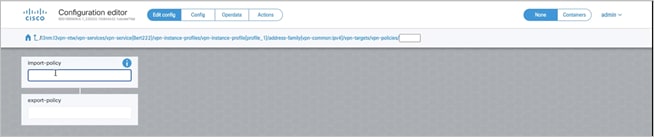

Graphical user interface, text, application, chat or text messageDescription automatically generated

26.  Specify the import-policy and export-policy.

27.  Navigate back to the L3VPN service page and click underlay-transport.

28.  Select the protocol tab.

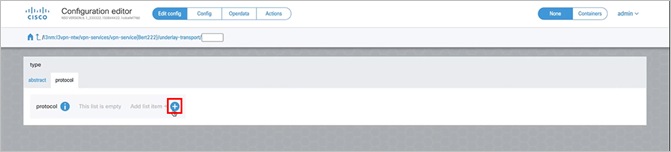

Related image, diagram or screenshot

29.  Click +.

Graphical user interface, text, application, chat or text messageDescription automatically generated

30.  Select rsvp-te and click confirm.

31.  Navigate back to the L3VPN service page and click vpn-nodes (external-connectivity is not required).

Related image, diagram or screenshot

32.  Click +. The vpn=node is a router participating in the VPN. For example, R1 and R5 in this topology.

A map of a cityDescription automatically generated with low confidence

Graphical user interface, text, application, chat or text messageDescription automatically generated

33.  Enter the vpn-node-id and click confirm. This will appear on the router as the endpoint of the tunnel.

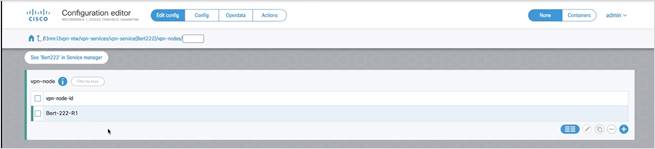

A screenshot of a computerDescription automatically generated

34.  Click on the vpn-node.

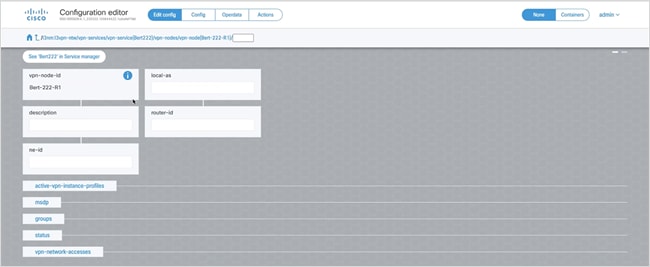

Graphical user interface, applicationDescription automatically generated

35.  Enter a description.

36.  Specify the router-id and the ne-id.

37.  Click active-vpn-instance-profiles.

Graphical user interface, applicationDescription automatically generated

38.  Click +.

Graphical user interface, text, application, chat or text messageDescription automatically generated

39.  Enter a profile-id and click confirm.

40.  Navigate back to the vpn-node page and click status. And as done previously, set this to admin-up.

41.  Navigate back to the vpn-node page and click vpn-network-accesses.

Graphical user interface, application, TeamsDescription automatically generated

42.   Click +. This defines the interfaces participating in the VPN.

Graphical user interface, text, application, chat or text messageDescription automatically generated

43.  Specify the interface id and click confirm. This is in the format int_<number>, for example, int_222_1.

44.  Click on the interface.

Graphical user interface, applicationDescription automatically generated

45.  Enter the interface_id. This is the interface name, for example, from R1

46.  Enter the description as a string.

47.  Select the vpn-instance-profile.

48.  Click status.

49.  Click admin-status, and then set the status to admin-up.

50.  Navigate back to the interface page.

51.  Click Connection.

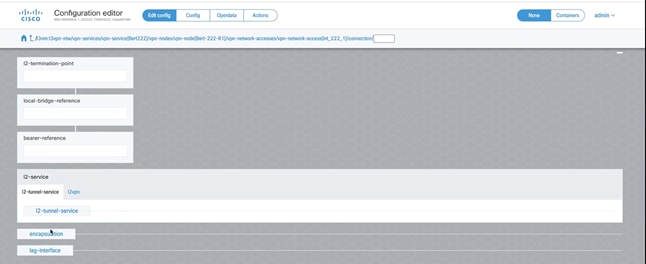

Related image, diagram or screenshot

52.  Click encapsulation.

Related image, diagram or screenshot

53.  Set the type to dot1q.

54.  Click dot1q.

Related image, diagram or screenshot

55.  Enter the cvlan-id.

56.  Navigate back to the interface page.

57.  Click ip-connection.

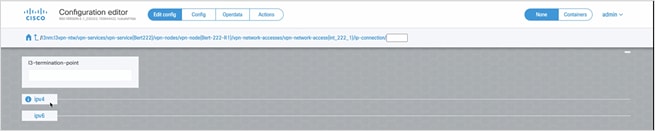

Related image, diagram or screenshot

58.  Select ipv4.

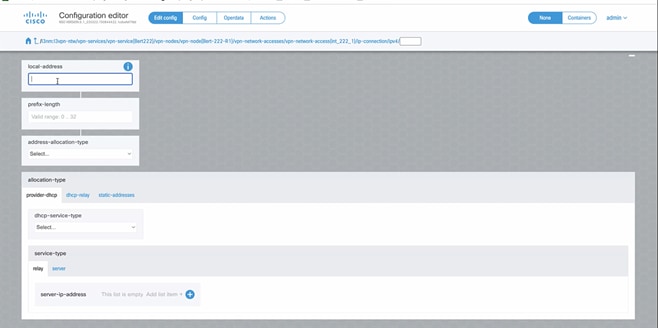

Related image, diagram or screenshot

59.  Enter the local-address.

60.  Enter the prefix-length.

61.  Navigate back to the VPN service page.

62.  Add another vpn-node following the process previously described to also add an interface.

63.  Click Commit Manager (at the bottom of the screen).

 Related image, diagram or screenshot.

64.  Review the configuration.

65.  Click Commit.

Related image, diagram or screenshot

66.  Click Yes, commit.

67.  Once it has finished, check the VPN.

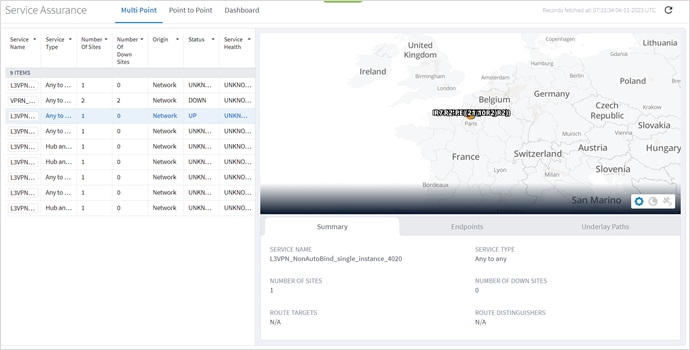

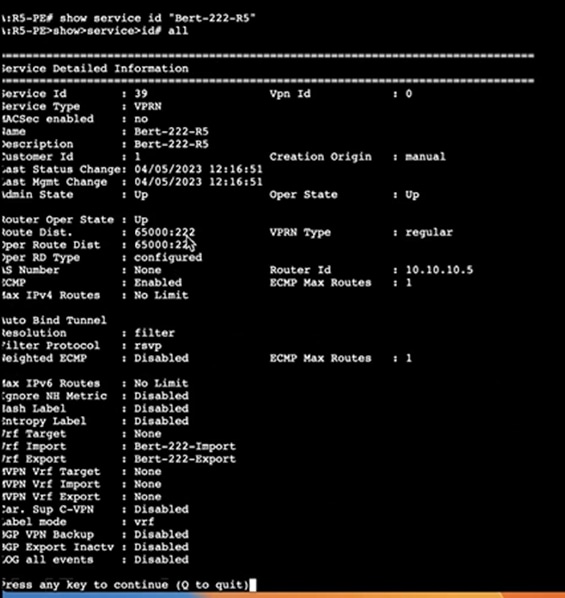

Related image, diagram or screenshot



Configure Nokia NSP L2-VPN using NSO (JSON)

For full details on Nokia NSP L2-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide.

The L2-VPN JSON requires the following high-level structure.

{

   "ietf-l2vpn-ntw:l2vpn-ntw":{

      "vpn-services":{

         "vpn-service":[

            {

               "vpn-id":"Abcd100",

               "vpn-name":"Abcd100",

               "vpn-description":"Abcd100",

               "customer-name":"1",

               "vpn-type":"ietf-vpn-common:vpws",

               "vpn-service-topology":"ietf-vpn-common:any-to-any",

               "signaling-type":"ietf-vpn-common:ldp-signaling",

               "underlay-transport":{},

               "status":{},

               "vpn-nodes":{}

            }

         ]

      }

   }

}

This corresponds to the L2-VPN service page in the NSO user interface.

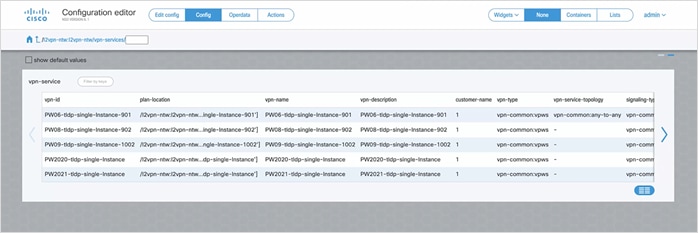

A screenshot of a computerDescription automatically generated

A screenshot of a computerDescription automatically generated

Table 6.           Nokia NSP L2-VPN Parameters

Parameter

Description

vpn-service



vpn-id

The VPN ID.

vpn-name

The VPN name as a string.

vpn-description

The VPN description as a string.

customer-name

The customer’s name exactly as configured in the Nokia NSP controller (this is an integer and not a string)

vpn-type

The VPN type: ietf-vpn-common: vpws.

vpn-service-topology

The topology: ietf-vpn-common:hub-spoke or any-to-any.

signaling-type

The signaling type: ietf-vpn-common:ldp-signaling.

underlay-transport



protocol

The underlay-transport: ietf-vpn-common:rsvp-te

status

admin-status

status

The status of the vpn-service: ietf-vpn-common:admin-up

vpn-nodes



vpn-node



vpn-node-id

The VPN node ID. Use the vpn-id and add -R3 or -R4 as a suffix.

description

The VPN node description.

ne-id

The NE ID.

router-id

The router ID.

status

admin-status

status

The status of the node: ietf-vpn-common:admin-up

signaling-option



signaling-type

The signaling type: ietf-vpn-common:ldp-signaling

ldp-or-l2tp



t-ldp-pw-type

The t-ldp-pw-type: ietf-l2vpn-ntw:vpws-type

pw-type

The pseudowire type: ietf-l2vpn-ntw:ethernet

ac-pw-list



peer-addr

The peer address. When configuring R3, this is R4, and when configuring R4, this is R3.

vc-id

The pseudowire id, for example, 2060.

pw-priority

The PW priority, for example, 1.

vpn-network-accesses



vpn-network-access



id

The VPN network access ID in the format int_<number>, for example, int_223_1.

interface-id

The VPN network access interface ID, for example, Port 1/1/9. This is the access port and may change according to the router.

status

admin-status

status

The status of the interface: ietf-vpn-common:admin-up

connection

encapsulation



encap-type

The connection encapsulation type: ietf-vpn-common:dot1q (VLAN) or priority-tagged (port-mode).

dot1q/priority-tagged

cvlan-id

The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 2060.

service



mtu

The MTU.



Detailed JSON Example

{

   "ietf-l2vpn-ntw:l2vpn-ntw":{

      "vpn-services":{

         "vpn-service":[

            {

               "vpn-id":"PW2060-tldp-single-instqnce",

               "vpn-name":"PW2060-tldp-single-instqnce",

               "vpn-description":"PW2060-tldp-single-instqnce",

               "customer-name":"1",

               "vpn-type":"ietf-vpn-common:vpws",

               "vpn-service-topology":"ietf-vpn-common:any-to-any",

               "signaling-type":"ietf-vpn-common:ldp-signaling",

               "underlay-transport":{

                  "protocol":[

                     "ietf-vpn-common:rsvp-te"

                  ]

               },

               "status":{

                  "admin-status":{

                     "status":"ietf-vpn-common:admin-up"

                  }

               },

               "vpn-nodes":{

                  "vpn-node":[

                     {

                        "vpn-node-id":"PW2060-tldp-single-instqnce-R3",

                        "description":"PW2060-tldp-single-instqnce",

                        "ne-id":"10.10.10.3",

                        "router-id":"10.10.10.3",

                        "status":{

                           "admin-status":{

                              "status":"ietf-vpn-common:admin-up"

                           }

                        },

                        "signaling-option":{

                           "signaling-type":"ietf-vpn-common:ldp-signaling",

                           "ldp-or-l2tp":{

                              "t-ldp-pw-type":"ietf-l2vpn-ntw:vpws-type",

                              "pw-type":"ietf-l2vpn-ntw:ethernet",

                              "ac-pw-list":[

                                 {

                                    "peer-addr":"10.10.10.4",

                                    "vc-id":"2060",

                                    "pw-priority":1

                                 }

                              ]

                           }

                        },

                        "vpn-network-accesses":{

                           "vpn-network-access":[

                              {

                                 "id":"1",

                                 "interface-id":"Port 1/1/9",

                                 "status":{

                                    "admin-status":{

                                       "status":"ietf-vpn-common:admin-up"

                                    }

                                 },

                                 "connection":{

                                    "encapsulation":{

                                       "encap-type":"ietf-vpn-common:dot1q",

                                       "dot1q":{

                                          "cvlan-id":2060

                                       }

                                    }

                                 },

                                 "service":{

                                    "mtu":1492

                                 }

                              }

                           ]

                        }

                     },

                     {

                        "vpn-node-id":"PW2060-tldp-single-instqnce-R4",

                        "ne-id":"10.10.10.4",

                        "router-id":"10.10.10.4",

                        "status":{

                           "admin-status":{

                              "status":"ietf-vpn-common:admin-up"

                           }

                        },

                        "signaling-option":{

                           "signaling-type":"ietf-vpn-common:ldp-signaling",

                           "ldp-or-l2tp":{

                              "t-ldp-pw-type":"ietf-l2vpn-ntw:vpws-type",

                              "pw-type":"ietf-l2vpn-ntw:ethernet",

                              "ac-pw-list":[

                                 {

                                    "peer-addr":"10.10.10.3",

                                    "vc-id":"2060",

                                    "pw-priority":1

                                 }

                              ]

                           }

                        },

                        "vpn-network-accesses":{

                           "vpn-network-access":[

                              {

                                 "id":"1",

                                 "interface-id":"Port 1/1/9",

                                 "status":{

                                    "admin-status":{

                                       "status":"ietf-vpn-common:admin-up"

                                    }

                                 },

                                 "connection":{

                                    "encapsulation":{

                                       "encap-type":"ietf-vpn-common:dot1q",

                                       "dot1q":{

                                          "cvlan-id":2060

                                       }

                                    }

                                 },

                                 "service":{

                                    "mtu":1492

                                 }

                              }

                           ]

                        }

                     }

                  ]

               }

            }

         ]

      }

   }

}



Configure Nokia NSP L2-VPN using NSO (UI)

To add a Nokia NSP L2-VPN service, add two VPN nodes, each with their interface. This is useful for testing an L2-VPN service.

To add a Nokia NSP L2-VPN:

1.    Launch NSO.

2.    Click l2vpn:ntw12vpn-ntw.

3.    Click vpn-services.

A screenshot of a computerDescription automatically generated

4.    Click +.

Graphical user interface, text, application, chat or text messageDescription automatically generated

5.    Enter a unique vpn-id, for example, PW2060-tldp-single-instance, and click confirm.

6.    Click the vpn service.

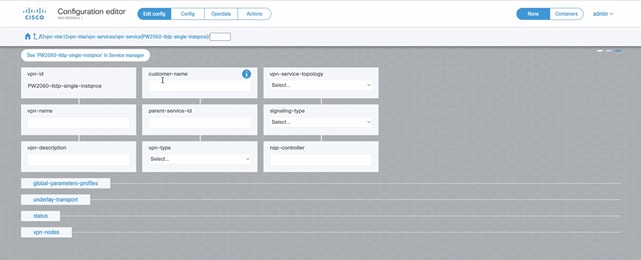

A screenshot of a computerDescription automatically generated

7.    Enter the customer-name exactly as configured in the Nokia NSP controller (this is an integer and not a string).

8.    Enter the vpn-name as a string.

9.    Enter the vpn-description as a string.

10.  Set the vpn-type to vpws.

11.  Set the vpn-service-topology to hub-spoke or any-to-any or hub-spoke-disjoint.

12.  Set the signaling-type to idp-signaling.

13.  Select the nsp-controller (if there is a default nsp-controller, then you can skip this).

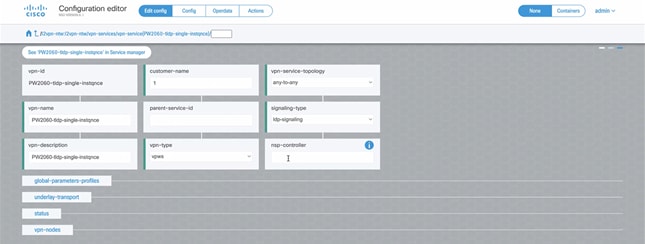

Related image, diagram or screenshot

14.  Click underlay-transport.

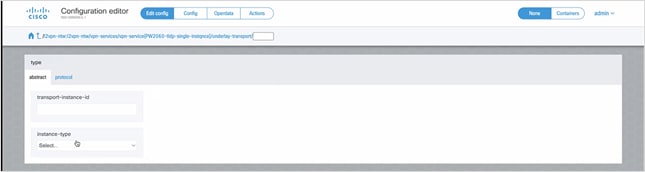

Related image, diagram or screenshot

15.  Click protocol.

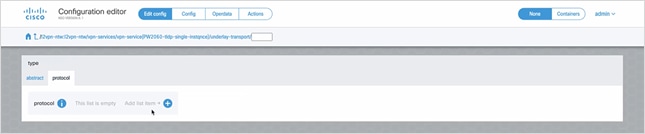

Related image, diagram or screenshot

16.  Click +.

Related image, diagram or screenshot

17.  Select rsvp-te and click confirm.

18.  Return to the vpn (using the breadcrumbs at the top of the page) and click status.

Related image, diagram or screenshot

19.  Click admin-status, and then set the status to admin-up.

Graphical user interface, text, applicationDescription automatically generated

20.  Return to the vpn (using the breadcrumbs at the top of the page).

Related image, diagram or screenshot

21.  Click vpn-nodes.

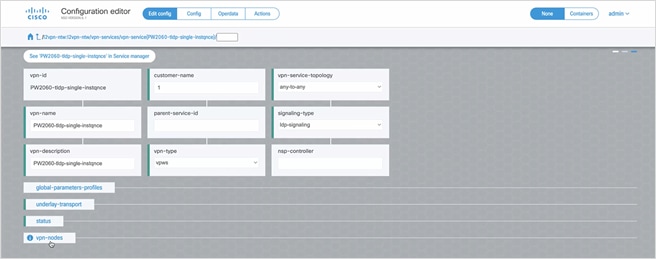

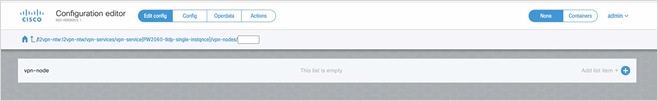

Related image, diagram or screenshot

22.  Click +.

23.  Use the vpn-id and add -R3 as a suffix (when you configure the second node use -R4).

Related image, diagram or screenshot

24.  Click confirm.

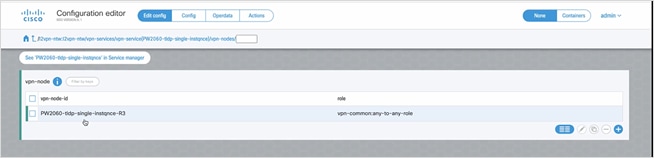

Related image, diagram or screenshot

25.  Click on the vpn-node.

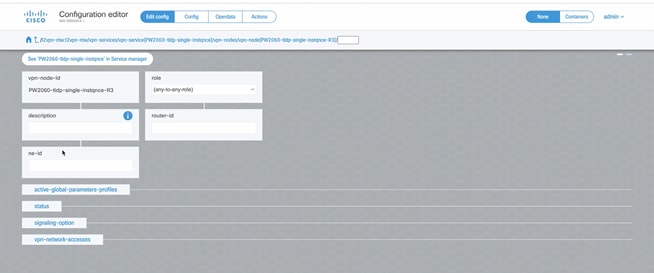

Related image, diagram or screenshot

26.  Enter a description.

27.  Specify the router-id and the ne-id.

28.  Click status. And as done previously, set this to admin-up.

29.  In the vpn-node, click signaling-option.

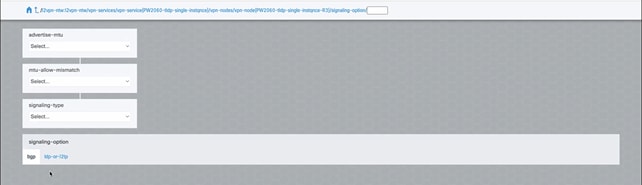

Related image, diagram or screenshot

30.  Click signaling-type and select ldp-signaling.

Related image, diagram or screenshot

31.  Select the ldp-or-l2tp tab and then click ldp-or-l2tp.

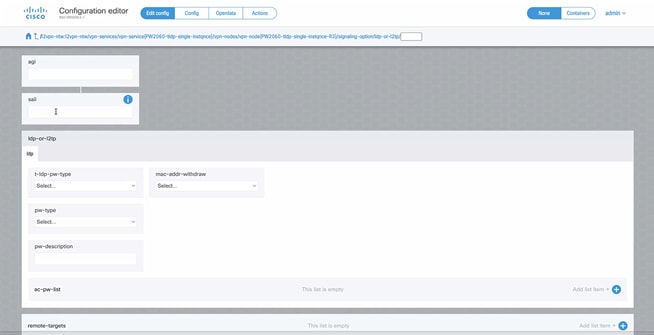

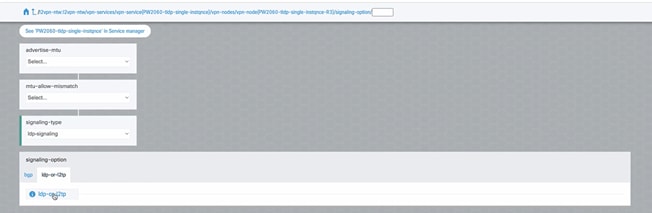

Related image, diagram or screenshot

32.  Click t-ldp-pw-type and select vpws-type.

Related image, diagram or screenshot

33.  Click pw-type and select ethernet.

34.  In the ac-pw-list, click +.

Related image, diagram or screenshot

35.  Enter a peer-addr (of the router).

36.  Enter the vc-id, for example, 2060, and click confirm.

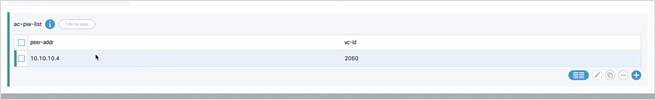

Related image, diagram or screenshot

37.  Navigate back to the vpn-node page and click vpn-network-accesses.

Related image, diagram or screenshot

38.   Click +. This defines the interfaces participating in the VPN.

Graphical user interface, text, application, chat or text messageDescription automatically generated

39.  Specify the interface id and click confirm. This is in the format int_<number>, for example, int_222_1. In this example it is set to 1.

40.  Click on the interface.

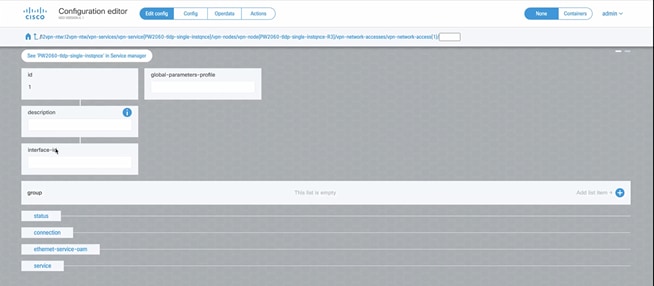

Related image, diagram or screenshot

41.  Enter the interface_id  as Port 1/1/9 (this is the access port and may vary according to the router).

Related image, diagram or screenshot

42.  Enter the description as a string.

43.  Click status.

44.  Click admin-status, and then set the status to admin-up.

45.  Navigate back to the interface page.

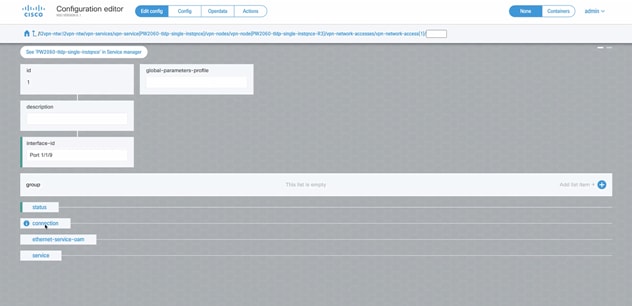

Related image, diagram or screenshot

46.  Click Connection.

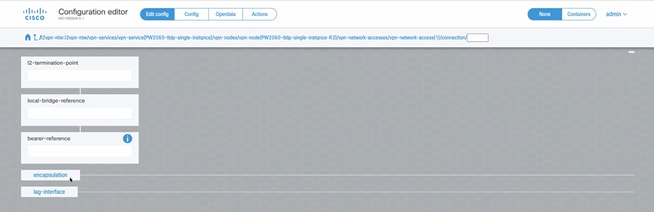

Related image, diagram or screenshot

47.  Click encapsulation.

Related image, diagram or screenshot

48.  Set the encap-type to dot1q.

49.  Click dot1q.

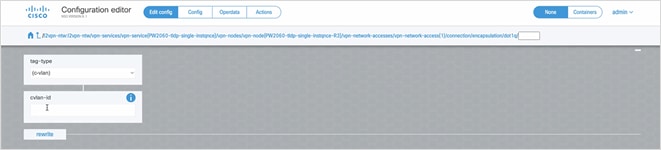

Related image, diagram or screenshot

50.  Enter the cvlan-id.

51.  Alternatively, you can set the encap-type to priority-tagged, and then click priority-tagged and select the tag-type (c‑vlan).

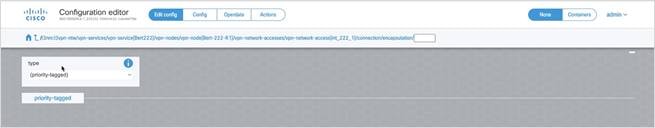

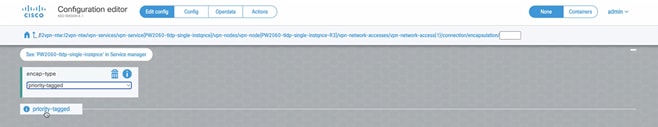

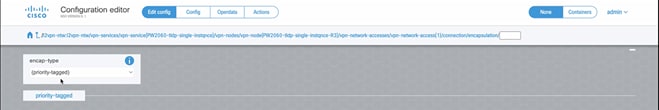

Related image, diagram or screenshot

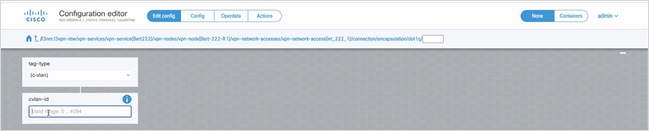

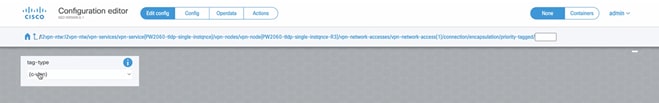

Related image, diagram or screenshot

52.  Navigate back to the interface page.

Related image, diagram or screenshot

53.  Click ethernet-service-oam.

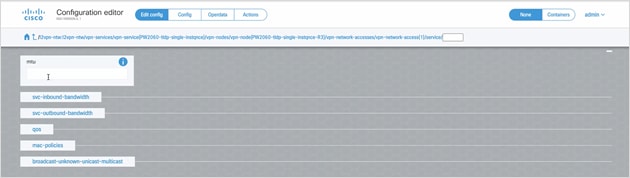

Related image, diagram or screenshot

54.  Enter the mtu.

55.  Navigate back to the VPN service page.

56.  Add another vpn-node following the process previously described, adding the suffix -R4 to the name.

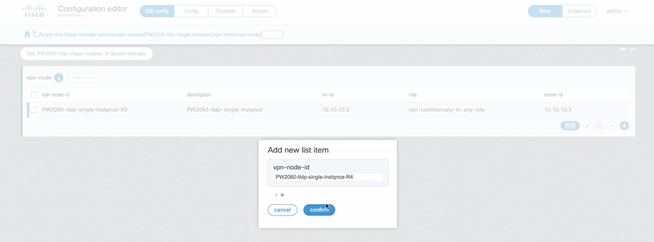

Related image, diagram or screenshot

57.  Follow the procedure above, but when you specify the peer-addr, you should also specify the pw-priority.

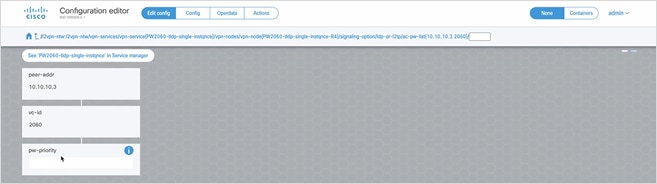

Related image, diagram or screenshot

58.  Once you have finished setting up the second vpn node, click Commit Manager (at the bottom of the screen).

 Related image, diagram or screenshot.

59.  Review the configuration.

60.  Click Commit.

Related image, diagram or screenshot

61.  Click Yes, commit.

62.  Once it has finished, check the VPN.



Configure Cisco Crosswork Network Controller L2-VPN using NSO (JSON)

For full details on Cisco Crosswork Network Controller L2-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide for instructions how to onboard the controller as a device to the NSO device tree and how to deploy the L2-VPN service on a default Cisco Crosswork Network Controller.

The L2-VPN JSON requires the following high-level structure.

{

   "l2vpn-ntw":{

      "vpn-services":{

         "vpn-service":[

               "vpn-id":"alpha",

               "vpn-type":"vpn-common:vpws-evpn",

               "vpn-nodes":{}

         ]

      }

   }

}

The example below is provided as an L2-VPN configuration example.

Table 7.           Cisco Crosswork Network Controller L2-VPN Parameters

Parameter

Description

vpn-service



vpn-id

The VPN ID.

vpn-type

The VPN type: vpn-common:vpws-evpn.

vpn-nodes



vpn-node



vpn-node-id

The VPN node ID.

vpn-network-accesses



vpn-network-access



id

The VPN network access ID in the format <number>, for example, 3501.

interface-id

The VPN network access interface ID, for example, GigabitEthernet0/0/0/4. This is the access port and may change according to the router.

connection

encapsulation



encap-type

The connection encapsulation type: vpn-common:dot1q (VLAN).

dot1q/priority-tagged

cvlan-id

The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 555.

tag-operations



tag-1

The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 555.



Example

<config xmlns="http://tail-f.com/ns/config/1.0">

  <l2vpn-ntw xmlns="urn:ietf:params:xml:ns:yang:ietf-l2vpn-ntw">

    <vpn-services>

      <vpn-service>

        <vpn-id>alpha</vpn-id>

        <vpn-type>vpn-common:vpws-evpn</vpn-type>

        <vpn-nodes>

          <vpn-node>

            <vpn-node-id>PE-A</vpn-node-id>

            <vpn-network-accesses>

              <vpn-network-access>

                <id>3501</id>

                <interface-id>GigabitEthernet0/0/0/4</interface-id>

                <connection>

                  <encapsulation>

                    <encap-type>vpn-common:dot1q</encap-type>

                    <dot1q>

                      <cvlan-id>555</cvlan-id>

                      <tag-operations>

                        <push/>

                        <tag-1>555</tag-1>

                        <!-- <mode xmlns="http://cisco.com/ns/nso/fp/examples/cisco-l2vpn-ntw">symmetric</mode> -->

                      </tag-operations>

                    </dot1q>

                  </encapsulation>

                </connection>

              </vpn-network-access>

            </vpn-network-accesses>

          </vpn-node>

          <vpn-node>

            <vpn-node-id>PE-B</vpn-node-id>

            <vpn-network-accesses>

              <vpn-network-access>

                <id>3501</id>

                <interface-id>GigabitEthernet0/0/0/4</interface-id>

                <connection>

                  <encapsulation>

                    <encap-type>vpn-common:dot1q</encap-type>

                    <dot1q>

                      <cvlan-id>556</cvlan-id>

                      <tag-operations>

                        <push/>

                        <tag-1>556</tag-1>

                        <!-- <mode xmlns="http://cisco.com/ns/nso/fp/examples/cisco-l2vpn-ntw">symmetric</mode> -->

                      </tag-operations>

                    </dot1q>

                  </encapsulation>

                </connection>

              </vpn-network-access>

            </vpn-network-accesses>

          </vpn-node>

        </vpn-nodes>

      </vpn-service>

    </vpn-services>

  </l2vpn-ntw>

</config>



Configure Cisco Crosswork Network Controller L3-VPN using NSO (JSON)

For full details on Cisco Crosswork Network Controller L3-VPN service provisioning using NSO, see the Cisco NSO Crosswork Hierarchical Controller - Function Pack User Guide for instructions how to onboard the controller as a device to the NSO device tree and how to deploy the L3-VPN service on a default Cisco Crosswork Network Controller.

The example below is provided as an L3-VPN configuration example.

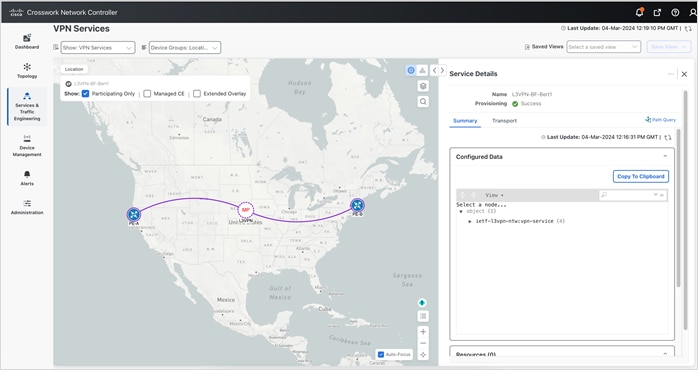

Related image, diagram or screenshot

Table 8.           Cisco Crosswork Network Controller L3-VPN Parameters

Parameter

Description

vpn-service



vpn-id

The VPN ID, for example, PE-A.

vpn-nodes



vpn-node



vpn-node-id

The VPN node ID.

vpn-network-accesses



vpn-network-access



id

The VPN network access ID in the format <number>, for example, 1.

connection

encapsulation



type

The connection encapsulation type: vpn-common:dot1q (VLAN).

dot1q

cvlan-id

The CVLAN ID (circuit ID) for the dot1q encapsulation, for example, 1777.

interface-id

The VPN network access interface ID, for example, GigabitEthernet0/0/0/4. This is the access port and may change according to the router.

ip-connection

ipv4



local-address

The IP connection local address.

prefix-length

The IP connection prefix length.

active-vpn-instance-profiles



vpn-instance-profile

profile-id

THE VPN instance profile.

vpn-service-topology

ietf-vpn-common:any-to-any

vpn-instance-profiles

vpn-instance-profile

rd

The profile ID.

profile-id



address-family

vpn-targets

vpn-target

id

The VPN target ID.

route-target-type

The route target type, for example, both.

address-family





JSON Example

{

   "ietf-l3vpn-ntw:vpn-service":{

      "vpn-id":"L3VPN-BF-Alpha1",

      "vpn-nodes":{

         "vpn-node":[

            {

               "vpn-node-id":"PE-A",

               "vpn-network-accesses":{

                  "vpn-network-access":[

                     {

                        "id":"1",

                        "connection":{

                           "encapsulation":{

                              "type":"ietf-vpn-common:dot1q",

                              "dot1q":{

                                 "cvlan-id":1777

                              }

                           }

                        },

                        "interface-id":"GigabitEthernet0/0/0/5",

                        "ip-connection":{

                           "ipv4":{

                              "local-address":"194.195.196.1",

                              "prefix-length":24

                           }

                        }

                     }

                  ]

               },

               "active-vpn-instance-profiles":{

                  "vpn-instance-profile":[

                     {

                        "profile-id":"any"

                     }

                  ]

               }

            },

            {

               "vpn-node-id":"PE-B",

               "vpn-network-accesses":{

                  "vpn-network-access":[

                     {

                        "id":"1",

                        "connection":{

                           "encapsulation":{

                              "type":"ietf-vpn-common:dot1q",

                              "dot1q":{

                                 "cvlan-id":1777

                              }

                           }

                        },

                        "interface-id":"GigabitEthernet0/0/0/5",

                        "ip-connection":{

                           "ipv4":{

                              "local-address":"194.195.196.2",

                              "prefix-length":24

                           }

                        }

                     }

                  ]

               },

               "active-vpn-instance-profiles":{

                  "vpn-instance-profile":[

                     {

                        "profile-id":"any"

                     }

                  ]

               }

            }

         ]

      },

      "vpn-service-topology":"ietf-vpn-common:any-to-any",

      "vpn-instance-profiles":{

         "vpn-instance-profile":[

            {

               "rd":"0:55:65",

               "profile-id":"any",

               "address-family":[

                  {

                     "vpn-targets":{

                        "vpn-target":[

                           {

                              "id":1,

                              "route-target-type":"both"

                           }

                        ]

                     },

                     "address-family":"ietf-vpn-common:ipv4"

                  }

               ]

            }

         ]

      }

   }

}



Comparison of L3-VPN Parameters for Nokia NSP and Cisco Crosswork Network Controller

The following table lists the parameters shared by Nokia NSP and Cisco Crosswork Network Controller L3-VPN. This list includes the most common parameters used and tested in the examples detailed in this guide. For the full schema, refer to the Network Services Orchestrator (NSO) Crosswork Hierarchical Controller - Function Pack documentation.

Table 9.           L3-VPN Parameters

Common L3-VPN

Nokia NSP L3-VPN

Cisco Crosswork Network Controller L3-VPN

vpn-service

vpn-service

vpn-service

vpn-id

vpn-id

vpn-id

vpn-name

vpn-name

vpn-name

vpn-description

vpn-description

vpn-description

customer-name

customer-name

customer-name



vpn-type



vpn-service-topology

vpn-service-topology

vpn-service-topology



status





admin-status





status



vpn-instance-profiles

vpn-instance-profiles

vpn-instance-profiles

vpn-instance-profile

vpn-instance-profile

vpn-instance-profile

profile-id

profile-id

profile-id

role

role

role

rd

rd

rd

address-family

address-family

address-family

address-family

address-family

address-family

vpn-targets

vpn-targets

vpn-targets



vpn-policies





import-policy





export-policy





underlay-transport





protocol



vpn-target

vpn-target

vpn-target

id

id

id

route-targets

route-targets

route-targets

route-targets

route-targets

route-targets

route-target-type

route-target-type

route-target-type

vpn-nodes

vpn-nodes

vpn-nodes

vpn-node

vpn-node

vpn-node

vpn-node-id

vpn-node-id

vpn-node-id

local-as

local-as

local-as



description





ne-id





router-id



active-vpn-instance-profiles

active-vpn-instance-profiles

active-vpn-instance-profiles

vpn-instance-profile

vpn-instance-profile

vpn-instance-profile

profile-id

profile-id

profile-id



status





admin-status





status



vpn-network-accesses

vpn-network-accesses

vpn-network-accesses

vpn-network-access

vpn-network-access

vpn-network-access

id

id

id

interface-id

interface-id

interface-id



description





vpn-instance-profile





status





admin-status





status



connection

connection

connection

encapsulation

encapsulation

encapsulation

type

type

type

dot1q

dot1q

dot1q

tag-type

tag-type

tag-type

cvlan-id

cvlan-id

cvlan-id





interface-id

ip-connection

ip-connection

ip-connection

ipv4

ipv4

ipv4

local-address

local-address

local-address

prefix-length

prefix-length

prefix-length

routing-protocols

routing-protocols

routing-protocols

routing-protocol

routing-protocol

routing-protocol

id

id

id

type

type

type

peer-as

peer-as

peer-as

address-family

address-family

address-family

neighbor

neighbor

neighbor

multihop

multihop

multihop

redistribute-connected

redistribute-connected

redistribute-connected

address-family

address-family

address-family



Comparison of L2-VPN Parameters for Nokia NSP and Cisco Crosswork Network Controller

The following table lists the parameters shared by Nokia NSP and Cisco Crosswork Network Controller L2-VPN. This list includes the most common parameters used and tested in the examples detailed in this guide. For the full schema, refer to the Network Services Orchestrator (NSO) Crosswork Hierarchical Controller - Function Pack documentation.

Table 10.       L2-VPN Parameters

Common L3-VPN

Nokia NSP L3-VPN

Cisco Crosswork Network Controller L3-VPN

vpn-services

vpn-services

vpn-services

vpn-service

vpn-service

vpn-service

vpn-id

vpn-id

vpn-id

vpn-name

vpn-name

vpn-name

vpn-description

vpn-description

vpn-description

customer-name

customer-name

customer-name

vpn-type

vpn-type

vpn-type

vpn-service-topology

vpn-service-topology

vpn-service-topology



signaling-type



global-parameters-profiles

global-parameters-profiles



global-parameters-profile

global-parameters-profile



profile-id

profile-id



vpn-target

vpn-target



id

id



route-targets

route-targets



route-target

route-targets



route-target-type

route-target-type





underlay-transport





protocol



status

status

status

admin-status

admin-status

admin-status

status

status

status

vpn-nodes

vpn-nodes

vpn-nodes

vpn-node

vpn-node

vpn-node

vpn-node-id

vpn-node-id

vpn-node-id

description



ne-id



role

role

role



router-id





status





admin-status





status



signaling-option

signaling-option

signaling-option

evpn-policies

evpn-policies

evpn-policies

mac-learning-mode

mac-learning-mode

mac-learning-mode



signaling-type





ldp-or-l2tp





t-ldp-pw-type





pw-type





ac-pw-list





peer-addr





vc-id





pw-priority



vpn-network-accesses

vpn-network-accesses

vpn-network-accesses

vpn-network-access

vpn-network-access

vpn-network-access

id

id

id

interface-id

interface-id

interface-id



status





admin-status





status



connection

connection

connection

encapsulation

encapsulation

encapsulation

encap-type

encap-type

encap-type

dot1q

dot1q

dot1q

cvlan-id

cvlan-id

cvlan-id



priority-tagged



tag-operations

tag-operations

tag-operations

push

push

push

tag-1

tag-1

tag-1

cisco-hco-nm:hco-controller



service

Service

service

mtu

Mtu

mtu



Configure L2-VPN/L3-VPN via API

The API endpoint for provisioning L2-VPN and L3-VPN services using the Network Services Orchestrator Crosswork Hierarchical Controller - Function Pack is defined as:

·       https://x.x.x.x:8443/nso/restconf/data

To execute the L3-VPN API from Postman:

·         https://xx.x.x.x:8443/nso/restconf/data/ietf-l3vpn-ntw:l3vpn-ntw/vpn-services/

To execute the L2-VPN API from Postman:

·         https://xx.x.x.x:8443/nso/restconf/data/ietf-l2vpn-ntw:l2vpn-ntw/vpn-services/



View L2-VPN and L3-VPN in Service Assurance

The services provisioned using NSO can be viewed in the Service Assurance application.

The services typically take the following period to be provisioned and appear in Crosswork Hierarchical Controller:

·         NSP: Between 10 seconds and 3 minutes.

·         Cisco Crosswork Network Controller: Between 30 seconds and 2 minutes.

Graphical user interface, text, applicationDescription automatically generated

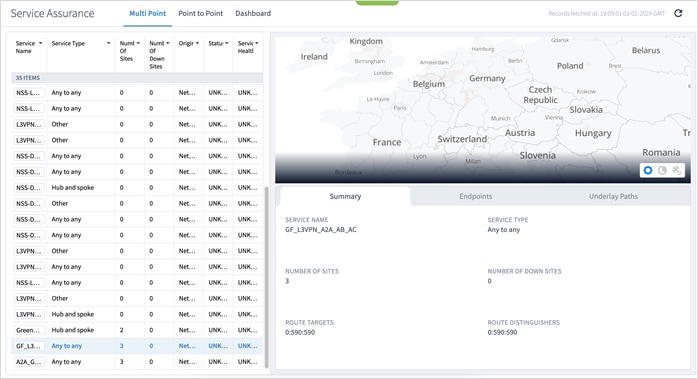

Related image, diagram or screenshot

A screenshot of a computerDescription automatically generated

NSO Provisioning

You can view L2-VPNs and L3-VPNs provisioning tools. To access the NSO Web UI, configure the NSO Address in the Service Settings.

View L2 VPN/L3 VPN

To view L2 VPN/L3 VPN:

1.    In the applications bar in Crosswork Hierarchical Controller, select Service Manager > NSO Provisioning.

A screenshot of a computerDescription automatically generated

2.    Select Manage VPNs.

3.    Select L2 VPN or L3 VPN.

4.    The log in to the server configured in the Service Settings appears.

Related image, diagram or screenshot

Printed in USA		4/23Copyright

Learn more
