Getting Started


Revised: January 10, 2011, OL-21065-03

Introduction

The Cisco Service Control Application Reporter (SCA Reporter) is the Cisco Service Control Application tool that allows you to produce reports based on the traffic analysis performed by the Service Control Engine (SCE) platform. The information is sent from the SCE platform and is stored in a database. The SCA Reporter can query and retrieve information from the database and present the results in a comprehensive range of reports, including global monitoring, subscriber monitoring, P2P, and traffic discovery statistics reports.

System Components

System Requirements

Installing the SCA Reporter in Windows

Installing the SCA Reporter in Linux

Starting the SCA Reporter

Configuring the SCA Reporter

Using Online Help

Quick Start—Getting Started with the SCA Reporter

System Components

The SCA Reporter is a valuable tool for understanding the habits and resource consumption of the applications and subscribers that use your network. It can also be used to judge the efficacy of various rules and the possible impact of their implementation on the network.

The SCA Reporter is available only in a deployment with a database. You can generate reports using any of the following methods:

Standalone application

Command-line interface (CLI)—See The SCA Reporter Command-Line Interface, page 6-1

Tool of the SCA BB Console—See SCA Reporter as a Tool in the SCA BB Console, page C-1

The available reports can be displayed in a variety of chart renderings (for example, stacked-bar or area) or in tabular form. You can adjust the chart display for various presentation options (for example, 3D). You can export both tabular and chart reports to multiple file formats as well as print or send the reports through e-mail. You can also modify the reports by changing the values assigned to the properties (for example, time boundaries). You can duplicate, save, and add reports to Favorites.

You can also generate reports using the SCA Reporter command-line interface (CLI) without using the GUI.

SCA Reporter consists of visual components (known as views). The following are the views and the tasks that you can perform in each view:

Templates view—Select a report template, create a new report instance, and generate a report.

Properties view—View properties of the object in focus and their values. The object in focus can be a template group, a report template, a report instance, or the chart display of a report. You can configure report instance and chart display properties.

Report view—View a graphical representation or tabular display of the data of the report. Each report is displayed in its own report view.

Progress view—Monitor reports executed or exported. You can view progress details in this view, and also choose to generate reports in the background so that you can continue working on other reports.

Favorites view—View a list of frequently used report templates and generate a report.

Hierarchy view—View the report metrics in a hierarchical tree. You can select and deselect metrics to add and remove them from the report.

Generating a report can be divided into five broad steps:

1. Create a report instance from the Templates view using the New Report wizard.

a. Configure the properties of the report instance.

b. Execute the new report instance (optional).

c. Add the new report instance to the favorites view (optional).

2. View the report in tabular or graphic form in its report view.

3. Select and deselect chart items in the hierarchy view to view a subset of the report data.

4. Expand and collapse chart items in the hierarchy view.

5. Adjust the chart display of the report in the Properties view.

You can generate multiple reports simultaneously and later export, print or send the reports through e-mail. While the reports are executing, you can monitor them and put them in the background by using the Progress view.

System Requirements

You can install and run the SCA Reporter GUI front end and command-line application on any computer running Windows 2000, Windows XP or Windows 7.

You can install the SCA Reporter command-line application for Linux on any computer running Red Hat Enterprise Linux 4 or 5.

The computer should have a minimum of 512 MB of memory; 1024 MB of memory is highly recommended.

Minimum screen resolution is 1024 by 768 pixels.

Installing the SCA Reporter in Windows

Installing the SCA Reporter in Windows

Uninstalling the SCA Reporter in Windows

Installing the SCA Reporter in Windows


Step 1 Navigate to the SCA Reporter installation file, SCA Reporter 3.6.5 Setup.exe, and double-click it.

The Welcome to the SCA Reporter 3.6.5 Setup wizard window appears, see Figure 2-1.

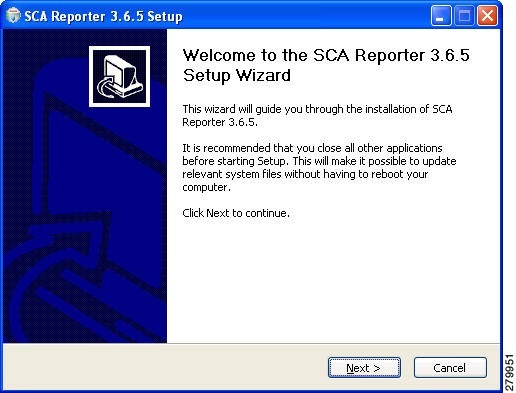

Figure 2-1 SCA Reporter 3.6.5 Setup Wizard Welcome

Step 2 Click Next. The Choose Install Location window of the SCA Reporter 3.6.5 Setup wizard appears, see Figure 2-2.

Figure 2-2 Choose Install Location

Step 3 (Optional) To install it on a different directory, click Browse.

Step 4 Click Next. The Choose Start Menu Folder window of the SCA Reporter 3.6.5 Setup wizard appears, see Figure 2-3.

Figure 2-3 Start Menu Location

Step 5 (Optional) To install it on a different location, enter a different Start Menu folder in the Start Menu Folder field.

Step 6 Click Install. The Installing window of the SCA Reporter 3.6.5 Setup wizard appears, see Figure 2-4.

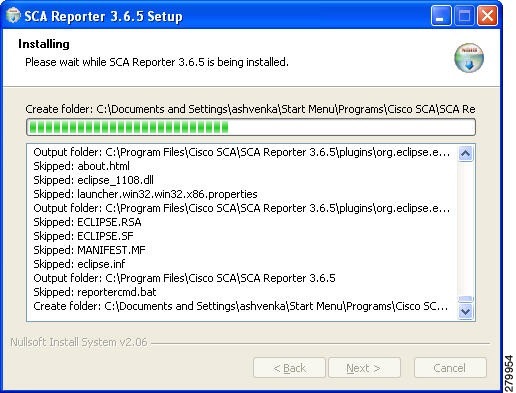

Figure 2-4 Installing

Step 7 Wait until installation is complete. The Completing the SCA Reporter 3.6.5 Setup wizard window appears, see Figure 2-5.

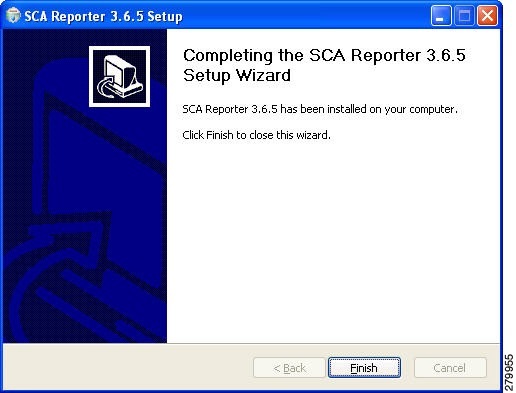

Figure 2-5 Installation Complete

Step 8 Click Finish. The SCA Reporter 3.6.5 Setup wizard closes. The SCA Reporter is now installed on the machine.


Uninstalling the SCA Reporter in Windows


Step 1 Choose Start > All Programs > Cisco SCA > SCA Reporter 3.6.5 > Uninstall. The Welcome to the SCA Reporter 3.6.5 Uninstall wizard appears, see Figure 2-6.

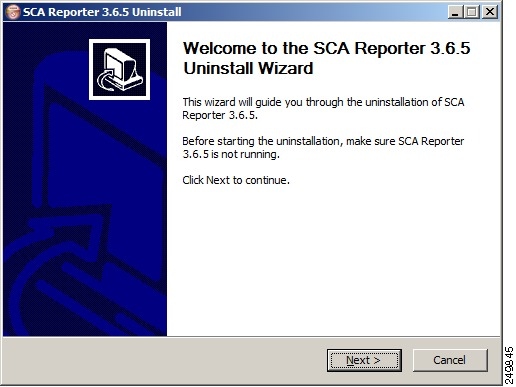

Figure 2-6 SCA Reporter 3.6.5 Uninstall Wizard

Step 2 Click Next. The Uninstall SCA Reporter 3.6.5window appears, see Figure 2-7.

Figure 2-7 Start Menu Folder

Step 3 Click Uninstall. The Uninstalling window appears, see Figure 2-8.

Figure 2-8 Uninstall

Step 4 Wait until uninstallation is complete. The Completing the SCA Reporter 3.6.5 Uninstall wizard window appears, see Figure 2-9.

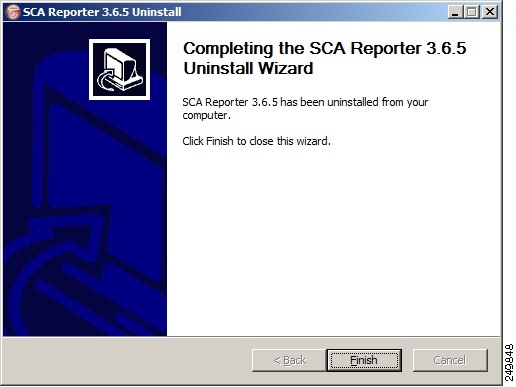

Figure 2-9 Uninstall Complete

Step 5 Click Finish. The SCA Reporter is uninstalled from the machine.


Installing the SCA Reporter in Linux

You can install the SCA Reporter in Linux, and then run it from the command line (see The SCA Reporter Command-Line Interface, page 6-1).

Installing the SCA Reporter in Linux

Uninstalling the SCA Reporter in Linux

Installing the SCA Reporter in Linux


Step 1 Download the SCA BB installation package (reporter-cmd-linux.tgz) from the CCO.

Step 2 Open the installation package in a selected directory, using the tar xpzf reporter-cmd-linux-3.6.5.tgz command.

Step 3 Run the reportercmd.sh -setup command from the installation directory.


Uninstalling the SCA Reporter in Linux

Delete the installation directory.

Starting the SCA Reporter

Access the SCA Reporter from the Start menu.


Step 1 Choose Start > All Programs > Cisco SCA > SCA Reporter 3.6.5 > SCA Reporter 3.6.5.

The Cisco Service Control SCA Reporter splash window appears, see Figure 2-10.

Figure 2-10 Cisco Service Control SCA Reporter

SCA BB Reporter Splash Screen

After the SCA Reporter loads, the main window of the SCA Reporter appears, displaying the Welcome view.

Step 2 Close the Welcome pane. The Templates pane appears, see Figure 2-11.

Figure 2-11 Templates

T

Templates View


Configuring the SCA Reporter

To configure the SCA reporter, you must create a basic configuration for the SCA reporter. This procedure includes selecting a database type, connecting to a database, activating the database, and setting the IP address of the Service Control Engine (SCE) platform whose service configuration data is to be used.

In bundled mode, the Cisco Service Control Management Suite (SCMS) Collection Manager (CM) is used with the Sybase Adaptive Server Enterprise (Sybase ASE). The Sybase data management platform supports transaction-intensive enterprise applications. It enables you to store and retrieve information online and can warehouse information as needed. (For more information, see Cisco Service Control Management Suite Collection Manager User Guide.) The CM can also be configured to work with Oracle and MySQL databases.

After a database is activated, you must select the IP address of one of the SCE platforms in the database. The choice is made for each repository, represented by a tab in the Preferences (Filtered) window. All options offered in the Templates view of the SCA Reporter (available packages, services) are determined by the service configuration currently applied to the configured SCE platform. Each report is generated according to the SCE device to which it is configured. In the example configuration, there is one SCE device connected to the database and one repository preference.

Managing Database Connections

Setting the IP Address of an SCE Platform

Setting Chart Colors

Configuring the Legend in Charts

Configuring Advanced Options for the SCA Reporter

Managing Database Connections

To use the SCA Reporter, you must create and activate a connection to a database containing data generated from an SCE platform.

You can add connections to a number of databases, and then change the active database as required.

Adding a Database Connection

Activating Database Connections

Adding a Database Connection

A database connection can be added using the Add Database wizard.


Step 1 At the Main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears, see Figure 2-12.

Step 2 From the Reporter tree, choose Reporter > Databases.

Figure 2-12 Preferences (Filtered) (Databases)

Reporter Preferences

Step 3 In the Databases pane, click Add. The Add Database wizard window appears, see Figure 2-13.

Figure 2-13 Add Database Wizard

Database Connection Definition

Step 4 Select one of the Choose definition mode radio buttons.

Simple

Advanced

Step 5 Click Next.

The Define new database connection window appears. The display depends upon the definition mode selected in Step 4:

If you selected Simple definition mode, the display of the Define new database connection window is as shown in Figure 2-14

Figure 2-14 Define New Database Connection

Define New Database Type

If you selected Advanced definition mode, the display of the Define new database connection window is as shown in Figure 2-15

Figure 2-15 Advanced Definition

Define New Database Connection

Step 6 Enter the required details to fill in all fields.

Step 7 (Optional) Check the Activate this database check box.

Step 8 Click Finish. The Add Database wizard closes.

The definition of the database is added to the list in the Preferences (Filtered) window, see Figure 2-16.

Figure 2-16 Preferences (Filtered)—Databases

Database Preferences - Databases

Step 9 Click Test Active DB.

The database connection is tested.

If successful, the following message appears: Click OK.

If unsuccessful, reconfigure the database connection.

Step 10 Click OK. The Preferences (Filtered) window closes.


Activating Database Connections


Step 1 At the main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears.

Step 2 From the Reporter tree, choose Reporter > Databases. All defined database connections are listed in the table.

The currently active database (if any) is shown by a check mark (211095.jpg).

Step 3 Choose the database connection you wish to activate.

Step 4 Click Activate.

Step 5 Click OK. The database is activated.

The first IP address listed for policy data is selected as the IP address of the SCE platform whose service configuration data is to be used in reports. The Preferences (Filtered) window closes.


Setting the IP Address of an SCE Platform

The IP address is set automatically to the first entry of the IP list, when the database is activated. To change the IP address, use this procedure.


Note The Preferences (Filtered) window contains one tab for each repository (set of templates) available in the Reporter. In each template, you choose one SCE platform. If there is more than one repository, more than one set of template groups in the Templates view exists.



Step 1 At the main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears, see Figure 2-17.

Step 2 In the Reporter tree, select Reporter > Templates.

Figure 2-17 Preferences (Filtered)—Templates

Preferences

Step 3 In the Templates pane, from the IP of SCE for policy data drop-down list, choose the IP address of the SCE platform whose service configuration data is to be used in reports. This IP address is added to the SCA Reporter templates repository.

Step 4 Click Apply. The IP address of the SCE platform is set for service configuration data.


Note Before you close the dialog box, you must click Apply.


Step 5 Click OK. The Preferences (Filtered) window closes.


Setting Chart Colors

Instead of using the default color set for charts that is installed as part of the Reporter installation (the predefined colors are packaged within the SCA BB Templates package), you can define your own color sets.

This allows you to ensure color persistence between different sessions of the Reporter, including:

Different sessions of the same Reporter installation

Different Reporter installations using data from the same SCE platform, by exporting and importing color files

Different Reporters using data from different SCE platforms

Different versions of the Reporter

For information on Color Sets and changing legend item color, see Using Color Sets and Changing a Single Legend Item Color.

Using Color Sets

Each line of the a color set file defines the color of one legend item. It is recommended that you avoid editing the color set file manually.


Step 1 At the Main menu, choose Preferences (Filtered)> Reporter. The Preferences (Filtered) dialog box appears.

Step 2 In the Reporter tree, choose Reporter > Charts Colors. The Charts Colors pane appears, see Figure 2-18.

Figure 2-18 Chart Colors Preference


Step 3 Select an action to perform:

To import a color set from a file, click Import.

An Open dialog box appears. Browse to the required file and click Open. The file is imported and overwrites the existing color set.

To export the current color set to a file, click Export.

A Save As dialog box appears. Browse to the required directory, enter a file name in the File name field, and click Save. The color set is exported.

To Restore the default color set (the predefined colors delivered with the SCA BB Templates package), click Restore Defaults.

To enable the color allocation method used before release 3.5.0, check the Enable legacy coloring mode check box, see Figure 2-19.

Figure 2-19 Chart Colors - Enable Legacy Coloring Mode



Note Before applying Import, Restore Defaults, or Enable legacy color mode, a Confirm discarding color settings dialog box appears, see Figure 2-20.


Figure 2-20 Confirm Discarding Color Settings


Step 4 Click OK. The Preferences (Filtered) window closes.


Changing a Single Legend Item Color


Step 1 At the Main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears.

Step 2 In the Reporter tree, choose Reporter > Charts Colors. The Charts Colors preference pane appears.

Step 3 Select a legend item (in the following window, a service) from the color tree.

The current color of the legend item appears in the upper right corner of the Charts Colors pane, see Figure 2-21.

Figure 2-21 Current Color



Note Possible categories of legend items are Direction, Hostname, Host IP, Protocol, MOS, Range, Codec, Port Number, Newsgroup, Protocol, Service, Measure, and Subscriber.

Categories and legend items are only displayed in the Charts Colors pane after colors are allocated to legend items. Colors are allocated to any legend items in the chart the first time a report instance is executed.


Step 4 Click the color. A color palette window appears, see Figure 2-22.

Figure 2-22 Color Palette


Step 5 Select a new color for the legend item and click OK.

The Color window closes. The selected color is applied to the legend item, see Figure 2-23.

The Reset button is enabled.

Figure 2-23 Selected Color Applied



Note The Reset button restores the default color of a single selected legend item.



Configuring the Legend in Charts

You can globally configure the appearance of the legend in charts.


Step 1 At the Main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears, see Figure 2-24.

Step 2 In the Reporter tree, select Reporter > Configuration.

Figure 2-24 Preferences (Filtered)—Configuration

Preferences Configuration.jpg

Step 3 (Optional) Uncheck the Show item check box in legend check box.

Step 4 (Optional) Uncheck the Allow multi column in legend check box.

Step 5 (Optional) In the Max legend percentage field, enter a new value.

Step 6 Click OK. The new settings are saved. The Preferences (Filtered) window closes.


Configuring Hierarchy View

To configure several attributes of the Hierarchy view:


Step 1 At the Main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears, see Figure 2-25.

Step 2 In the Reporter tree, select Reporter > Configuration.

Figure 2-25 Preferences (Filtered)—Configuration

Step 3 (Optional) Check open hierarchy view on start.

Step 4 (Optional) In the services tree default level field, enter a new value.

Step 5 (Optional) In the sorted tree number of services on other group field, enter a new value indicating the number of services to include in the Other group of the hierarchy.

Step 6 Click OK. The new settings are saved.

The Preferences (Filtered) window closes.


Configuring Advanced Options for the SCA Reporter

You can configure the following advanced options of the SCA reporter:

Logging debug messages

Length of time to wait for a database connection

Maximum number of report instances that can be executed simultaneously


Step 1 At the Main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears, see Figure 2-26.

Step 2 In the Reporter tree, choose Reporter > Configuration.

Figure 2-26 Preferences (Filtered)—Configuration

Database Preferences - Configuration

Step 3 To log debug messages, check the Send debug messages to log check box.

Logging debug messages can cause the log file to grow rapidly.

Step 4 Enter a new value in the seconds to wait for a database connection field.

Step 5 Enter a new value in the maximum number of reports that can be executed simultaneously field.

Step 6 Click OK. The new settings are saved. The Preferences (Filtered) window closes.


Using Online Help

Accessing Online Help

Using Online Help Search

Accessing Online Help

To access parts of this user guide from the SCA reporter:


Step 1 From the Help menu, choose Help Contents. Online help appears in a separate window. For more information, see "Using Online Help Search" section.


Using Online Help Search

You can also search online help from inside the SCA Reporter.


Step 1 From the Help menu, choose Search. The Help view appears in the Reporter window (Figure 2-27).

Figure 2-27 Reporter Help

Search Window

Step 2 Enter a word, phrase, or expression in the Search expression field.

The Go button is enabled.


Note Click >> (Expand) for an explanation of how to construct search expressions.


Step 3 Click Go. Help topics containing your search expression appear under Local Help.

Step 4 To view its contents, click a help topic.


Note You can bookmark topics for later reference.


Step 5 By clicking the appropriate link at the bottom of the Help view, you can switch to:

All topics

Related topics

Bookmarks


Quick Start—Getting Started with the SCA Reporter

This Quick Start section helps you get started with the SCA Reporter. You can configure the Reporter, create a report instance and generate a report, and then work with the report.

Creating a First Report

Working with a First Report

Creating a First Report


Step 1 Launch the SCA Reporter (choose Start > All Programs > Cisco SCA > SCA Reporter 3.6.5 > SCA Reporter 3.6.5) (Figure 2-28).

Figure 2-28 Reporter

Templates View

Step 2 Add, configure, and activate a database connection (see Managing Database Connections).

Step 3 Confirm that there is an active database and that the system is configured correctly.

a. At the Main menu, choose Preferences (Filtered) > Reporter. The Preferences (Filtered) window appears.

b. In the Reporter tree, choose Reporter > Databases.

c. In the Databases pane, click Test Active DB.

Step 4 In the Templates view, expand the node of one of the template groups, see Figure 2-29.

Figure 2-29 Templates

Templates View - Global Monitoring

Step 5 Do one of the following:

Double-click a report template

Right-click a report template.

A report template popup menu appears, see Figure 2-30.

Figure 2-30 Templates Popup Menu

Report Template Properties Popup

Step 6 From the menu, select New. The New Report wizard appears, see Figure 2-31.

Figure 2-31 New Report Wizard

The report instance has the same name as the report template with the addition of "#1". You can optionally rename the report instance by entering a name in the Report name field.

Step 7 Configure the report instance properties

If any property has the value 211096.jpg (not set), you must assign a value to it.

Step 8 Click Next (Figure 2-32).

Figure 2-32 Select Report Actions

Step 9 Click Finish.

A report instance is added below the report template, see Figure 2-33.

Figure 2-33 Report Instance Added

The report instance appears in the Favorites view, see Figure 2-34.

Figure 2-34 Favorites

A report view, with the name of the report instance, appears in the top right of the SCA Reporter window, displaying a chart of the report, see Figure 2-35.

Figure 2-35 Report

Select Report Display

All the services included in the report are included in the Hierarchy view, see Figure 2-36.

Figure 2-36 Hierarchy

Step 10 View your report. The chart display properties are shown in the Properties view, see Figure 2-37.

Figure 2-37 Properties

Chart Display Properties


Working with a First Report


Step 1 Create a report, as described in the previous procedure.

Step 2 Adjust the chart display by modifying the chart display properties in the Properties view. (See Adjusting the Chart Display, page 5-11.)

Step 3 In the Hierarchy view, uncheck several chart items. The modified report appears in the report view, see Figure 2-38.

Step 4 In the report view, from the drop-down menu above the view, choose Go To Report.

Figure 2-38 Modified Report

The Properties view displays the report instance properties.

Step 5 Display all the report instance properties by clicking 210402.jpg (Show Advanced Properties) (Figure 2-39).

Figure 2-39 Report Properties

Show Advanced Properties View

Step 6 Modify one or more properties. (See Modifying Existing Report Instances, page 4-7.)

Step 7 Click 210406.jpg (Execute) to regenerate the report.

The modified report is displayed in the report view, see Figure 2-40.

Figure 2-40 Modified Report

Modified Report in Report View

(In the illustrated example (Figure 2-40), the Traffic Direction and Units of results properties were modified).
