Field Notice: FN - 72289 - Cisco Emergency Responder: QuoVadis Root CA 2 Decommission Might Affect Smart Licensing Functionality - Workaround Provided

Notice

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE OR WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY. YOUR USE OF THE INFORMATION ON THE FIELD NOTICE OR MATERIALS LINKED FROM THE FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Revision History

Revision	Publish Date	Comments
2.0	24-Feb-22	Updated the Problem Description, Background, Problem Symptom, and Workaround/Solution Sections
1.0	07-Jan-22	Initial Release

Products Affected

Affected OS Type	Affected Software Product	Affected Release	Affected Release Number	Comments
NON-IOS	Emergency Responder Updates	CER 12.0	12.0(1) SU1, 12.0(1) SU2
NON-IOS	Emergency Responder Updates	CER 12.5	12.5(1), 12.5(1)SU1, 12.5(1)SU2, 12.5(1)SU3, 12.5(1)SU4, 12.5(1a)
NON-IOS	Emergency Responder Updates	14	14

Defect Information

Defect ID	Headline
CSCvx00538	QuoVadis root CA decommission on Cisco Emergency Responder

Problem Description

For affected versions of the Cisco Emergency Responder (CER) software, some Secure Sockets Layer (SSL) certificates issued from the QuoVadis root certificate authority (CA) trust chain before March 31, 2021 cannot be renewed from this CA. Once those certificates expire on devices or are removed from the Cisco cloud servers, functions such as Smart Licensing will fail to establish secure connections to Cisco and might not operate properly.

Background

The QuoVadis Root CA 2 Public Key Infrastructure (PKI) used by CER software to issue SSL certificates is subject to an industry-wide issue that affects revocation abilities. Due to this issue, no new QuoVadis Root CA 2 certificates will be issued or renewed by Cisco after March 31, 2021. This affects certificate renewals on devices, Cisco cloud servers, and third-party services.

Certificates issued before the QuoVadis Root CA 2 was decommissioned will continue to be valid. However, the certificates will not renew when they expire on either the device or the Cisco cloud server. This will cause functions such as Smart Licensing to fail to establish secure connections to Cisco cloud servers.

This table shows a summary of the QuoVadis Root CA 2 certificate expiration dates for affected Cisco services.

Cisco Cloud Server	QuoVadis Certificate Expiration Date	Affected Services
tools.cisco.com	February 5, 2022	Smart Licensing

Problem Symptom

Expiration of the QuoVadis Root CA 2 certificates affects these services with the associated symptoms.

Affected Services	Symptoms for Affected Services
Smart Licensing	Failure to connect to the server (Details are provided in this section)



For CER, affected versions will be unable to connect to the Smart Licensing services hosted by Cisco. Smart licenses might fail entitlement and reflect an Out of Compliance status.

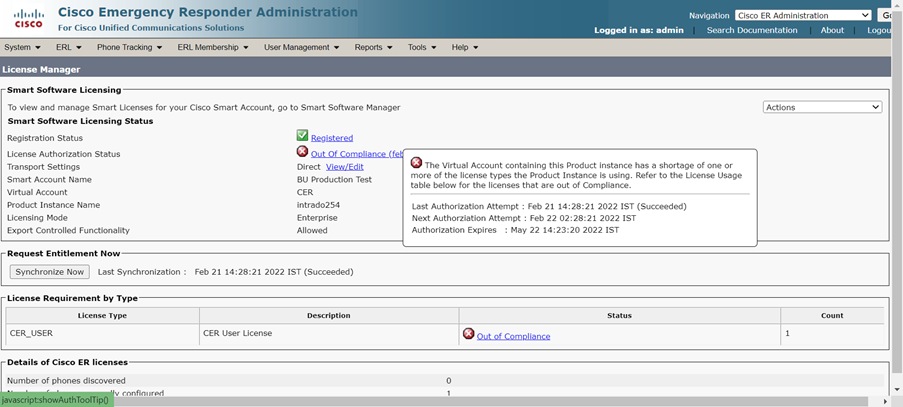

For CER, choose System > Licensing Manager in the administrator web interface in order to view the licensing status.

The features that use Smart Licensing will continue to function for 90 days after the last successful secure connection. Some Smart Licensing symptoms are:

• When CER is unable to connect to Cisco Smart Software Manager (CSSM), the server will display this message in the License Management UI. CER will continue to try to establish a connection to CSSM for a 90 day period.

  The product instance was unable to renew license authorization due to a communication timeout. Ensure that the product instance can communicate with Smart Software Manager or your Smart Software Manager satellite. The Product Instance will continue attempting license authorization periodically until it succeeds, or authorization expires.

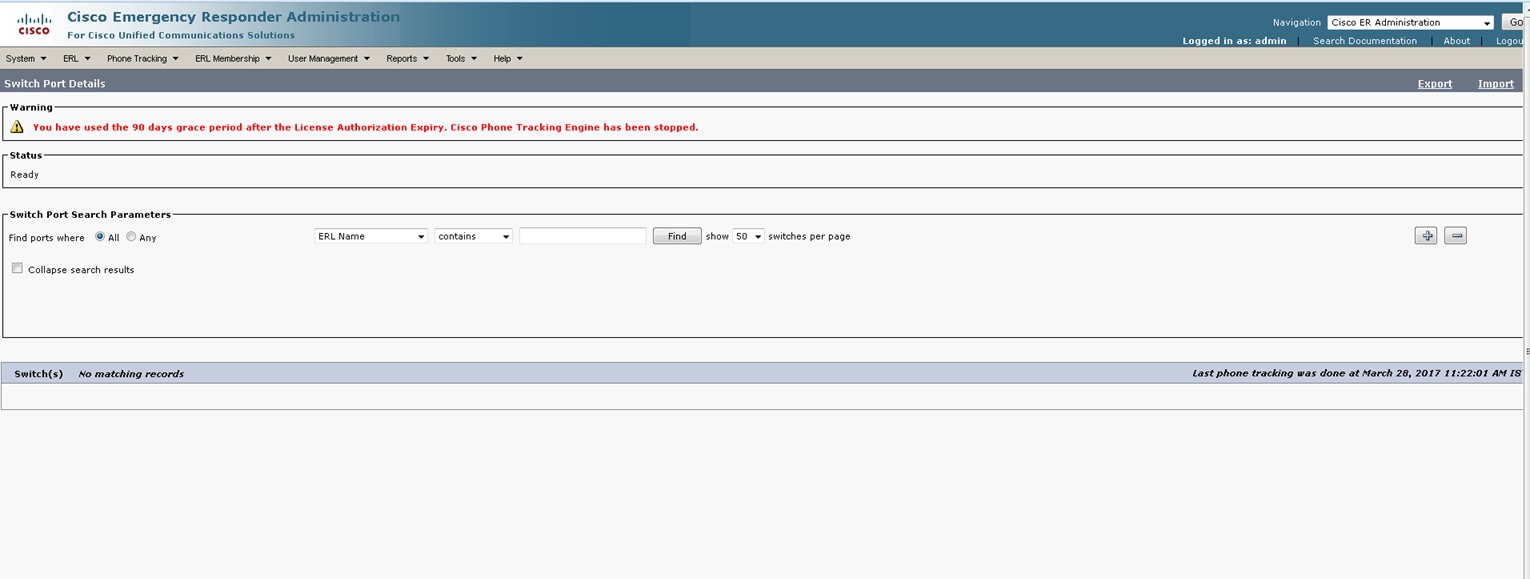

• After the 90 day retry expires, this warning will be displayed:

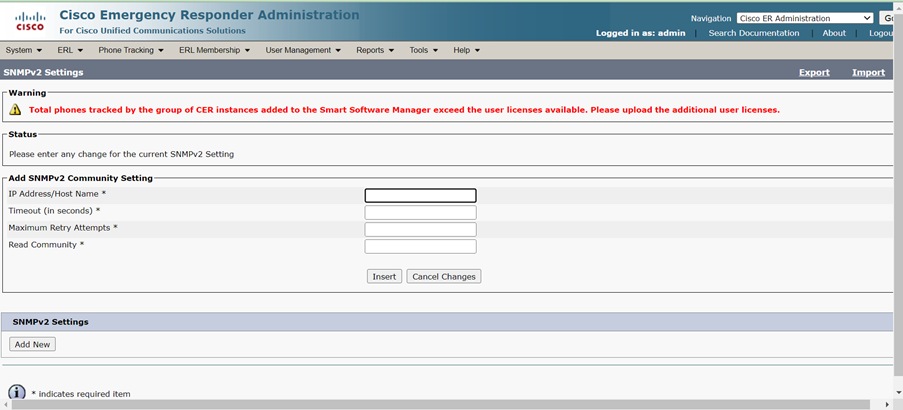

• These warnings will be displayed in the Phone Tracking and ERL Membership submenu pages:

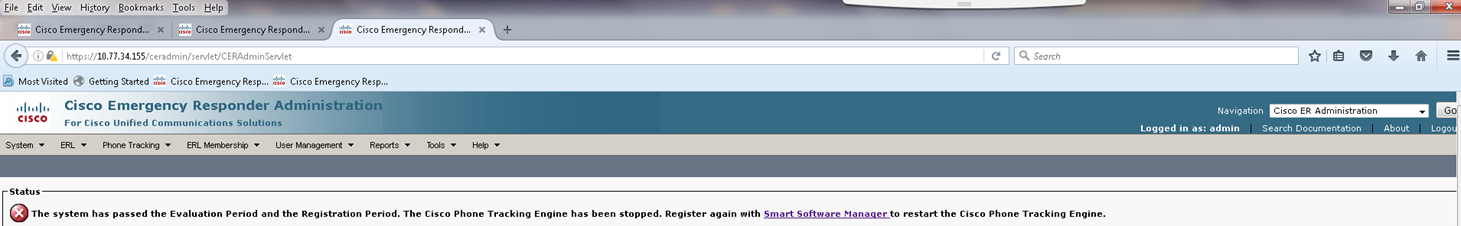

• If the administrator fails to reauthorize in the 90 day grace period, the system goes into Out of Compliance status and will start Enforced Mode.

  Enforced Mode will stop the phone tracking engine and the discovery of devices from Cisco Unified Communications Manager (CUCM) is blocked.







Note: Offline licensing, such as Permanent License Reservation (PLR) and Specific License Reservation (SLR), is not affected by the certificate change on the Smart Licensing server.

For additional information, refer to the Cisco Smart Licensing Guide.

Workaround/Solution

Cisco has migrated from the QuoVadis Root CA 2 to the IdenTrust Commercial Root CA 1 for SSL certificates. Cisco recommends these two options to add the new IdenTrust Commercial Root CA 1 certificate to CER.

• Software Upgrade
• Manual Certificate Update

Software Upgrade

For CER-based devices, upgrade to one of the CER software versions shown in the table in order to resolve the root CA certificate issue for affected platforms.

Release Version	Fixed Version
CER12.0(1) SU1, 12.0(1) SU2 12.5(1), 12.5(1a), 12.5(1)SU1, 12.5(1)SU2, 12.5(1)SU3, 12.5(1)SU4, CER 14	CER 12.5(1)SU5 CER 14SU1

If the CER version is 12.5.1SU5 or 14SU1 or later, no action is needed as the new certificate is provided natively.

Manual Certificate Update

For all other CER 12.0, 12.5, and 14 versions, Cisco recommends to install the COP file on the CER Publisher to add the new IdenTrust Commercial Root CA 1 certificate to CER.

1. Follow the directions in the Cisco Emergency Responder COP File for SLM CDETS CSCvx00538 document.
2. Download the COP file.

Note: Existing certificates issued from the HydrantID SSL ICA G3 do not need replacement. They are normal certificates issued from the current SSL certificate service and can be used until expiration.

For More Information

Cisco has created a web page to provide customers and partners with additional information on this issue. Consult the QuoVadis Root CA 2 Decommission page for a full list of products affected, associated Field Notices, and frequently asked questions.

If you require further assistance, or if you have any further questions regarding this field notice, please contact the Cisco Systems Technical Assistance Center (TAC) by one of the following methods:

• Open a service request on Cisco.com
• By email or telephone
