Cisco Nexus 93400LD-H1 Switch Data Sheet

The Cisco Nexus^® 93400LD-H1 Switch is a 48-port 50G, 4-port 400G fixed switch.

Product overview

The advent of 5G networks creates unprecedented opportunities and challenges for telcos and enterprises to deliver secure services and new user experiences. Each new generation of mobile networks has driven the need for increased precision and accuracy in synchronization standards and solutions. 5G technology is needed to support Ultra-Reliable Low-Latency Communications (URLLC) services, and new revenue-generating services such as autonomous vehicle connectivity and eHealth services are simply not possible without highly accurate and reliable time synchronization. Even such services as massive Industrial Internet of Things (IoT) and other industrial automation services require reliable time synchronization.

Furthermore, Artificial Intelligence and Machine Learning (AI/ML) applications are being used increasingly in today’s data centers, and the Cisco Nexus 9000 Series Switches have the hardware and software capabilities to provide the right latency, congestion-management mechanisms, and telemetry to meet the requirements of those applications. The Cisco Nexus 9000 Series Switches address the need for high-performance, power-efficient, compact switching in the networking infrastructure, designed to support 400G fabrics for next-generation leaf and spine designs.

Large-cloud and data-center networking teams require a flexible, reliable solution that efficiently manages, troubleshoots, and analyzes their IT infrastructure. In addition, they need security, automation, visibility, analytics, and assurance. Coupled with tools such as Cisco Nexus Dashboard Insights for visibility and Nexus Dashboard Fabric Controller for automation, Cisco Nexus 9000 Series Switches are ideal platforms to build a high-performance AI/ML network fabric.

The Cisco Nexus 93400LD-H1 Switch introduces Precision Time Protocol (PTP) with Class C 1588 timing accuracy to the Nexus 9000 fixed-switch portfolio. Through PTP and Synchronous Ethernet (SyncE), it delivers frequency and time distribution with high accuracy. The switch is built with backward-compatible 400G optical interface Quad Small Form-Factor Pluggable–Double Density (QSFP-DD) ports for high density aggregation at 400 Gbps speed; it also offers various lower port speeds and densities, including 10, 25, and 50 Gbps. The Cisco Nexus 93400LD-H1 Switch is based on Cisco^® Cloud Scale technology equipped to support next-generation cloud architecture.

The Cisco Nexus 93400LD-H1 is a 1-Rack-Unit (1RU) 48-port 50 Gigabit Ethernet, 4-port 400 Gigabit Ethernet switch that supports 8 Tbps of bandwidth. The switch provides 40MB of on-die packet buffer with MACsec capability on all ports.

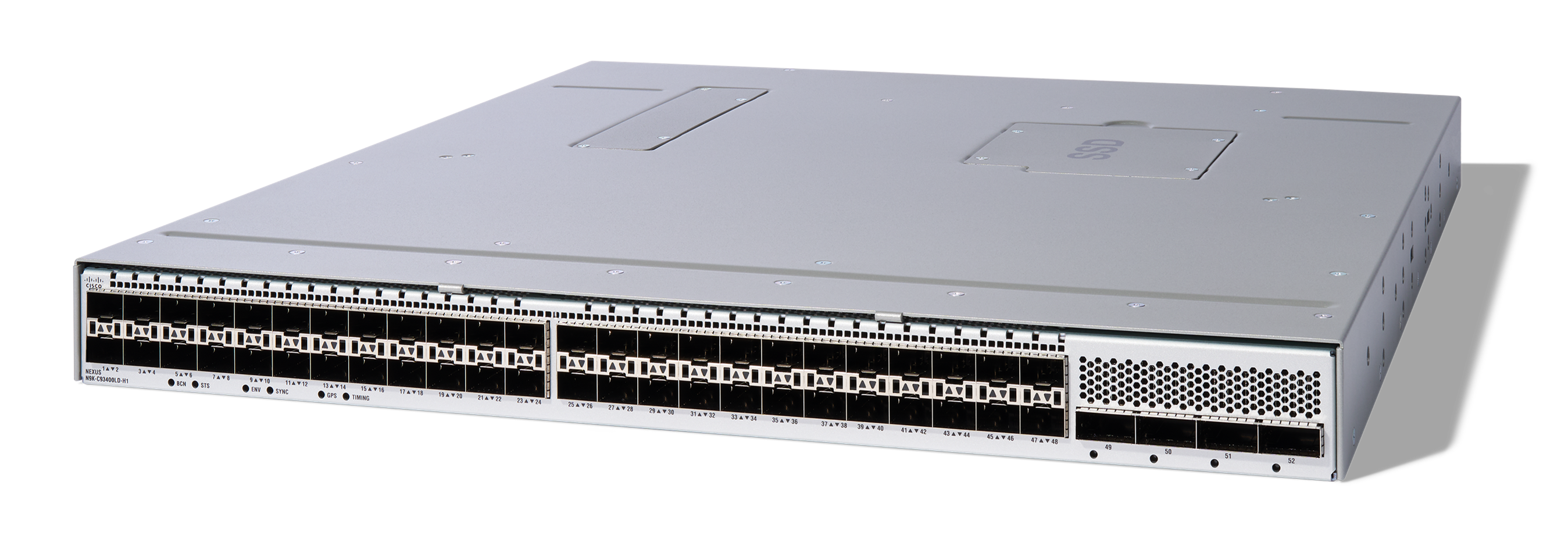

Cisco Nexus 93400LD-H1 Switch, front view

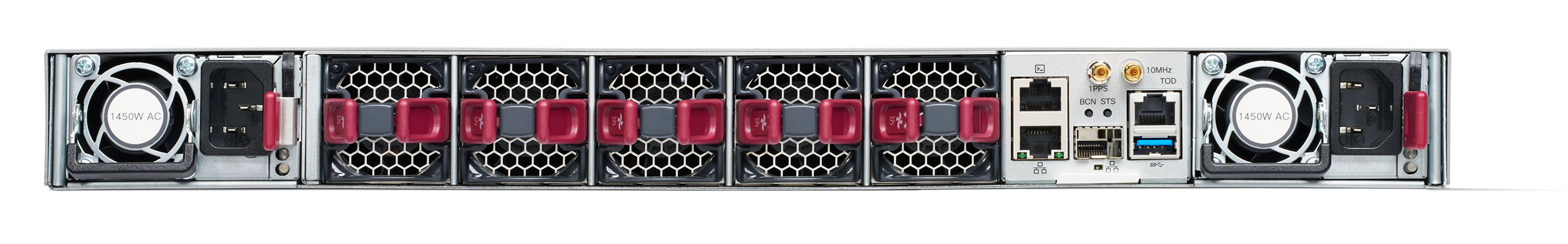

Cisco Nexus 93400LD-H1 Switch, rear view

Features and benefits

Table 1.           Features and benefits

Licensing

The default system software has a comprehensive Layer-2 security and management feature set. To enable additional functions, including Layer-3 IP unicast and IP multicast routing and Cisco Nexus Data Broker, you must install additional licenses. The Cisco Nexus 93400LD-H1 Switch uses the XF class Cisco Data Center Network (Cisco DCN) Premier, Advantage, and Essentials subscription licenses. The licensing guide illustrates the software packaging and licensing available to enable advanced features. For the latest software release information and recommendations, refer to the release notes.

Product sustainability

Table 2.           Cisco environmental sustainability information

Product specifications

Table 3.           Cisco Nexus 93400LD-H1 Switch specifications

Table 4.           Cisco Nexus 93400LD-H1 Switch power-supply specifications

Table 5.           Performance and scalability specifications

Table 6.           Weight

Supported optics modules

For details on the optical modules available and the minimum software release required for each supported optical module, visit here.

Table 7.           Ordering information

Regulatory standards compliance

Table 8.           Regulatory standards compliance: safety and EMC

Warranty information

The Cisco Nexus 93400LD-H1 Switch has a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a Return Materials Authorization (RMA).
